Summary

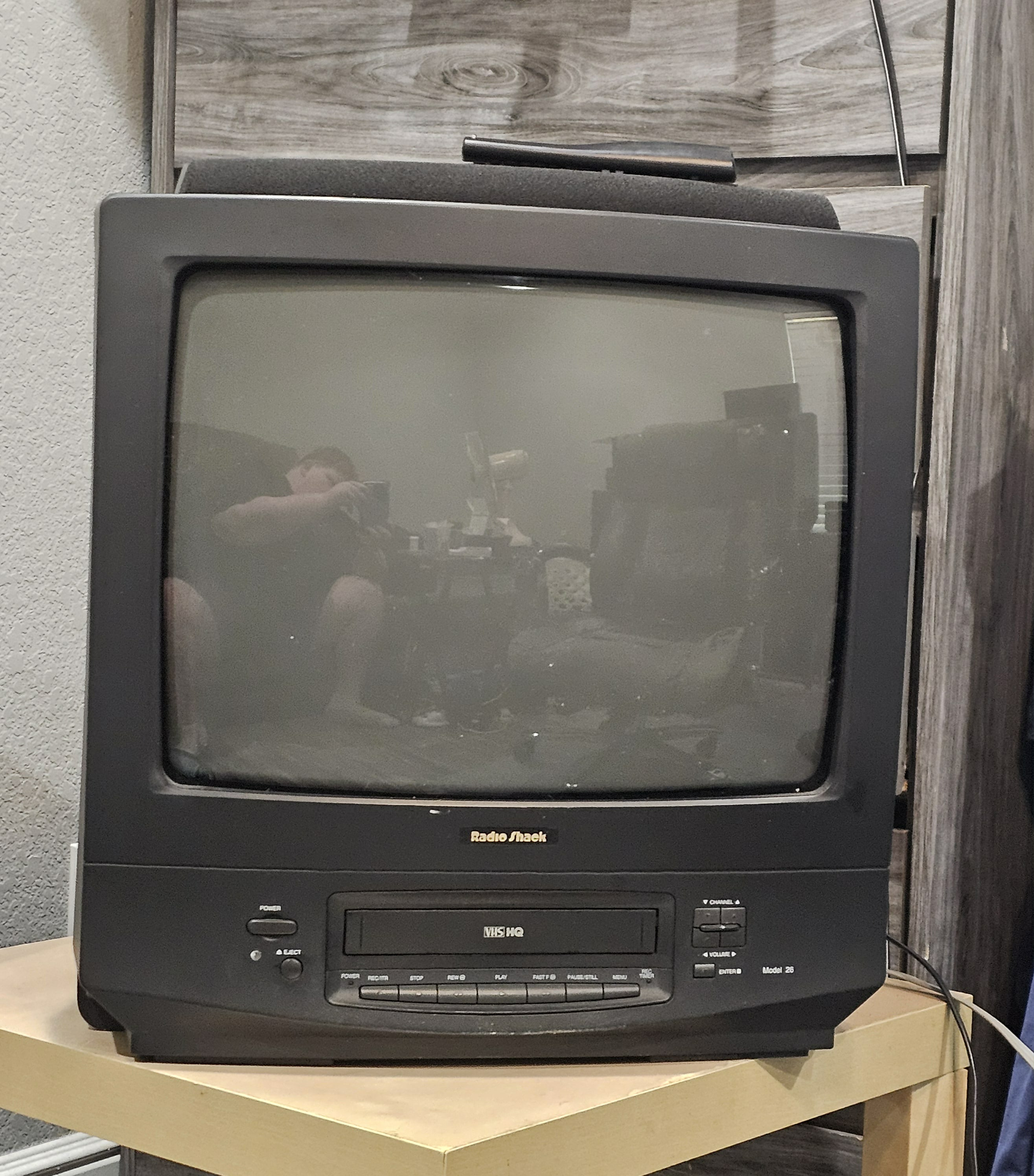

19" TV/VCR combo by RadioShack, sold at their stores in 1995. Originally manufactured by Lucky-Goldstar (LG) at their Mexico plant.
(Special thanks to Bryce Wilson for the pics!)
Manuals
(None at this time.)
Notes
Picture tube is a Zenith model that is a donor for Wells Gardner K7000 arcade chassis.

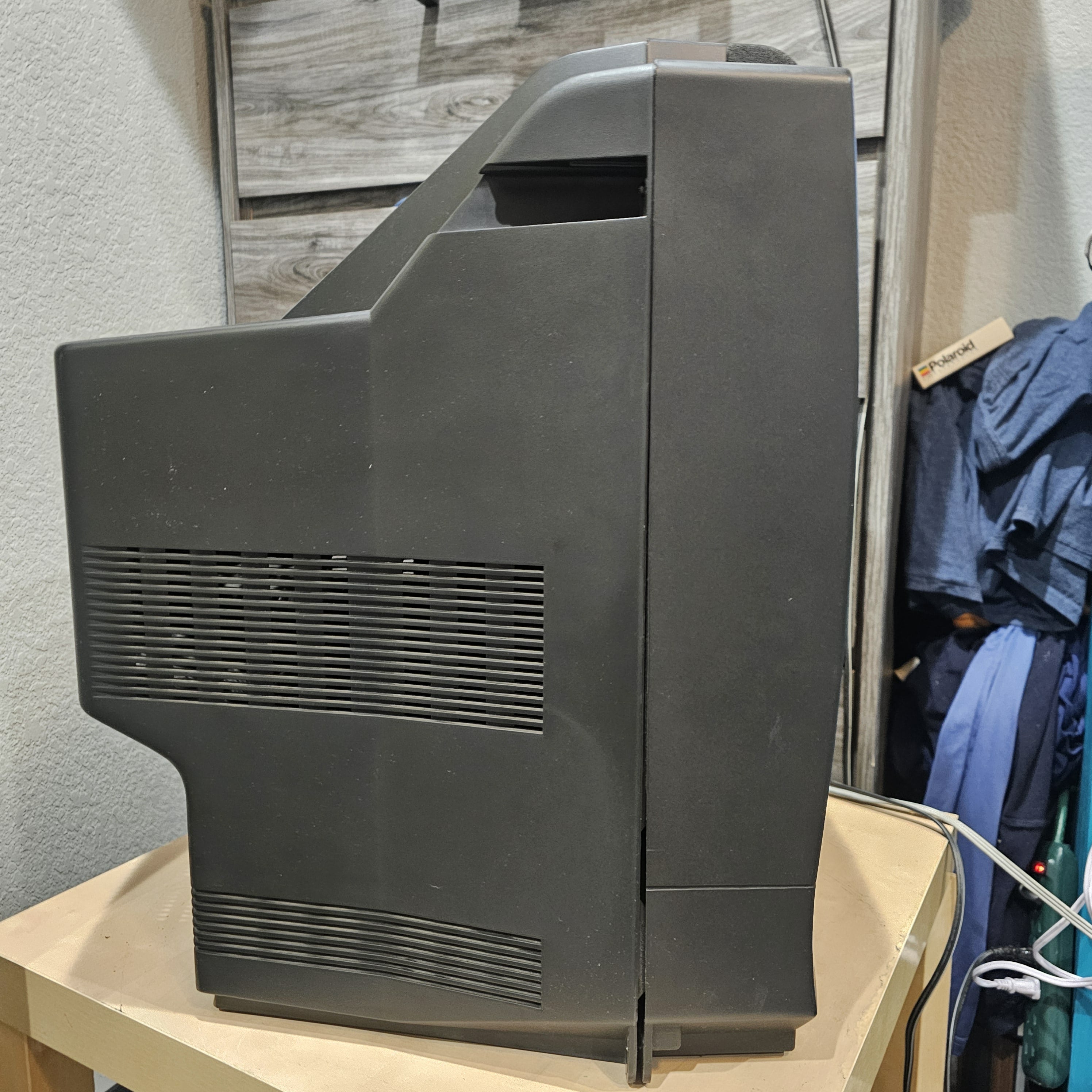

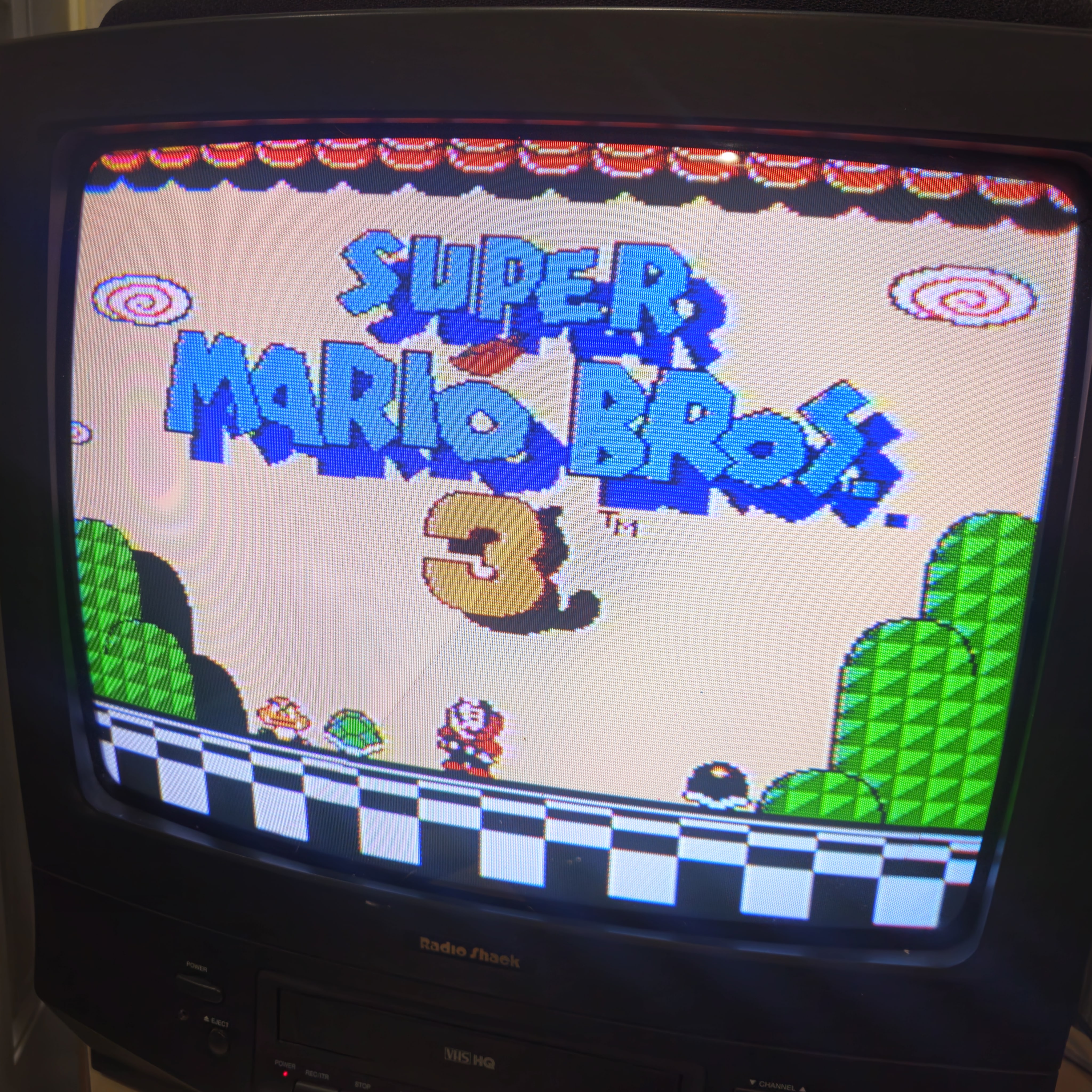

Gallery
| Specifications | |
|---|---|
| Brand: | RadioShack |
| Manufacturer: | LG |

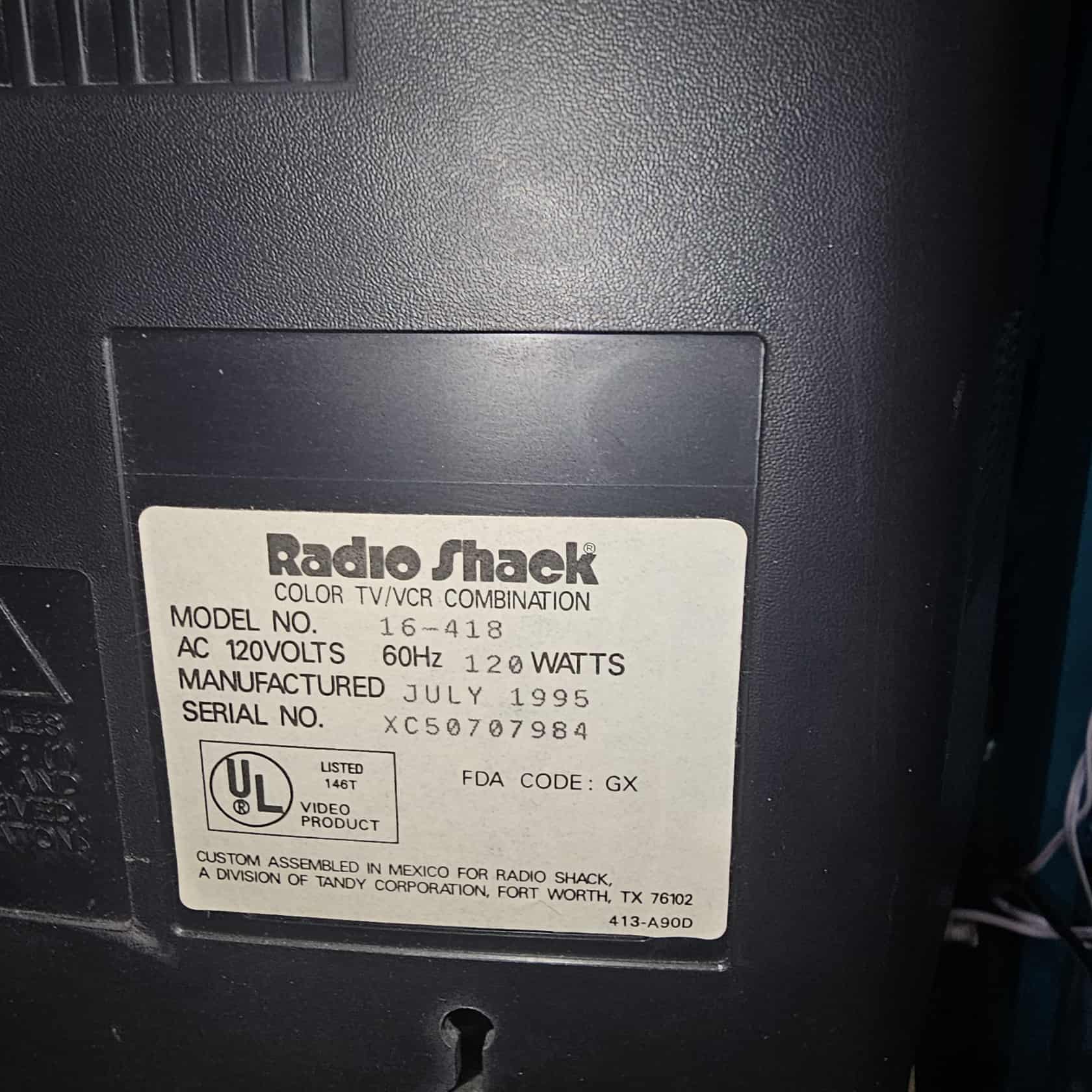

| Model: | 16-418 |
| Series: | TV/VCR Combo |
| Viewable Size: | 19" |

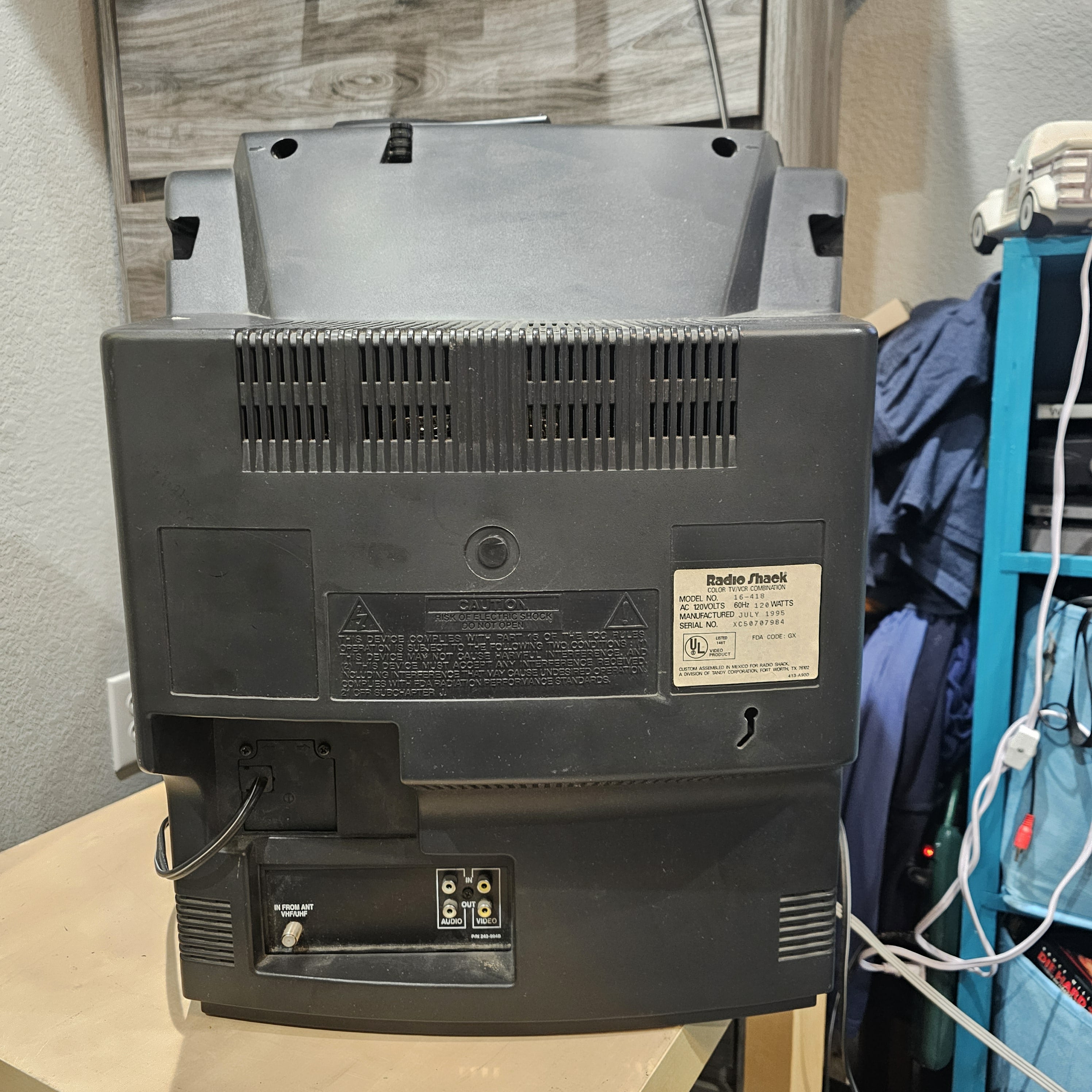

| Inputs: | Composite, RF |

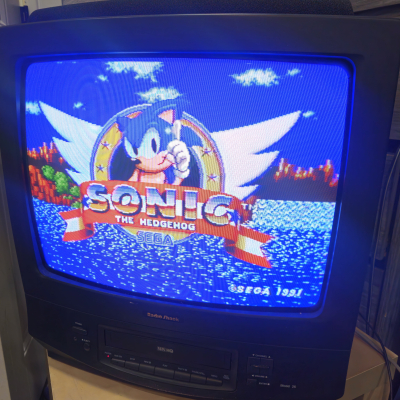

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

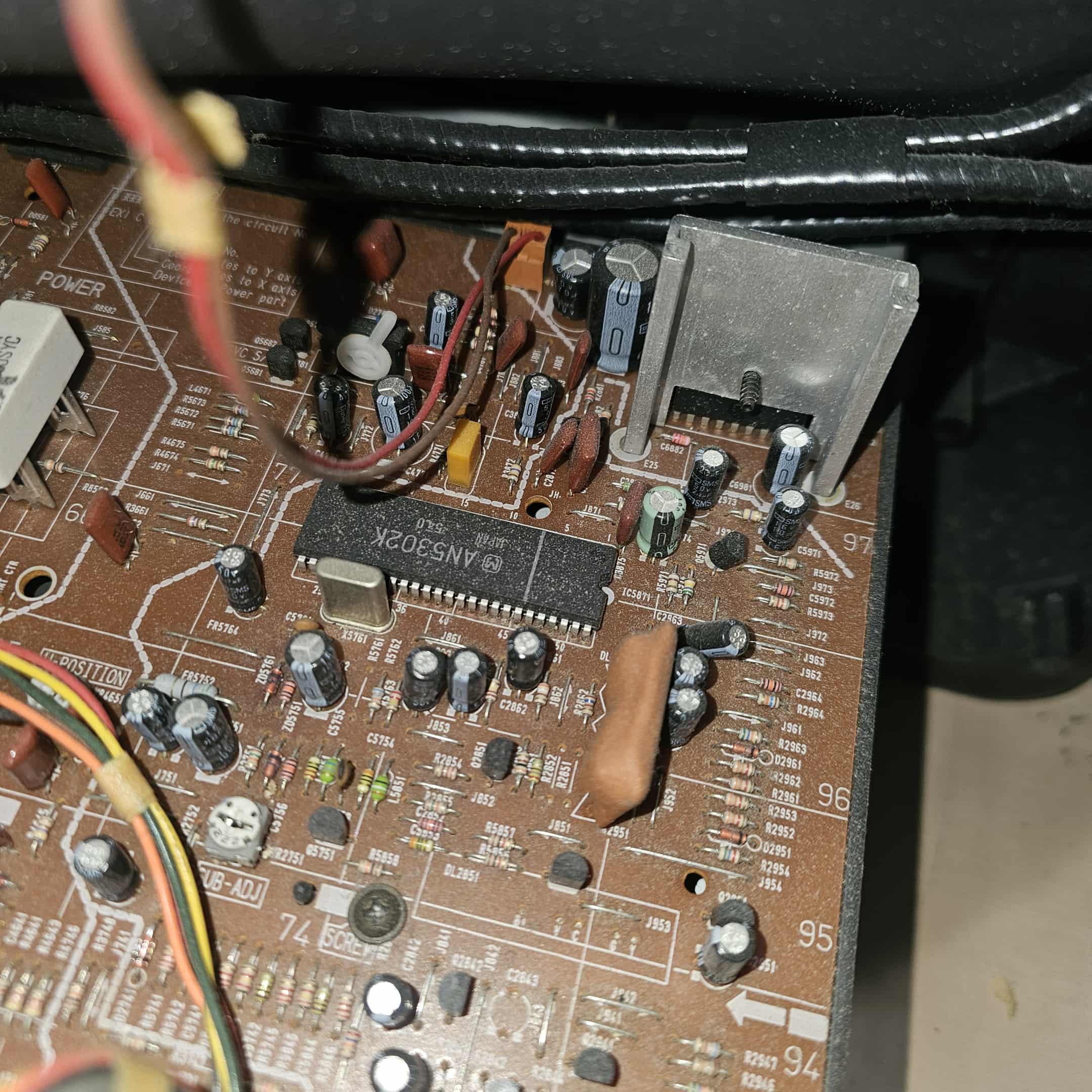

| Jungle IC: | Panasonic, AN5302K |
| Focus Type: | Single |

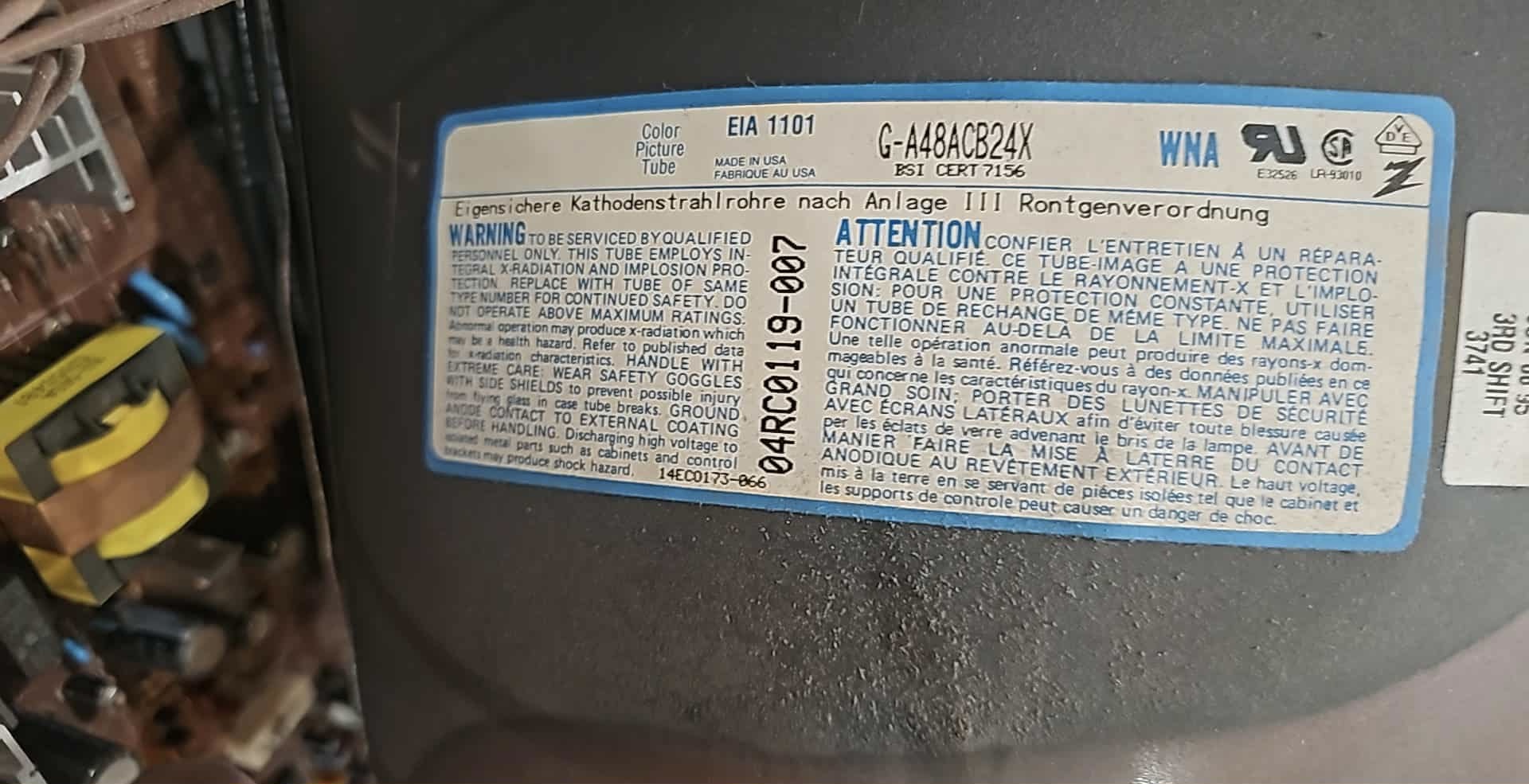

| Tube: | Zenith , A48ACB24X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

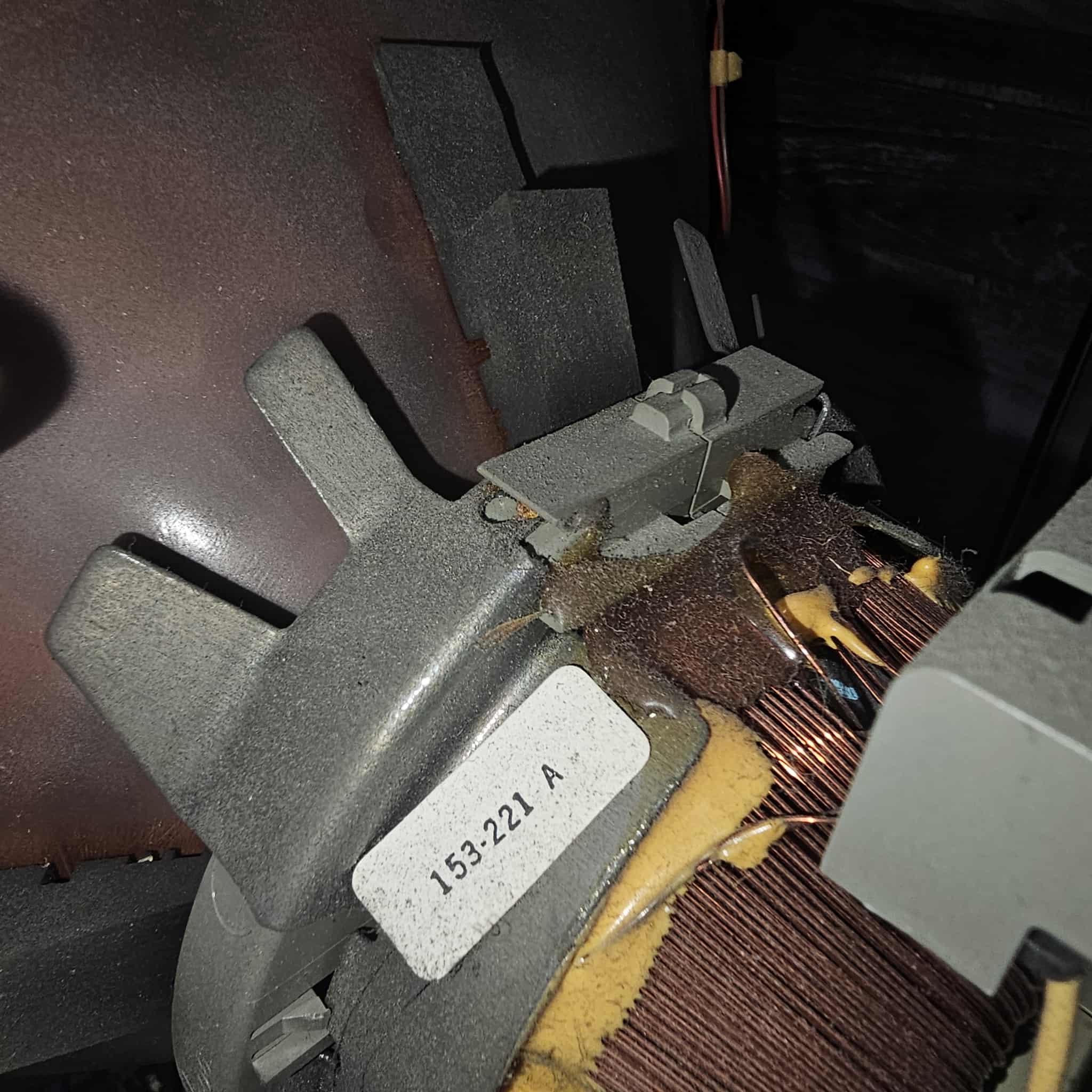

| Yoke: | 153-221A |

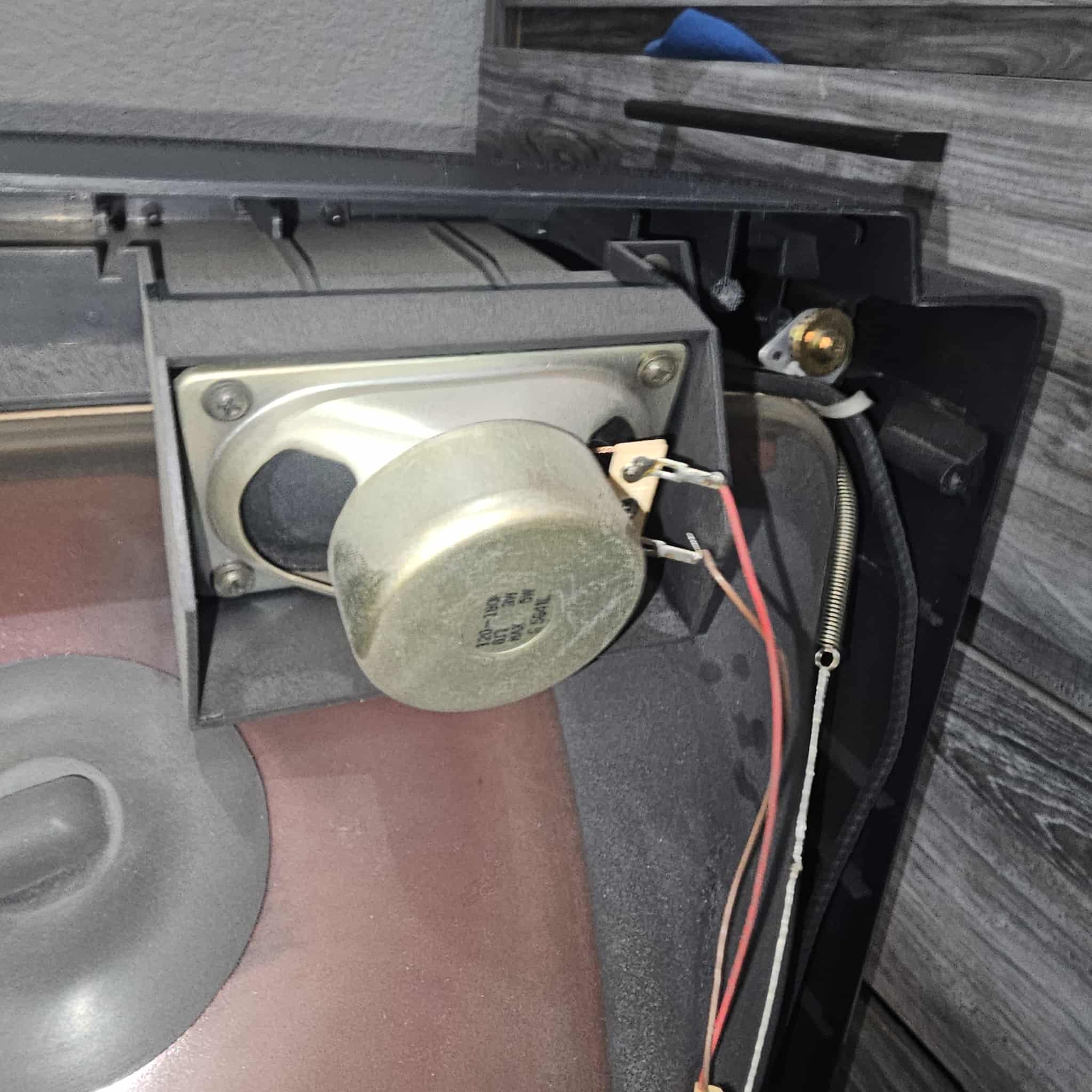

| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| MSRP: | 499 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
