Summary
32" presentation monitor by NetTV, introduced in 1999. Originally manufactured by Sampo in Taiwan. Has composite, s-video, and VGA input with bassy stereo speakers. Intended for institutional and professional environments.
(Special thanks to Michael Moffitt for the pics and for the RGB mod!)
Manuals
Notes
Chassis can be modified for 15Khz RGB. You can follow a guide on Michael J. Moffitt's website HERE

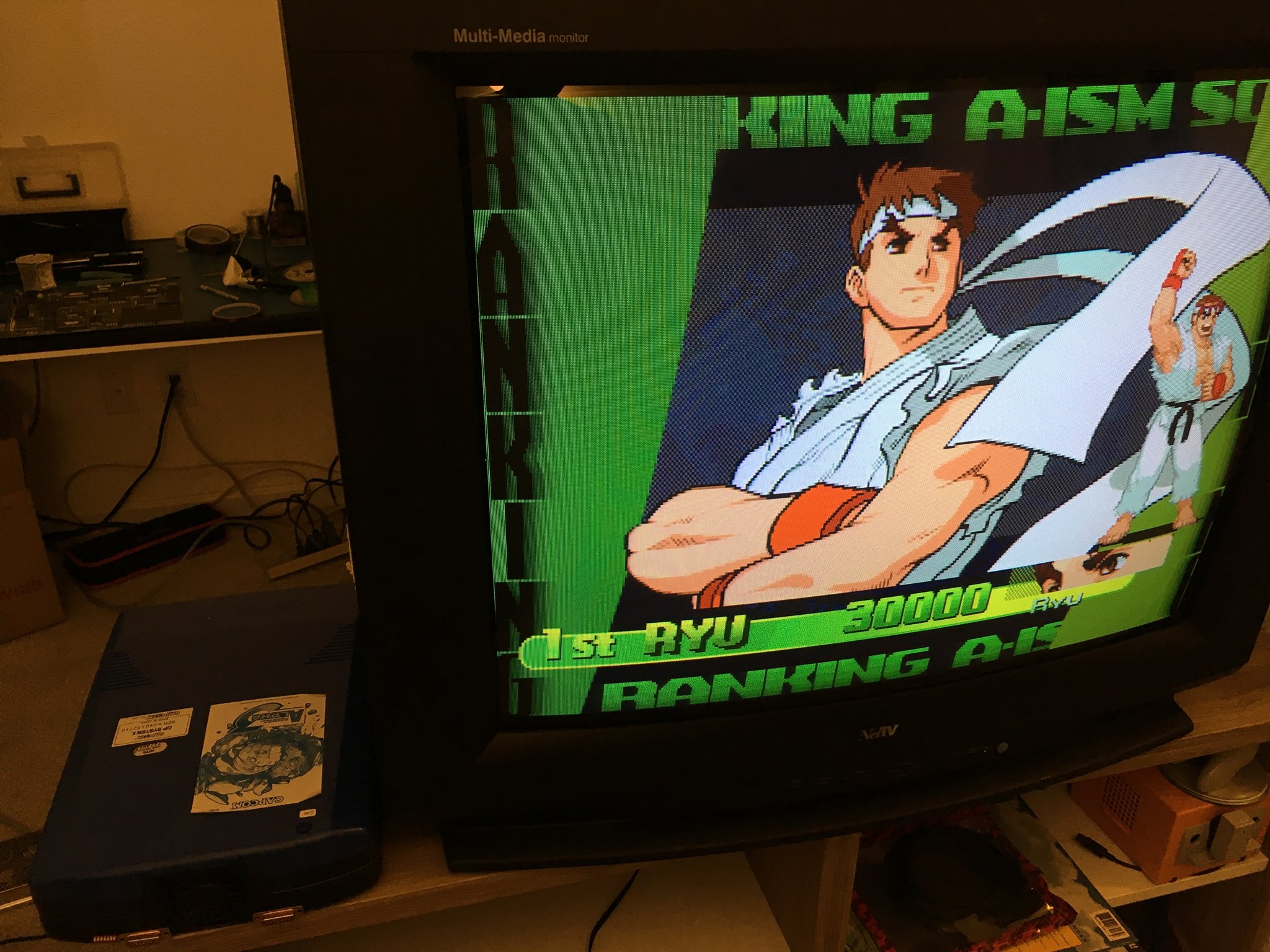

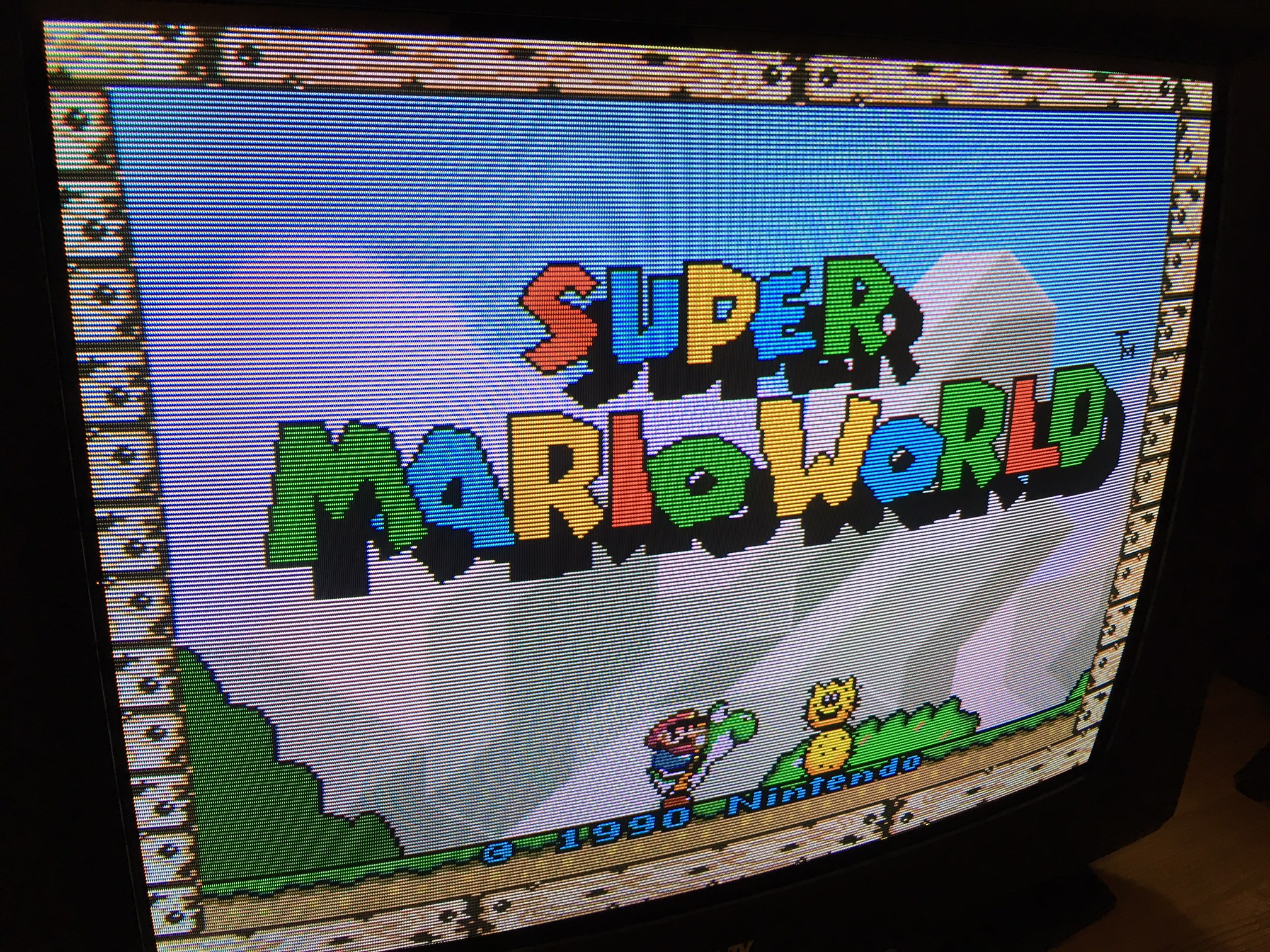

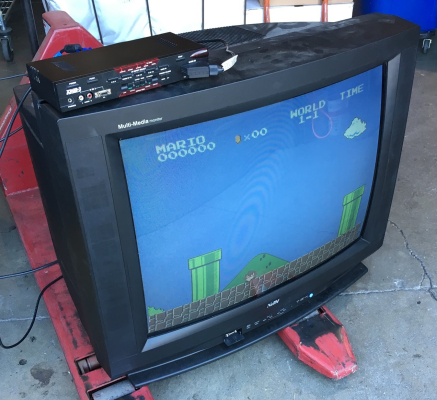

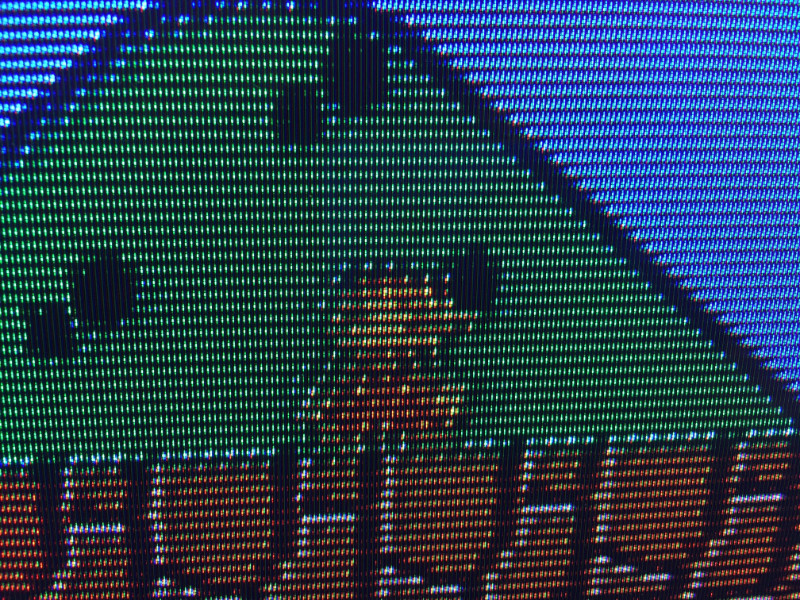

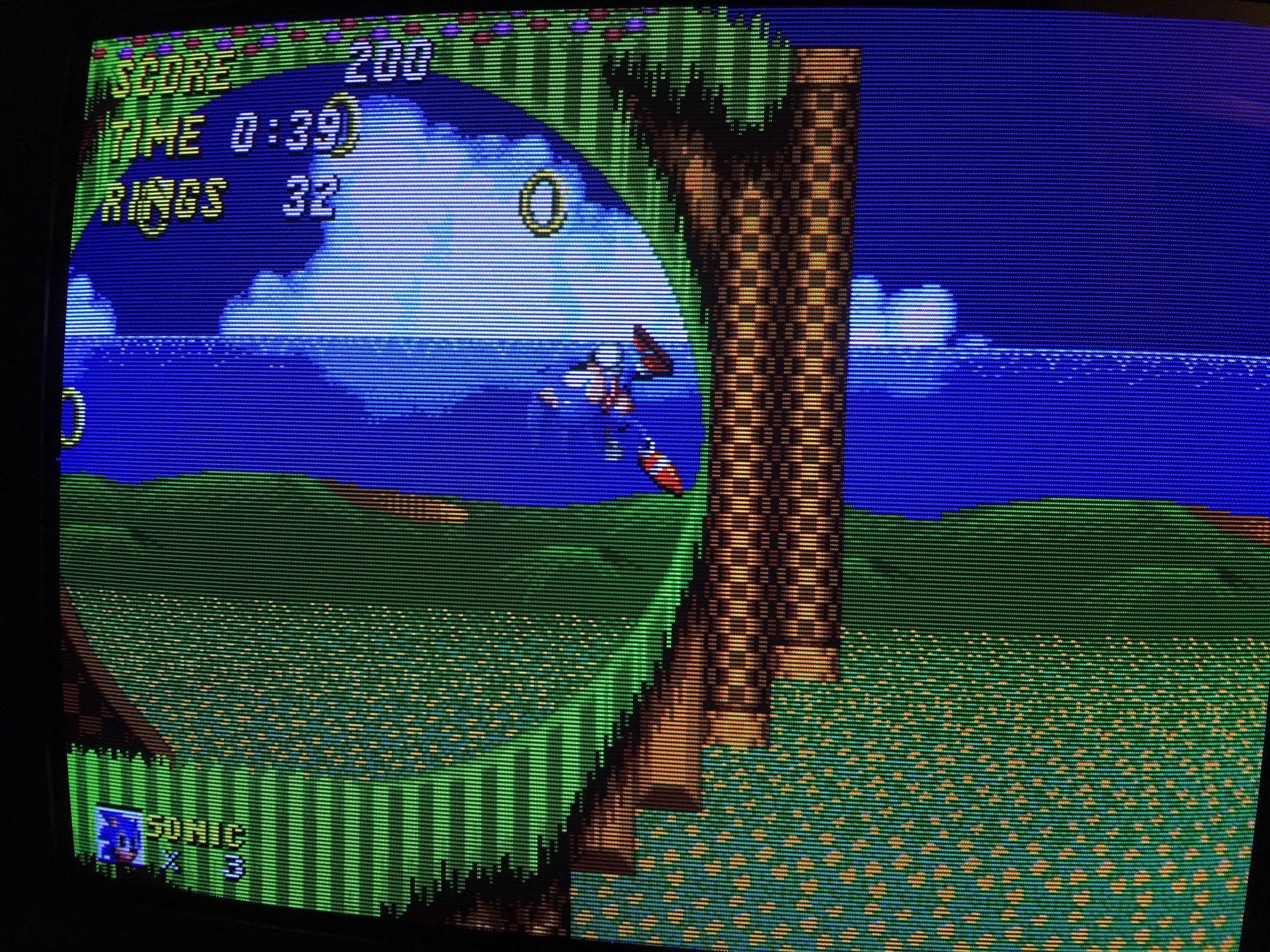

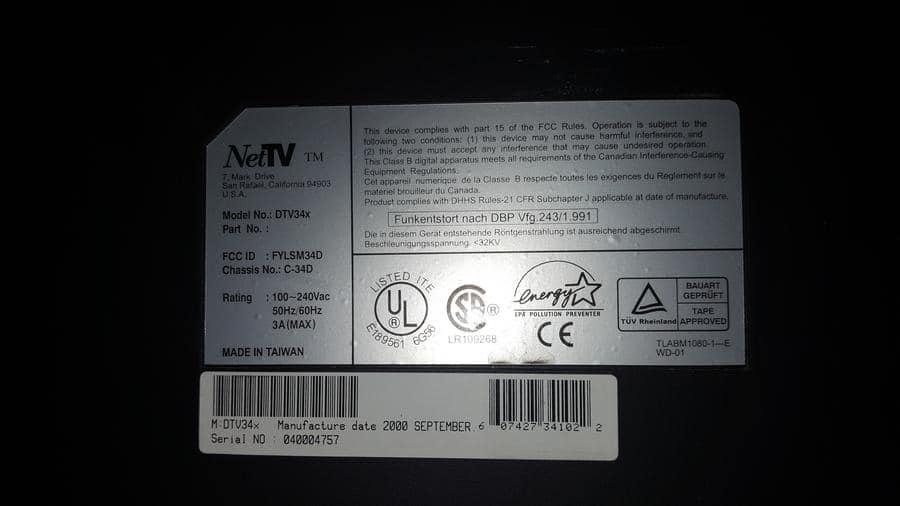

Gallery
| Specifications | |
|---|---|
| Brand: | NetTV |
| Manufacturer: | Sampo |
| Model: | DTV34X |
| Series: | SV |
| Viewable Size: | 32" |

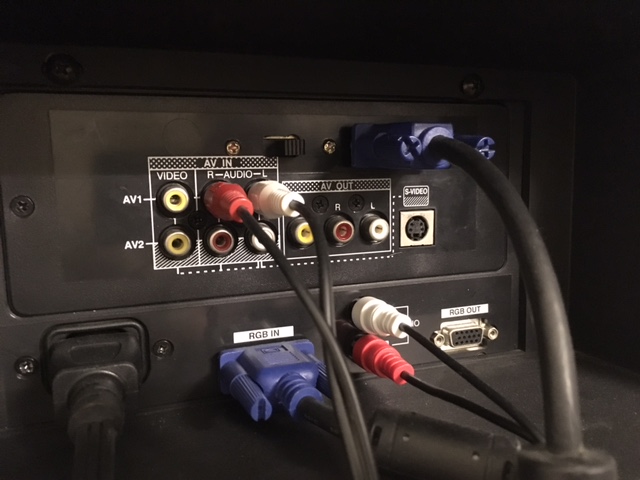

| Inputs: | VGA, Composite, S-Video |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, 240p, 480i, 1080i, 720p, 480p, MAC |
| Horizontal Scan Range: | 15 kHz, 31 kHz, 52 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Formats: | NTSC, PAL, SECAM |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TB1227, TB1227BN |
| Focus Type: | Dual |
| Tube: | Toshiba , M81AHM50X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2, Subwoofer |
| Chassis: | C-34D |
| Weight: | 156 lbs (70.8 kg) |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
