NetTV SV3403
SegaSaturn94
November 23, 2025, 2:07 am
November 23, 2025, 7:34 am
November 23, 2025, 2:07 am
November 23, 2025, 7:34 am
Summary

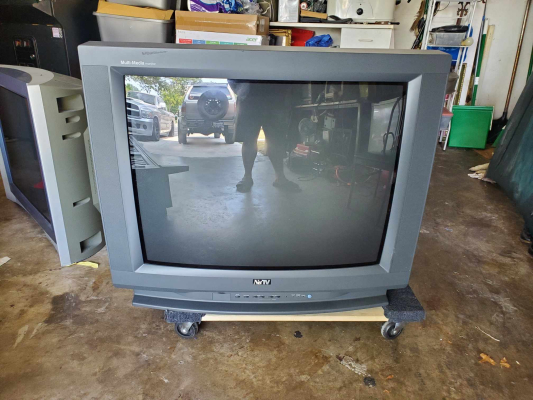

32" presentation by NetTV, one of their first models, introduced in 1999. Originally manufactured by Sampo in Taiwan. Has composite, s-video, and VGA input with bassy stereo speakers. Can be modded for 15khz RGB. Intended for institutional and professional environments.
Manuals
Despite using a different chassis, it is effectively the same as the DTV34X:
- SME-23DL3 User Manual (Closest equivalent)
- SME-23 and 72DL3 Spec Sheet (Closest equivalent)
- NetTV DTV34X Spec Sheet (Closest equivalent)
- SME-23DL3 Service Manual (Closest equivalent)
Notes
Chassis can be modified for RGB. You can follow a guide on Michael J. Moffitt's website HERE

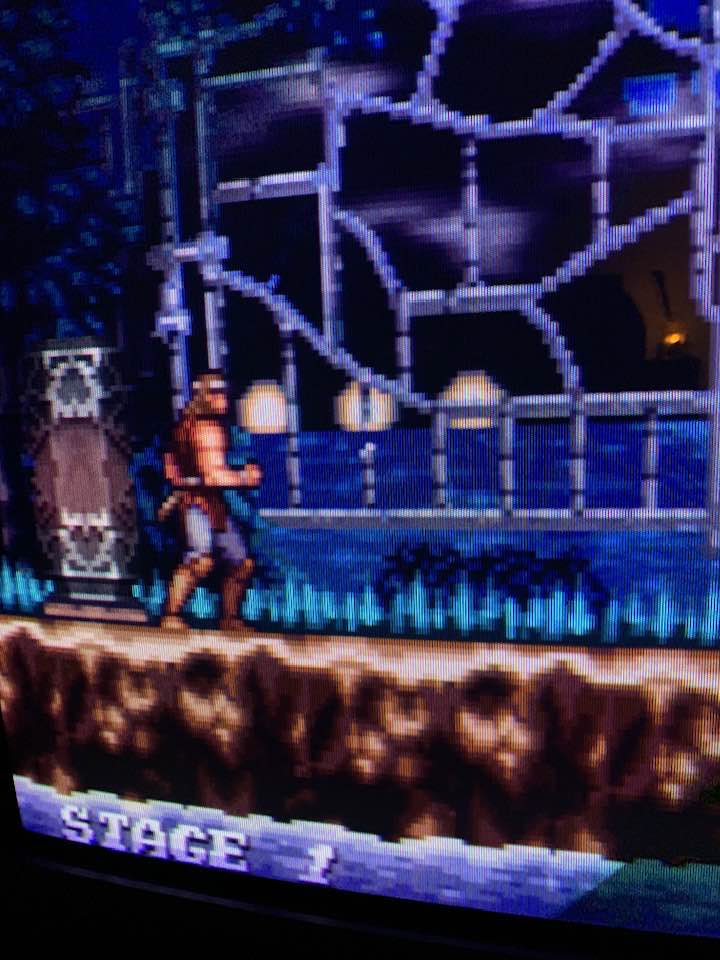

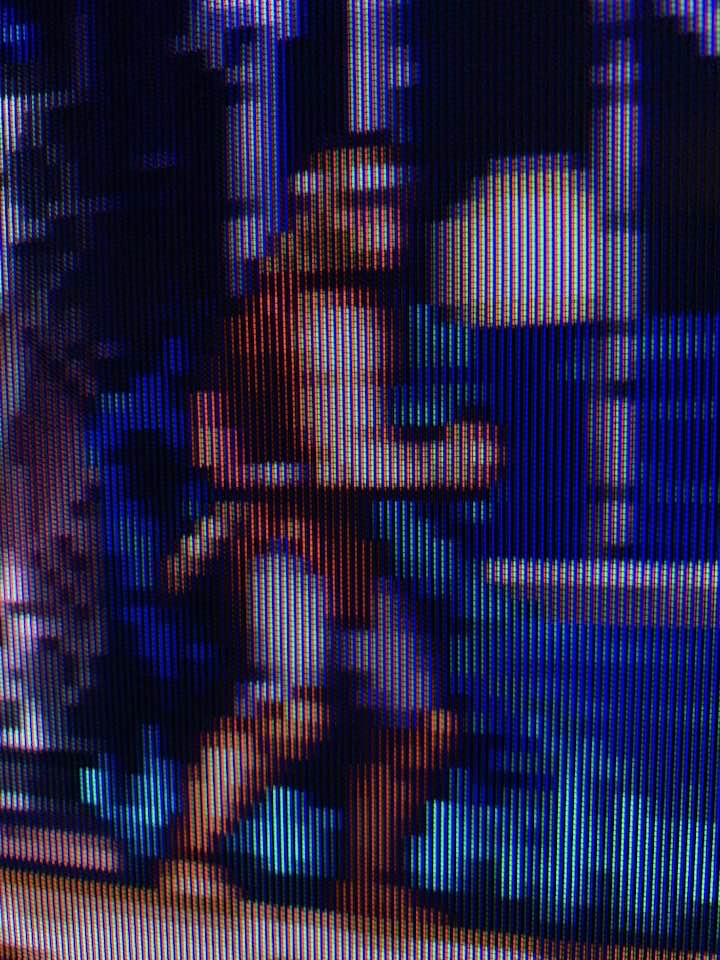

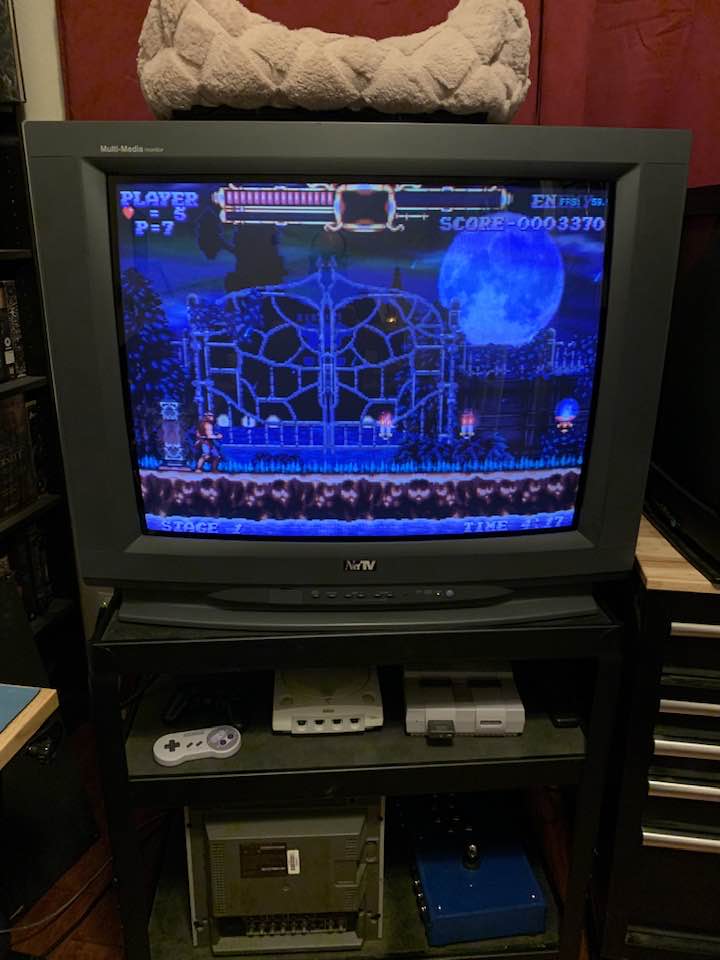

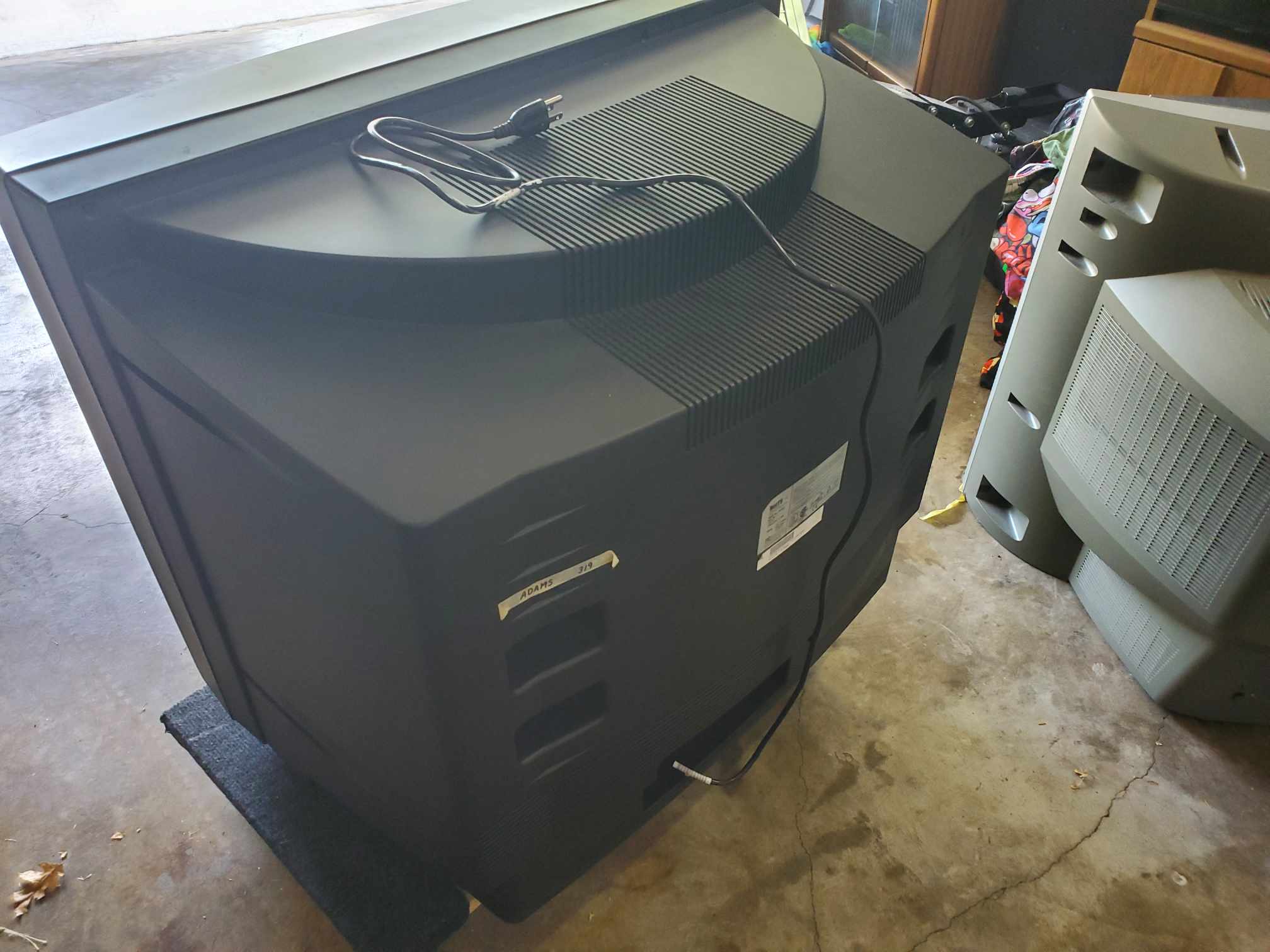

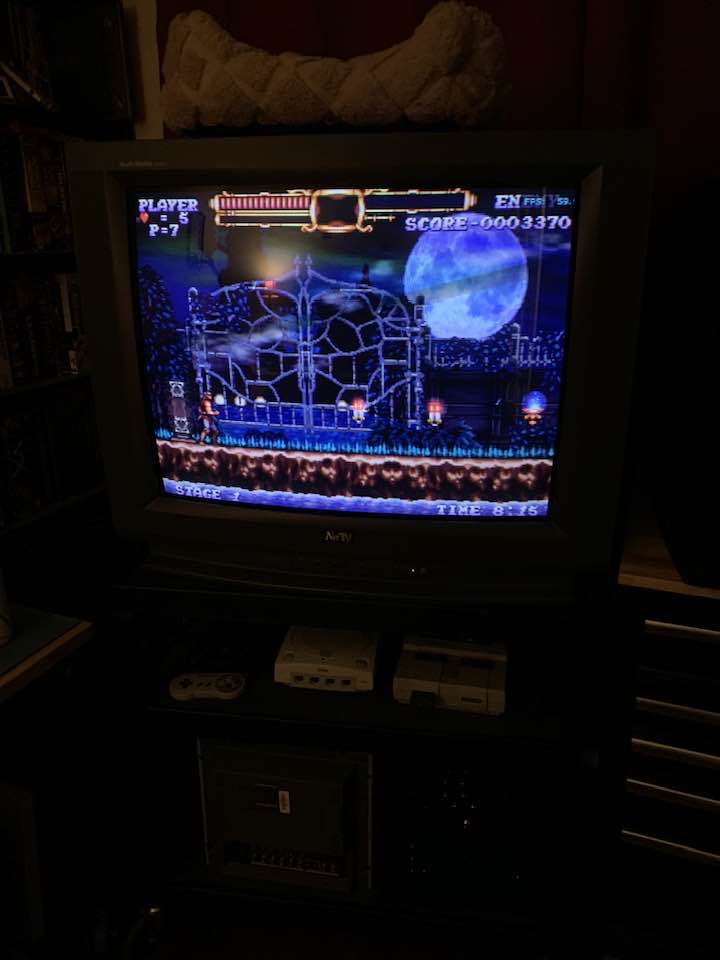

Gallery
| Specifications | |
|---|---|
| Brand: | NetTV |
| Manufacturer: | Sampo |
| Model: | SV3403 |
| Series: | SV |
| Viewable Size: | 32" |

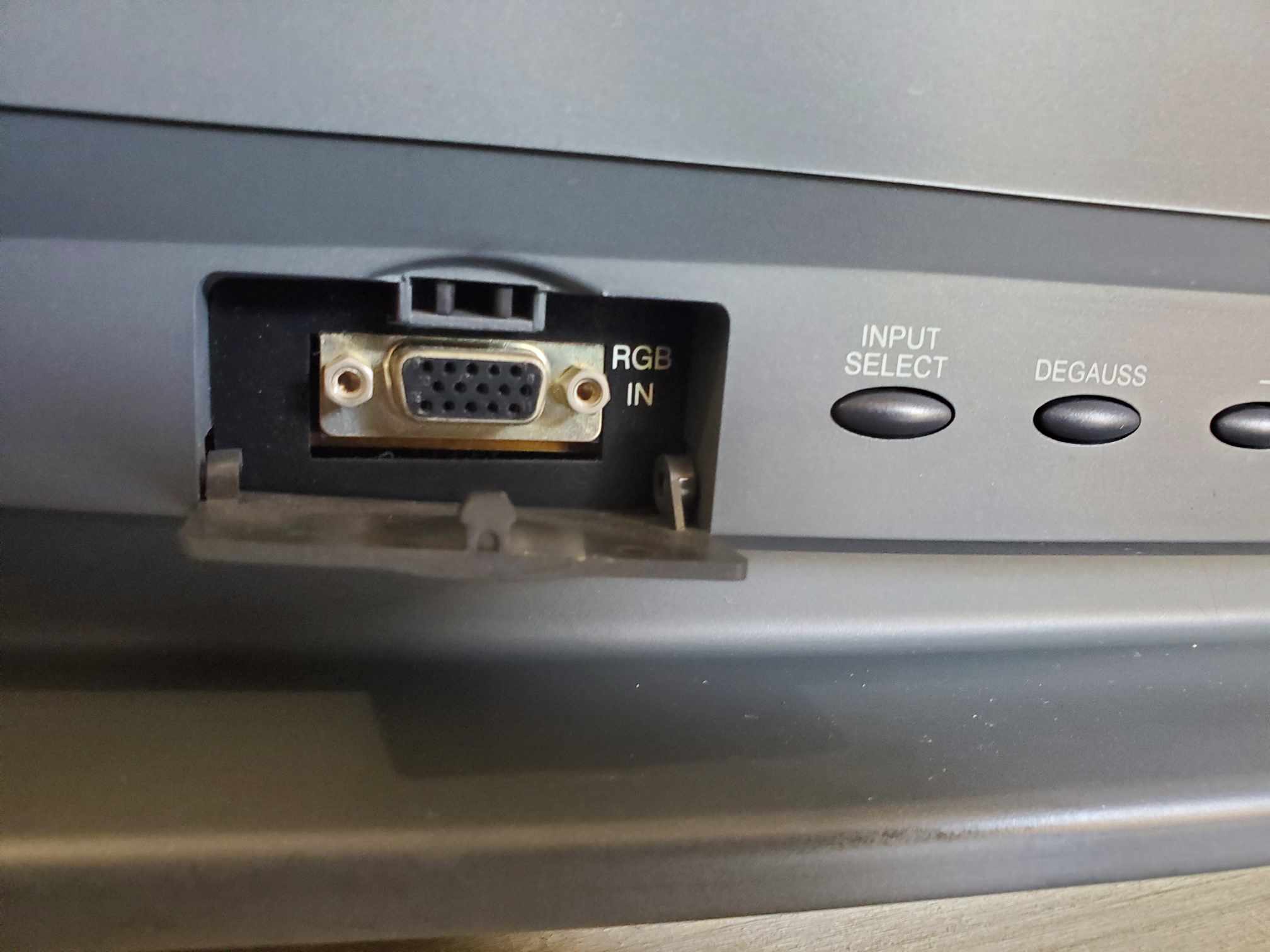

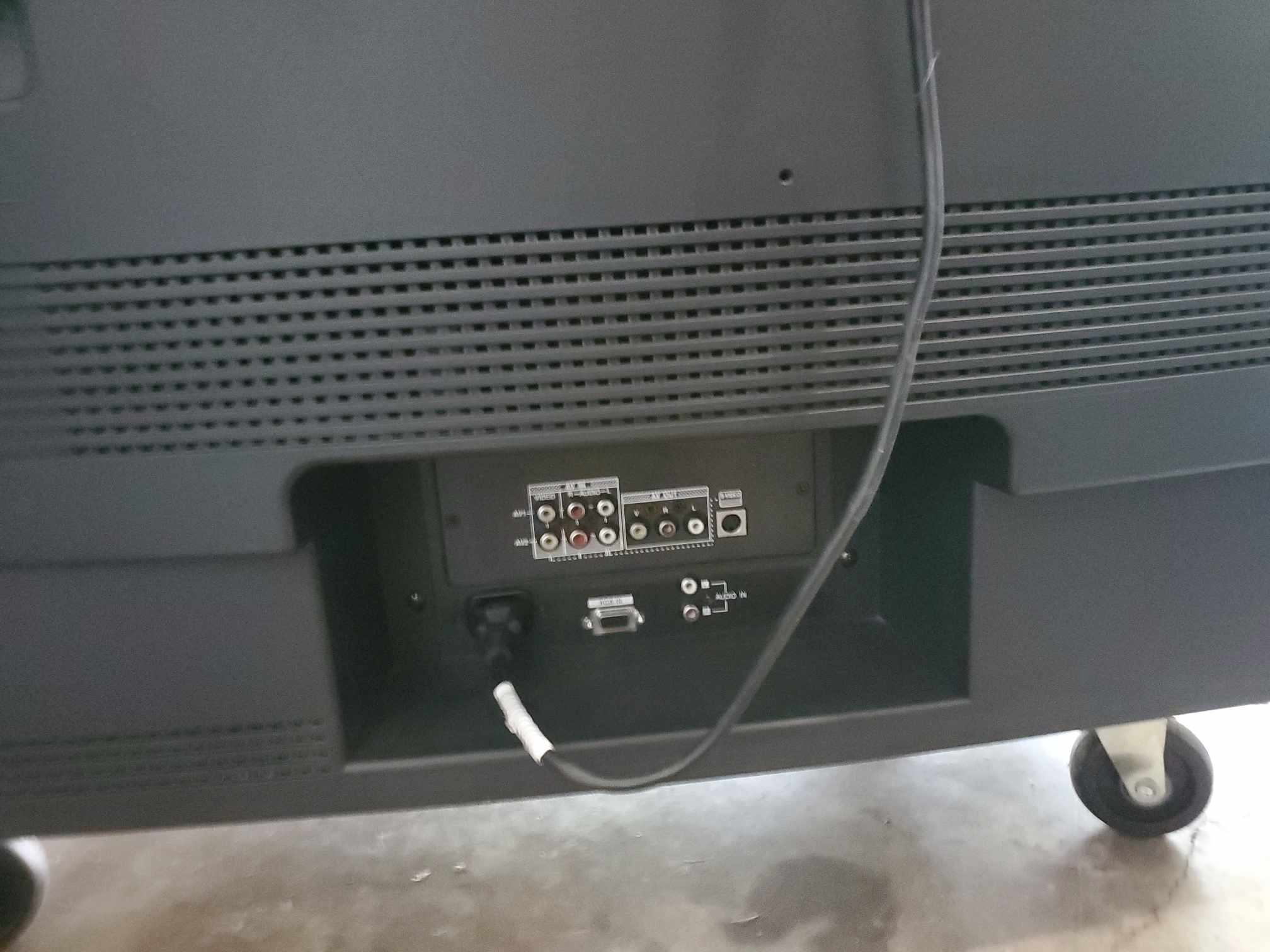

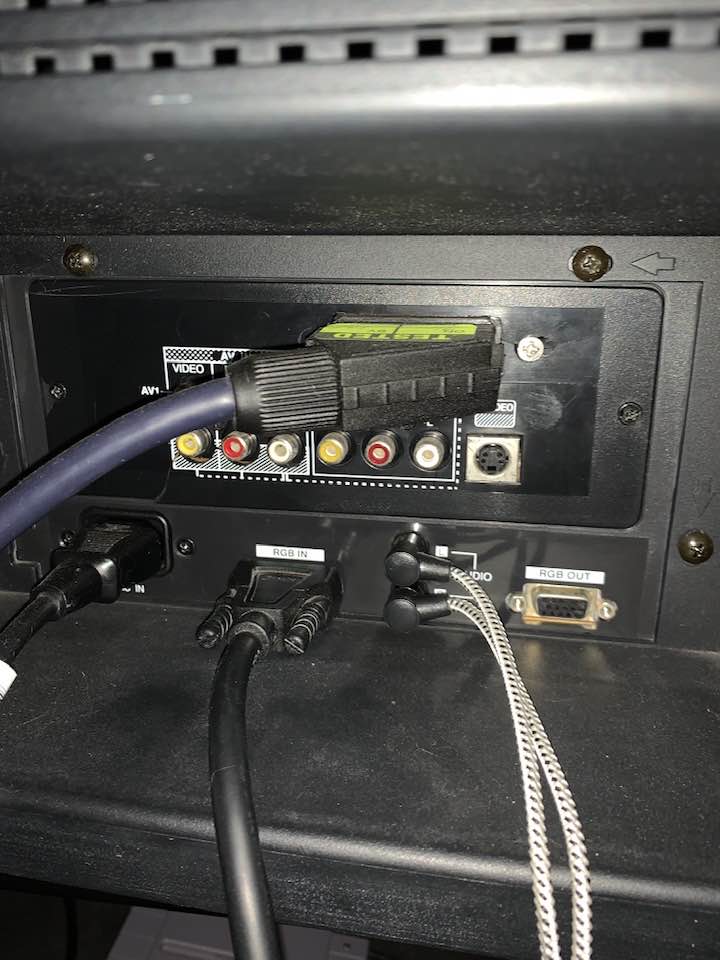

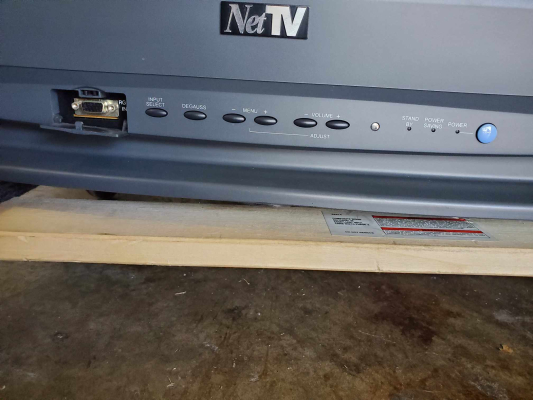

| Inputs: | Composite, S-Video, VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | 240p, 480i, VGA, SVGA, XGA, MAC, 720p, 480p, 1080i |
| Horizontal Scan Range: | 15 kHz, 31 kHz, 52 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Formats: | NTSC, PAL, SECAM |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TB1227, TB1227BN |
| Focus Type: | Dual |
| Tube: | Toshiba , M81AHM50X |
| Heater Voltage: | 6.3v |
| Mask: |

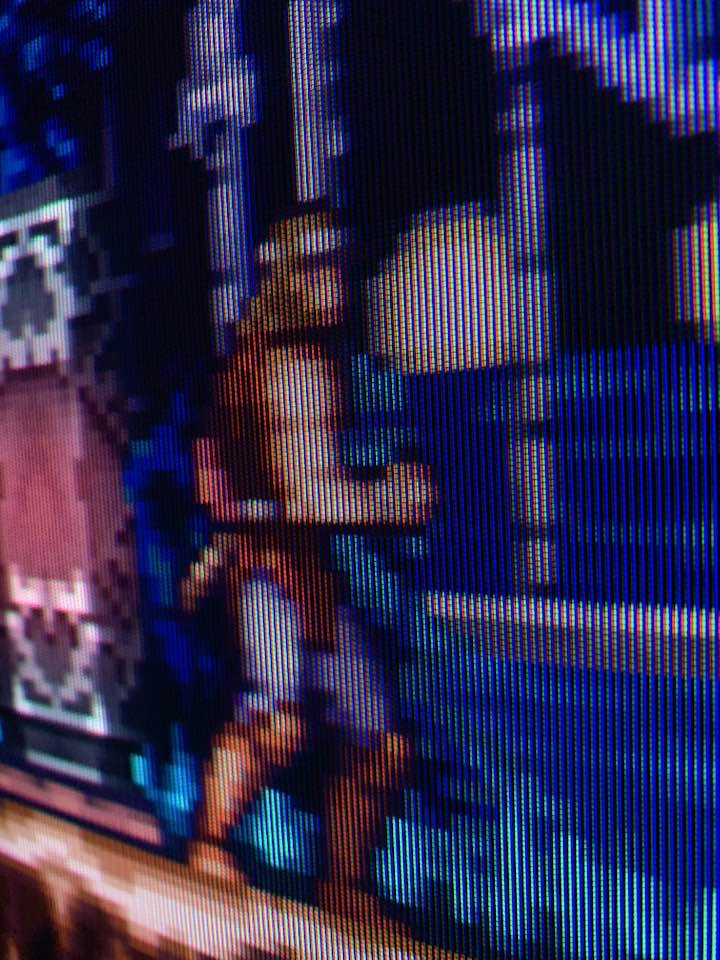

Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2, Subwoofer |

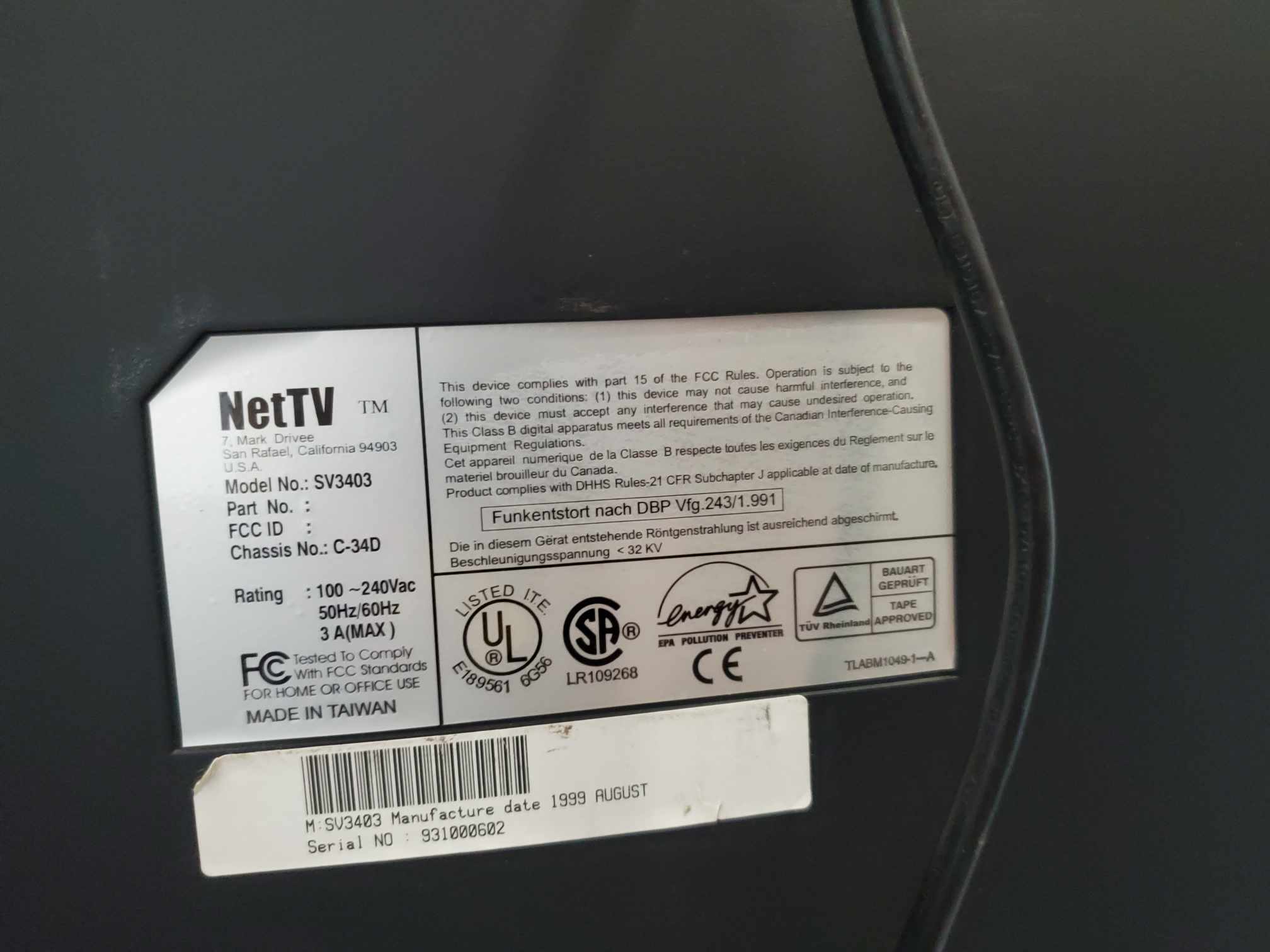

| Chassis: | C-34D |
| Weight: | 156 lbs (70.8 kg) |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
