Summary

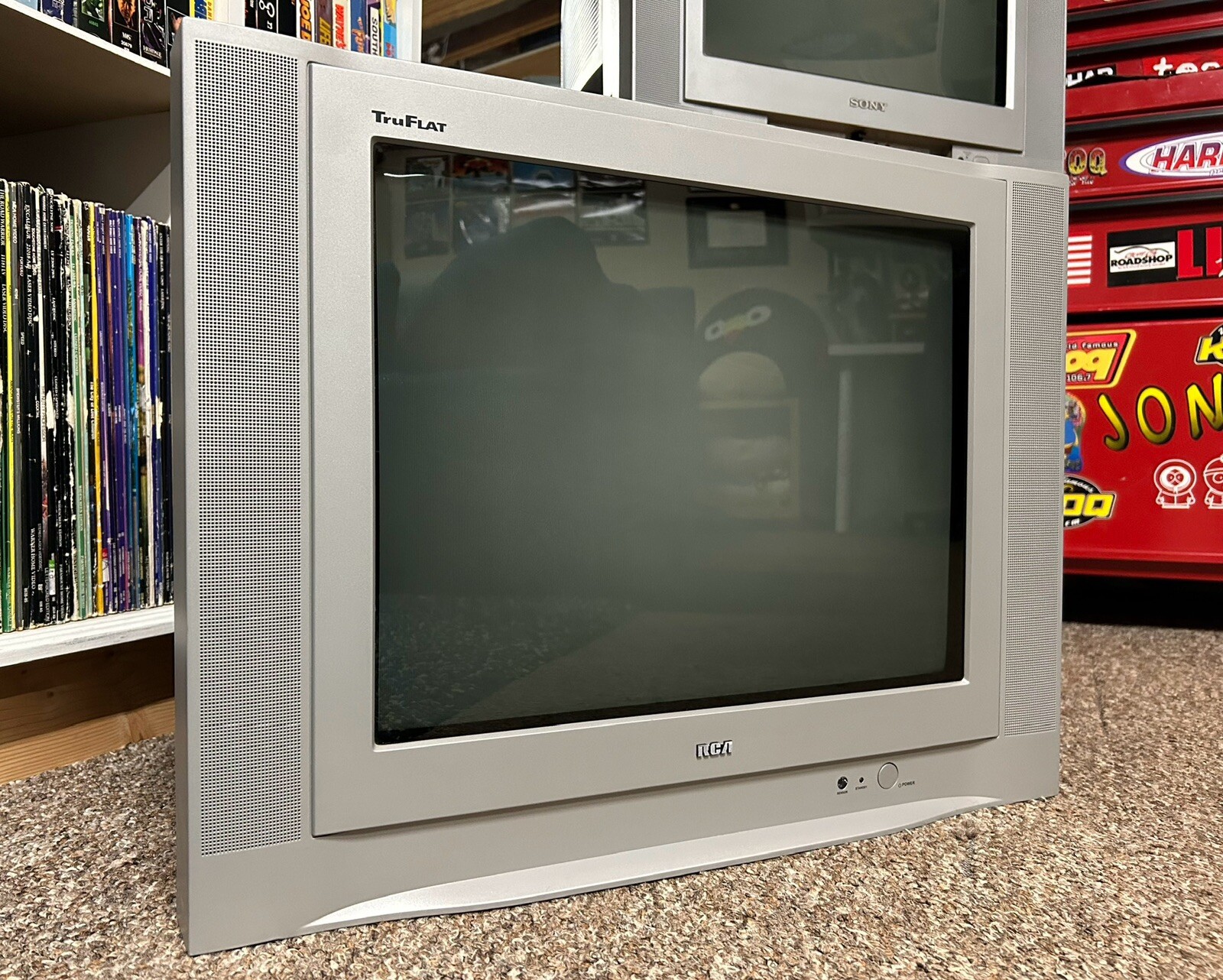

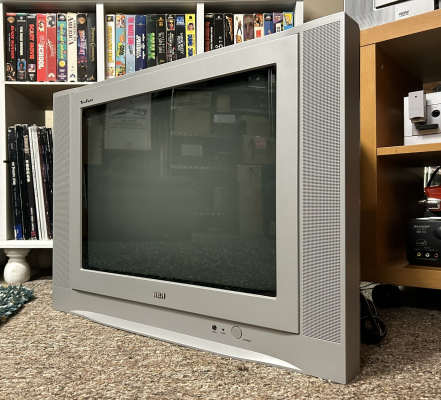

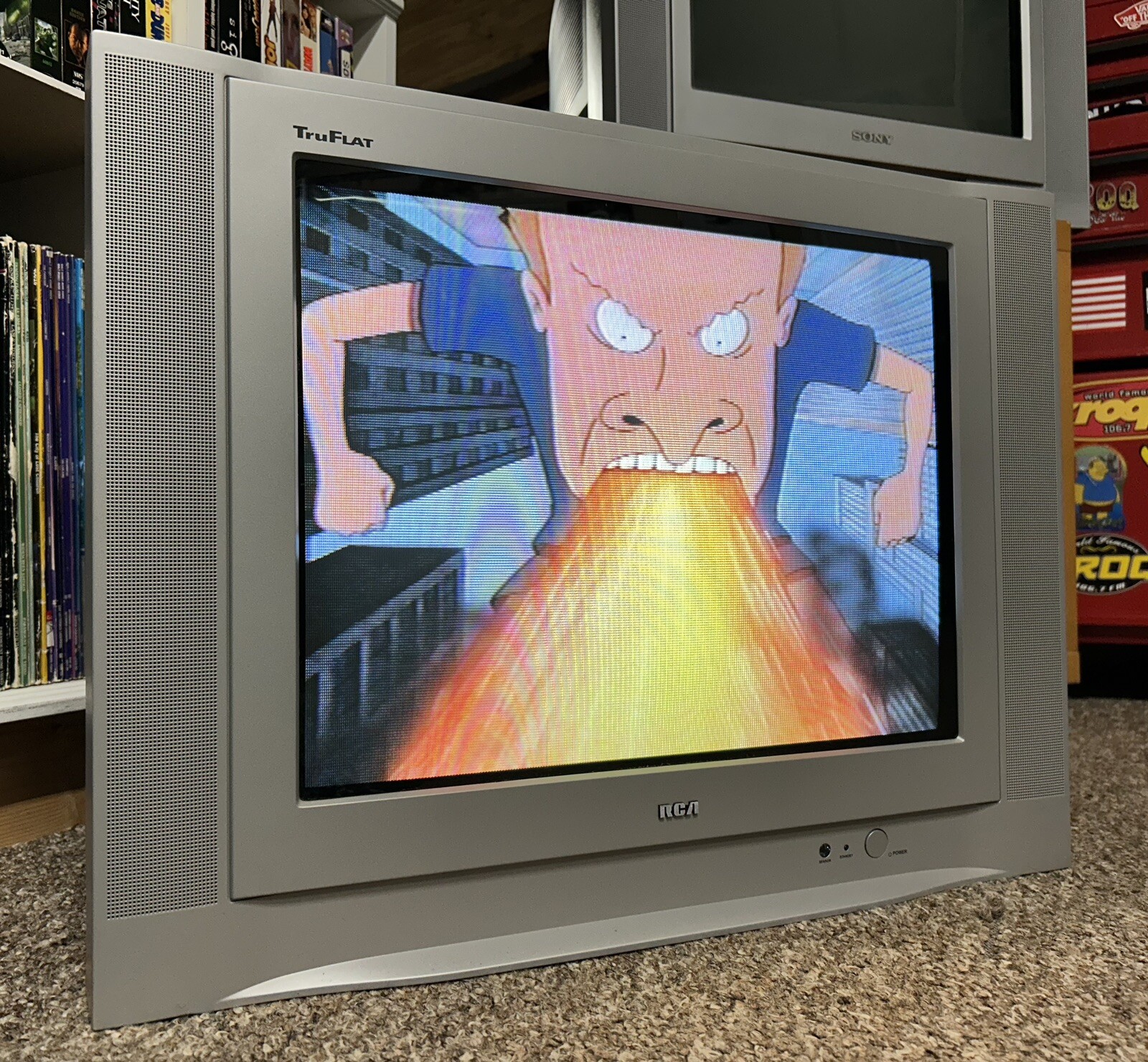

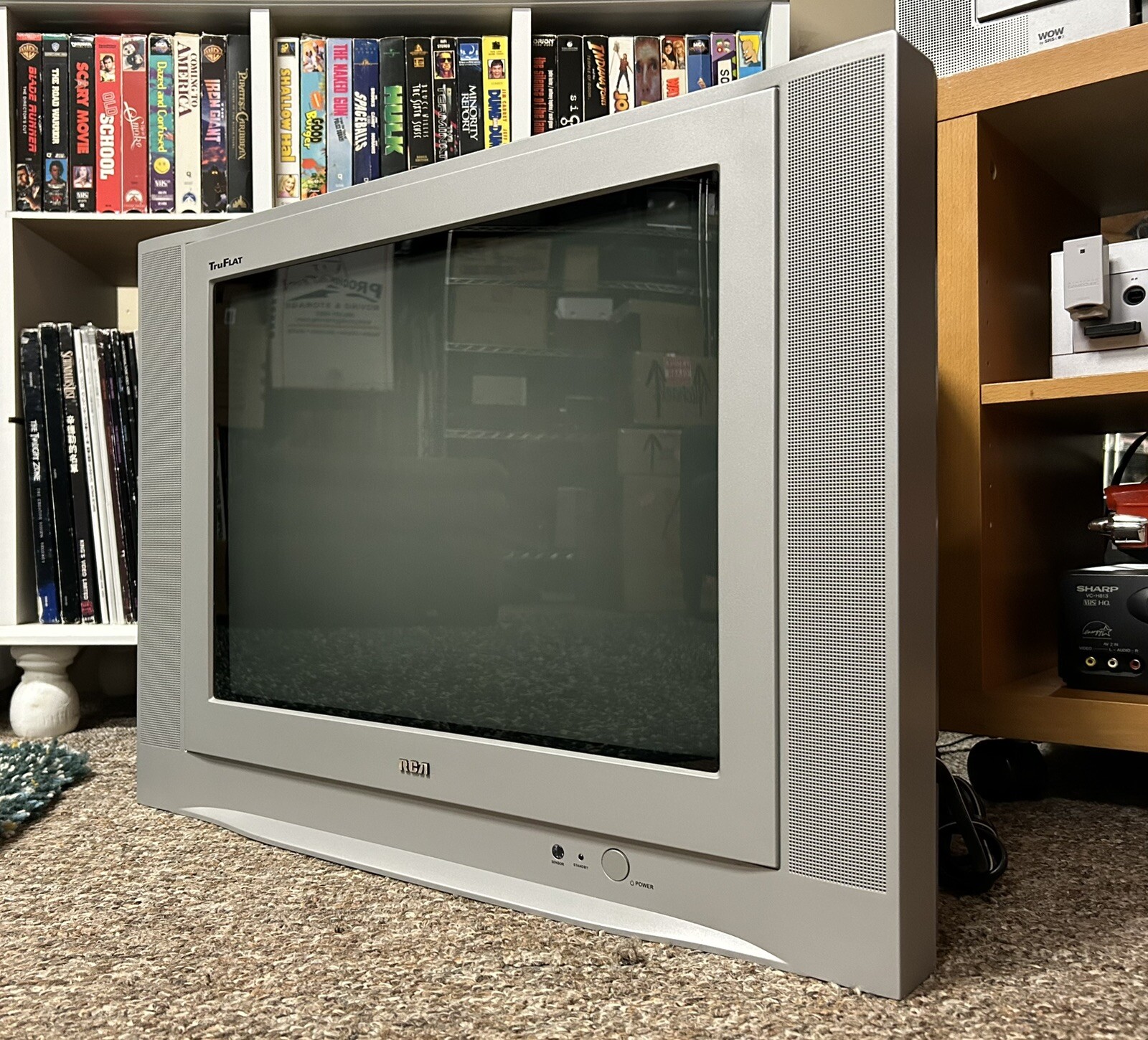

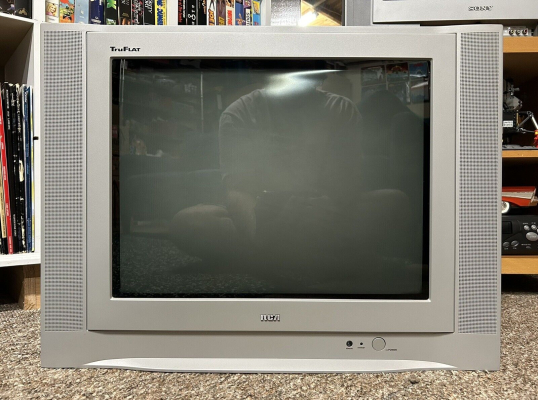

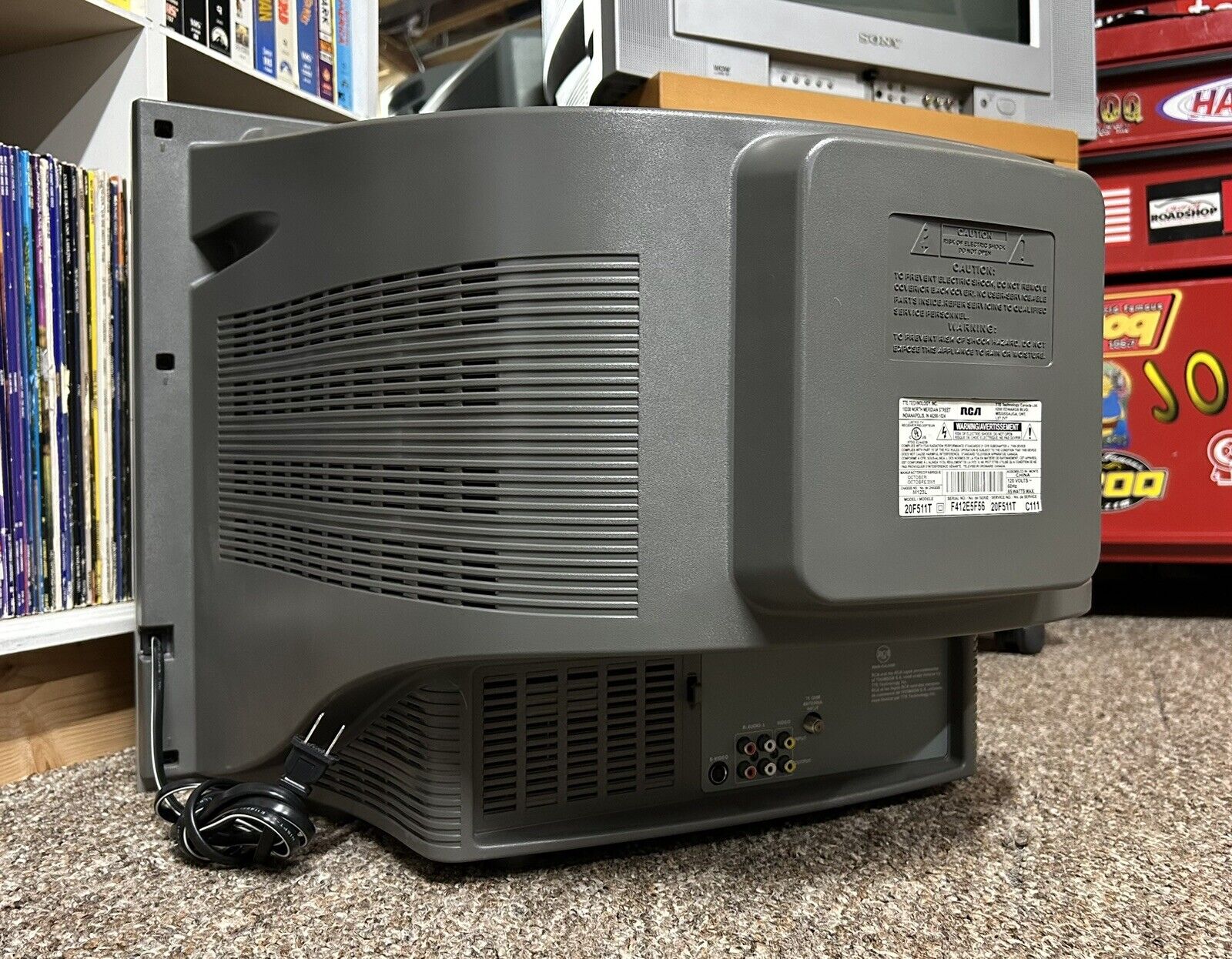

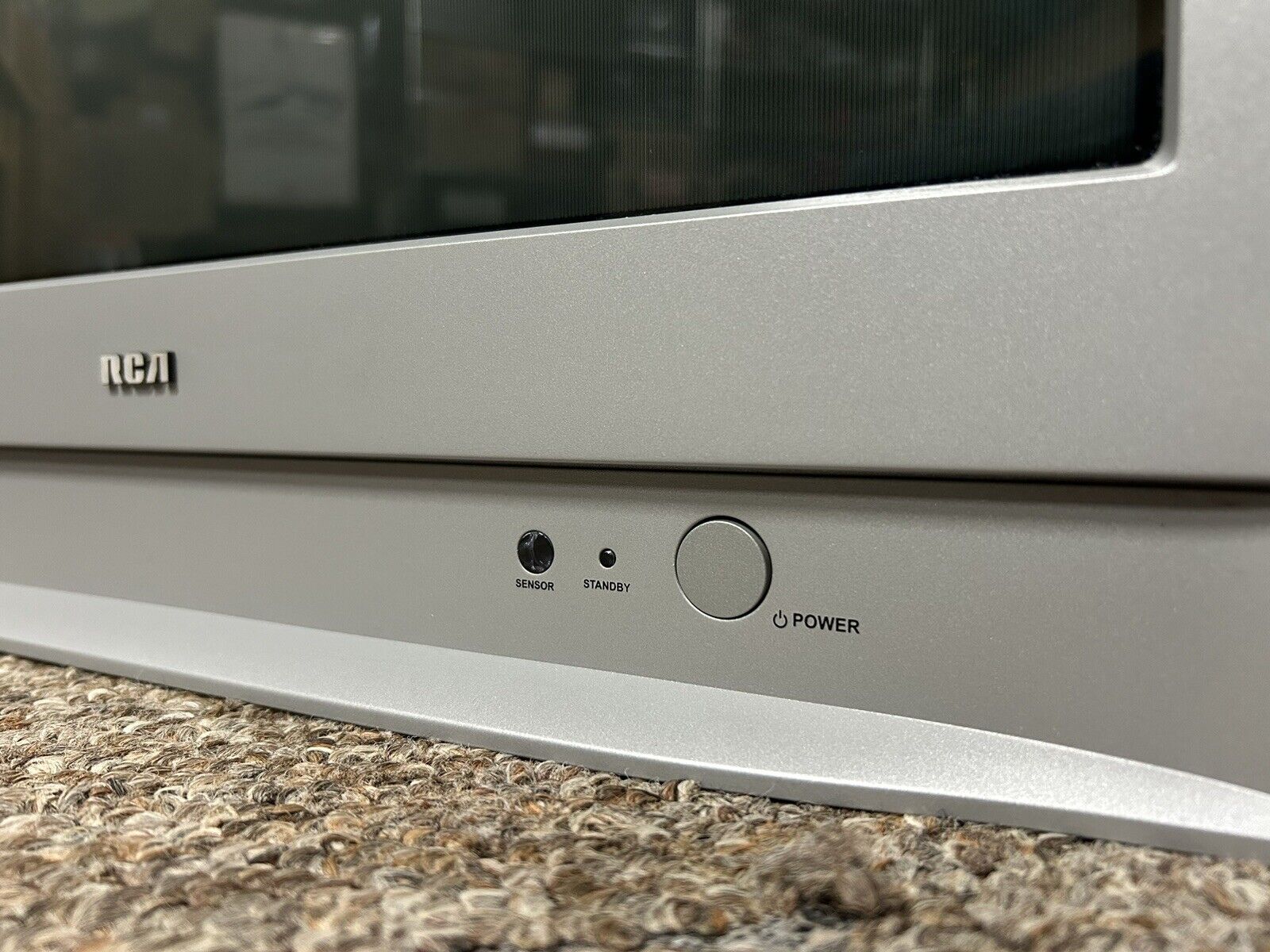

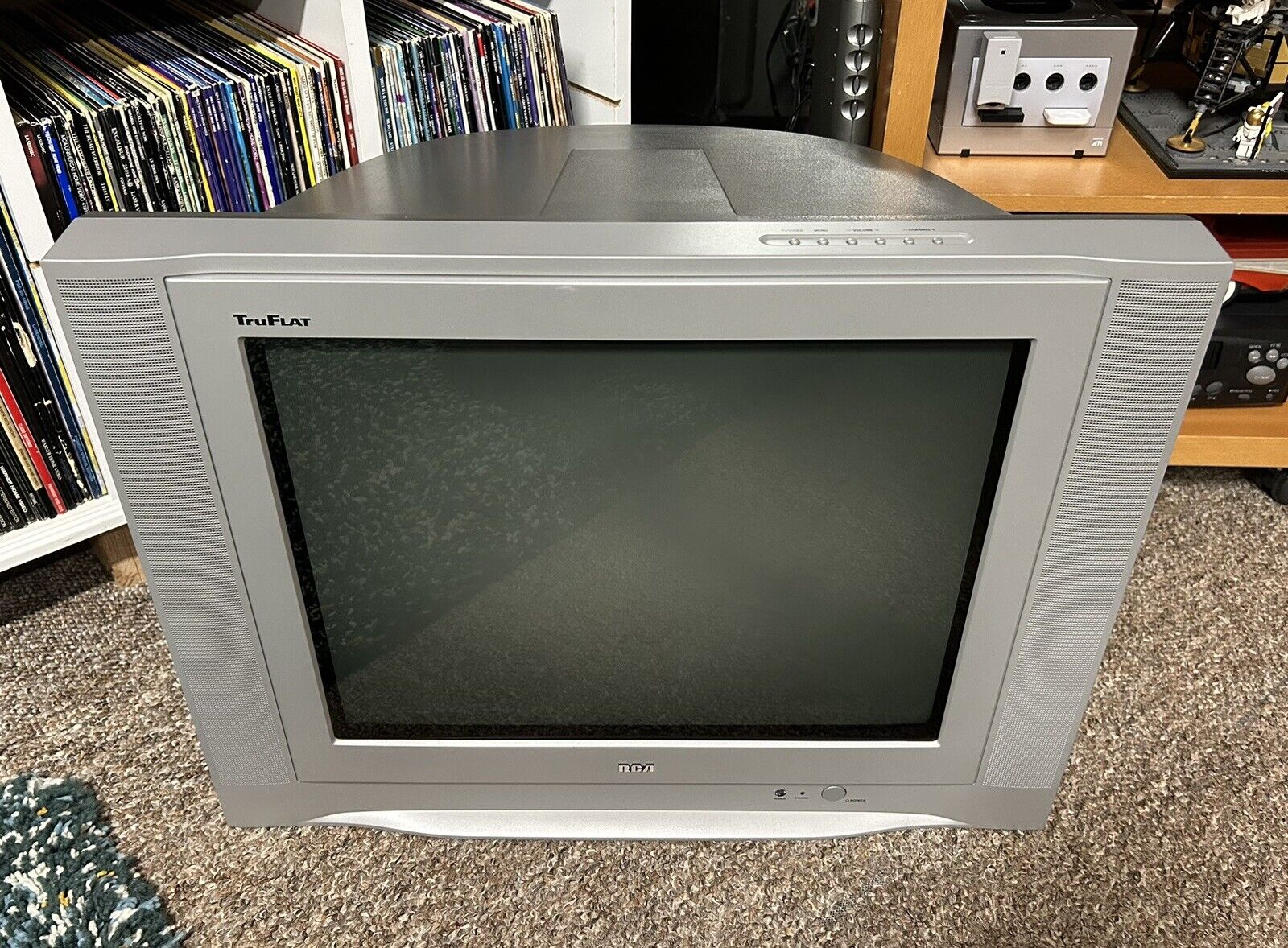

20" flat CRT TV with side mounted stereo speakers. Includes two composite and one s-video input. Made by TCL for Thomson in 2005.
Manuals
Notes

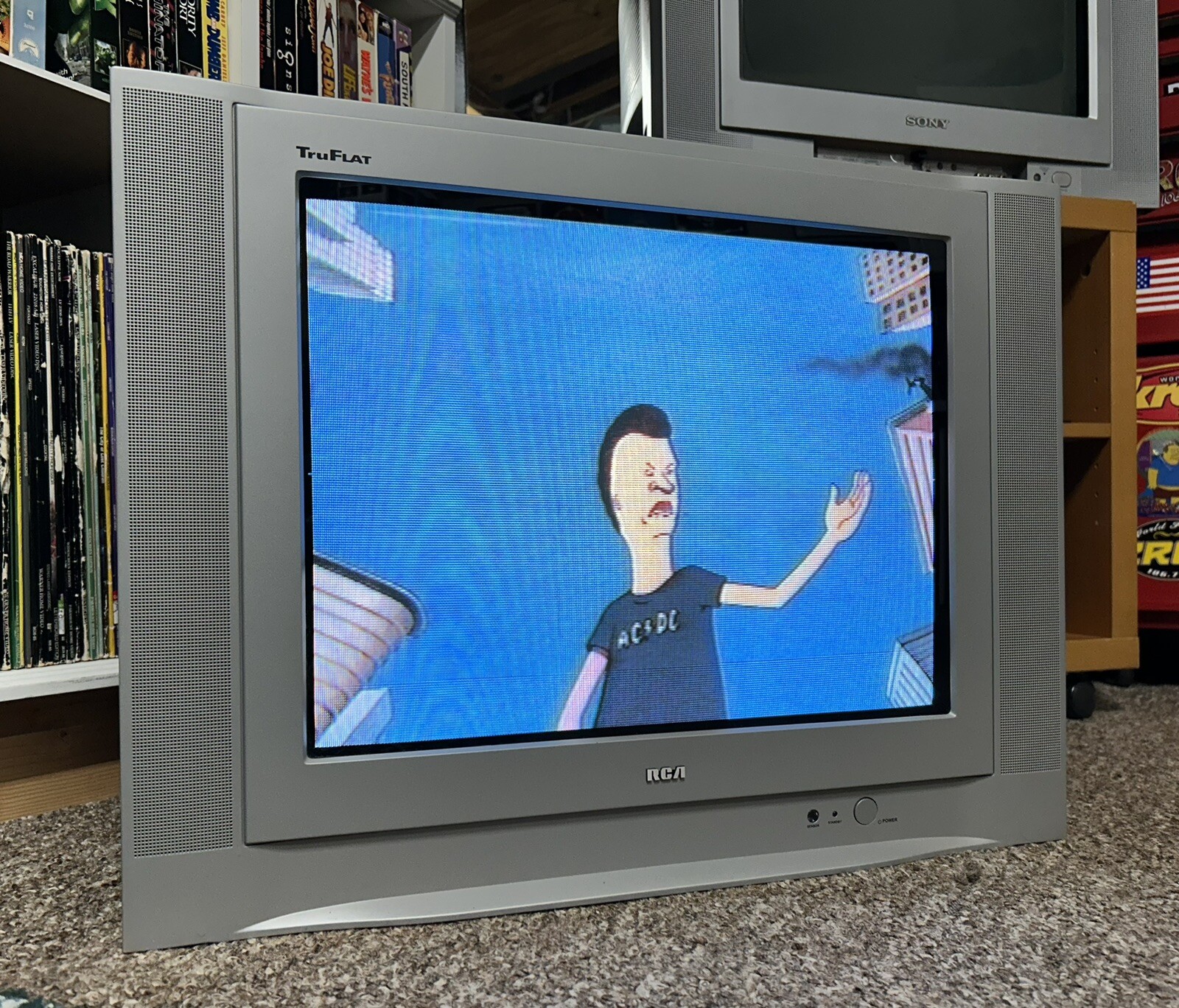

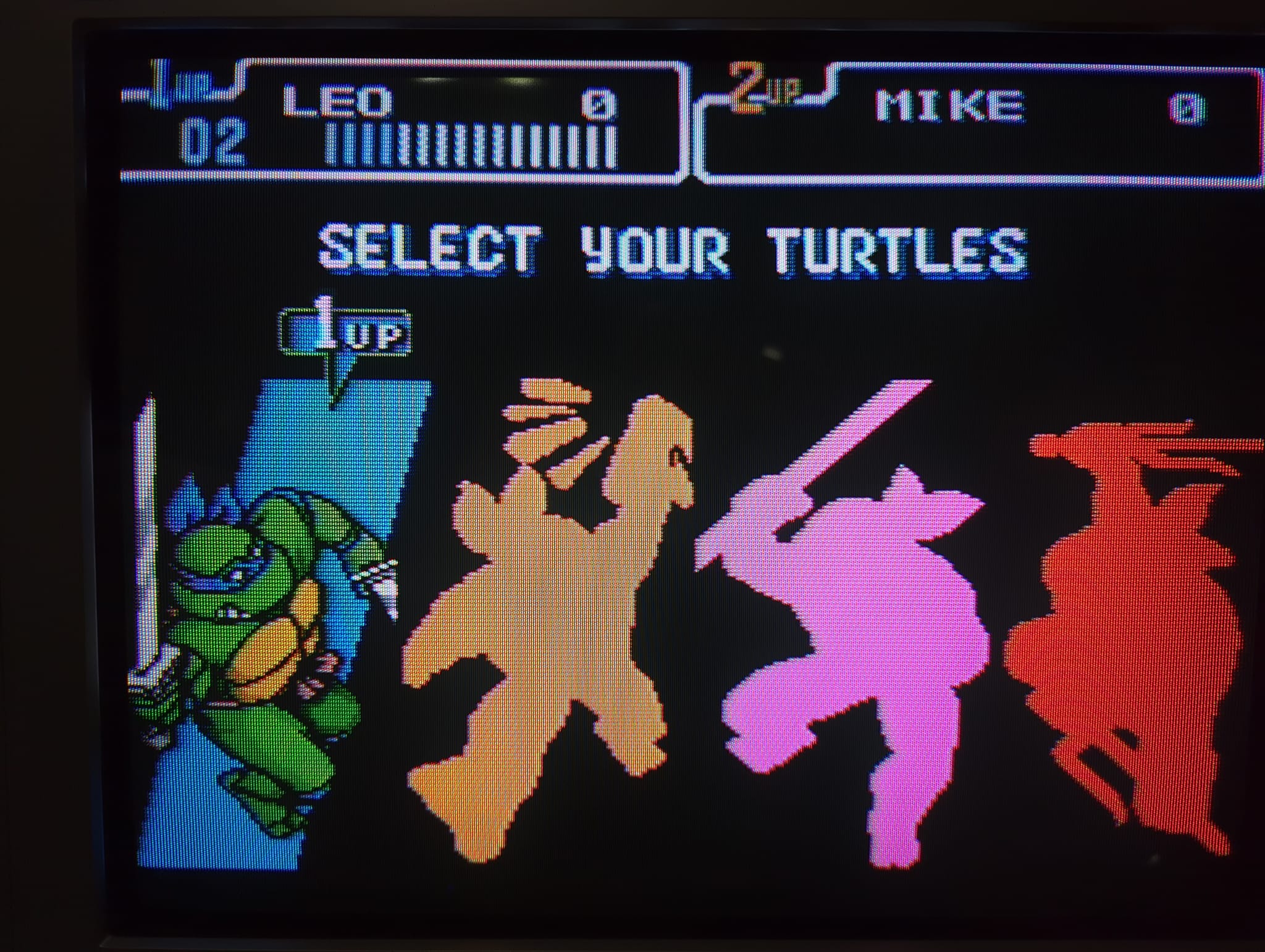

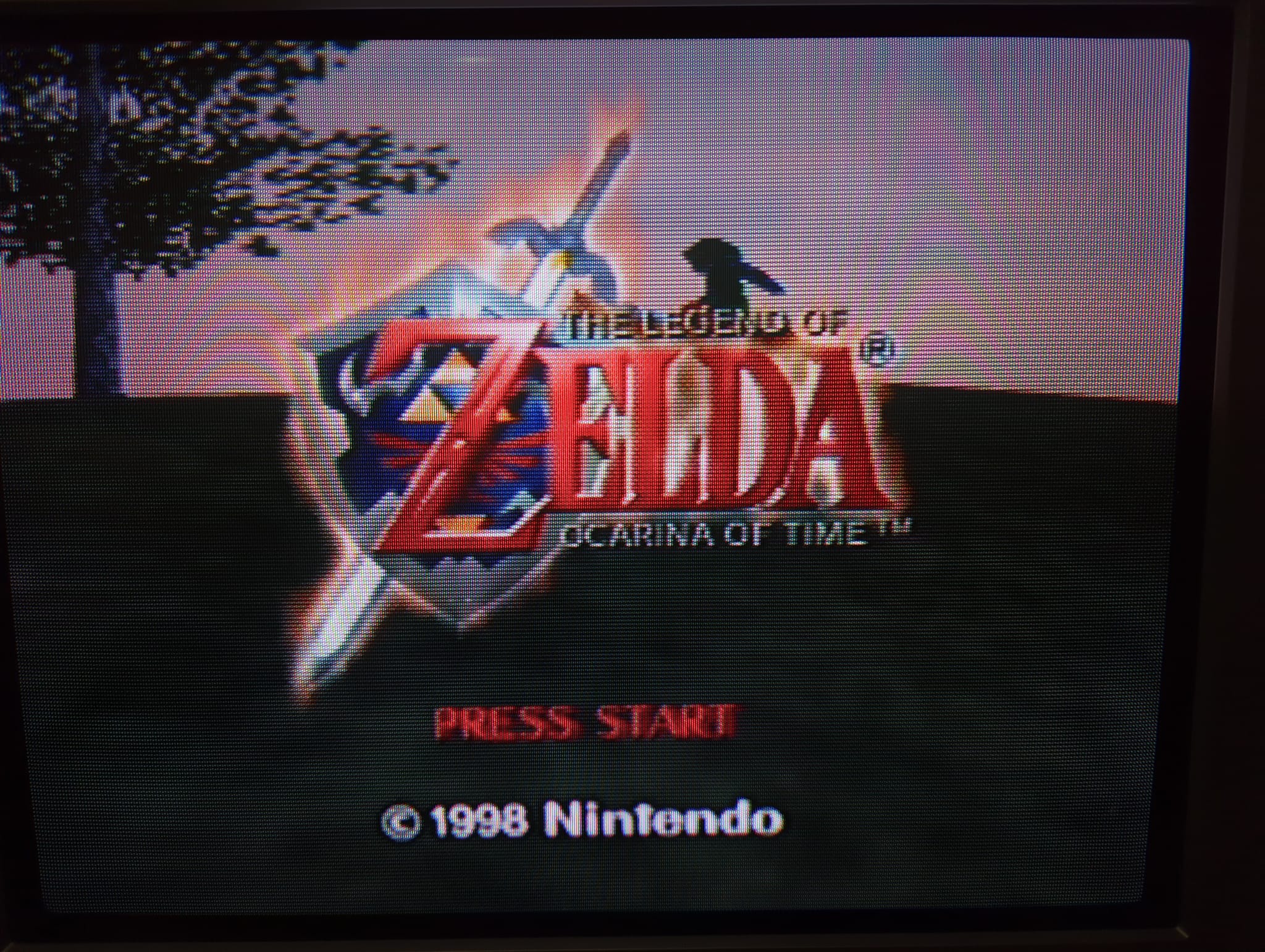

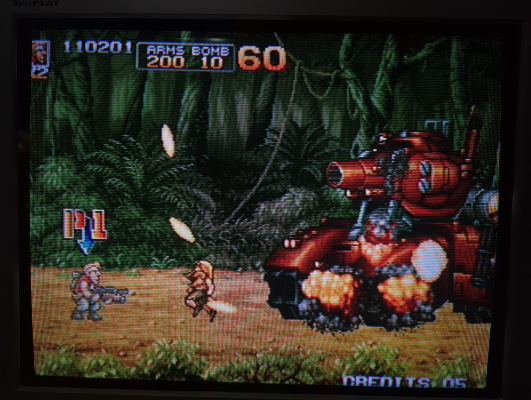

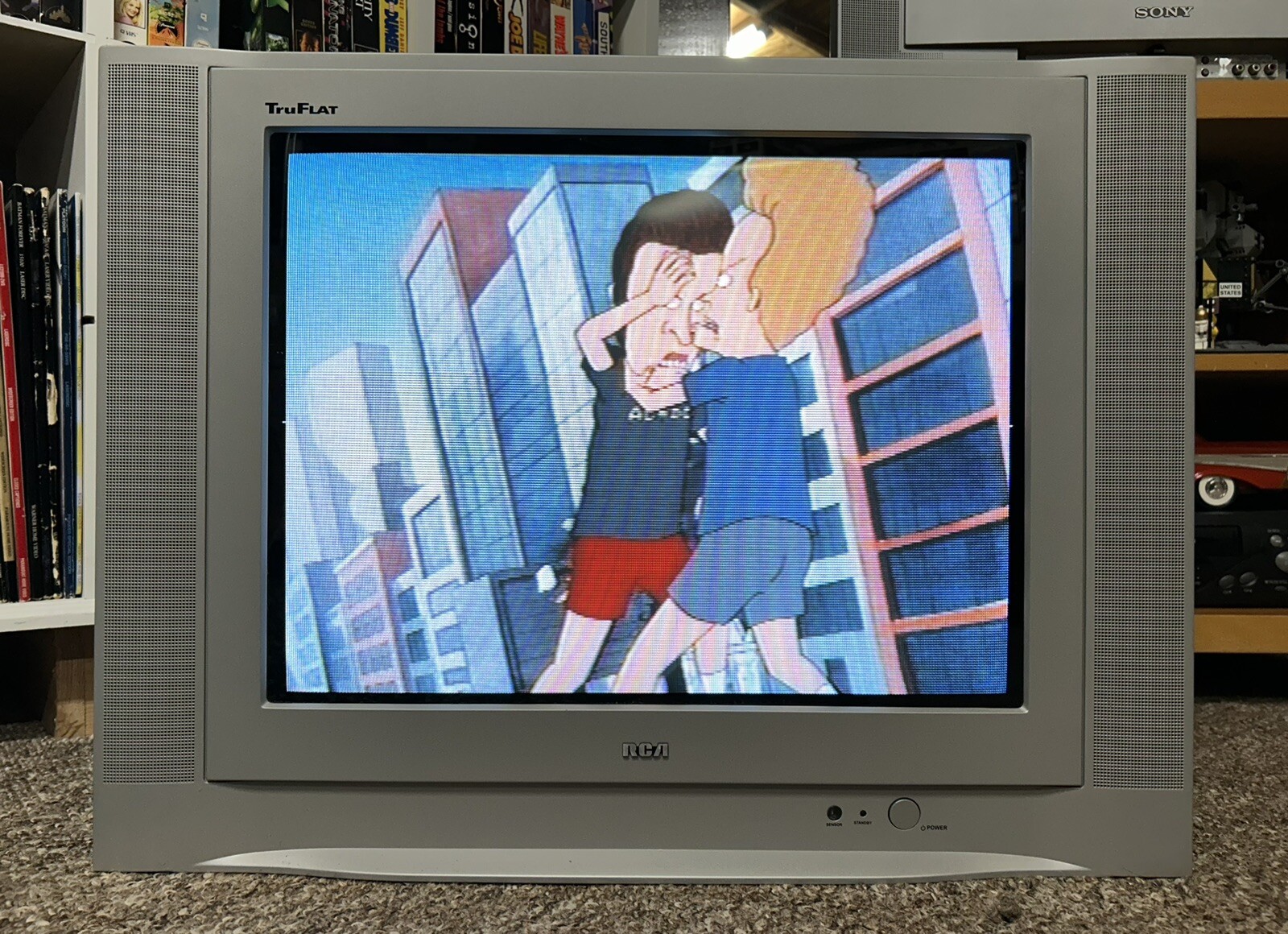

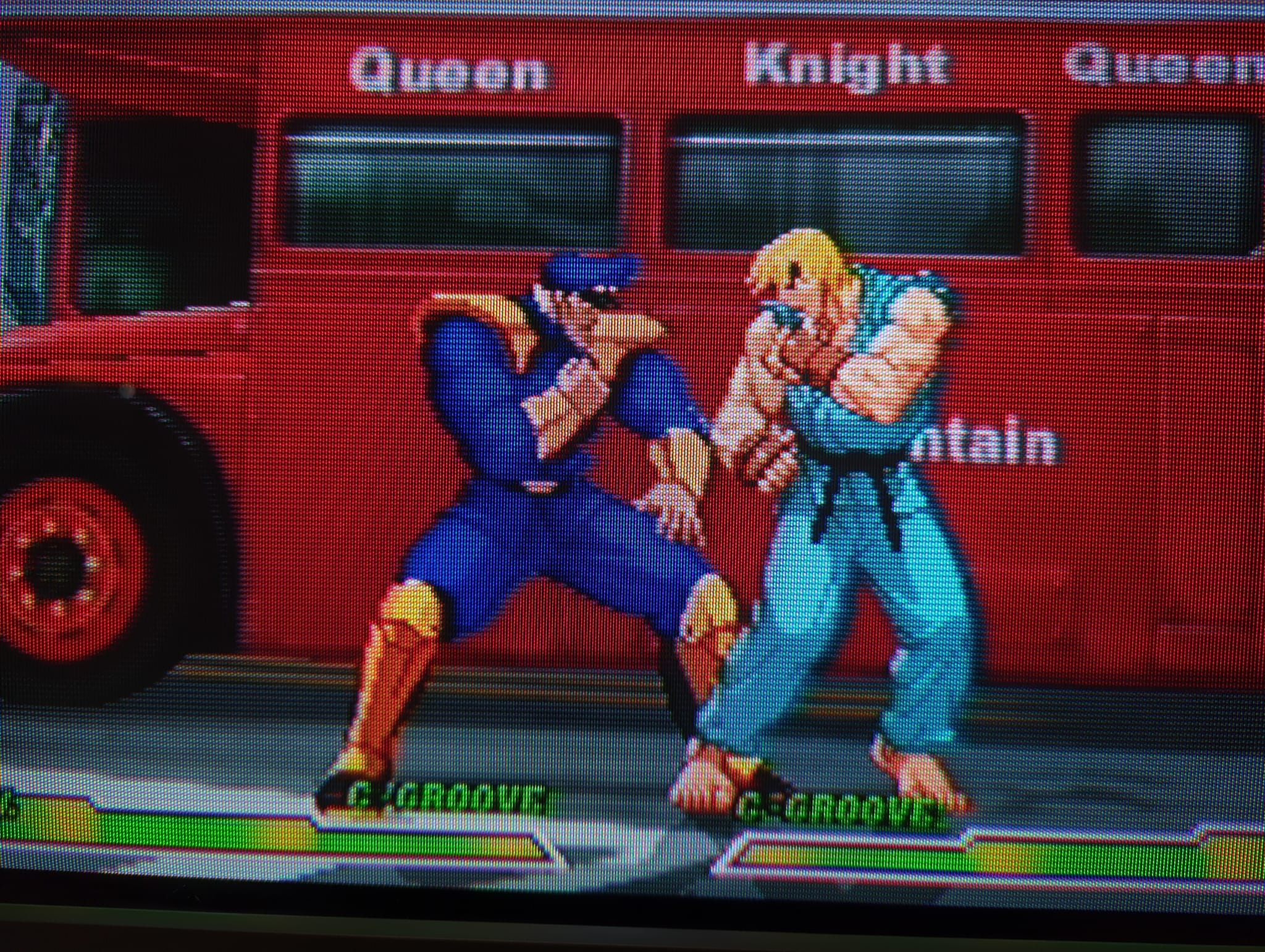

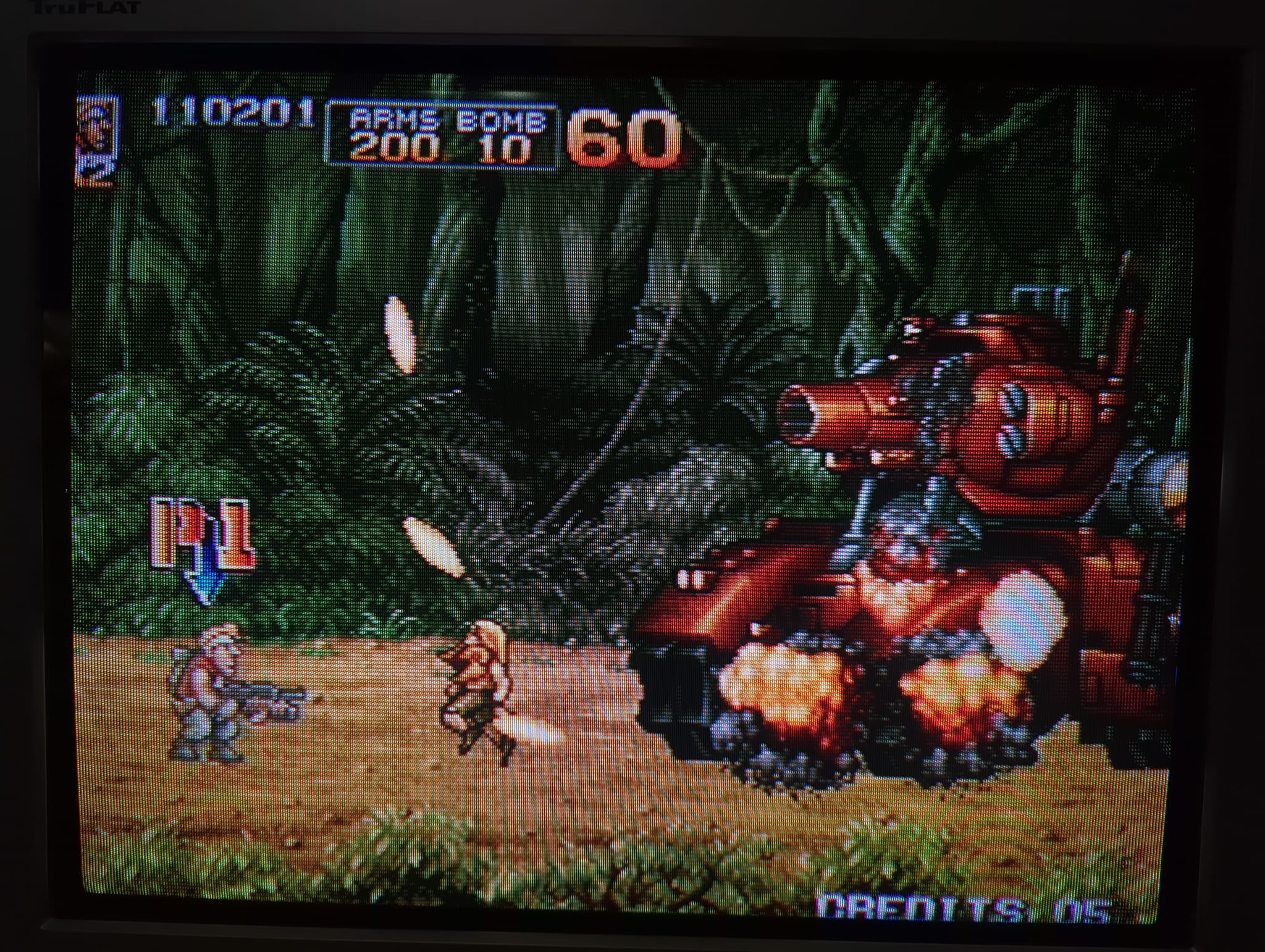

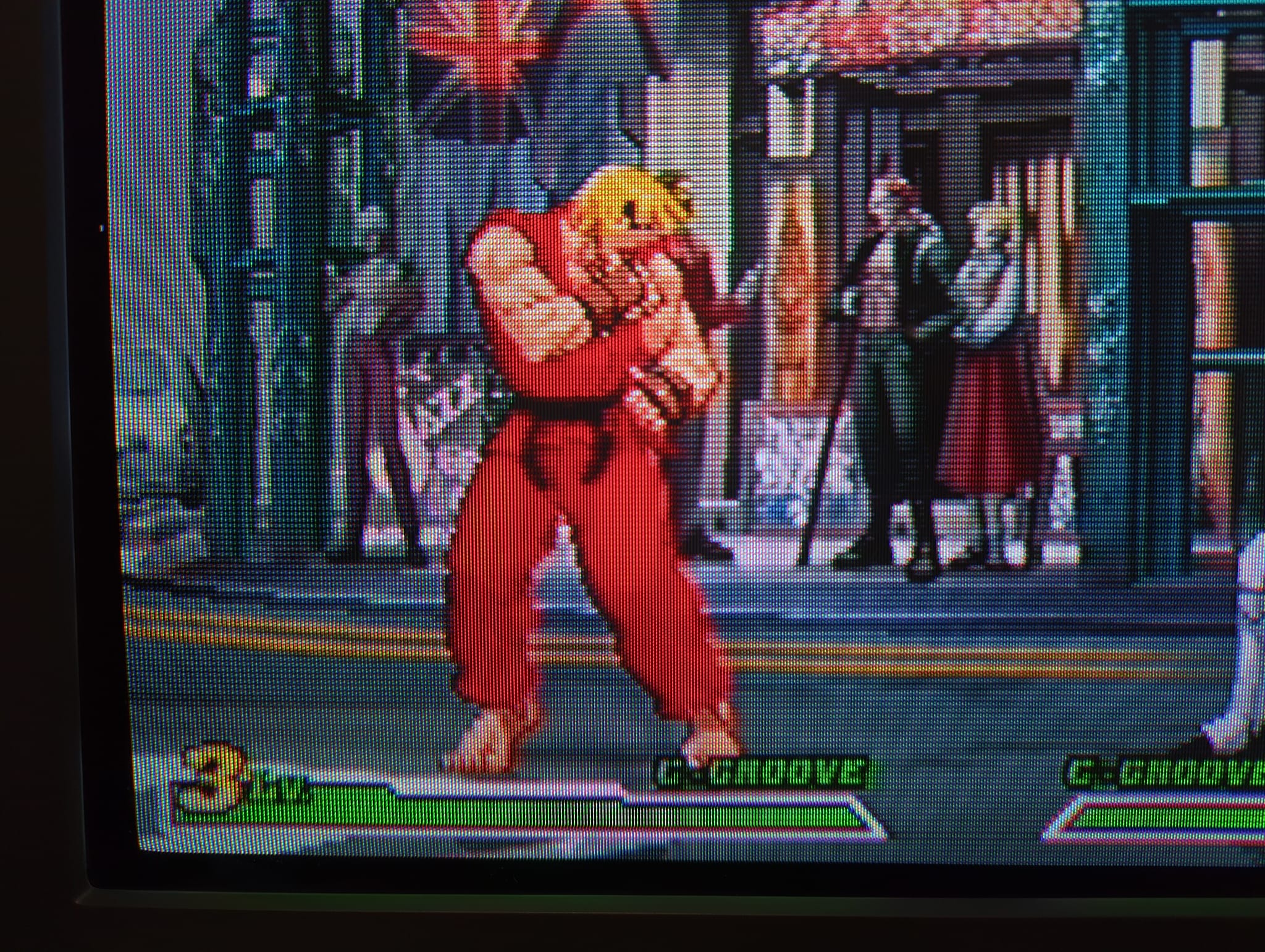

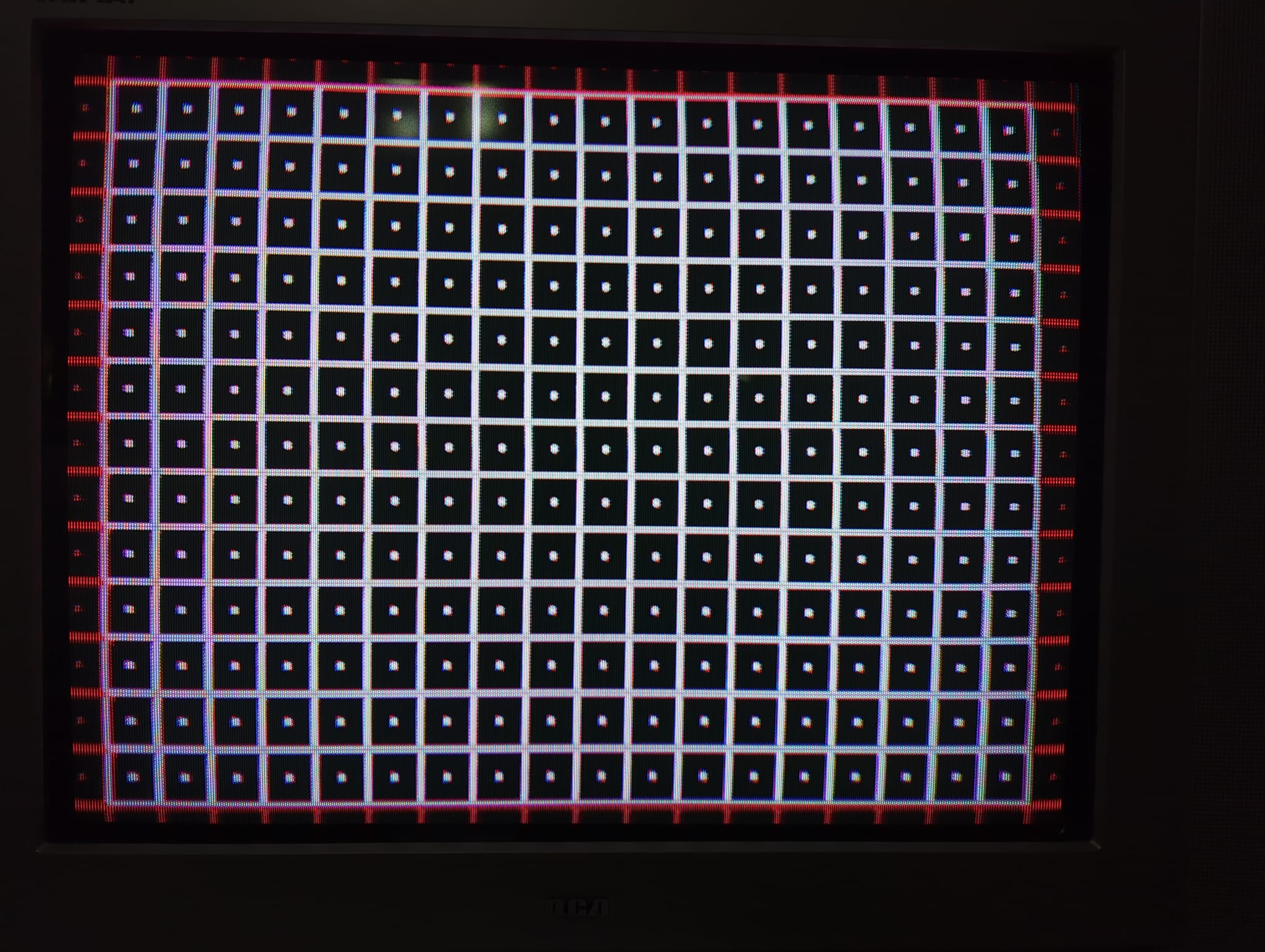

Picture quality is good thanks to the Philips jungle chip. More pics HERE
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TTE Technology |

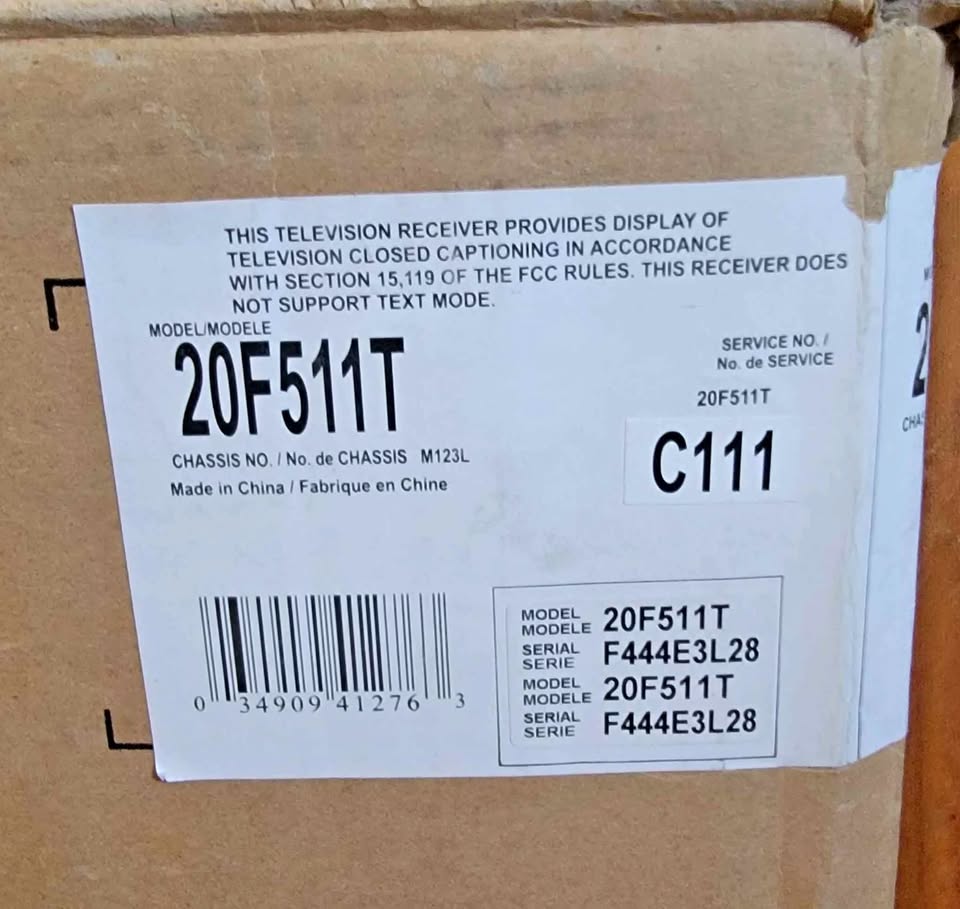

| Model: | 20F511T |
| Series: | TruFlat |
| Viewable Size: | 20" |

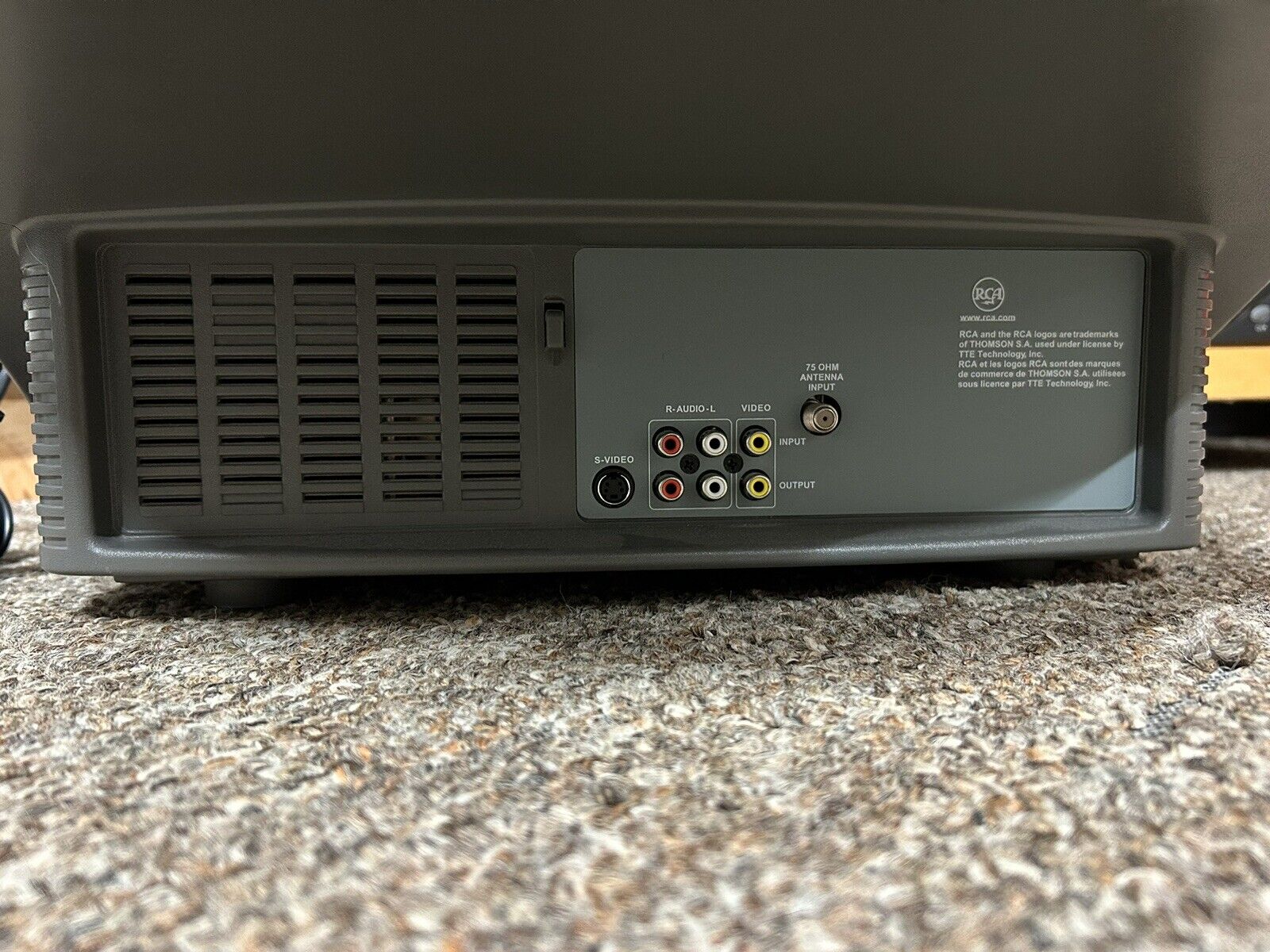

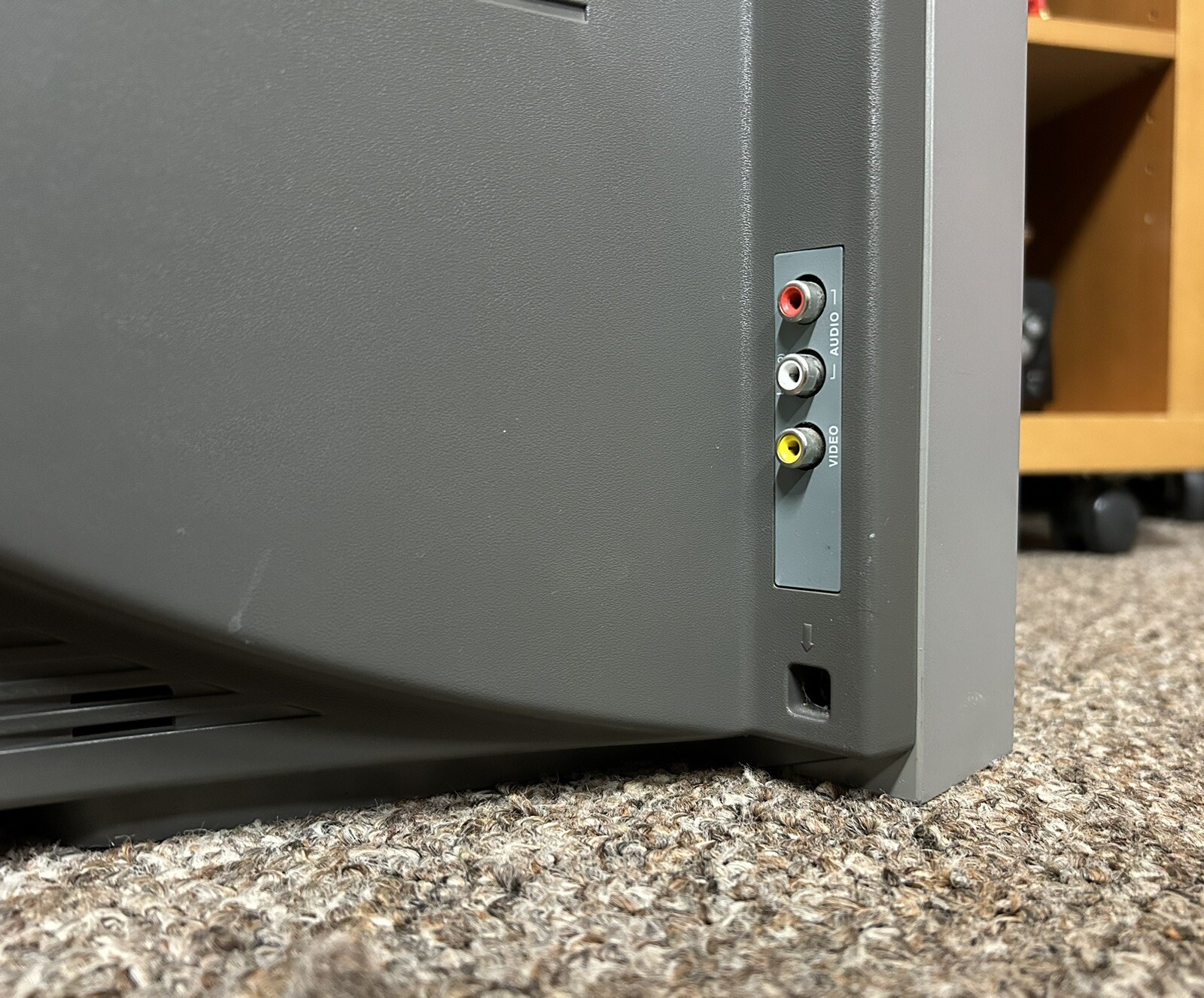

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

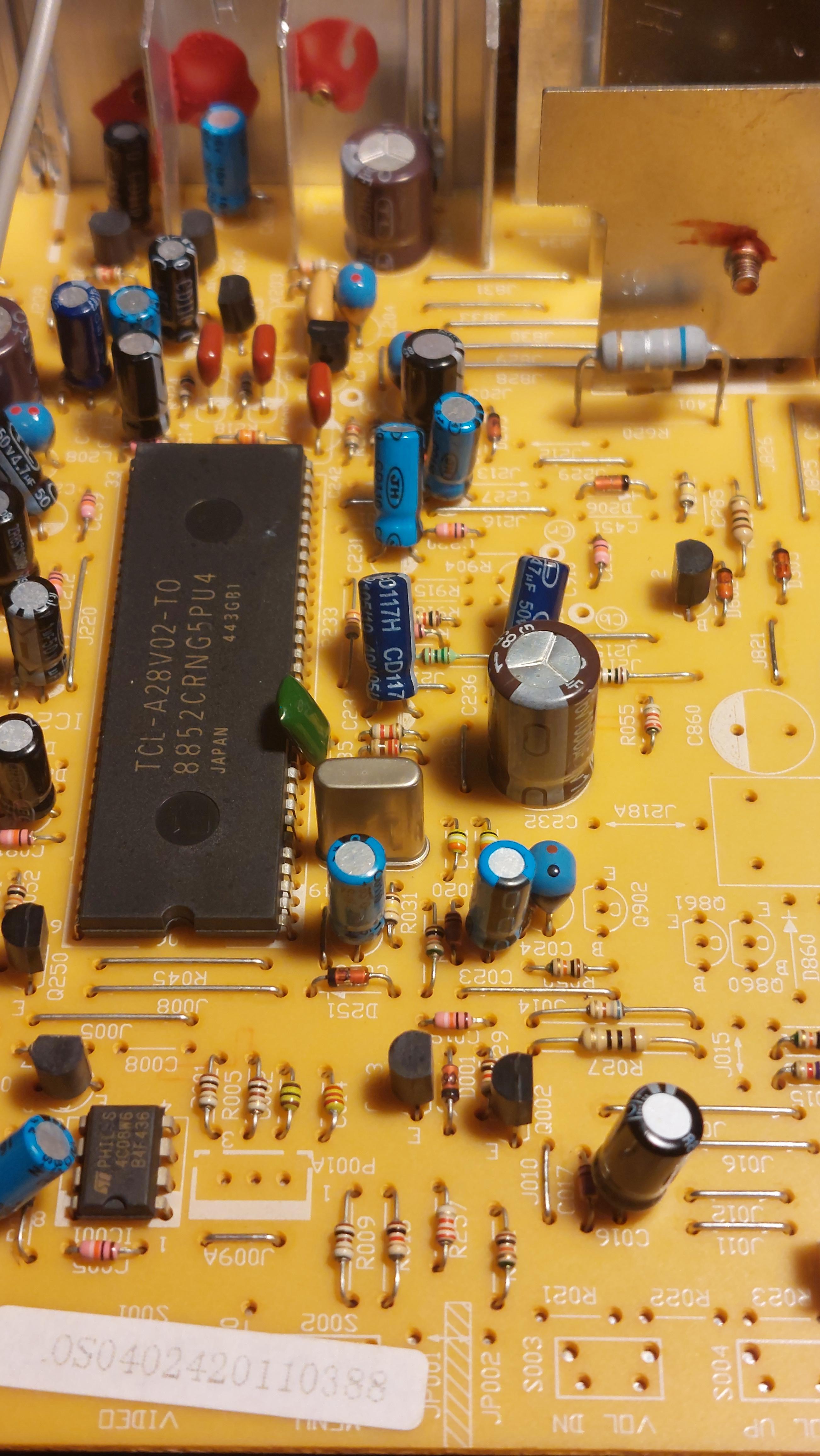

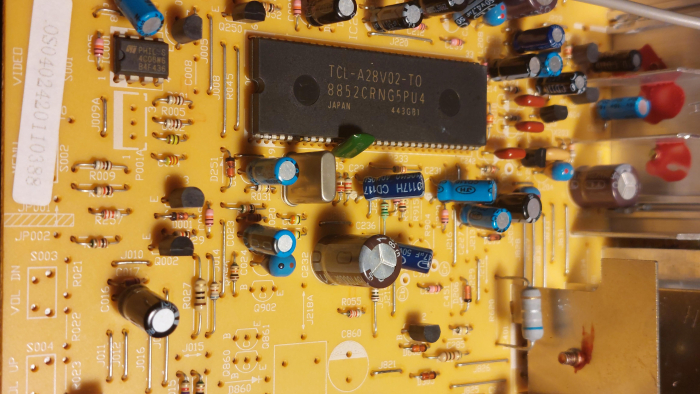

| Jungle IC: | Philips, TMPA8803CSN, TMPA8803 |
| Focus Type: | Single |

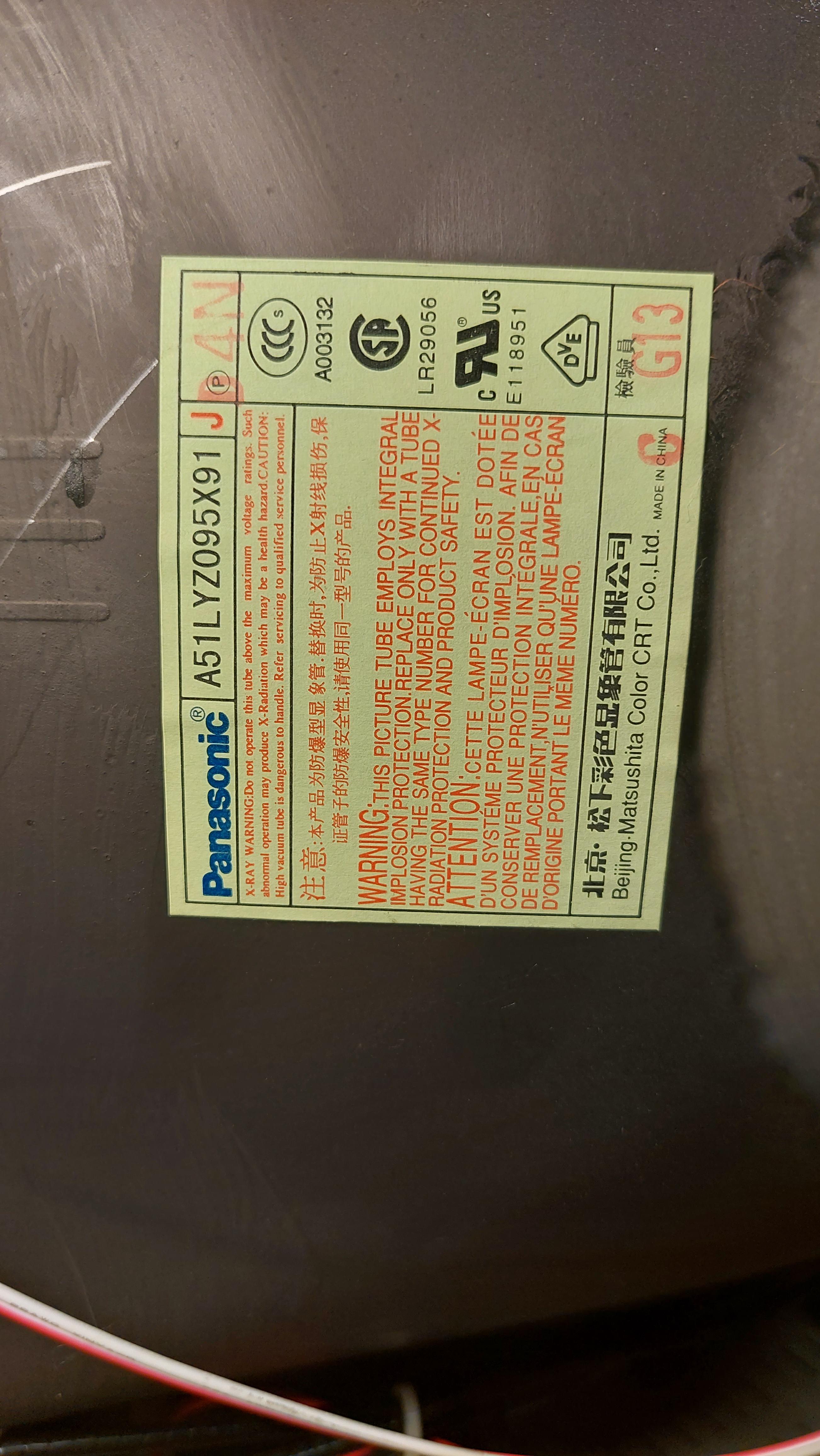

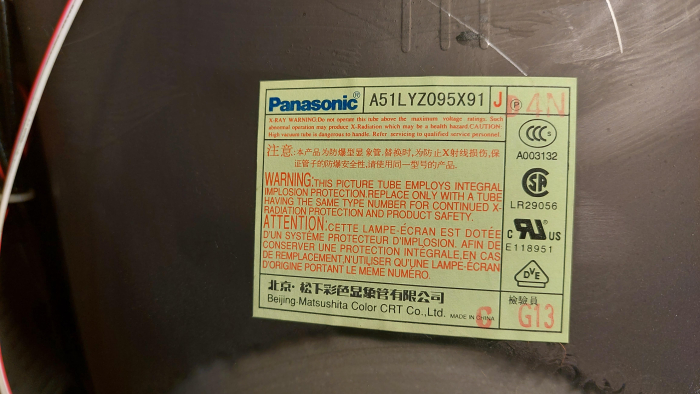

| Tube: | Beijing-Matsushita , A51LYZ095X , A51LYZ095X91 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |

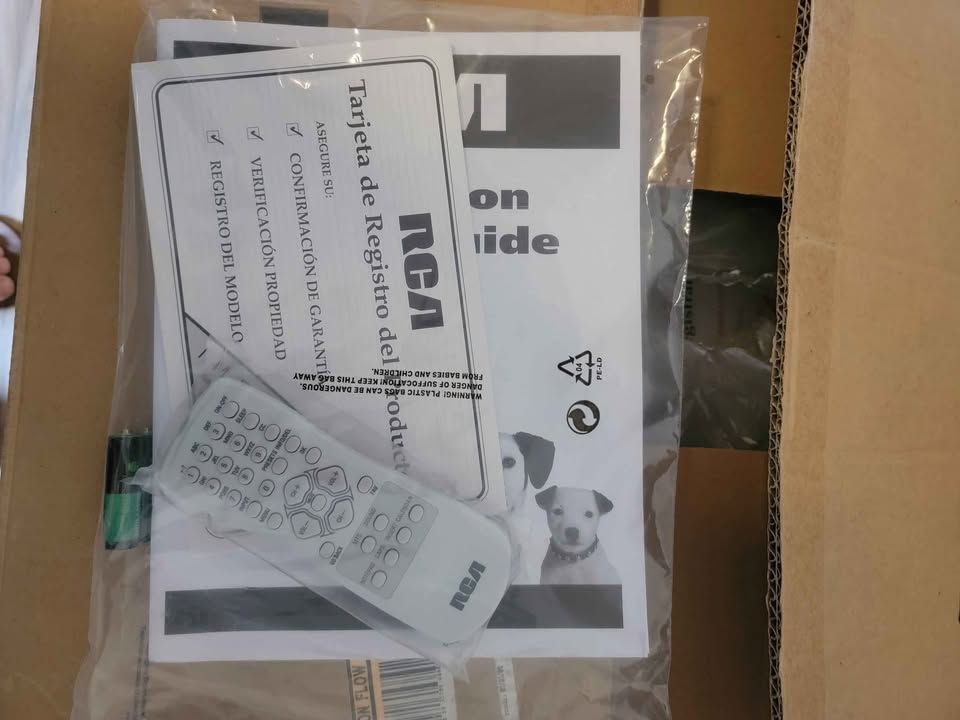

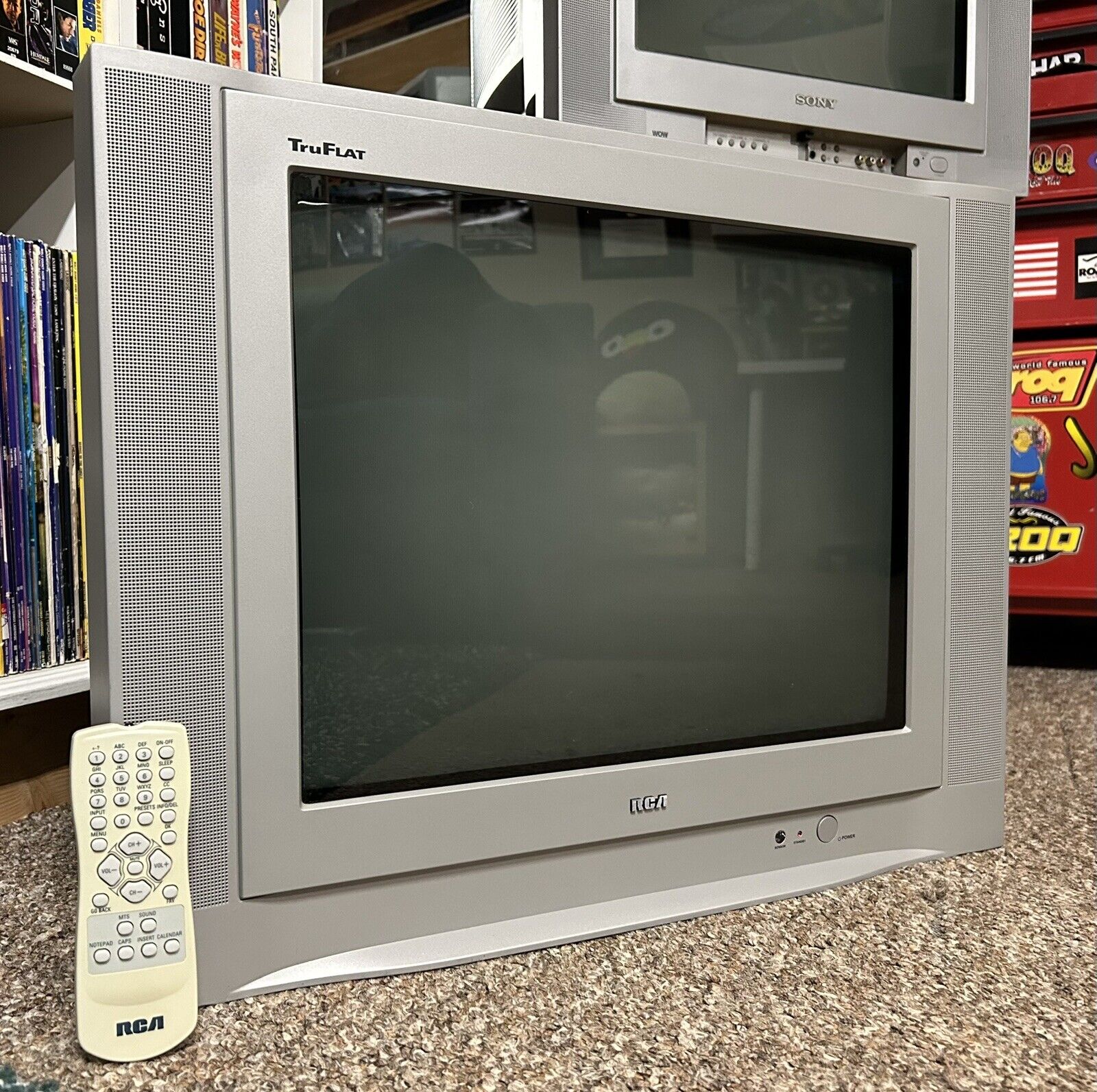

| Remote: | RCR130TB1 |
| Chassis: | M123L |
| Weight: | 52.8 lbs (23.9 kg) |
| Dimensions (W/H/D): |
564 x 701 x 569 mm
(22.2 x 27.5 x 22.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 139 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
