RCA 20V414T
SegaSaturn94
August 17, 2025, 9:22 pm
August 18, 2025, 1:54 am
August 17, 2025, 9:22 pm
August 18, 2025, 1:54 am
Summary

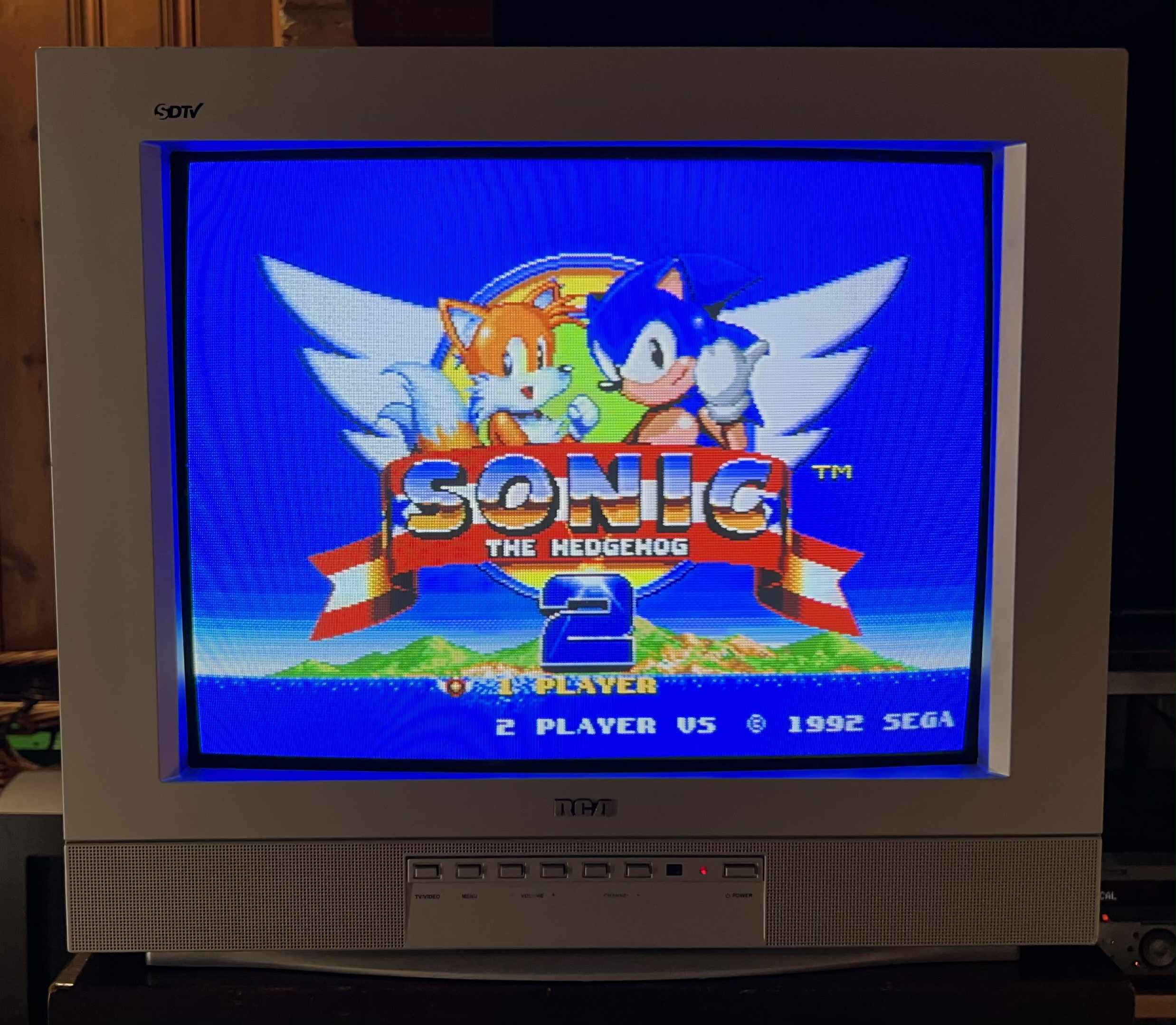

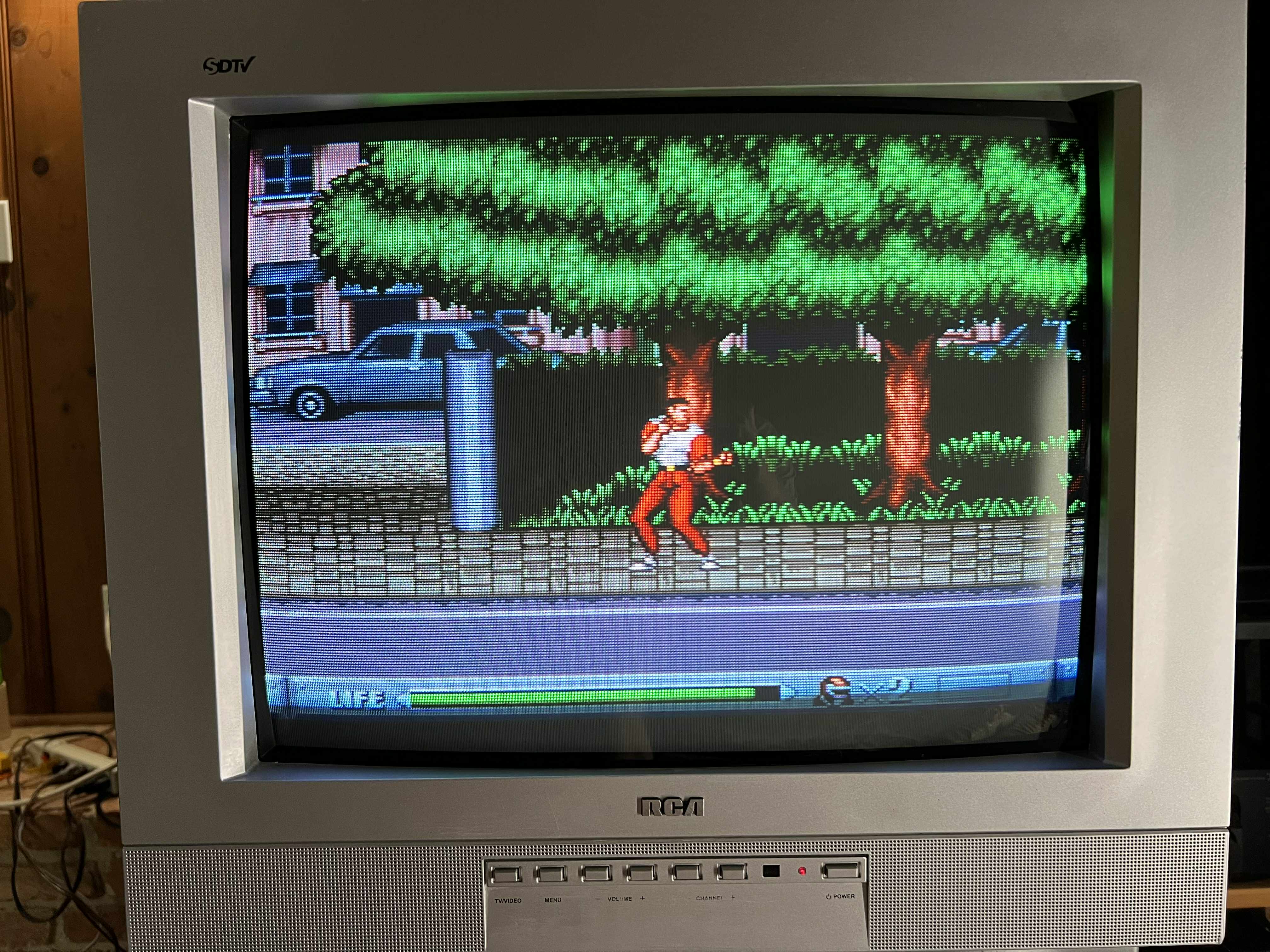

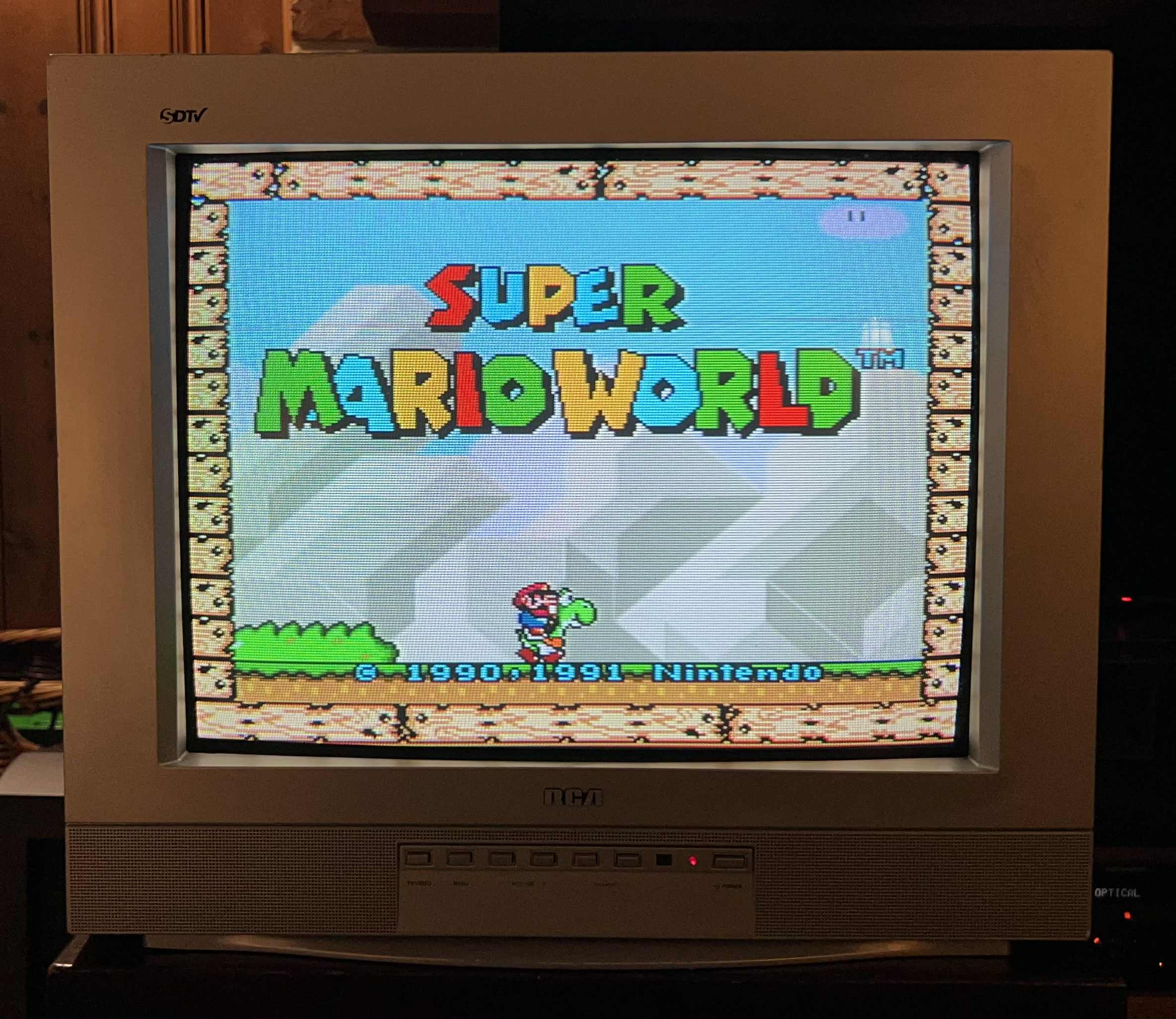

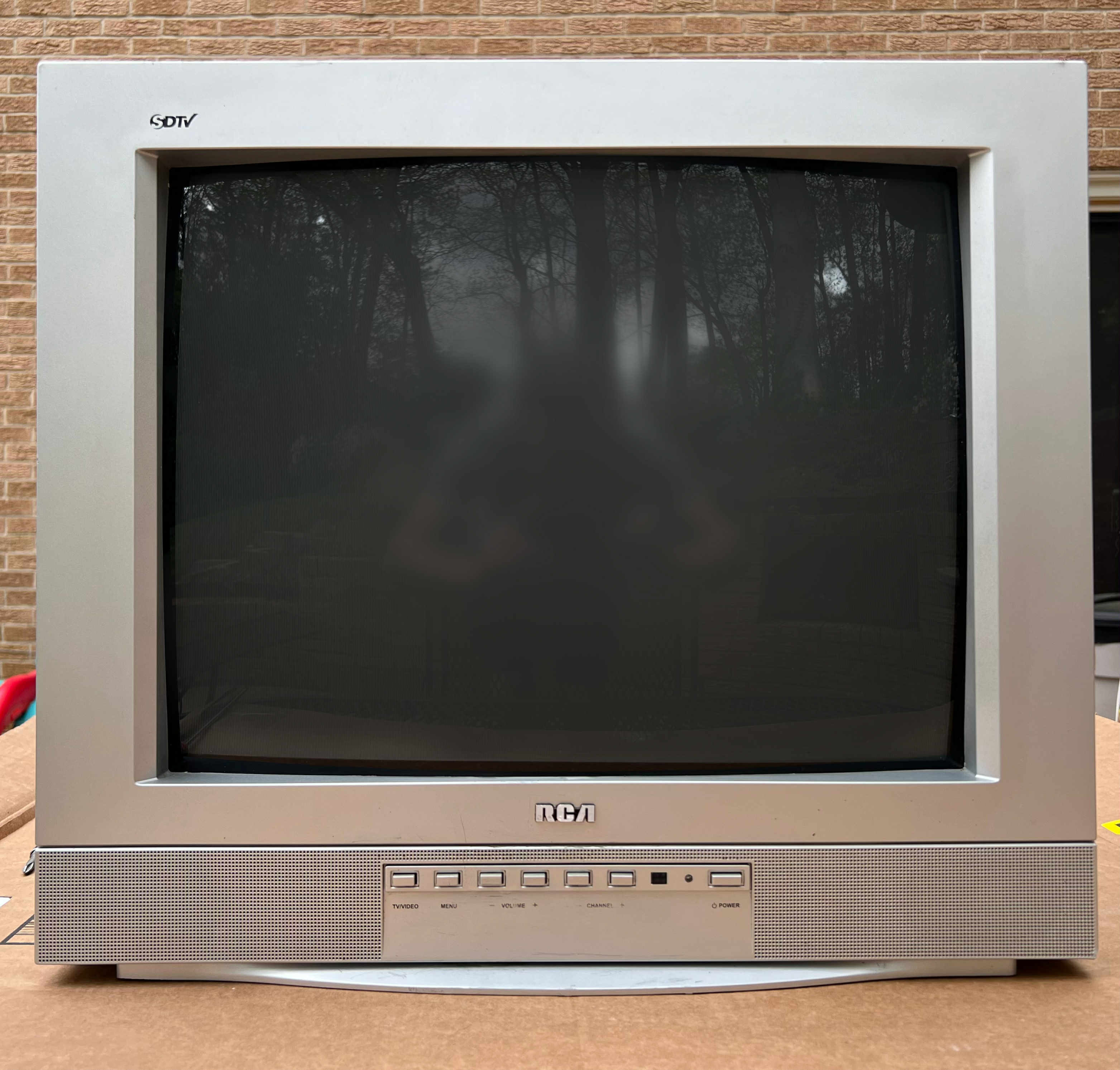

20" curved-screen CRT by RCA, made in China in 2007. Has RF, composite, and component, but no s-video. Also has a built-in digital tuner. Originally manufactured by TCL when they were merged with Thomson. One of the very last RCA-branded CRTs released...

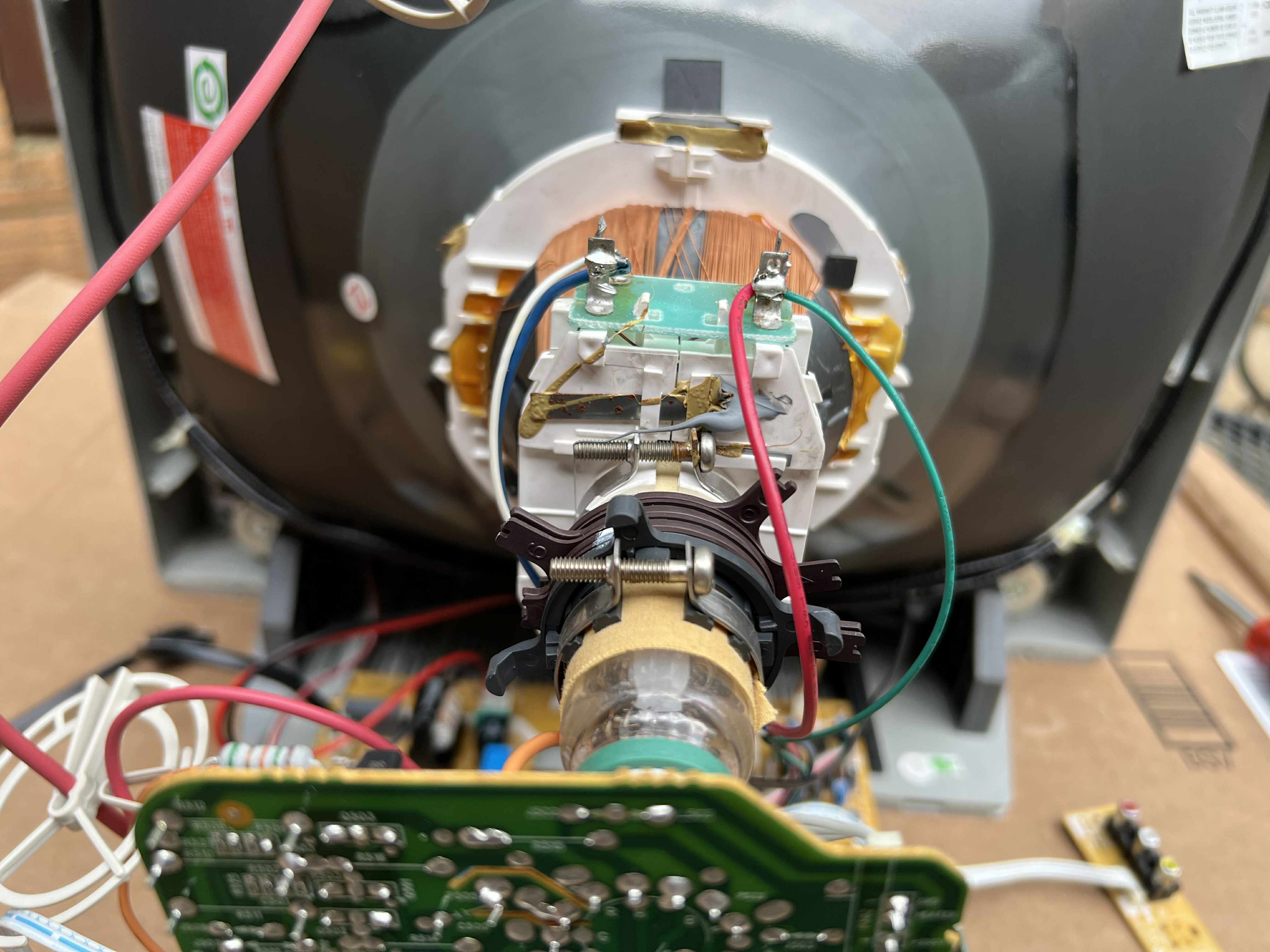

(Special thanks to Austin G. for the pics!)
Manuals
Gallery






















Specifications | |
---|---|
Brand: | RCA |
Manufacturer: | RCA |
Model: | 20V414T |
Series: | V |
Viewable Size: | 20" |

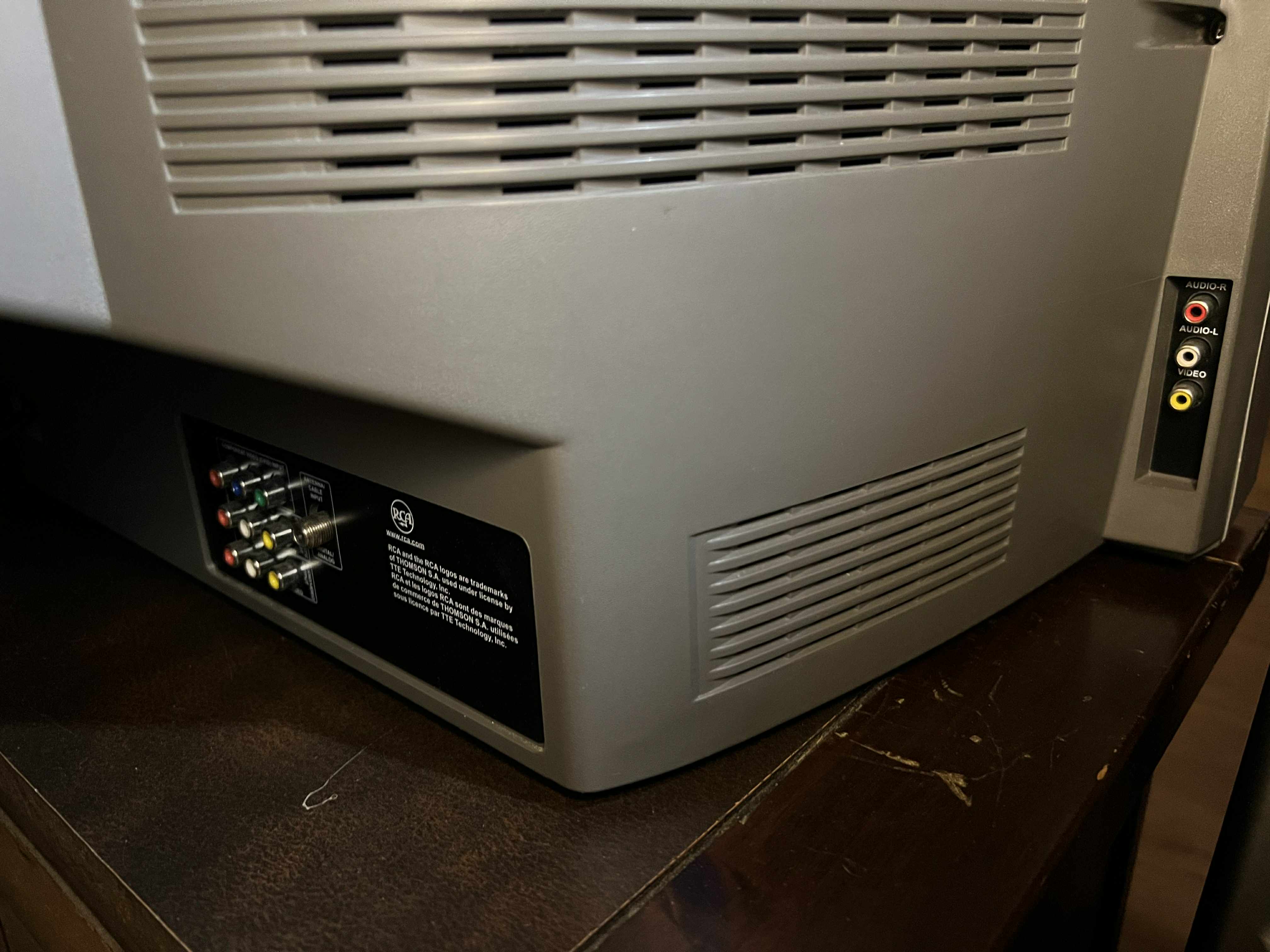

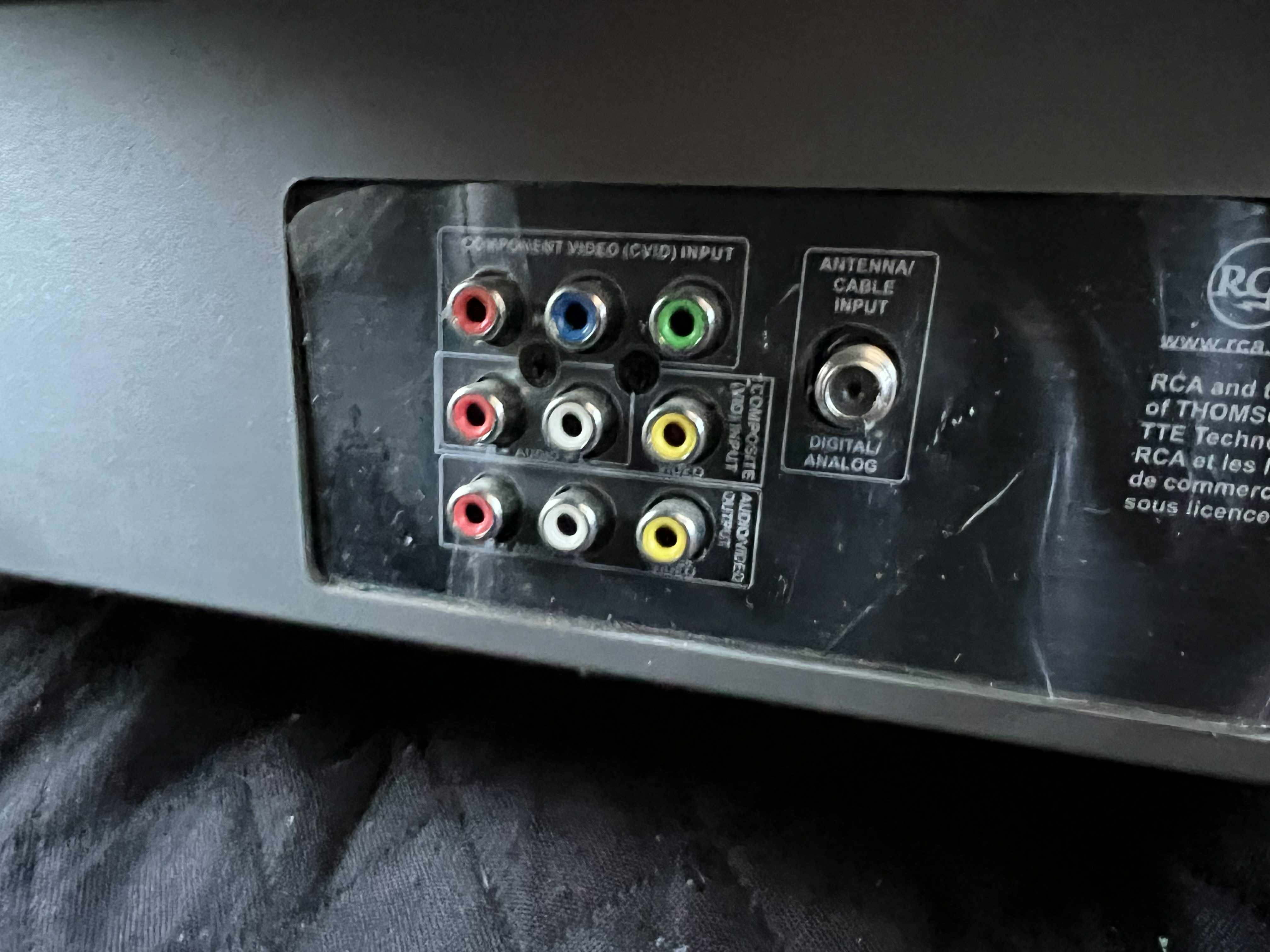

Inputs: | Composite, RF, Component YPbPr |

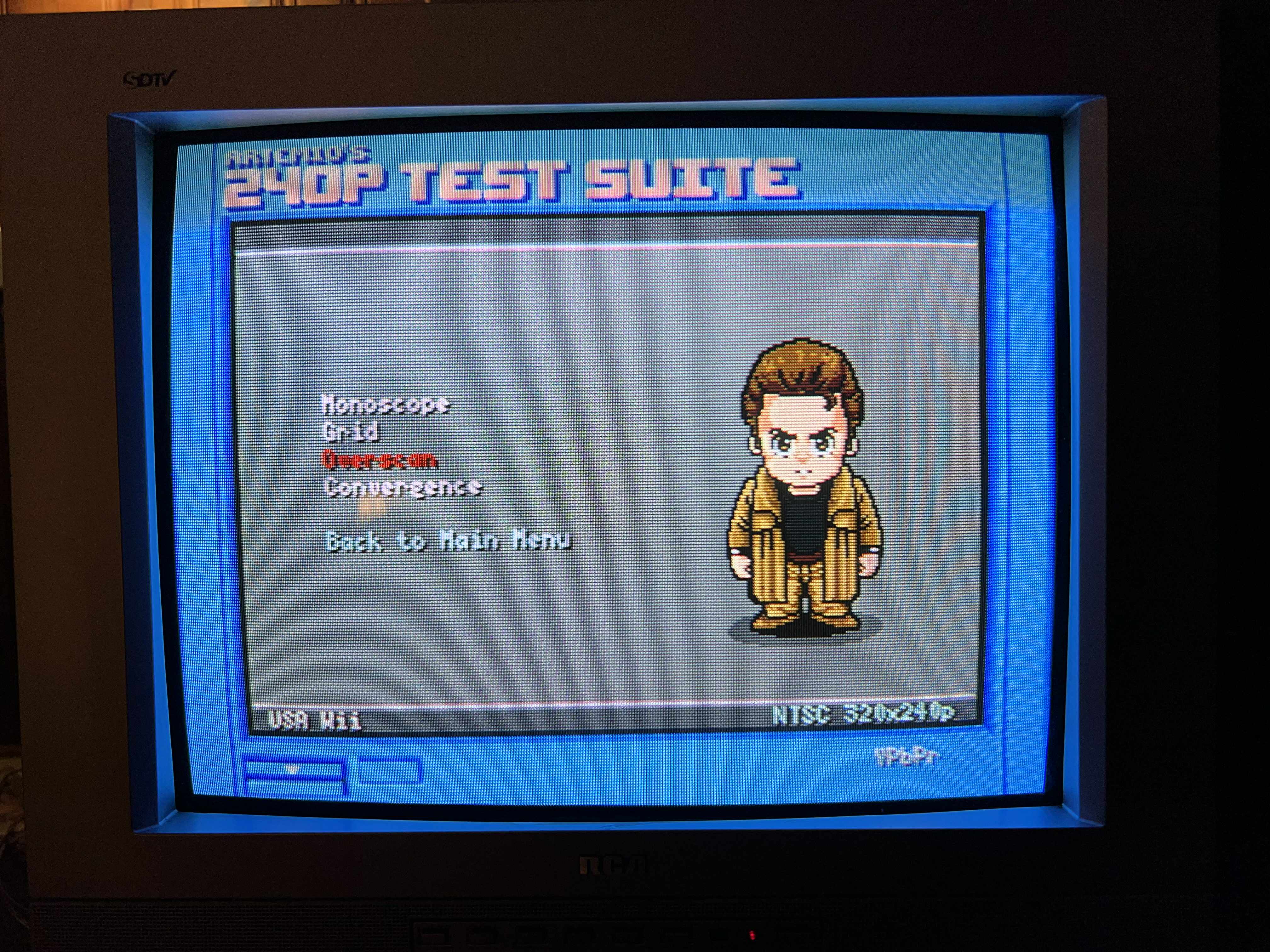

Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

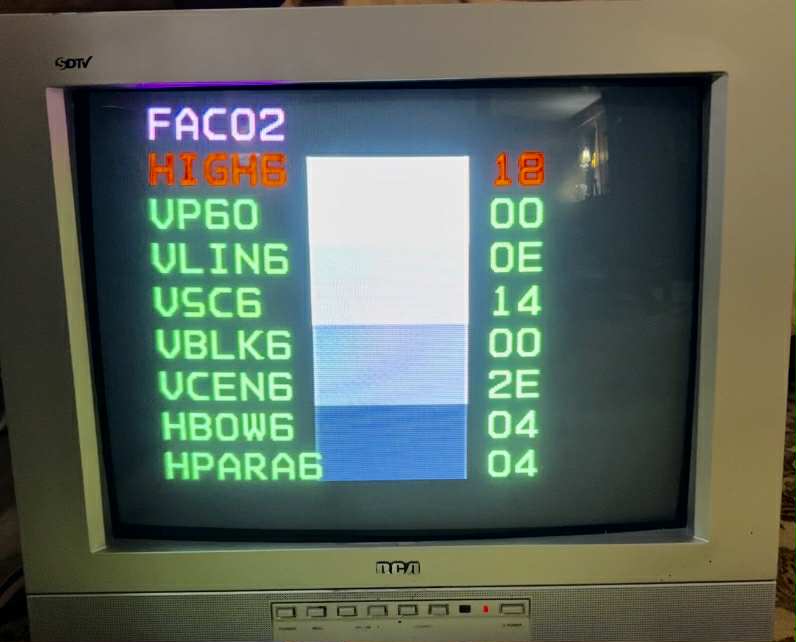

Adjustments: | OSD Customer Controls, OSD Service Menu |

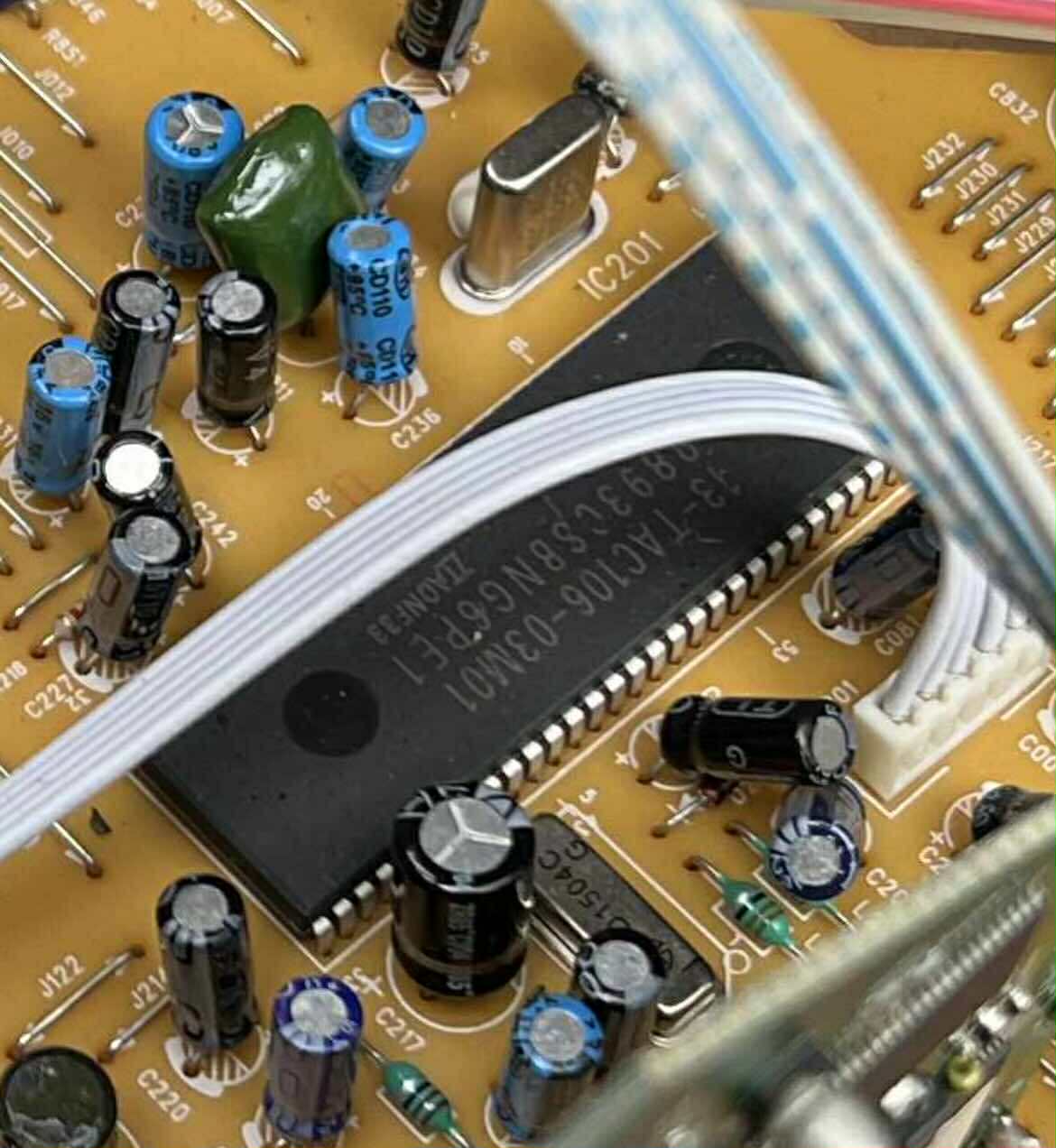

Jungle: | Toshiba, TMPA8893CSBNG6PE1, TMPA8893 |

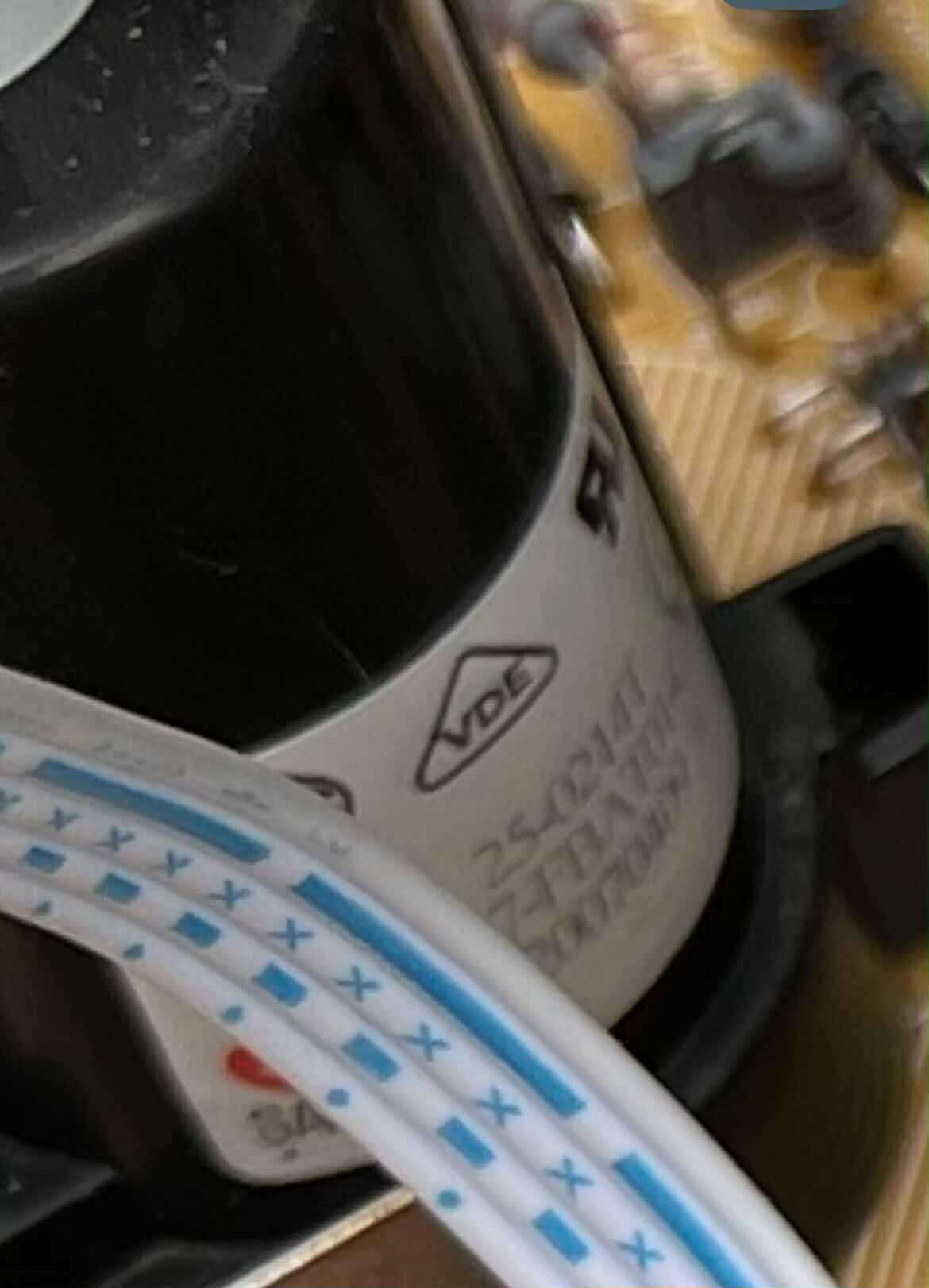

Flyback: | BSC25-0214T |
Focus Type: | Single |

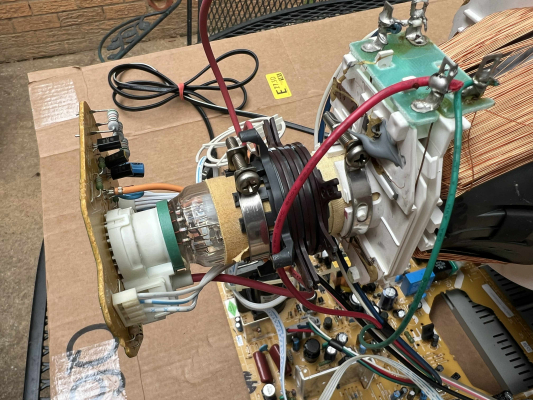

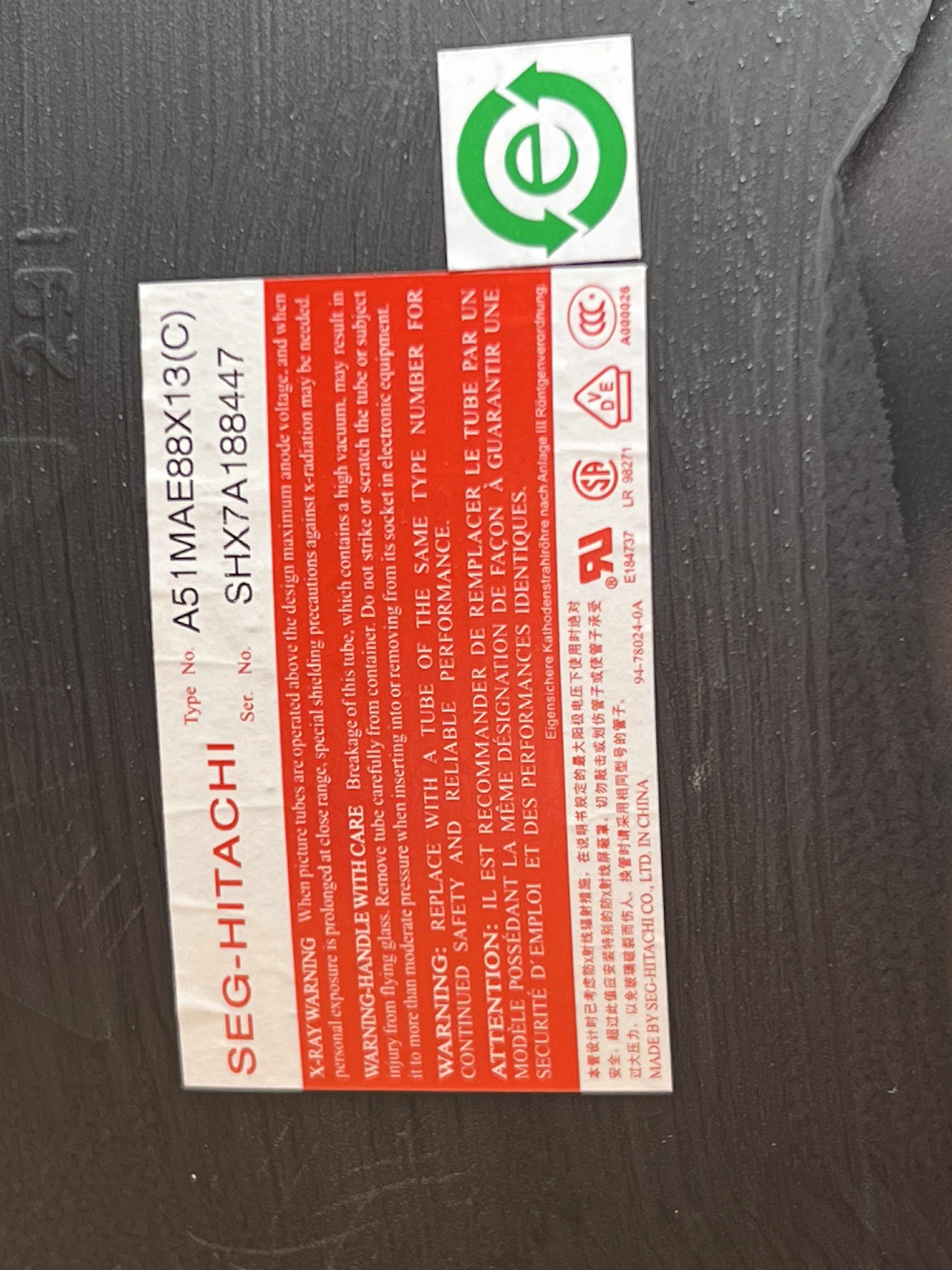

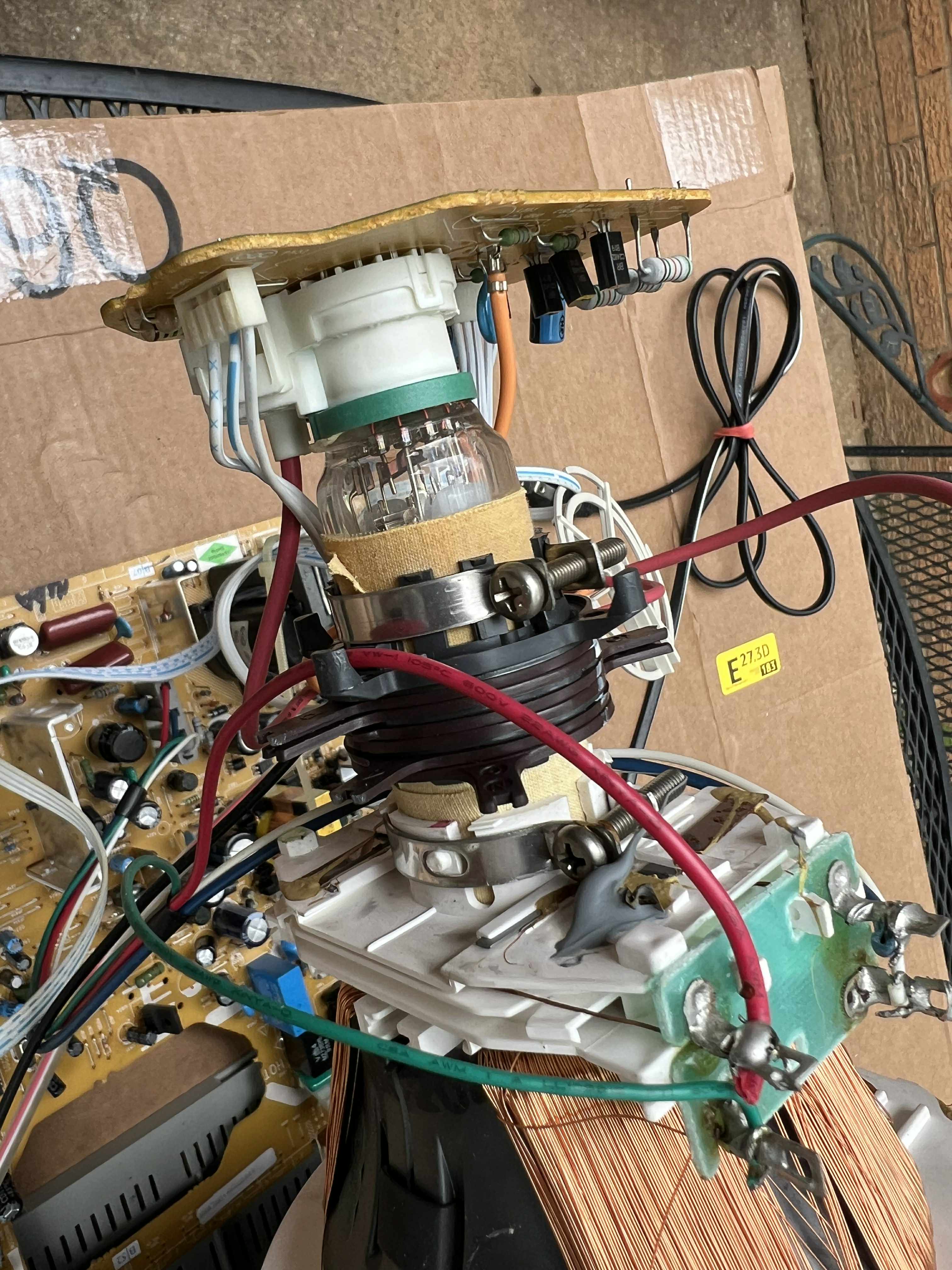

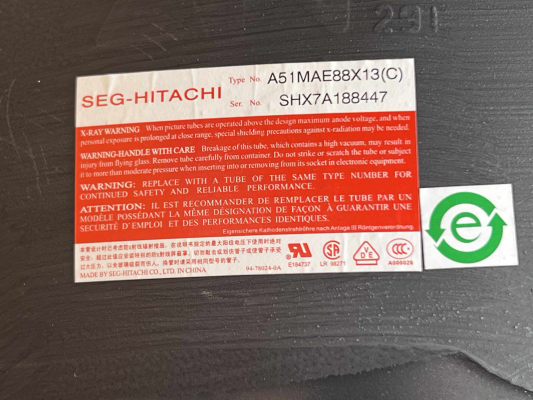

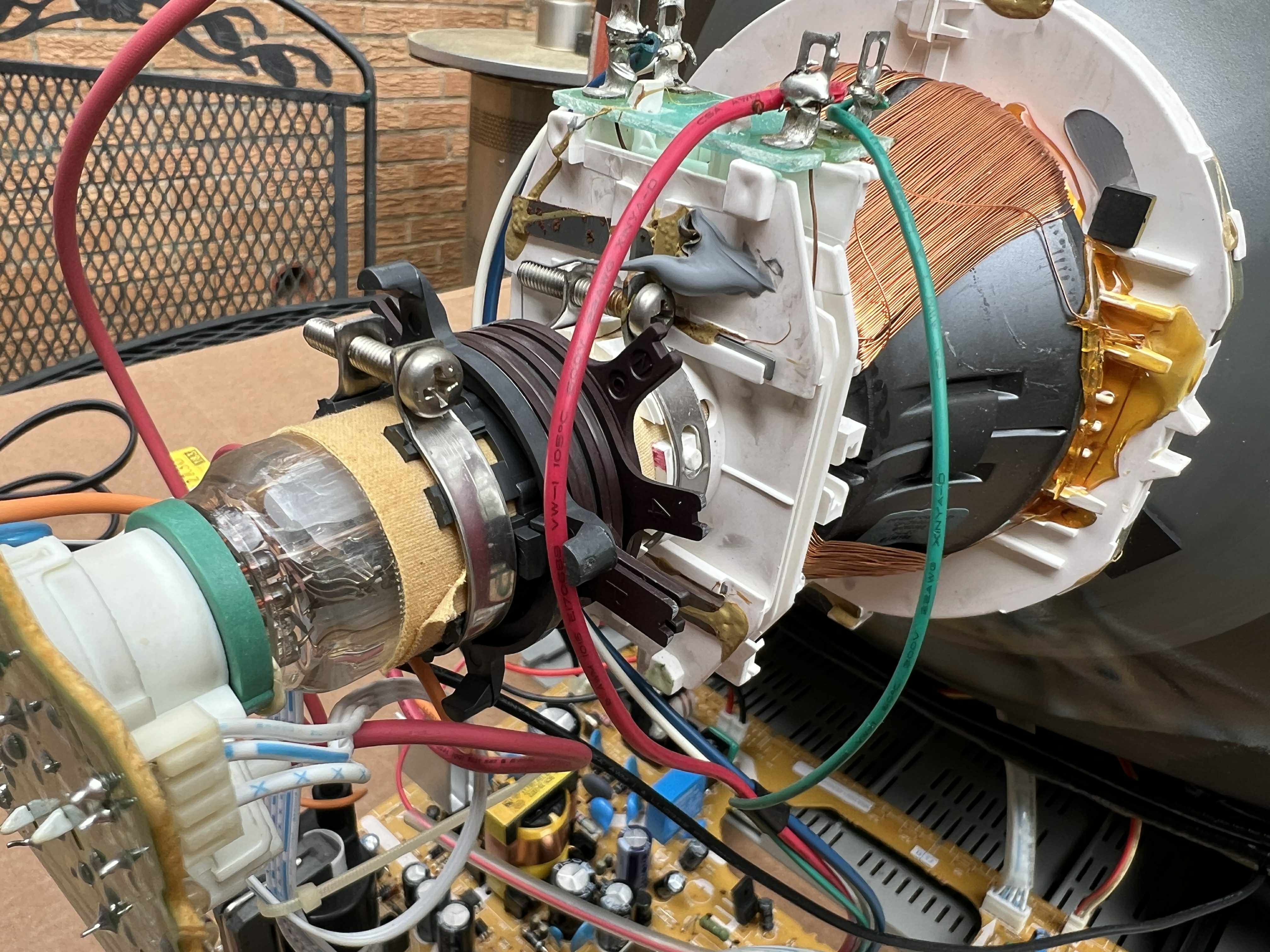

Tube: | SEG-Hitachi , A51MAE88X , A51MAE88X13 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 2W x 2 |

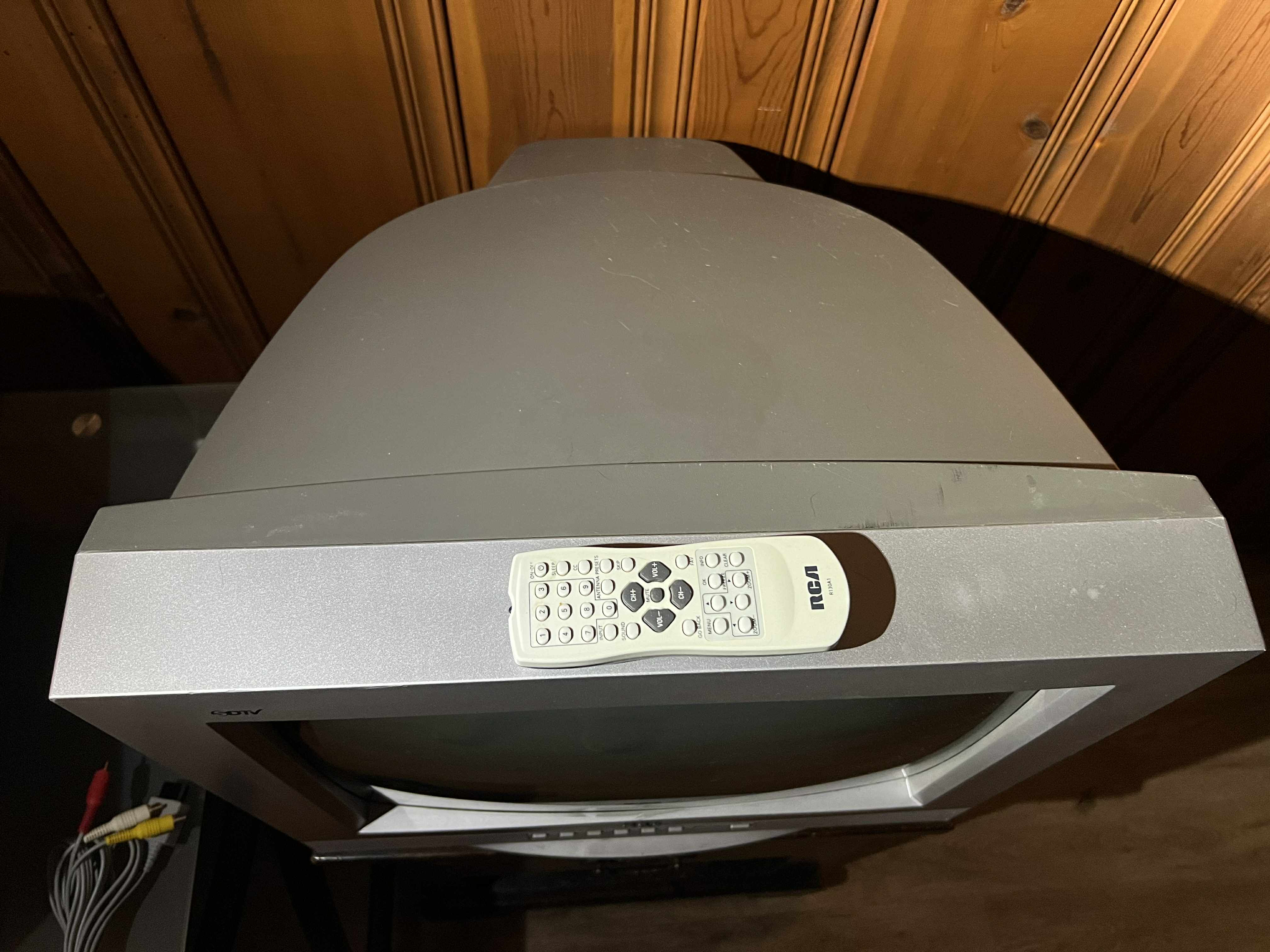

Remote: | R130C1 |

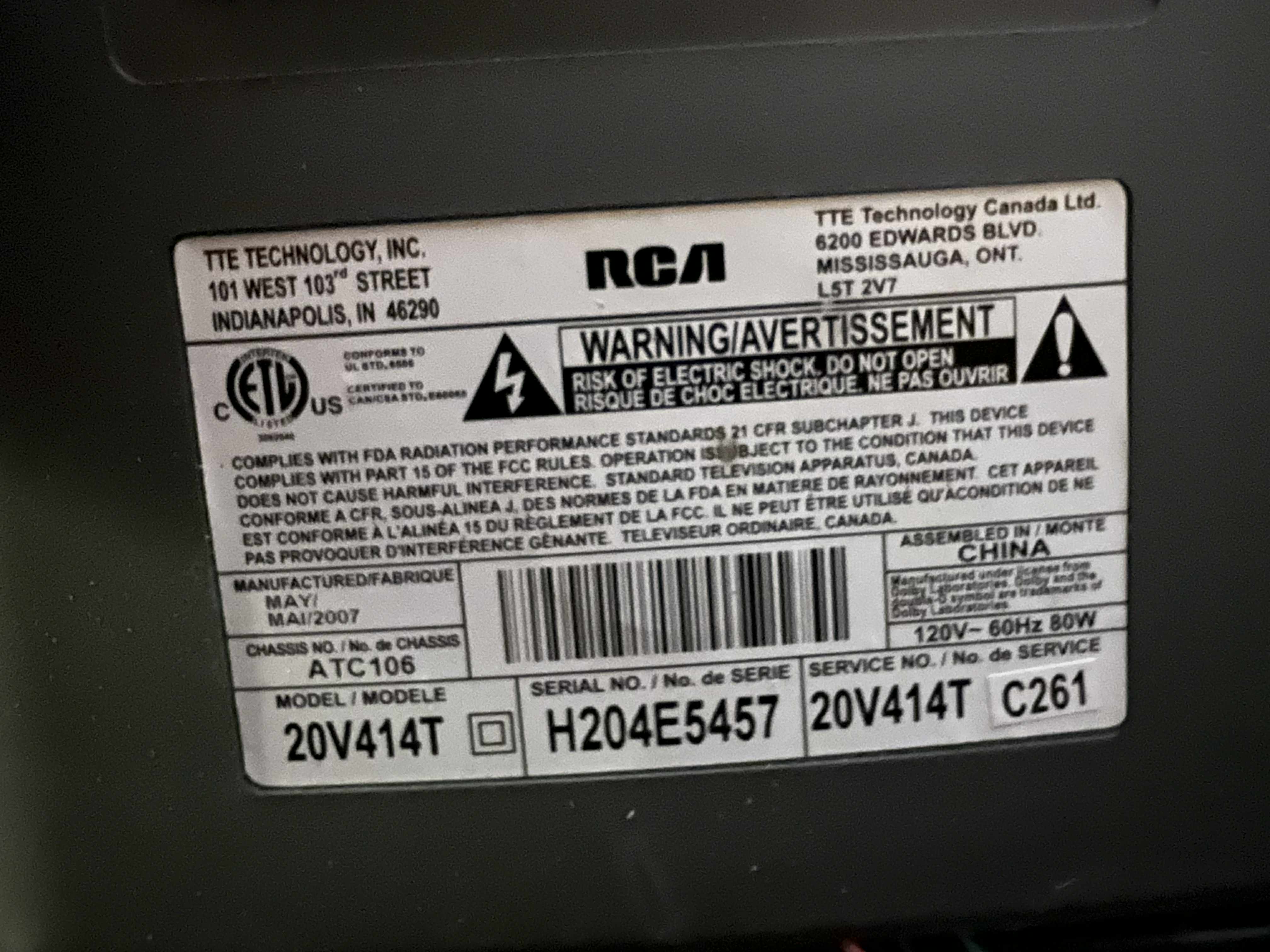

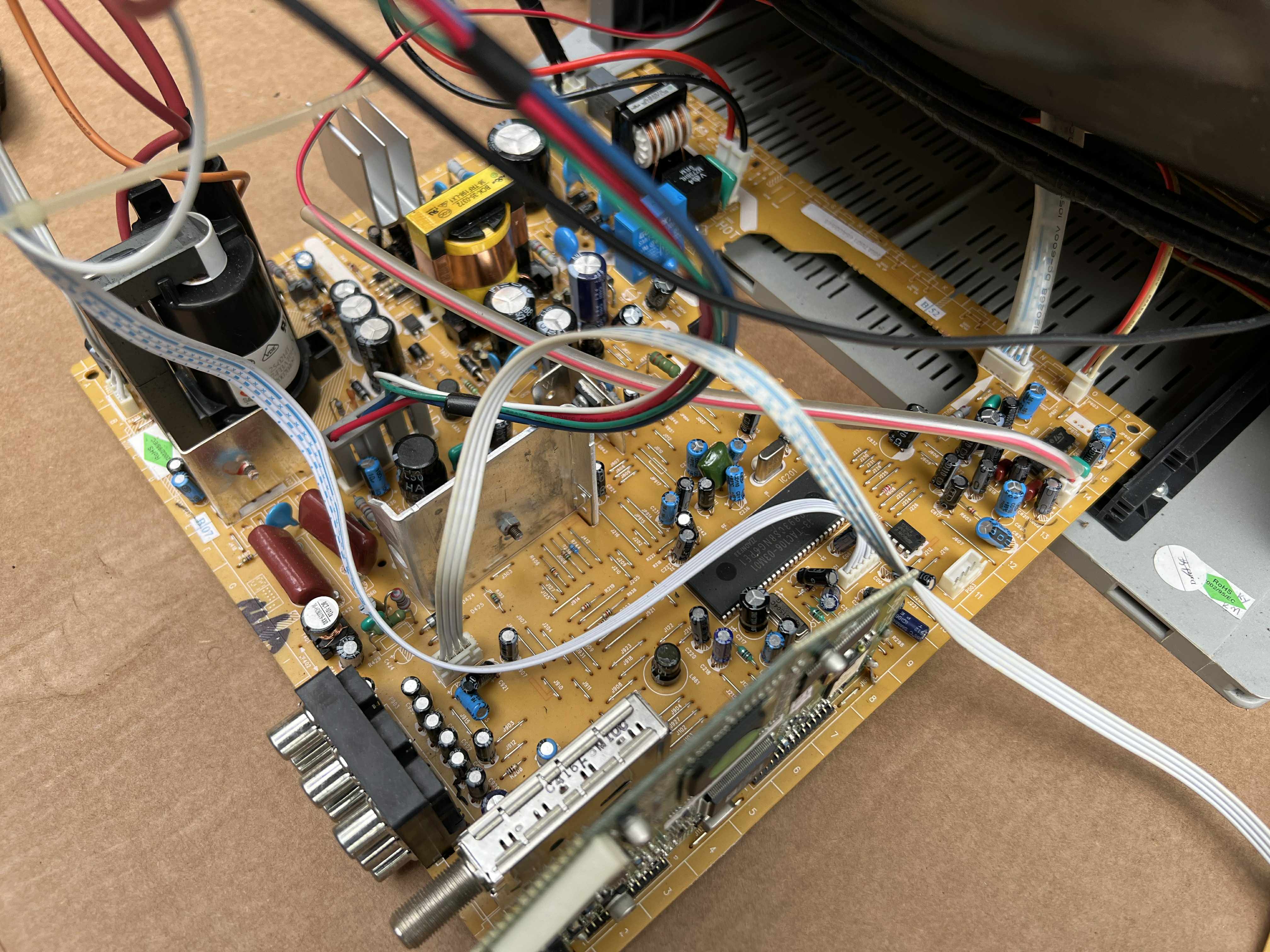

Chassis: | ATC106 |
Weight: | 46.2 lbs (21 kg) |
Dimensions (W/H/D): |
544 x 470 x 478 mm
(21.4 x 18.5 x 18.8") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2007 |
MSRP: | 99 USD |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
