Summary

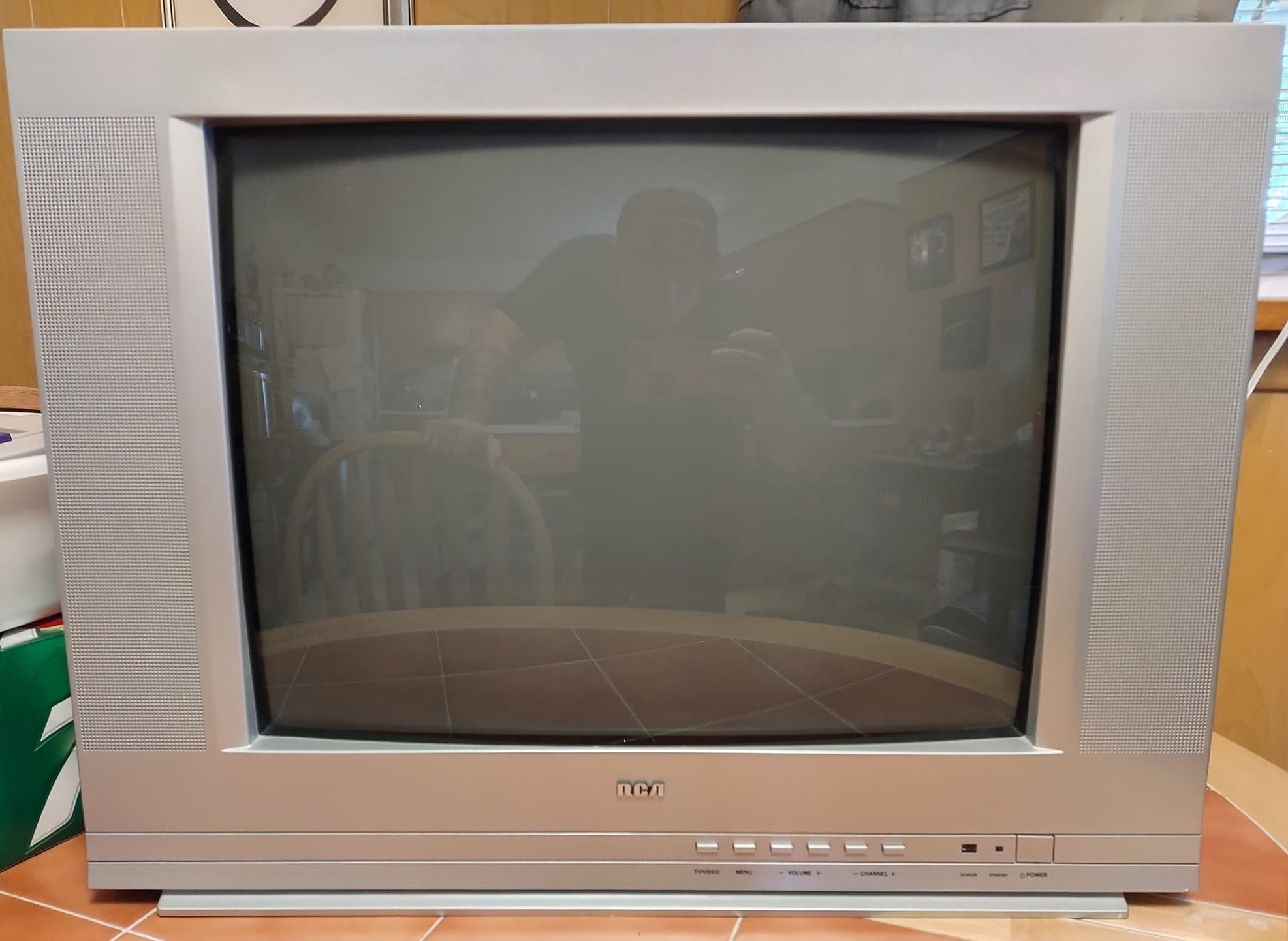

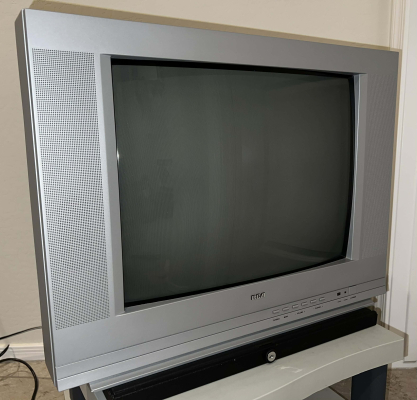

20" curved-screen CRT by RCA, made by TTE Technology in China in 2005. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Tim Rupp for the pics!)
Manuals
- Spec Sheet
- Owner's Manual
- Service Manual (Closest Equivalent)
Promo Materials
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TTE Technology |
| Model: | 20V500T |
| Series: | V |
| Viewable Size: | 20" |

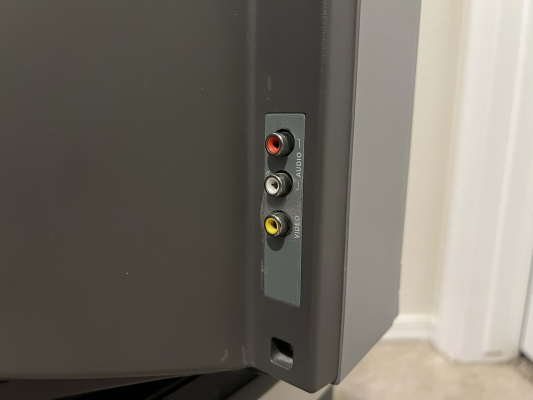

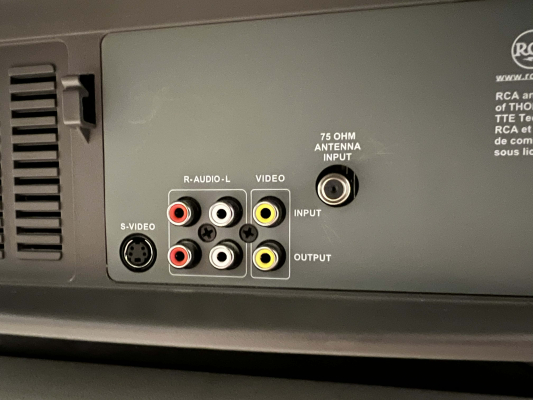

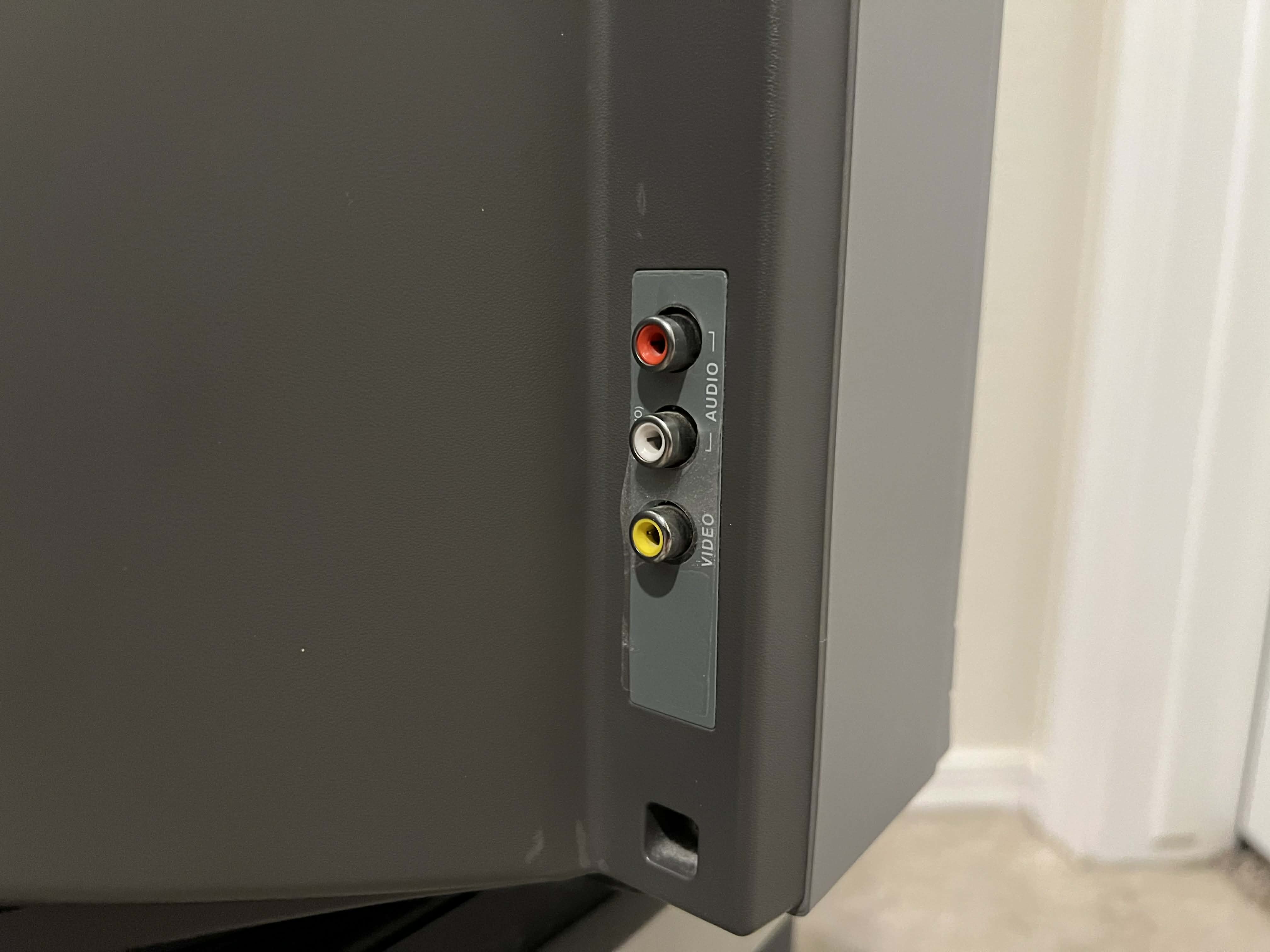

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Toshiba, TMPA8803CSN, TCL-A28V02-TO, TMPA8803 |
| Focus Type: | Single |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |

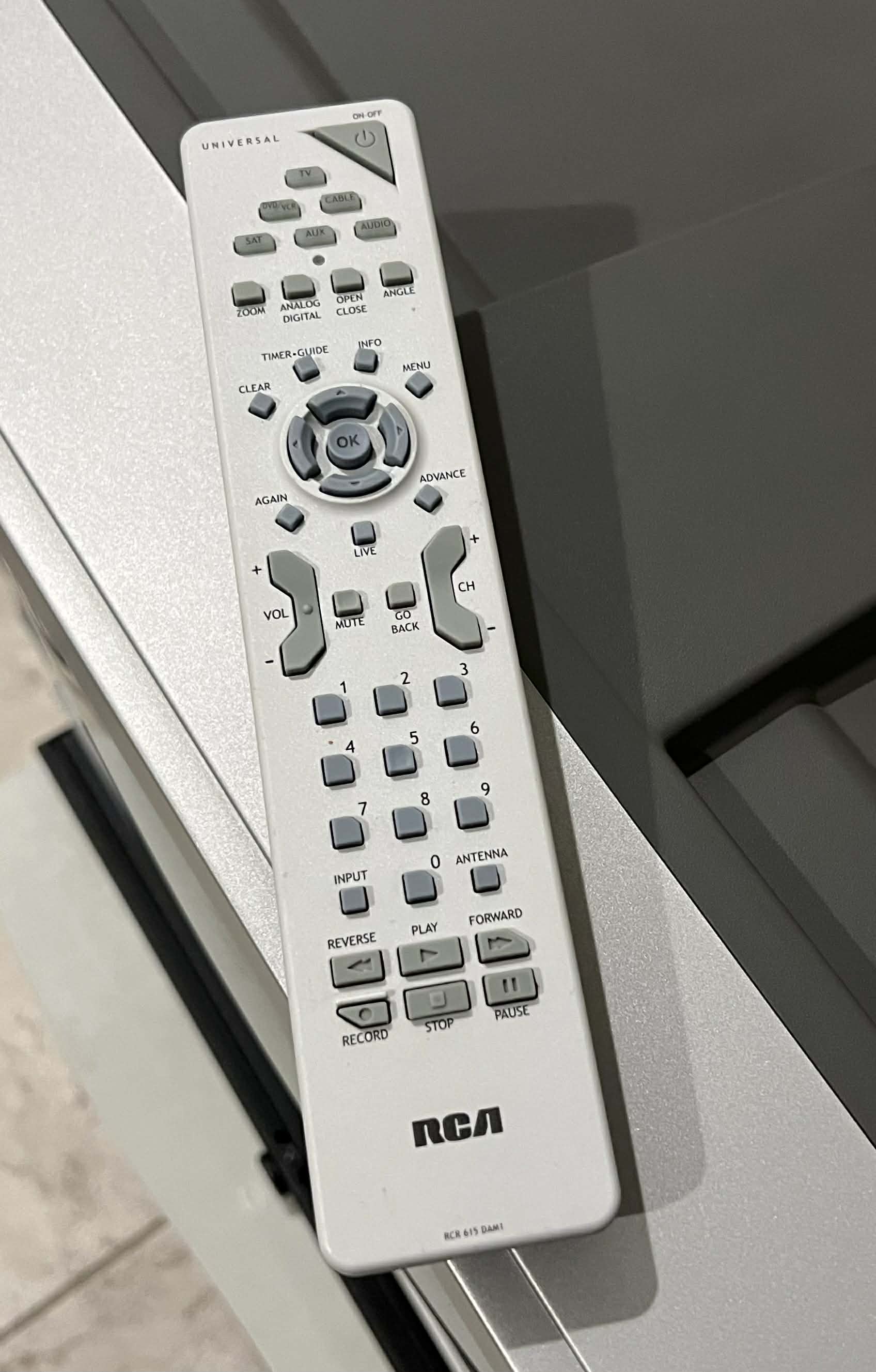

| Remote: | RCR130TA1 |
| Chassis: | M123A |
| Weight: | 46.2 lbs (21 kg) |
| Dimensions (W/H/D): |
610 x 452 x 521 mm
(24 x 17.8 x 20.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 169 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
