Summary

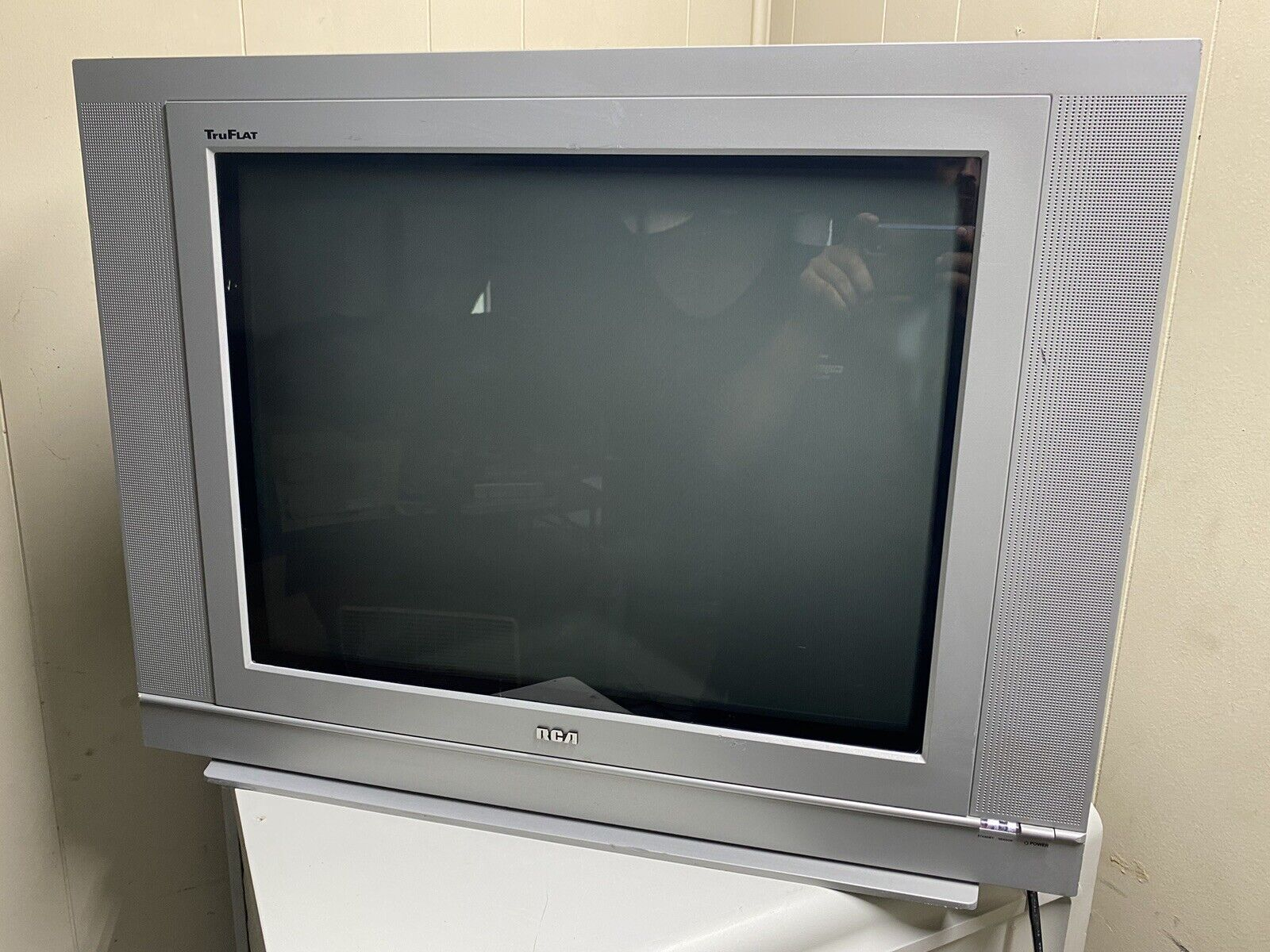

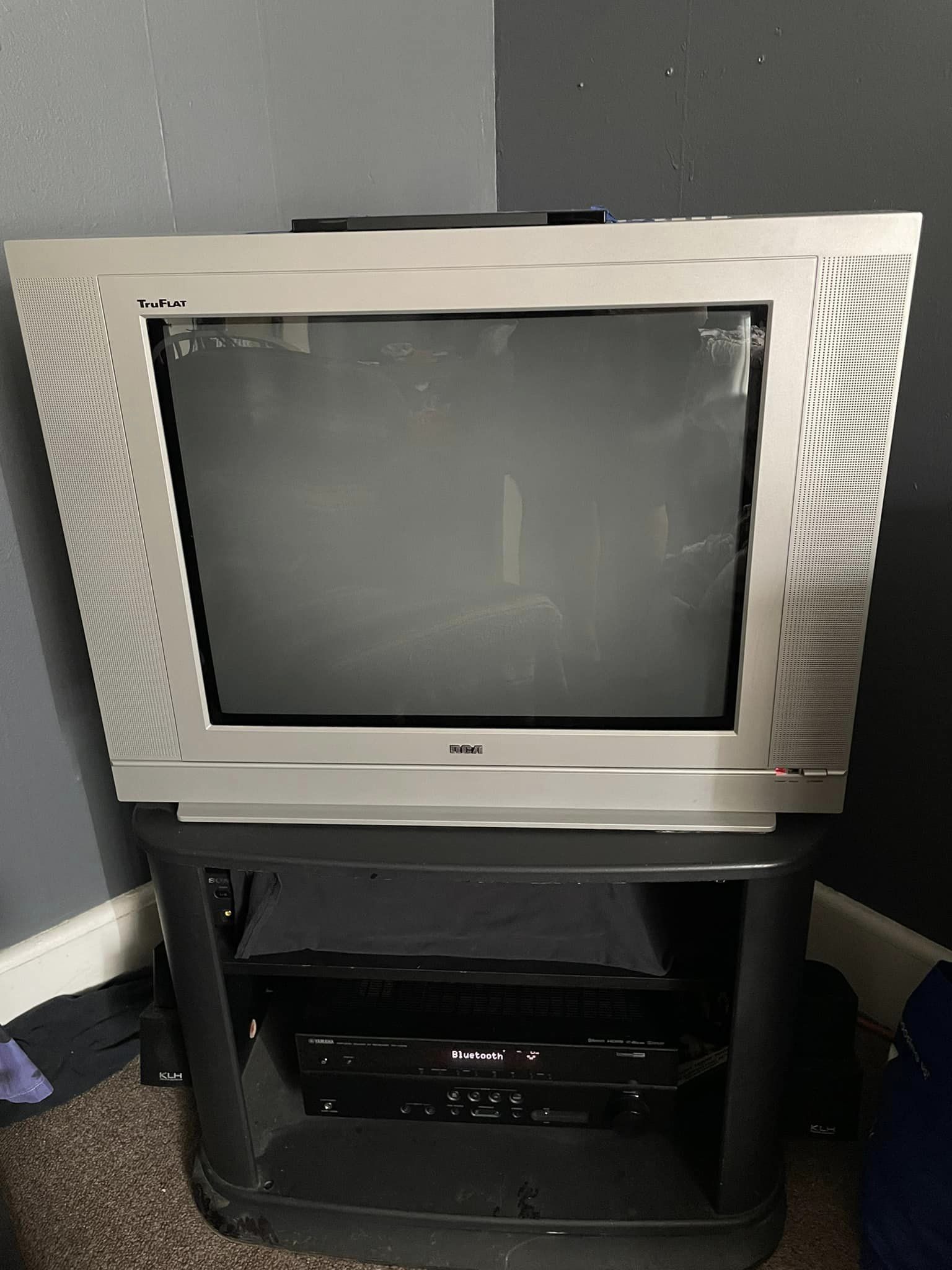

Above-average 24" CRT by RCA from 2005. Has RF, composite, and s-video input. Manufactured by TTE at Thomson's Thailand facility before being sent overseas to be distributed in the United States.
Manuals
- Owner's Manual
- Service Manual (With Schematics)
- Spec Sheet (Erroneously mentions it has YPbPr inputs. Some intern at RCA screwed that info up.)
Notes

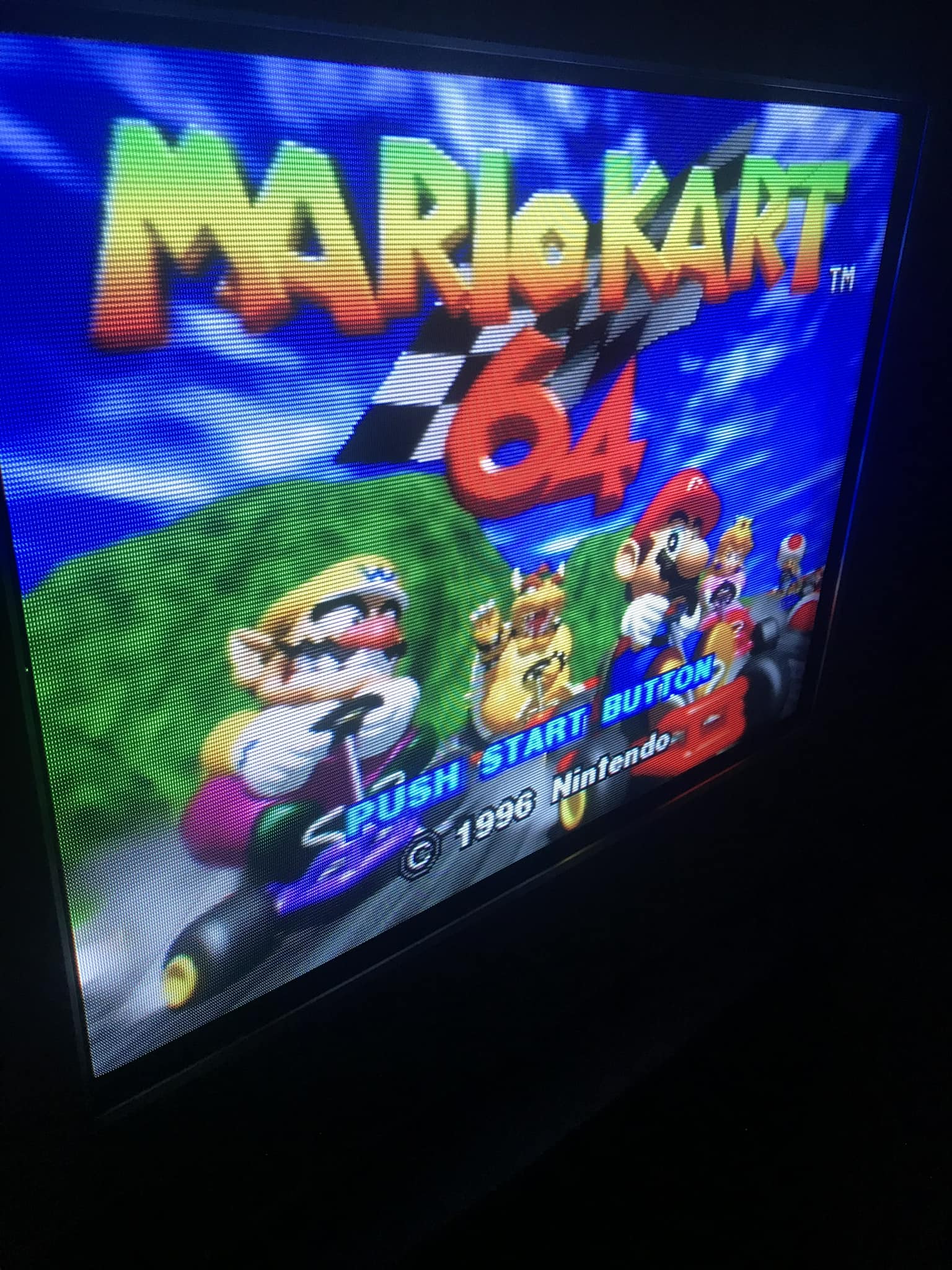

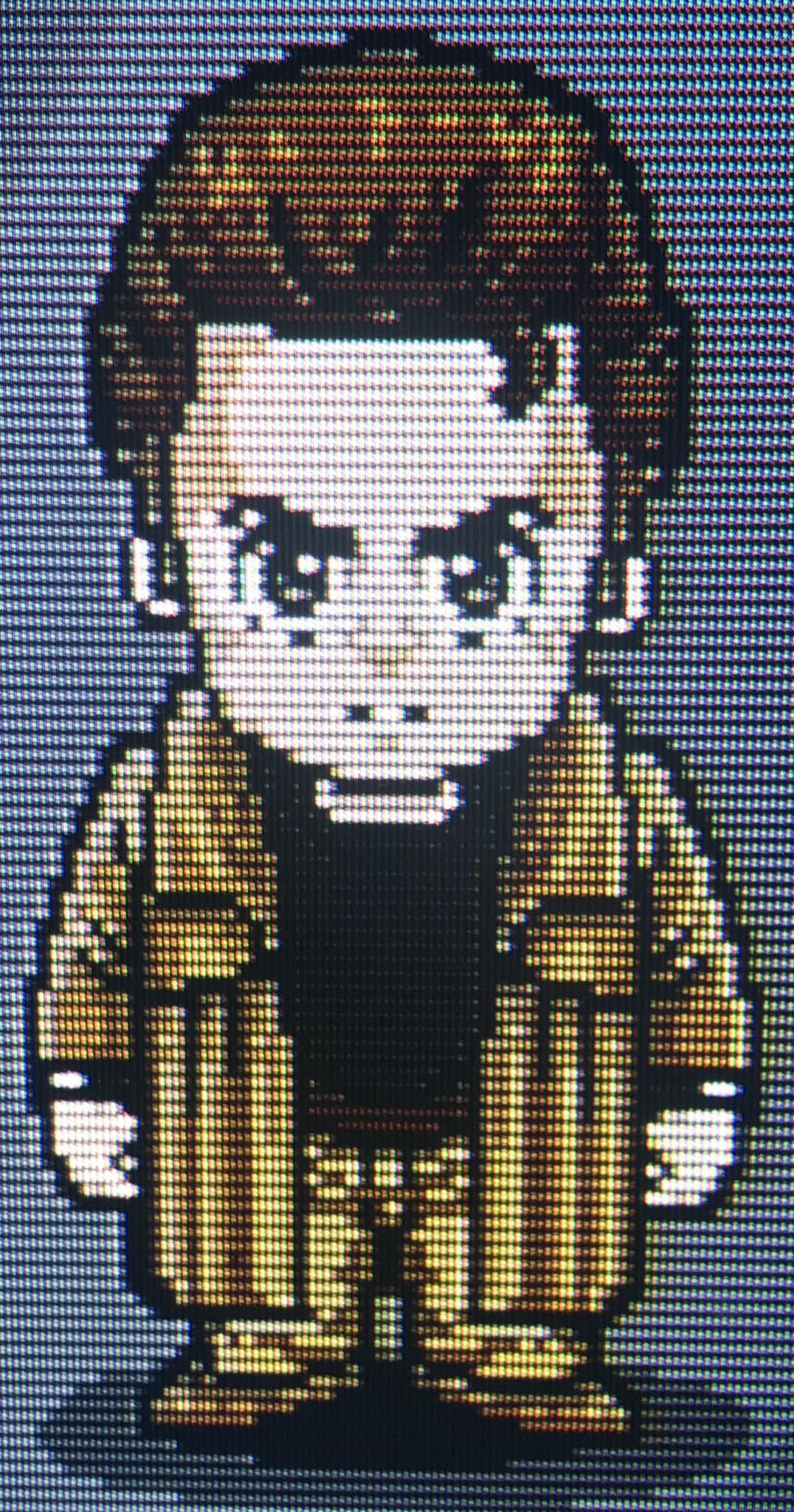

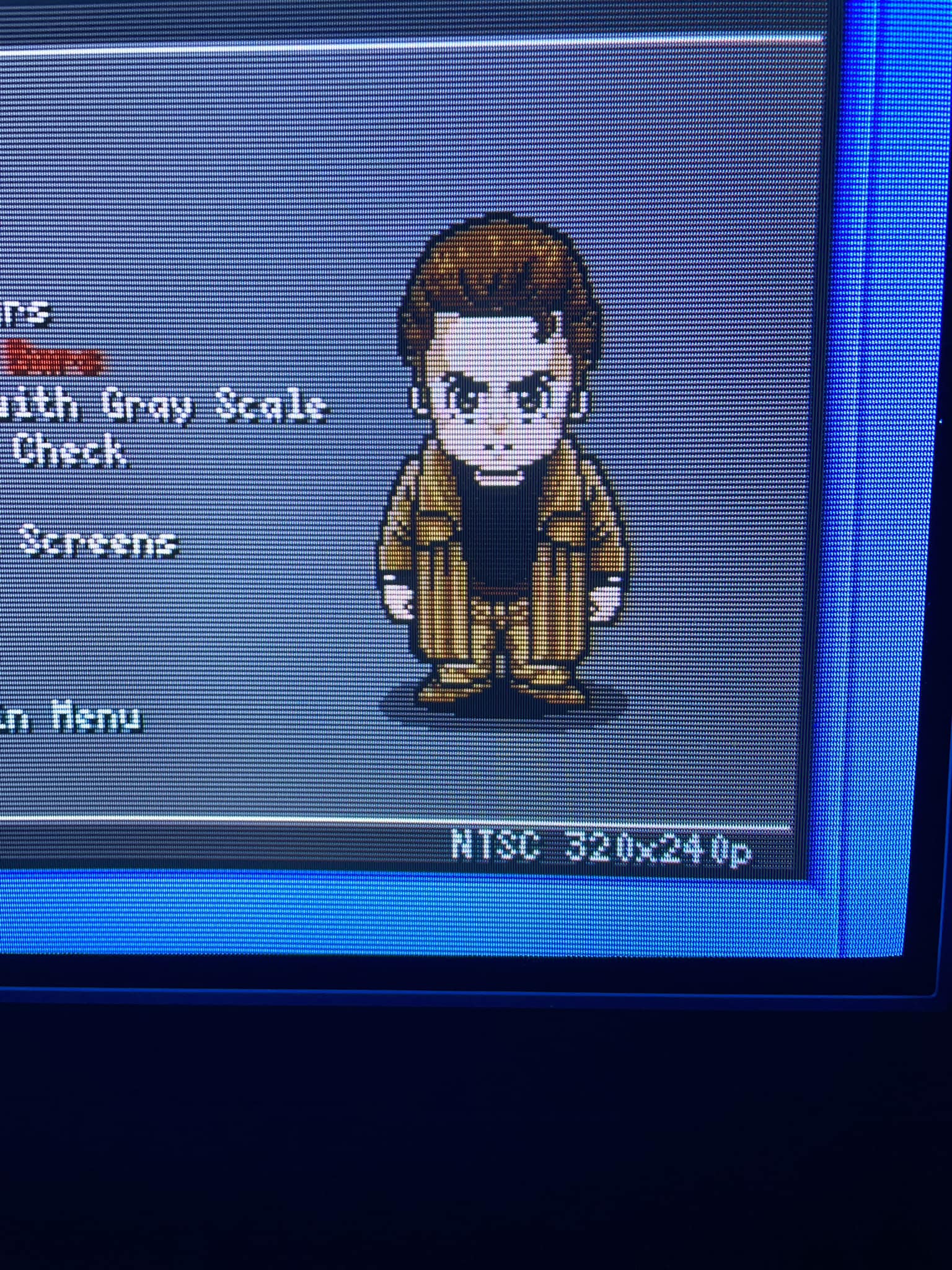

S-video quality is quite good. The 24" screen size is perfect for 16-bit titles with 320 pixels wide. Think of the Sega Genesis, Neo Geo and the like.

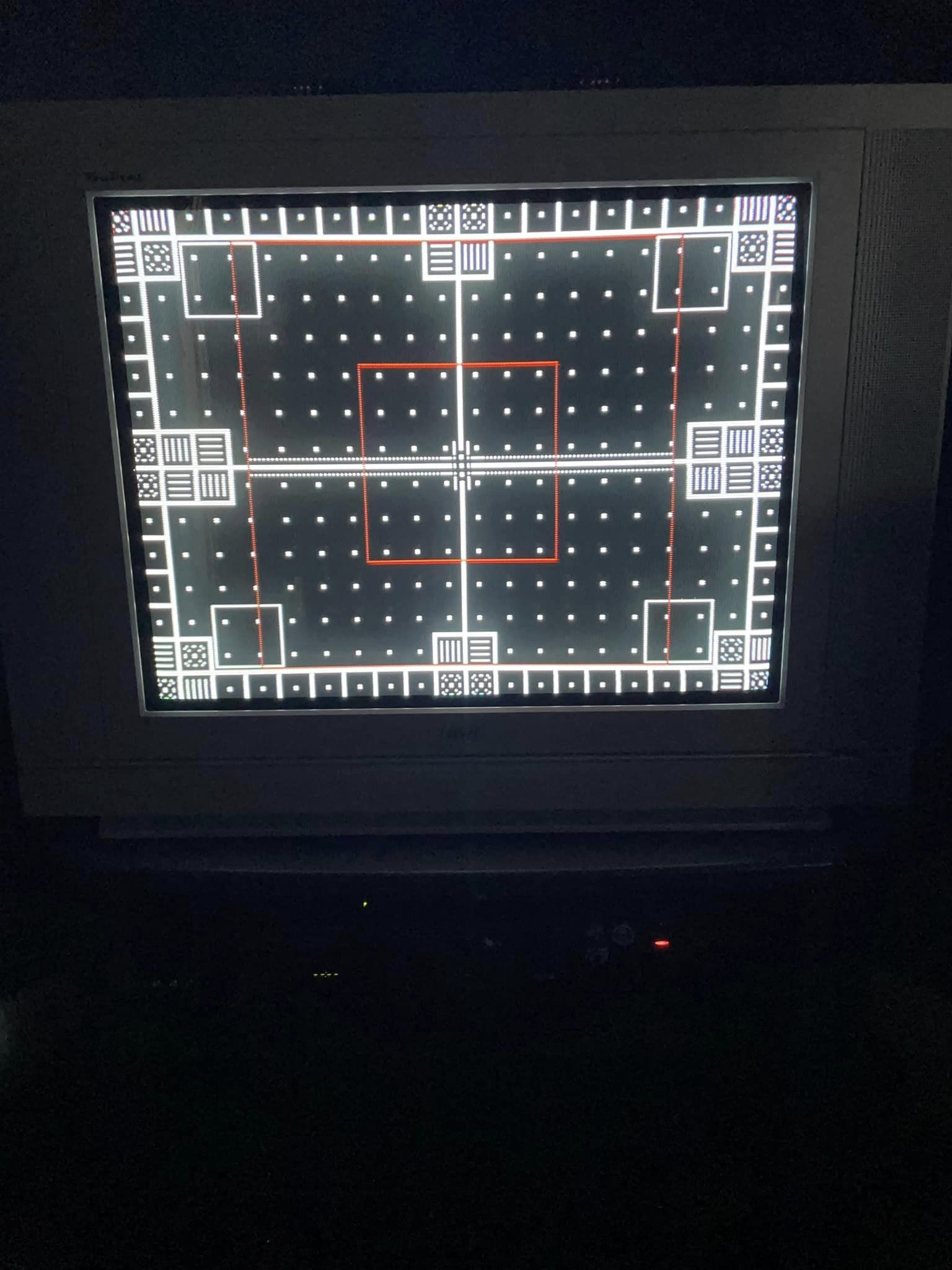

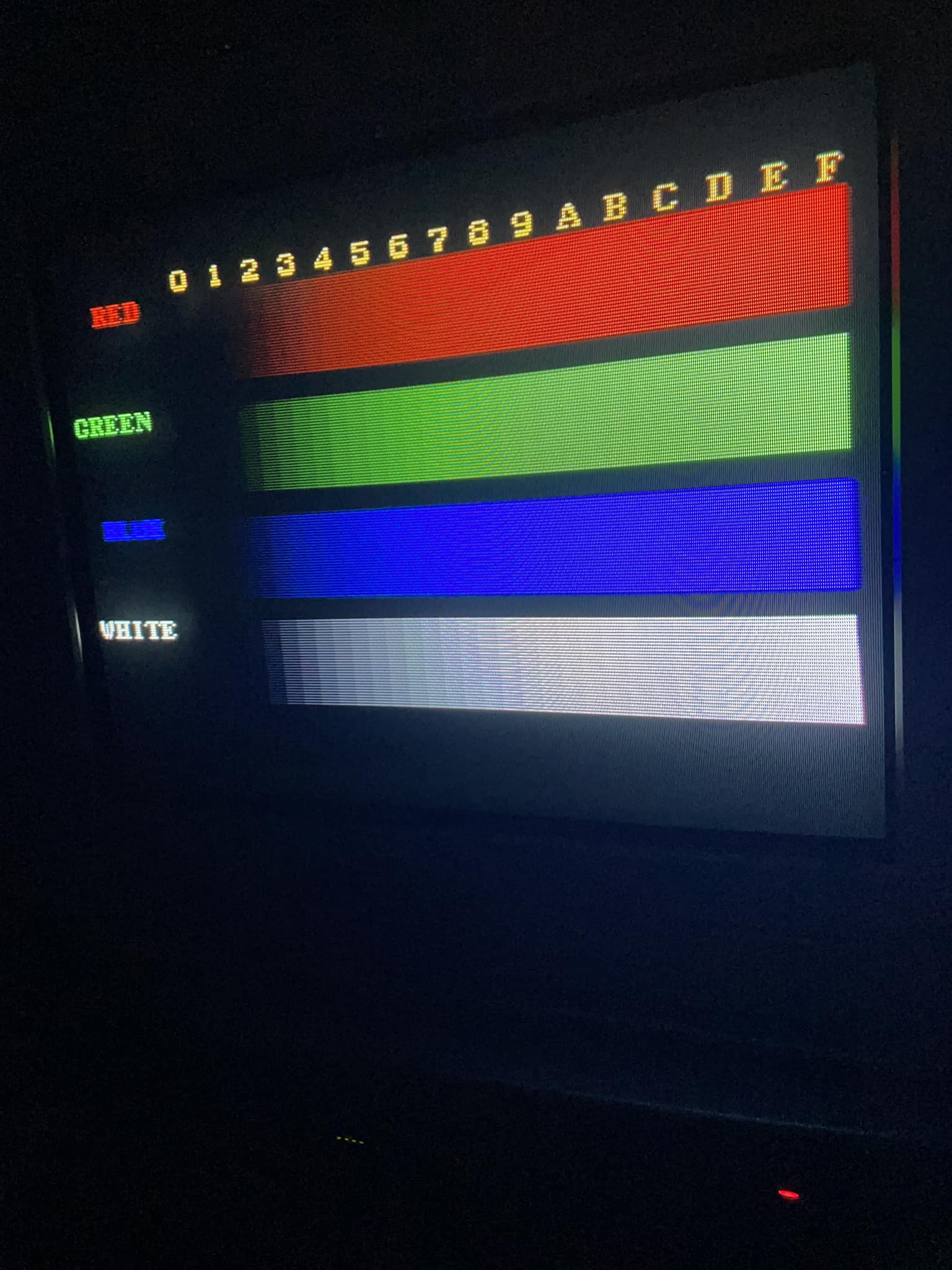

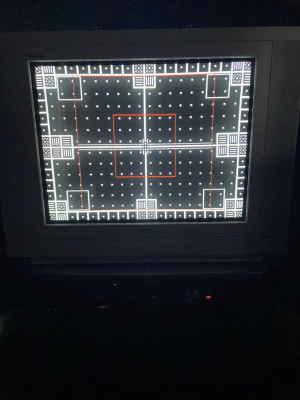

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TTE Technology |
| Model: | 24F512T |
| Series: | TruFlat |
| Viewable Size: | 24" |

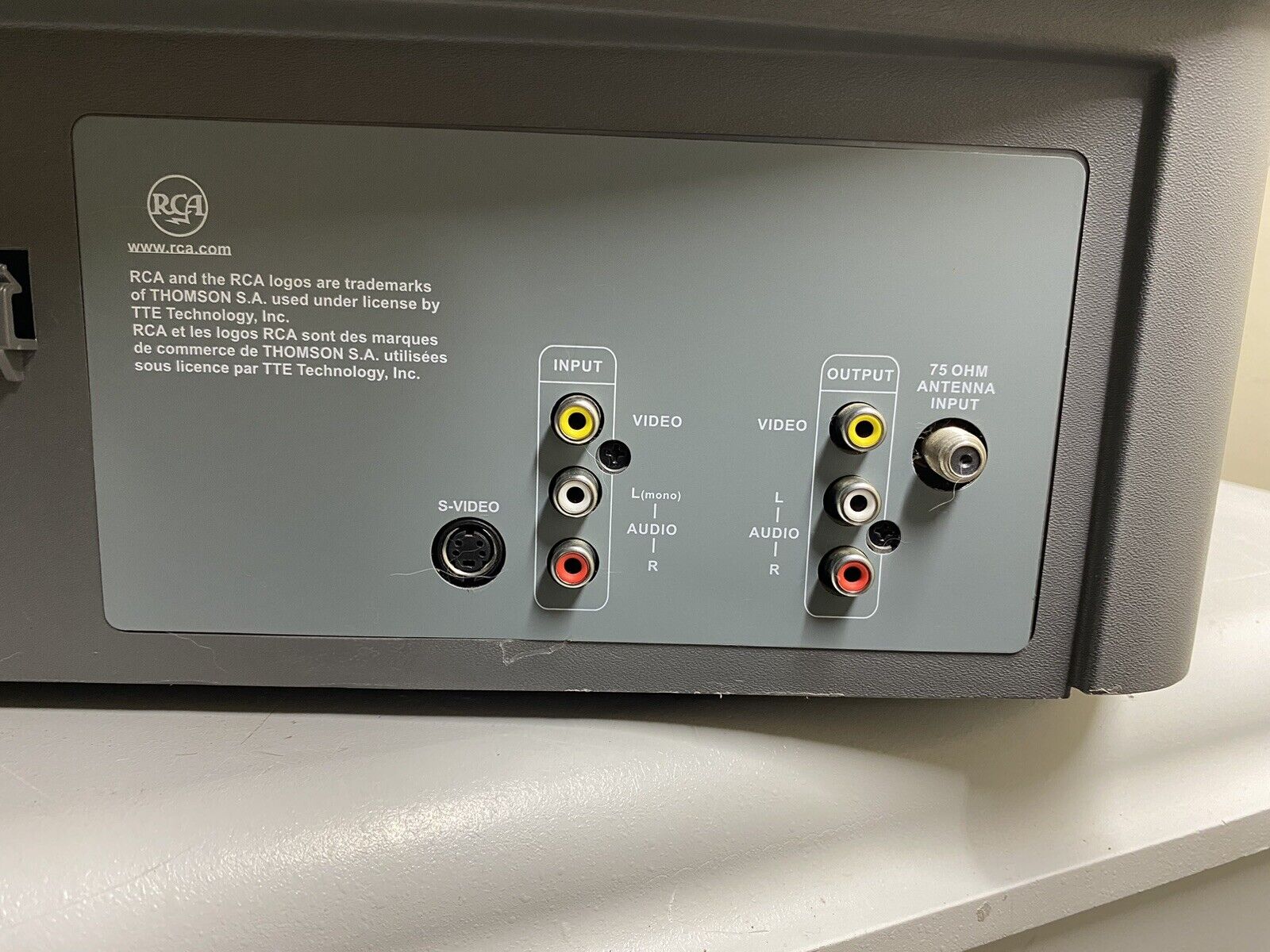

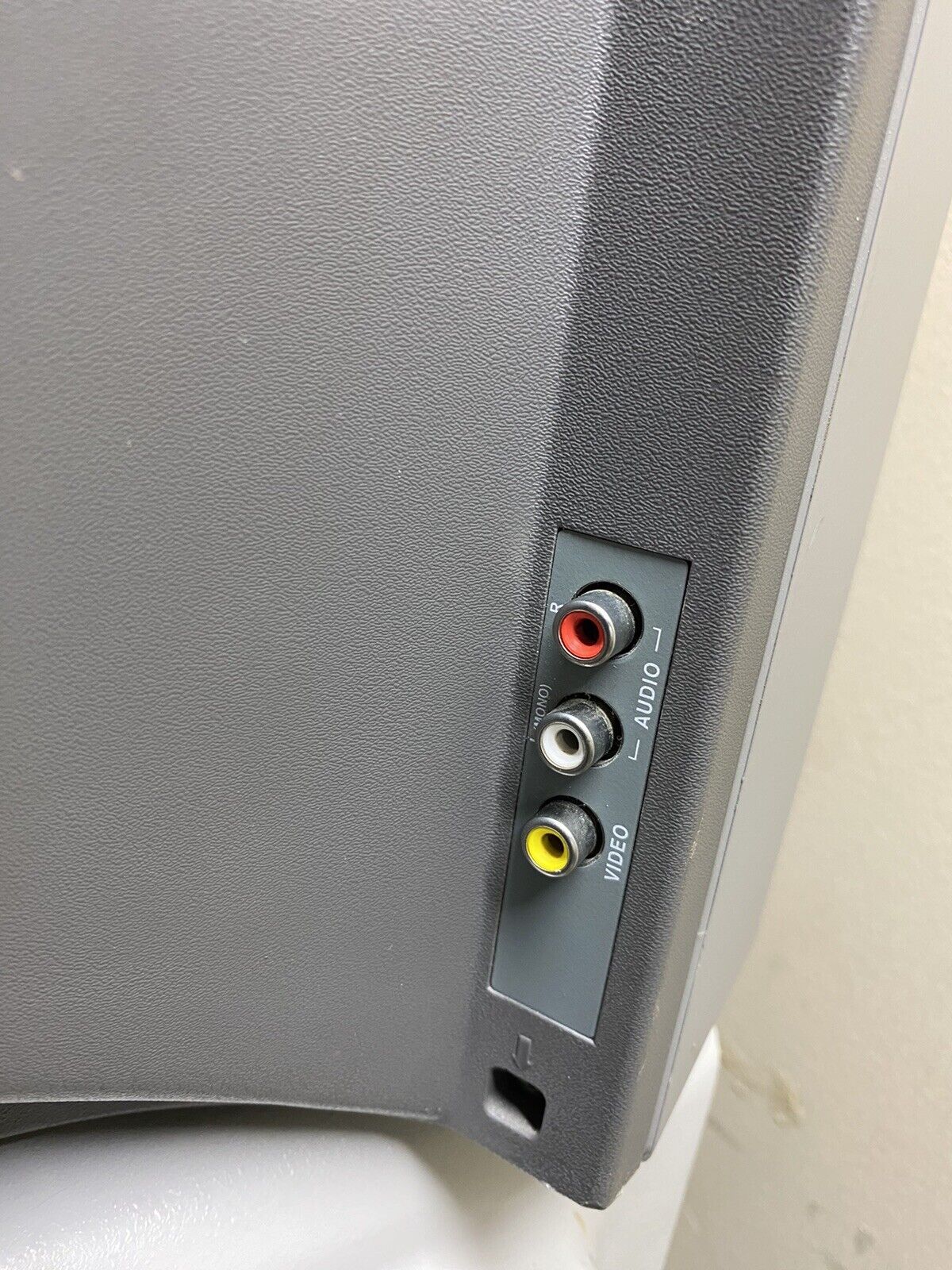

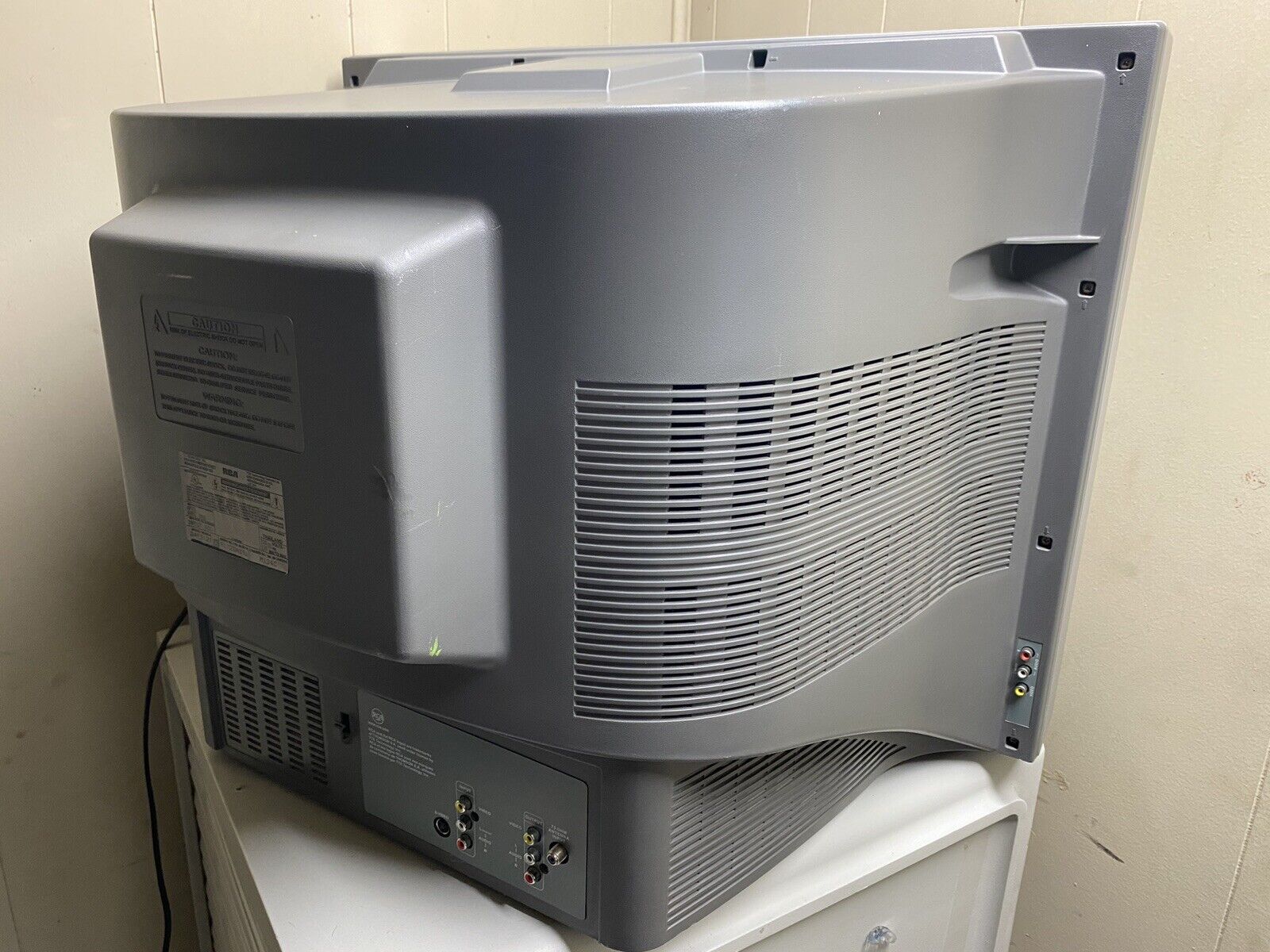

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | Irico , A60CPAA00X02 |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | M134 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Thailand |
| Degaussing: | Automatic on Power-on |
