Summary

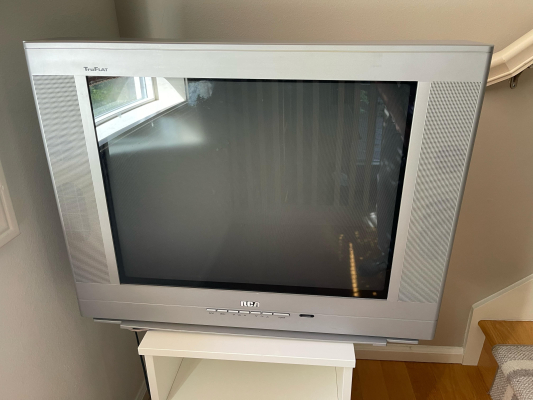

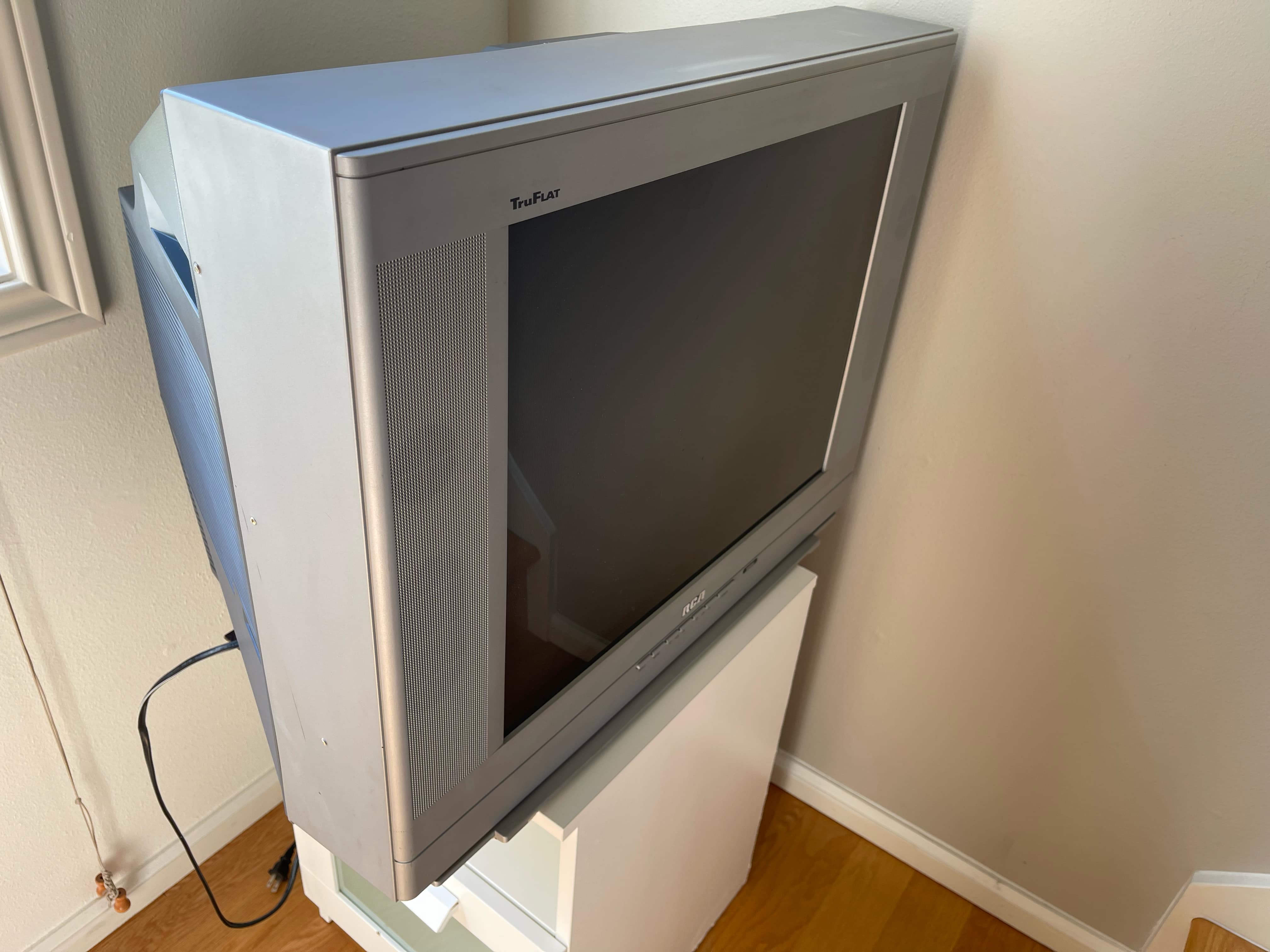

24" flat CRT by RCA from 2004. Made by Konka in China for Thomson to be assembled at their Thailand facility.
Special thanks to Huy H. for the pics!
Manuals
Notes

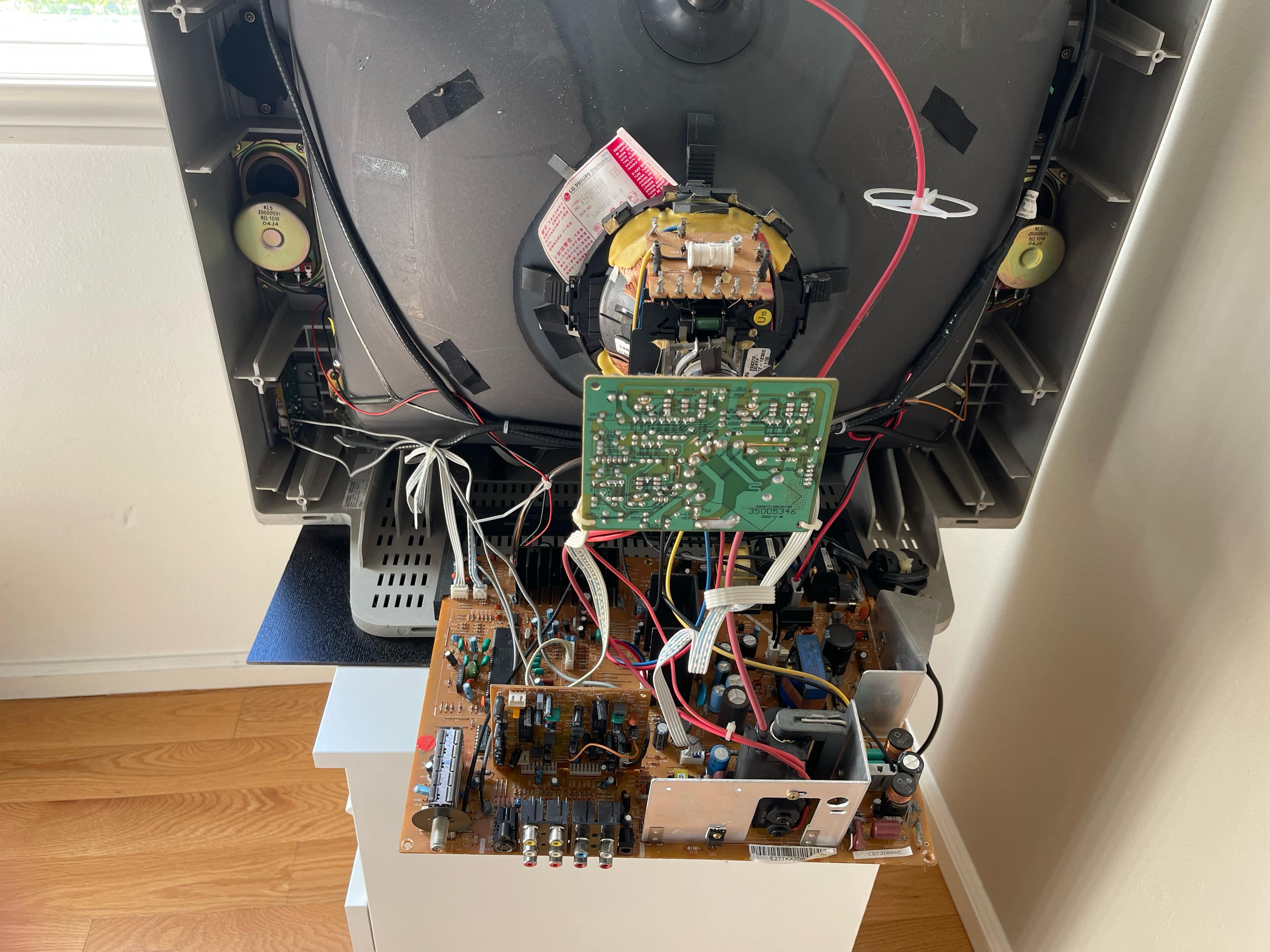

This set appears to use the same basic chassis as a Konka KP2407UY, just with a different PCB for the front buttons.

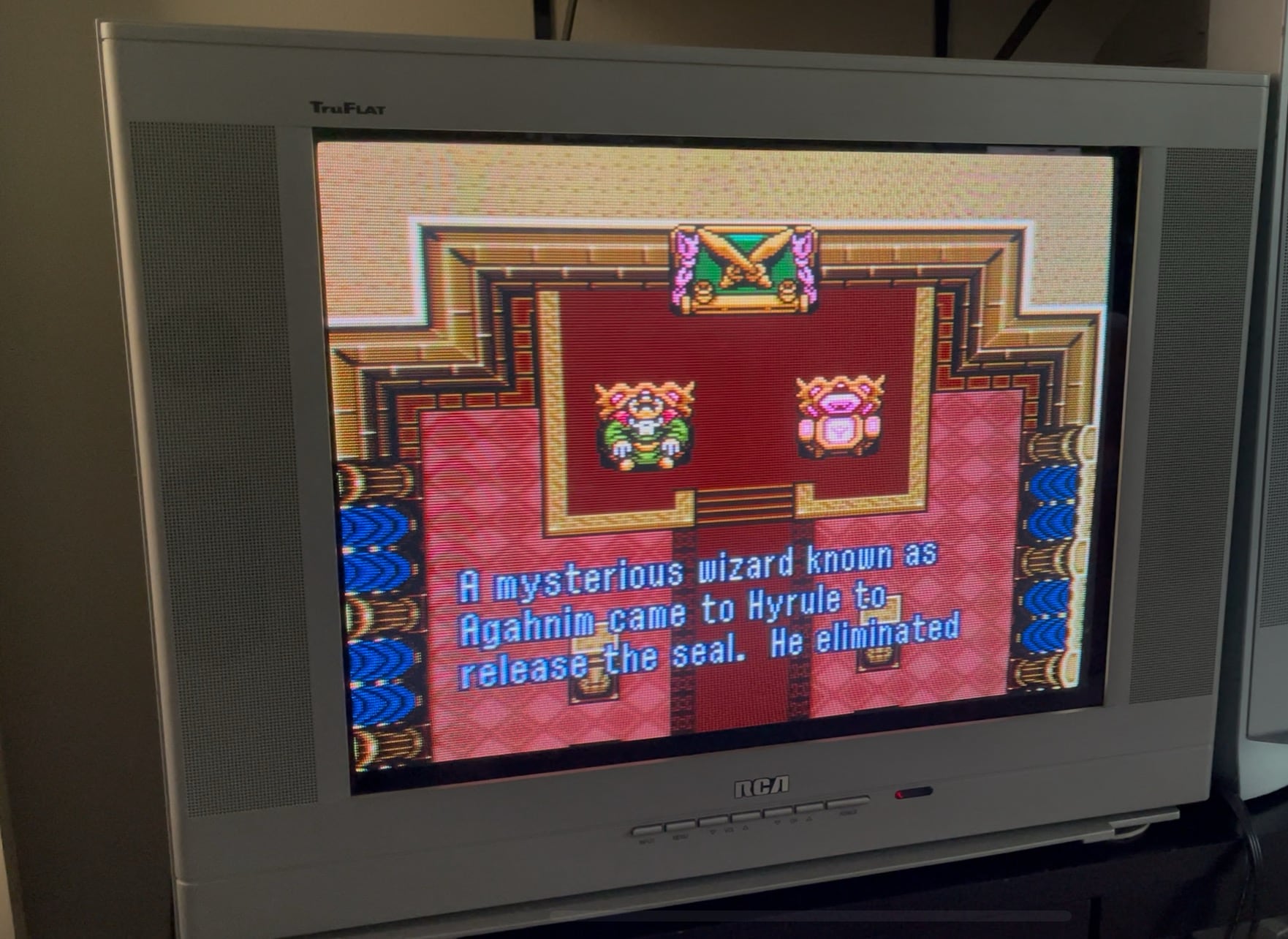

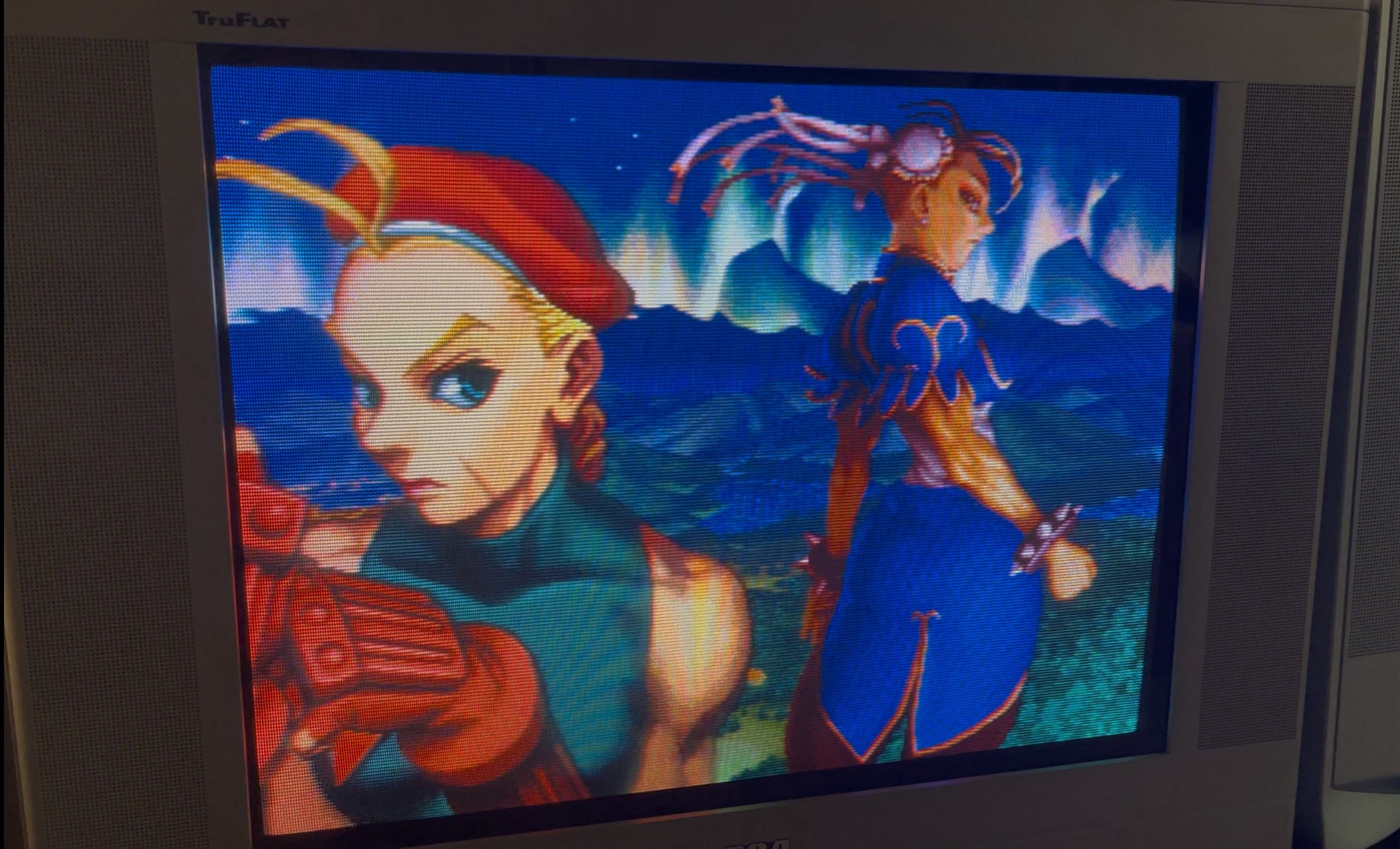

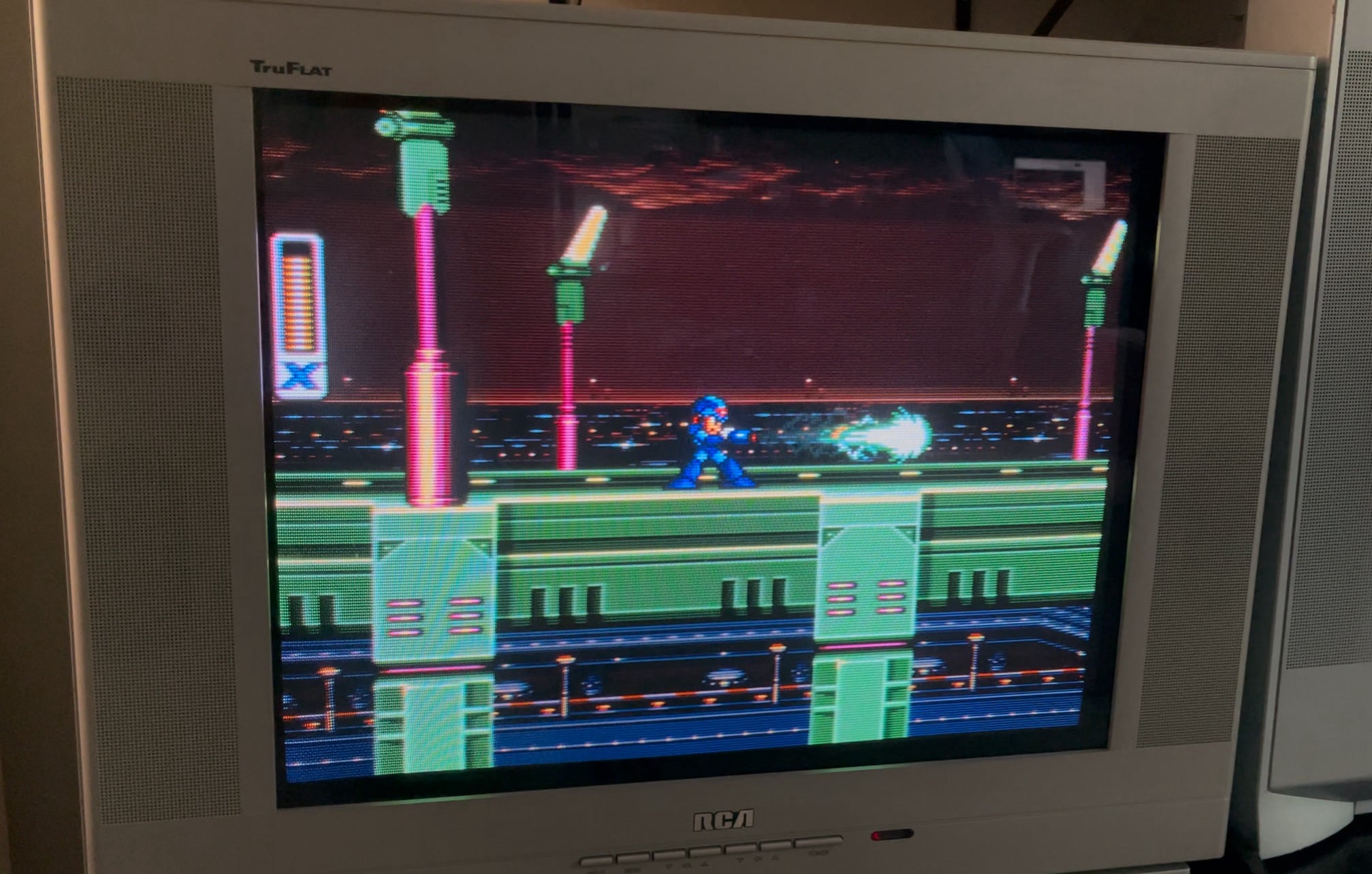

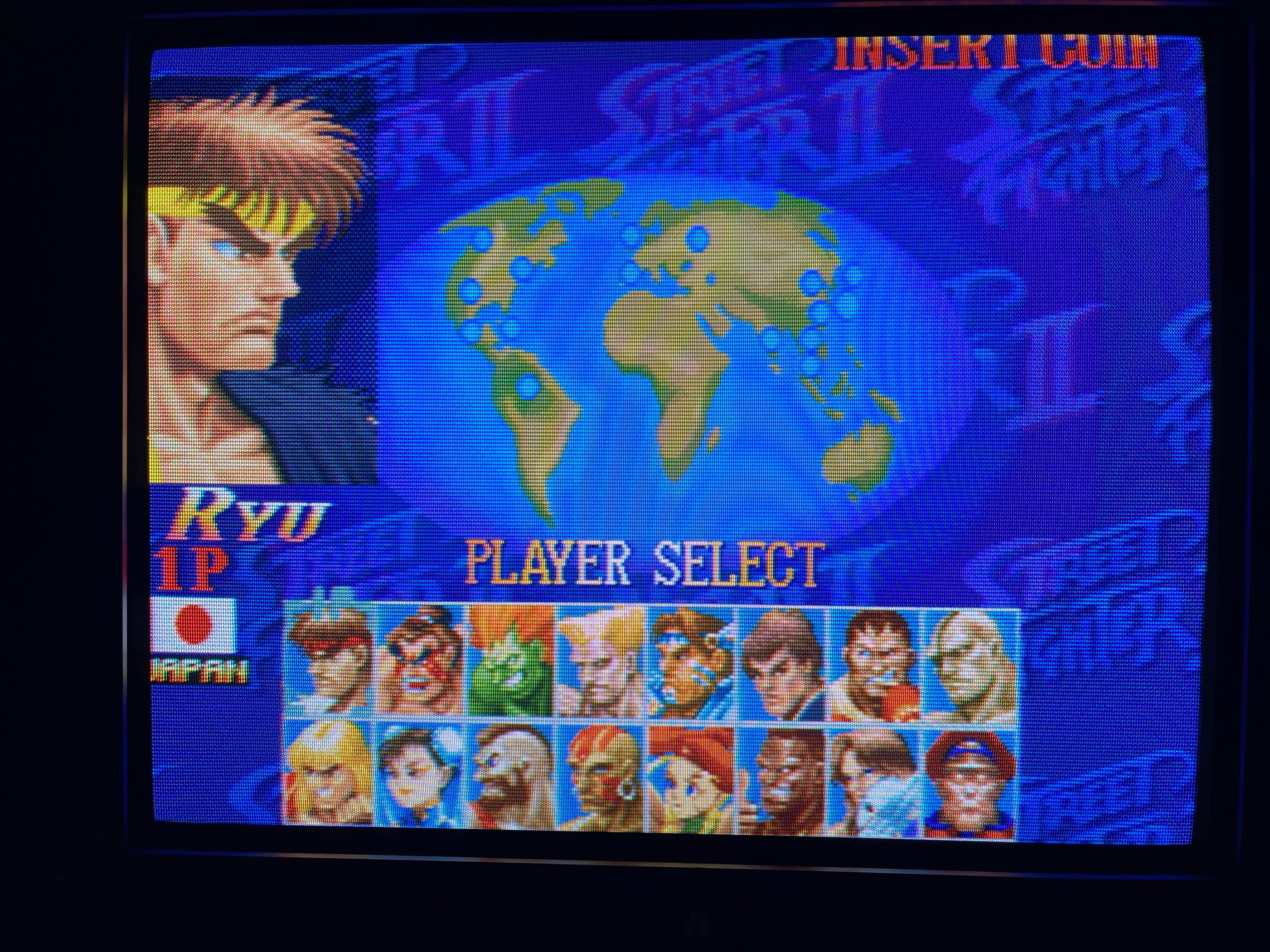

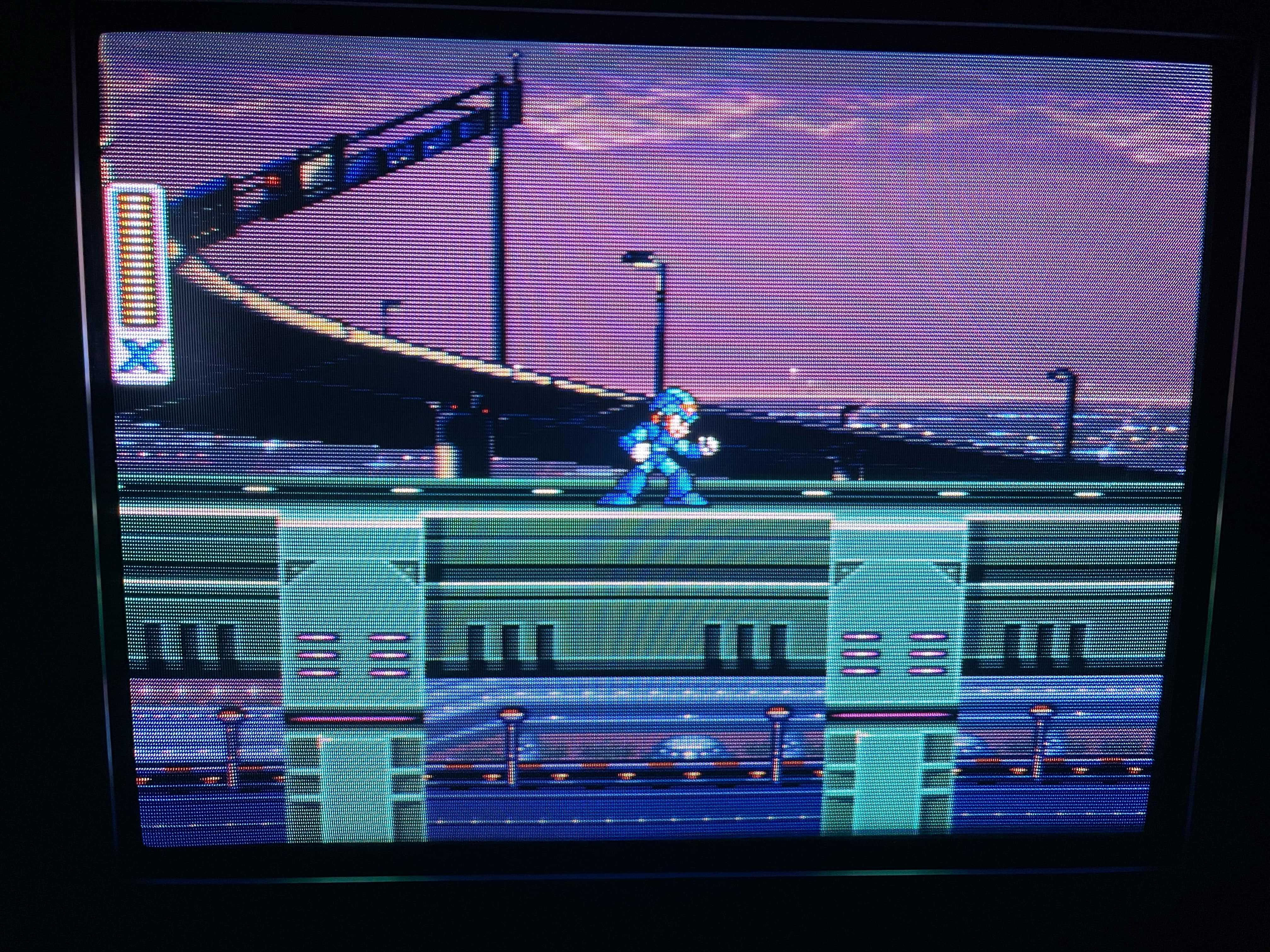

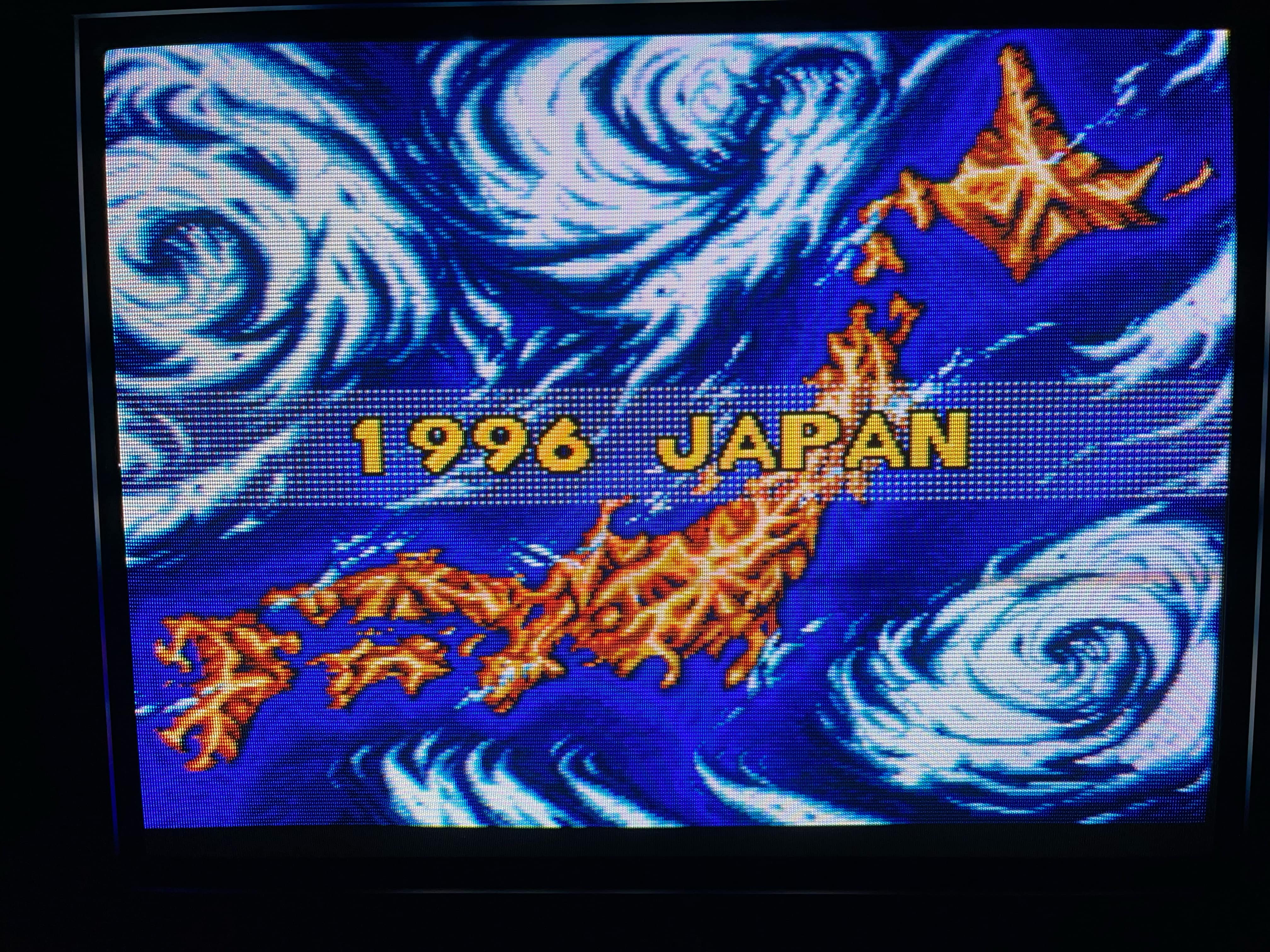

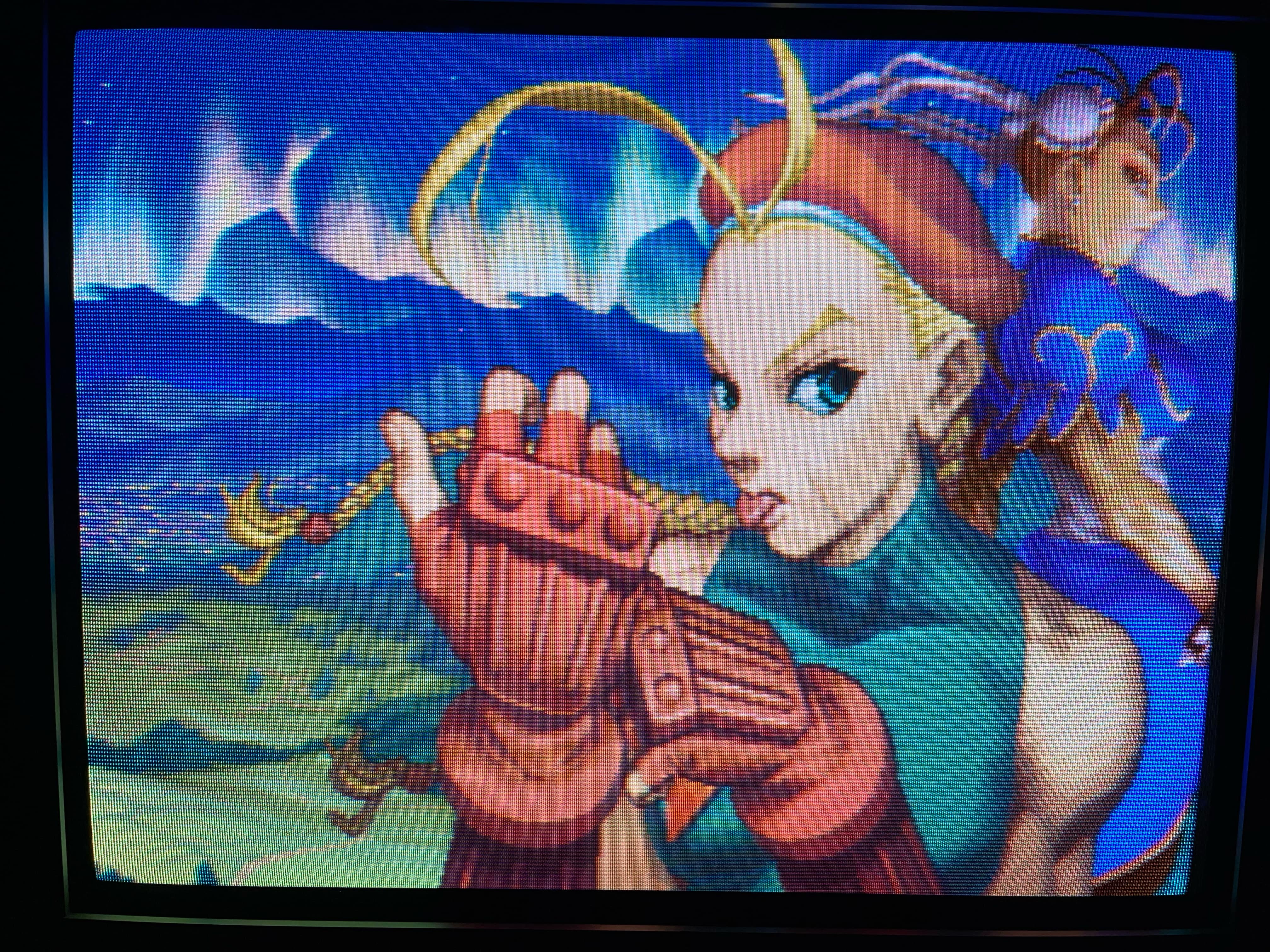

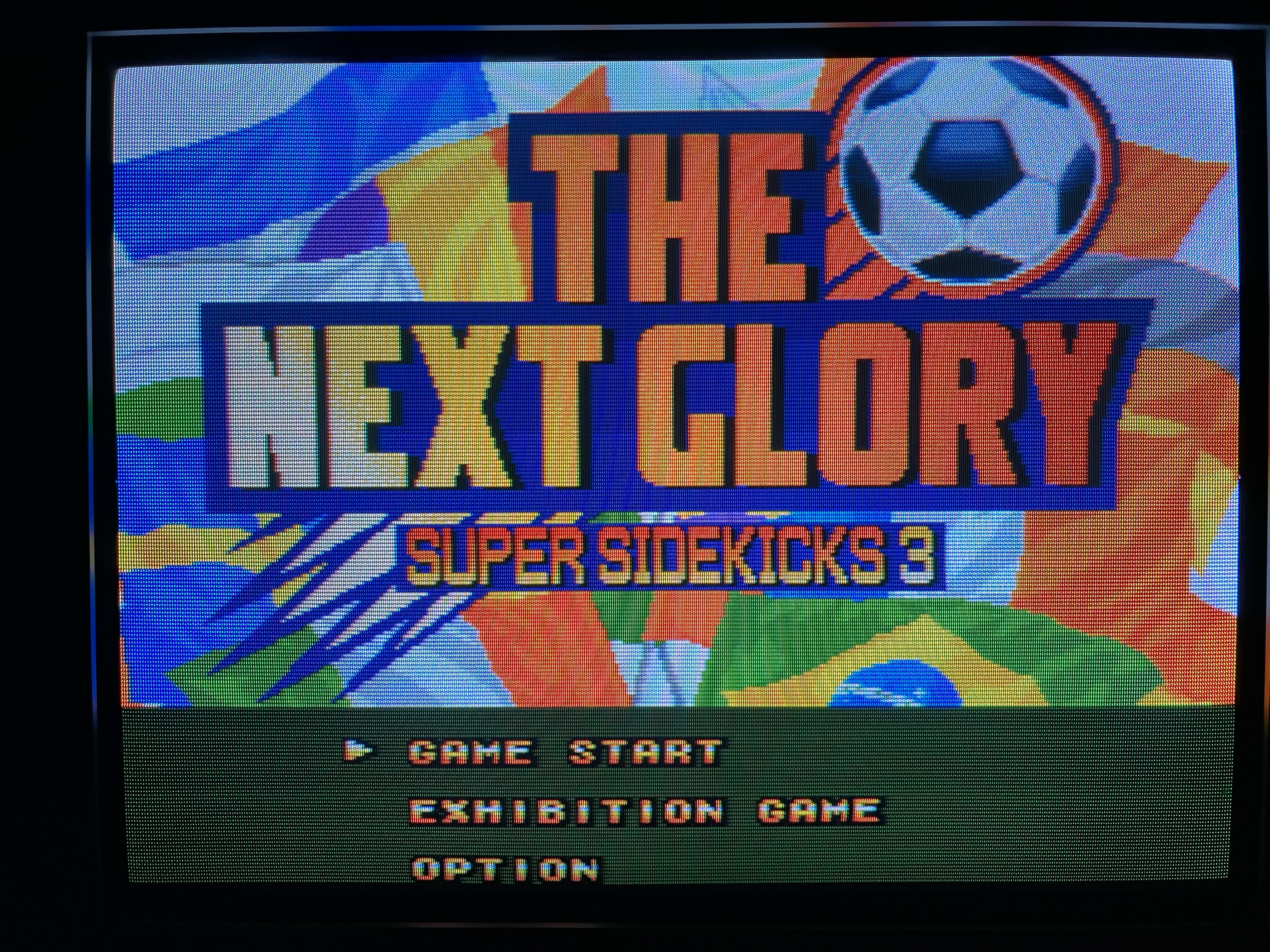

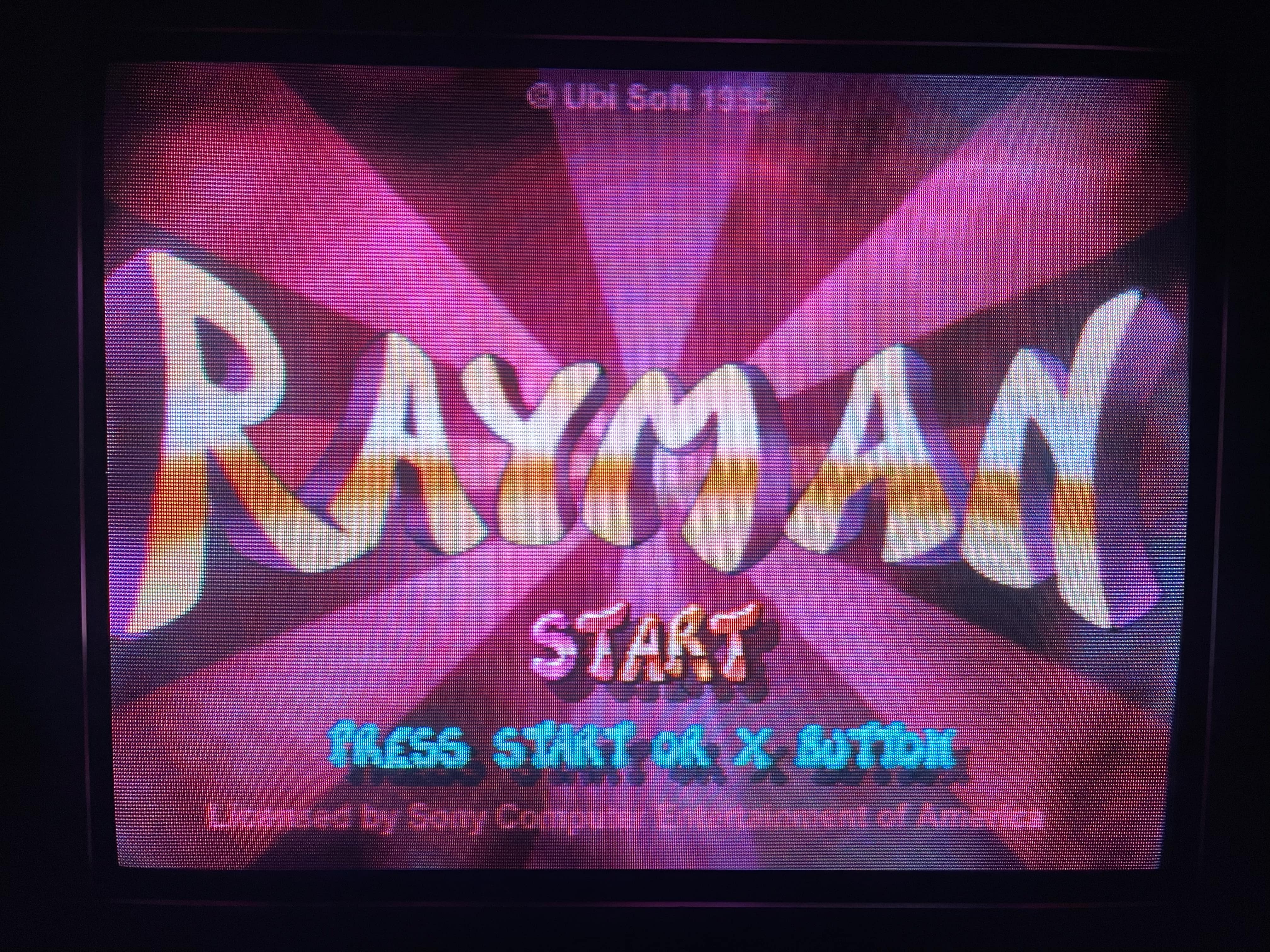

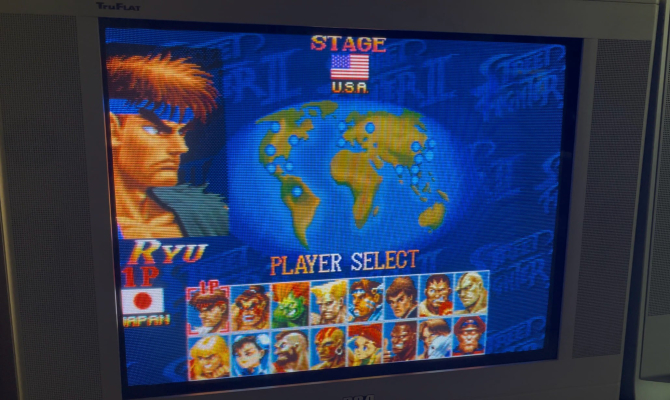

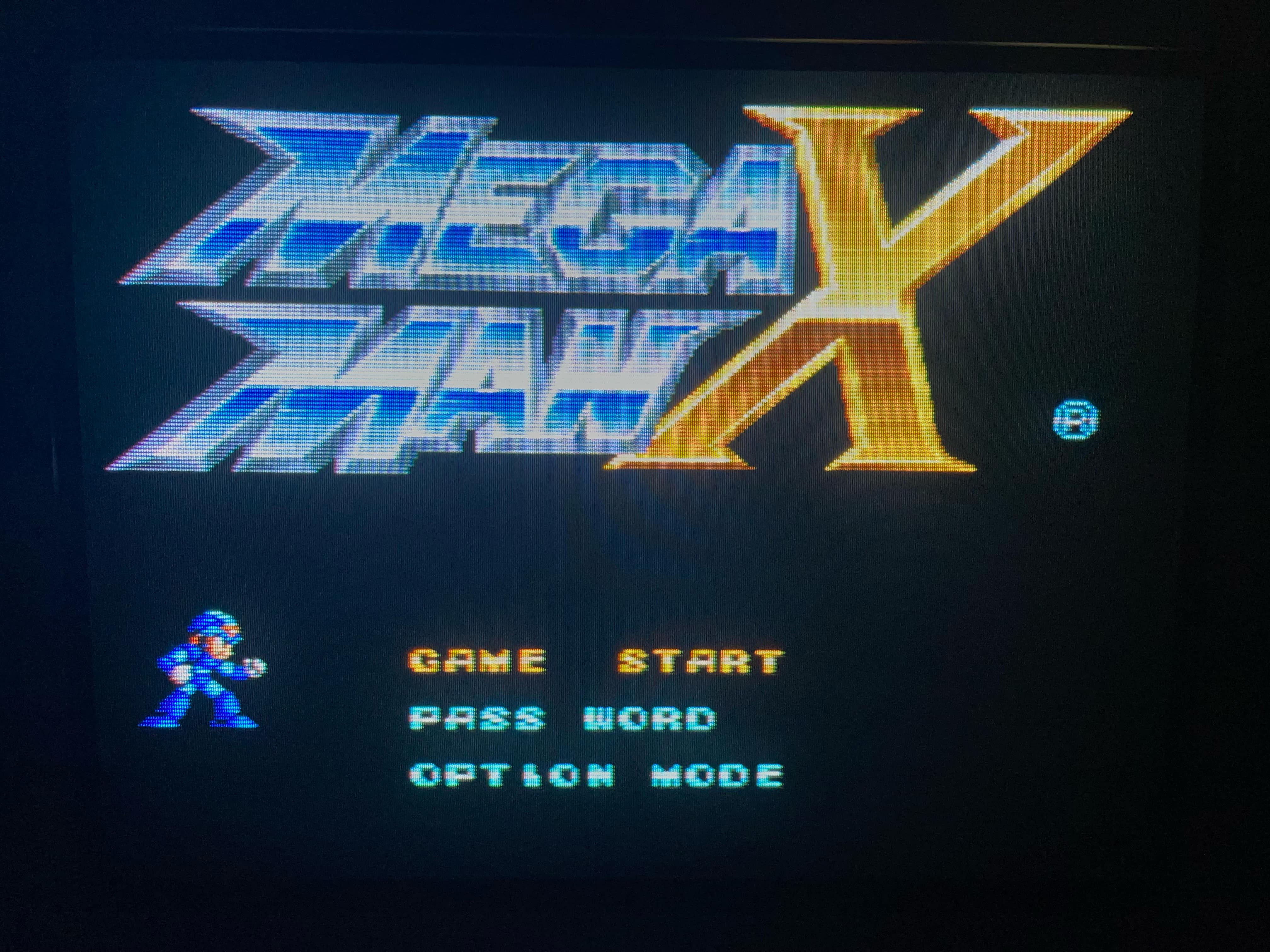

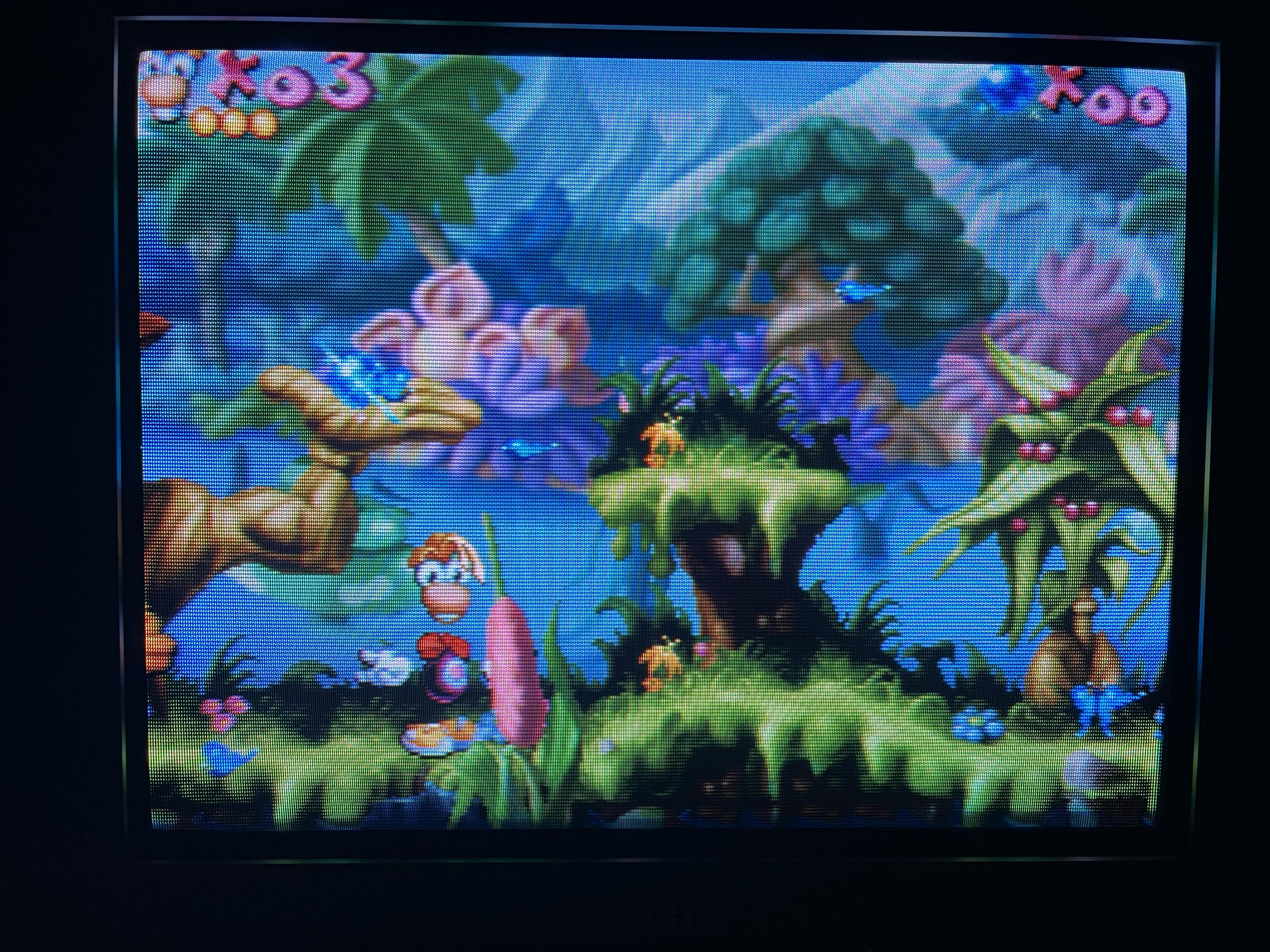

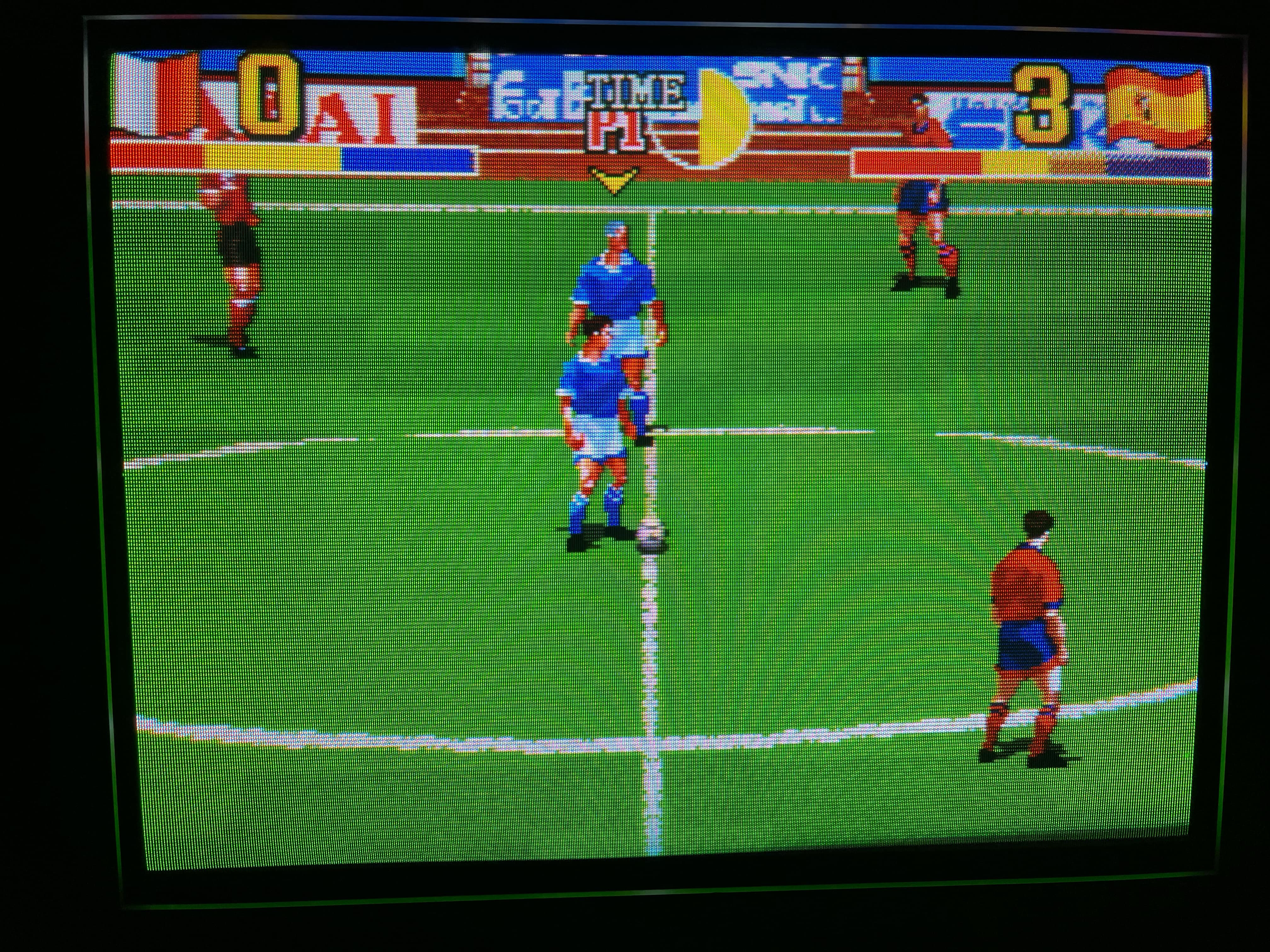

Picture quality is terrific over component thanks to the Philips jungle chip. The jungle also supports 50hz, but it won't be in color over RF, composite and s-video.
Service Menu
On the remote press the MENU button followed by the INFO button 5 times.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Konka |
| Model: | 24F530T |
| Series: | TruFlat |
| Viewable Size: | 24" |

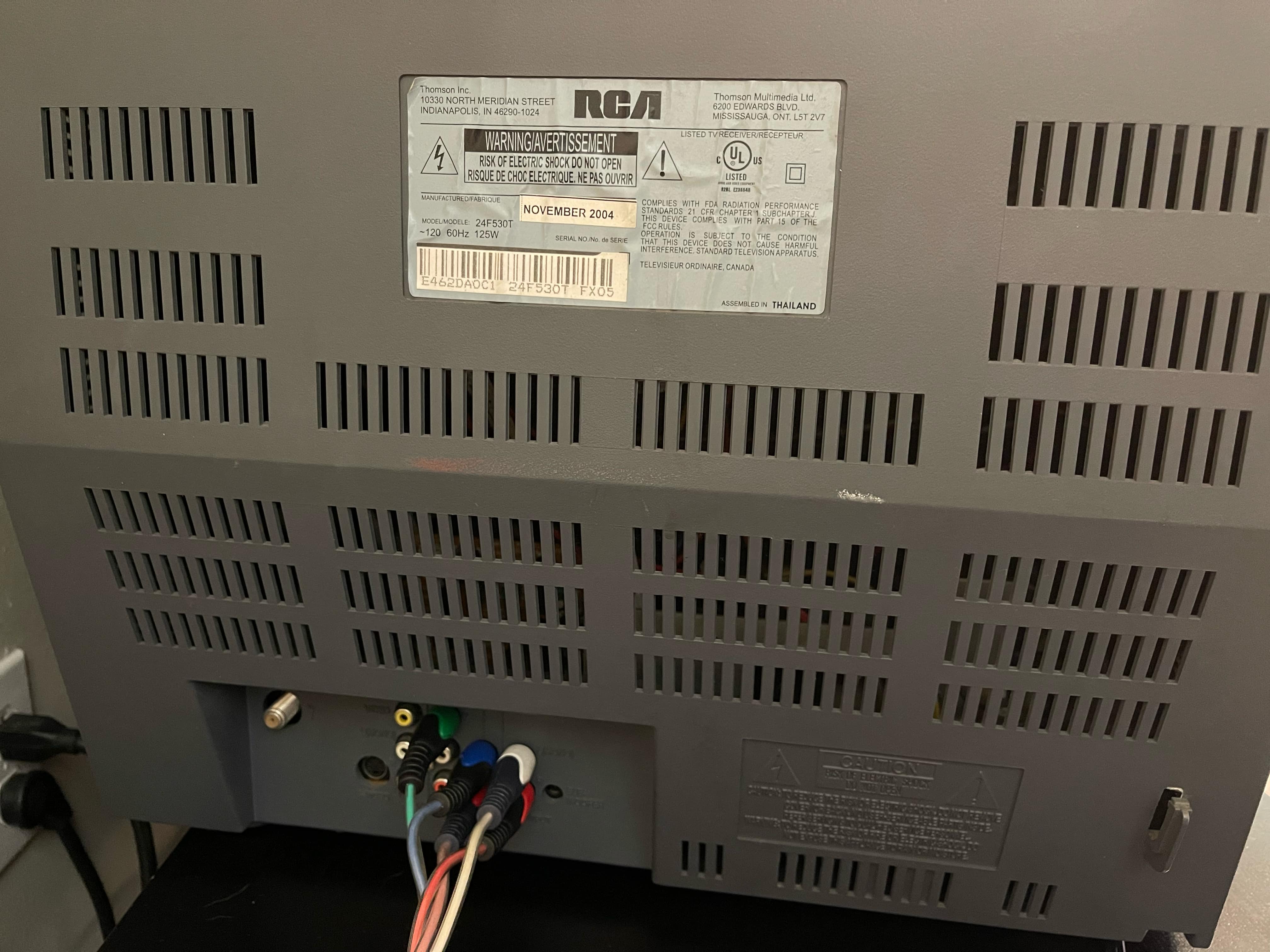

| Inputs: | Composite, S-Video, RF, Component YPbPr |

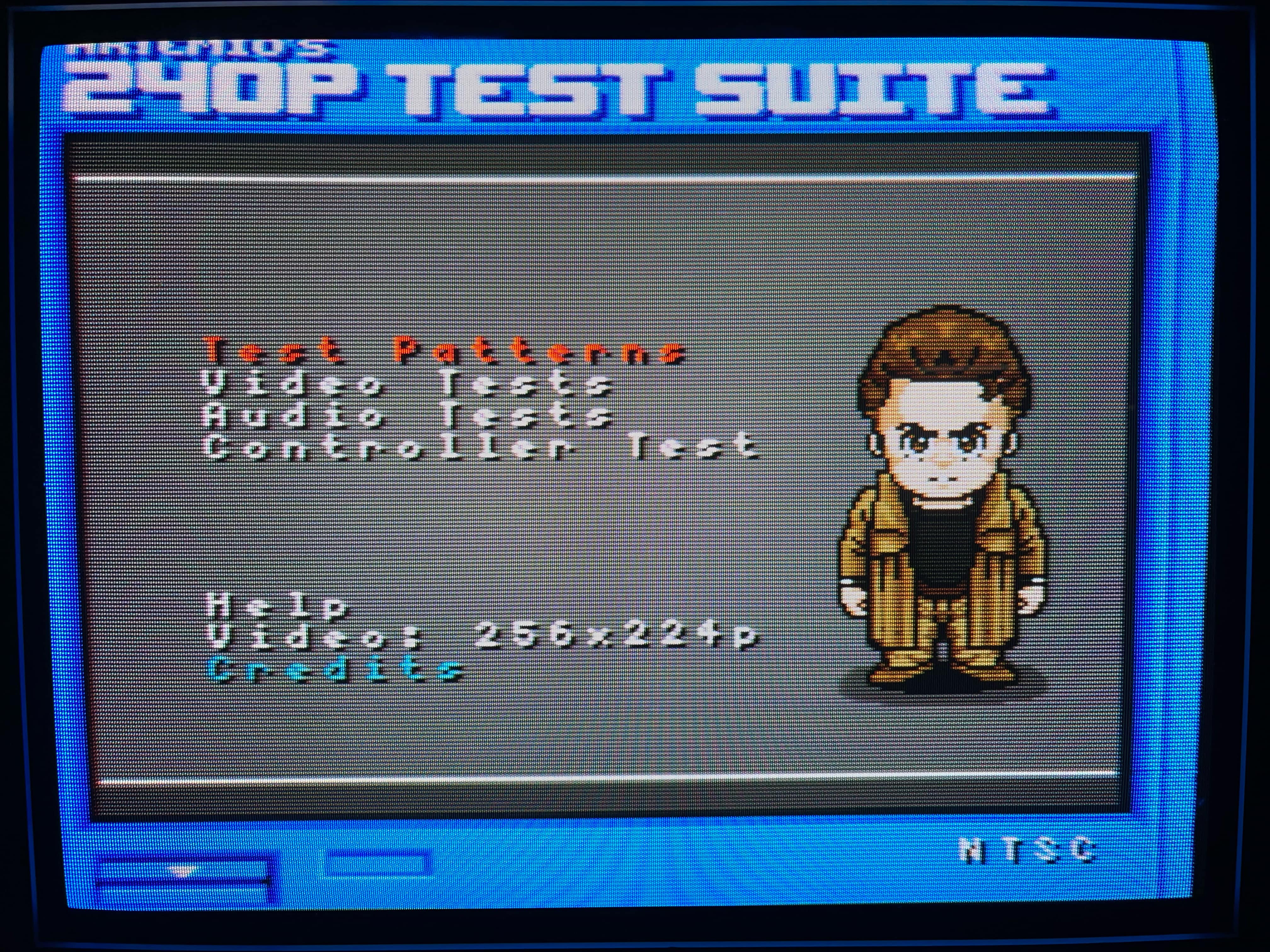

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

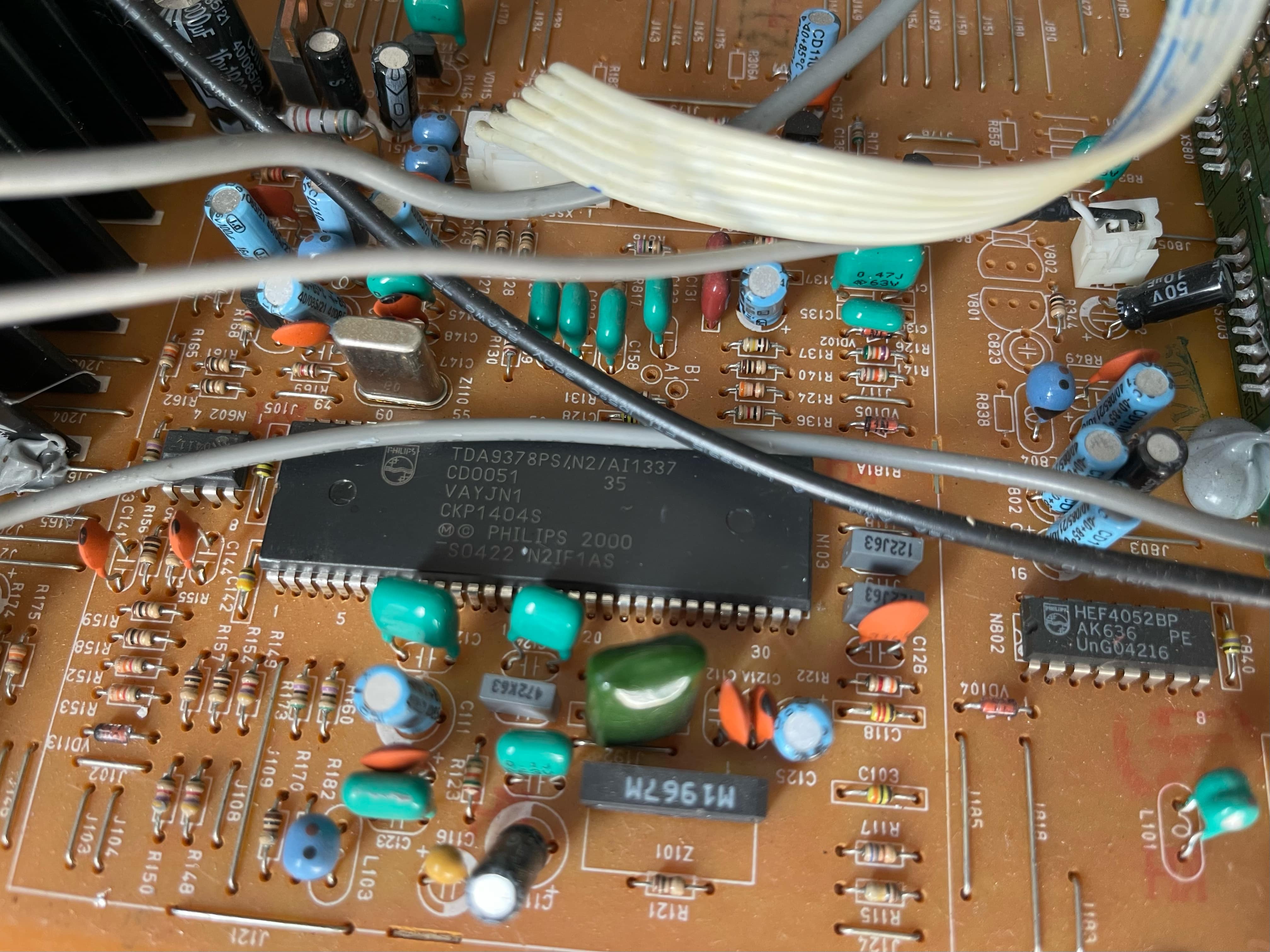

| Jungle: | Philips, TDA9378, TDA9378PSA |
| Comb Filtering: | 2-Line Digital |

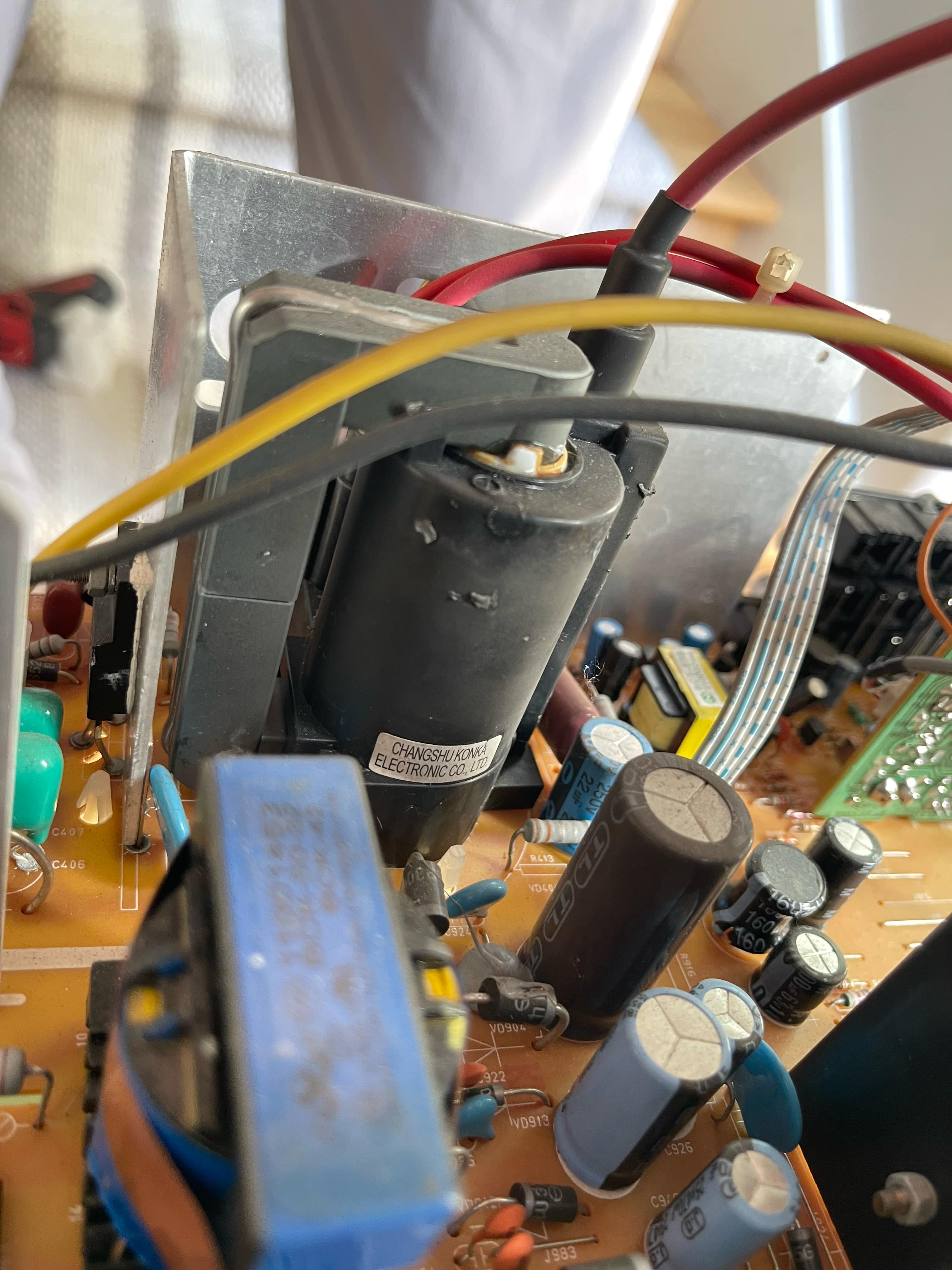

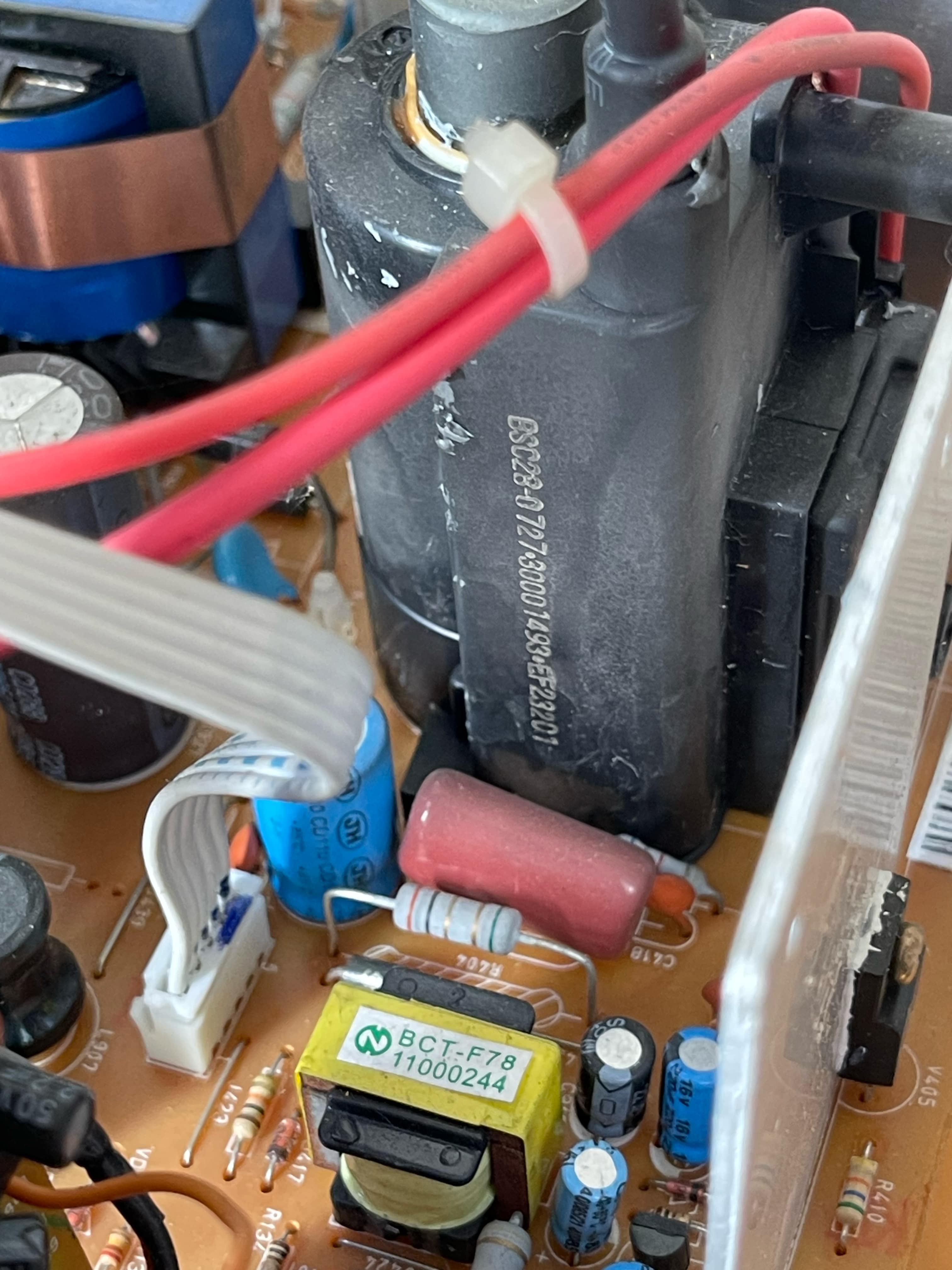

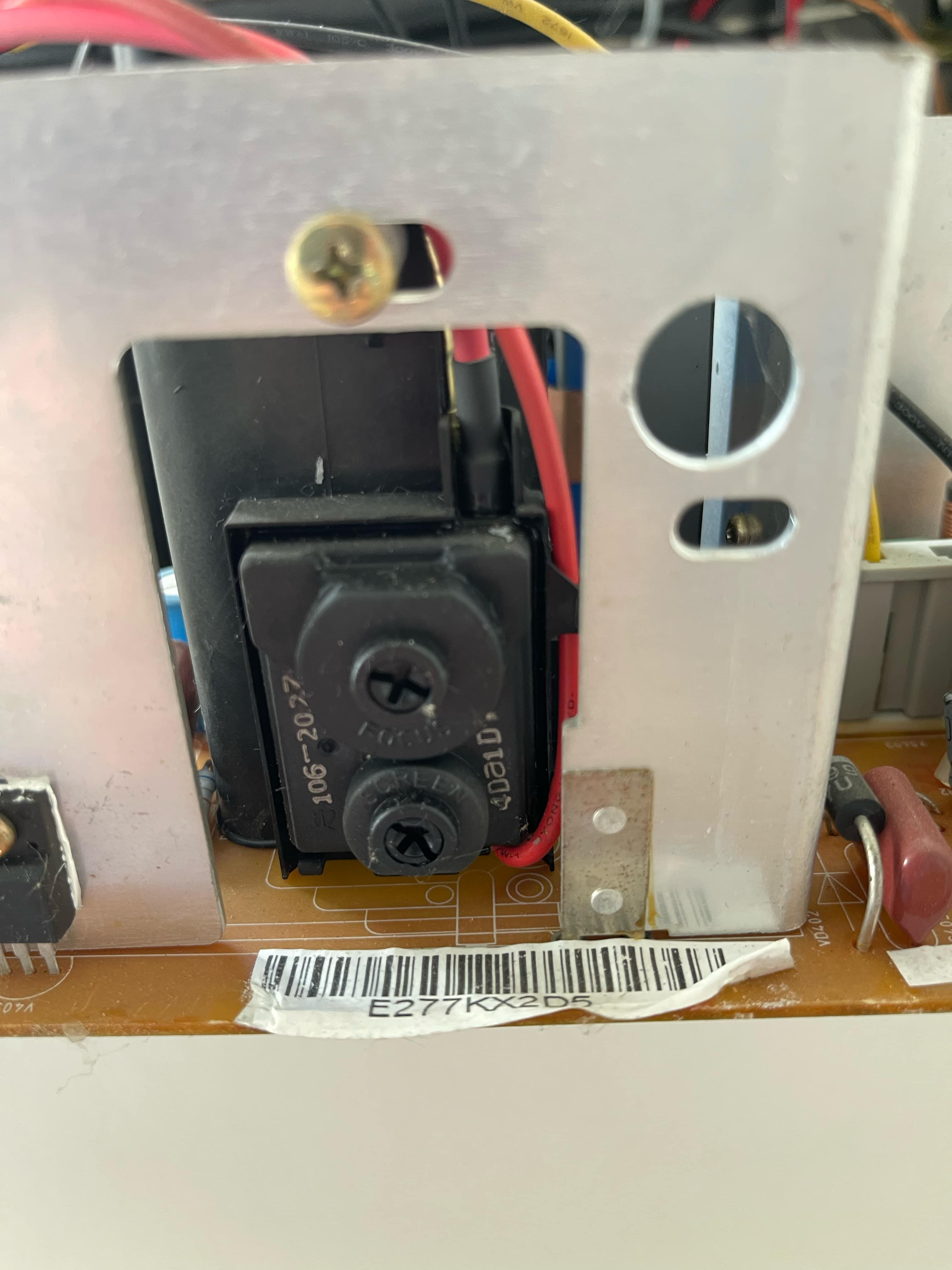

| Flyback: | Konka, BSC28-0727-30001493 |
| Focus Type: | Single |

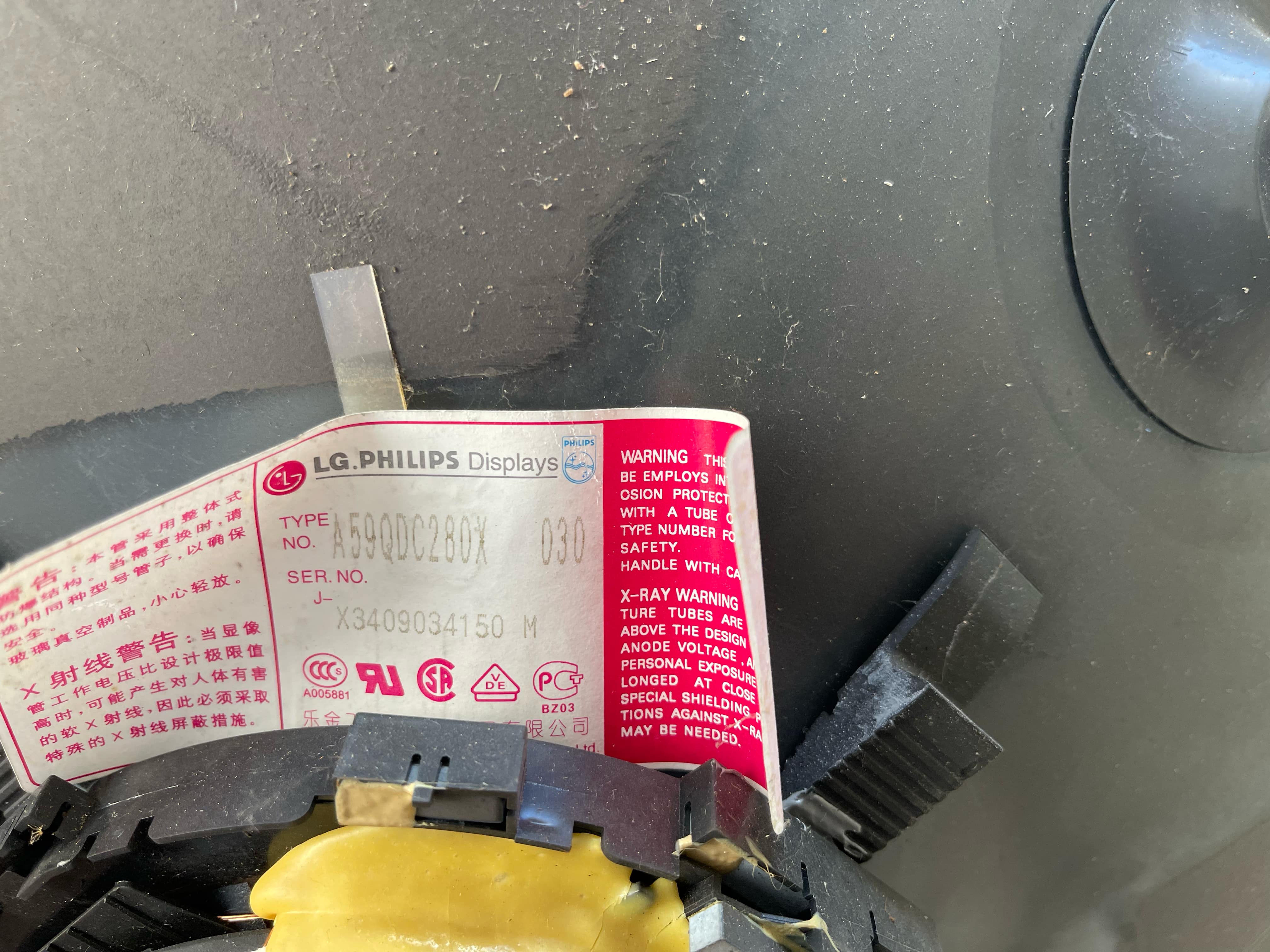

| Tube: | LG.Philips , A59QDC280X , A59QDC280X03 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

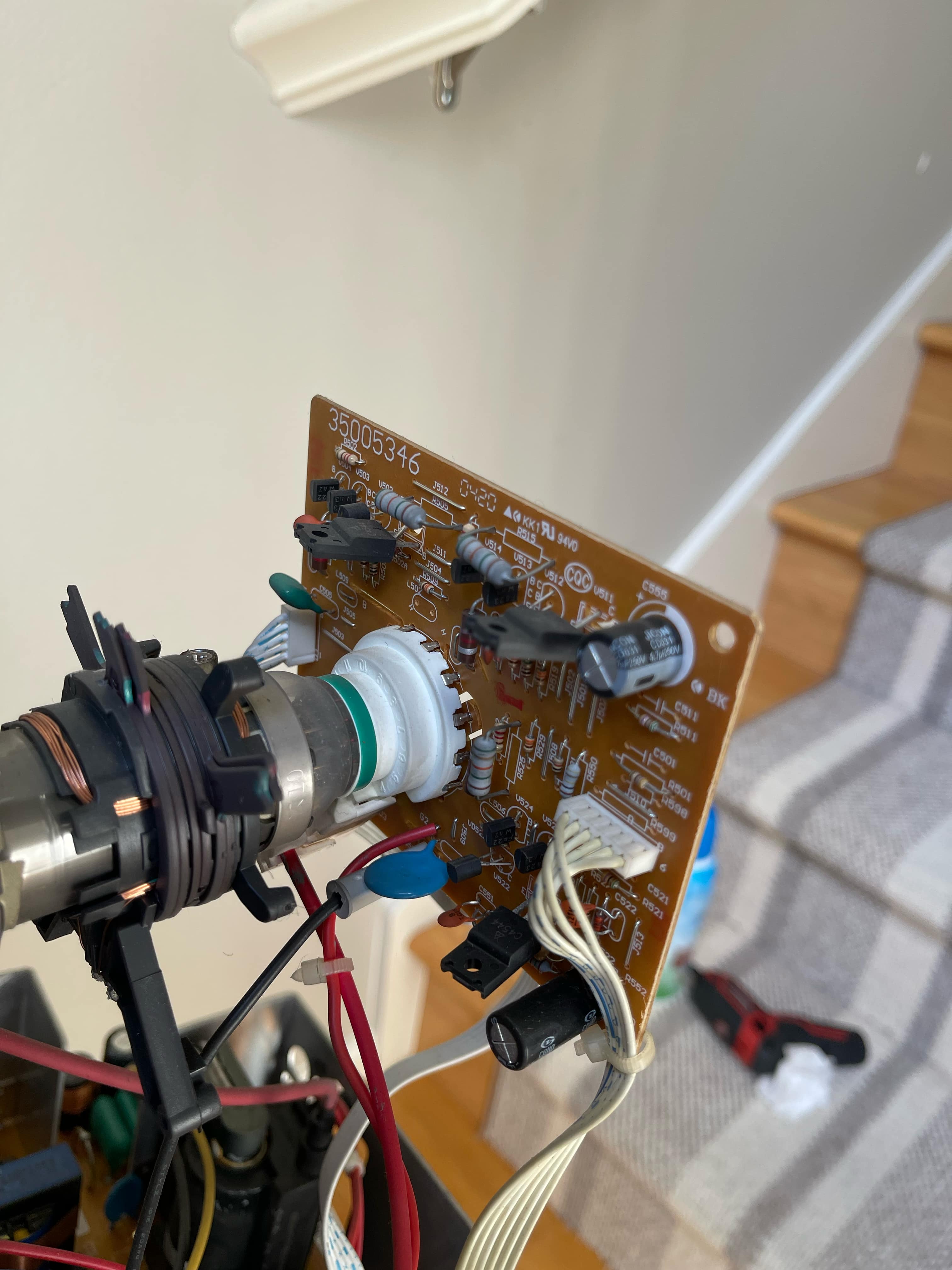

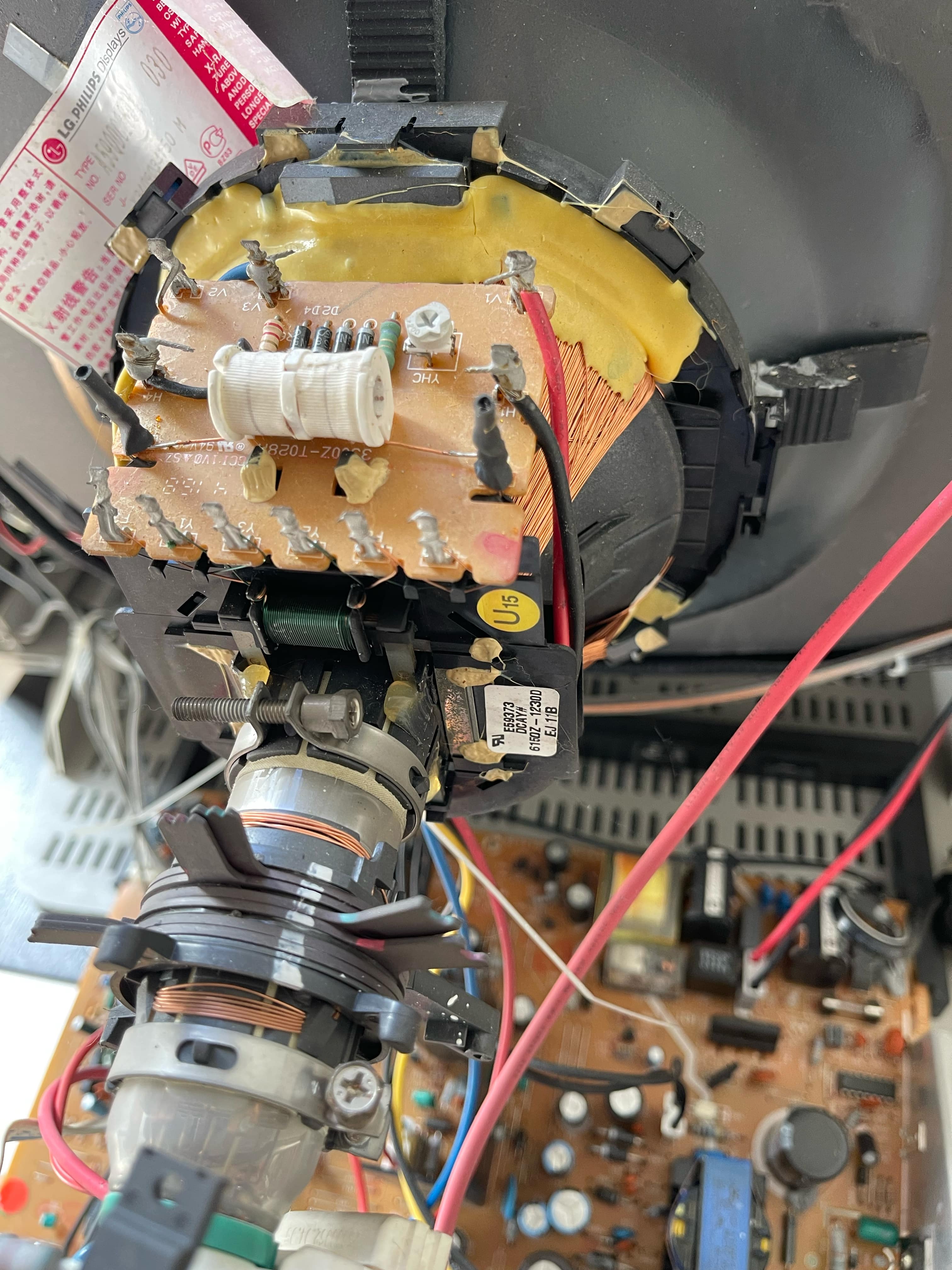

| Yoke: | 6150Z-1230D |

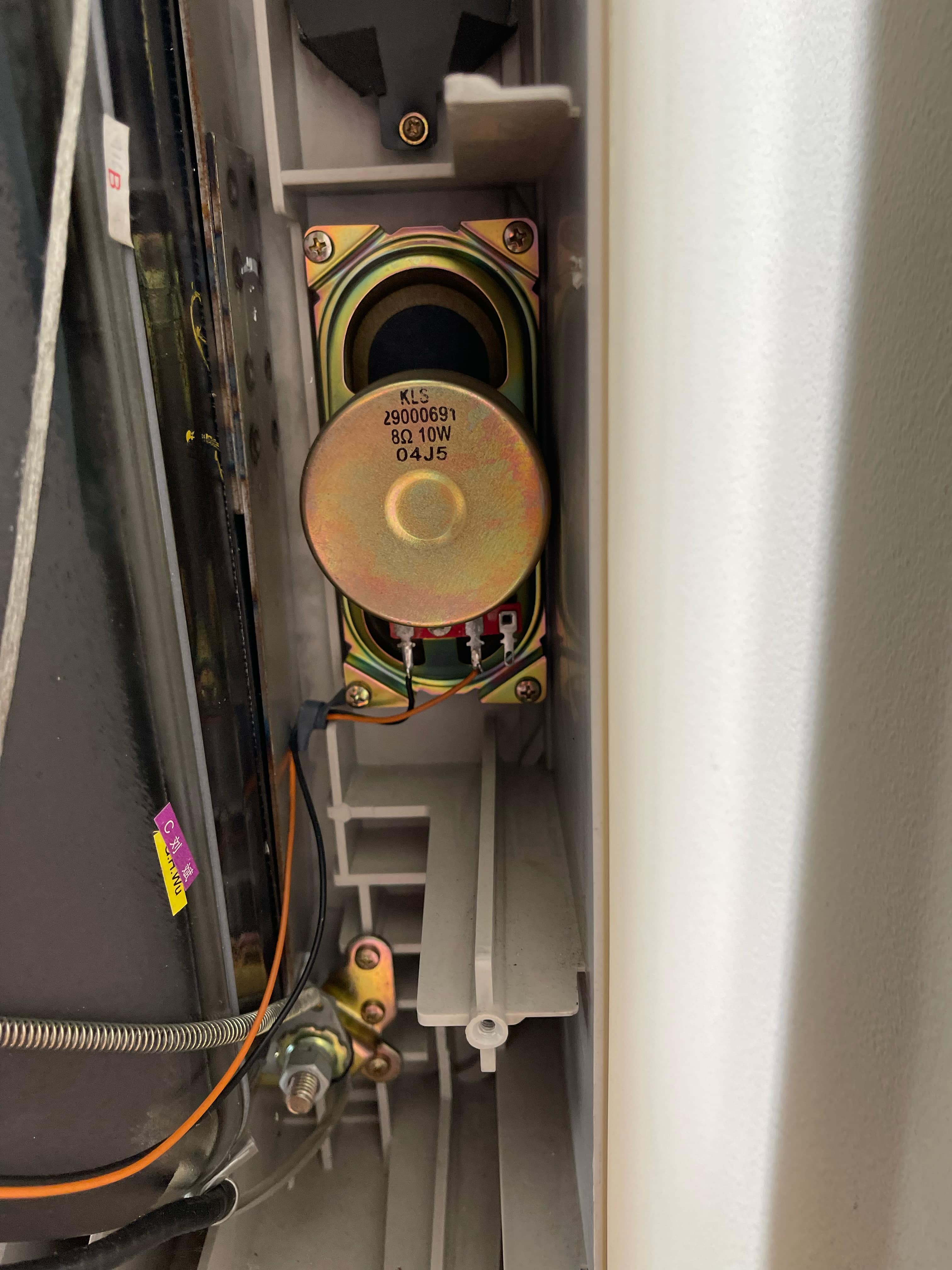

| Speakers: | Stereo, 10W x 2 |

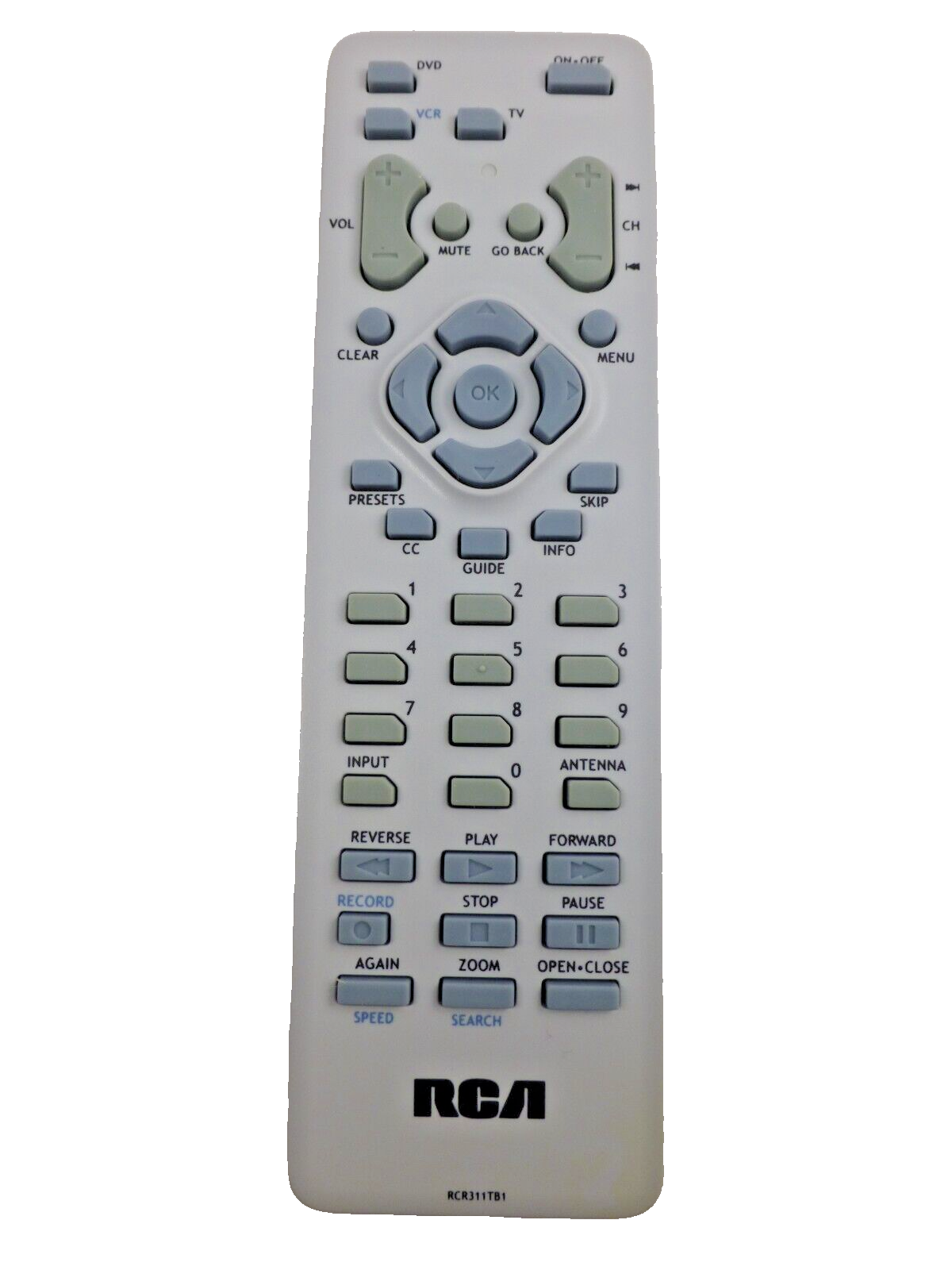

| Remote: | RCR311TBM1 |
| Weight: | 80 lbs (36.3 kg) |
| Dimensions (W/H/D): |
679 x 520 x 470 mm
(26.7 x 20.4 x 18.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 379 USD |
| Country of Manufacture: | China, Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
