Summary

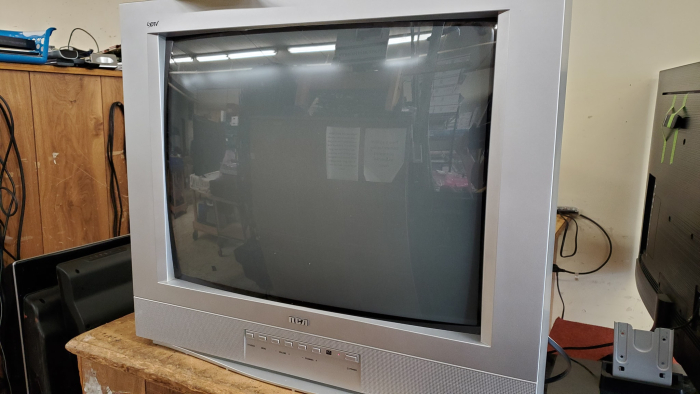

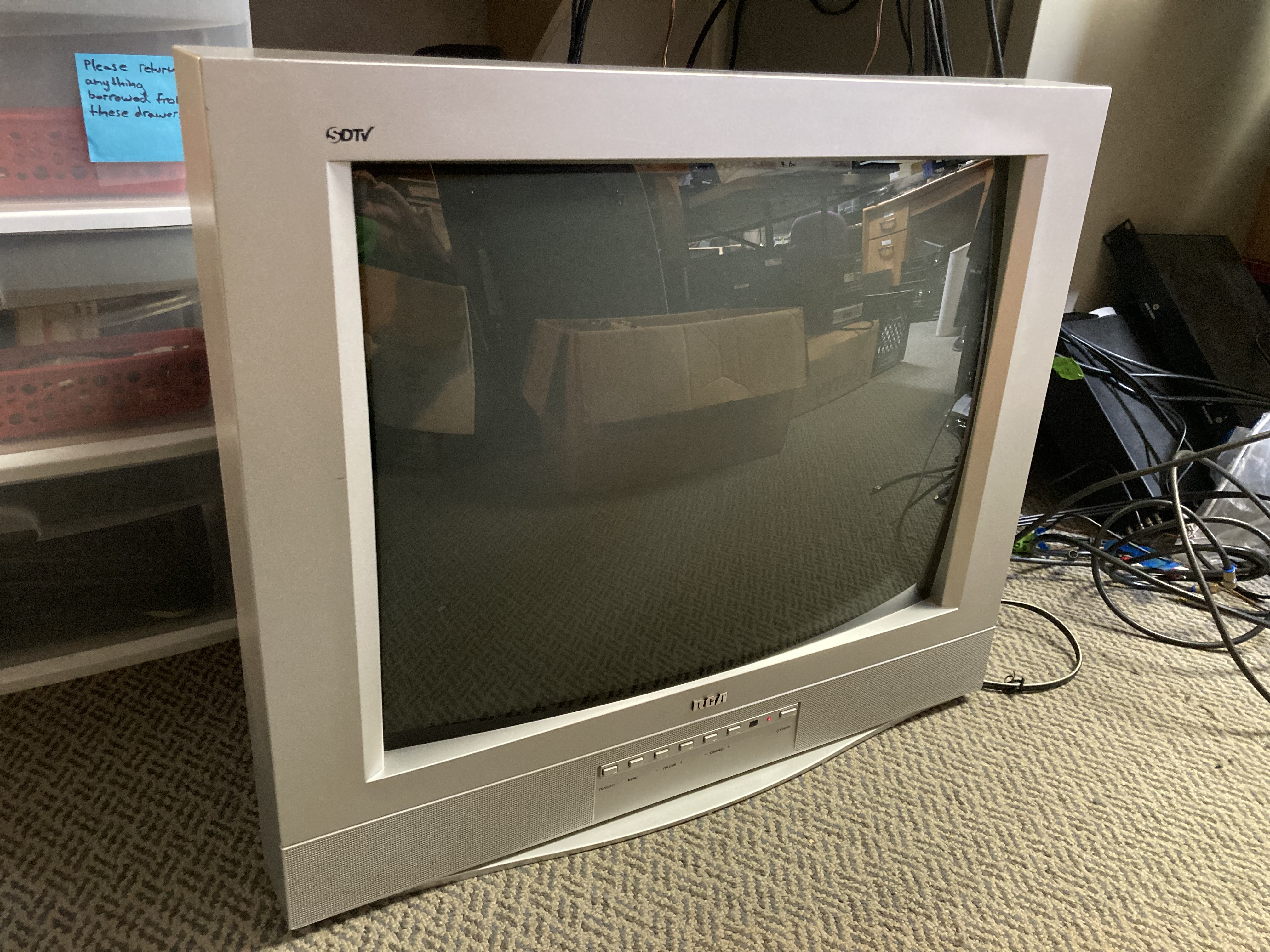

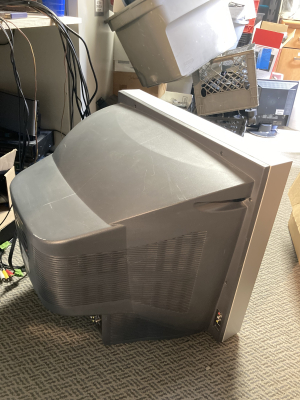

Late model 24" SDTV from RCA. Features RF, composite, and component inputs. Made by TCL-Thomson's Thailand facility in 2007.

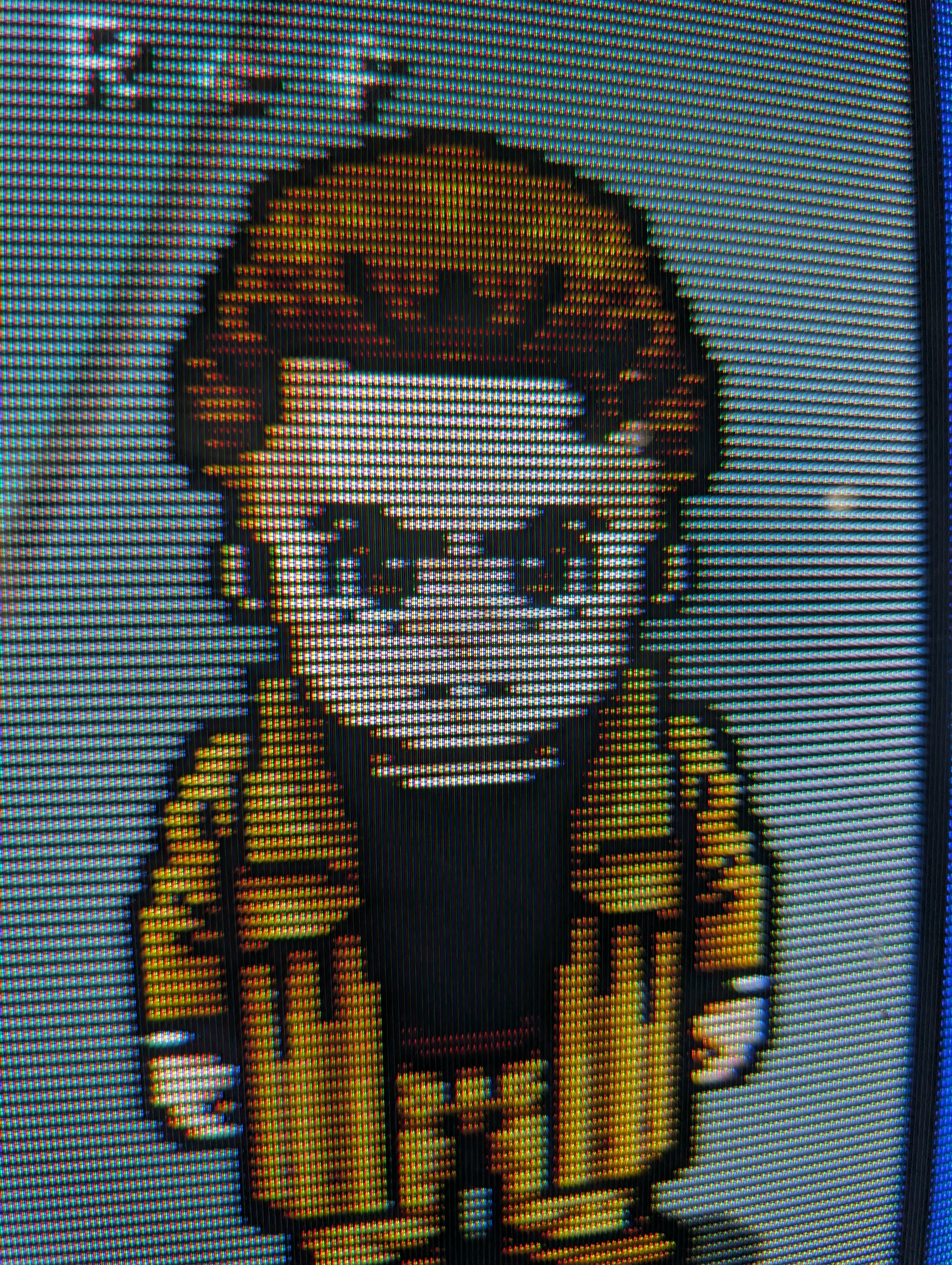

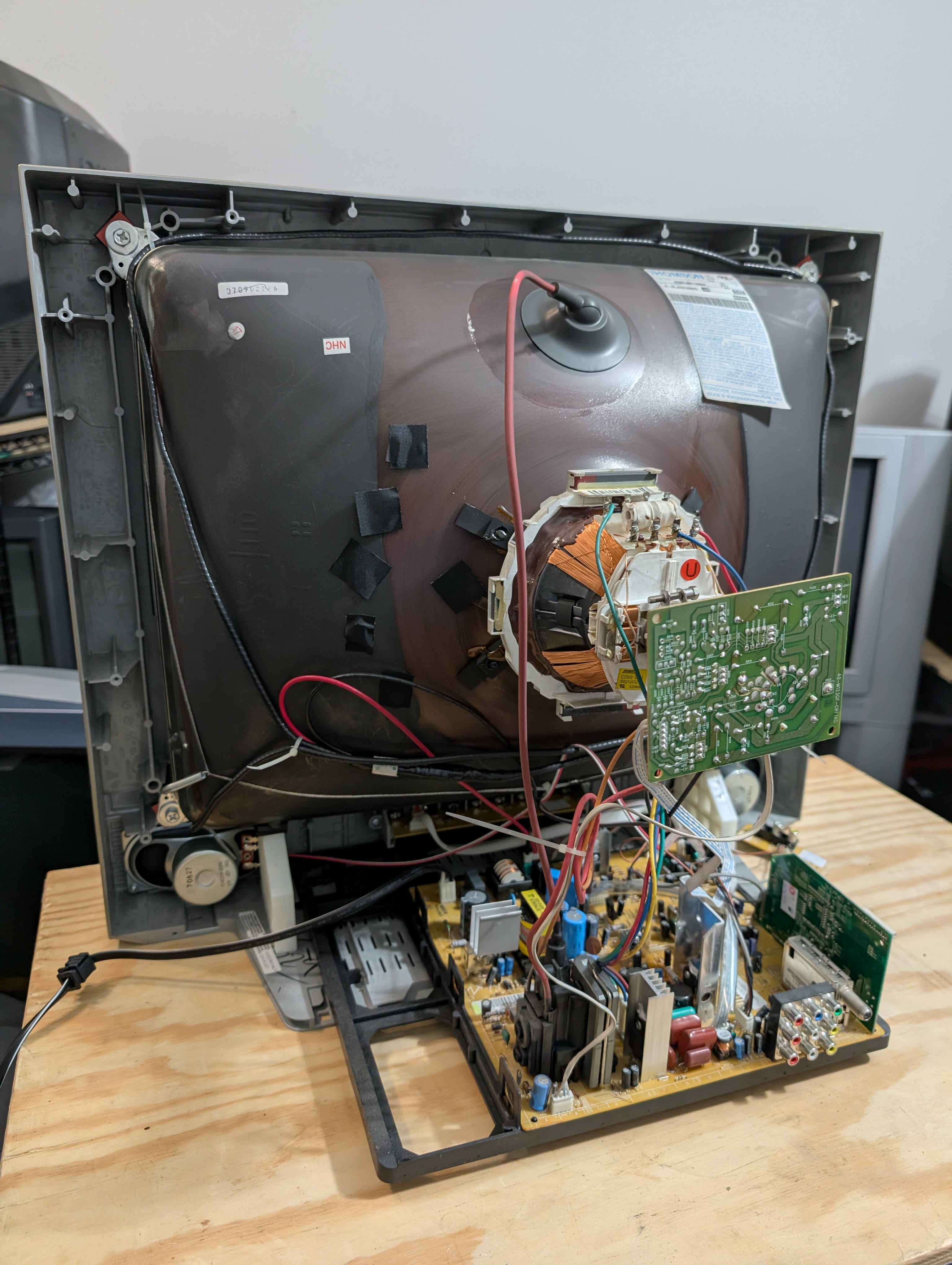

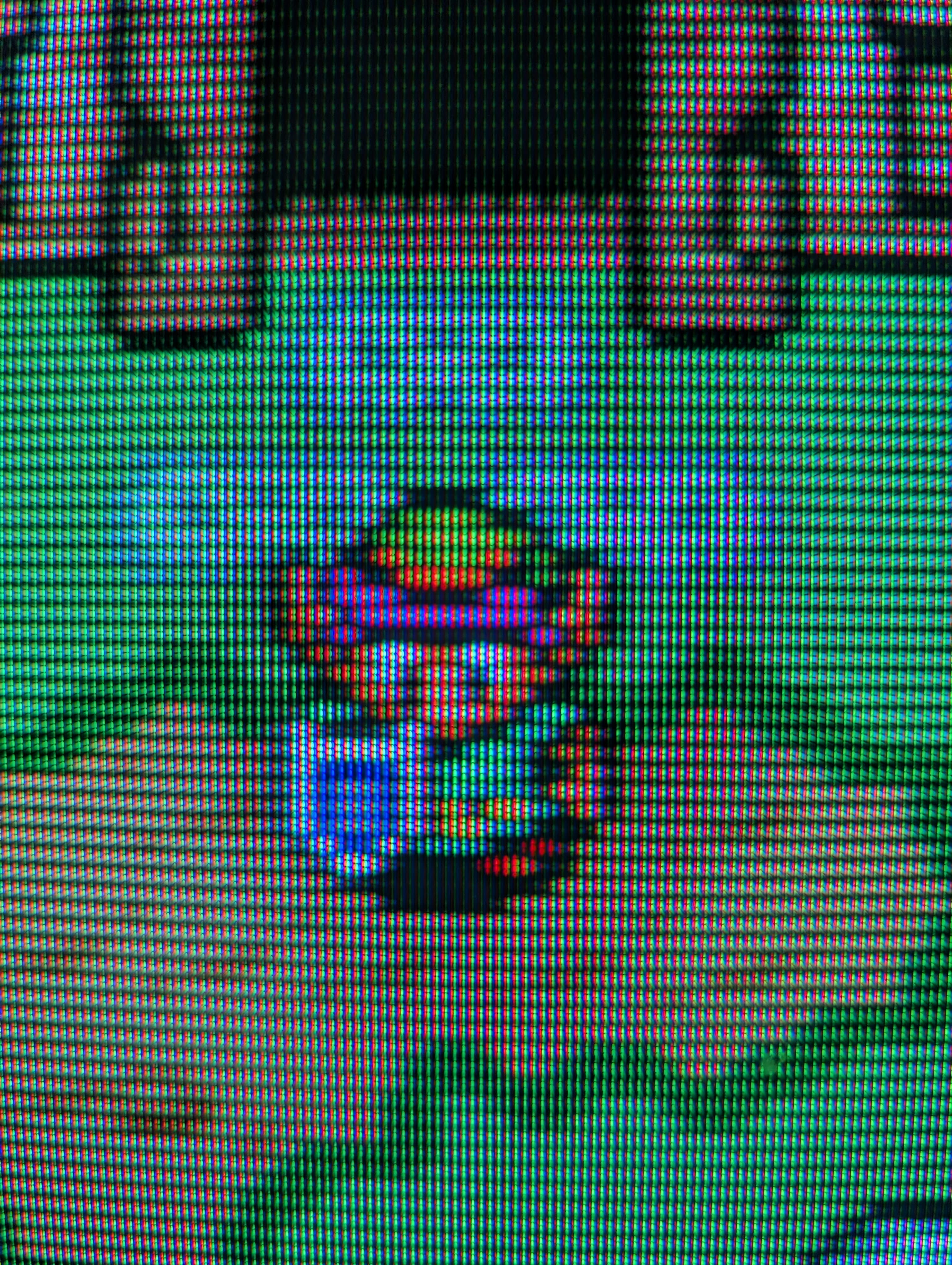

(Special thanks to Michael Lopez for the gameplay and internal pics!)
Manuals
Notes
Interestingly this model does not feature an S-Video input, despite having a component one. This TV includes an ATSC digital tuner, and can still receive modern broadcast television through an antenna.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TCL |

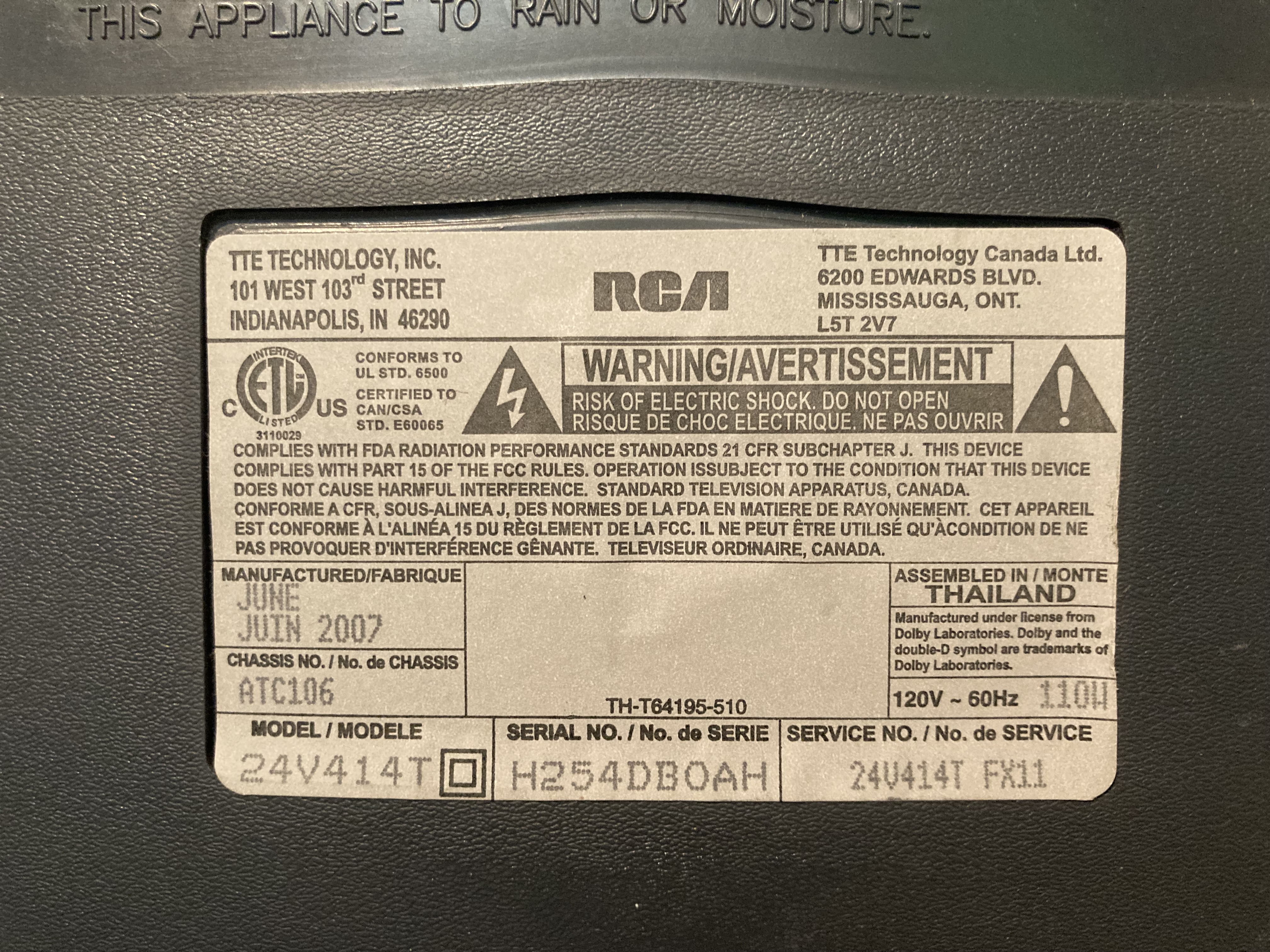

| Model: | 24V414T |
| Series: | V |
| Viewable Size: | 24" |

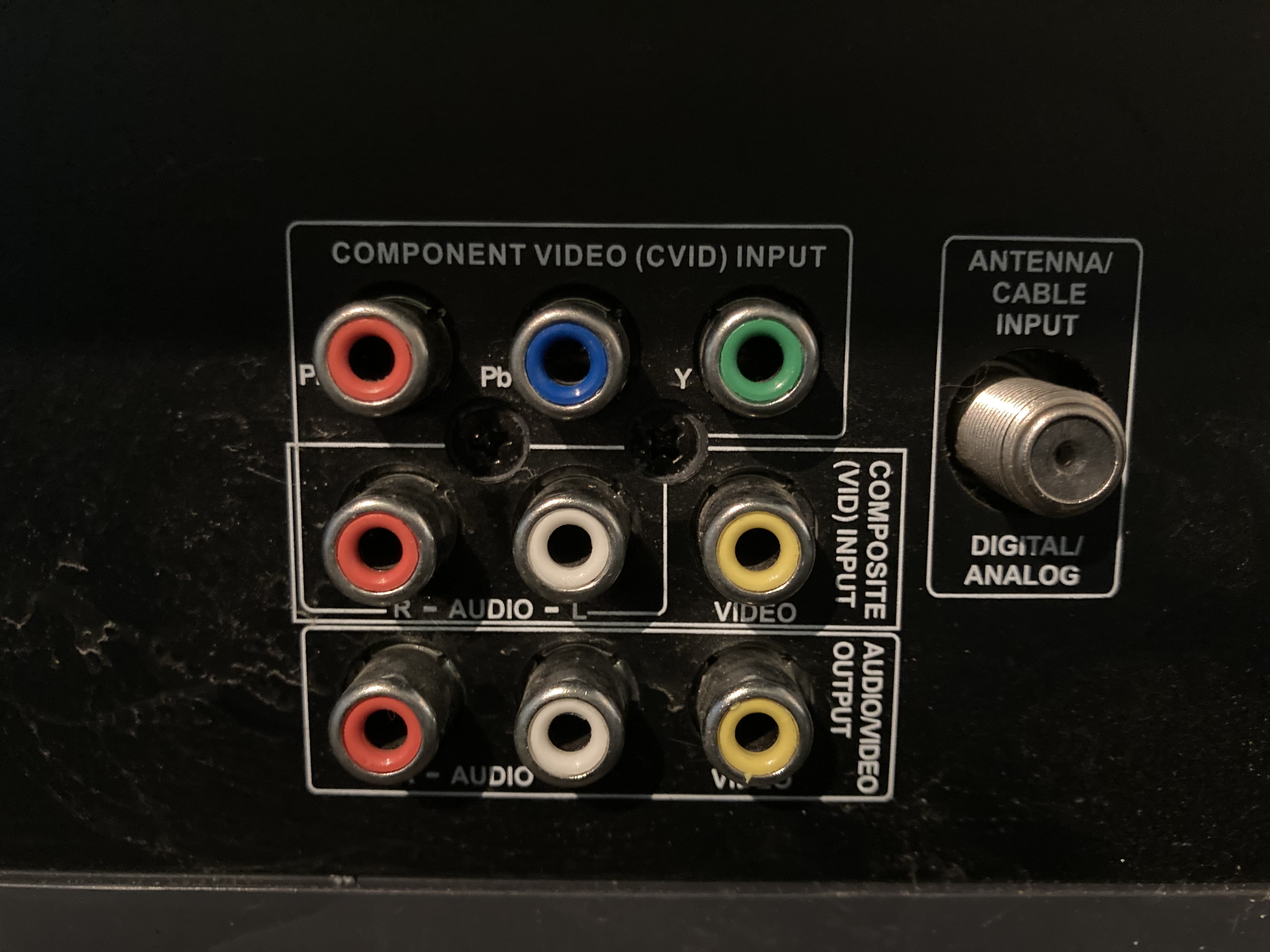

| Inputs: | Composite, RF, Component YPbPr, ATSC |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

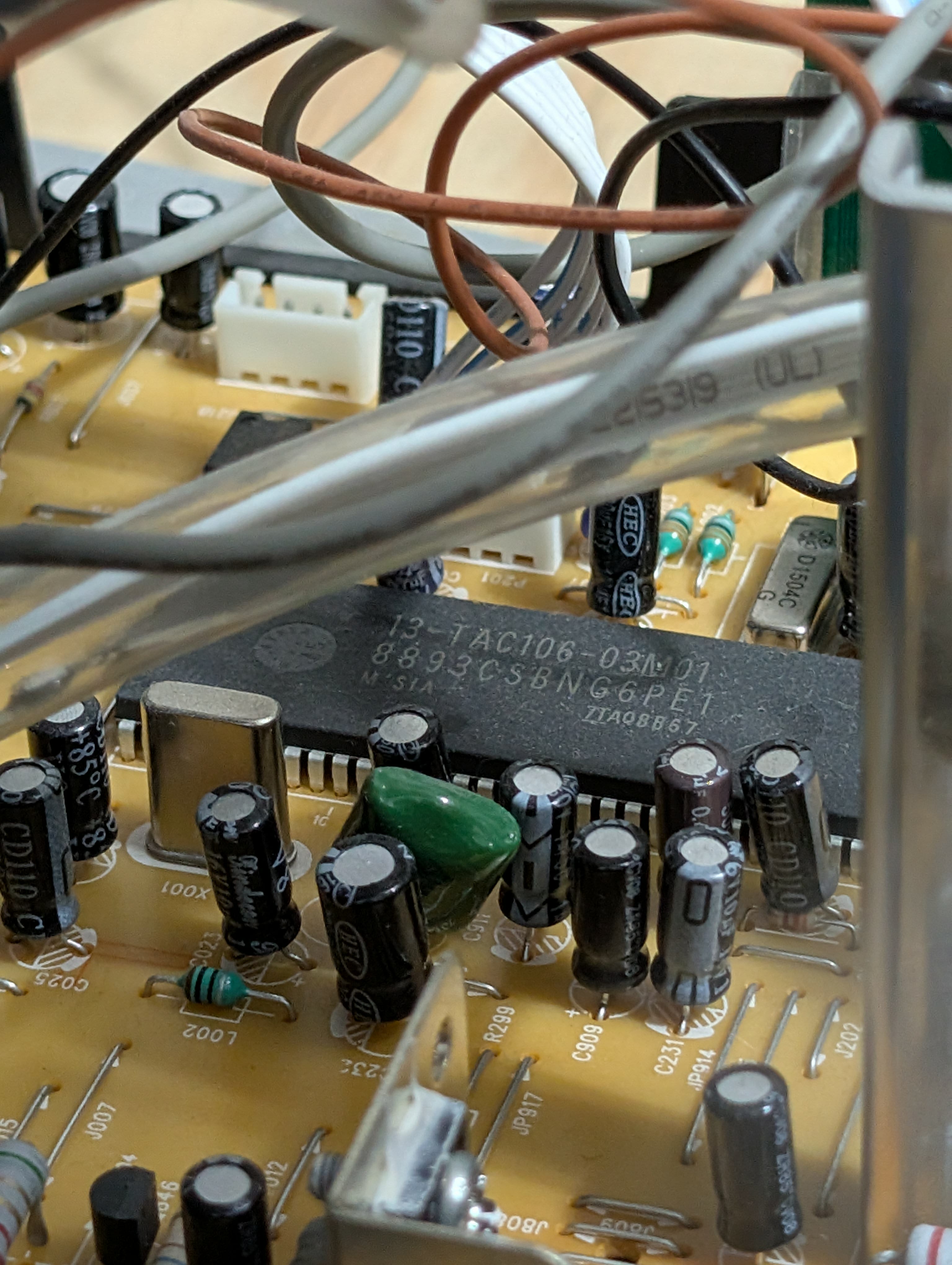

| Jungle IC: | Toshiba, TMPA8893, TMPA8893CSBNG6PE1 |

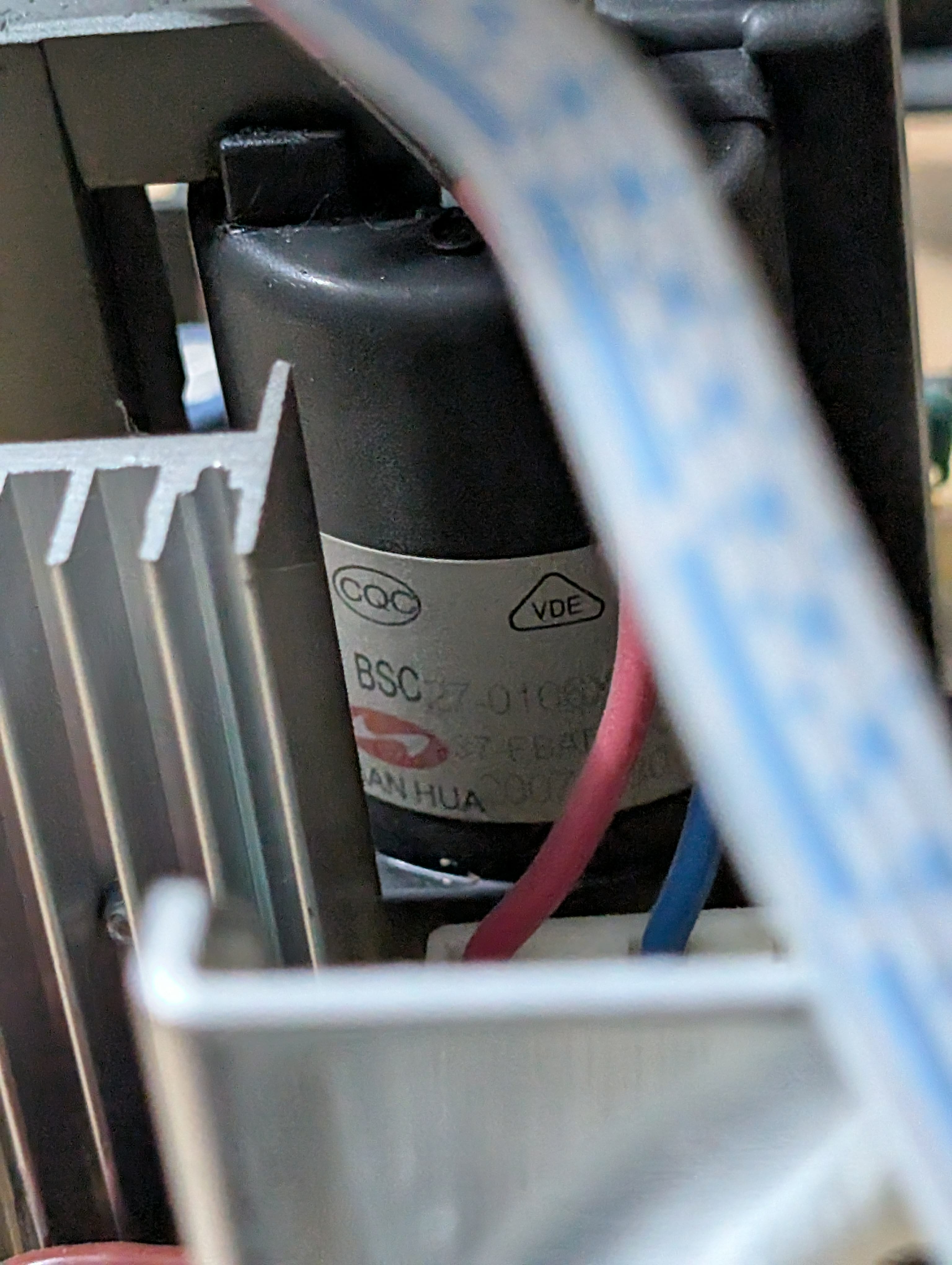

| Flyback: | BSC27-0106 |
| Focus Type: | Single |

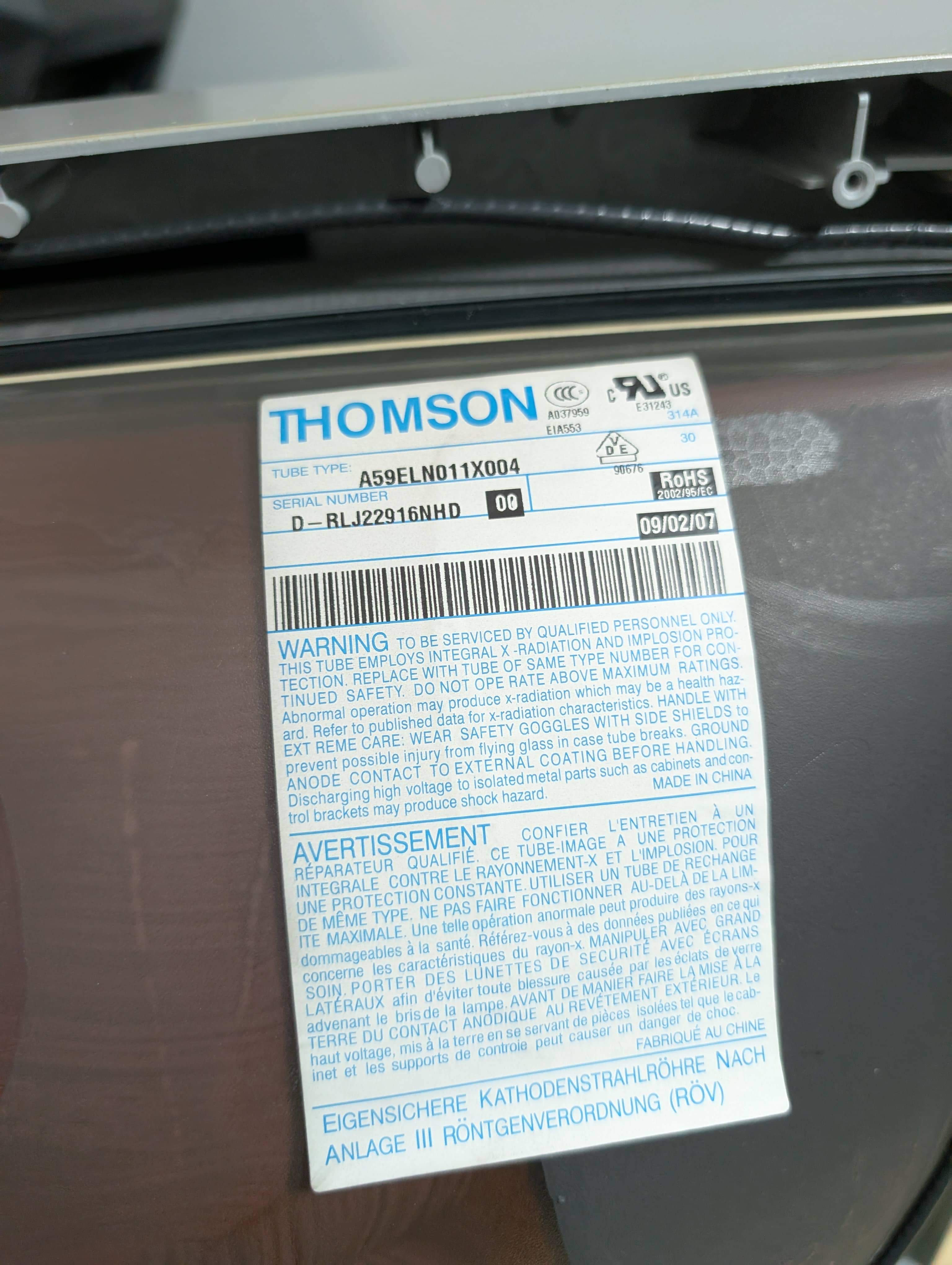

| Tube: | Thomson , A59ELN011X004 , A59ELN011X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

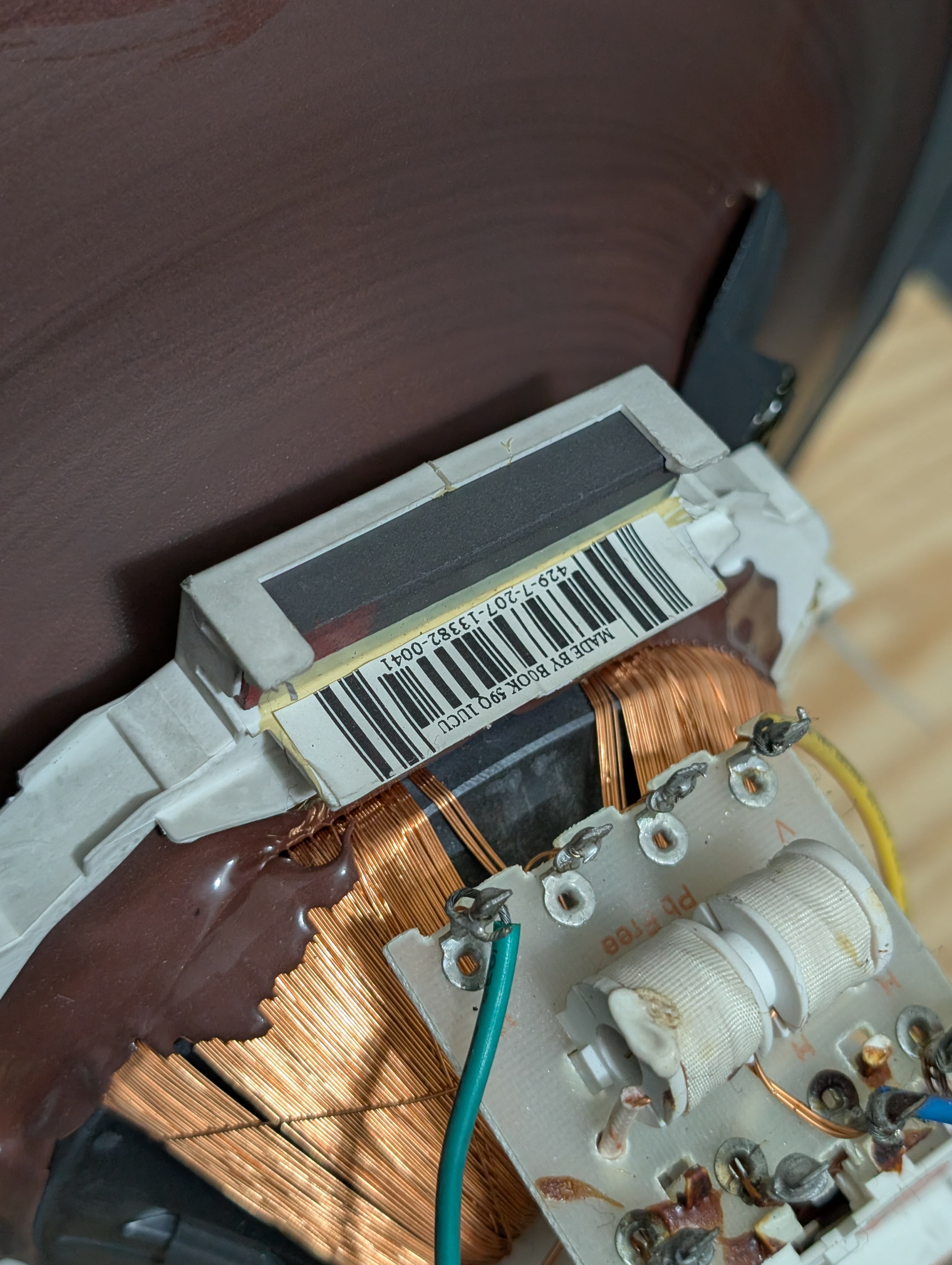

| Yoke: | 429-7-207-13382-0041, 59Q1UCU |

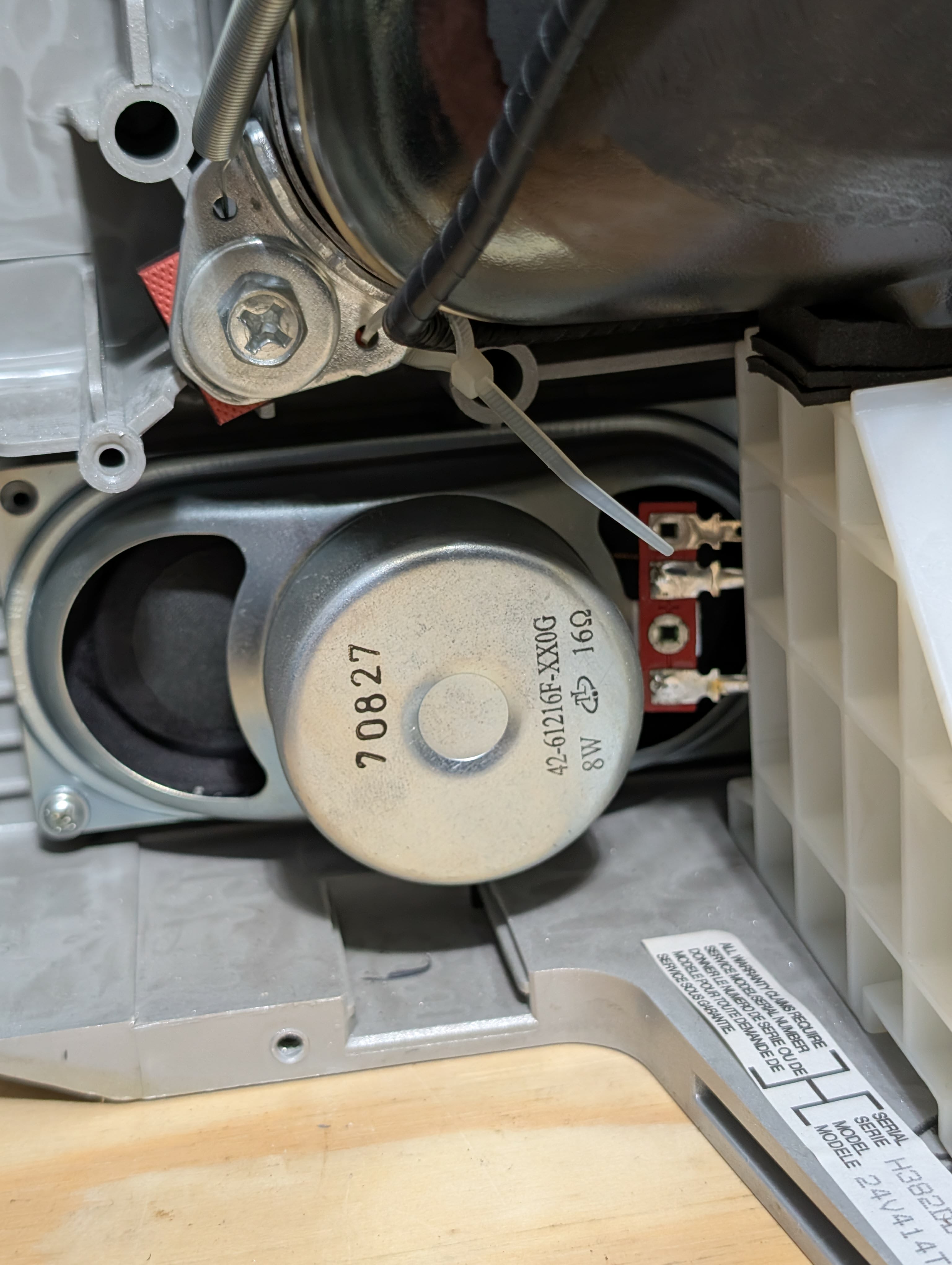

| Speakers: | Stereo, 8W x 2 |

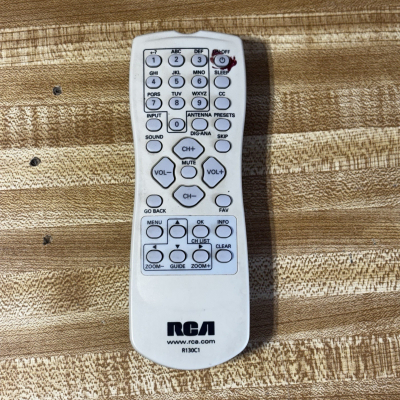

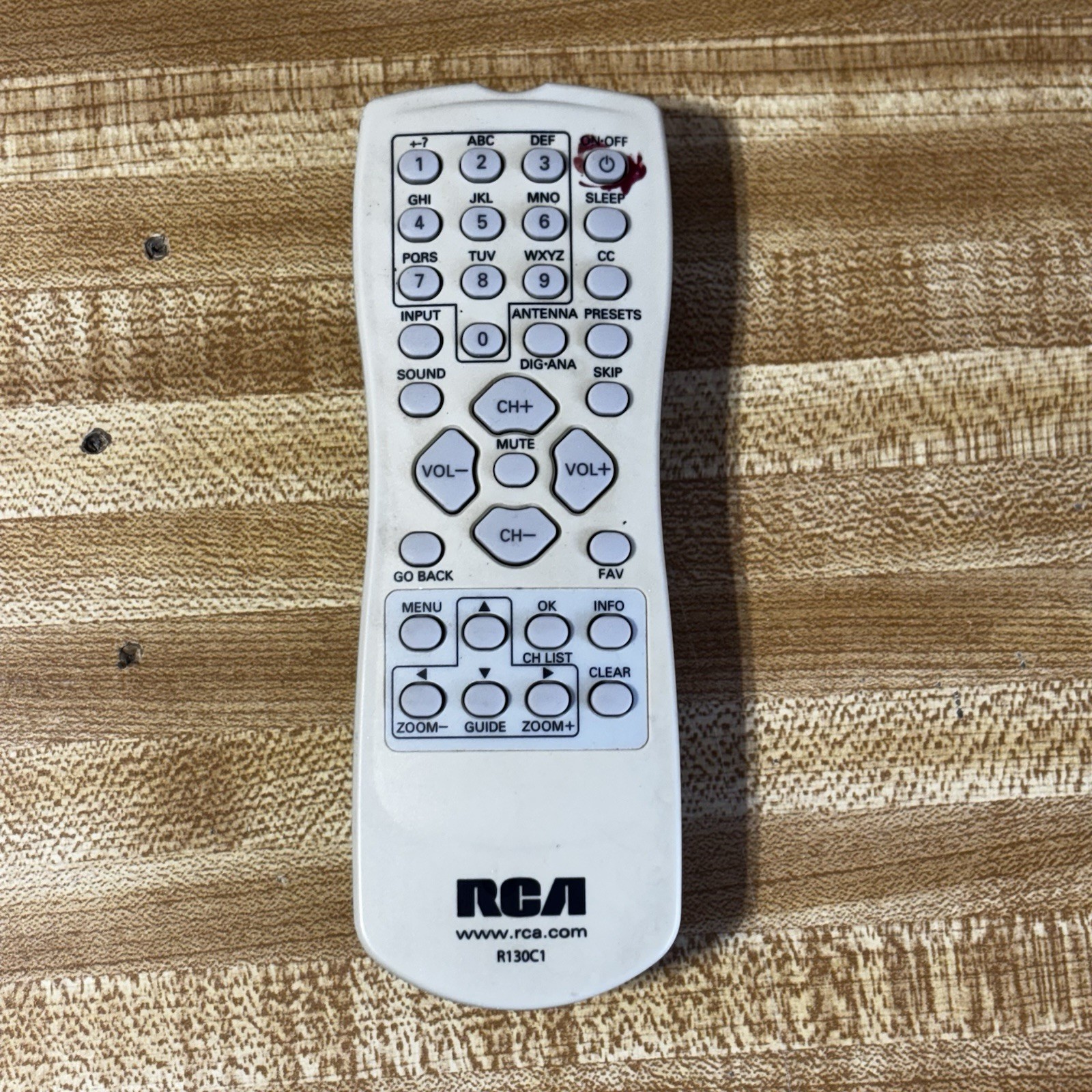

| Remote: | R130C1 |
| Chassis: | ATC106 |
| Weight: | 62 lbs (28.1 kg) |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2007 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
