| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TTE Technology |
| Model: | 27F520T |

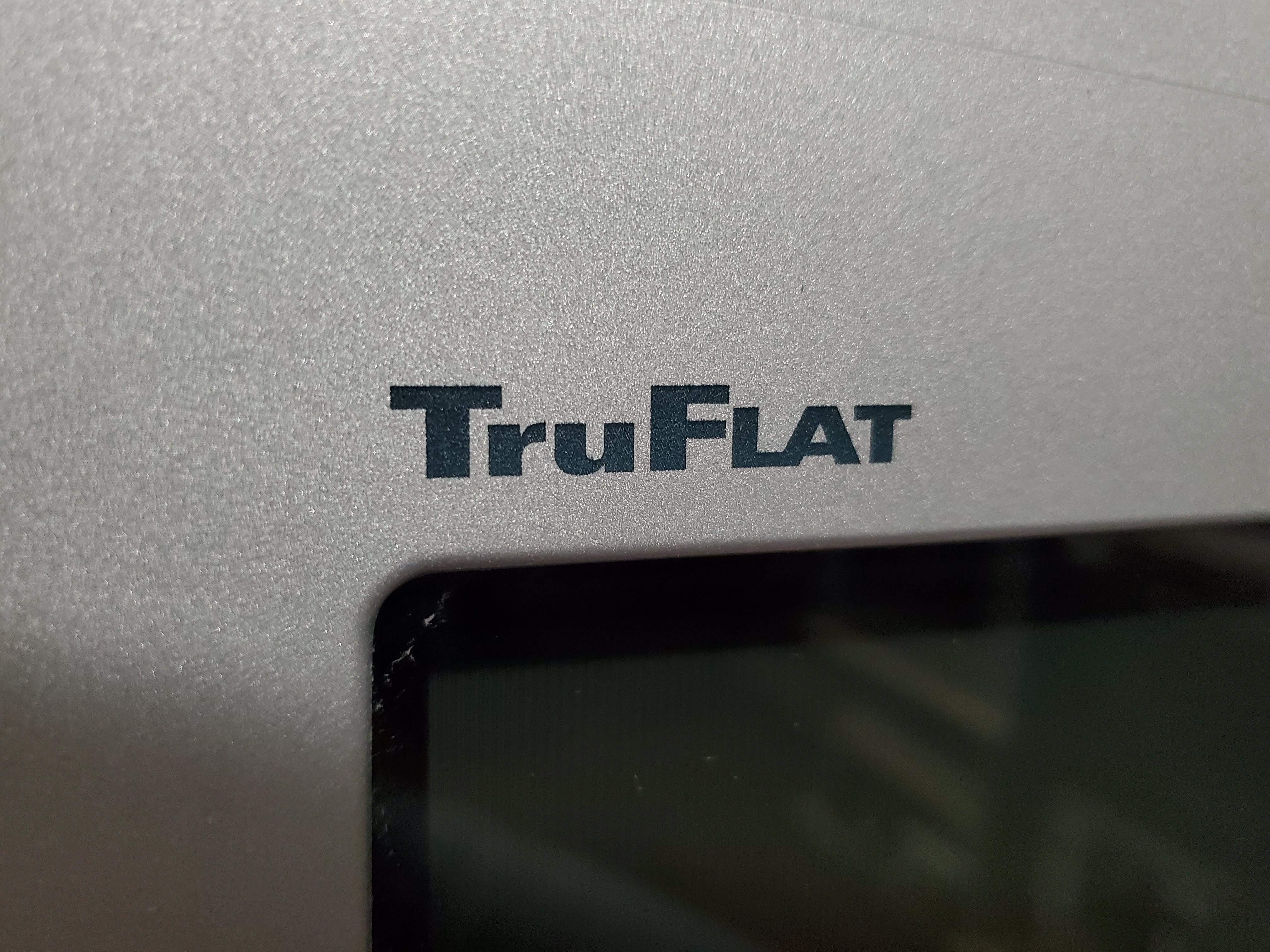

| Series: | TruFlat |
| Viewable Size: | 27" |

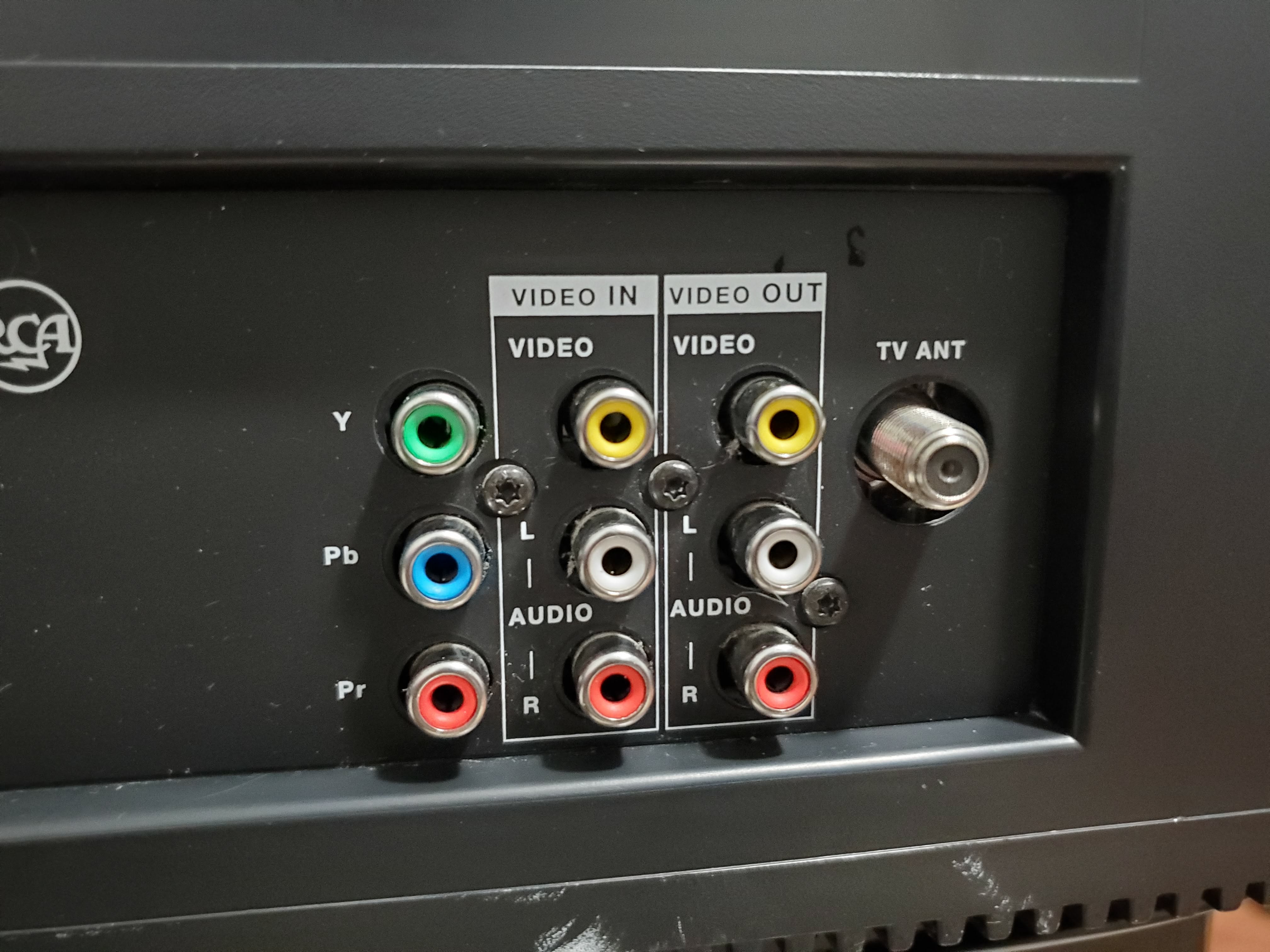

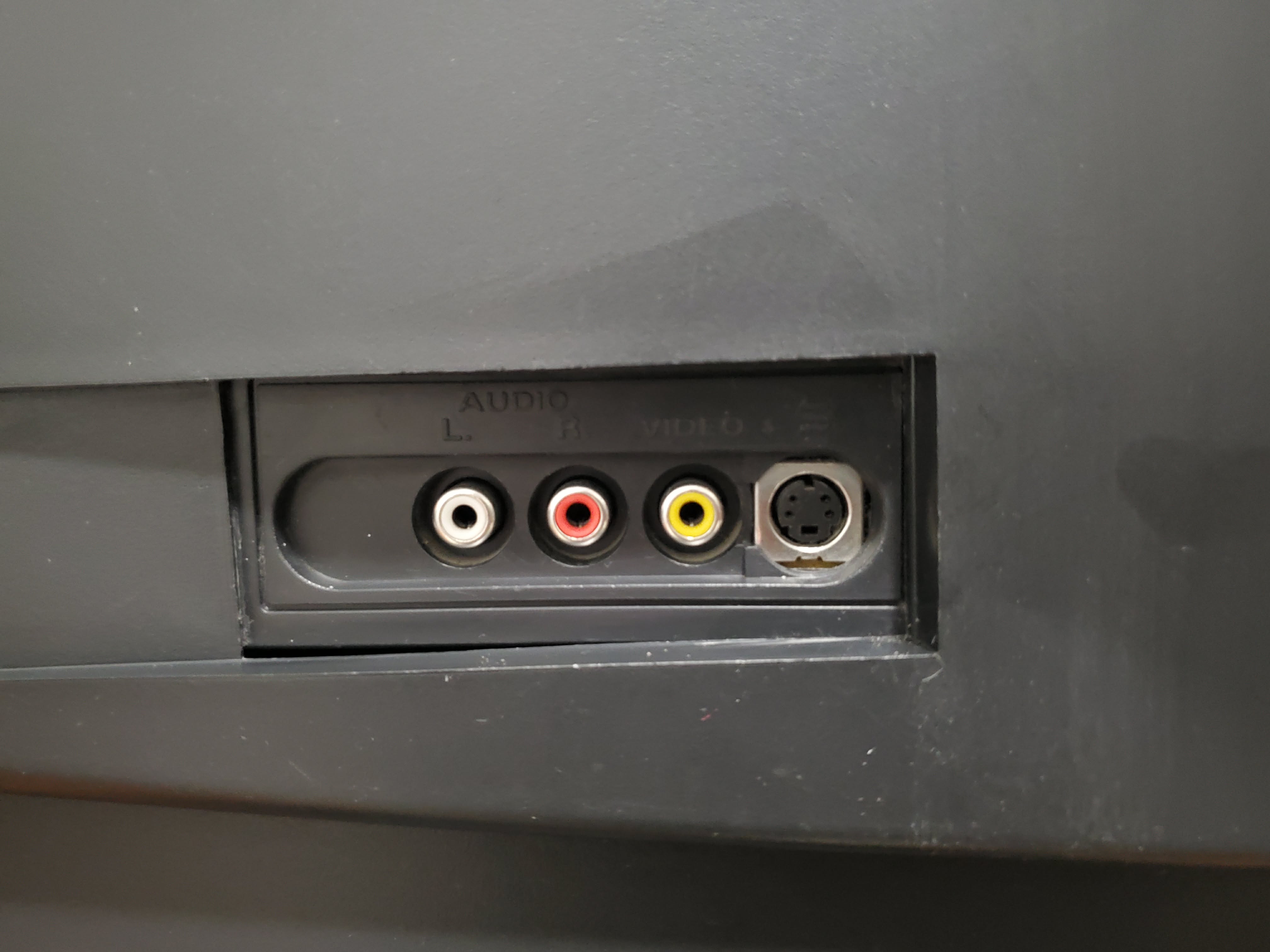

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

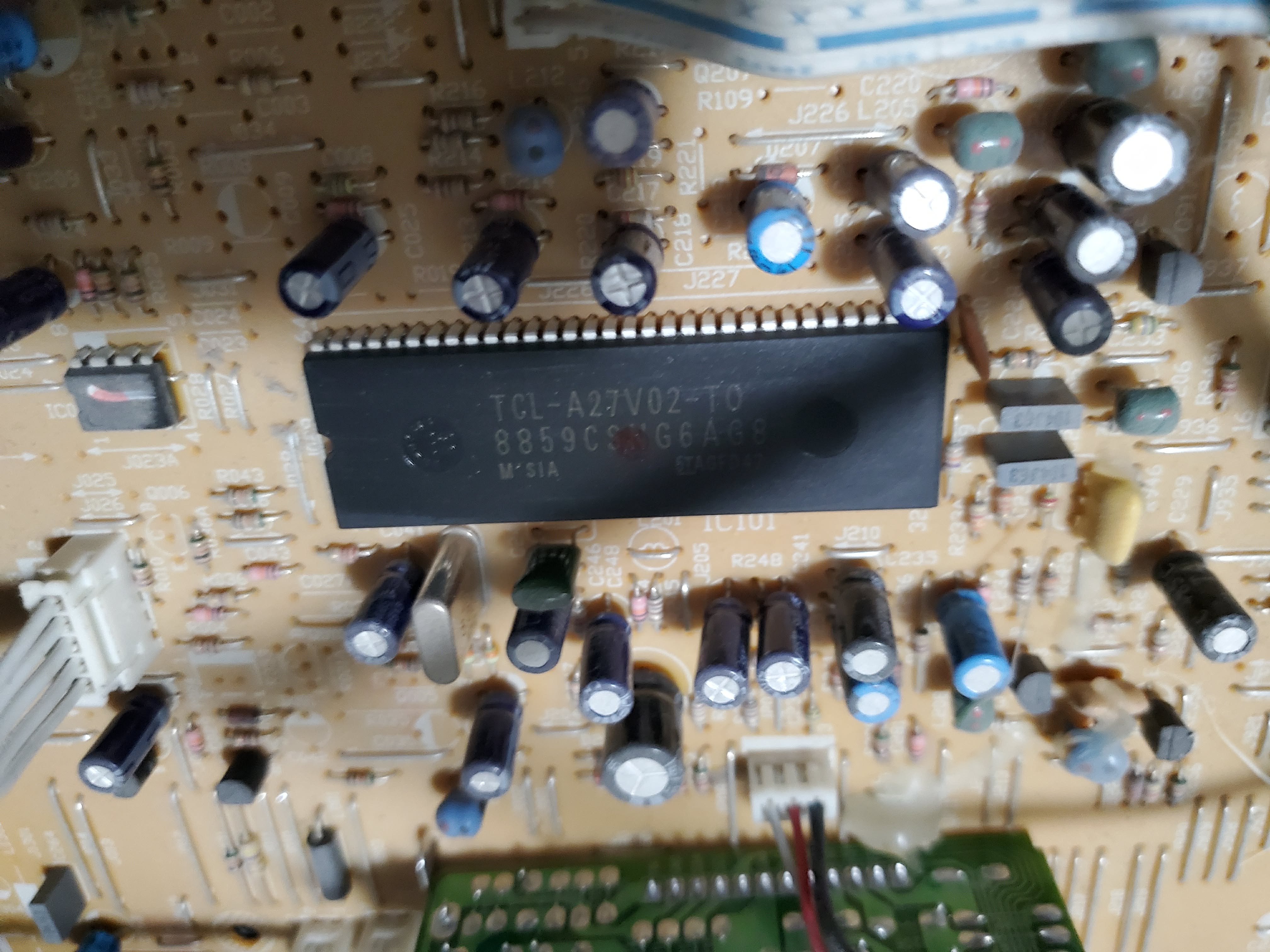

| Jungle IC: | Toshiba, TCL-A27V02-TO, TMPA8859, TMPA8859CSNG6AG8 |
| Comb Filtering: | 3-Line Digital |

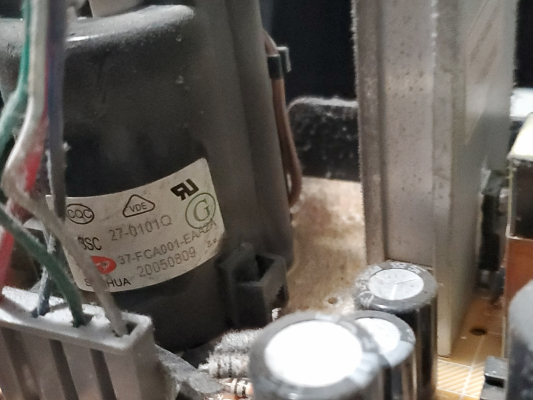

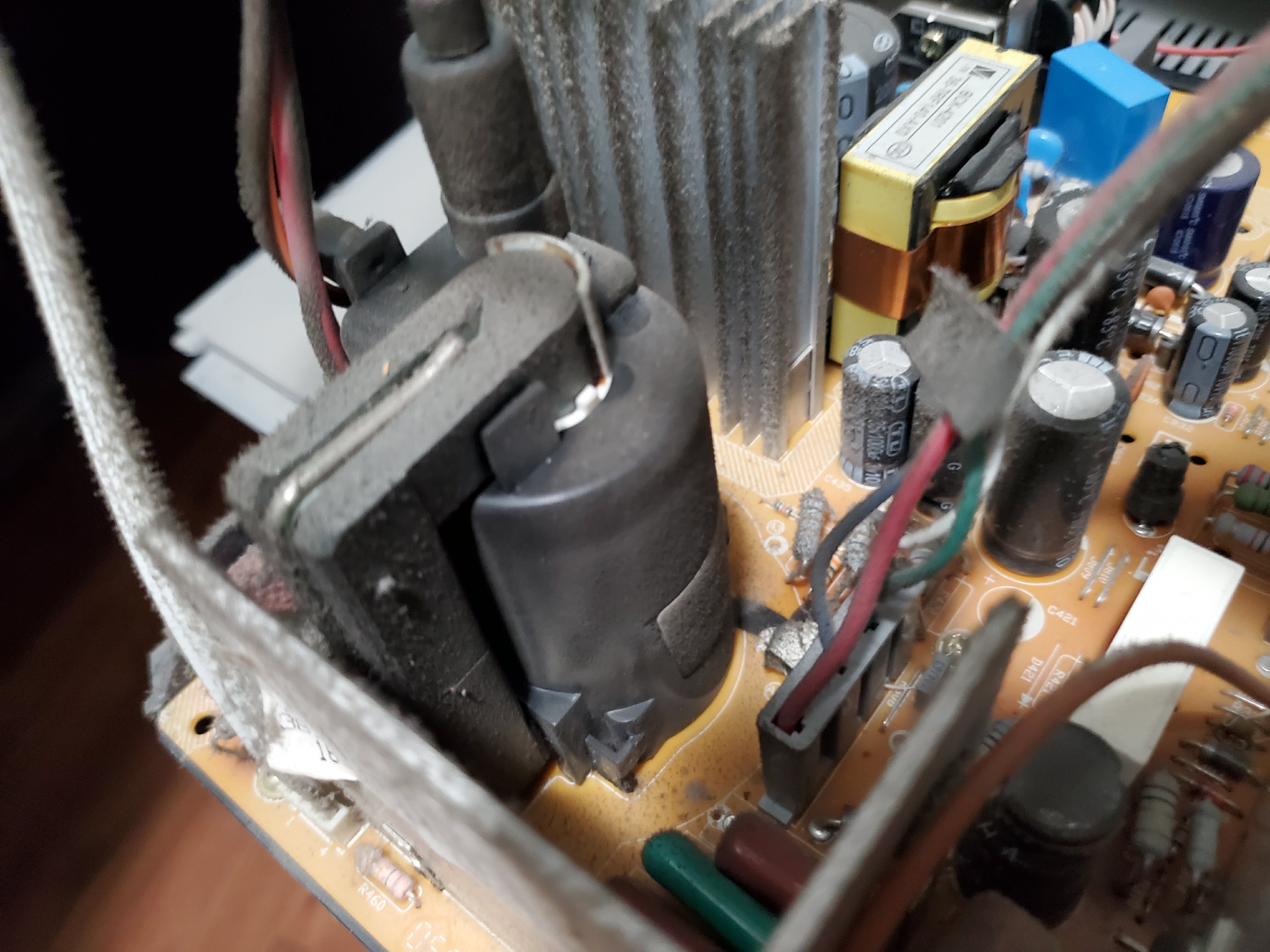

| Flyback: | BSC27-0101Q |
| Focus Type: | Single |

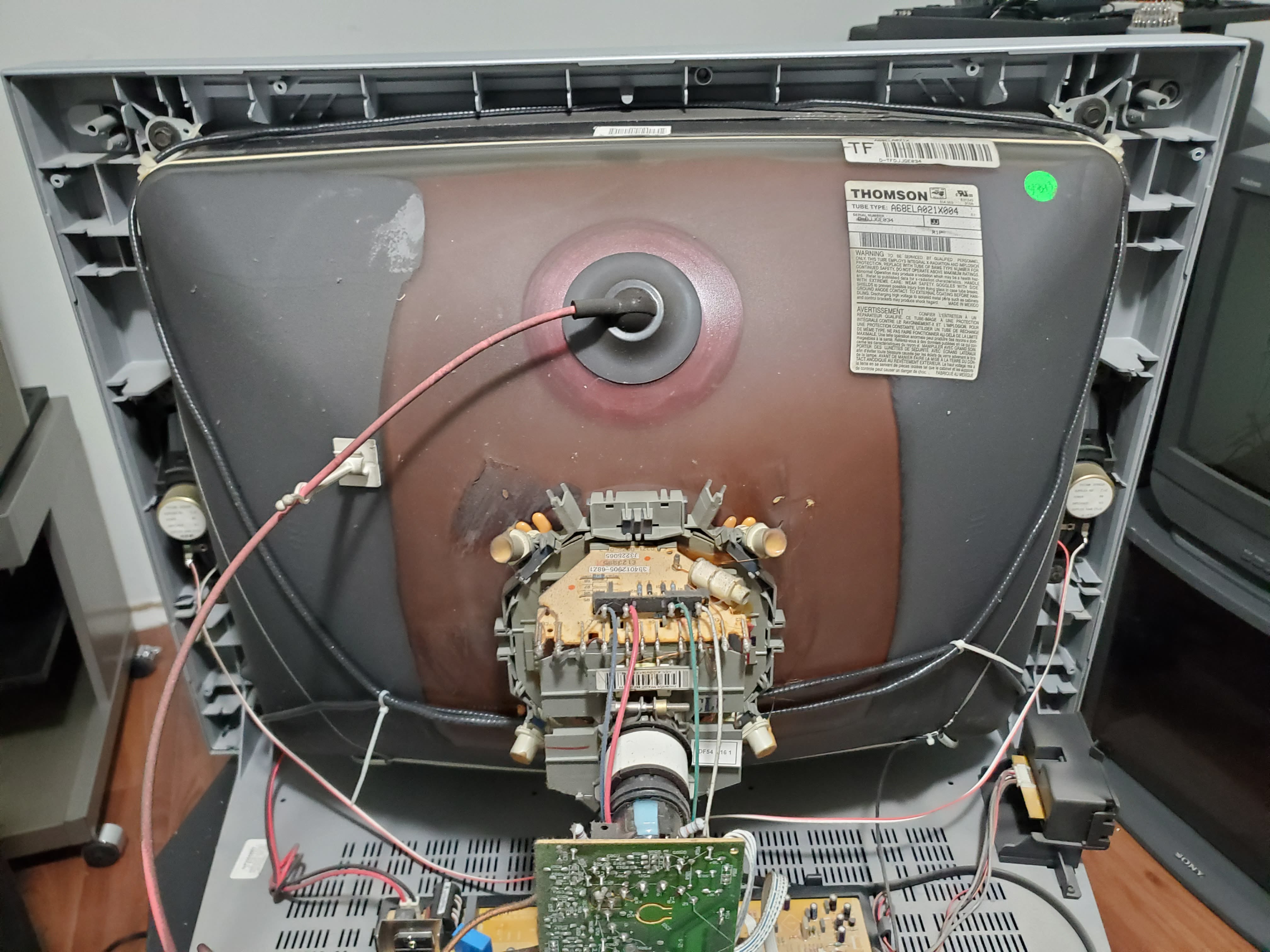

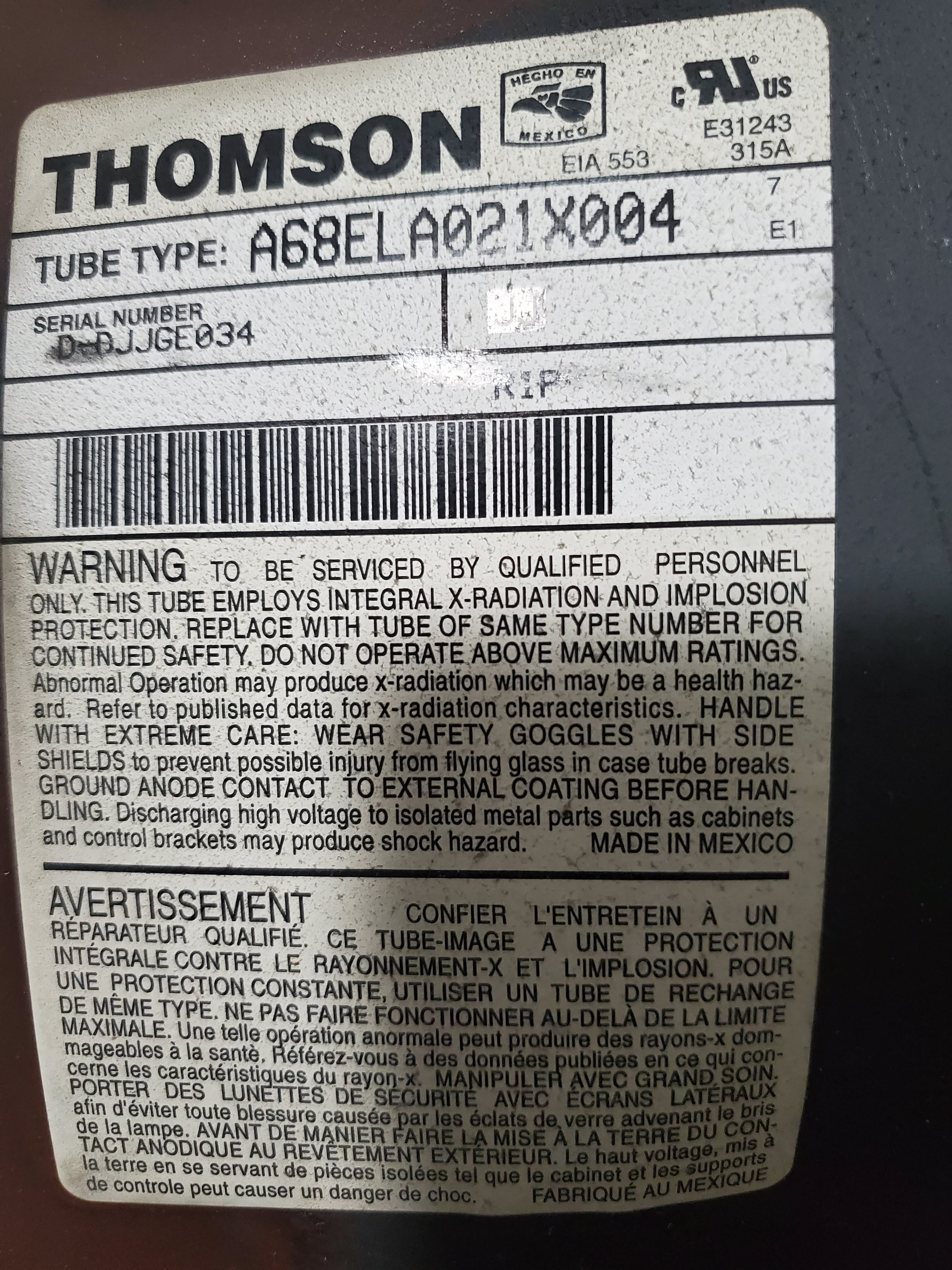

| Tube: | Thomson , A68ELA021X004 , A68ELA021X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

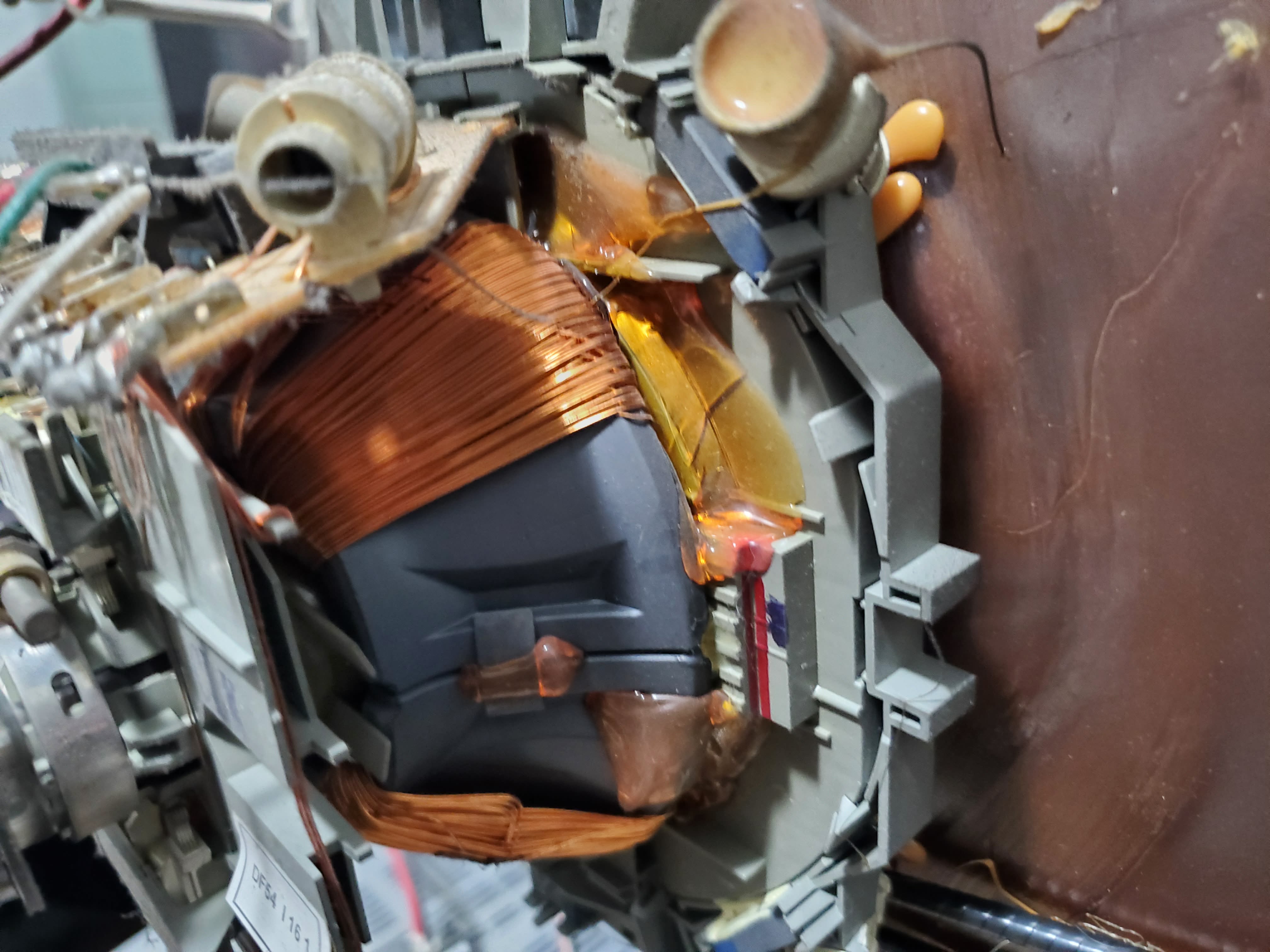

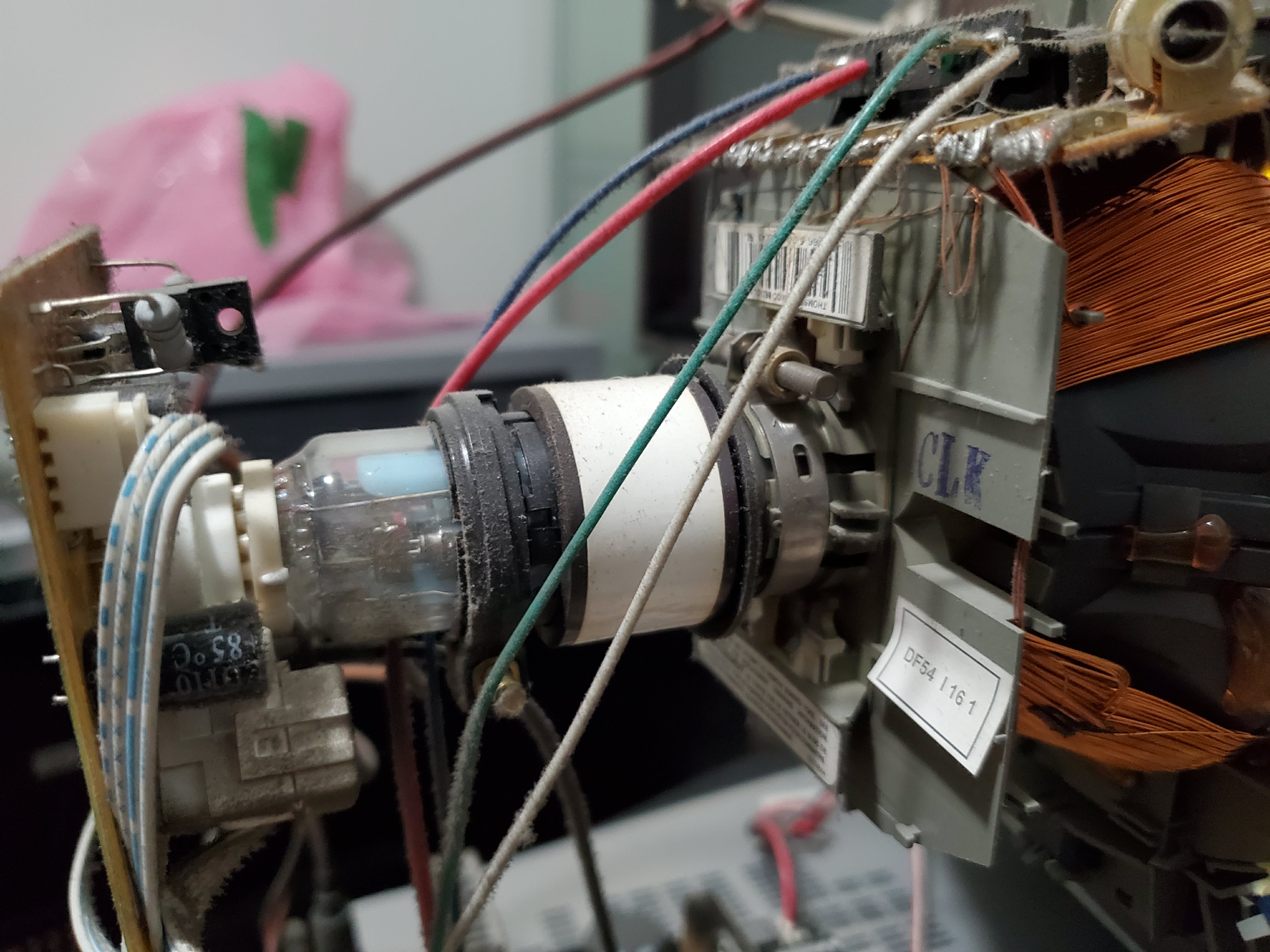

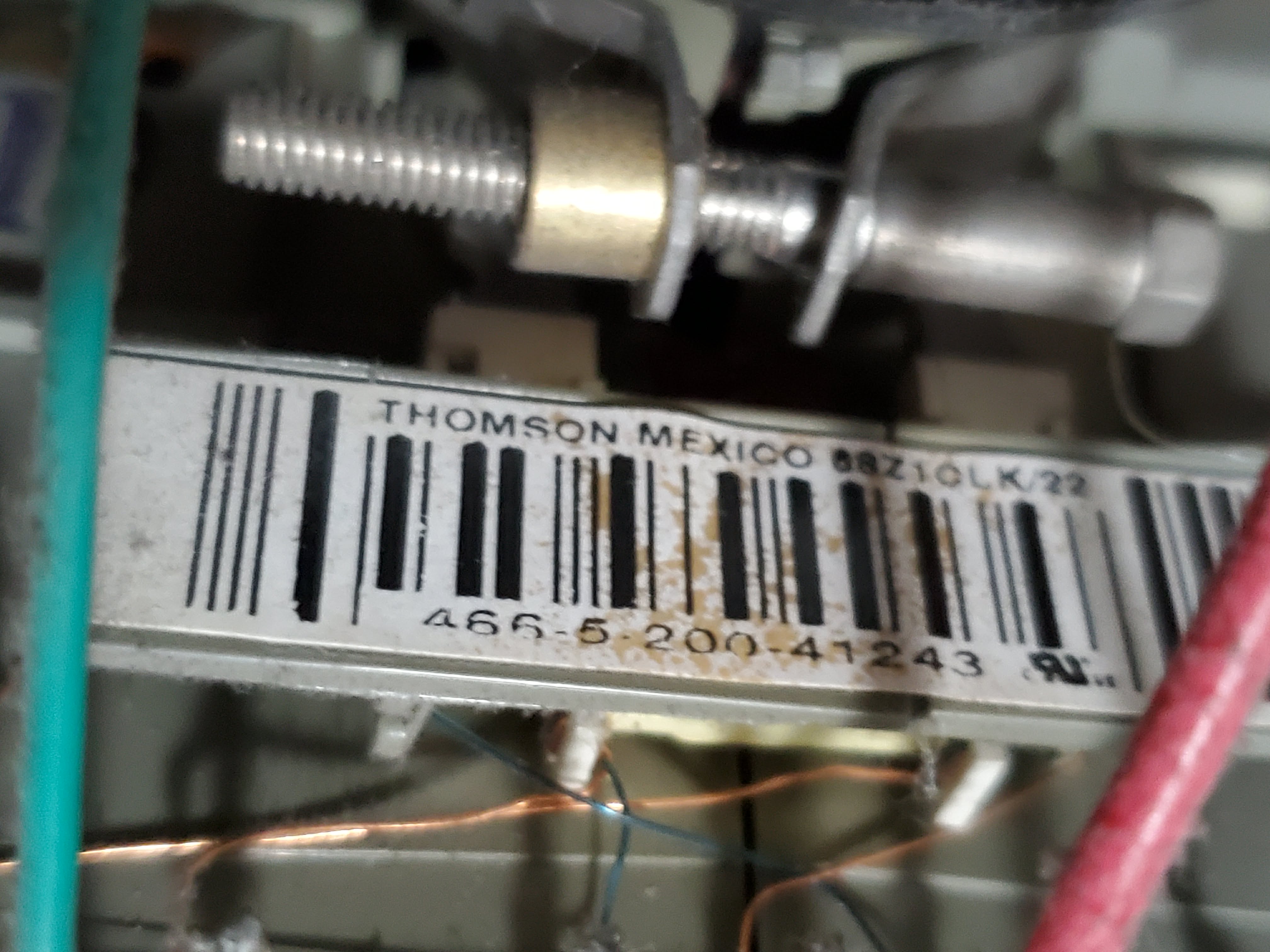

| Yoke: | 68Z1CLK/22 |

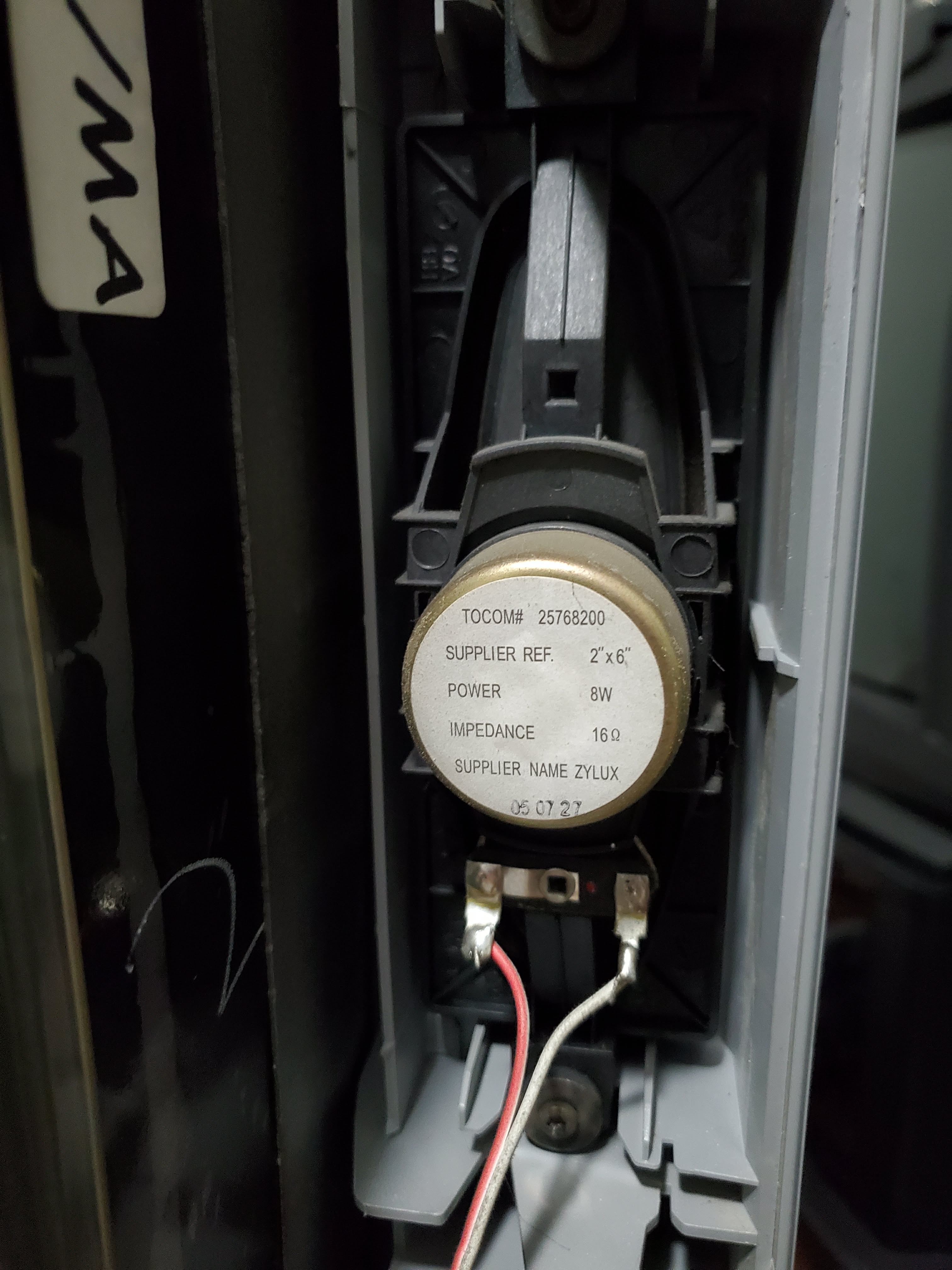

| Speakers: | Stereo, 8W x 2 |

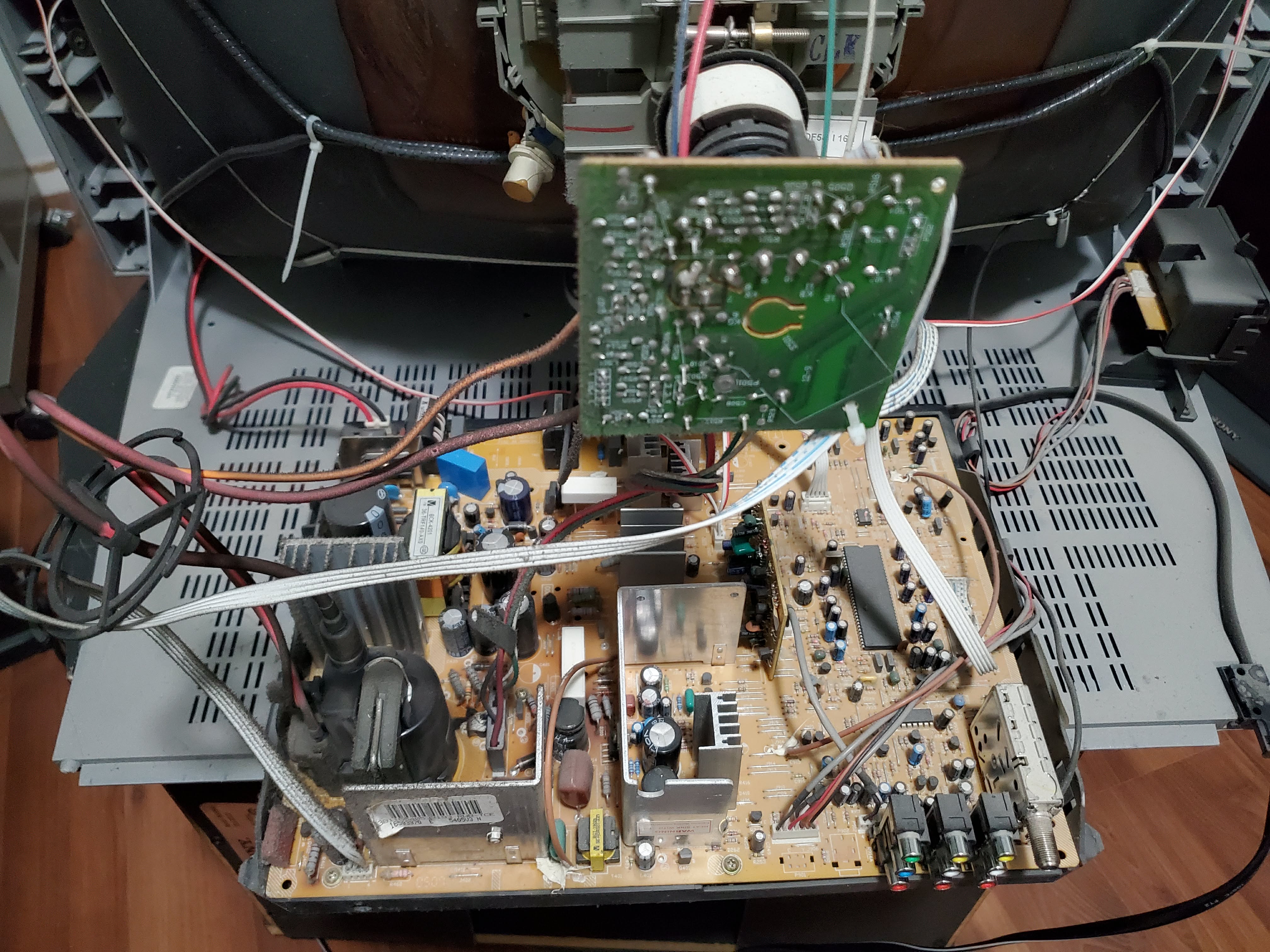

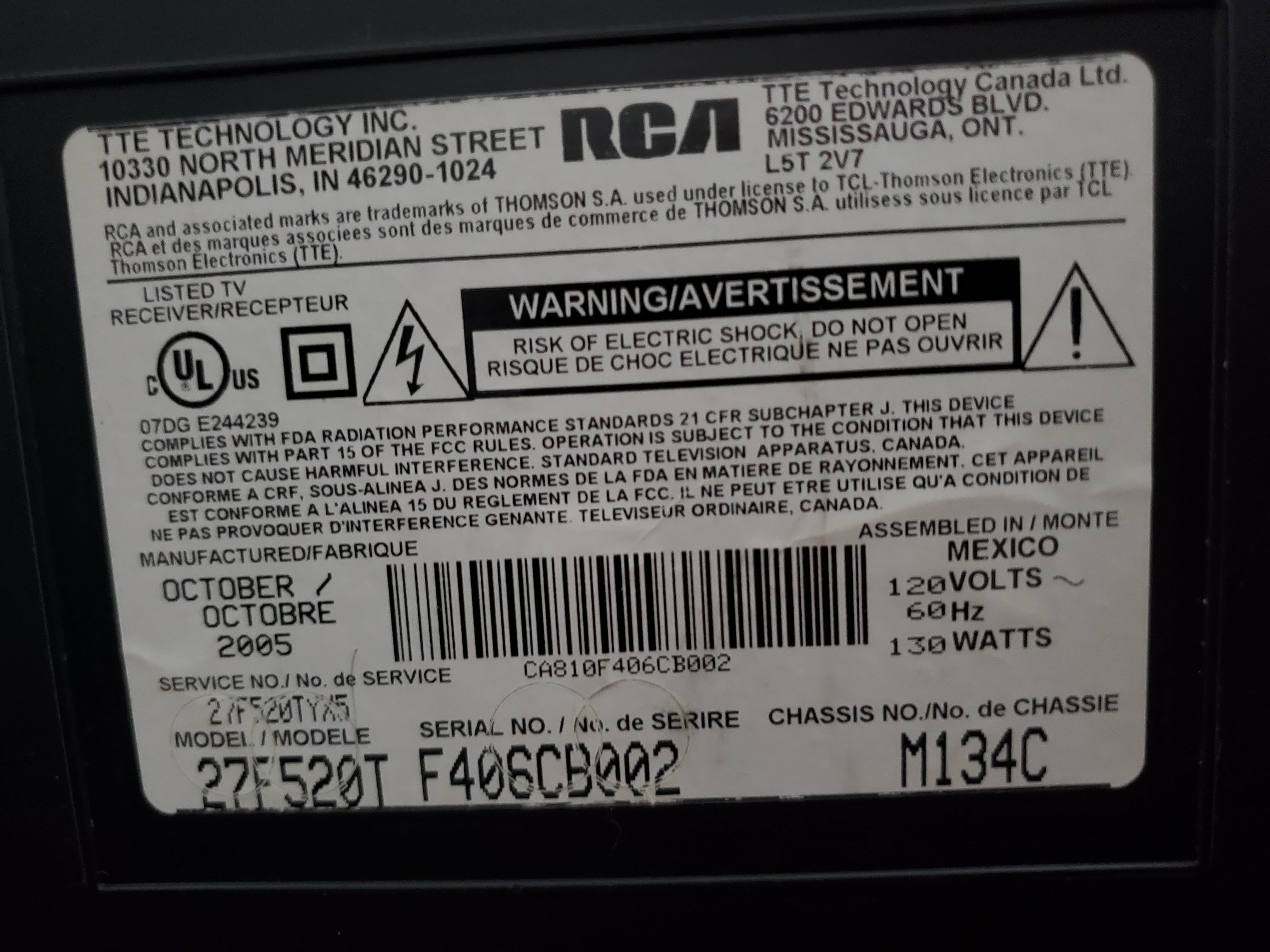

| Chassis: | M134C |
| Dimensions (W/H/D): |
819 x 591 x 508 mm
(32.2 x 23.2 x 20") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
