RCA 27V414T (YX6)
SegaSaturn94, Mike Morisette, Eli Krause
February 2, 2023, 9:14 am
July 22, 2025, 2:52 pm
February 2, 2023, 9:14 am
July 22, 2025, 2:52 pm
Summary

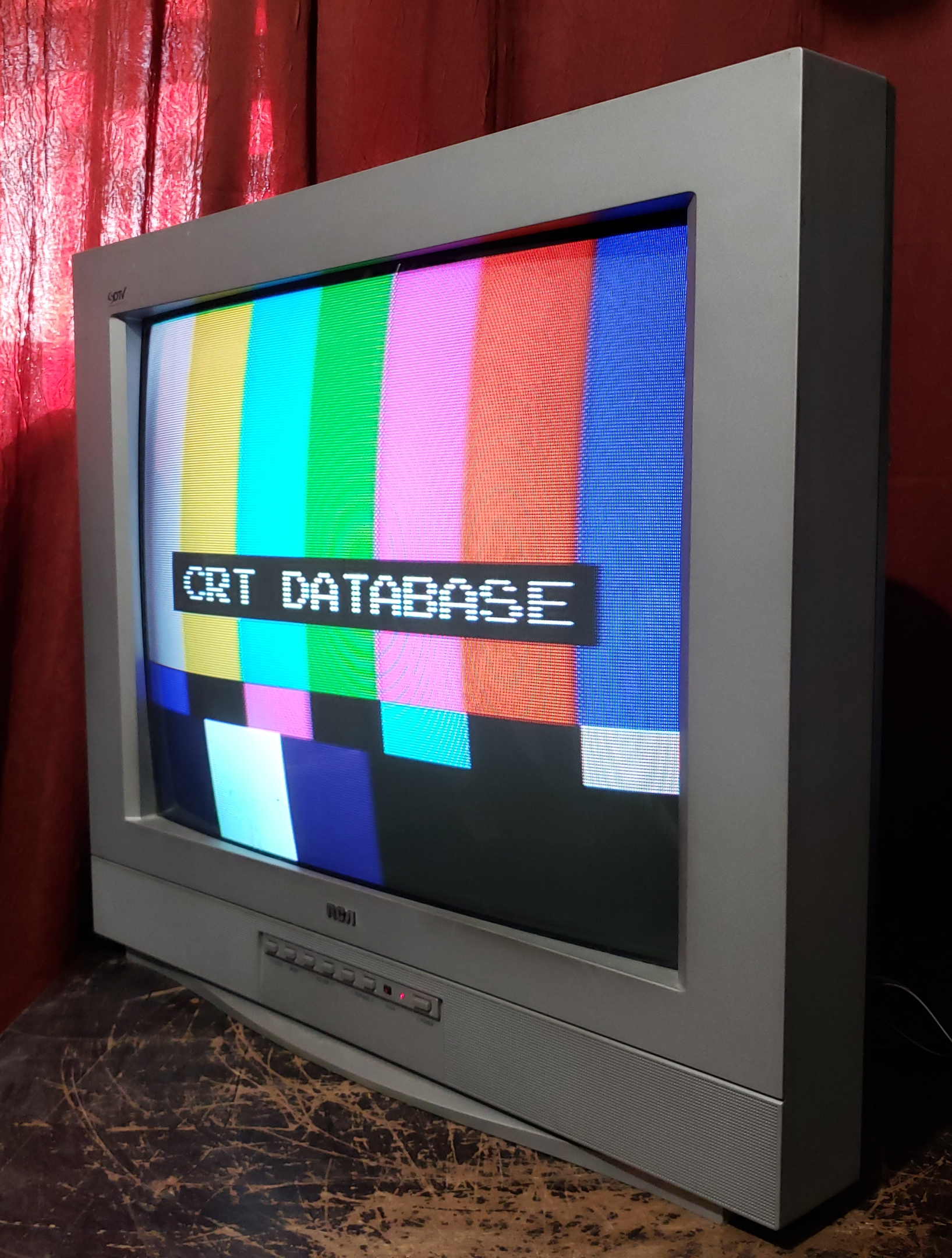

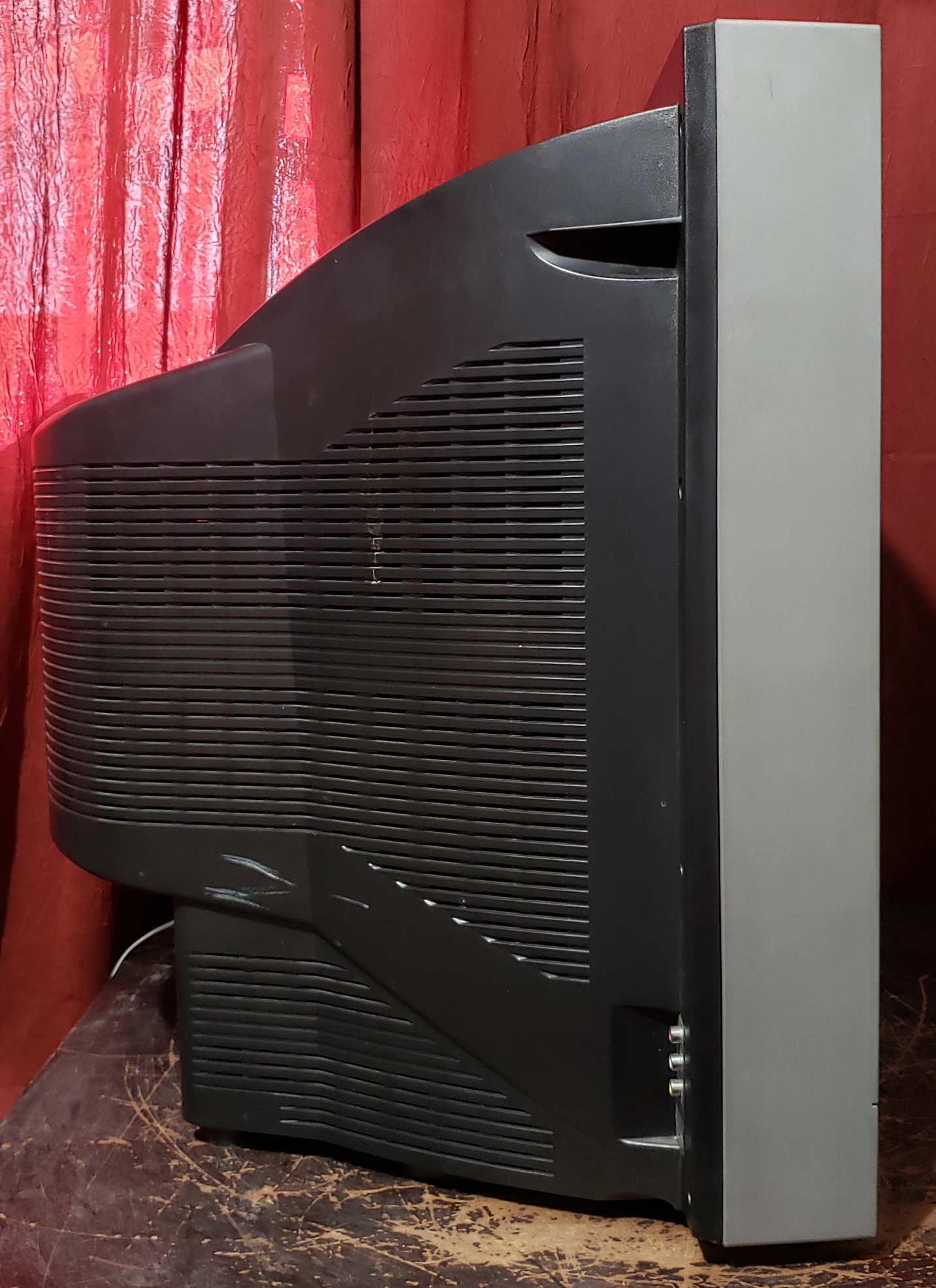

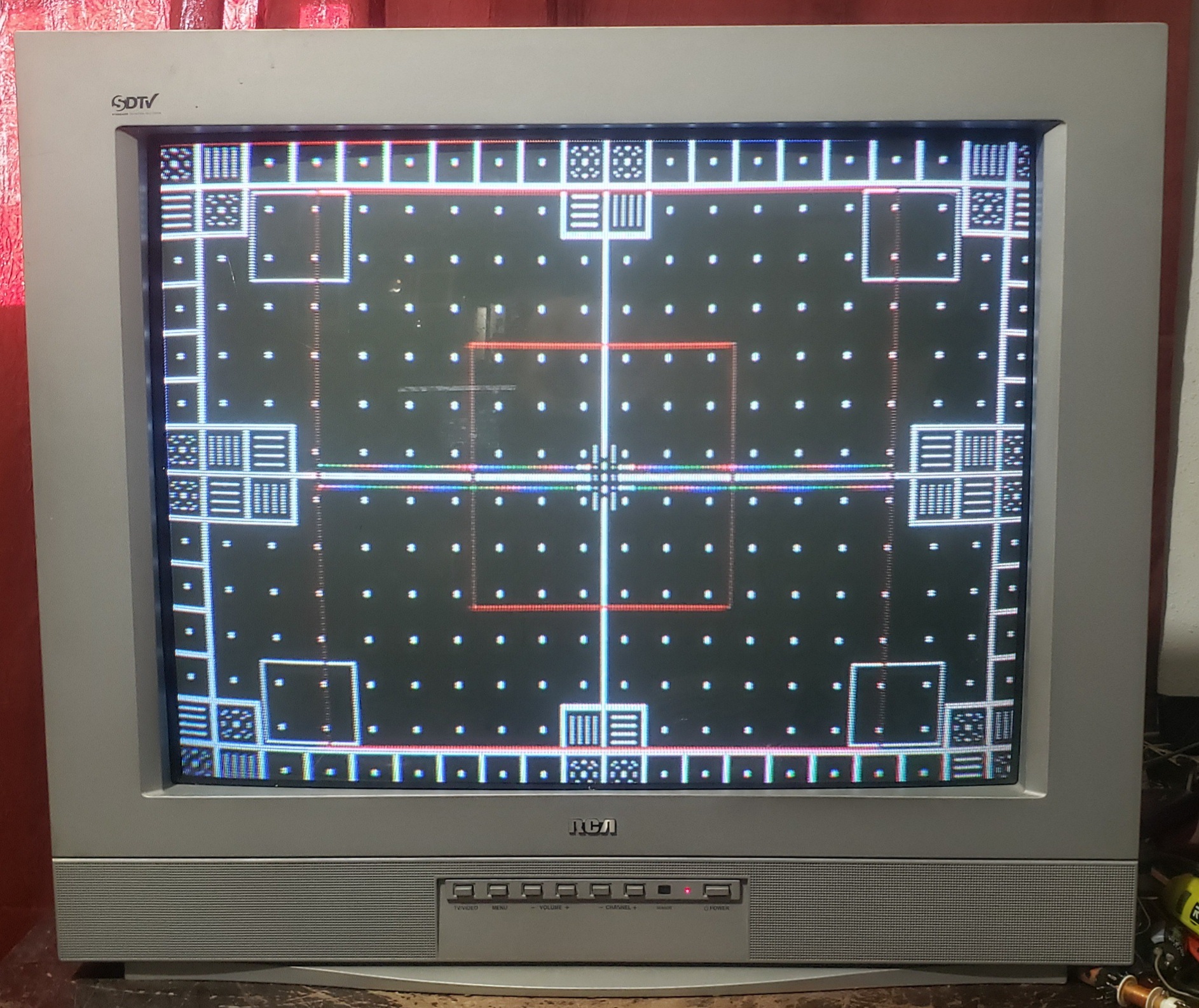

Late model 27" SDTV from RCA. Features RF, composite, and component inputs. Made by Thomson's Mexico facility in 2006.
Manuals
Media
Notes
Interestingly this model does not feature an S-Video input, despite having a component one. This TV includes an ATSC digital tuner, and can still receive modern broadcast television through an antenna.
Repair Notes
Vertical foldover caused by C323 going high ESR.

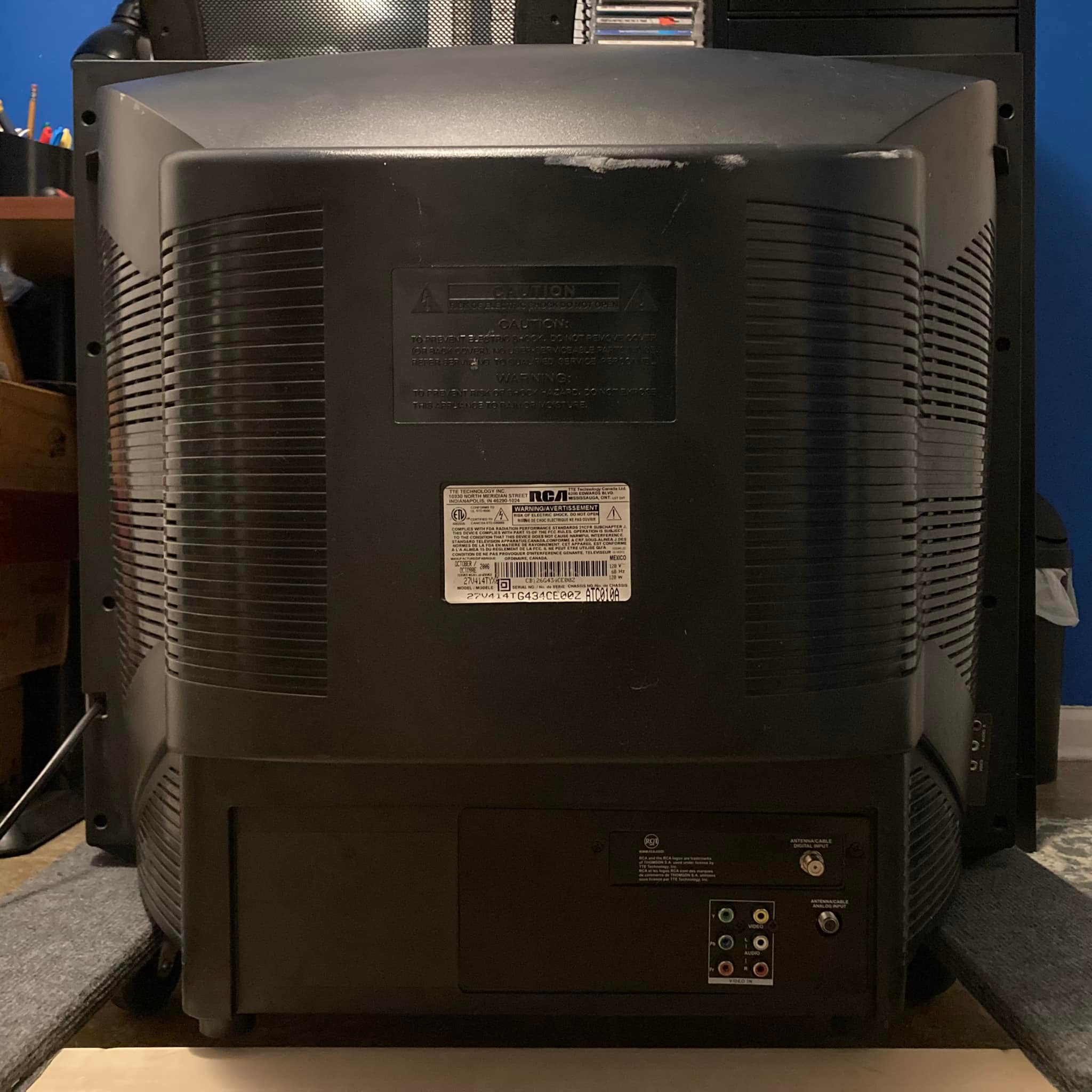

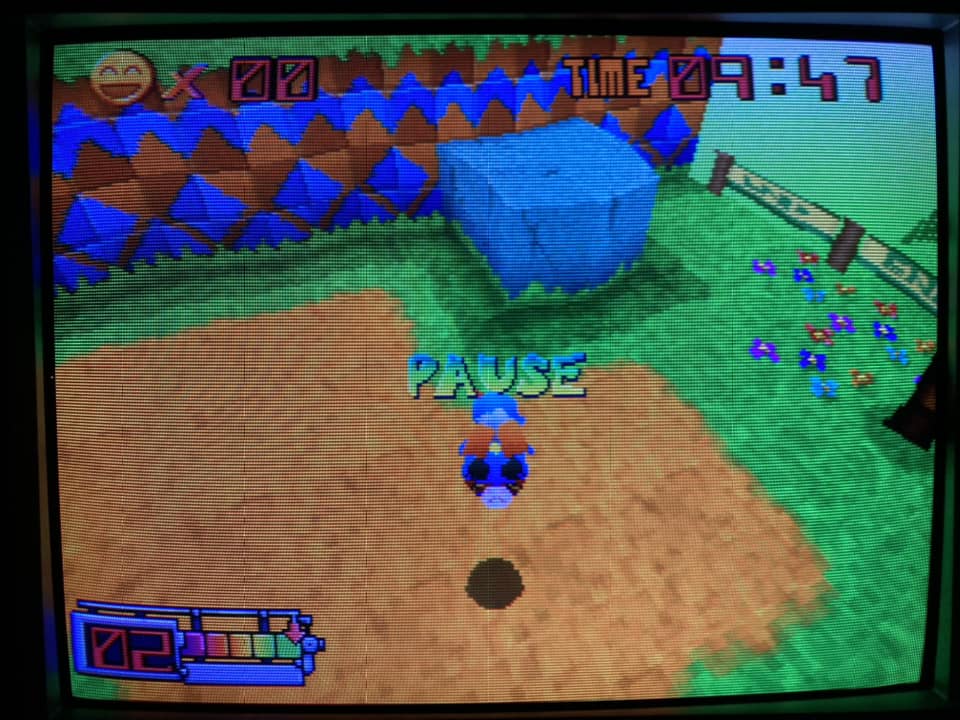

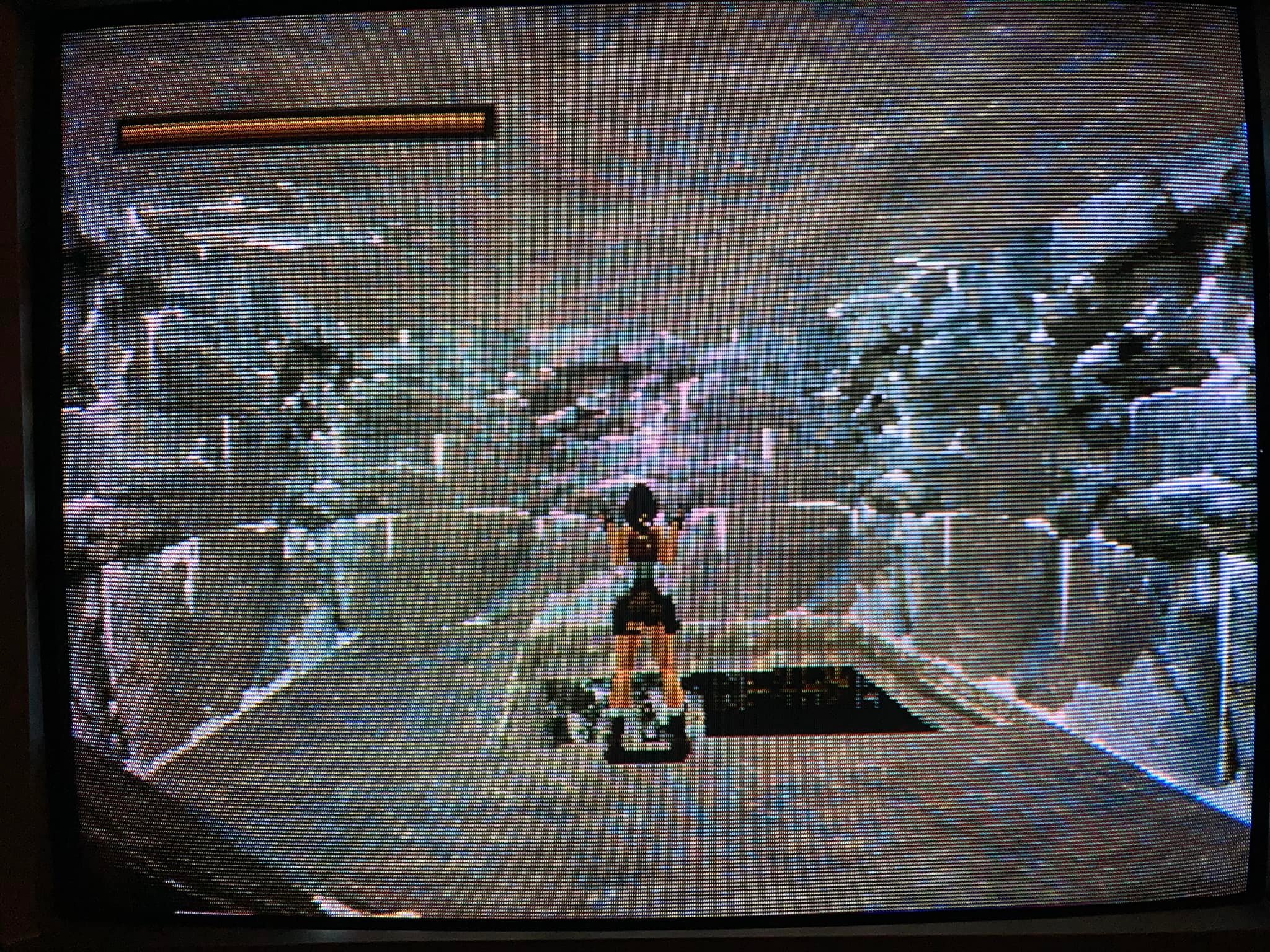

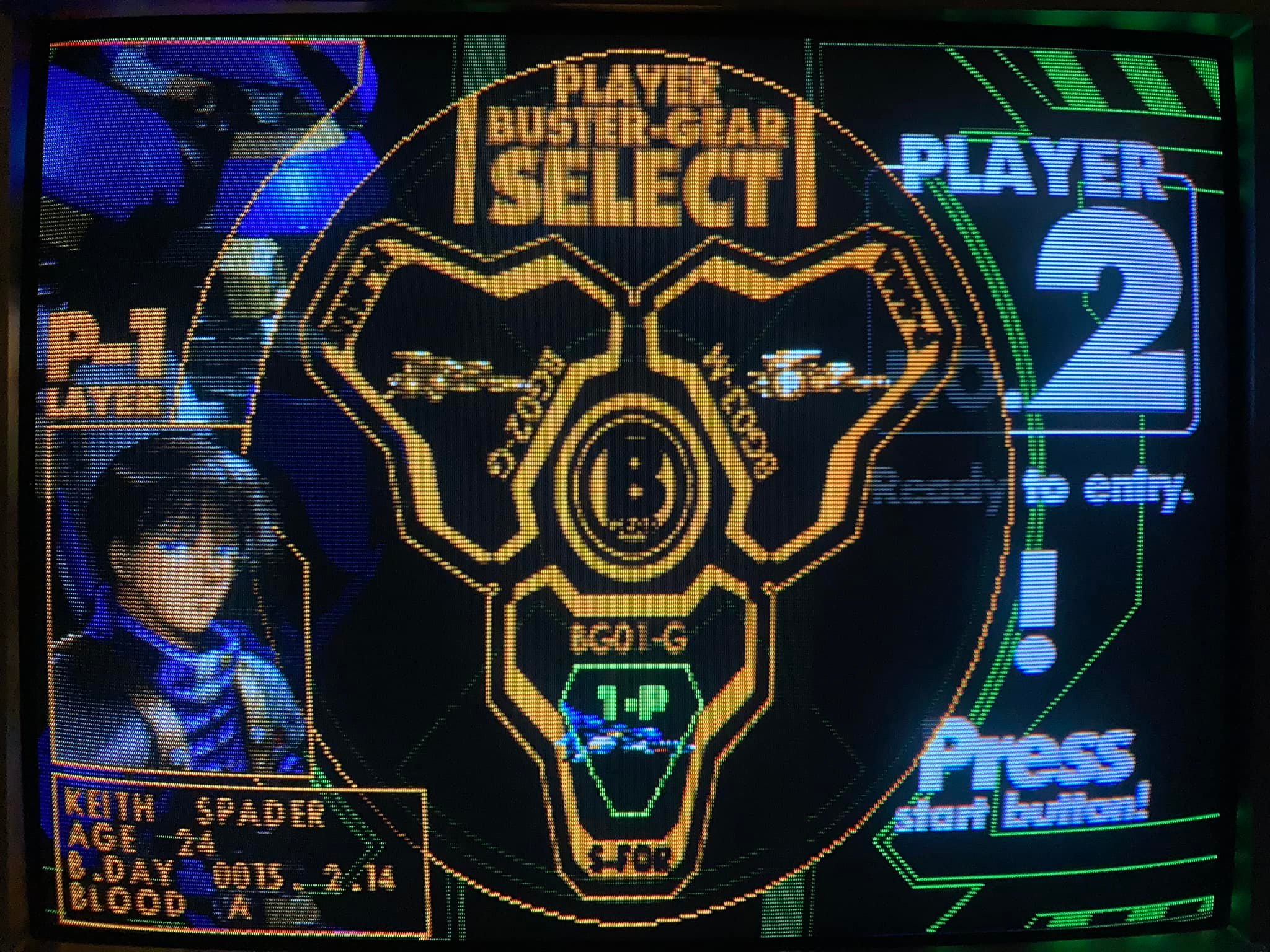

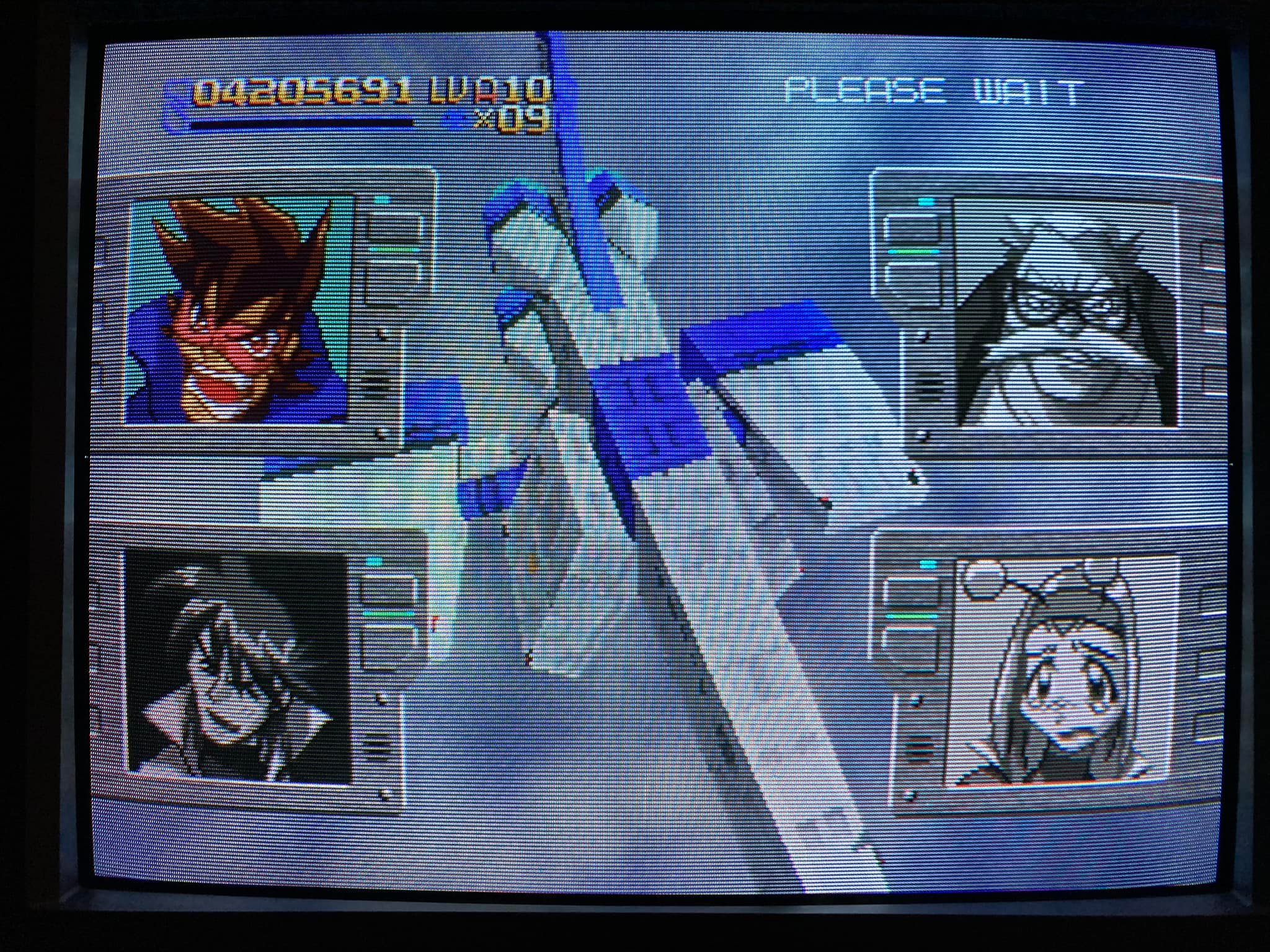

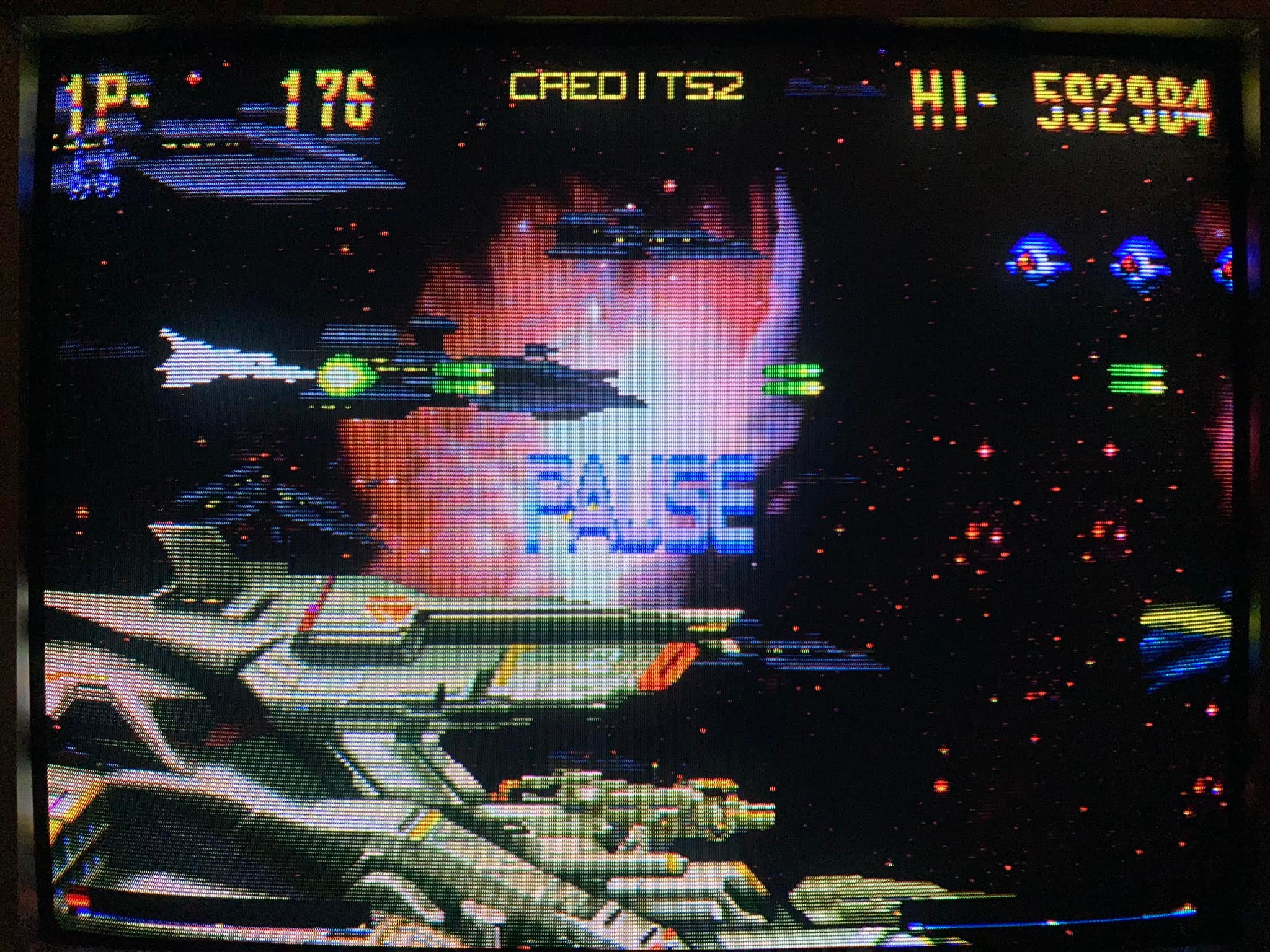

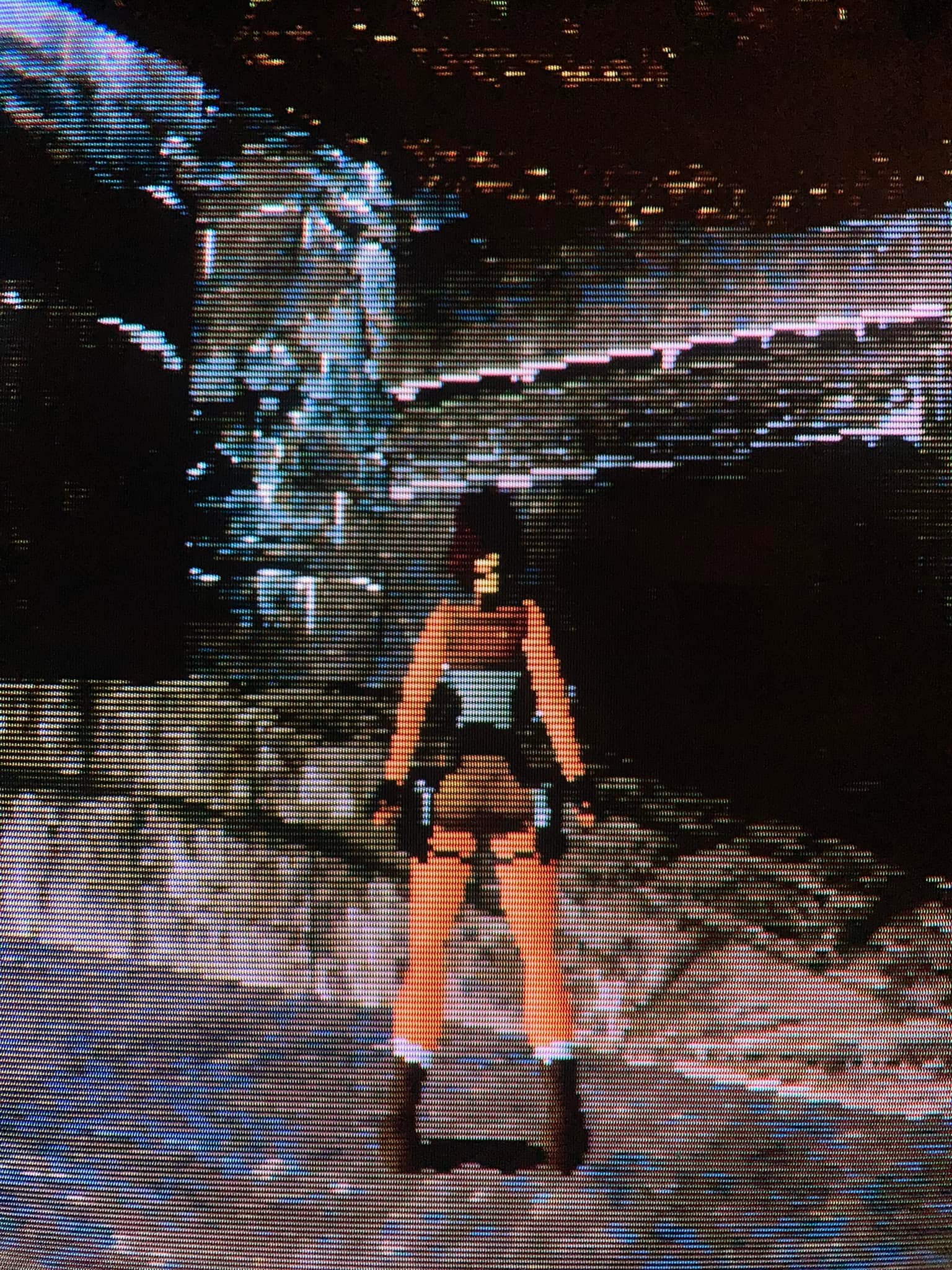

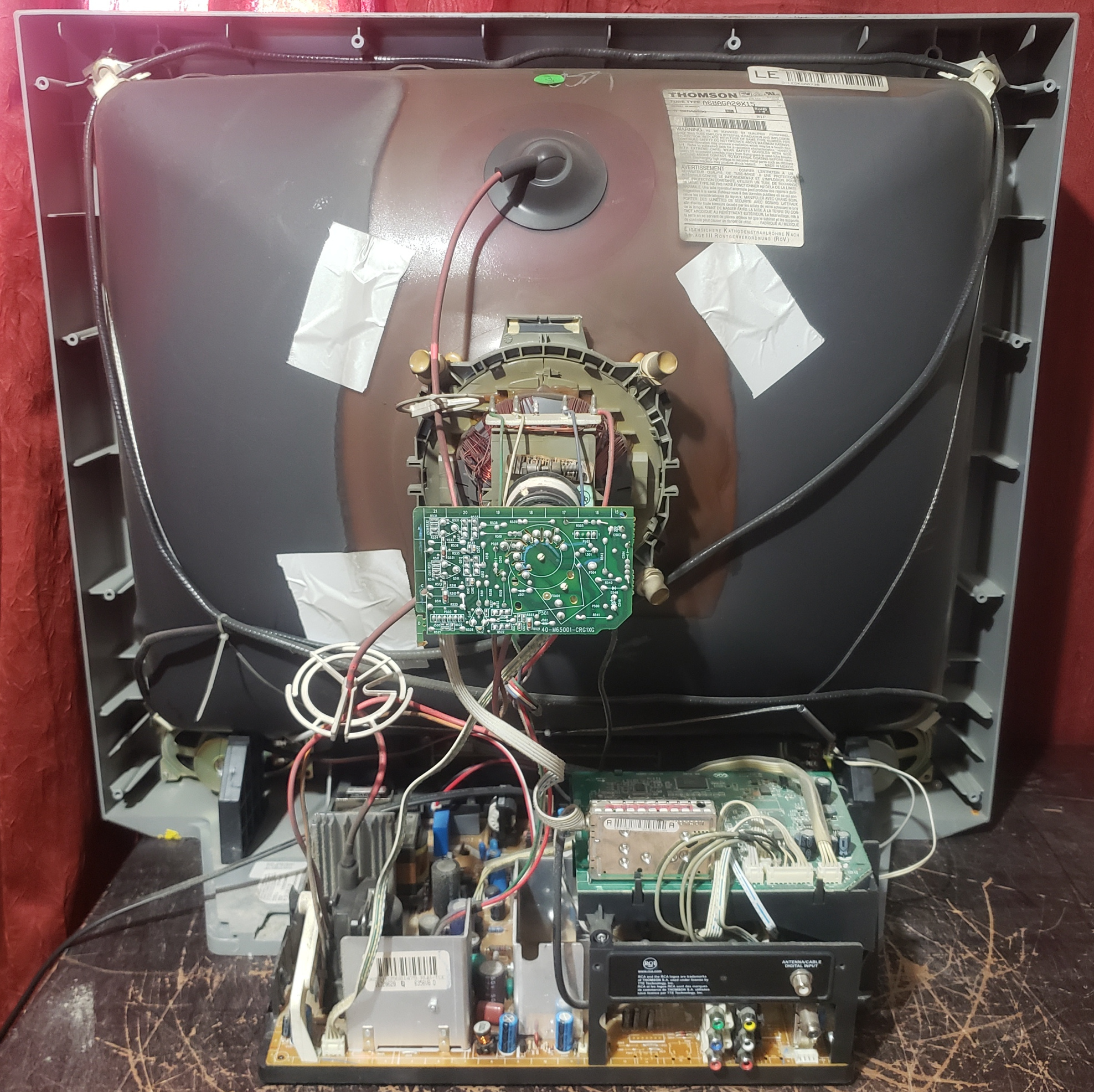

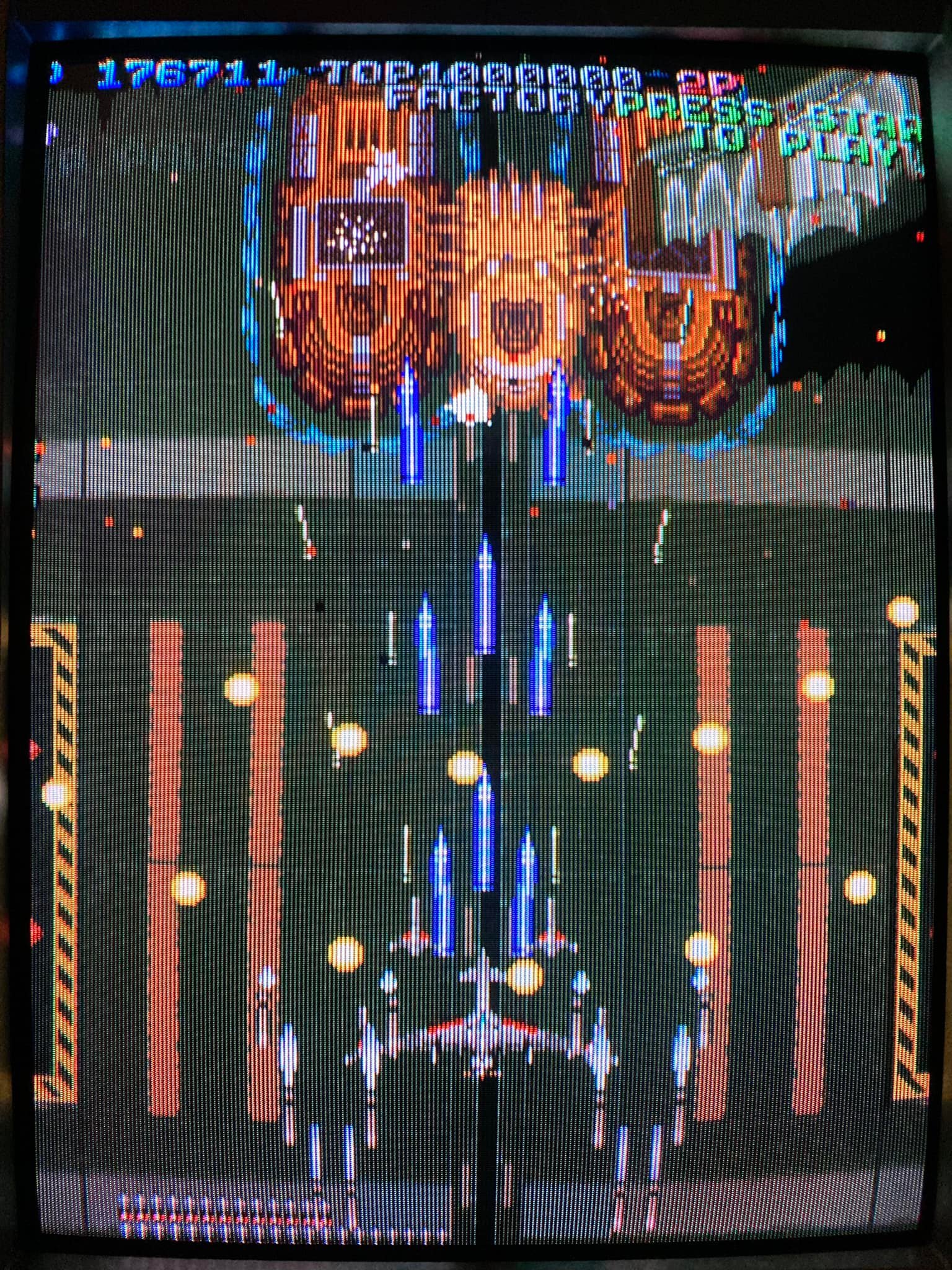

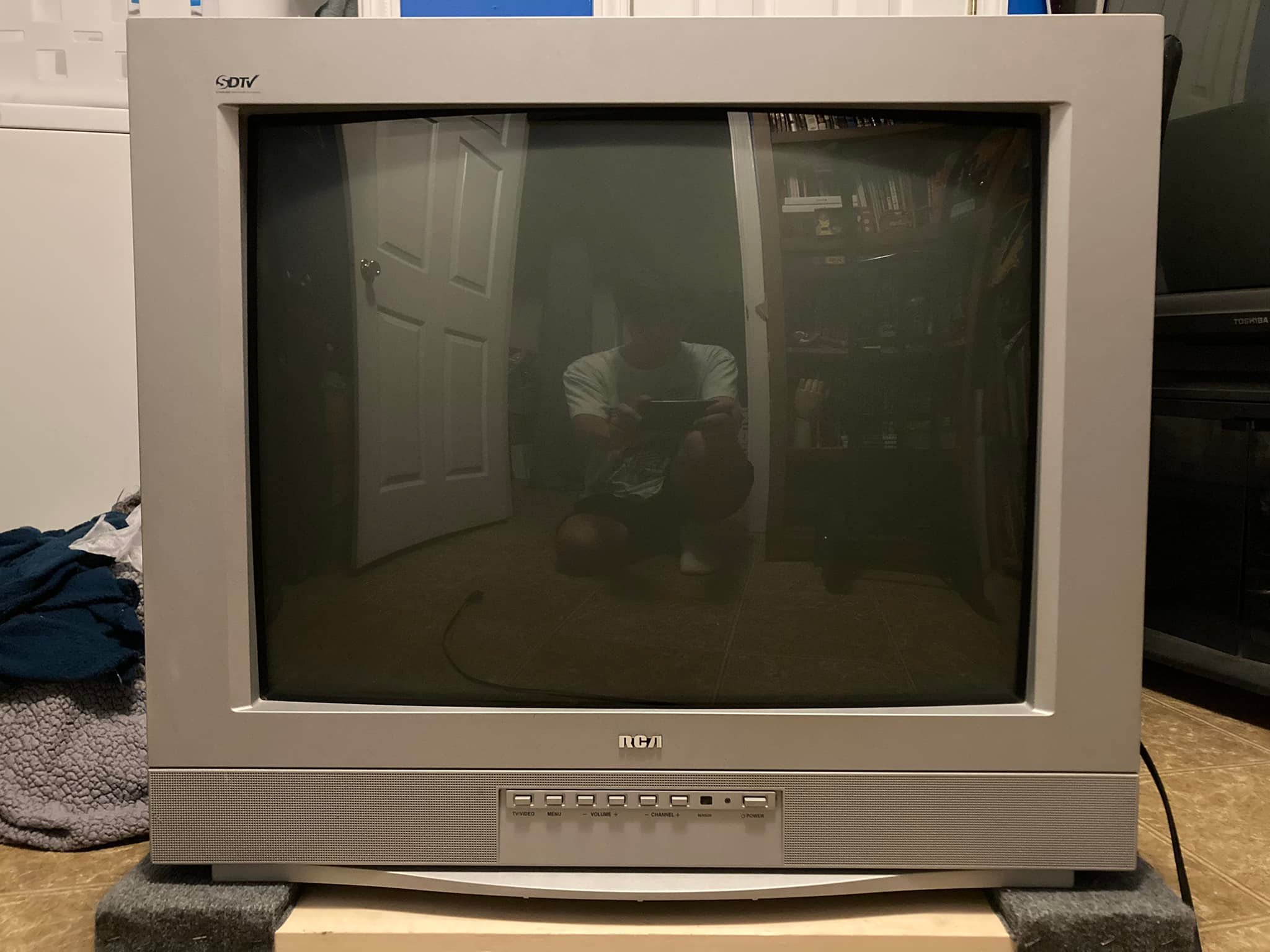

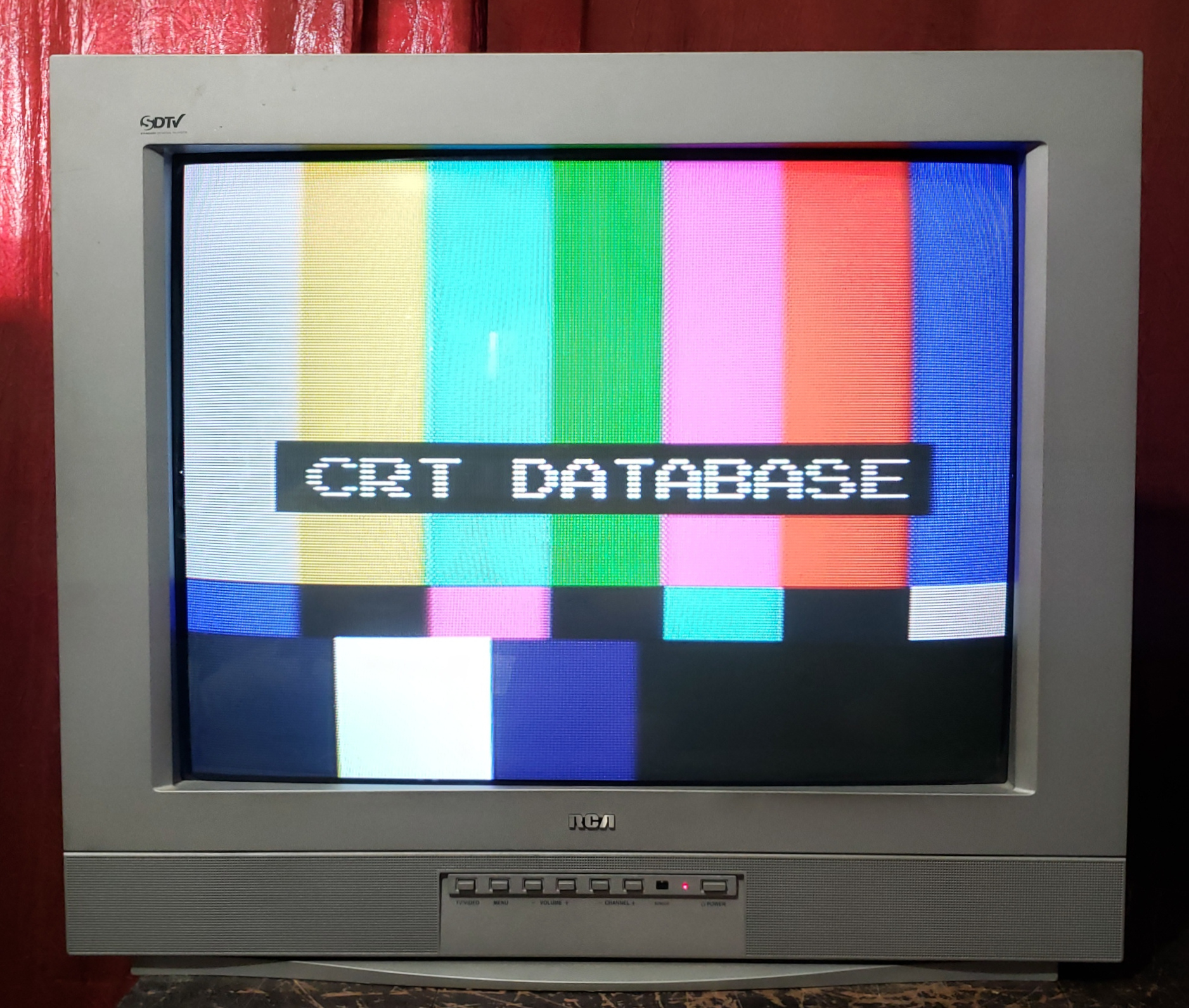

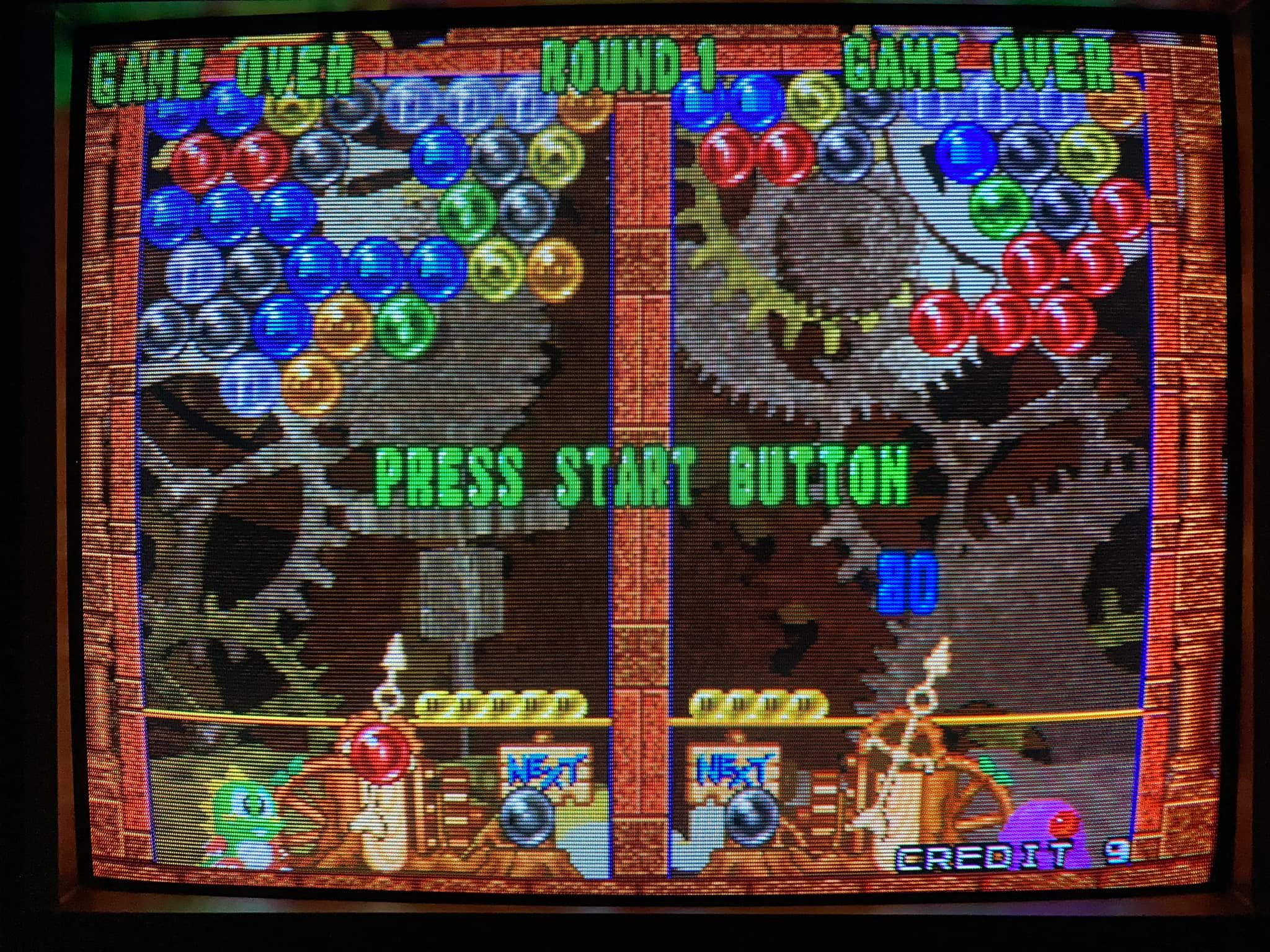

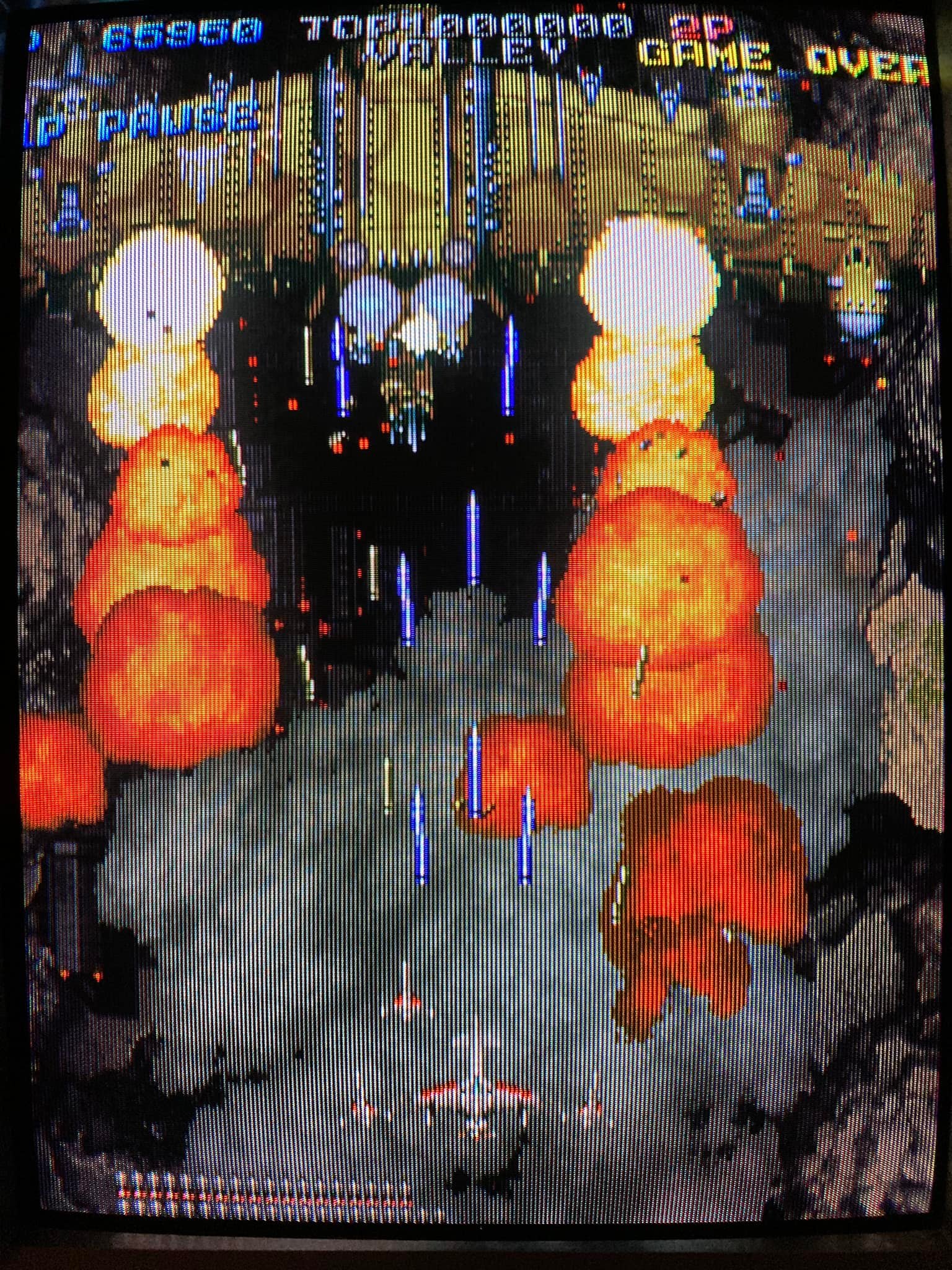

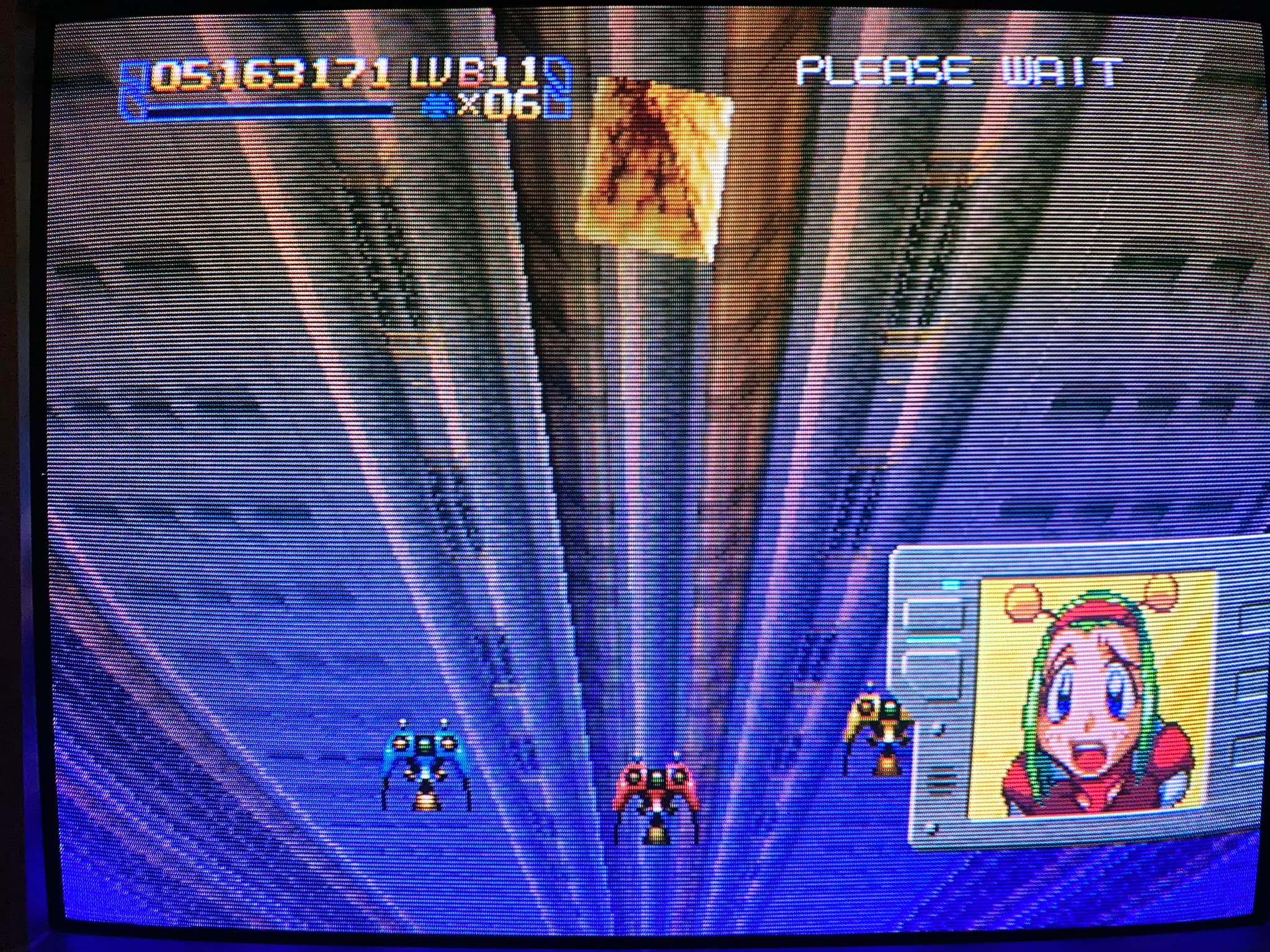

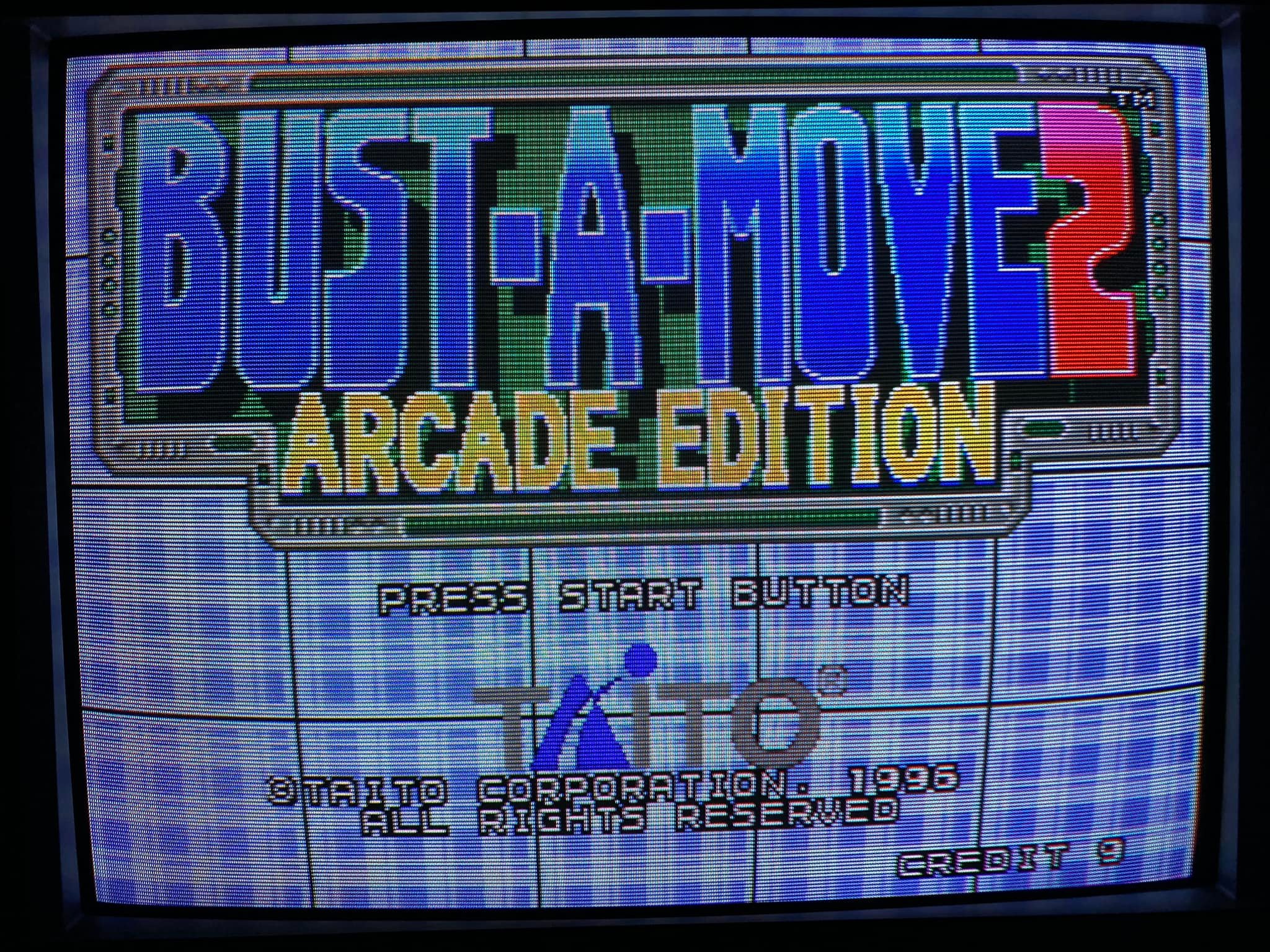

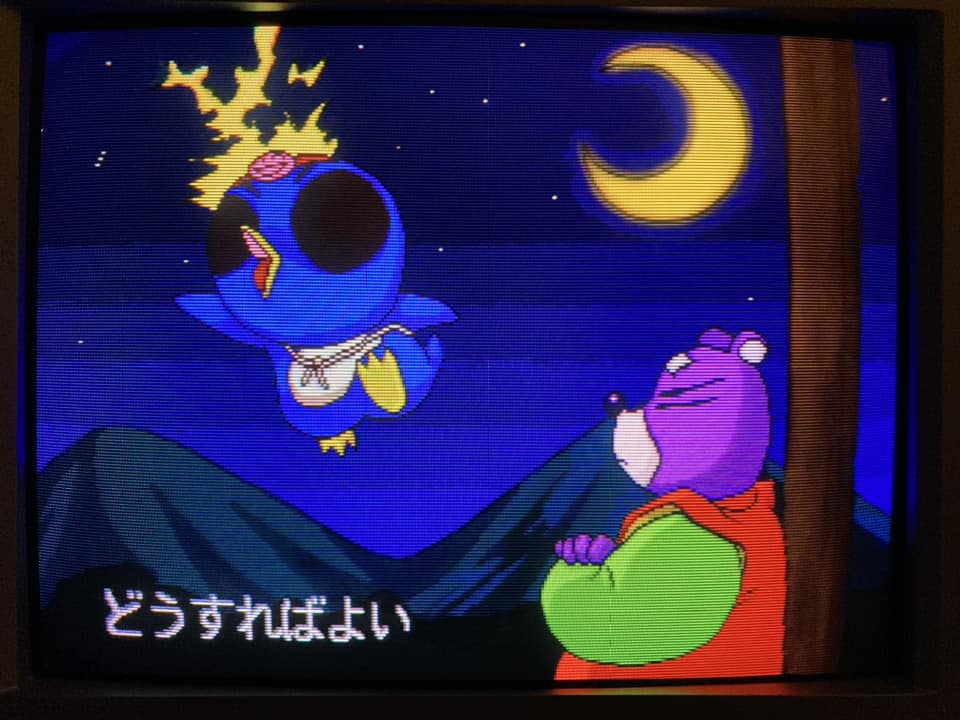

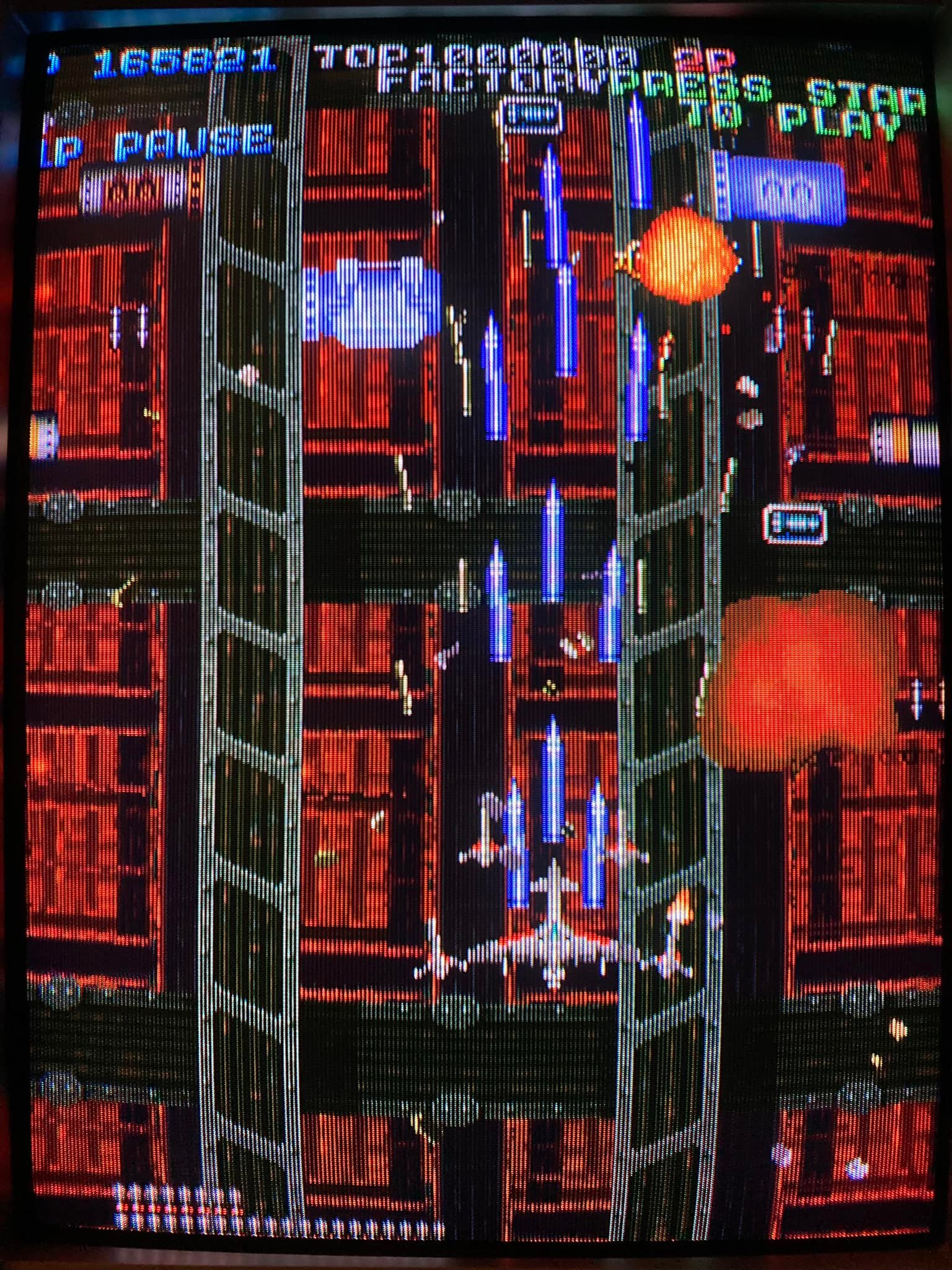

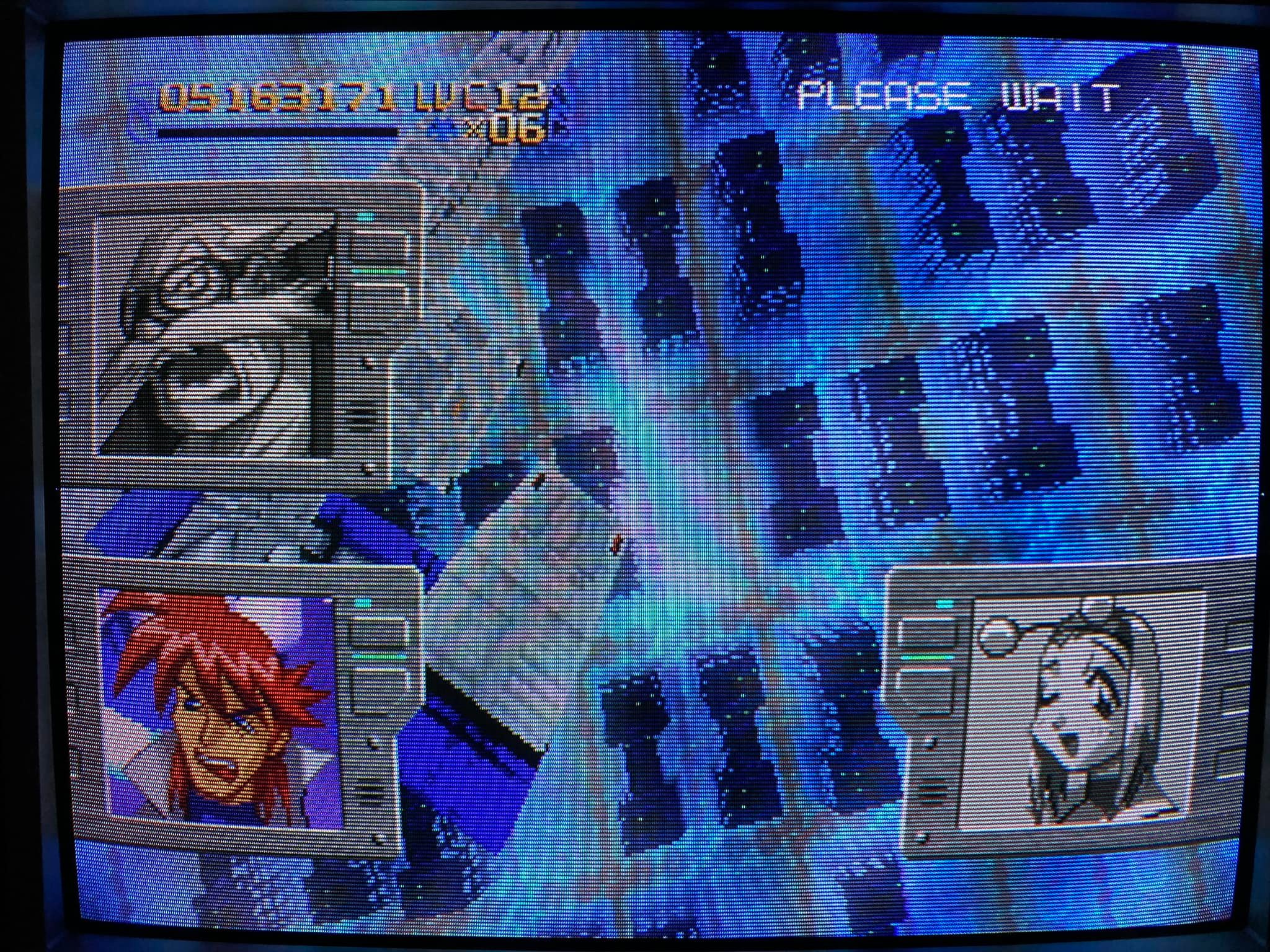

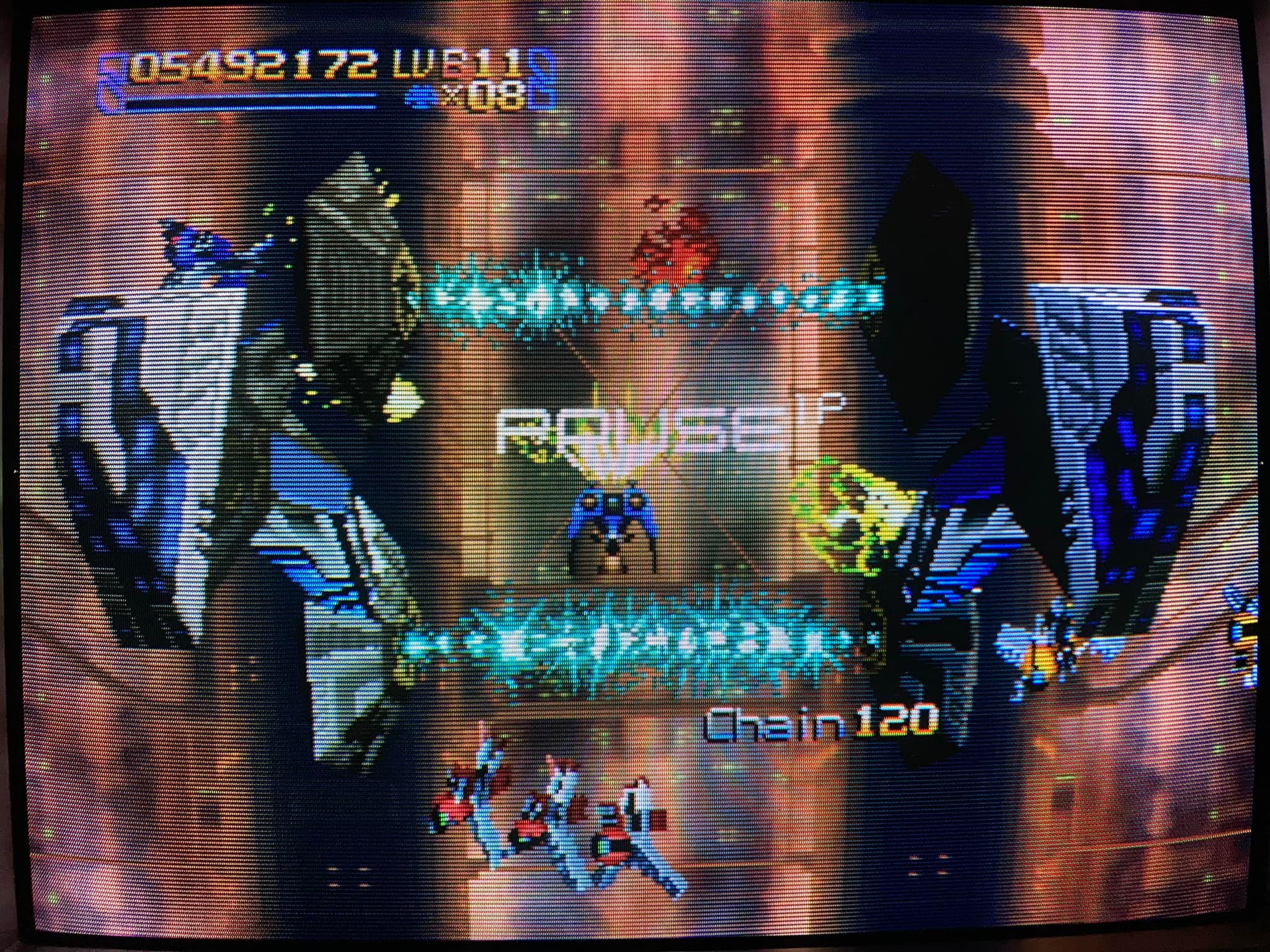

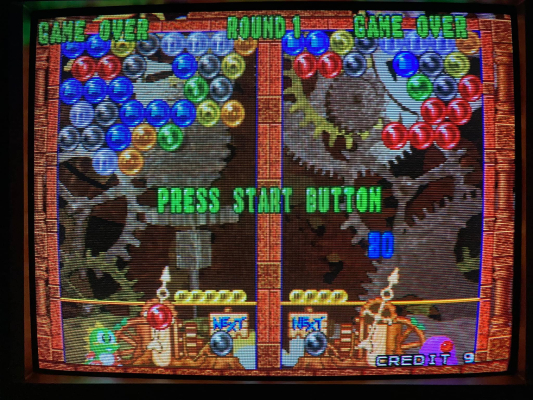

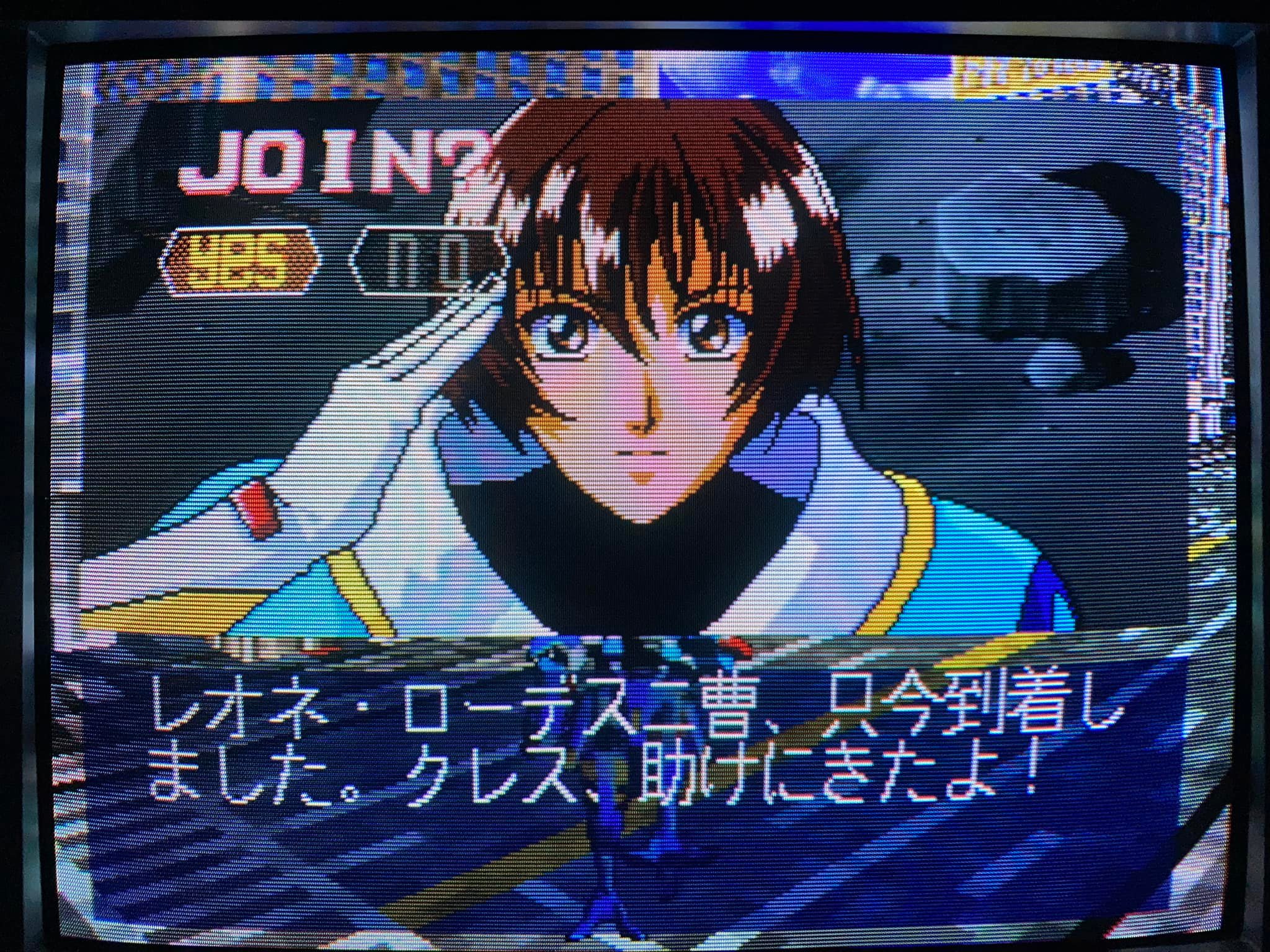

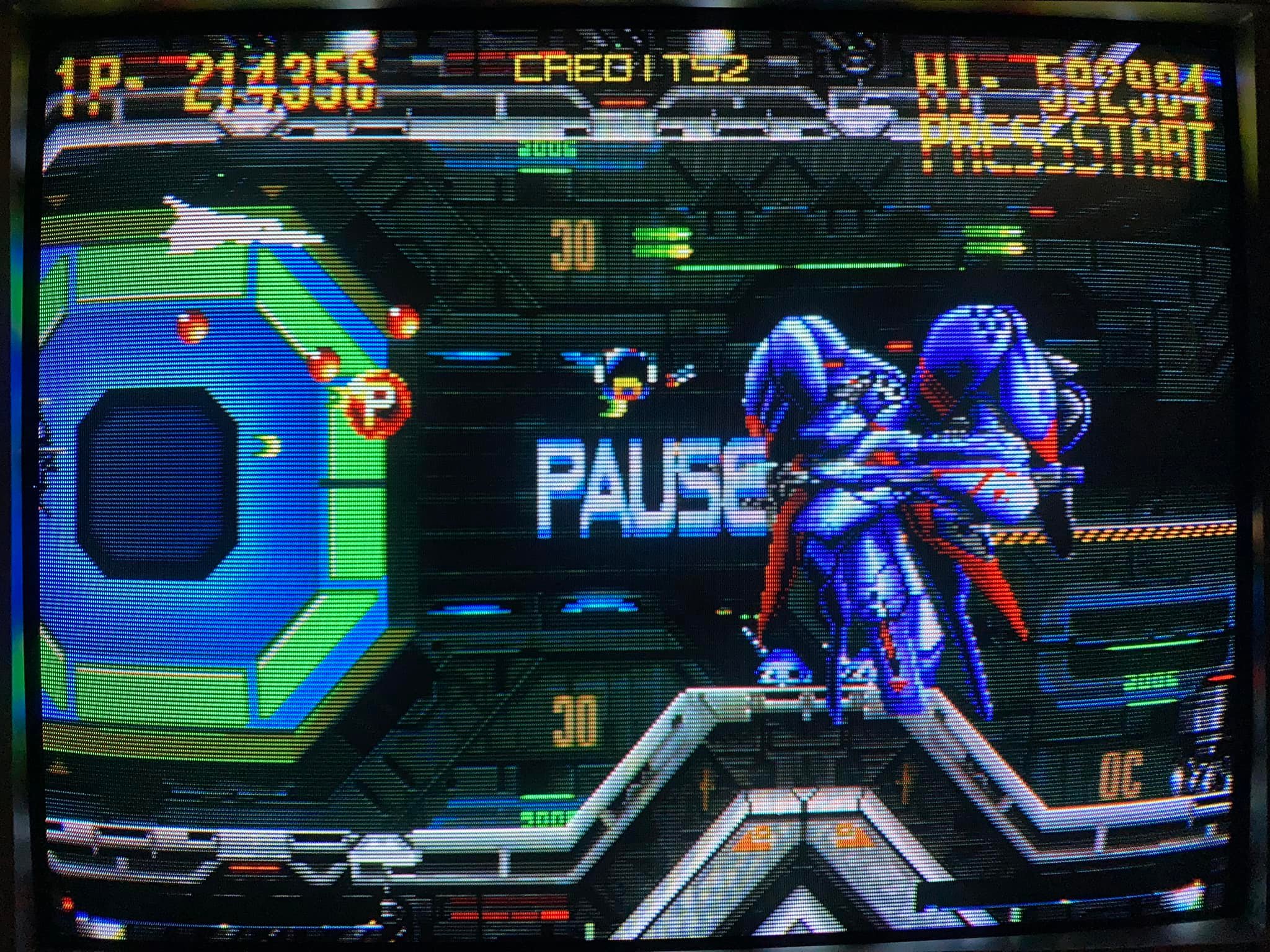

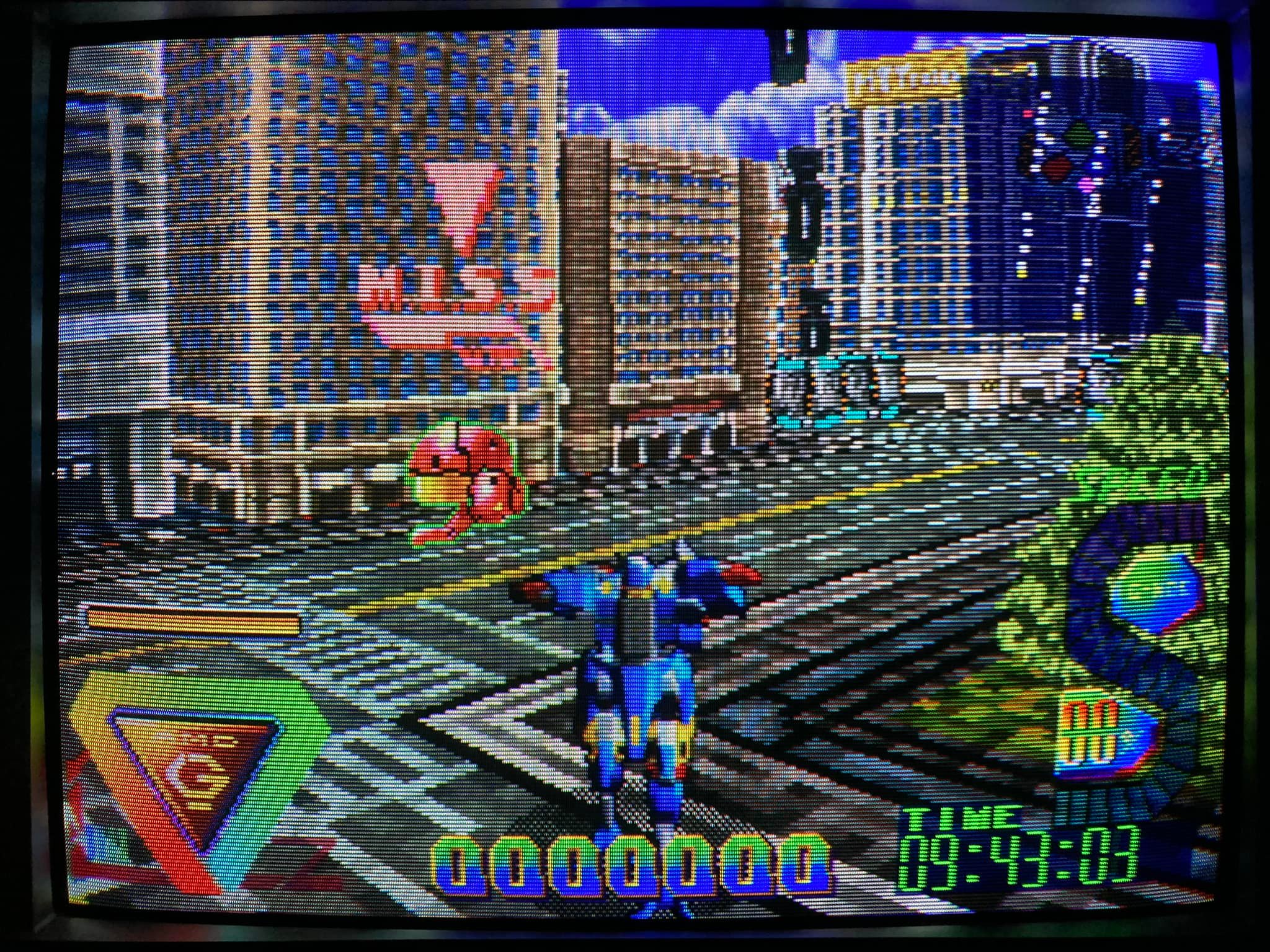

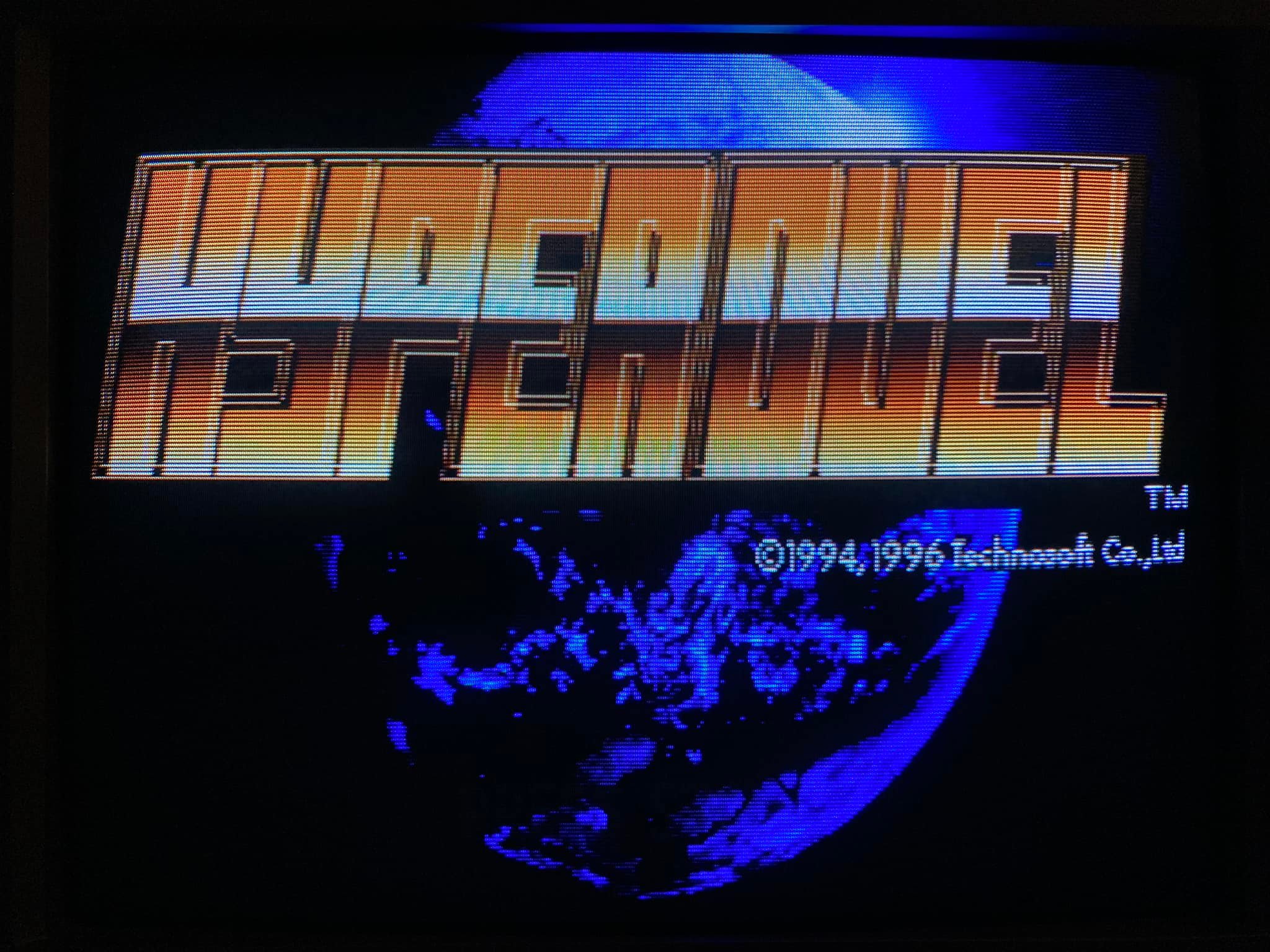

Gallery







































Specifications | |
---|---|
Brand: | RCA |
Manufacturer: | TTE Technology |

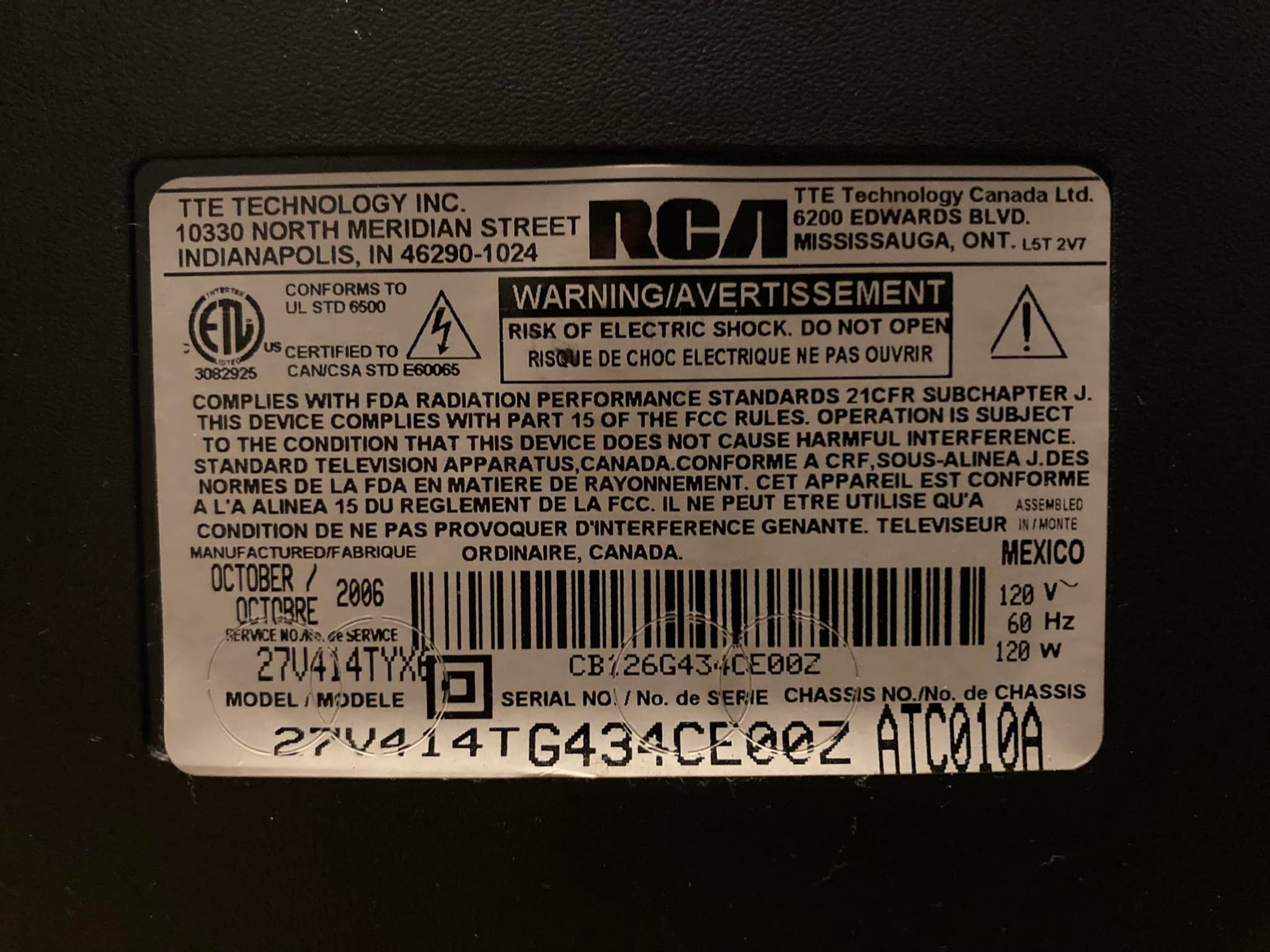

Model: | 27V414T YX6 |
Series: | V |
Viewable Size: | 27" |

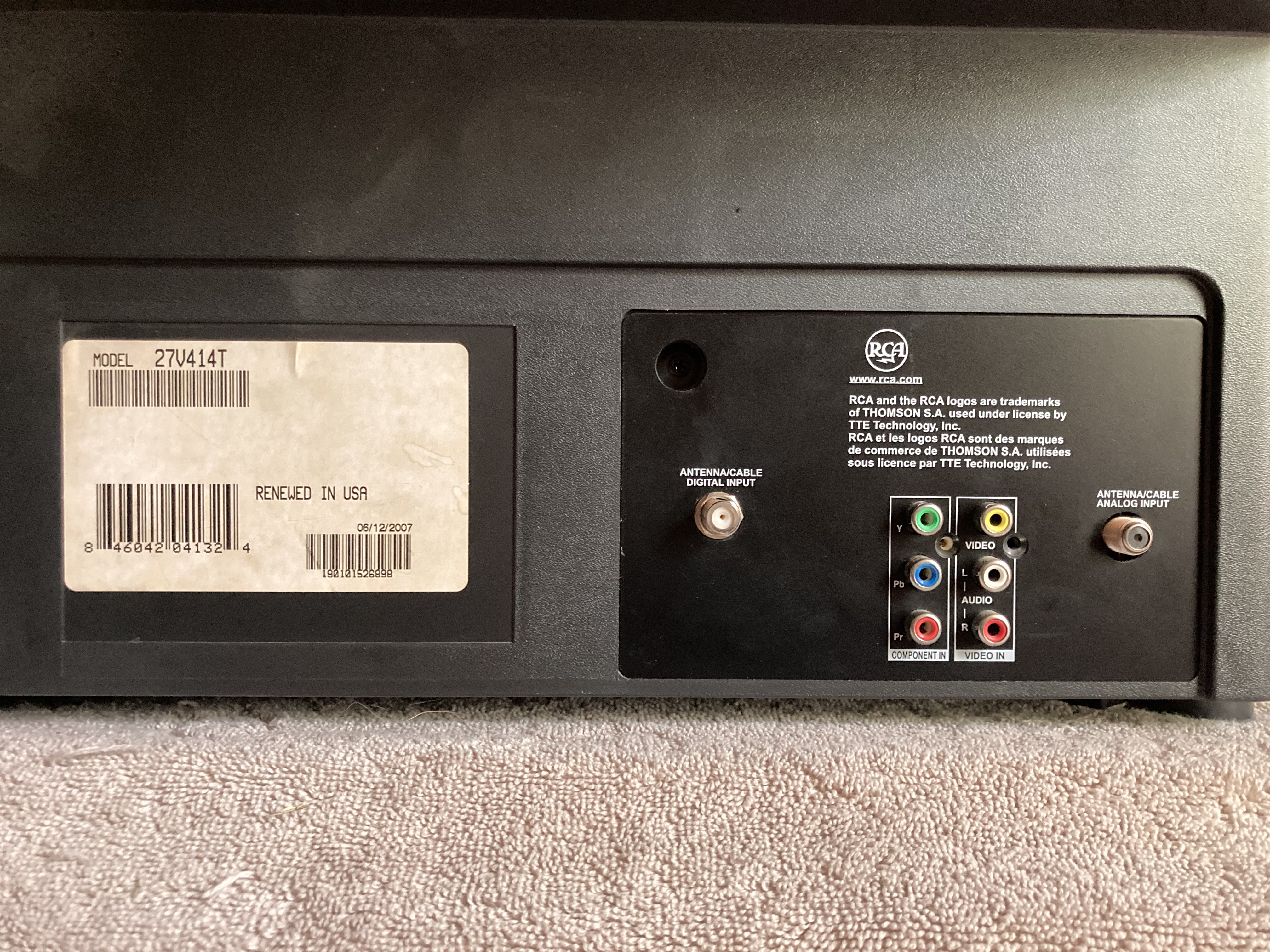

Inputs: | Composite, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC, ATSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |

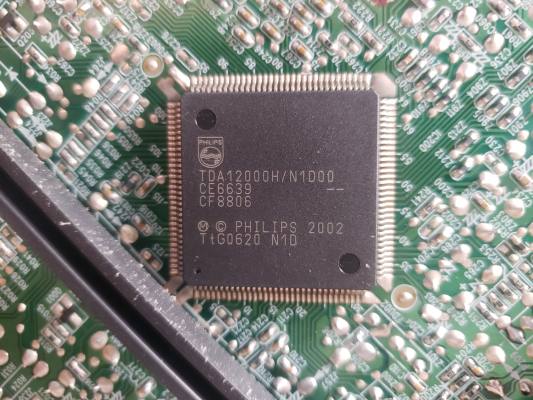

Jungle: | Philips, TDA1200H/N1D00 |

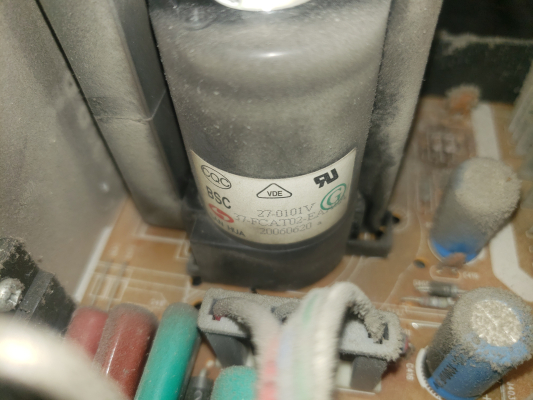

Flyback: | 37-FCAT02-EAA0A |
Focus Type: | Single |

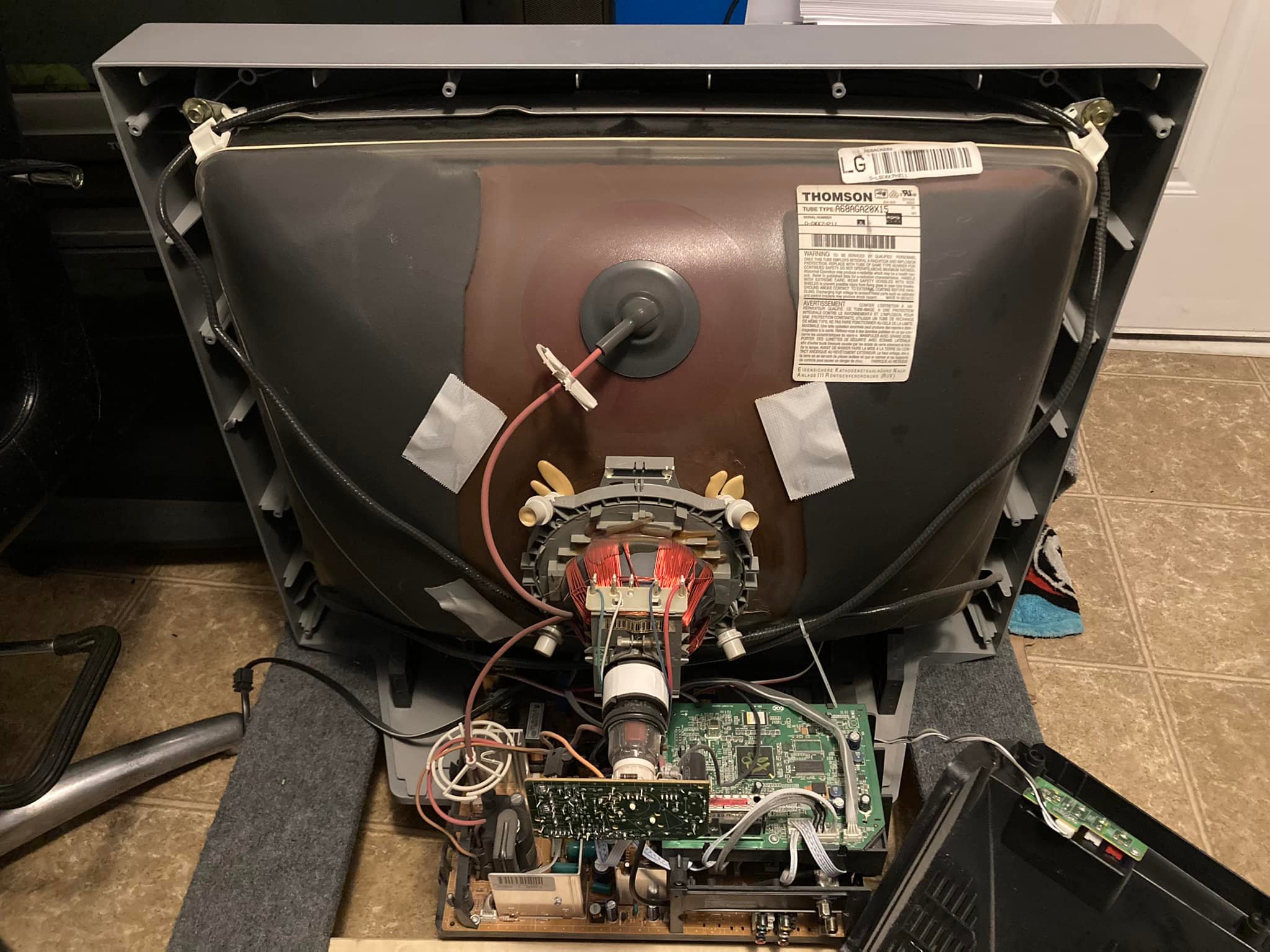

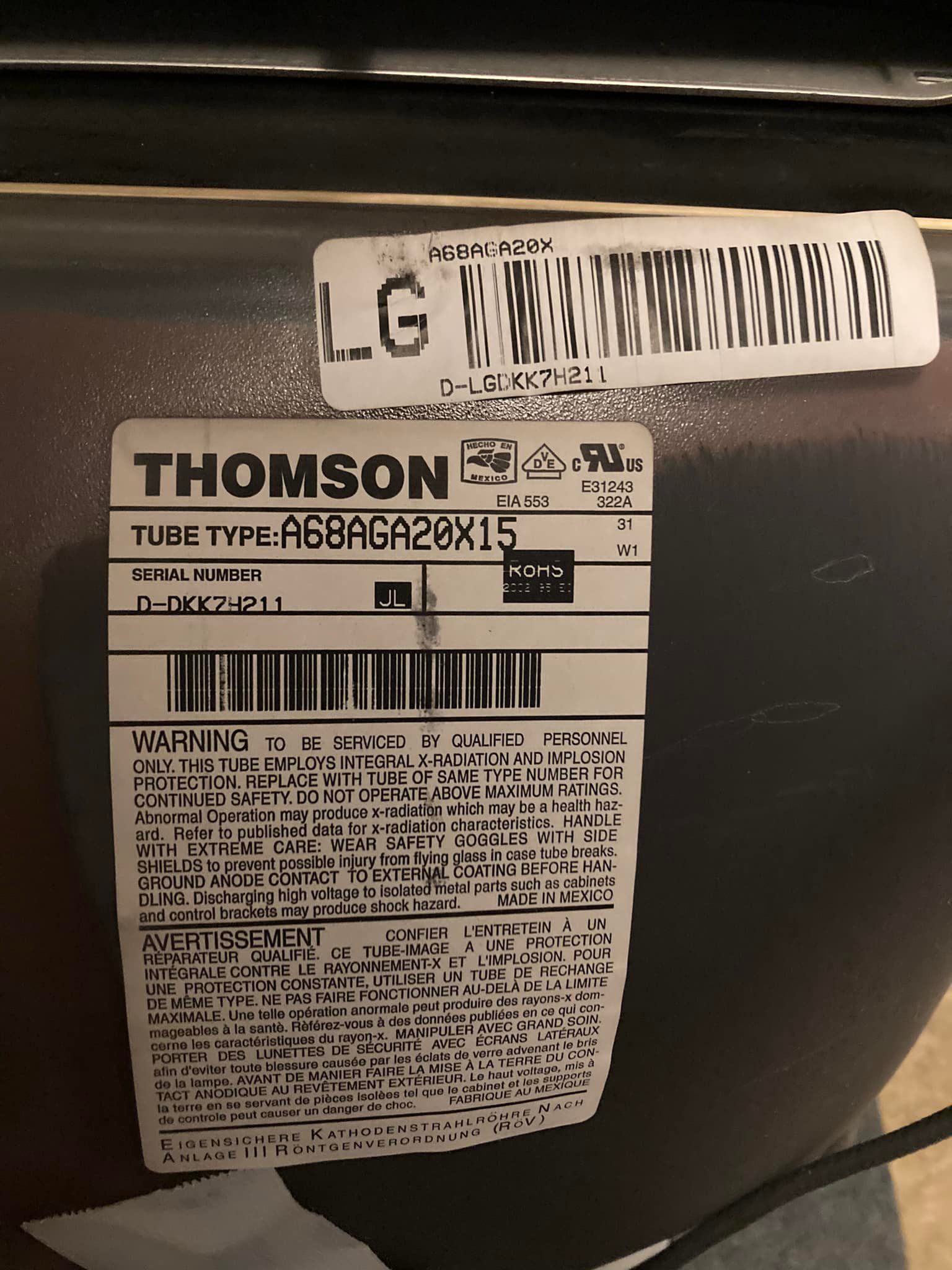

Tube: | Thomson , A68AGA20X , A68AGA20X15 |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo |
Remote: | RCR130TE1 |
Chassis: | ATC010A |
Weight: | 77 lbs (34.9 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |

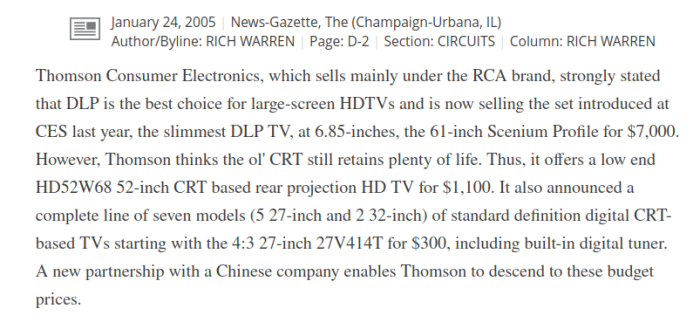

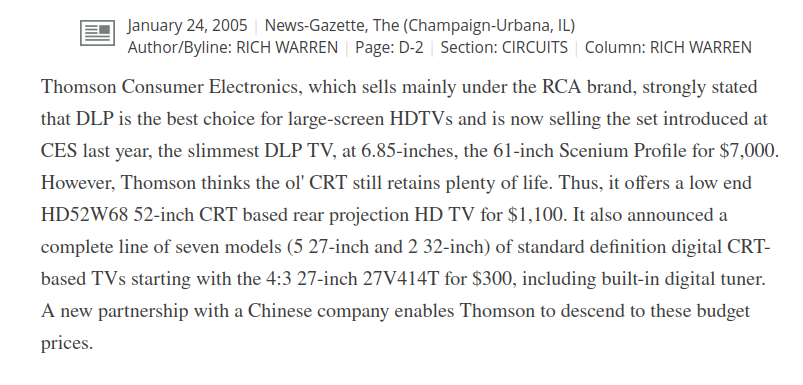

Launched: | 2006 |
MSRP: | 300 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Degaussing: | Automatic on Power-on |
