RCA 27V414T (YX8)
November 10, 2024, 5:13 pm
July 22, 2025, 4:23 am
Summary

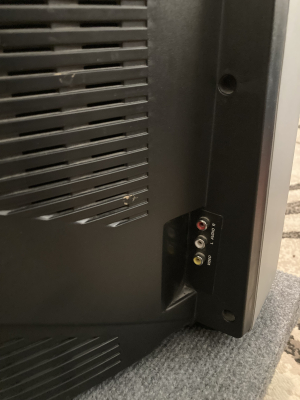

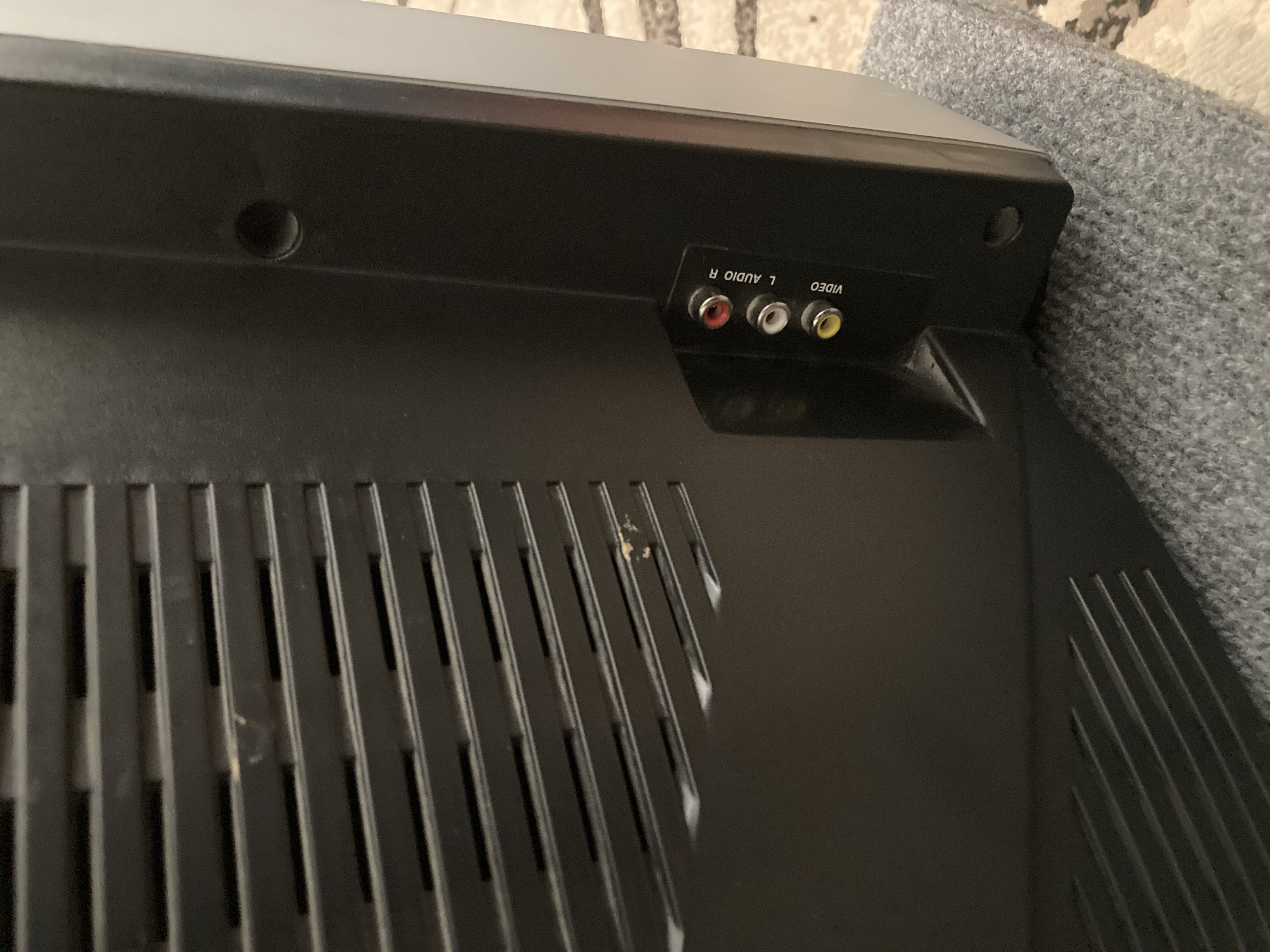

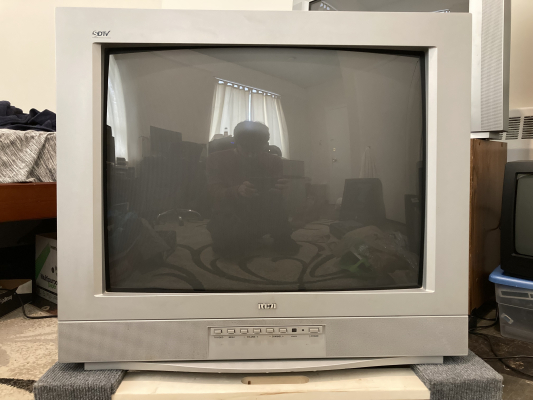

27" CRT by RCA, originally made by TCL-Thomson in Mexico in 2006. Has RF, composite and s-video. Can receive modern digital broadcasting via its ATSC tuner.
Manuals
Notes
Strangely, it shares the same chassis and practically the same model number with the set that has component, but that one doesn't have s-video. This model is the opposite: s-video but no component. Couldn't they have designed one set with both inputs? Or two sets with different model numbers?? But whatever.

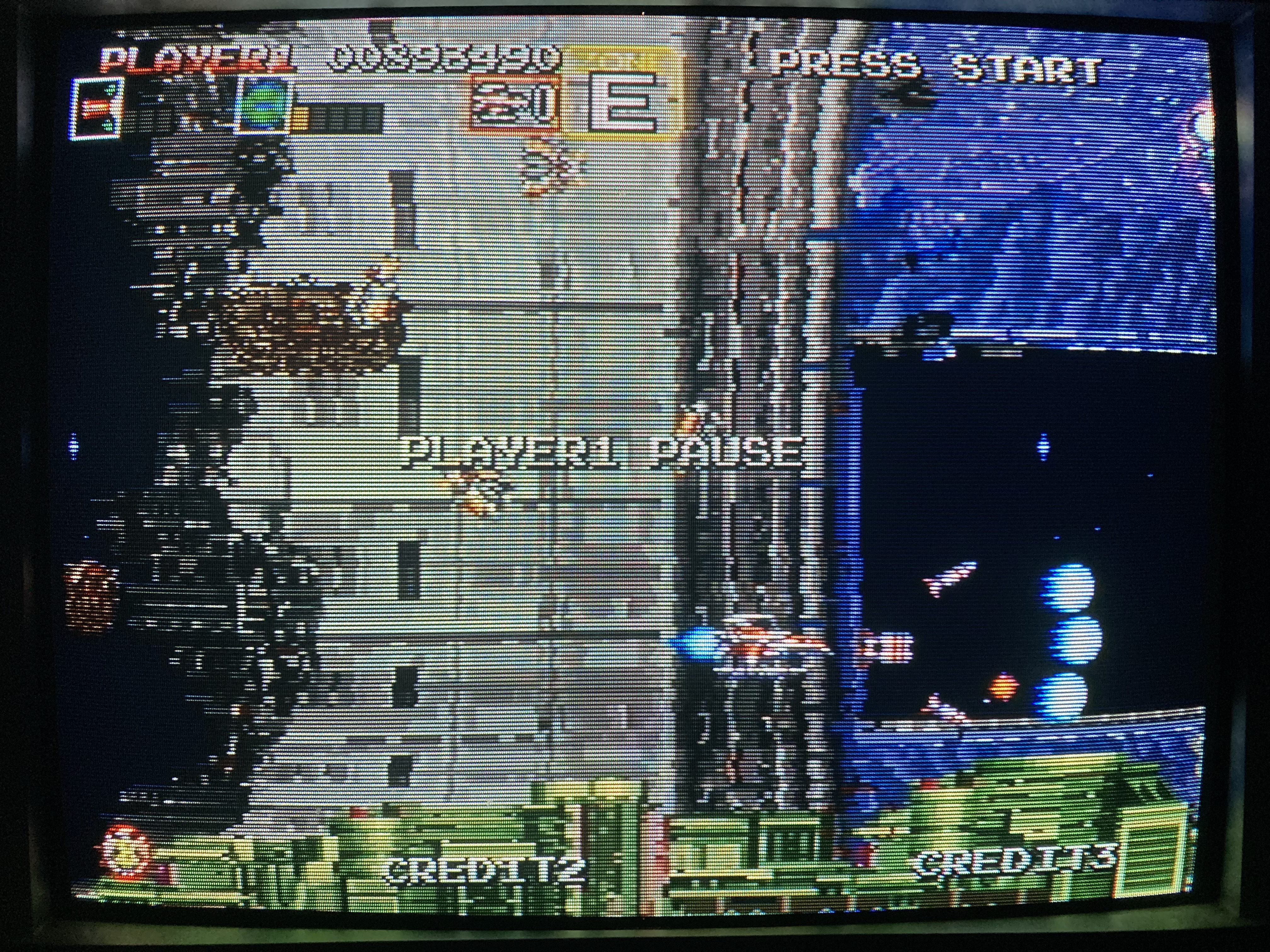

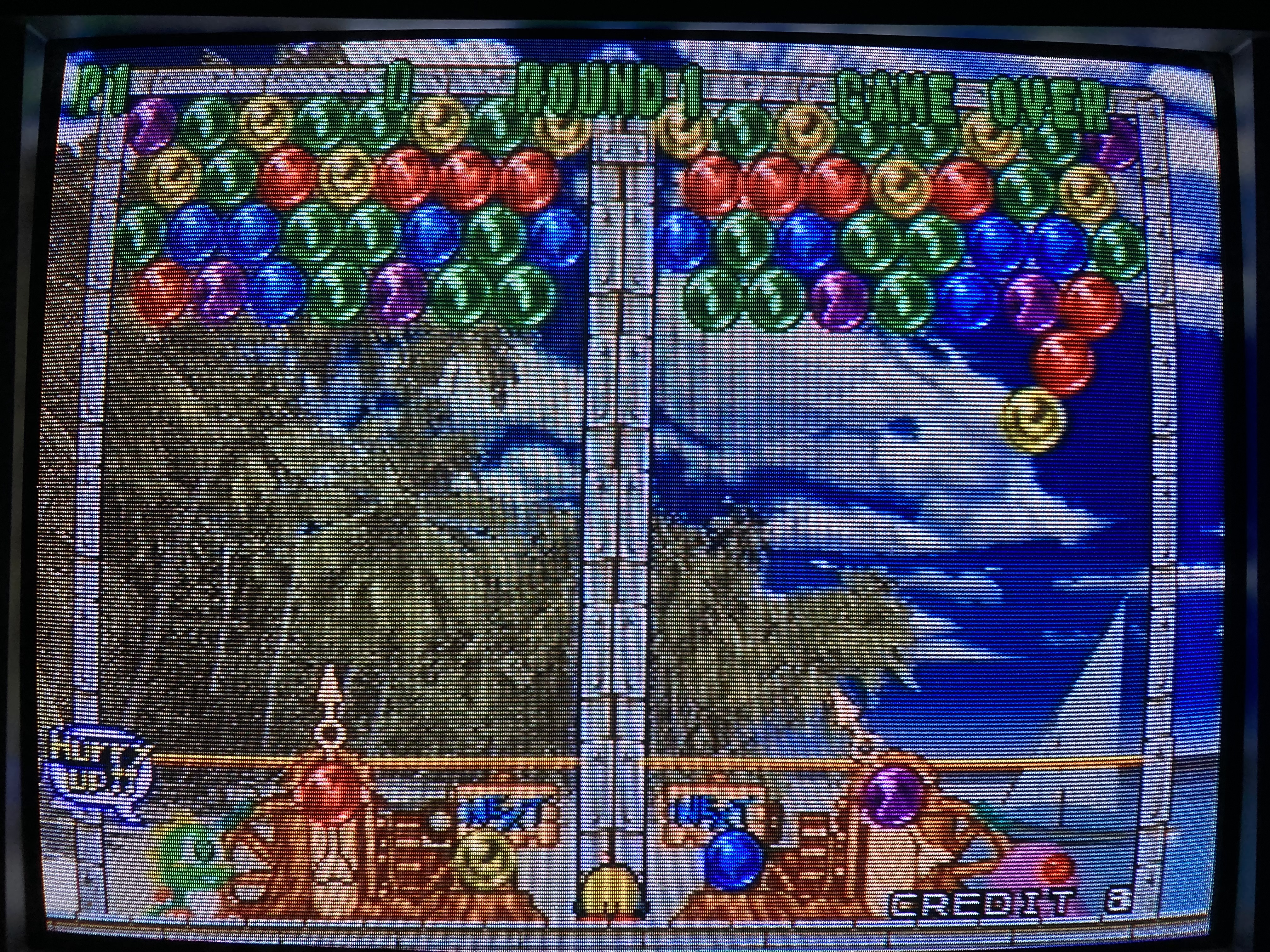

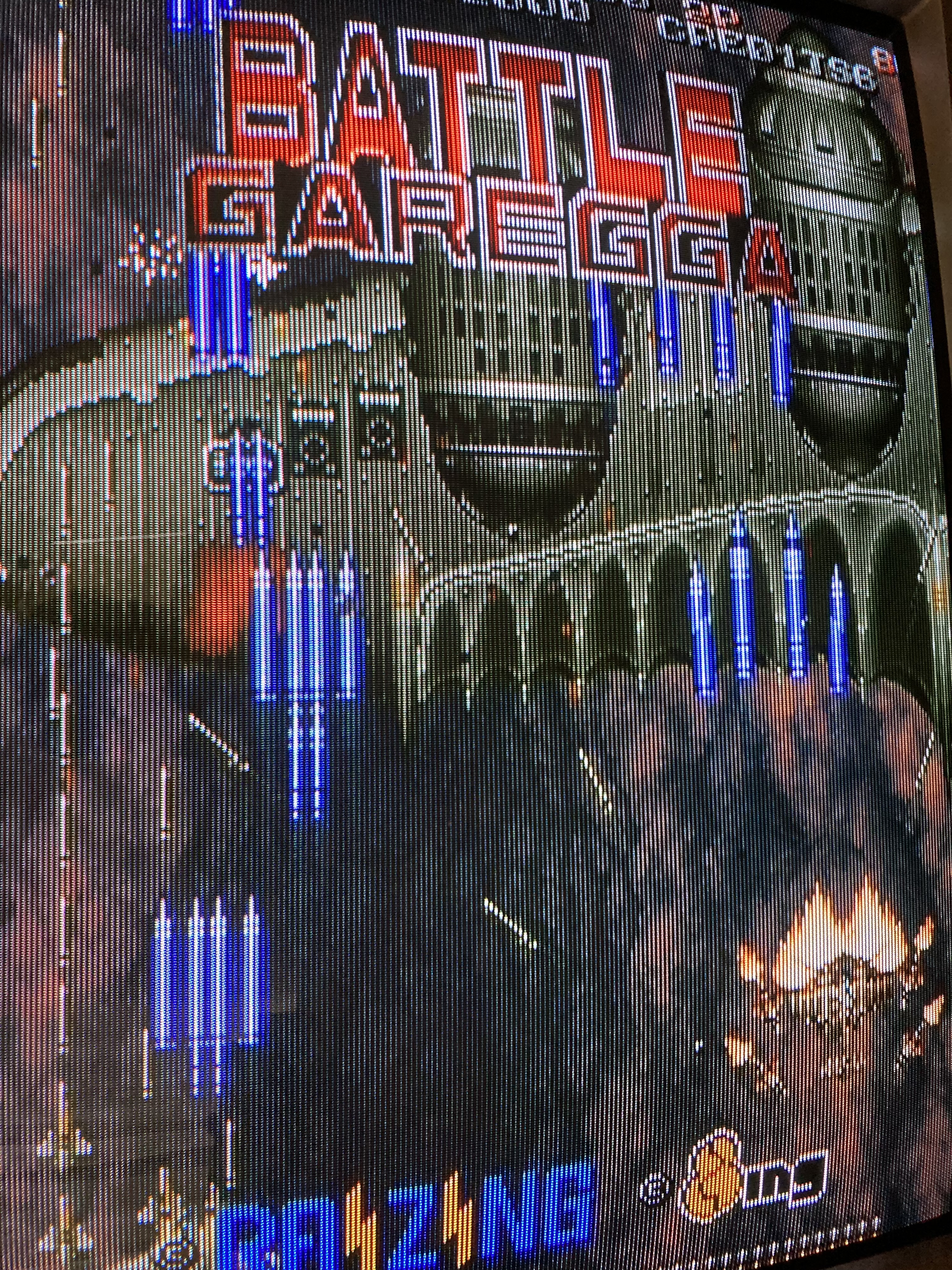

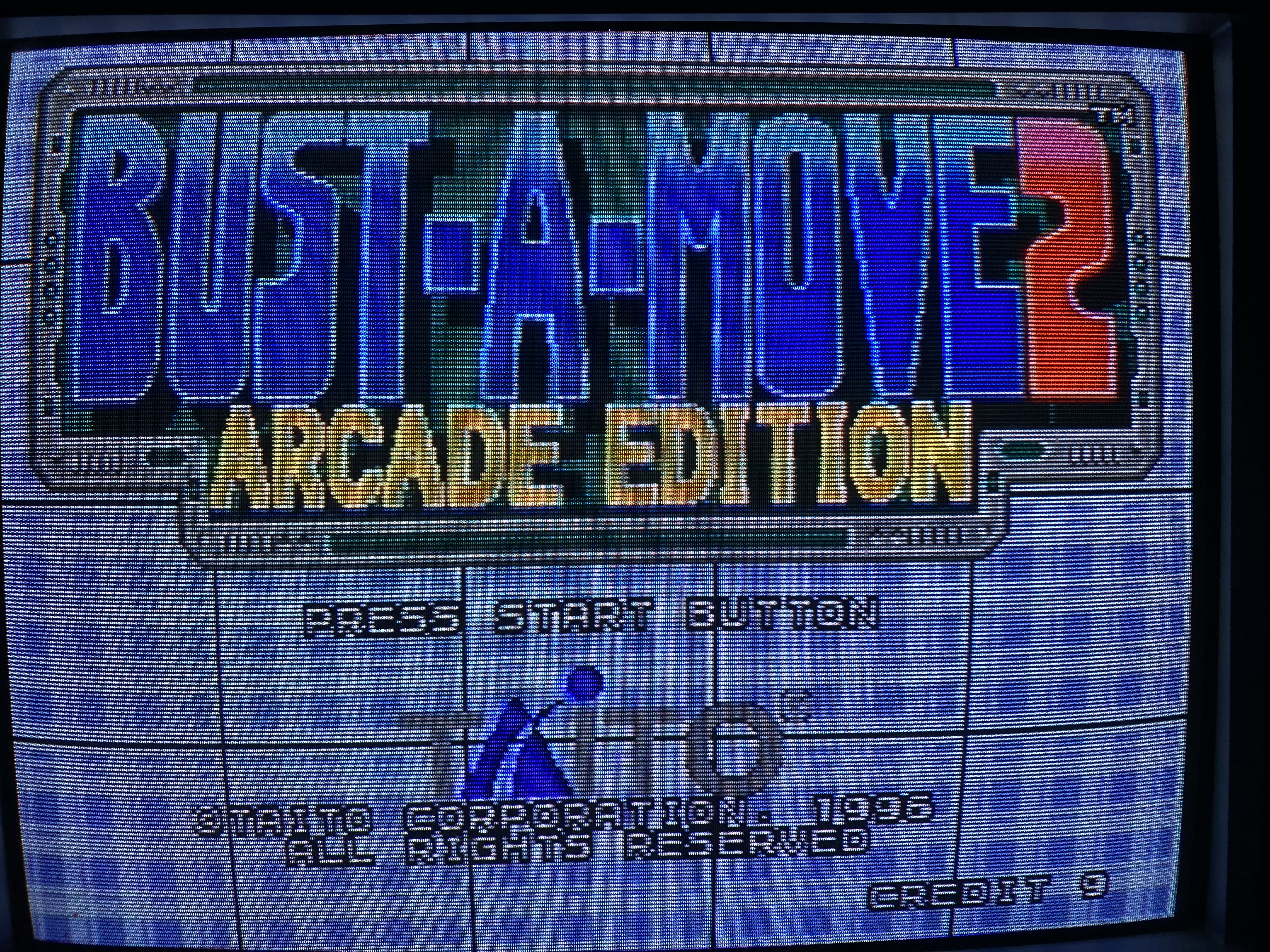

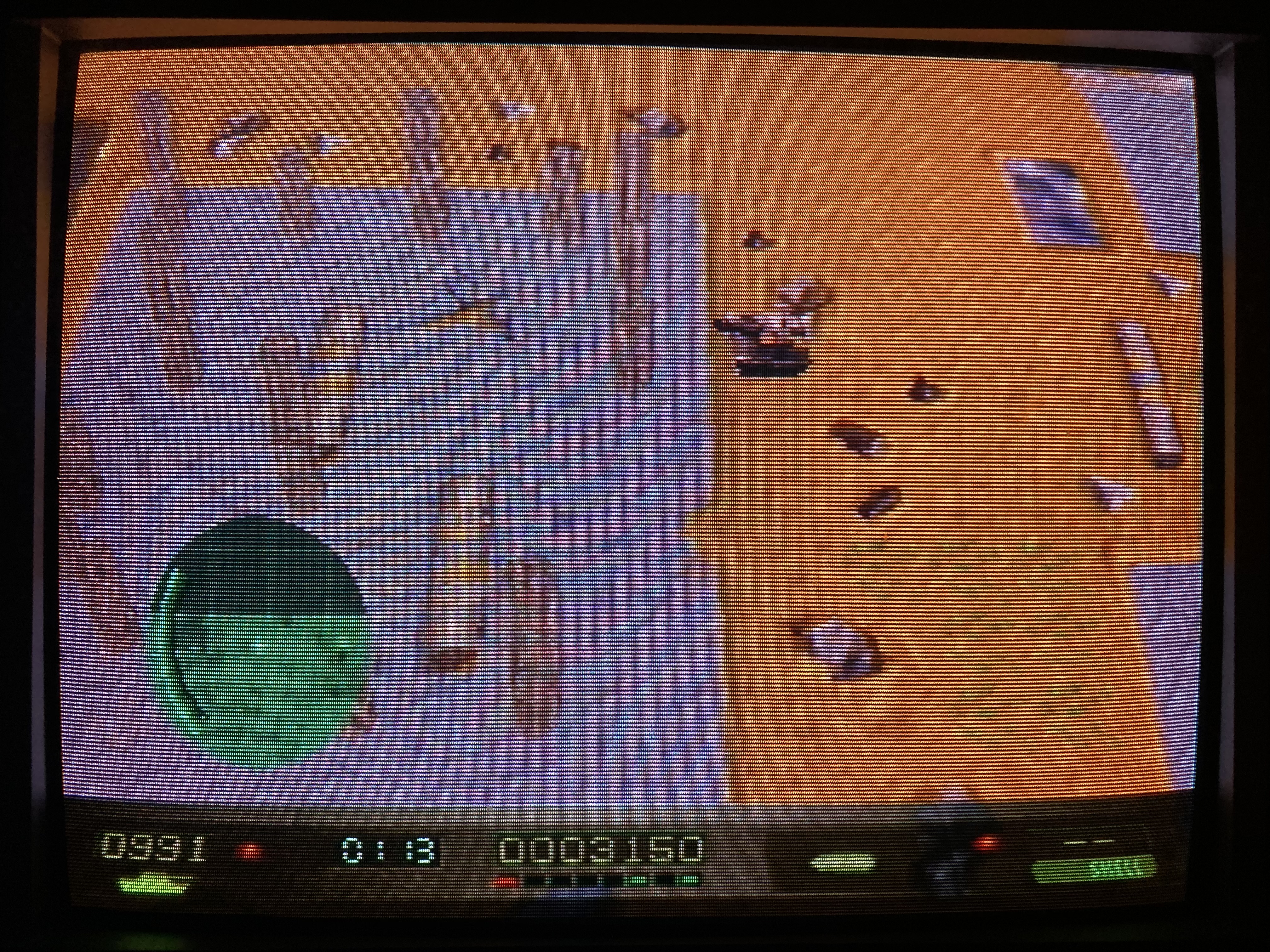

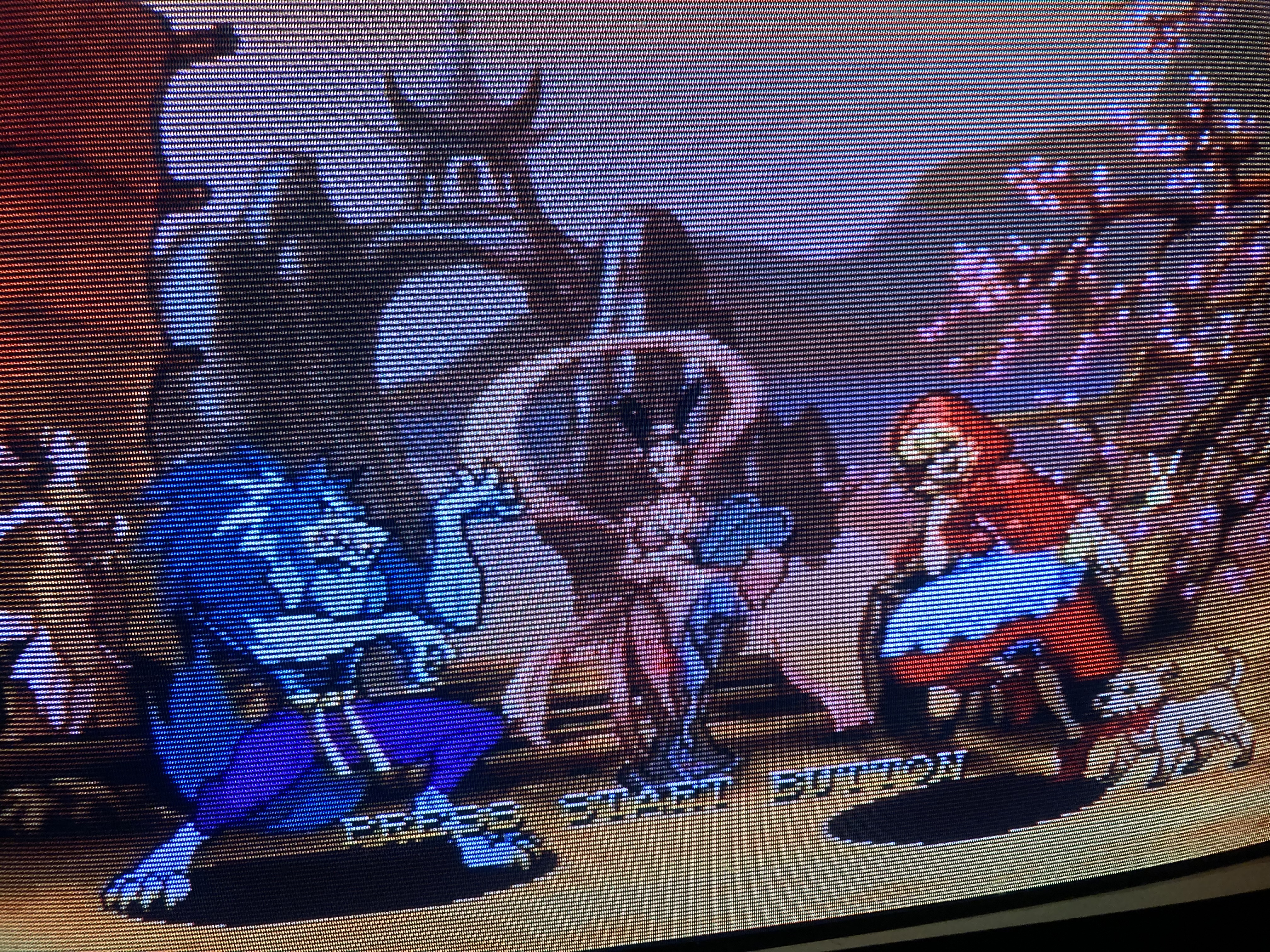

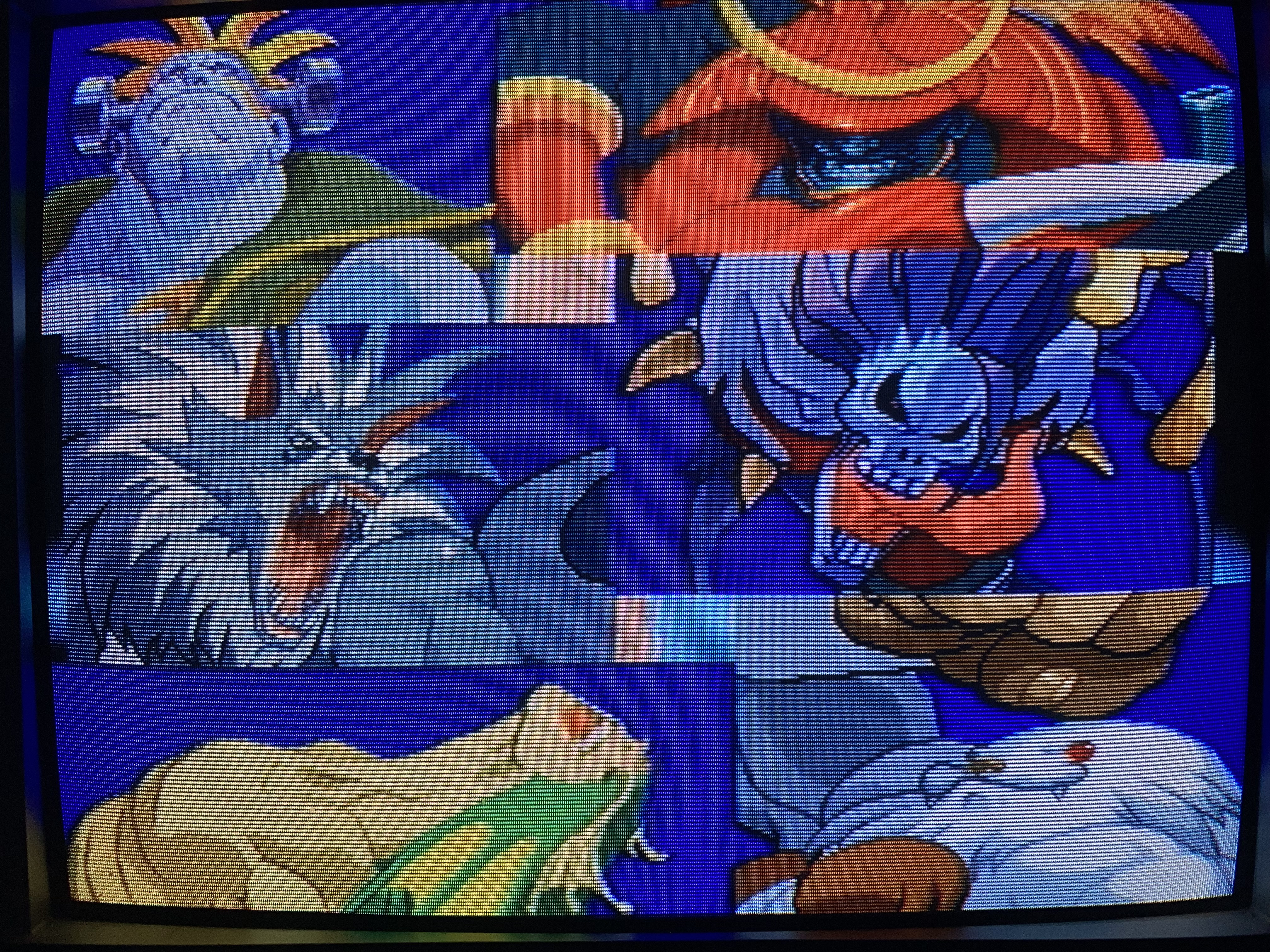

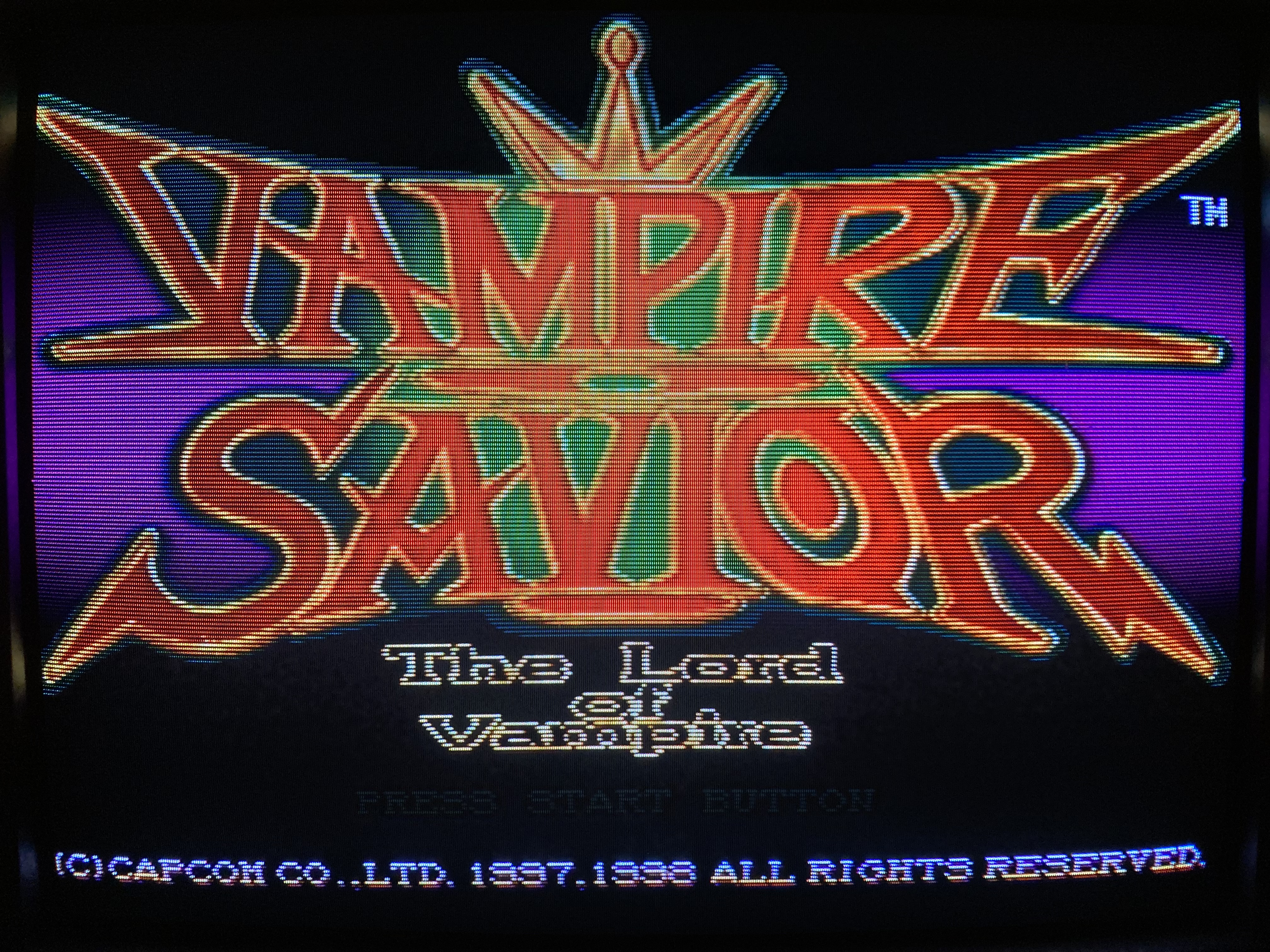

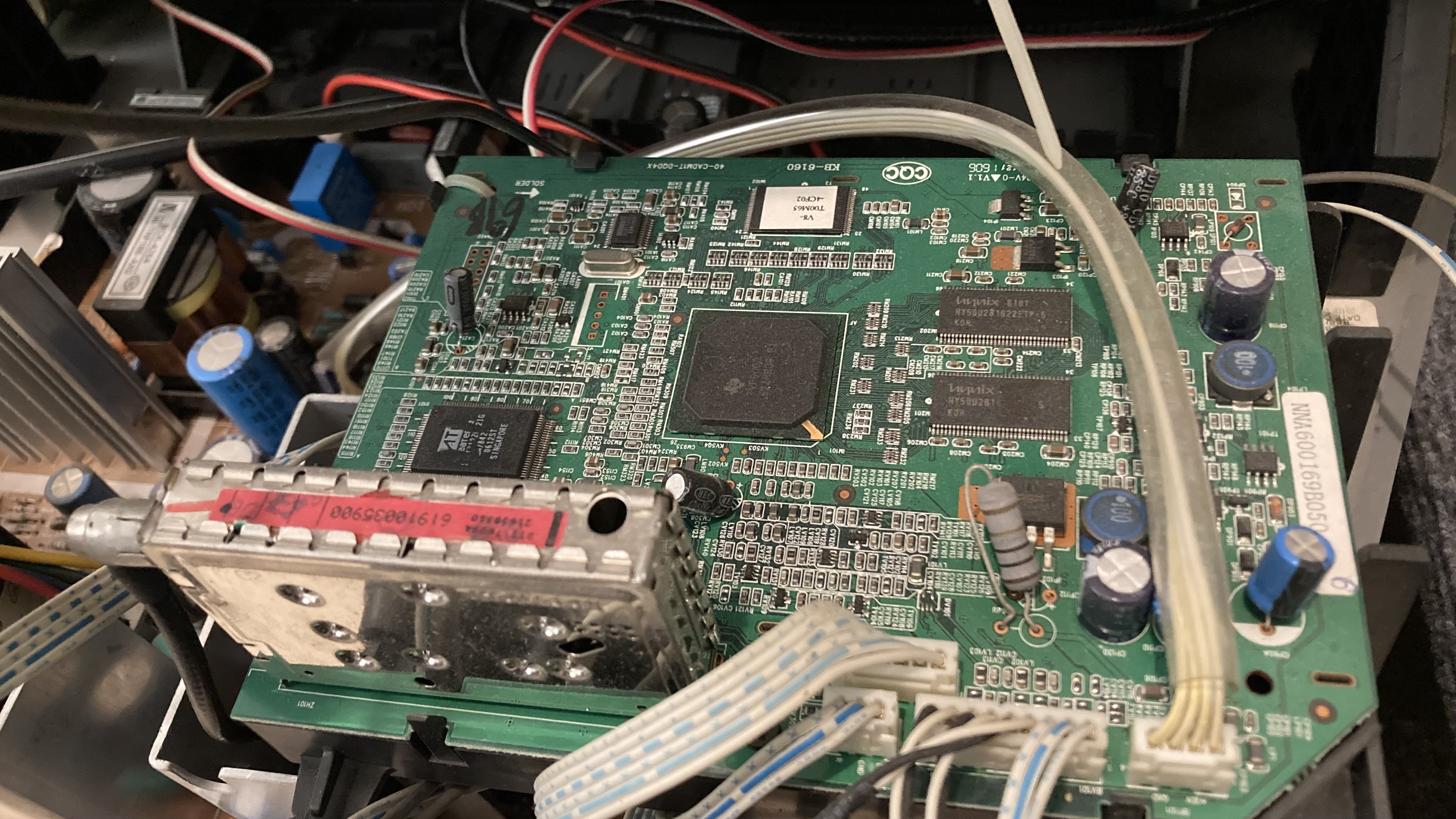

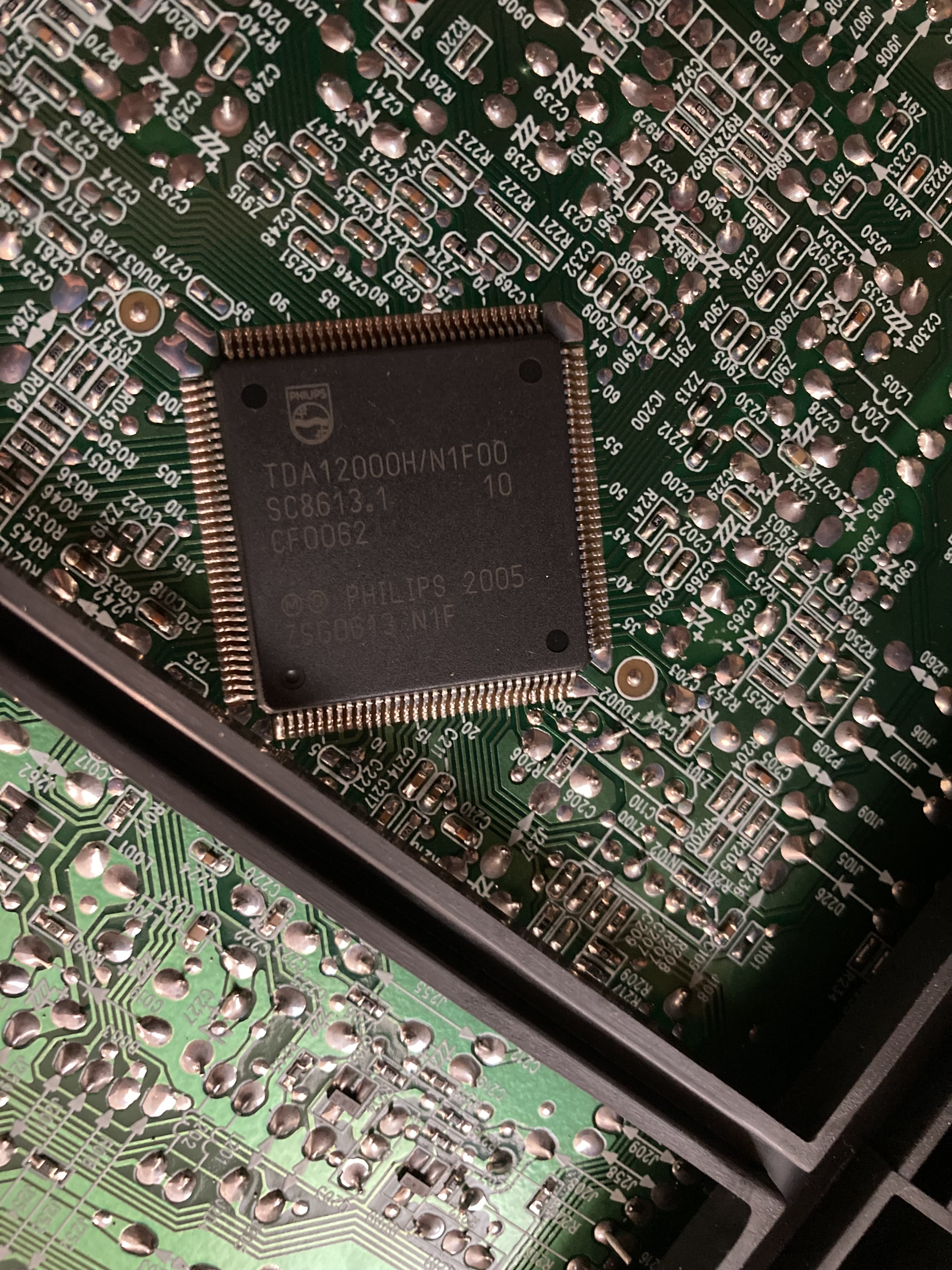

The s-video quality is great. Very clean signal with very little chroma bleed. It uses a Philips jungle IC.

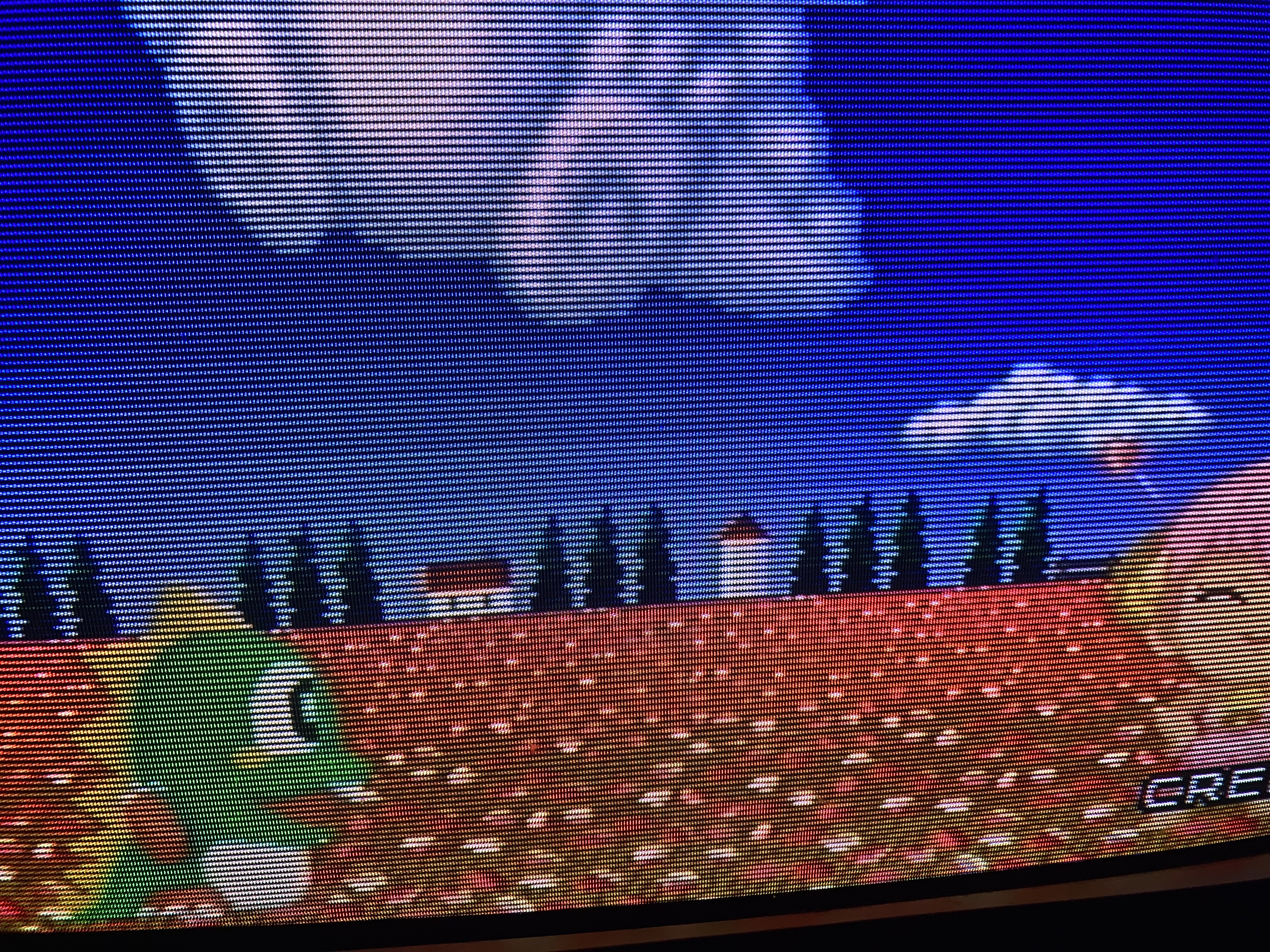

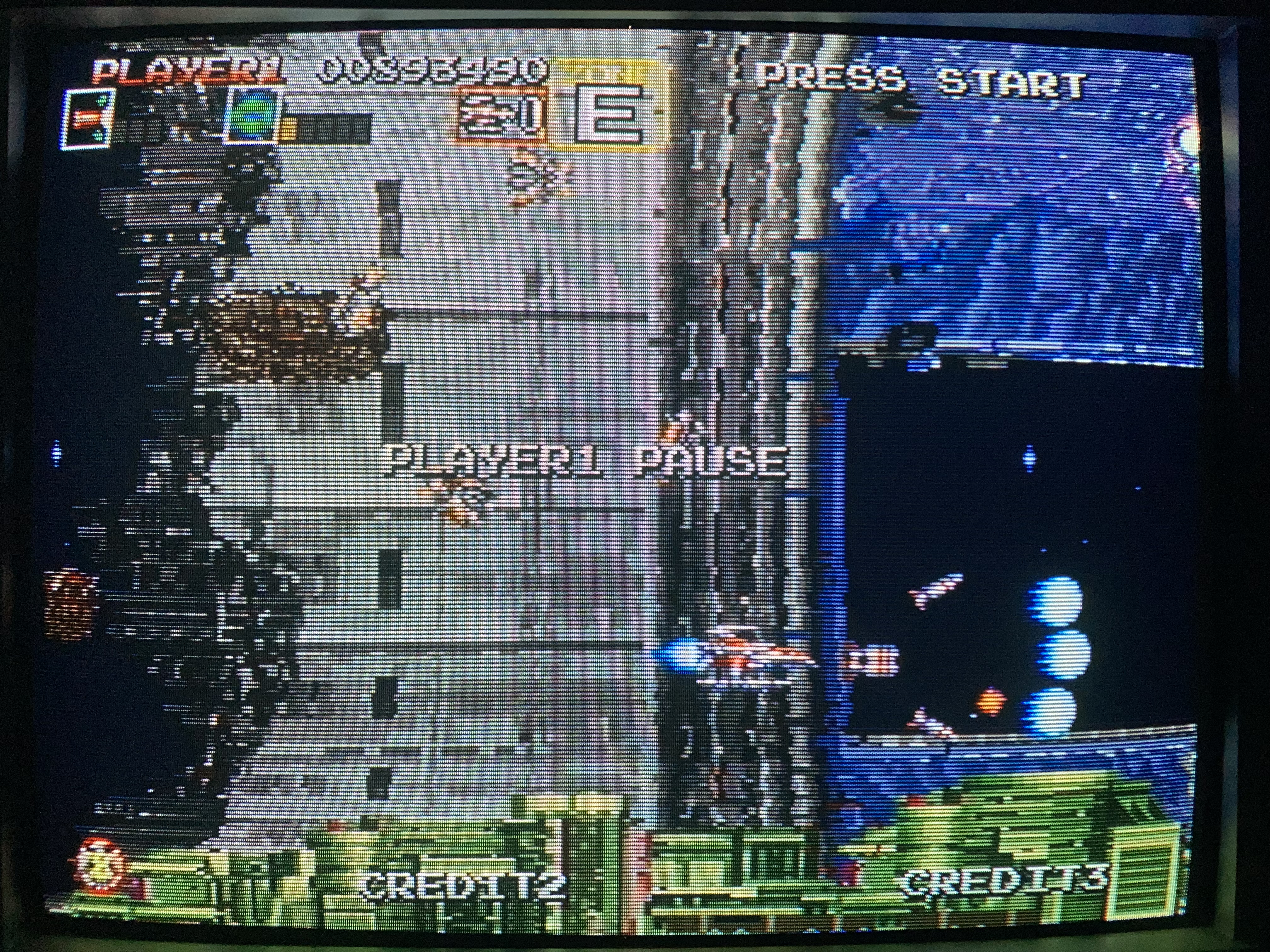

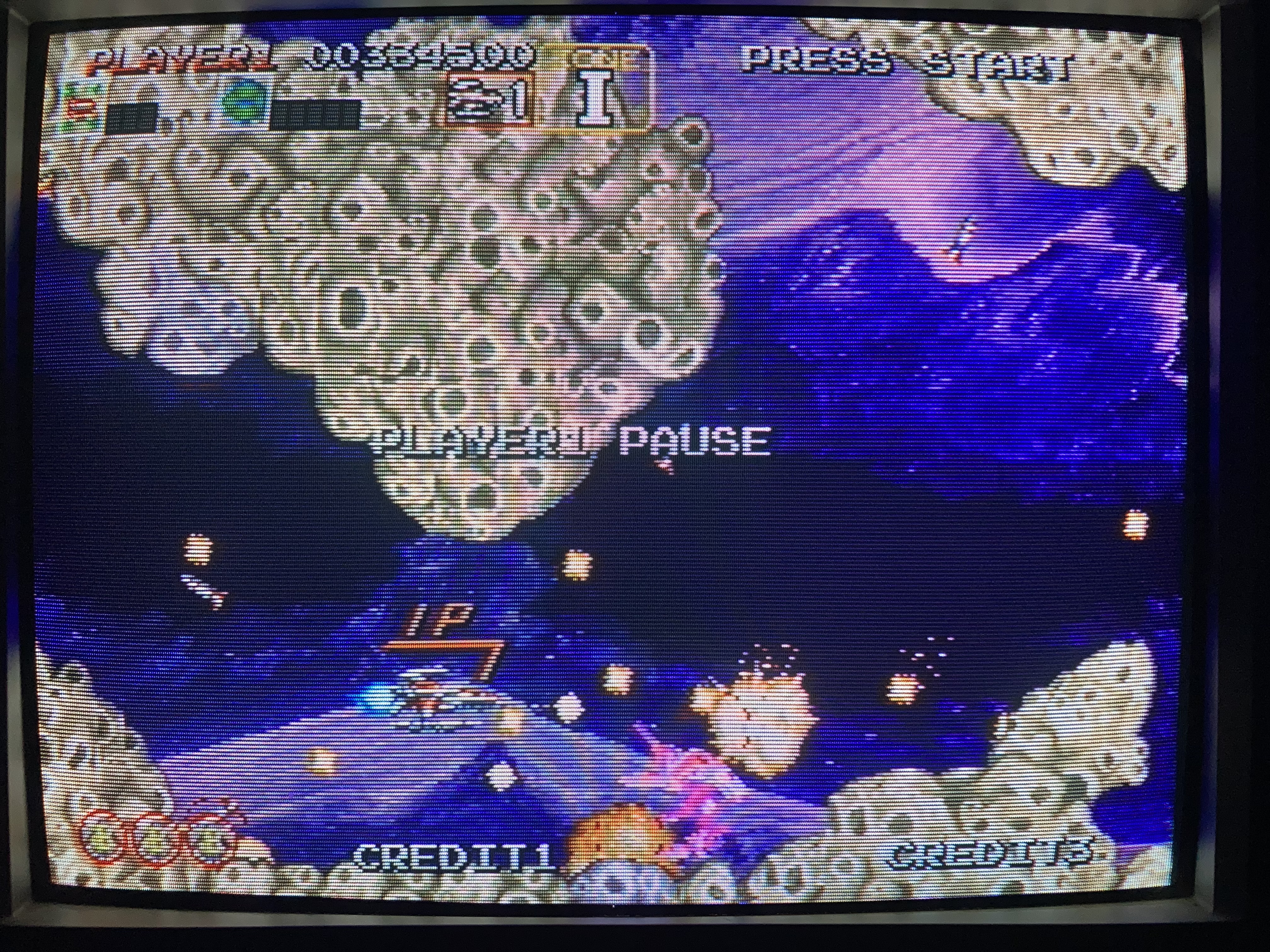

Geometry kinda sucks though. The top and bottom of the screen dips in a bit, and horizontal linearity bunches up at the edges. On the plus side, voltage regulation is surprisingly tight.
Gallery




















Specifications | |
---|---|
Brand: | RCA |
Manufacturer: | TTE Technology |
Model: | 27V414T YX8 |
Series: | V |
Viewable Size: | 27" |

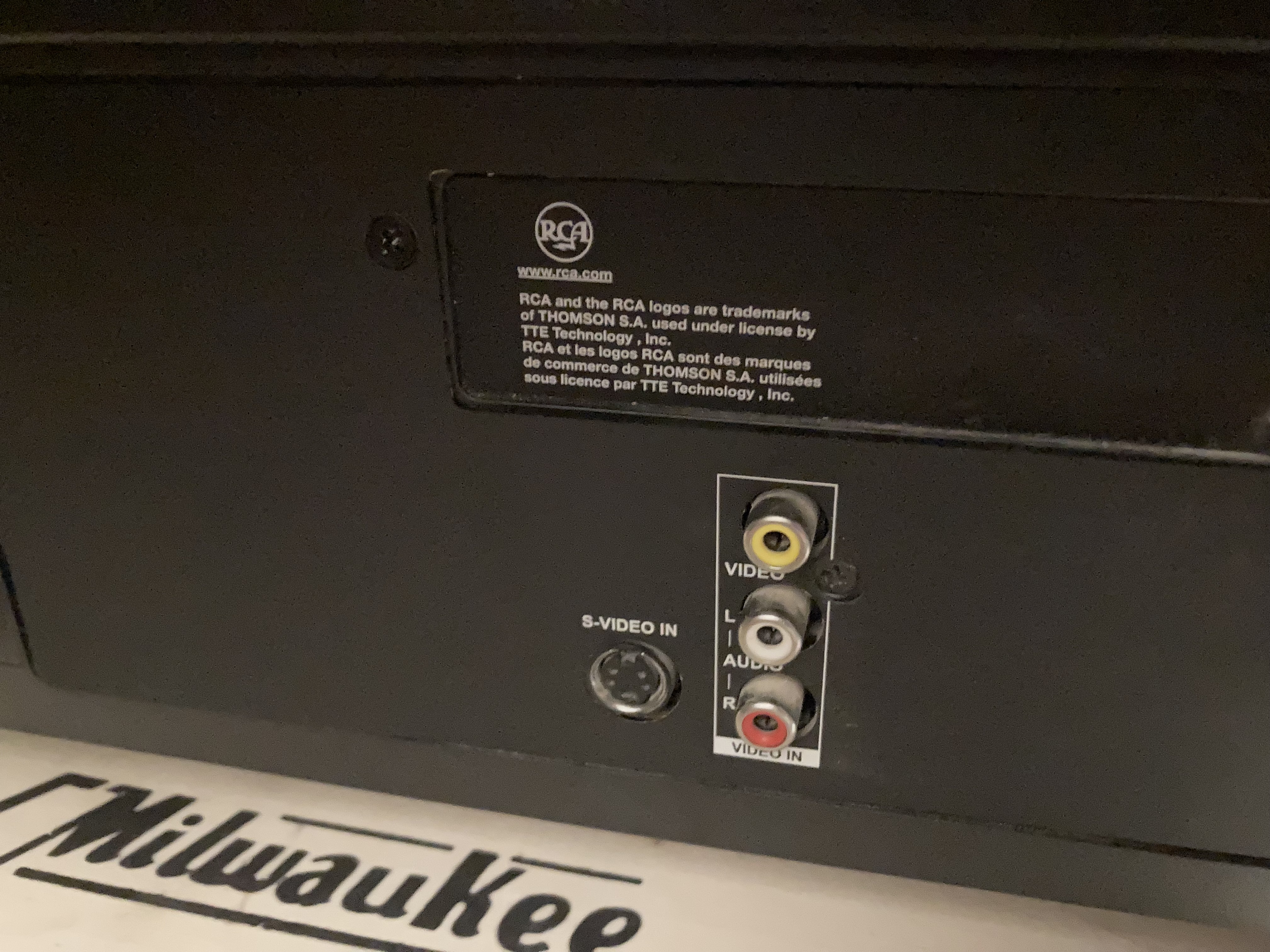

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | TDA12000H |
Focus Type: | Single |

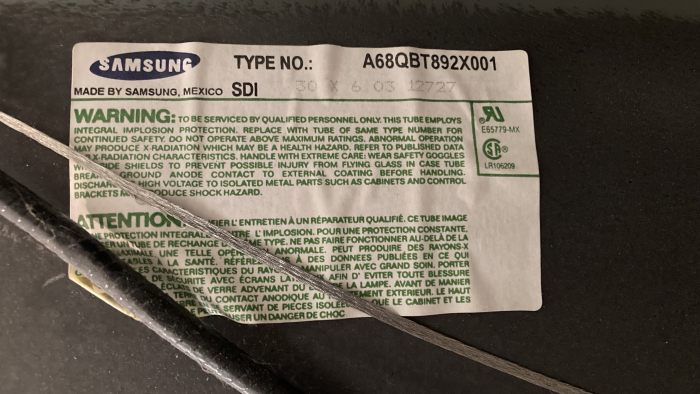

Tube: | Samsung , A68QBT892X , A68QBT892X001 |
Heater Voltage: | 6.3v |
Deflection: | 110° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo |
Chassis: | ATC010A |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2006 |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual |
