Summary

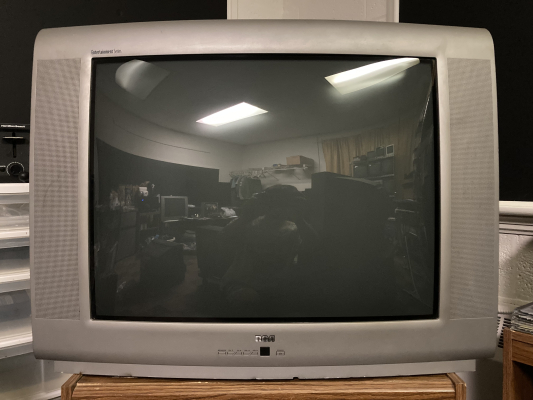

Curved 27" CRT by RCA from 2003. Has a full set of inputs. Made by Thomson in Mexico.
Manuals
Notes

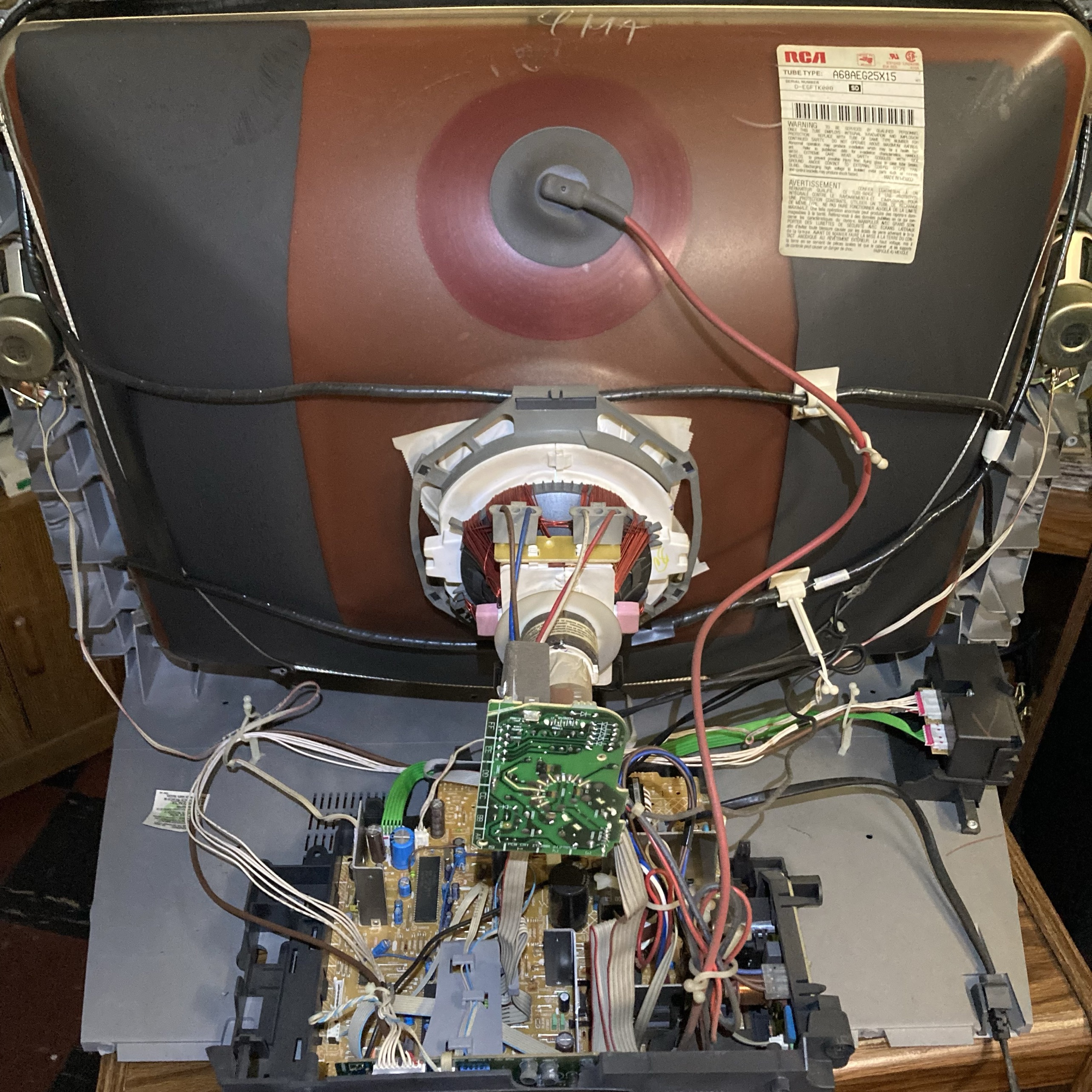

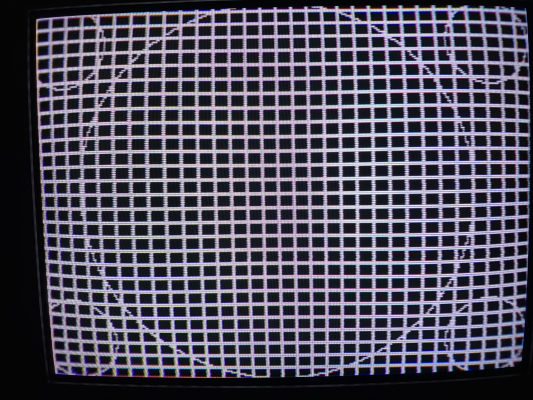

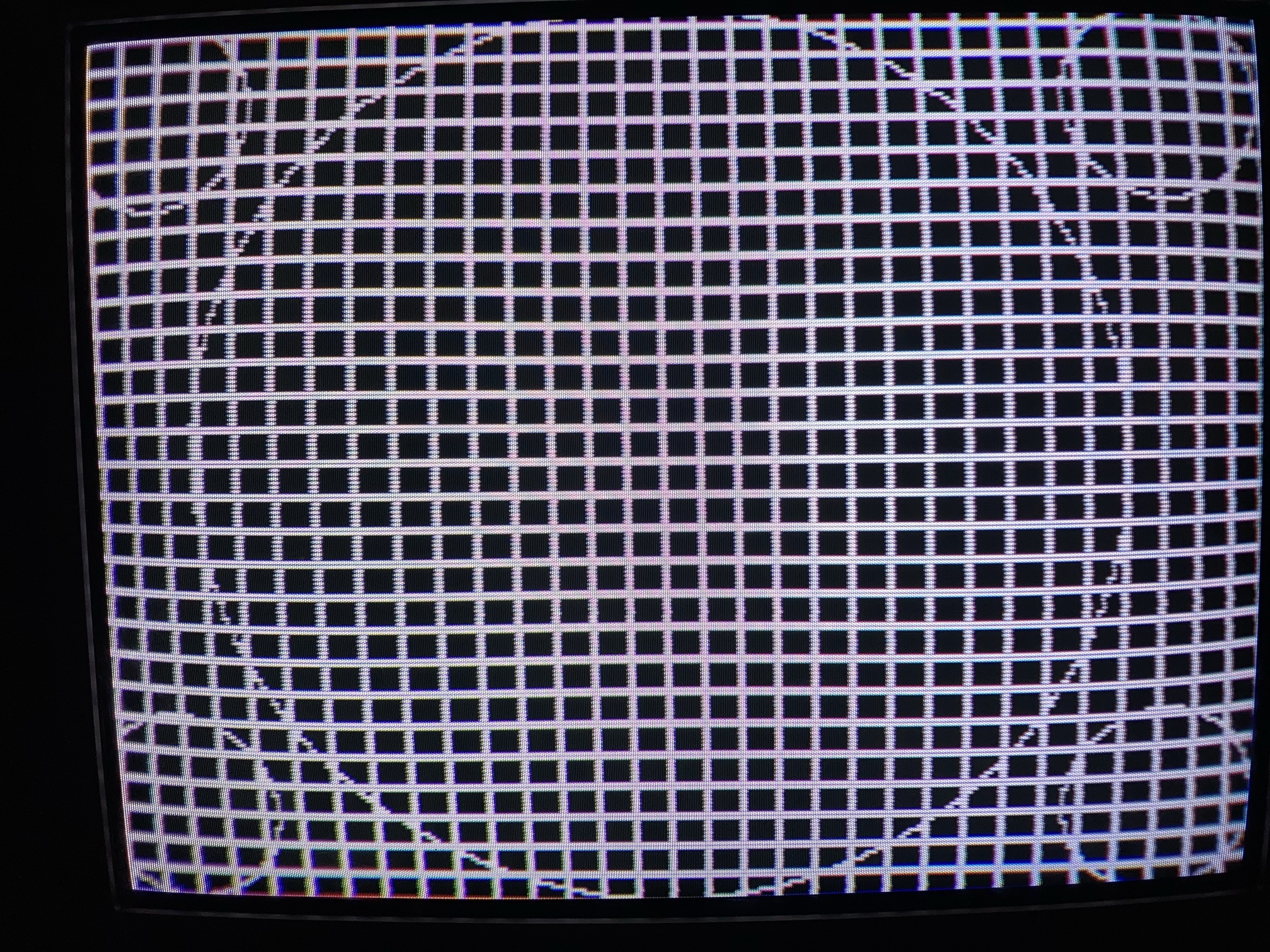

Tube is a higher-quality AEG-family model by RCA made in Mexico. It has a slightly finer dot pitch, flatter curvature and deflection, and overall better build quality. Unfortunately, it has a quirk in that it has linearity issues. Still, it's a good tube overall.

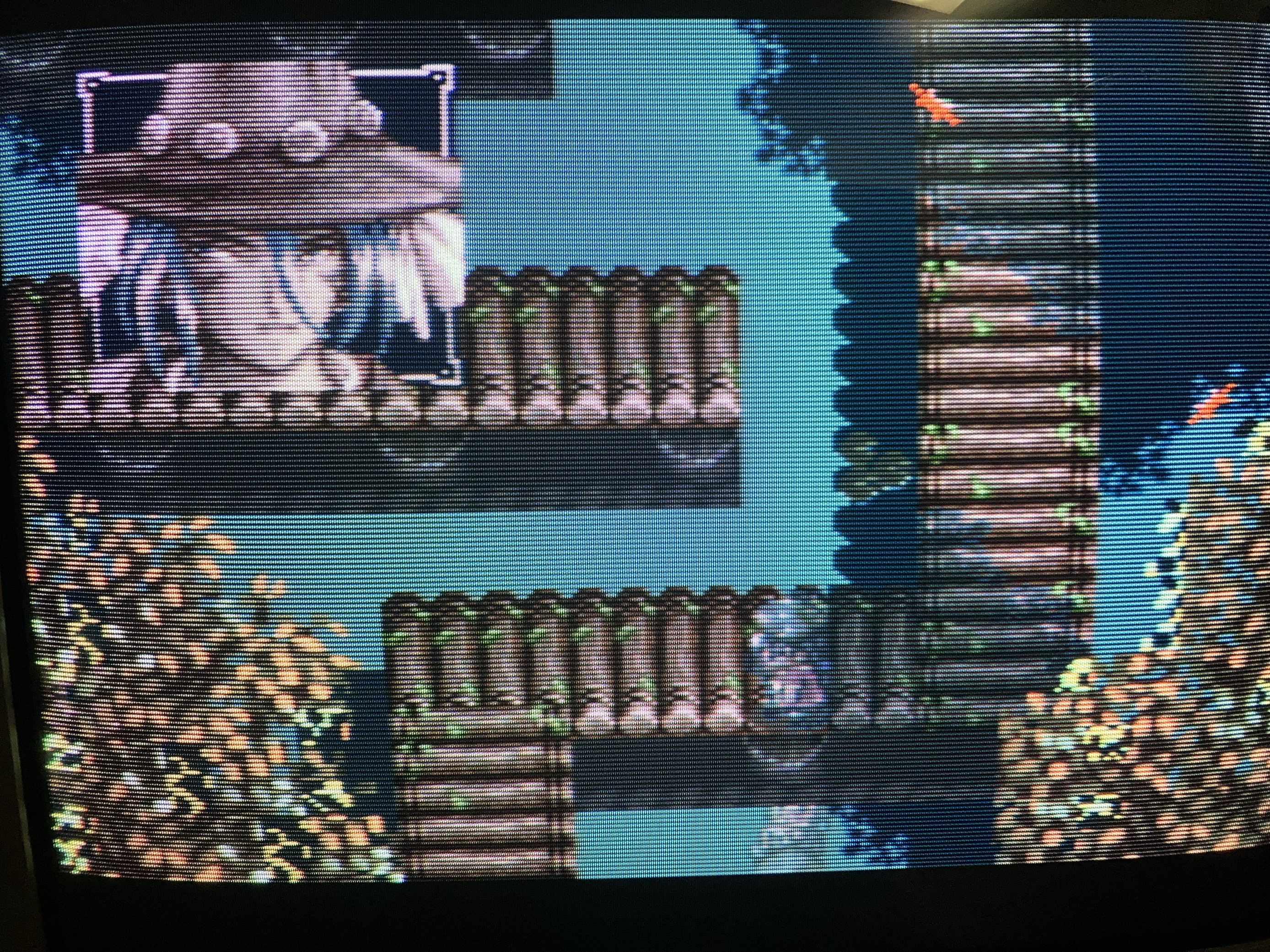

Picture quality is excellent thanks to the Philips jungle chip, which also accepts 50hz in color over component.

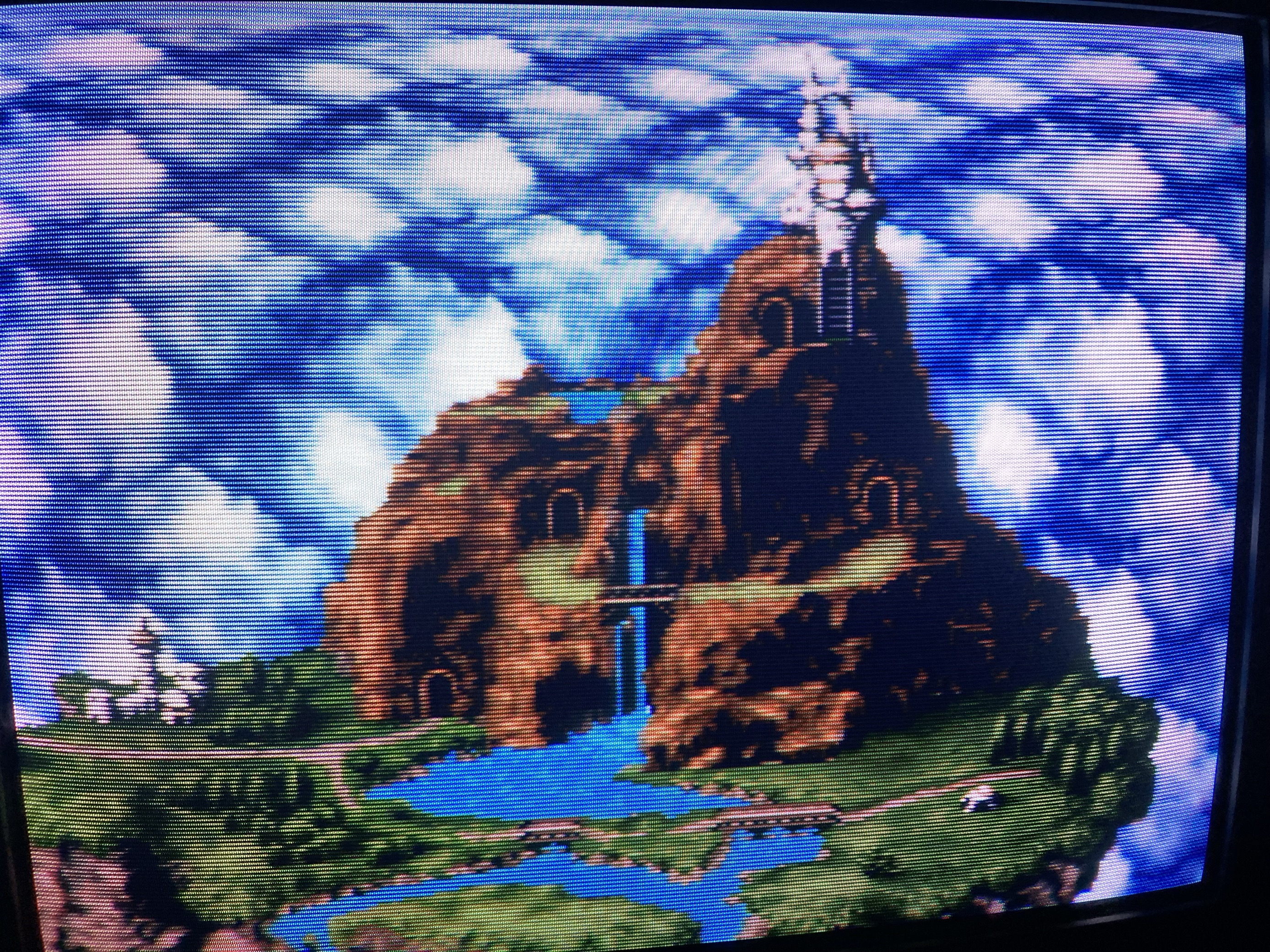

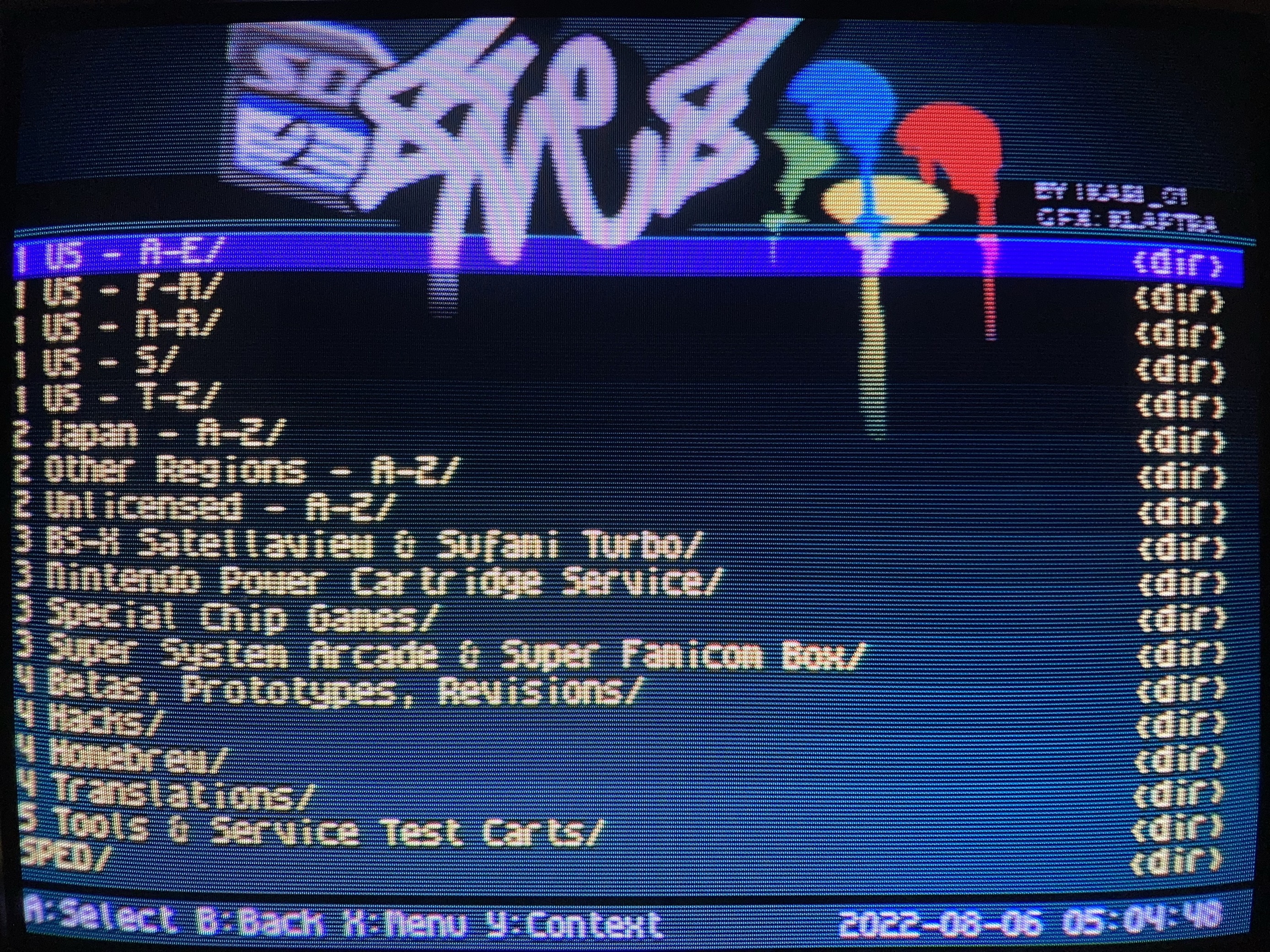

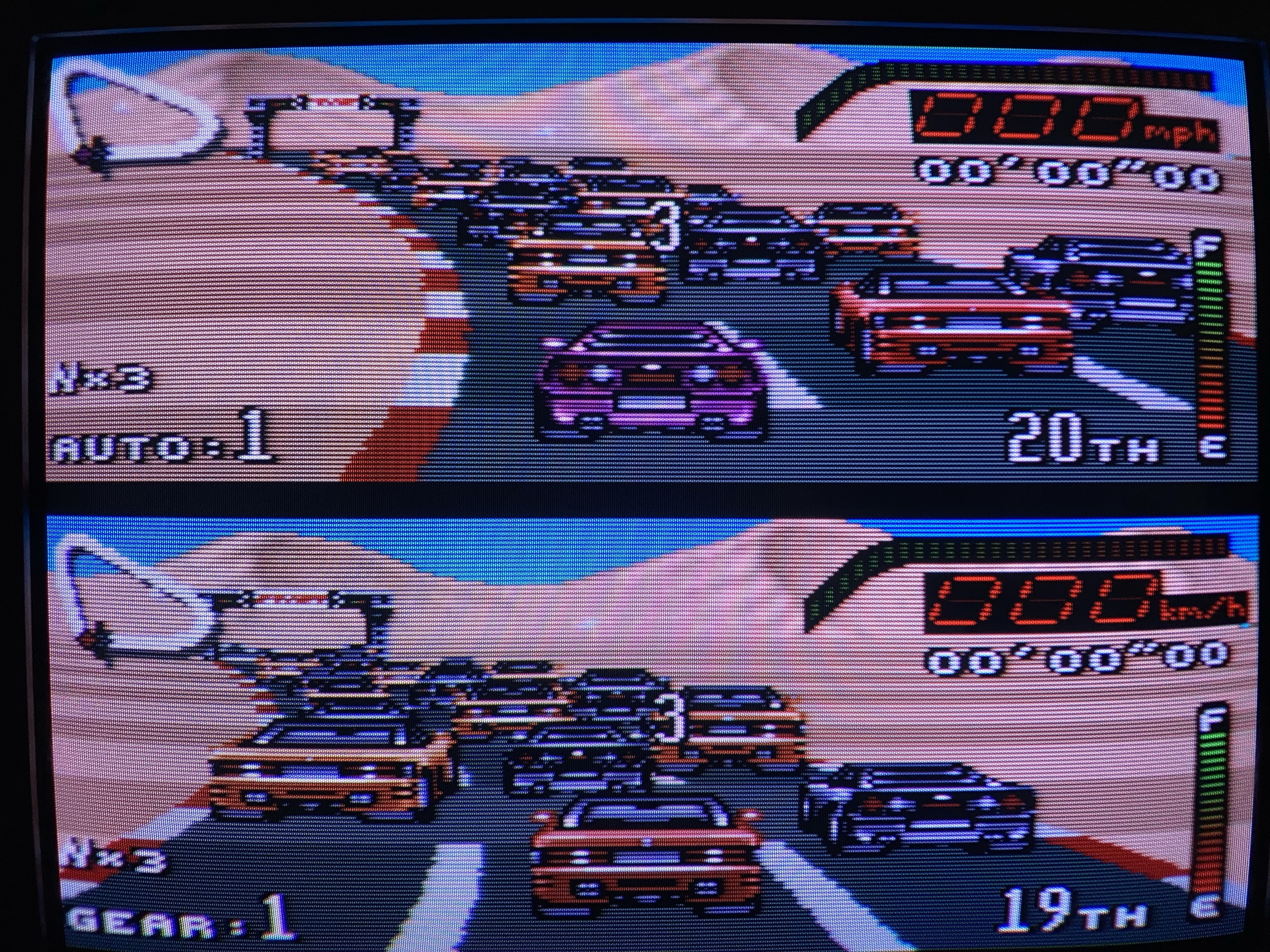

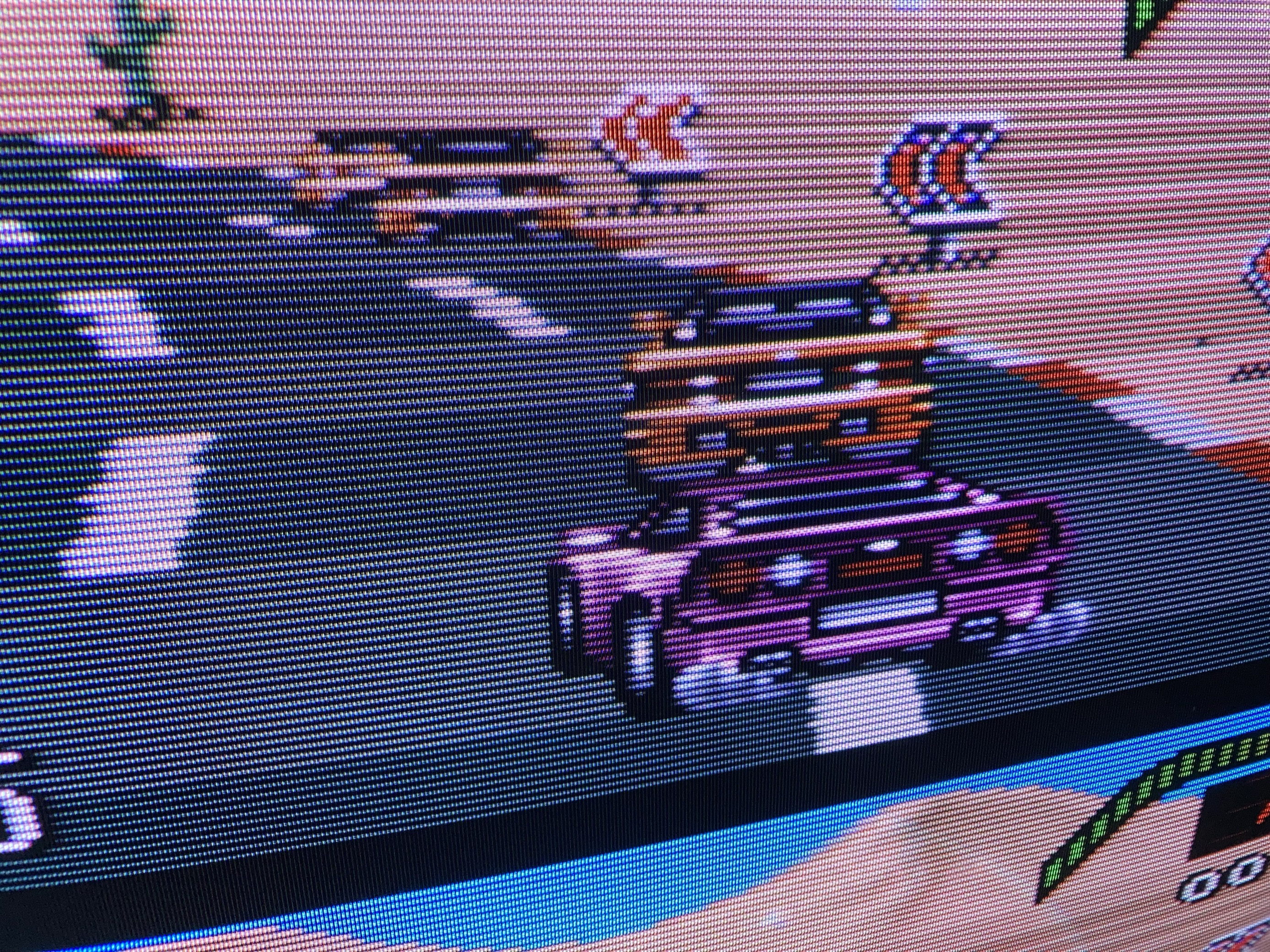

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | 27V530T |
| Series: | V |
| Viewable Size: | 27" |

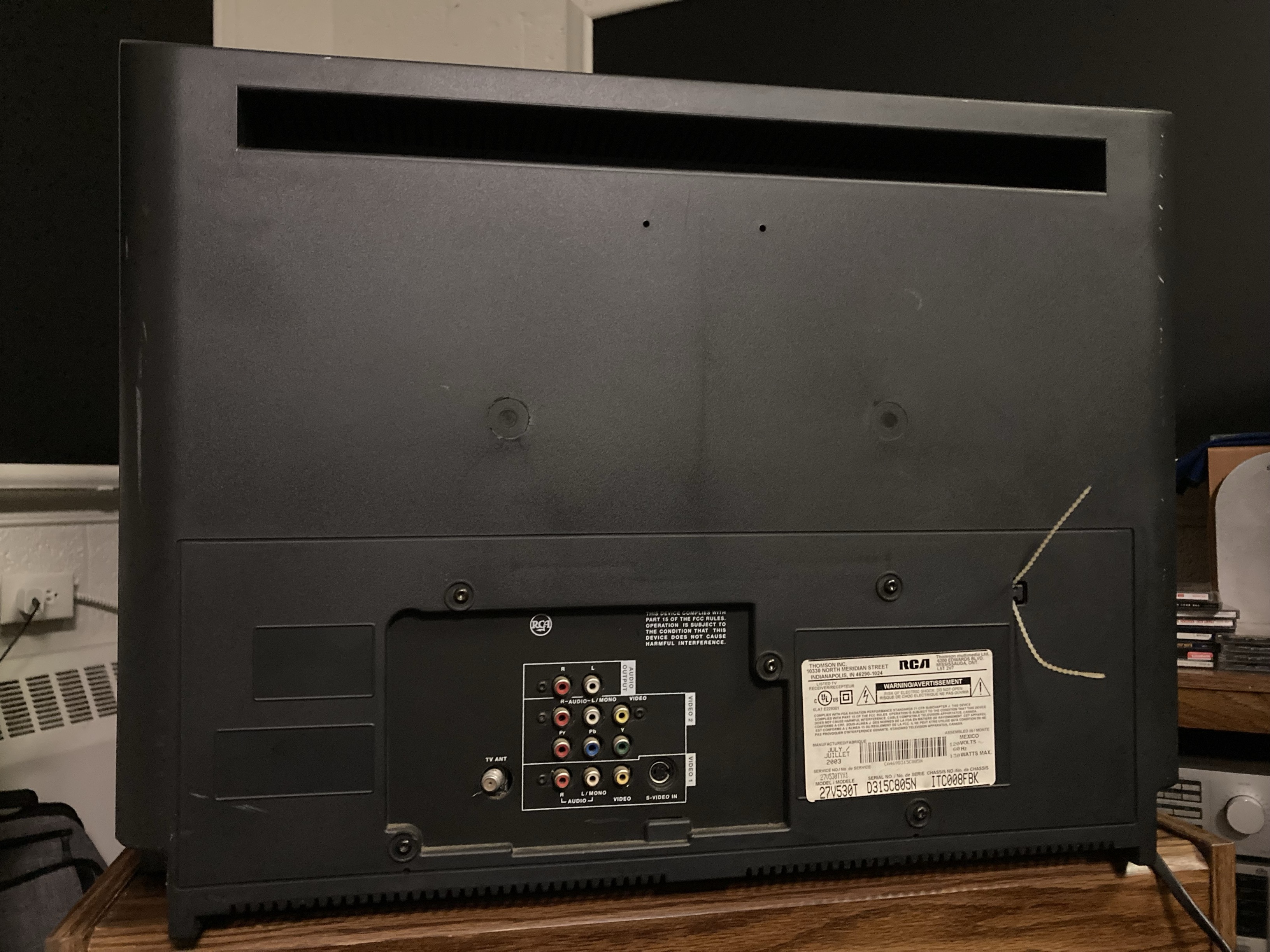

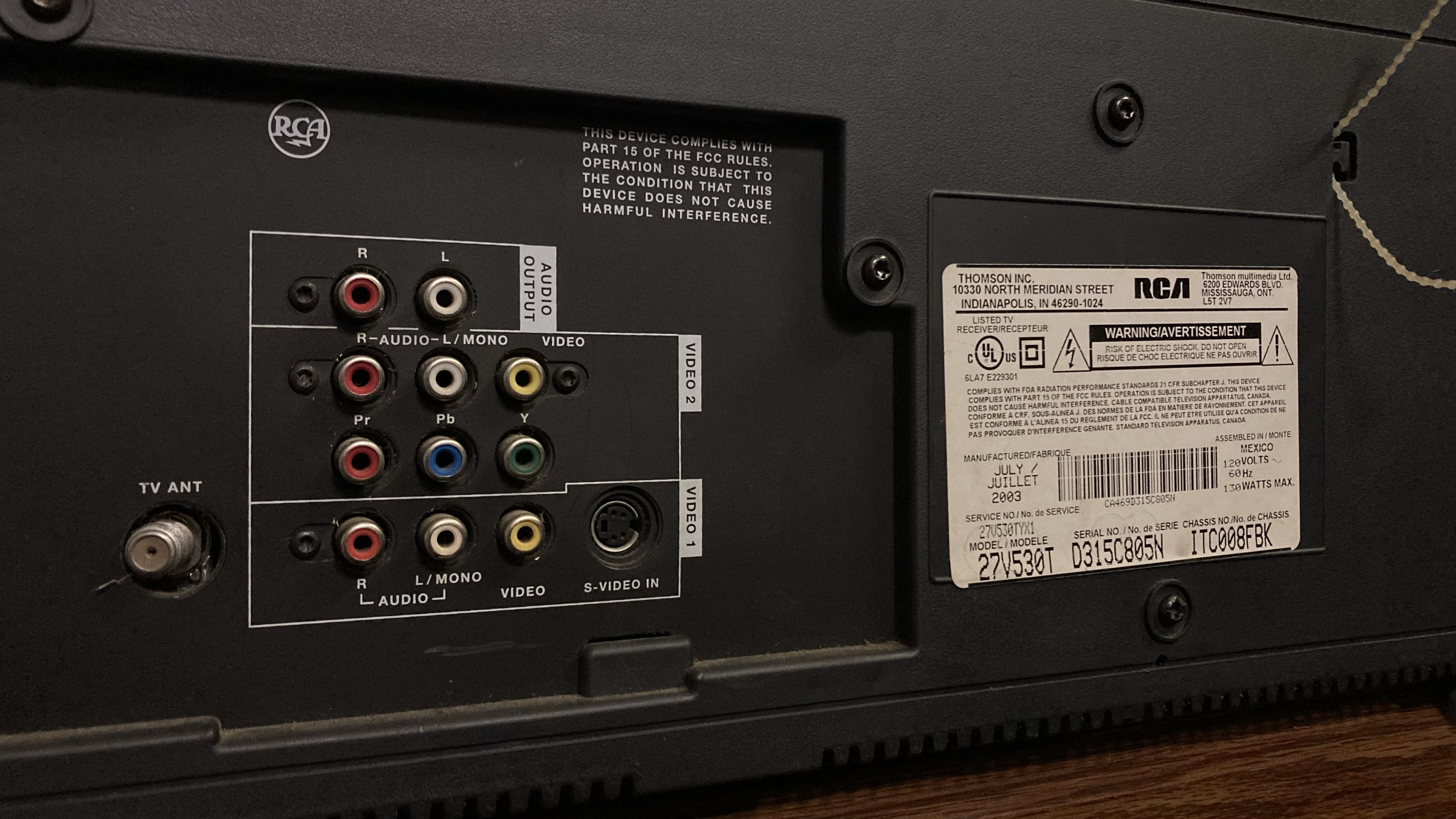

| Inputs: | Composite, S-Video, RF, Component YPbPr |

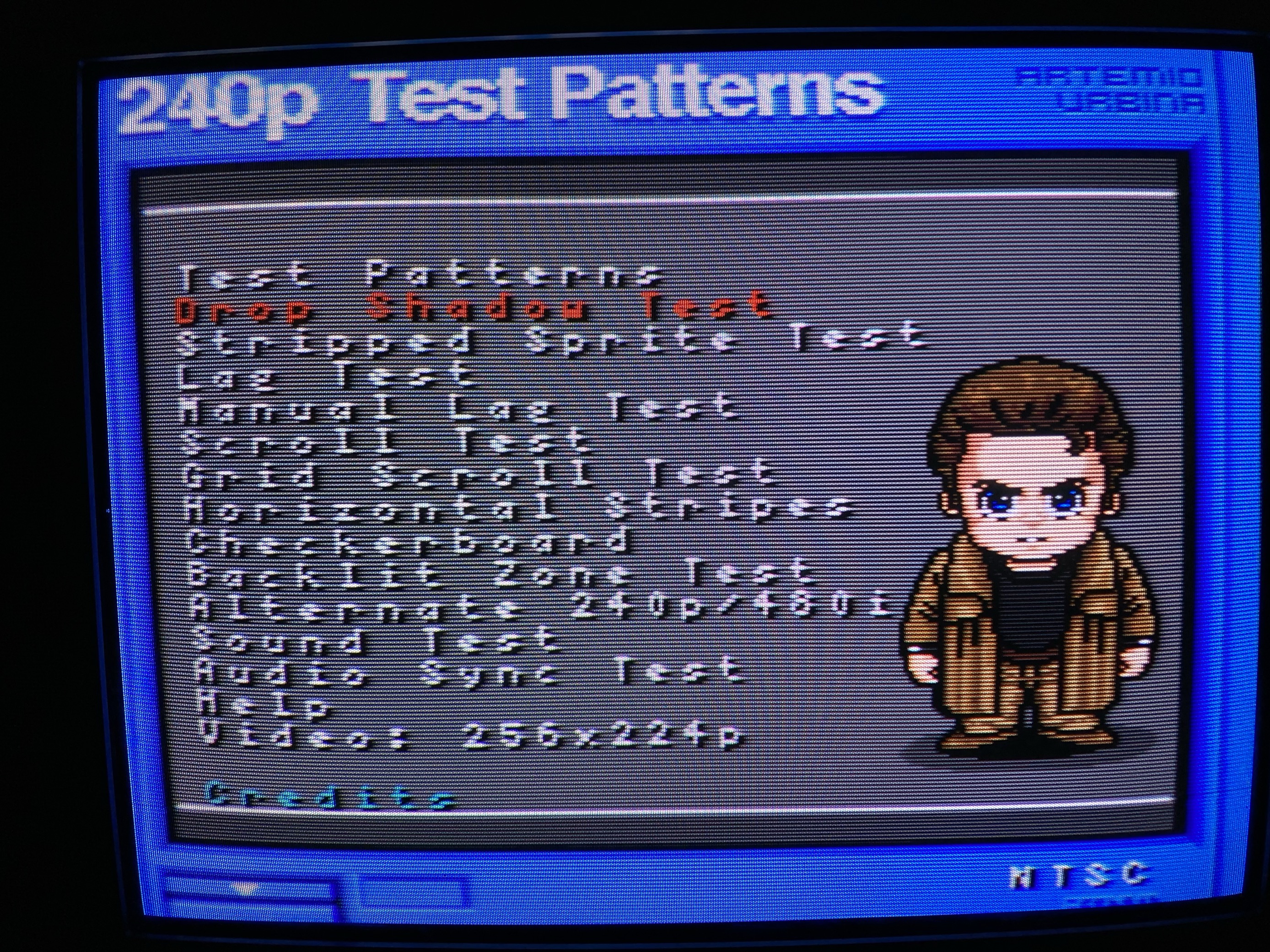

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

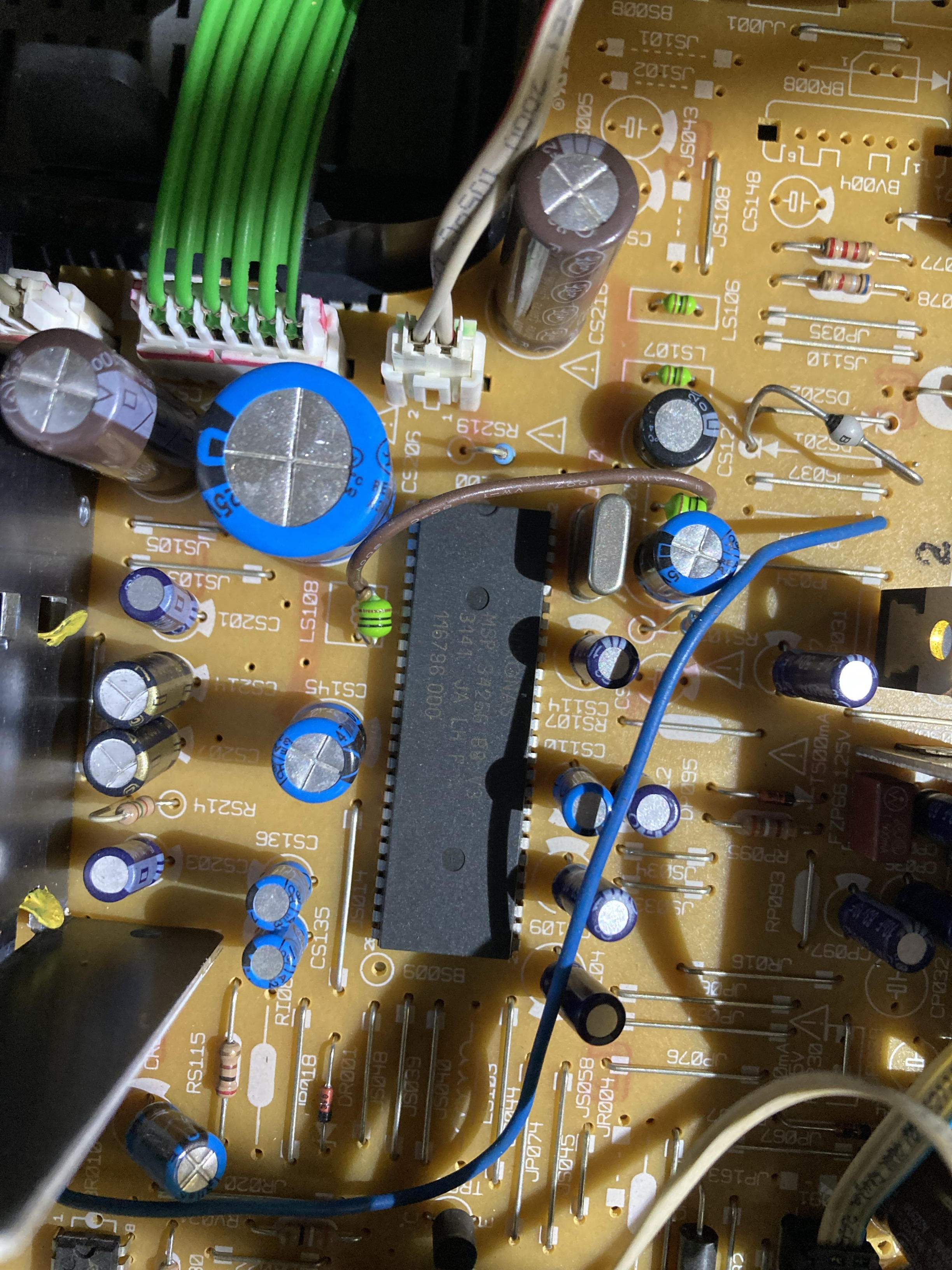

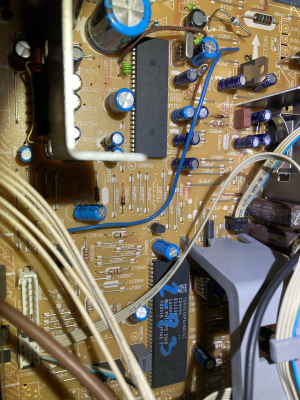

| Jungle IC: | Philips, TDA9378, TDA9378PS |
| Comb Filtering: | 3D Digital |

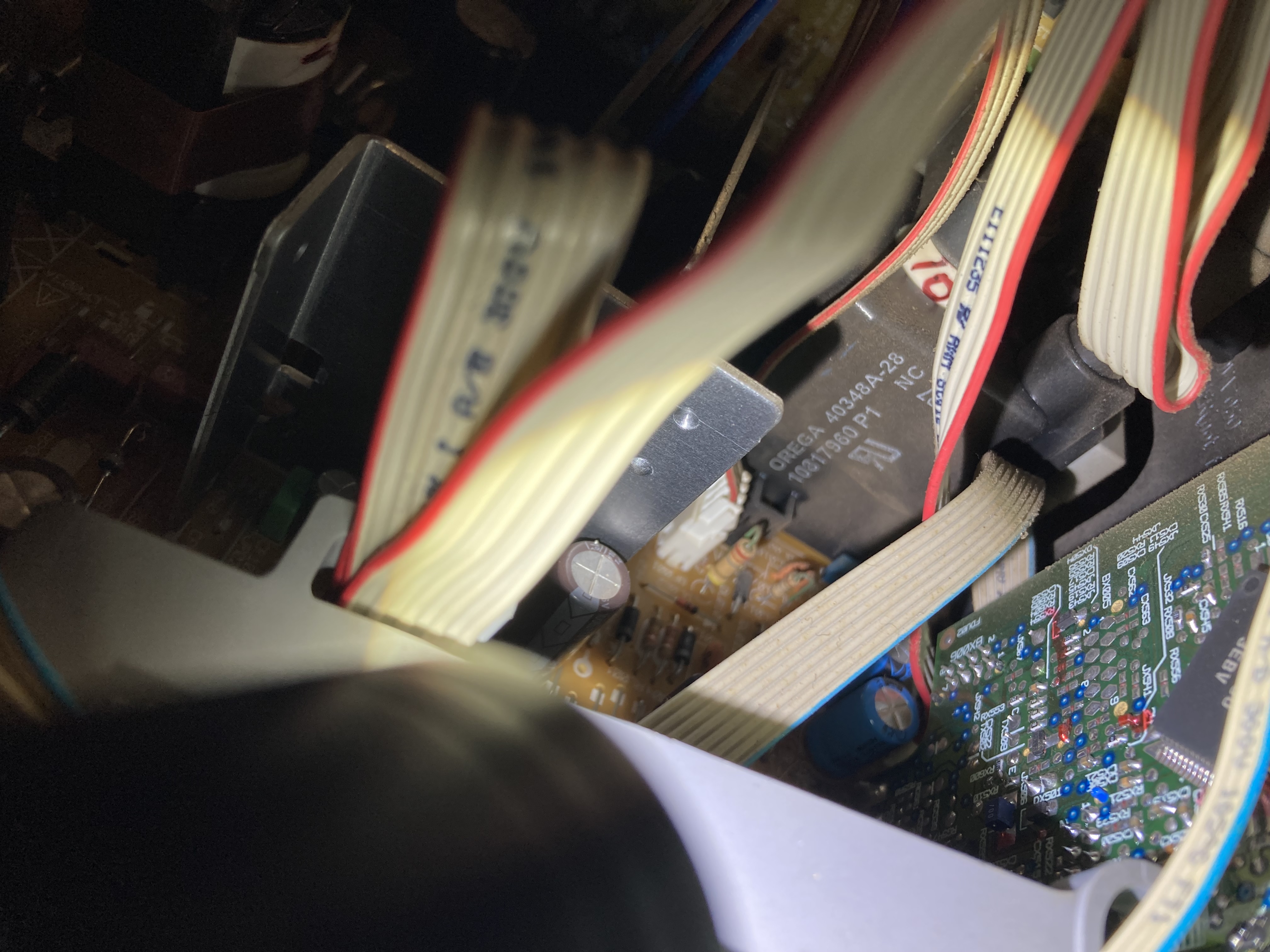

| Flyback: | 40348A-28 |
| Focus Type: | Single |

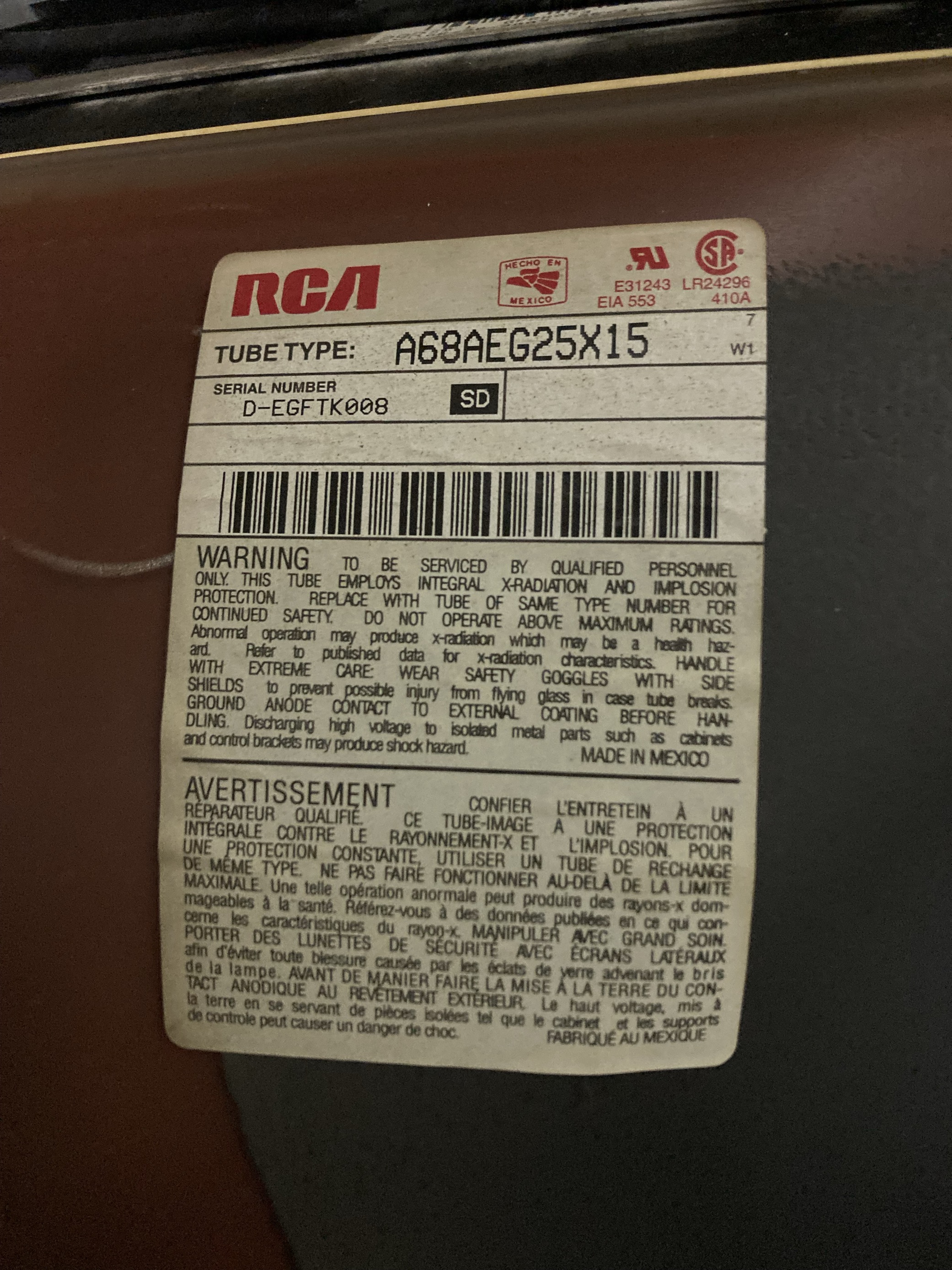

| Tube: | RCA , A68AEG25X , A68AEG25X15 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

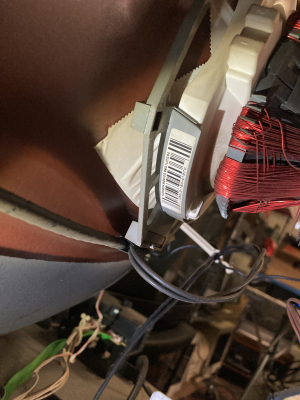

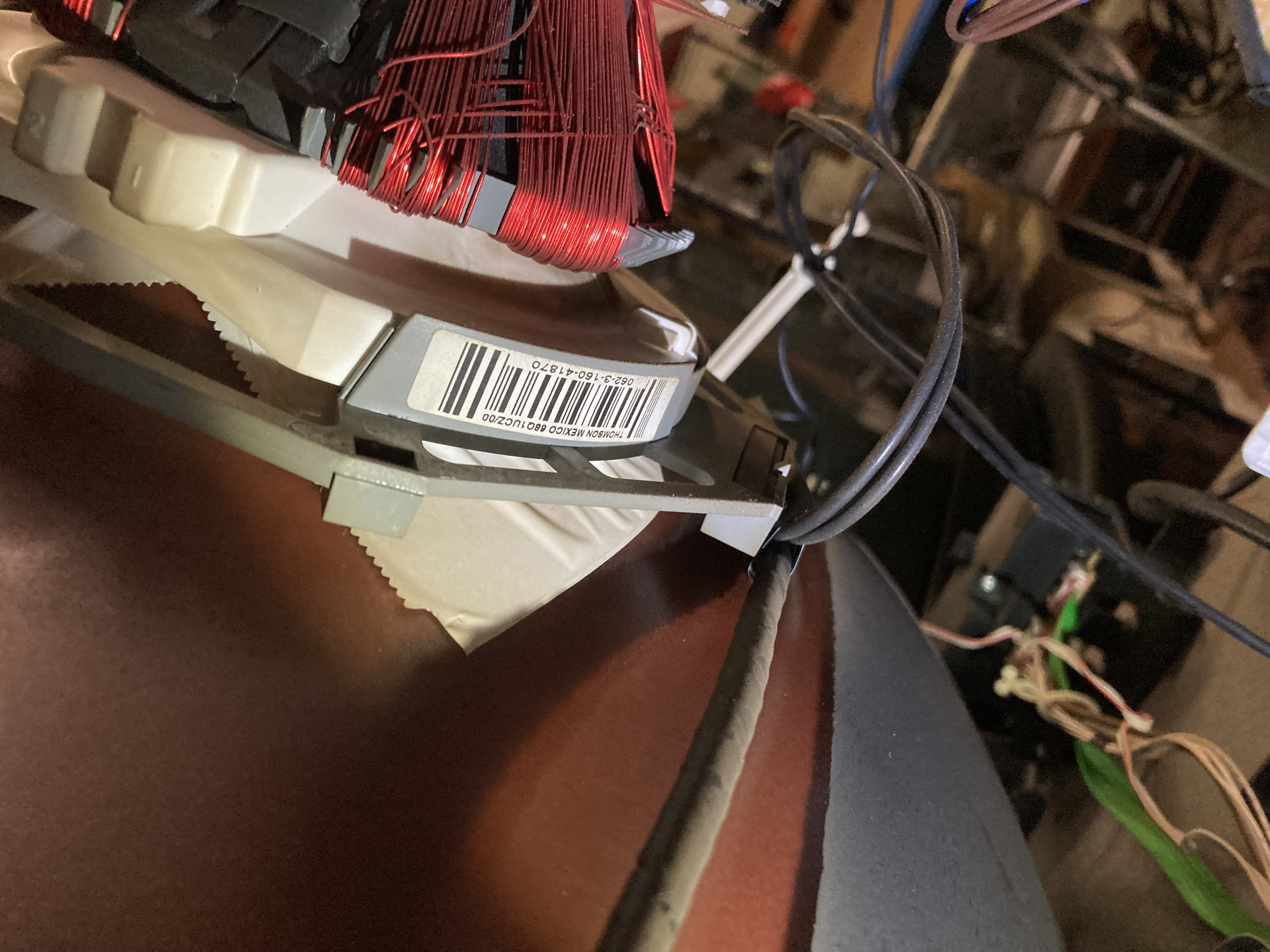

| Yoke: | 68Q1UCZ/00, 062-3-160-41870 |

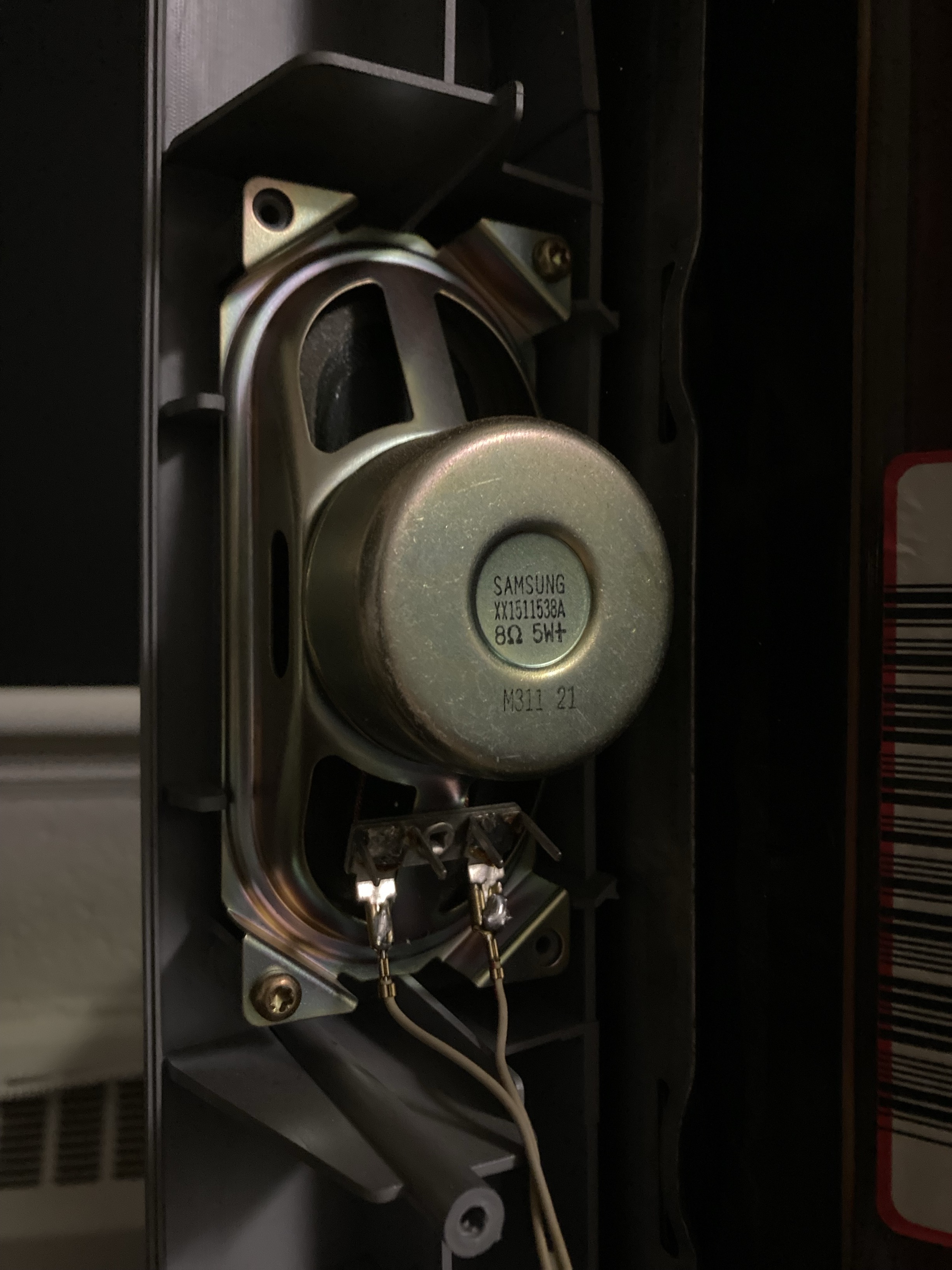

| Speakers: | Stereo, 5W x 2 |
| Remote: | RCR311TBM1 |

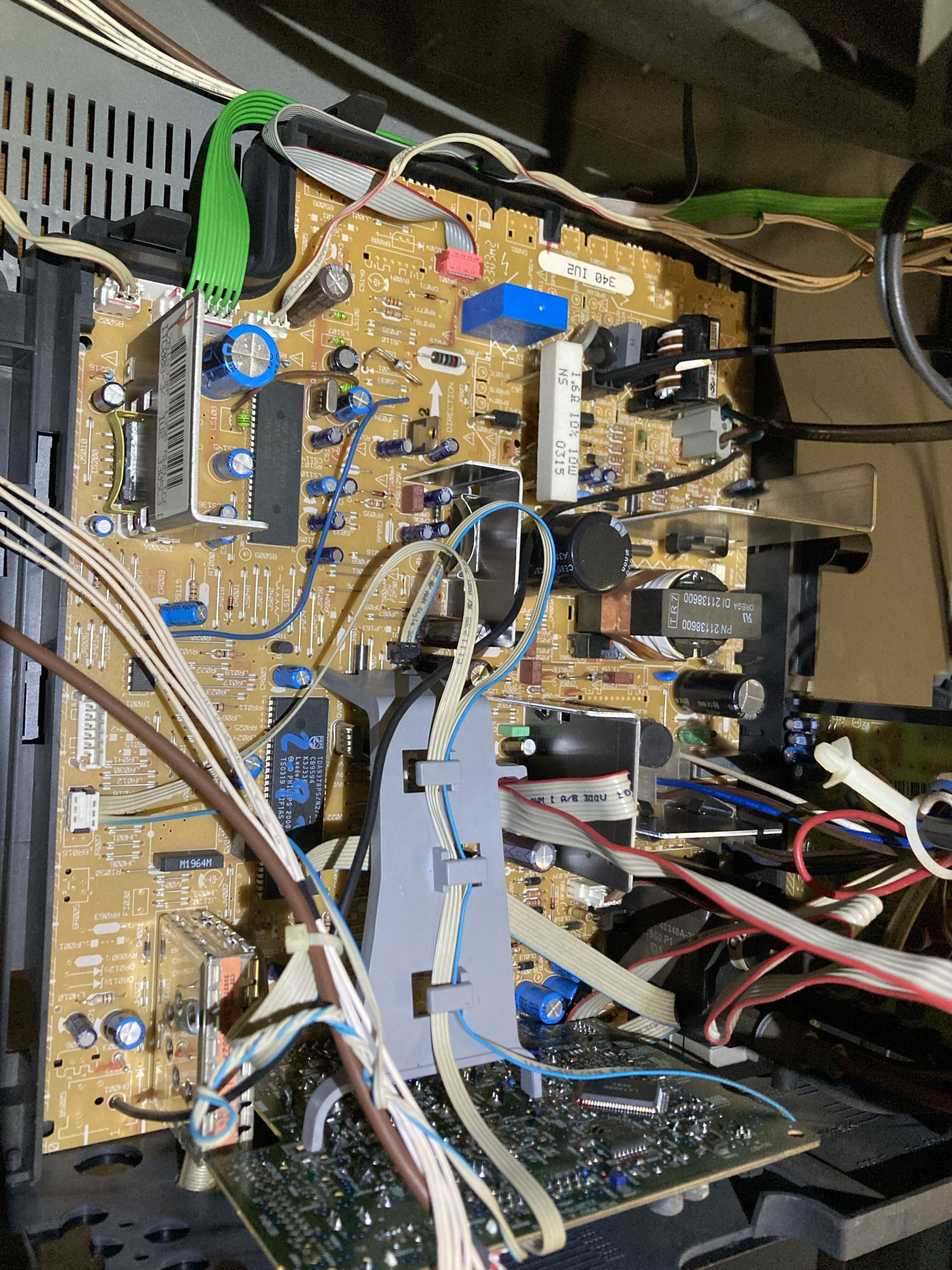

| Chassis: | ITC008FBK |
| Weight: | 82 lbs (37.2 kg) |
| Dimensions (W/H/D): |
762 x 576 x 510 mm
(29.9 x 22.6 x 20") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 329 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
