Summary

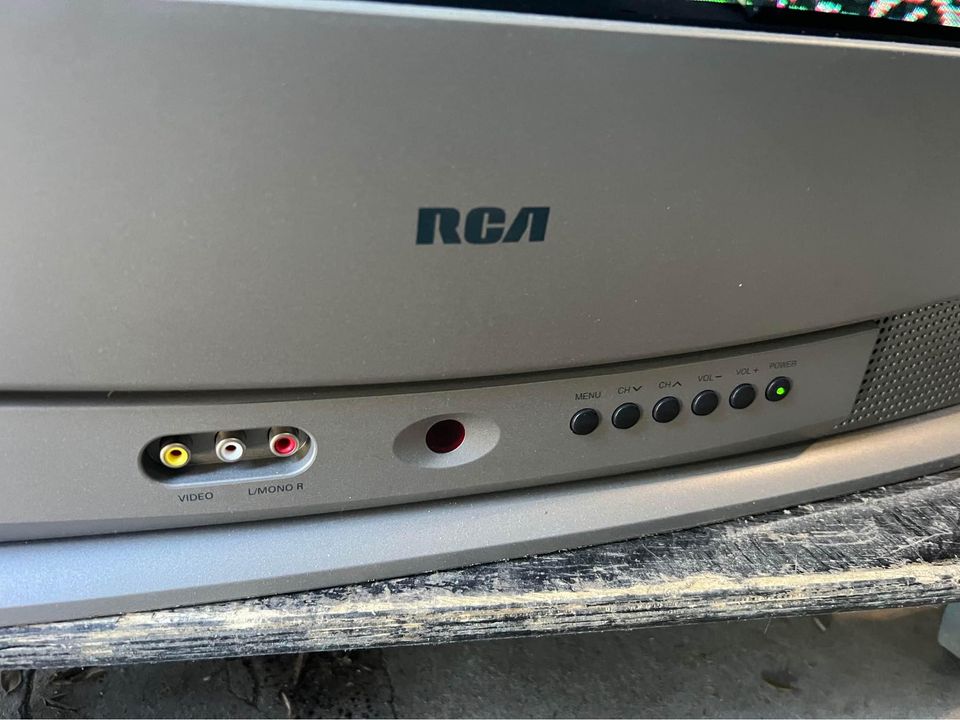

An excellent 32" set by RCA. HHas a full set of inputs: RF, composite, s-video and component inputs. Made by Thomson's Mexico facility in 2004.
(Special thanks to Benjamin Wadle for the pics!)
Manuals
- Spec Sheet
- Owner's Manual
- Sam's Photofact for a TXY1 variant
Promo Materials
Notes

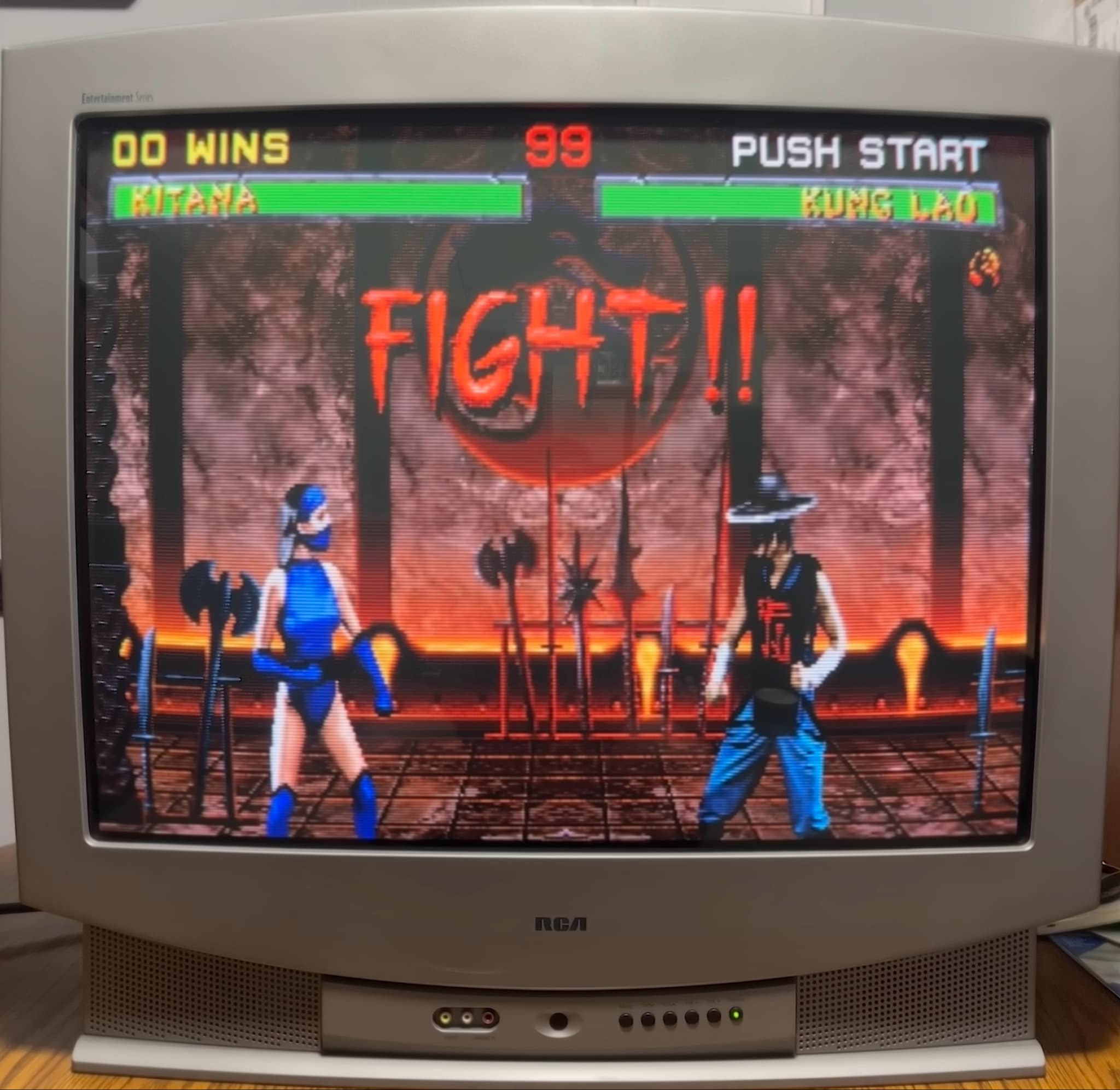

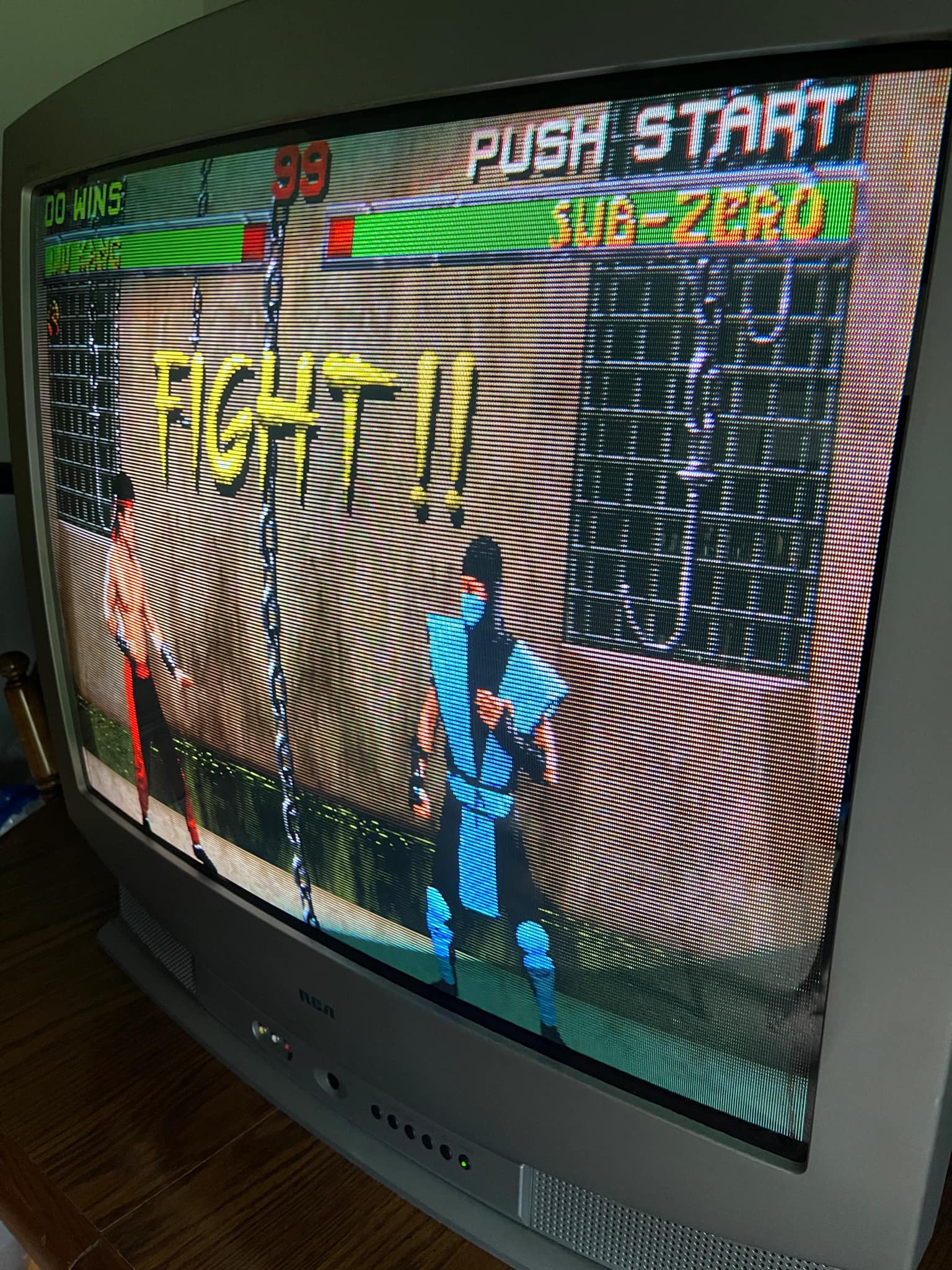

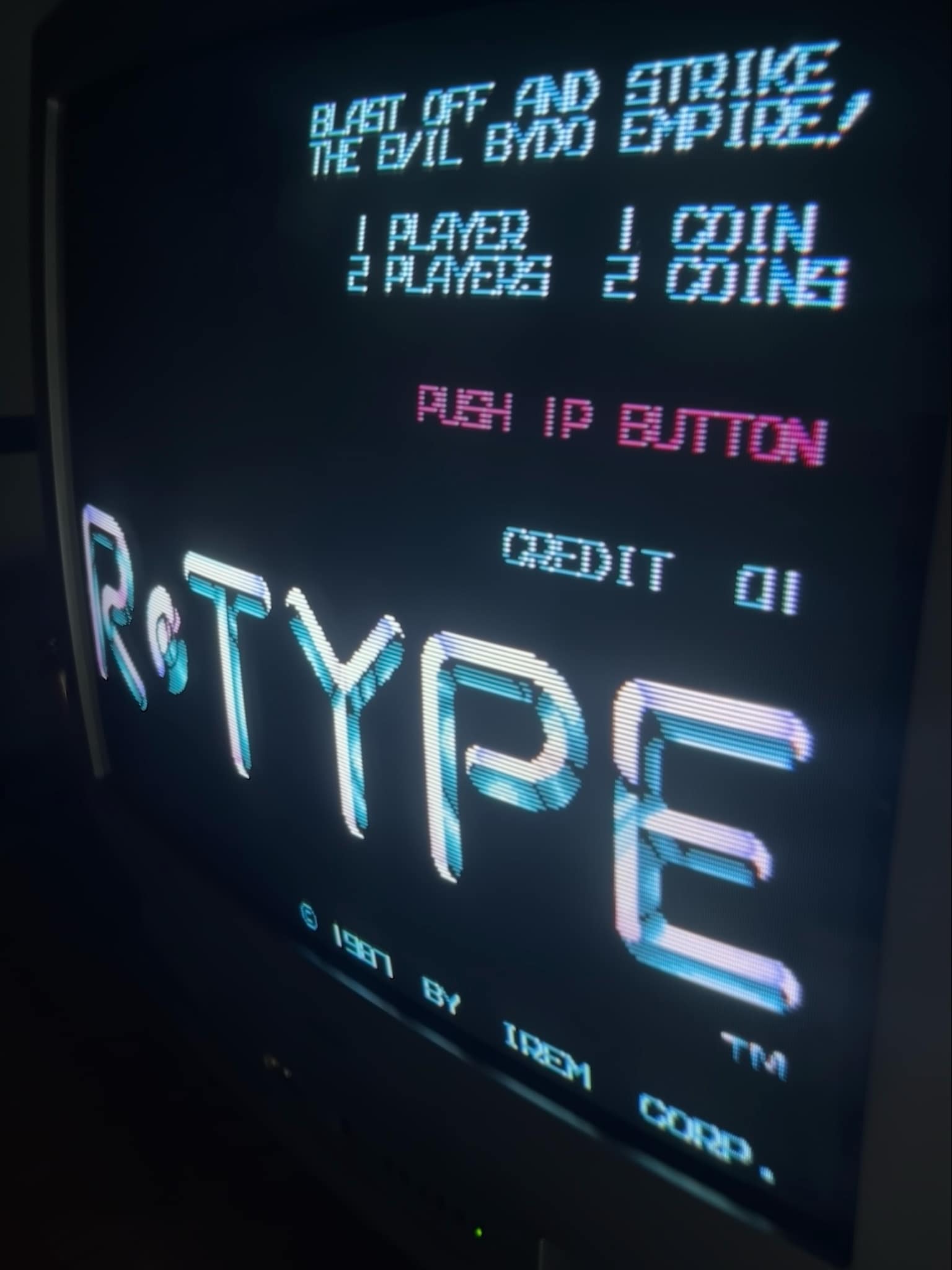

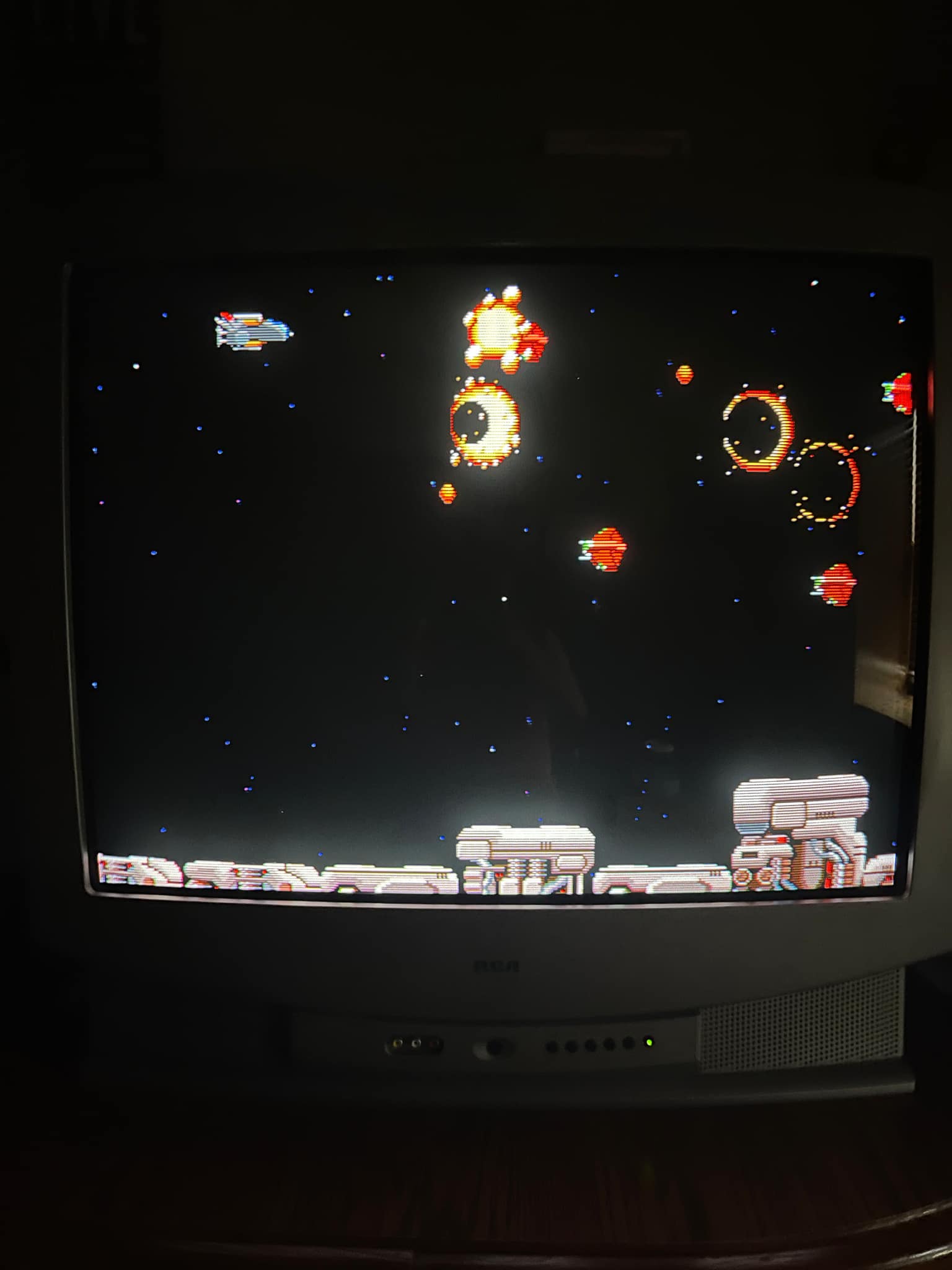

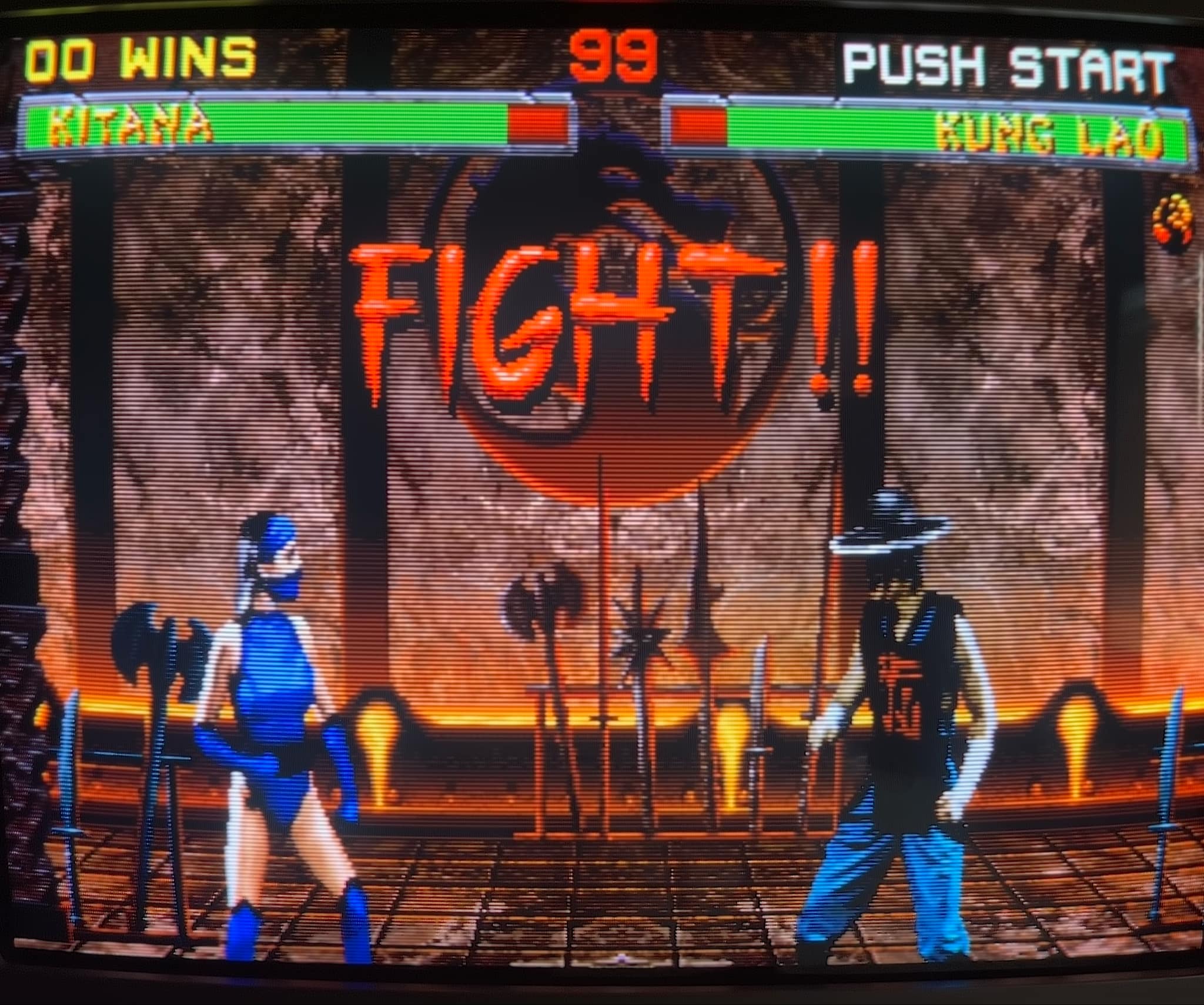

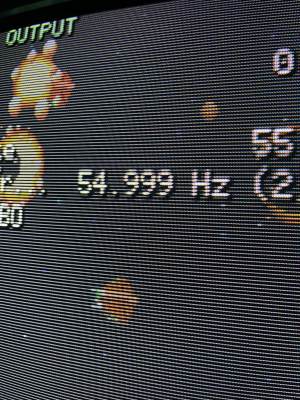

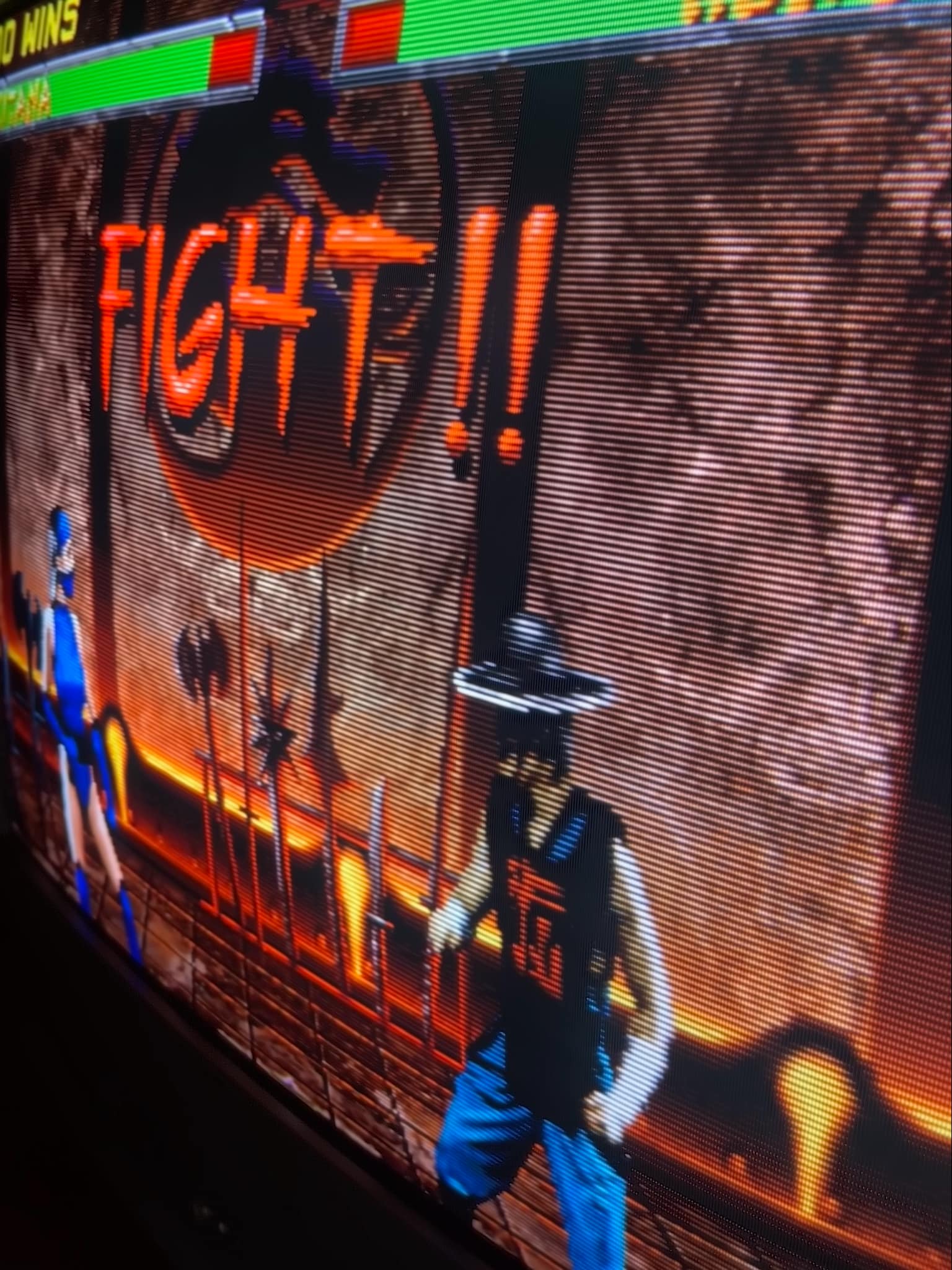

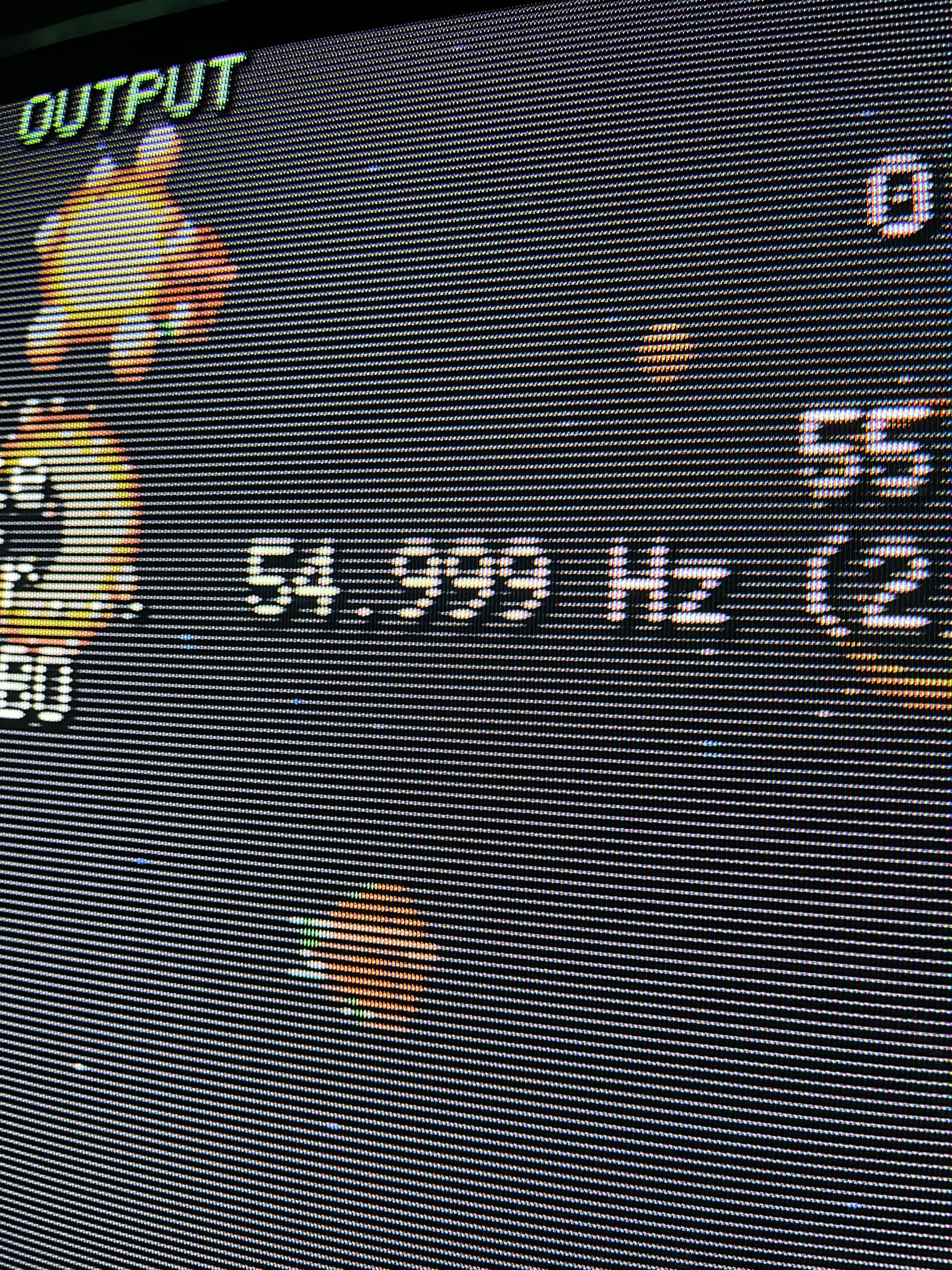

The Philips jungle chip allows for 50hz and other oddball resolutions and refresh rates within a 15khz range. However, only over component will they be in color. Mortal Kombat is 400x254p at 53.6hz and the RCA displays it like a champ. Same with R-Type's 384x256p at 55hz. It's insane!
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | 32V430T |
| Series: | Entertainment Series |
| Viewable Size: | 32" |

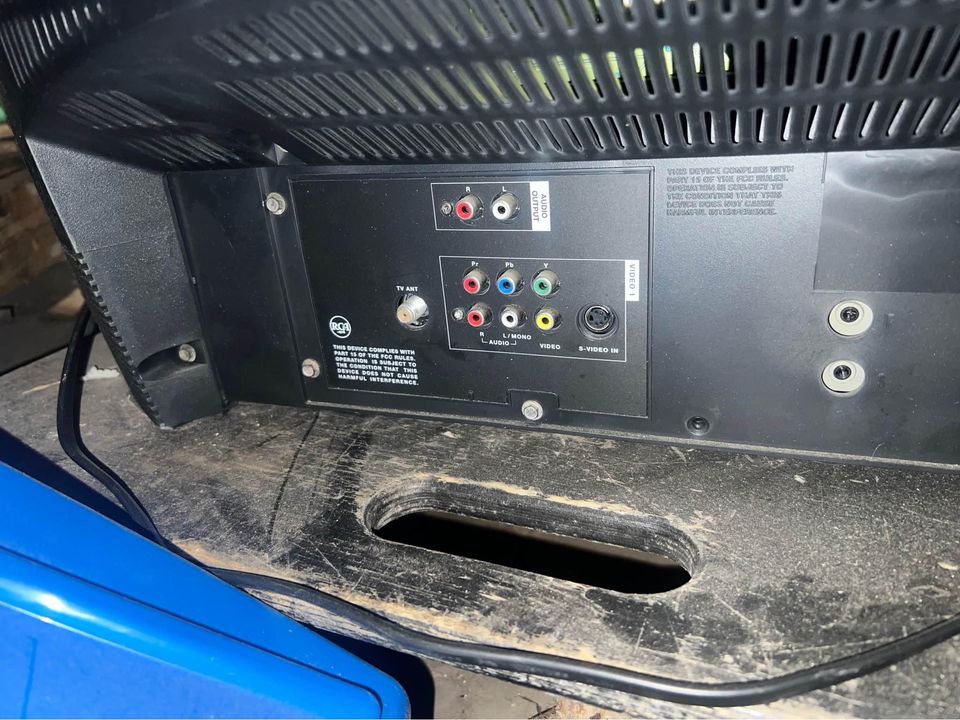

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Philips, TDA9378, TDA9378PS |
| Comb Filtering: | 3-Line Digital |
| Focus Type: | Single |
| Tube: | Thomson , RCA , A80AEJ15X , A80AEJ15X09 , Panasonic , M80JUA061X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |
| Remote: | RCR311TBM1 |
| Chassis: | ITC008GYN, ITC008 |
| Weight: | 120 lbs (54.4 kg) |
| Dimensions (W/H/D): |
765 x 737 x 572 mm
(30.1 x 29 x 22.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 529 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
