Summary

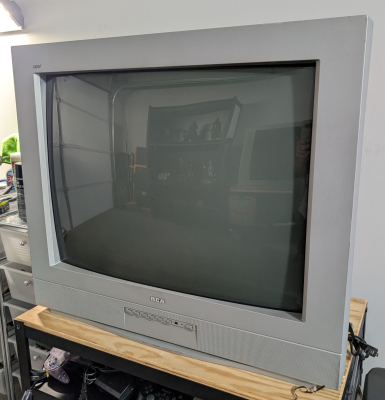

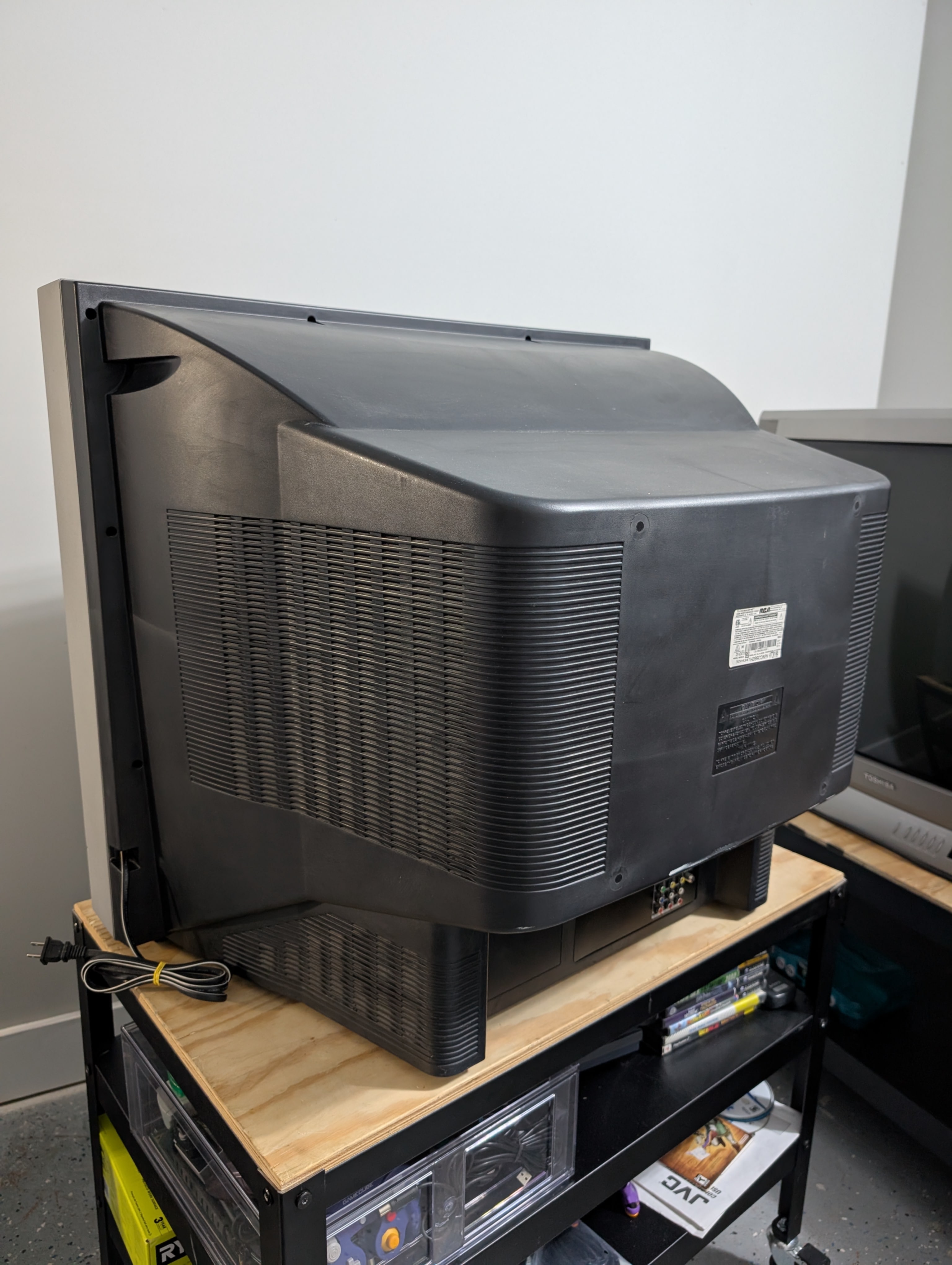

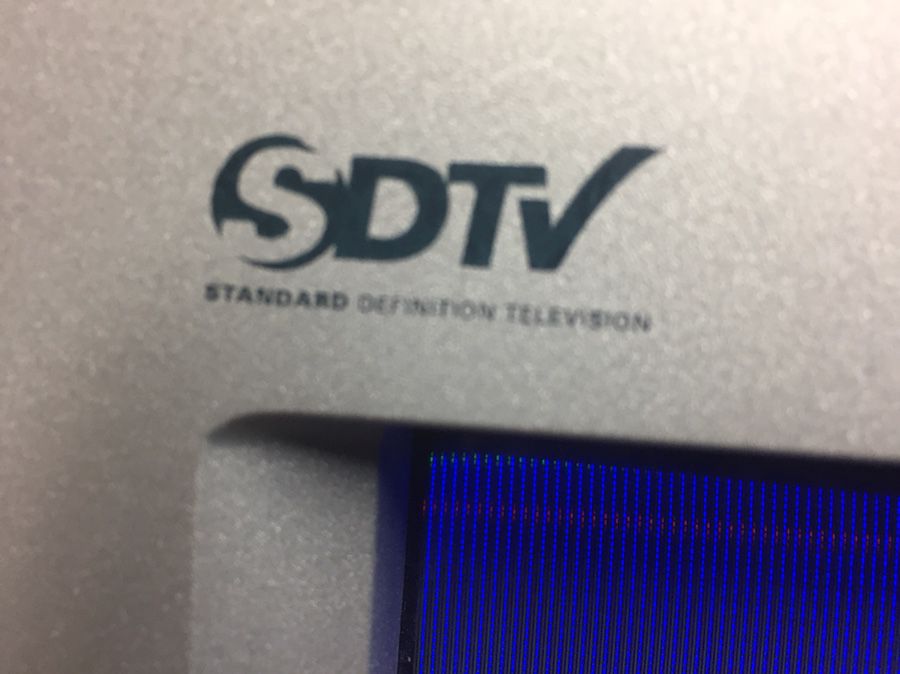

32" RCA CRT from 2006. Originally manufactured by TTE Technology in Mexico. Uses the same case as the 32V432T, but now has an ATSC tuner indicated by the SDTV logo in the upper left corner.
(Special thanks to Shane Torvik and Michael Lopez for the pics!)
Manuals
Notes

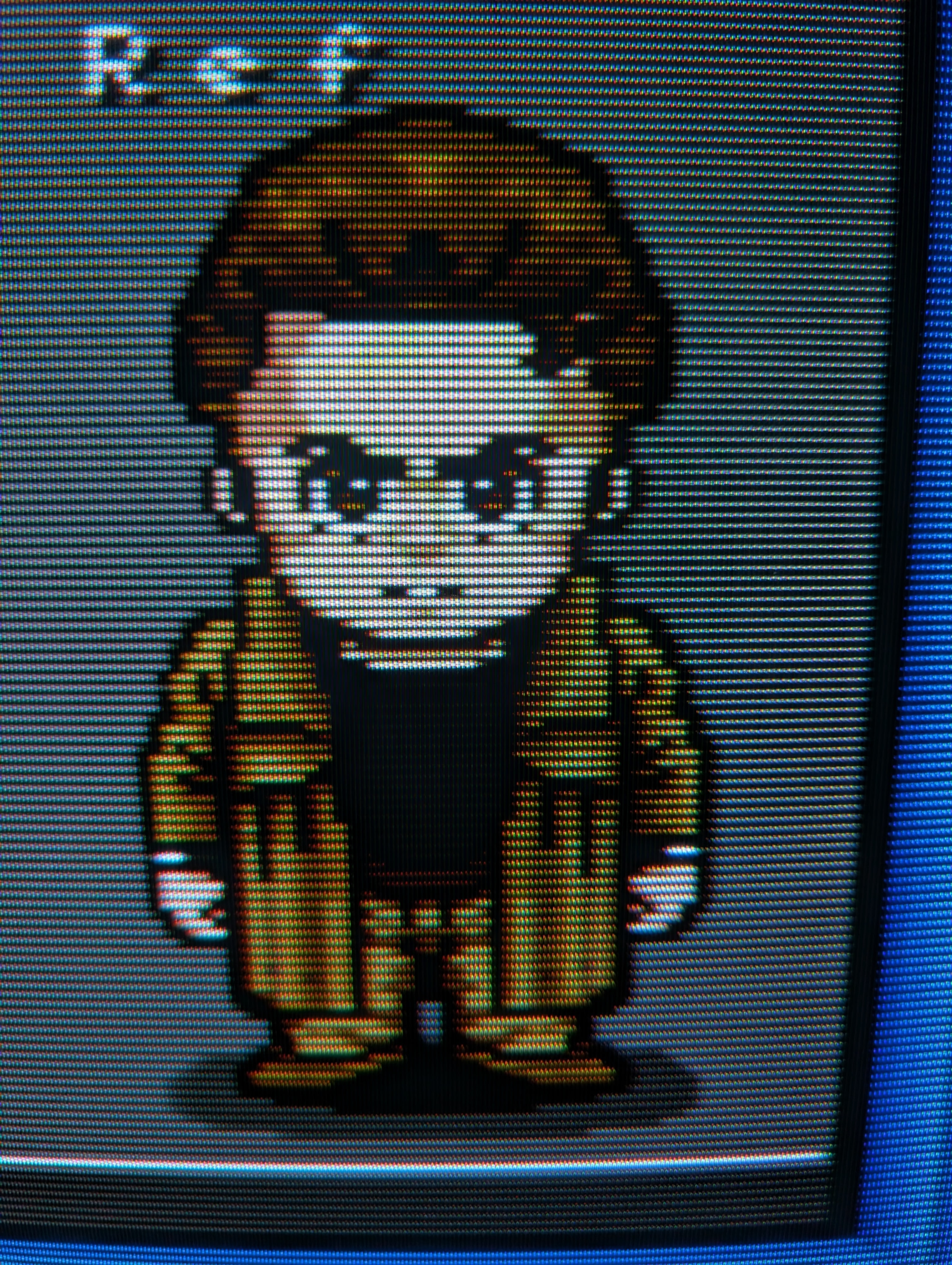

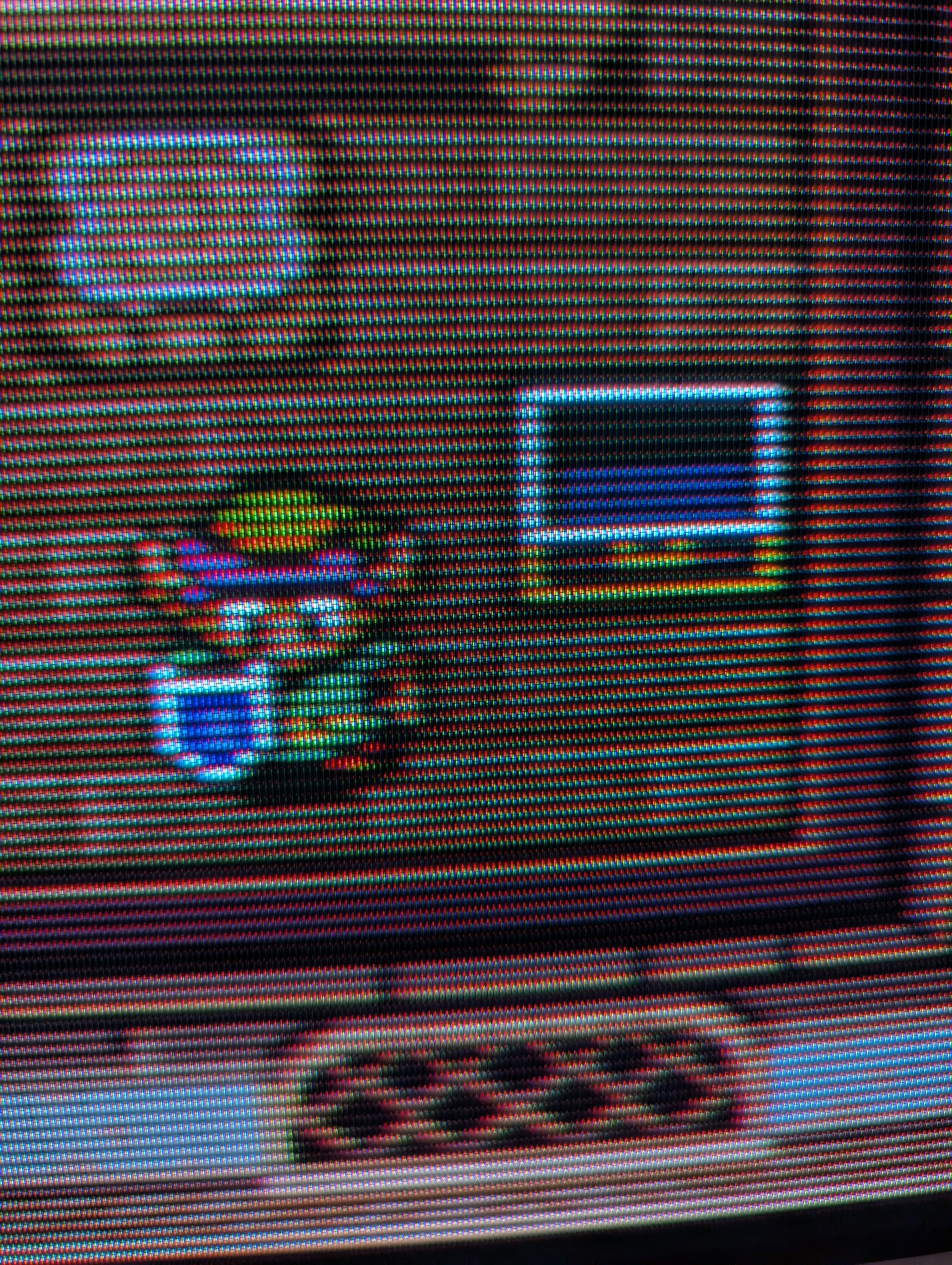

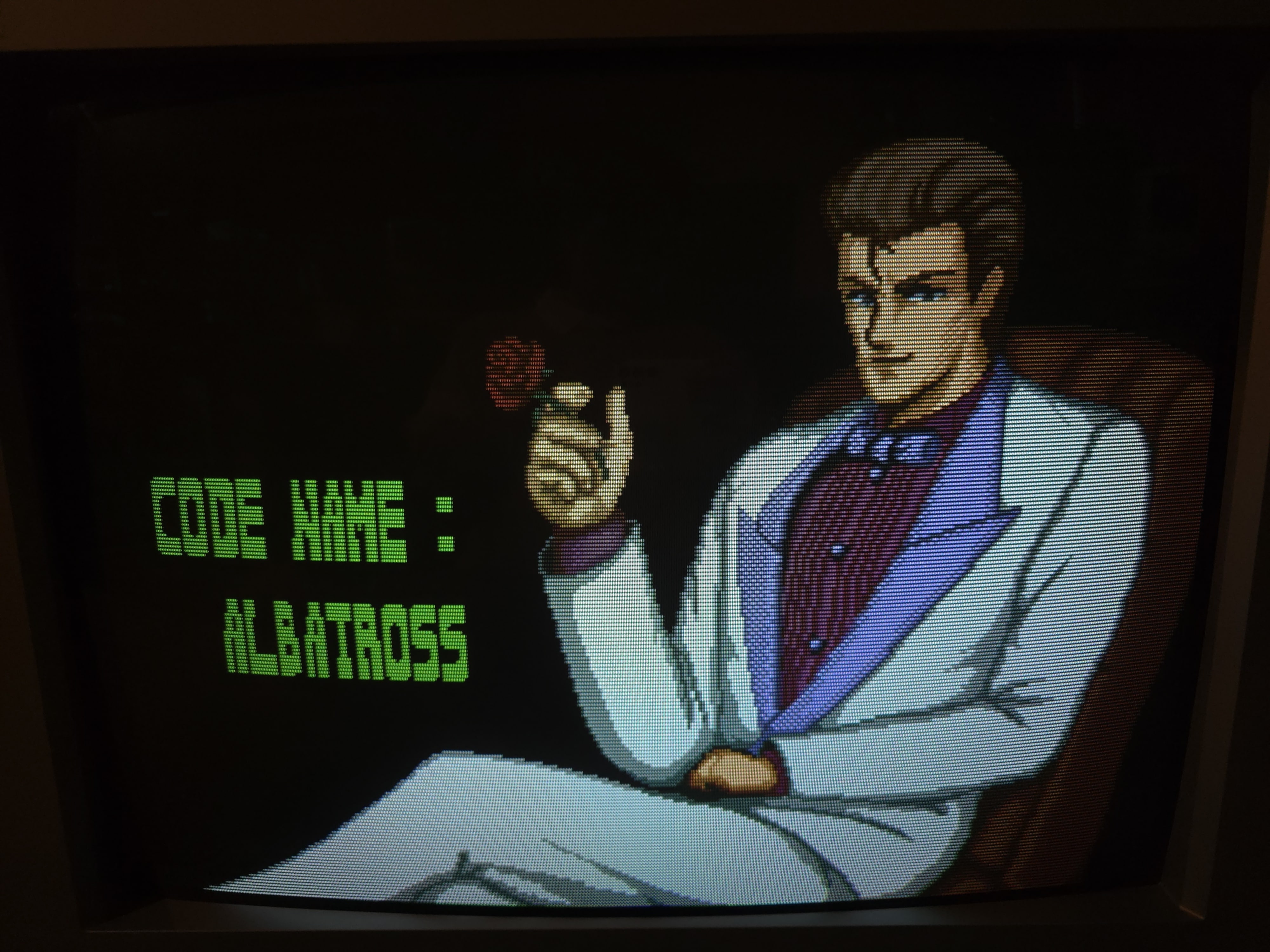

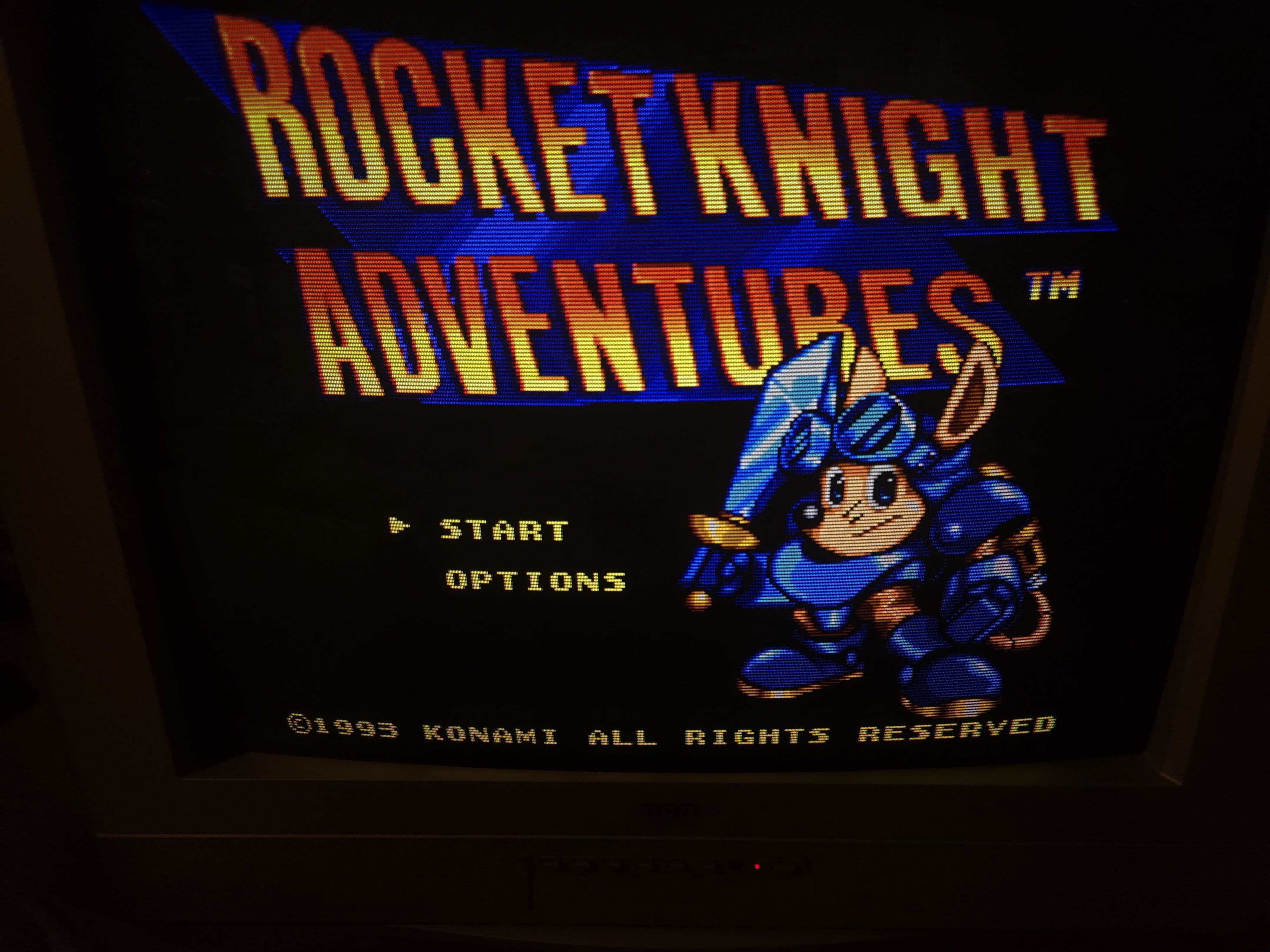

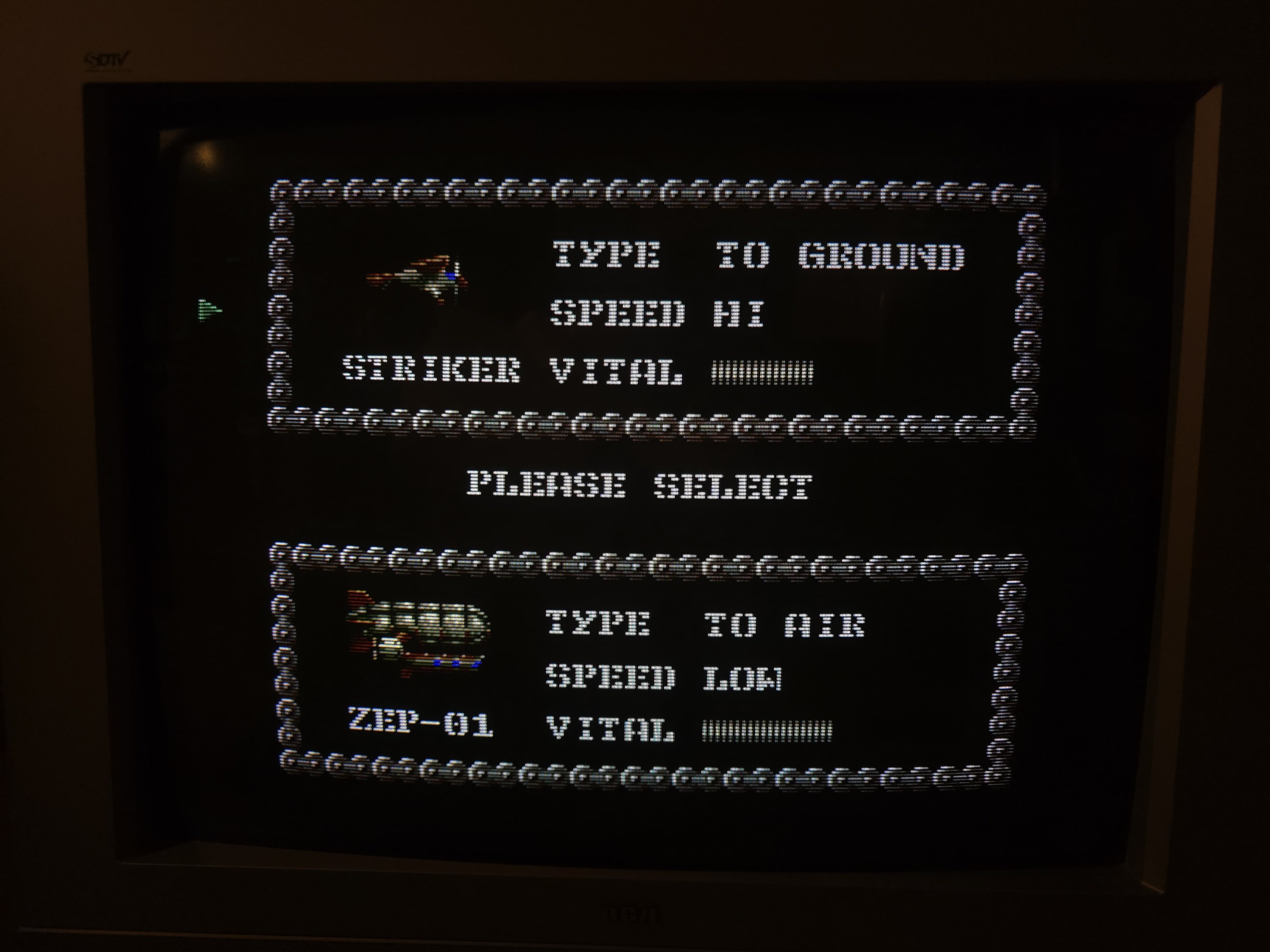

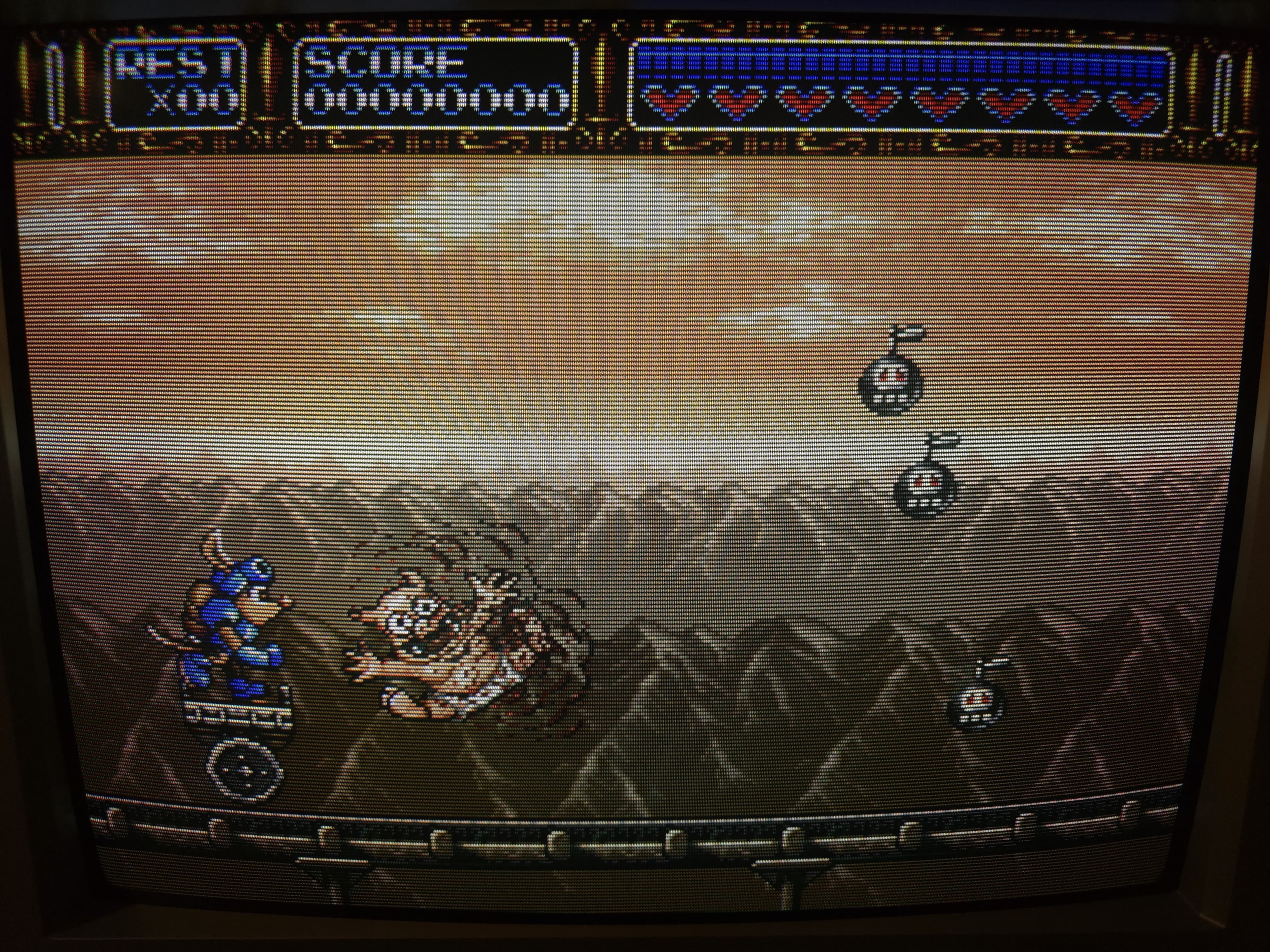

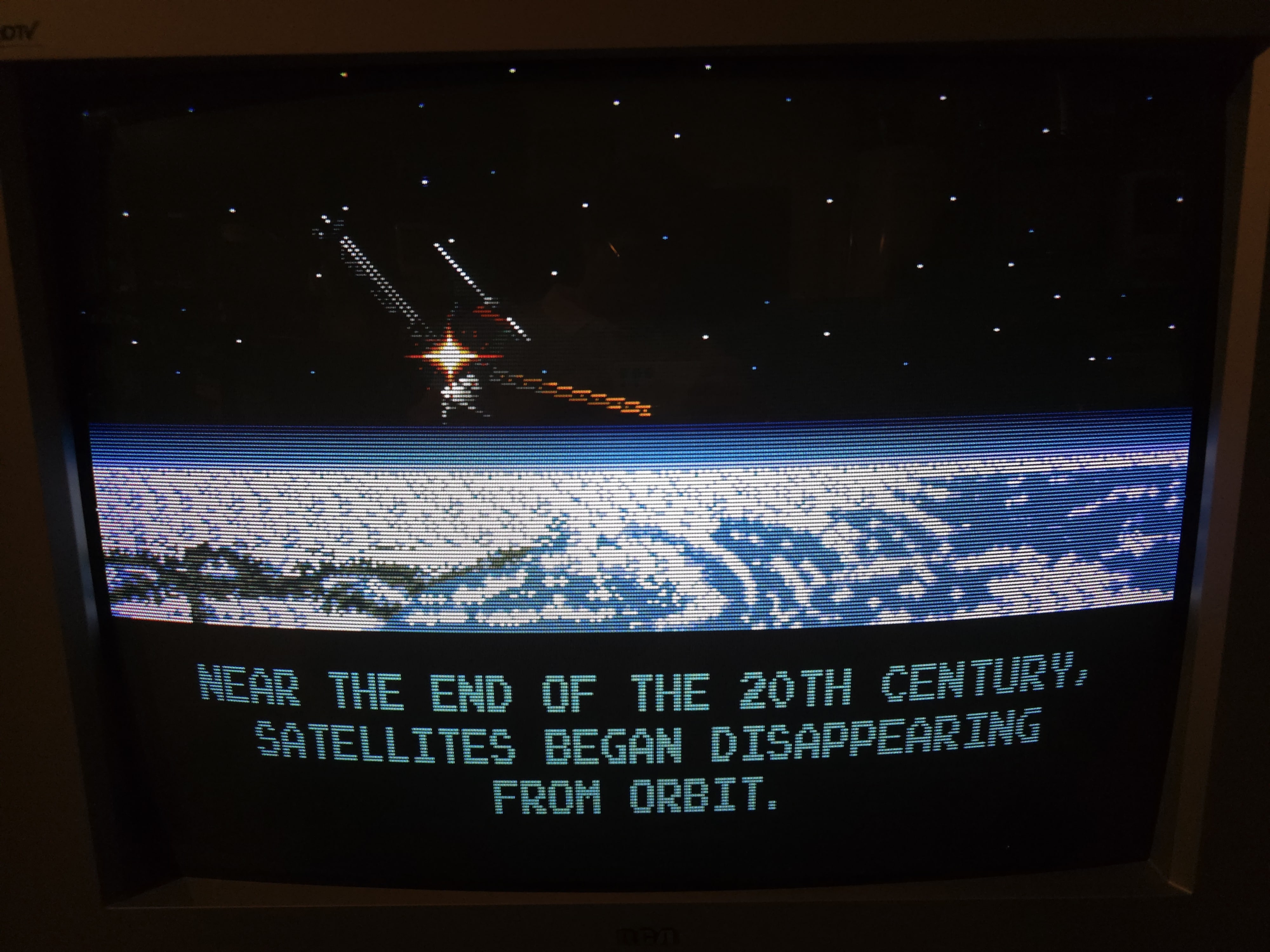

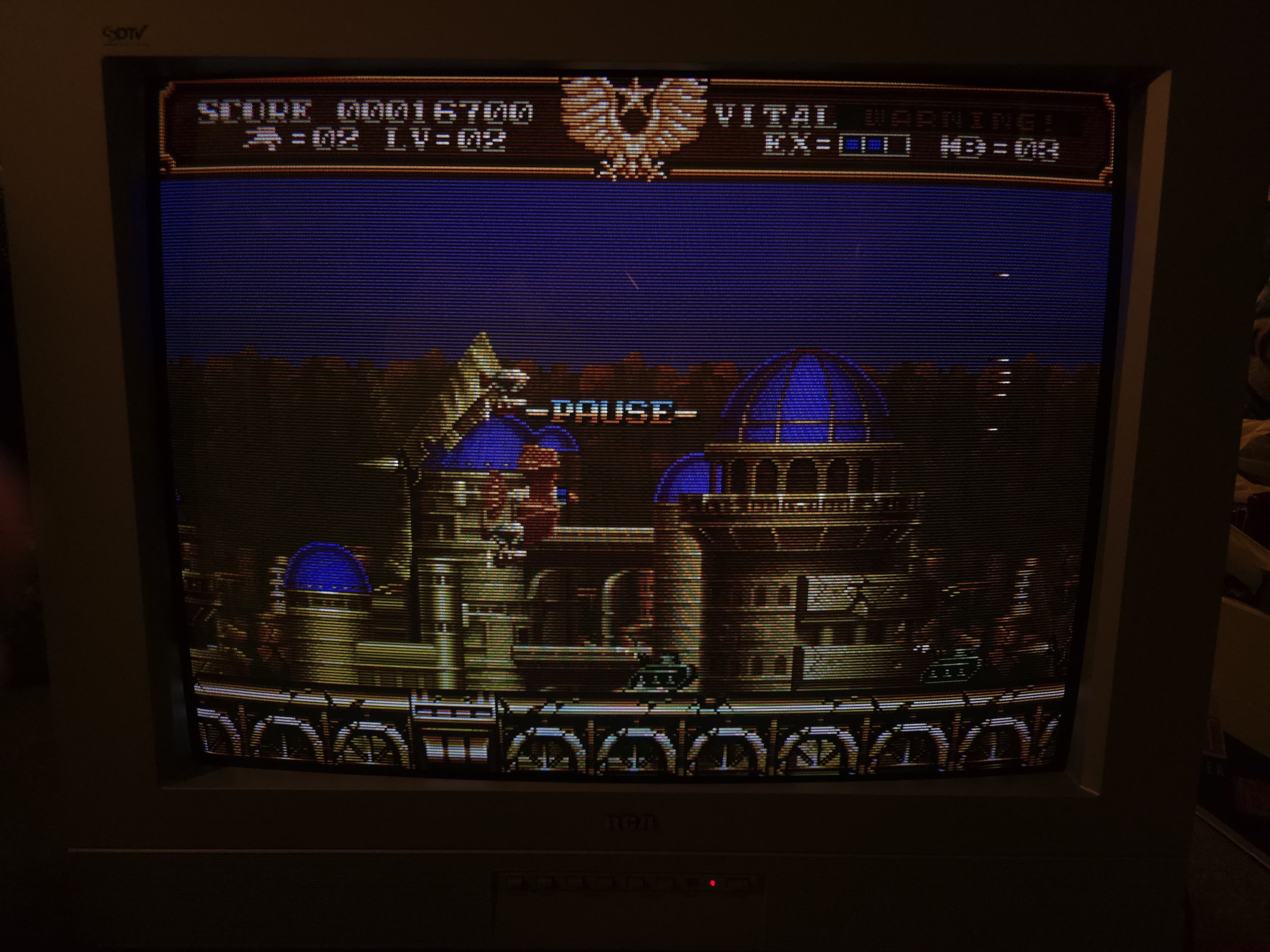

This is a surprisingly great set. The component video quality is superb, in that there is no pushing of the reds and blues at all. Its just a clean YPbPr signal. No enhancements, no extra processing.

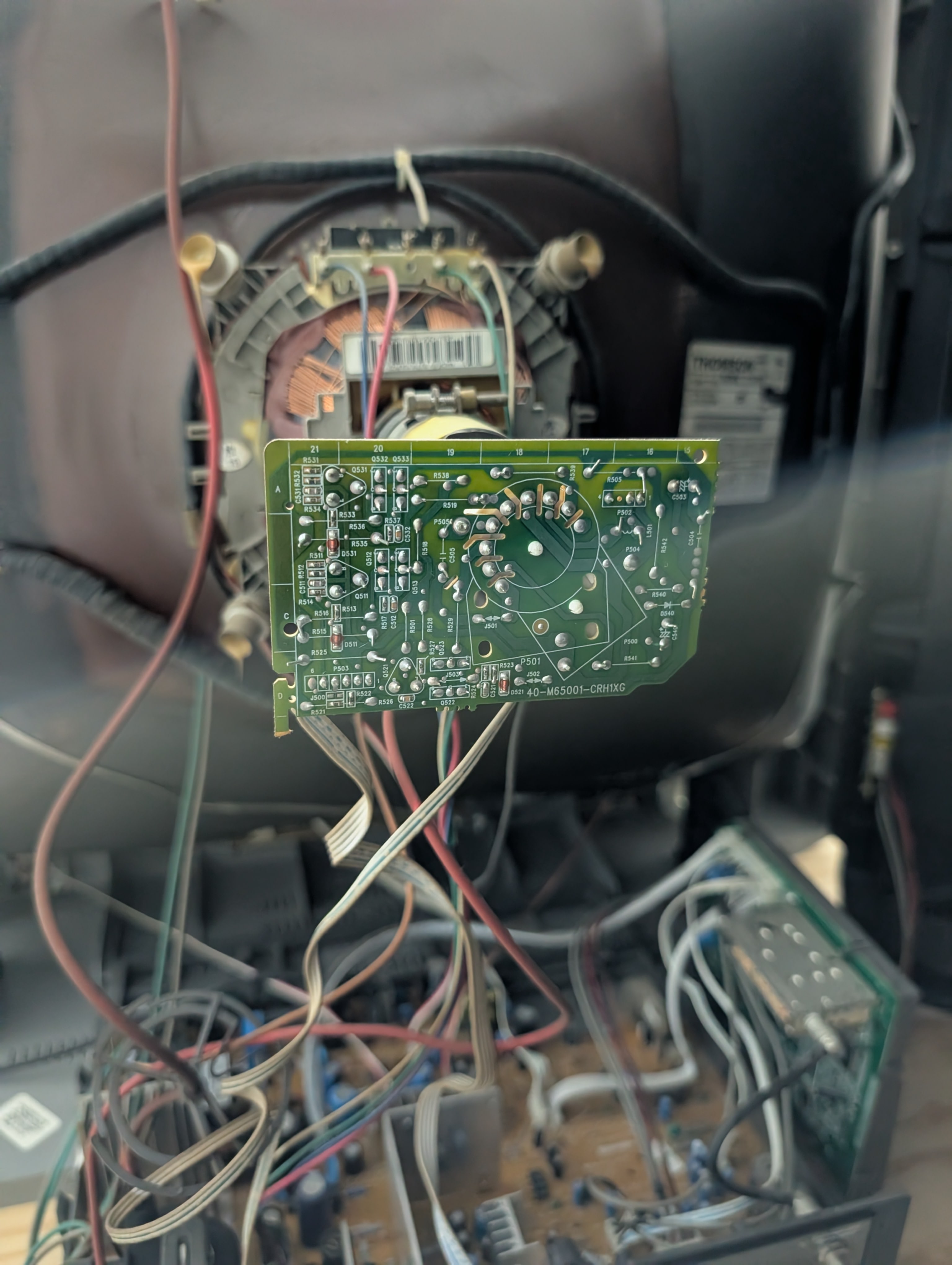

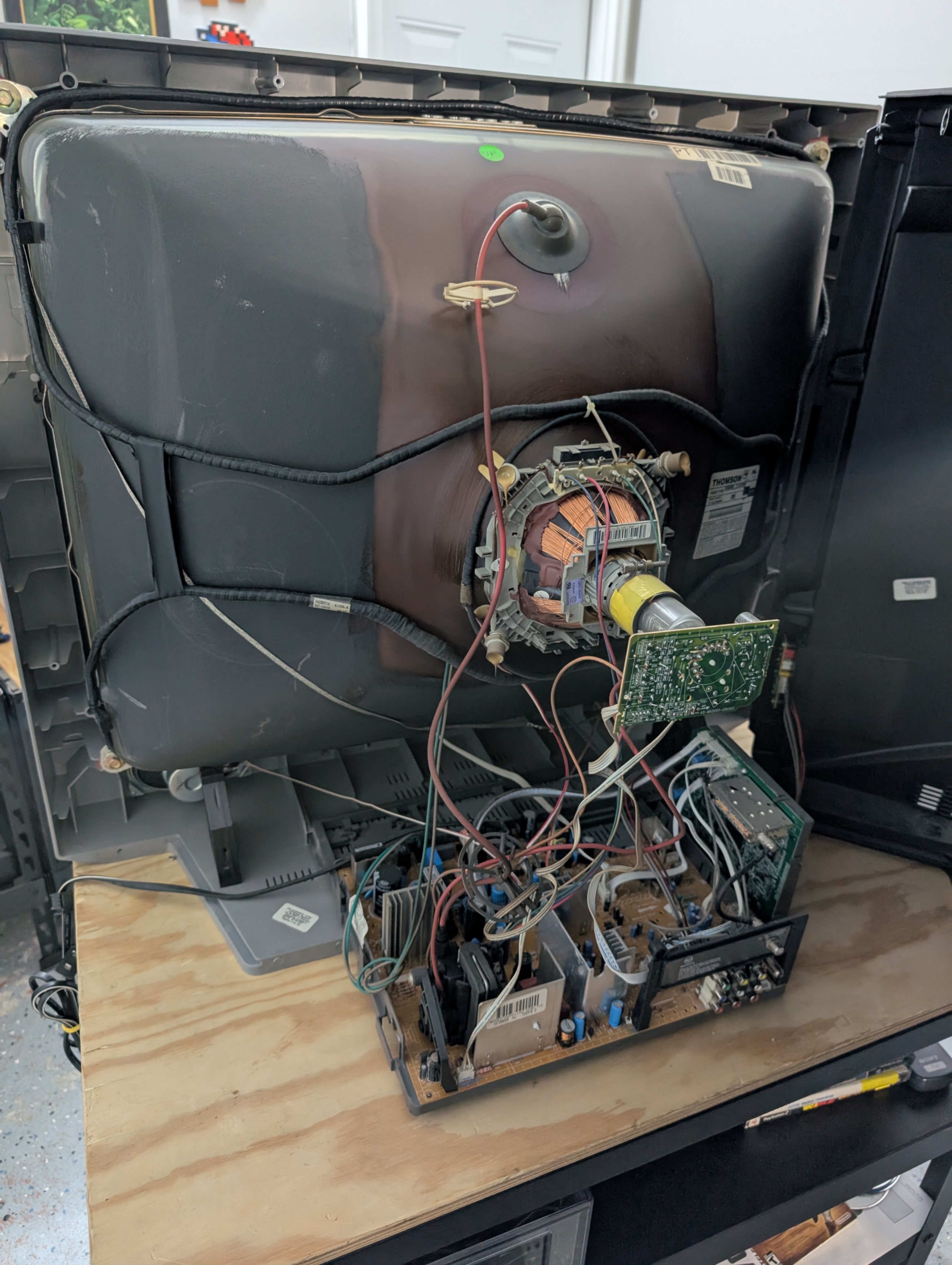

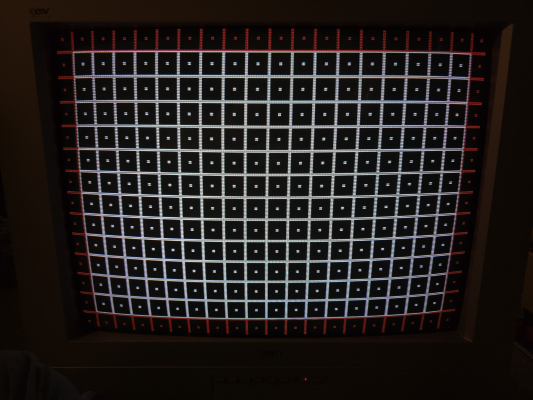

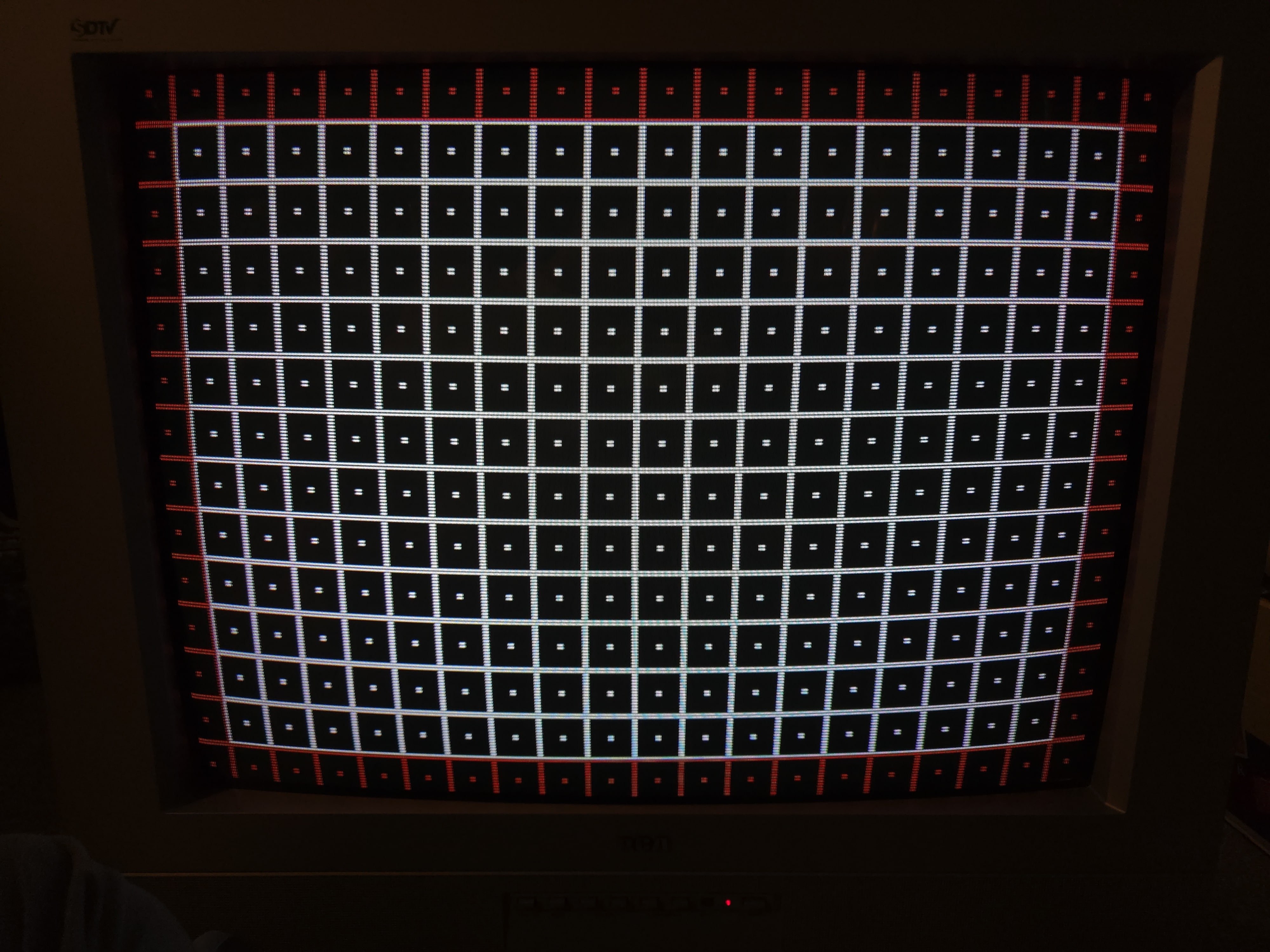

Picture tube is part of the AEJ family RCA introduced years prior, but now produced by Thomson at their Mexico plant. And it's a darn good tube! Great geometry, convergence, and pretty reliable.
Seriously, when these sets are low hours, they seriously look great!

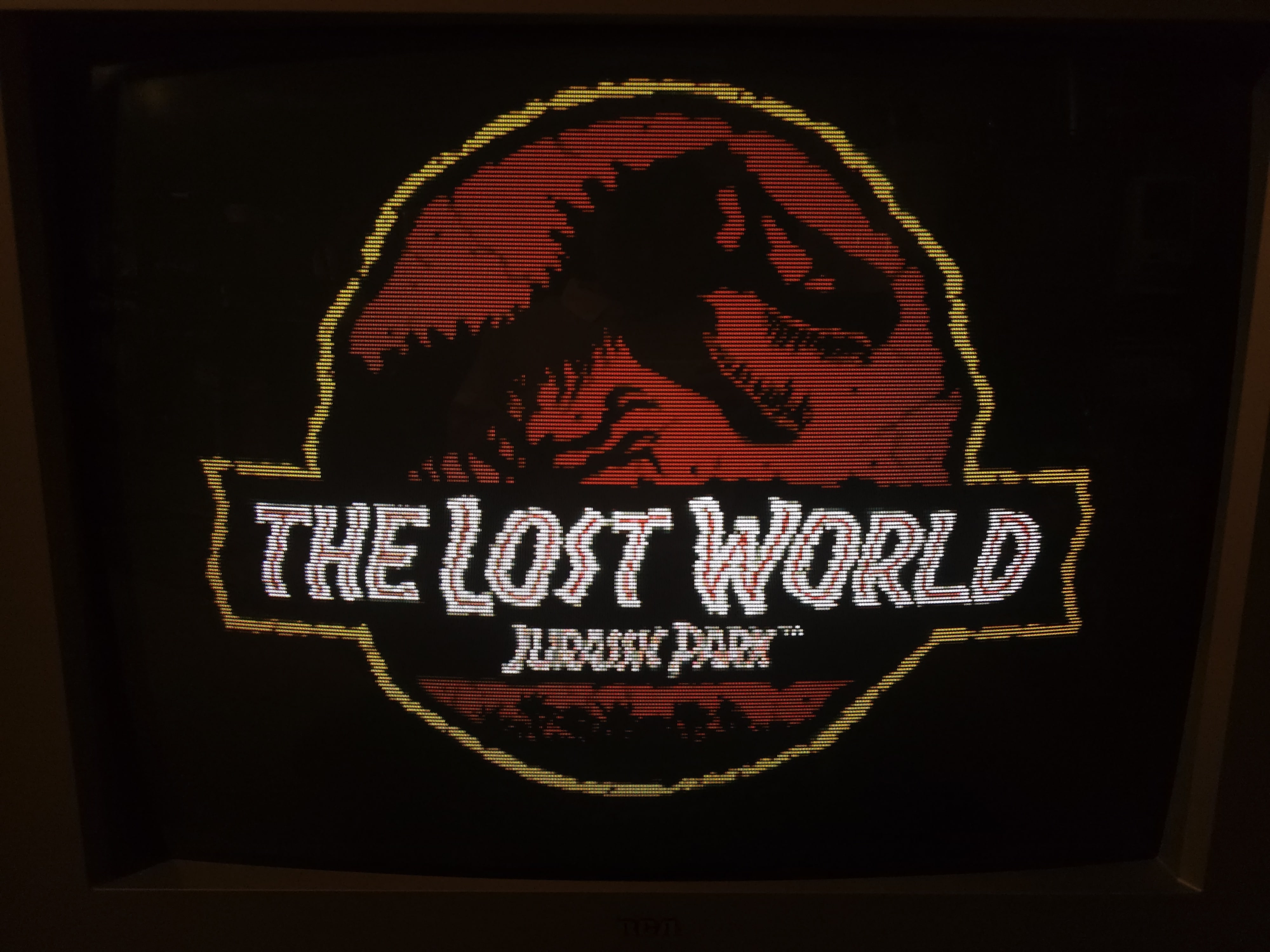

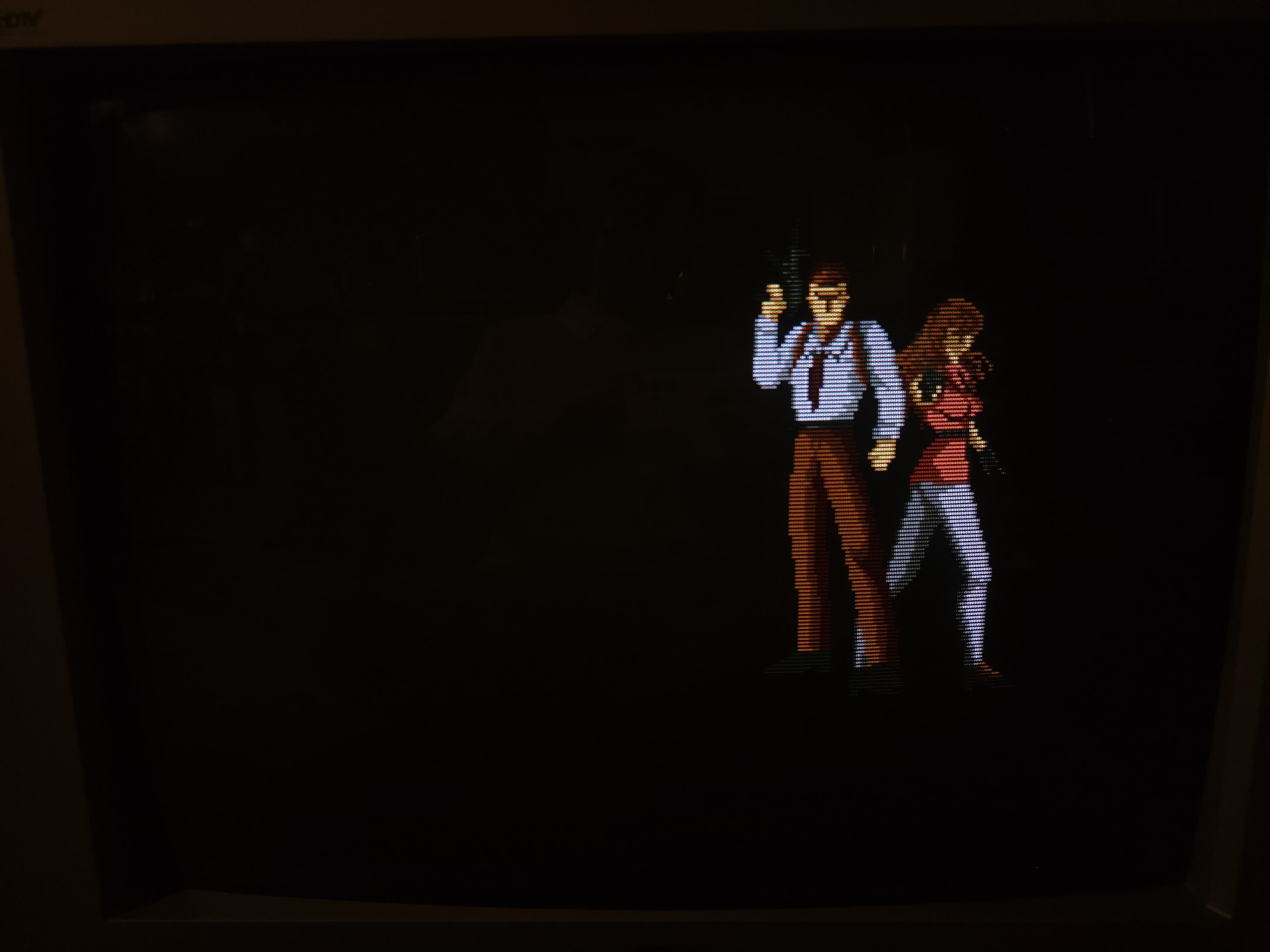

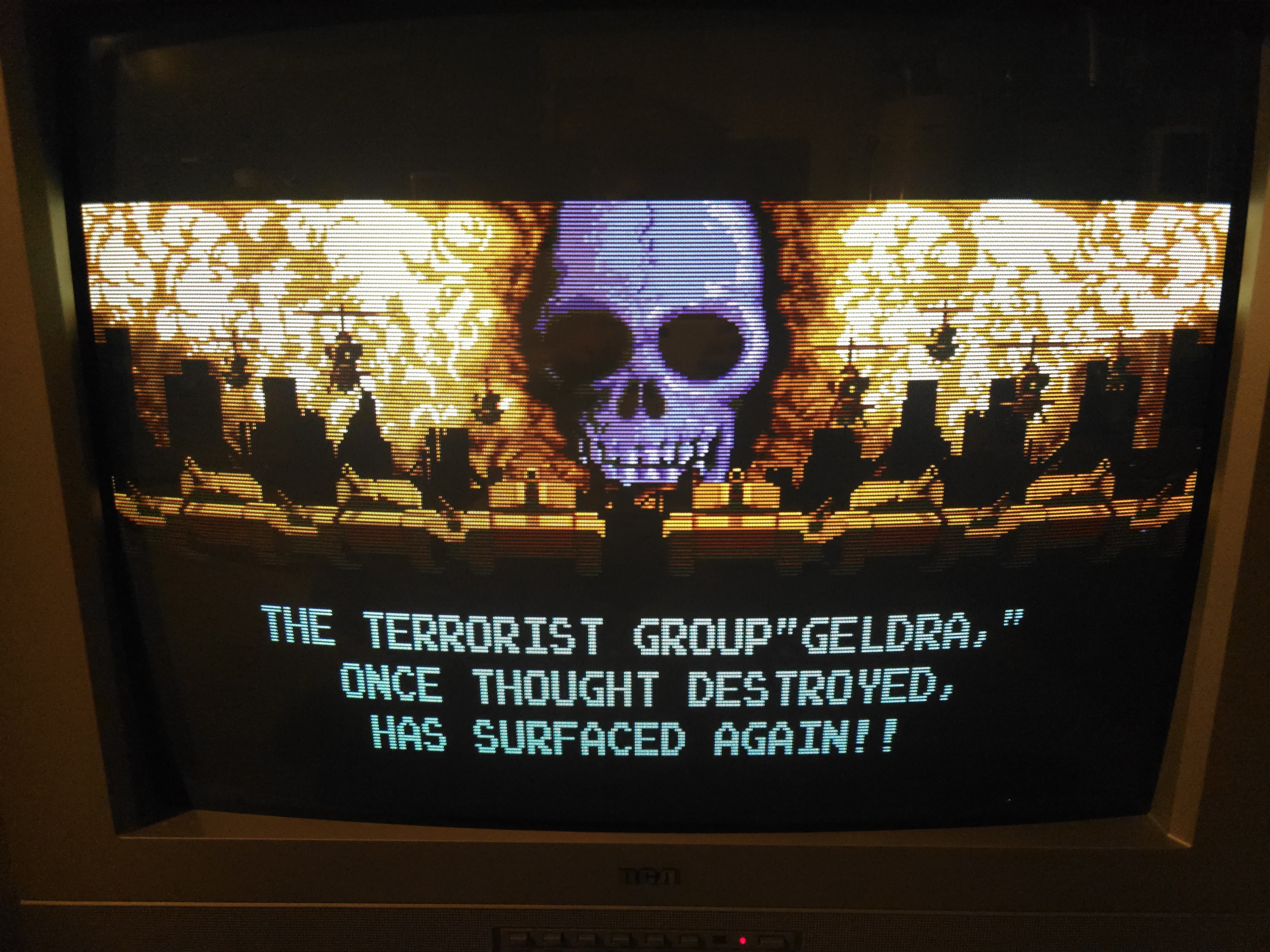

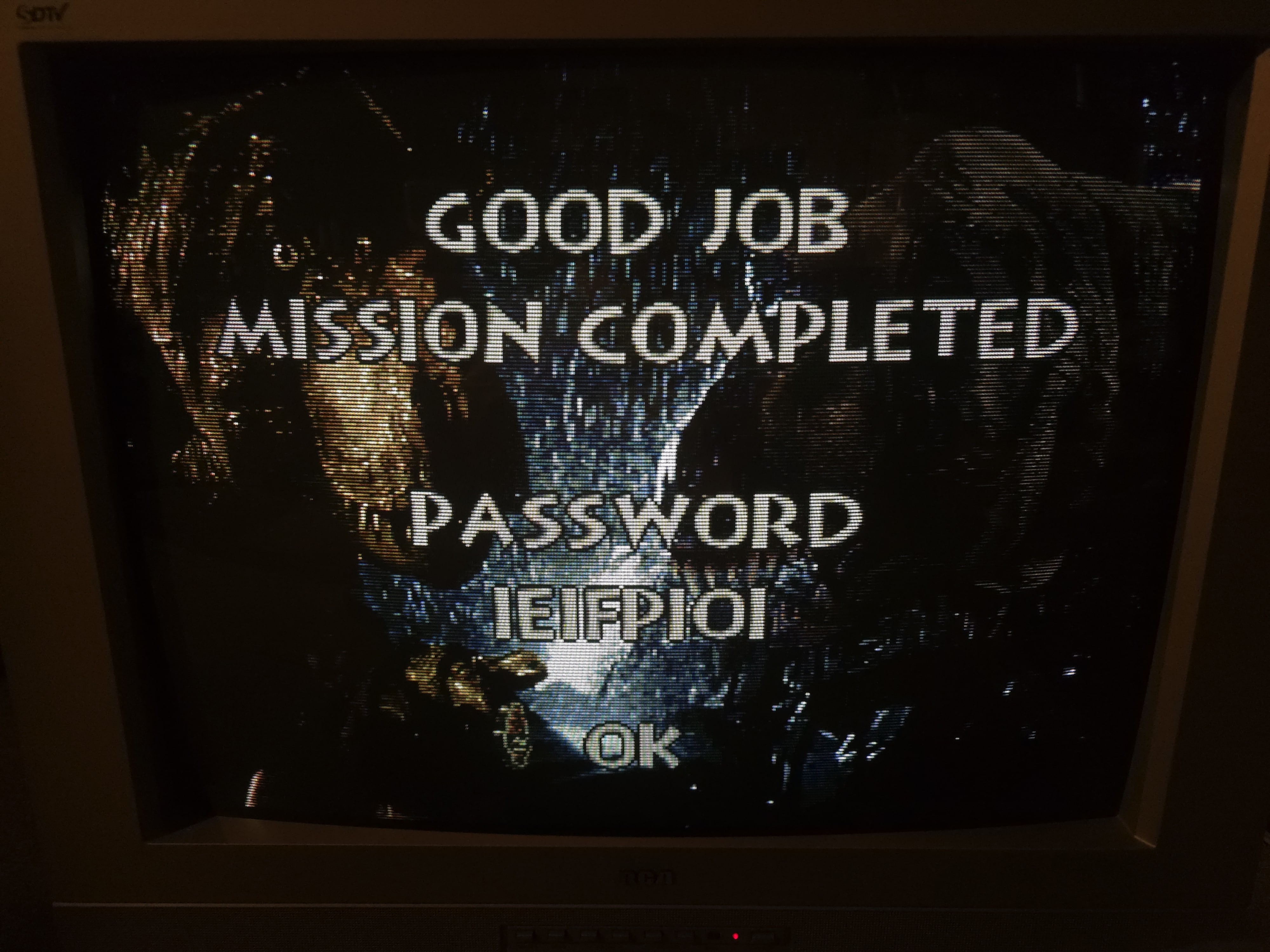

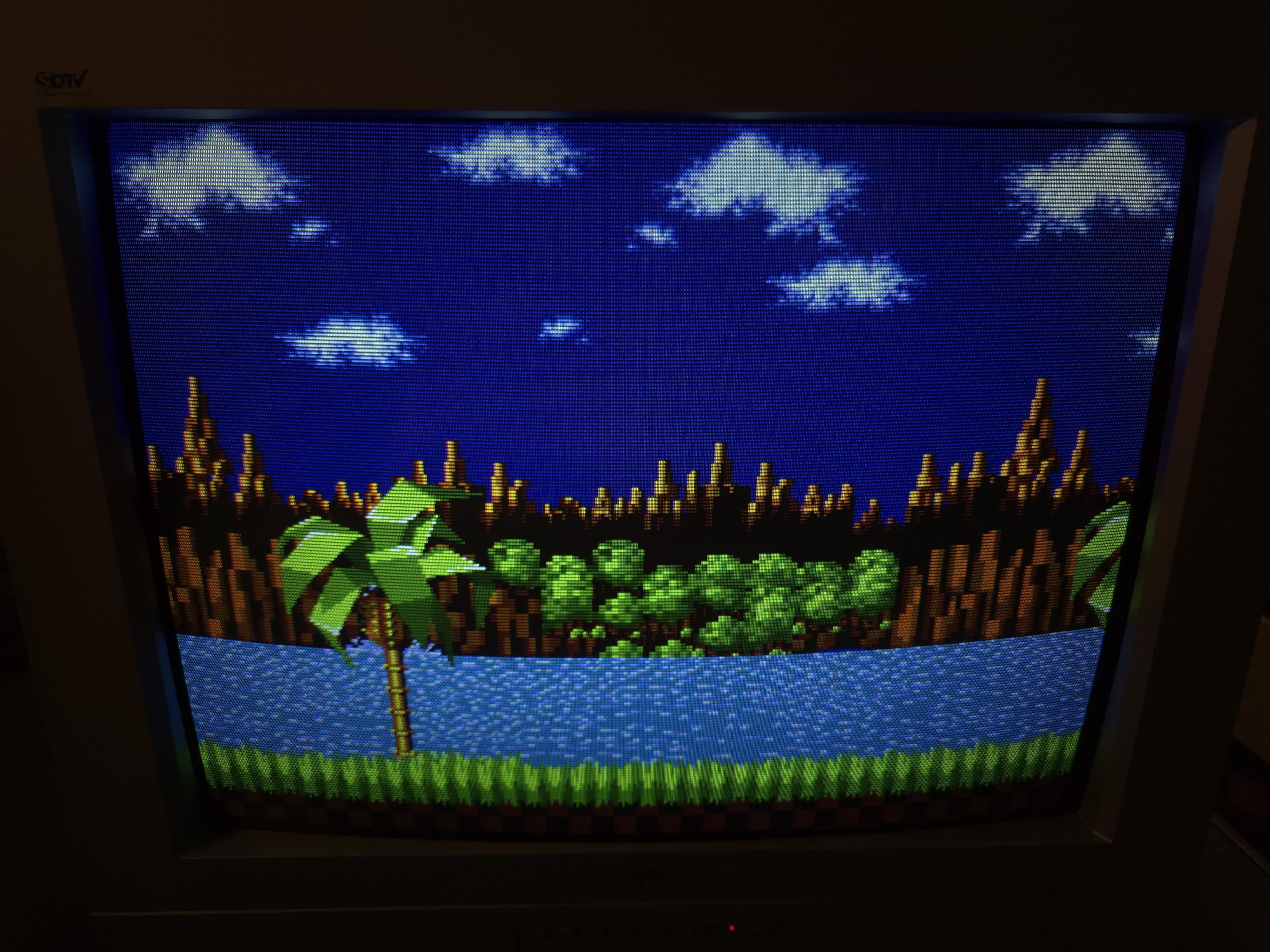

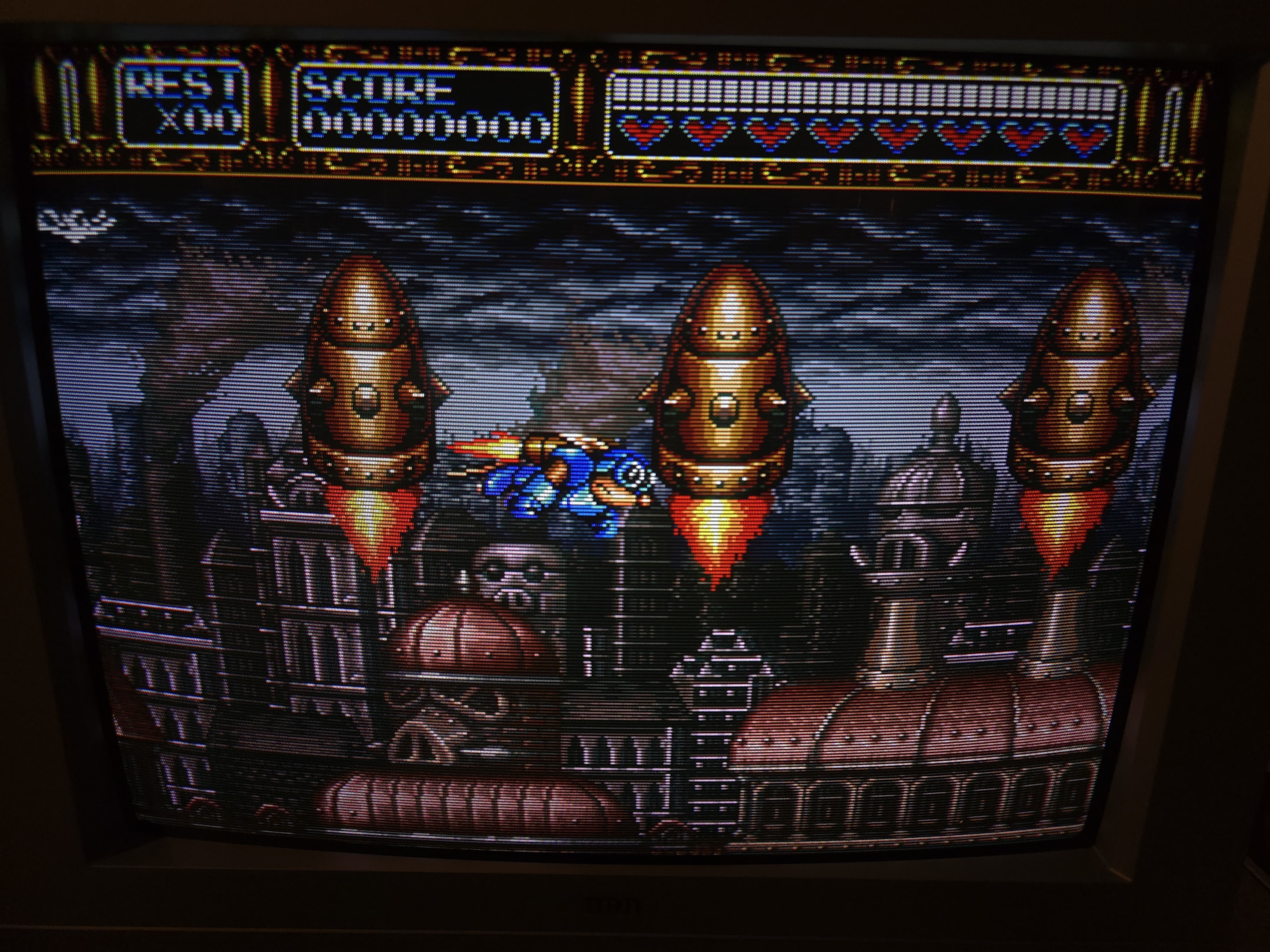

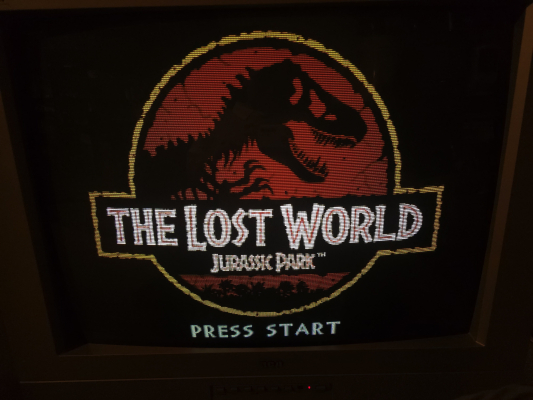

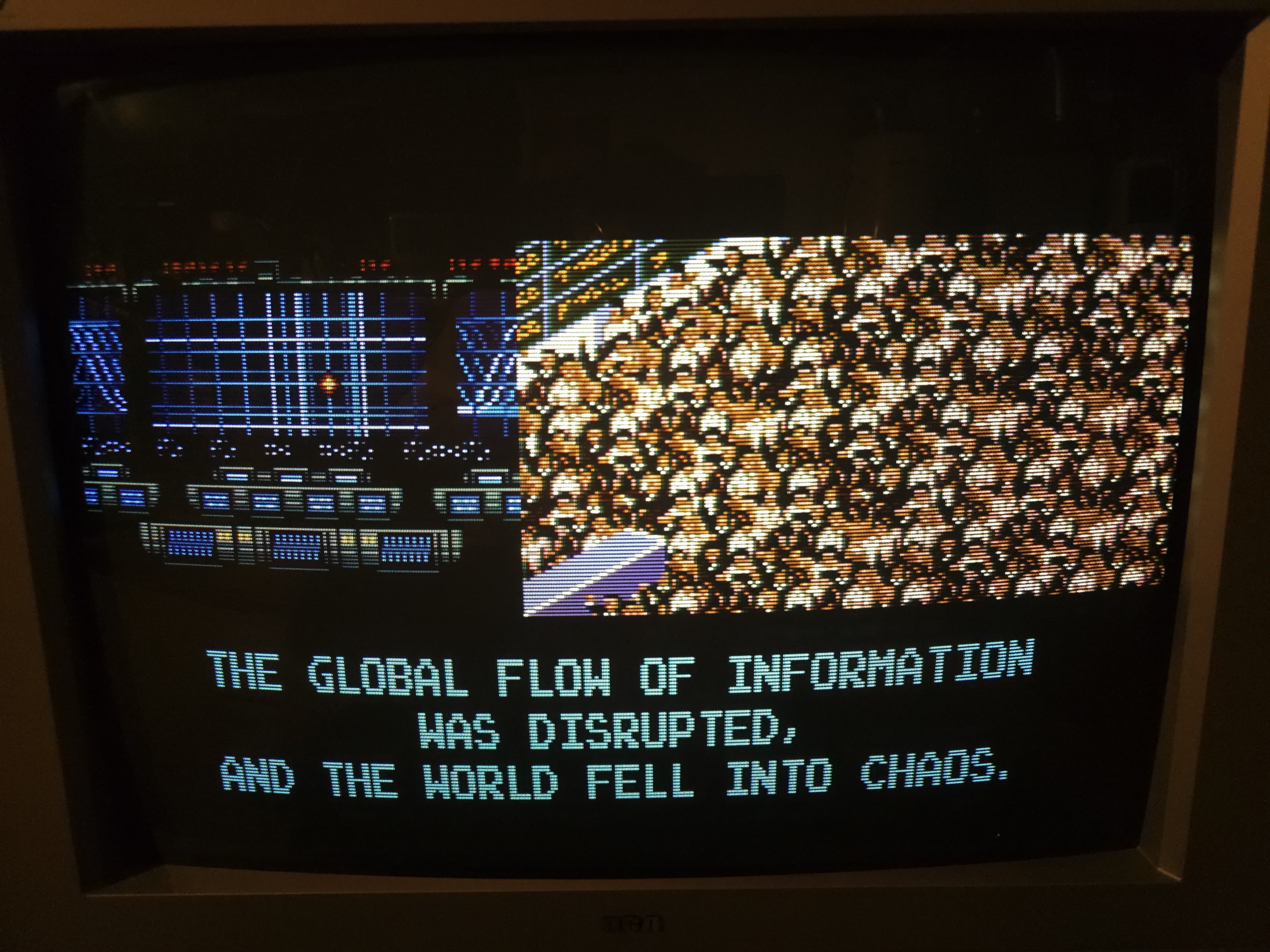

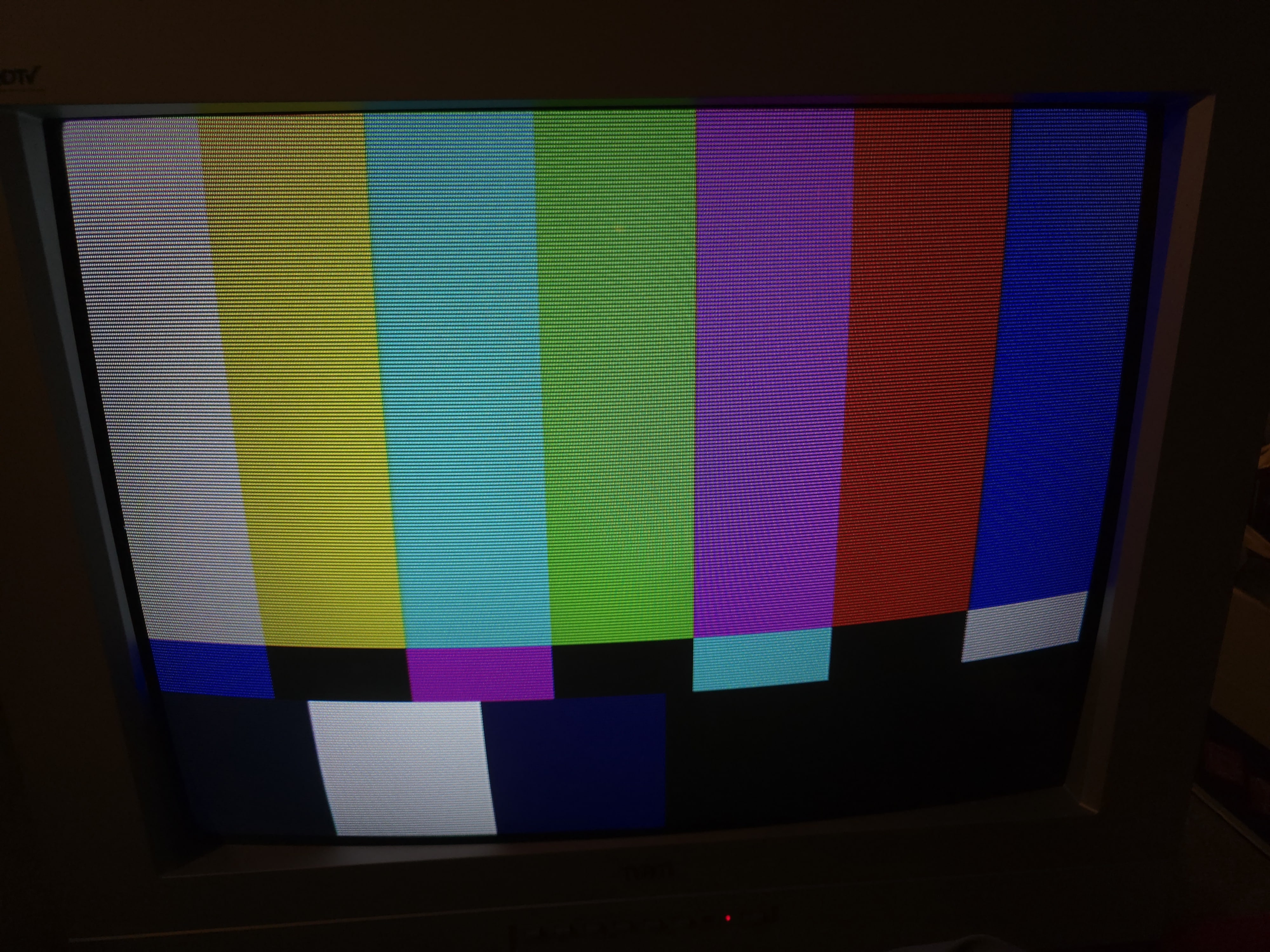

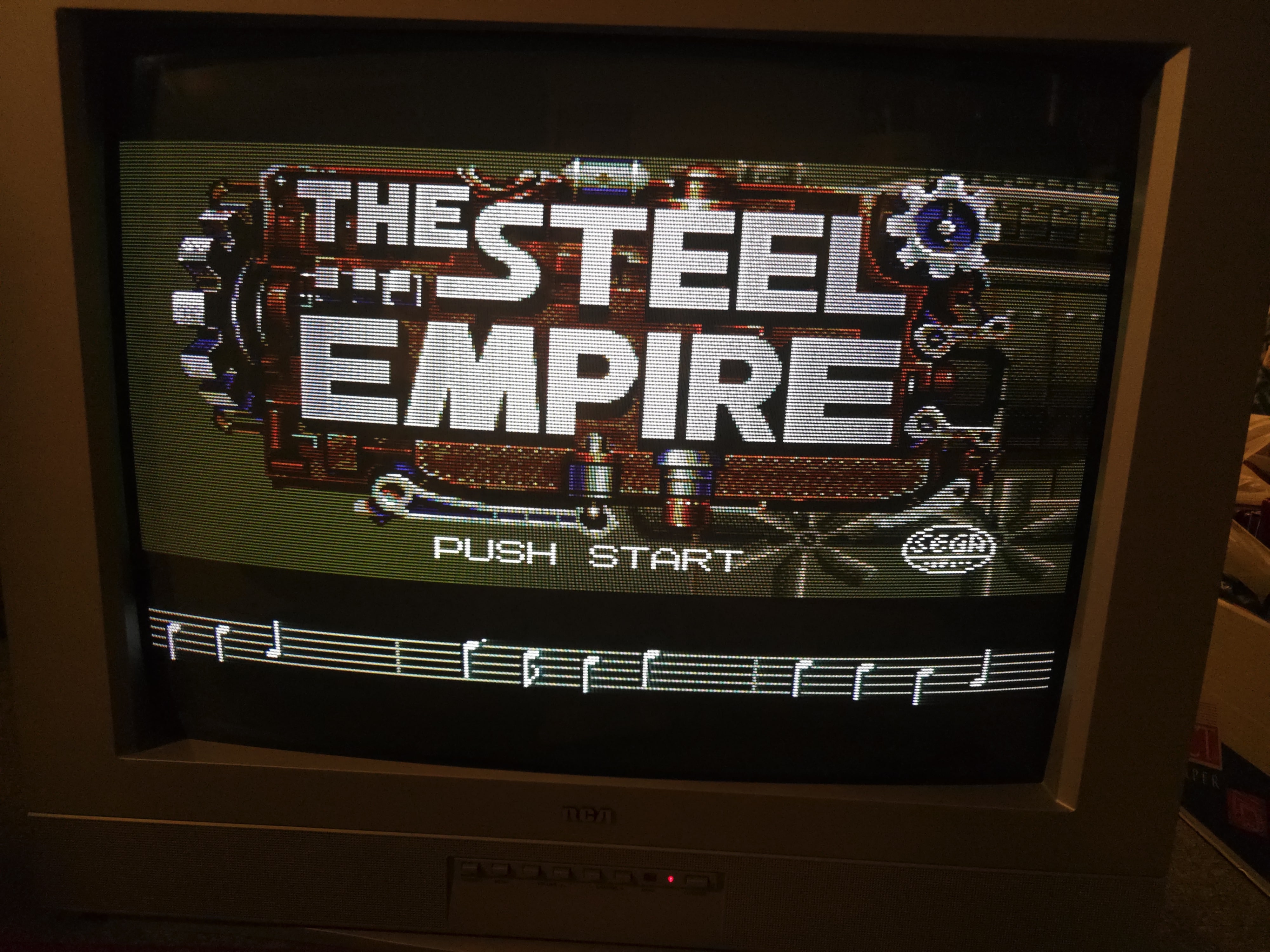

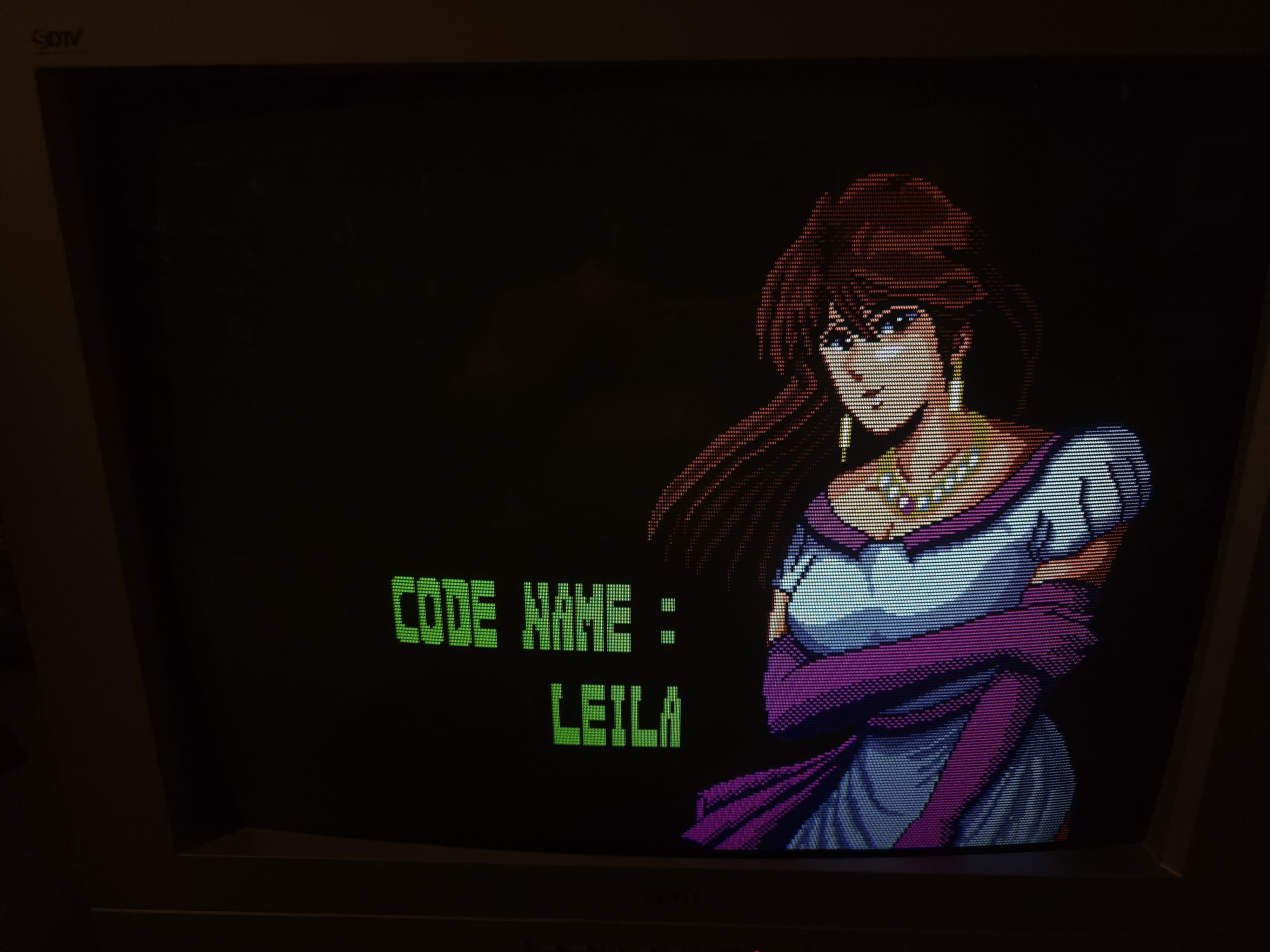

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | TTE Technology |
| Model: | 32V434T |
| Series: | V |
| Viewable Size: | 32" |

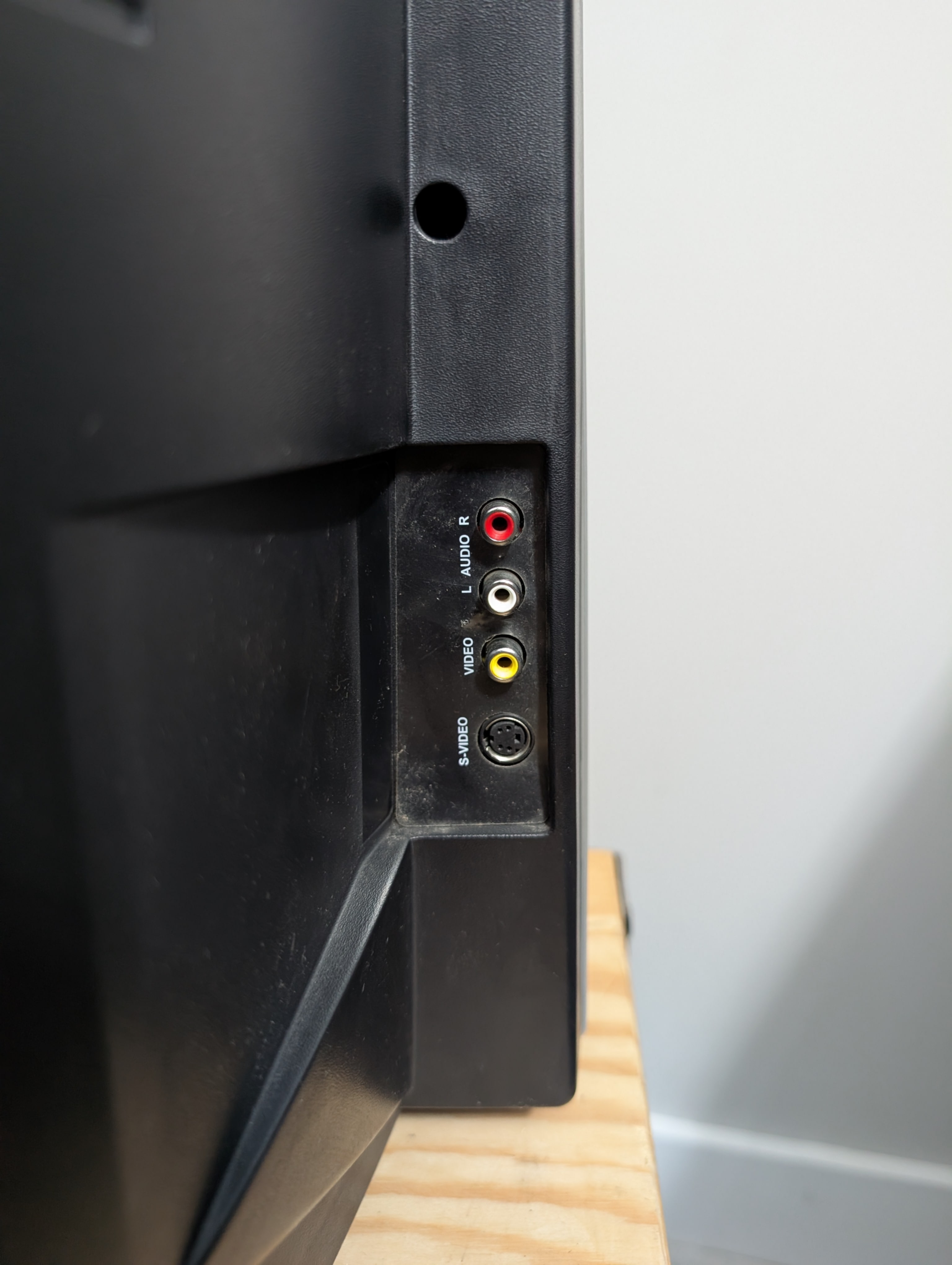

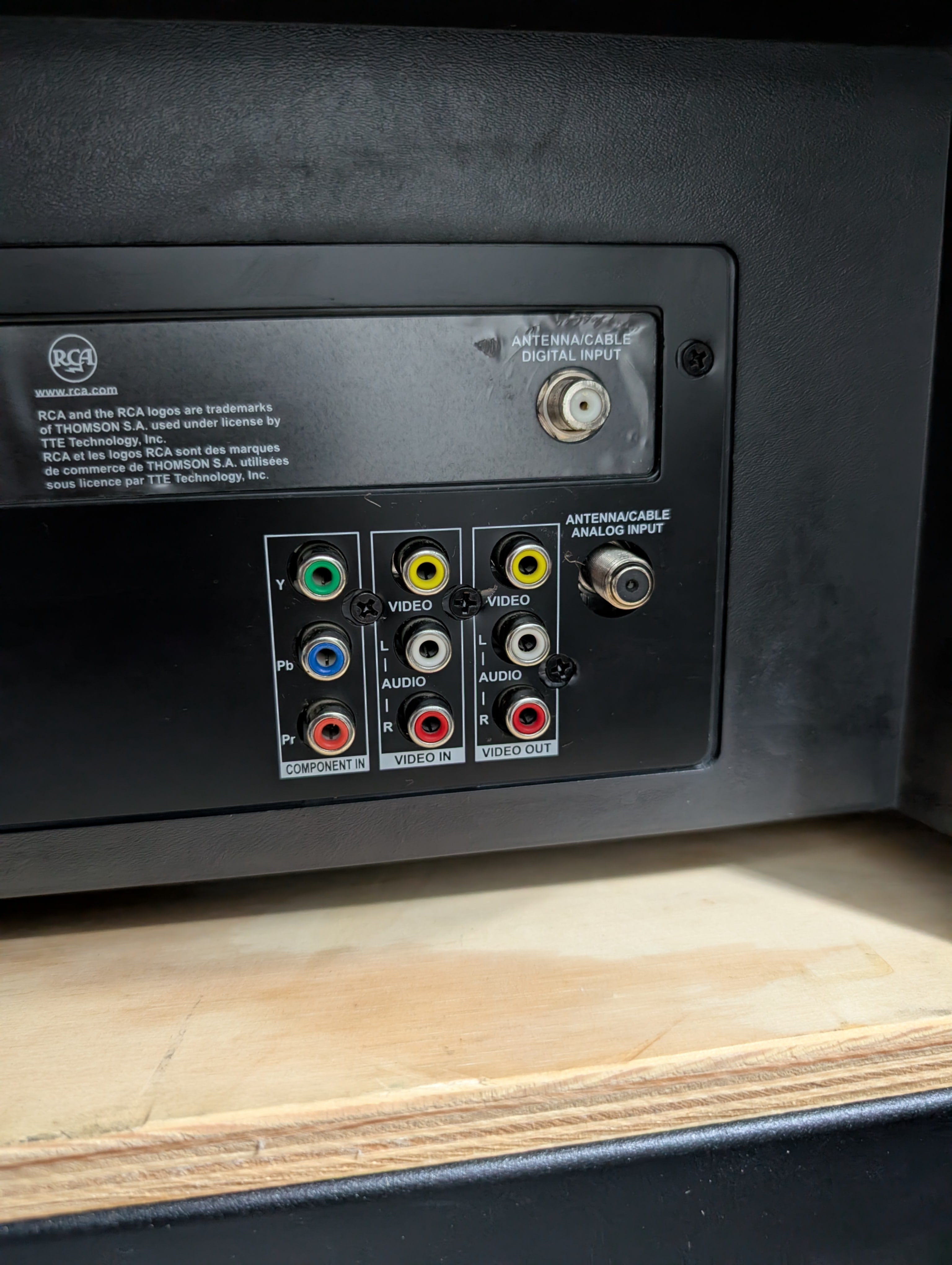

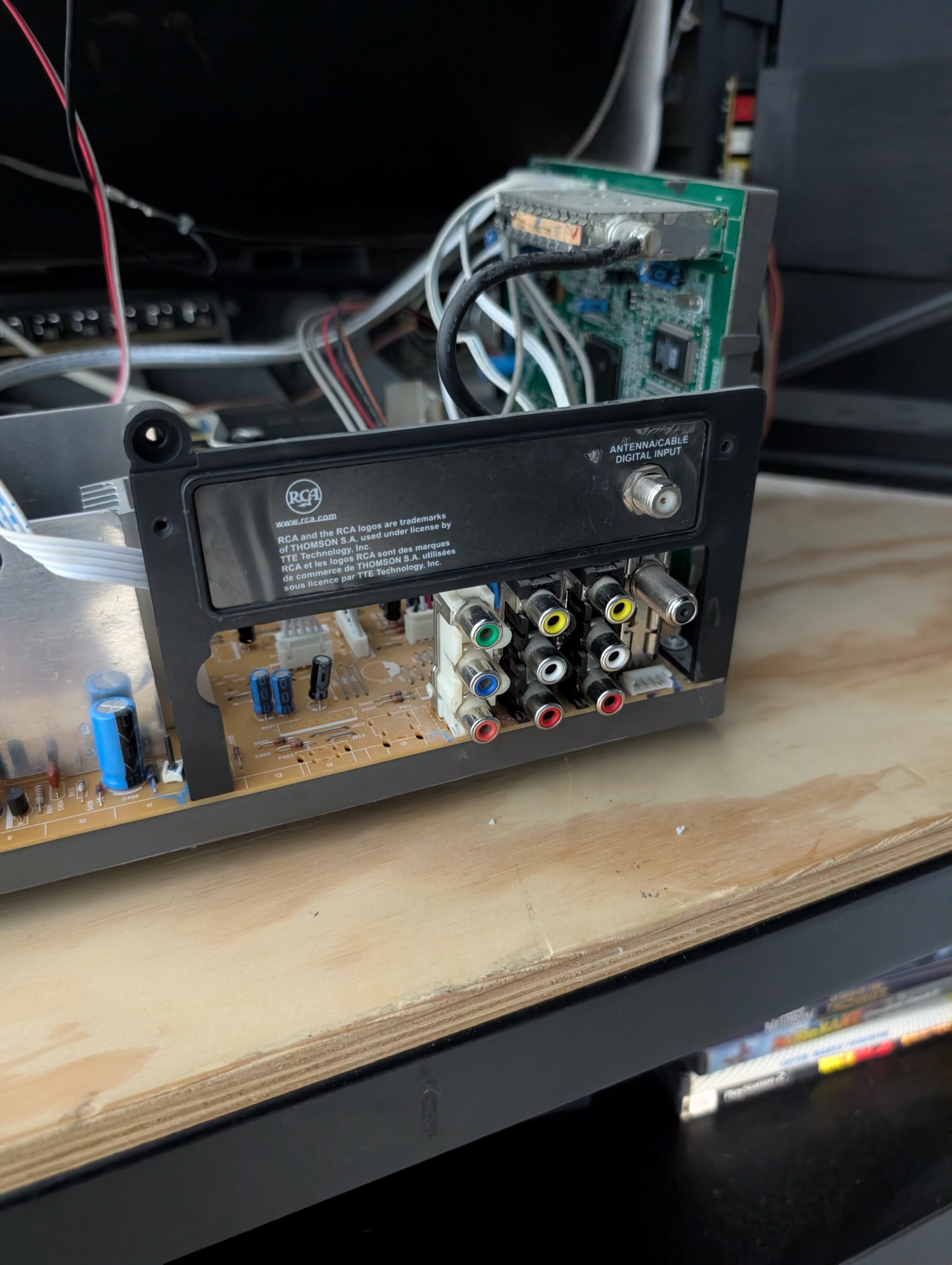

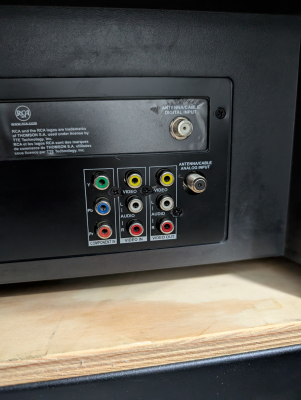

| Inputs: | Composite, S-Video, RF, Component YPbPr |

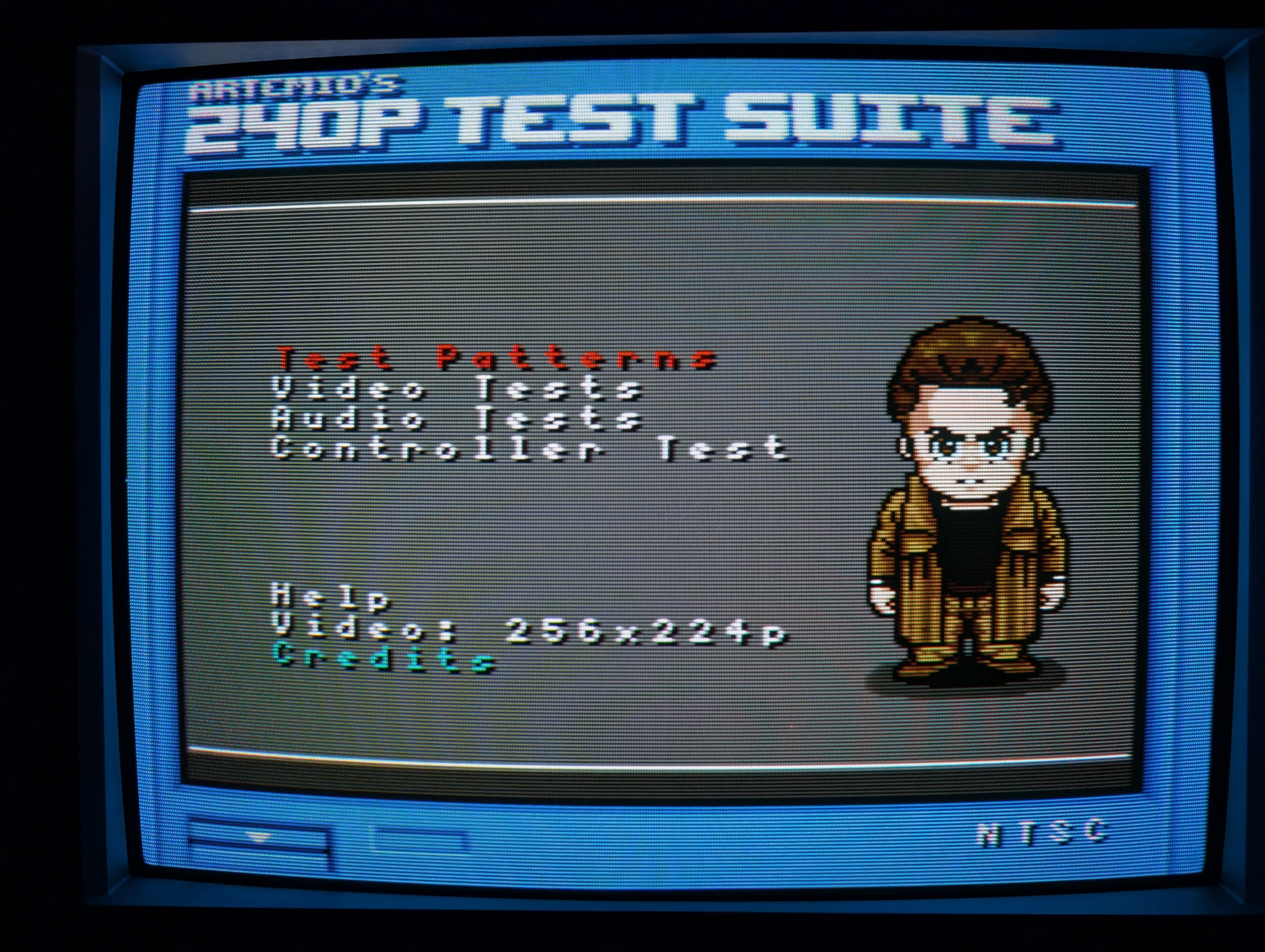

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Philips, TDA12000H |
| Focus Type: | Single |

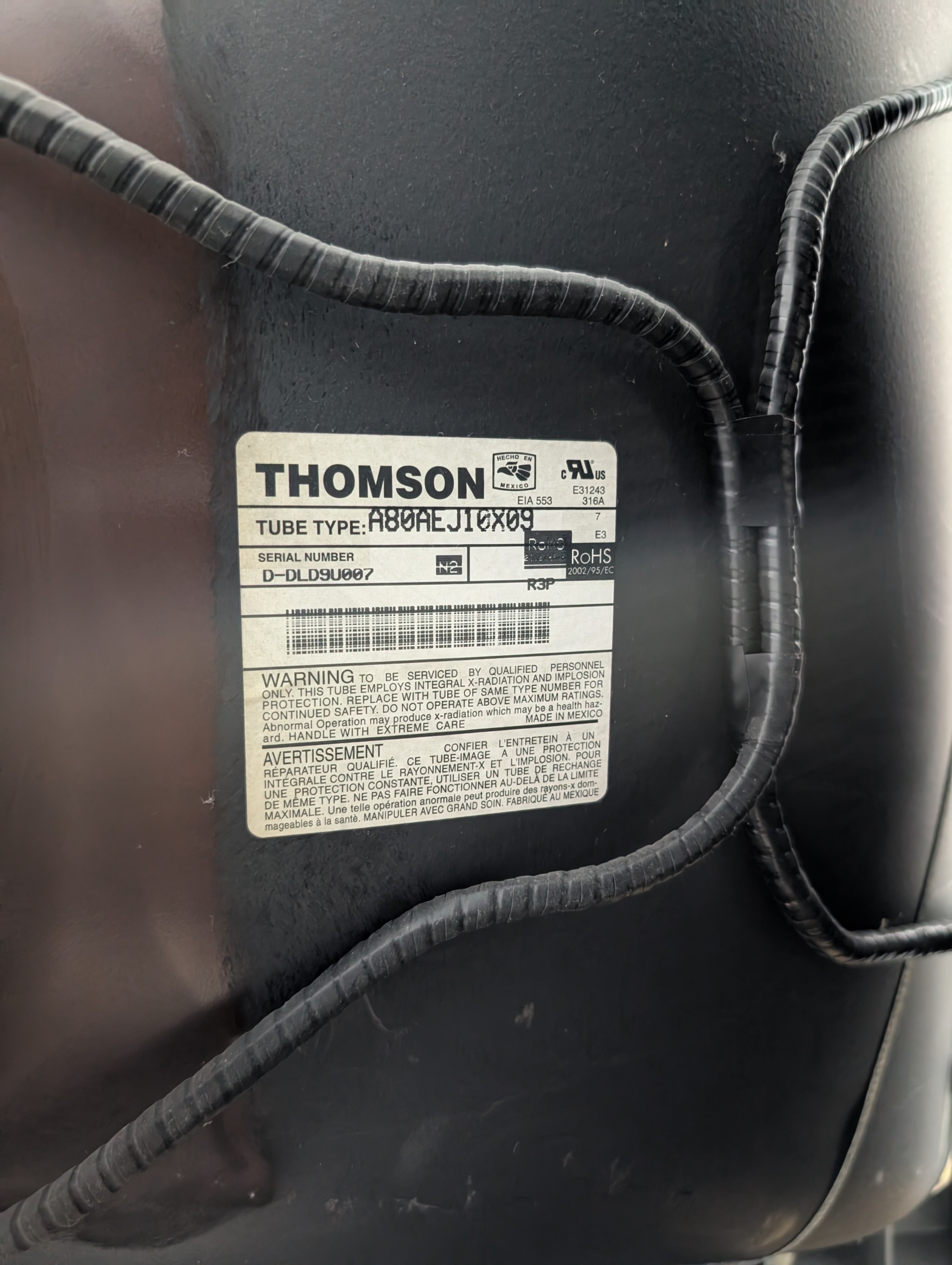

| Tube: | Thomson , A80AEJ10X , A80AEJ10X09 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |

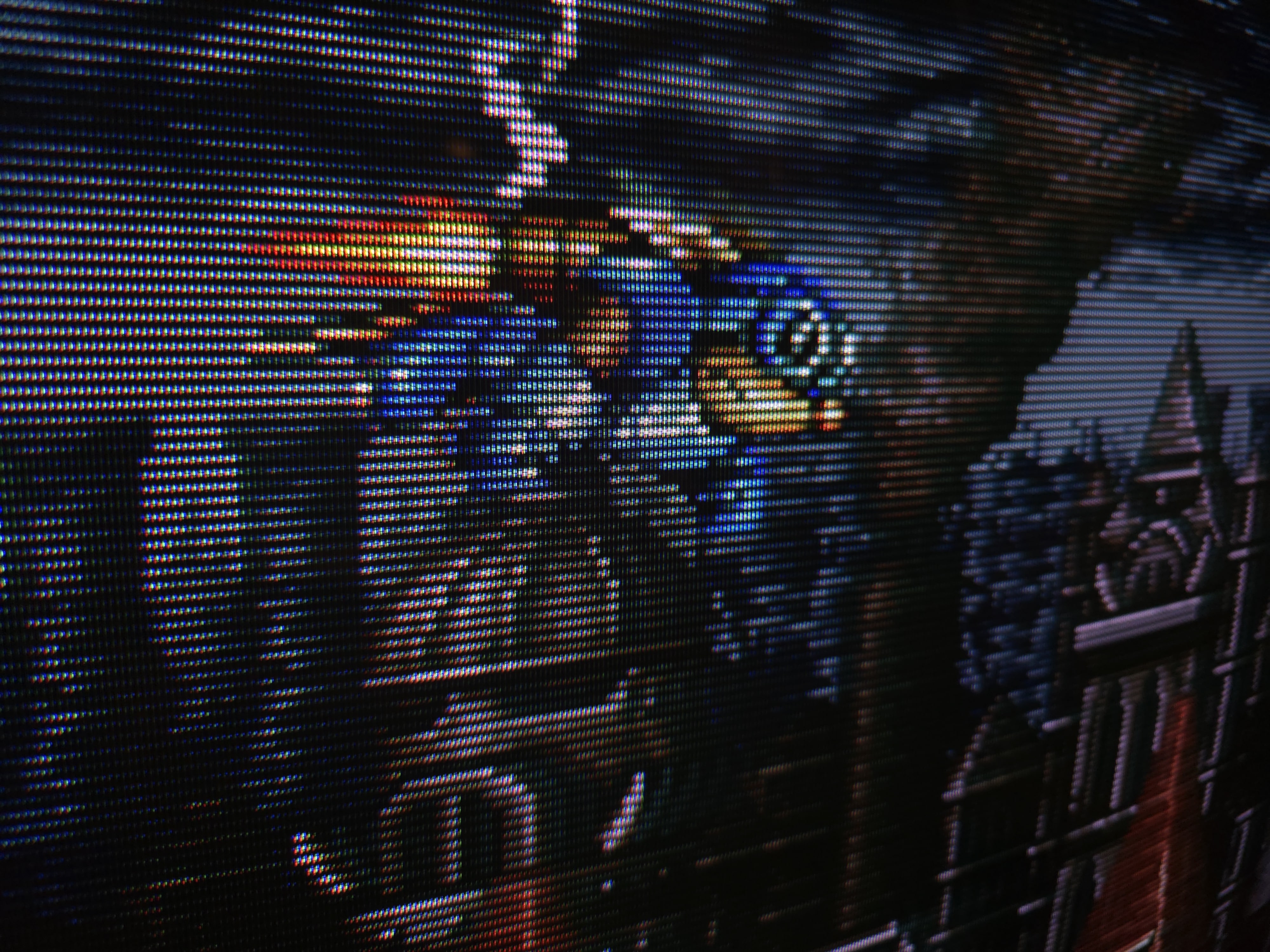

| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Remote: | RCR130TE1 |

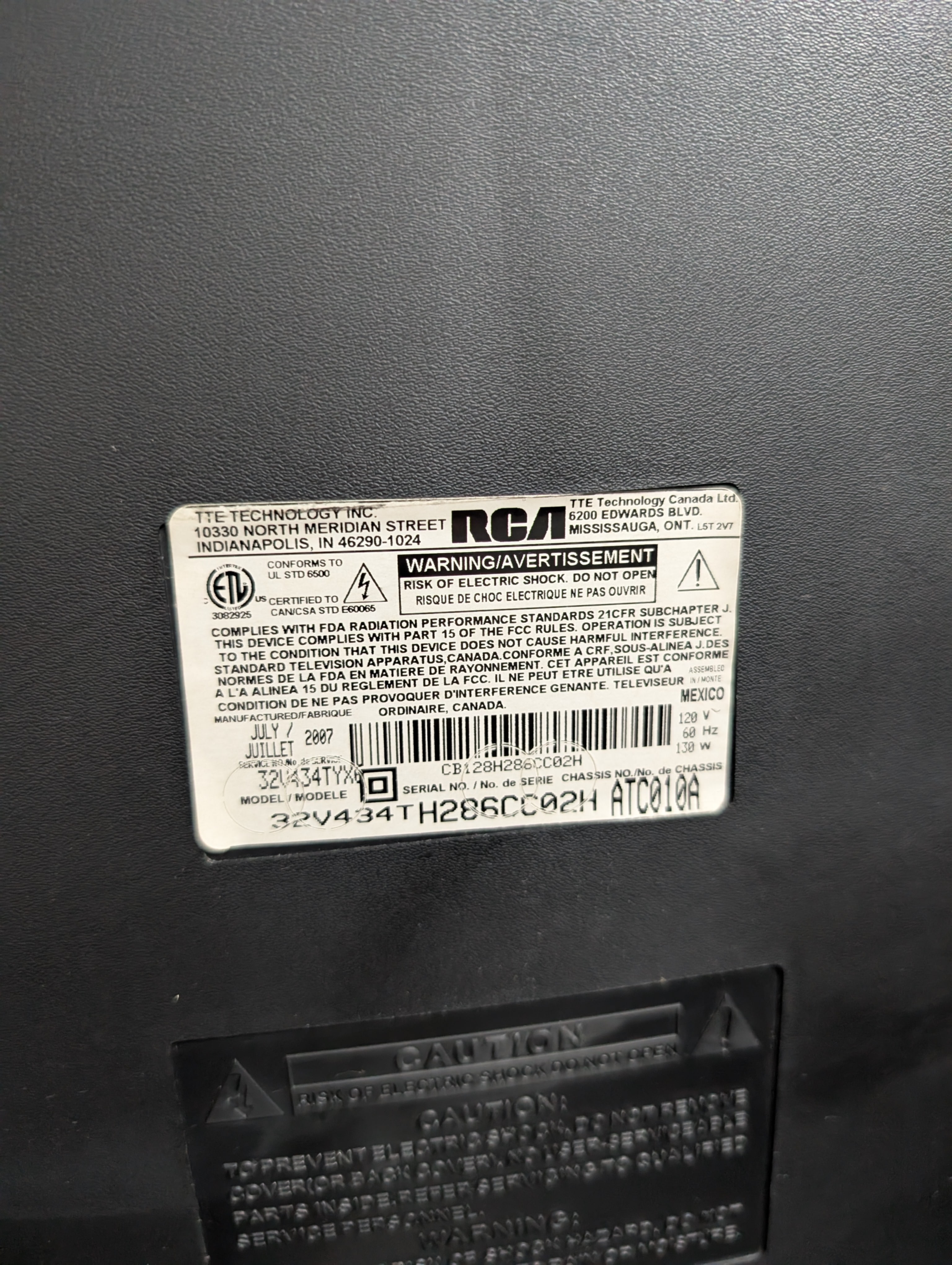

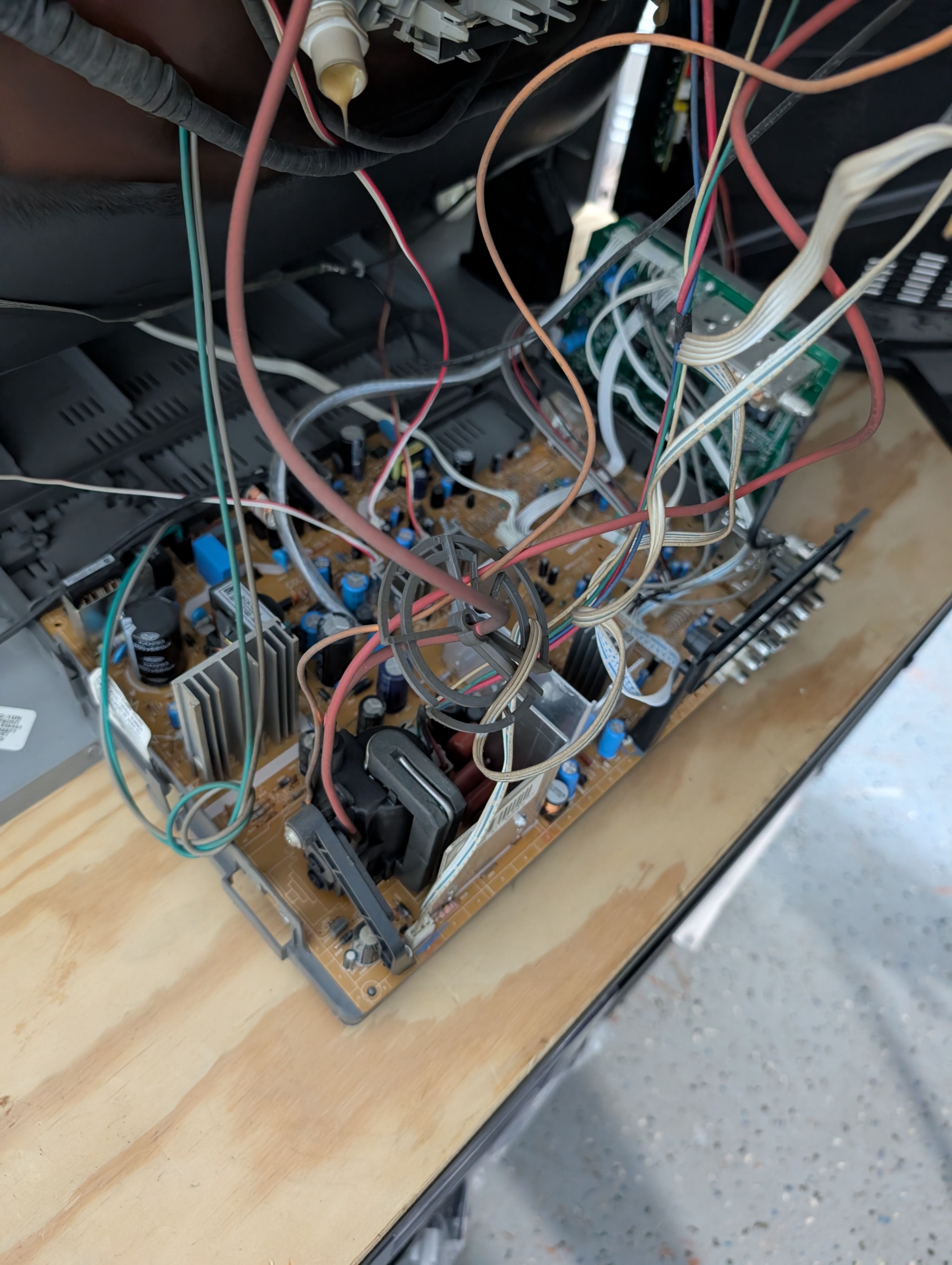

| Chassis: | ATC010A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | Mexico |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
