Summary

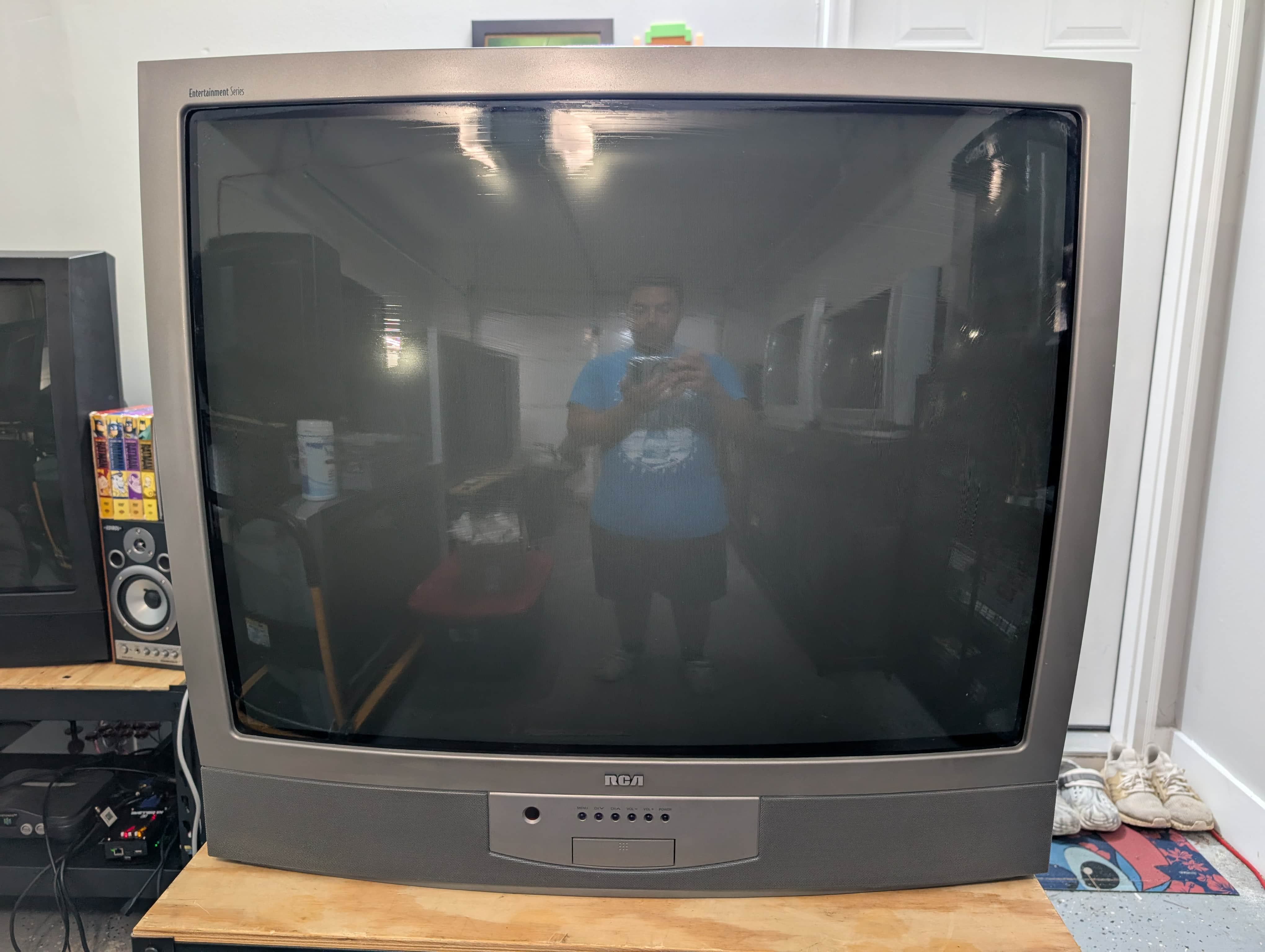

An excellent 36" set by RCA. Has a full set of inputs: RF, composite, s-video and component inputs. Made by Thomson's Mexico facility in 2004.
(Special thanks to Michael Lopez for the pics!)
Manuals
Promo Materials
Notes

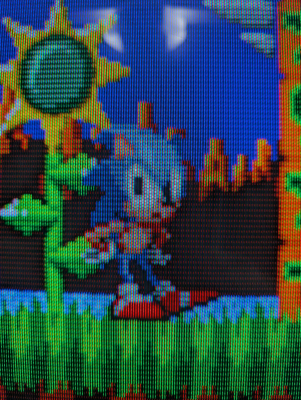

The Philips jungle chip allows for 50hz and other oddball resolutions and refresh rates within a 15khz range. However, only over component will they be in color.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | 36V430T |
| Series: | V |
| Viewable Size: | 9" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

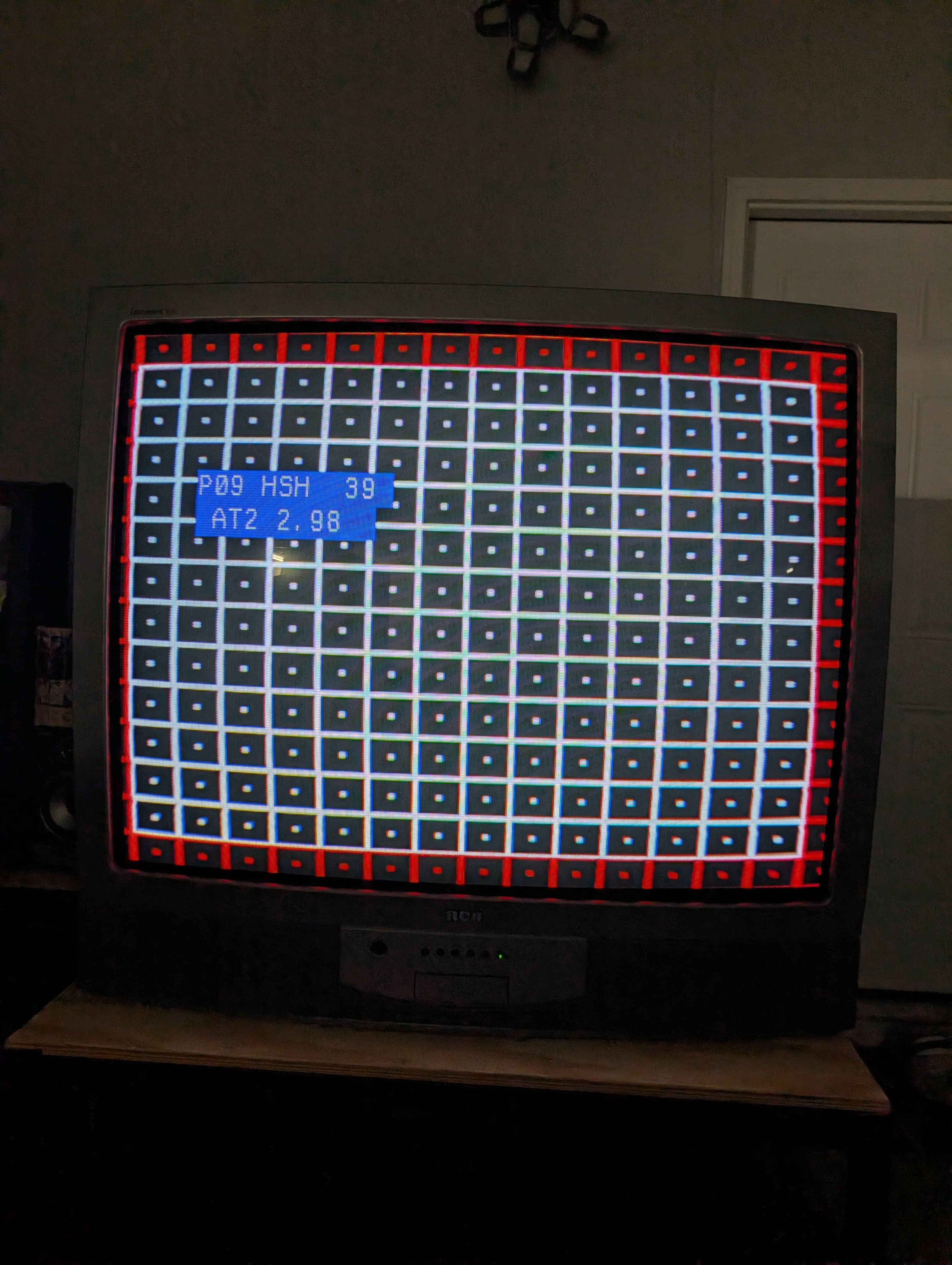

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Philips, TDA9378, TDA9378PS |
| Comb Filtering: | 3-Line Digital |
| Flyback: | Orega, 40348A-26 |
| Focus Type: | Single |

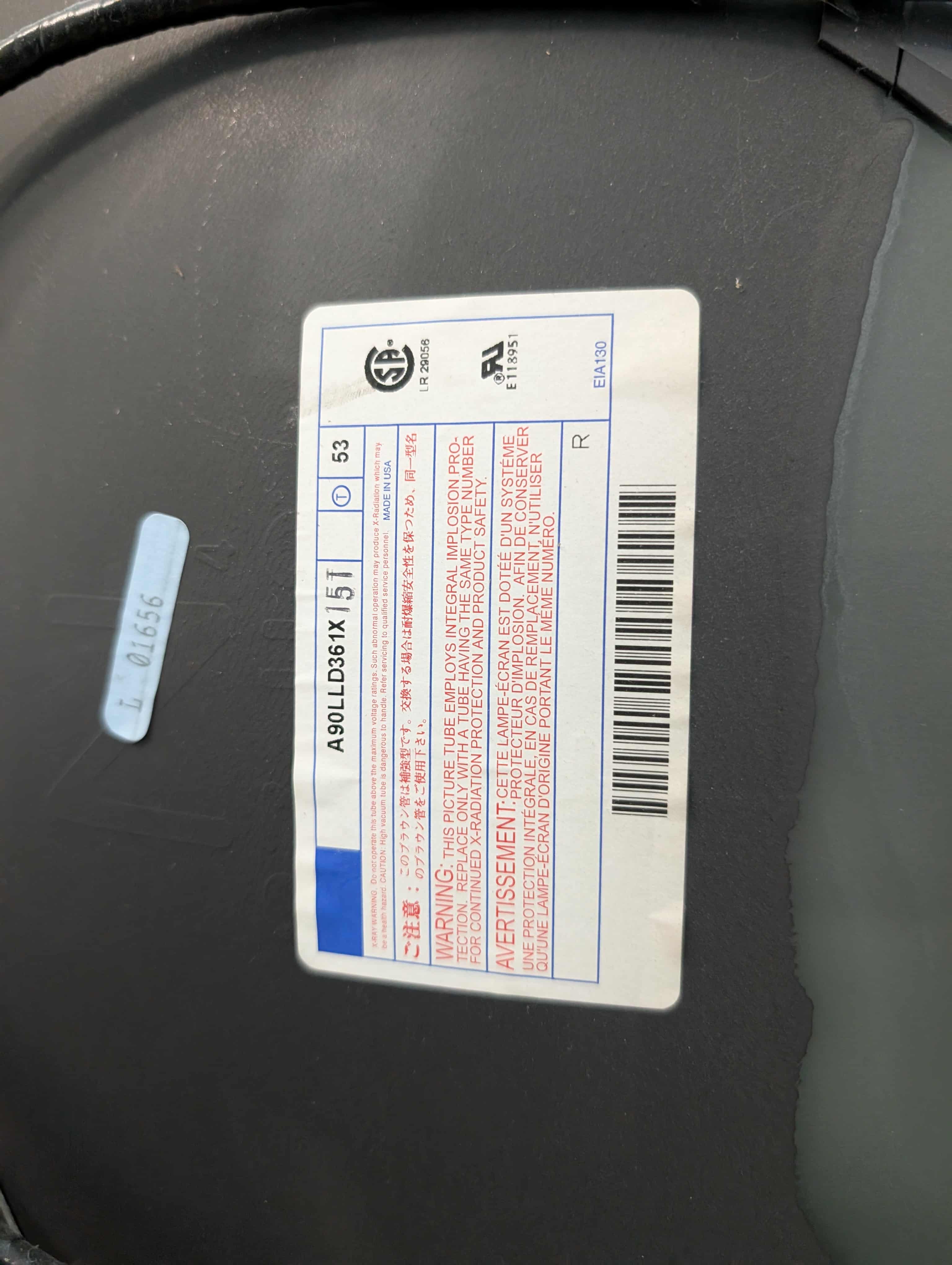

| Tube: | Panasonic , A90AEJ15X , A90LLD361X15 , A90LLD361X , A90AEJ15X09 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

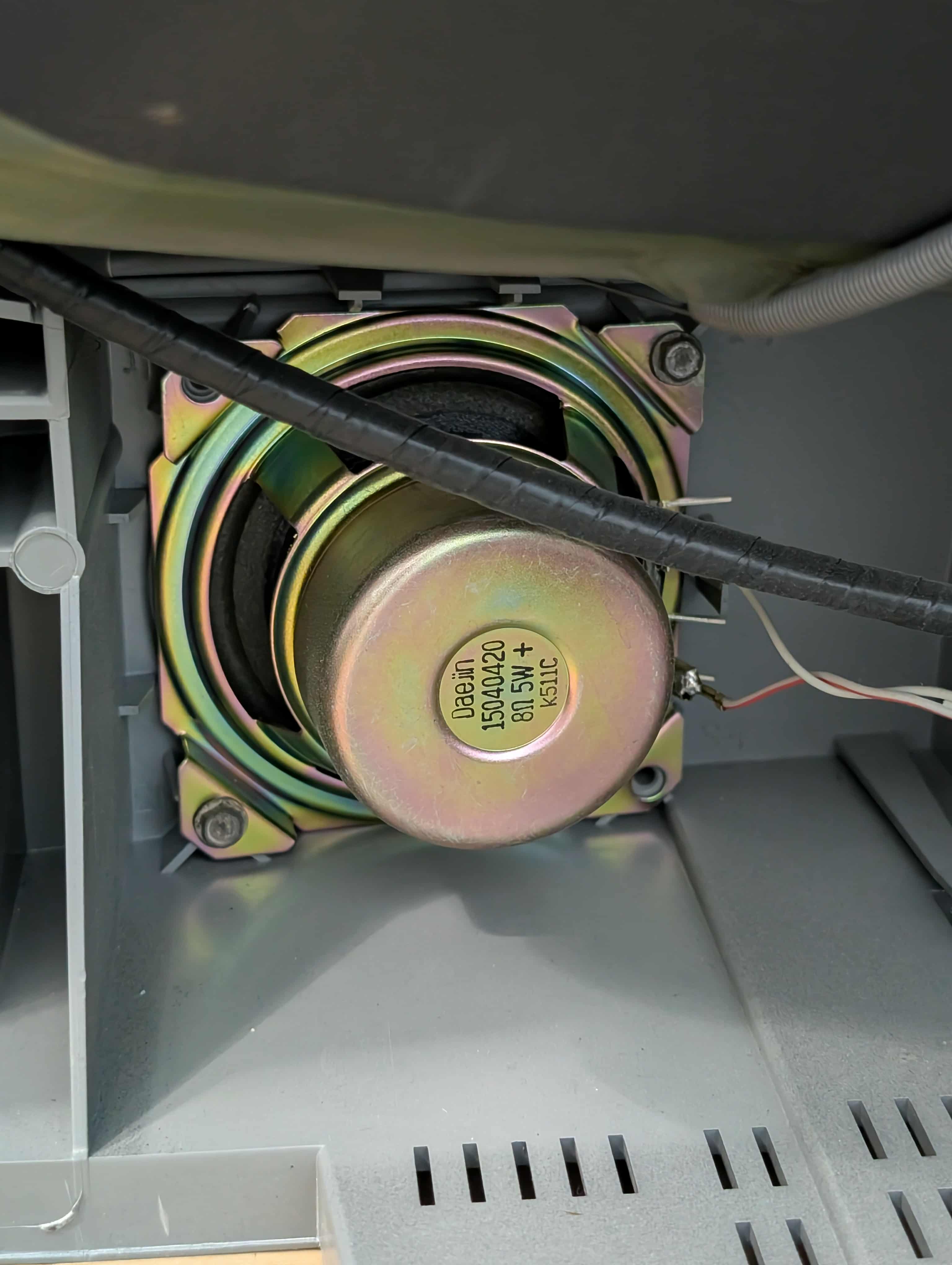

| Speakers: | Stereo, 5W x 2 |
| Remote: | RCR311TBM1 |

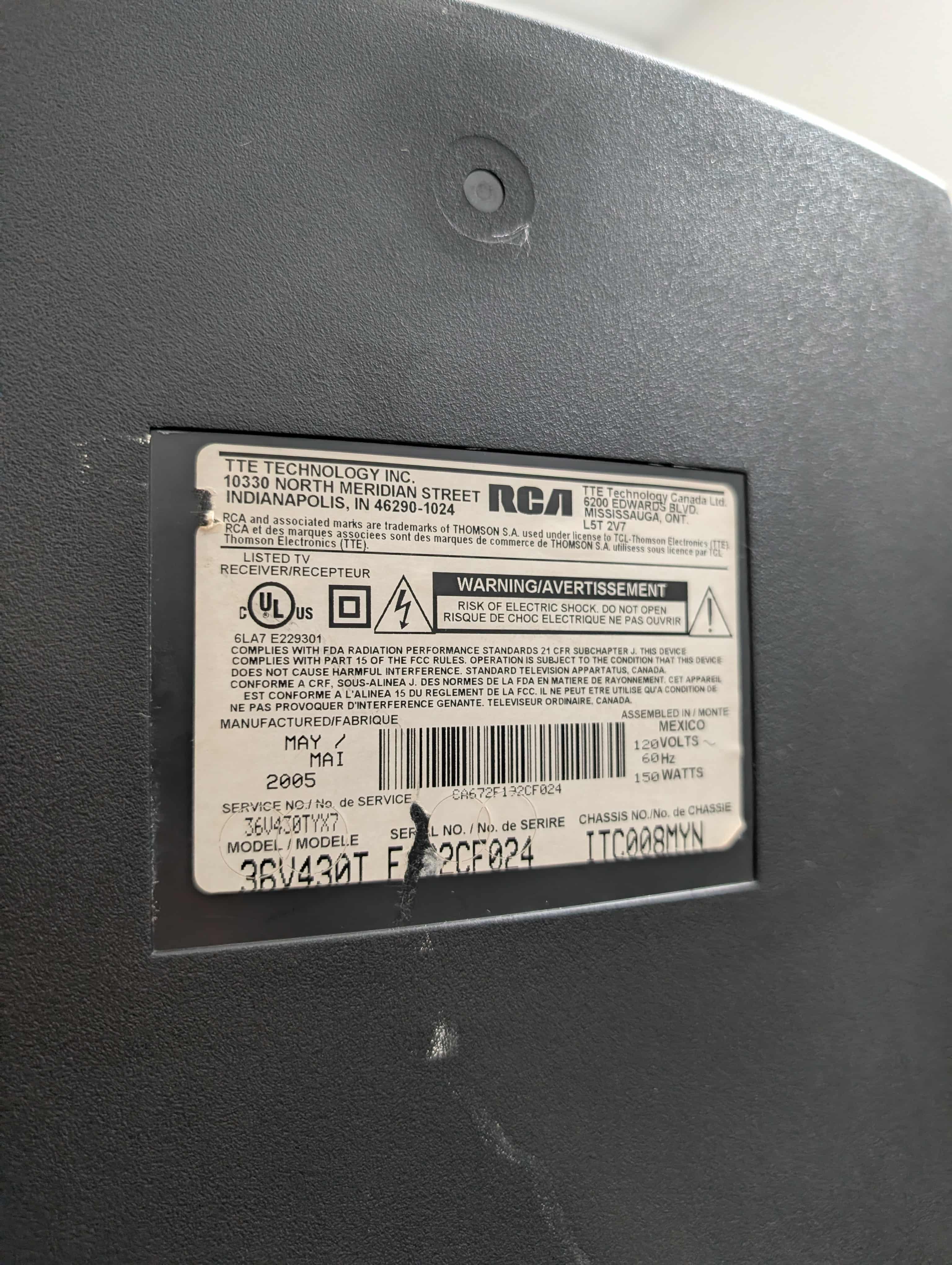

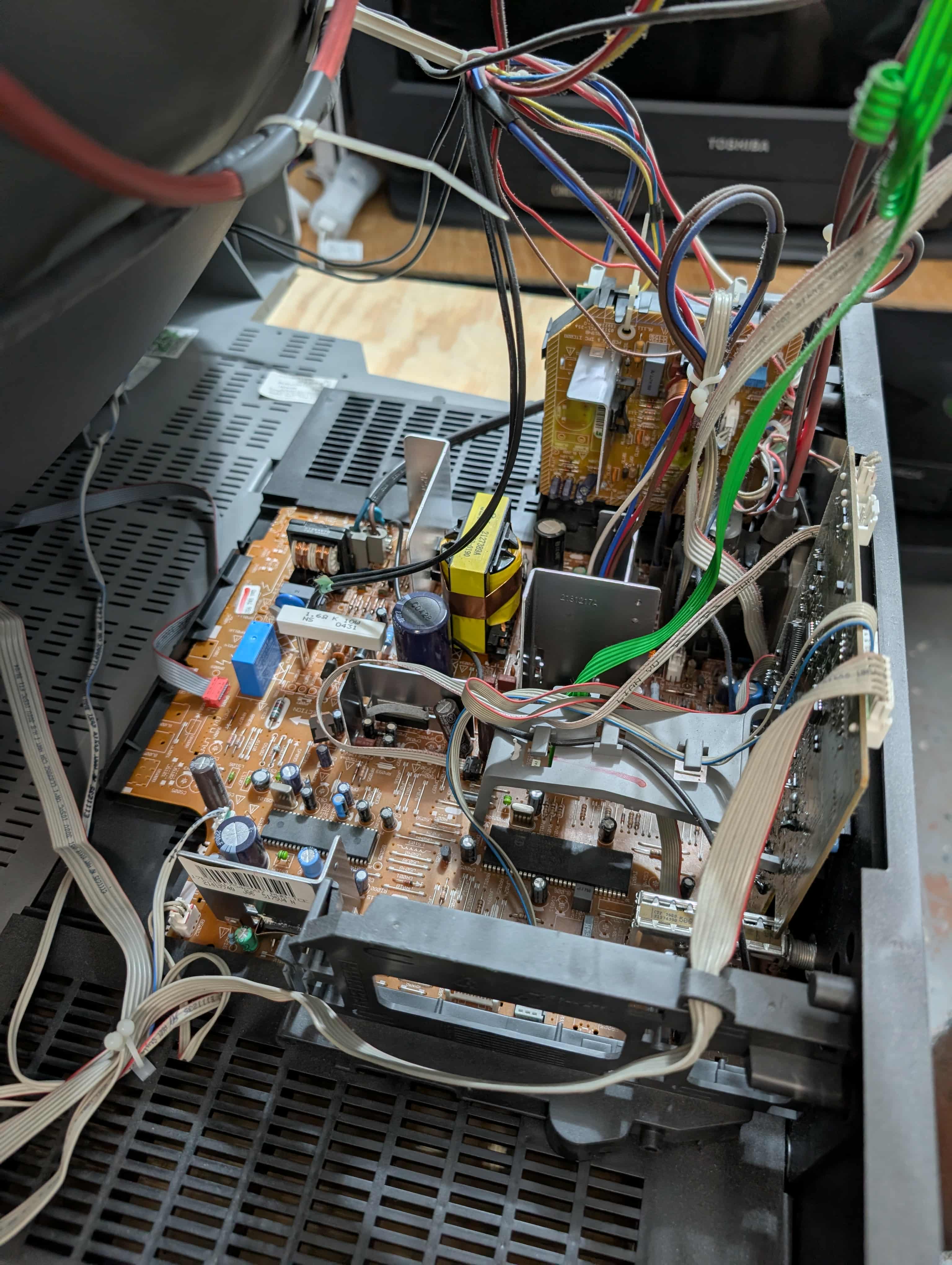

| Chassis: | ITC008, ITC008MYN |
| Weight: | 190 lbs (86.2 kg) |
| Dimensions (W/H/D): |
711 x 785 x 617 mm
(27.9 x 30.9 x 24.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 699 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
