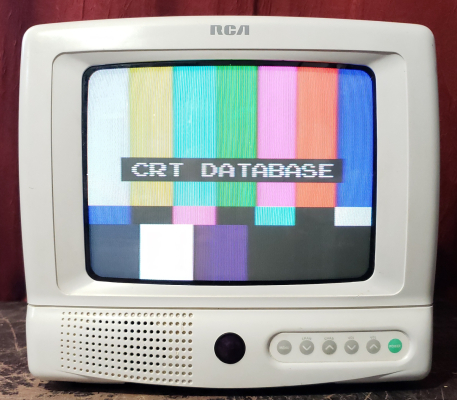

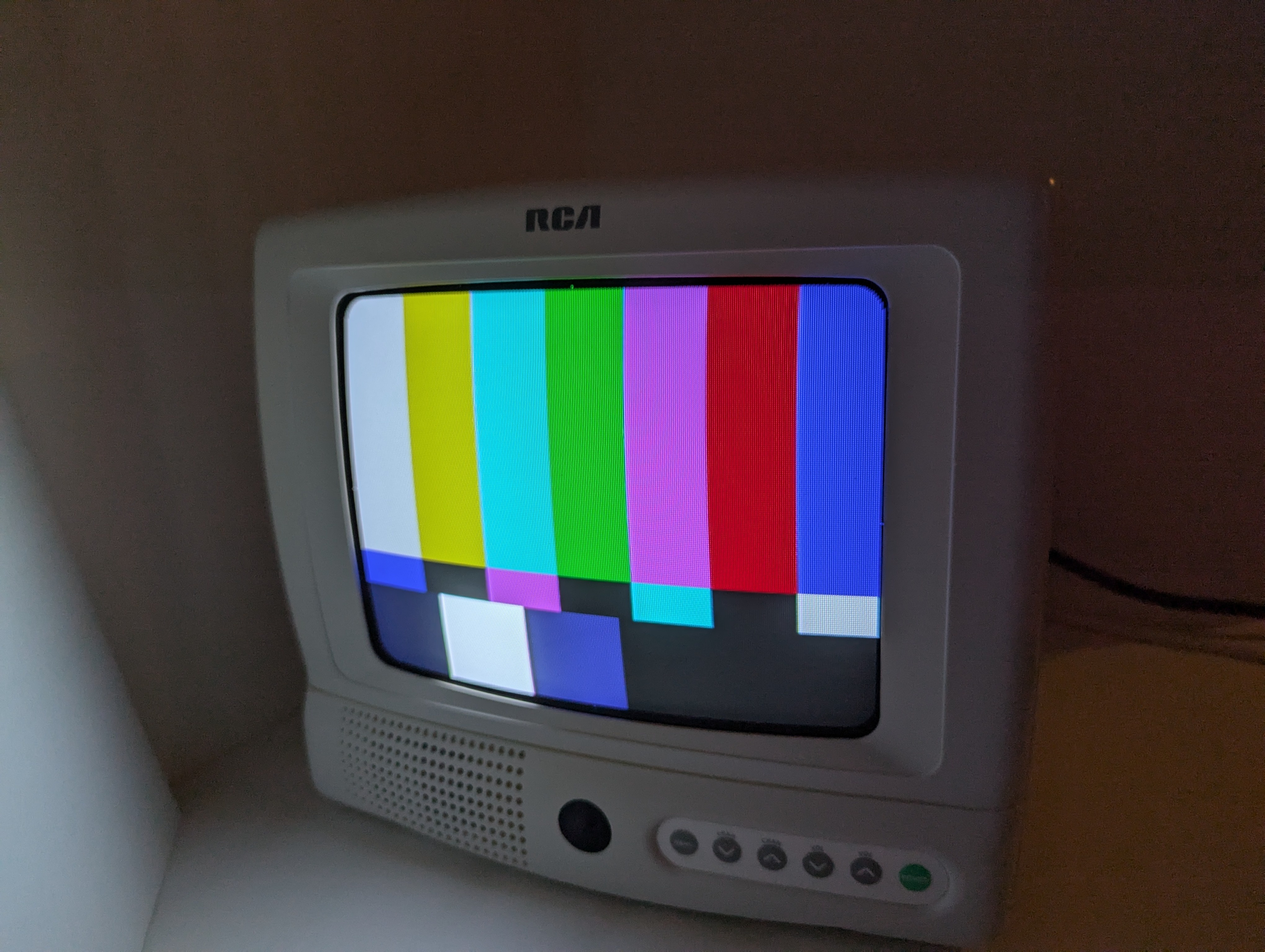

Summary

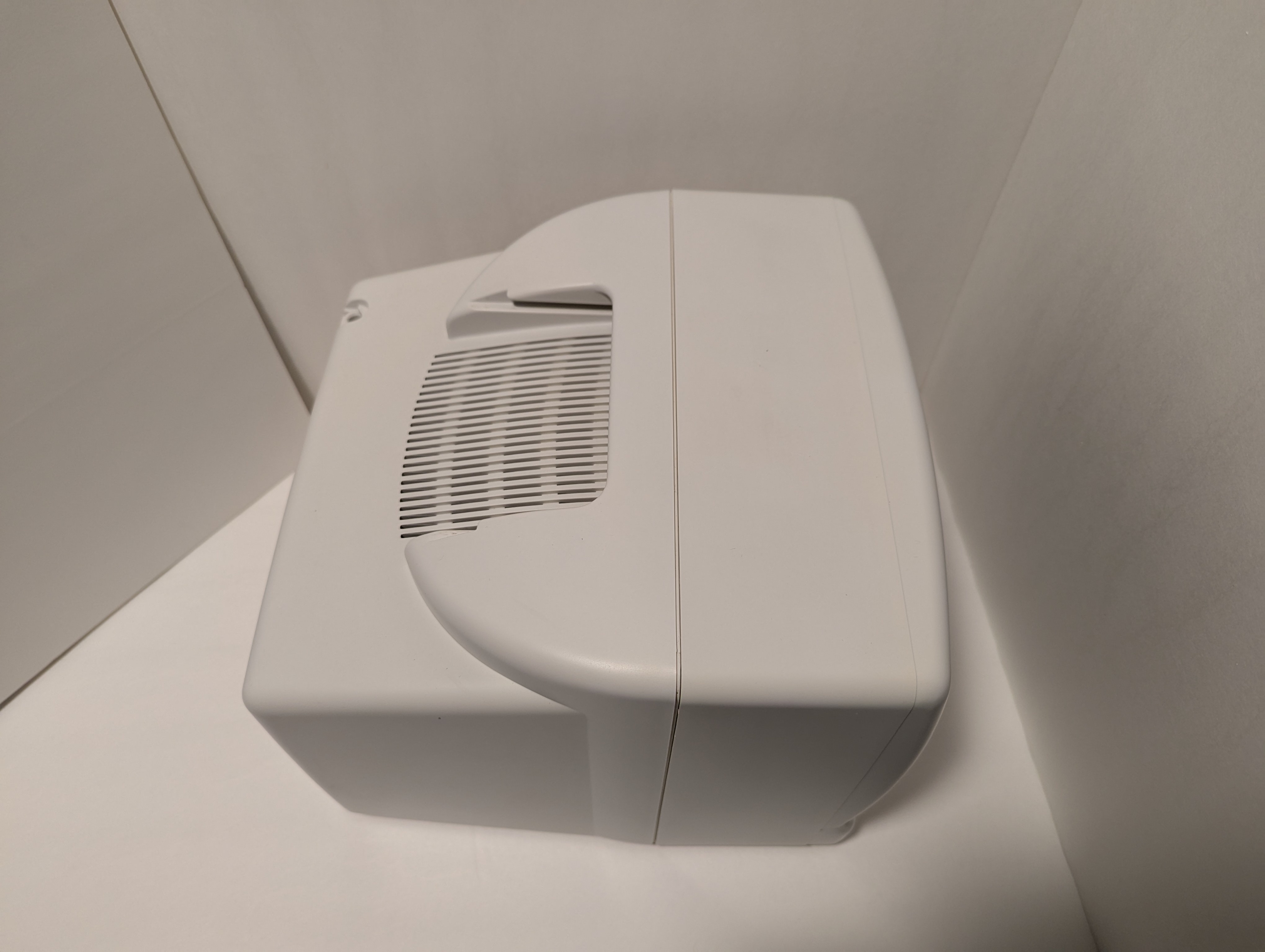

Basic 9" RF-only TV. Has a carry handle on top and can be modded for composite and RGB input. Power cord is detachable.

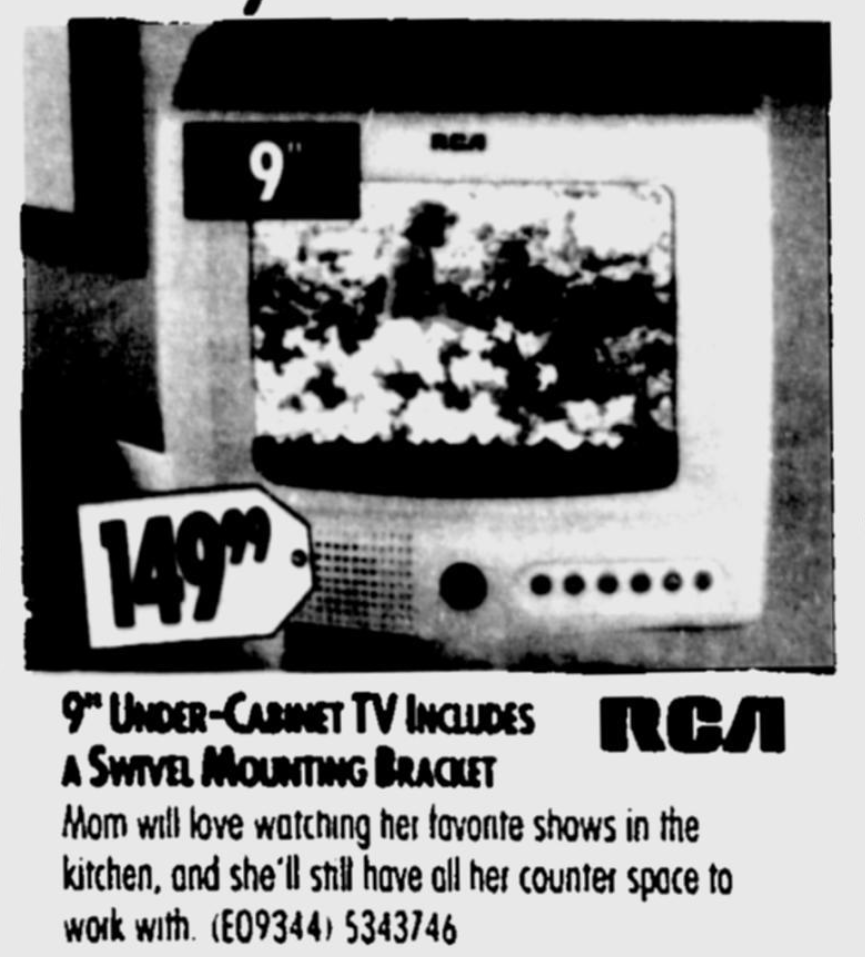

Literature
Notes

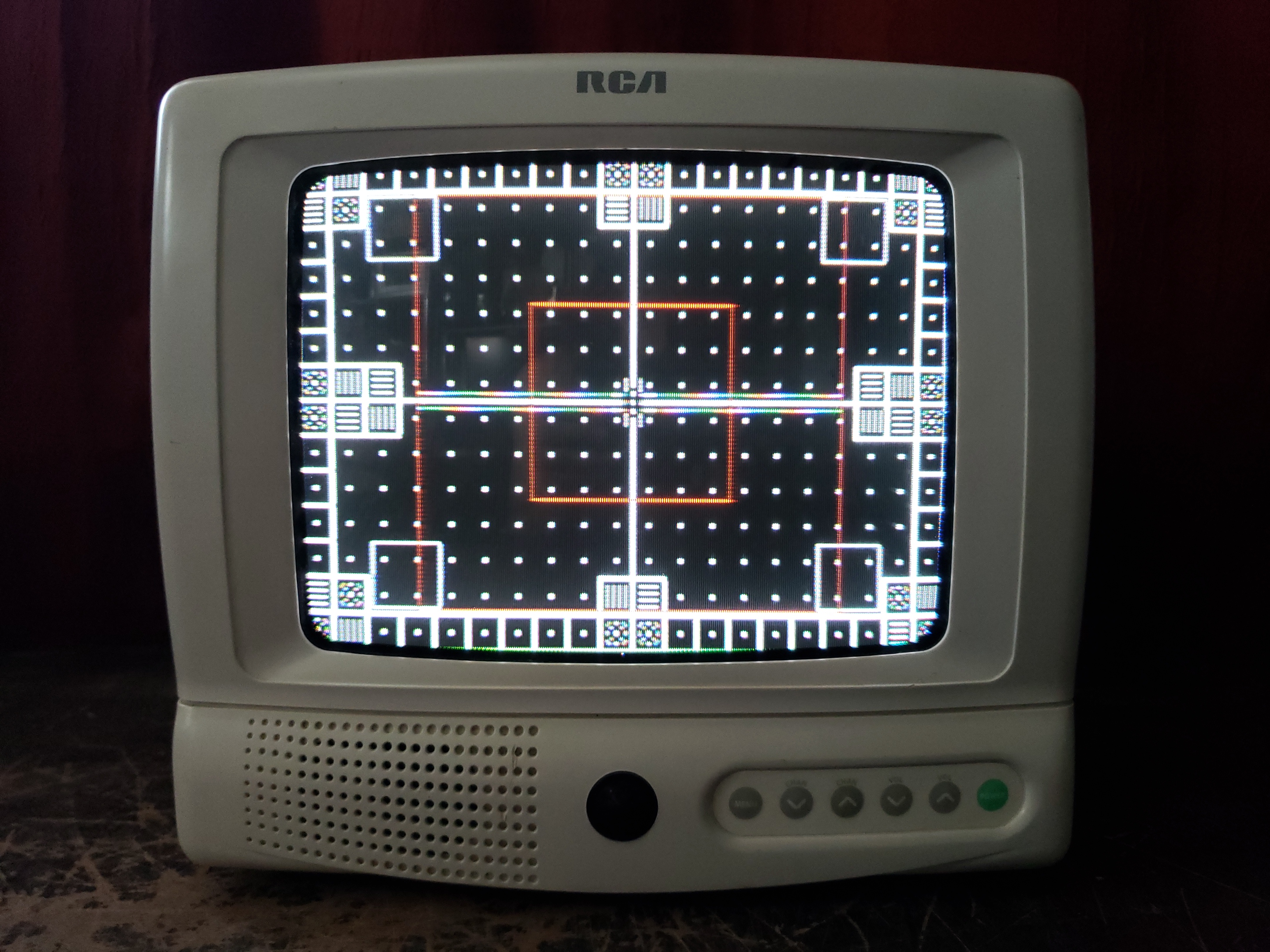

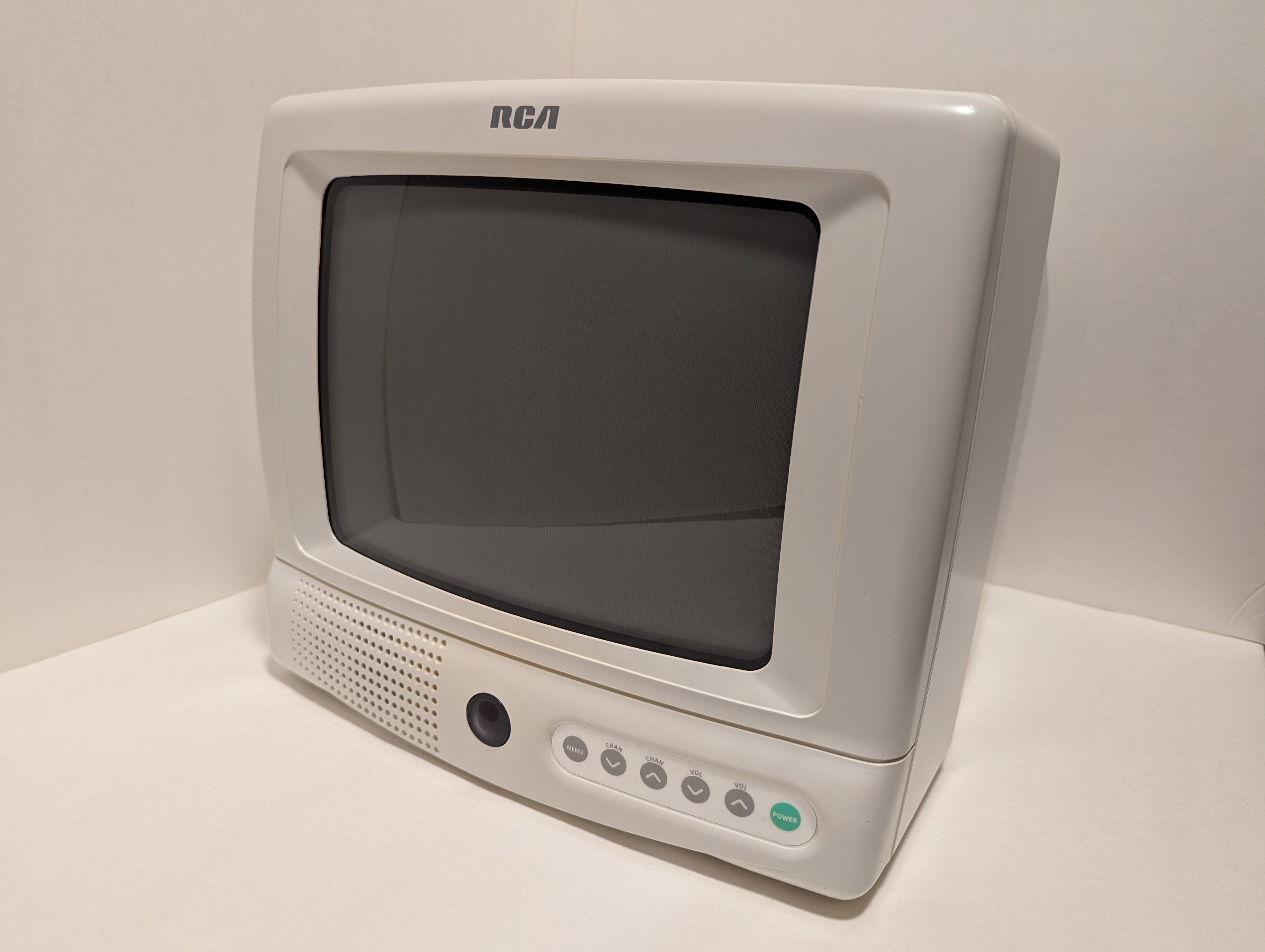

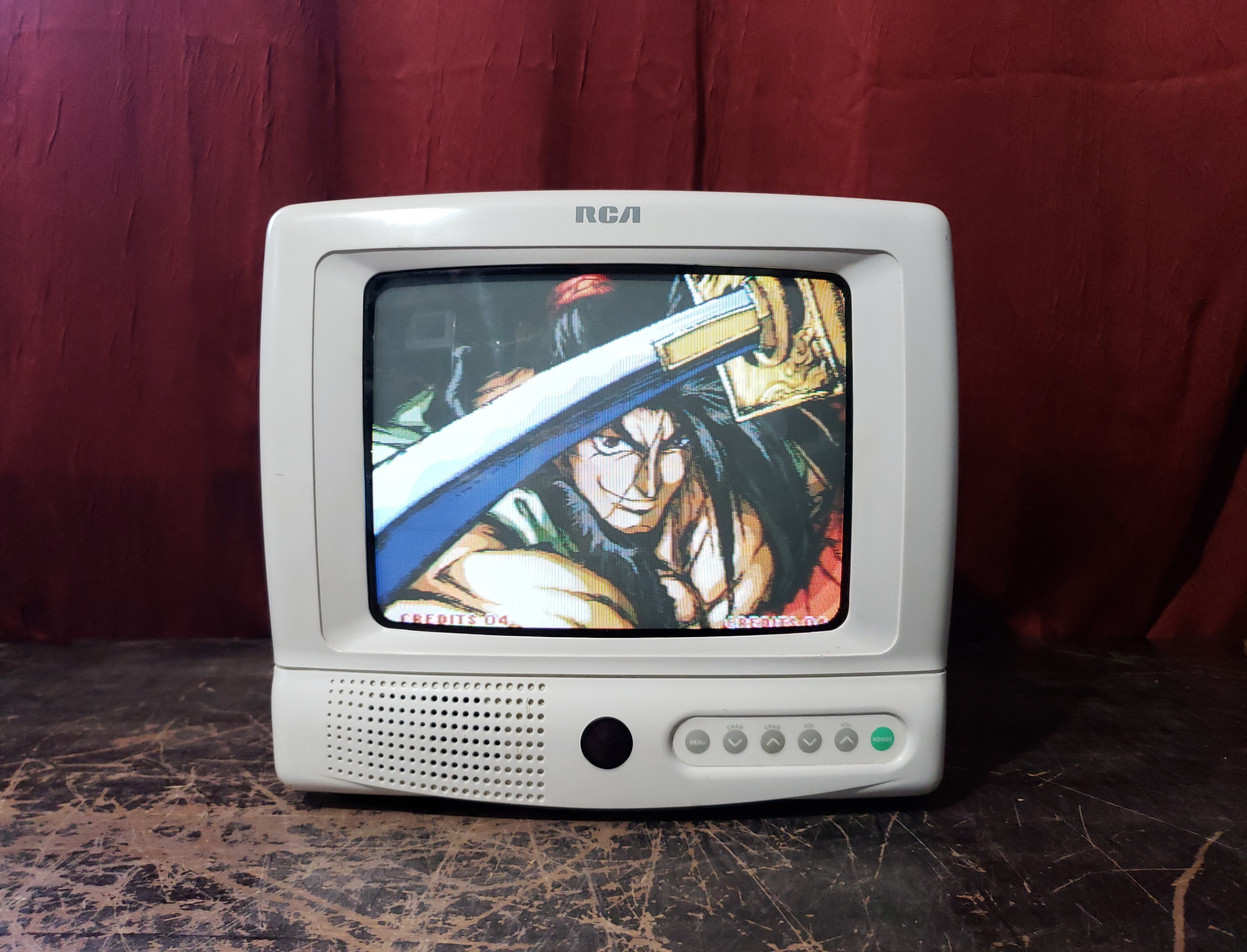

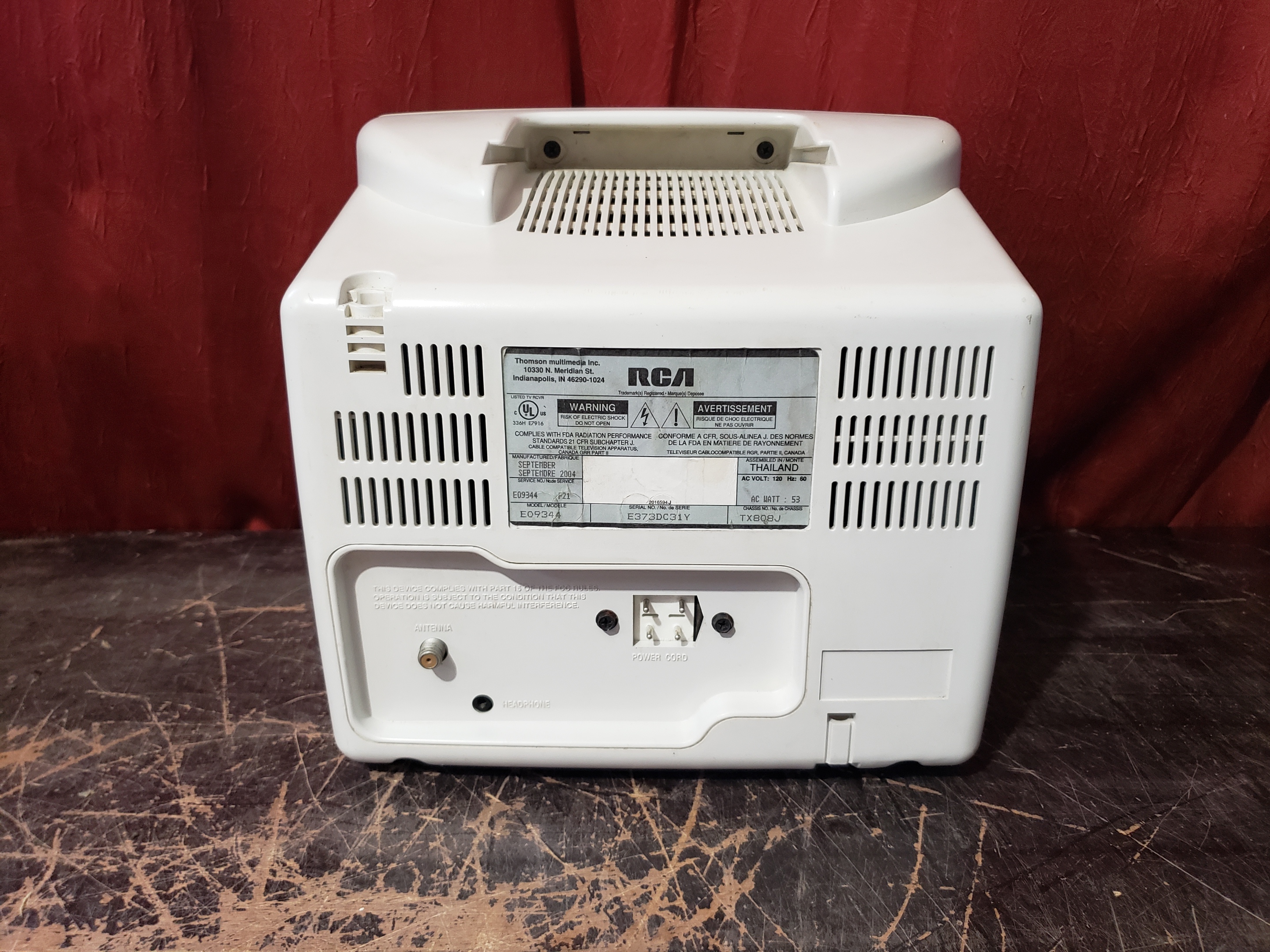

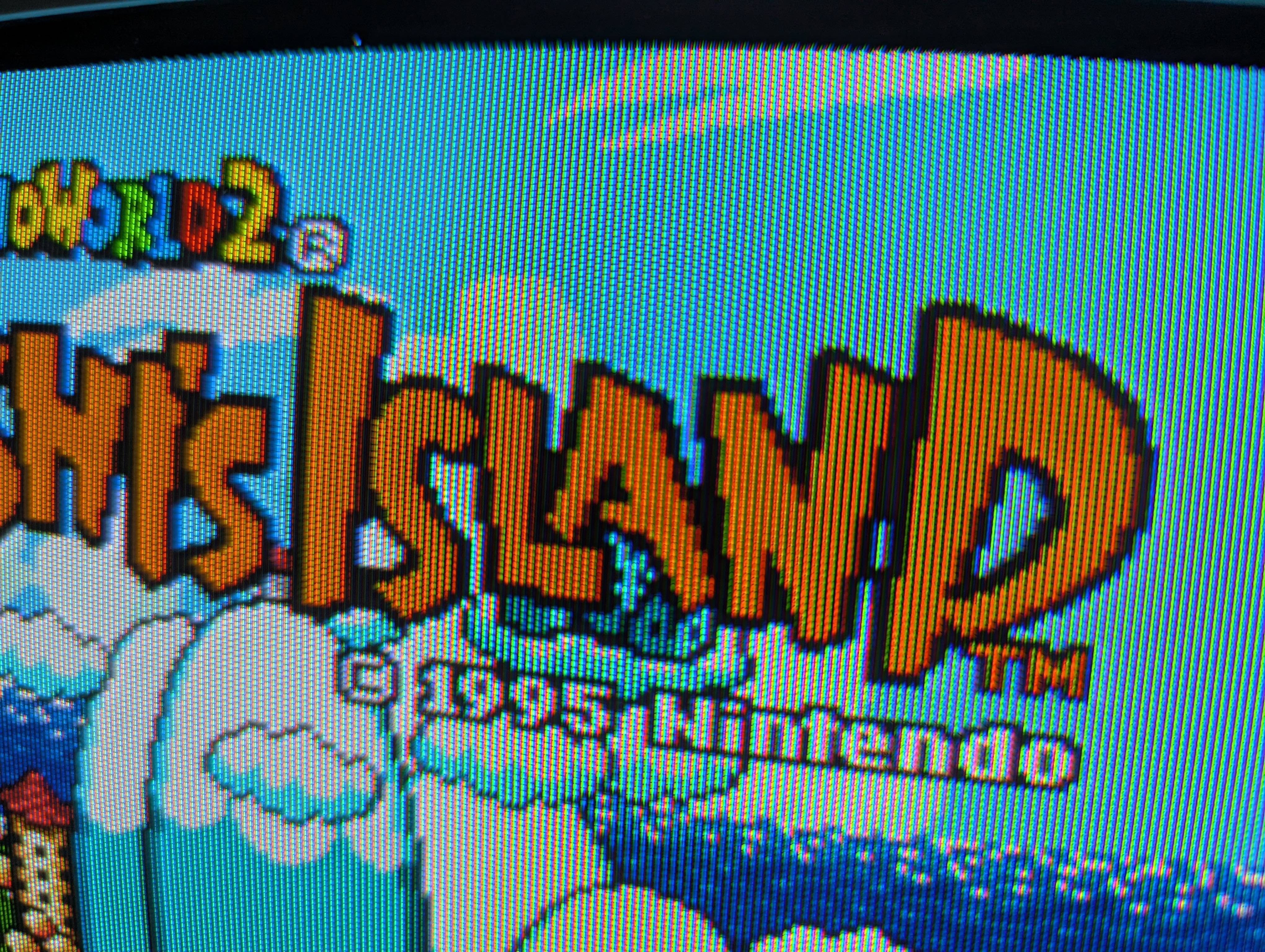

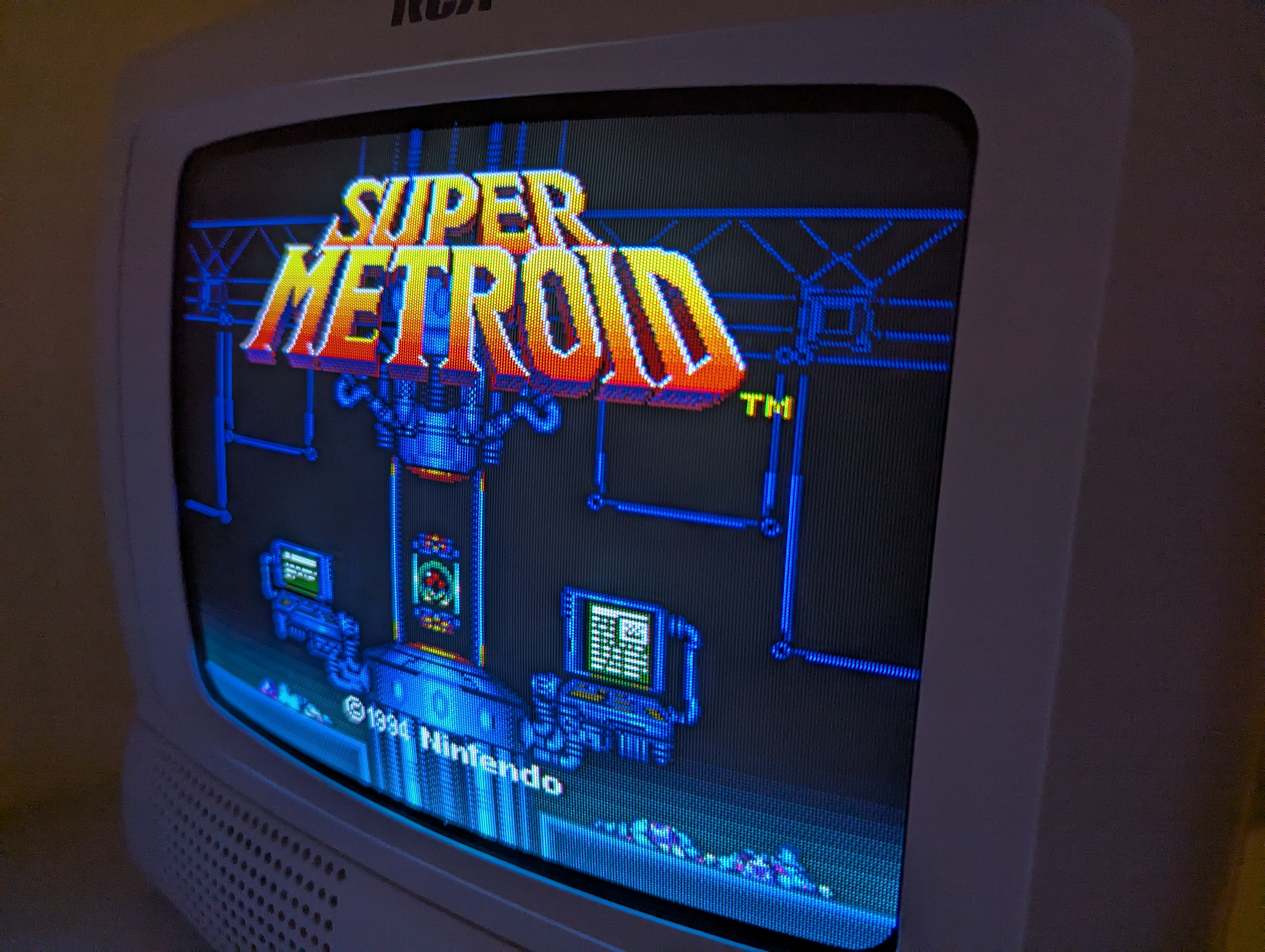

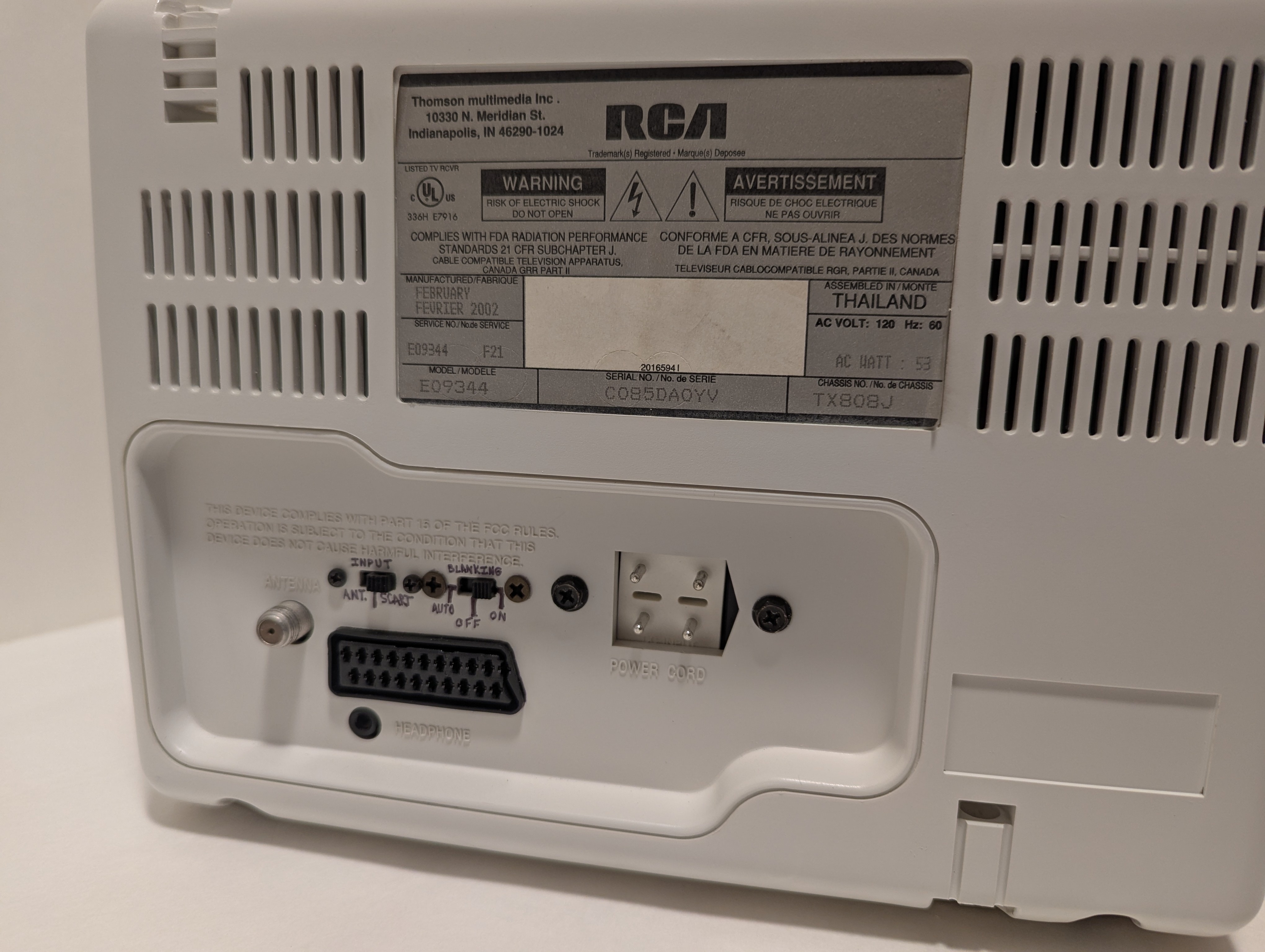

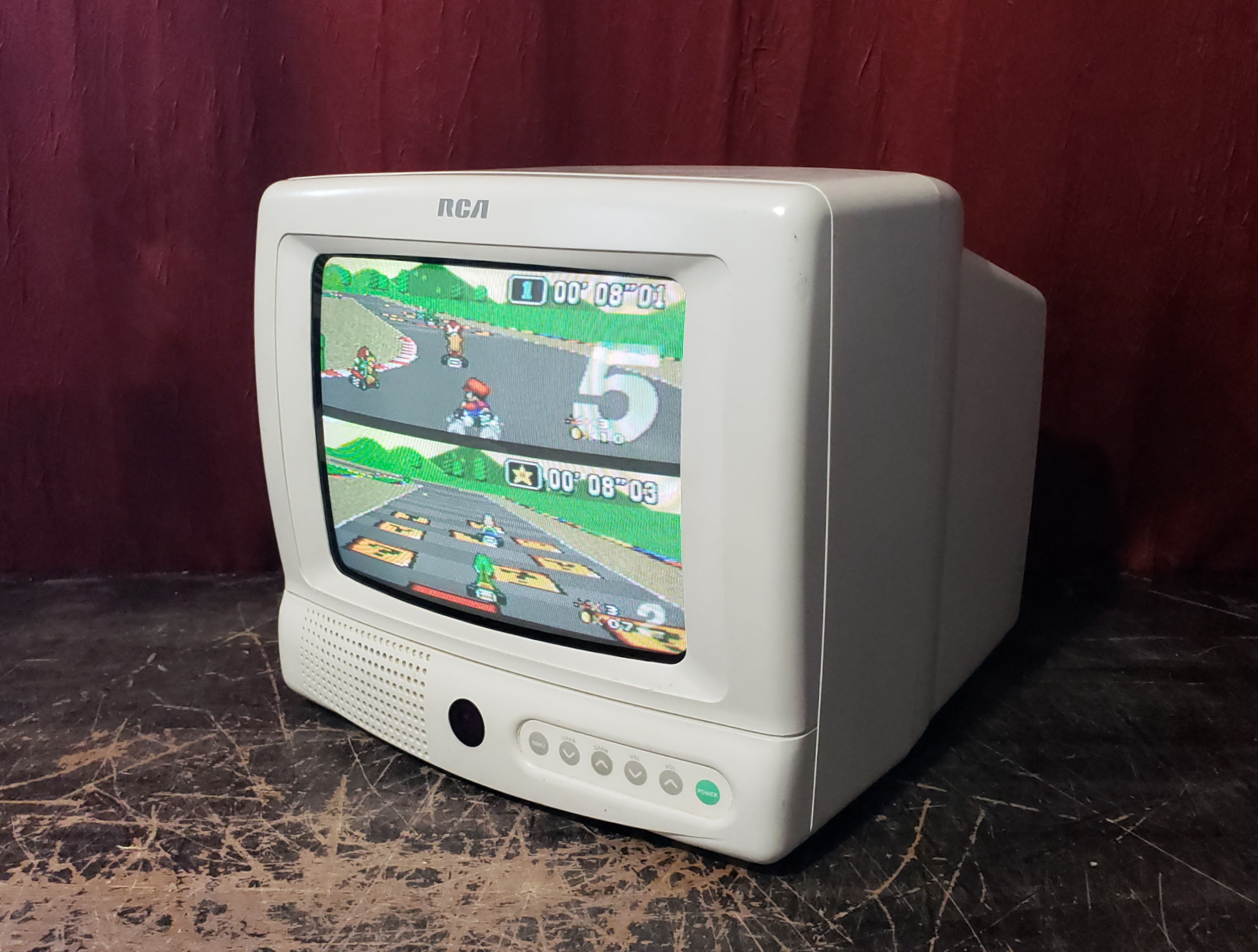

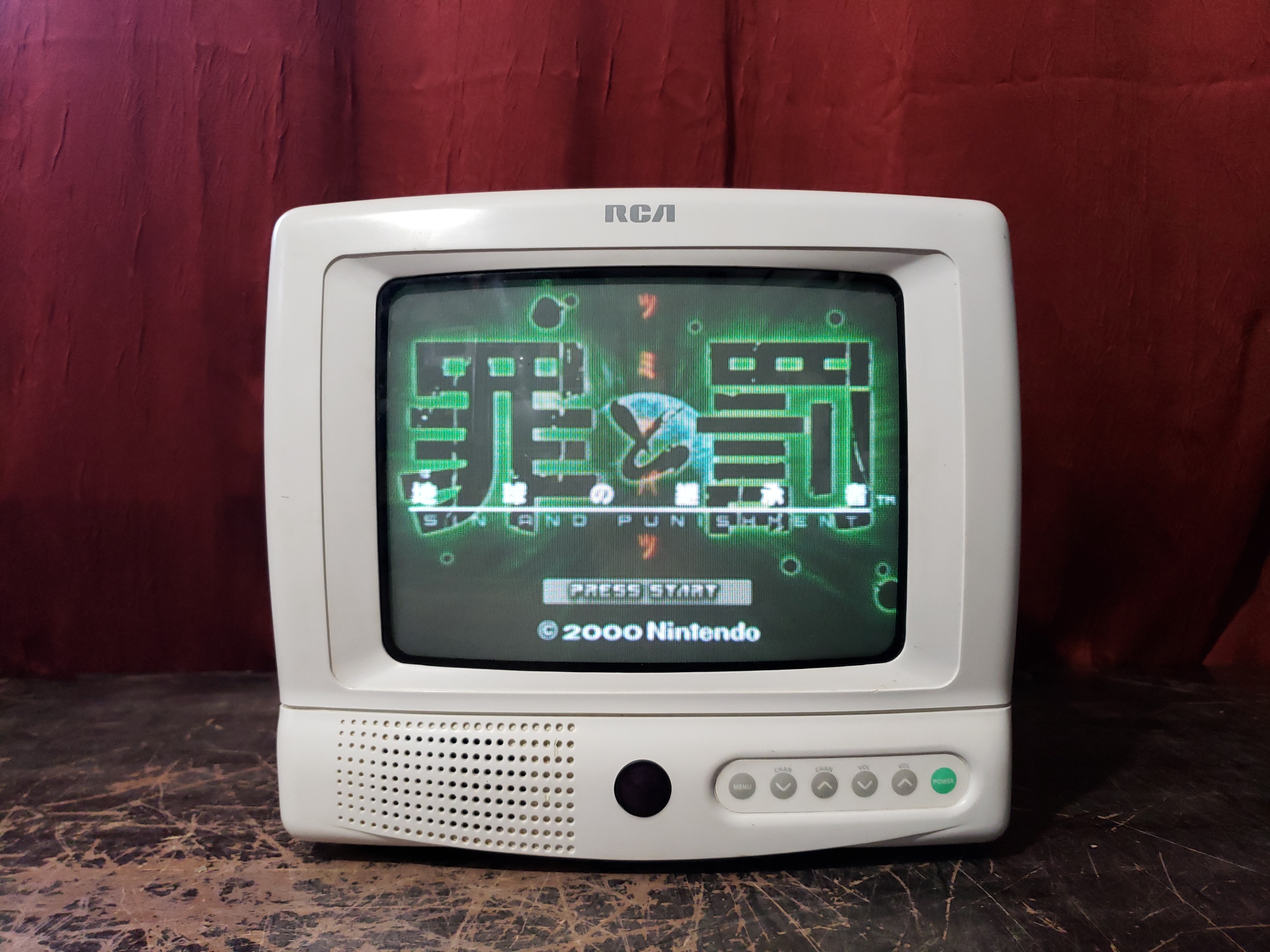

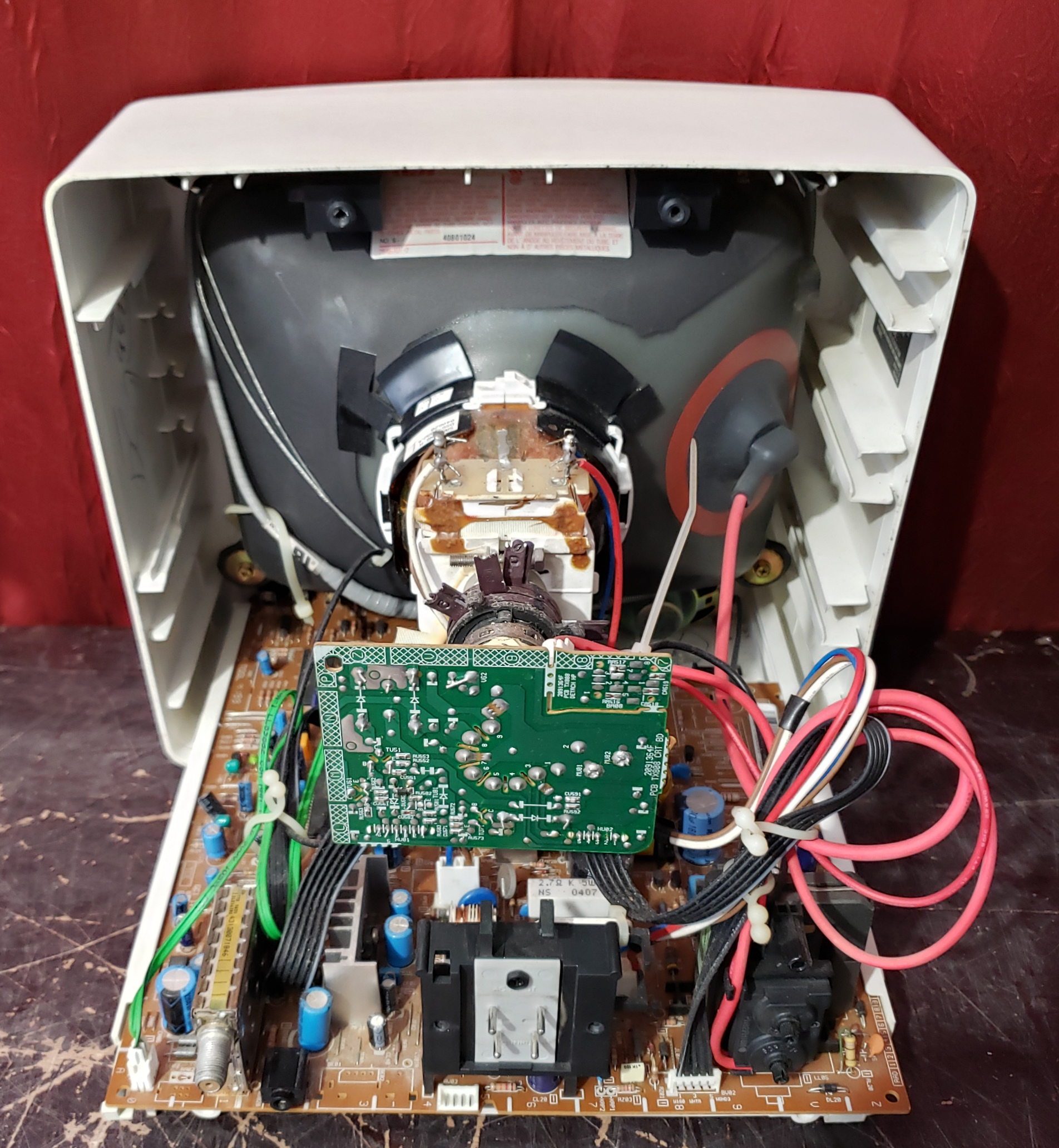

The unit shown in photos has been modified for composite and RGB (via OSD mux) input over SCART. An unmodified set would lack the SCART input and switches on the back. This service manual for a related TX808-chassis 13" set was close enough for the RGB/composite mod performed.
An S-video mod should also be possible, as the TA1268N has separate inputs for Y and C, but was not attempted on the unit shown.
Service menu access: While holding down volume - button, press and release channel + button followed by channel - button. Parameter 00 must be adjusted to 76 before any other adjustments in the service menu can be accessed.

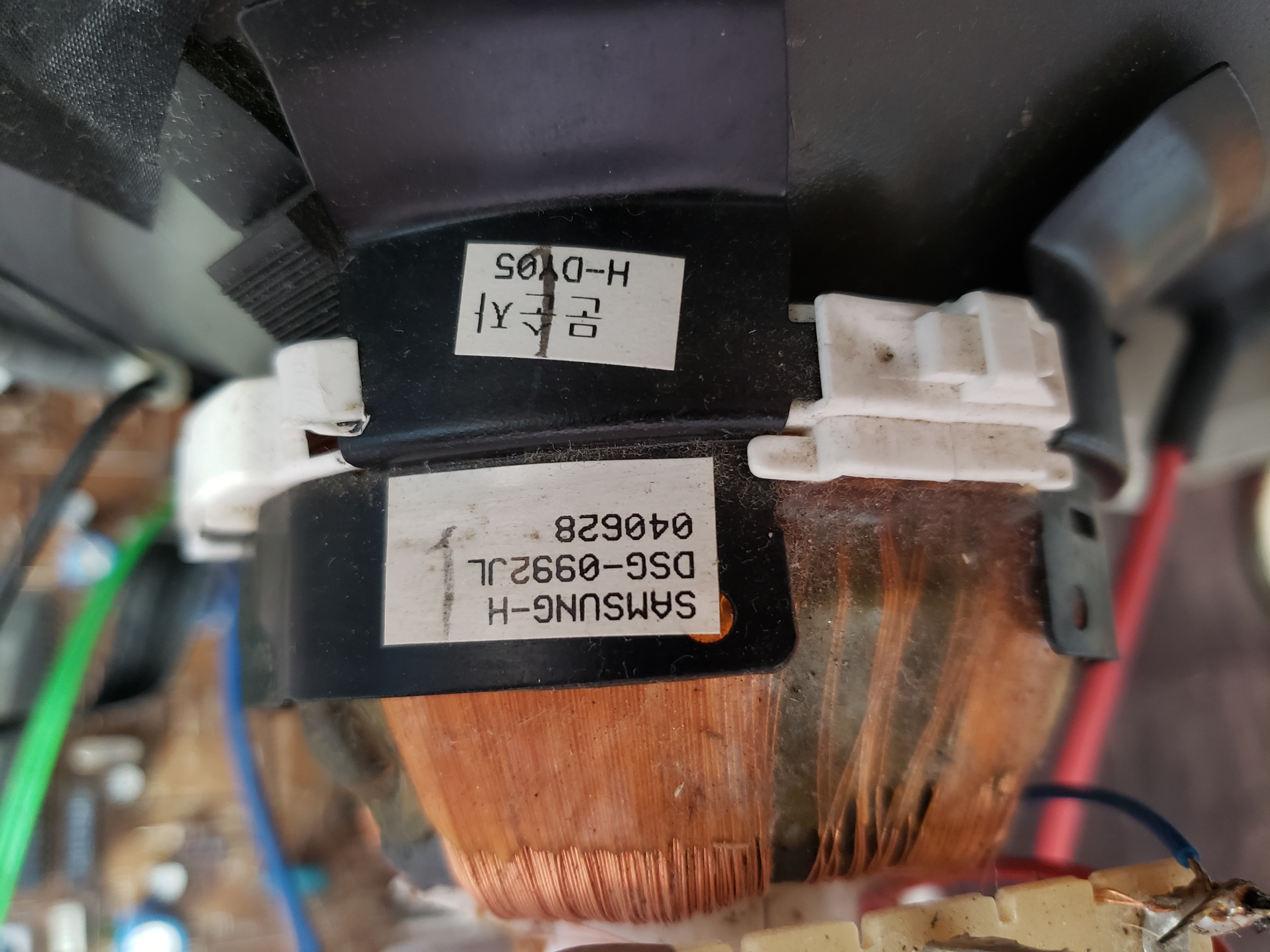

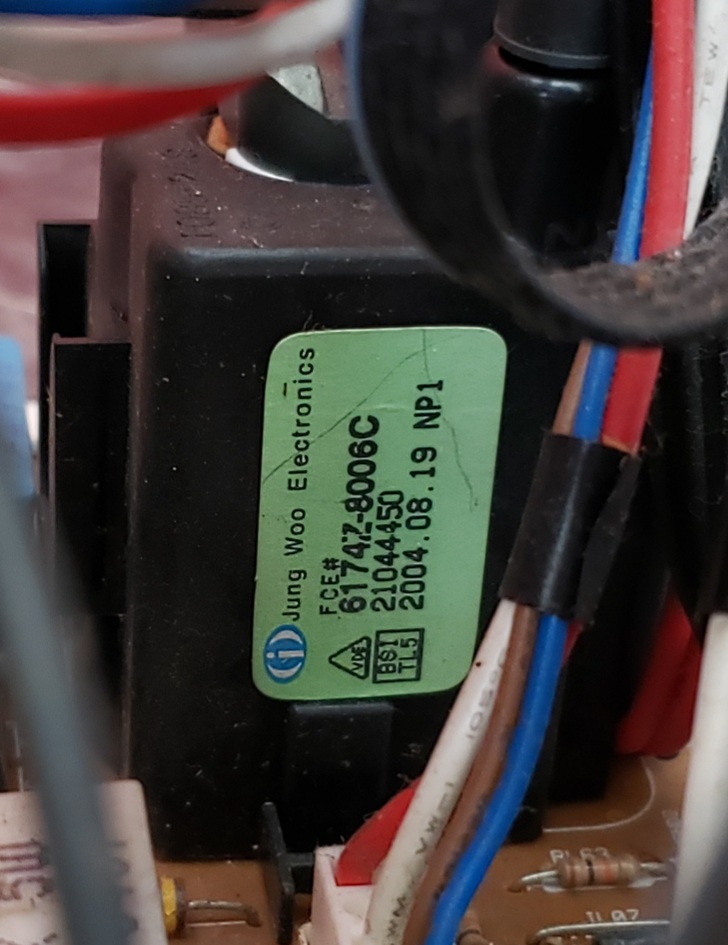

Gallery

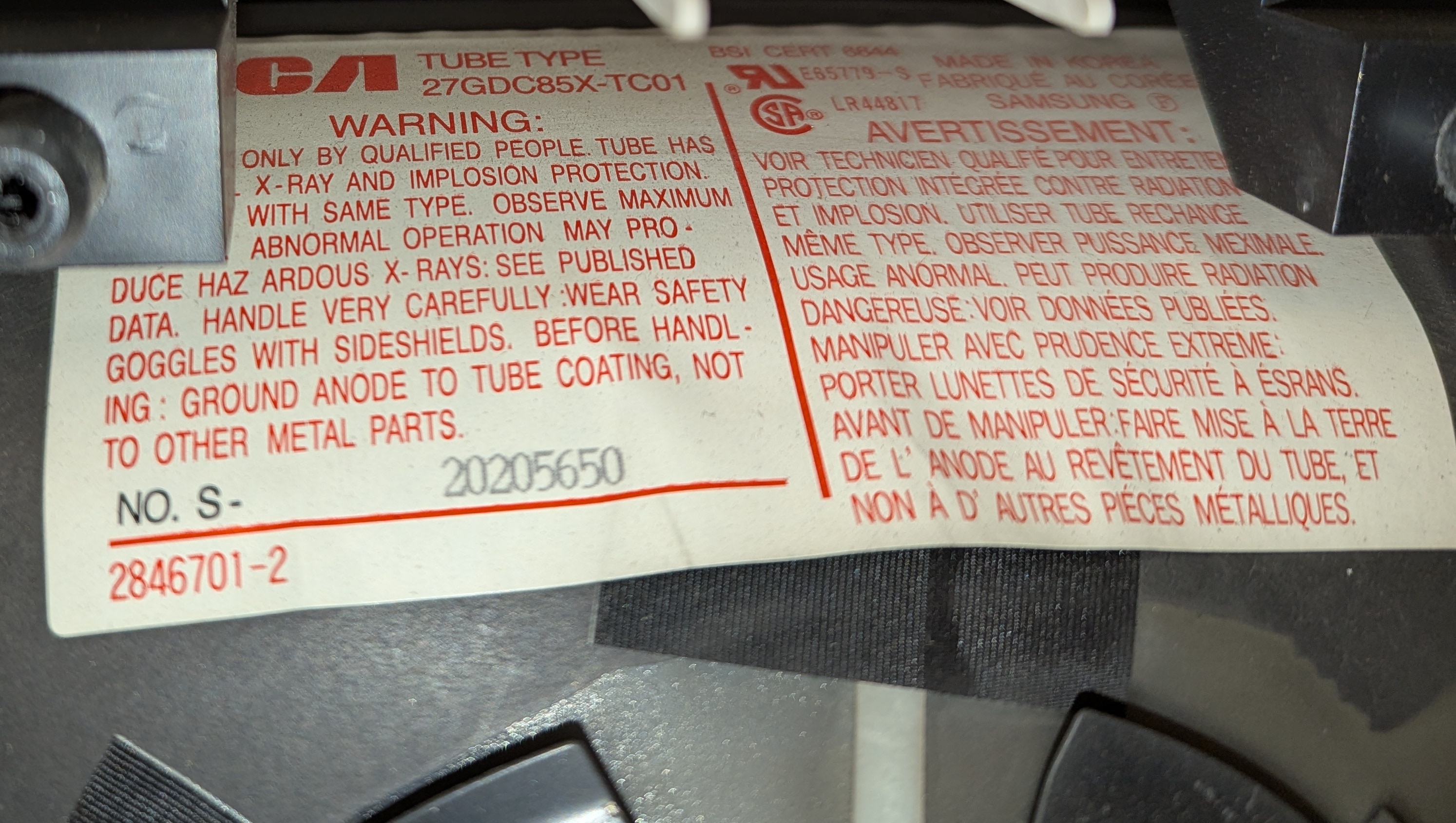

| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | E09344 |
| Series: | E |
| Viewable Size: | 9" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | TA1268N |
| Focus Type: | Single |
| Tube: | 27GDC85X-TC01 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono, Headphone Jack |

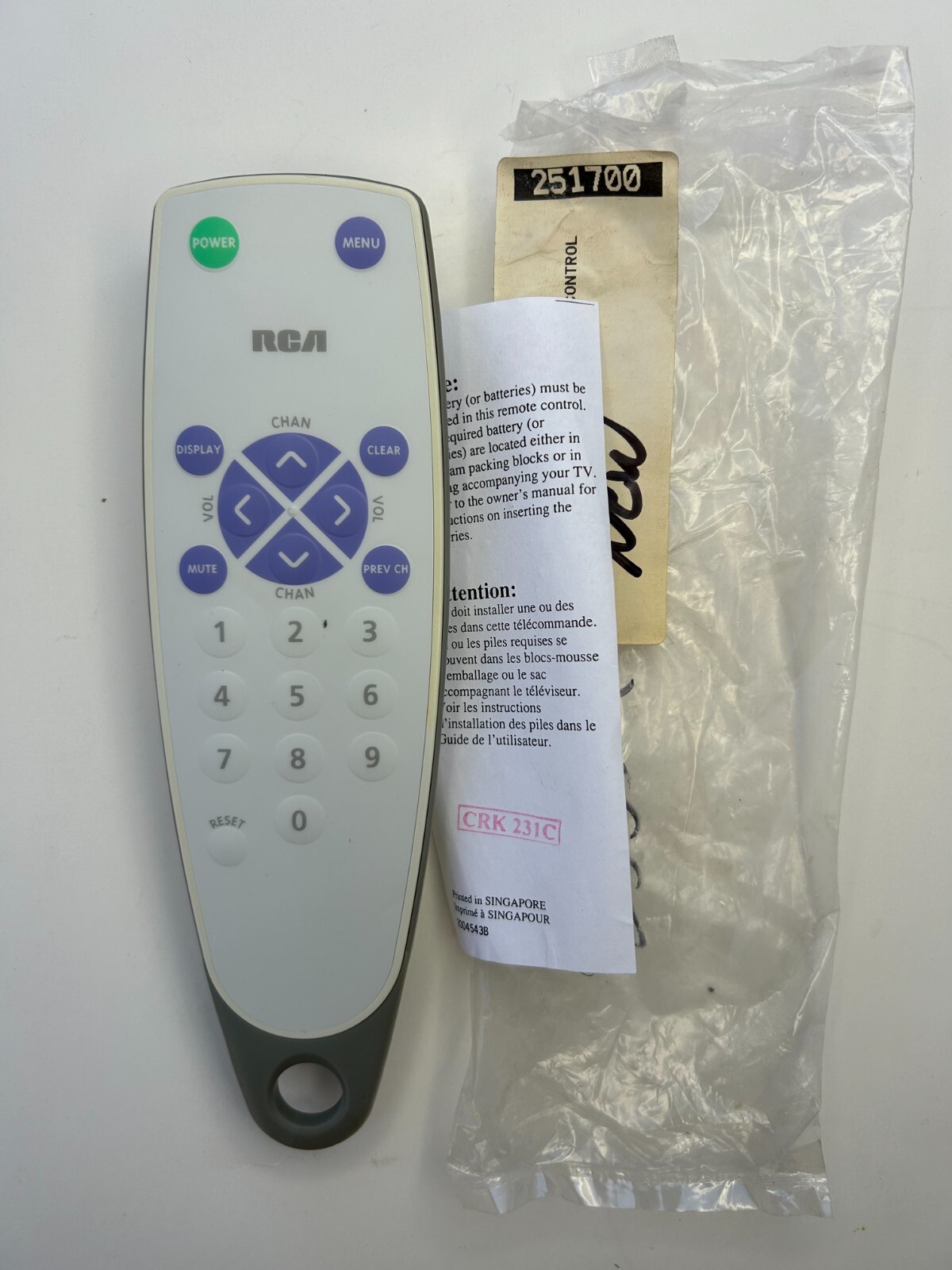

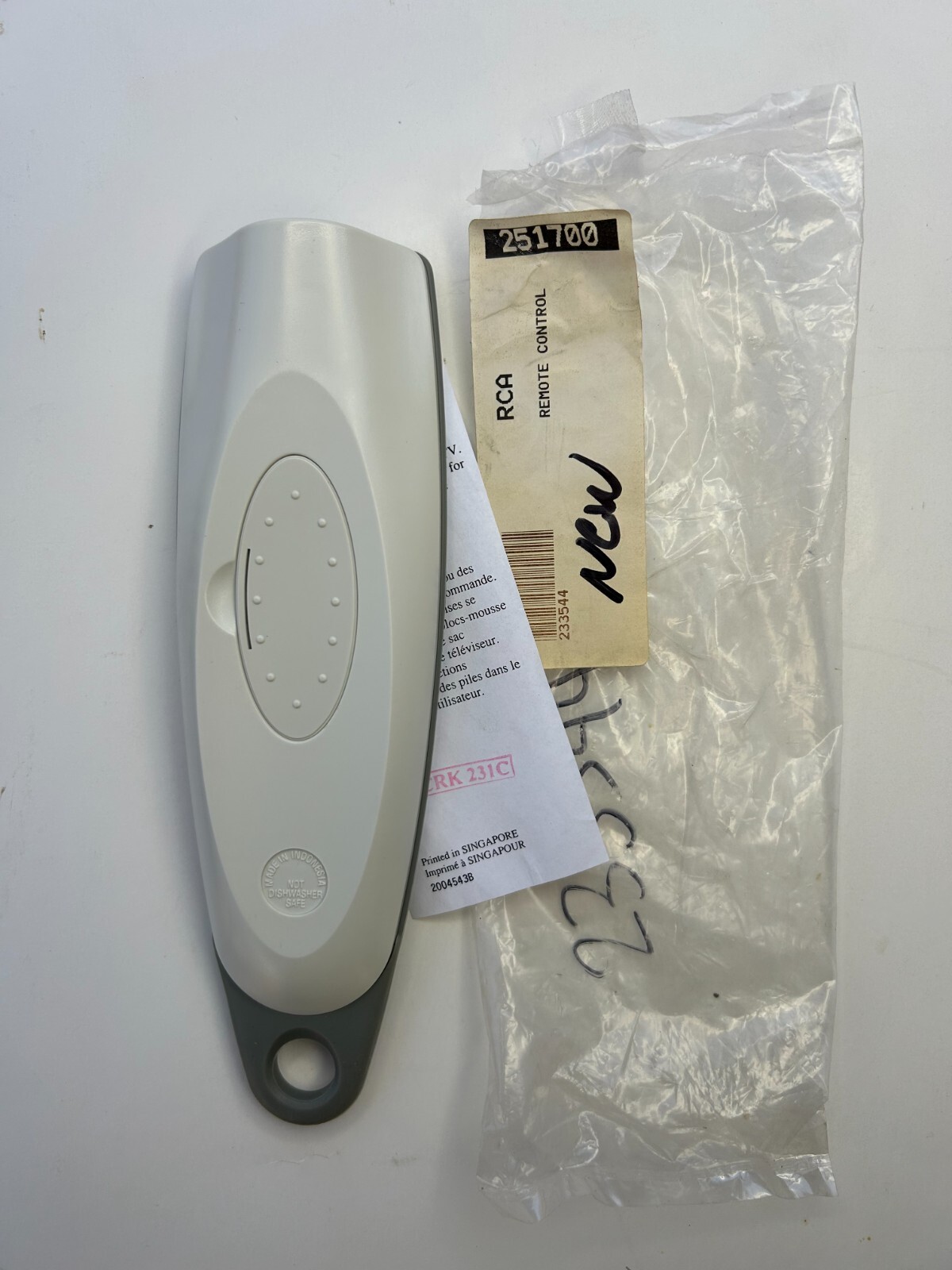

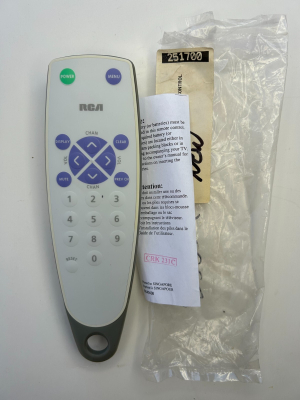

| Remote: | CRK231C |
| Chassis: | TX808J |
| Weight: | 20 lbs (9.1 kg) |
| Dimensions (W/H/D): |
292 x 257 x 330 mm
(11.5 x 10.1 x 13") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Carrying Handle, Table Surface (Standard) |
| Mods: | RGB via Mux, S-Video, Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Community Submission, Needs Yoke Info |
