RCA E13334WH
Eli Krause
August 29, 2024, 11:16 pm
December 16, 2024, 3:40 pm
August 29, 2024, 11:16 pm
December 16, 2024, 3:40 pm
Summary
RF-only. Tube is swappable into sets with more inputs.
Manuals

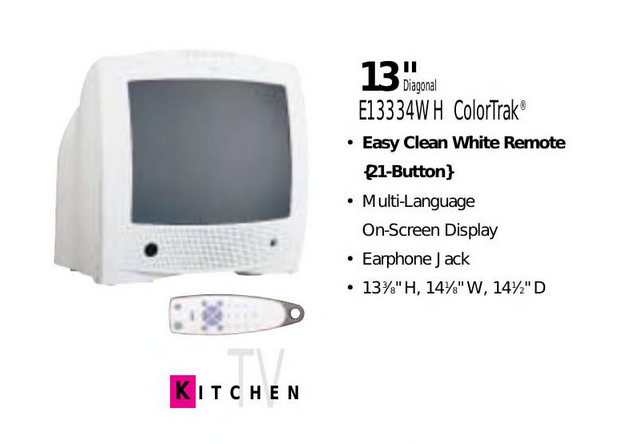

Media and Promotional Material
Notes

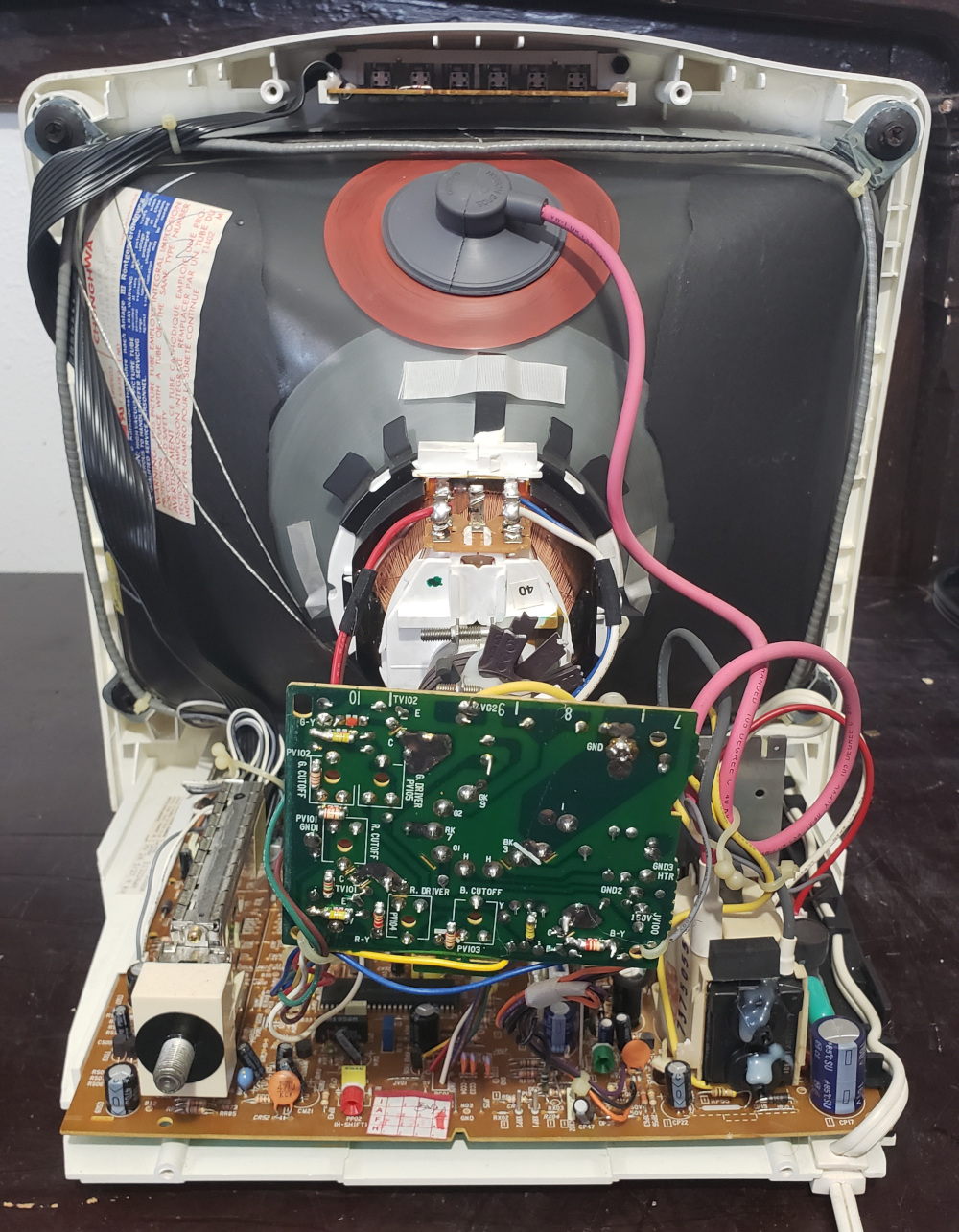

Internal potentiometers for horizontal position, drives, and cutoffs.

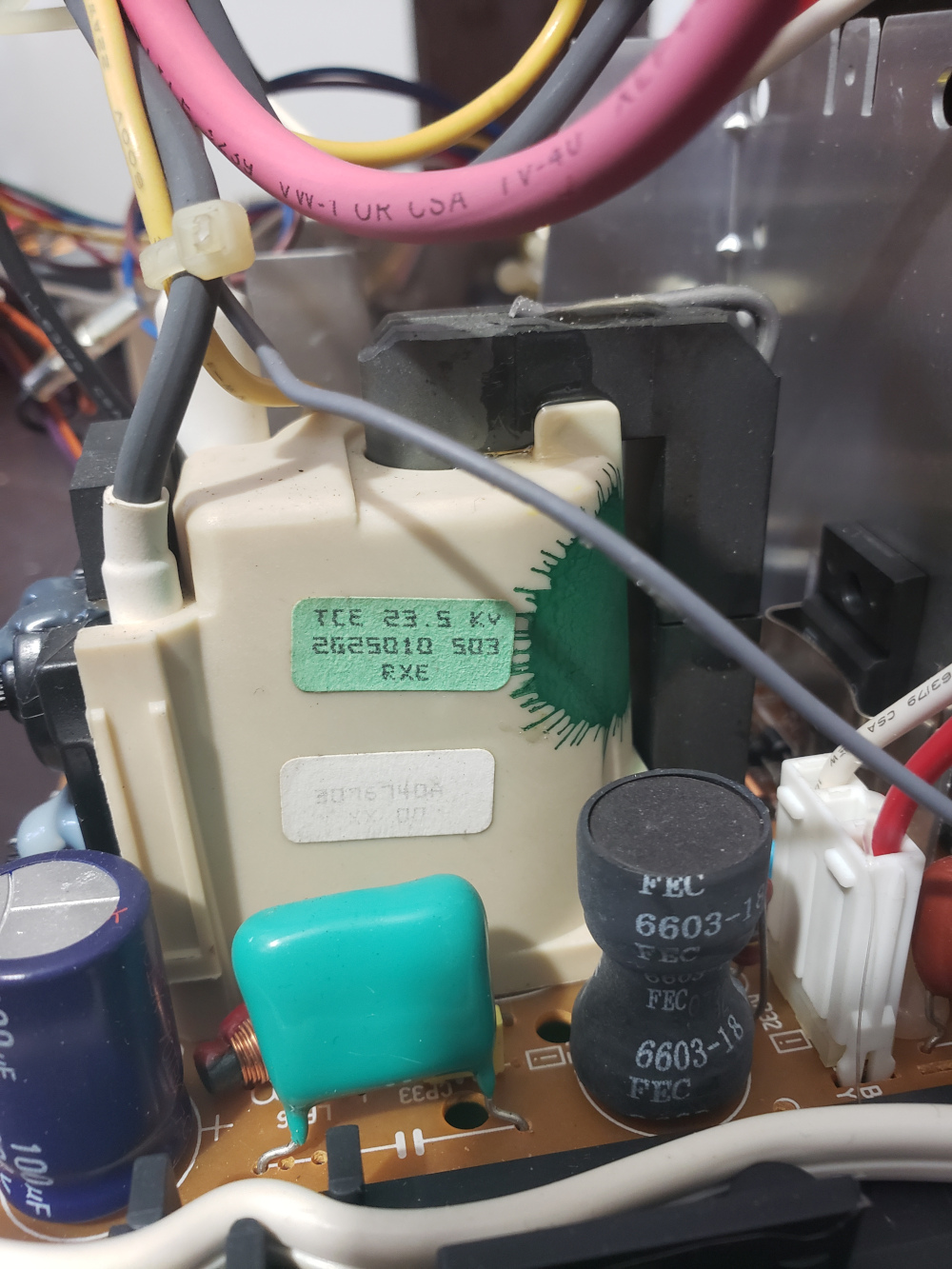

This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

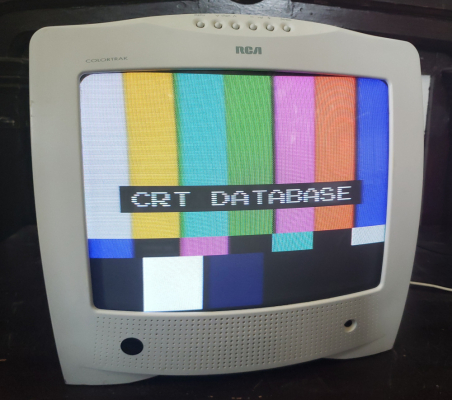

Gallery
Specifications | |
---|---|
Brand: | RCA |
Manufacturer: | Thomson |

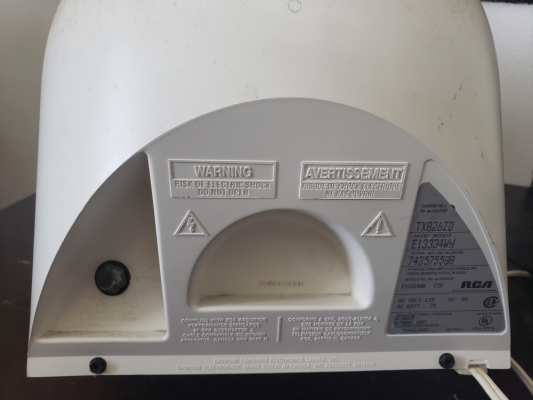

Model: | E13334WH |
Series: | E |
Viewable Size: | 13" |
Inputs: | RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | M52303ASP, Mitsubishi |

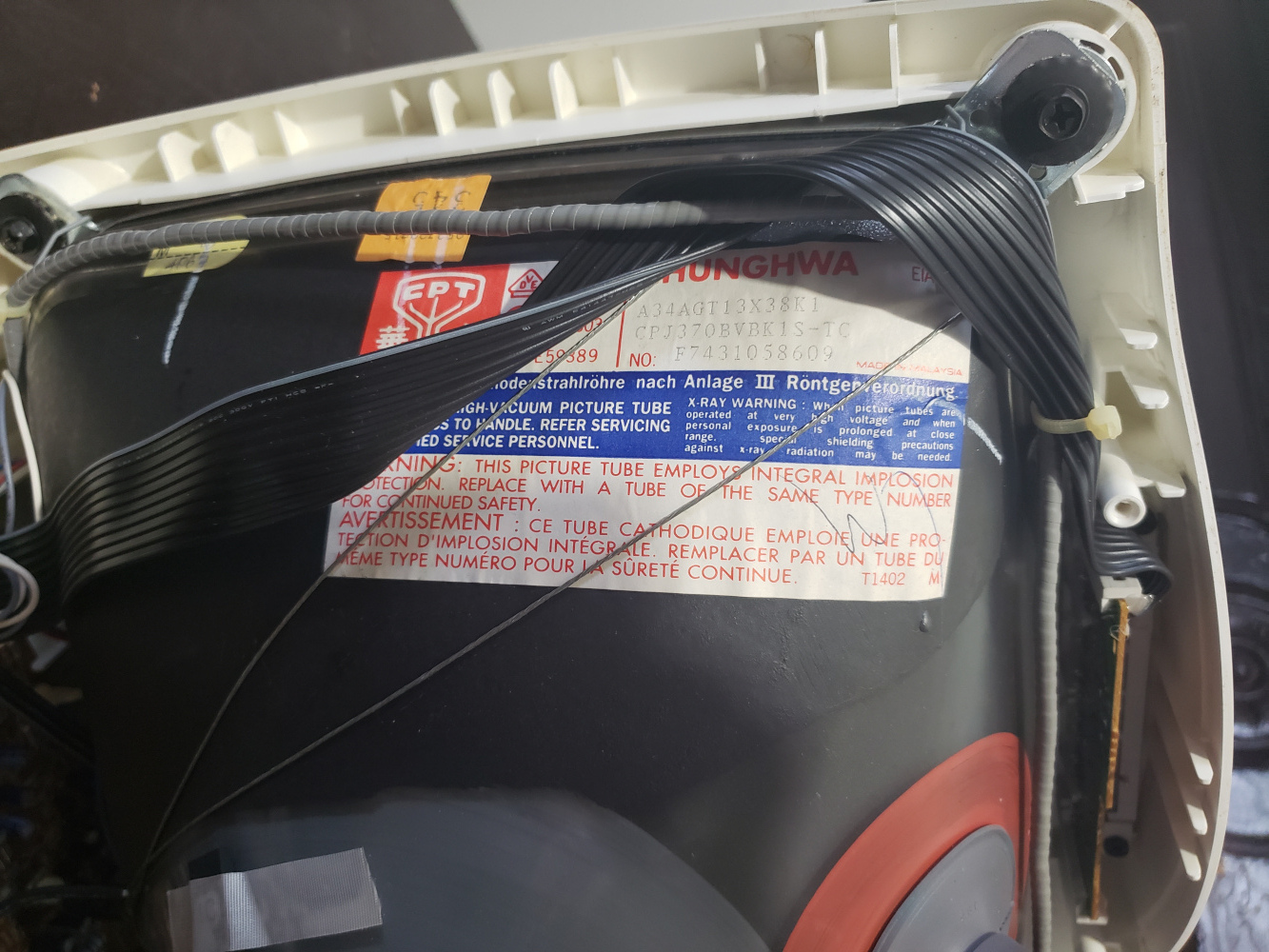

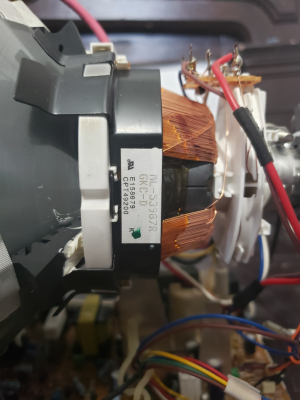

Tube: | Chunghwa , A34AGT13X , A34AGT13X38K1 |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Mono |
Remote: | CRK231C |
Chassis: | TX826ZD |
Application: | Consumer |
Launched: | 1997 |
Country of Manufacture: | Thailand |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual |
