Summary

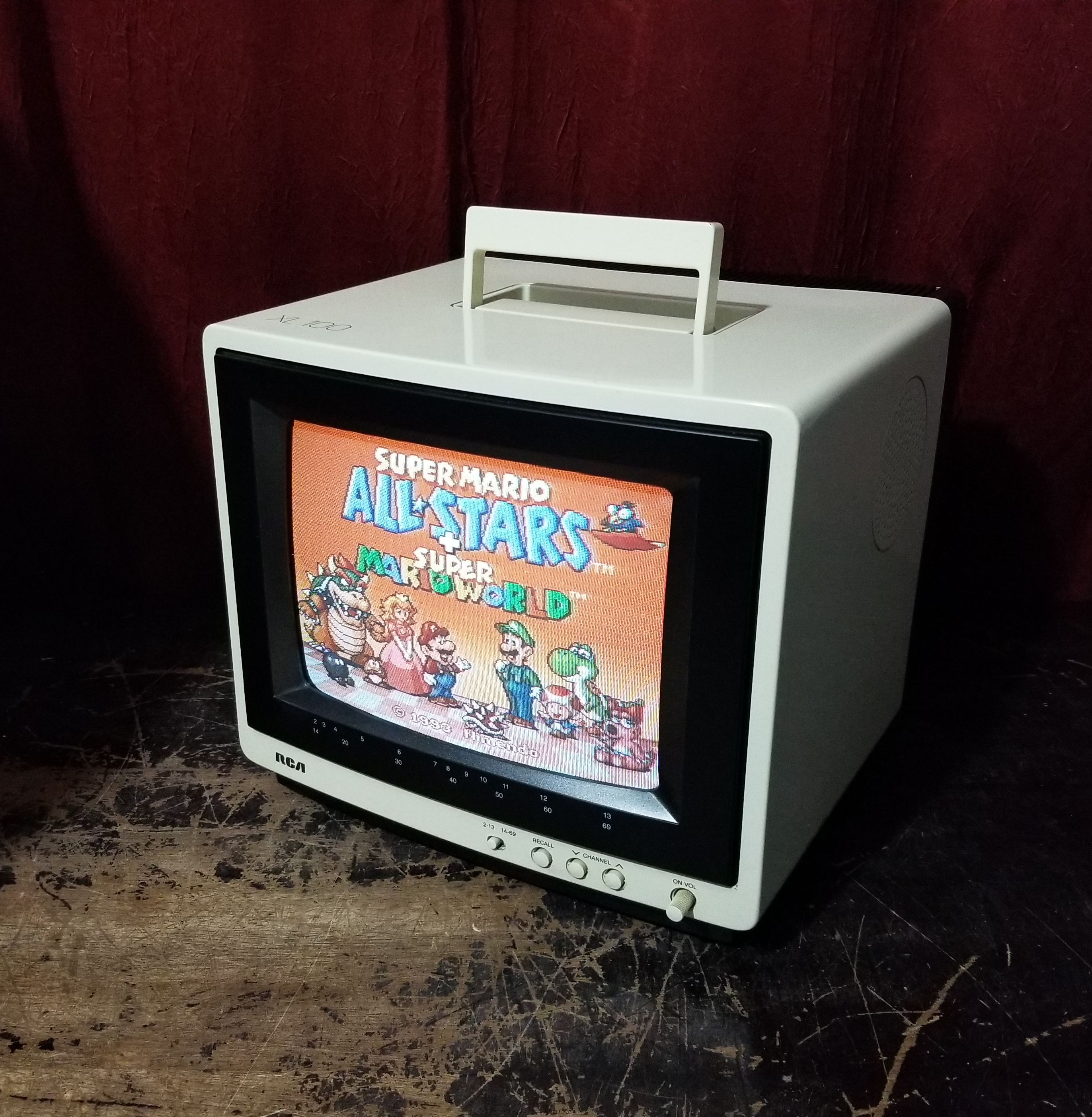

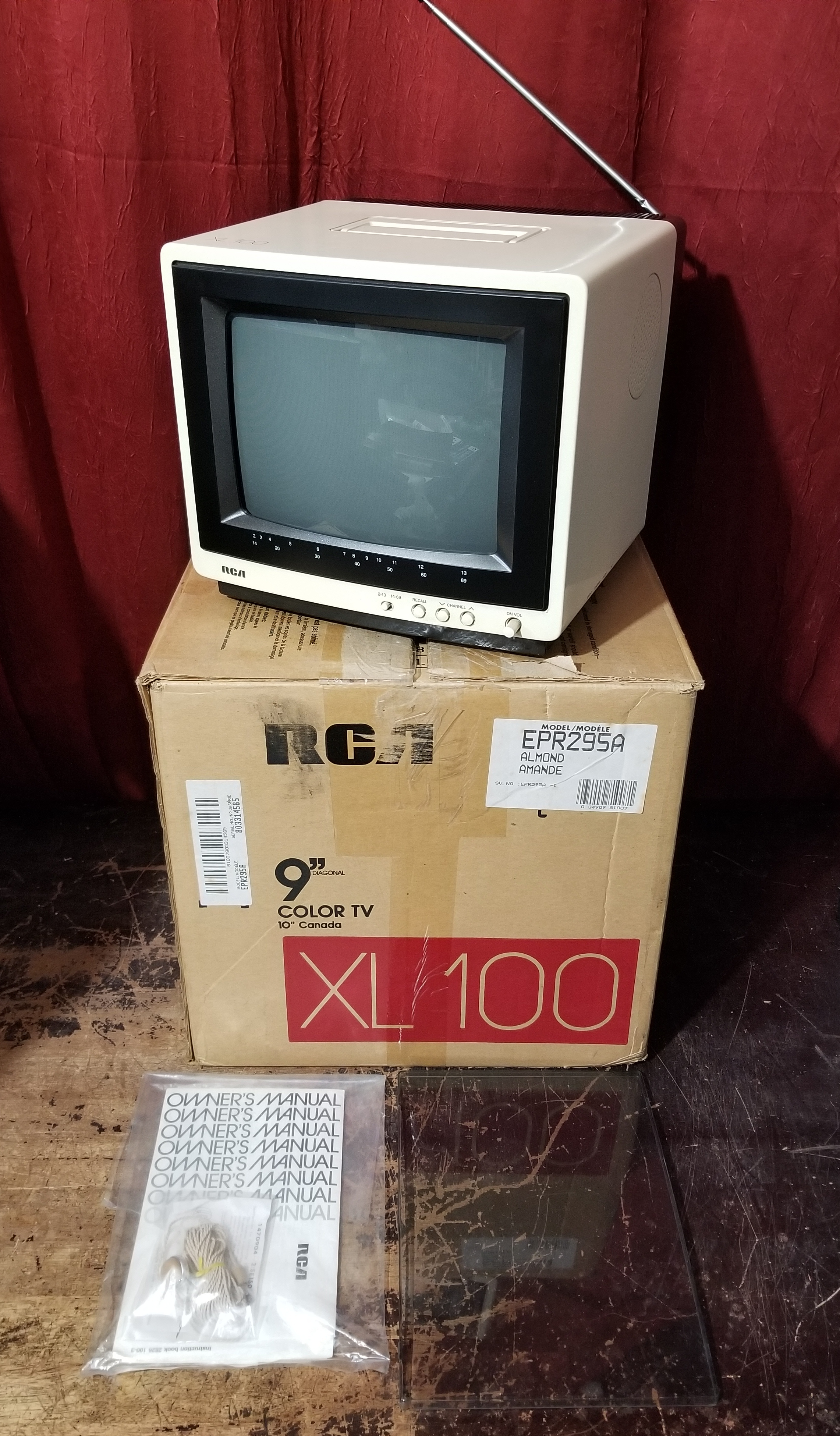

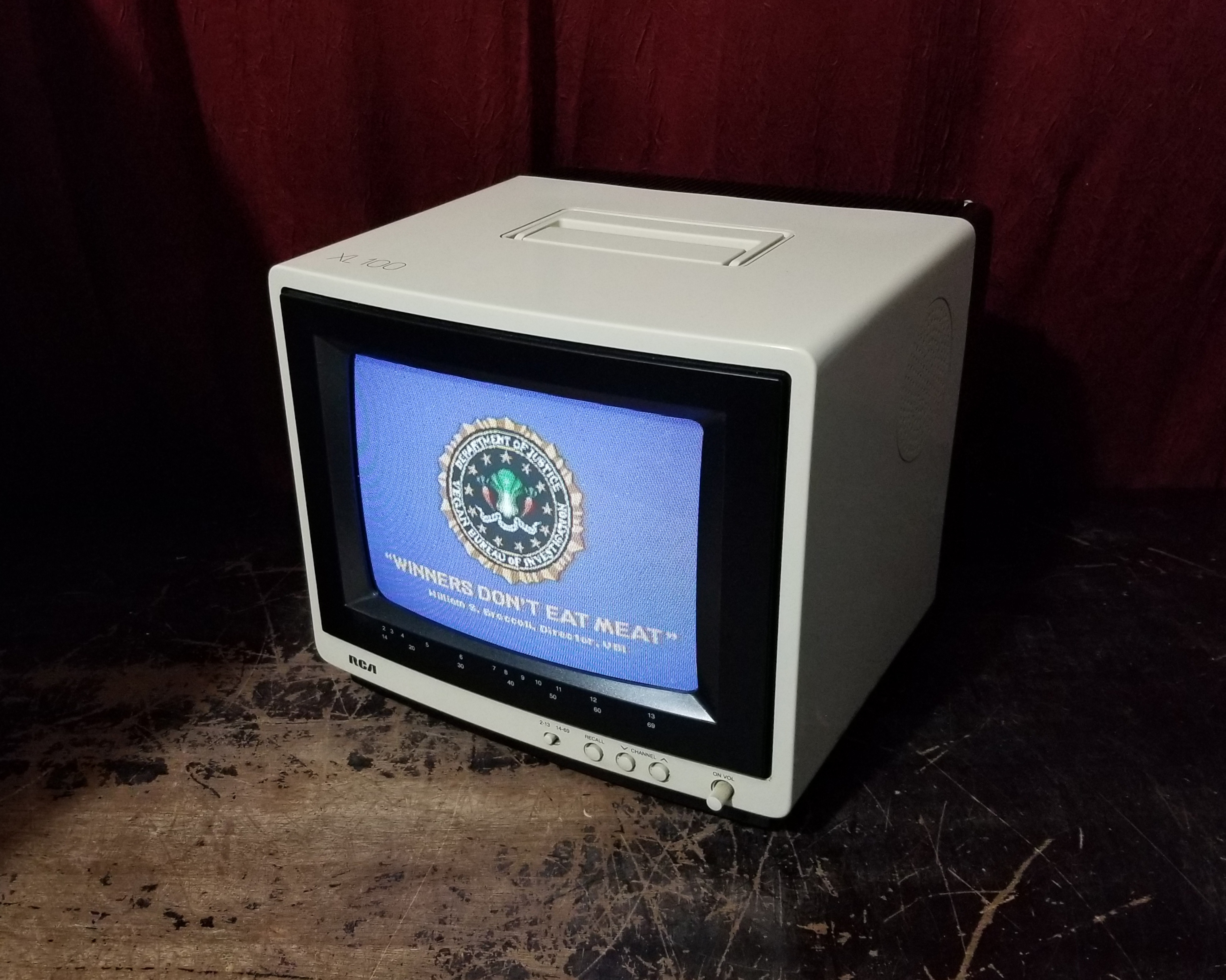

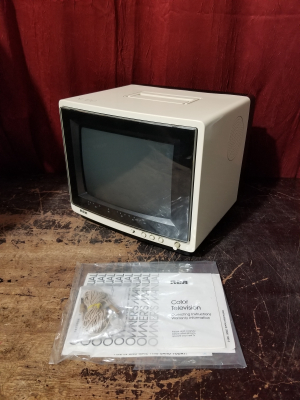

9" RCA AC/DC Portable Color TV Includes Car Cord. Signal Seek Tuning. Automatic Color Tracking. Large speaker for fine tone. Convenient earphone jack. Sharp, crisp color picture.

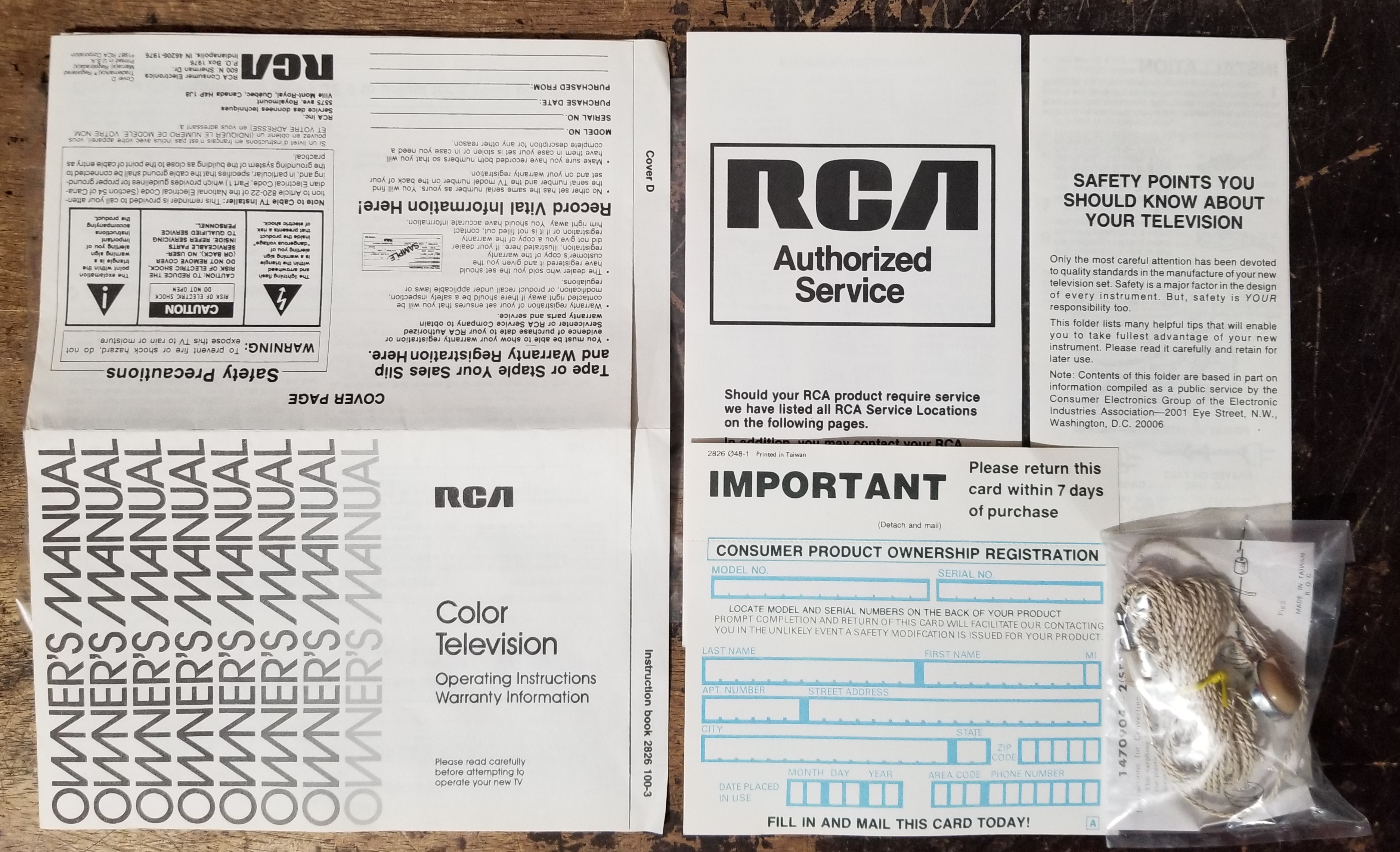

Manuals
Notes

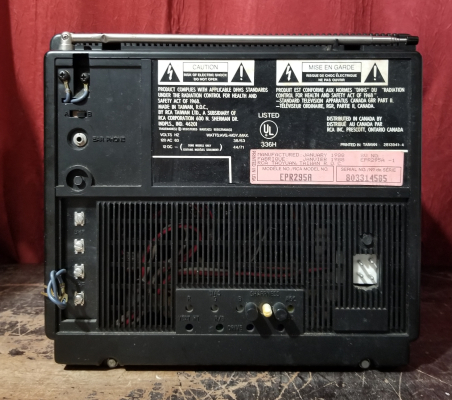

For the four pin power jack, the two pins on the right side are for AC. The upper left pin is DC+, and the lower left pin is DC-.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | RCA |
| Model: | EPR295A |
| Series: | EPR |
| Viewable Size: | 20" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | None |
| Tube: | A23JAN99X , Hi-Con |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark, Detachable Sunshade |
| Yoke: | 161252, 2830631-1 |
| Yoke Horz. Inductance: | 3.5 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 31.5 mH (@ 100 Hz) |
| Speakers: | Mono |

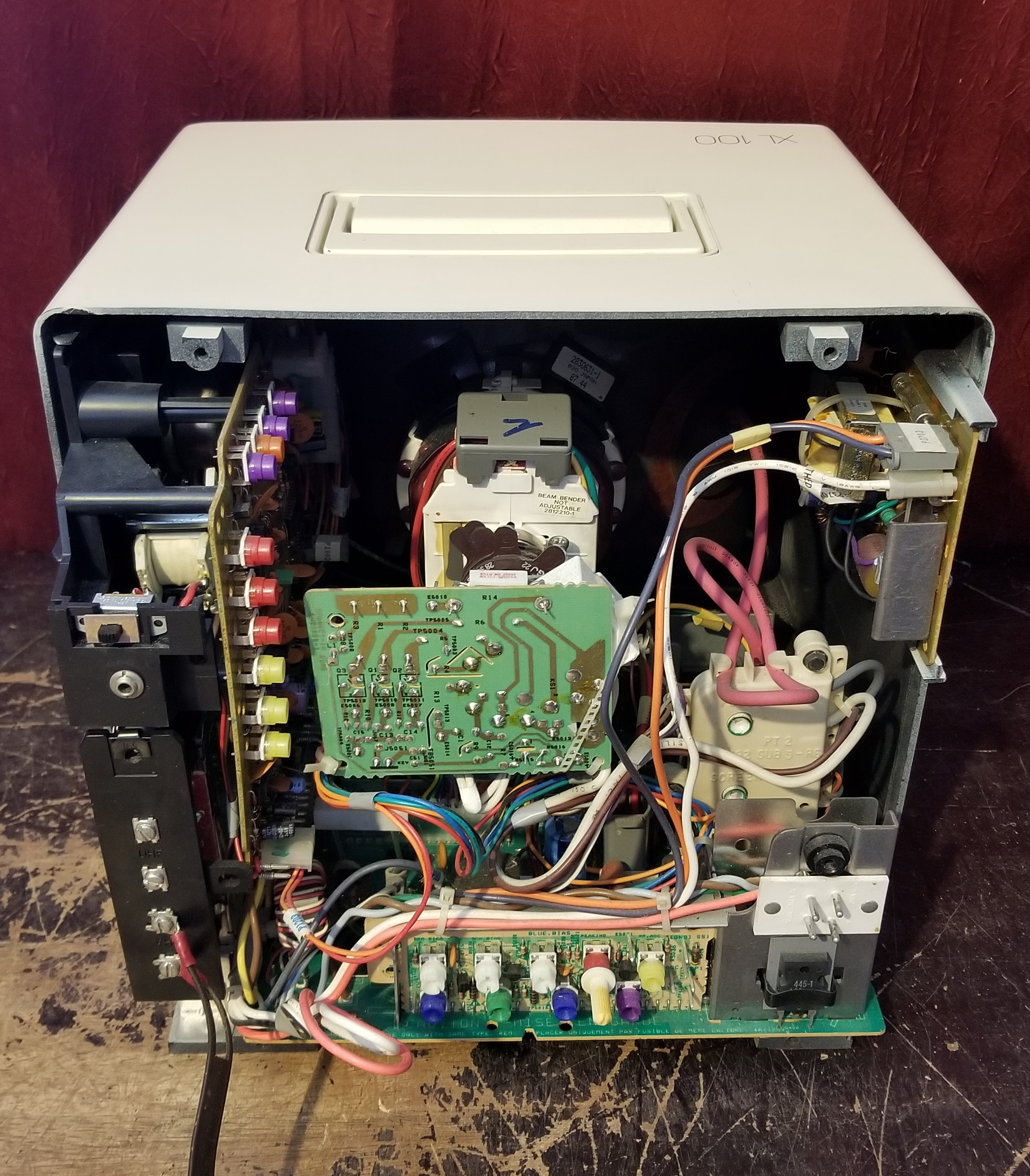

| Chassis: | CTC134A, XL100 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1987 |
| MSRP: | 259 USD |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements, Portable |
