Summary

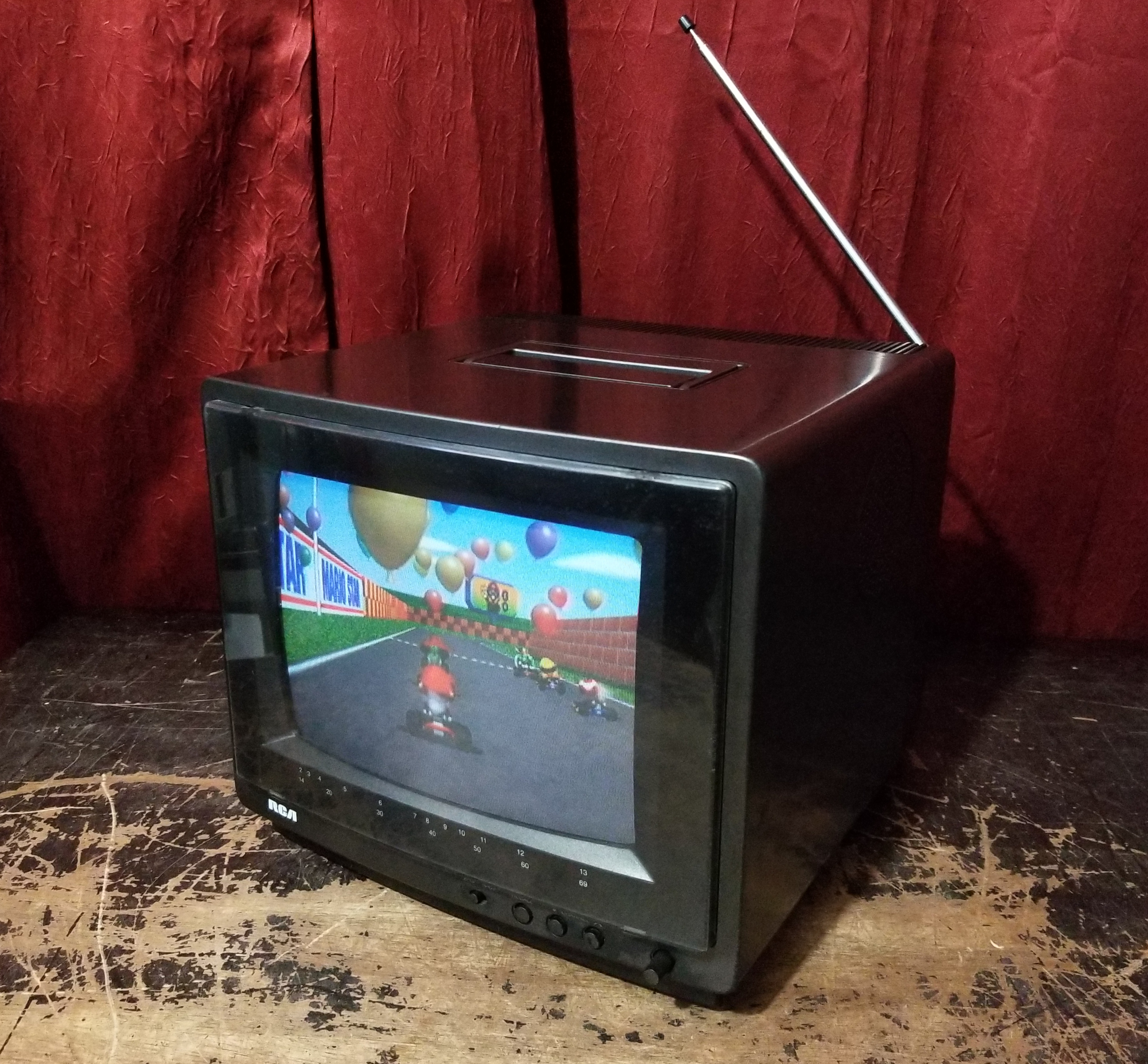

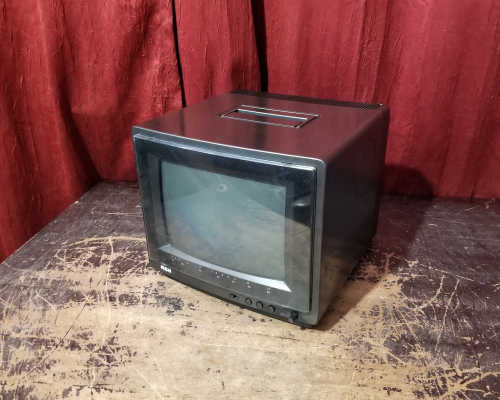

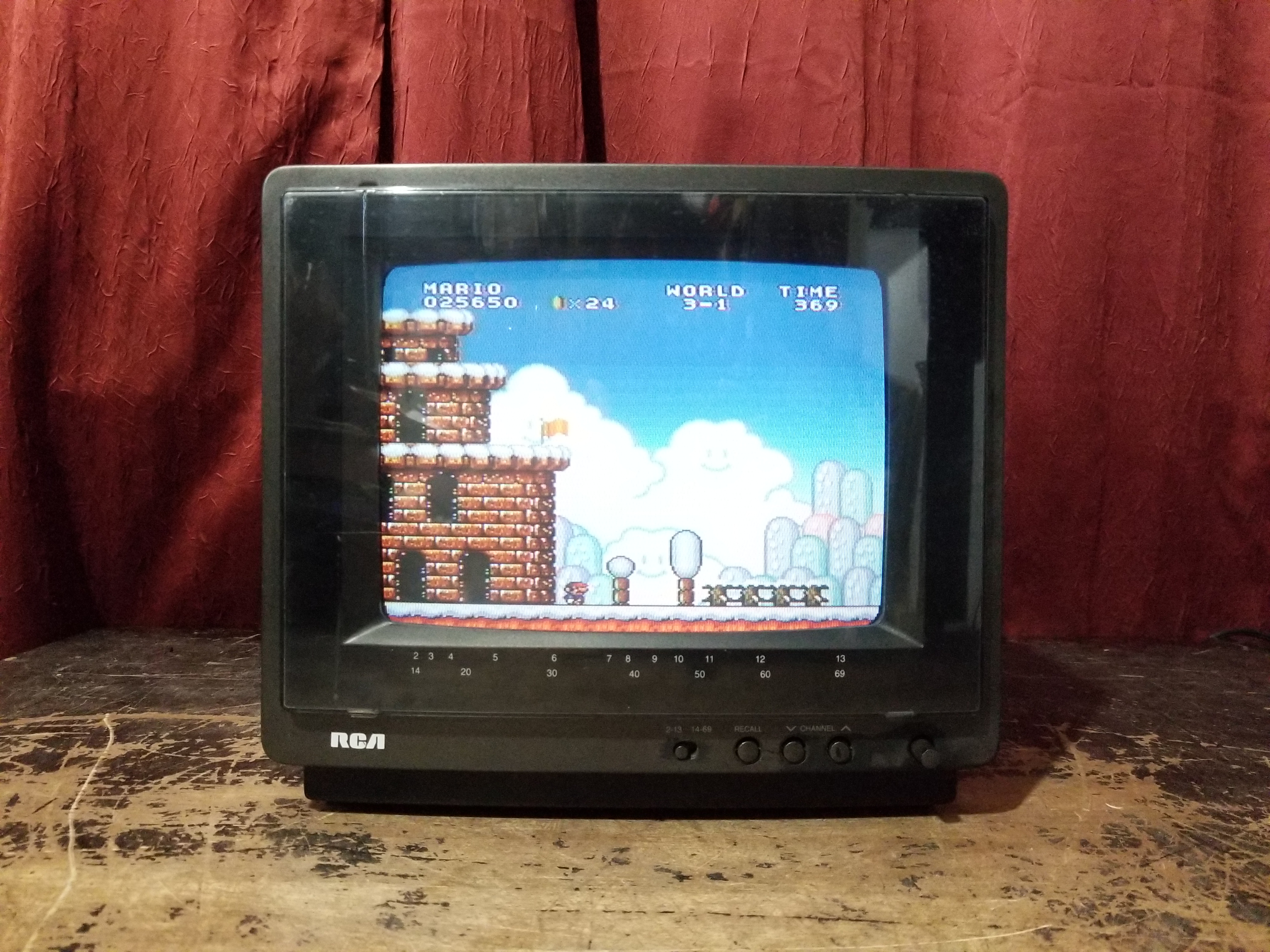

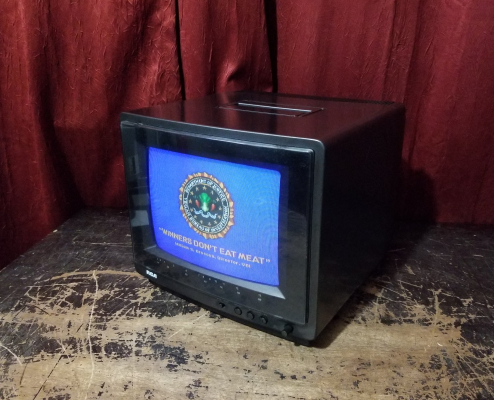

9" RCA AC/DC Portable Color TV Includes Car Cord. Signal Seek Tuning. Automatic Color Tracking. Large speaker for fine tone. Convenient earphone jack. Sharp, crisp color picture.
Notes

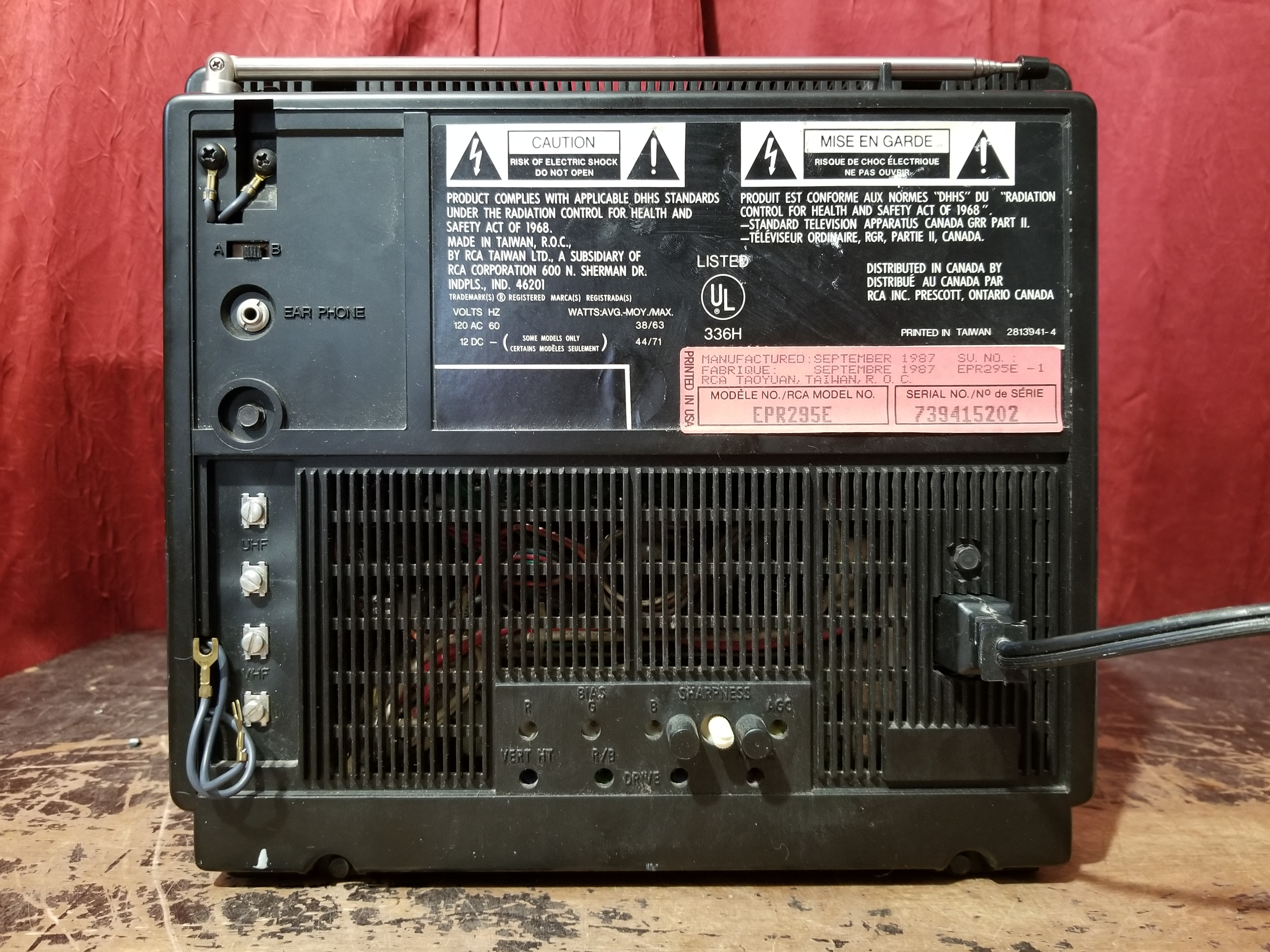

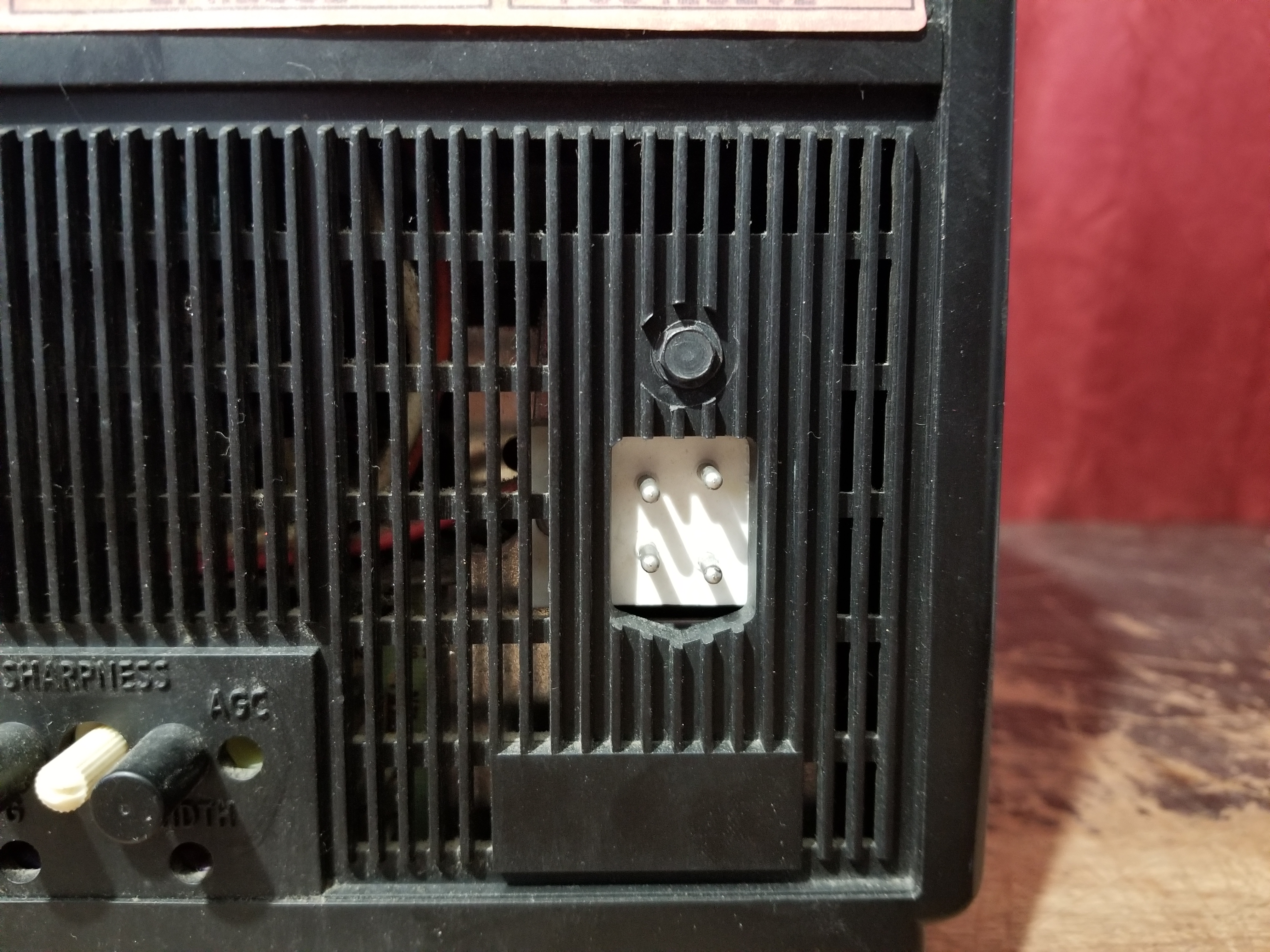

For the four pin power jack, the two pins on the right side are for AC. The upper left pin is DC+, and the lower left pin is DC-.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | RCA |
| Model: | EPR295E |
| Series: | EPR |
| Viewable Size: | 20" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | None |
| Tube: | A23JAN99X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|

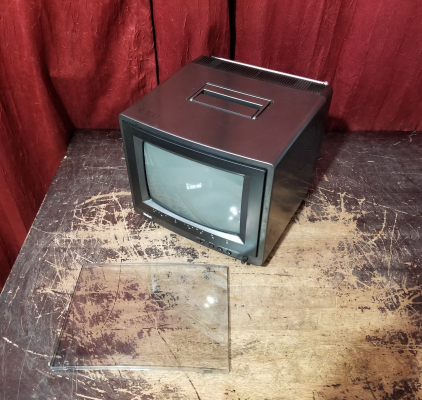

| Tint: | Dark, Detachable Sunshade |
| Removable Glare Film: | No |
| Yoke: | 161252, 2830631-1 |
| Yoke Horz. Inductance: | 3.5 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 31.5 mH (@ 100 Hz) |

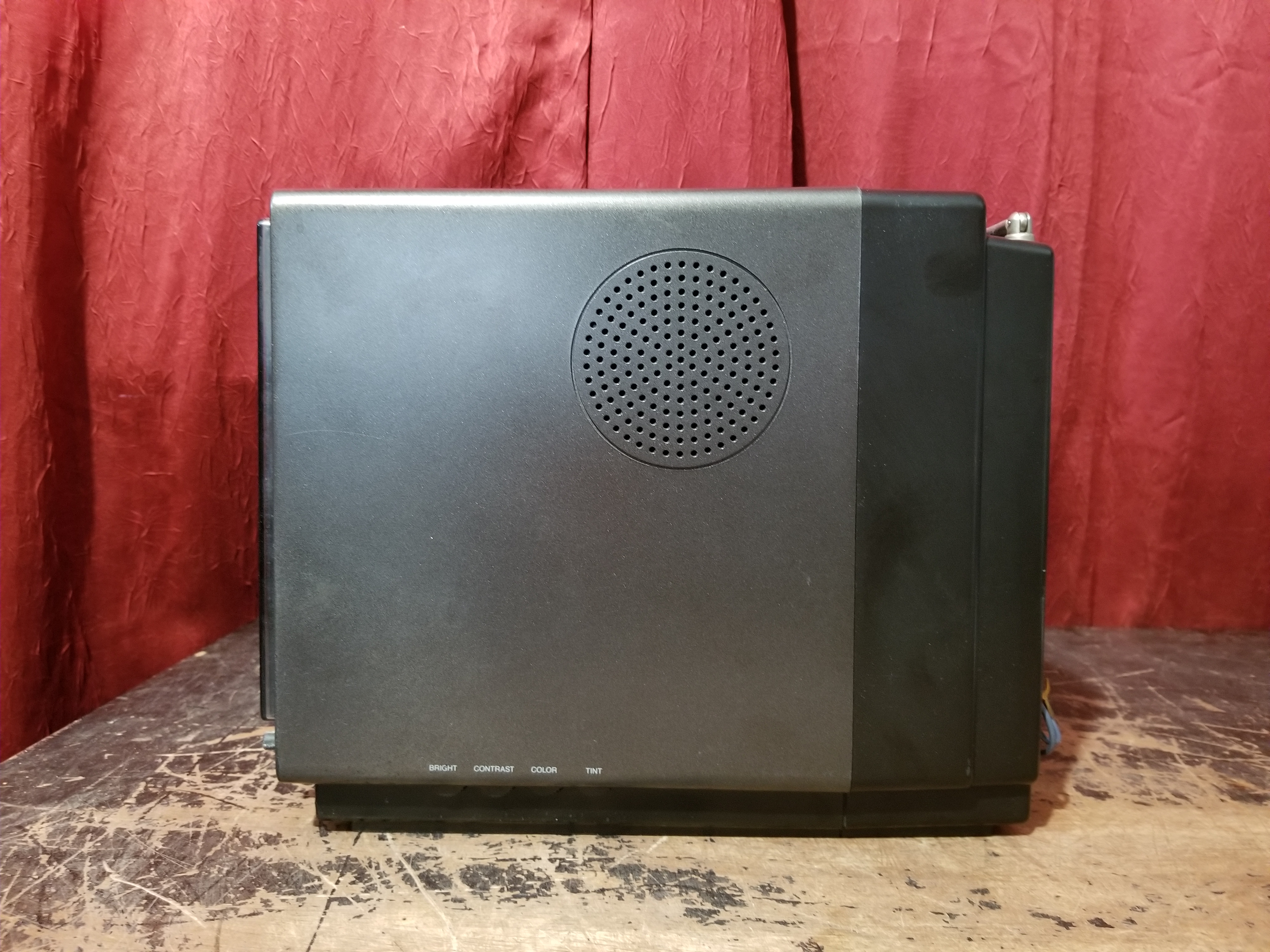

| Speakers: | Mono |
| Chassis: | CTC134A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1987 |
| MSRP: | 249 USD |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v, 12VDC |
| Mounting: | Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Portable |
