Summary

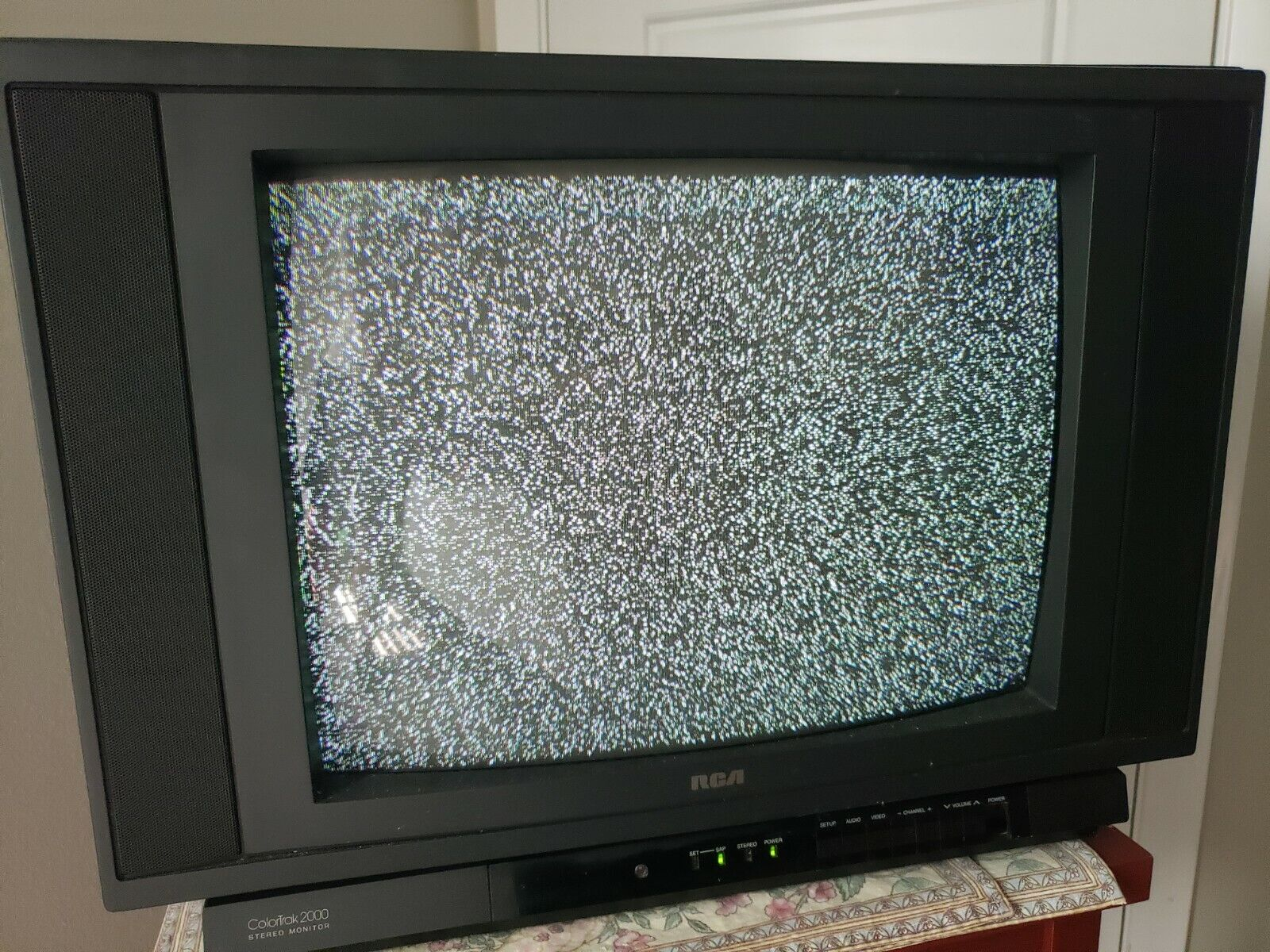

Higher-end 20" CRT by RCA. Has RF, composite, and s-video input, as well as EIA Multiport. The set also has amped stereo audio output. Made in the USA in 1989.
Special thanks to Josh Olsenn for some of the pics!
Manuals
(None at this time.)
Notes

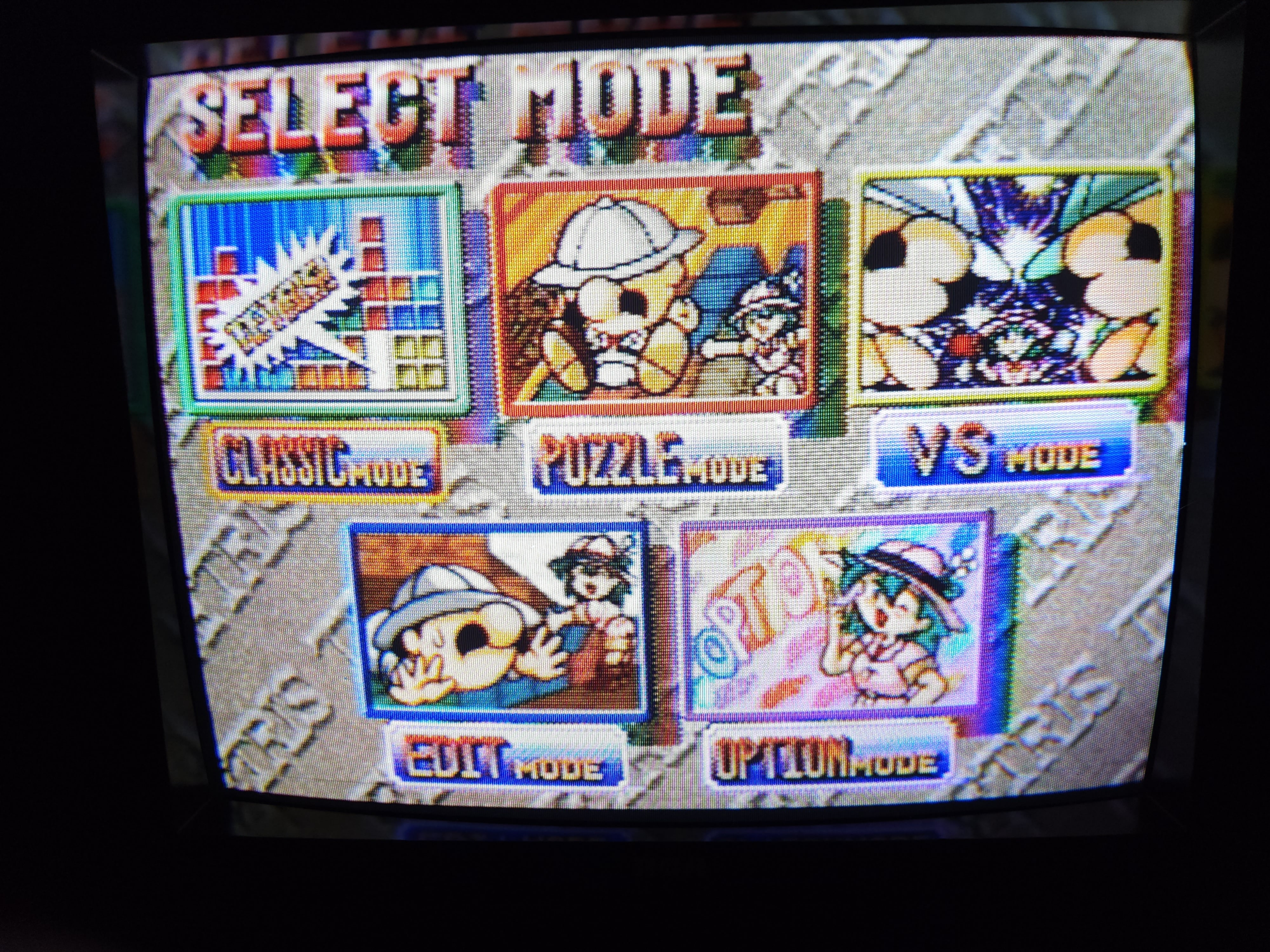

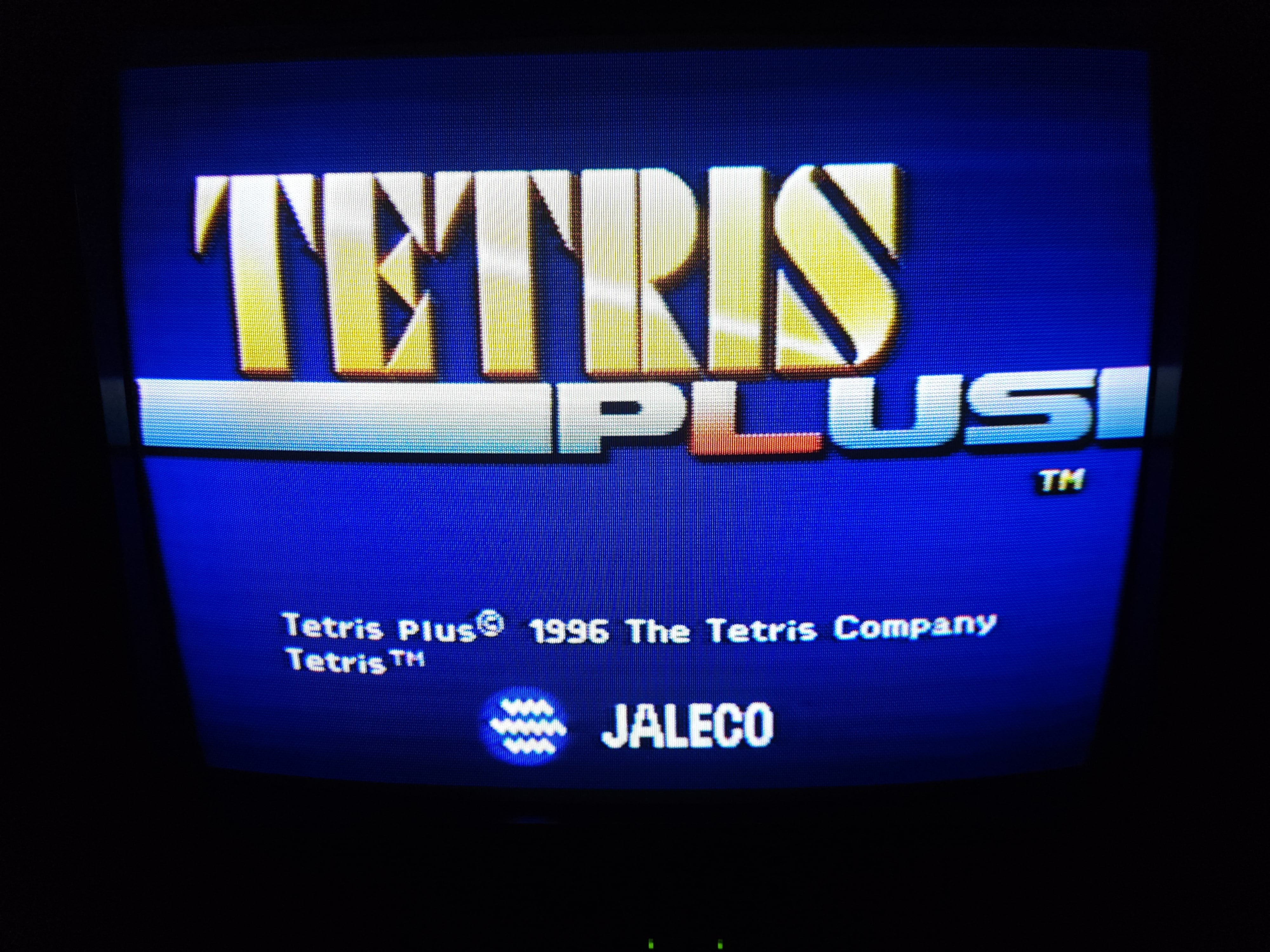

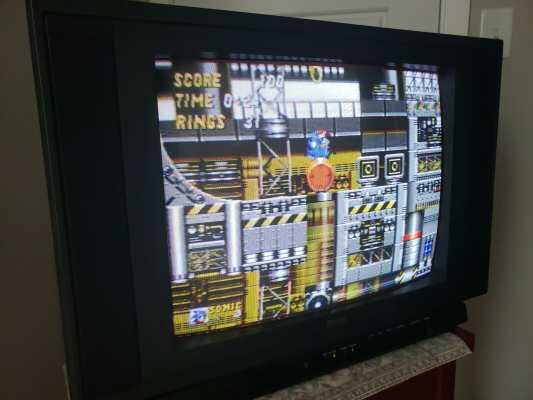

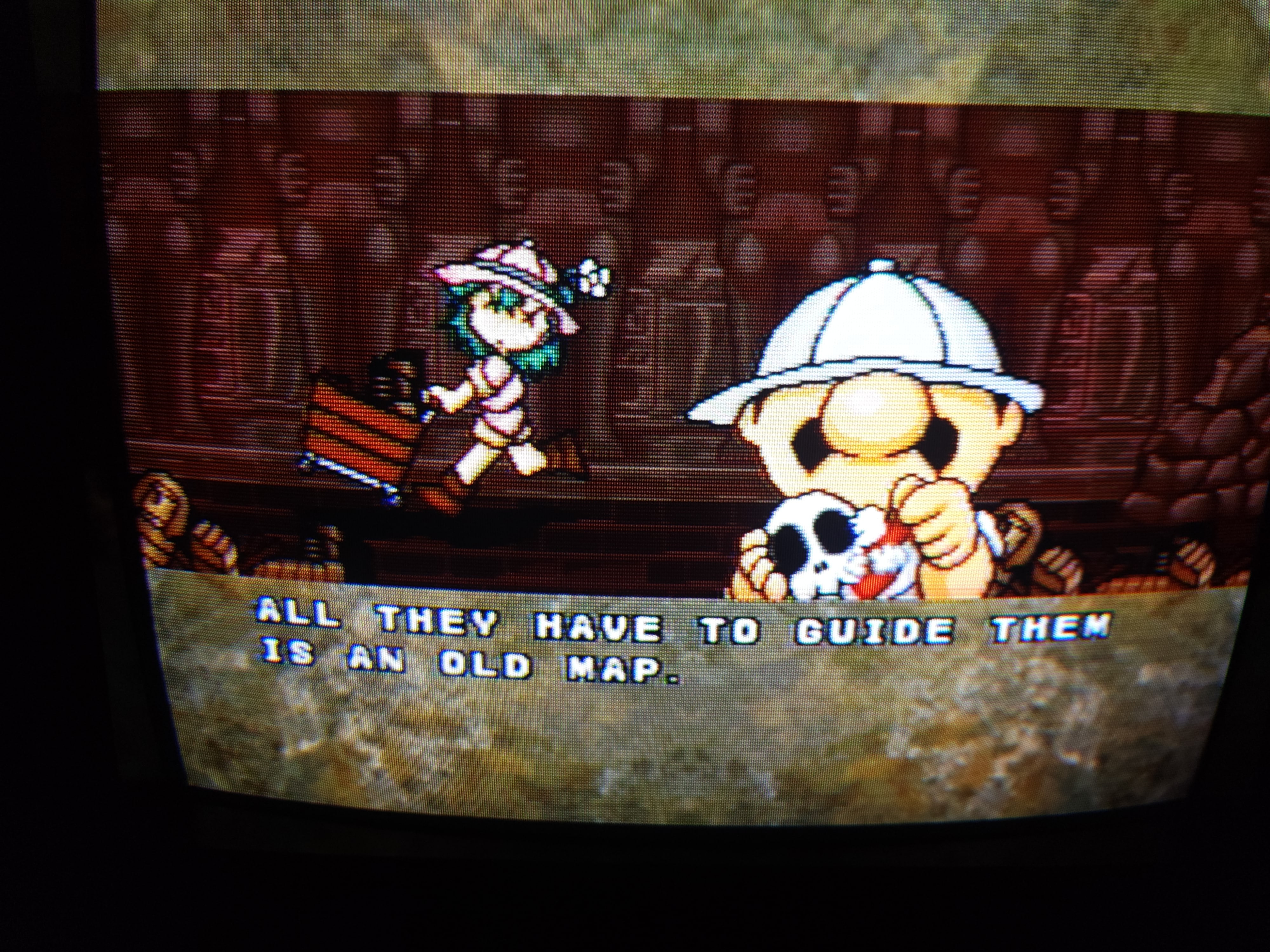

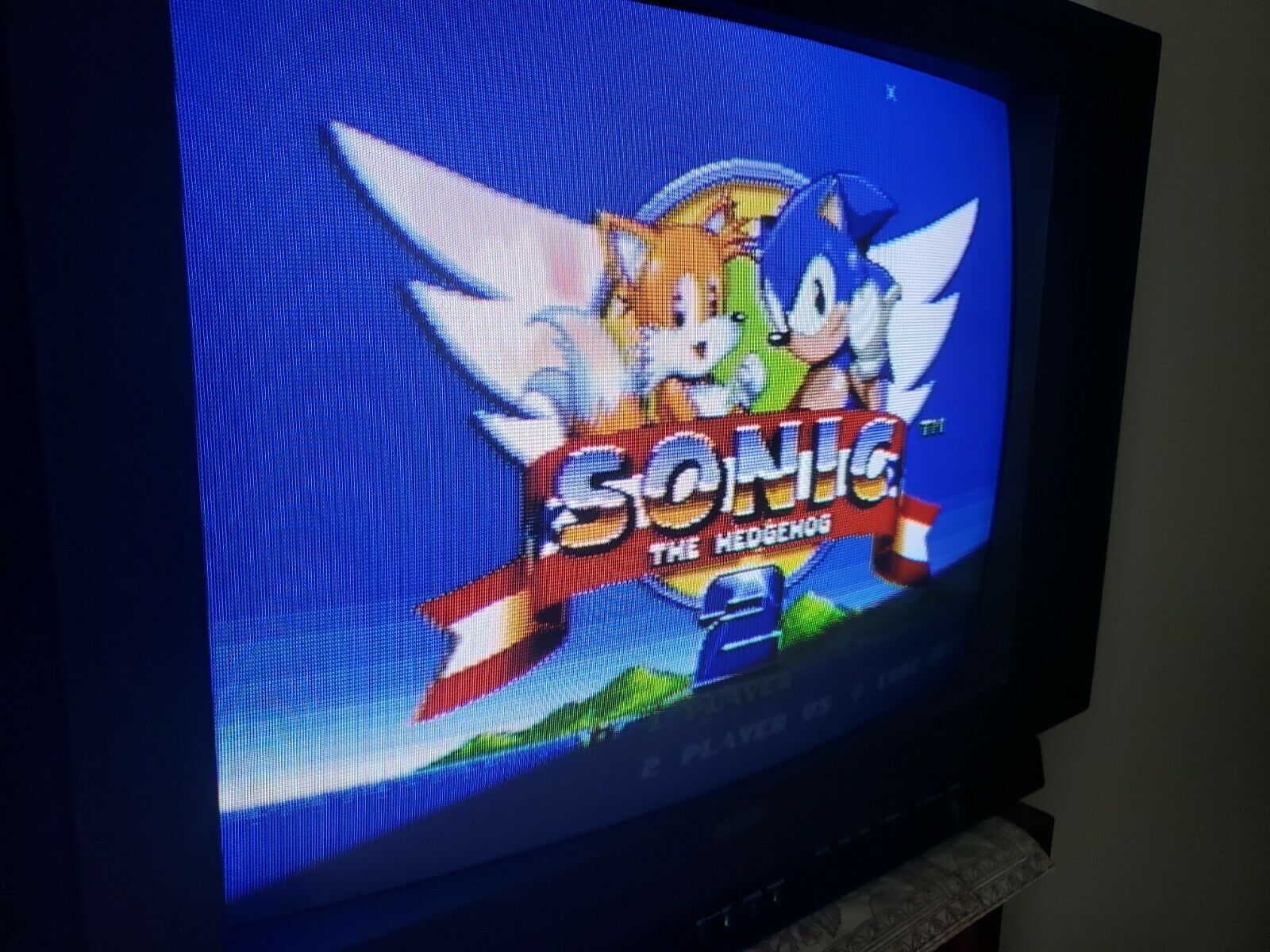

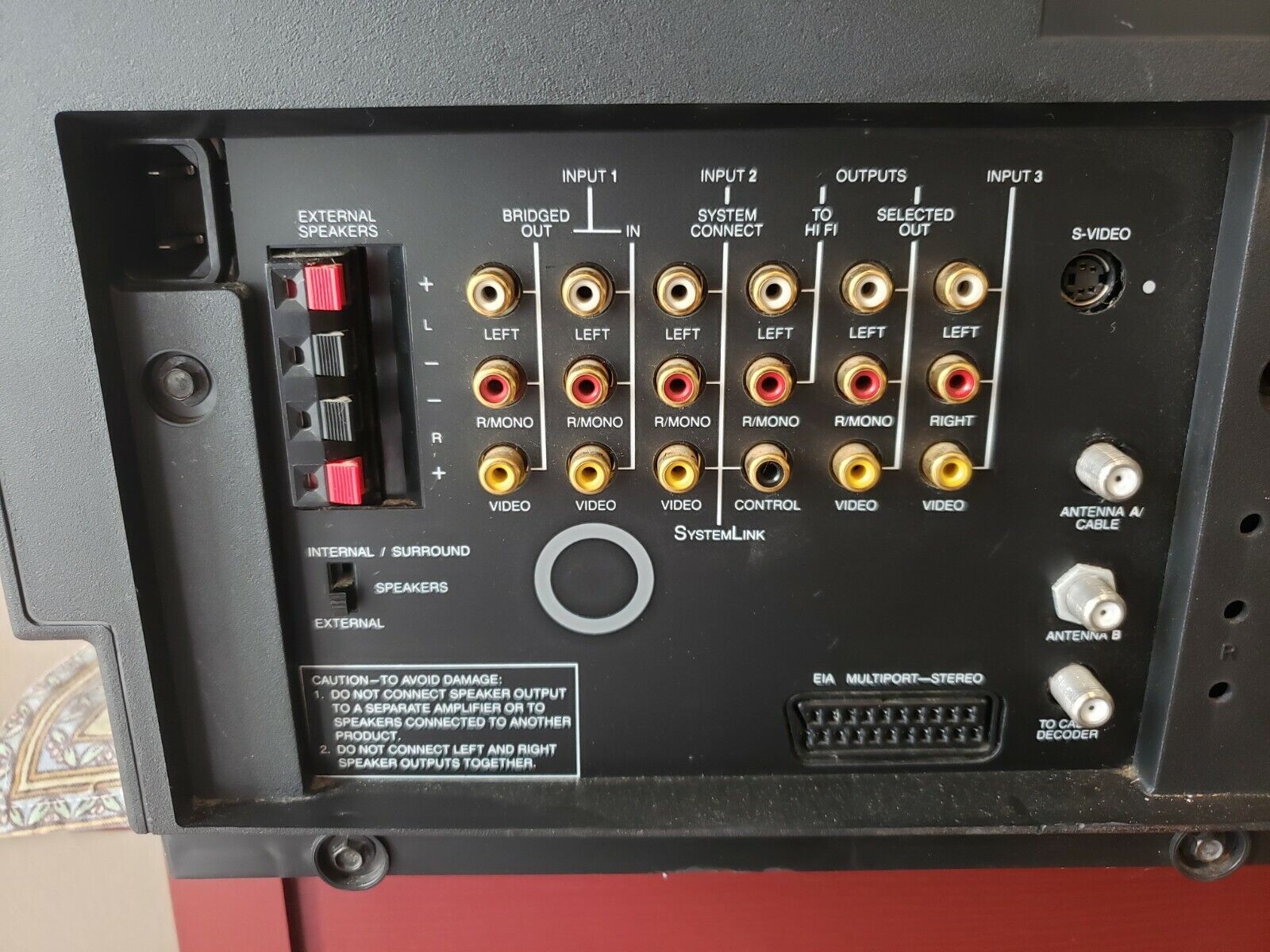

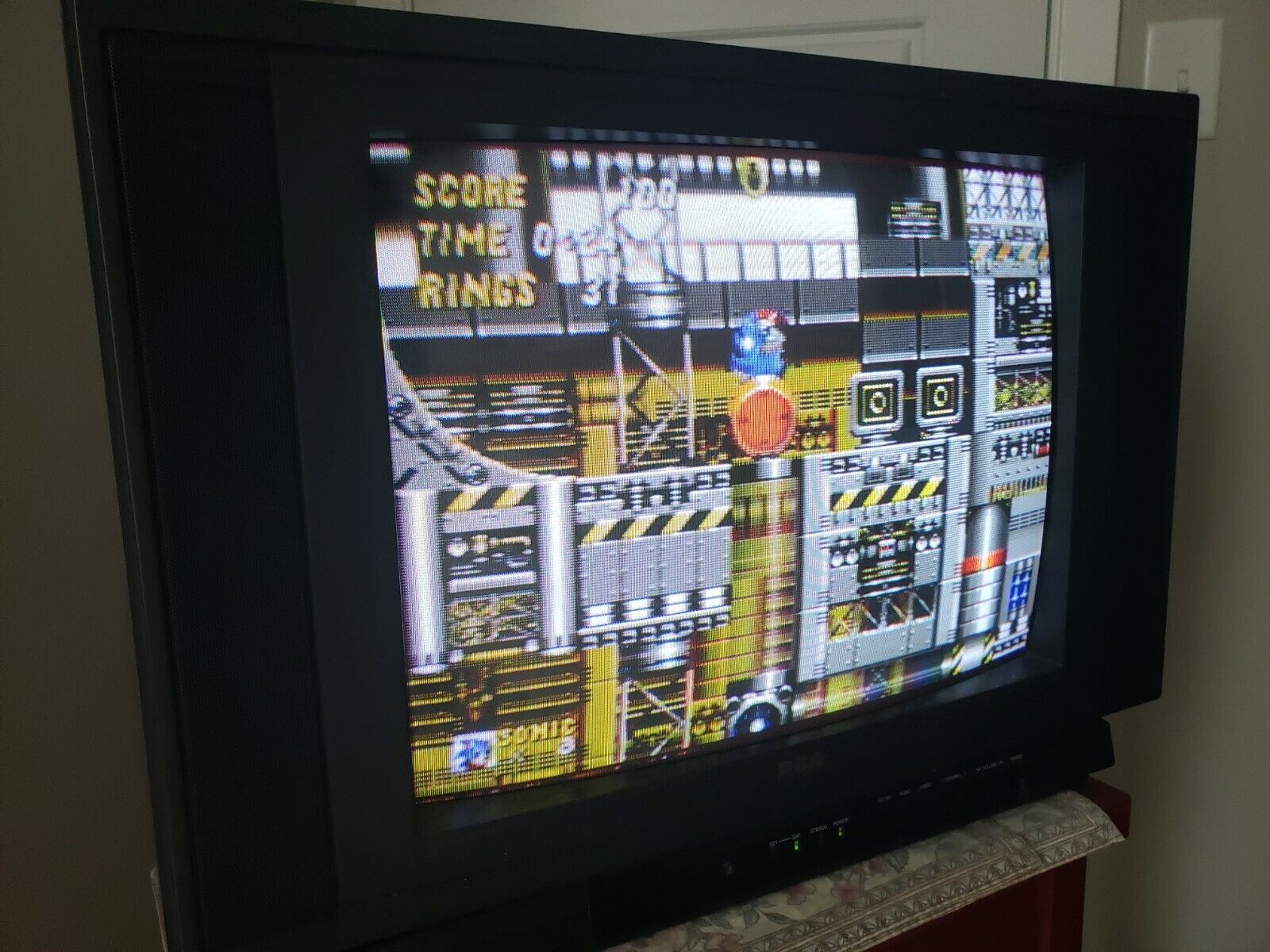

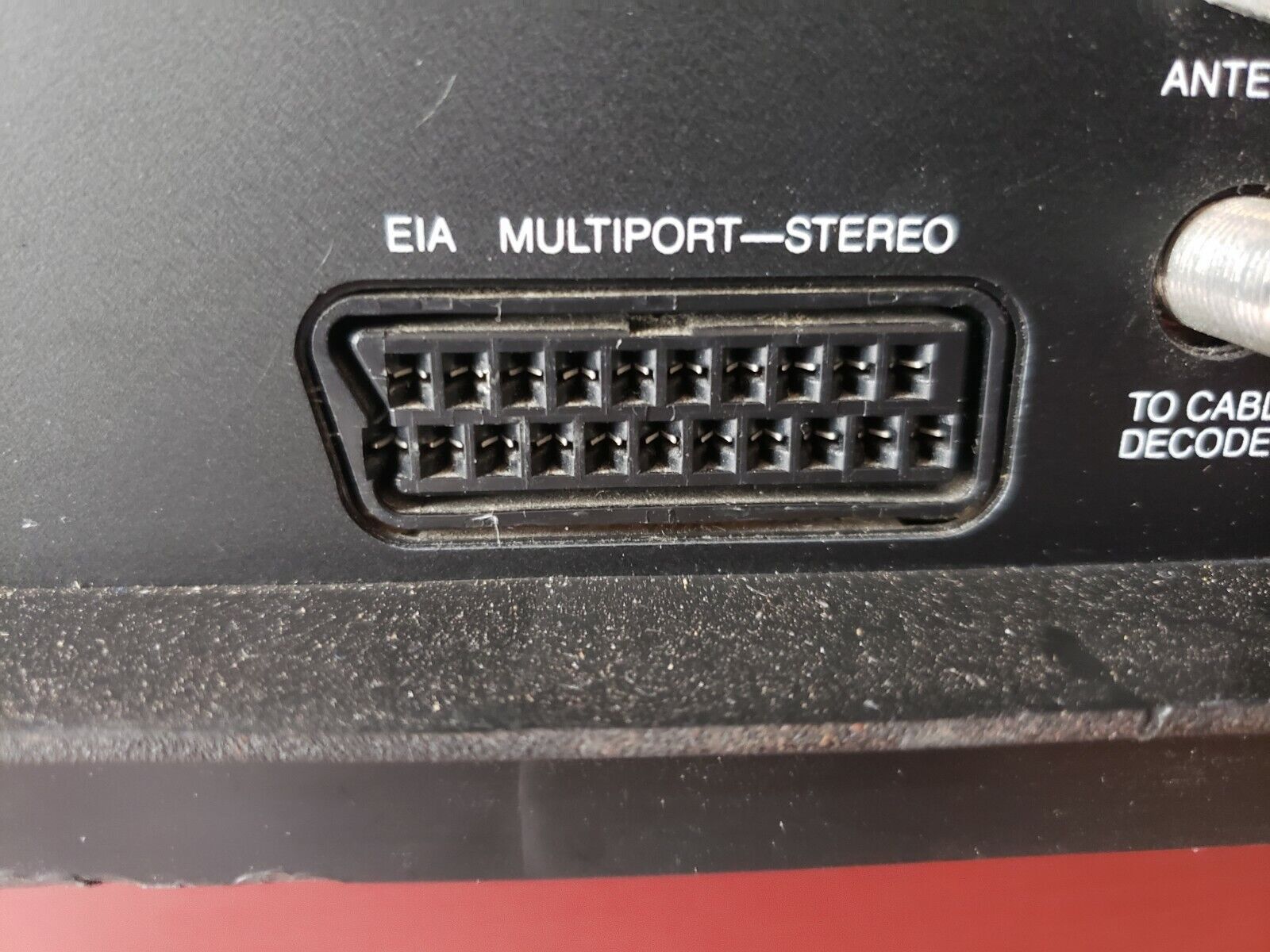

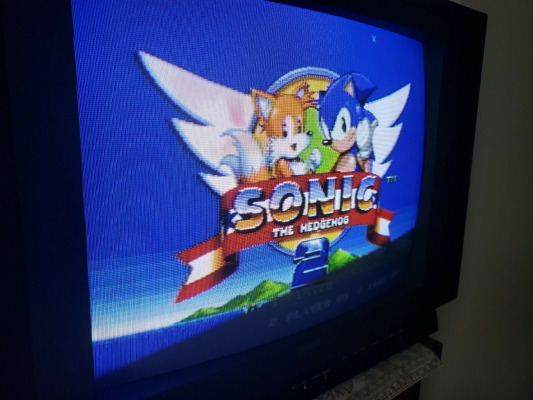

The EIA Multiport does not have the same functions as SCART. RGB is not supported, just composite and s-video. Some of the provided Sega Saturn pics are via a cheap SCART cable that was using composite video for sync.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |

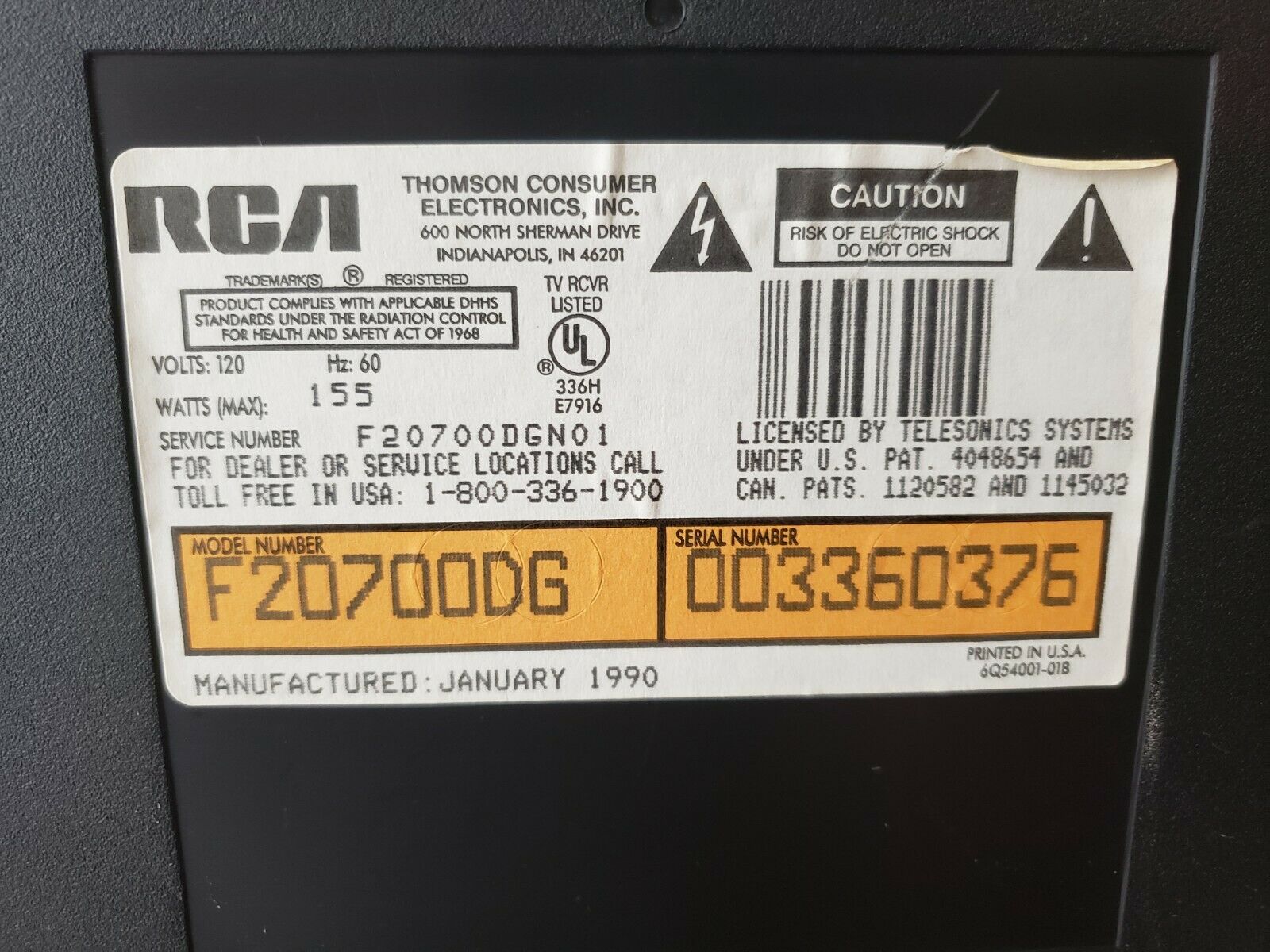

| Model: | F20700DG |
| Series: | F |
| Viewable Size: | 20" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle: | 882-1 A24 8912 |

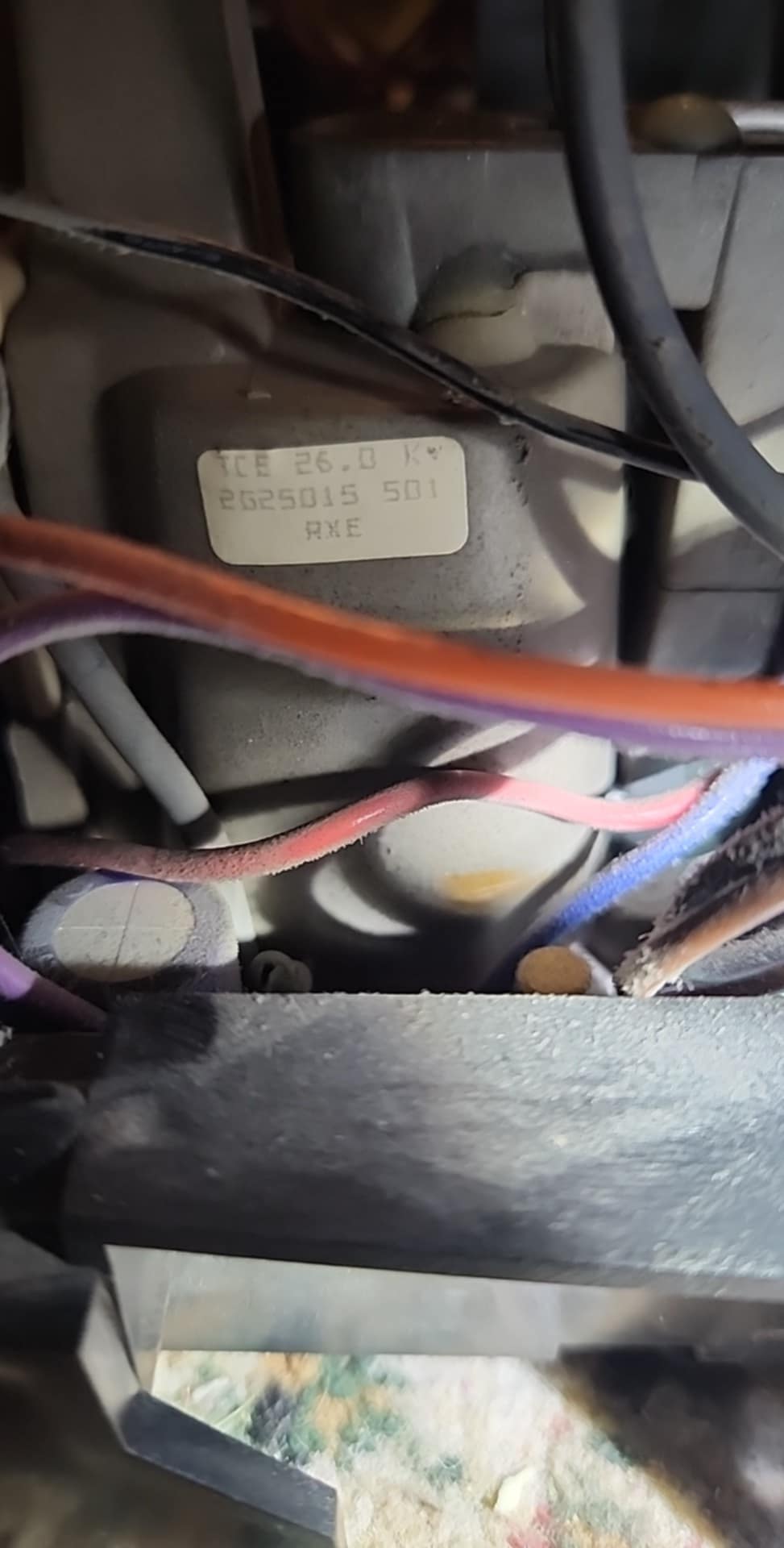

| Flyback: | 2G25015-501 |
| Focus Type: | Single |

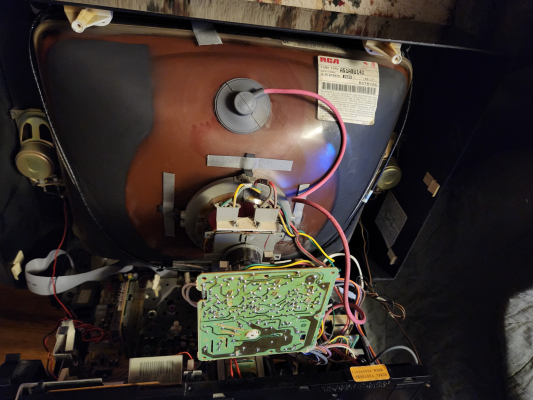

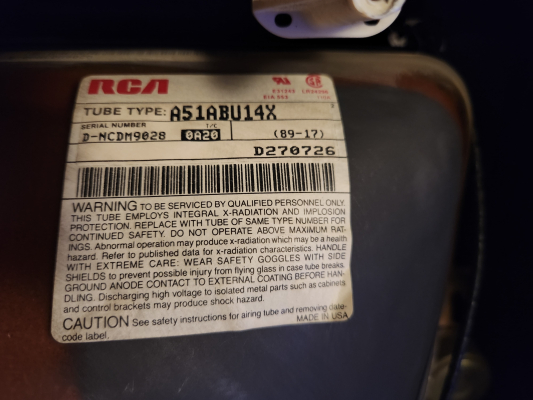

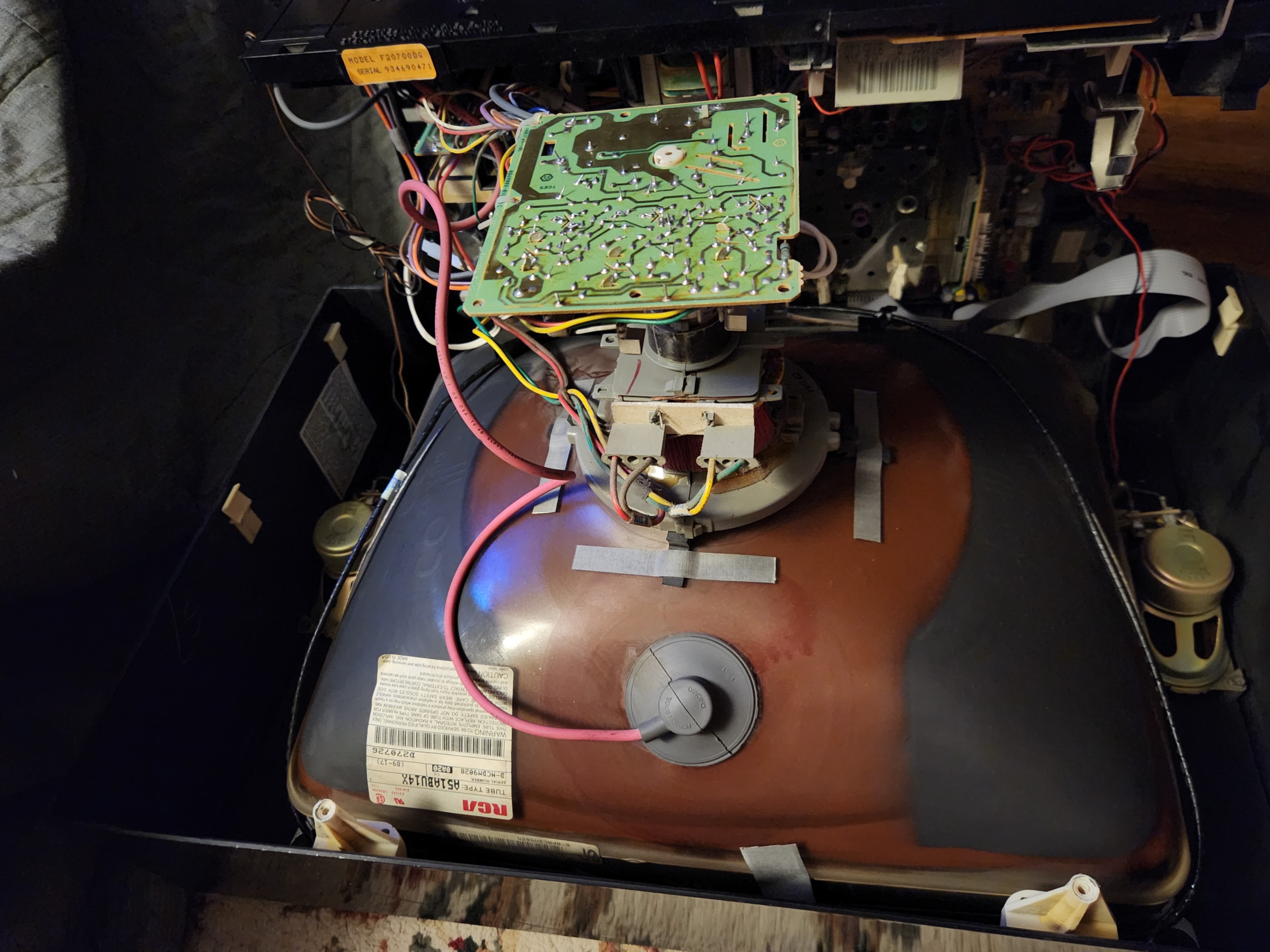

| Tube: | RCA , A51ABU14X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

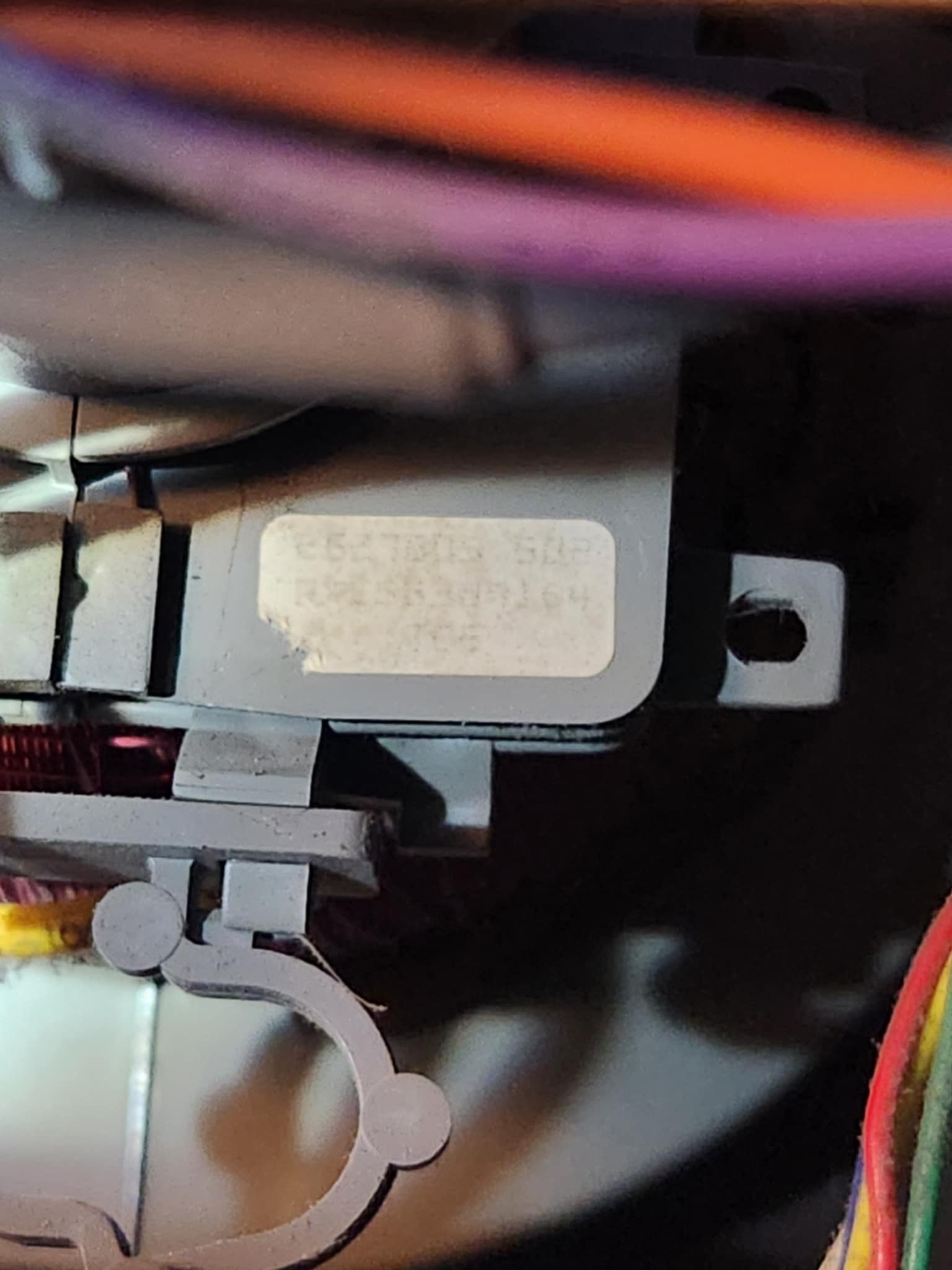

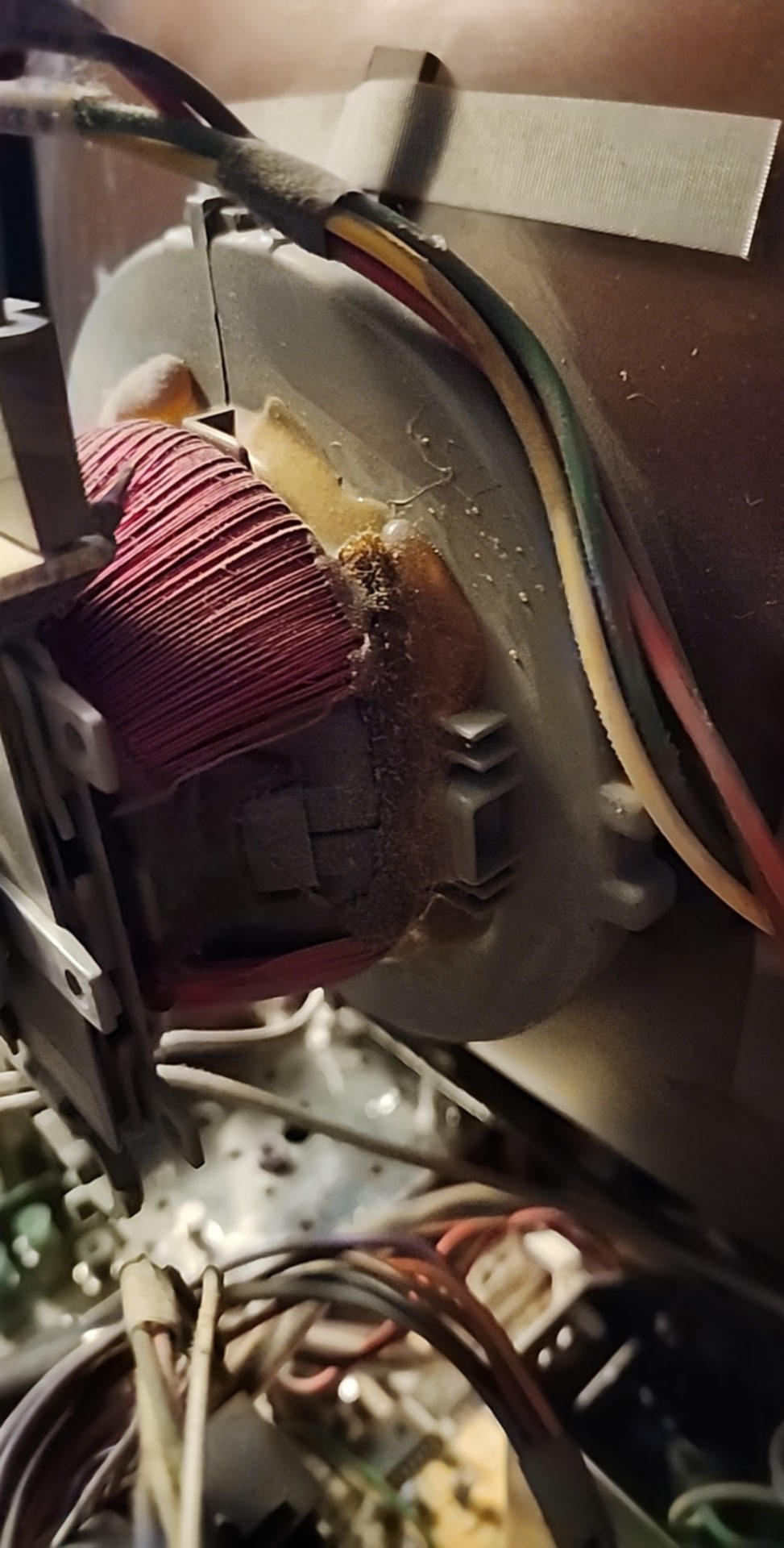

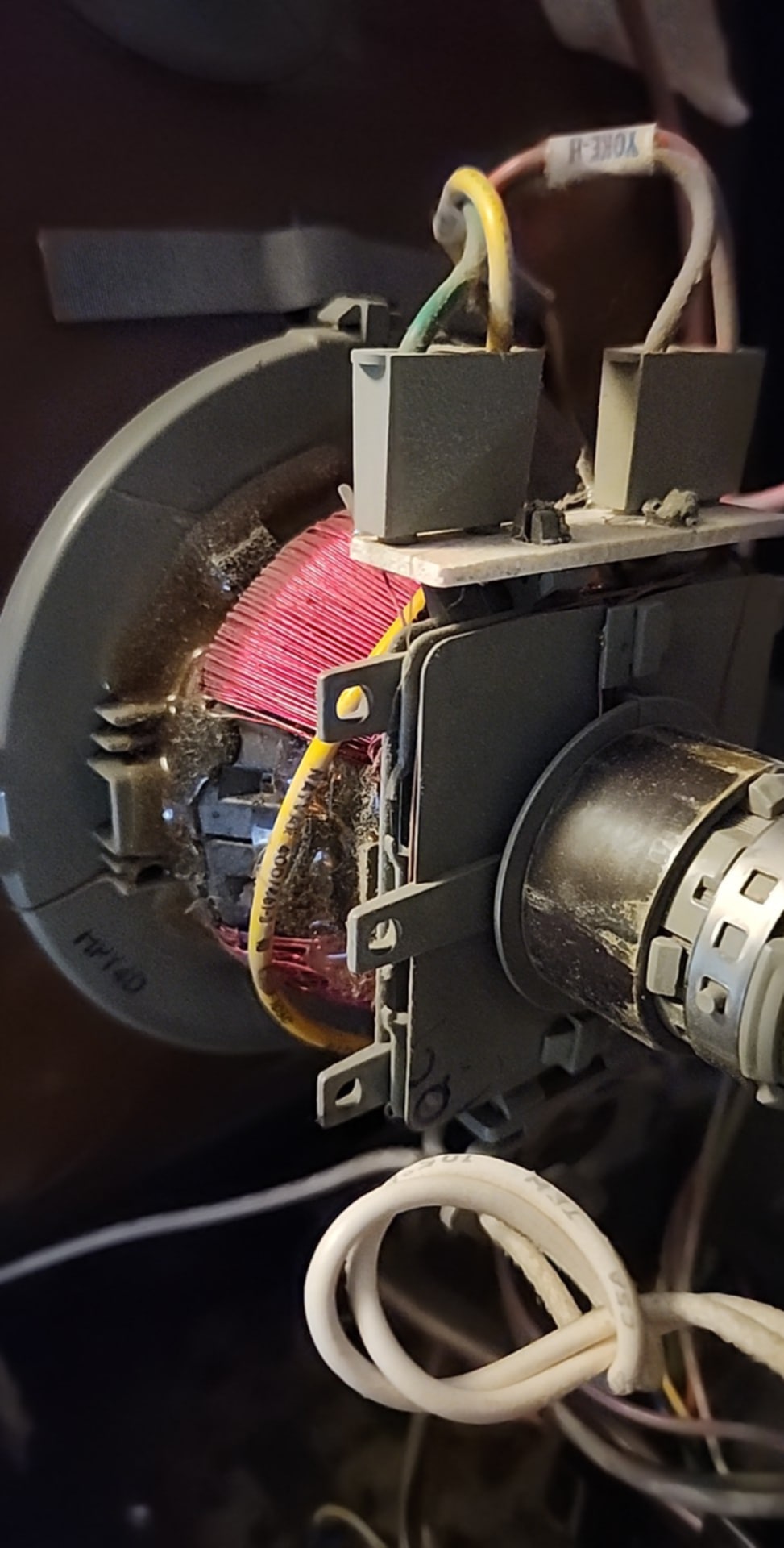

| Yoke: | 2G27805-502 |

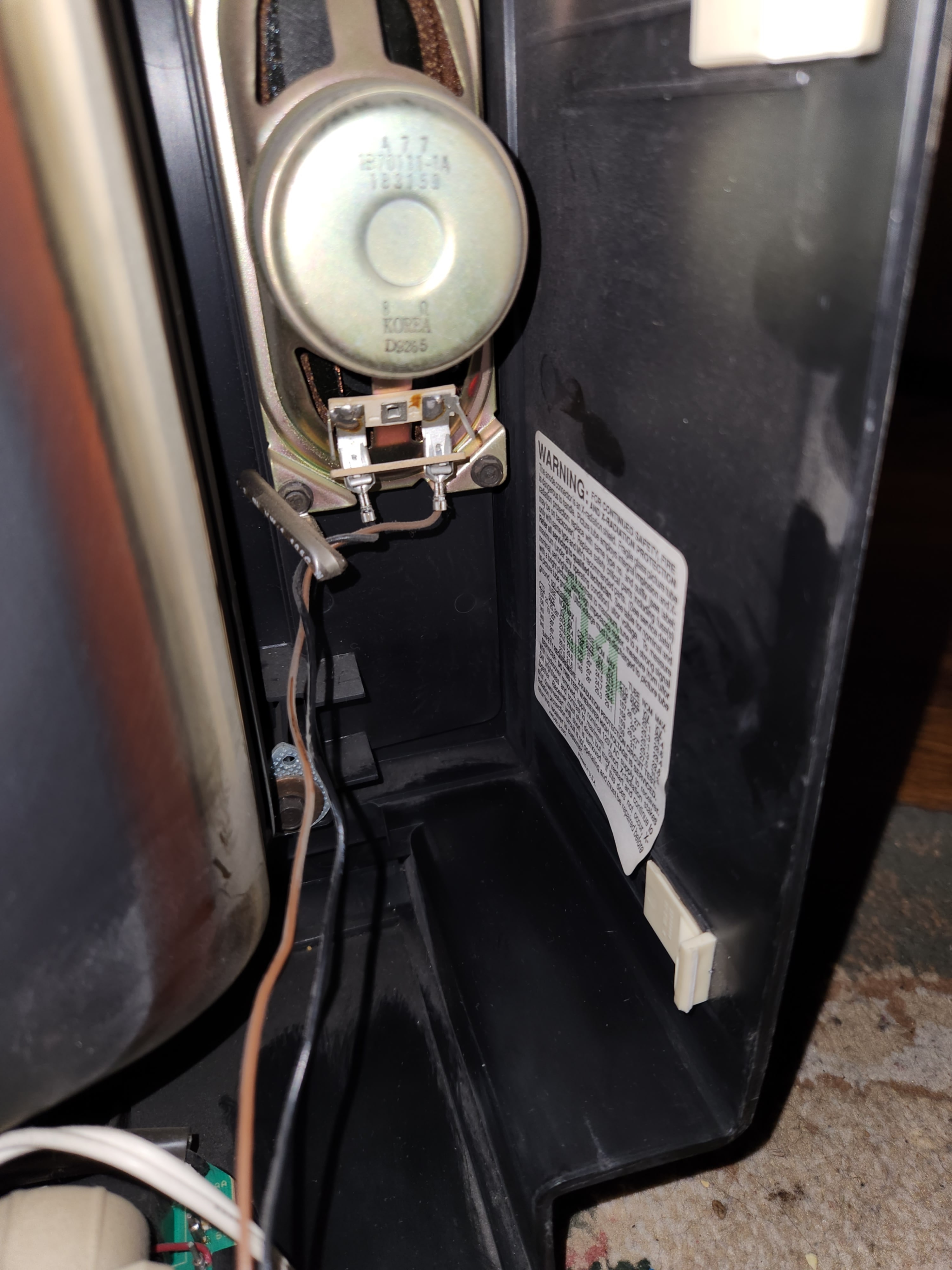

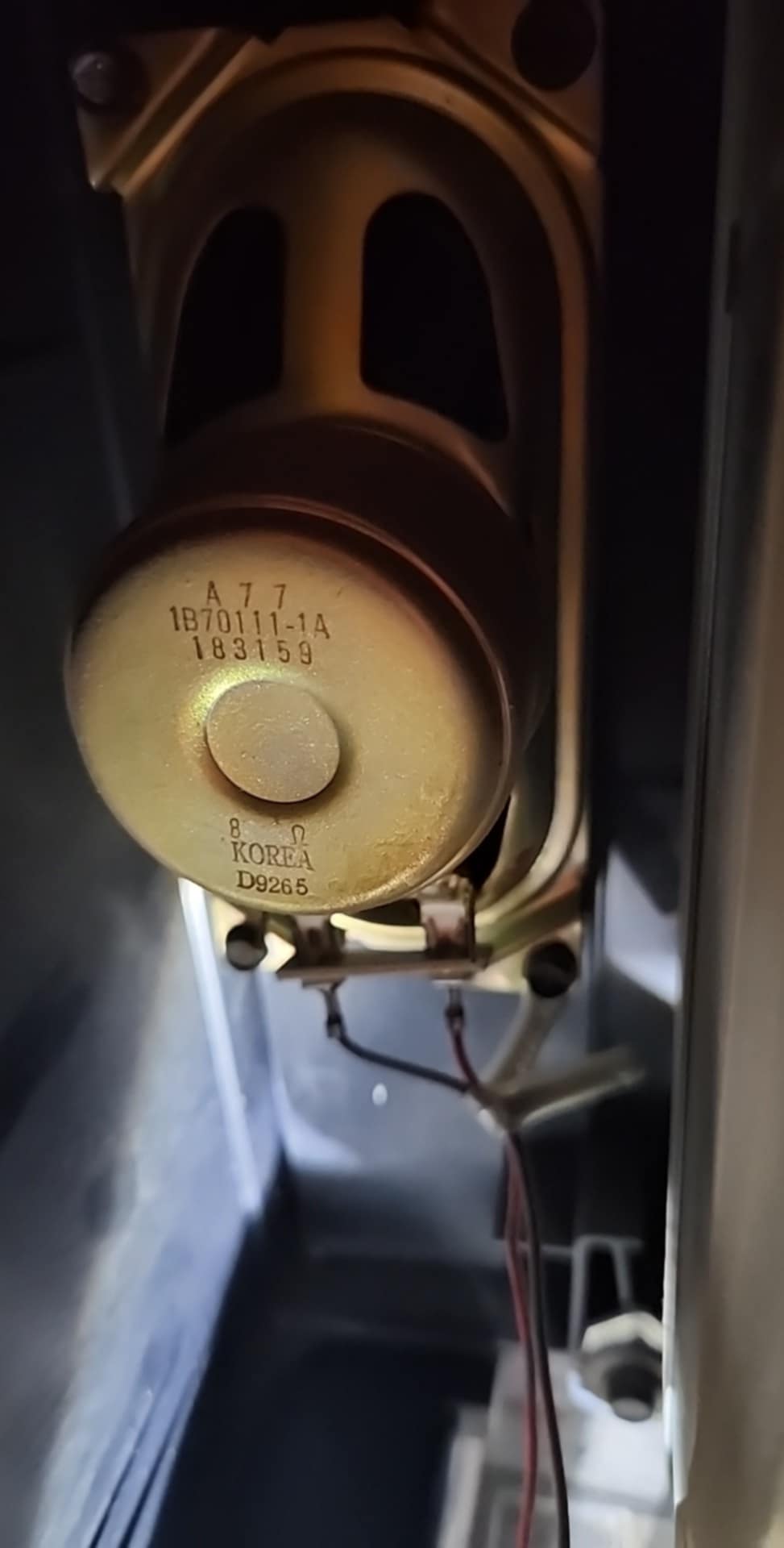

| Speakers: | Stereo |

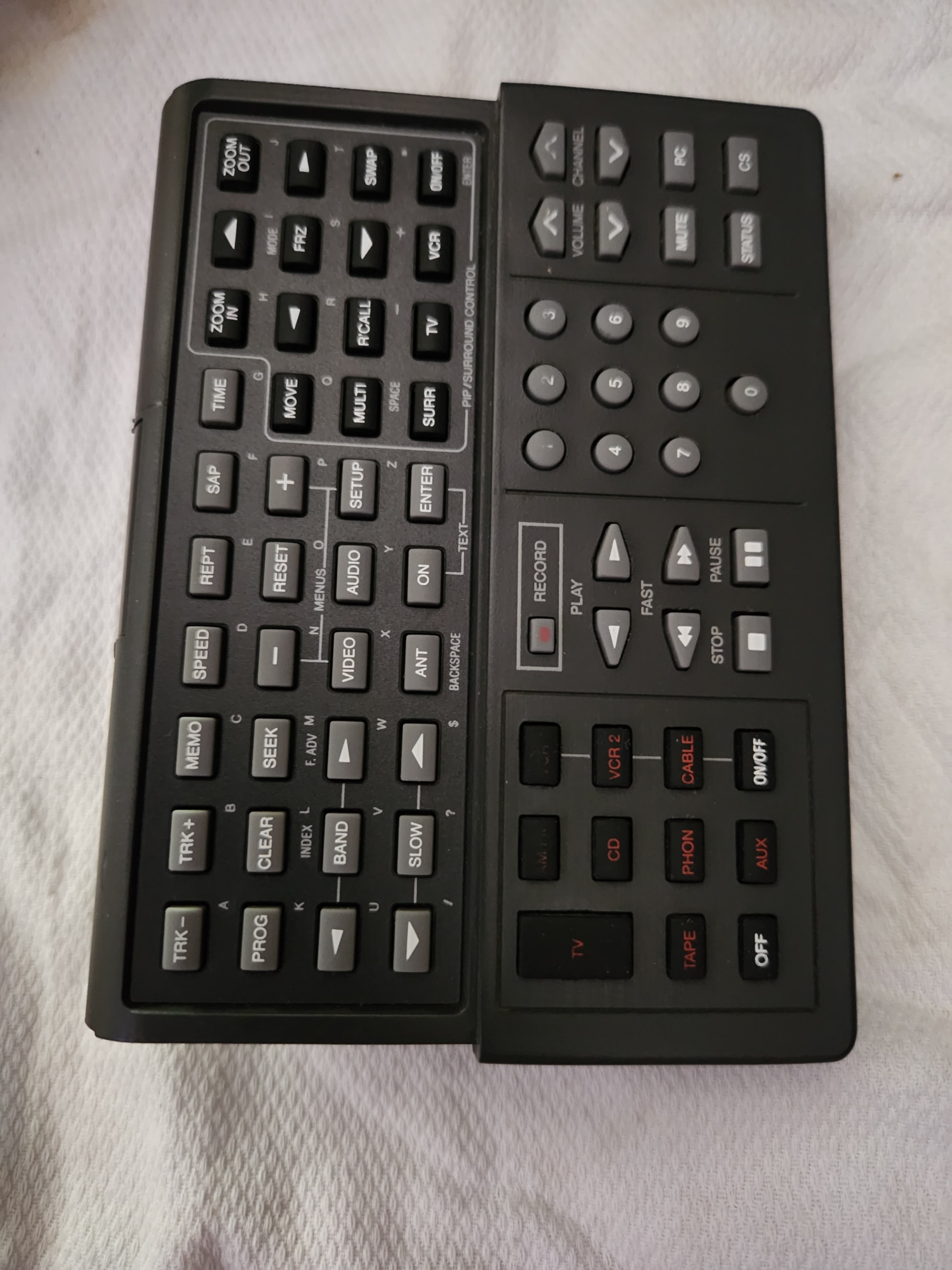

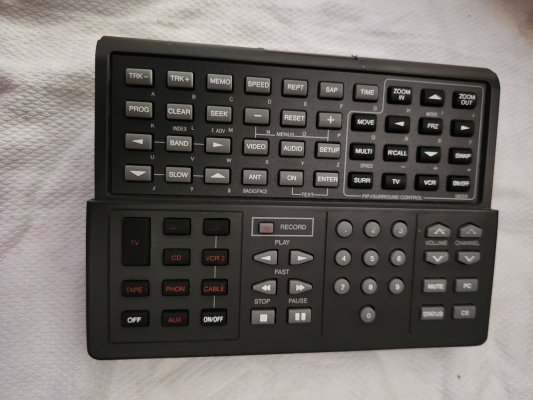

| Remote: | CRK55B |

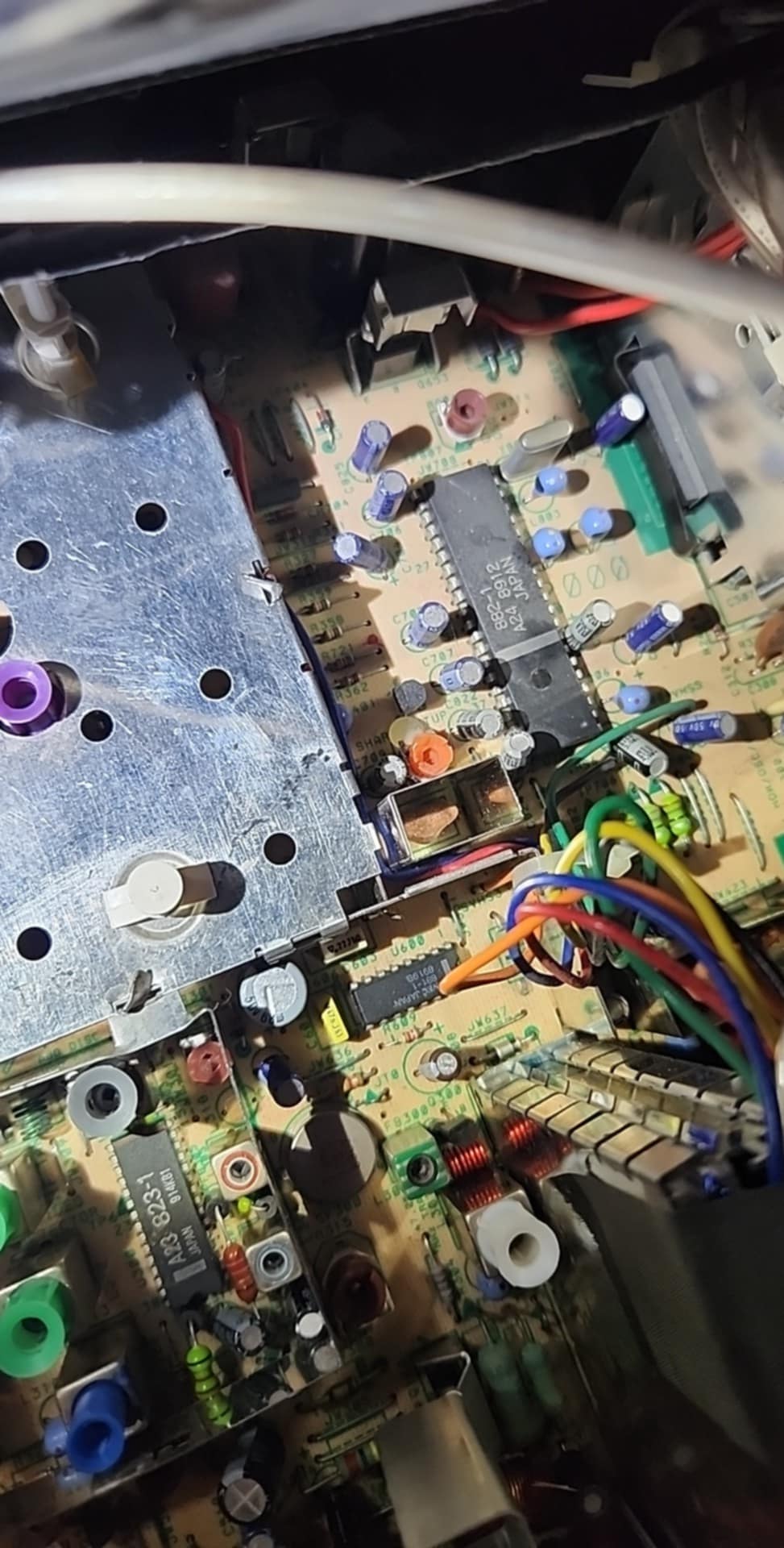

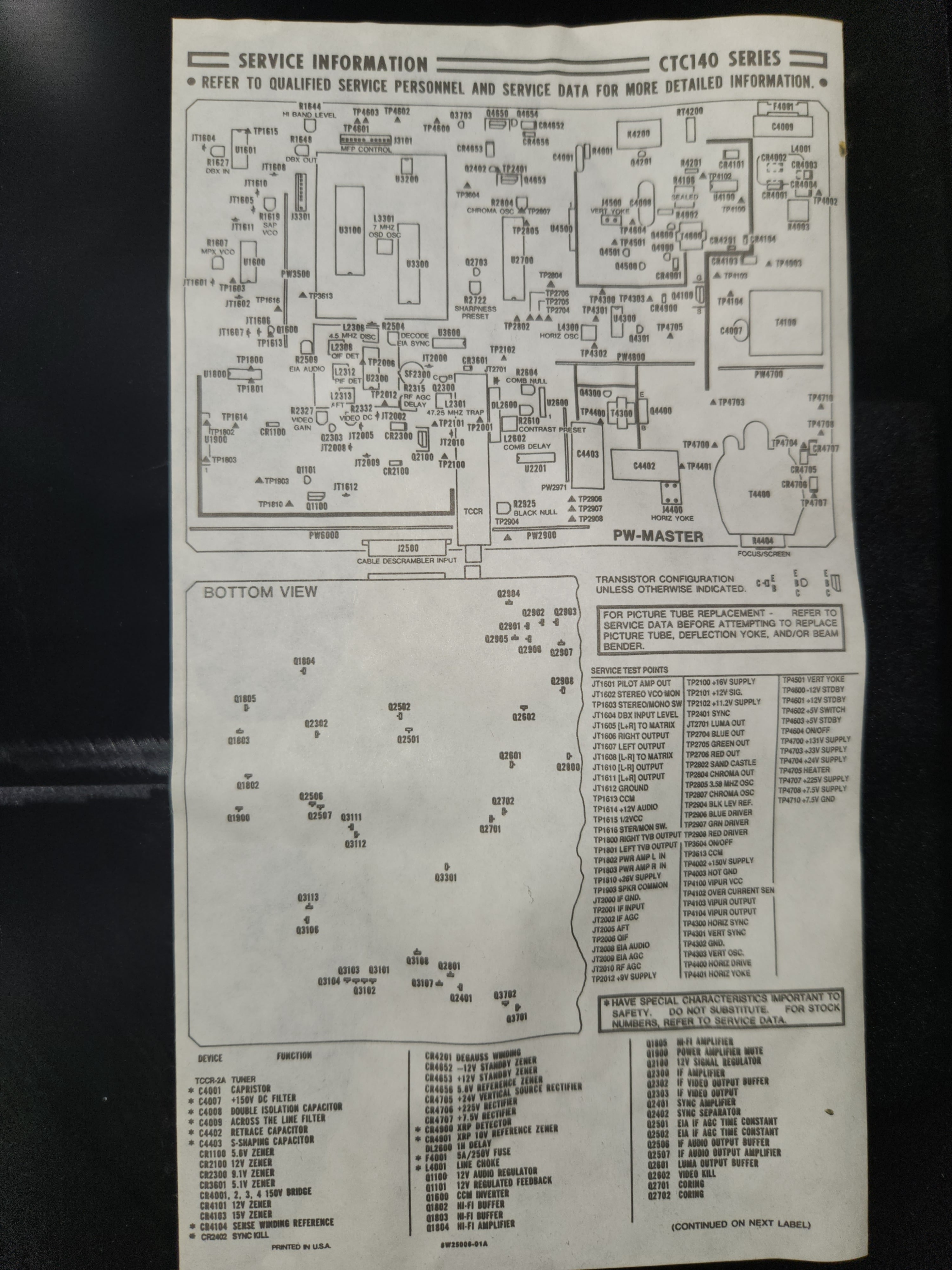

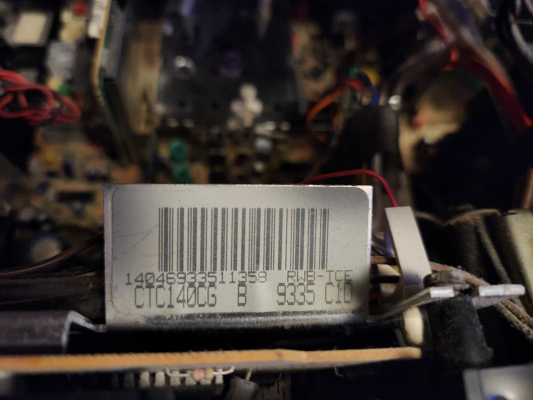

| Chassis: | CTC140, CTC140CG |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 499 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
