RCA F25649
SegaSaturn94
August 29, 2024, 12:16 am
November 17, 2024, 12:22 am
August 29, 2024, 12:16 am
November 17, 2024, 12:22 am
Summary

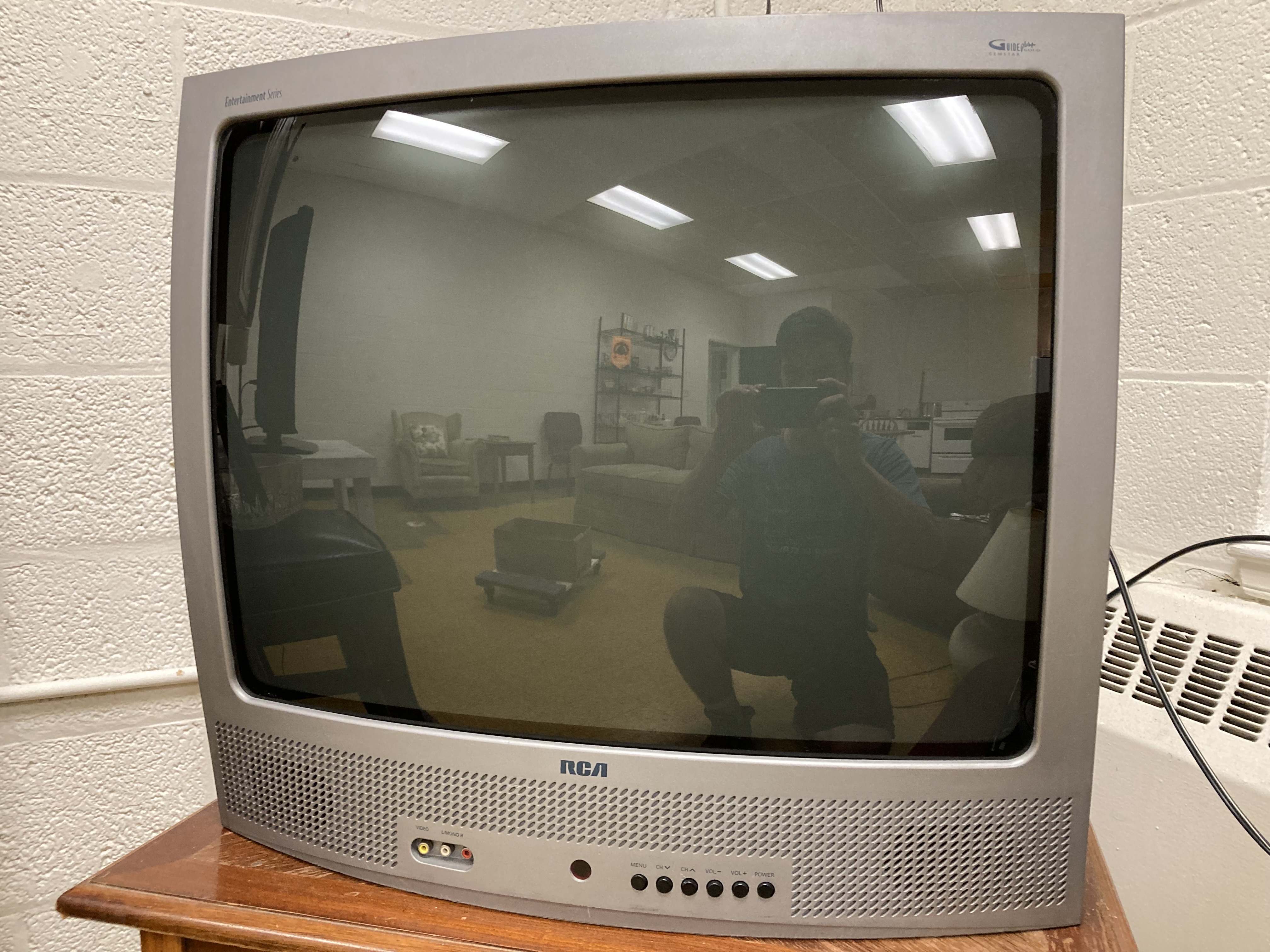

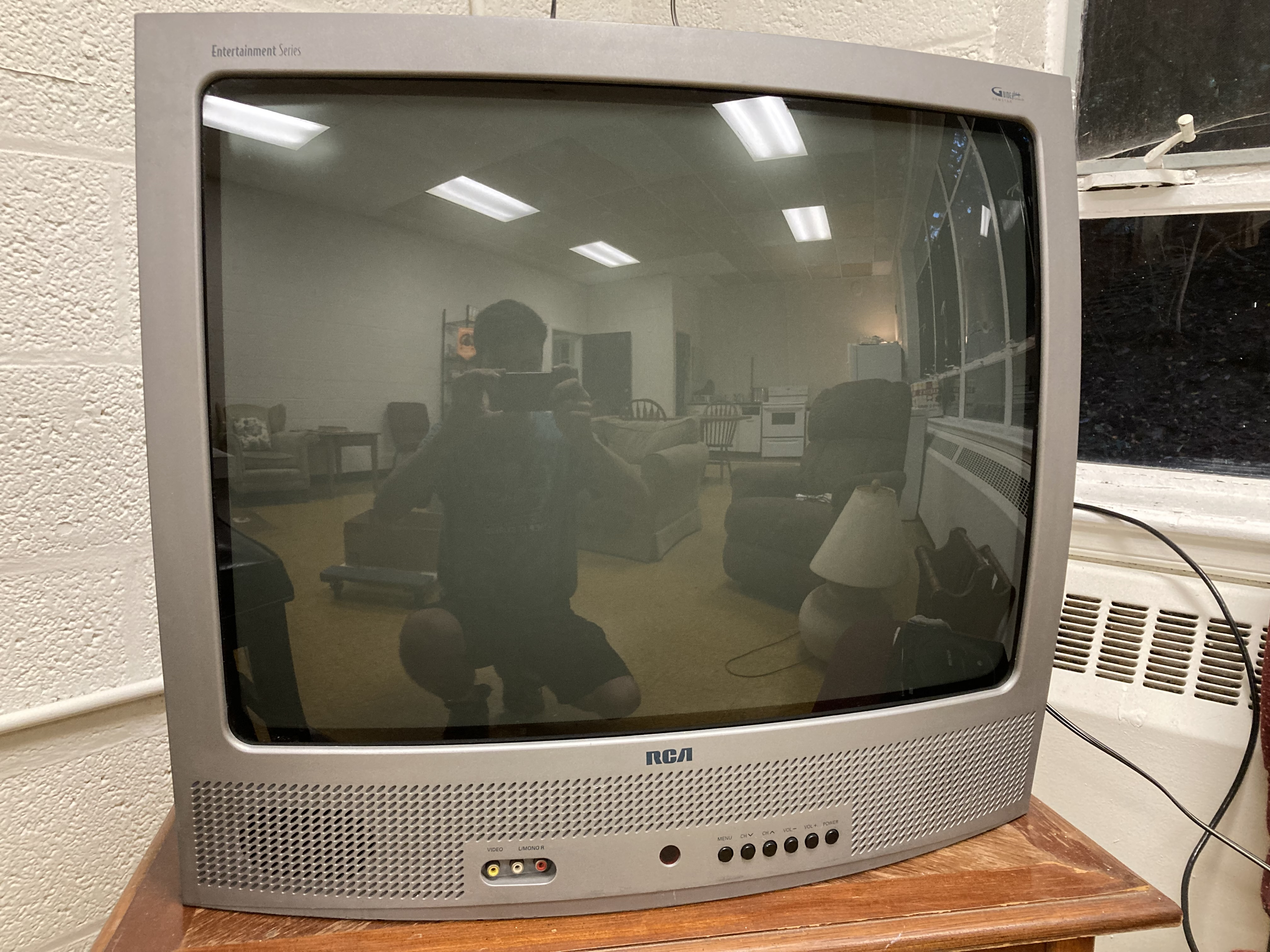

A nice 25" RCA CRT with s-video, a rare combination. Made in 2002 in Mexico.
Literature
Notes

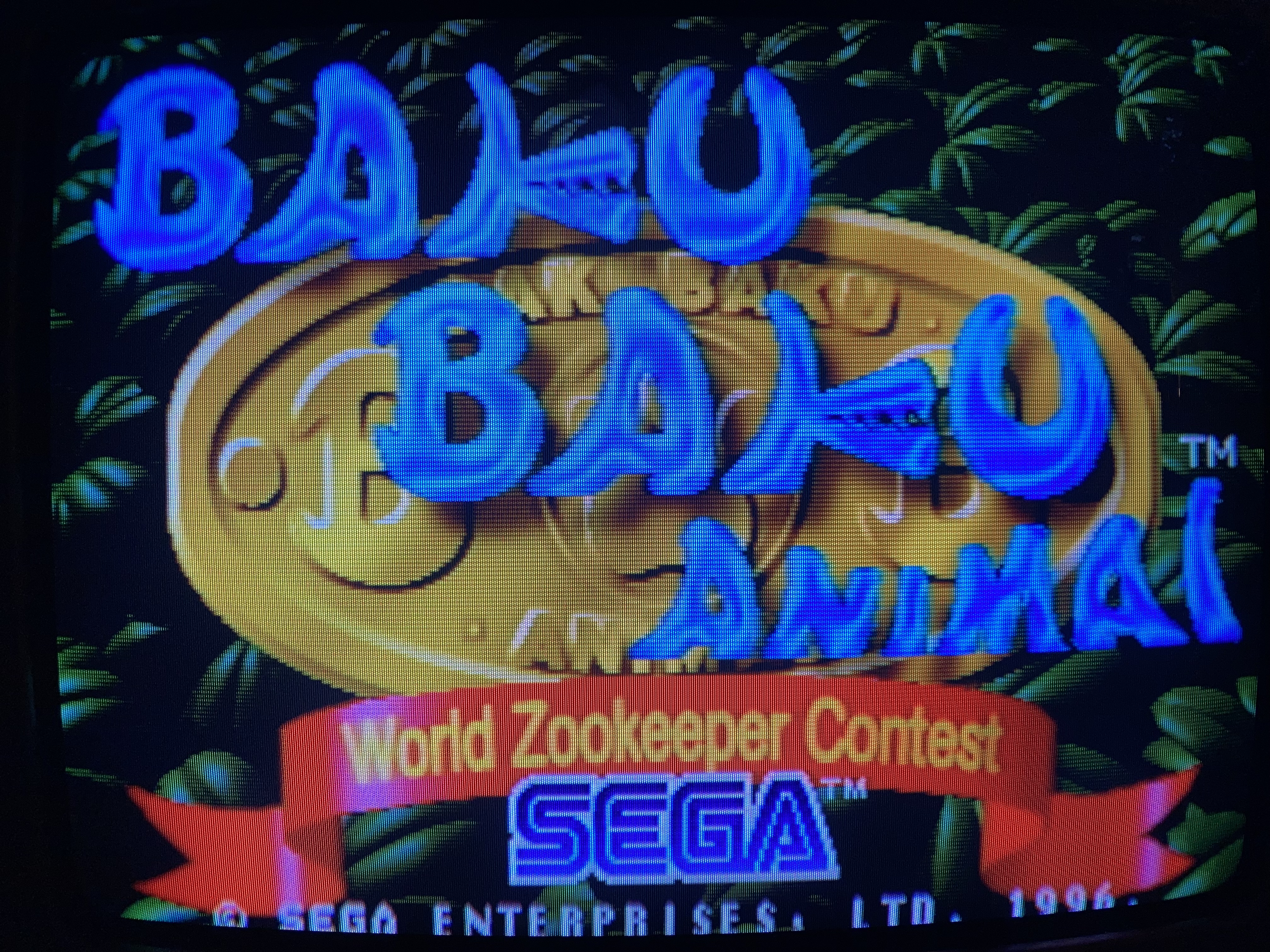

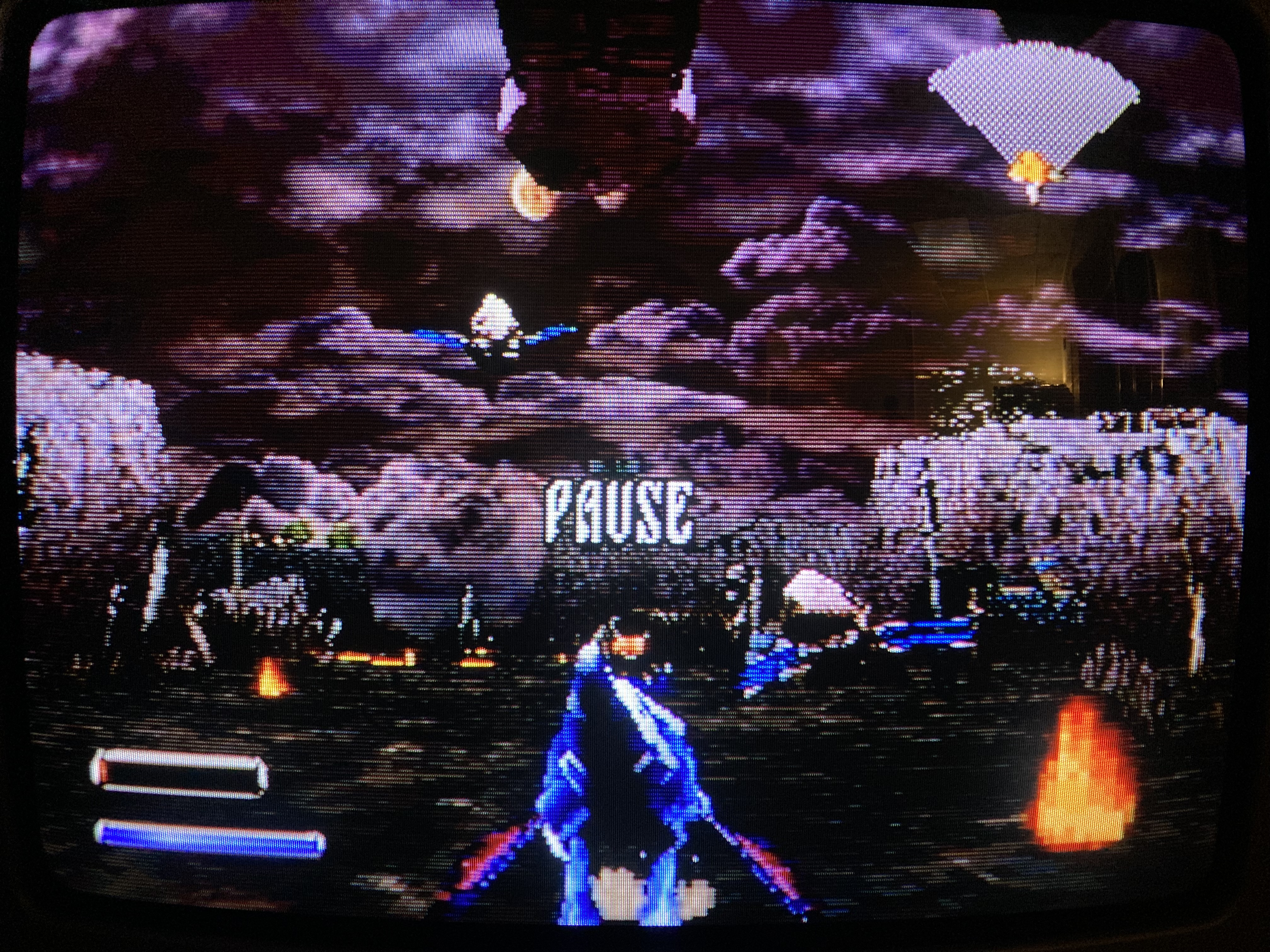

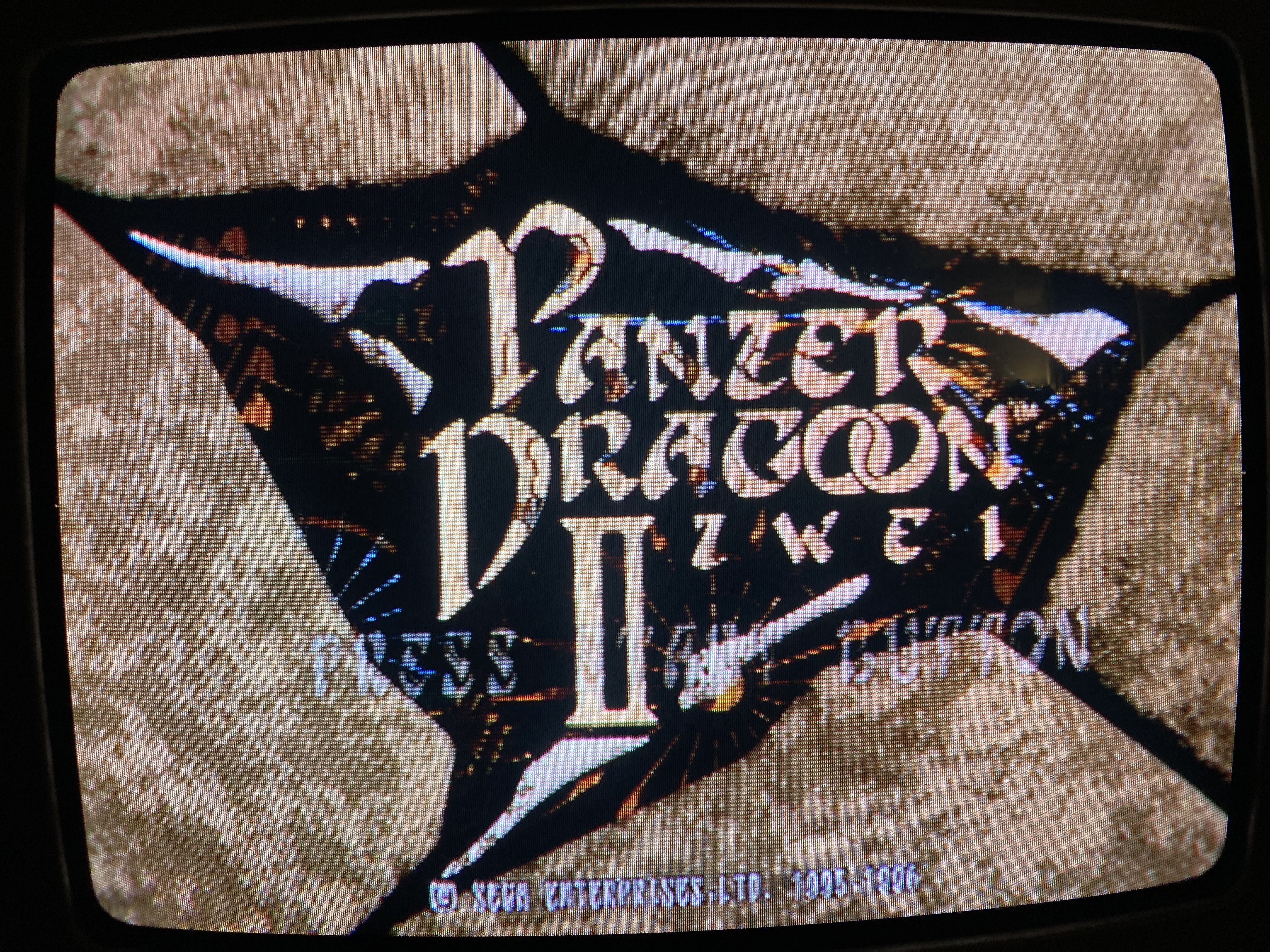

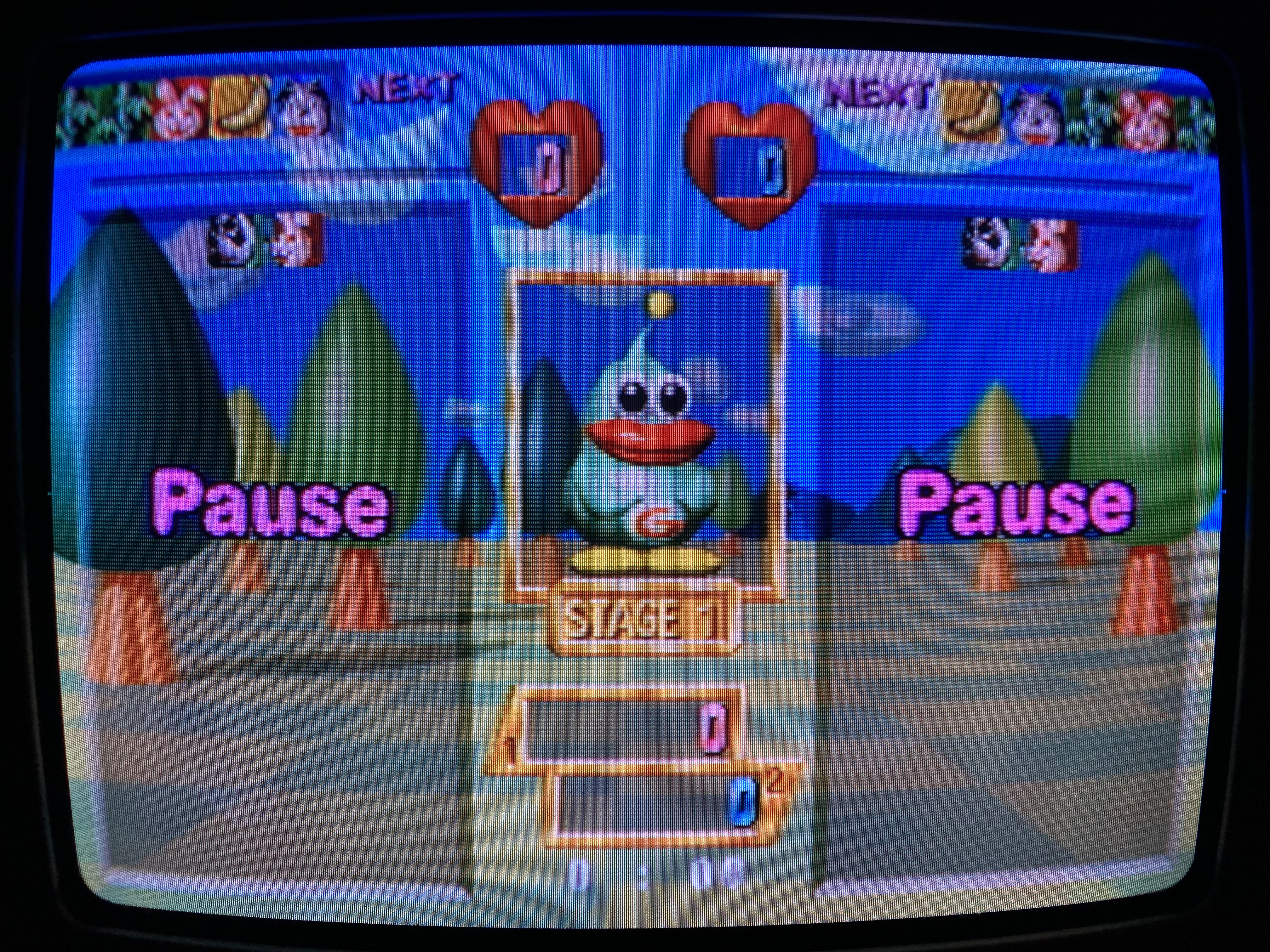

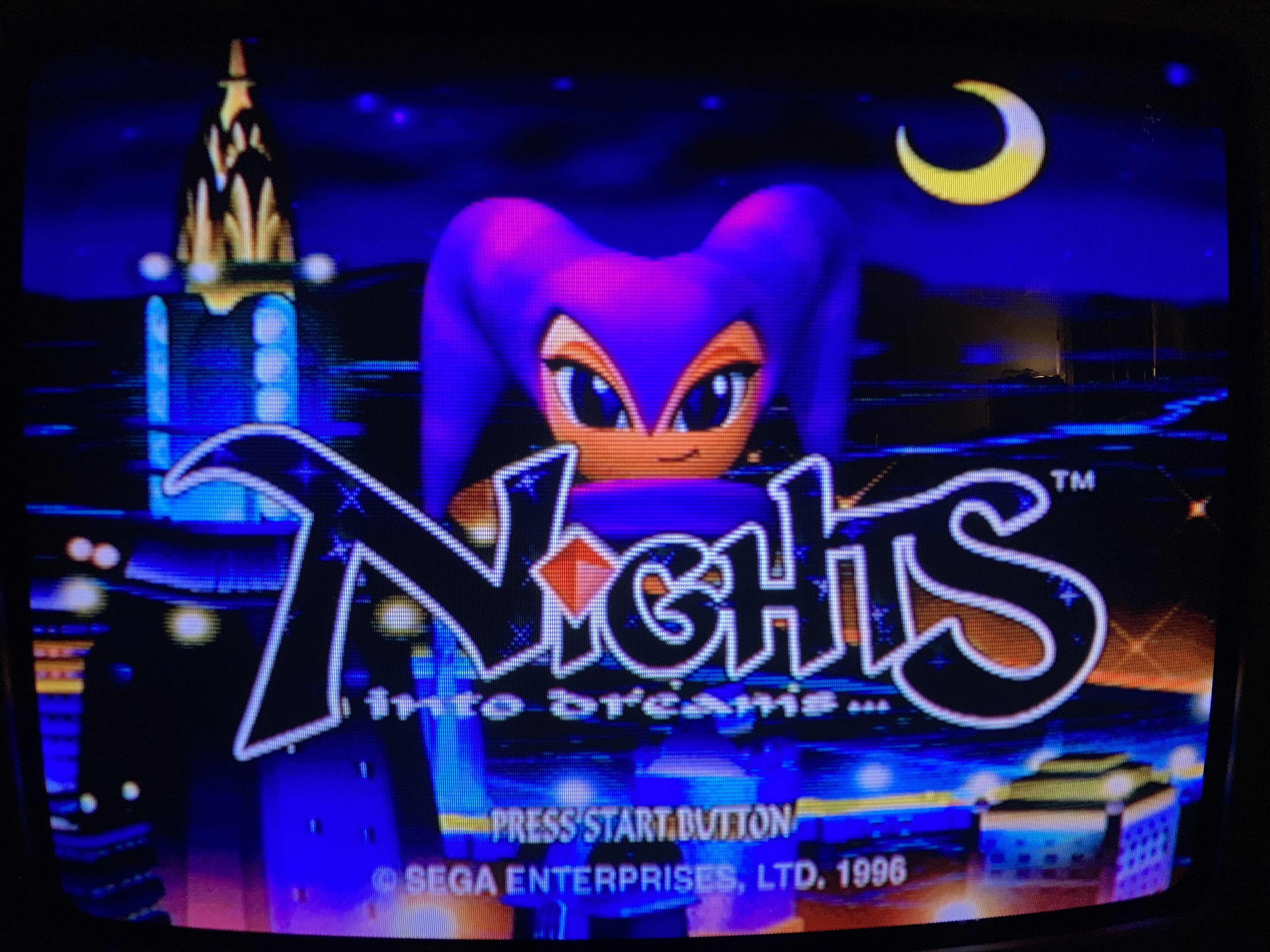

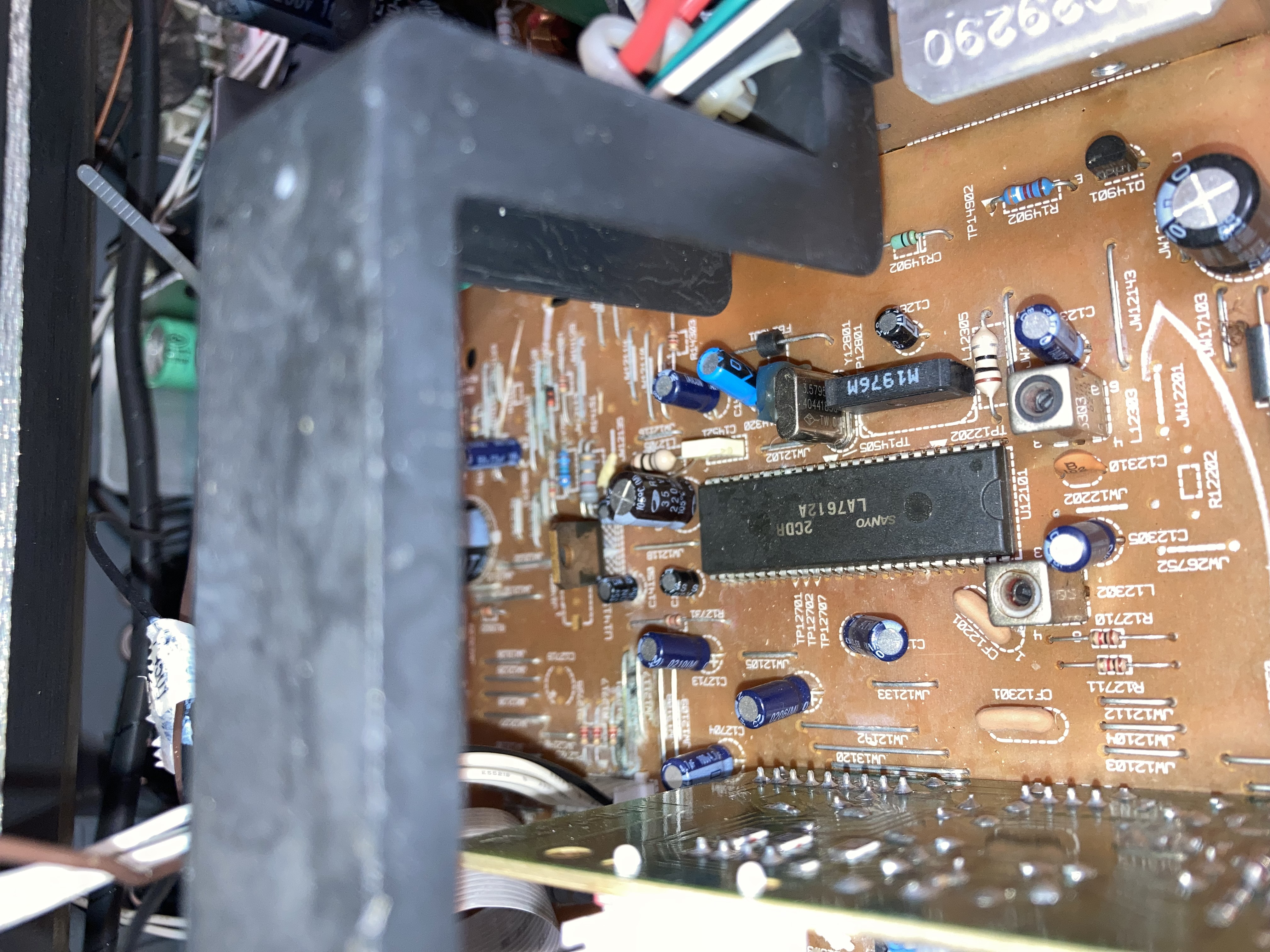

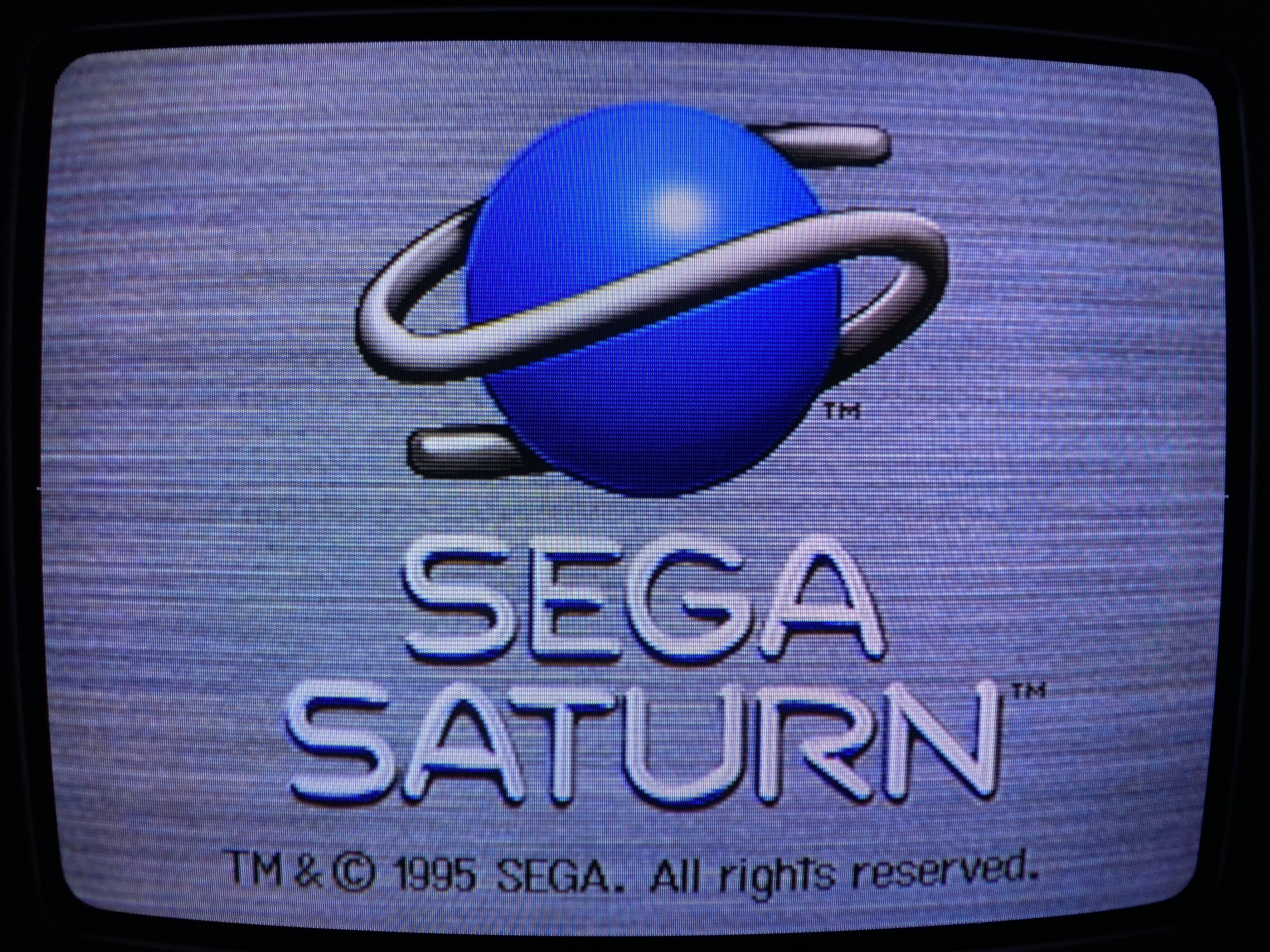

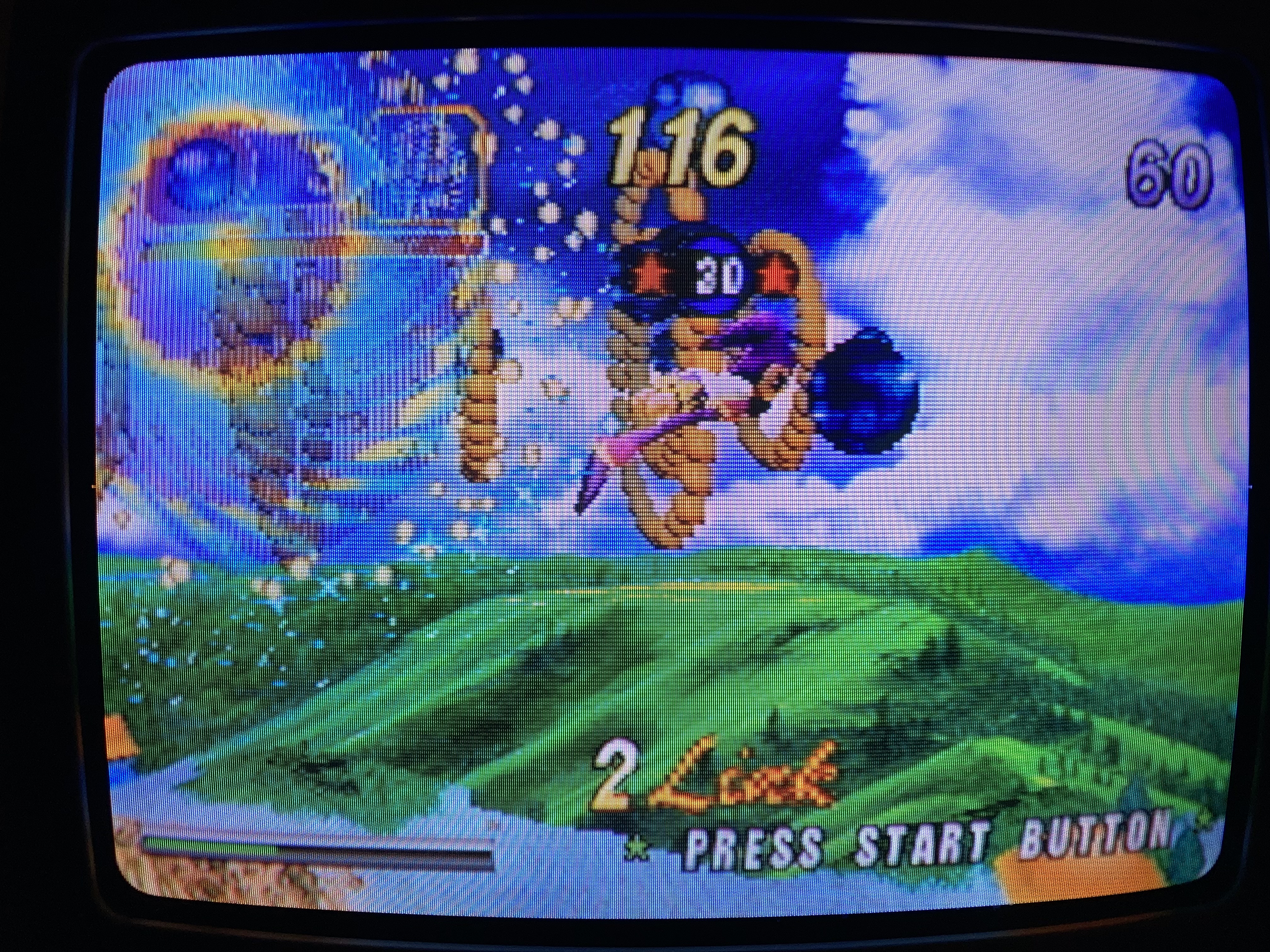

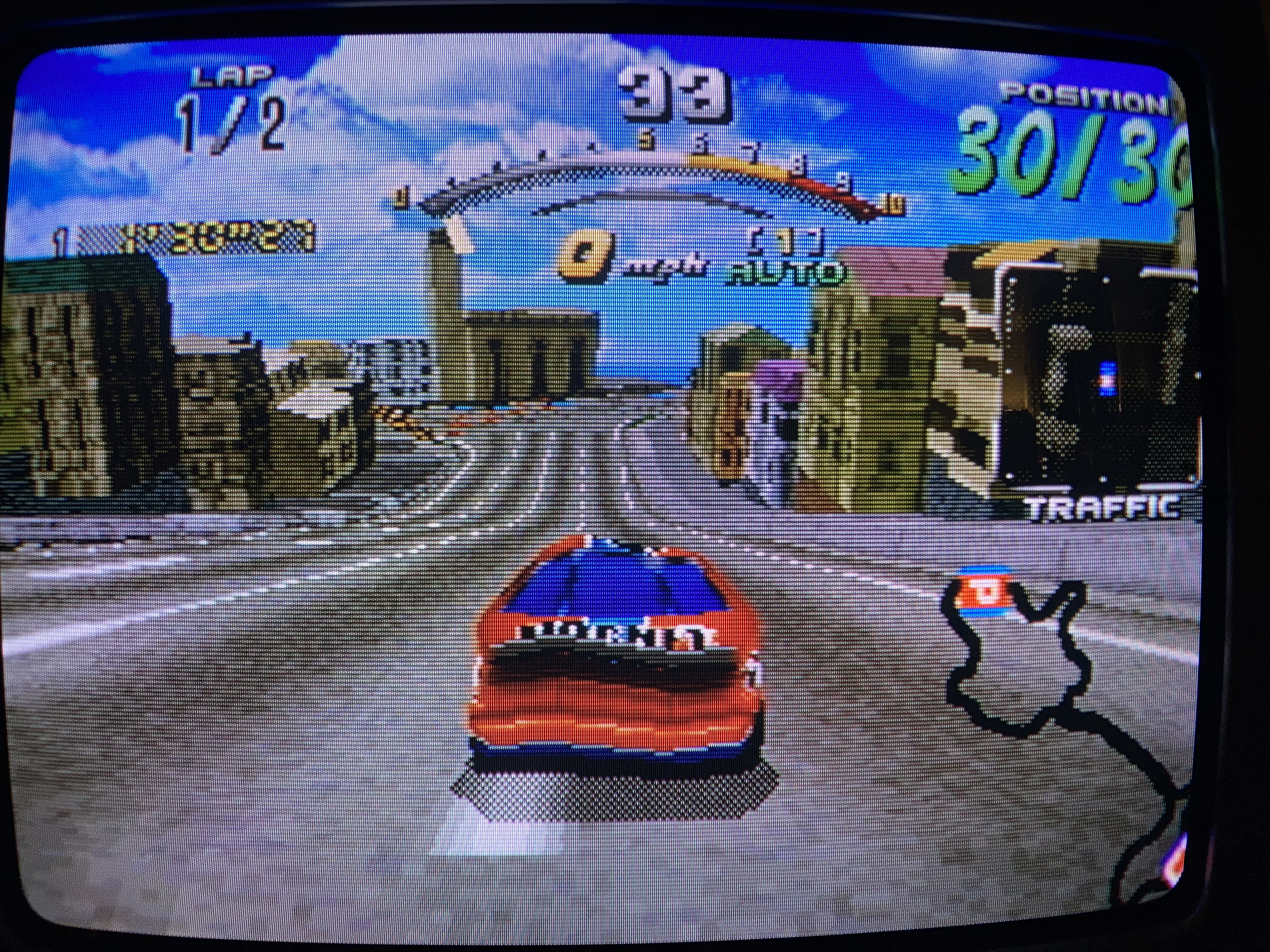

Picture quality is excellent for s-video. The Sanyo jungle chip is a great performer.
However, I noticed some significant black crush on my set. Could be due to the jungle chip, or maybe the decreased emissions from the tube. Whatever the cause is, you can fix this issue by boosting the cutoffs in the service menu.

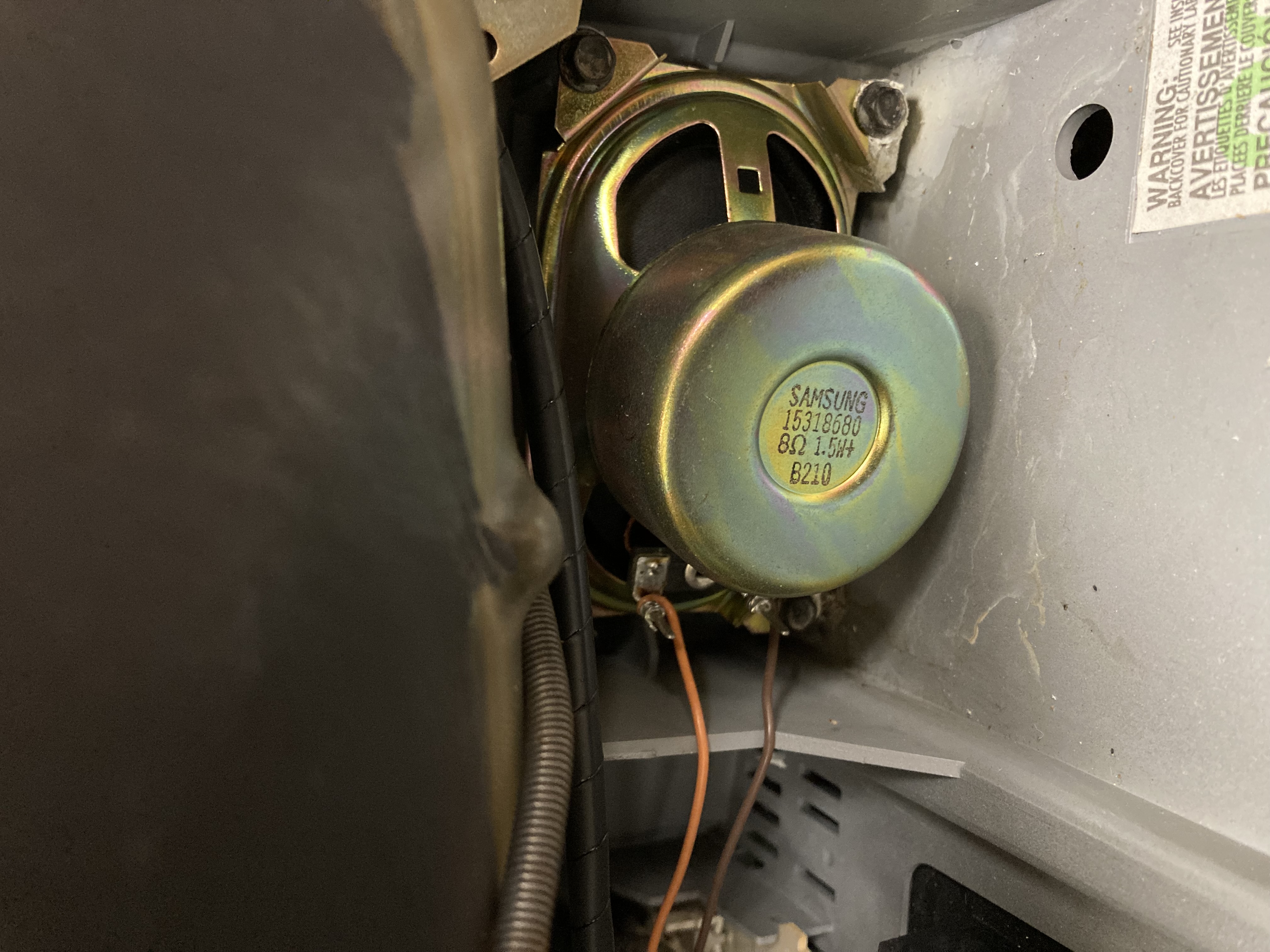

The speakers are another story, being a pathetic 1.5 watts. In-person the sound is very tinny.

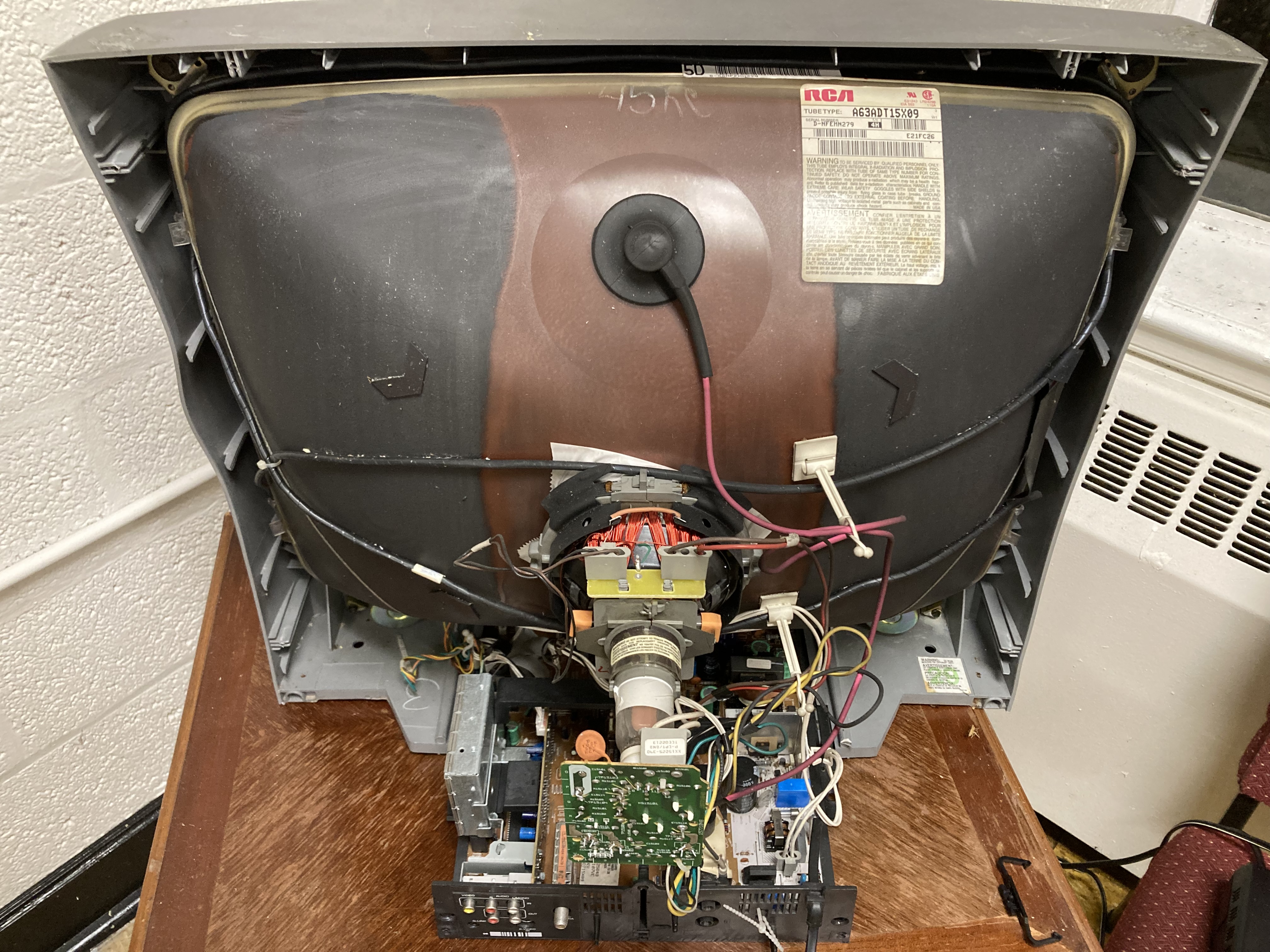

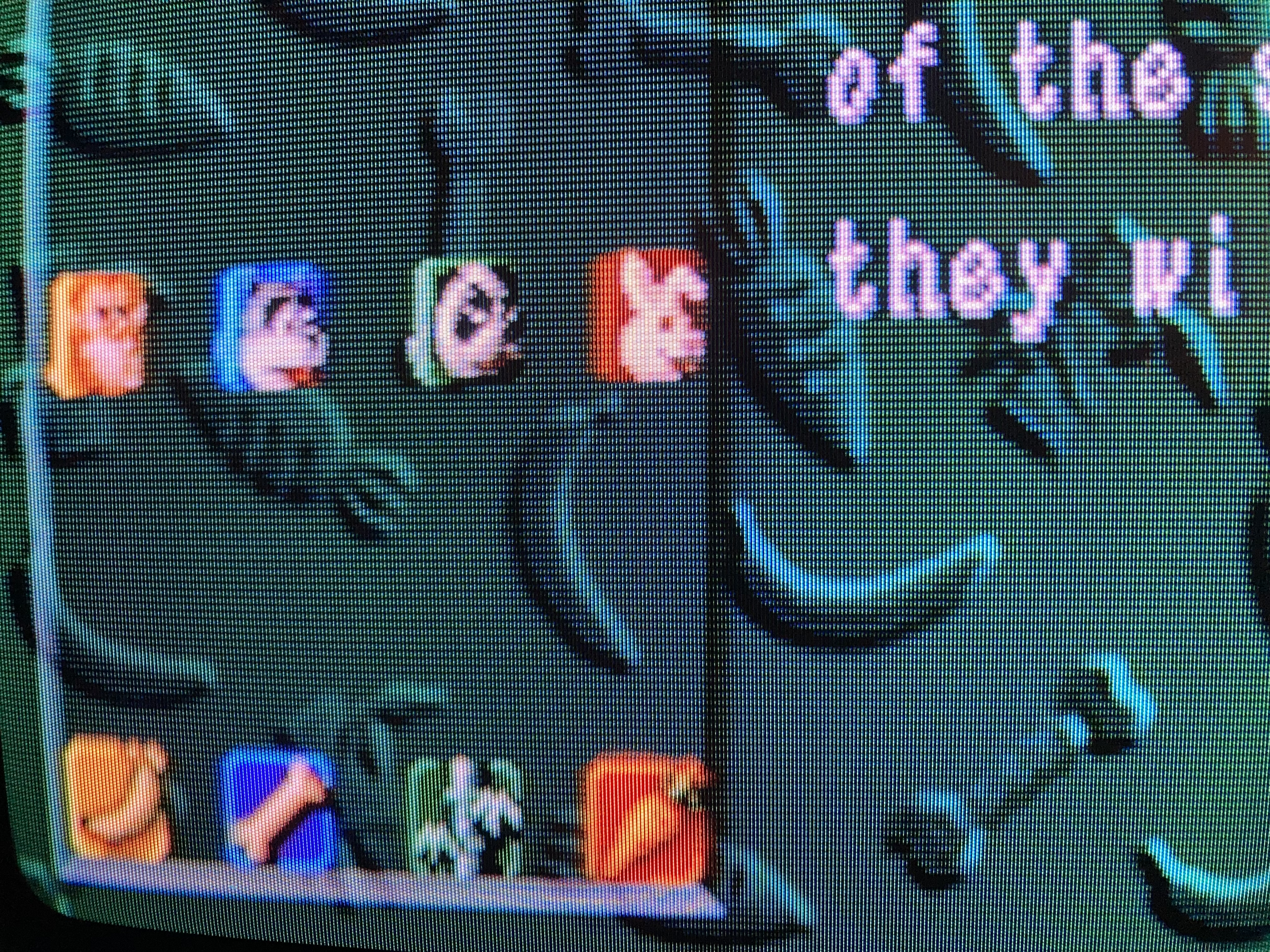

The tube itself is a US-made RCA model of their ADT family. These tubes age faster and you know what that means: blurry edges! Still, it can look quite good despite its flaws.
Gallery
Specifications | |
---|---|
Brand: | RCA |
Manufacturer: | Thomson |
Model: | F25649 |
Series: | F |
Viewable Size: | 25" |
Inputs: | Composite, S-Video, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | LA7612A |
Tube: | Thomson , A63ADT15X , A63ADT15X09 |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo |
Chassis: | CTC203AA9 |
Application: | Consumer |
Launched: | 2002 |
Degaussing: | Automatic on Power-on |
