Summary

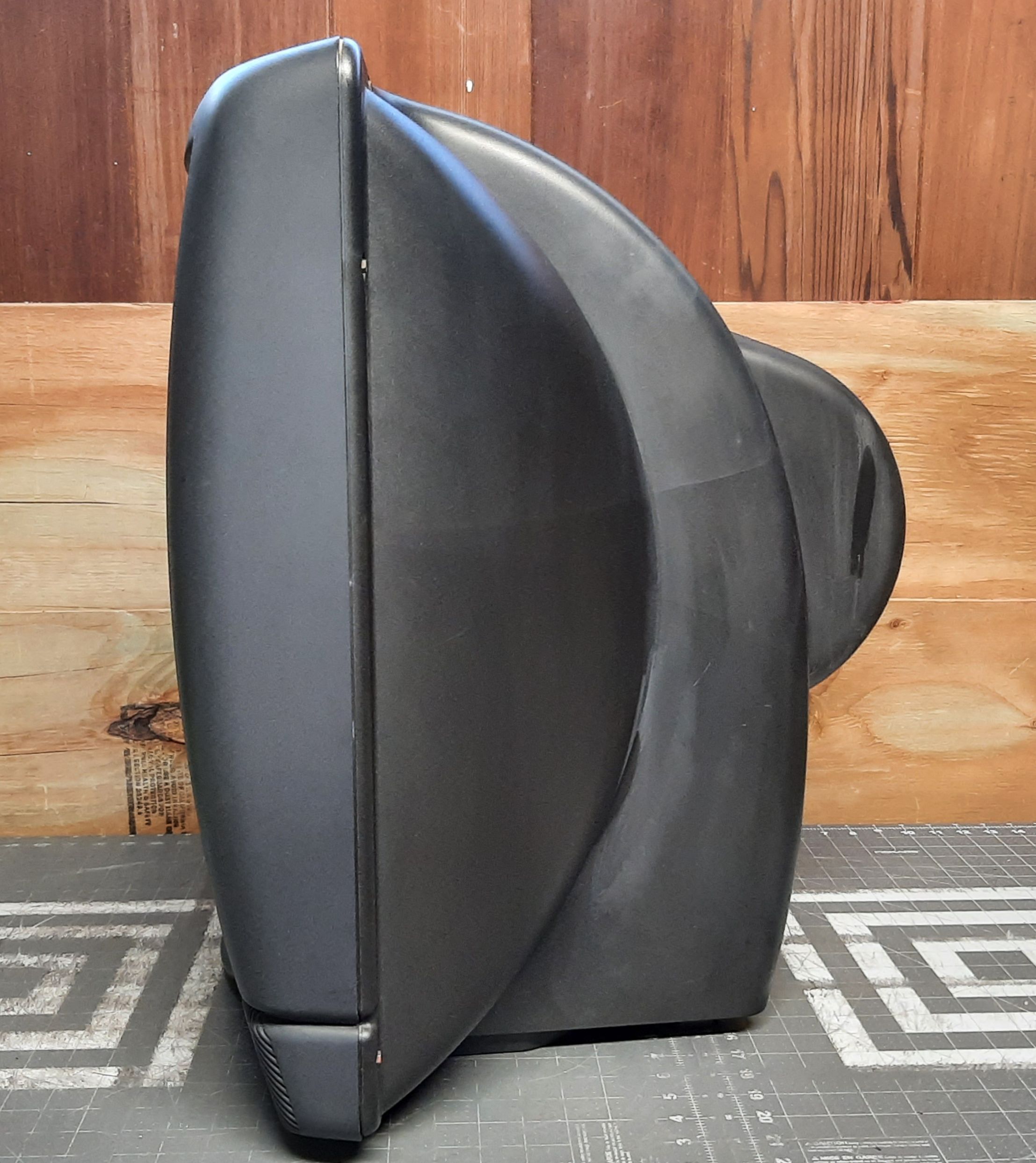

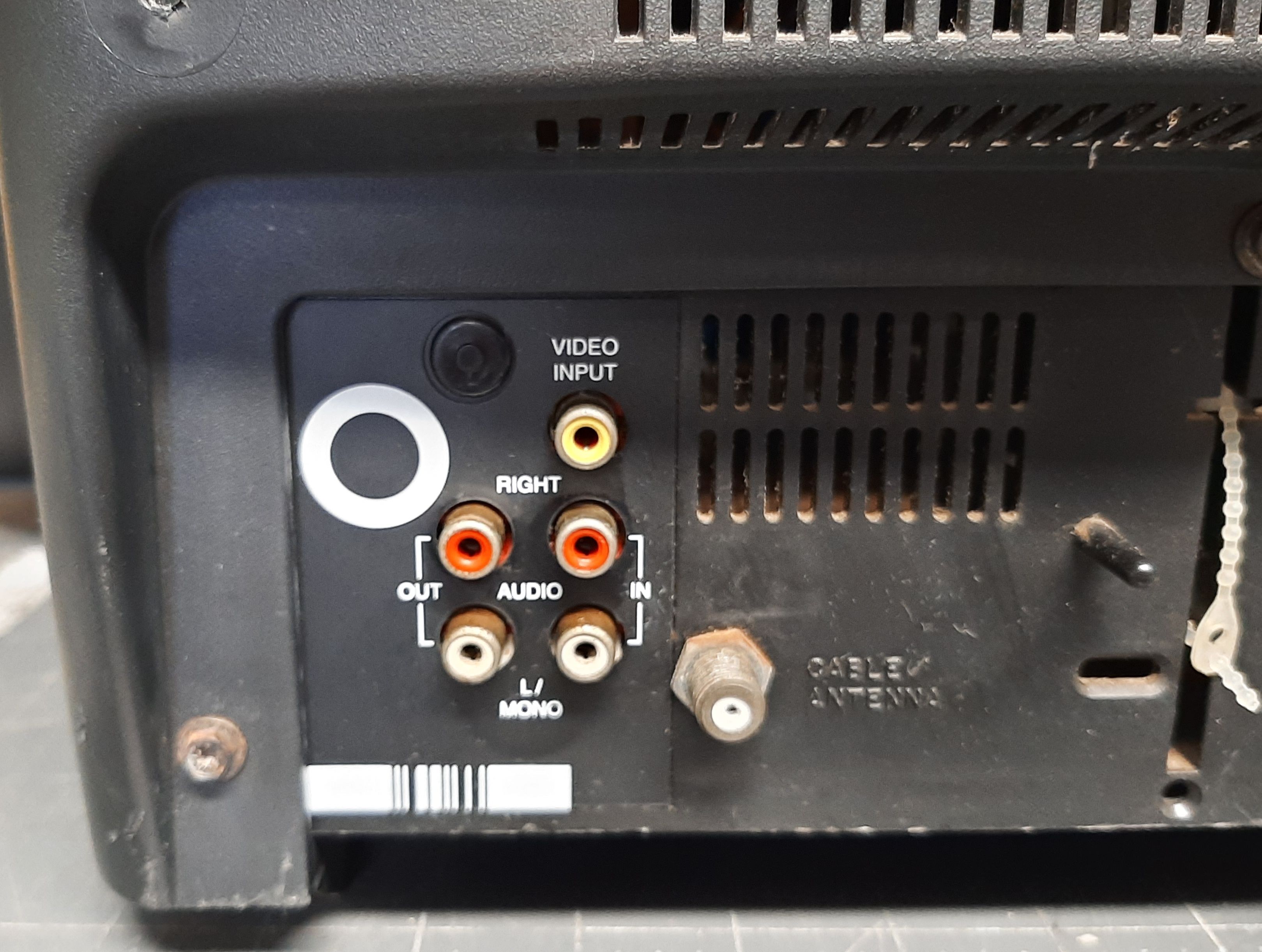

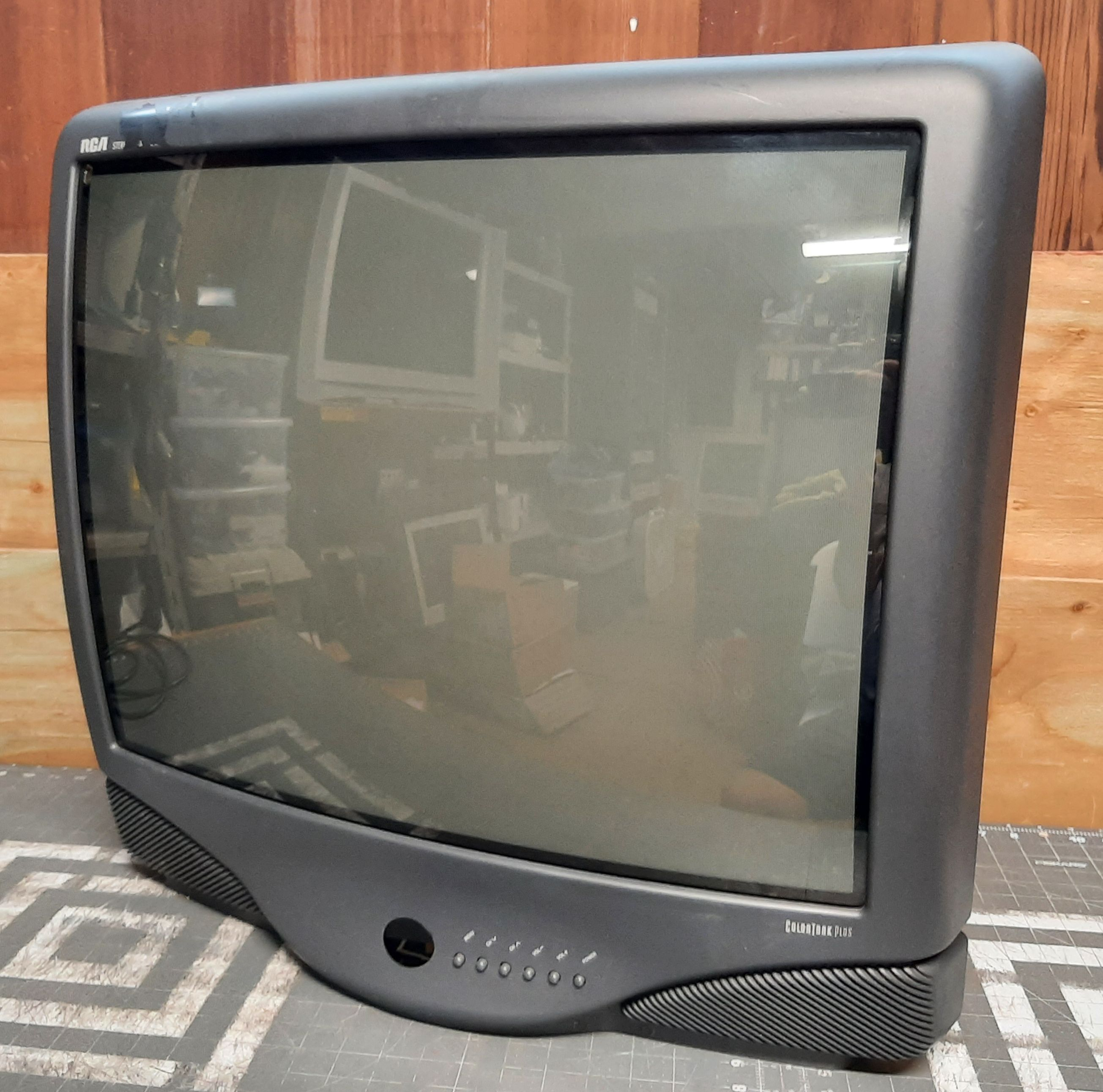

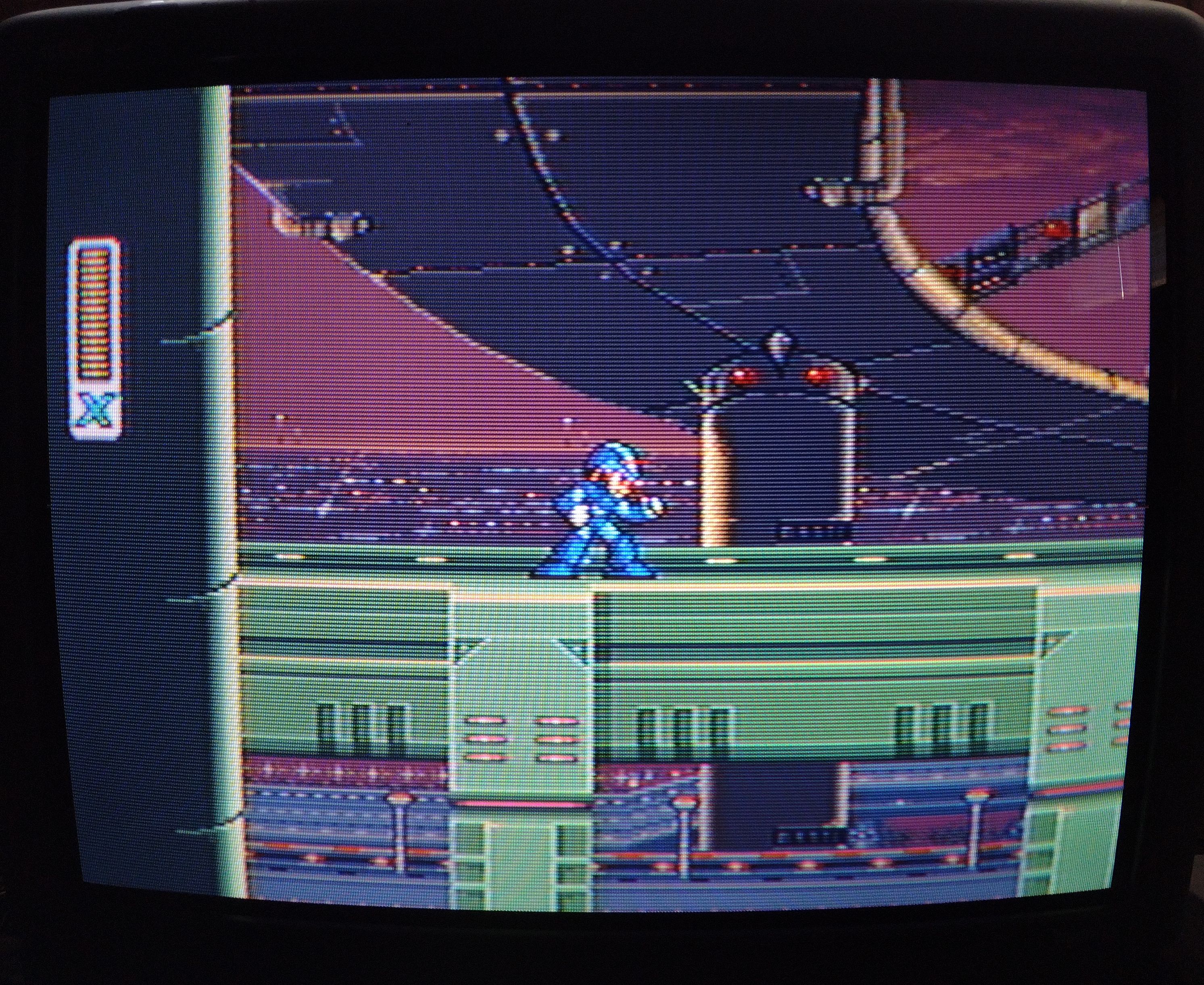

Basic consumer TV from RCA, with a single composite A/V input. It uses a 26" viewable picture tube, which is a fairly uncommon size.

Literature

• User Manual
• Service Manual

Notes

The TV cannot switch to the A/V inputs using only the front buttons, and requires a remote. Most universal remotes should work fine.

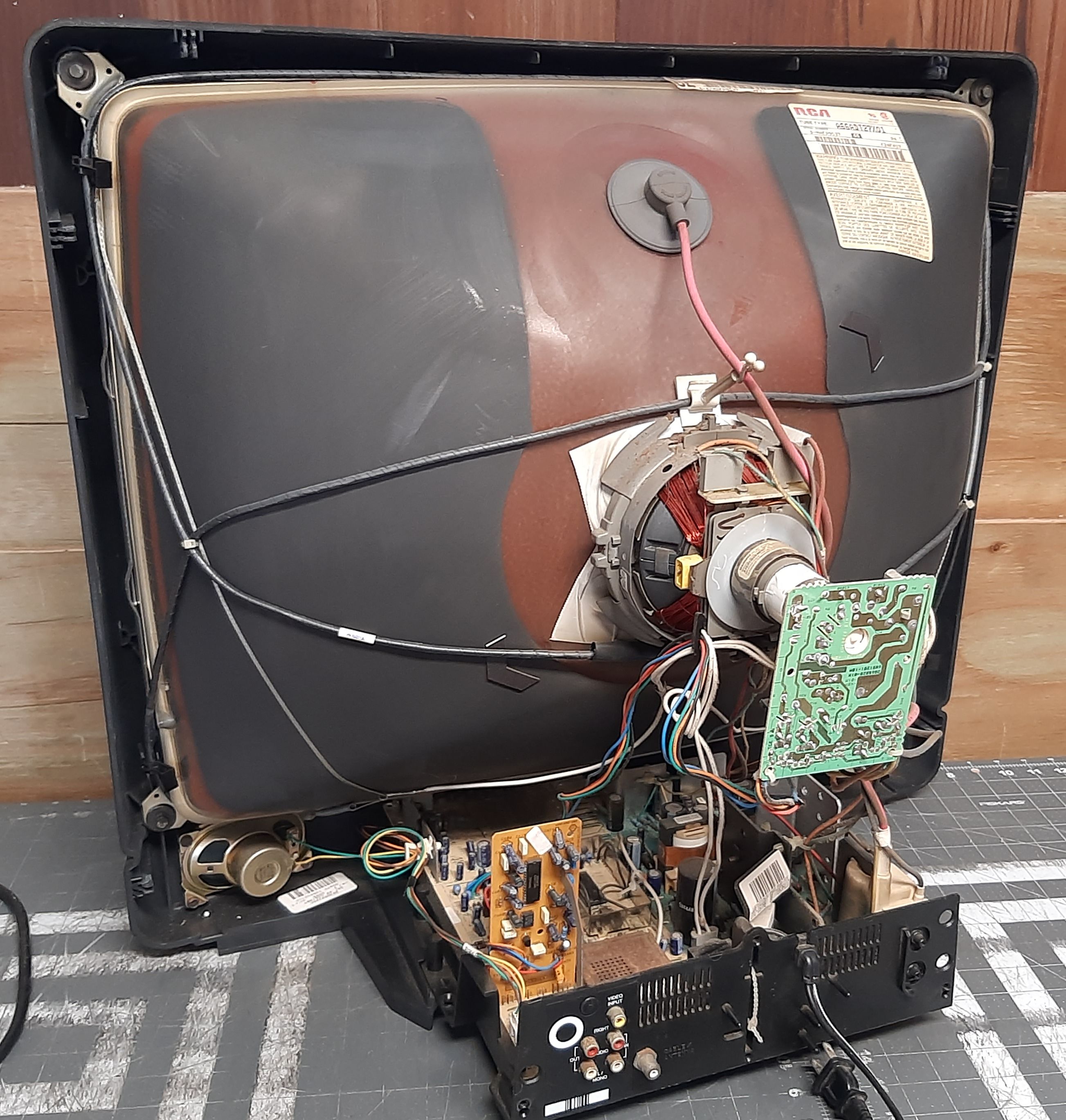

Many of RCA's televisions, including this one, don't have a separate RF tuner module. Instead, it is incorporated into the main board and covered horizontally with a metal shield.

The Sanyo LA7610 jungle chip used in this TV uses analog RGB for its OSD inputs, and should be compatible with an RGB mux mod.
