RCA F27100AK
Mike Morisette
February 2, 2023, 9:14 am
February 2, 2023, 9:14 am
Summary

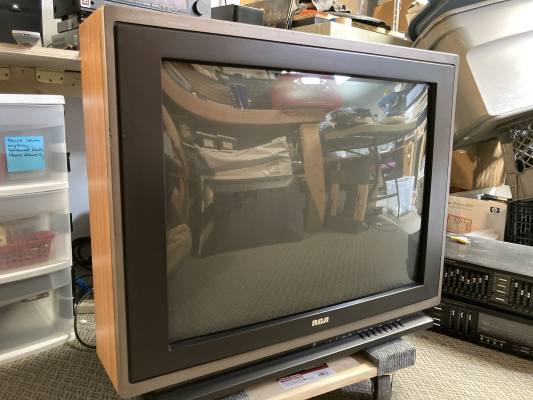

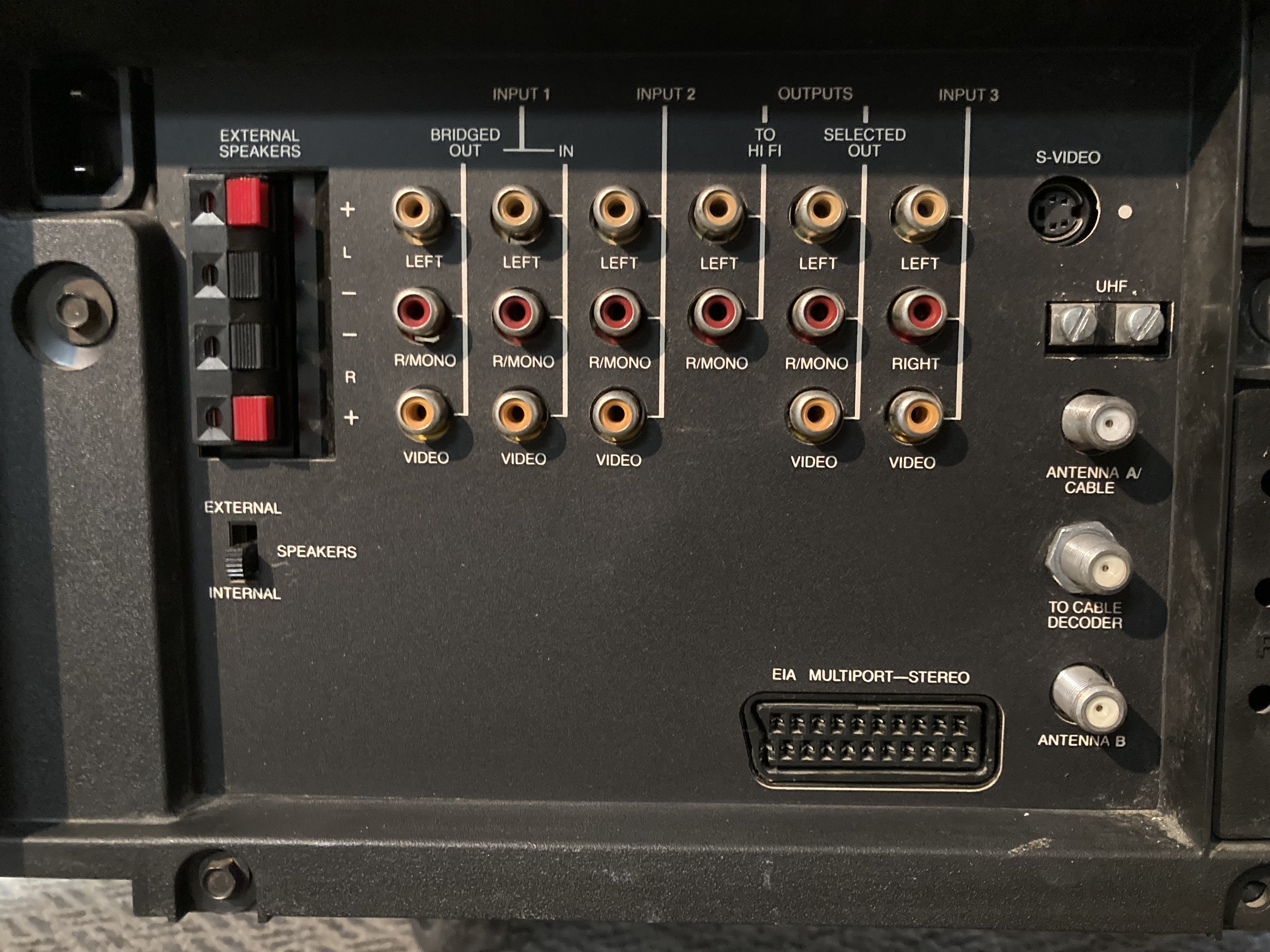

High end 27" CRT TV from RCA. Features a full set of inputs including RF, composite, and S-Video. Most notable on this TV sold in the North American market is an EIA Multiport (SCART) connection. However, this SCART connection is only capable of receiving a composite video signal.
Literature
Notes
A remote is required to change to the video inputs.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | F27100AK |
| Series: | ColorTrak 2000 |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF |
| Resolutions: | 240p, 480i |
| Horizontal Max: | 15 kHz |
| Vertical Max: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Tube: | RCA , AG8ACC14X01 |
| Heater Voltage: | 6.3v |
| Mask: | Slot |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | CTC140AJ |
| Application: | Consumer |
| Launched: | 1988 |
| Degaussing: | Automatic on Power-on |
