RCA F27676BC
SegaSaturn94
March 6, 2026, 8:41 pm
March 7, 2026, 1:53 am
March 6, 2026, 8:41 pm
March 7, 2026, 1:53 am
Summary

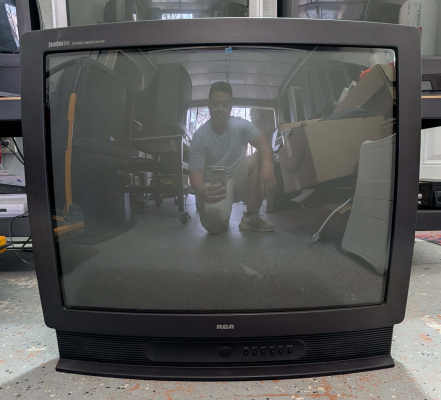

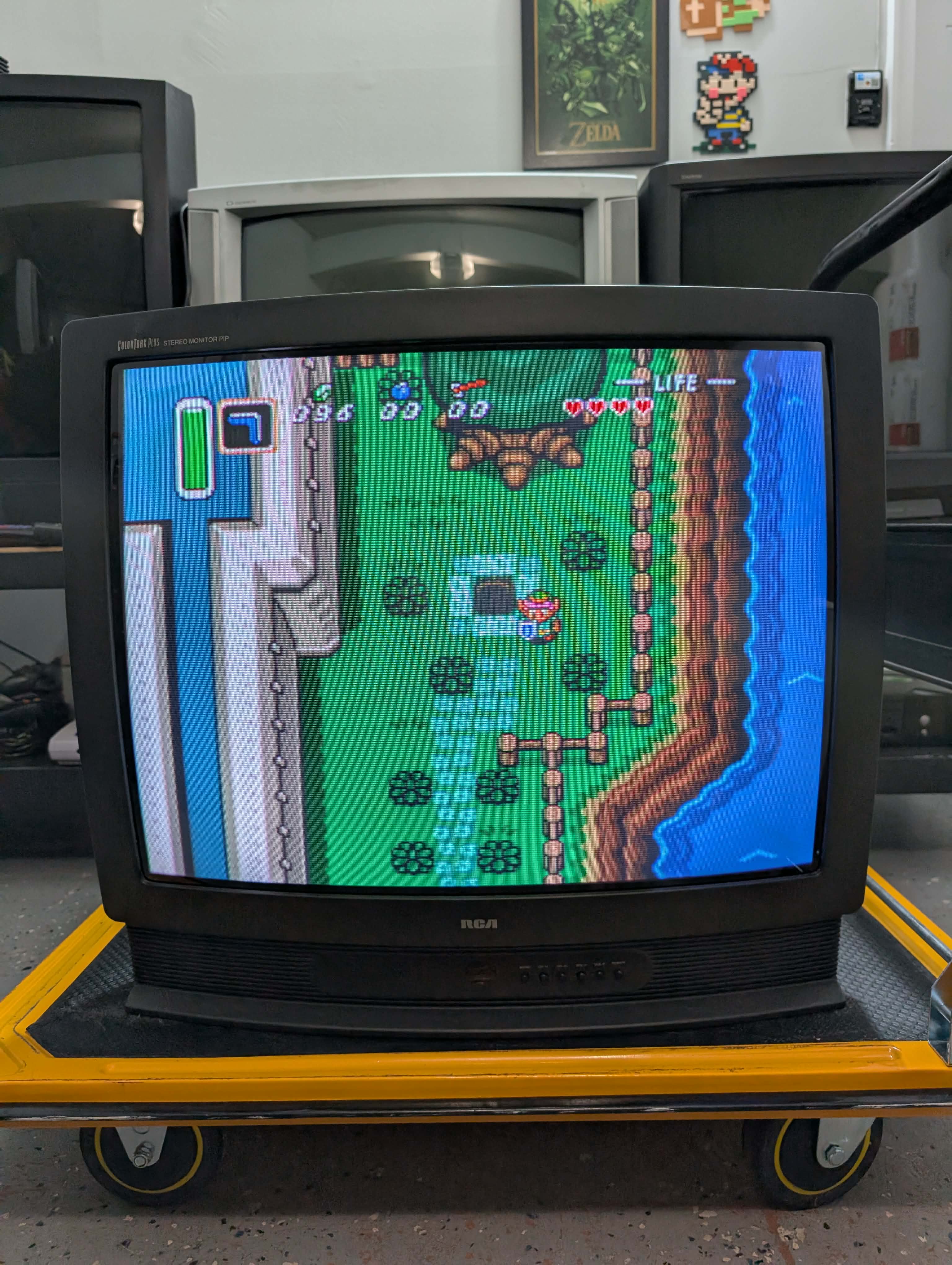

27" curved-screen CRT by RCA, made in Mexico by Thomson in 1996. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Michael Lopez for the pics!)
Manuals
(None at this time.)
RGB Mod
This TV can be modded for RGB. Follow the guide on Sunthar's site HERE

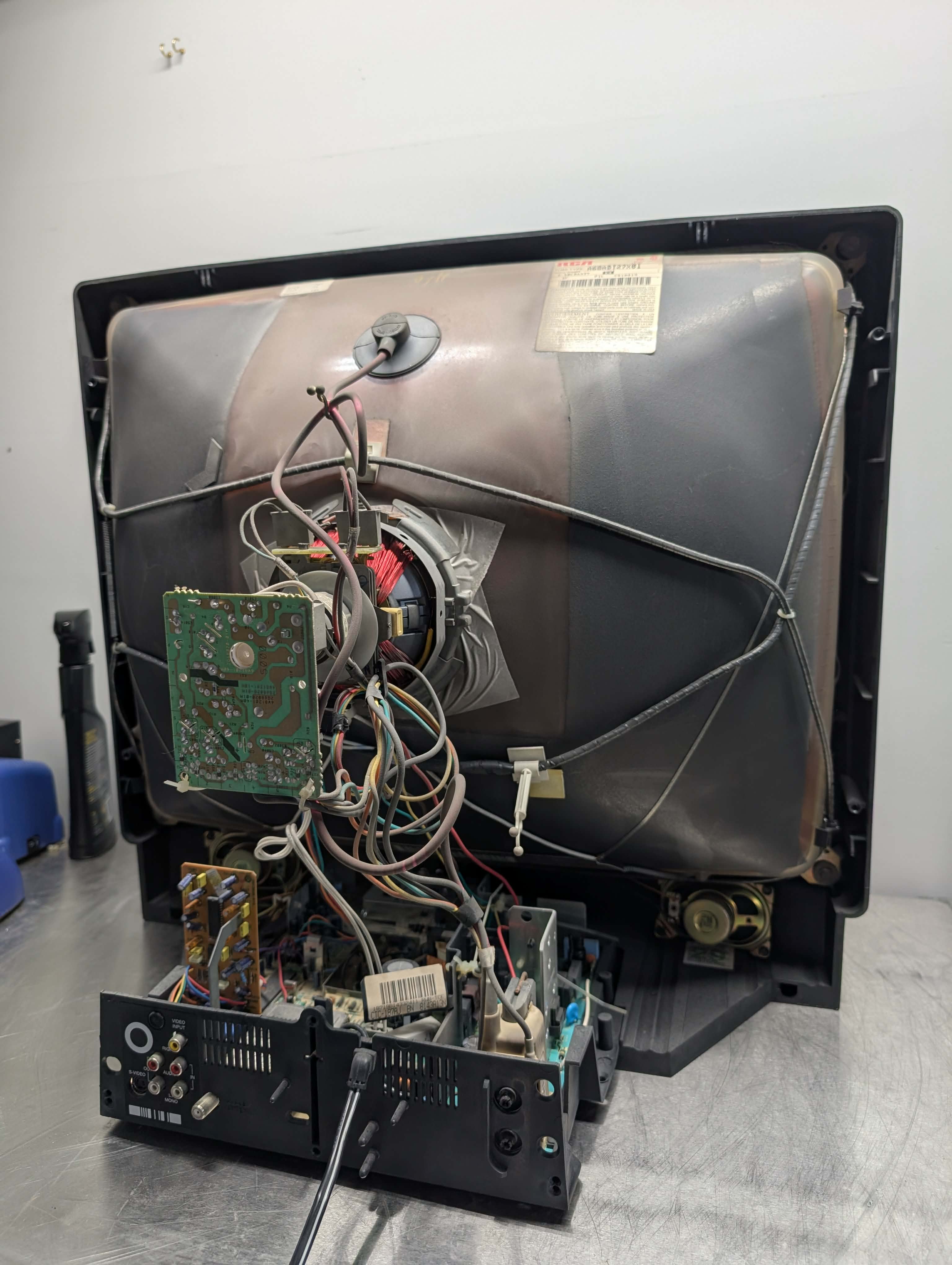

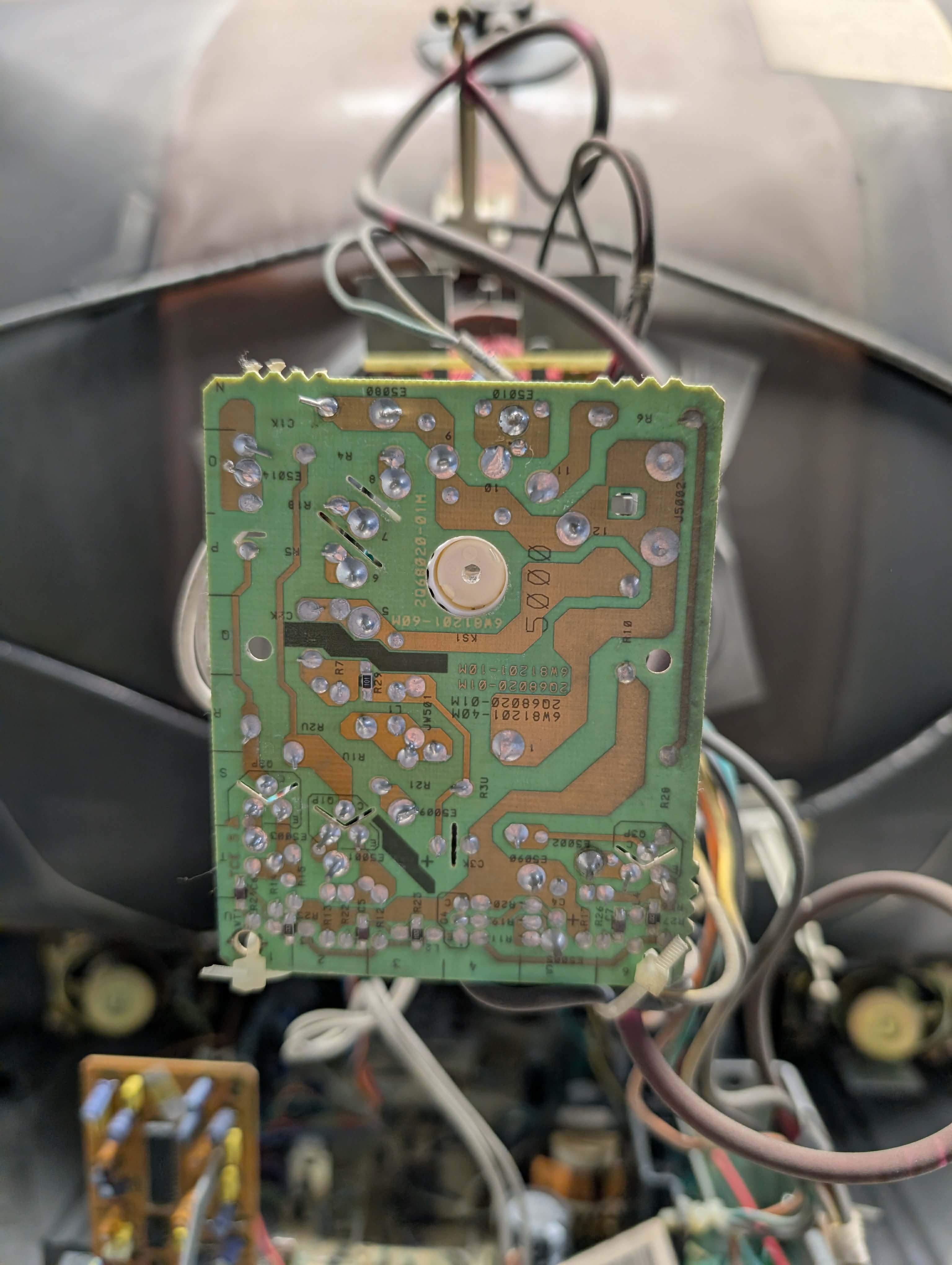

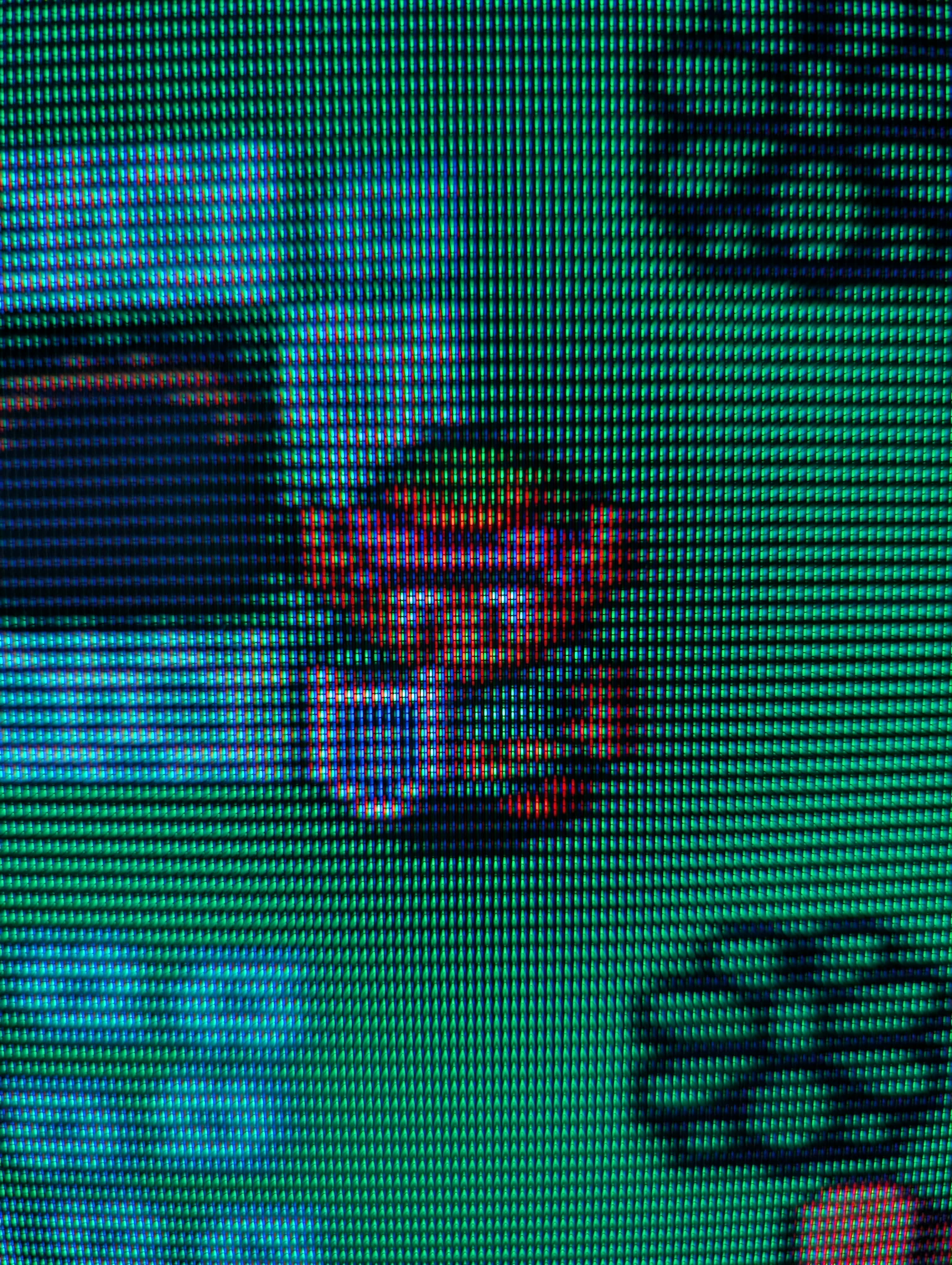

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |

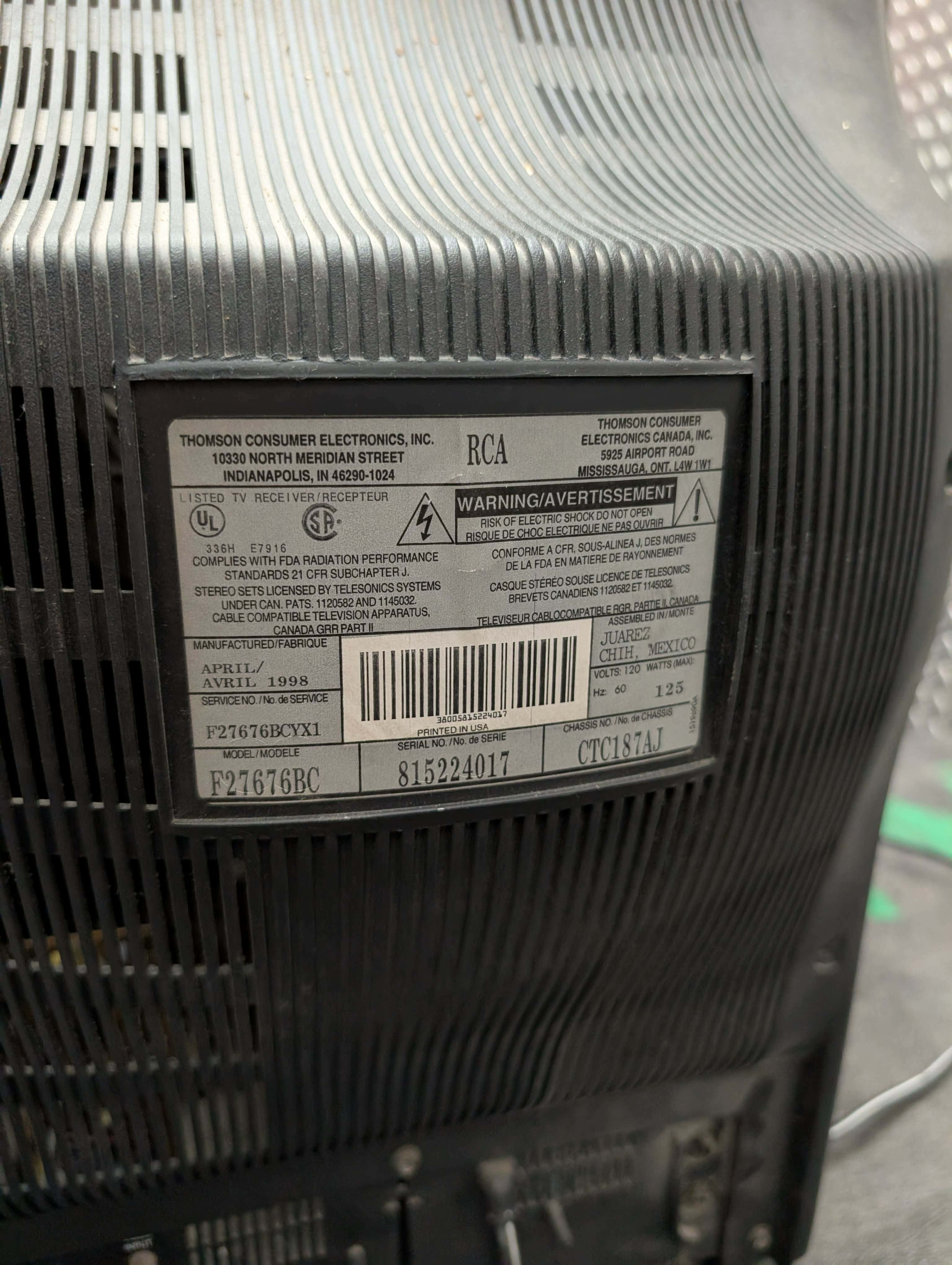

| Model: | F27676BC |
| Series: | ColorTrak Plus |
| Viewable Size: | 27" |

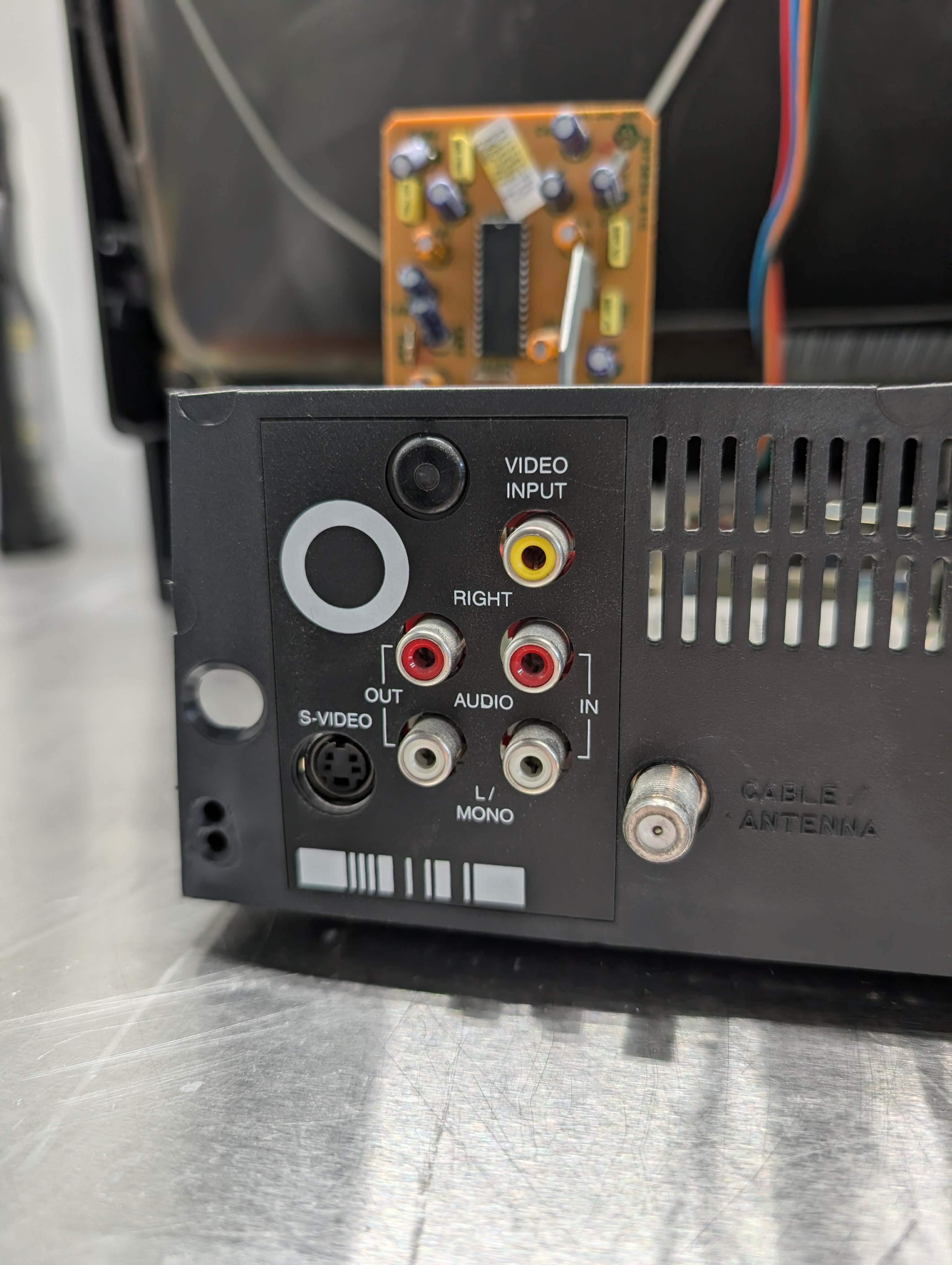

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

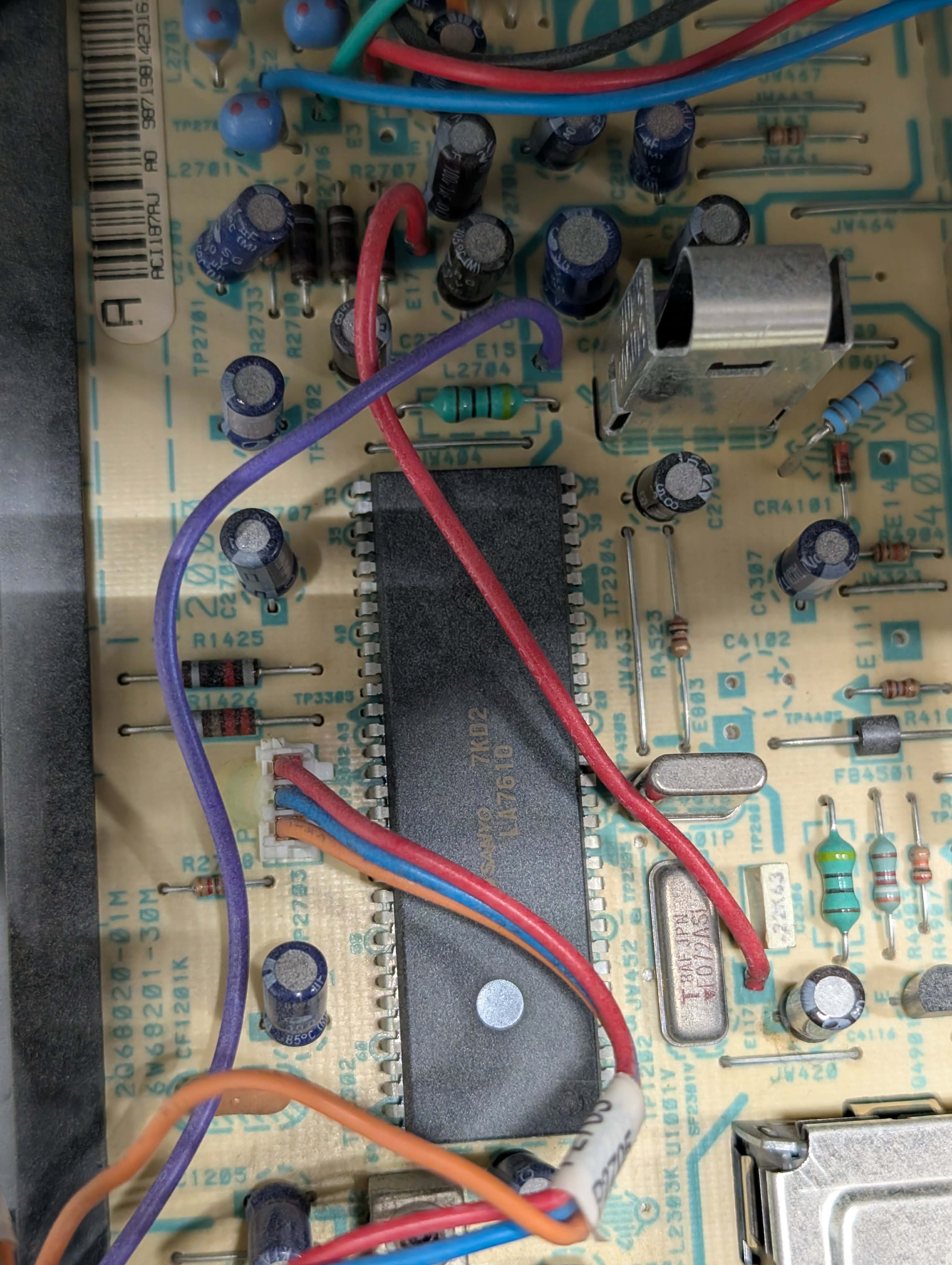

| Jungle IC: | Sanyo, LA7610 |

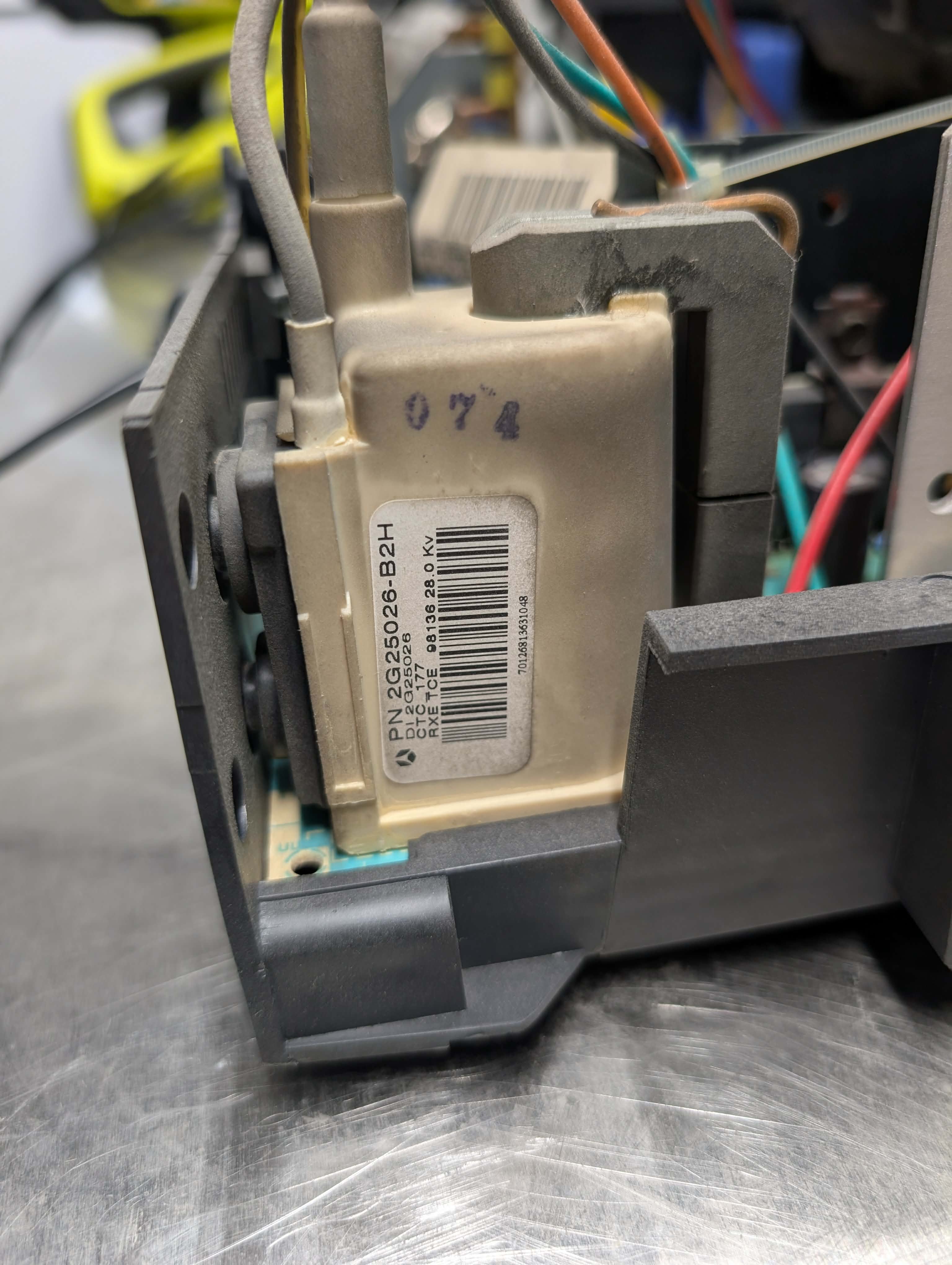

| Flyback: | 2G25026-B2H |
| Focus Type: | Single |

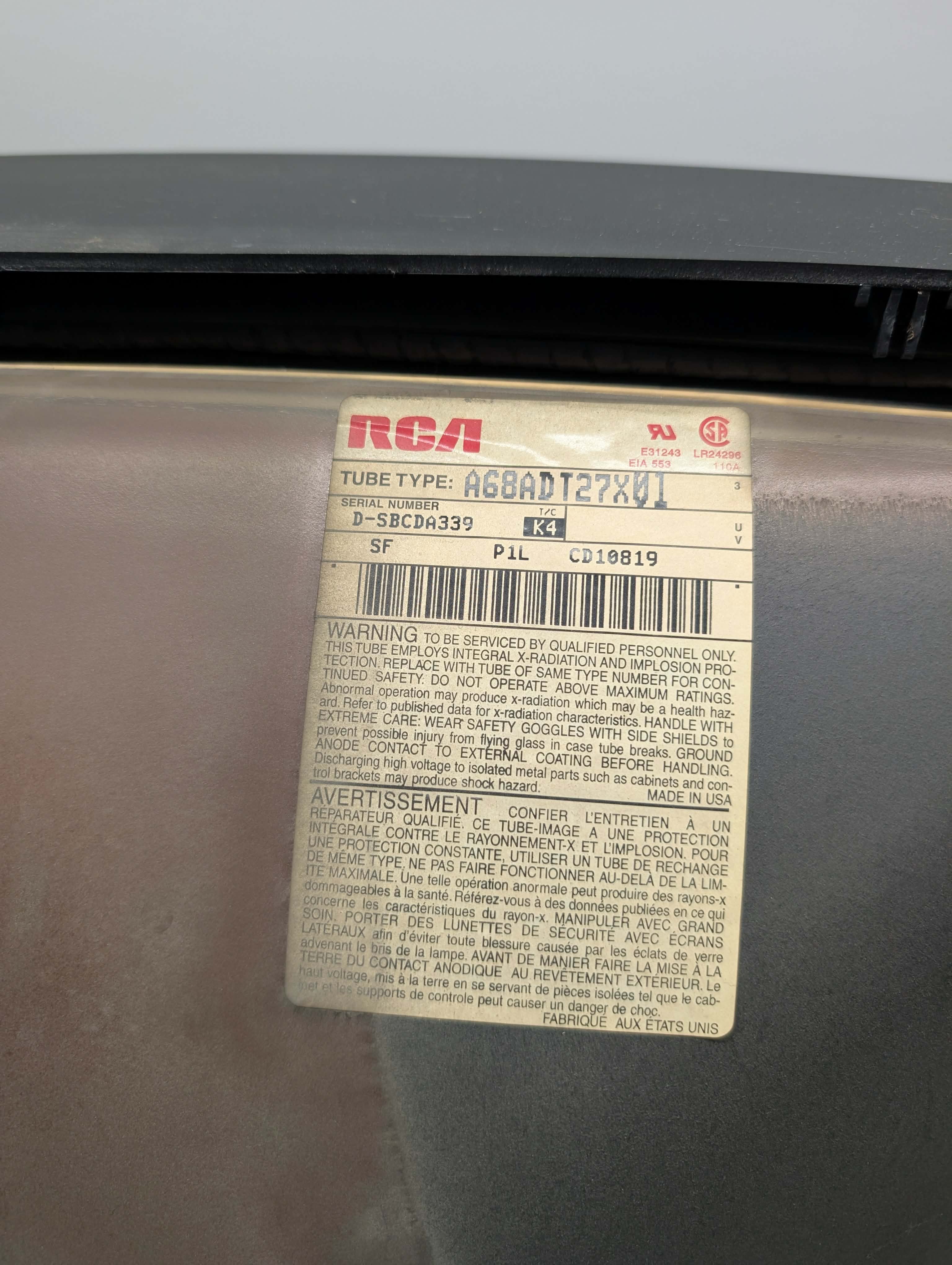

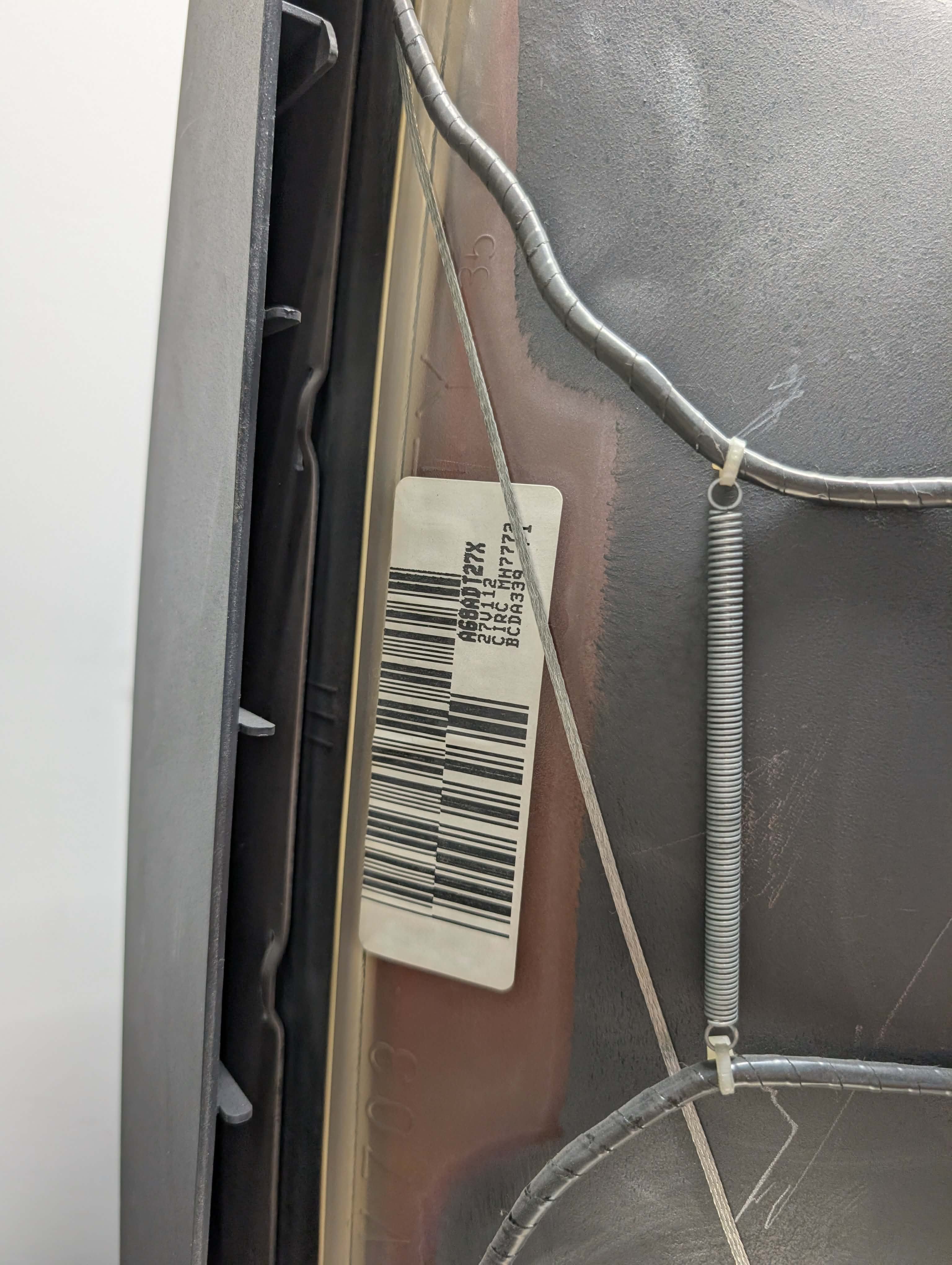

| Tube: | Thomson , RCA , A68ADT27X , A68ADT27X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

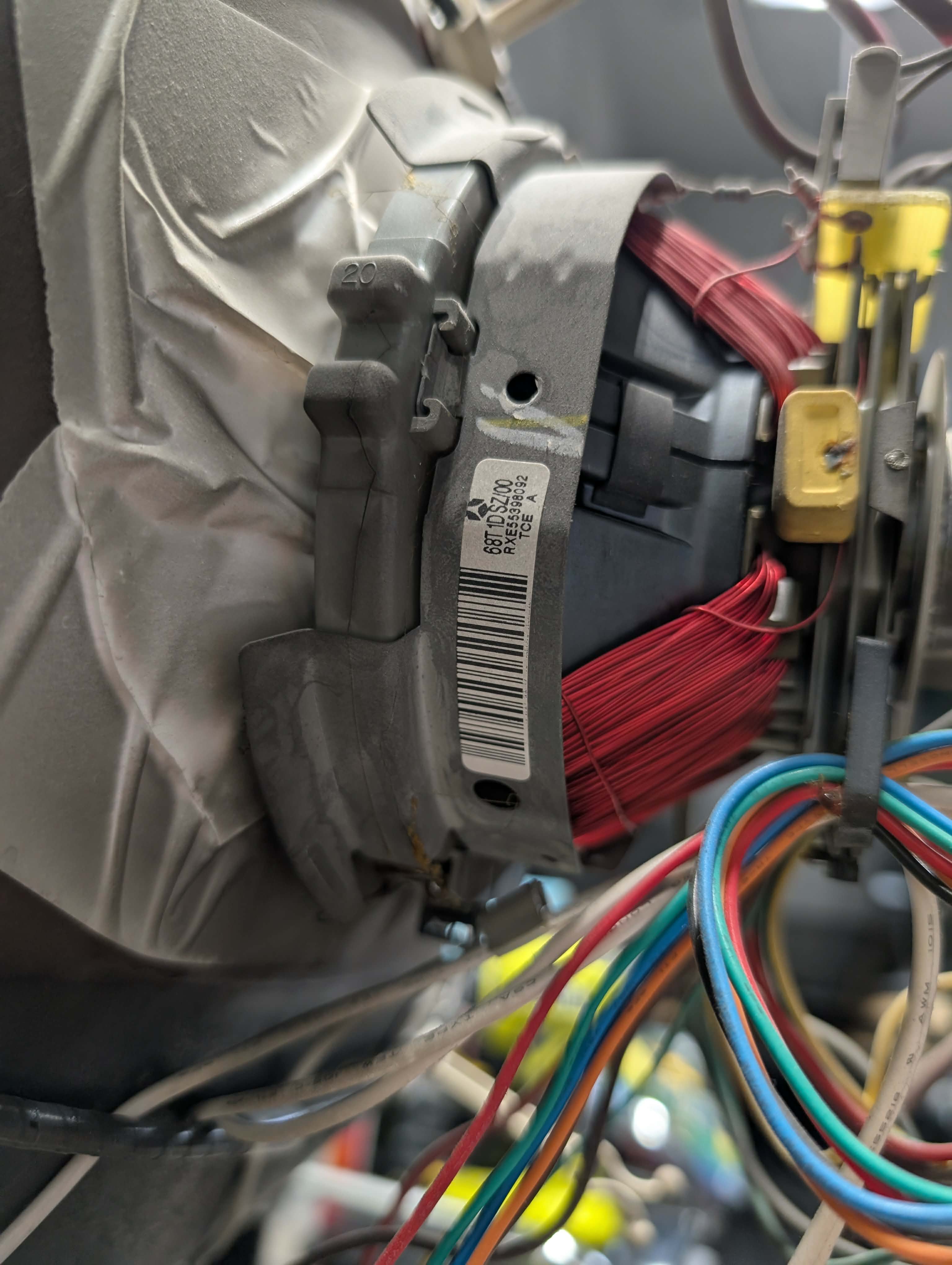

| Yoke: | 68T1DSZ/00, RXE55398092 |

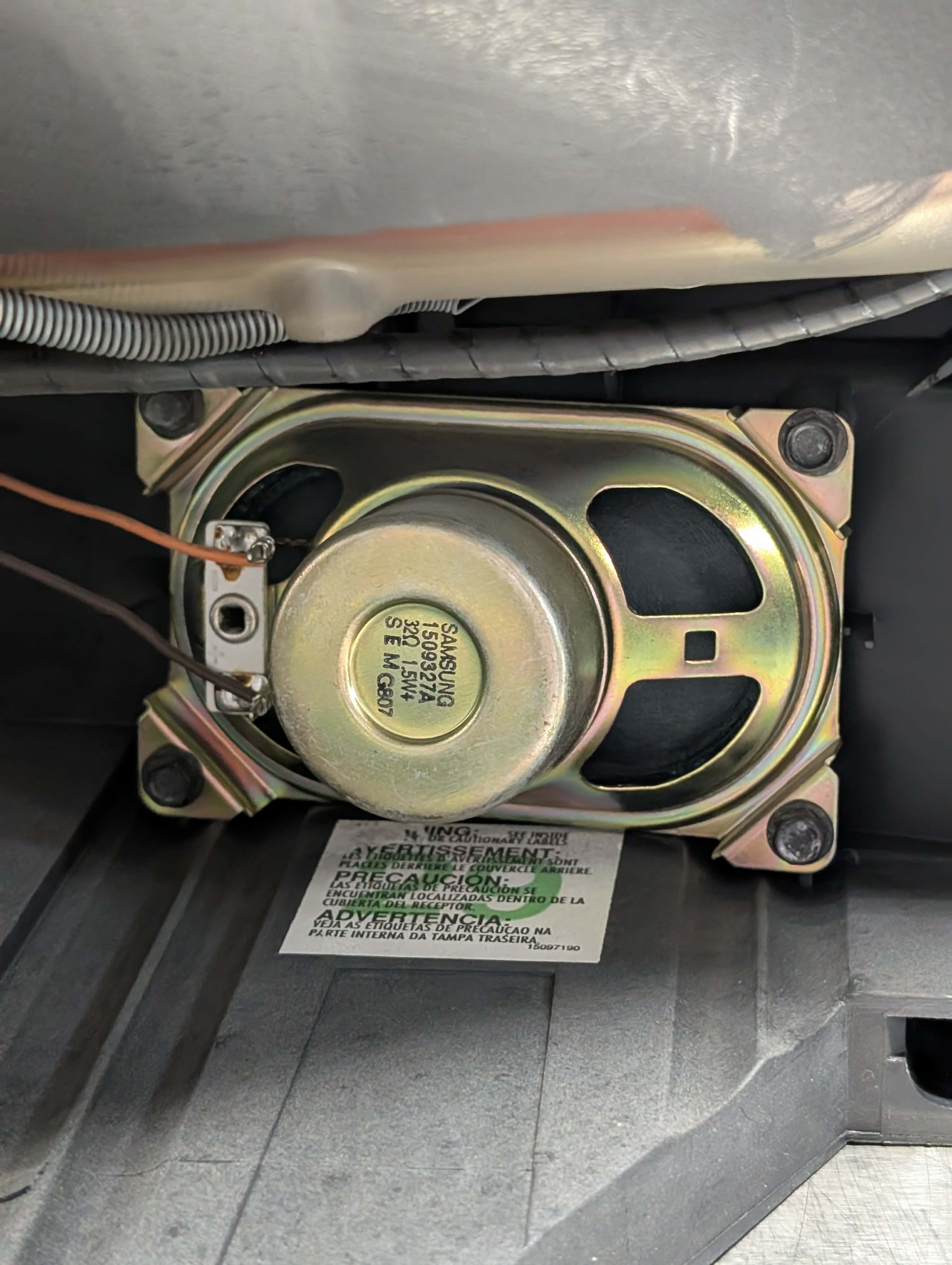

| Speakers: | Stereo |
| Remote: | CRK74A2 |

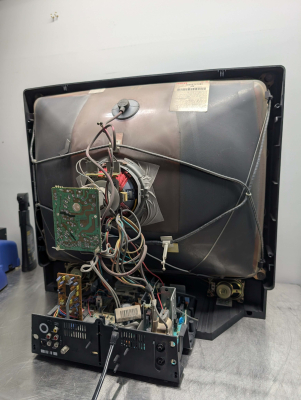

| Chassis: | CTC187 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 549 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |

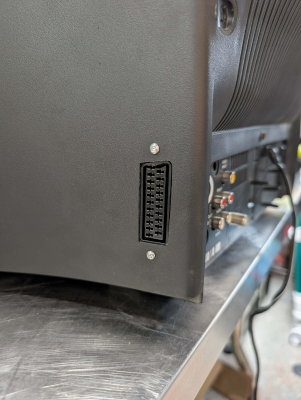

| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
