Summary

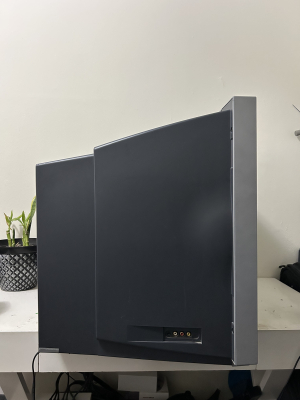

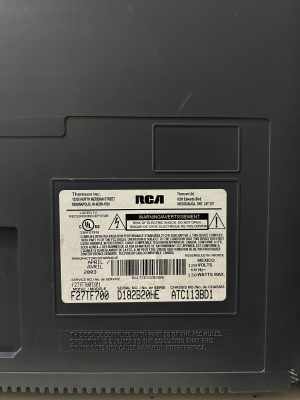

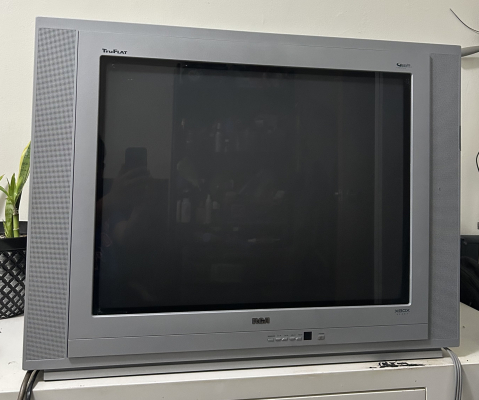

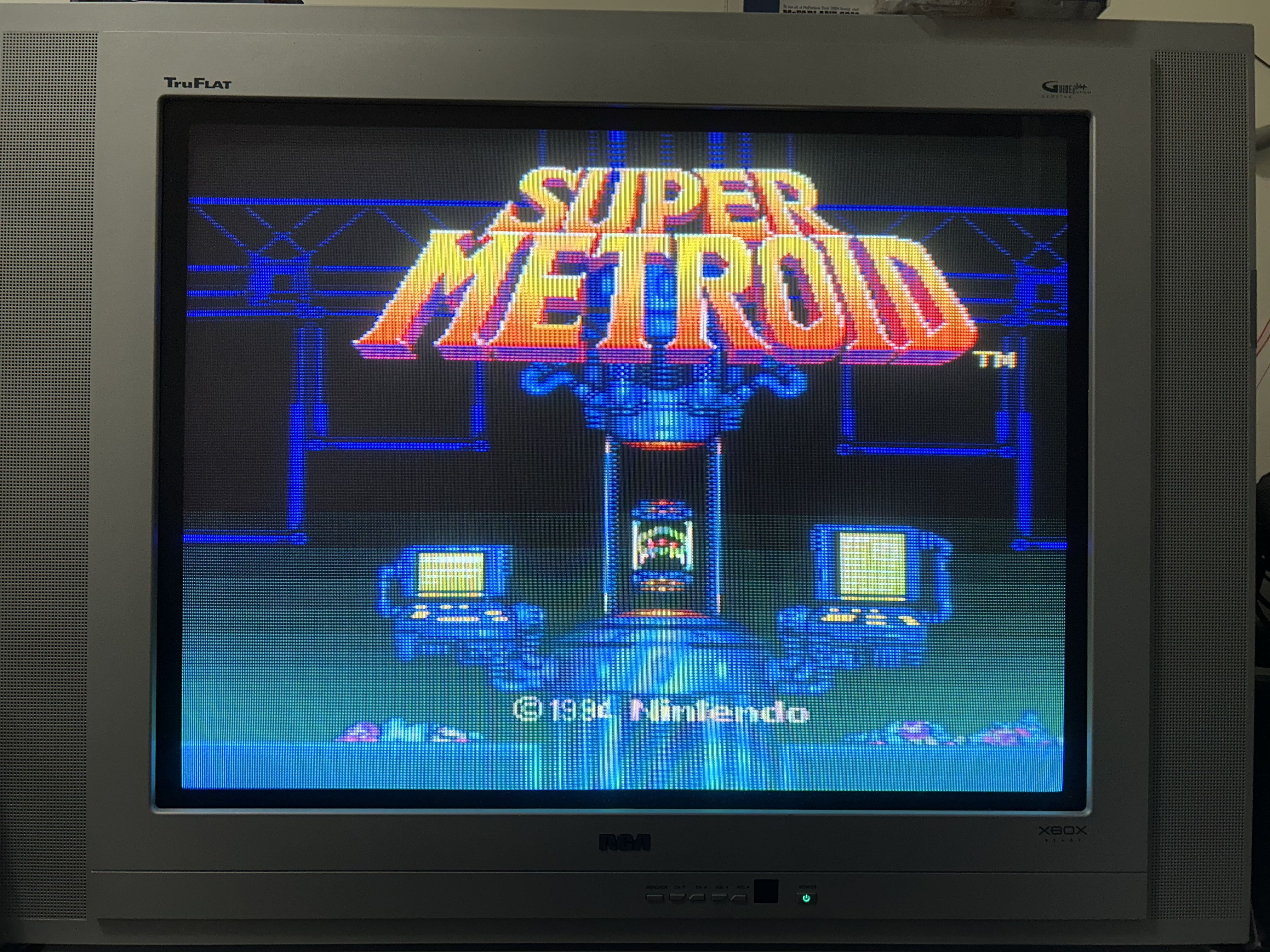

27" RCA TruFlat CRT by Thomson, made in Mexico in 2002. Has a full set of inputs, including a unique VPORT. (This specific model seems to have only been sold in Canada, though other sets sharing the same chassis may have come out stateside.)

(Special thanks to Shermike C. for the pics! Link to his YouTube channel: @bttvproductionsofficial)

Manuals

• Spec Sheet
• User Manual
• Sam's Photofact

Notes

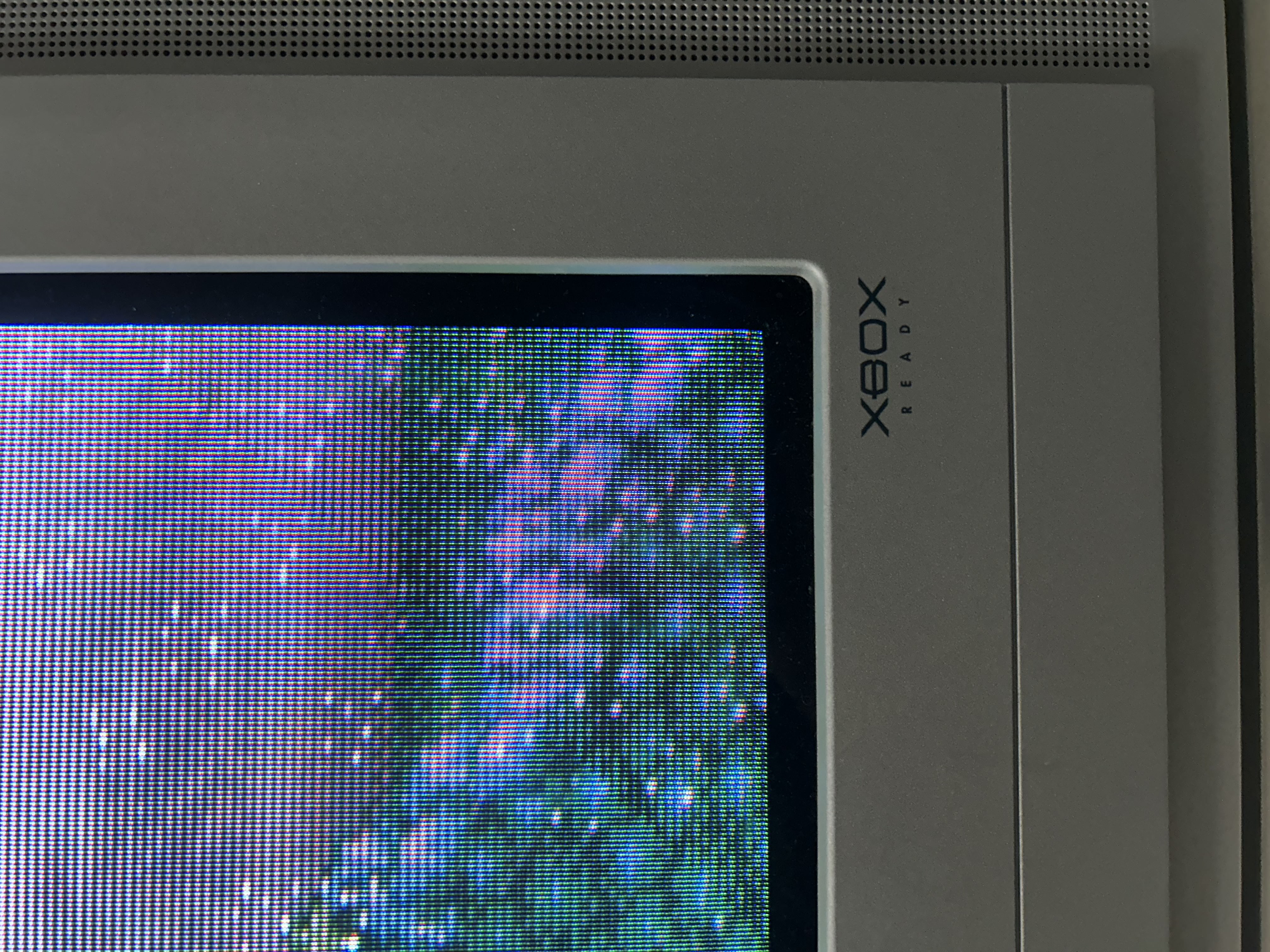

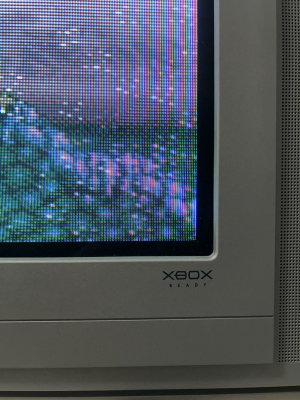

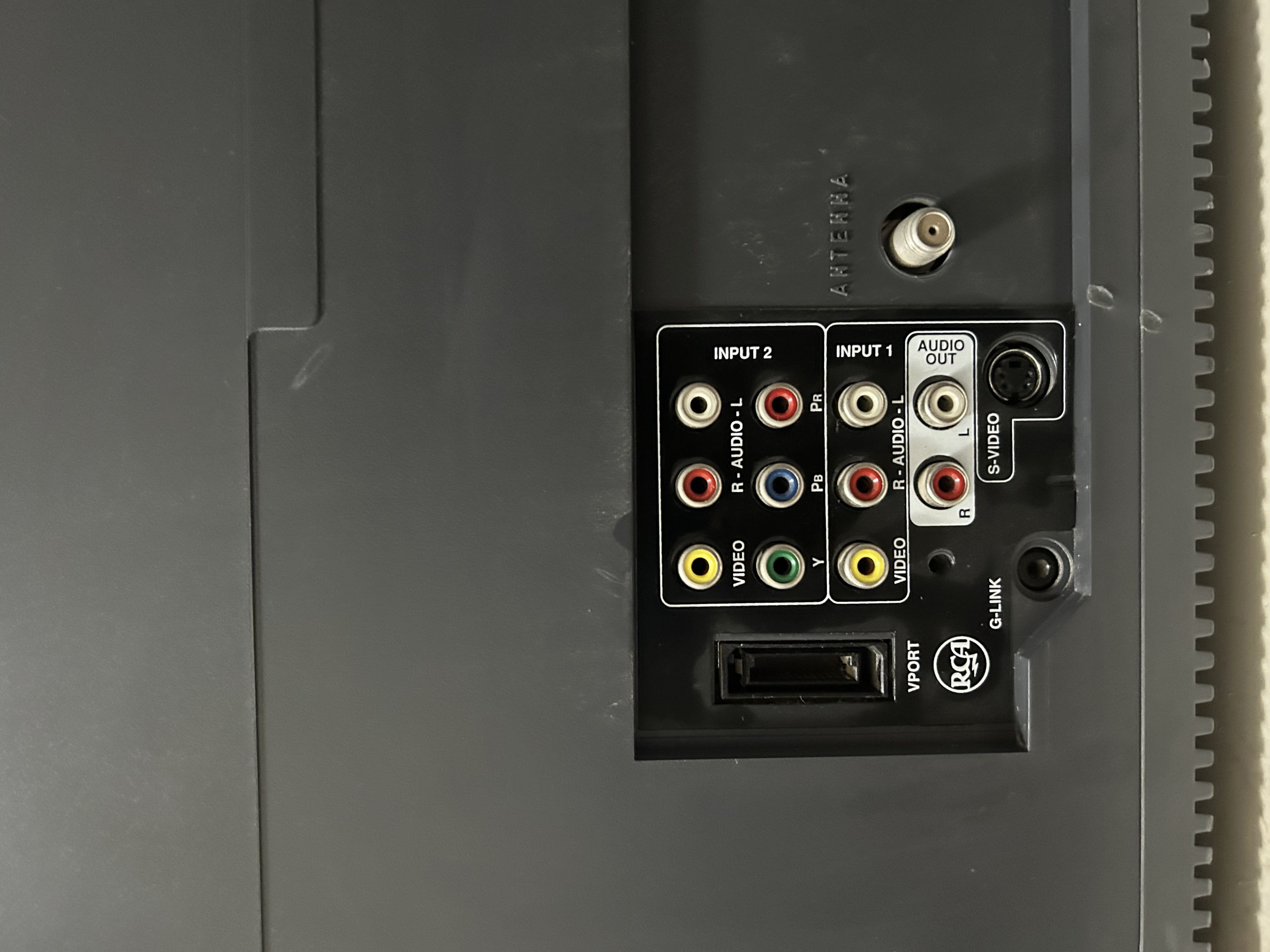

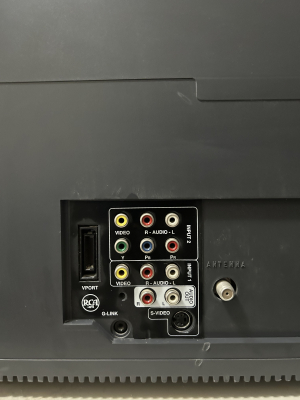

The VPORT is essentially a connection for the original XBOX console using a proprietary cable, hence the "XBOX READY" branding. It basically functions as a second YPbPr input, and you can use an XBOX component cable in reverse to connect other consoles that way.

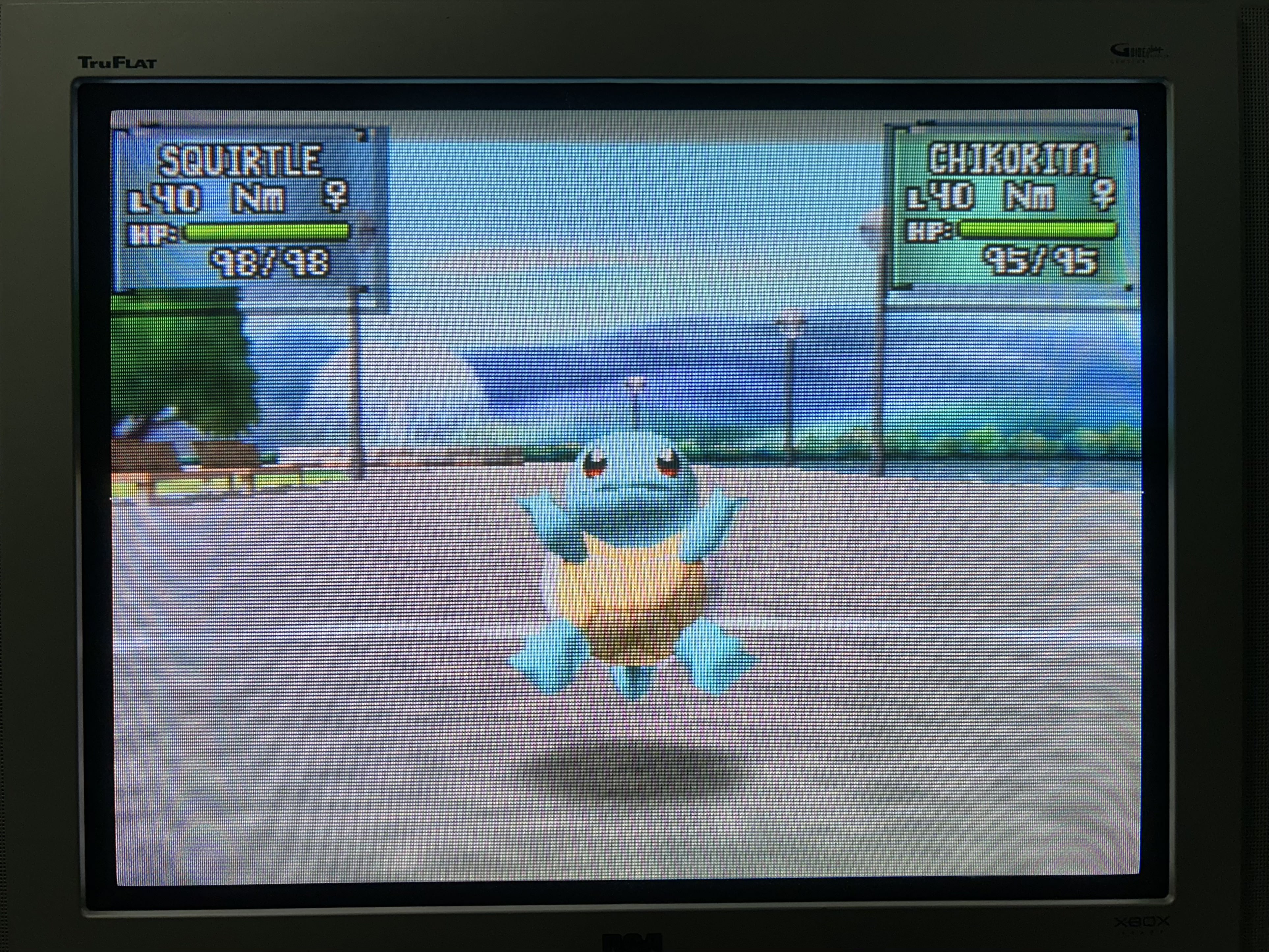

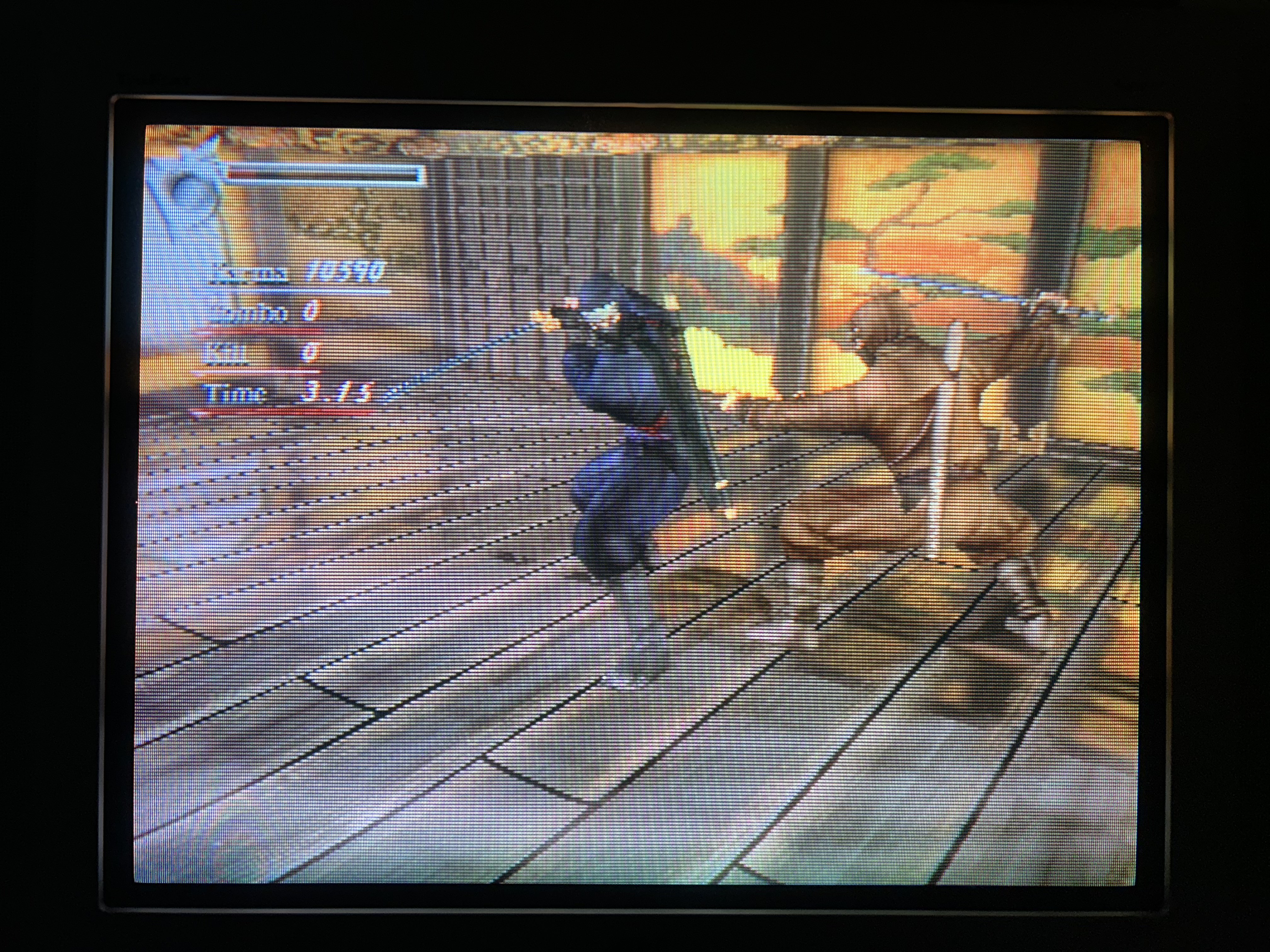

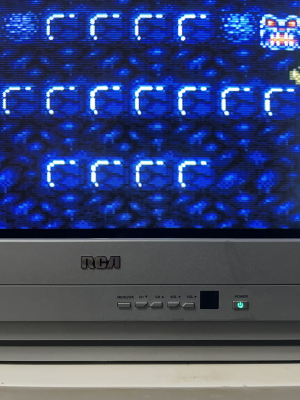

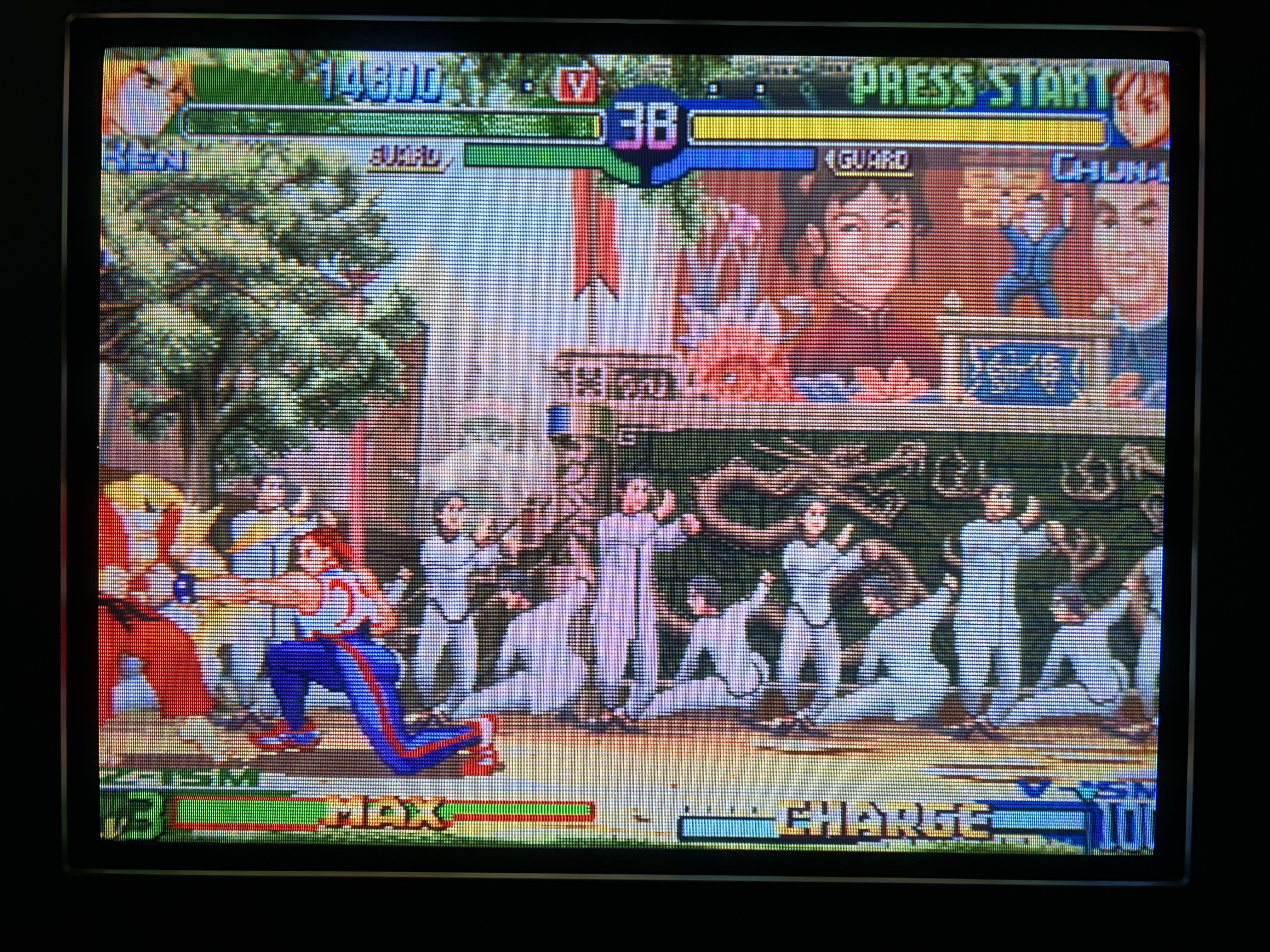

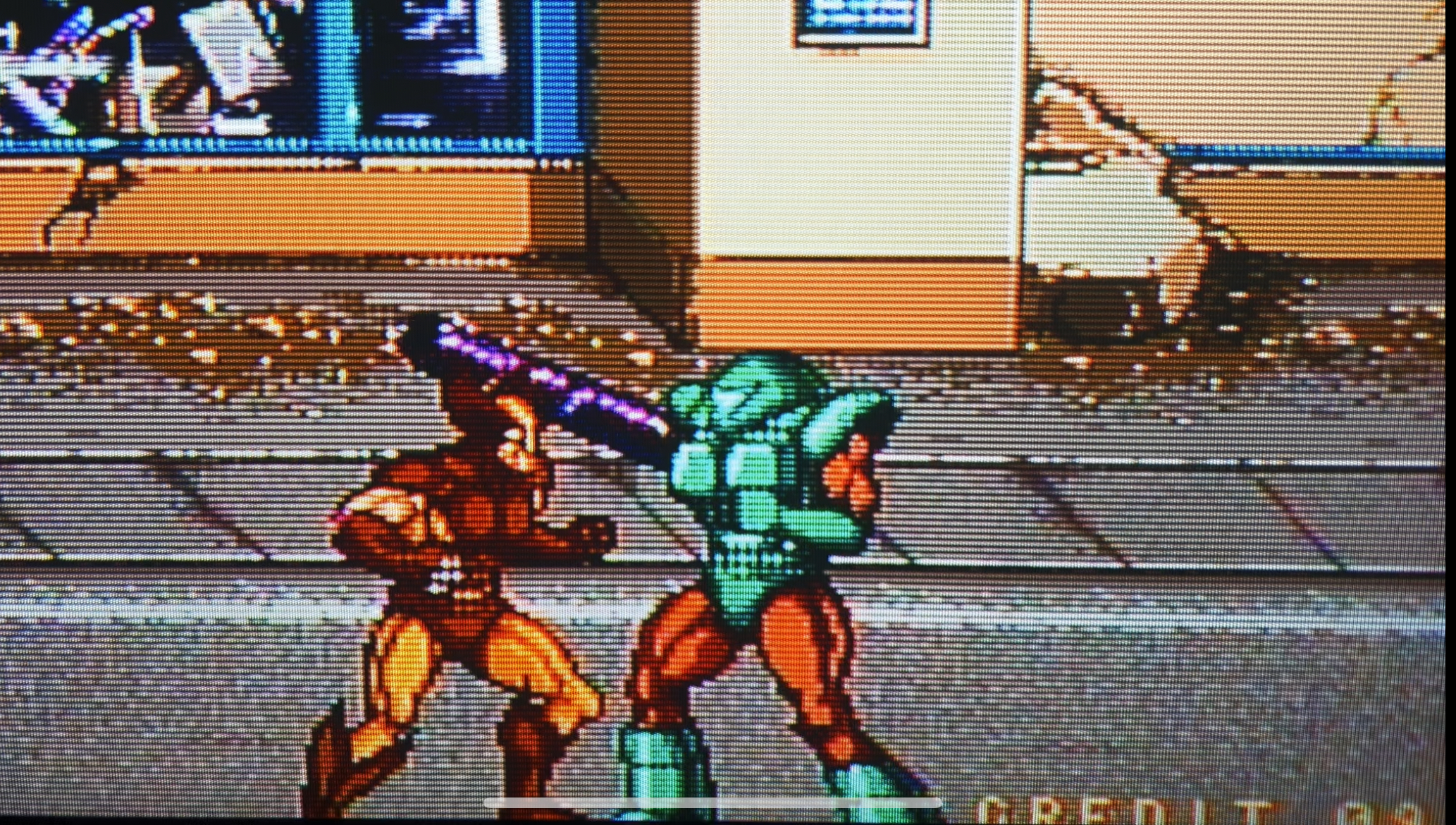

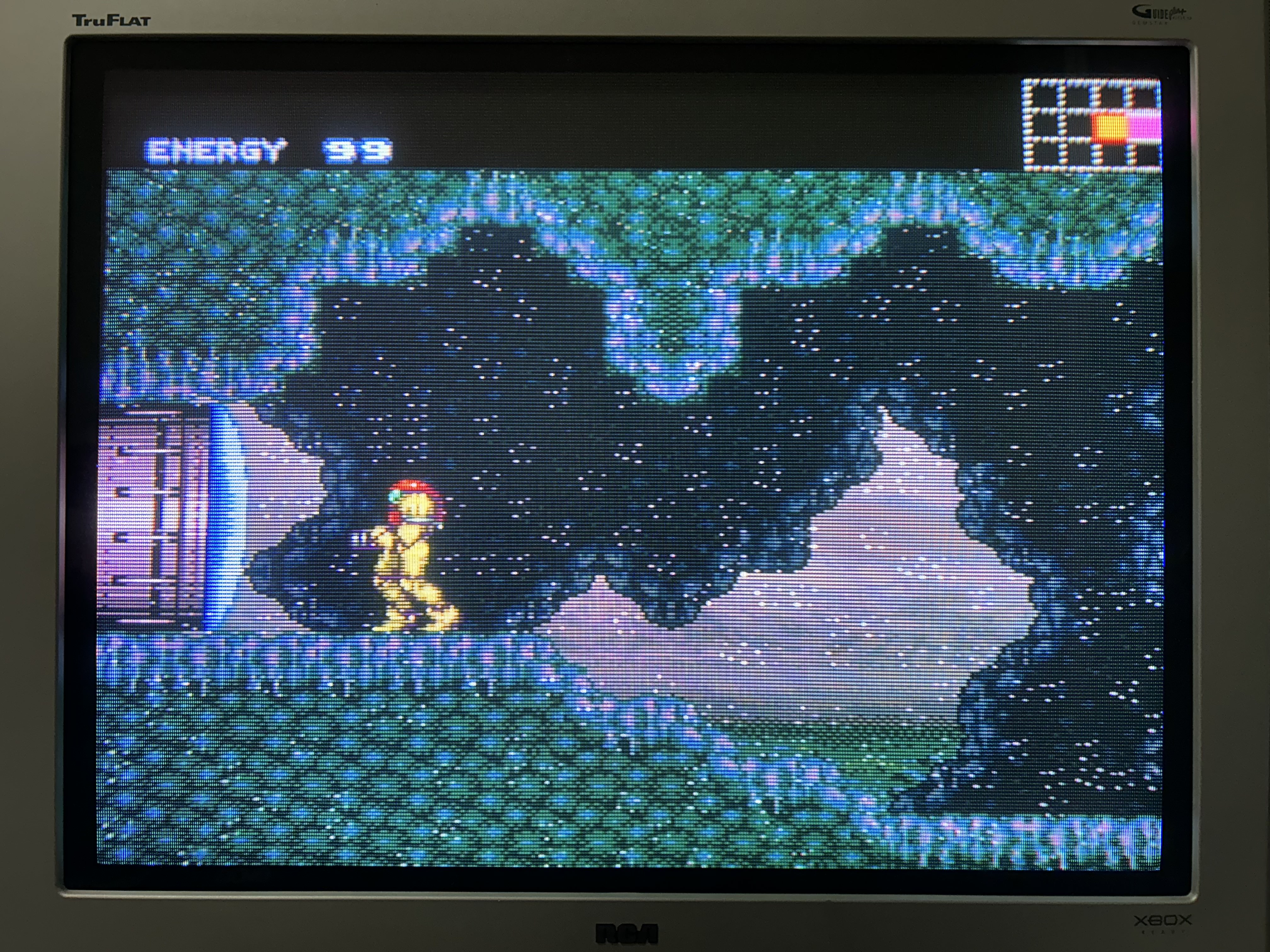

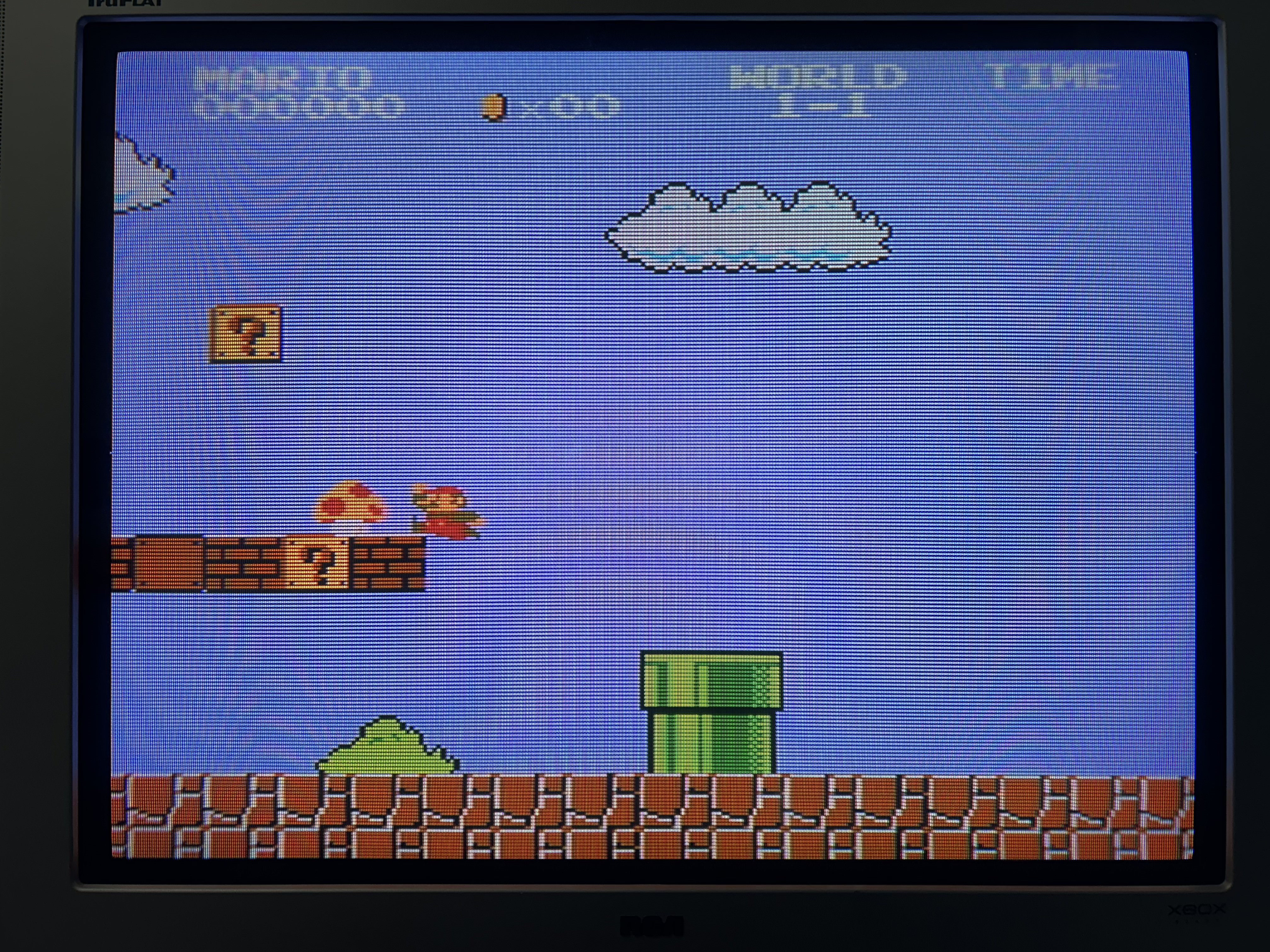

Picture quality is excellent thanks to the Philips jungle chip.

Service Menu

To enter the service menu, do the following steps:

1. Turn the set on
2. Press and hold the menu button on the TV
3. While doing so, press and release the power button
4. Then press the Volume + button and release the menu button

The Service menu screen will appear, displaying one item at a time. Navigate with the channel buttons, and adjust the parameters with the volume buttons.
