Summary

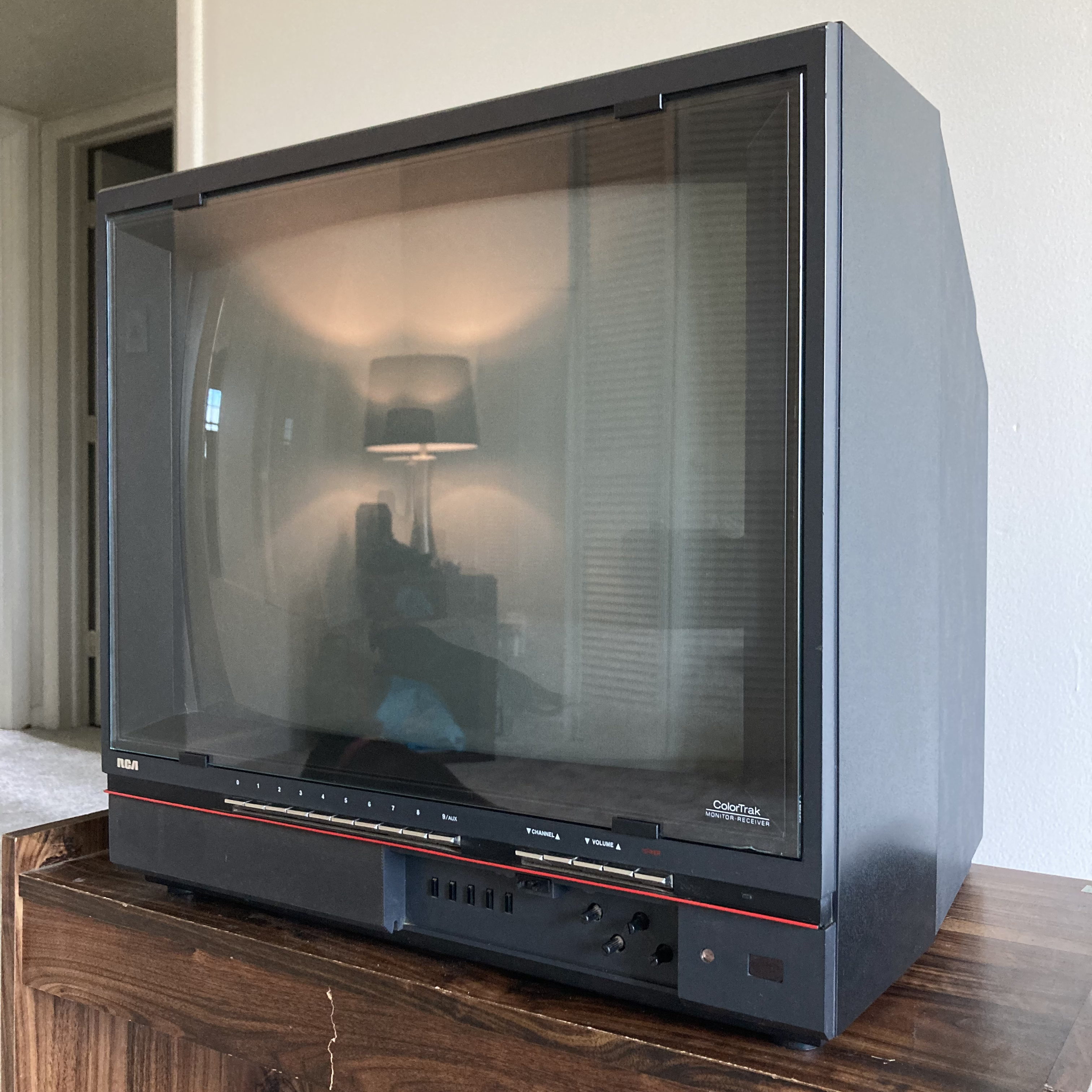

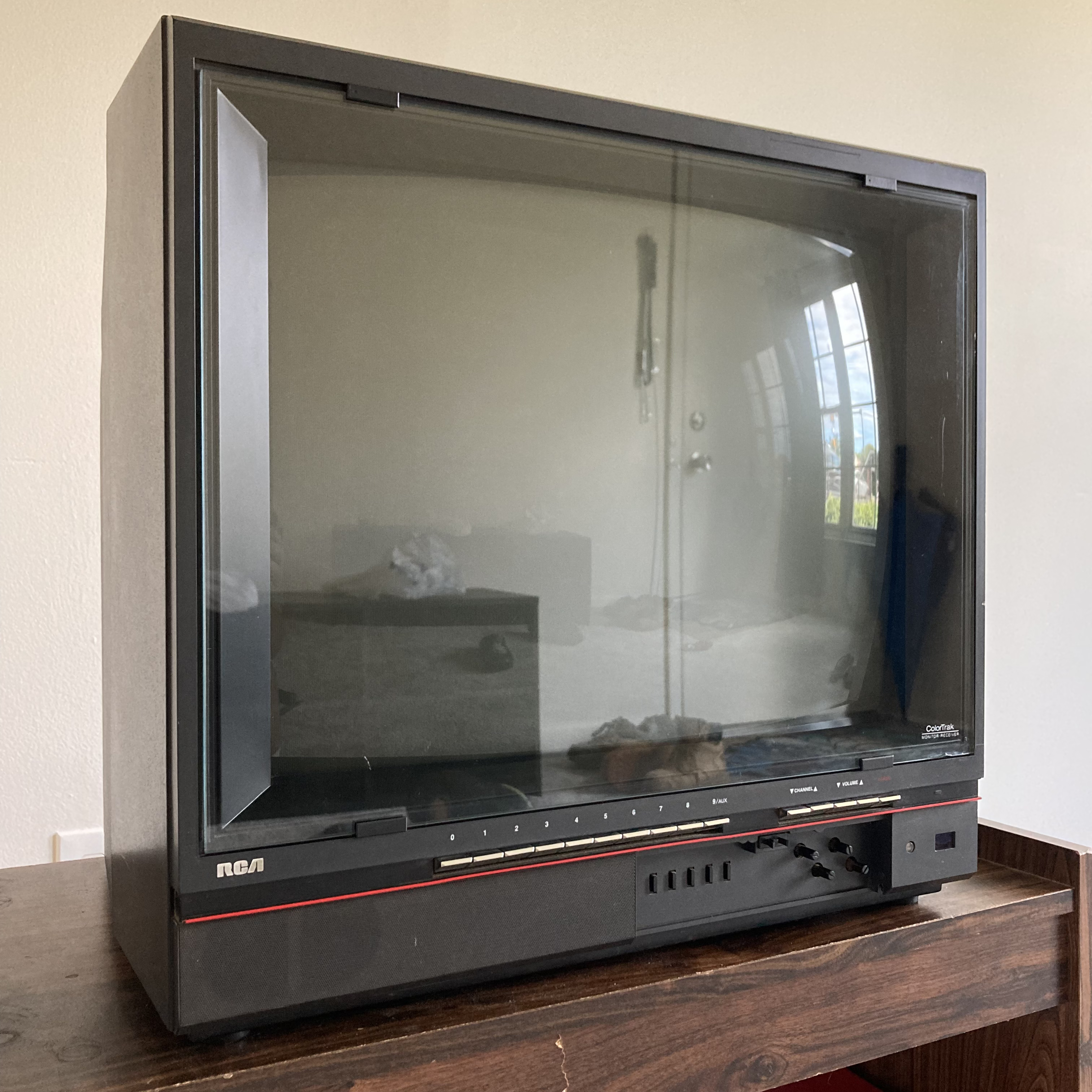

20" flat-square tube color TV by RCA, part of their Colortrak line. Has RF and composite inputs with monaural sound. Originally manufactured in the USA and launched in late 1985.
Manuals
Notes
Switching to the auxillary input seems to only be possible with the original remote, not the front controls.

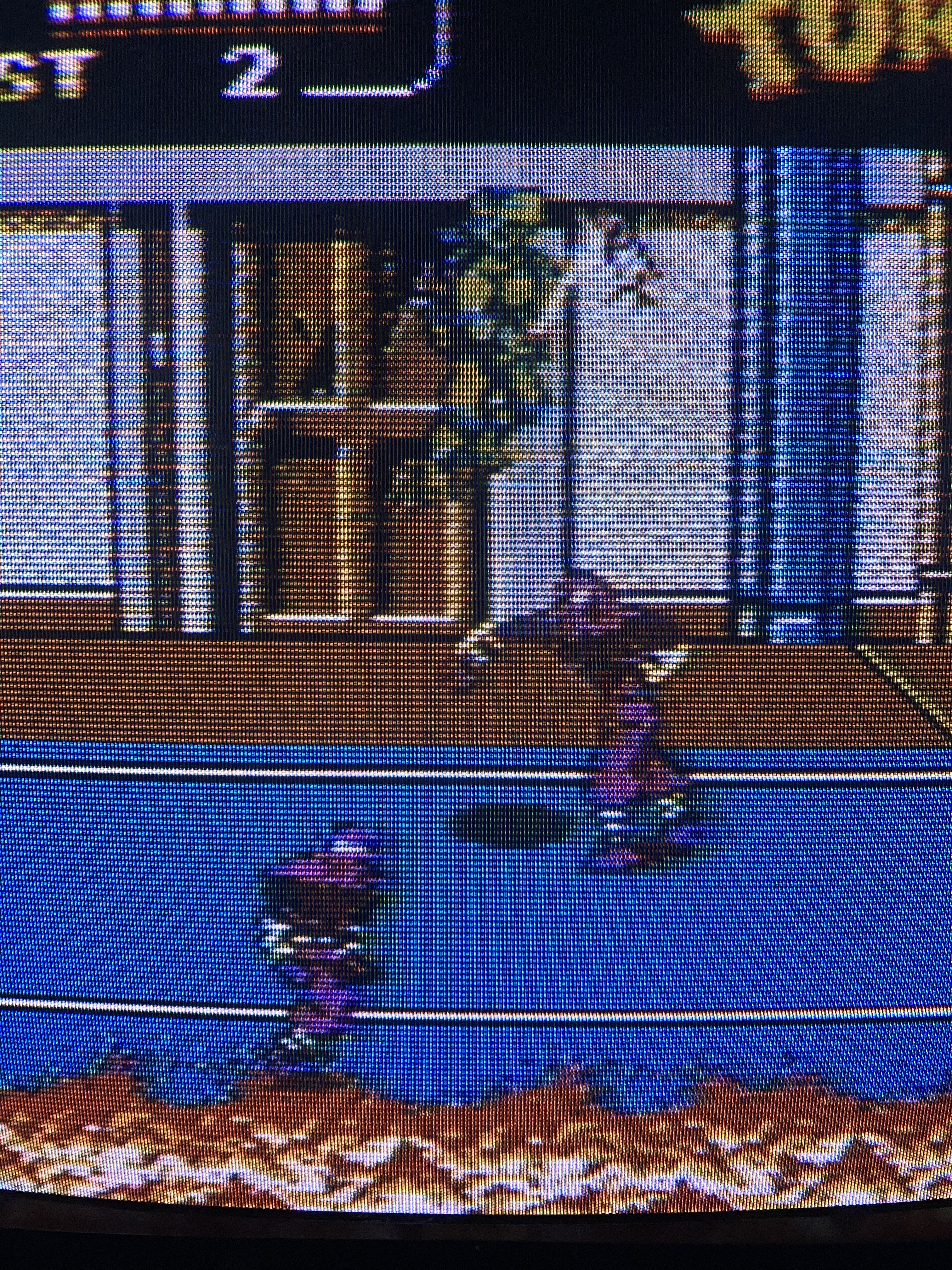

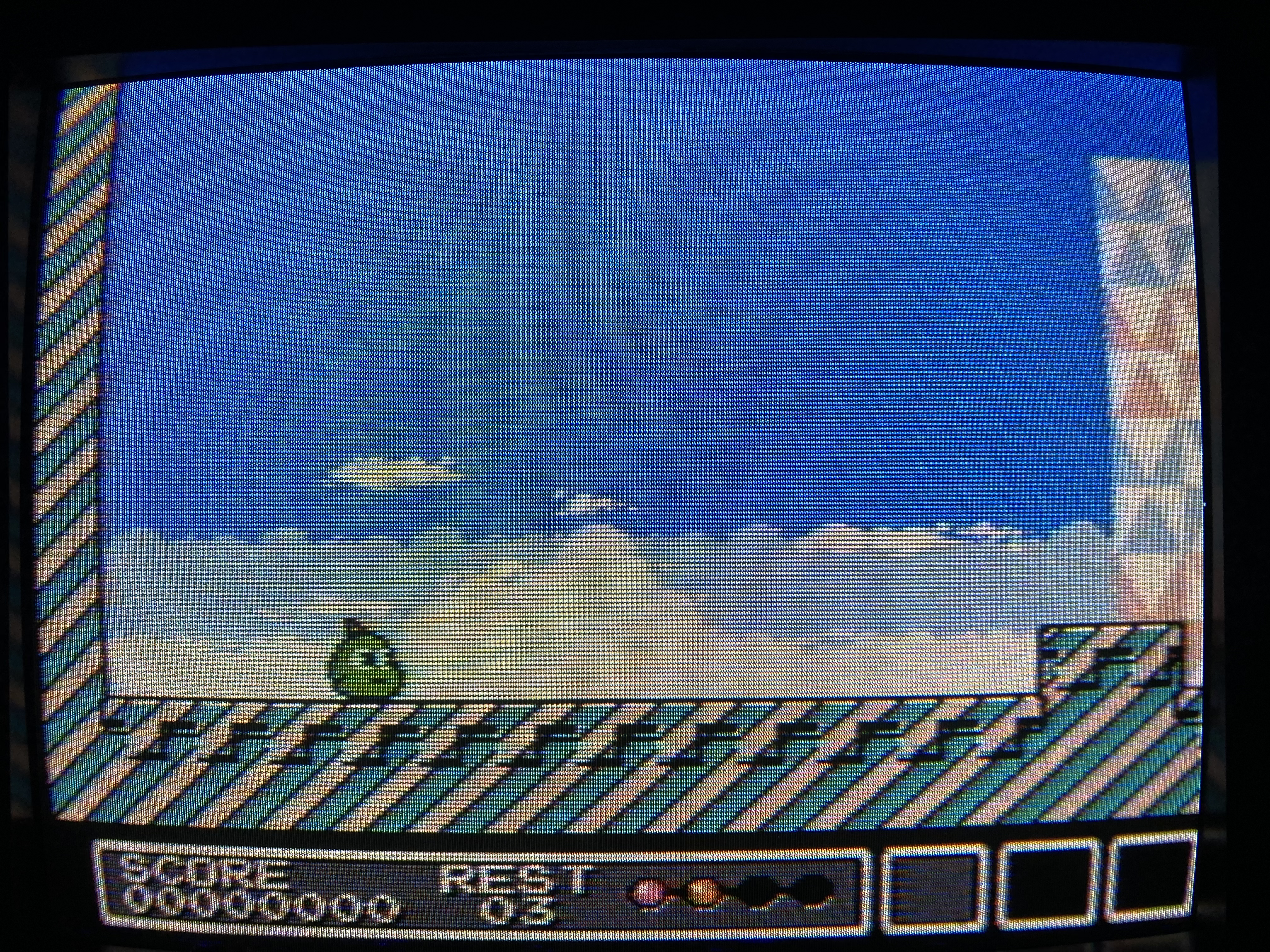

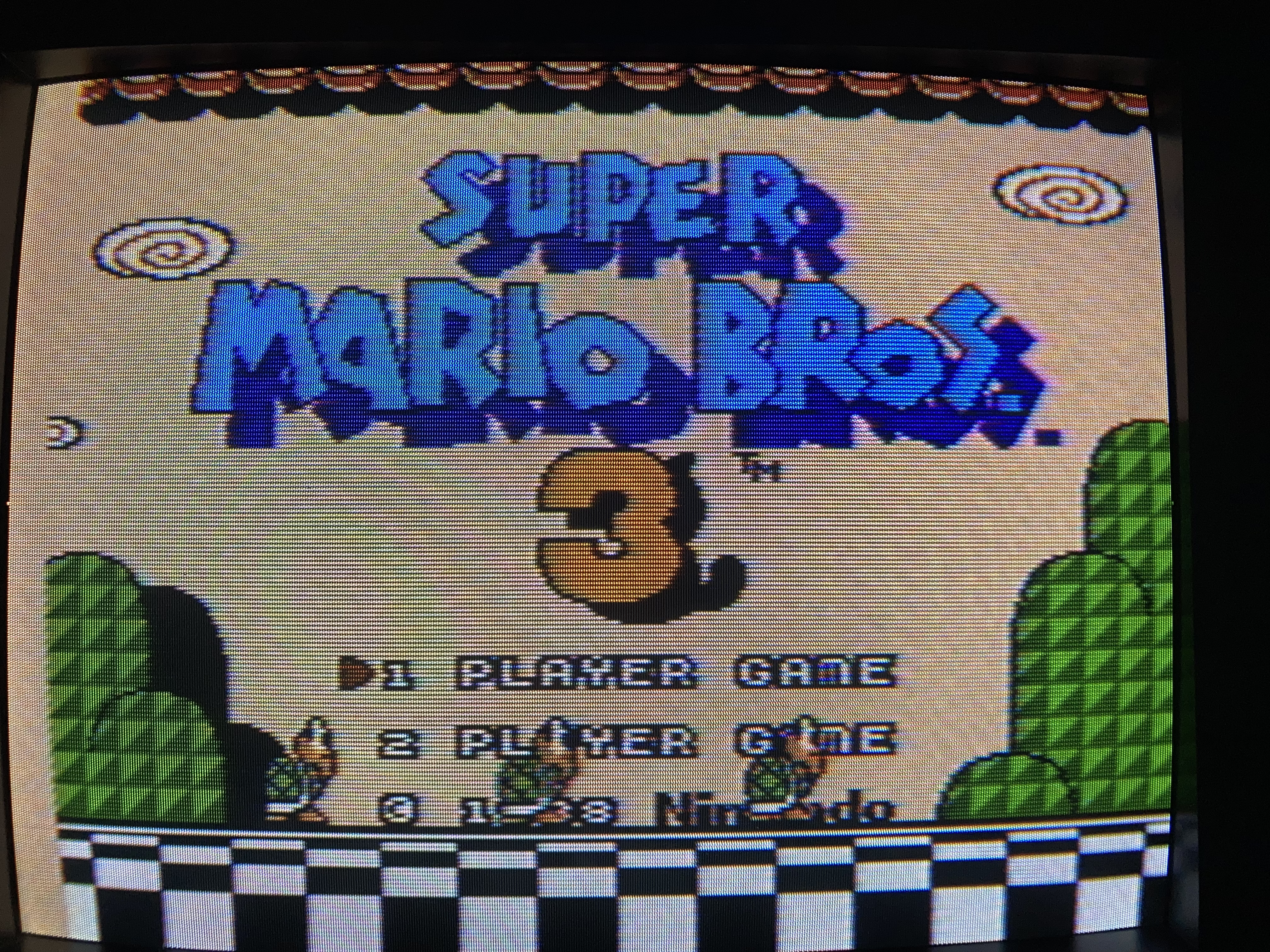

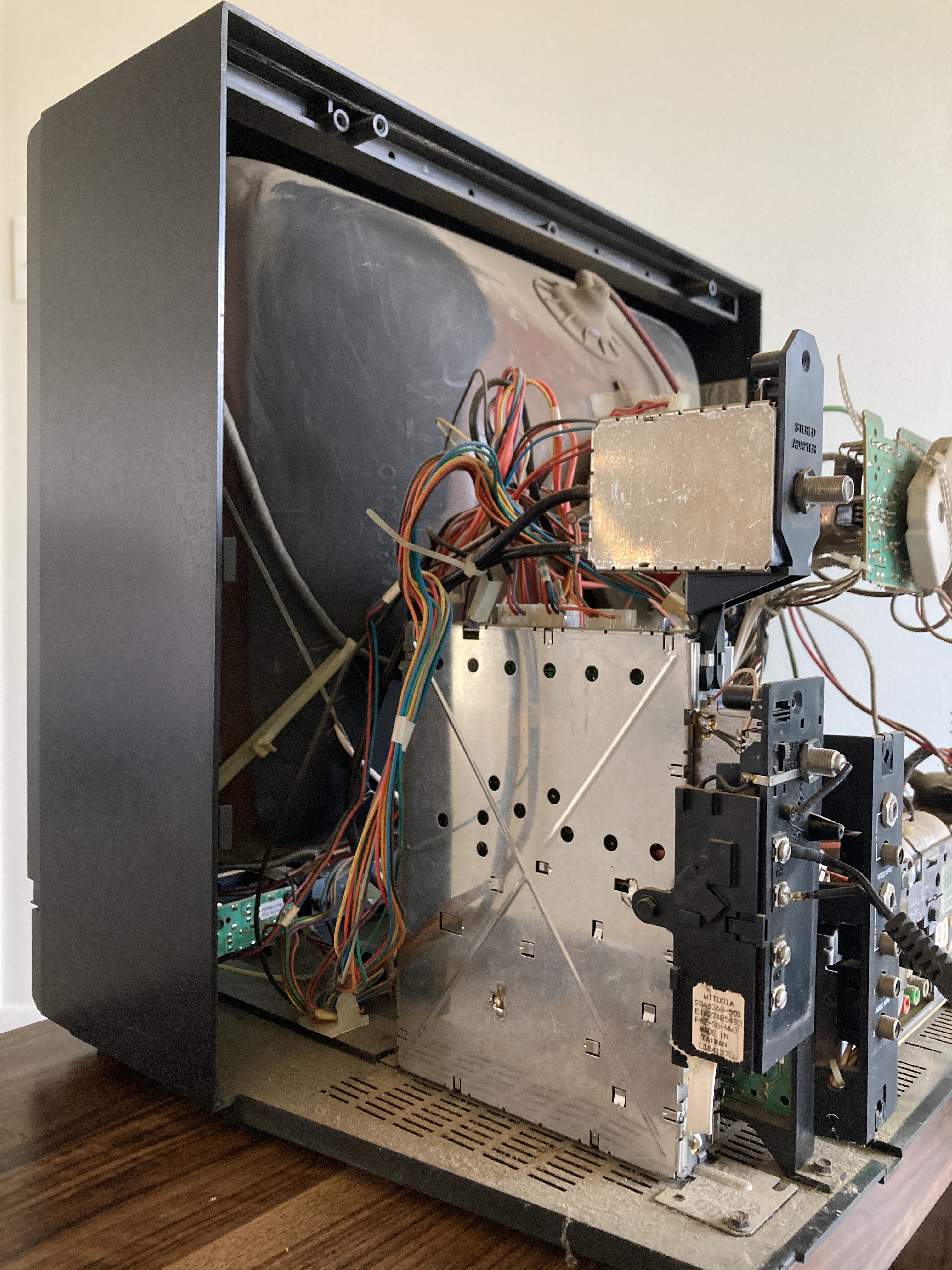

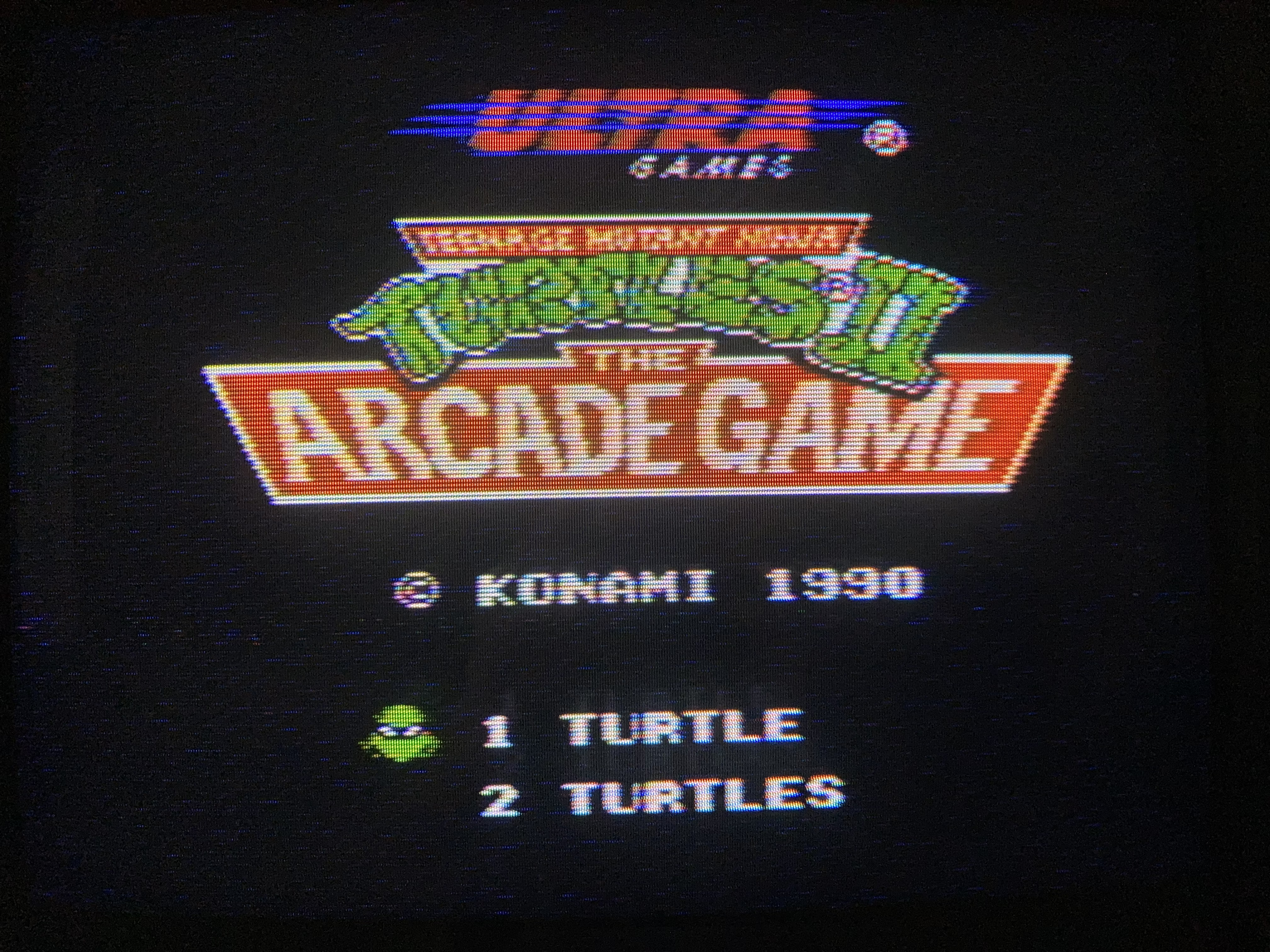

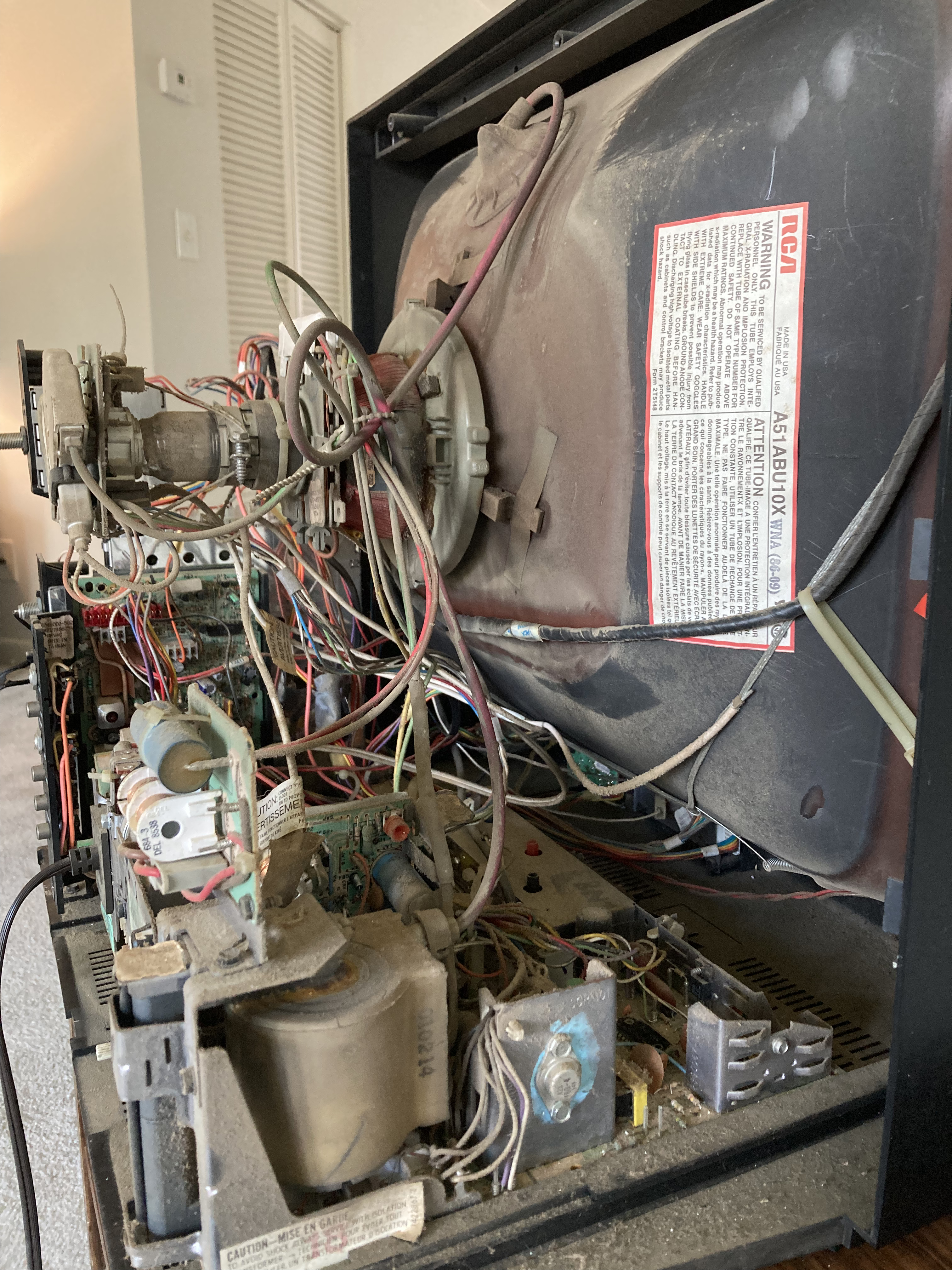

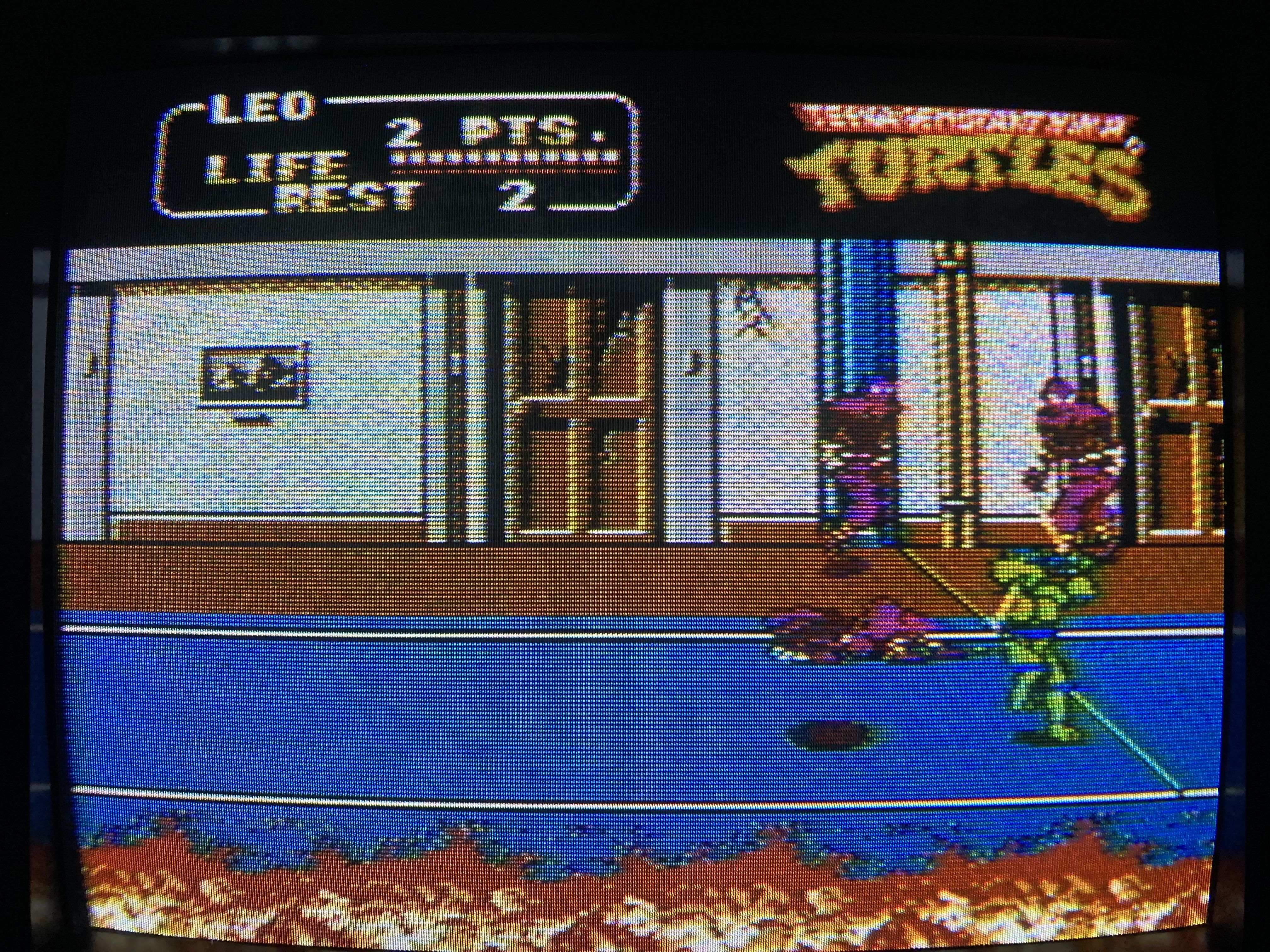

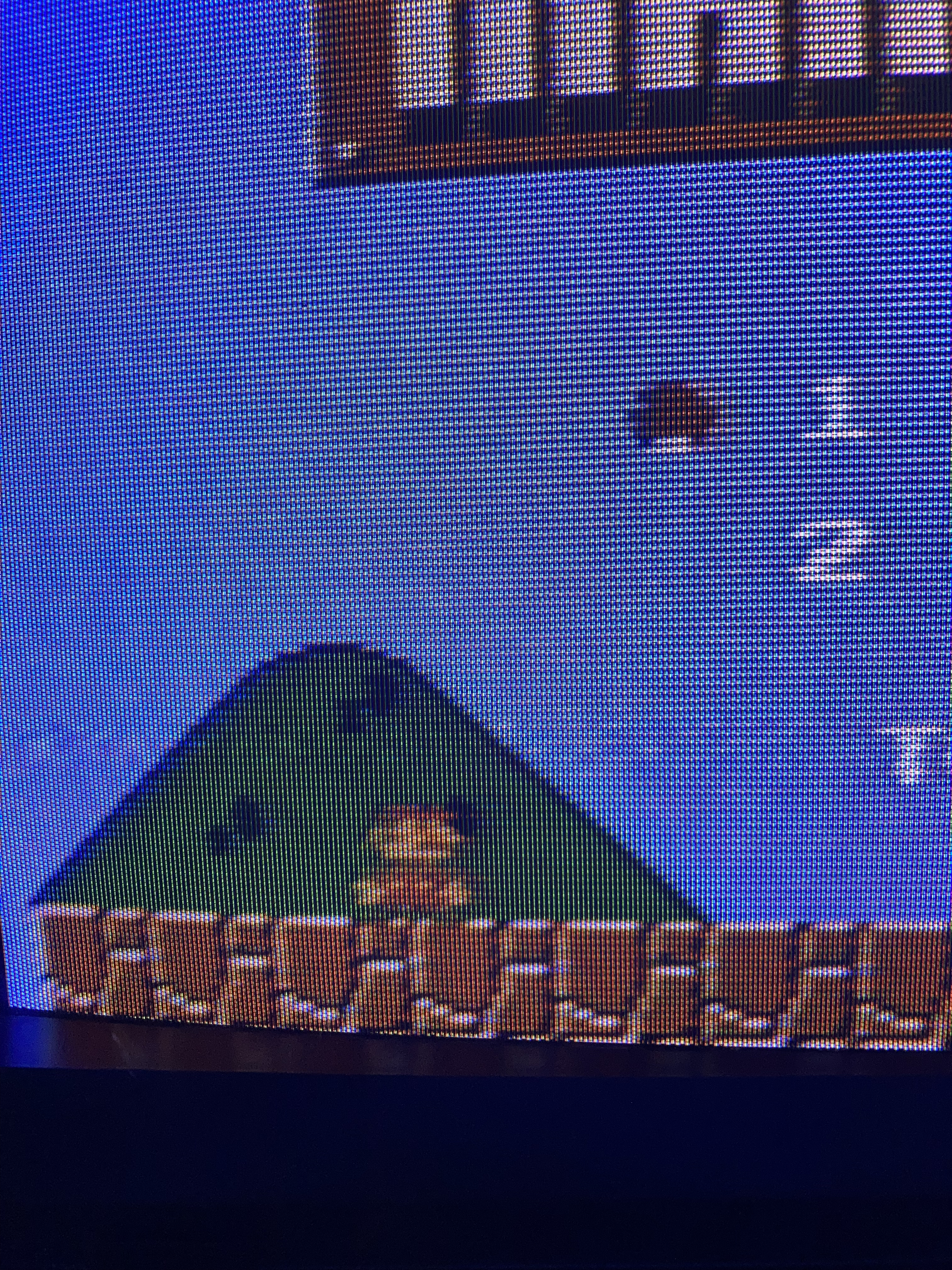

Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | RCA |

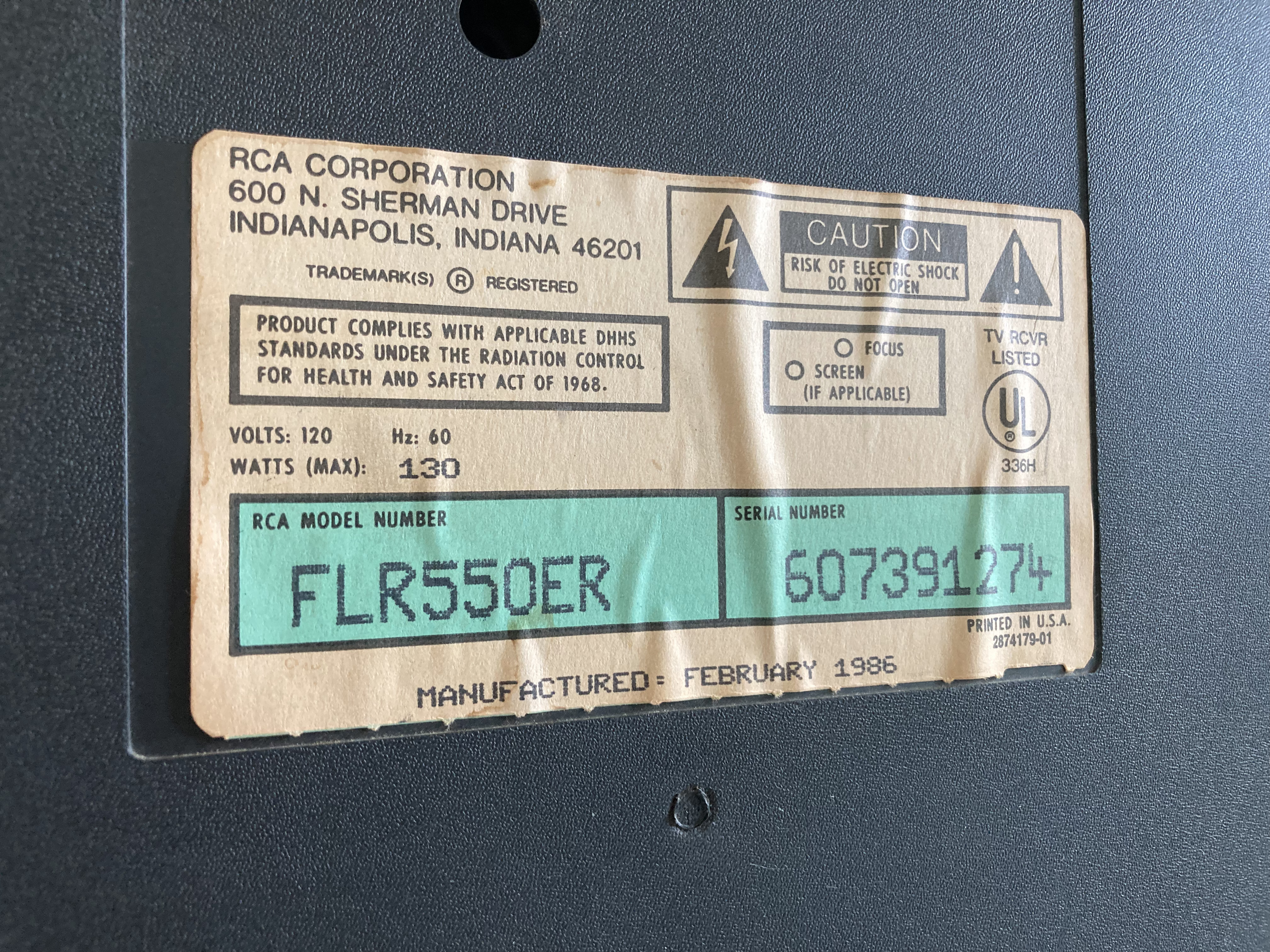

| Model: | FLR550ER |

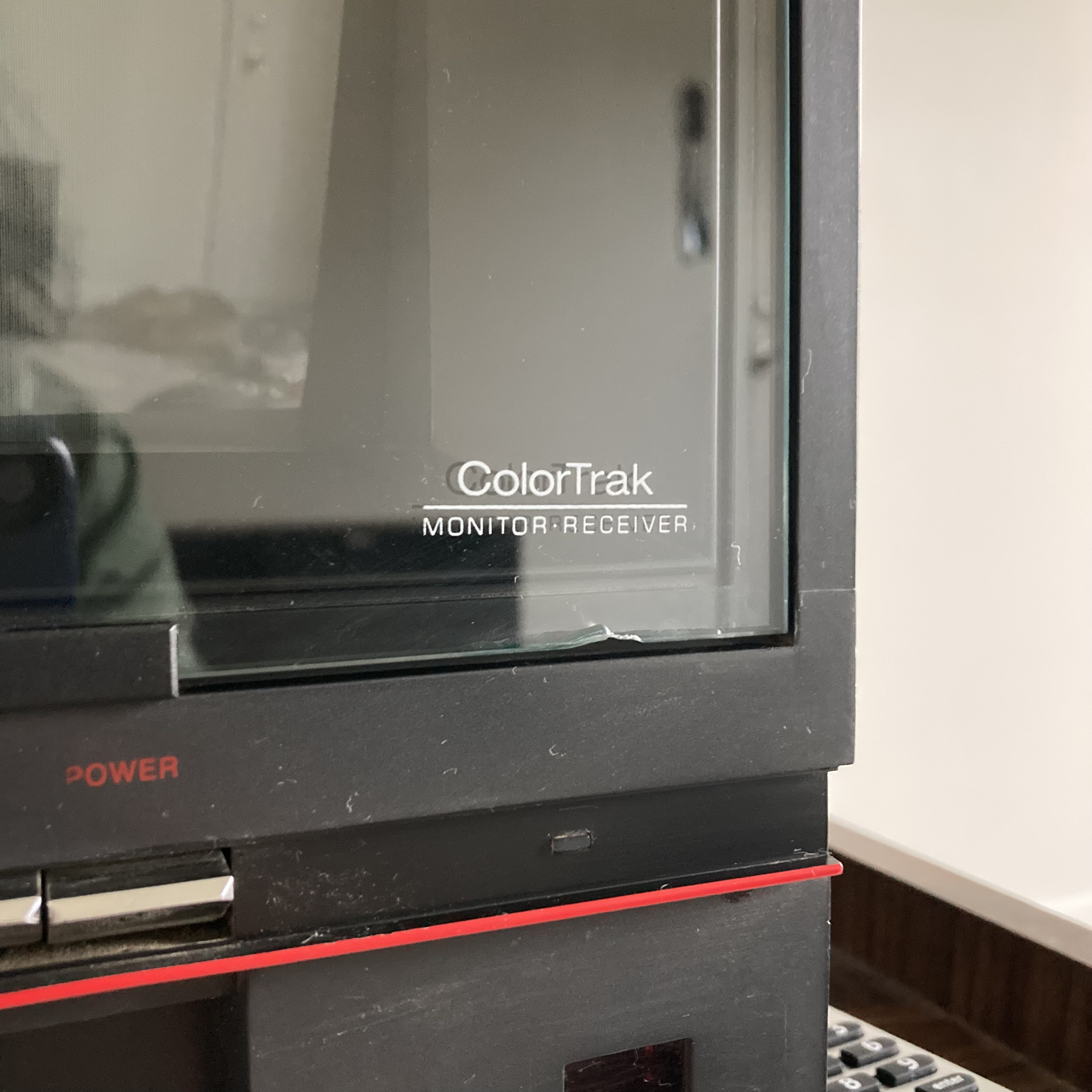

| Series: | ColorTrak |
| Viewable Size: | 20" |

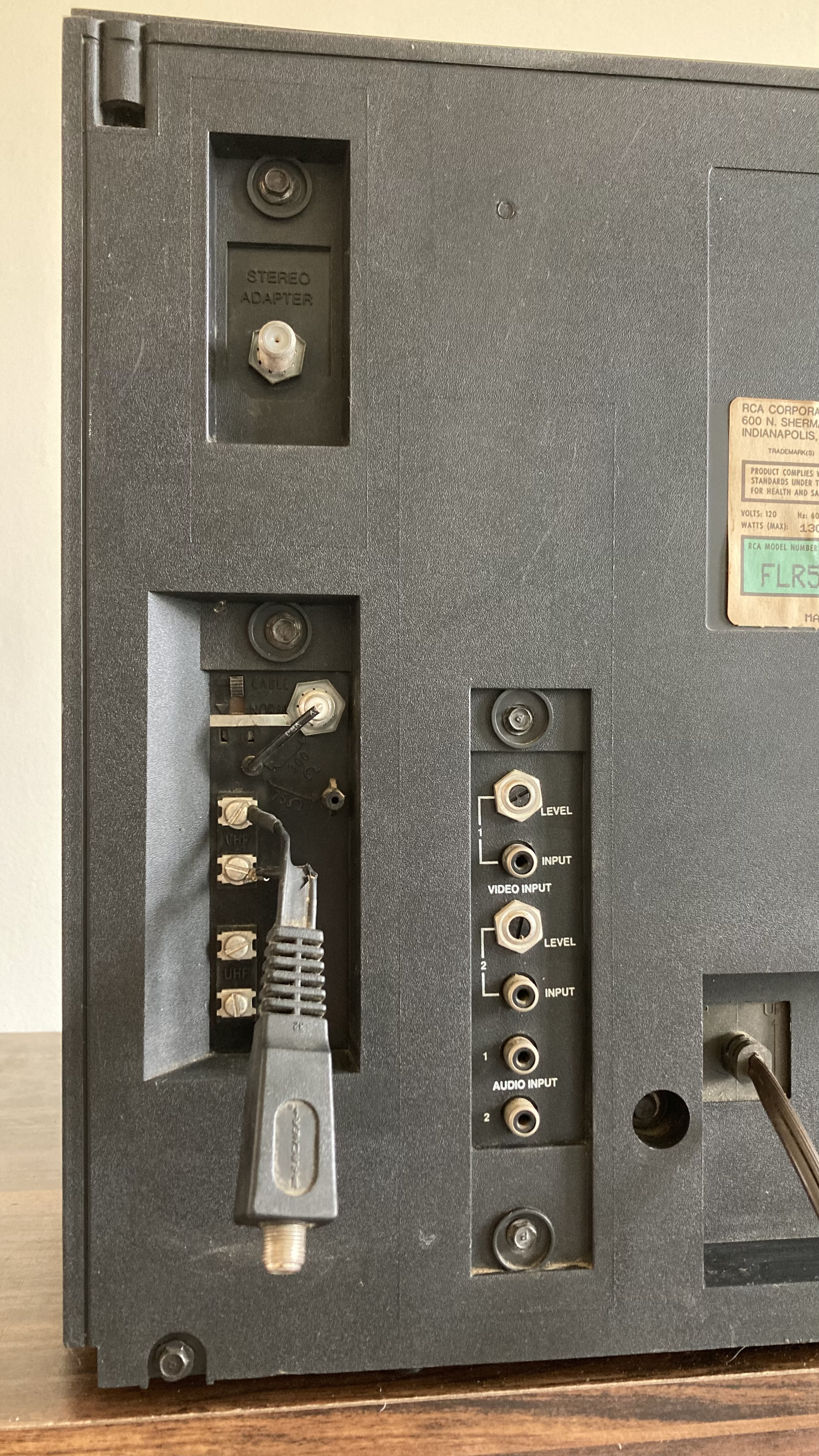

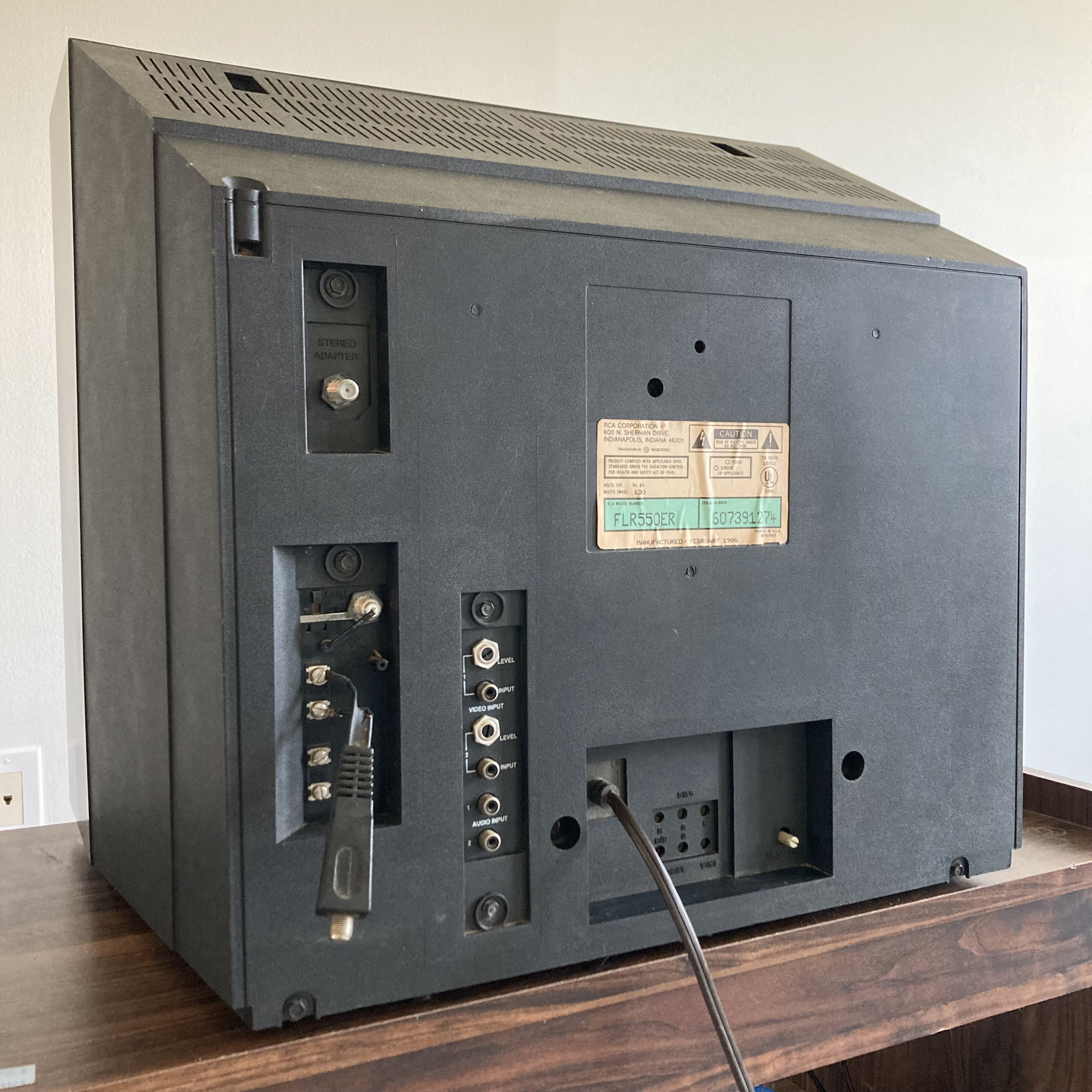

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, OSD Customer Controls, Front Mounted Buttons |

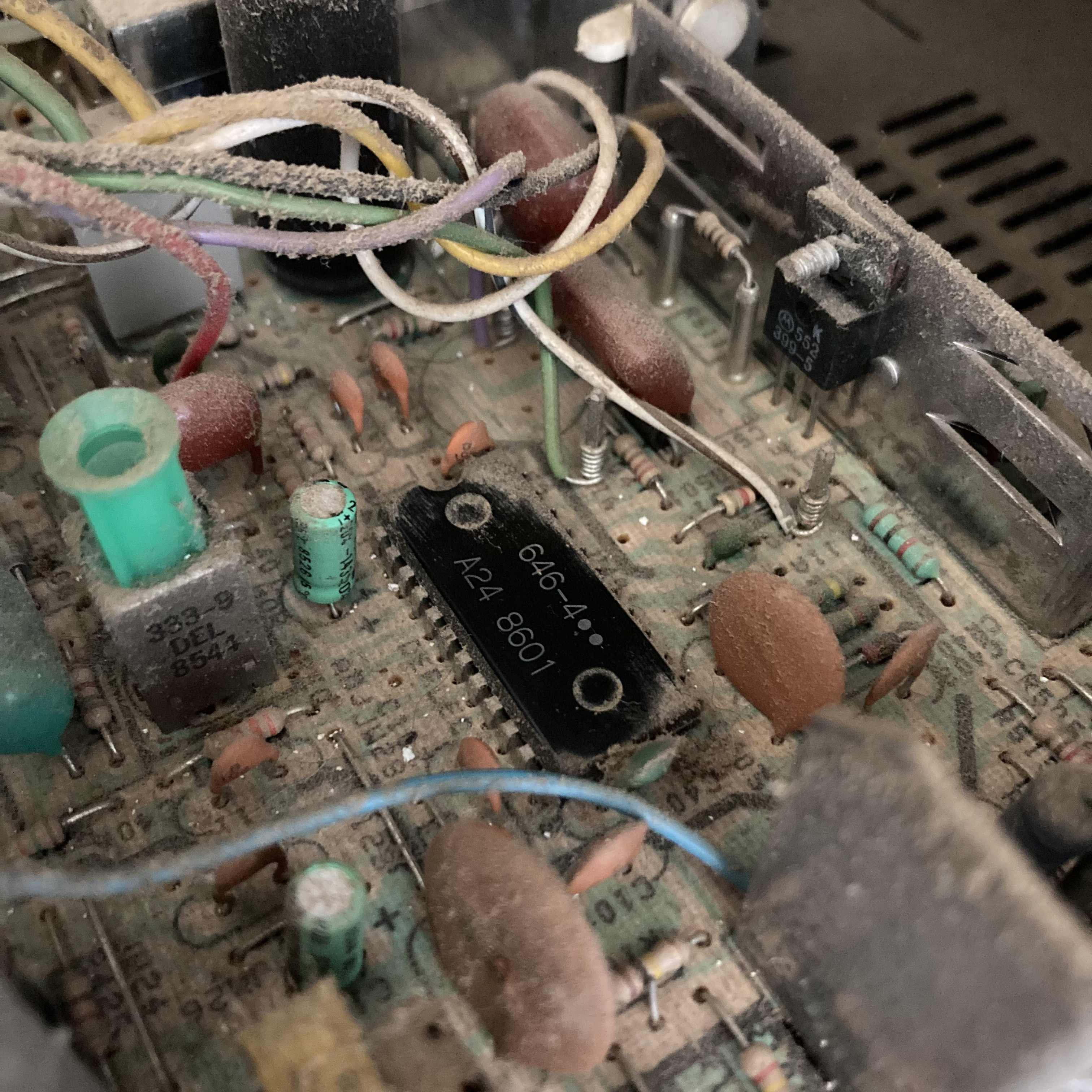

| Vertical Output IC: | A24 8601 |

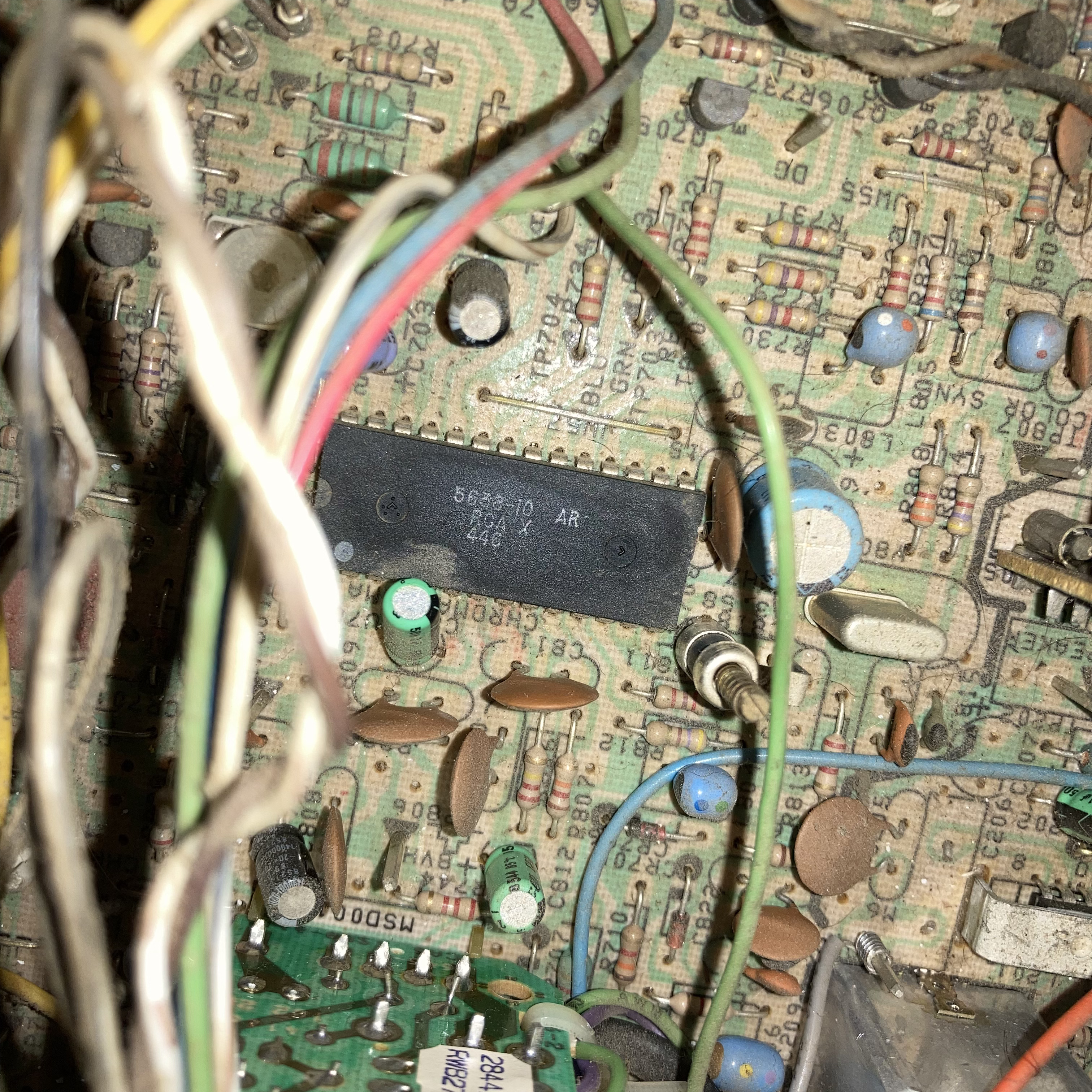

| Jungle IC: | A23 5638-10, NTE844, ECG844 |
| Focus Type: | Single |

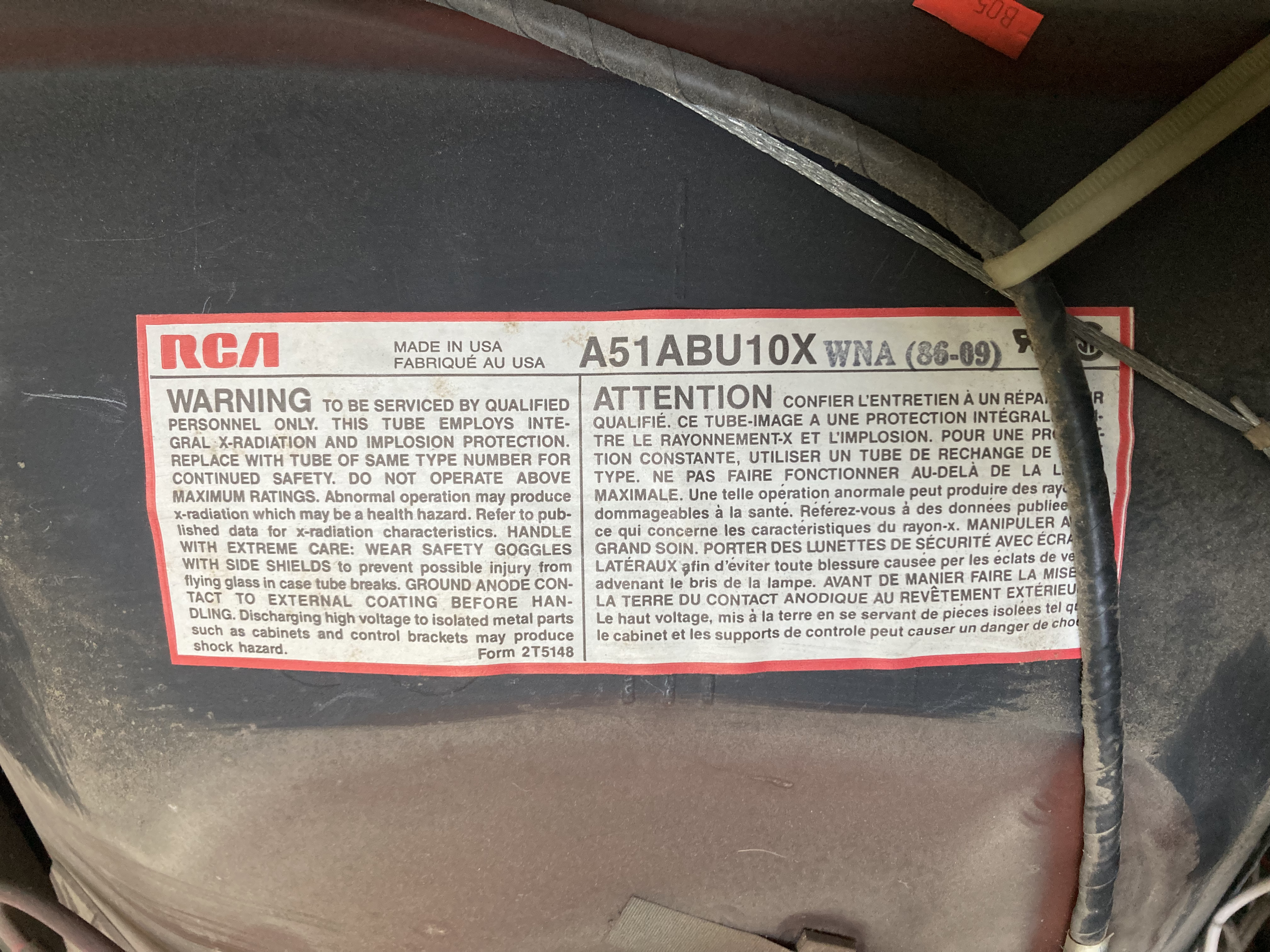

| Tube: | RCA , A51ABU10X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |

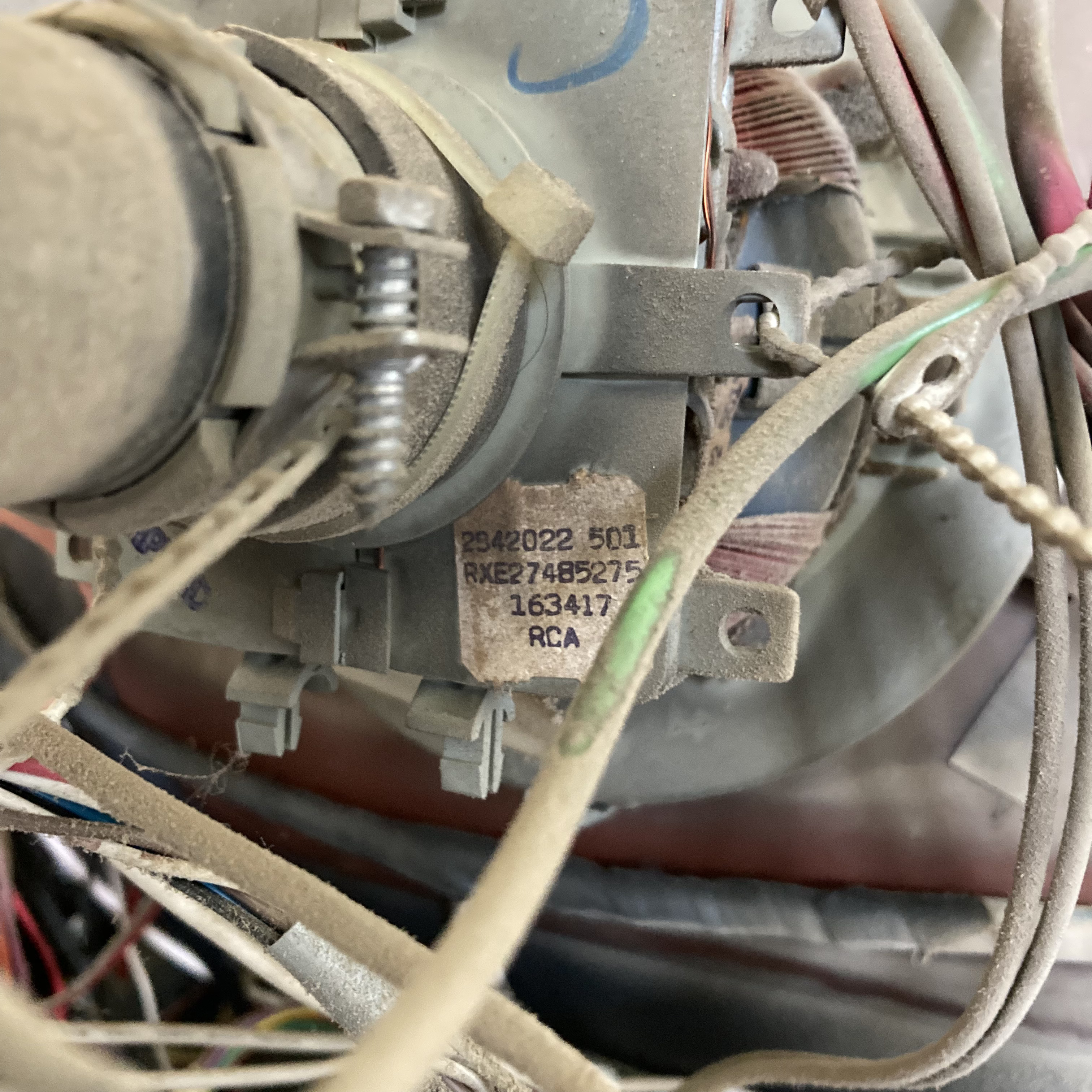

| Yoke: | RXE27485275, 2542022 501 |

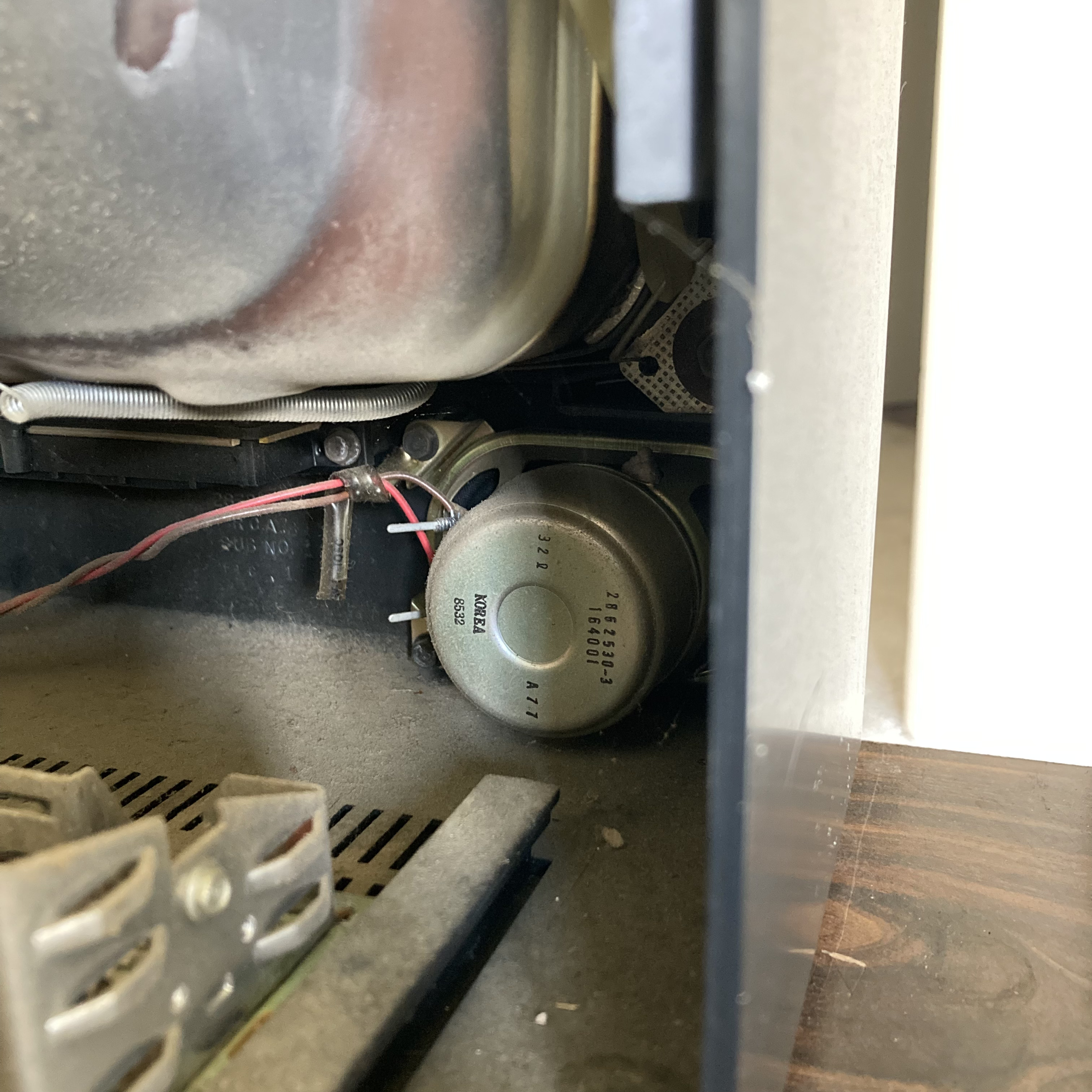

| Speakers: | Mono |

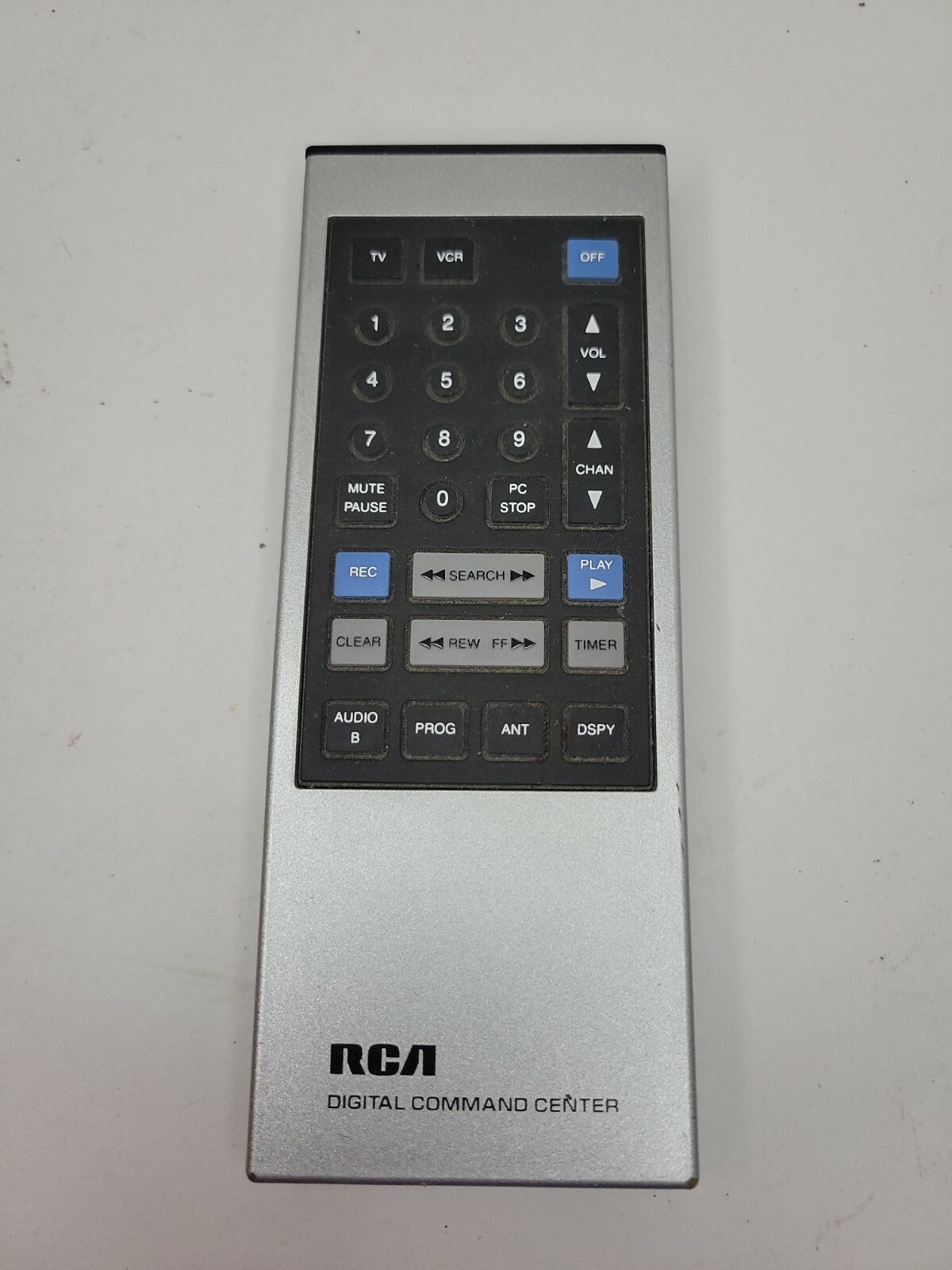

| Remote: | CRK40A, 180339, CRK40B |

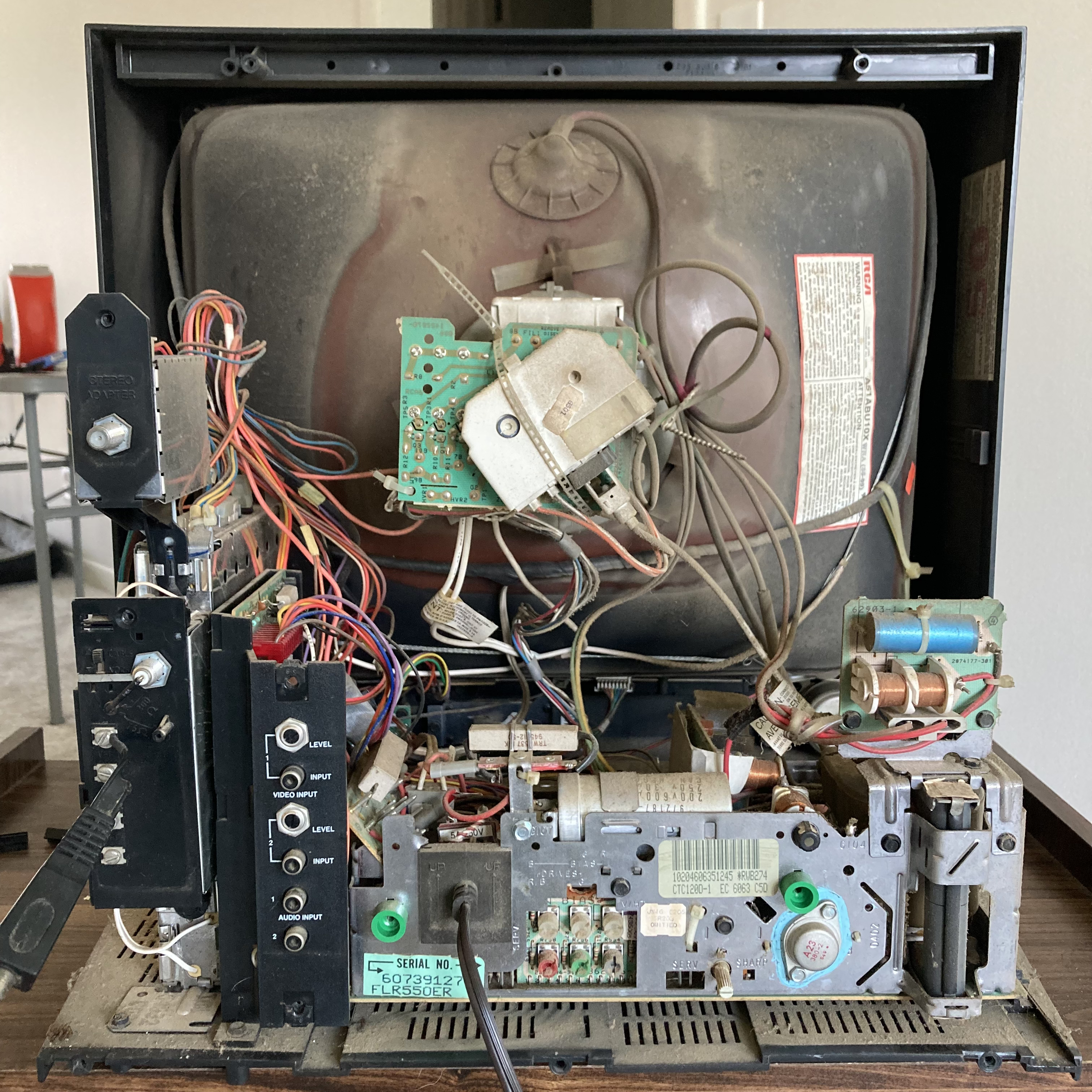

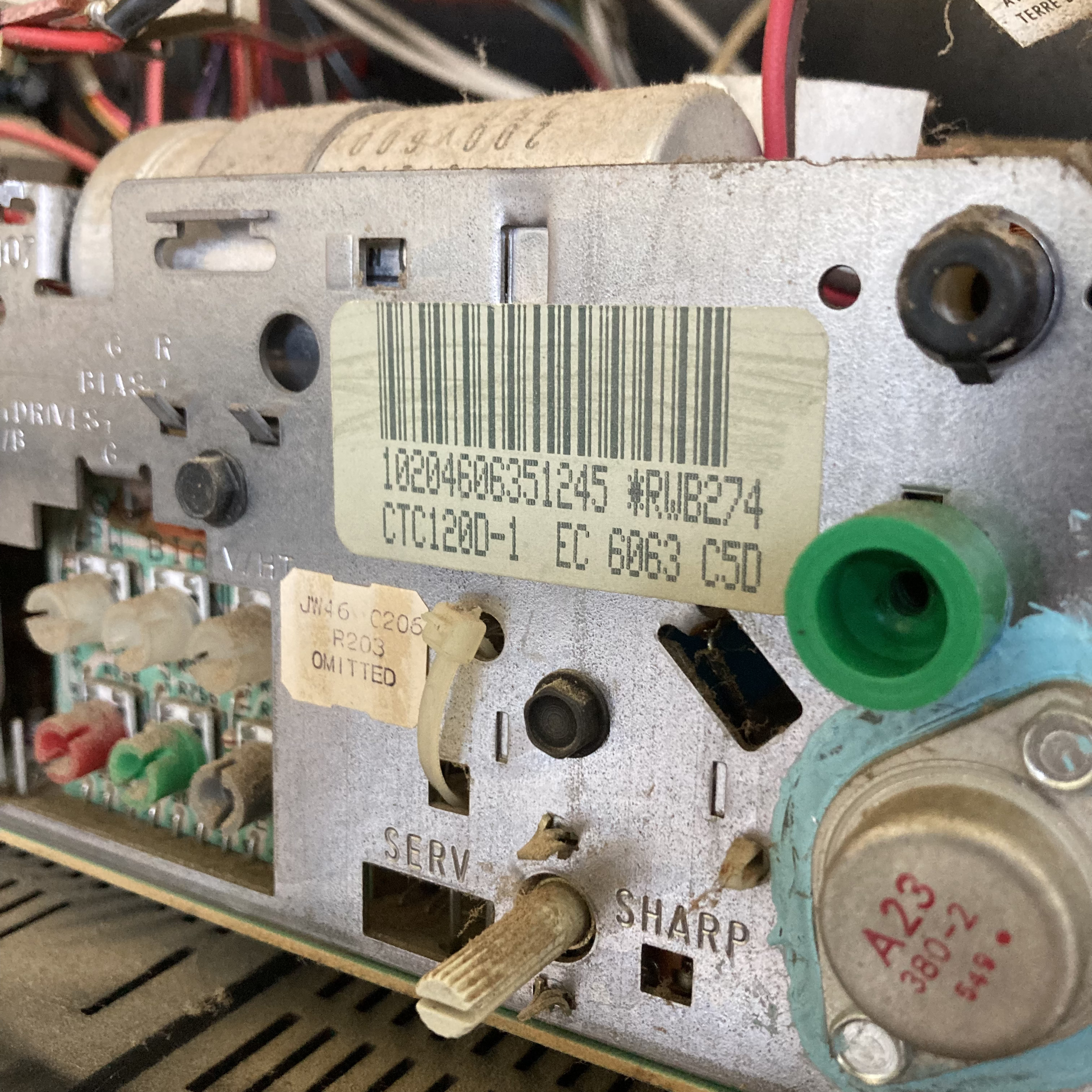

| Chassis: | CTC120D-1 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1985 |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Owners Manual, Needs Measurements |
