Summary

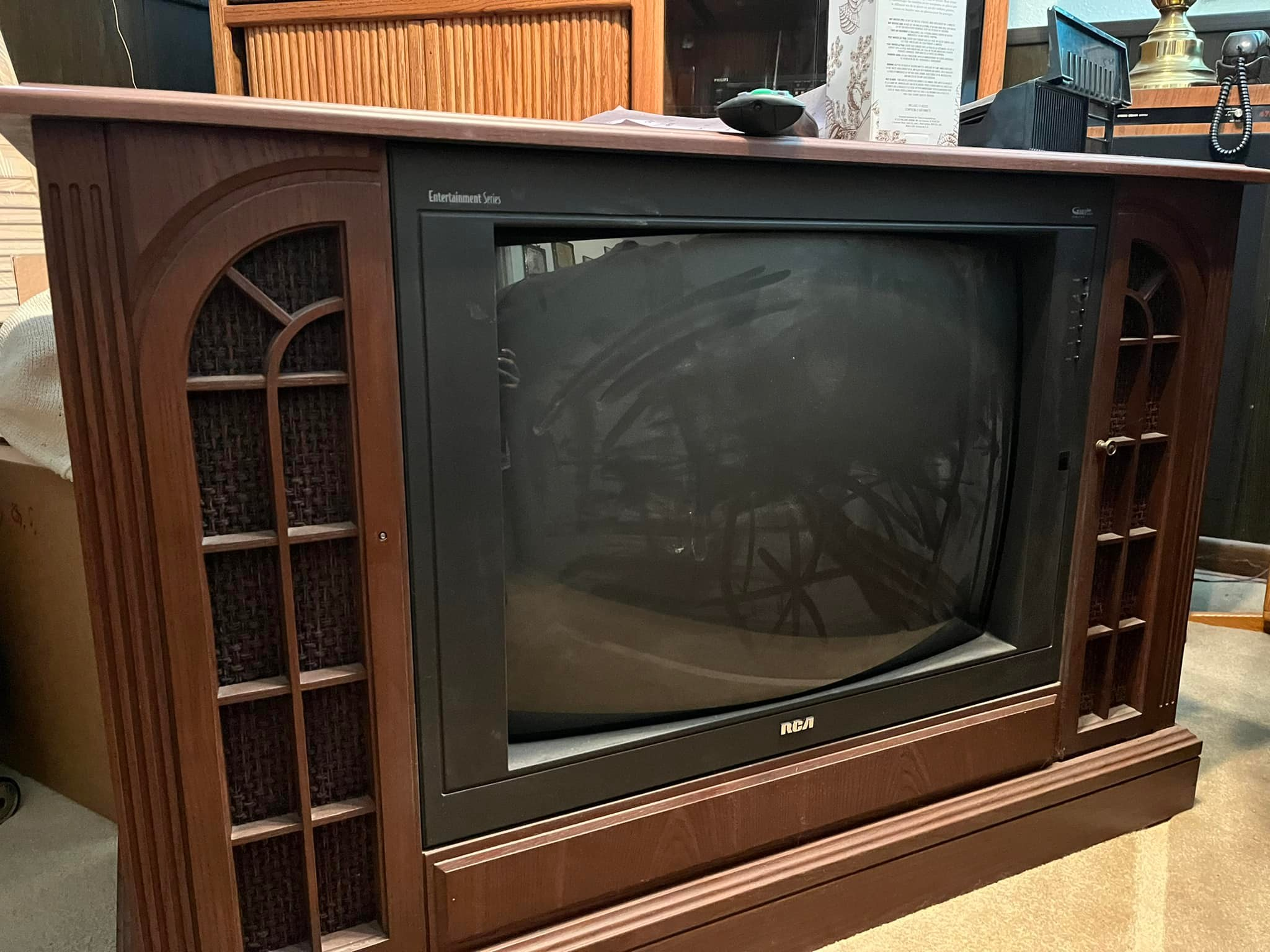

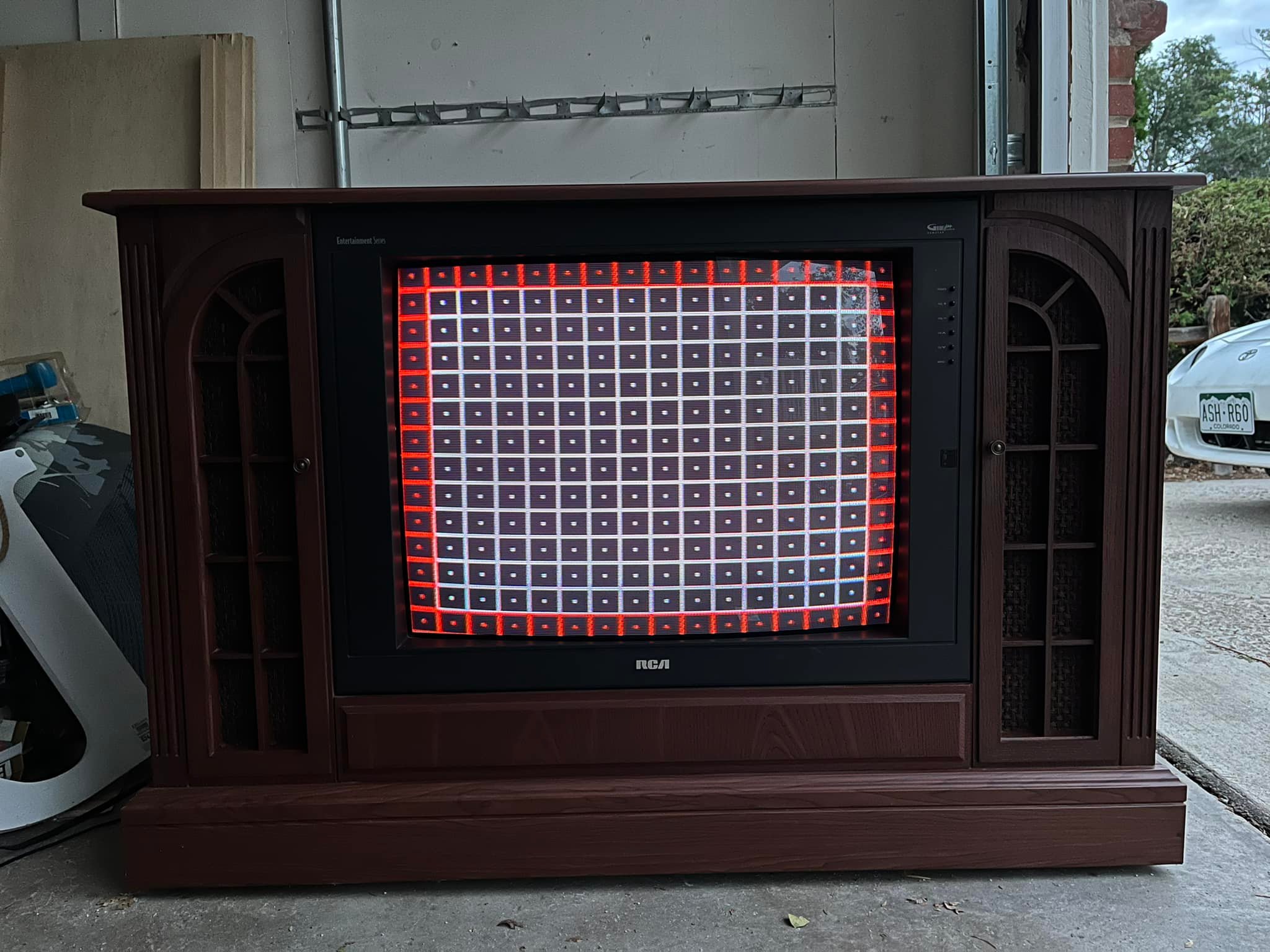

27" console TV by RCA. This and the G27648 were among the very last console sets by RCA, produced from 2000 to 2004. Has RF, composite, and s-video inputs. Originally manufactured and assembled by Thomson in Mexico.
(Special thanks to Adam T. for the pics!)
Manuals
Notes

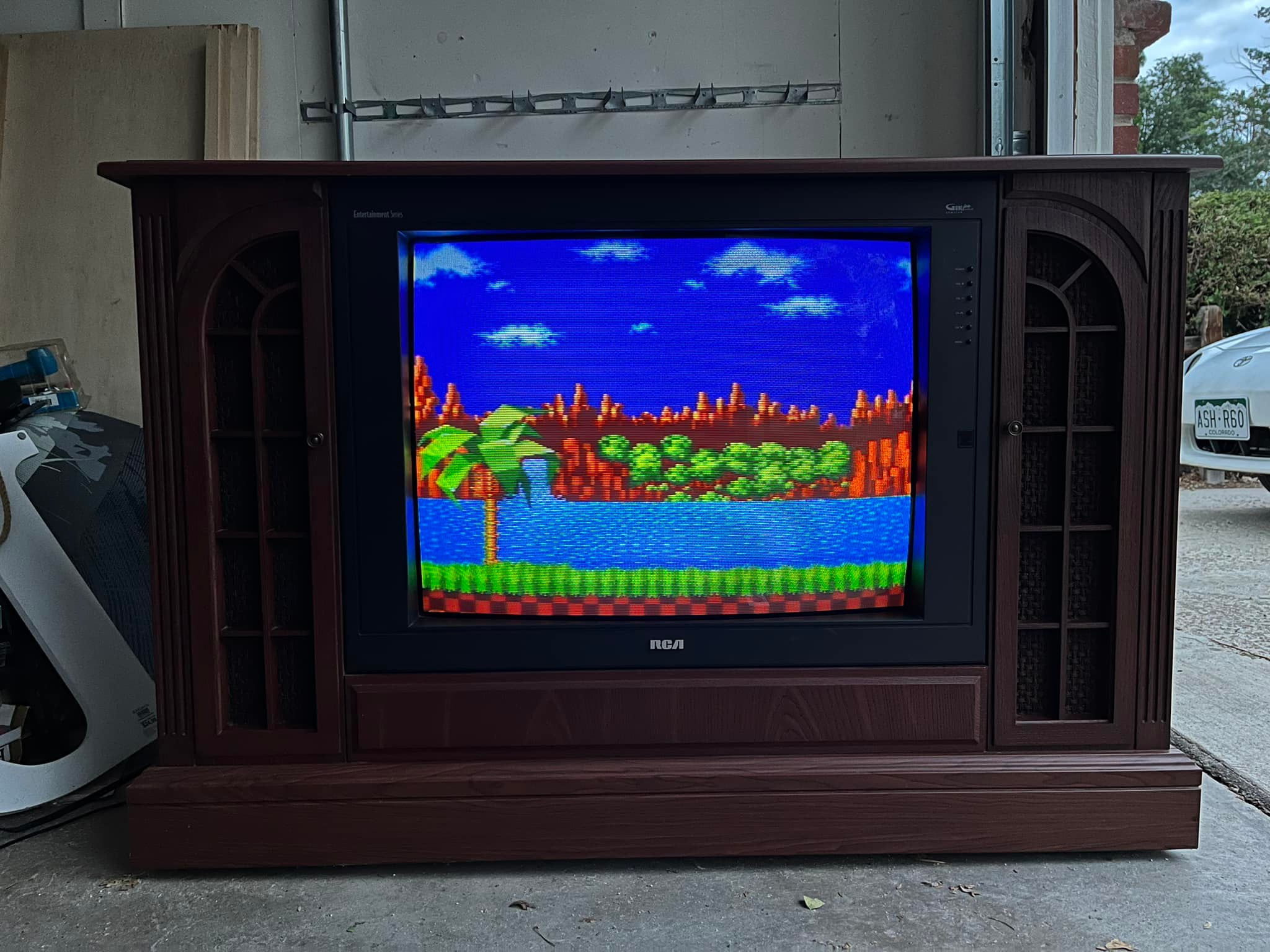

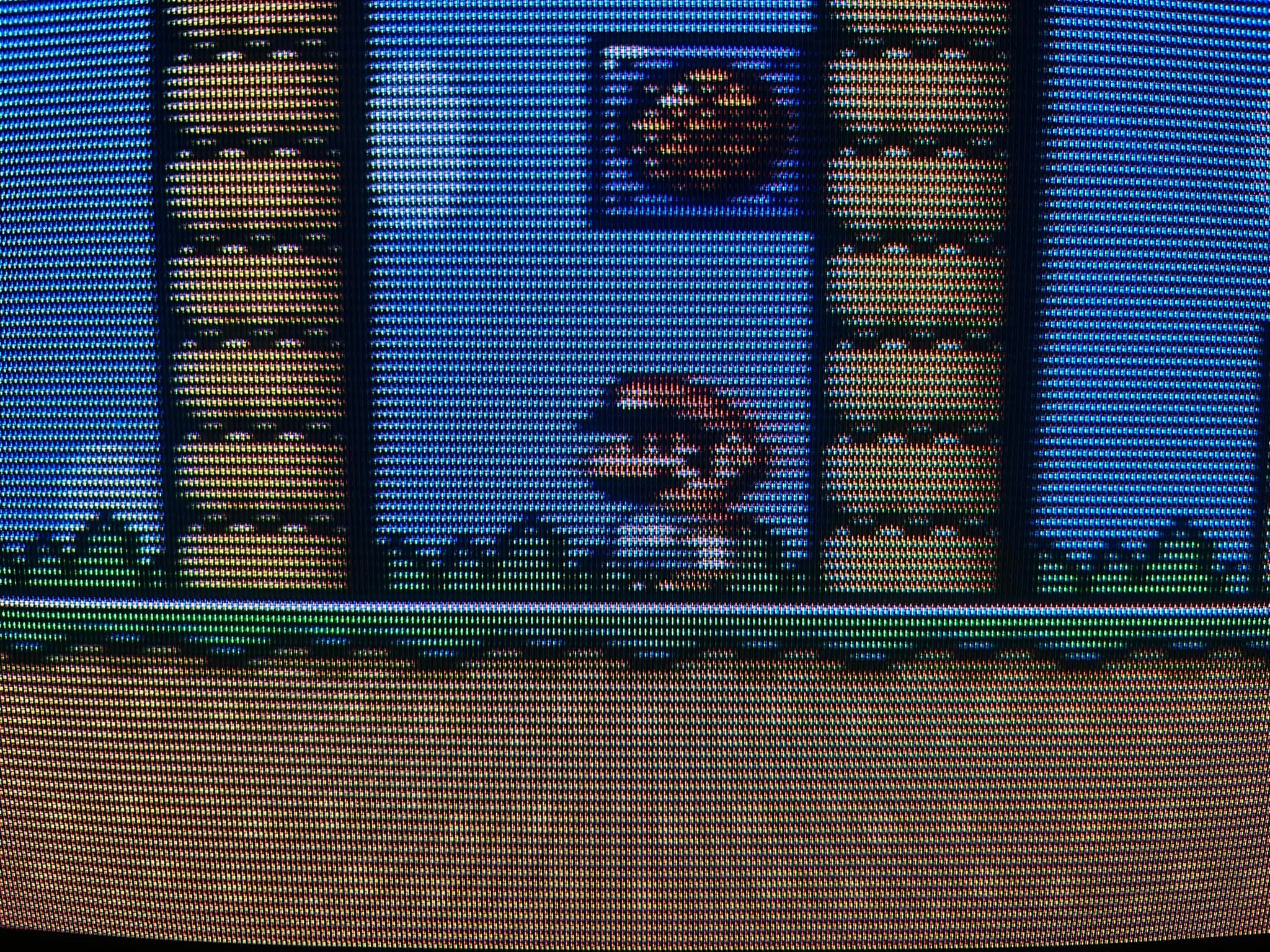

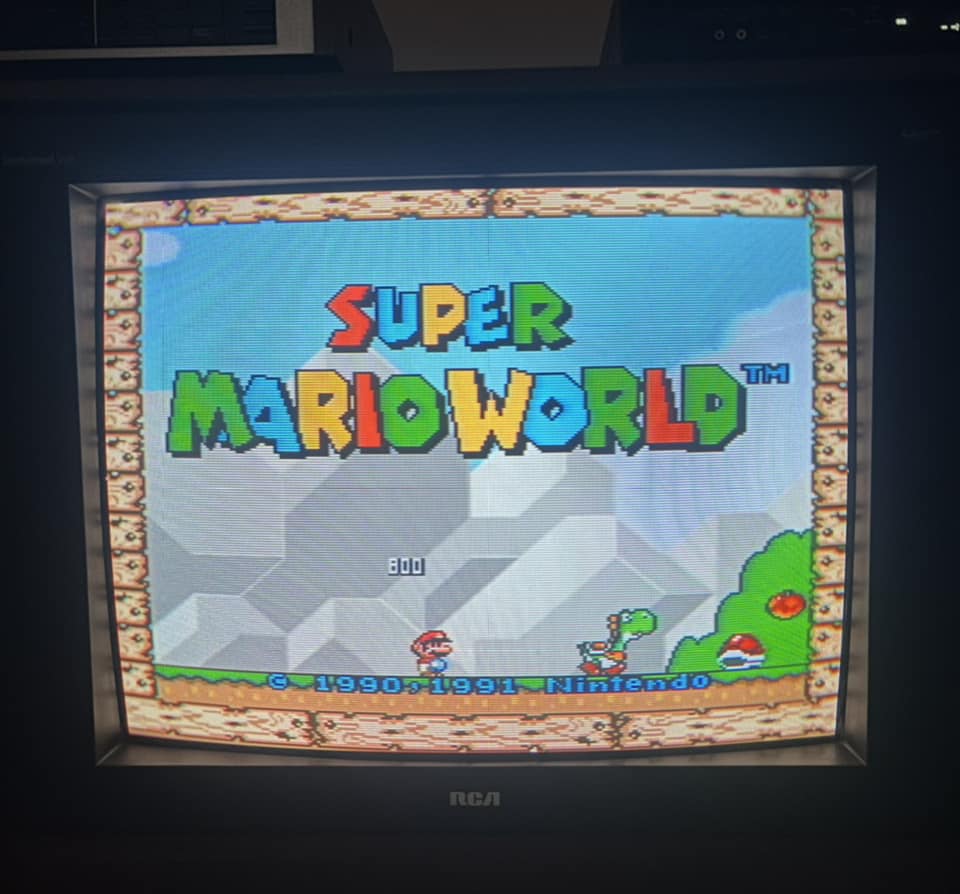

Picture quality is great thanks to the Sanyo jungle chip. It can also be tapped for analog RGB modification.
Gallery
| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | G27649 |
| Series: | G |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

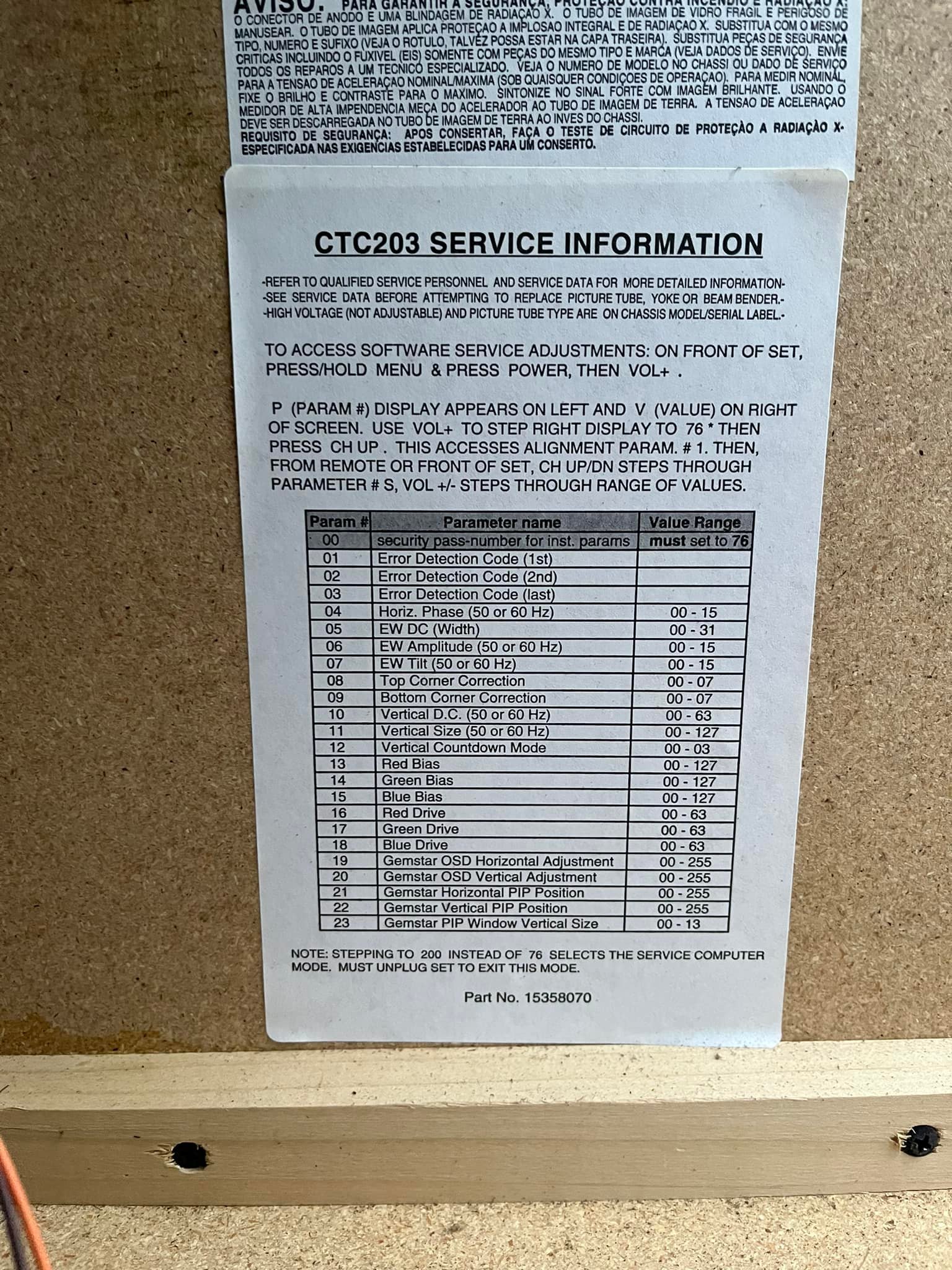

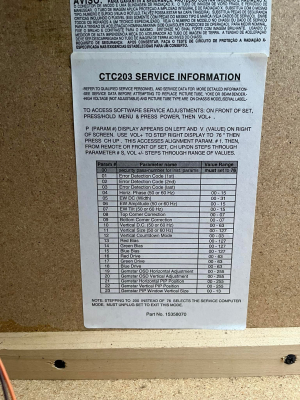

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Sanyo, LA7612N |
| Focus Type: | Single |

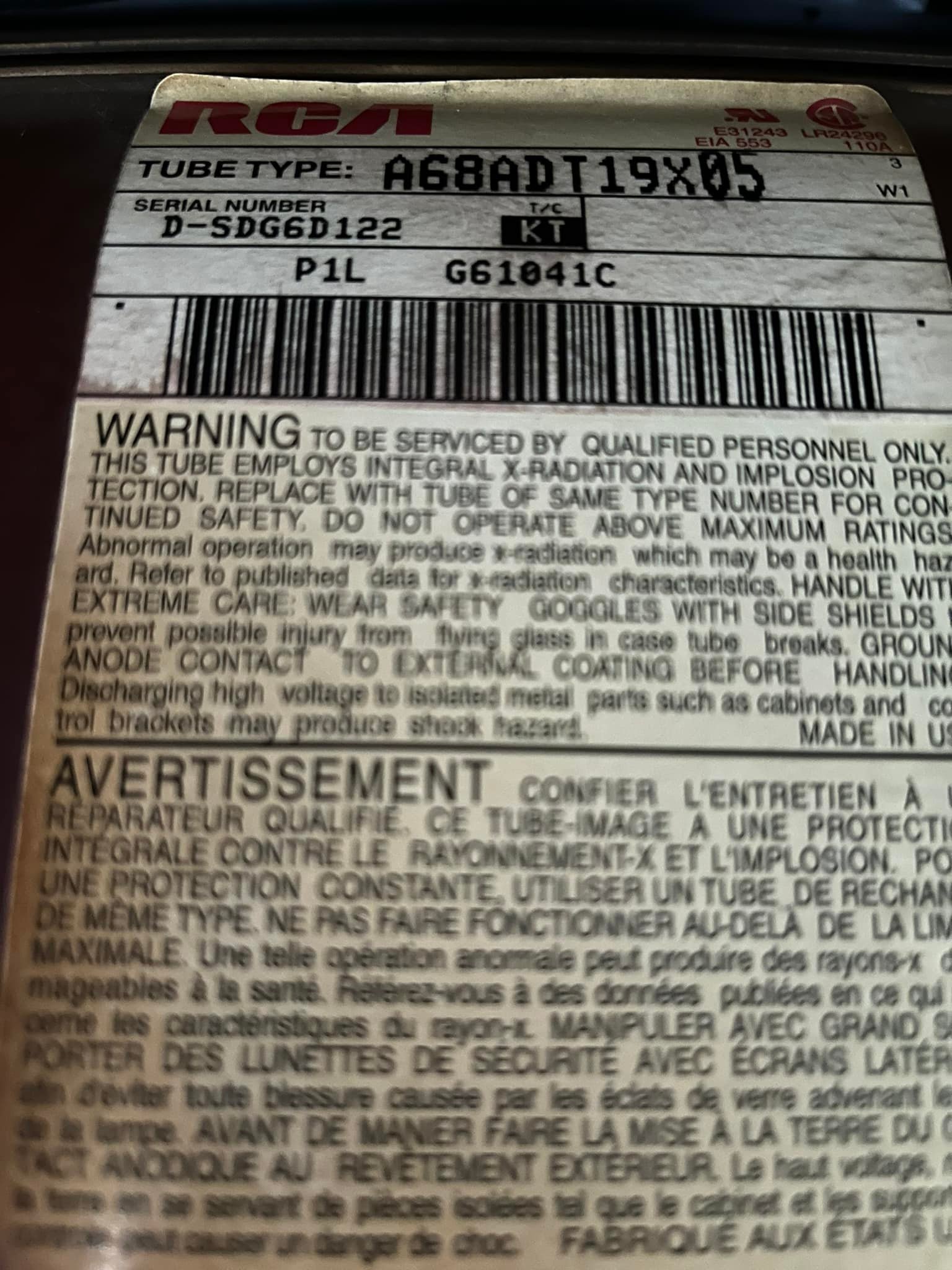

| Tube: | RCA , A68ADT19X05 , A68ADT19X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Remote: | CRK76TE1 |
| Chassis: | CTC203, CTC203AA5 |
| Weight: | 176 lbs (79.8 kg) |
| Dimensions (W/H/D): |
1556 x 759 x 505 mm
(61.2 x 29.8 x 19.8") |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 2000 |
| MSRP: | 549 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
