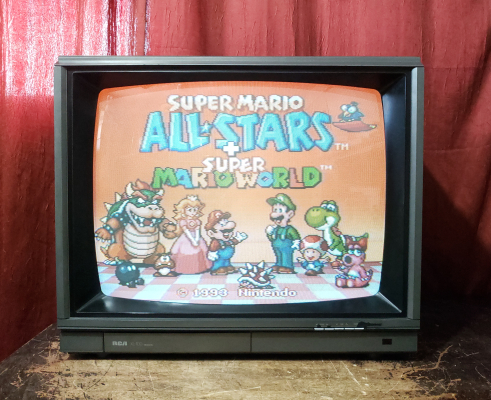

Summary

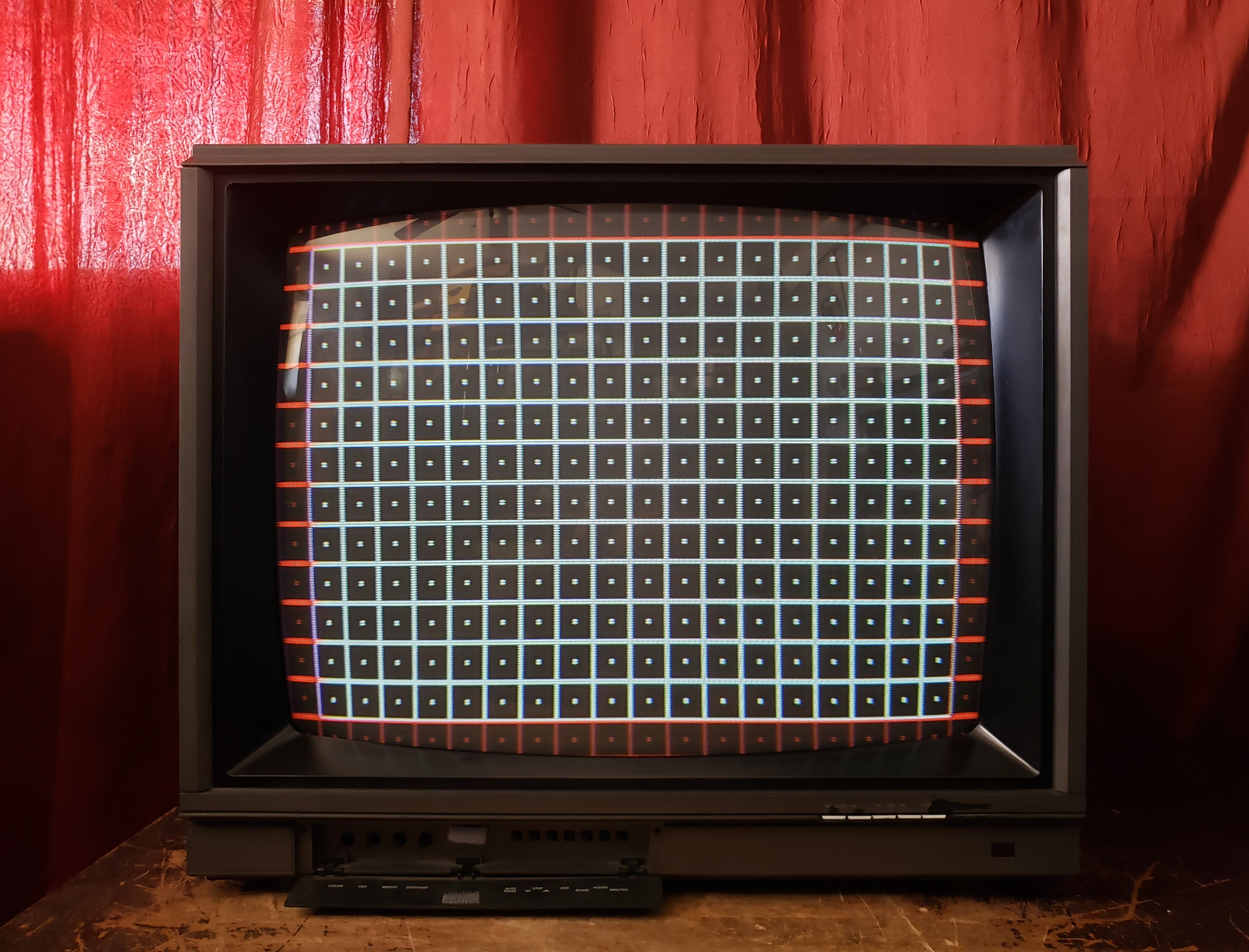

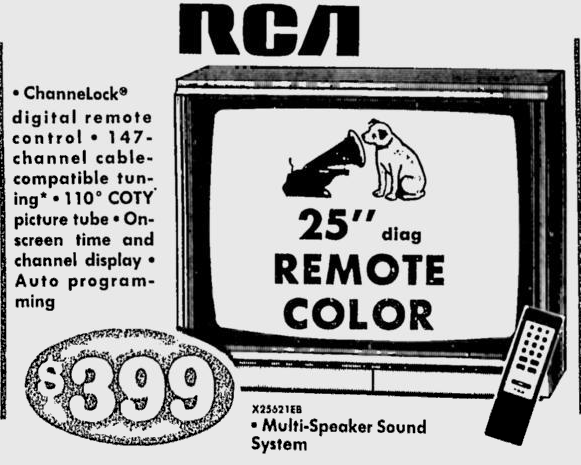

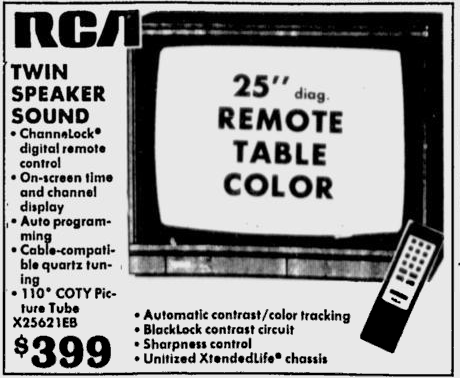

RCA 25" diag. Remote Table Color. Twin Speaker Sound . ChanneLock digital remote control. Unitized XtendedLife chassis.

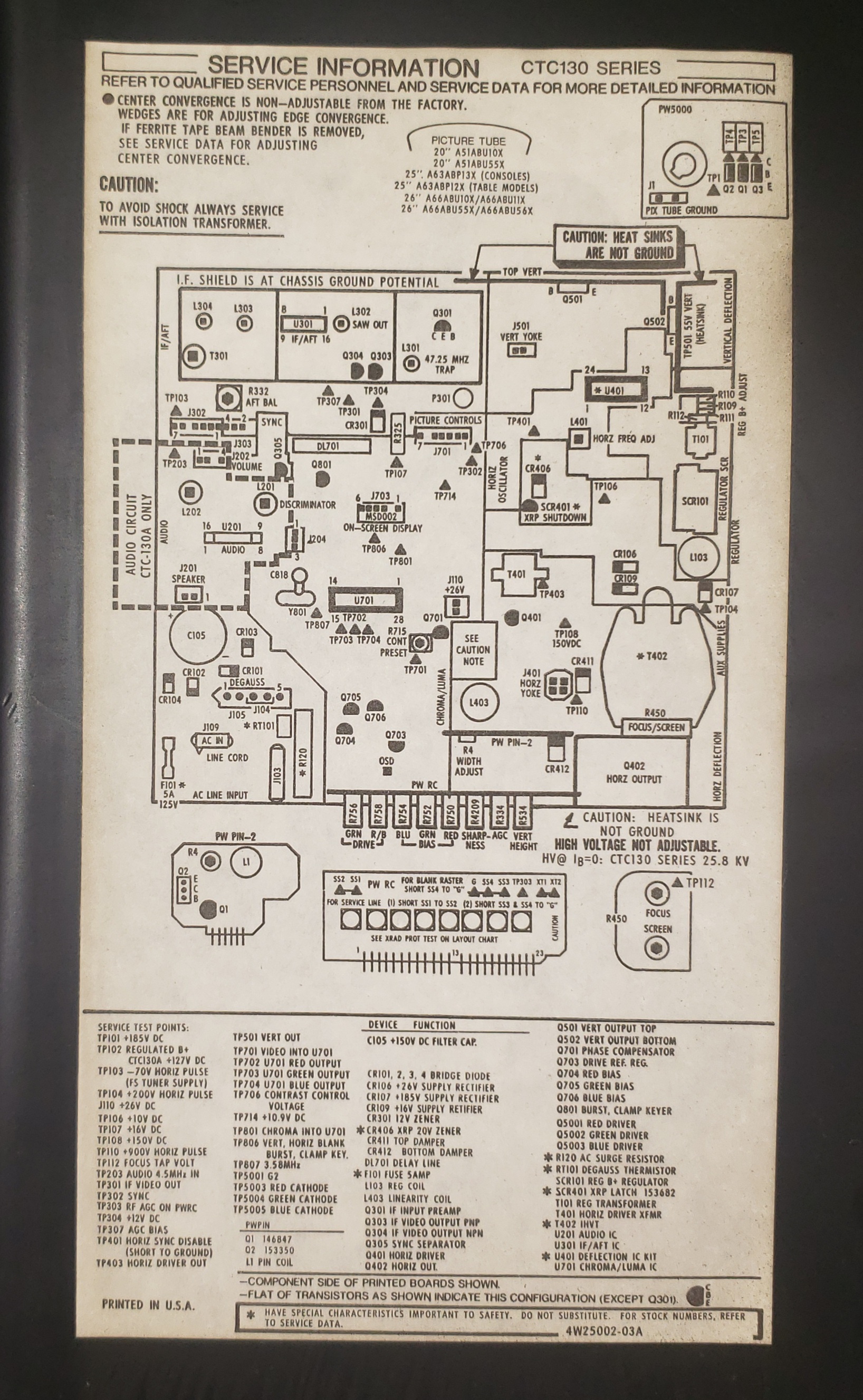

Repair Notes
- One unit had persistent purity issues due to the degauss circuit not working. Diode CR1 on the degauss board was shorted to a resistance of around 20 ohms. I couldn't find the exact part number so I substituted a diode I had laying around like a 1N5408 and it cleared up the purity issues which the manual degaussing coil could not.

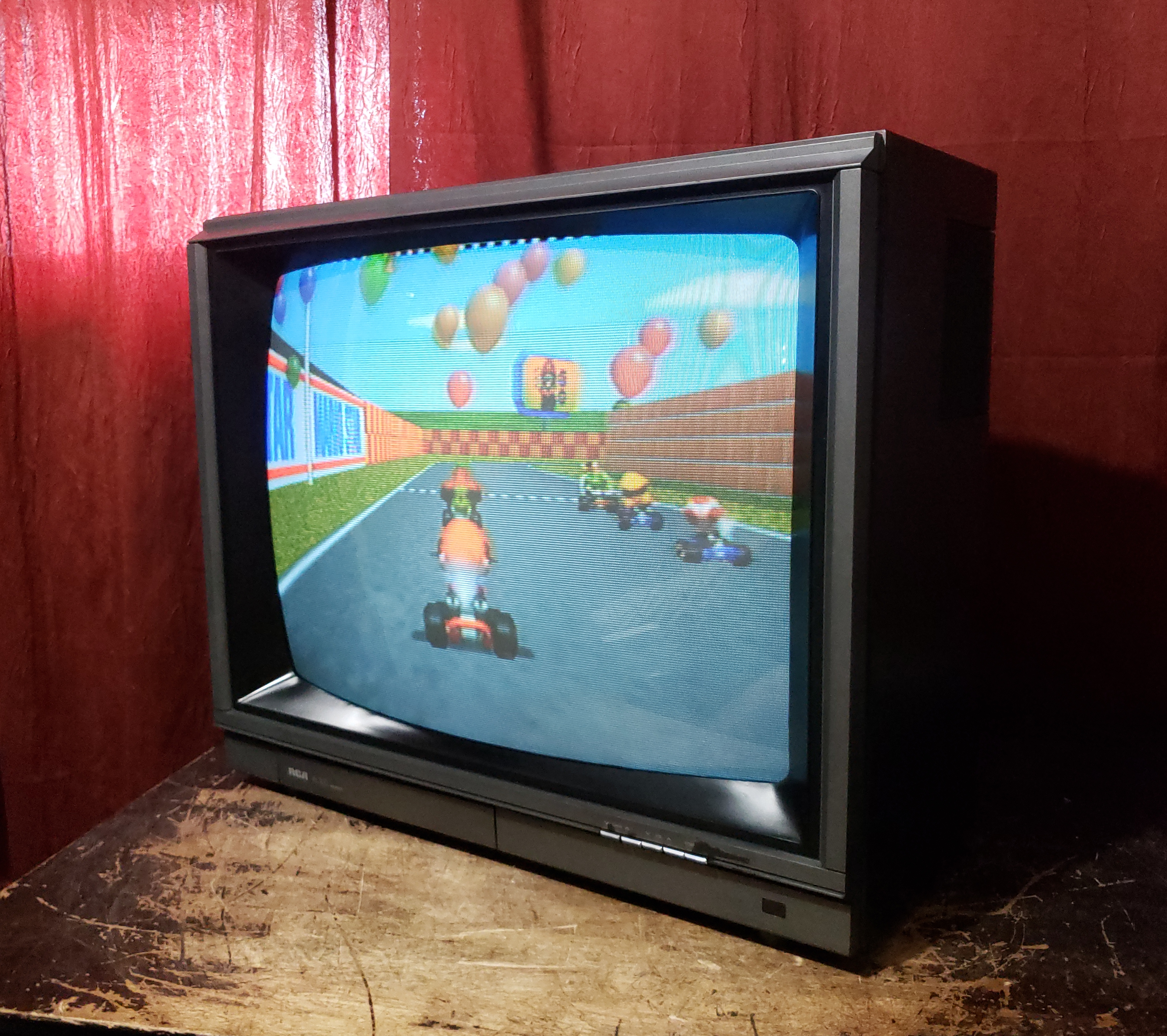

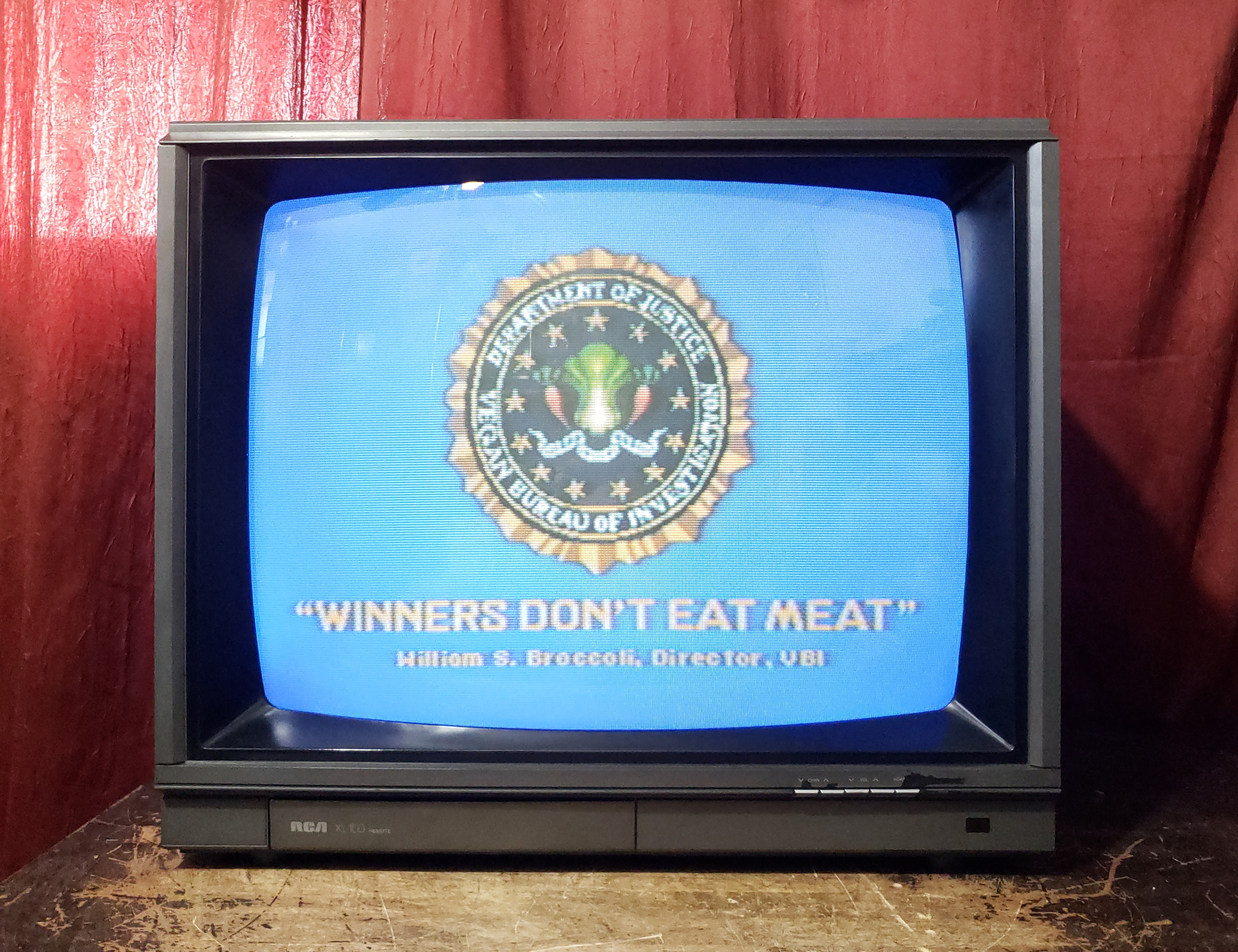

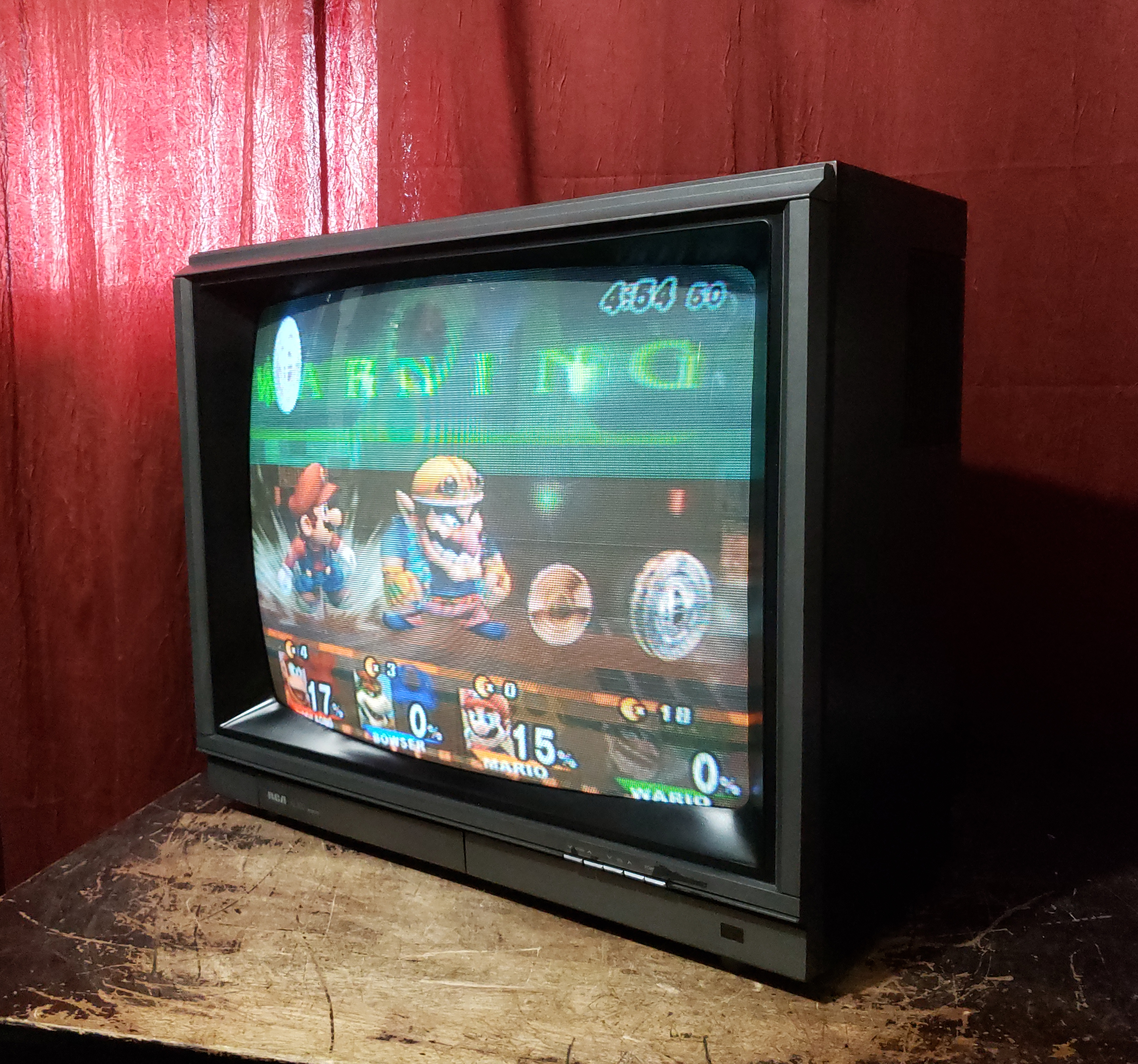

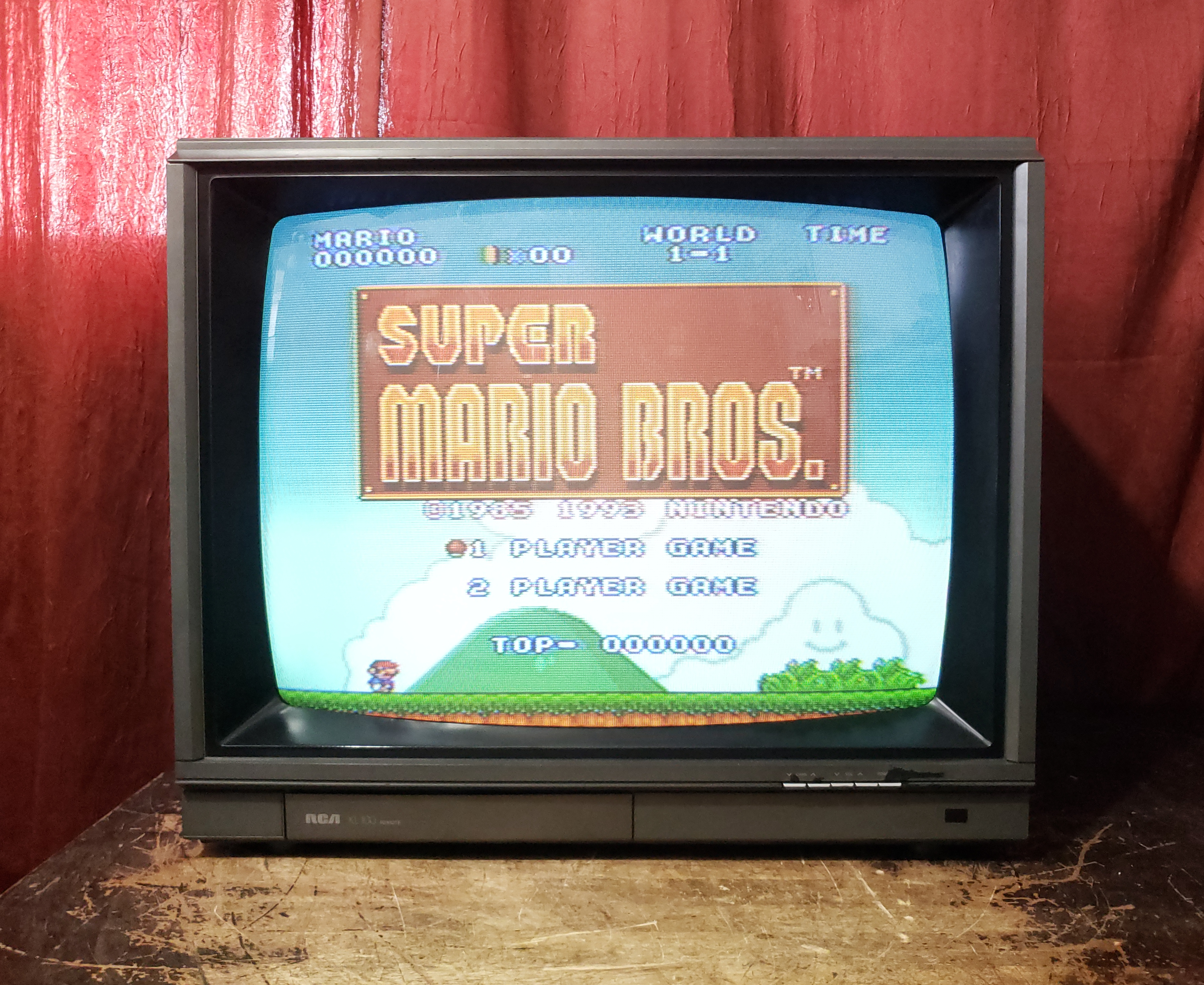

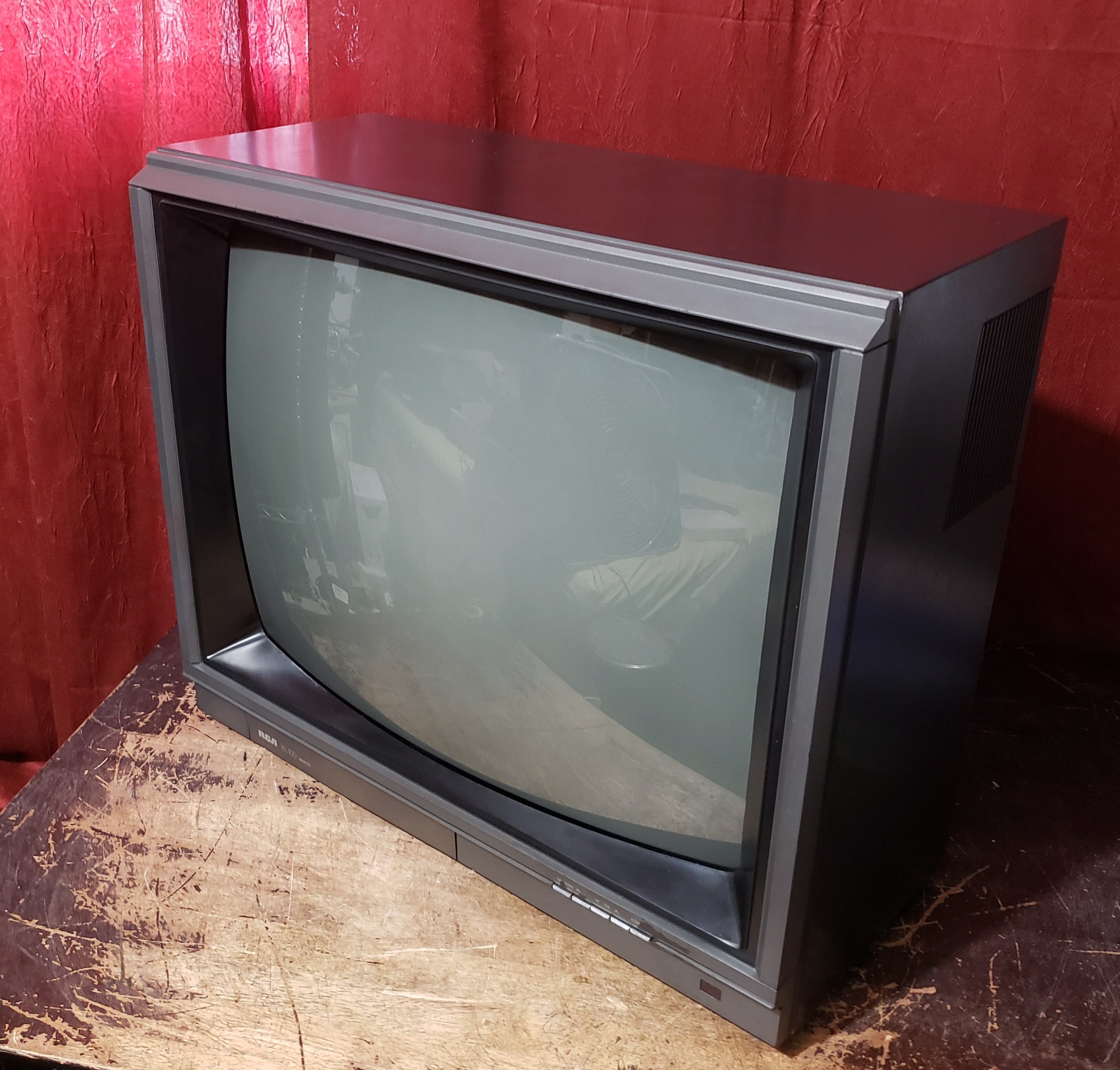

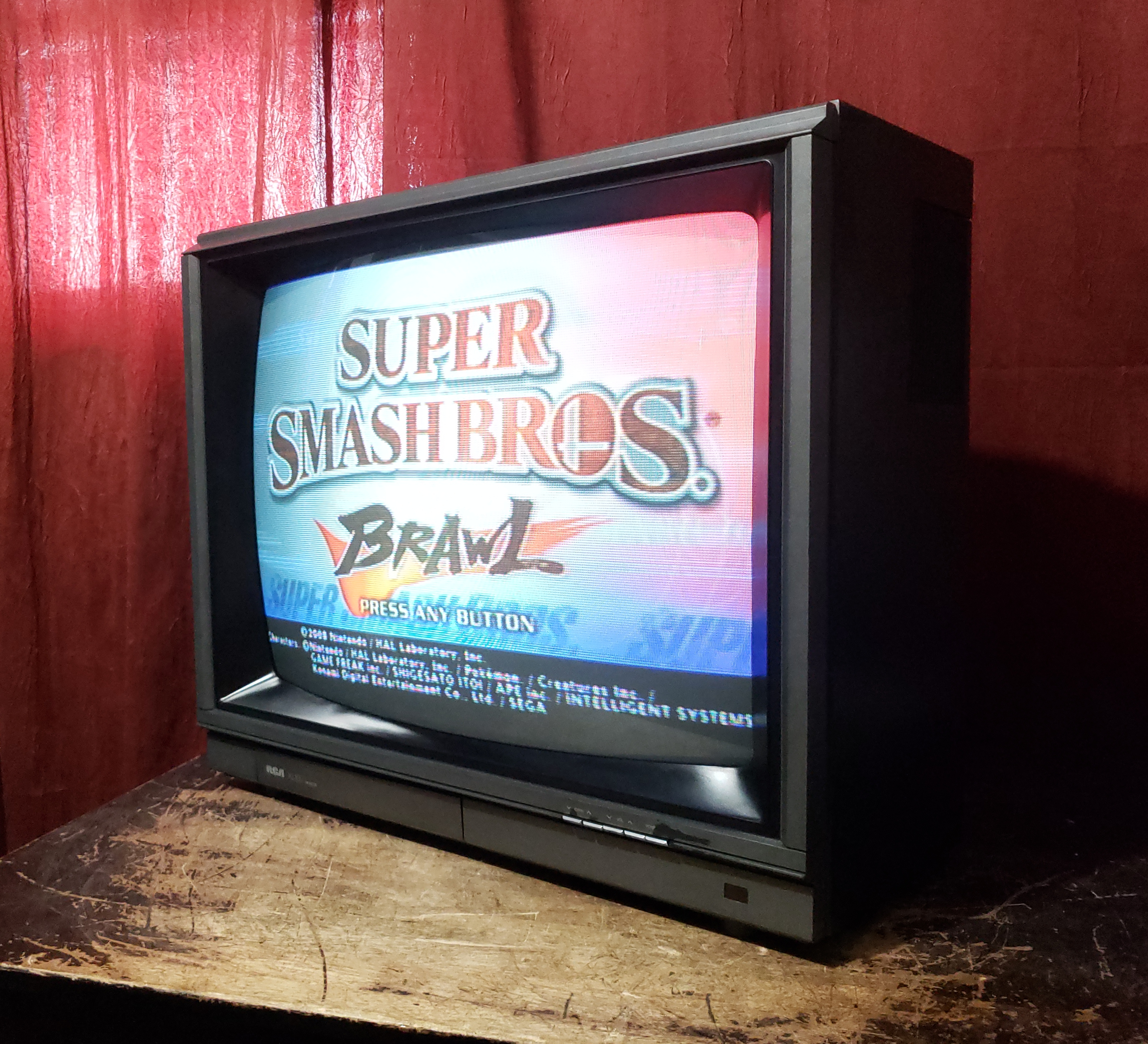

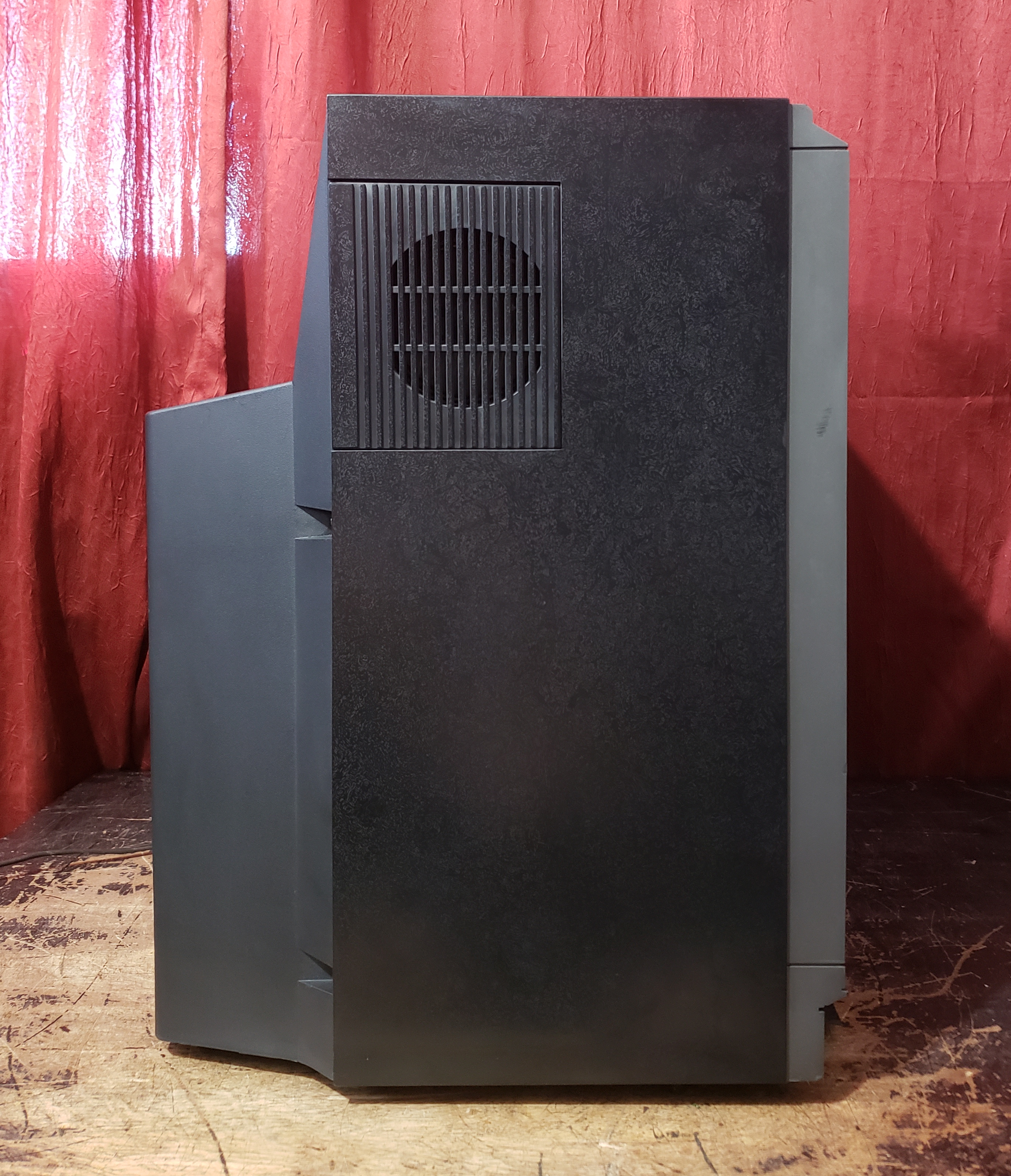

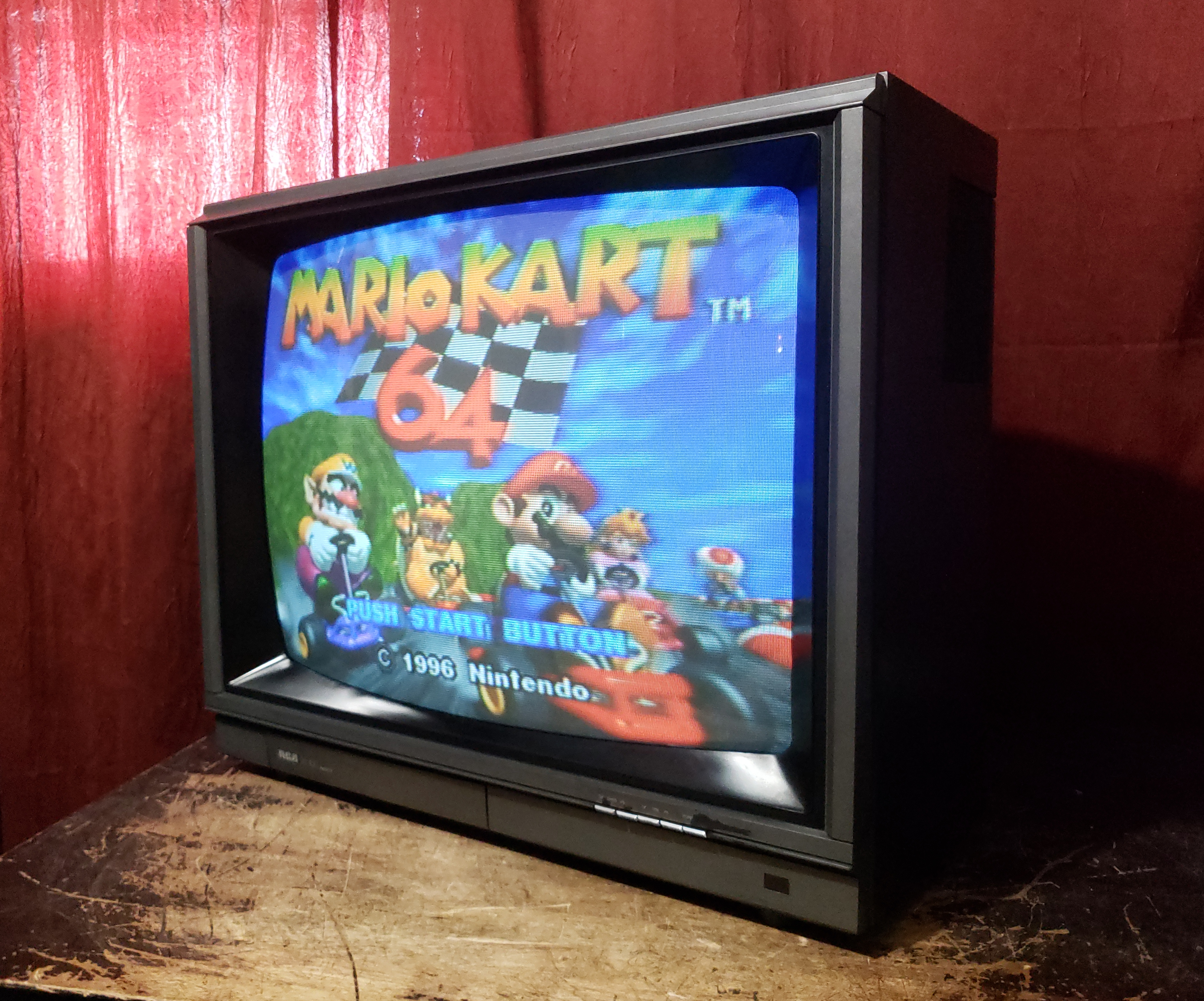

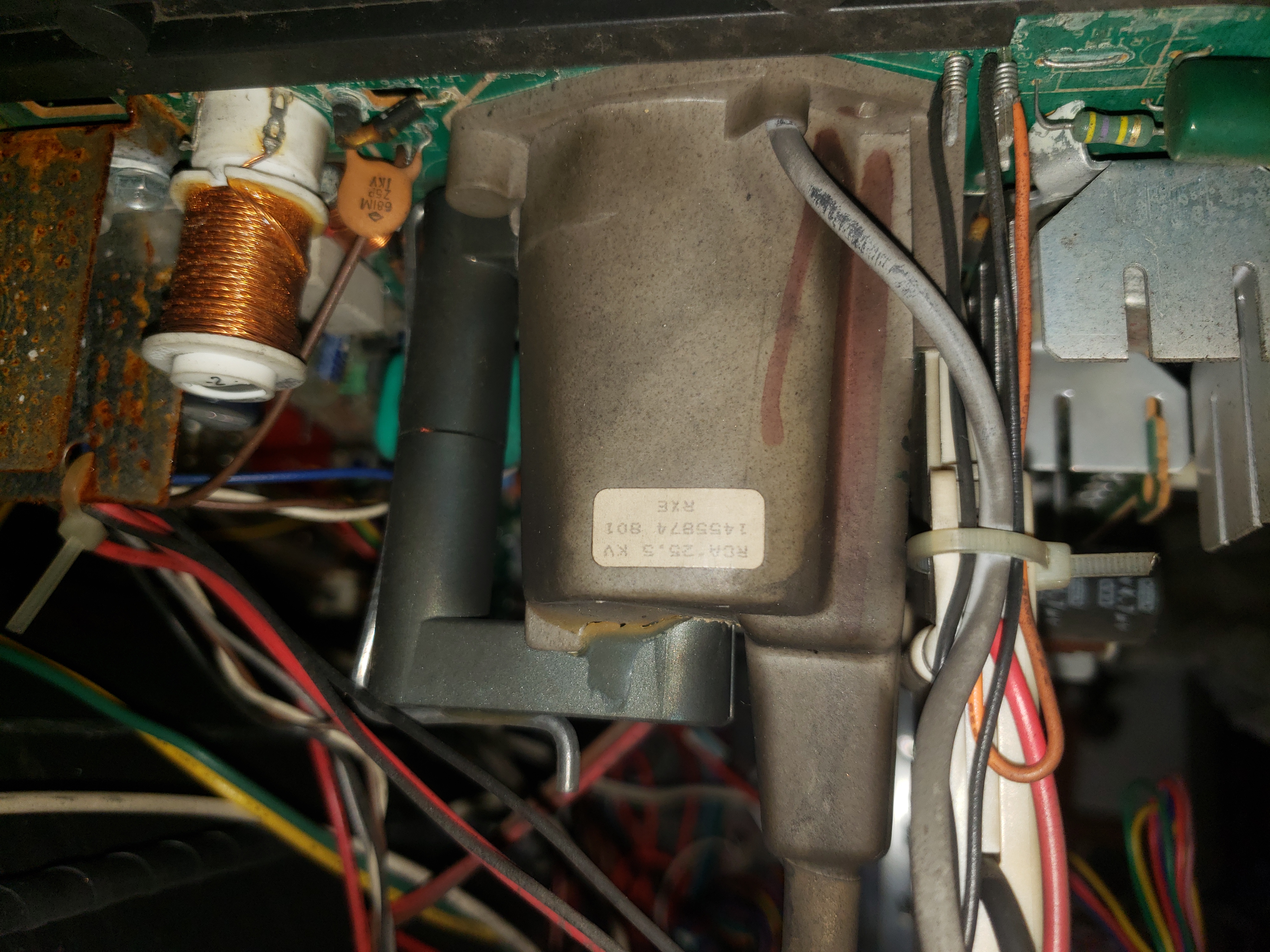

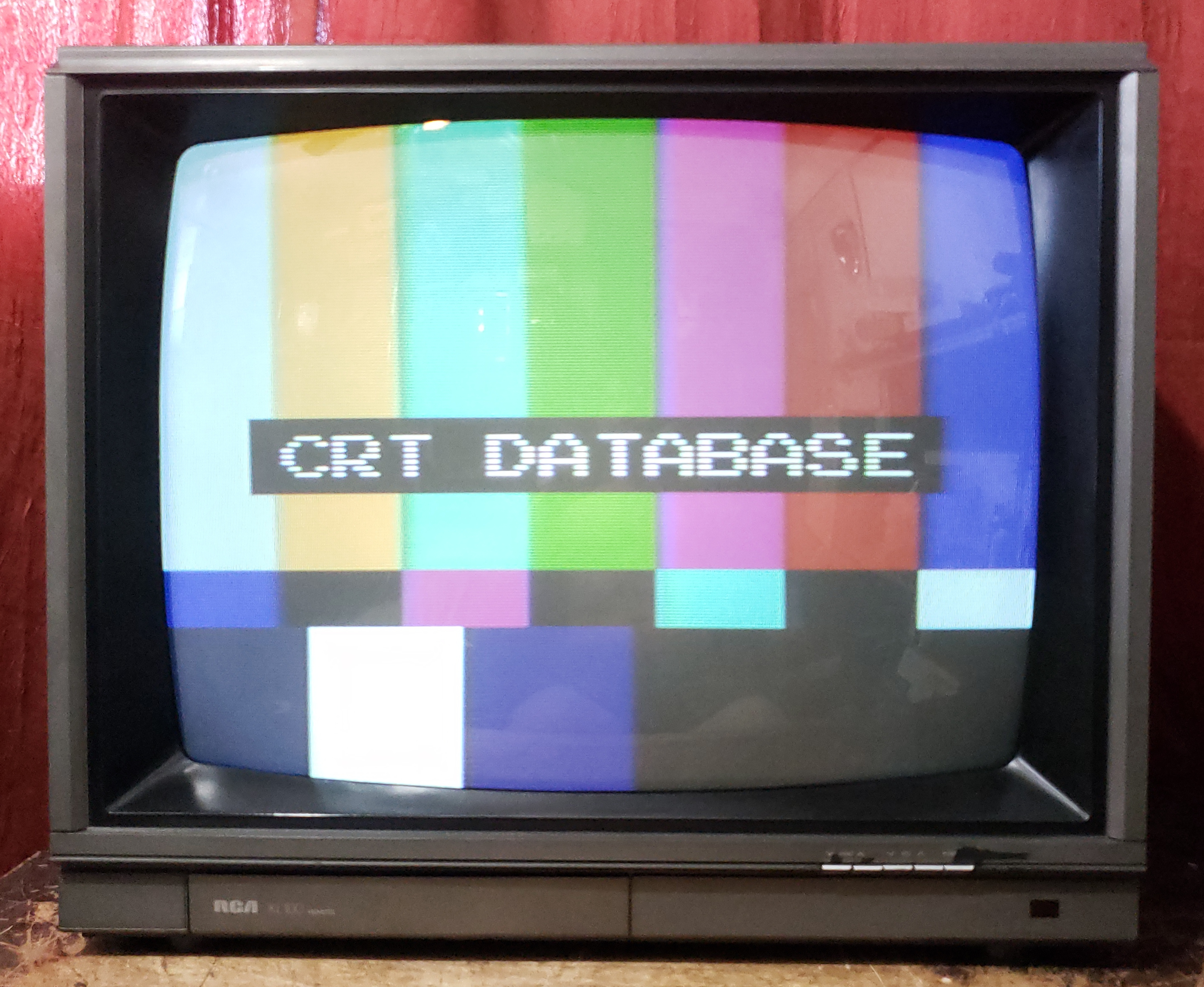

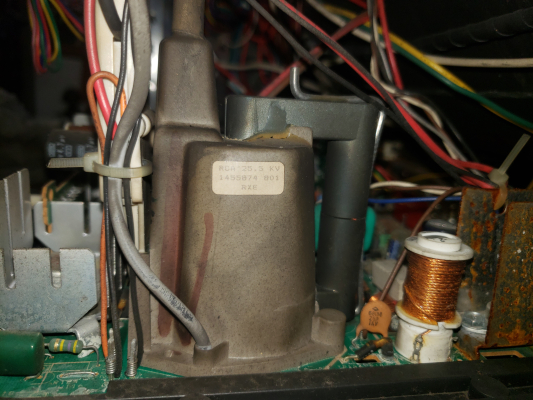

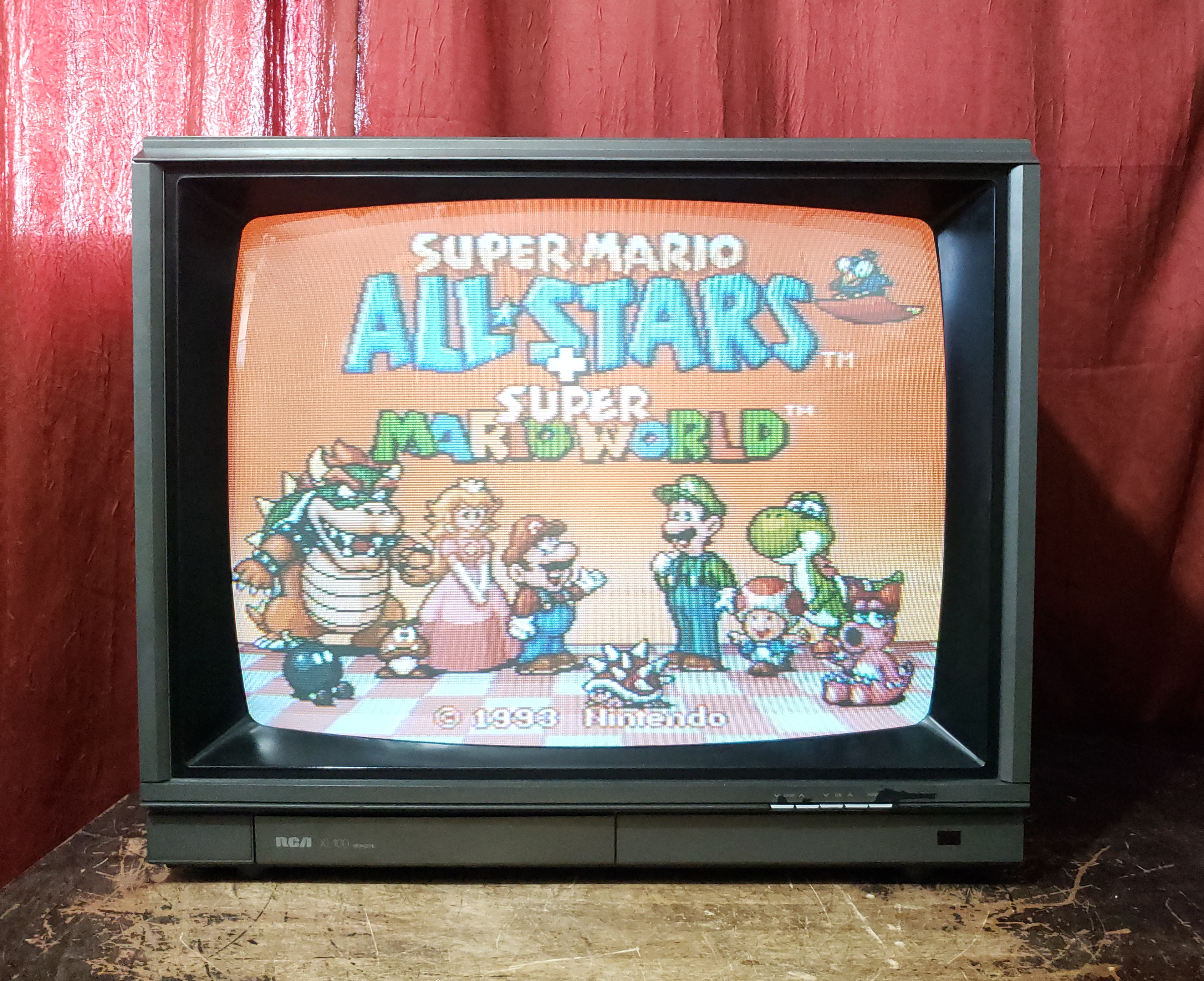

Gallery

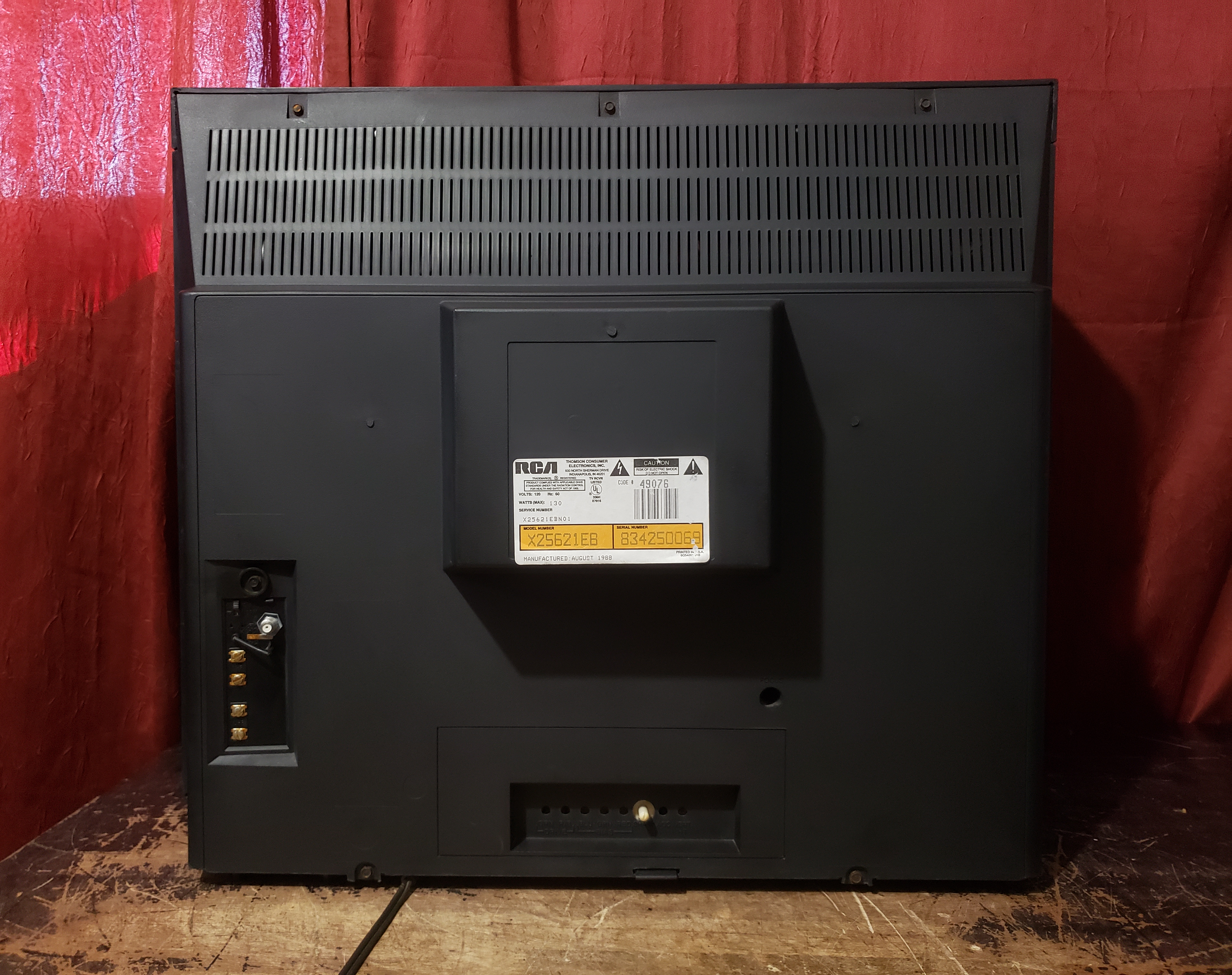

| Specifications | |
|---|---|
| Brand: | RCA |
| Manufacturer: | Thomson |
| Model: | X25621EB |
| Series: | XL-100 |
| Viewable Size: | 25" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | Notch |
| Focus Type: | Single |

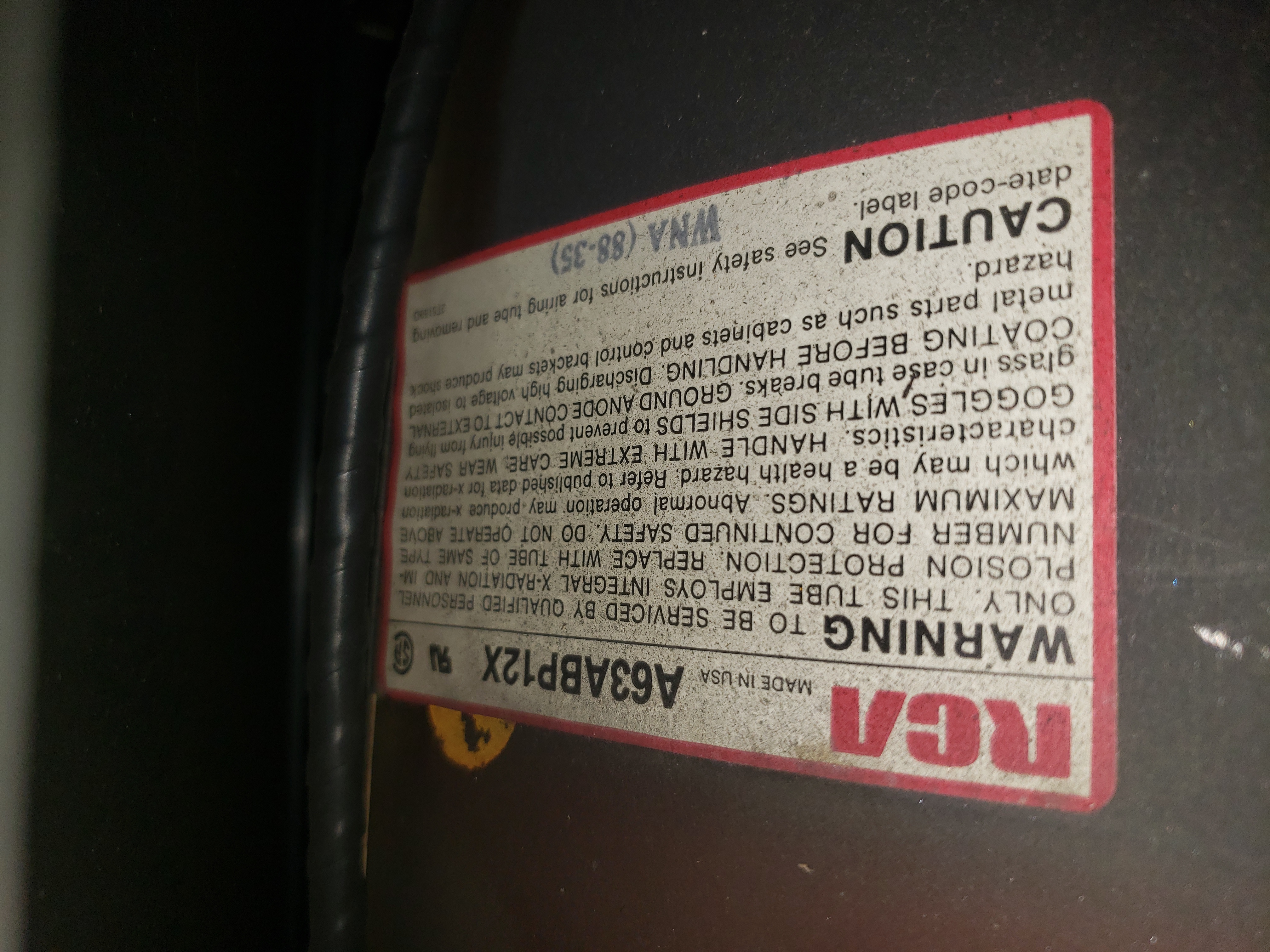

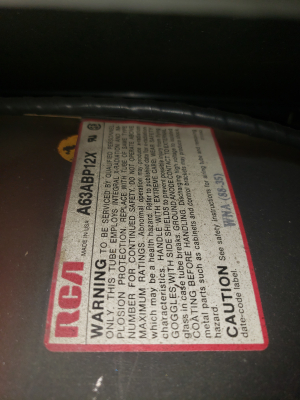

| Tube: | A63ABP12X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|

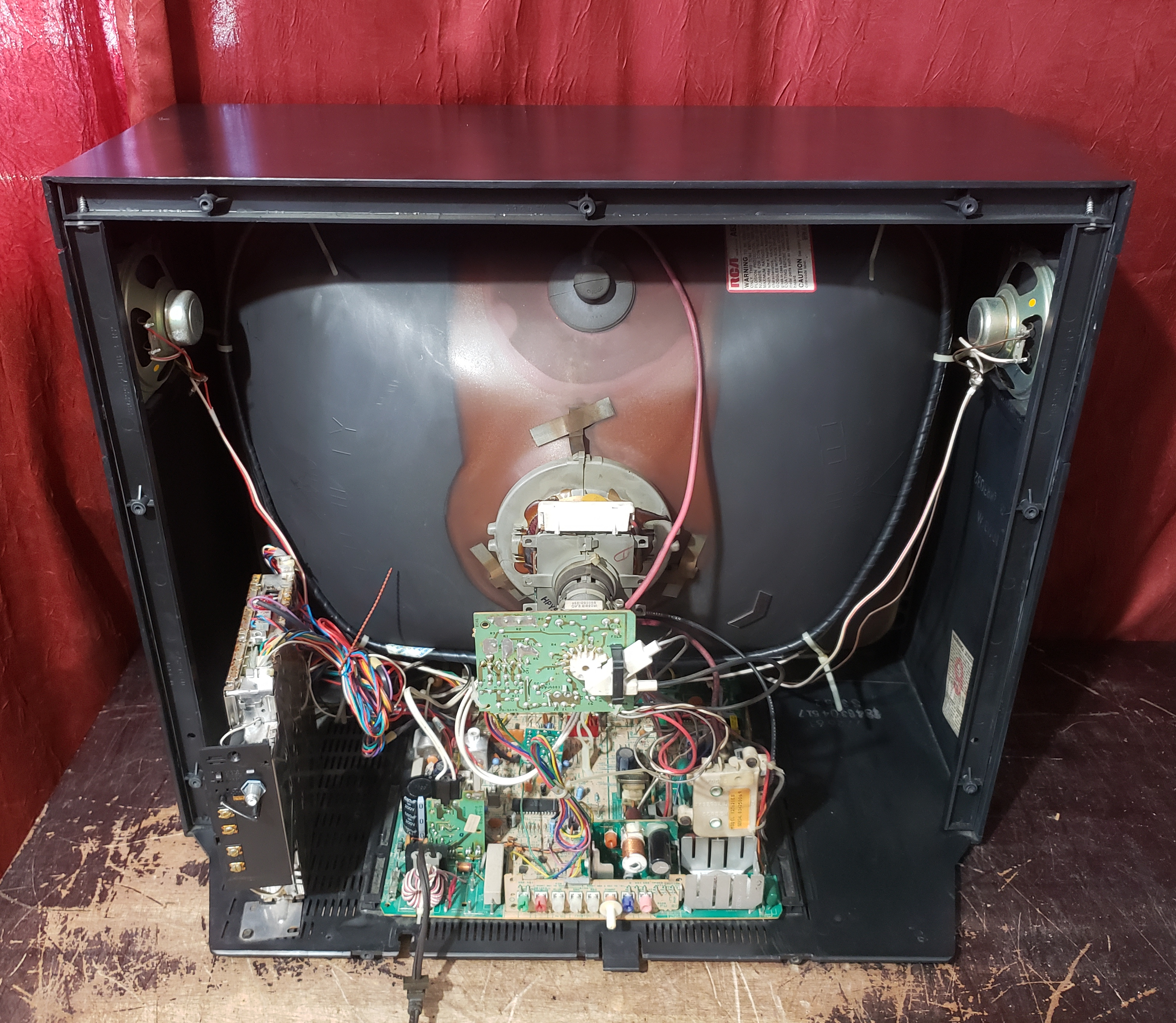

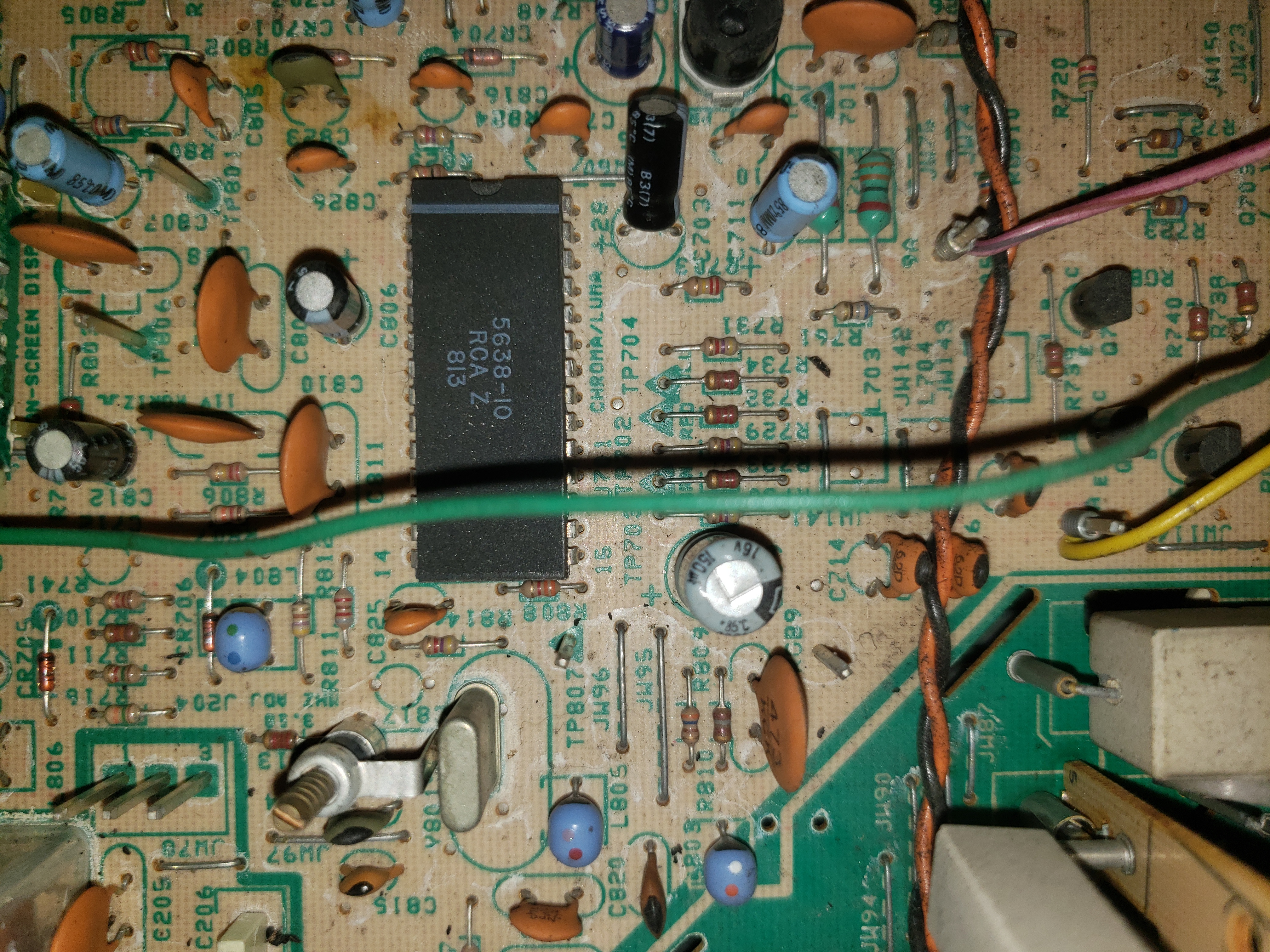

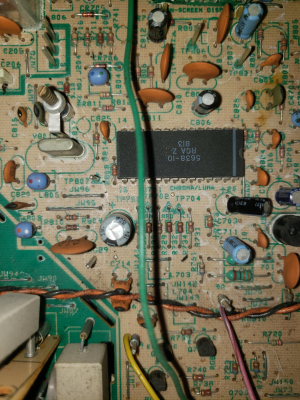

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 1.182 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 22.00 mH (@ 100 Hz) |
| Speakers: | Dual Mono |
| Chassis: | CTC130 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 399 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Repair Log, Needs IC Info |
