Sears 564-42703850
SegaSaturn94
January 23, 2026, 1:46 pm
January 23, 2026, 7:08 pm
January 23, 2026, 1:46 pm
January 23, 2026, 7:08 pm
Summary

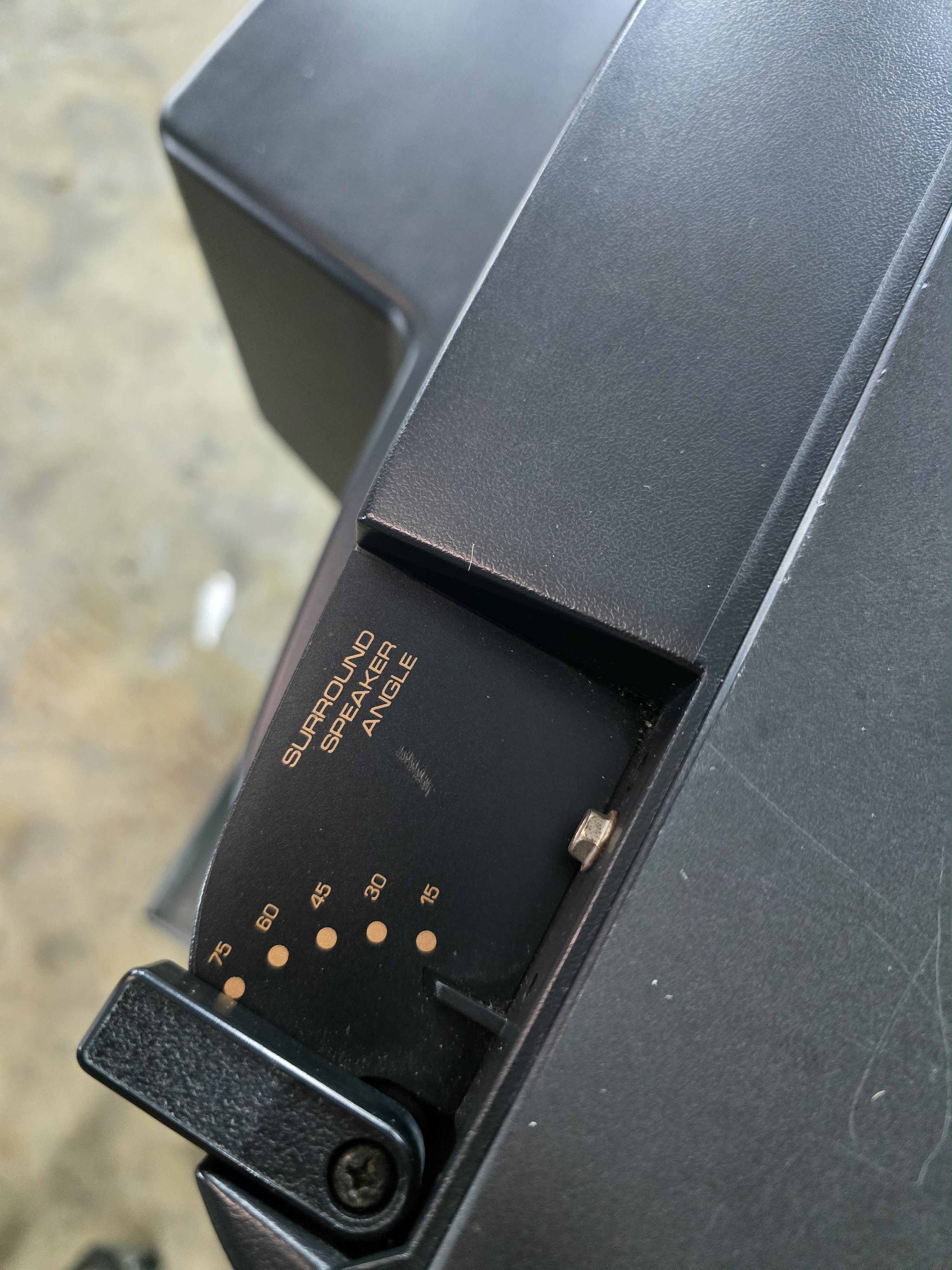

Higher-end 20" CRT TV by Sears, sold at their department stores in 1988. Originally manufactured by Sanyo in Mexico and assembled in the USA by Sears. Has RF, composite, and s-video inputs with adjustable stereo surround sound. (Catalog model number is 57 E 42703C.)
(Special thanks to Zach Reis for the pics!)
Manuals
(None at this time.)

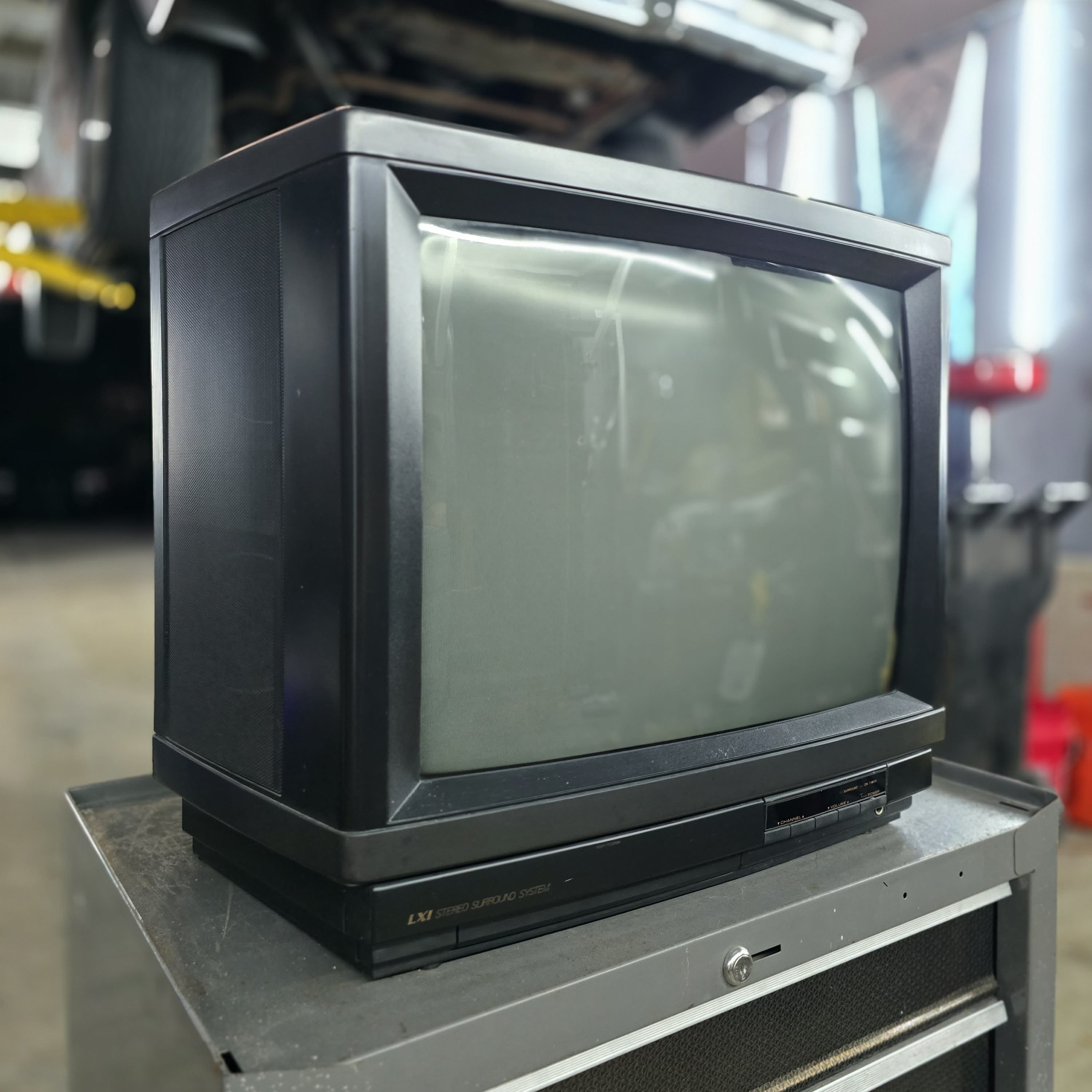

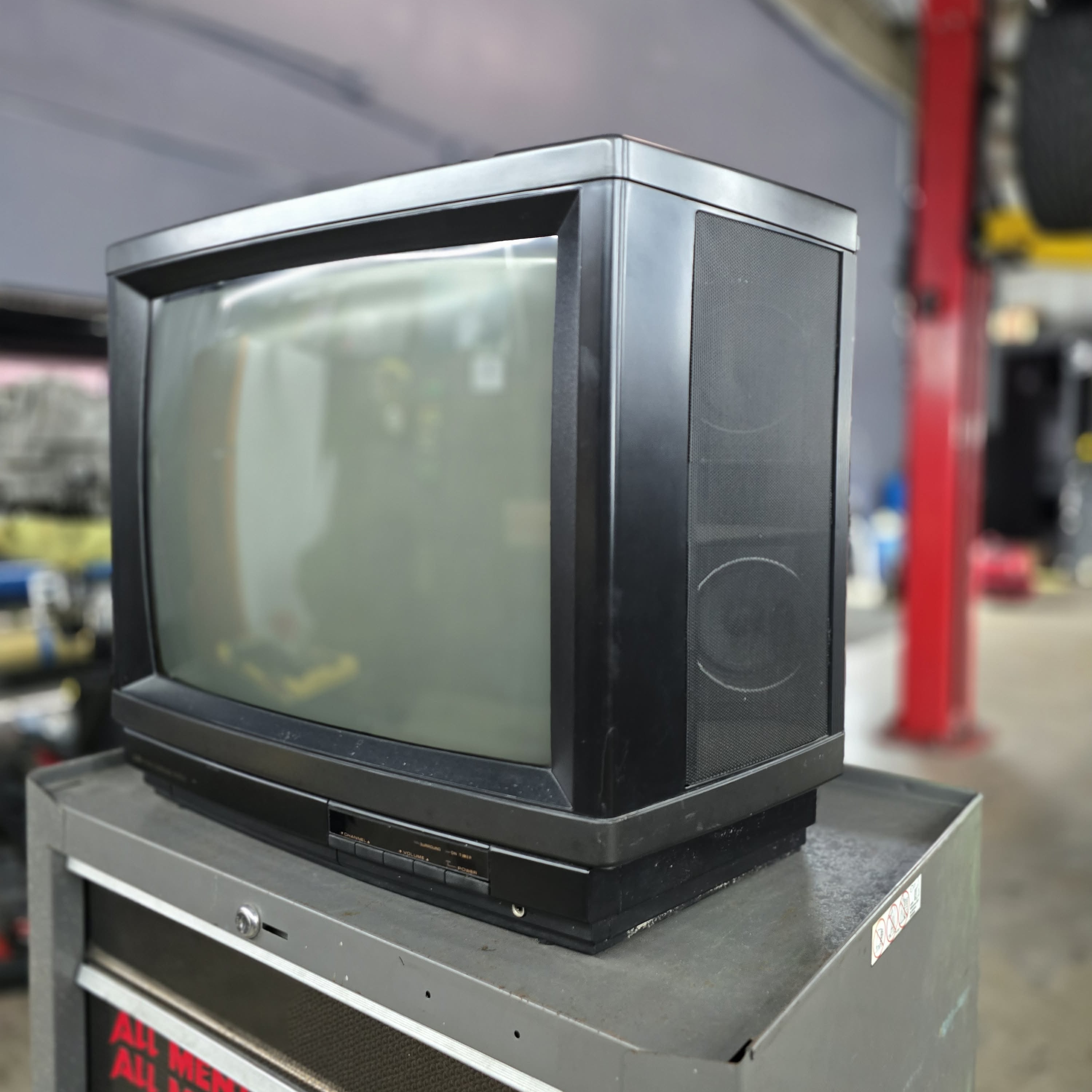

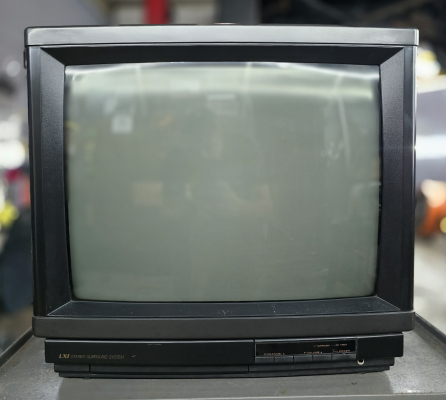

Gallery
| Specifications | |
|---|---|
| Brand: | Sears |
| Manufacturer: | Sanyo |
| Model: | 564-42703850 |
| Series: | LXI |
| Viewable Size: | 20" |

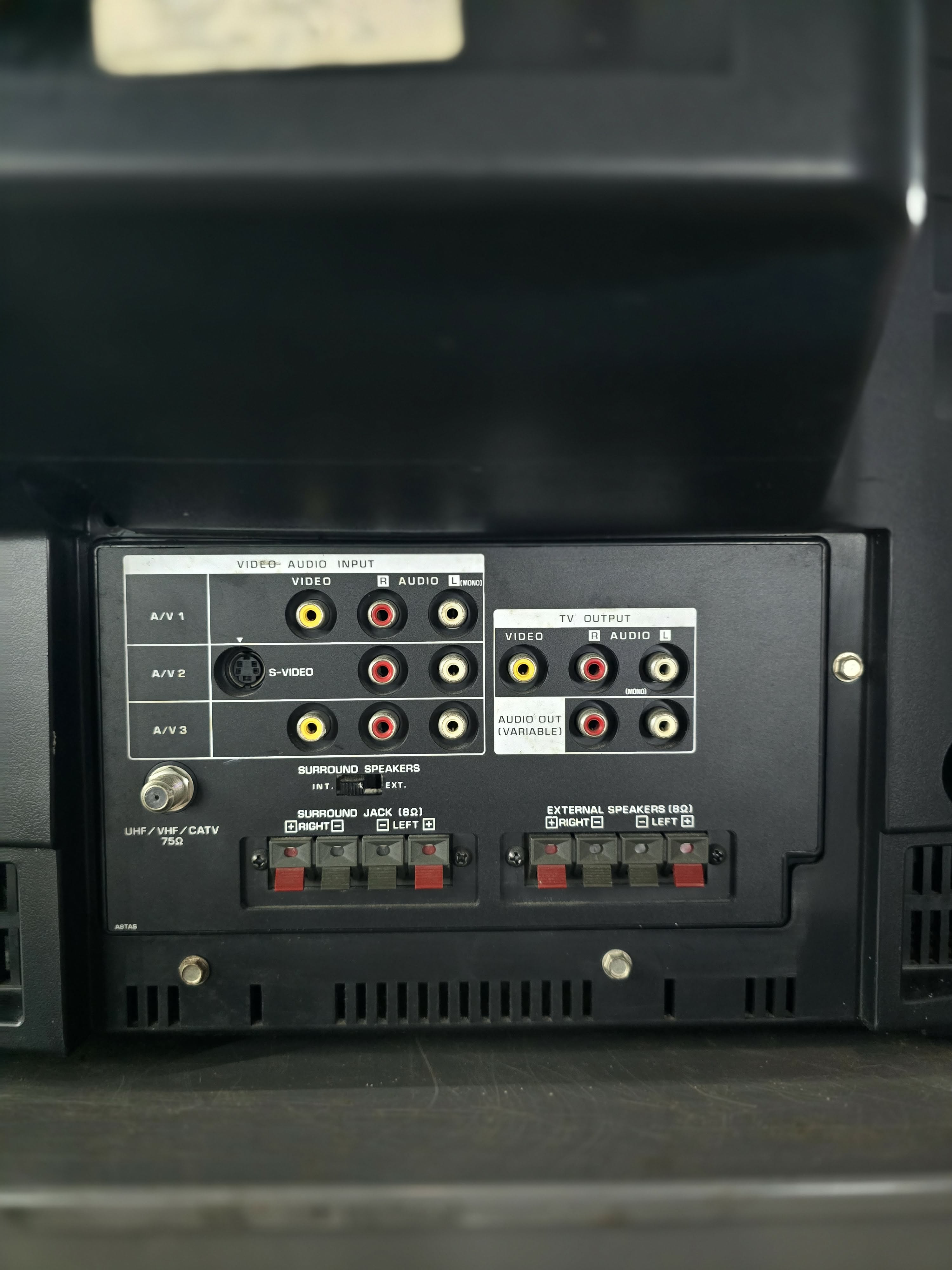

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Focus Type: | Single |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

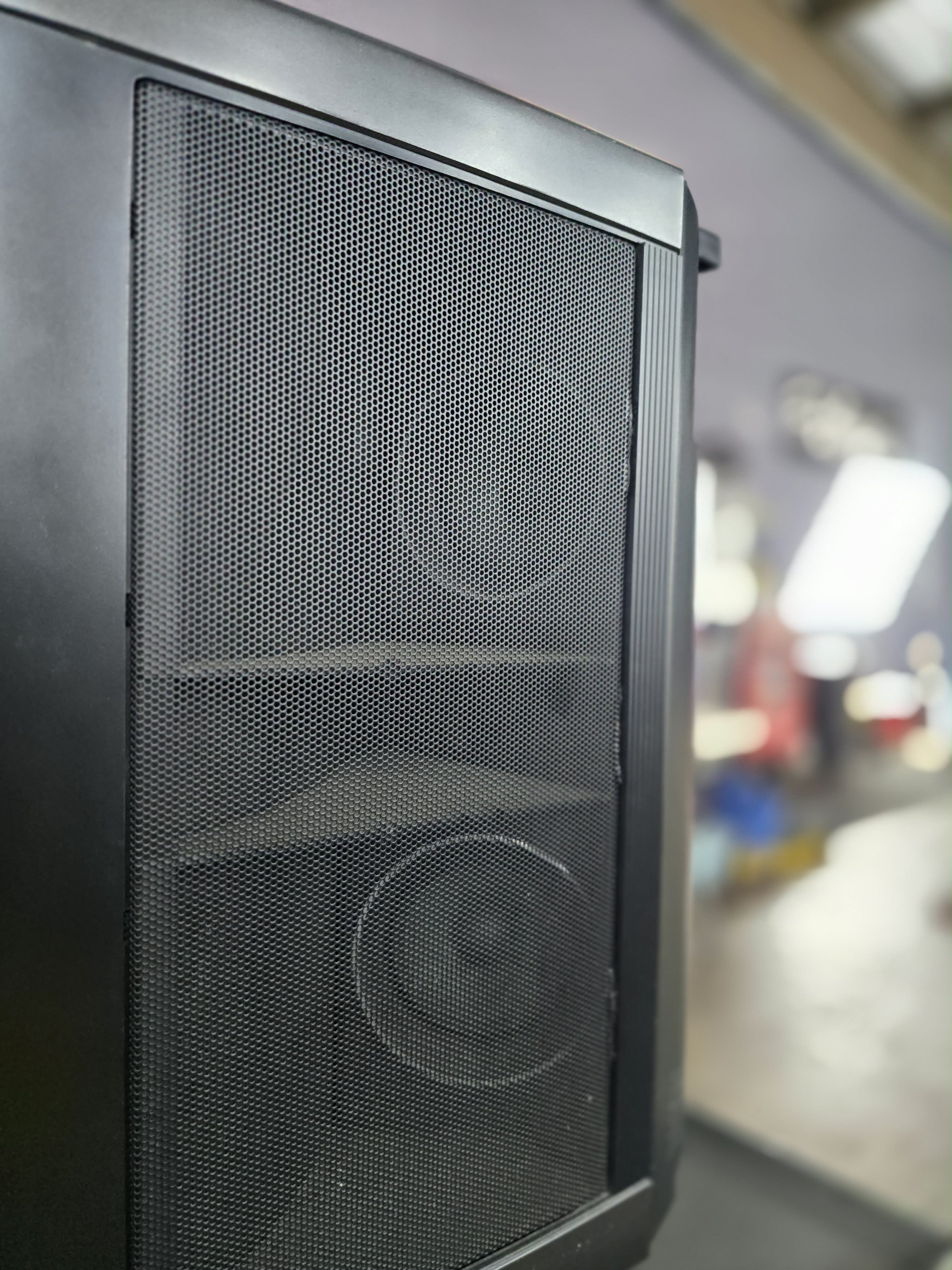

| Speakers: | Stereo, Headphone Jack, Subwoofer |
| Weight: | 60 lbs (27.2 kg) |
| Dimensions (W/H/D): |
584 x 483 x 483 mm
(23 x 19 x 19") |
| Application: | Consumer |
| Cabinet Material: | Metal |
| Launched: | 1988 |
| MSRP: | 639 USD |
| Country of Manufacture: | USA, Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
