Summary

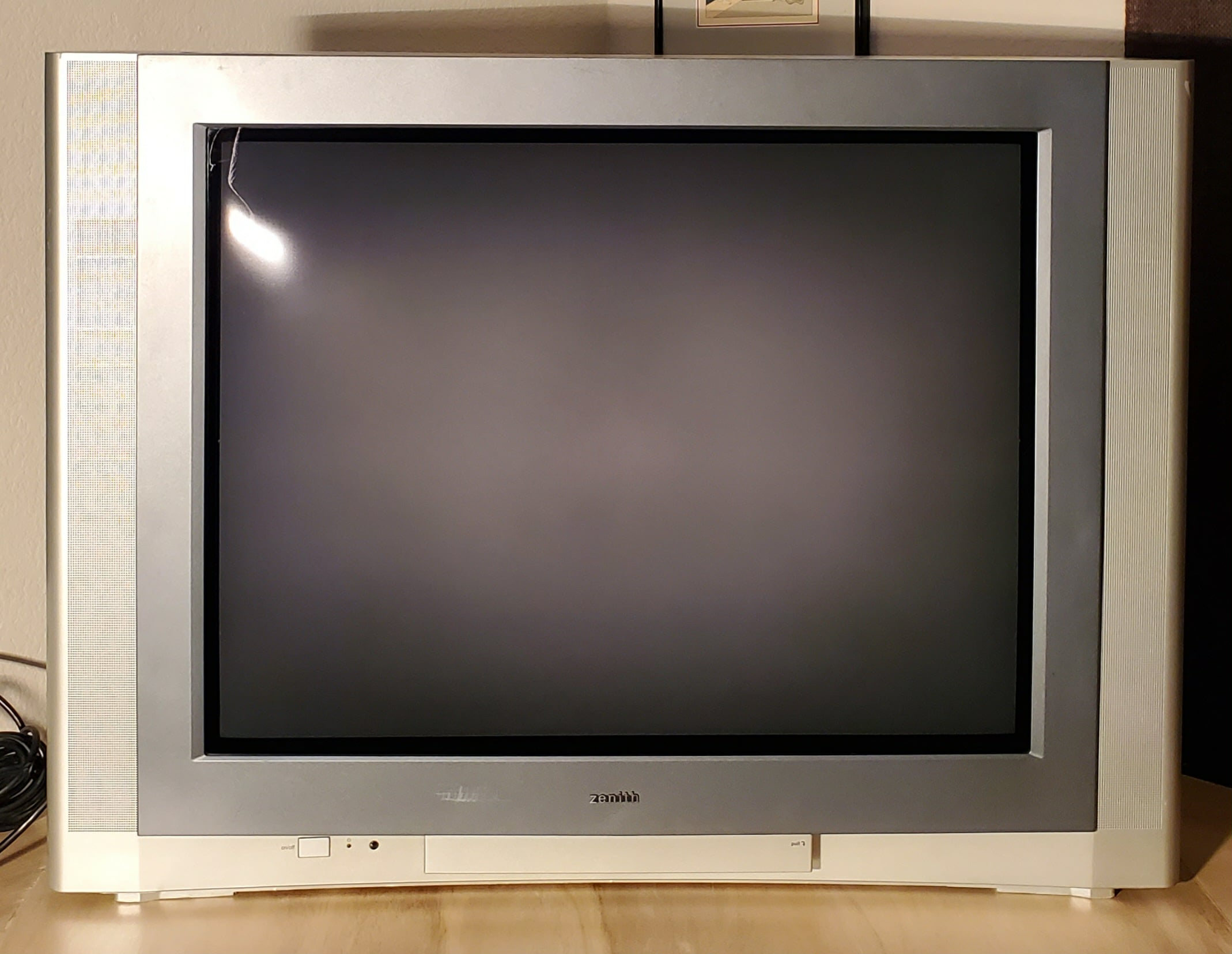

32" flat multimedia display by Zenith. Accepts 240p/480i over RF, composite, s-video, component inputs and 800x600 on the VGA input. Originally manufactured by LG in 2004.
(Special thanks to Jesse Liberty for the pics!)
Manuals
Notes
This set is essentially an HD CRT, with all signals scaled up to 37.9 scan range. It is natively 800x600p at 60hz, and SD resolutions are upconverted with laggy processing. 480p is not supported.
The set has picture controls in the menu to adjust raster shape and size, which is convenient.
Gallery
| Specifications | |
|---|---|
| Brand: | Zenith |
| Manufacturer: | LG |
| Model: | H32H49S |
| Series: | Presentation Series |
| Viewable Size: | 32" |

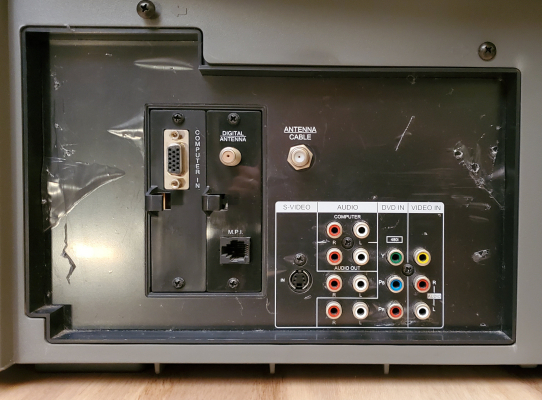

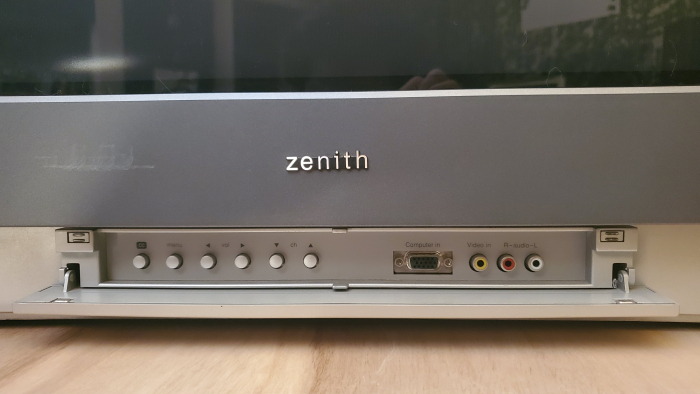

| Inputs: | VGA, Composite, S-Video, RF, Component YPbPr |
| Sync: | HV Sync |
| Native Resolutions: | SVGA |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 37.9 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

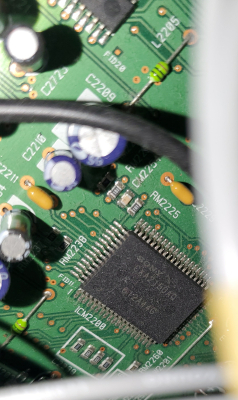

| Jungle IC: | Sony, CXA2150Q, CXA2150AQ |

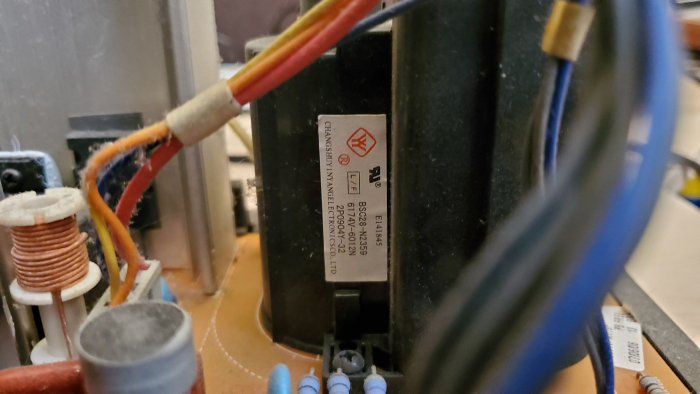

| Flyback: | BSC28-N2359, 6174V-6012M |
| Focus Type: | Dual |

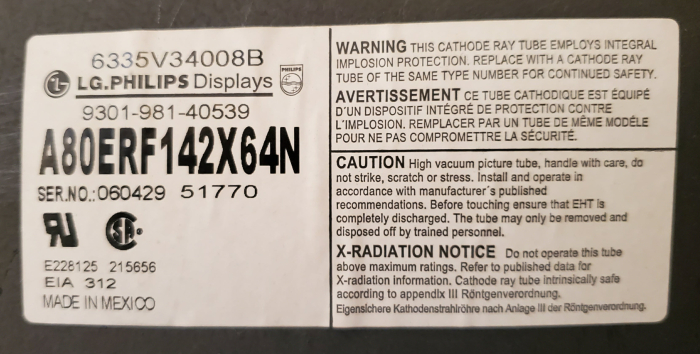

| Tube: | LG.Philips , A80ERF142X , A80ERF142X64 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |

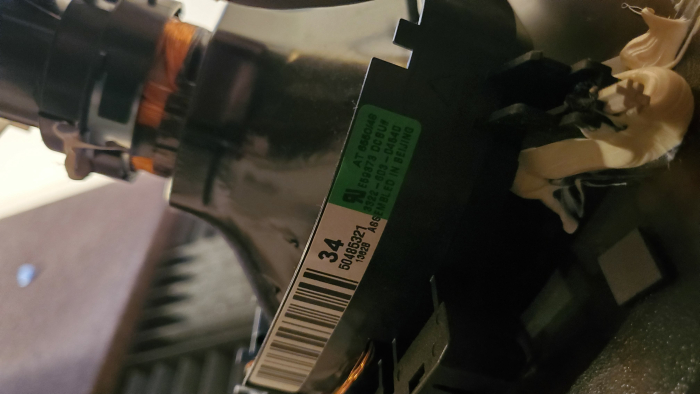

| Yoke: | AT6550/48, 3322-603-04640 |

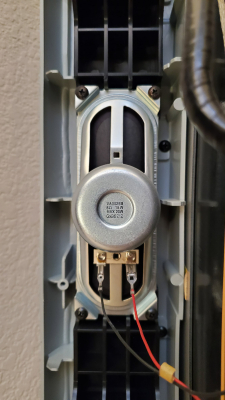

| Speakers: | Stereo, 15W x 2 |
| Remote: | 6710V00108D |
| Chassis: | DIGITAL FCS |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 1199 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
