Summary
Generic late '90s 15" computer monitor. Manufactured by Taiwanese company Royal Information Electronics Co, it has no branding information on the case and the only clue to its identity is the rear label.
Manuals
No documentation is available online at this time.
Notes
This monitor supports a wide range of scan rates for a 15" monitor. It will display an image up to 68 kHz, but at those resolutions it's hard to get good geometry. It works best at 60 kHz and below.

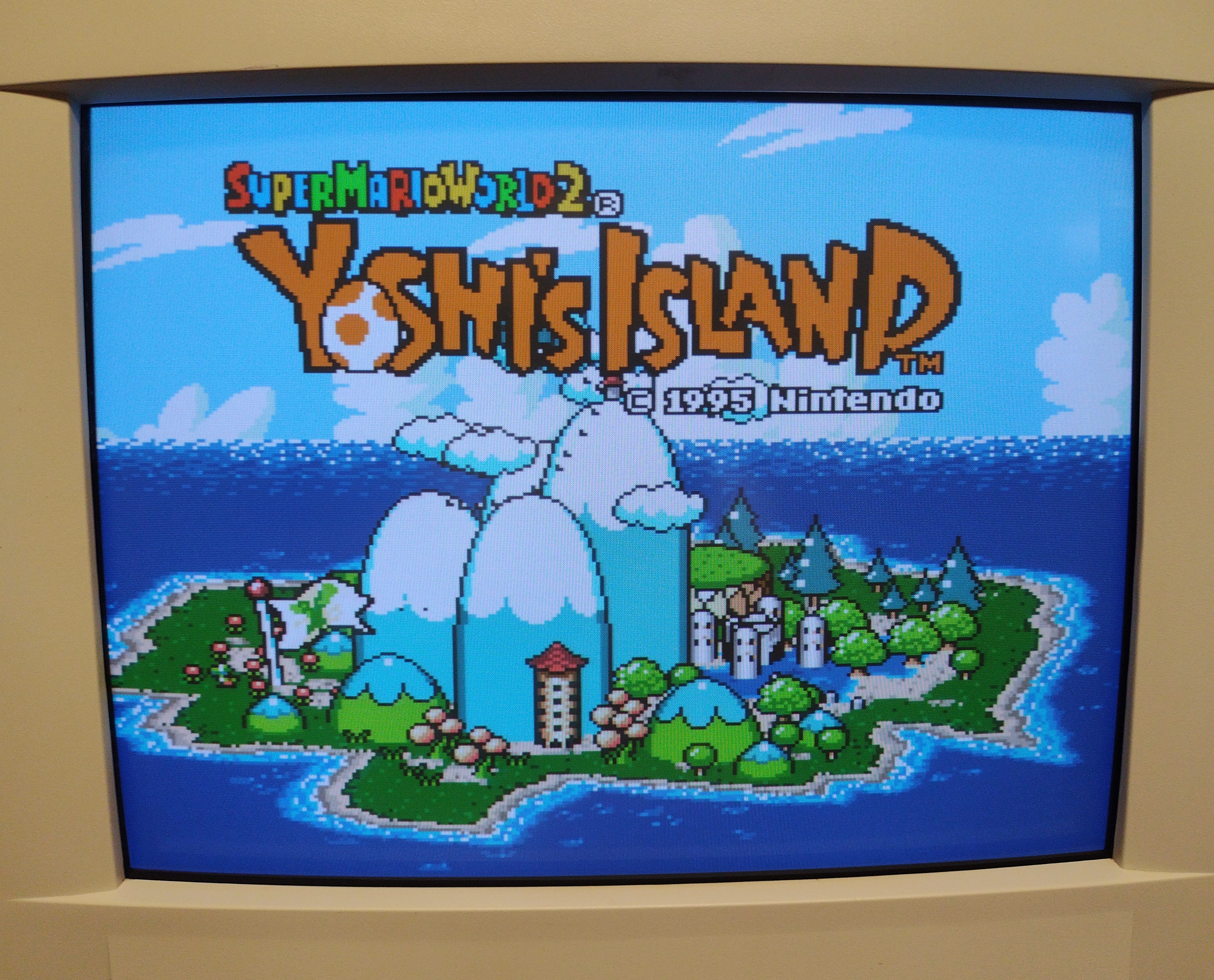

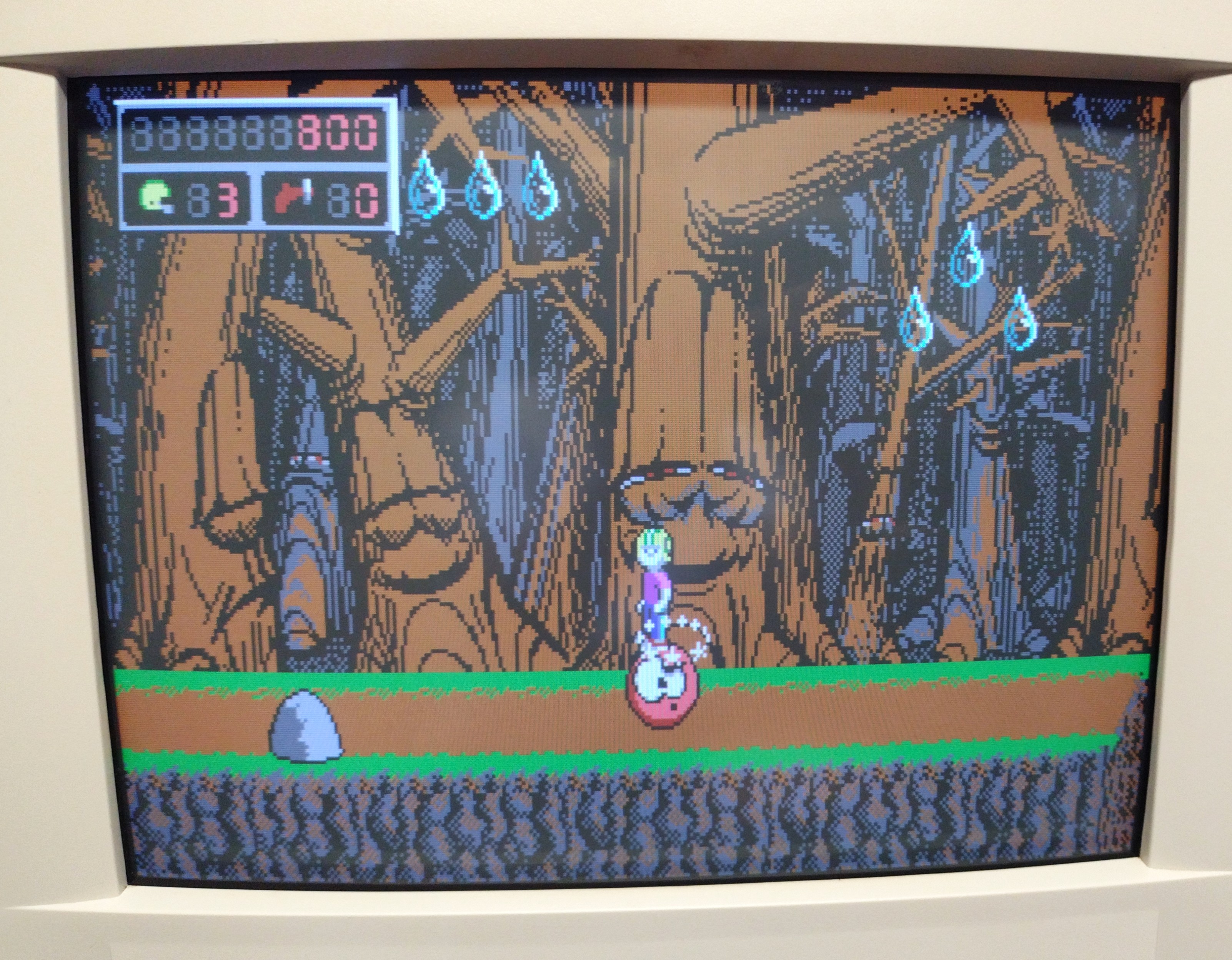

Gallery



Specifications | |
---|---|
Brand: | RIC |
Manufacturer: | Royal Information Electronics |
Model: | 570 |
Series: | RIC |
Viewable Size: | 14" |
Inputs: | VGA |
Sync: | HV Sync |
Native Resolutions: | VGA, SVGA, XGA |
Horizontal Scan Range: | 28 kHz, 68 kHz |
Vertical Scan Range: | 40 Hz, 118 Hz |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Vertical Output IC: | TDA9302H |
Flyback: | FEA677 |
Focus Type: | Single |
Tube: | Irico , 40SG202Y22 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Shadow
![]() |
Tint: | Dark, Matte Anti-Glare |
Removable Glare Film: | No |
Yoke: | QPCS29-90-40A |
Yoke Horz. Inductance: | 0.18834 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 5.461 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.47 ohm |
Yoke Vert. Resistance: | 8.05 ohm |
Speakers: | None |
Weight: | 25.4 lbs (11.5 kg) |
Application: | Computer Monitor |
Cabinet Material: | Plastic |
Country of Manufacture: | China |
Market: | North America |
Power Standard: | 120v, Universal, 100v, 240v |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Owners Manual, Needs Service Manual |
