Summary

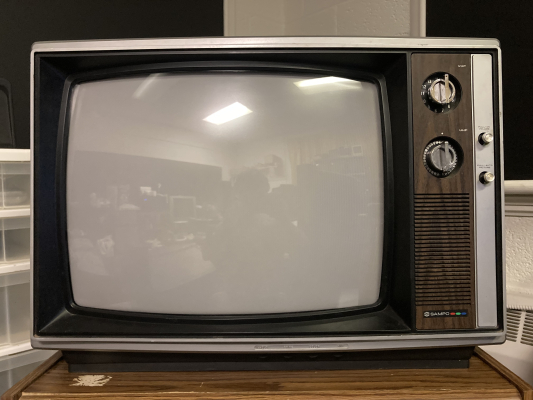

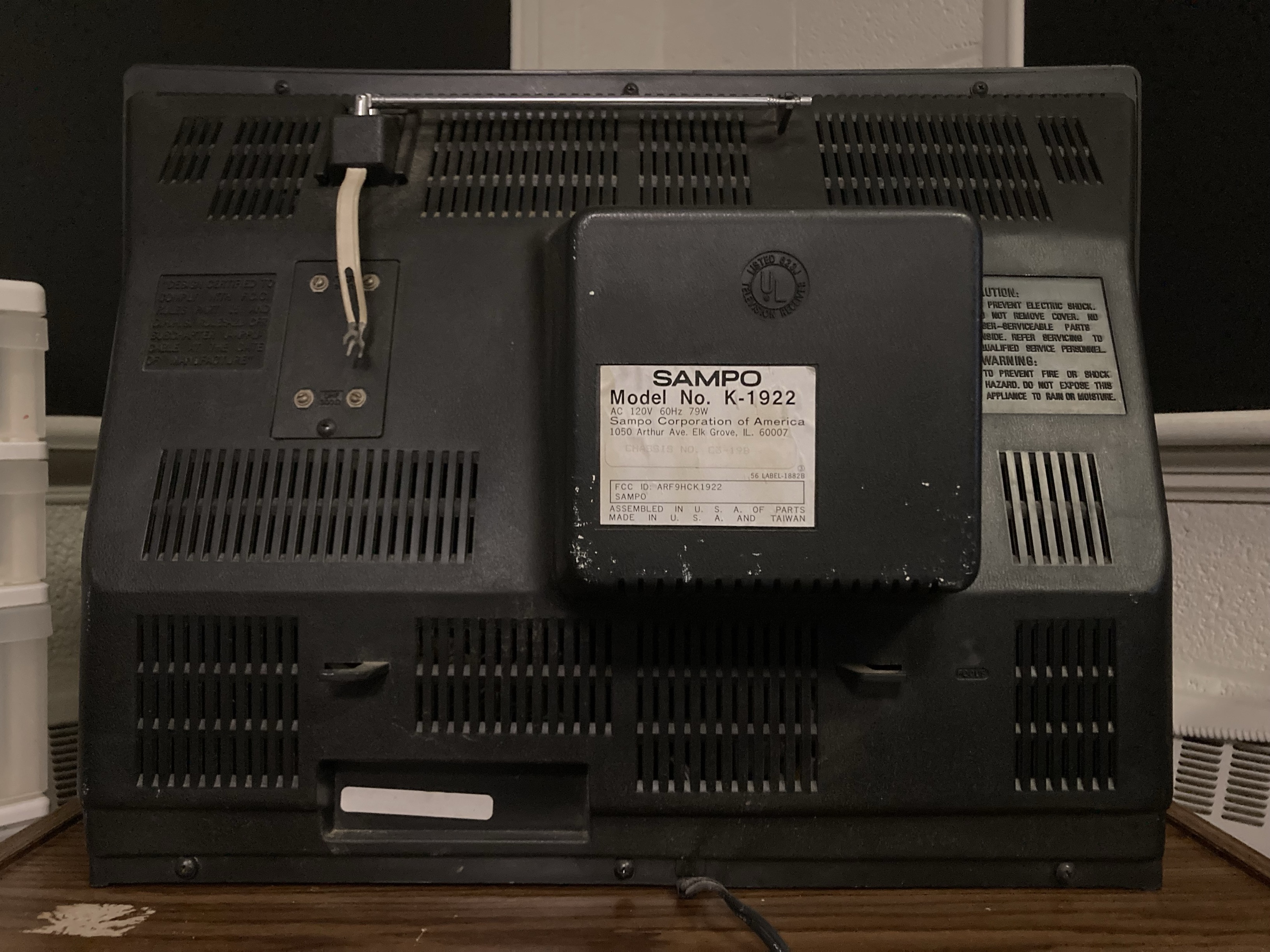

19" color TV by Sampo from 1983. Made of parts from Taiwan and USA.
Manuals
(None at this time)
Notes
Picture tube is an RCA model that is compatible with a variety of early-80's arcade chassis:
- Electrohome G07-CBO
- Wells-Gardner K4900 (early / high impedance)
- Wells-Gardner K4900 (late / low impedance)
- Wells-Gardner K6400
Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Sampo |
| Manufacturer: | Sampo |

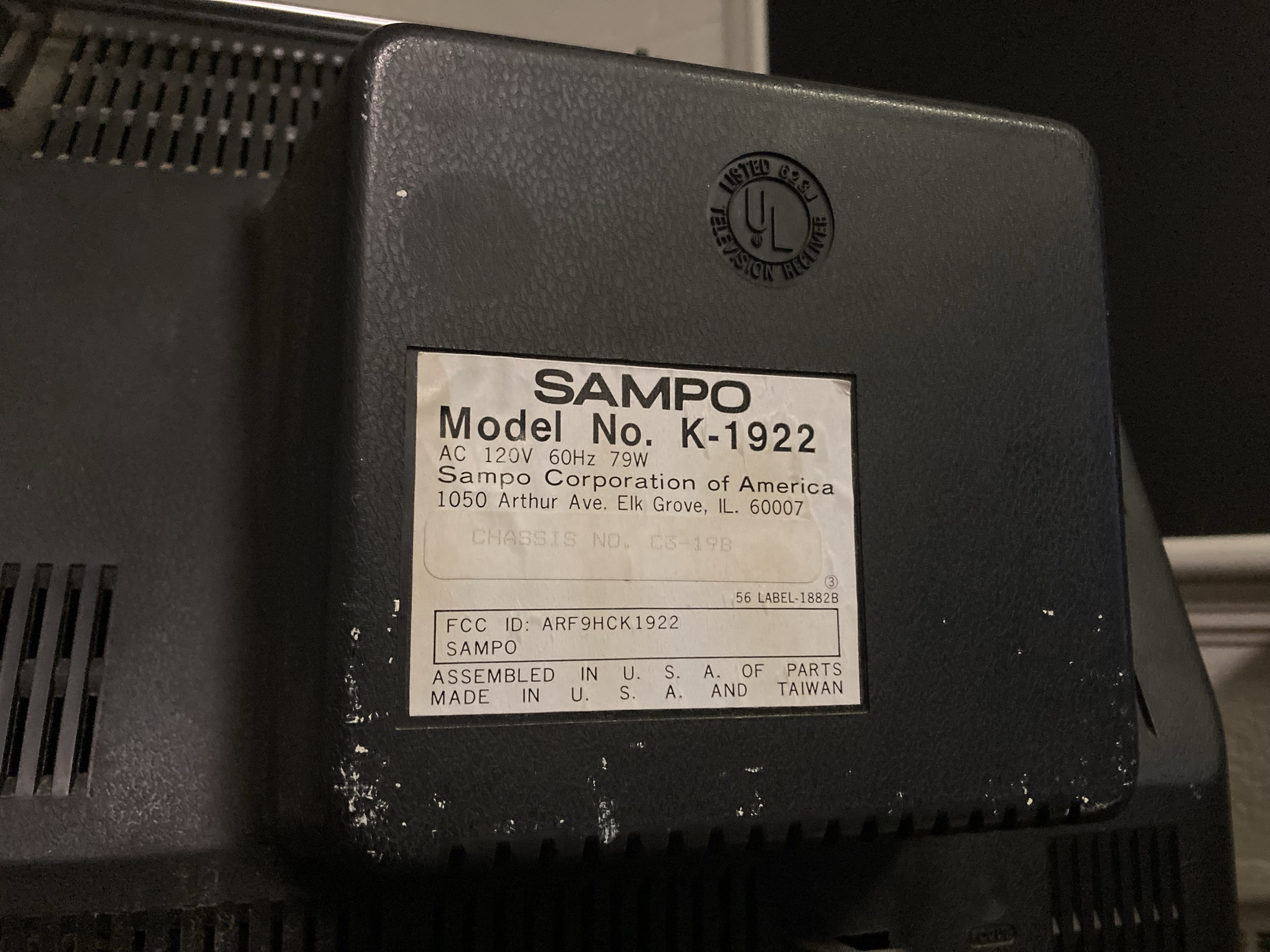

| Model: | K-1922 |
| Series: | K |
| Viewable Size: | 19" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

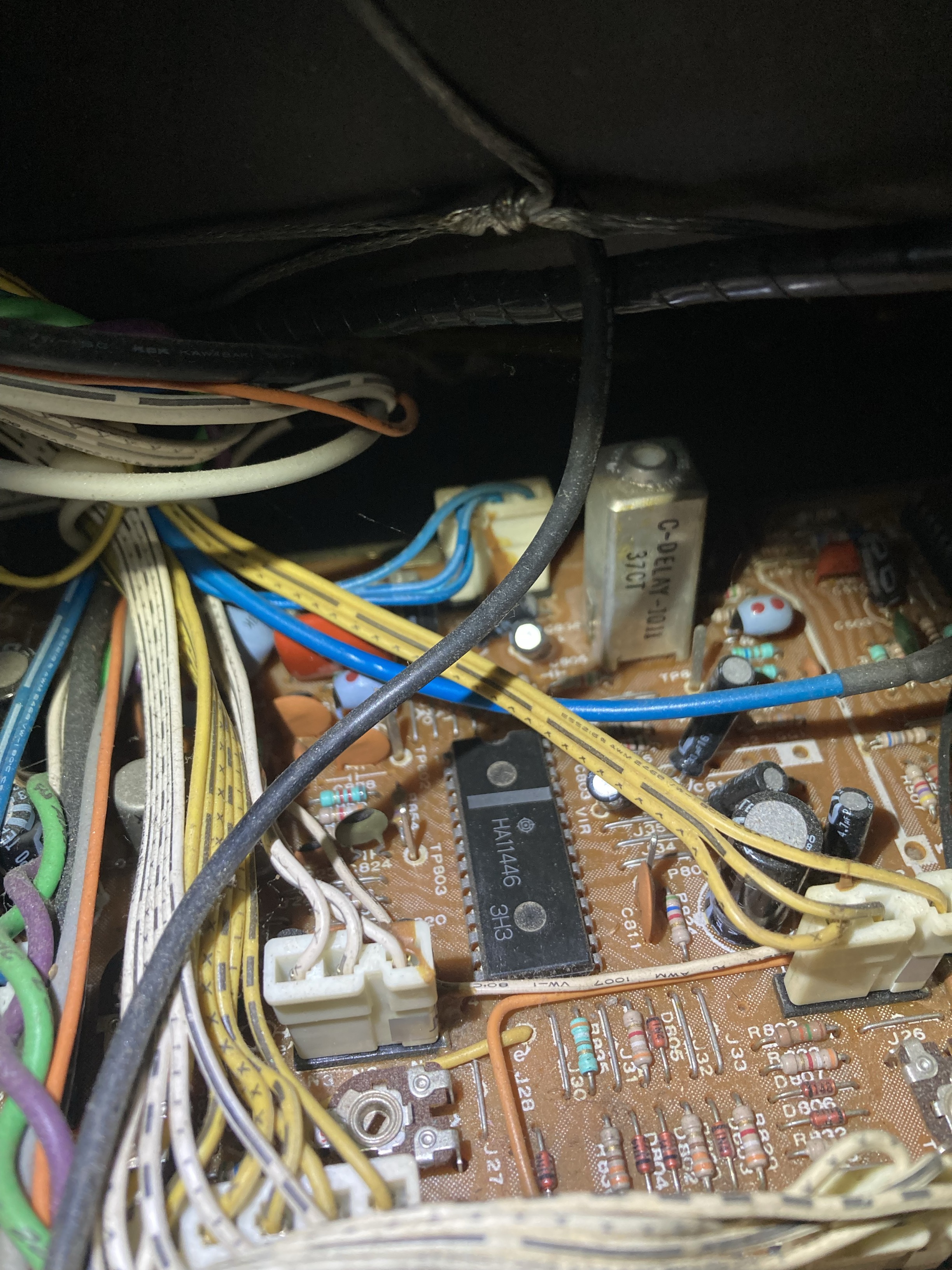

| Jungle: | Hitachi, HA11446 |
| Comb Filtering: | None |

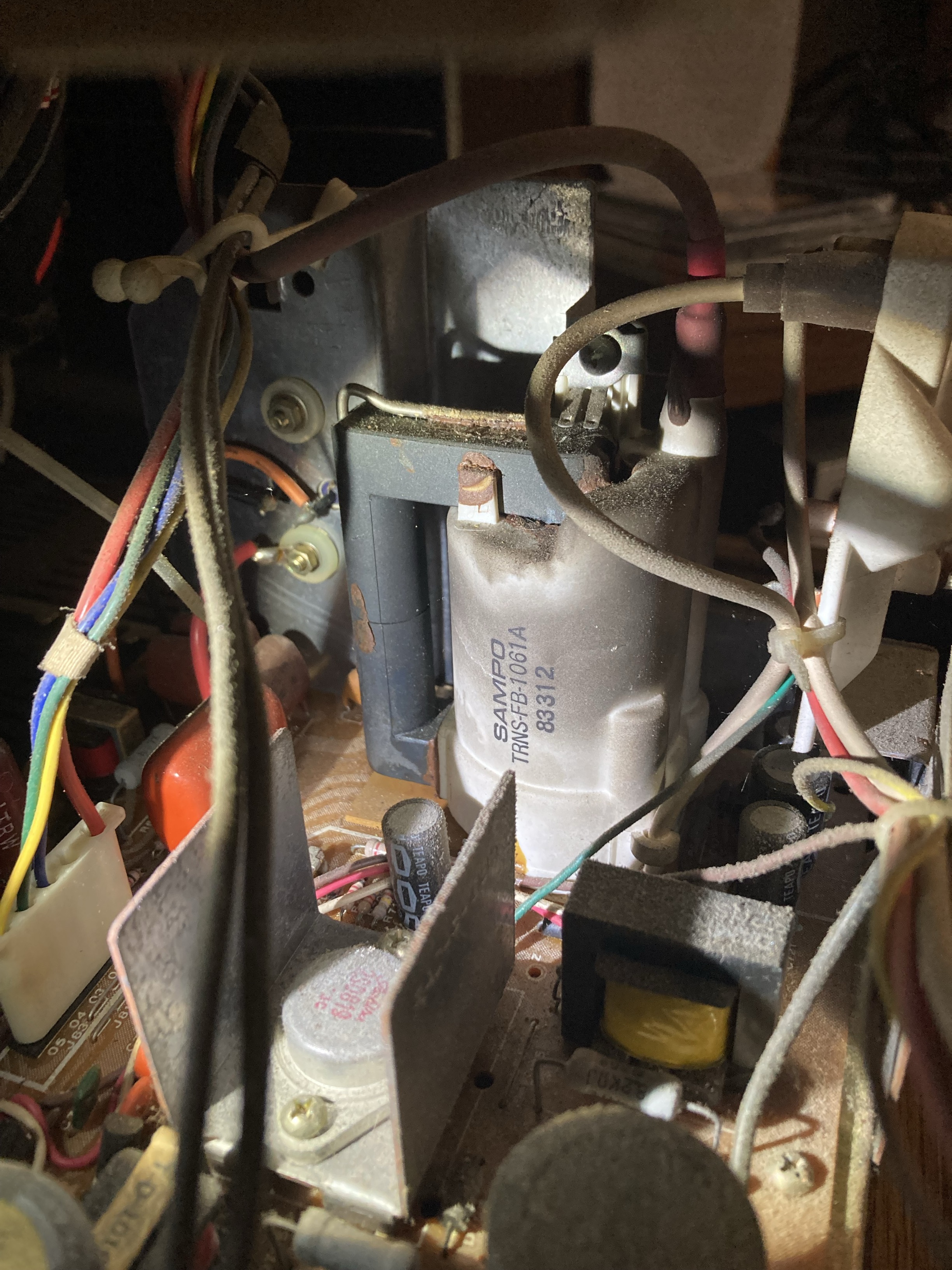

| Flyback: | TRNS-FB-1061A |
| Focus Type: | Single |

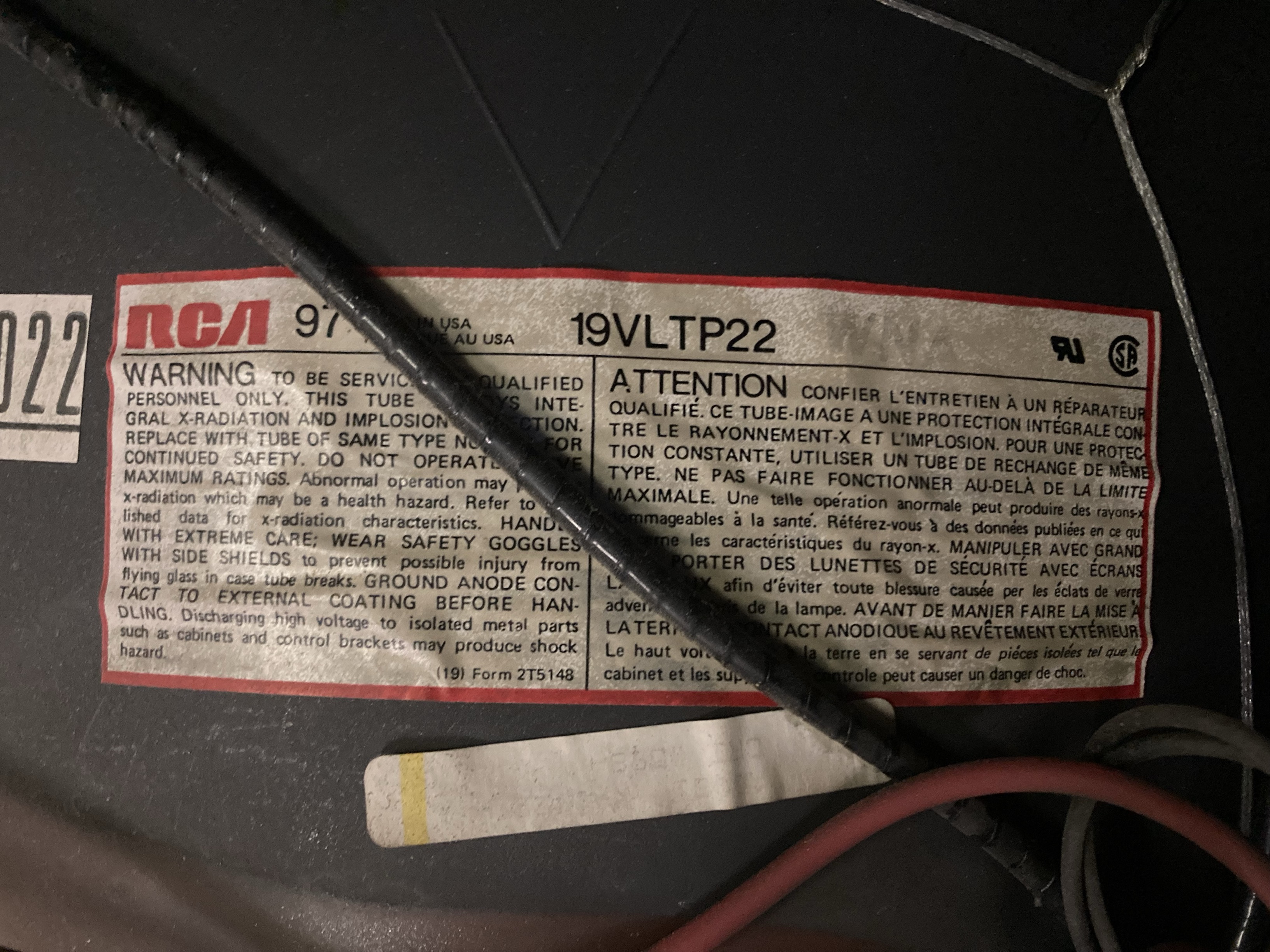

| Tube: | RCA , 19VLTP22 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | None |
| Removable Glare Film: | No |

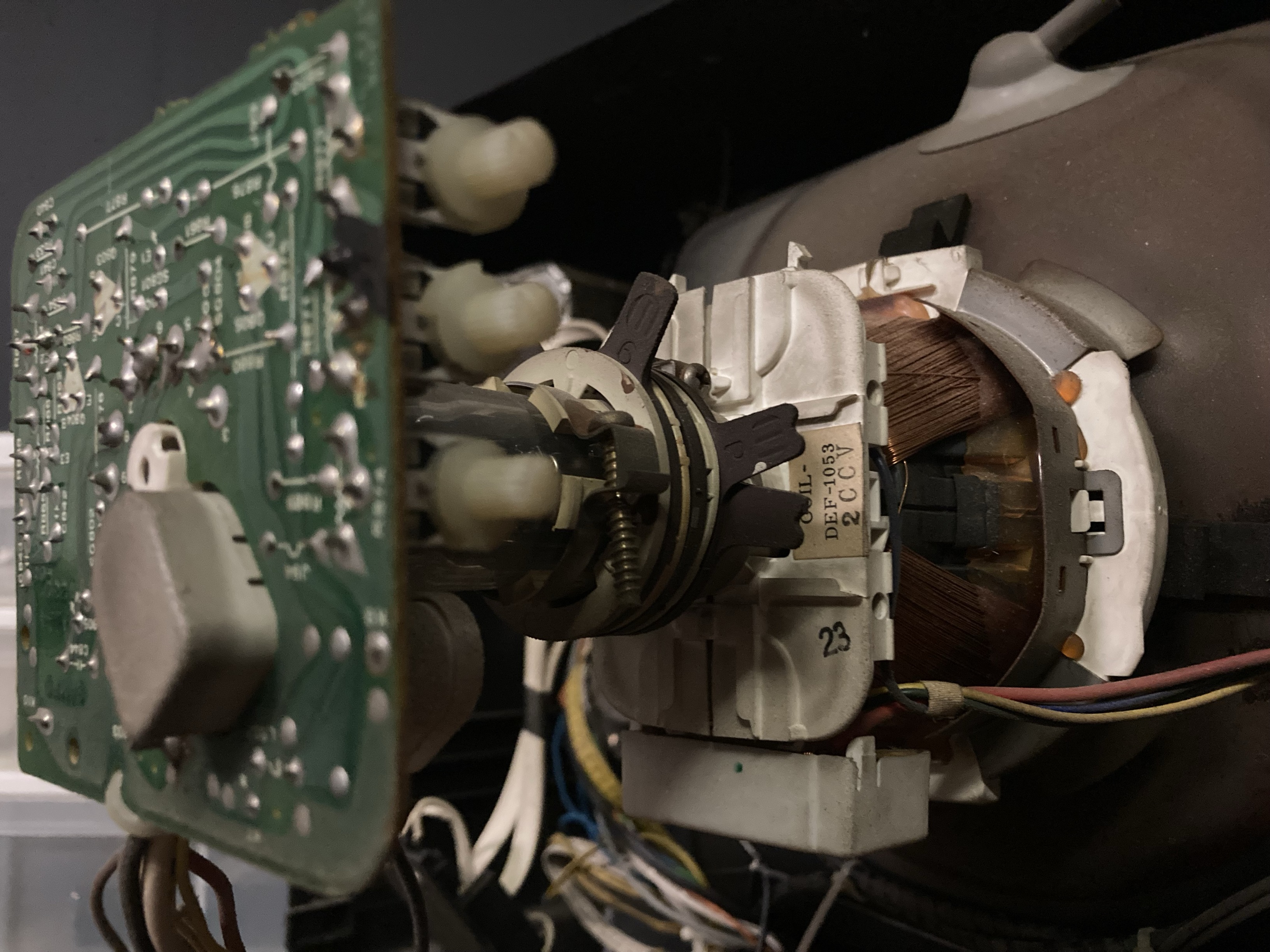

| Yoke: | COIL-DEF-1053 |

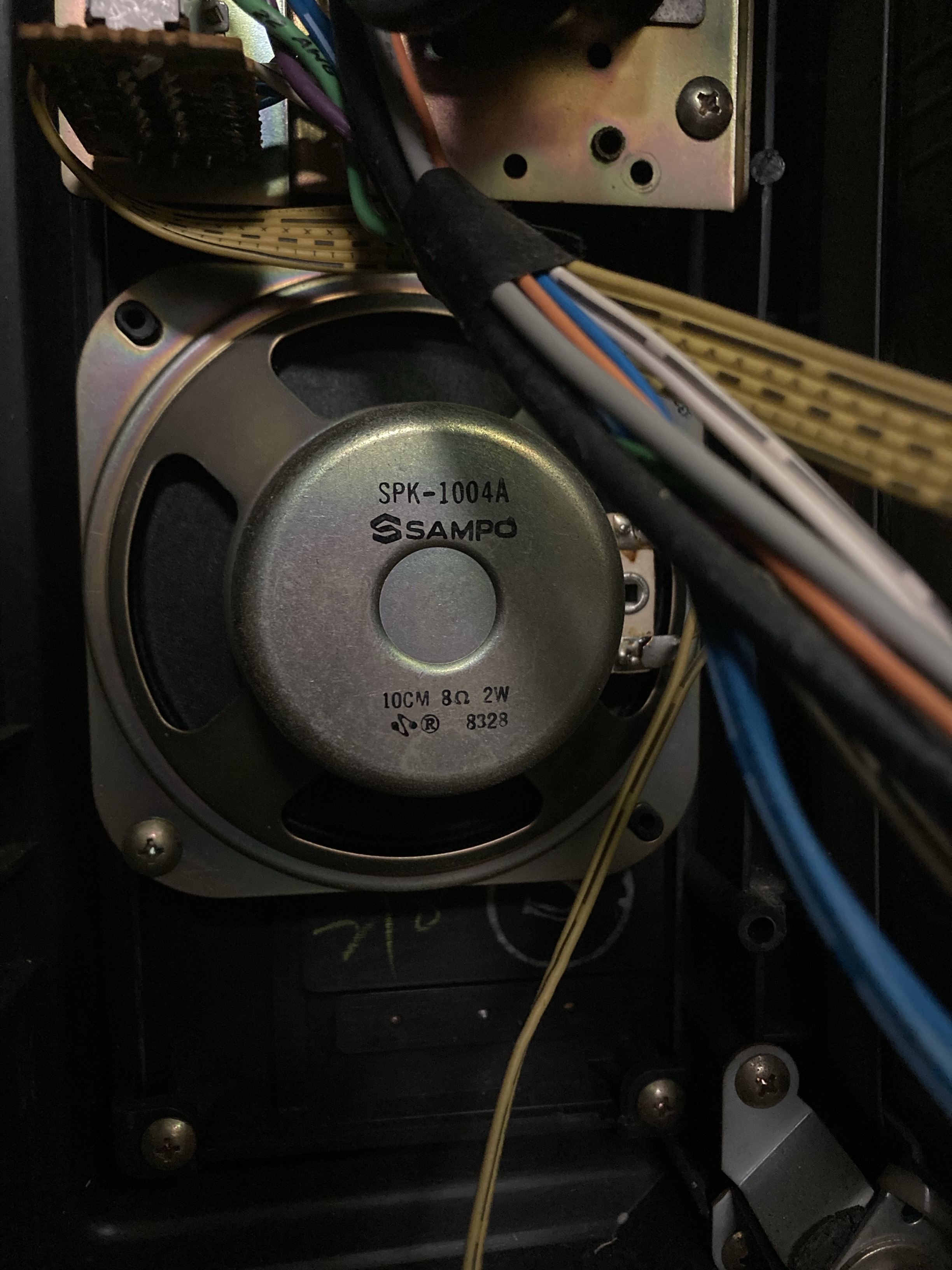

| Speakers: | Mono, 2W |

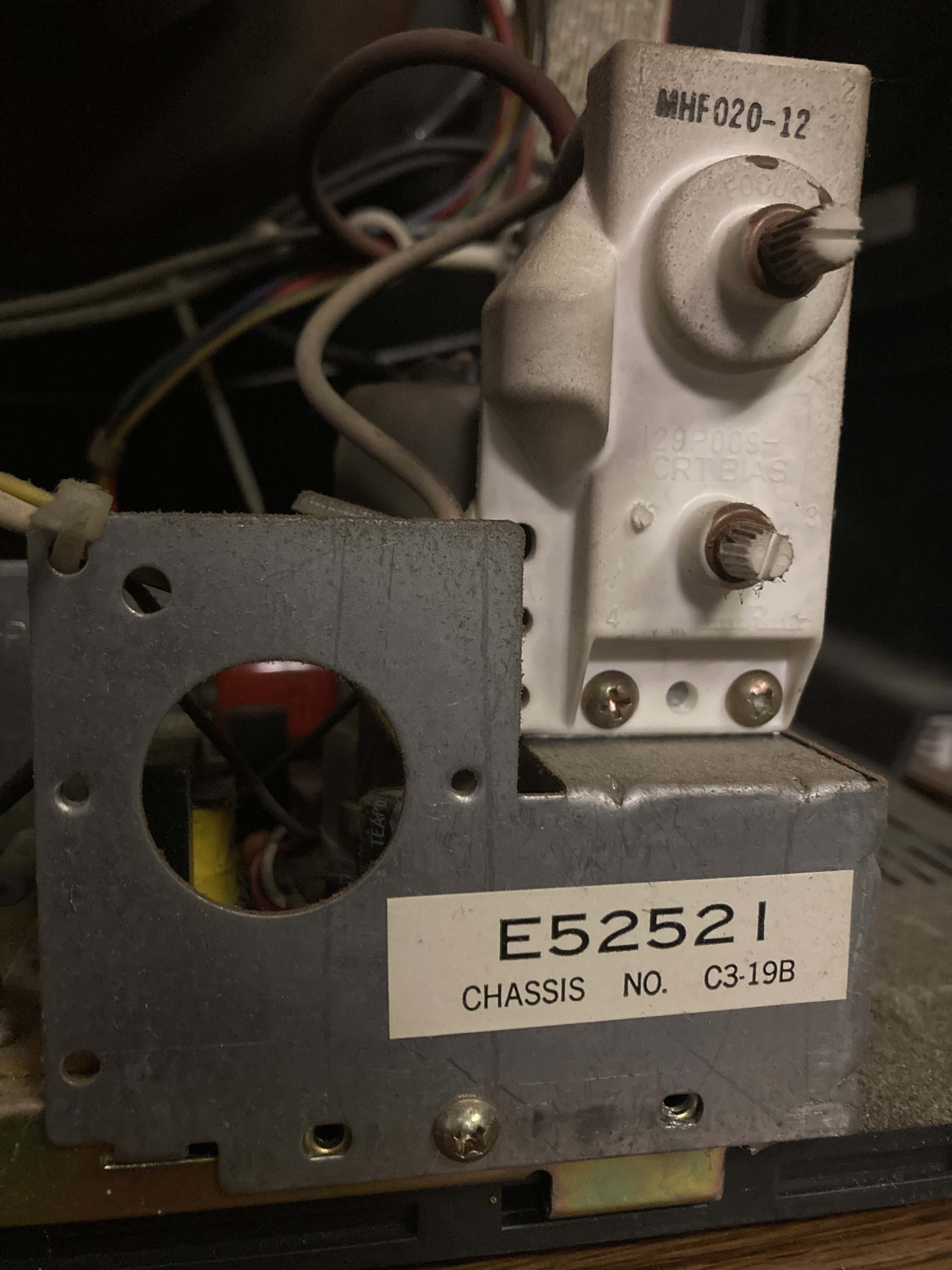

| Chassis: | C3-19B |
| Application: | Consumer |
| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1983 |
| MSRP: | 399 USD |
| Country of Manufacture: | Taiwan, USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
