Summary

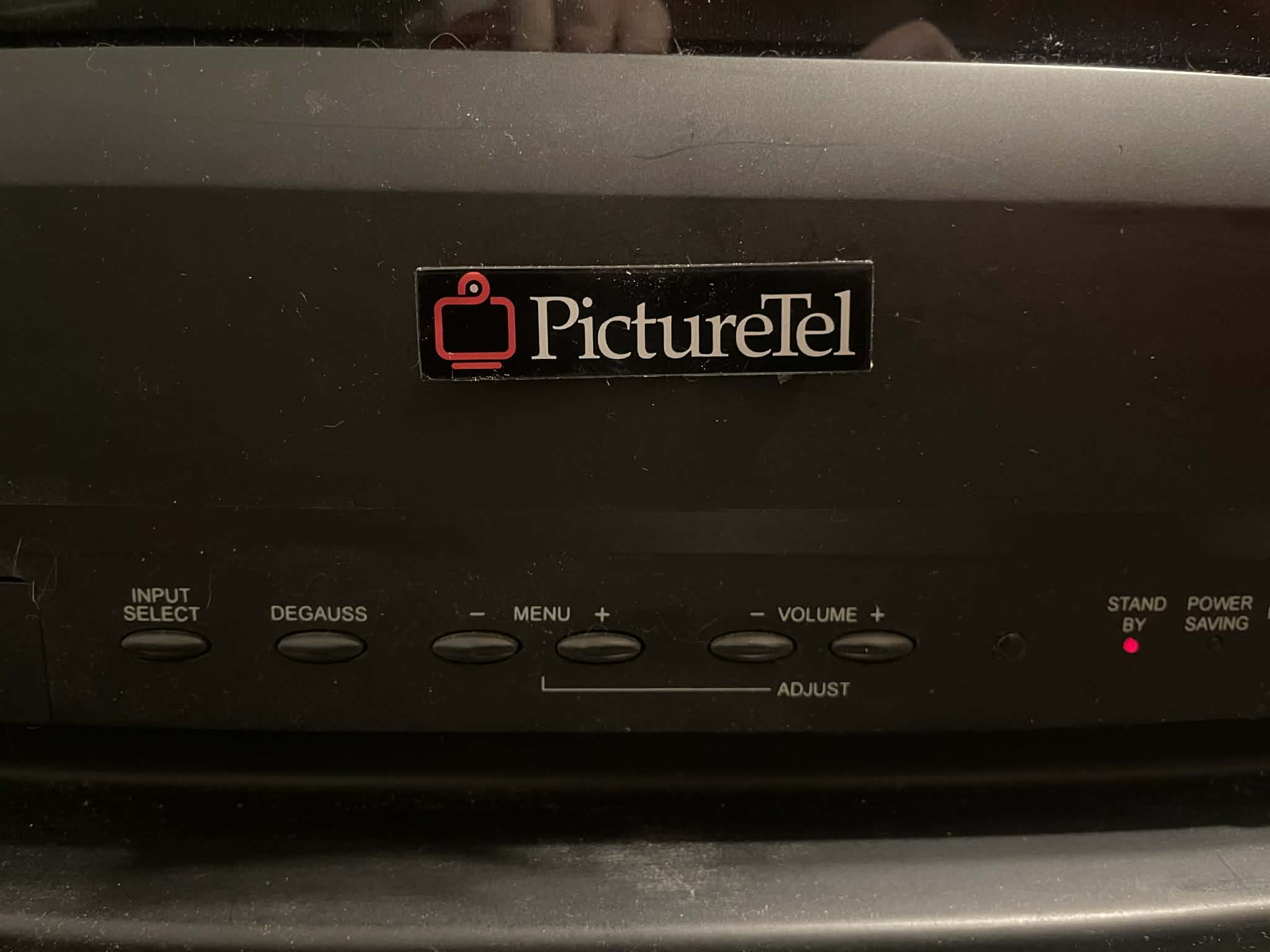

32" multisync presentation monitor by Sampo. Originally manufactured in Taiwan in 1999. The chassis in this monitor was used in a wide variety of rebadges such as NetTV, Tandberg, VTel, PictureTel, and Telestar. (Though the branding has been rebadged as PictureTel, the model number remains unchanged.)
(Special thanks to Mike Lindquist aka 'kitty666cats' for the pics!)
Manuals
Promo Materials
Notes
Chassis can be modified for 15Khz RGB. You can follow a guide on Michael J. Moffitt's website HERE

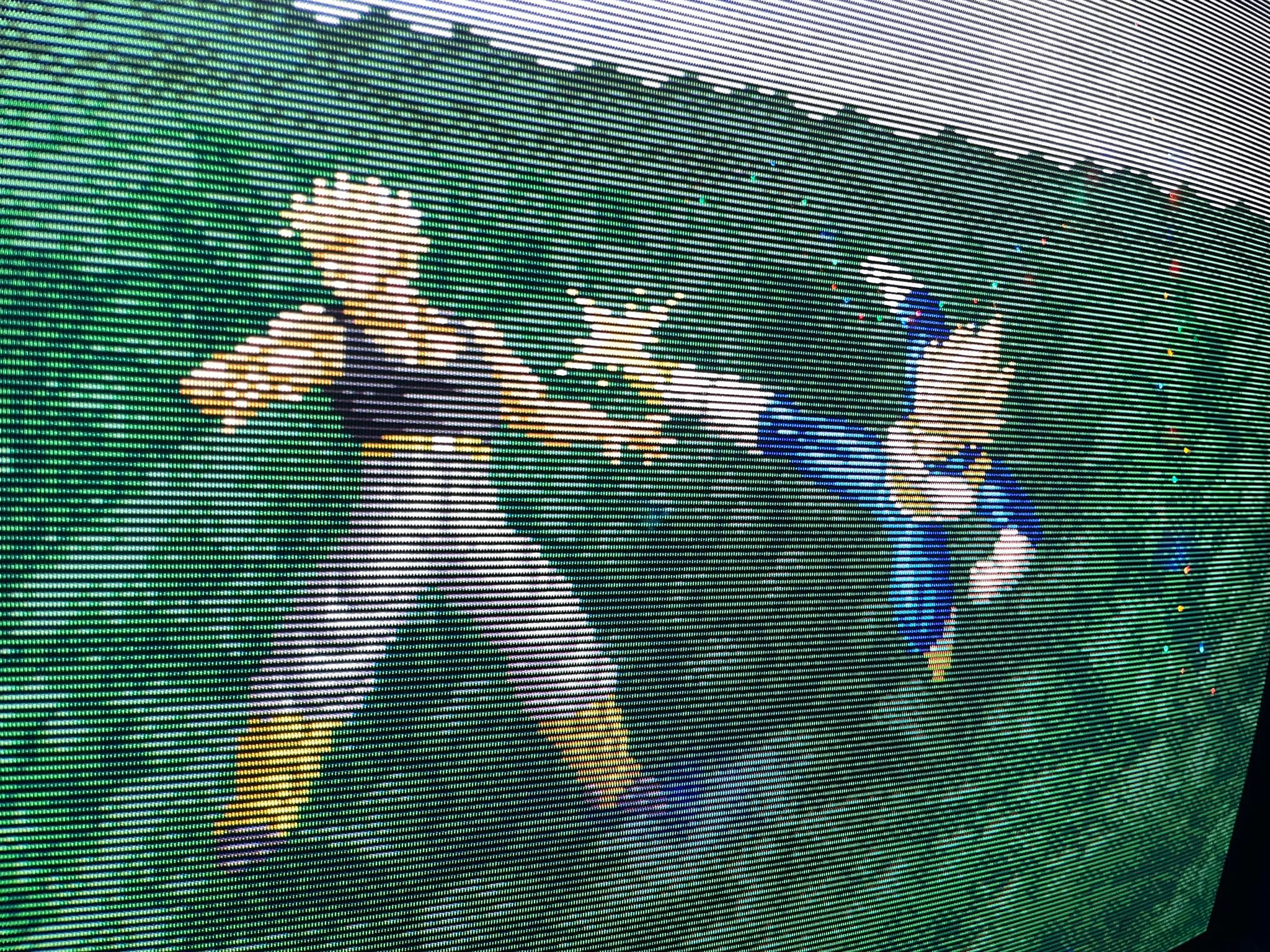

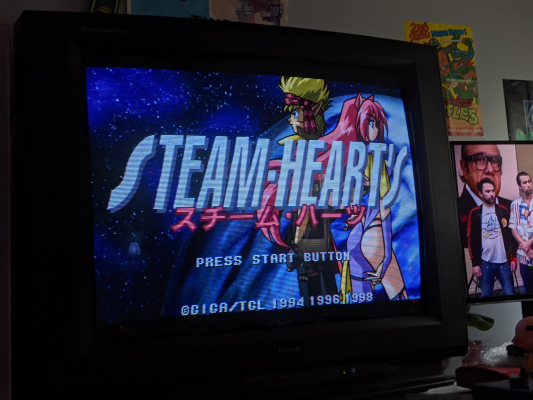

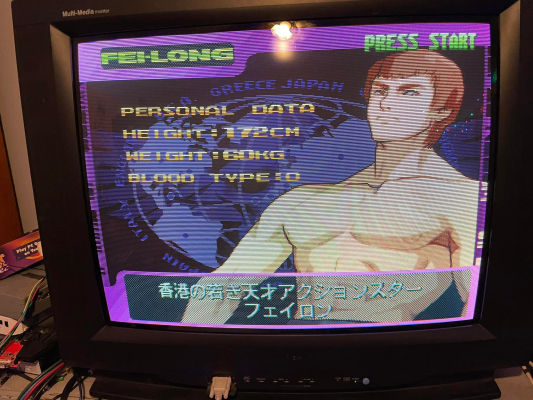

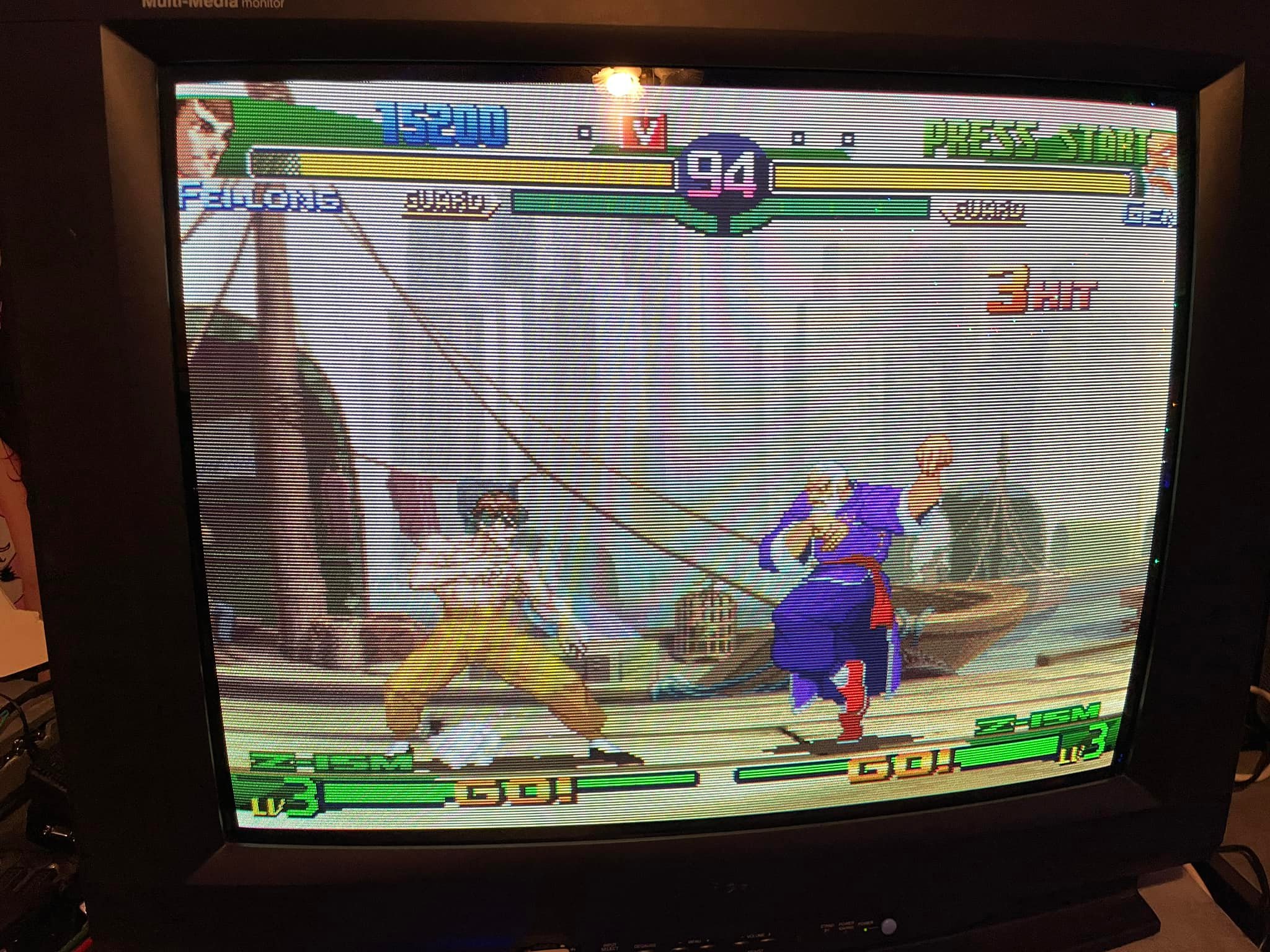

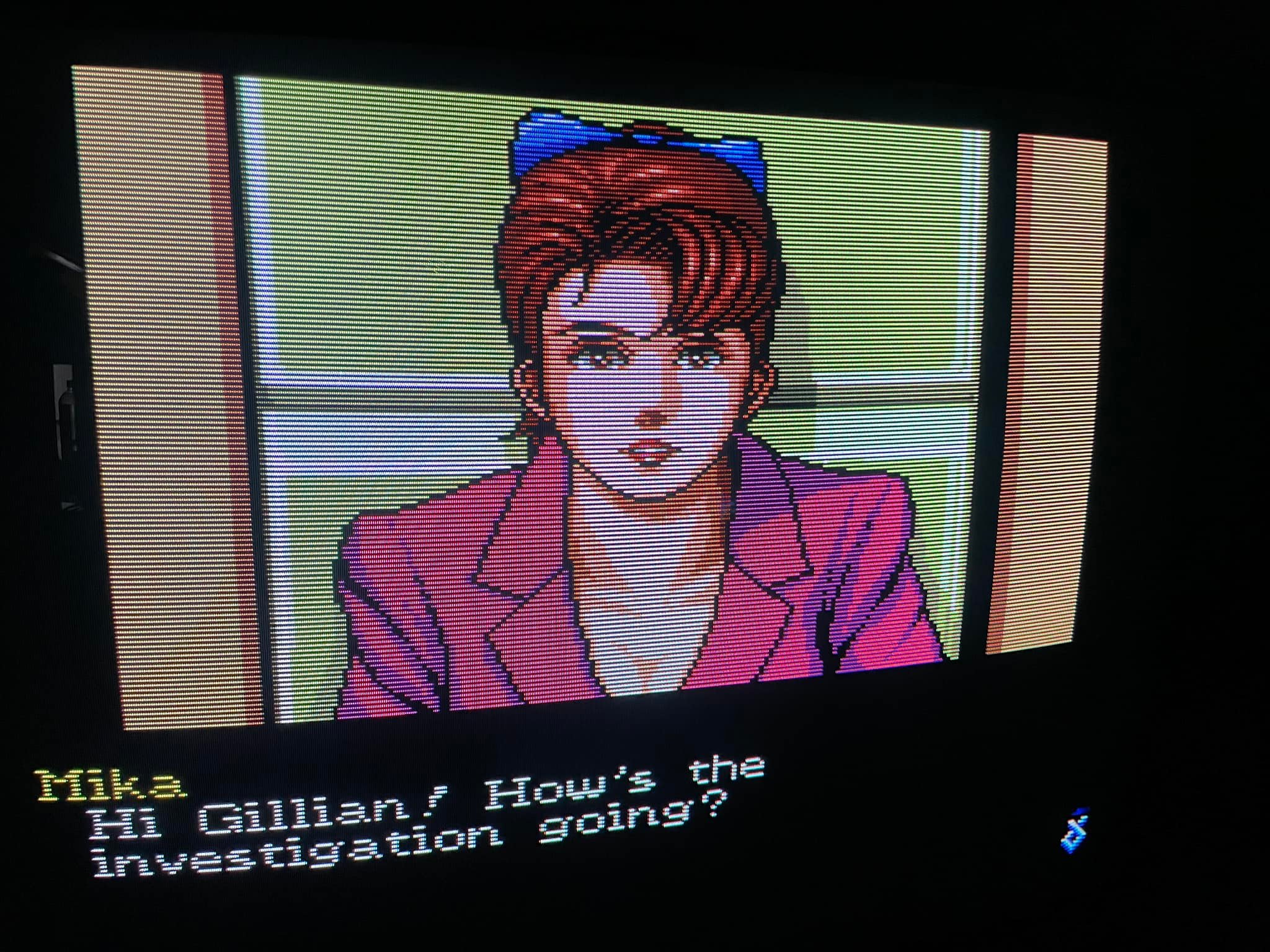

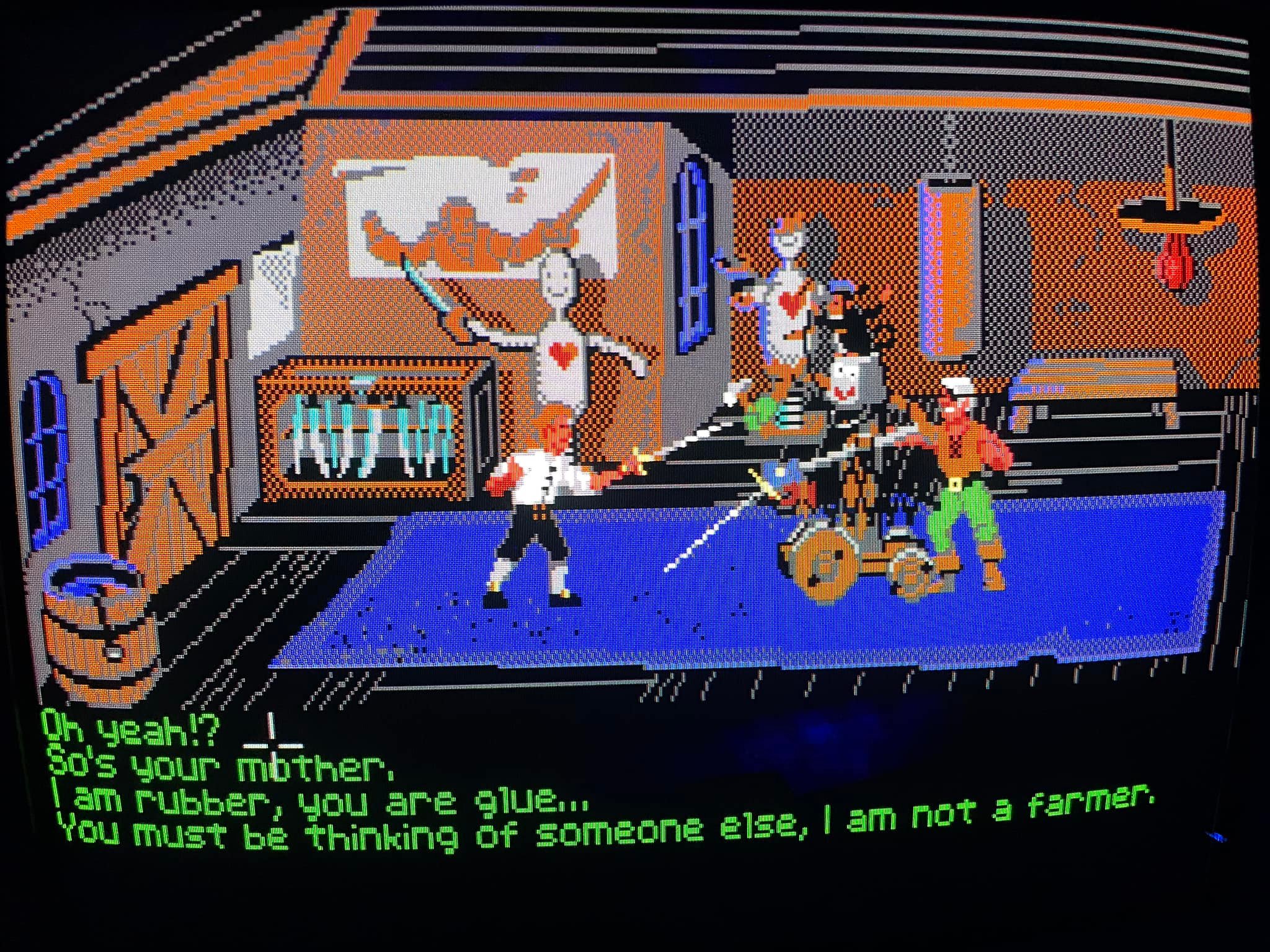

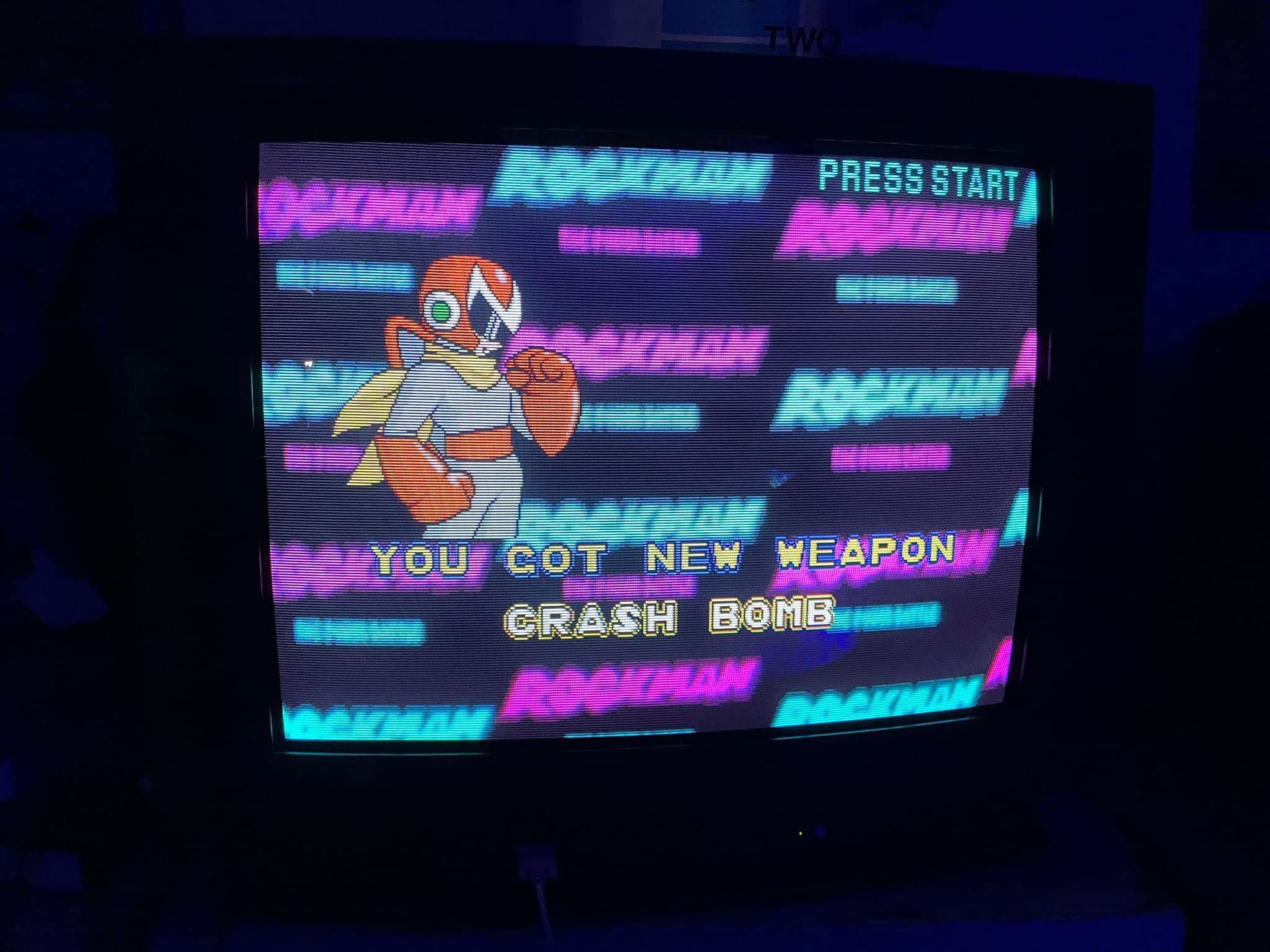

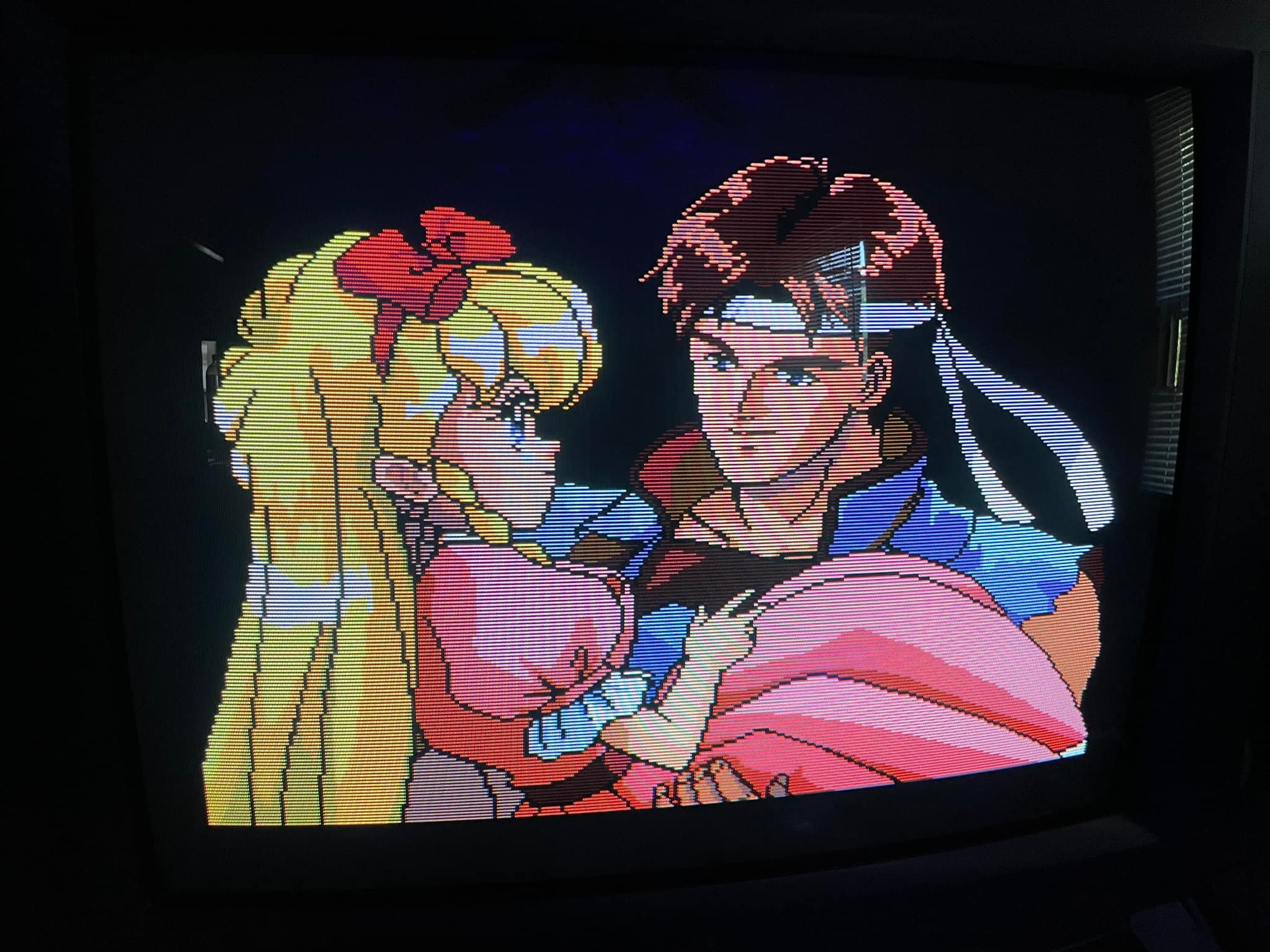

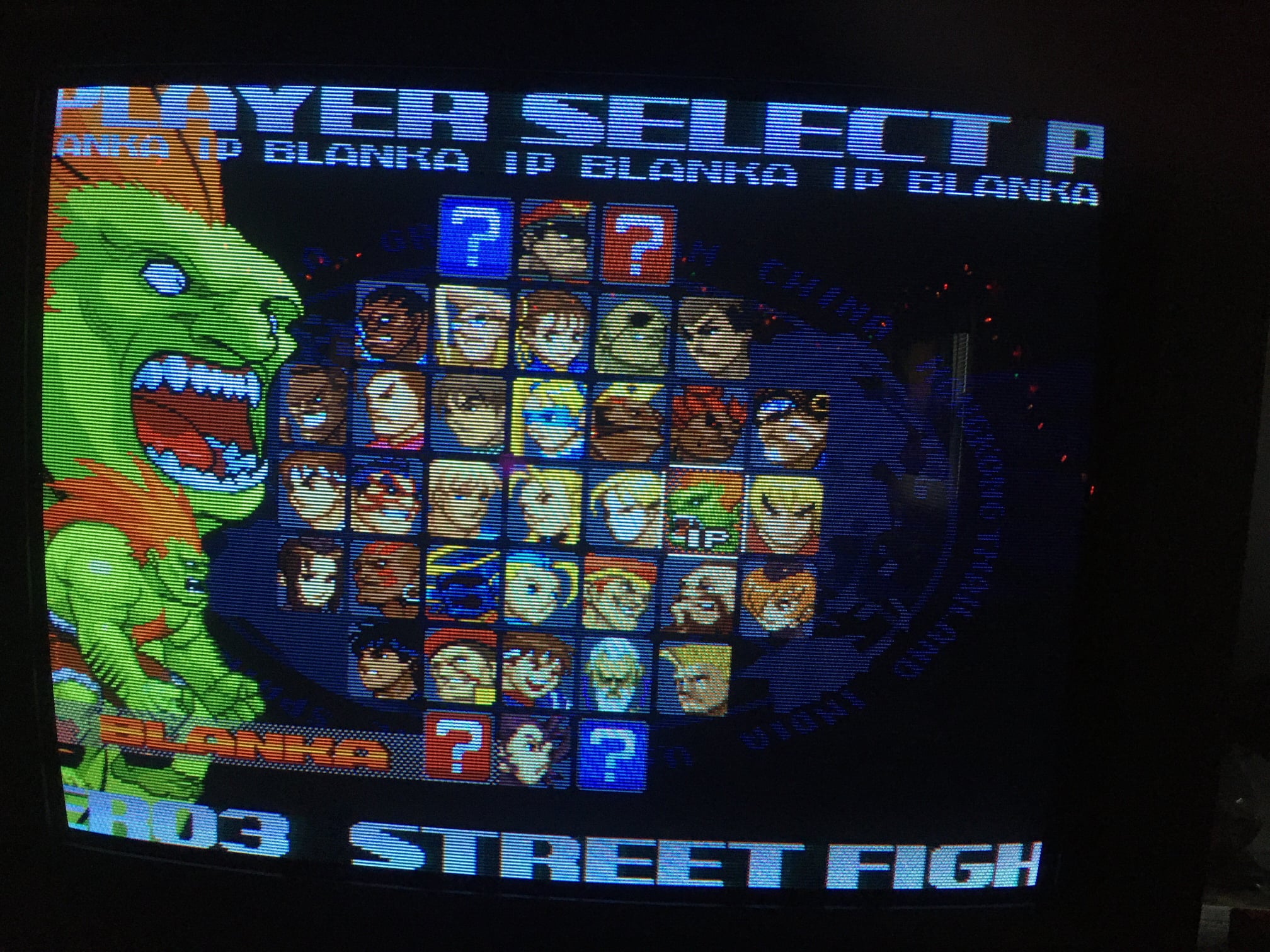

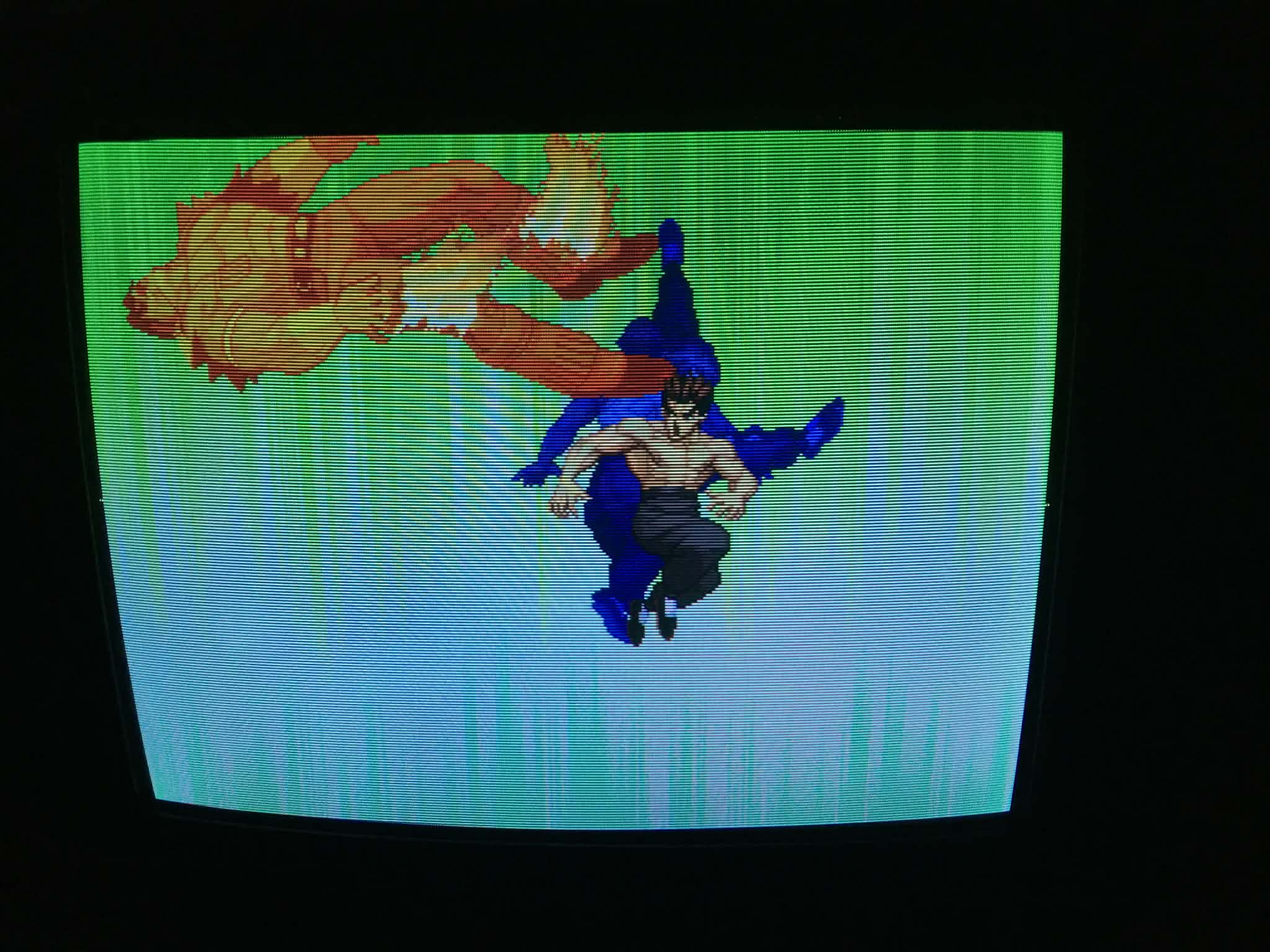

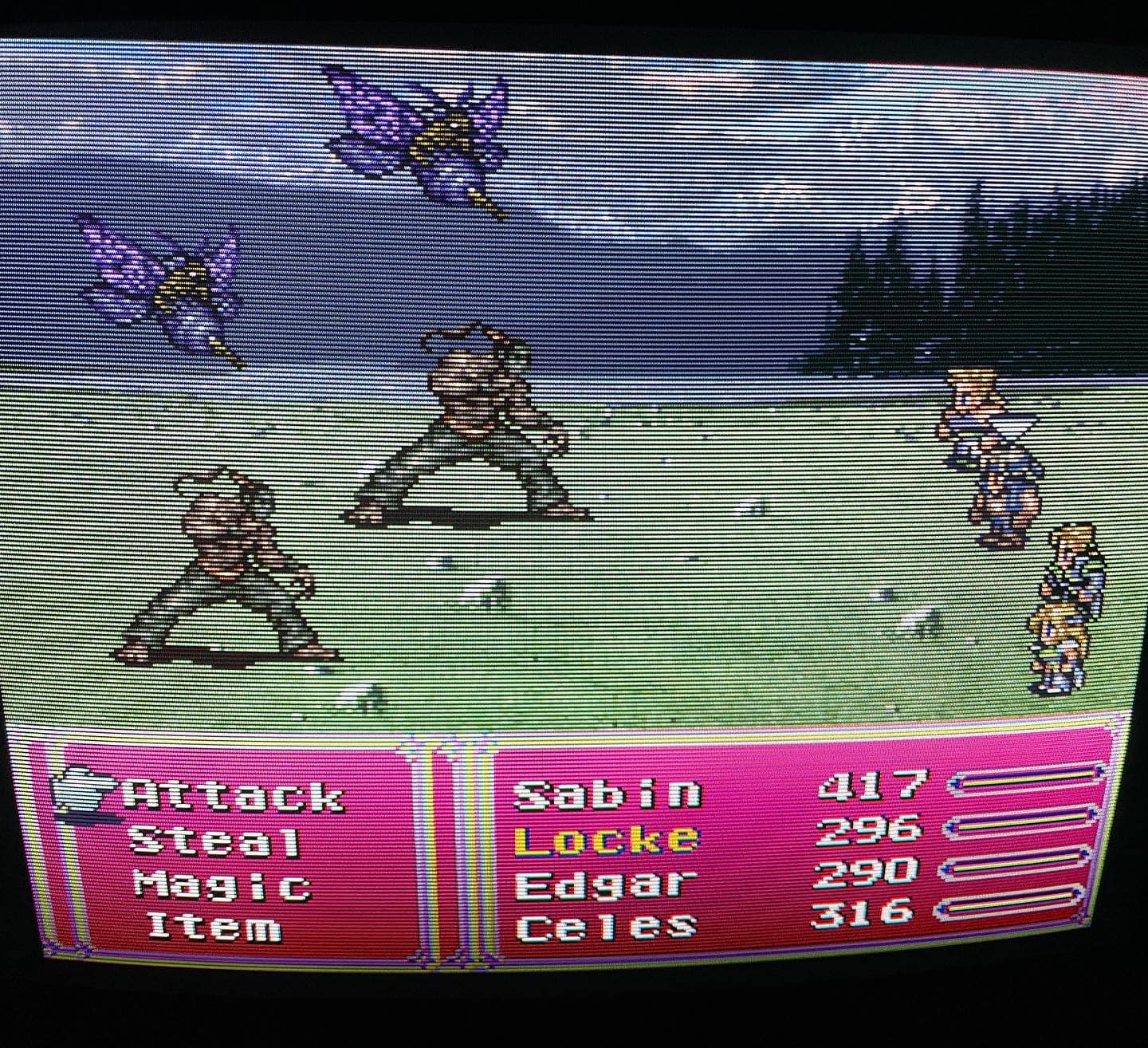

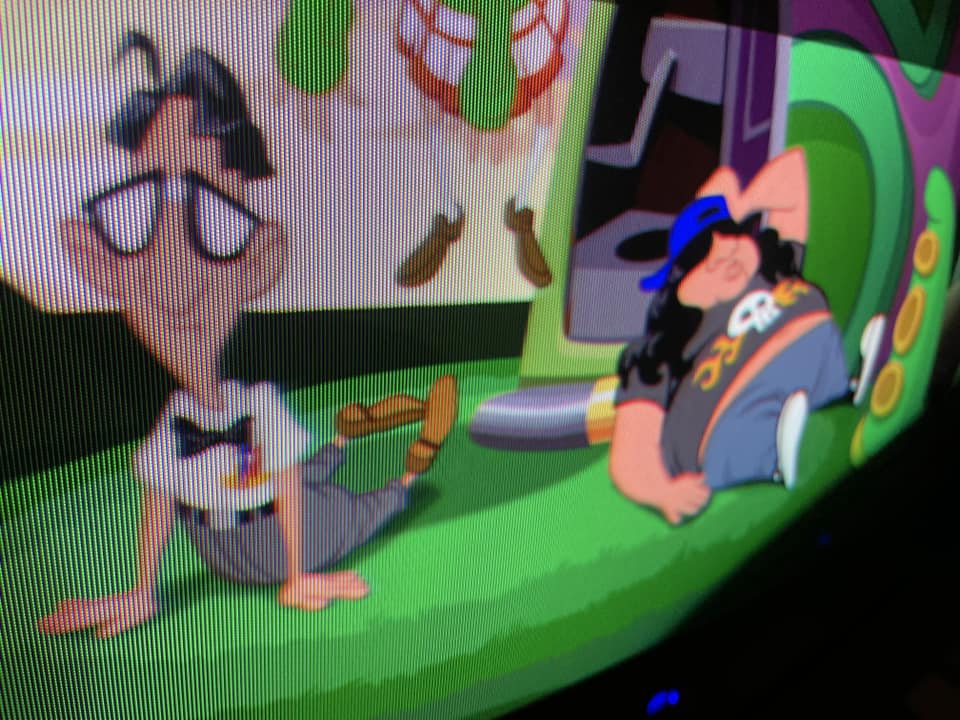

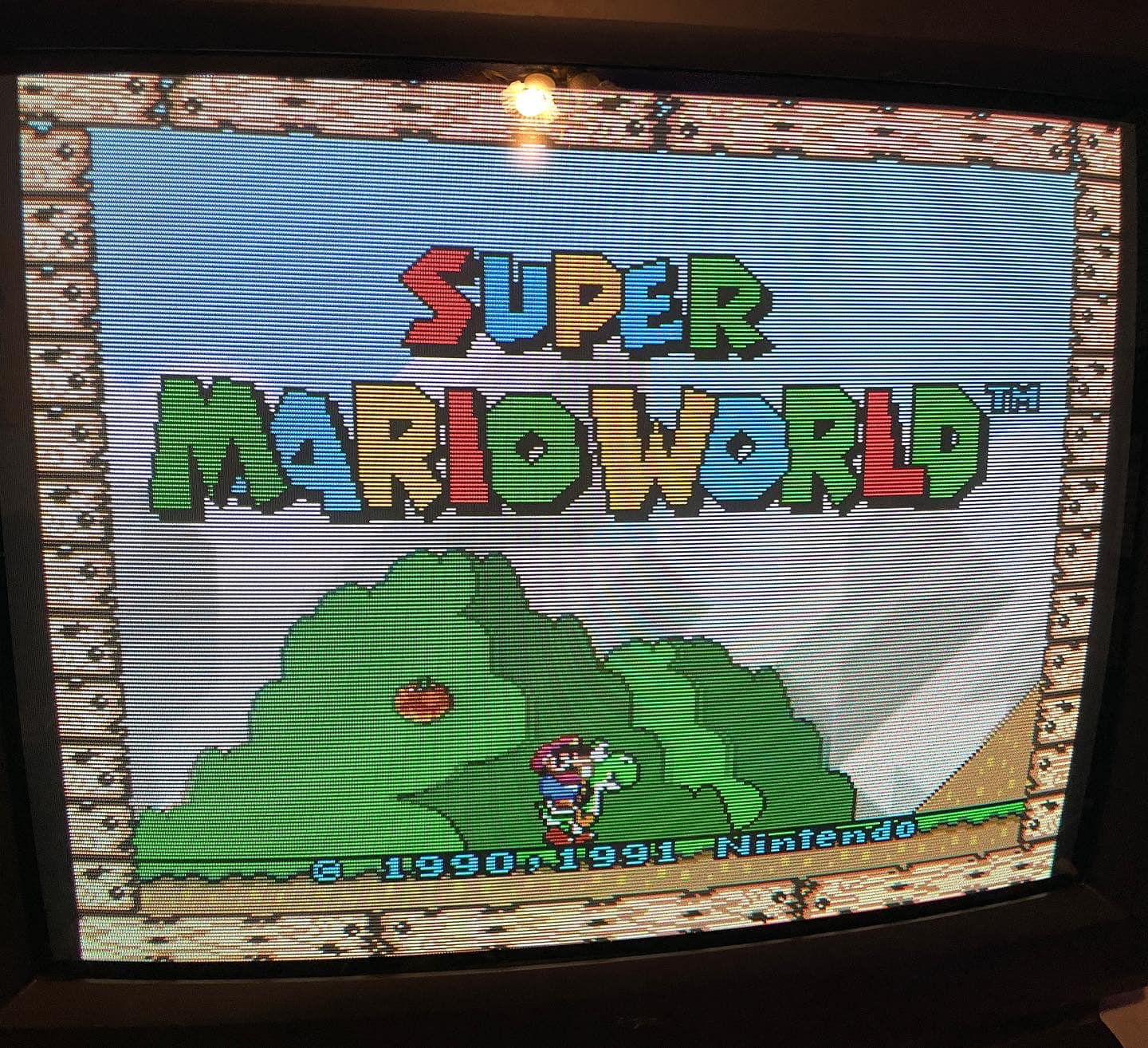

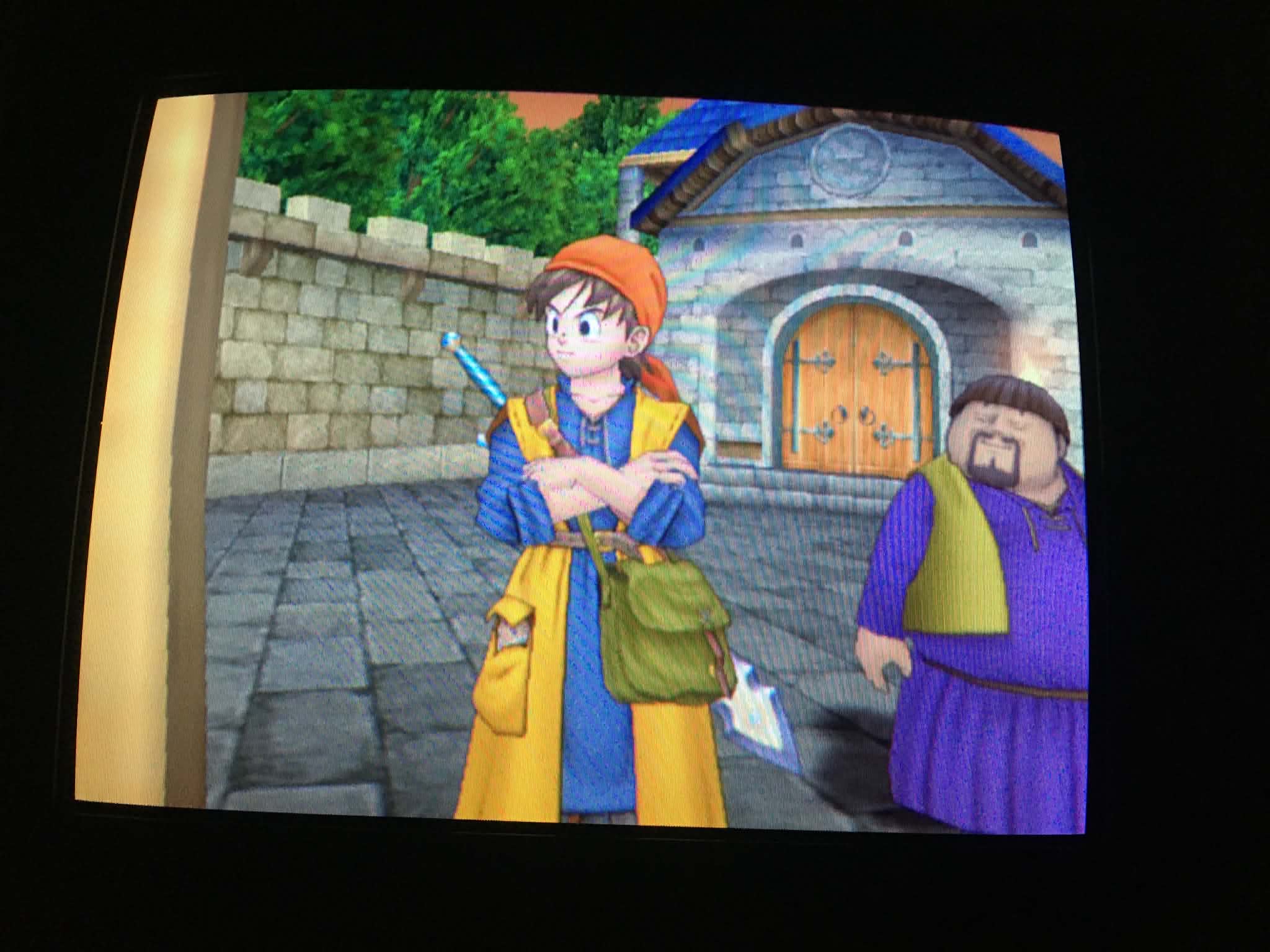

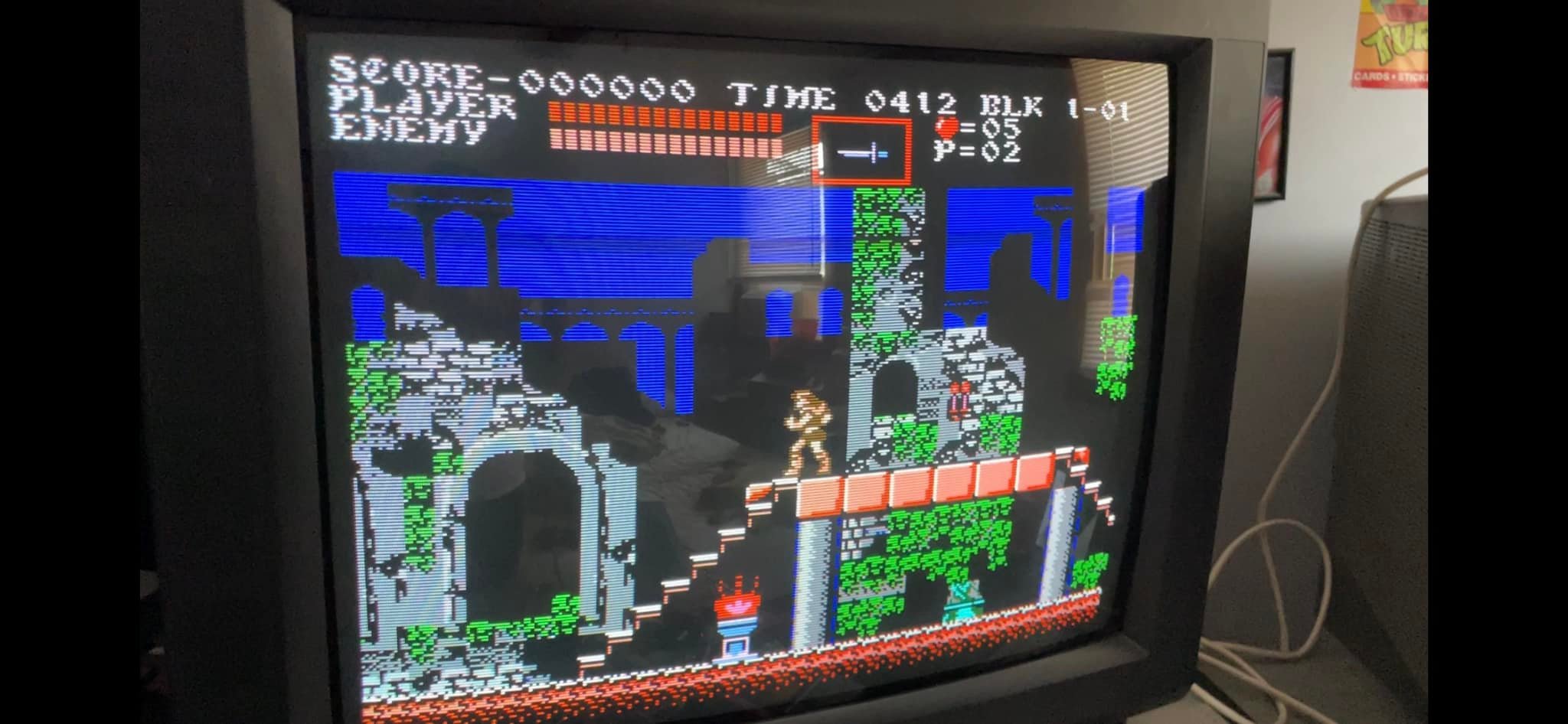

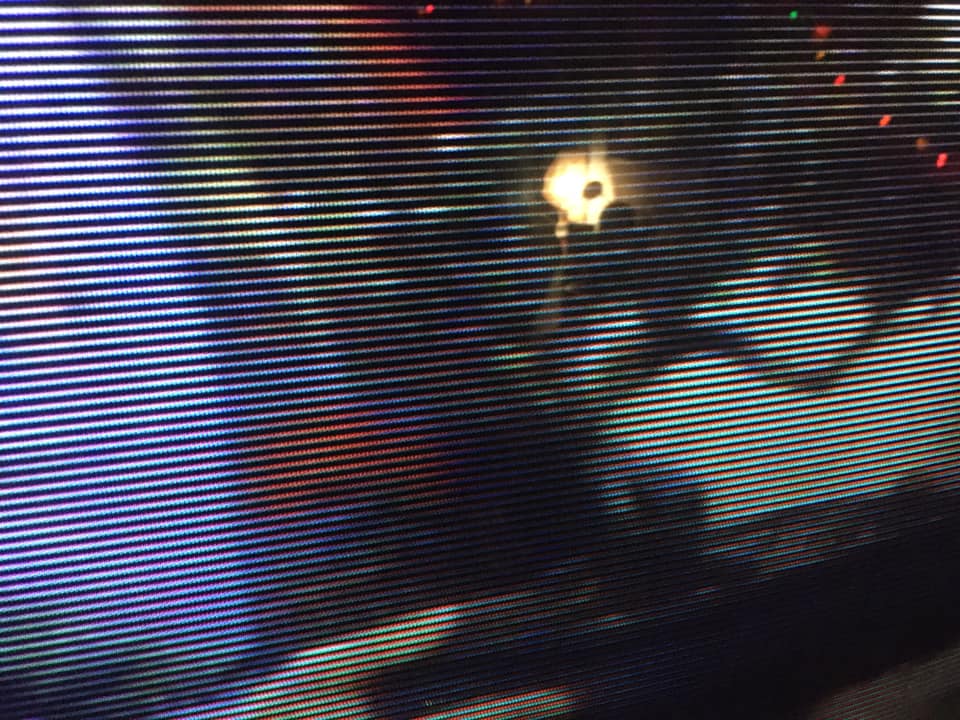

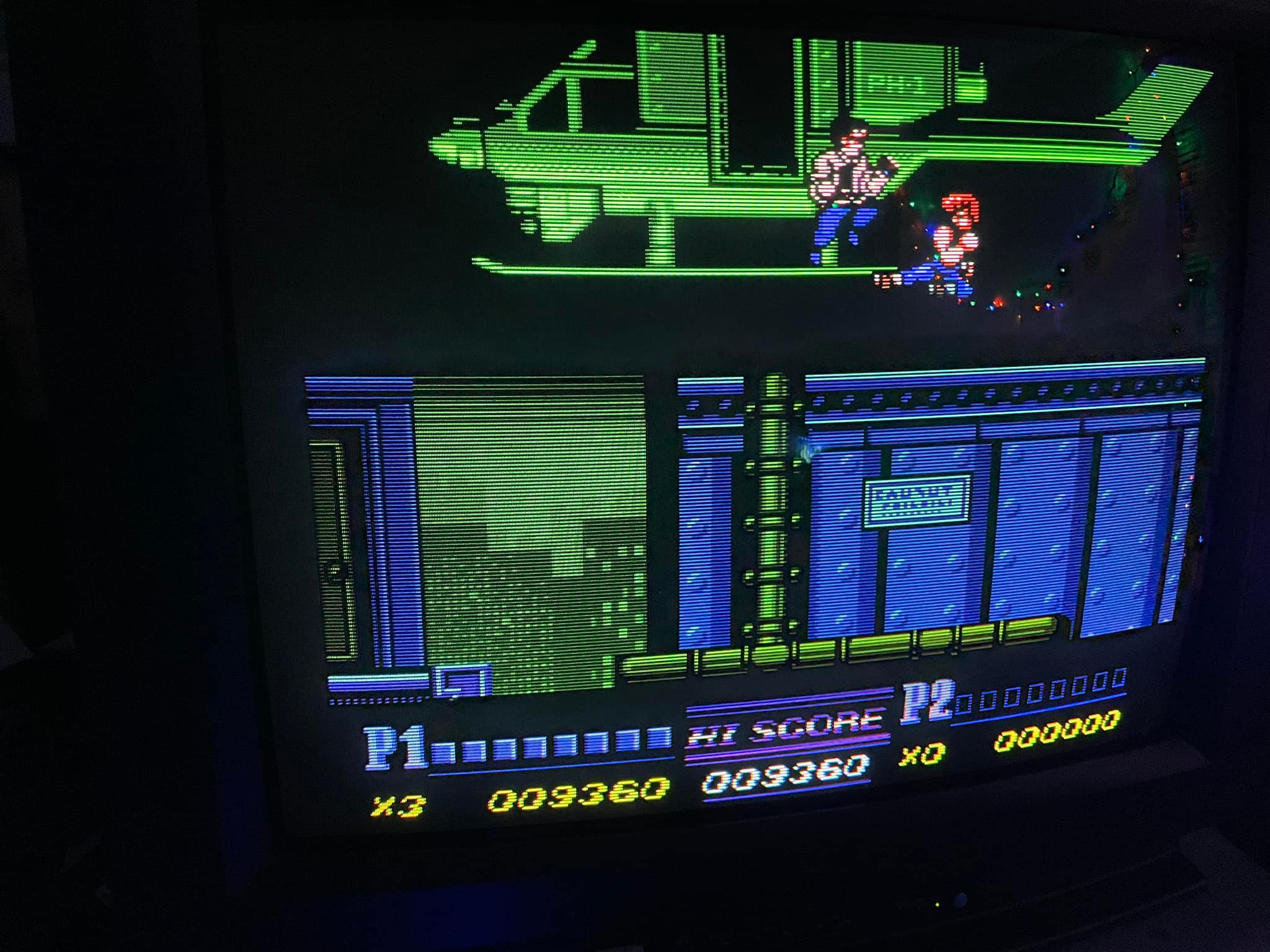

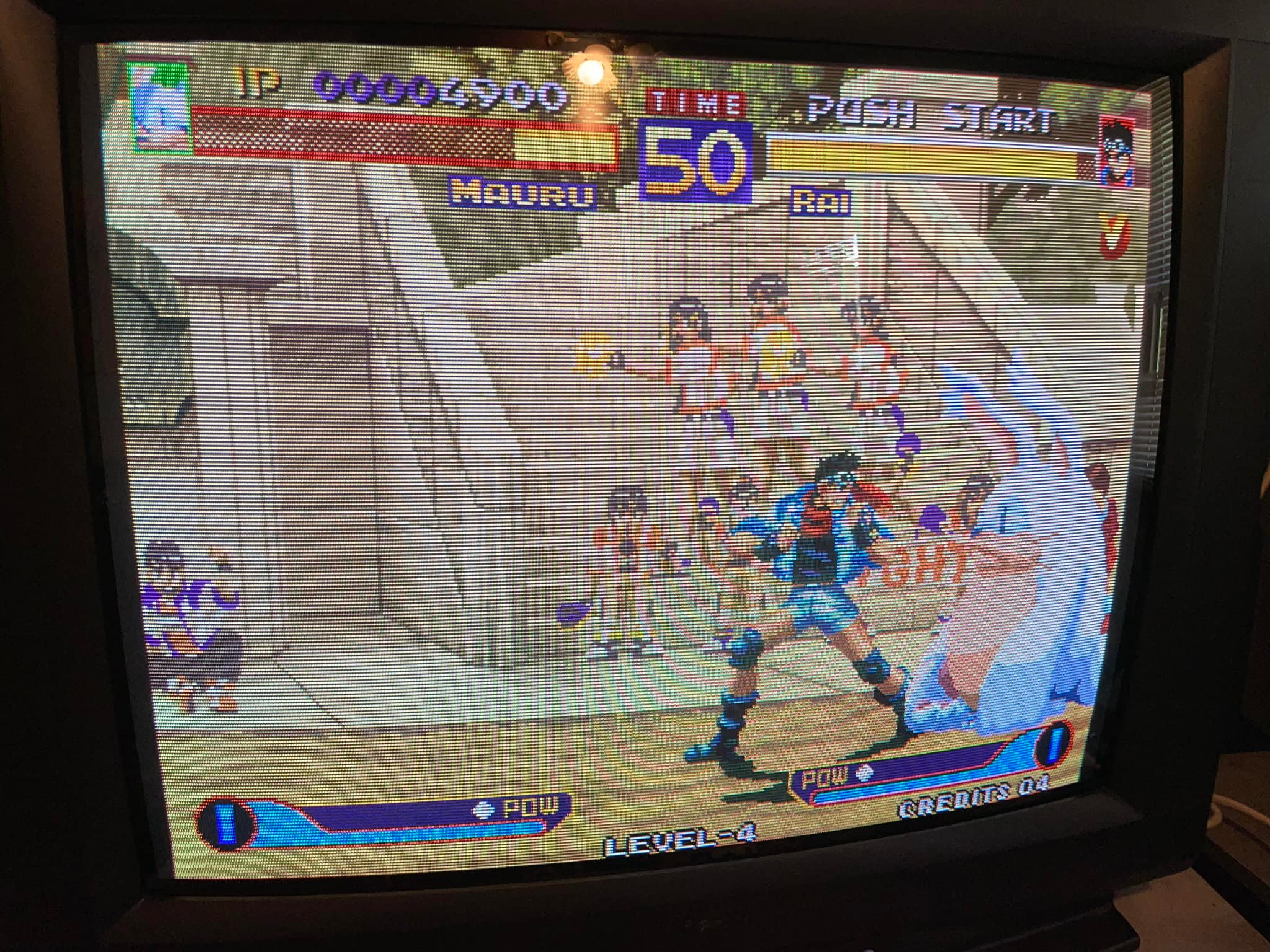

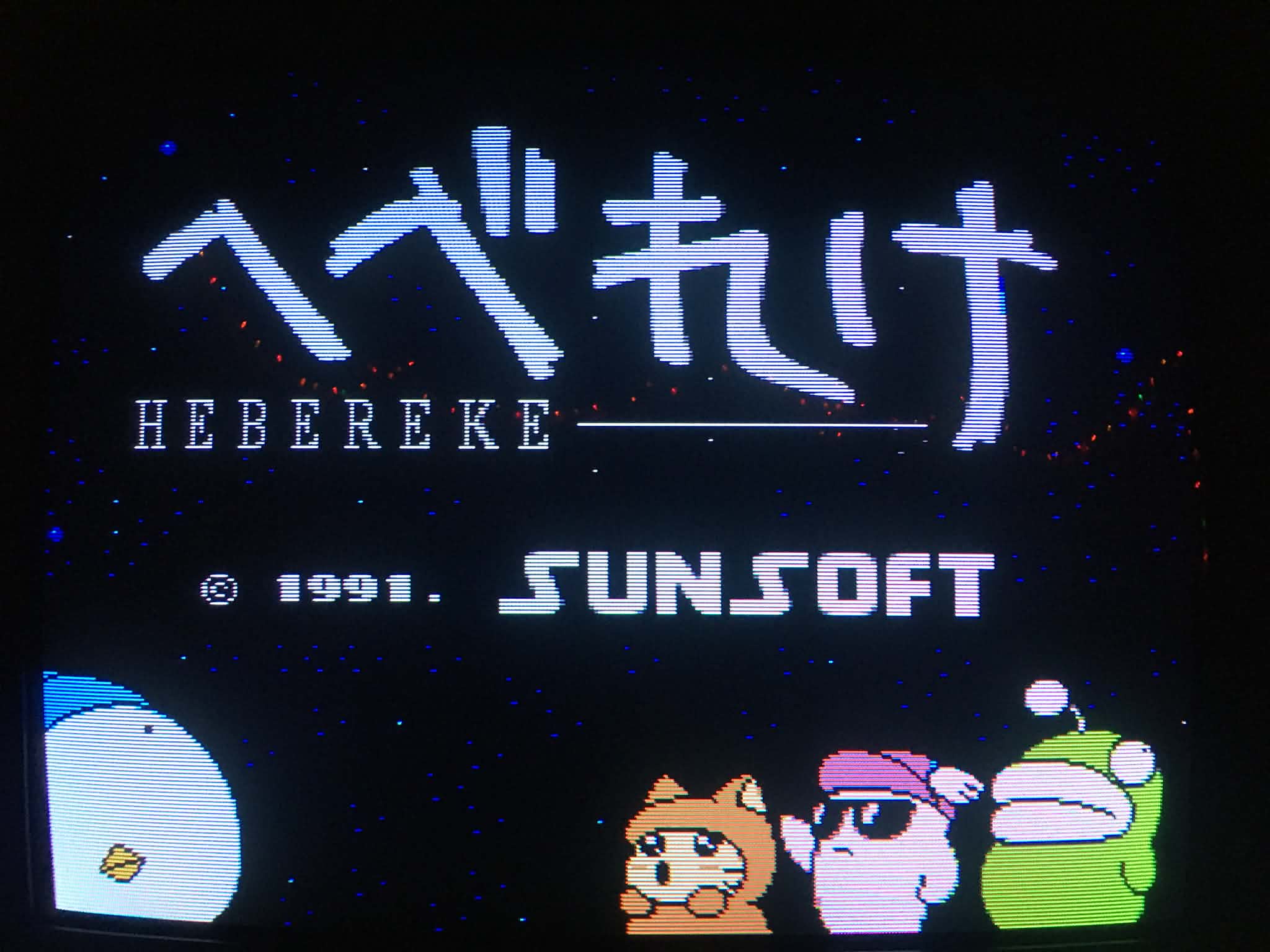

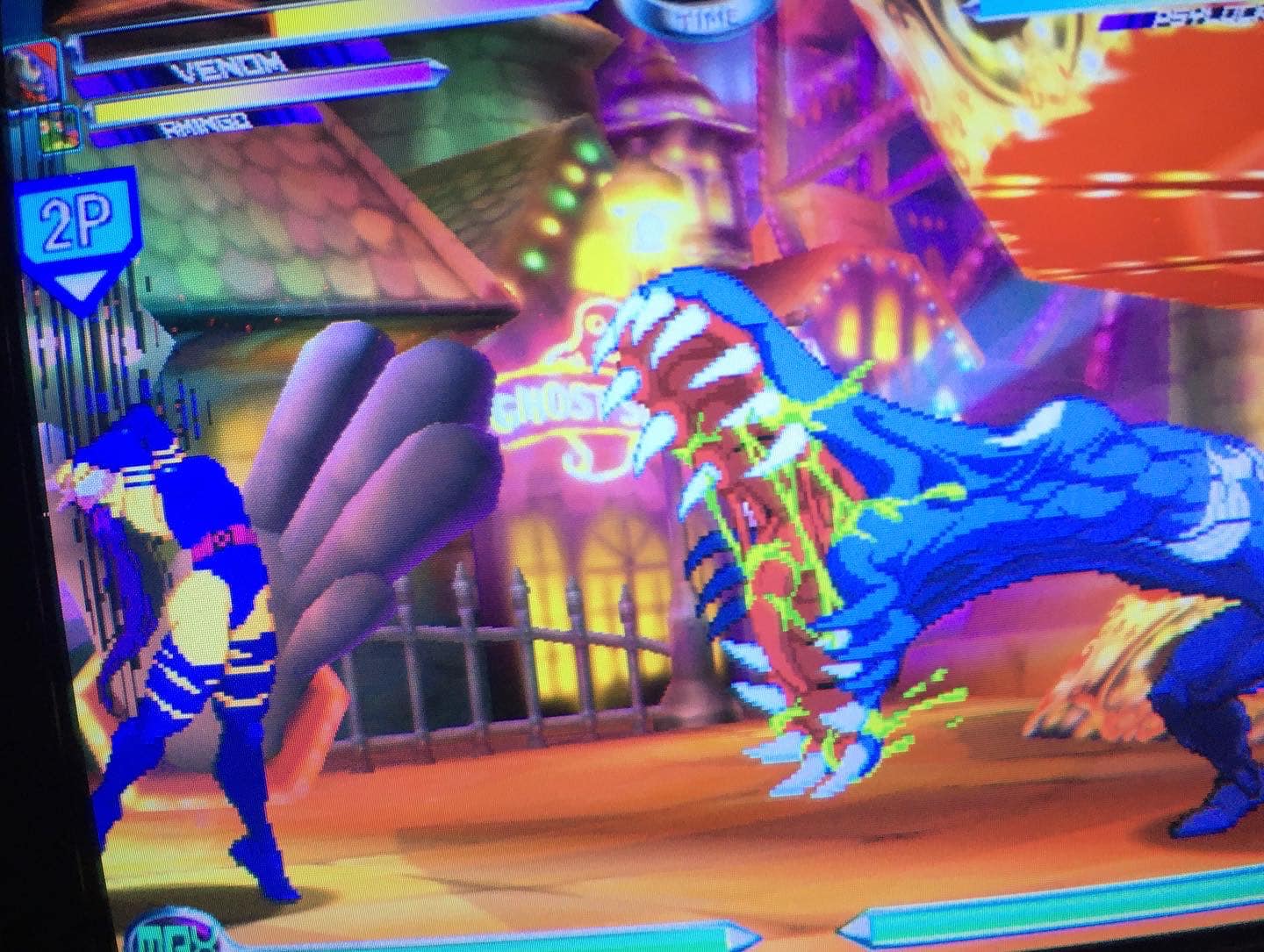

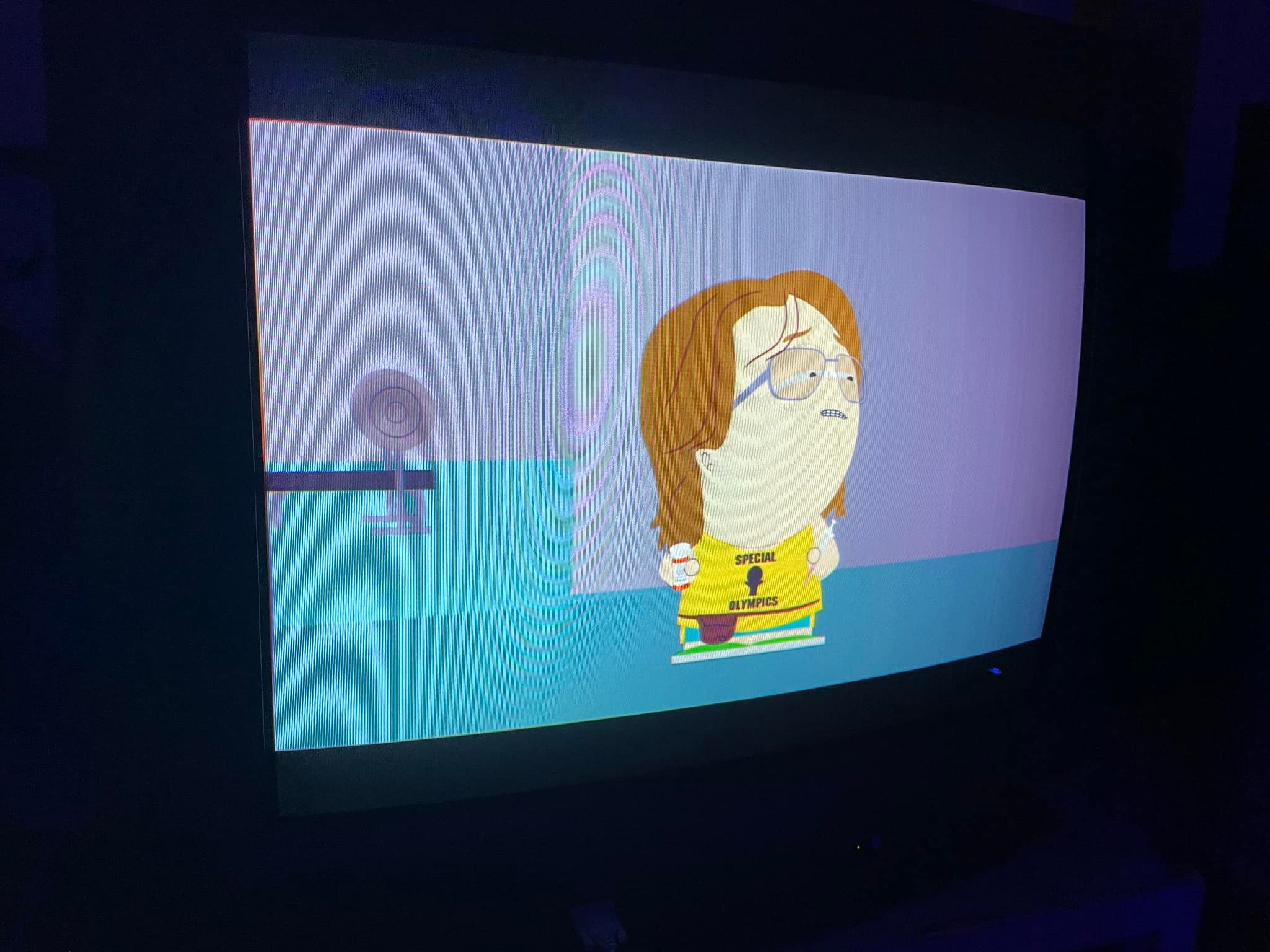

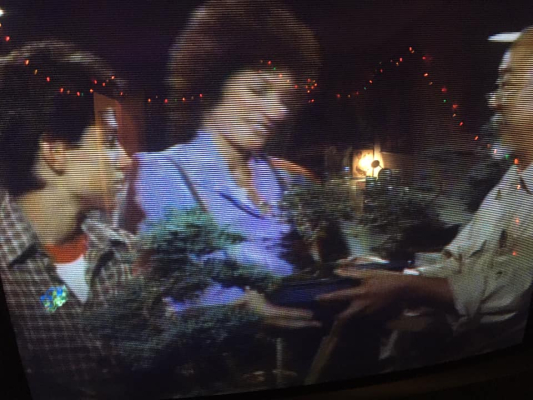

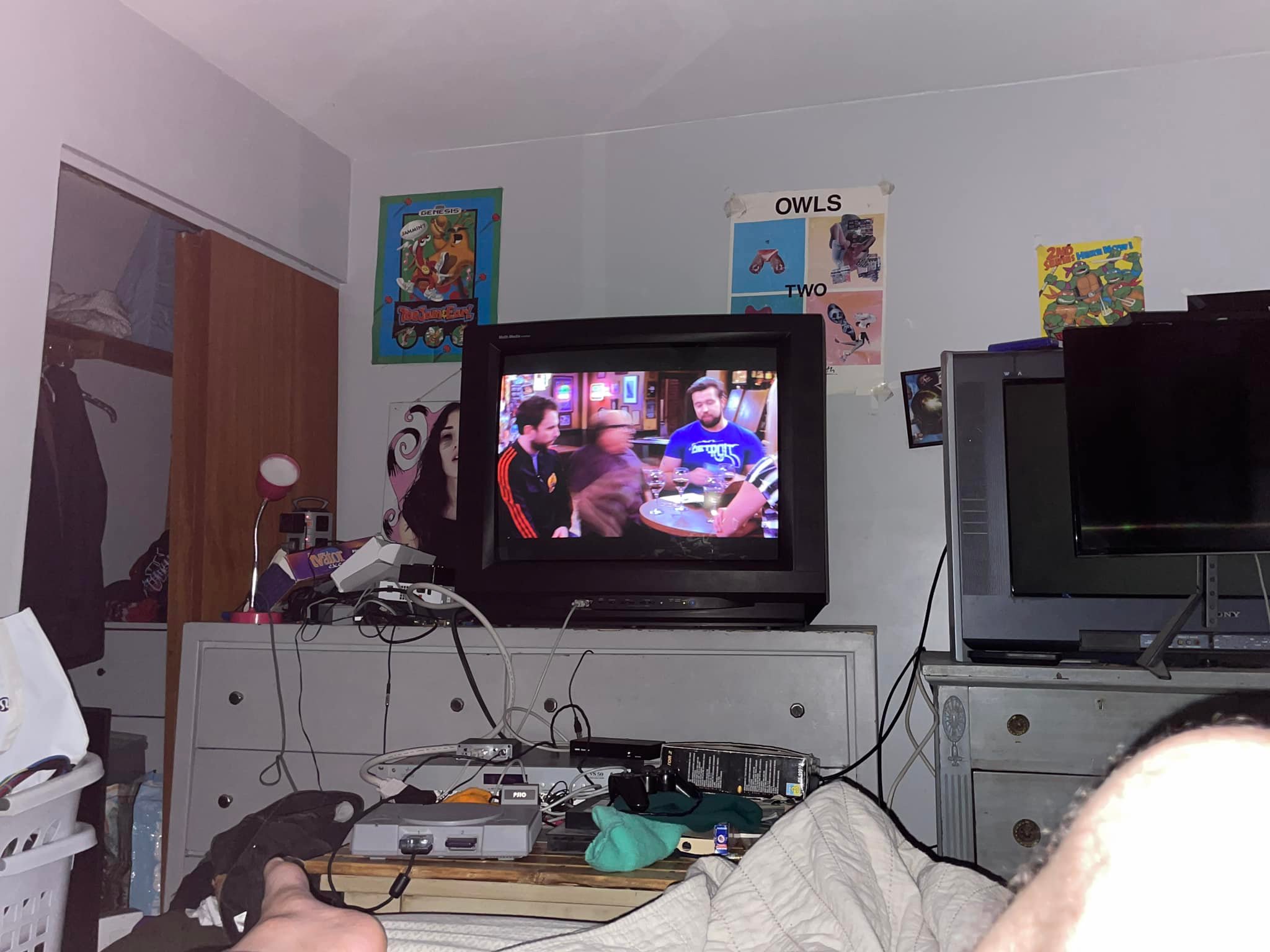

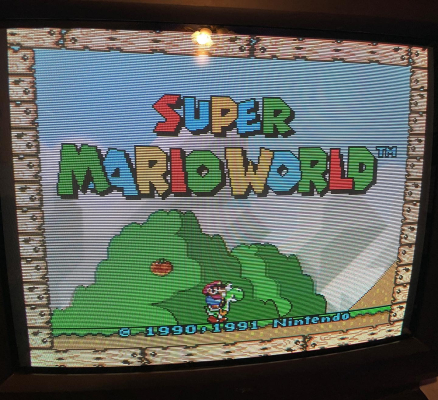

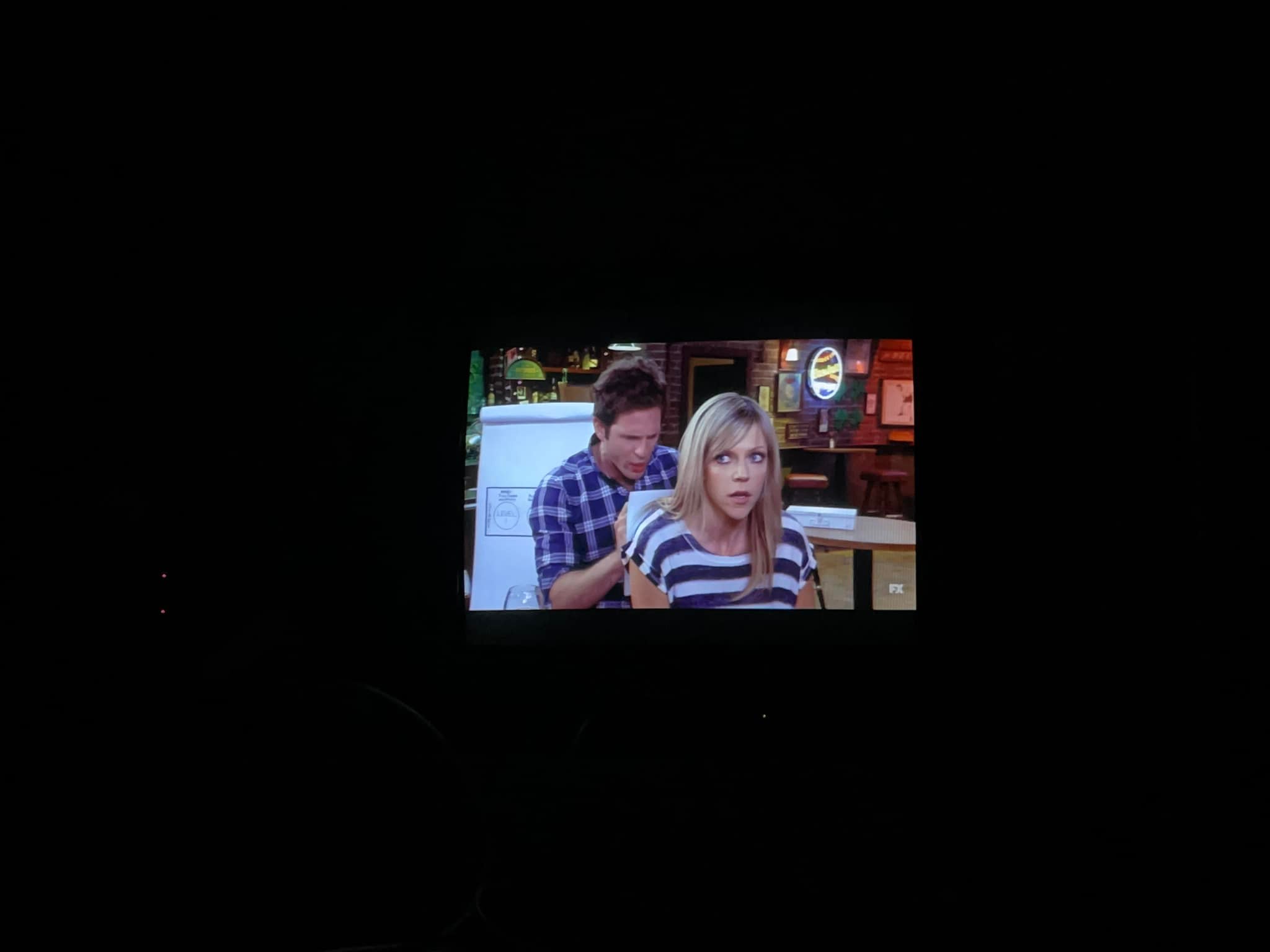

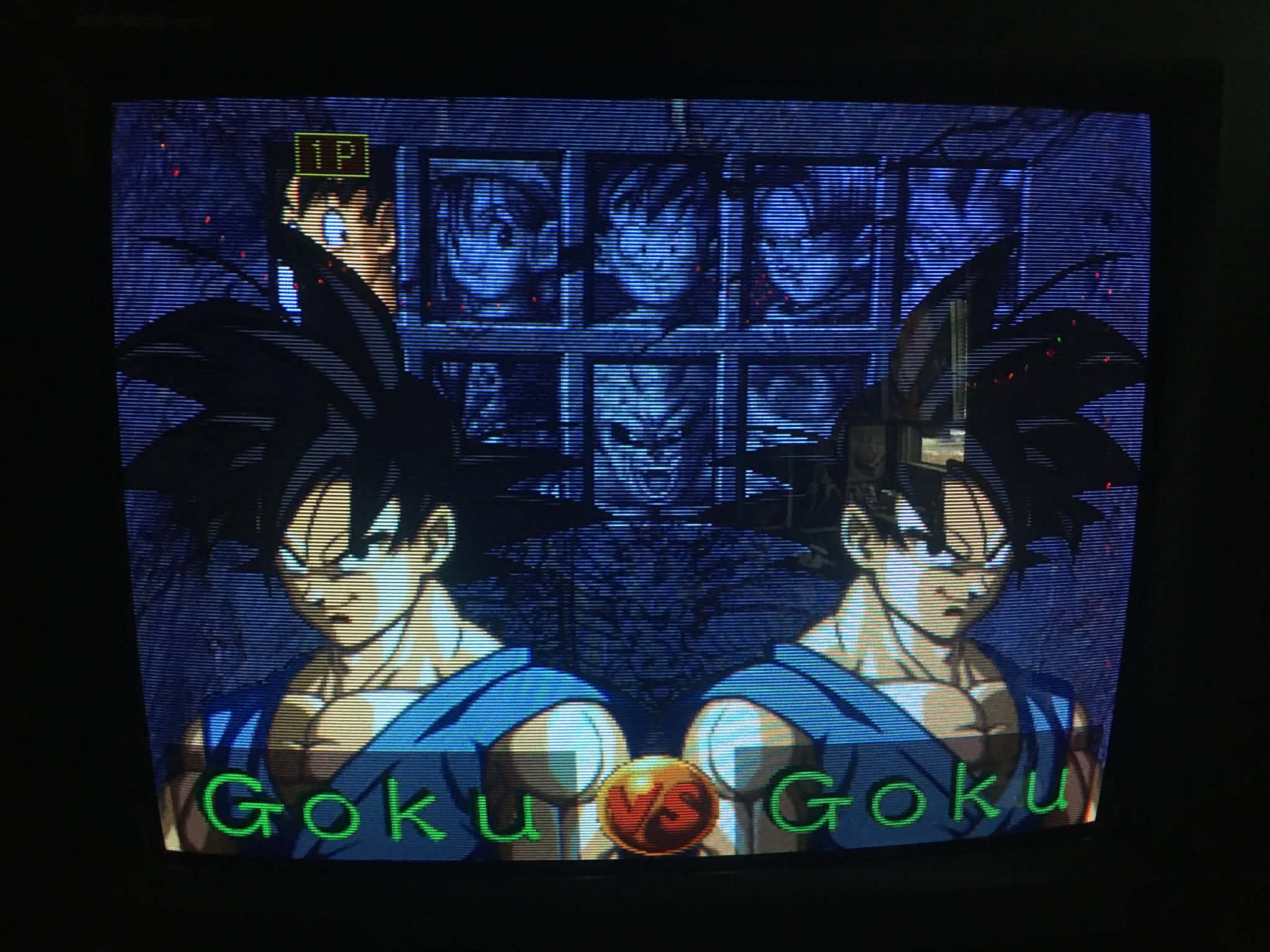

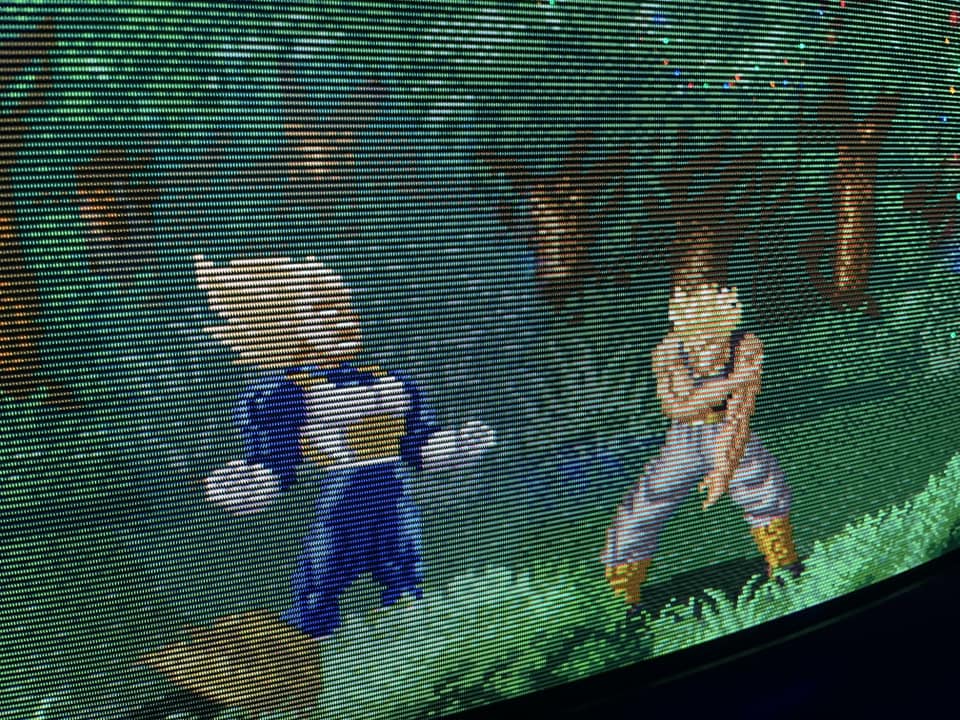

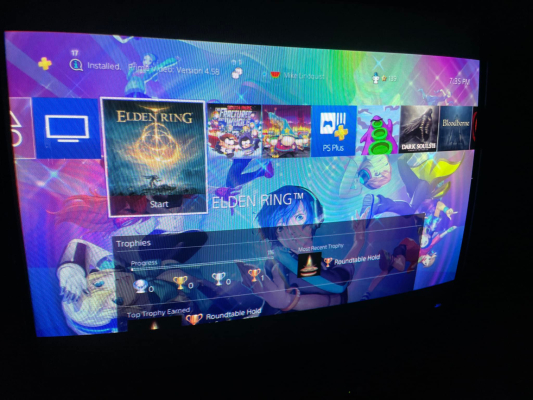

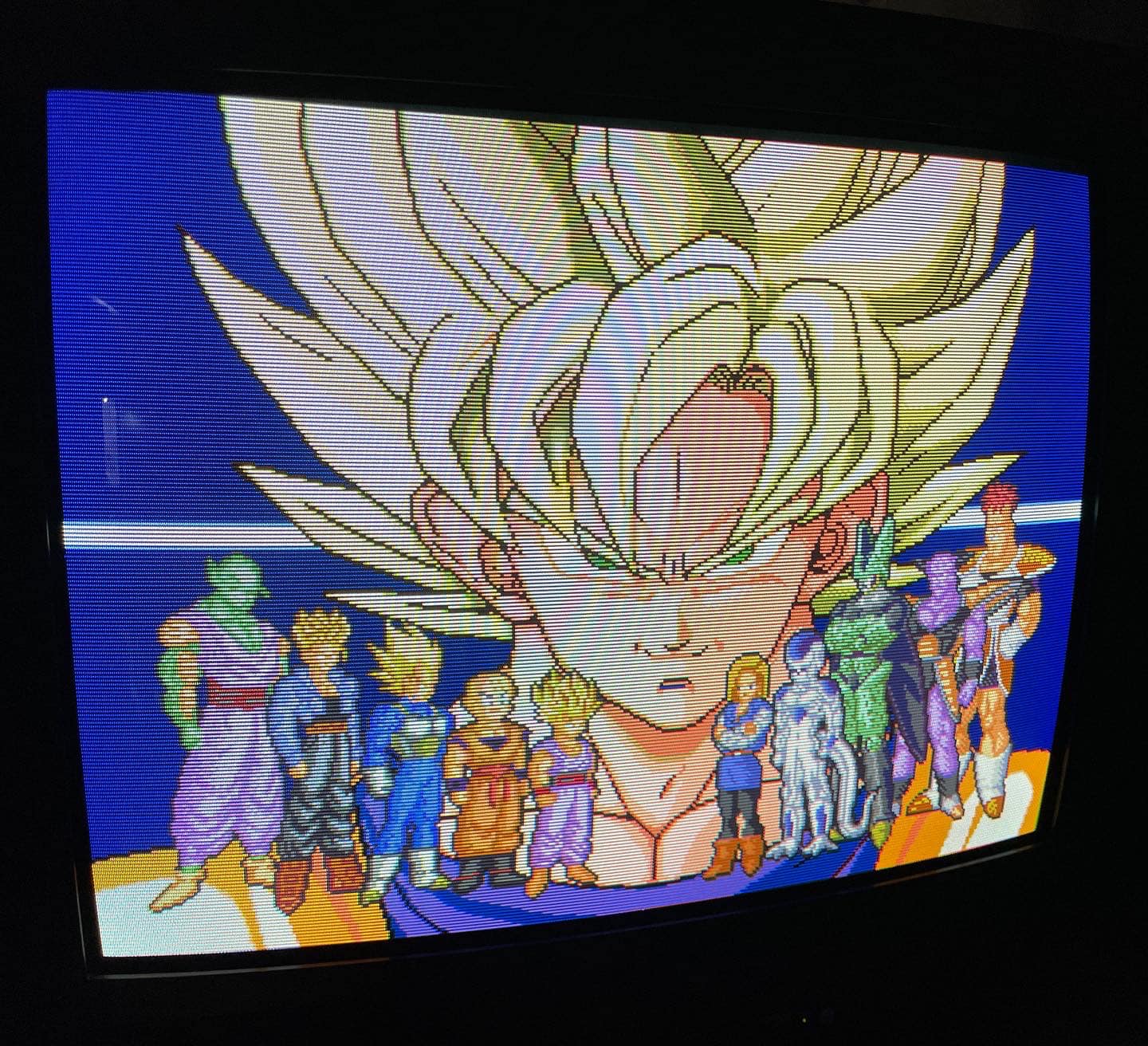

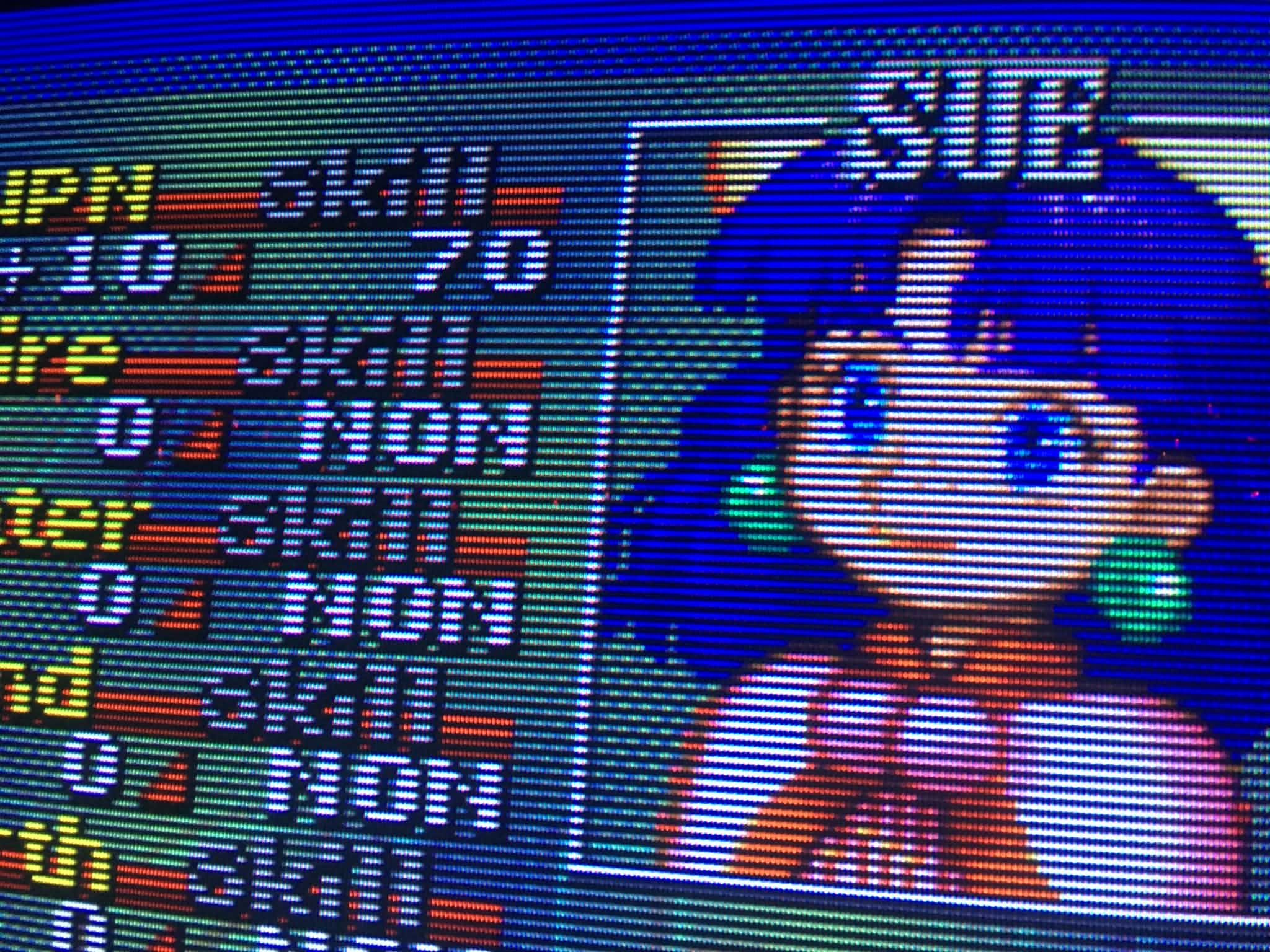

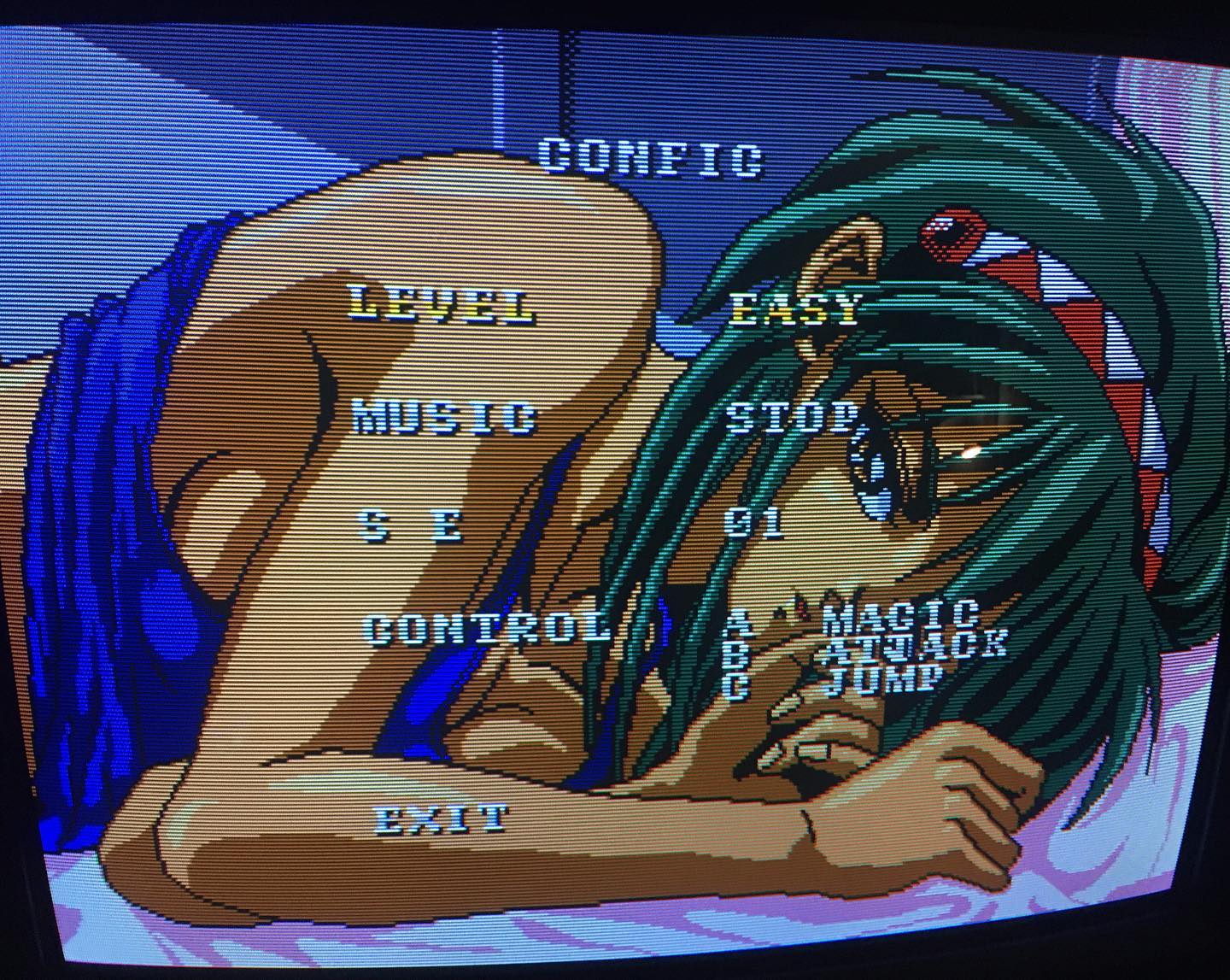

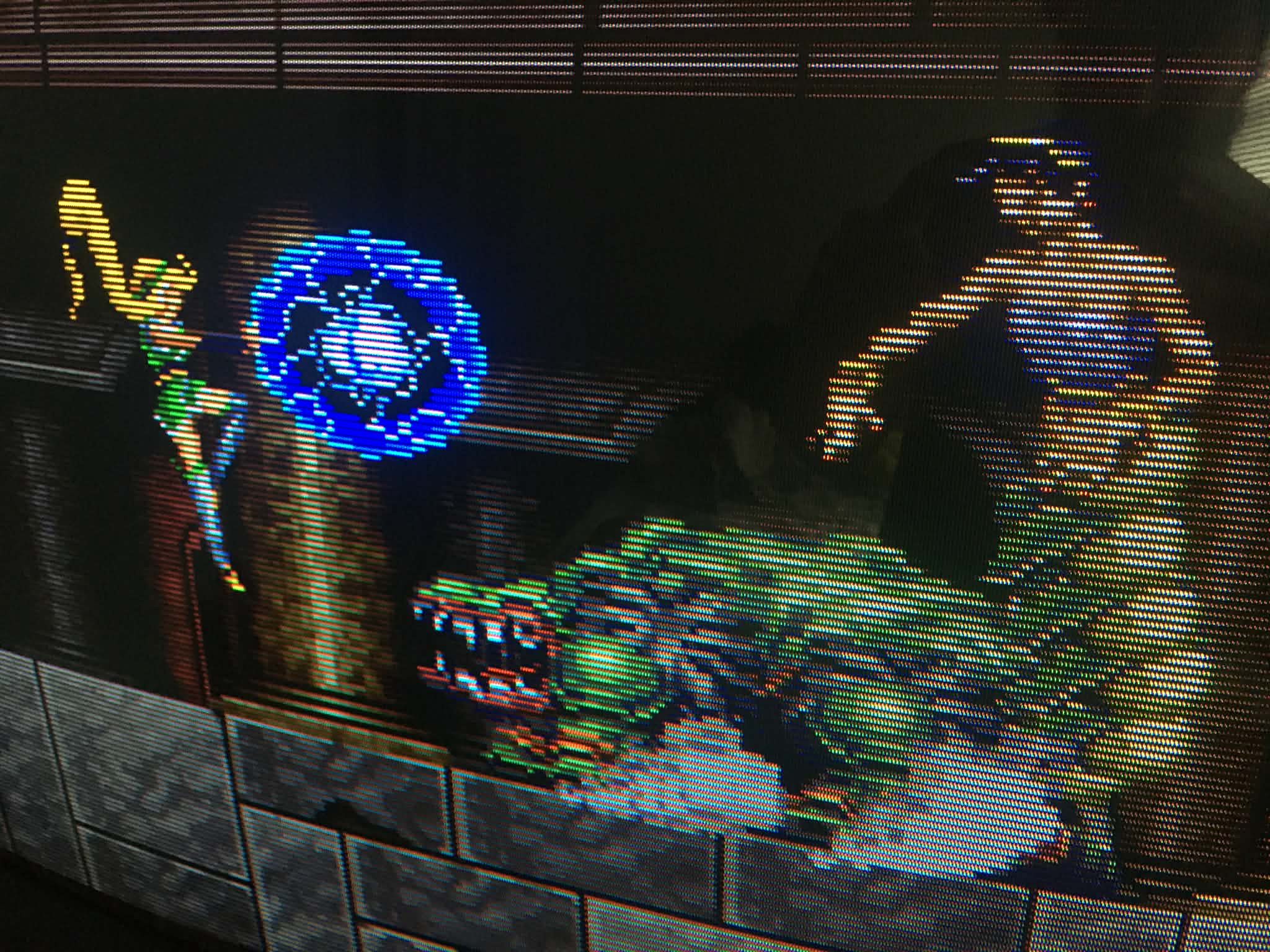

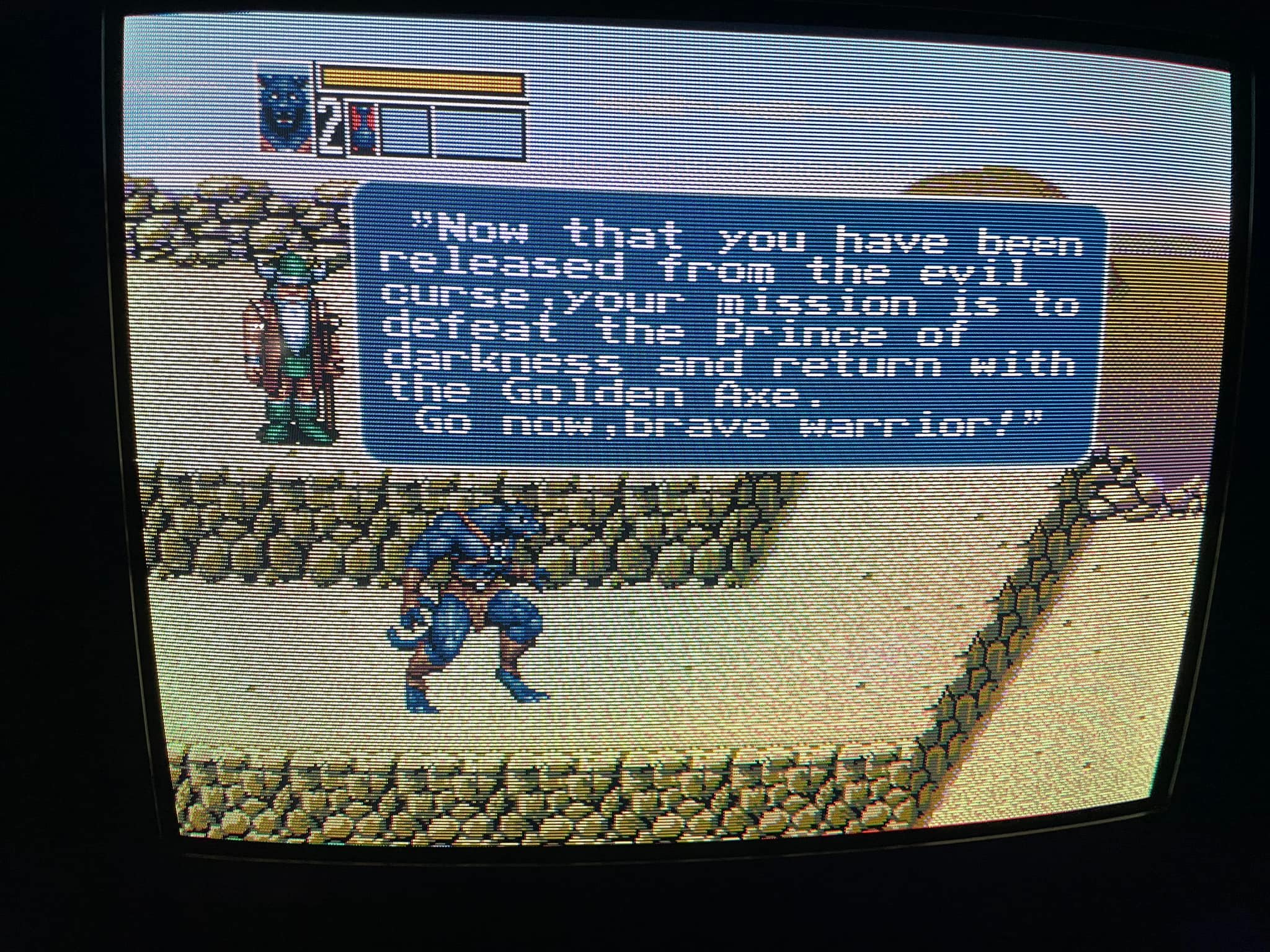

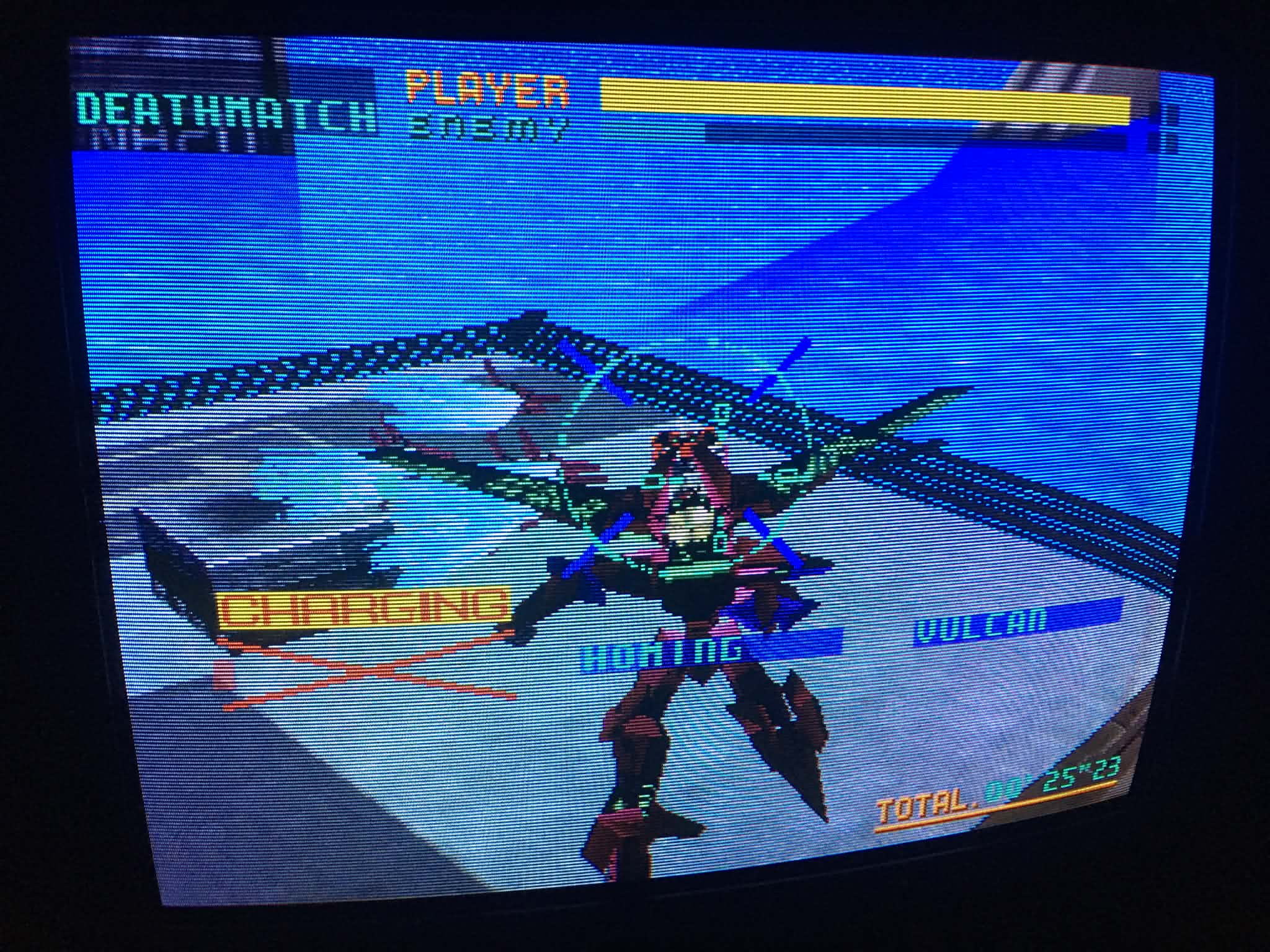

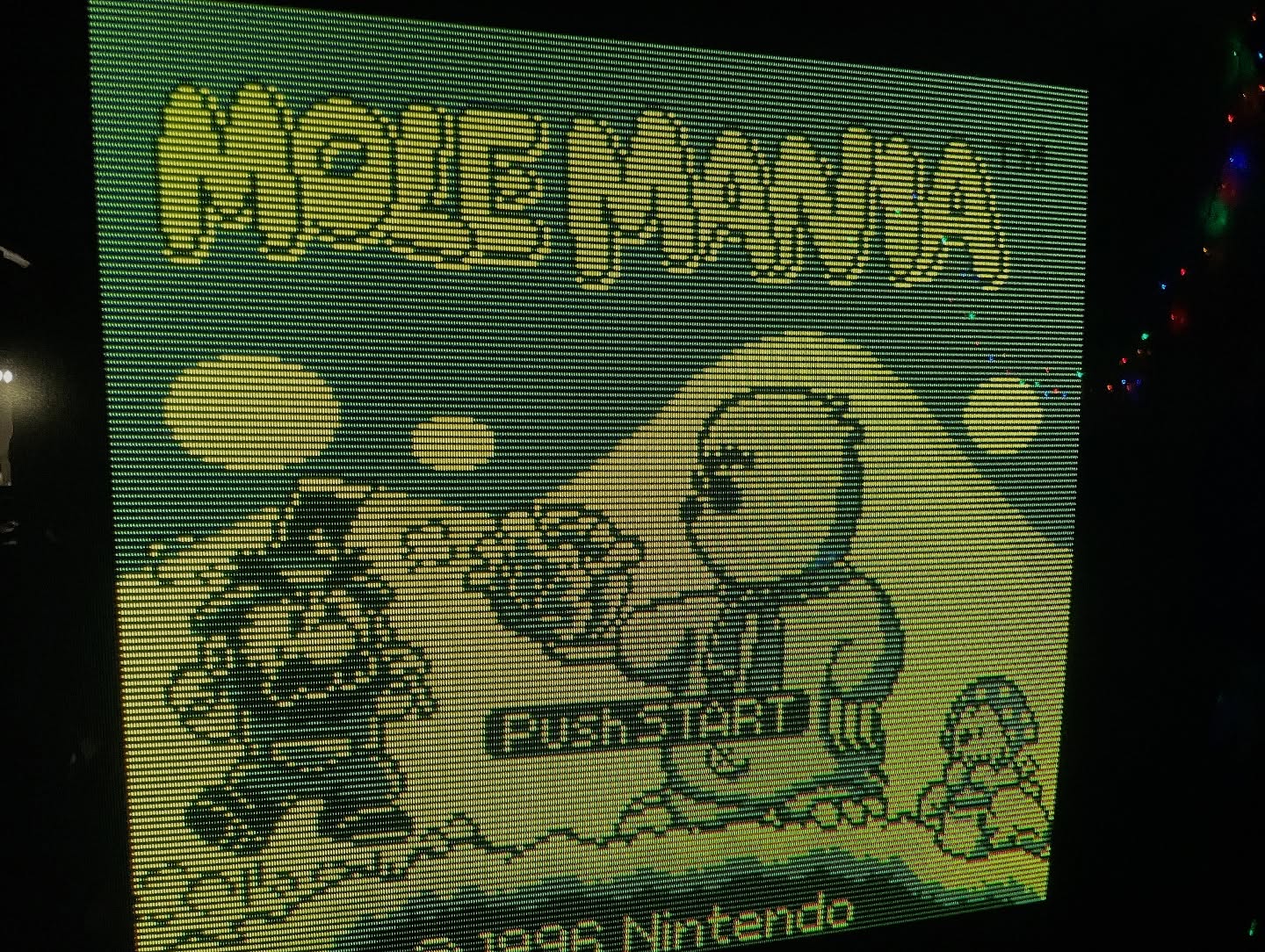

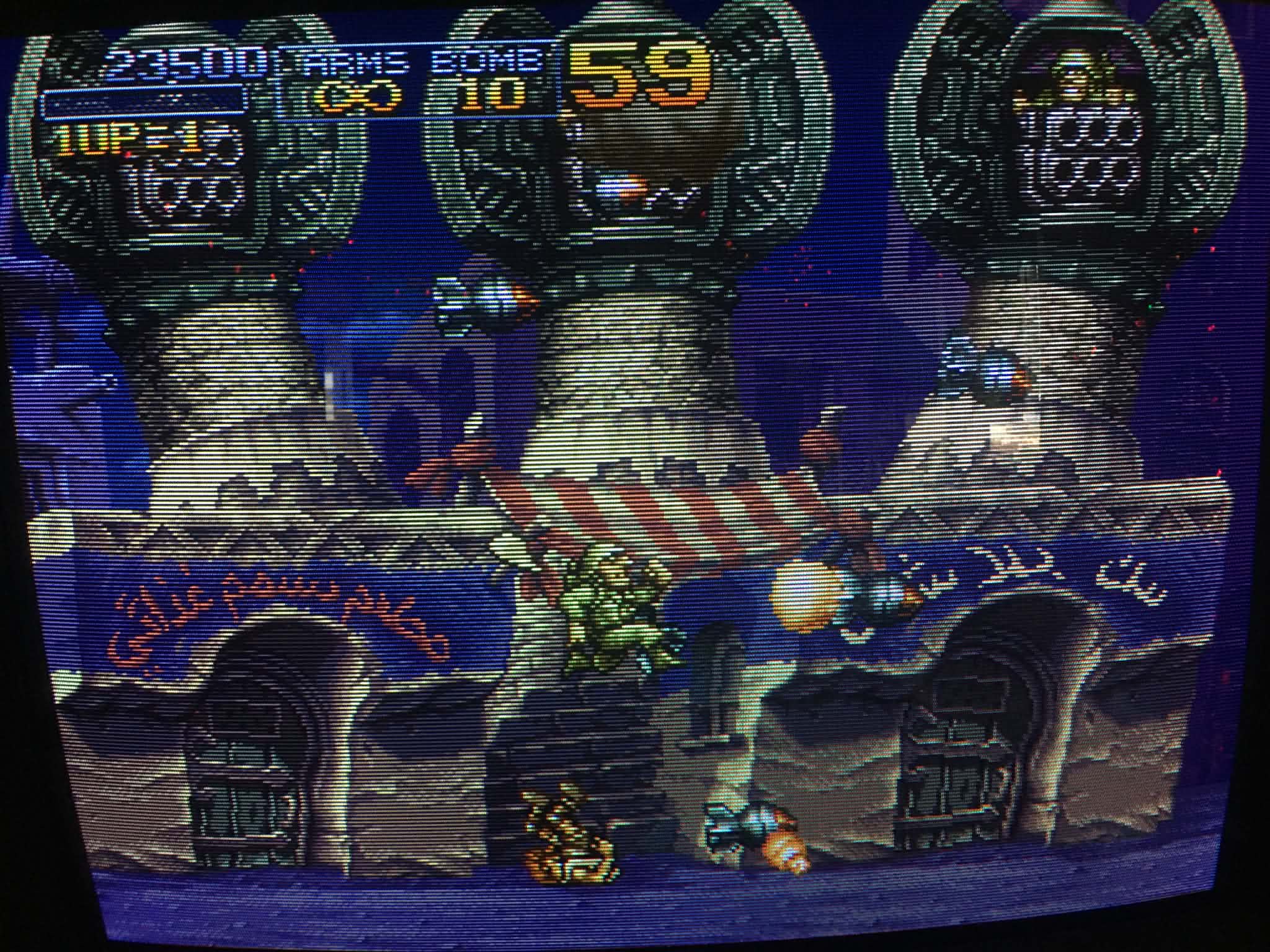

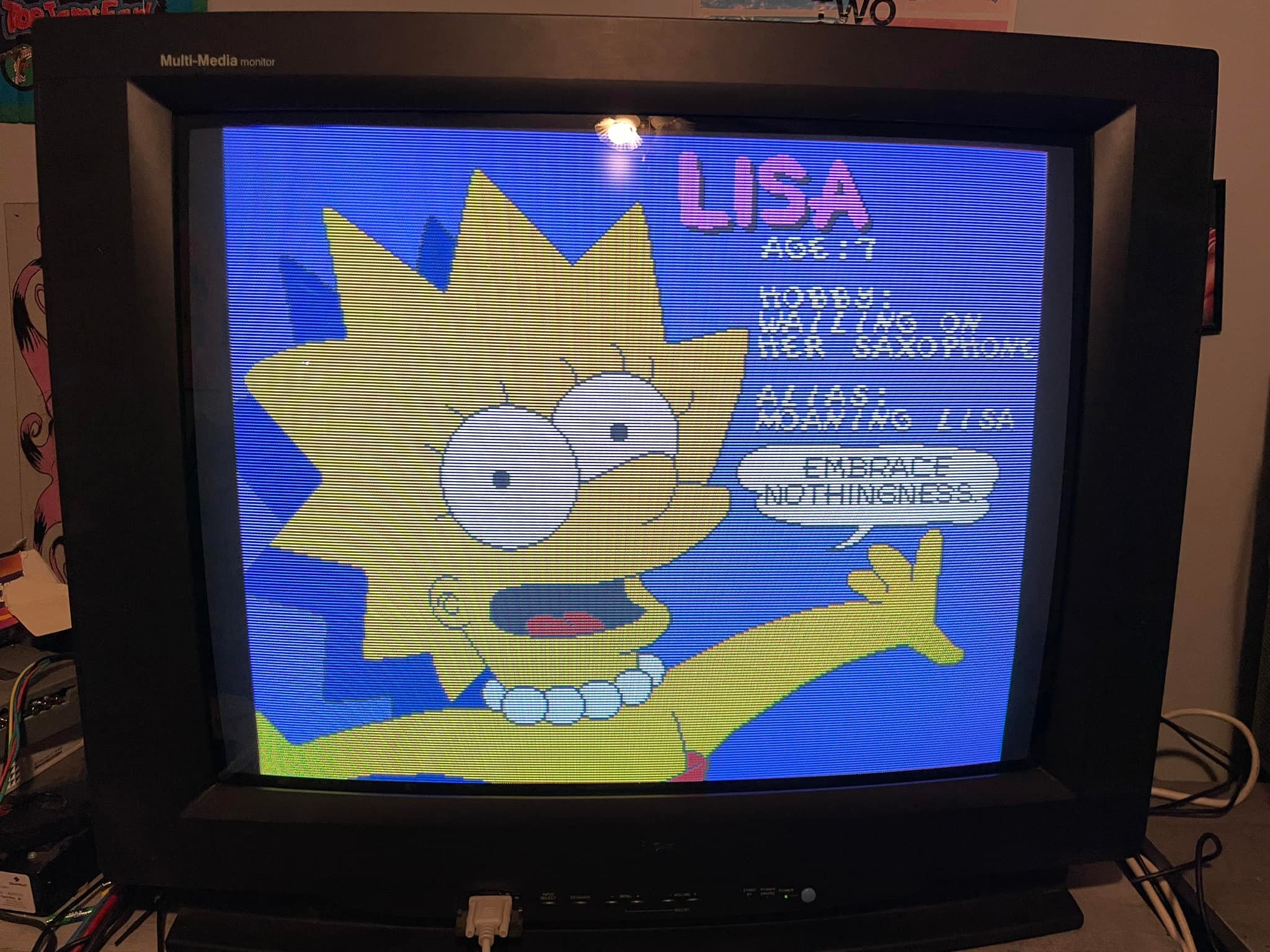

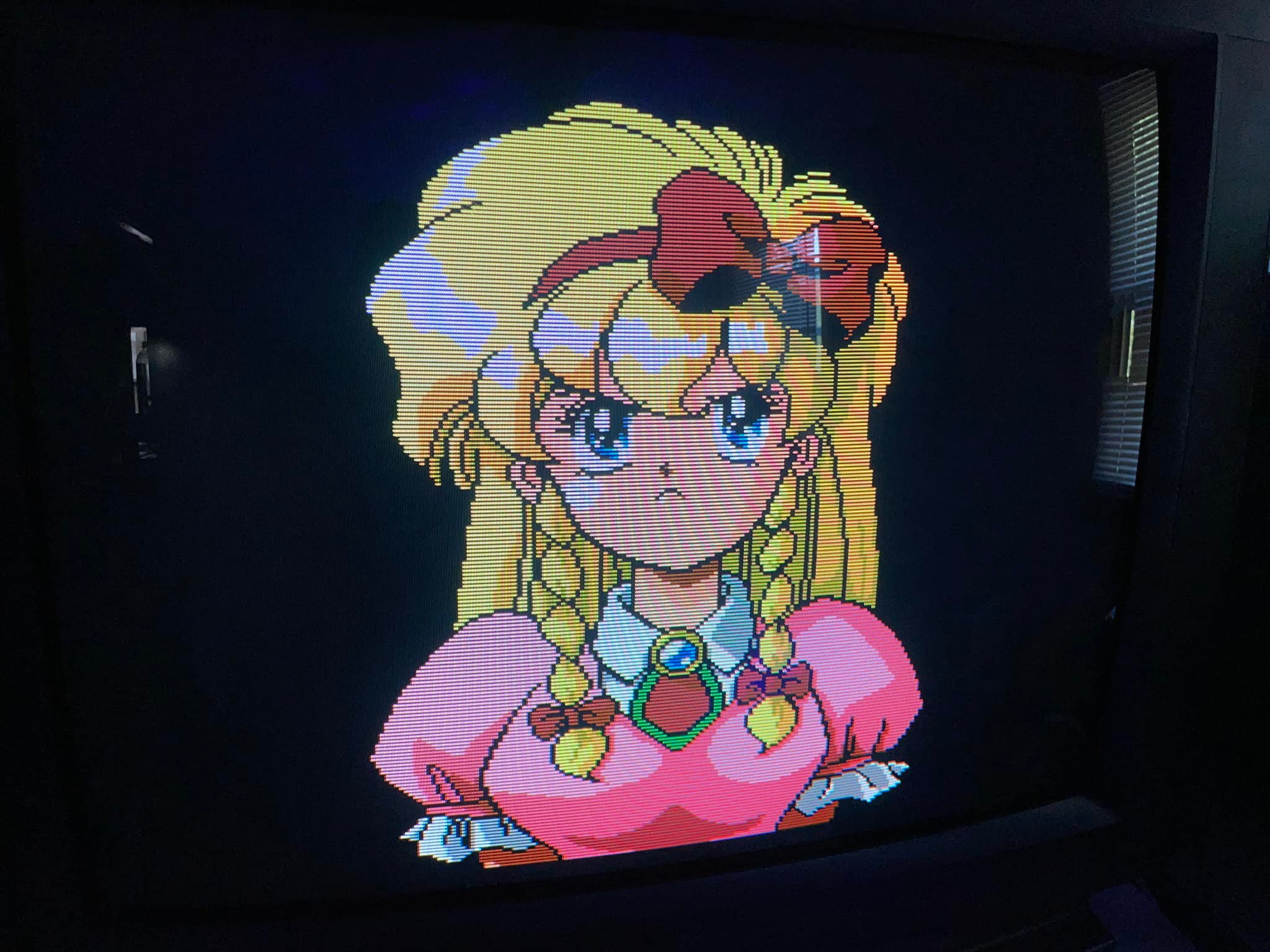

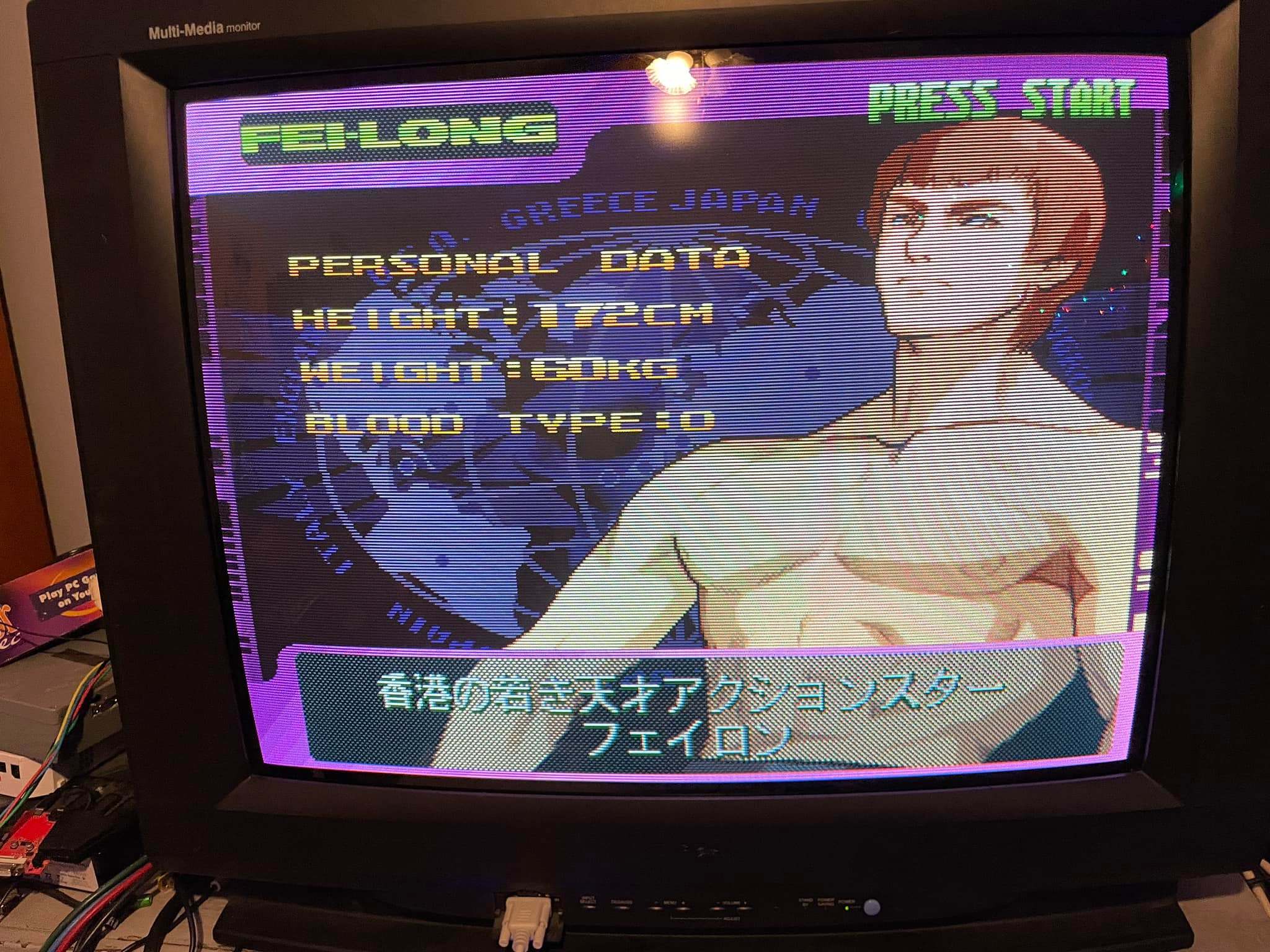

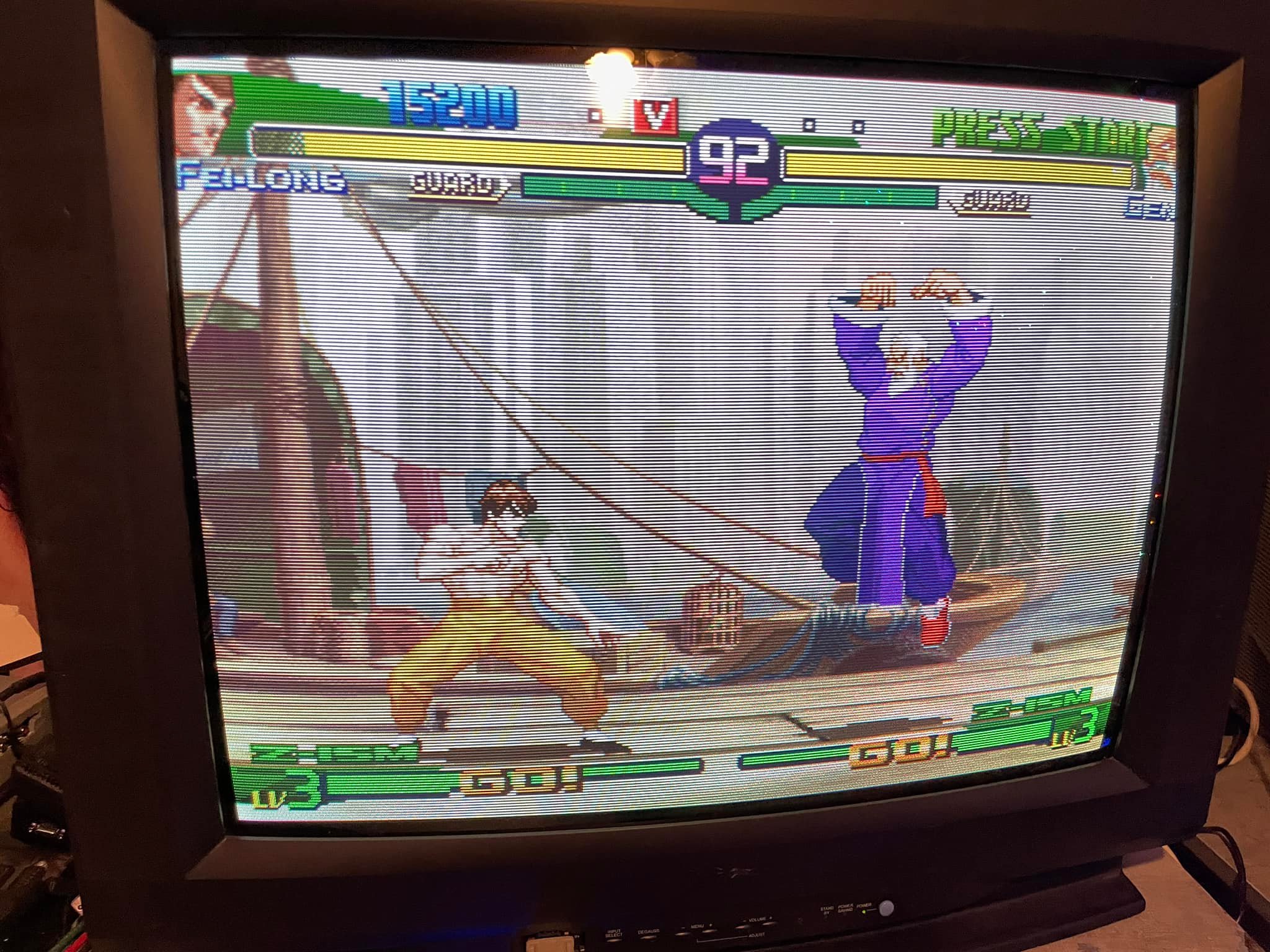

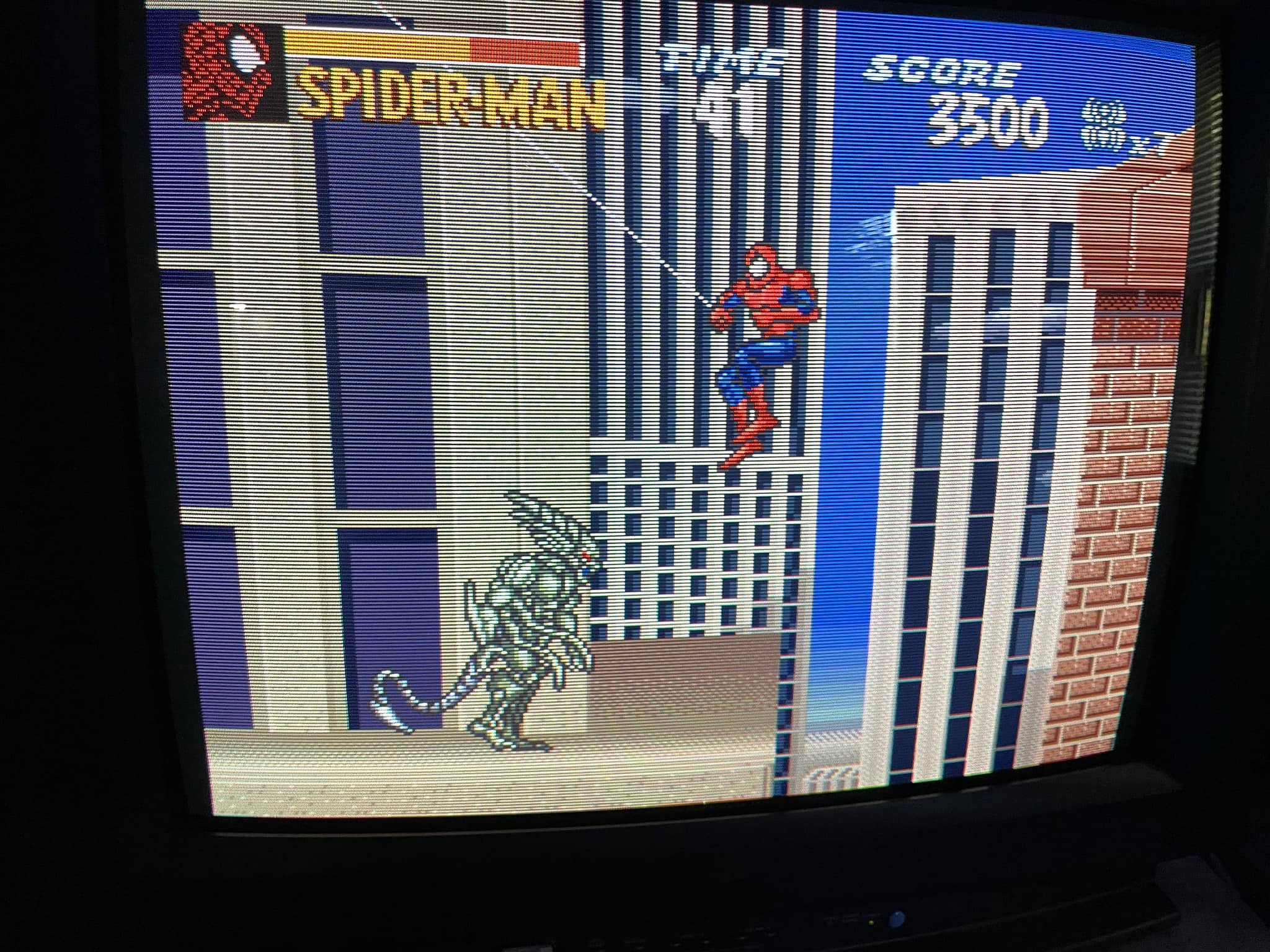

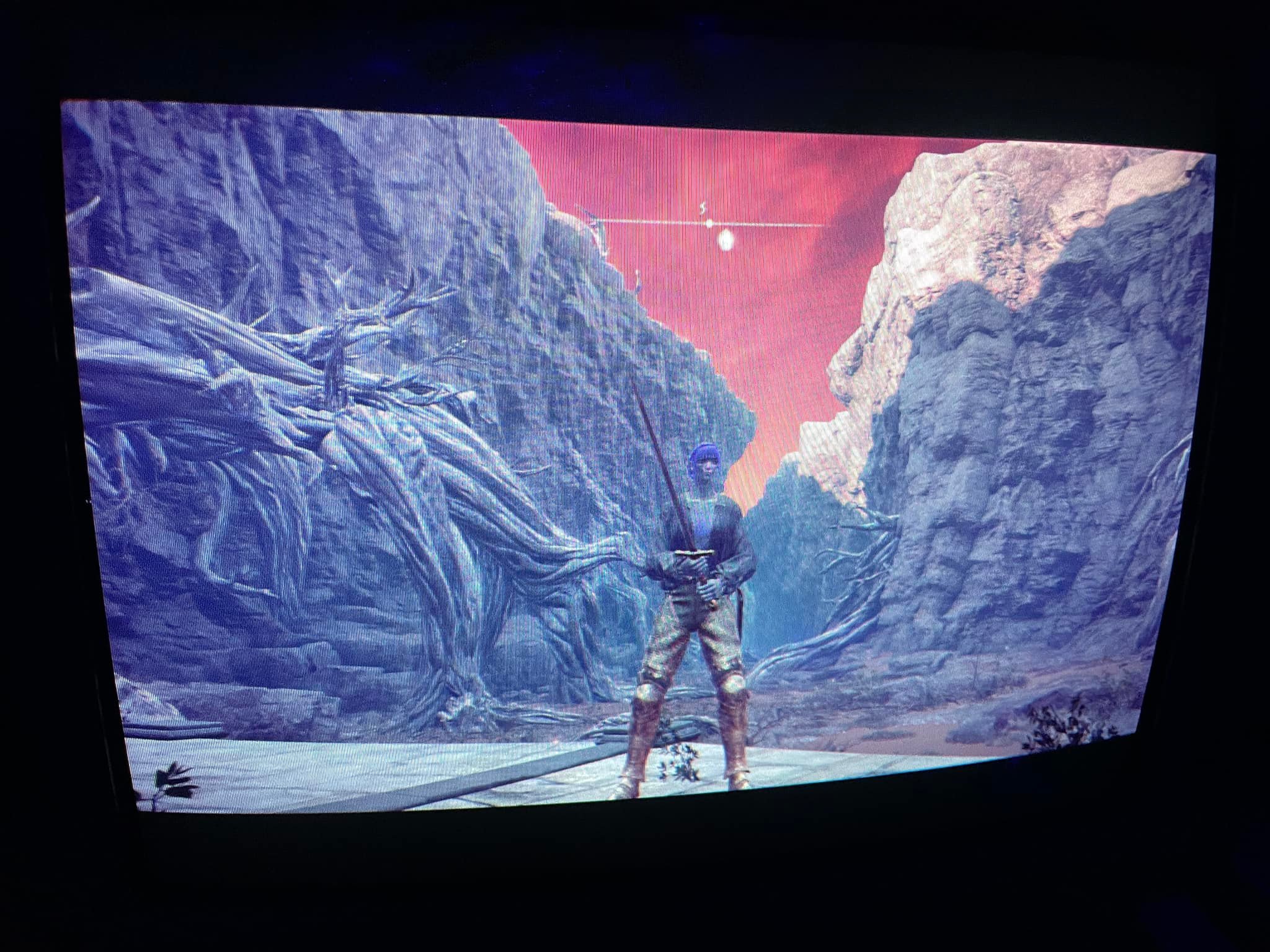

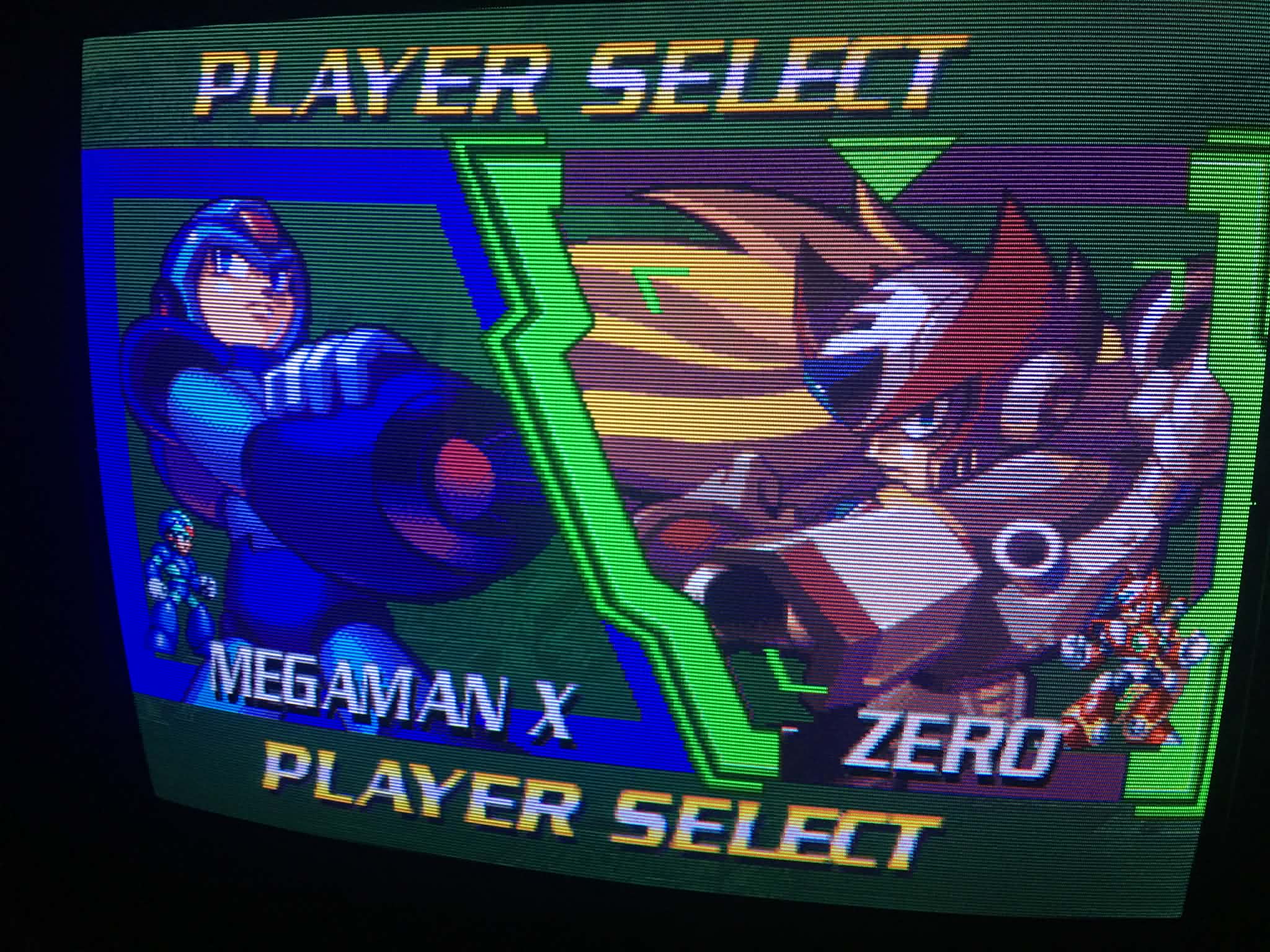

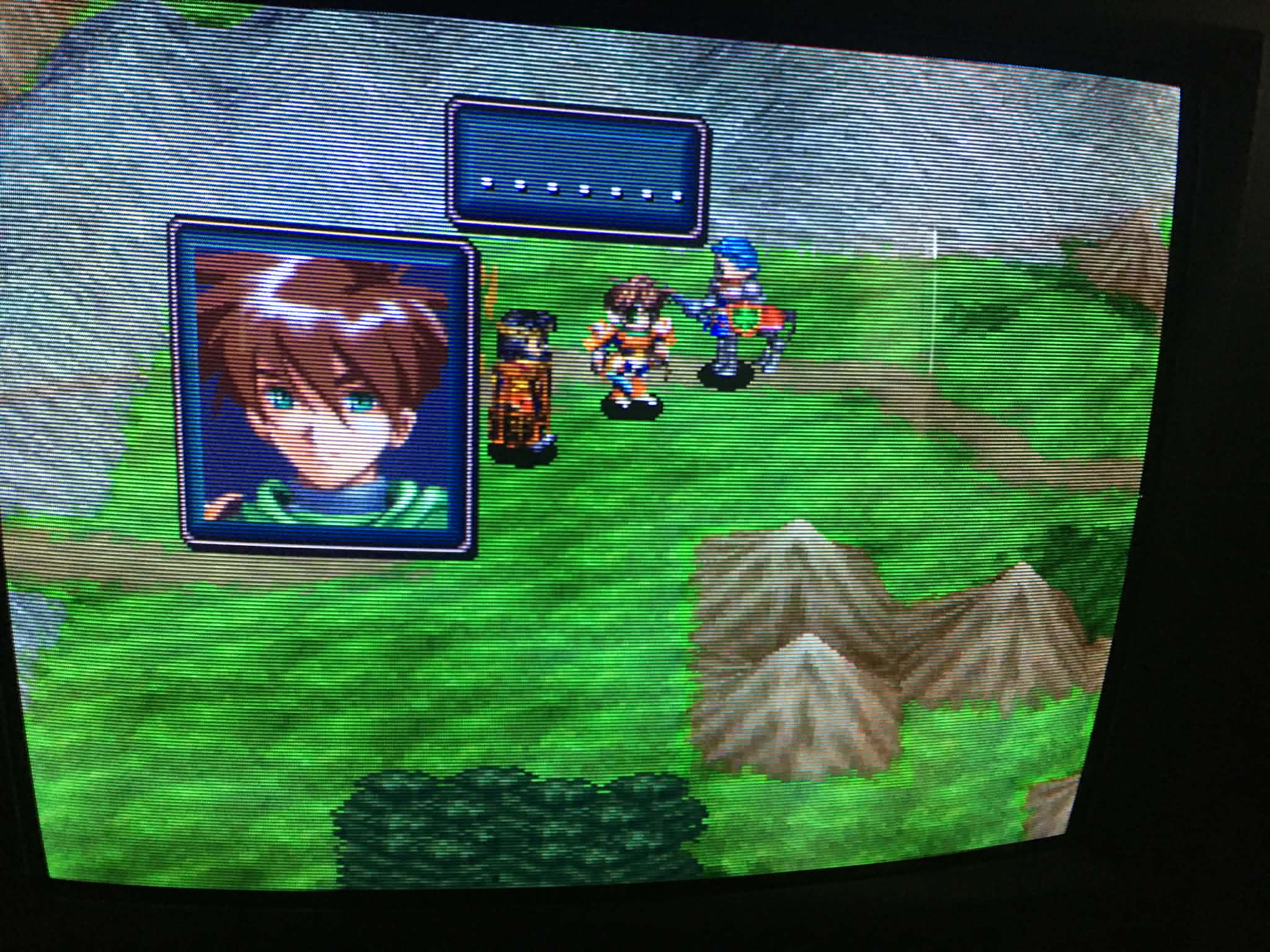

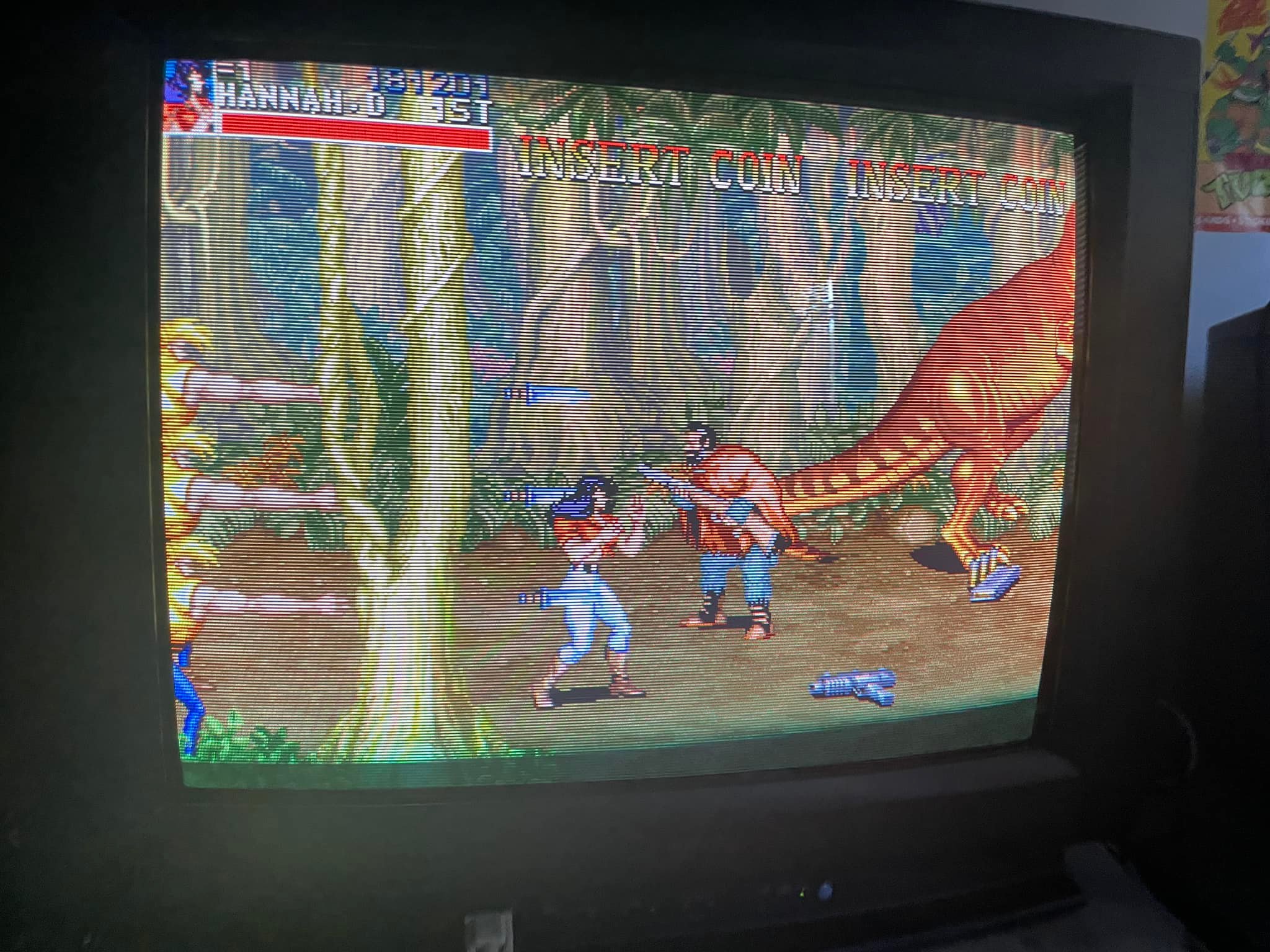

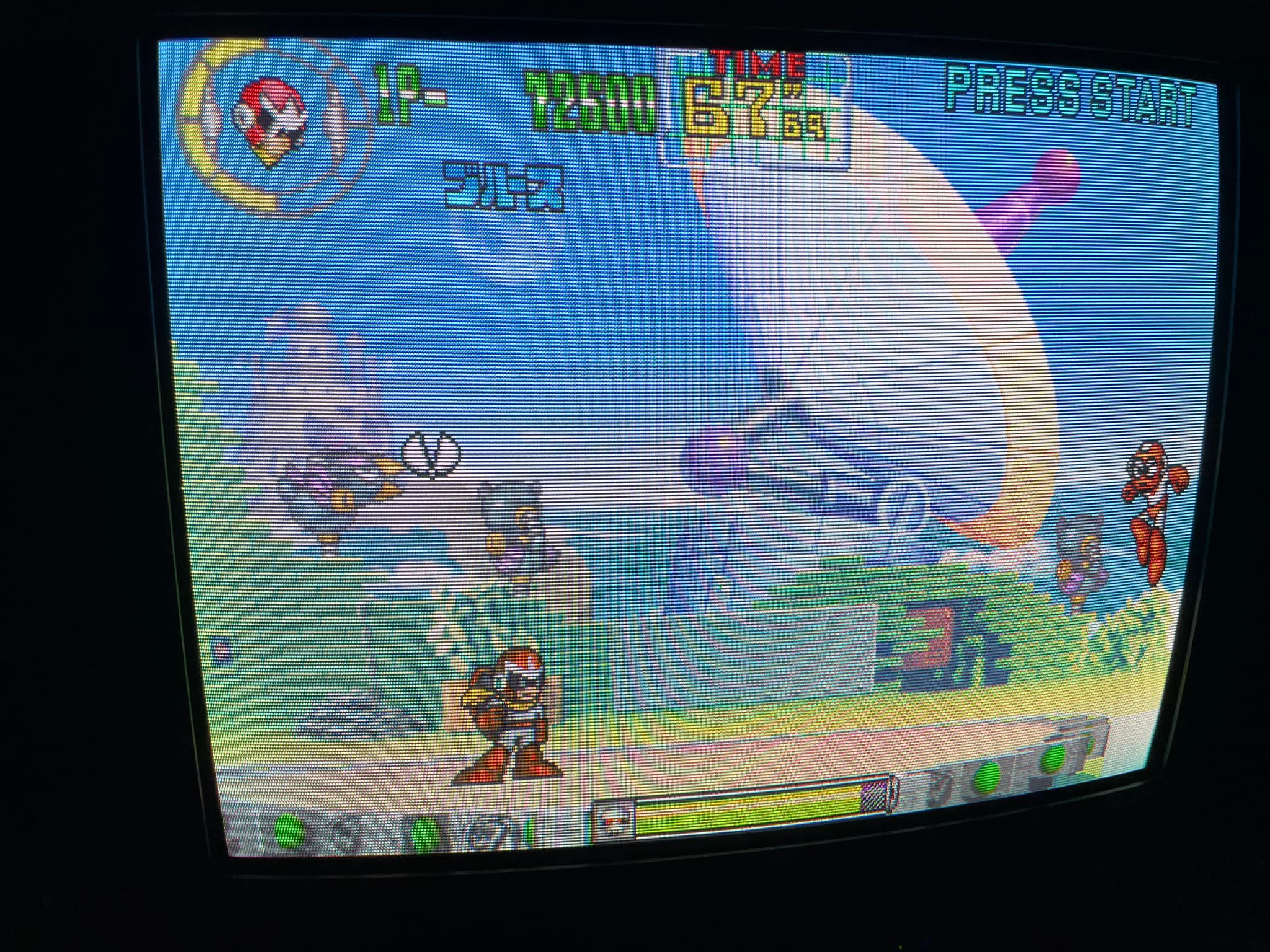

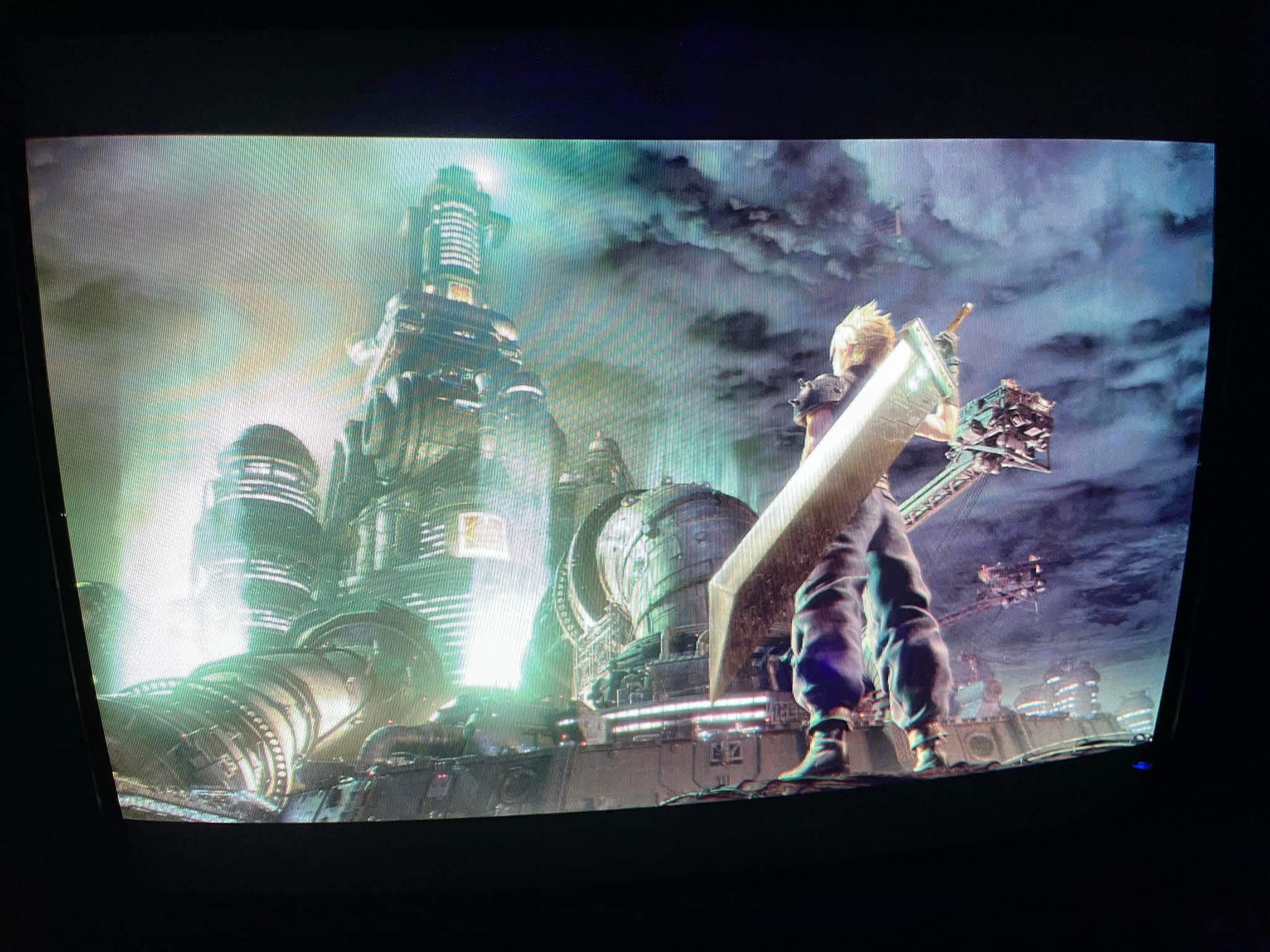

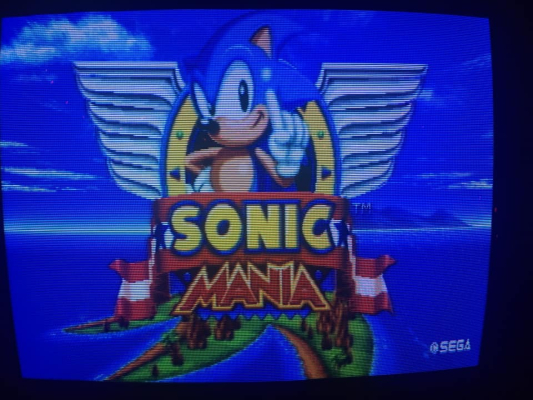

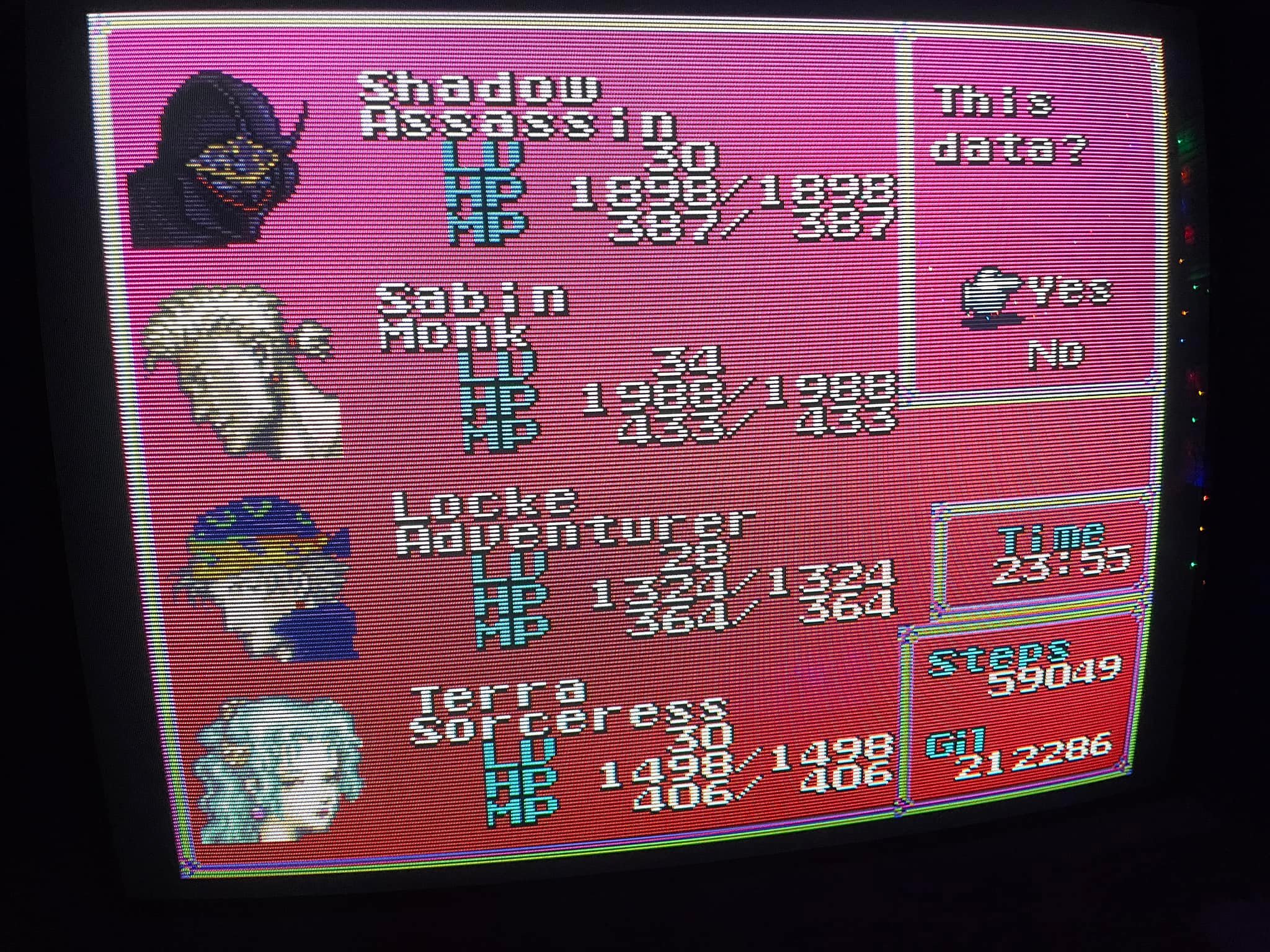

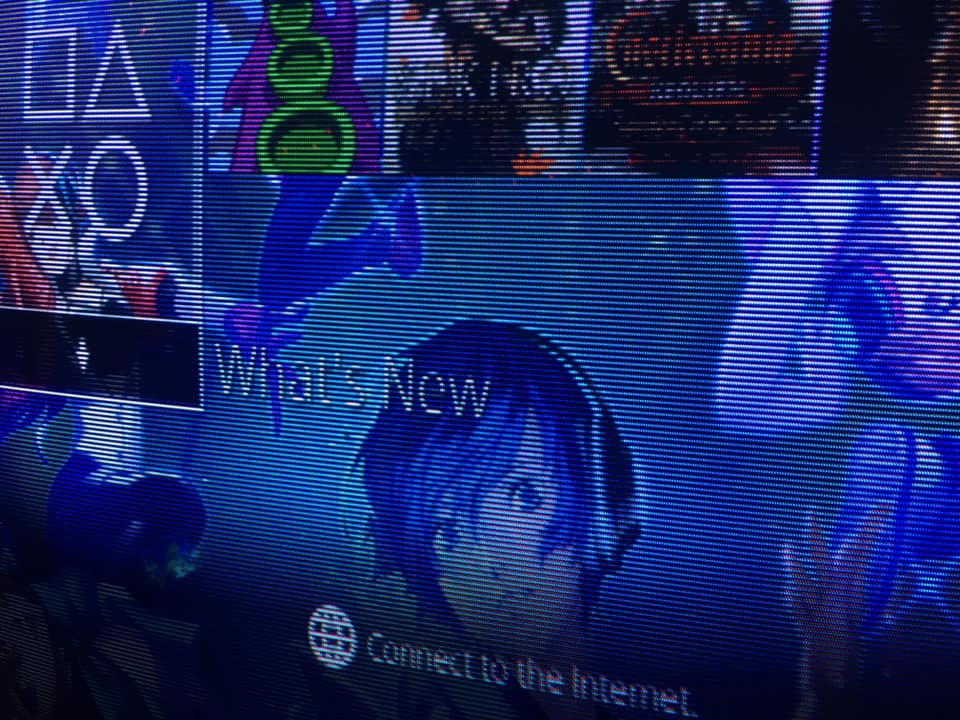

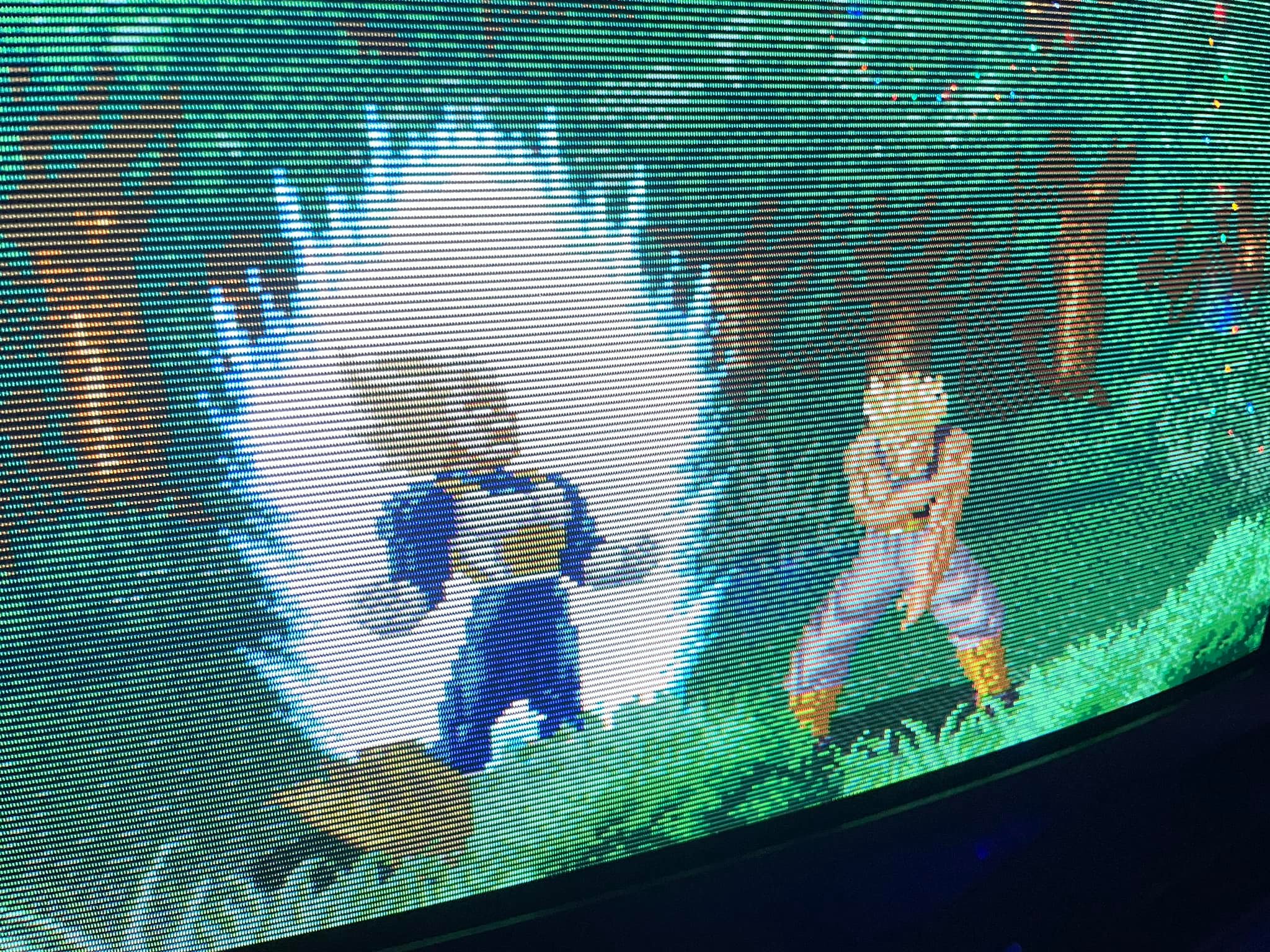

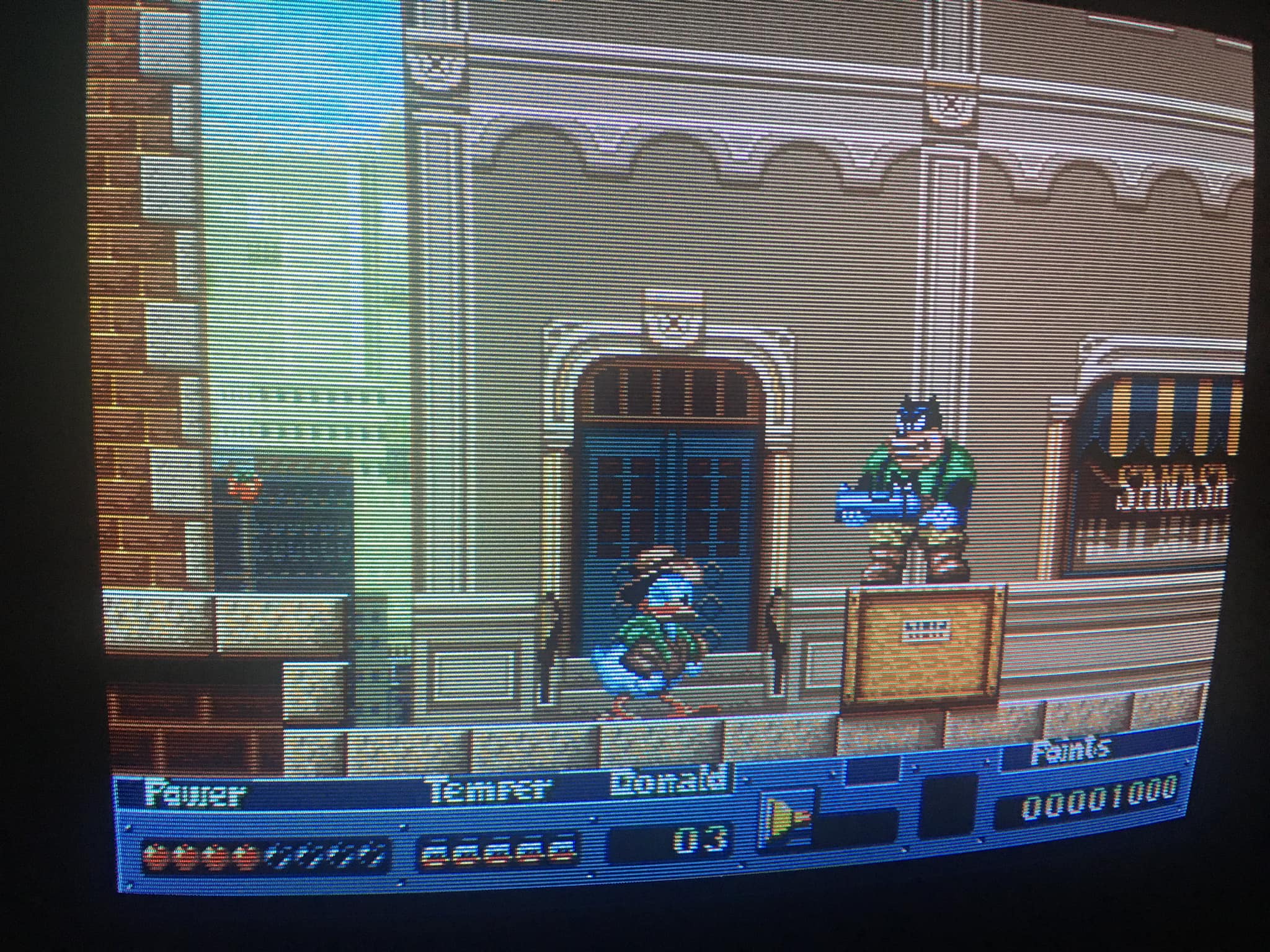

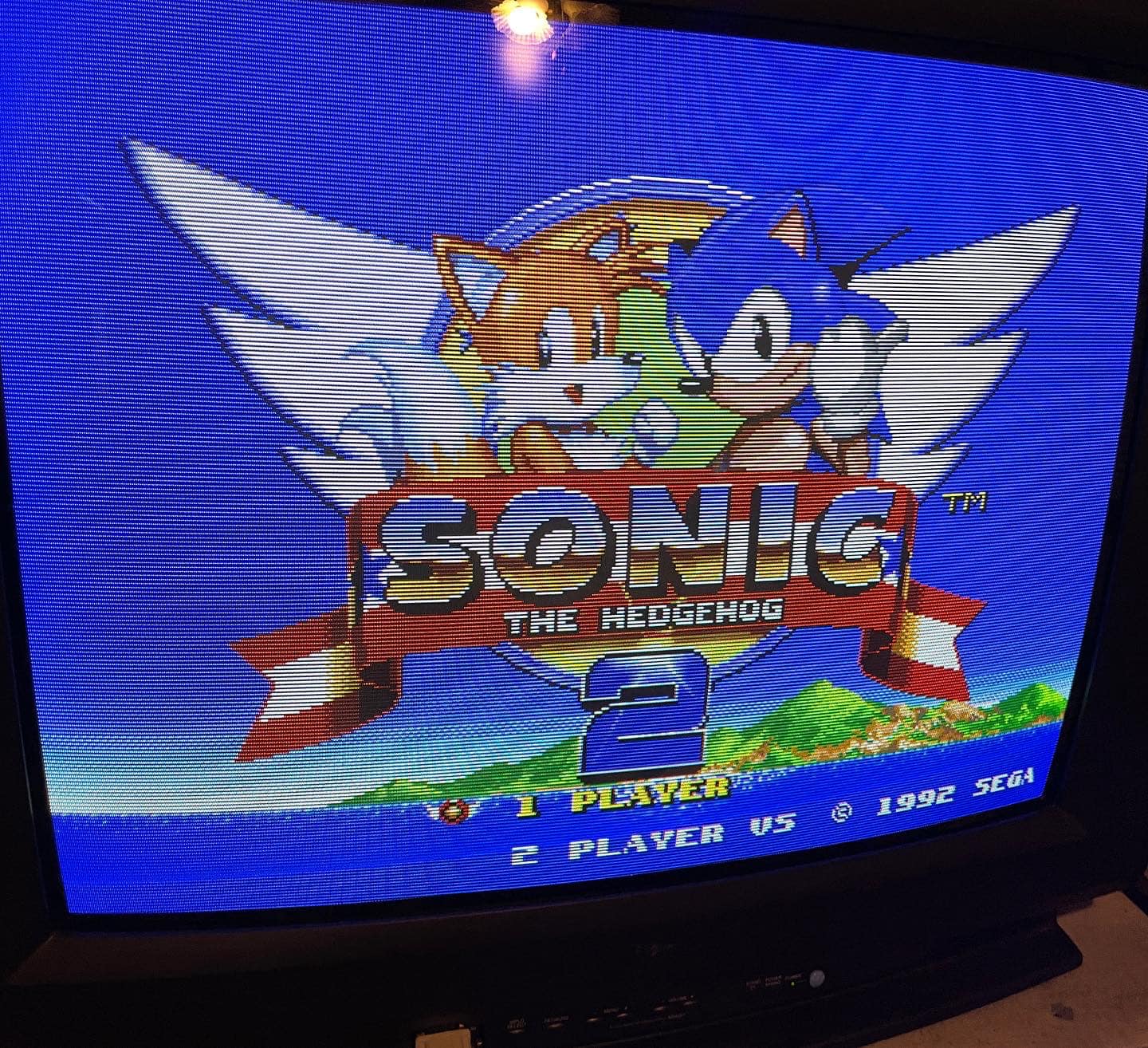

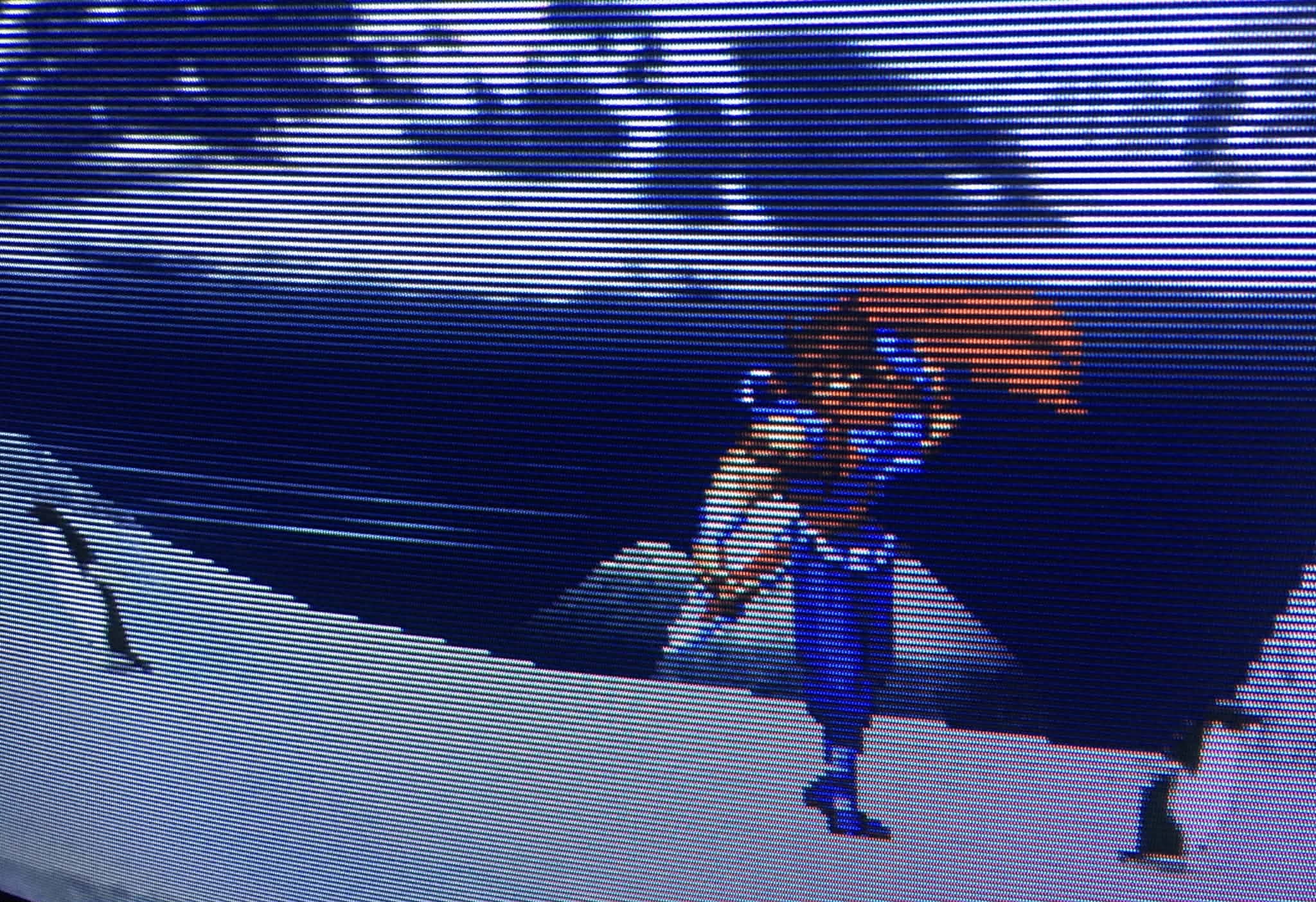

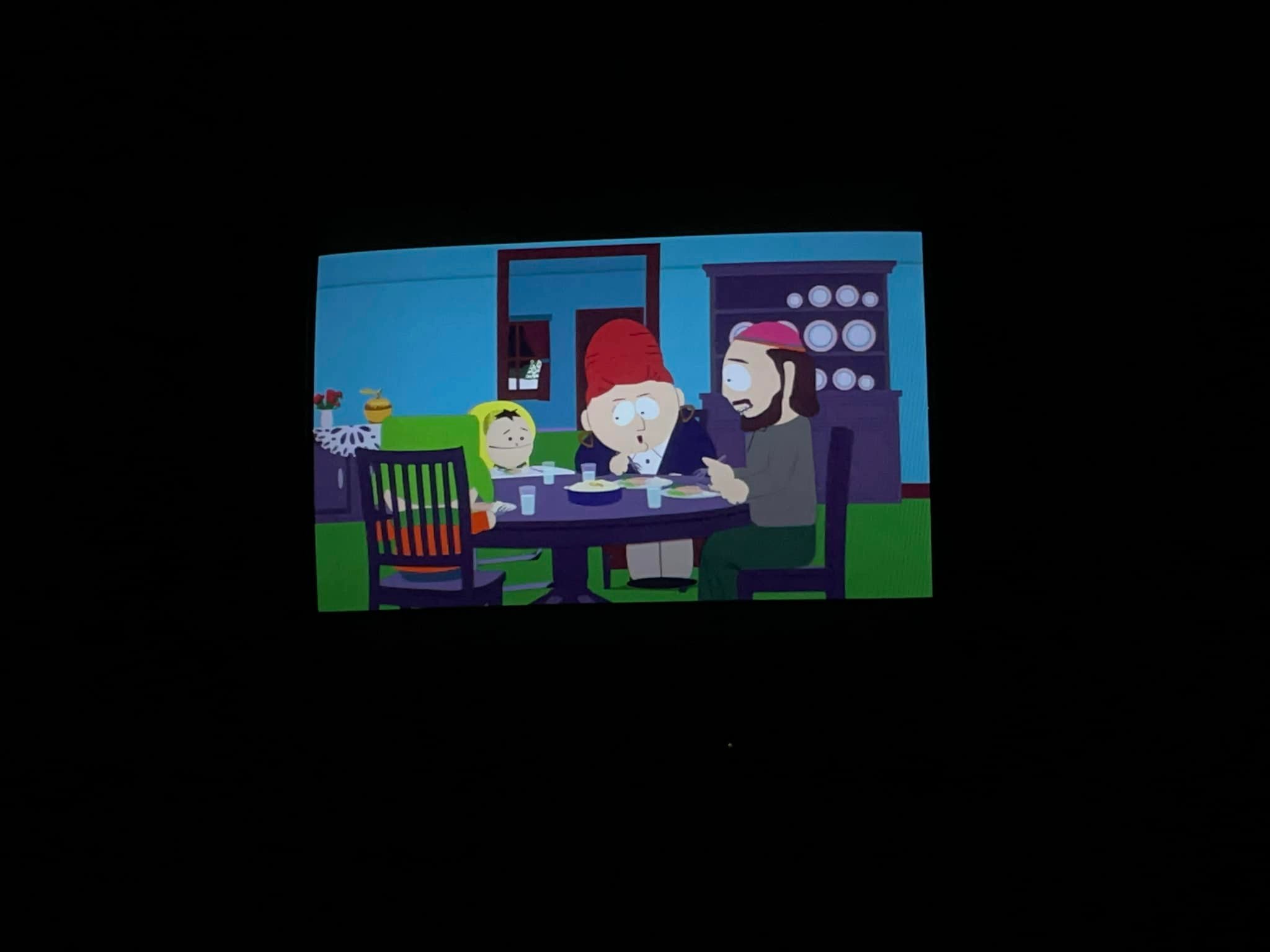

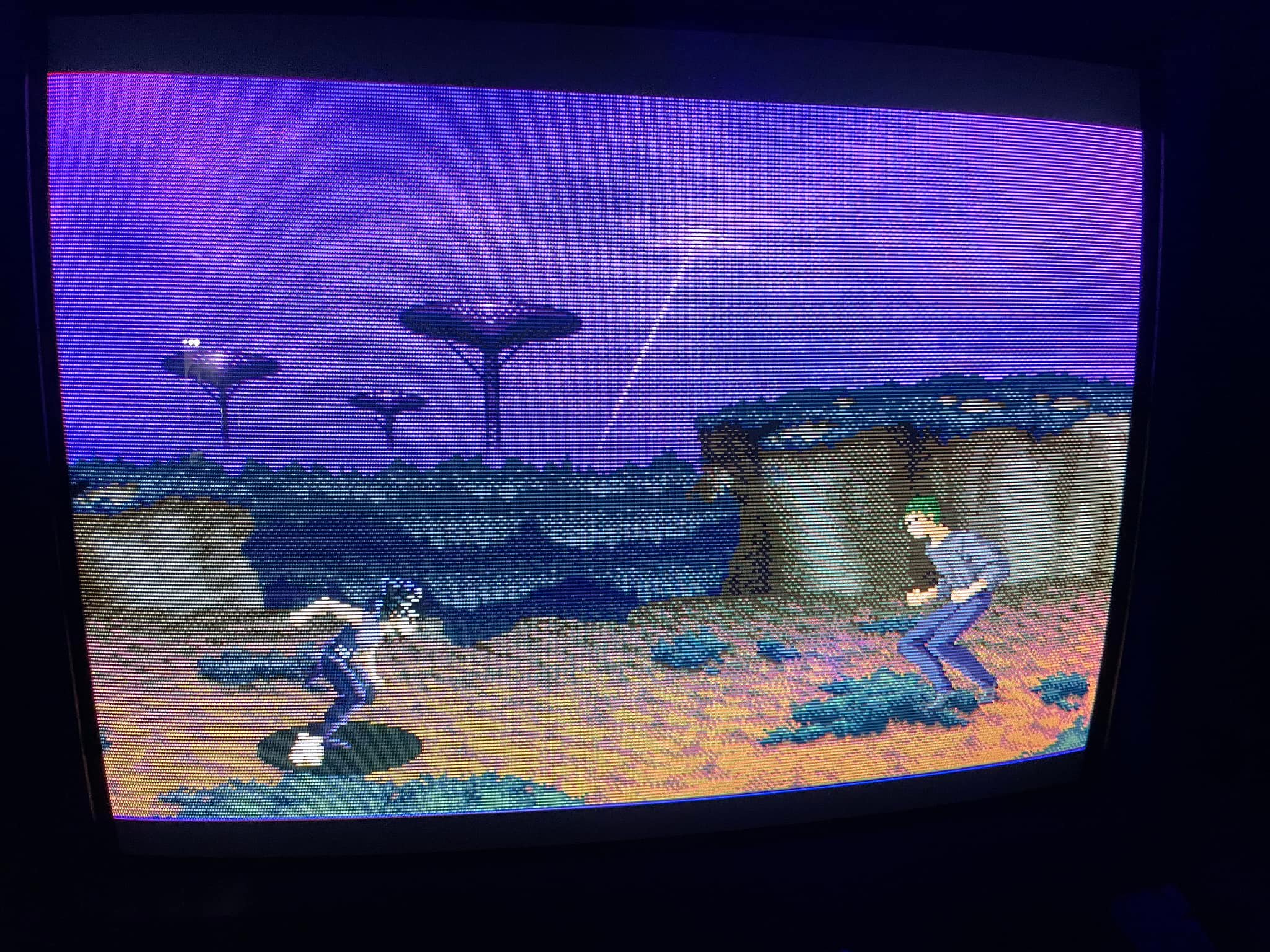

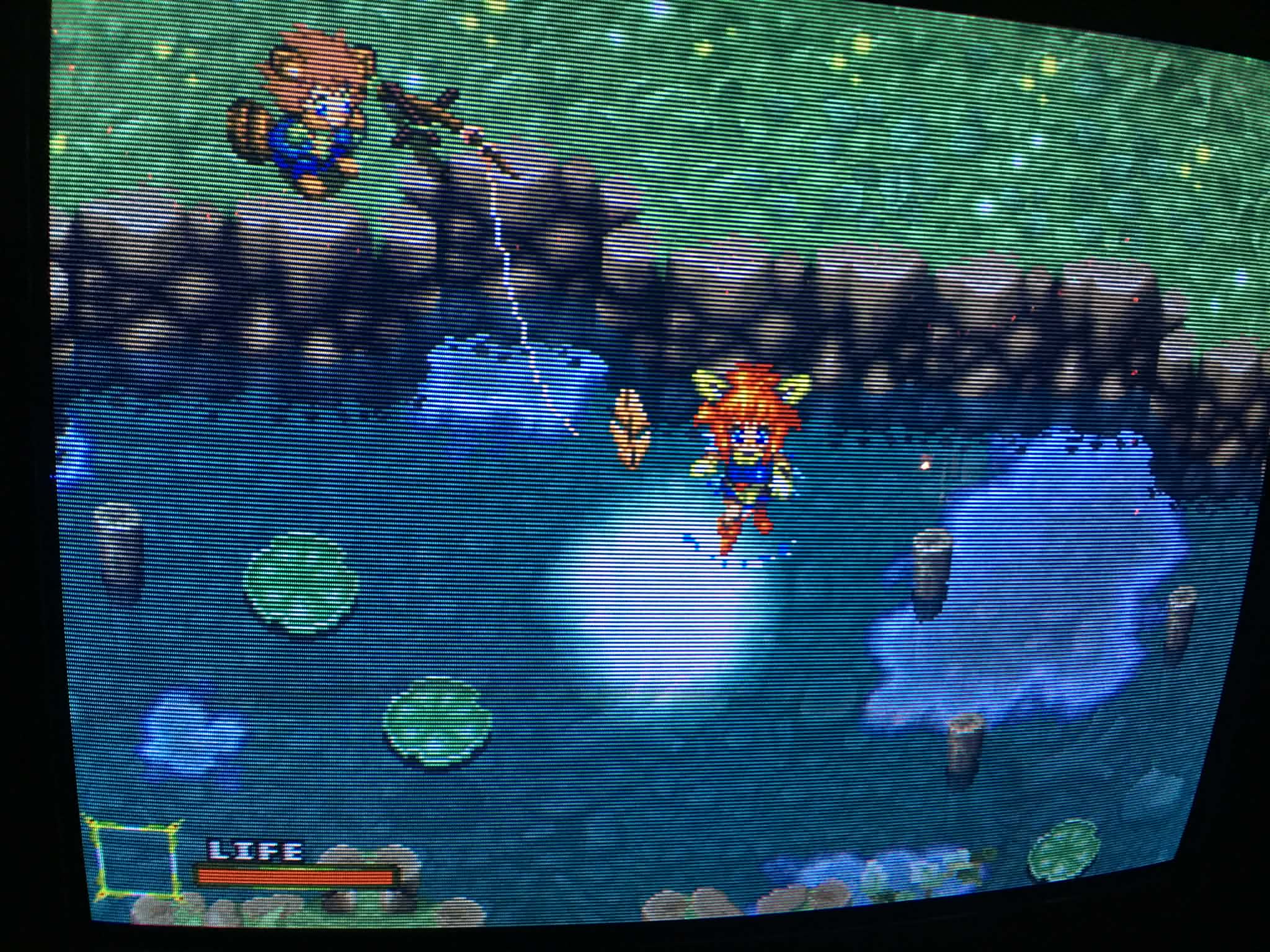

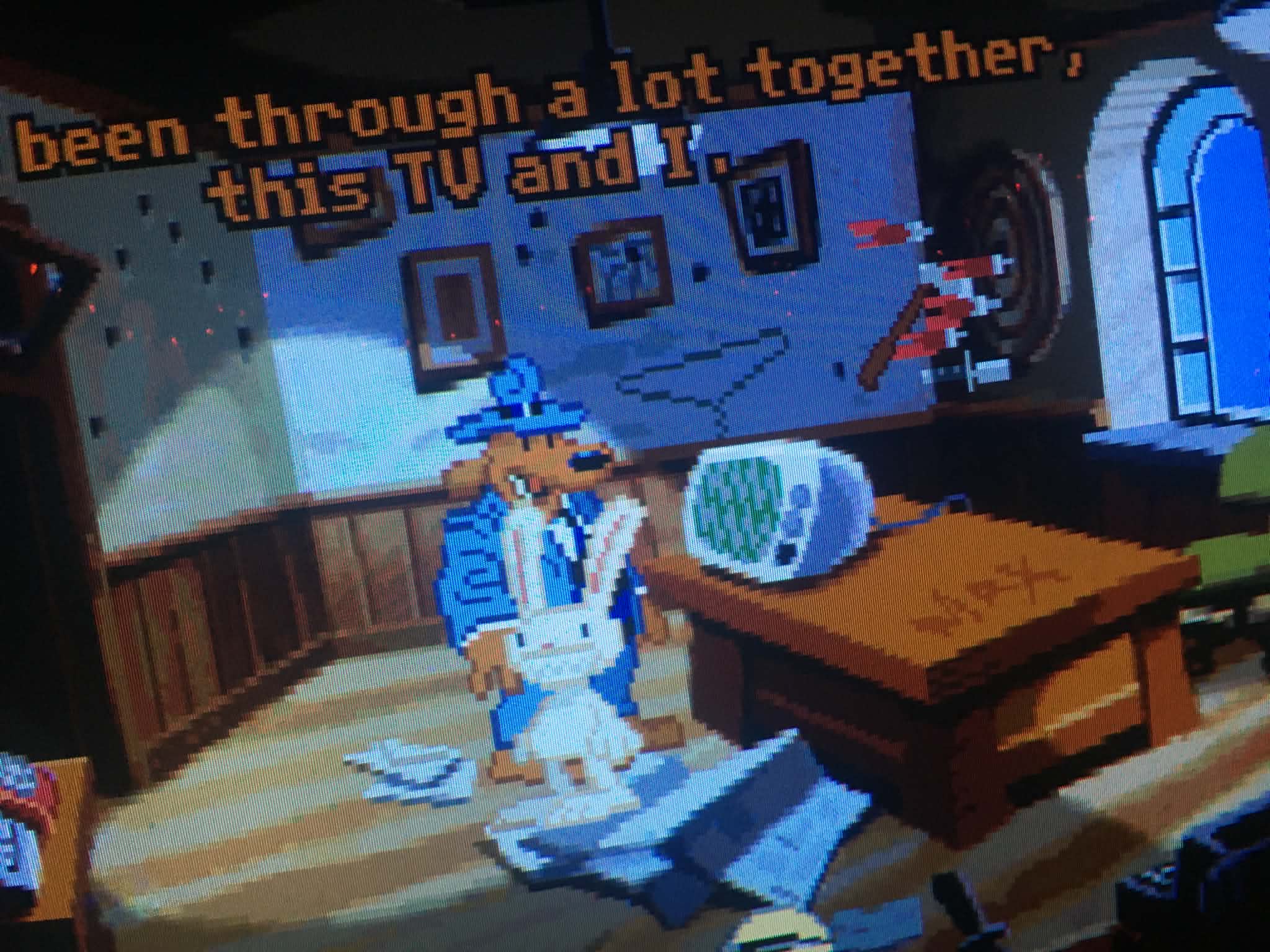

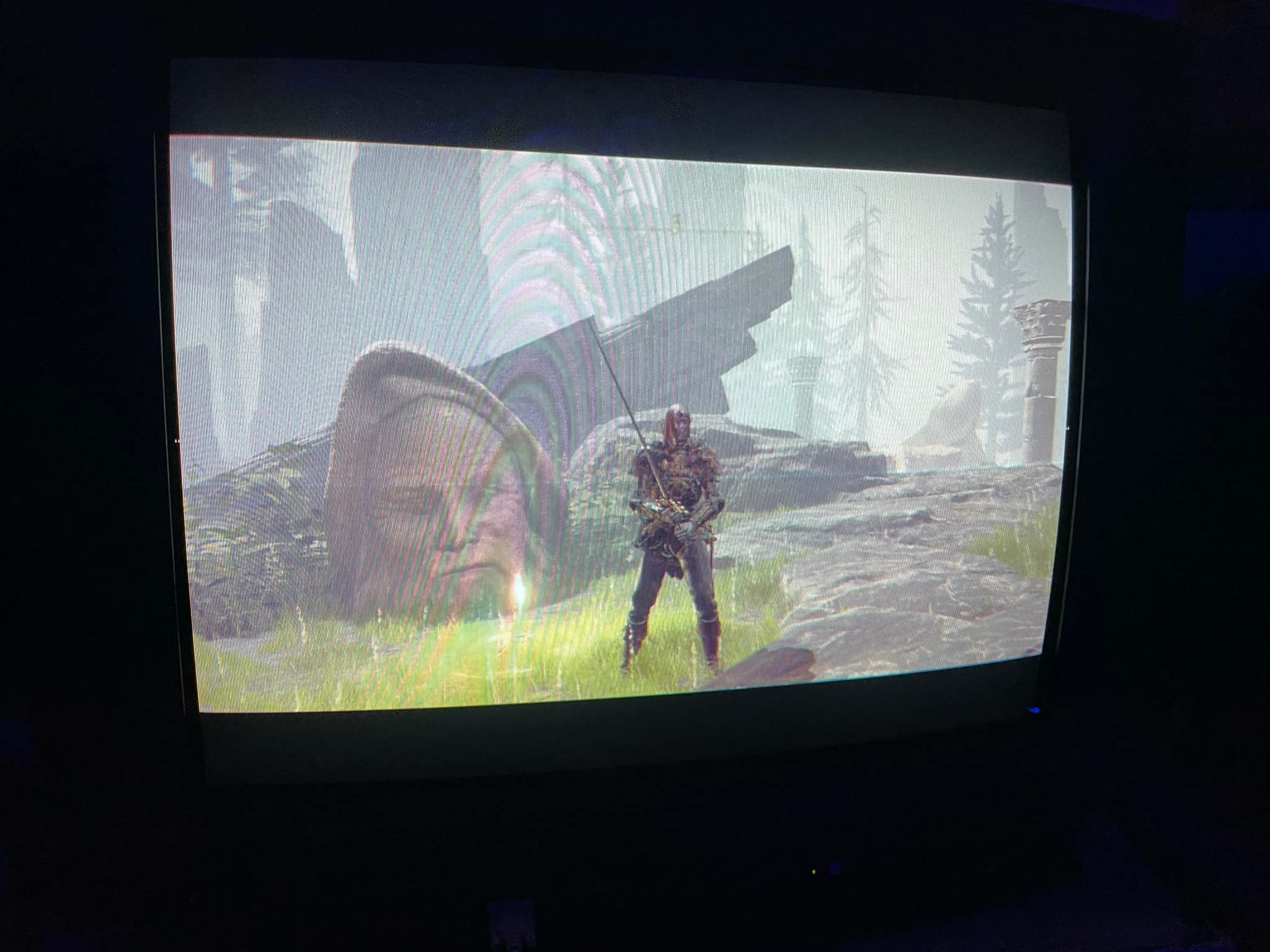

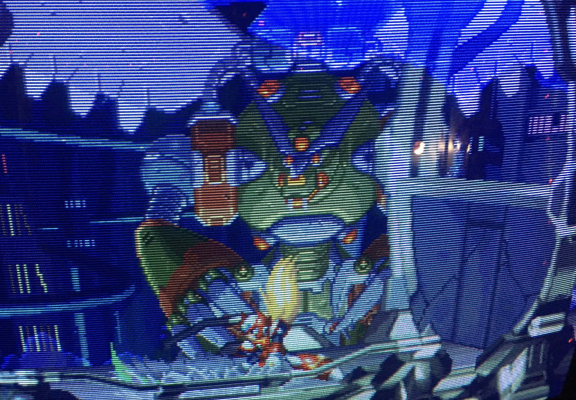

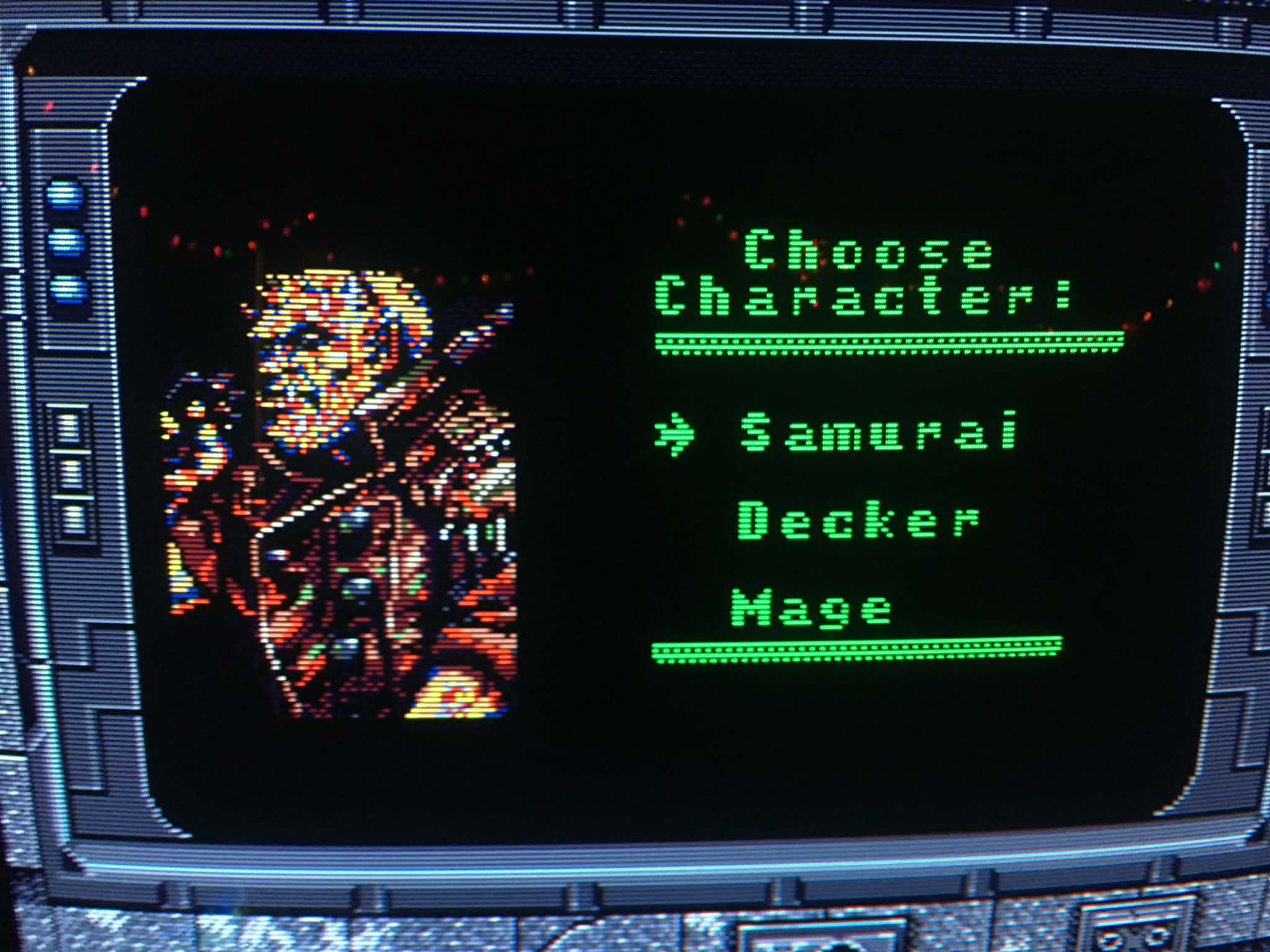

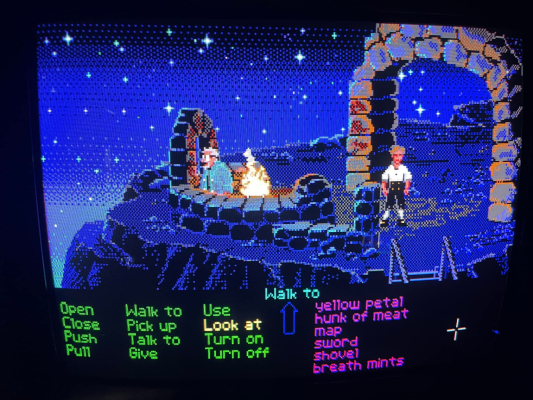

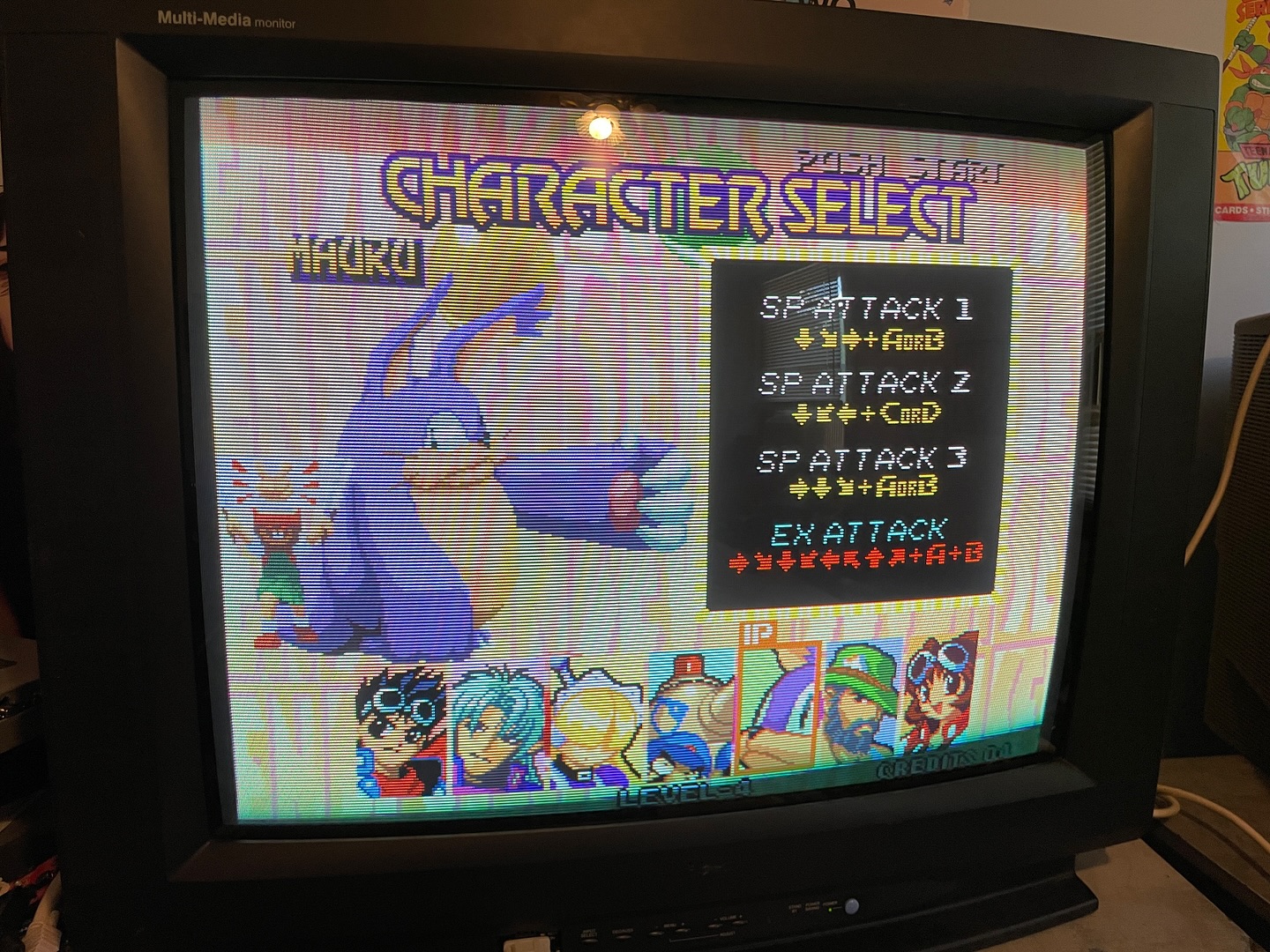

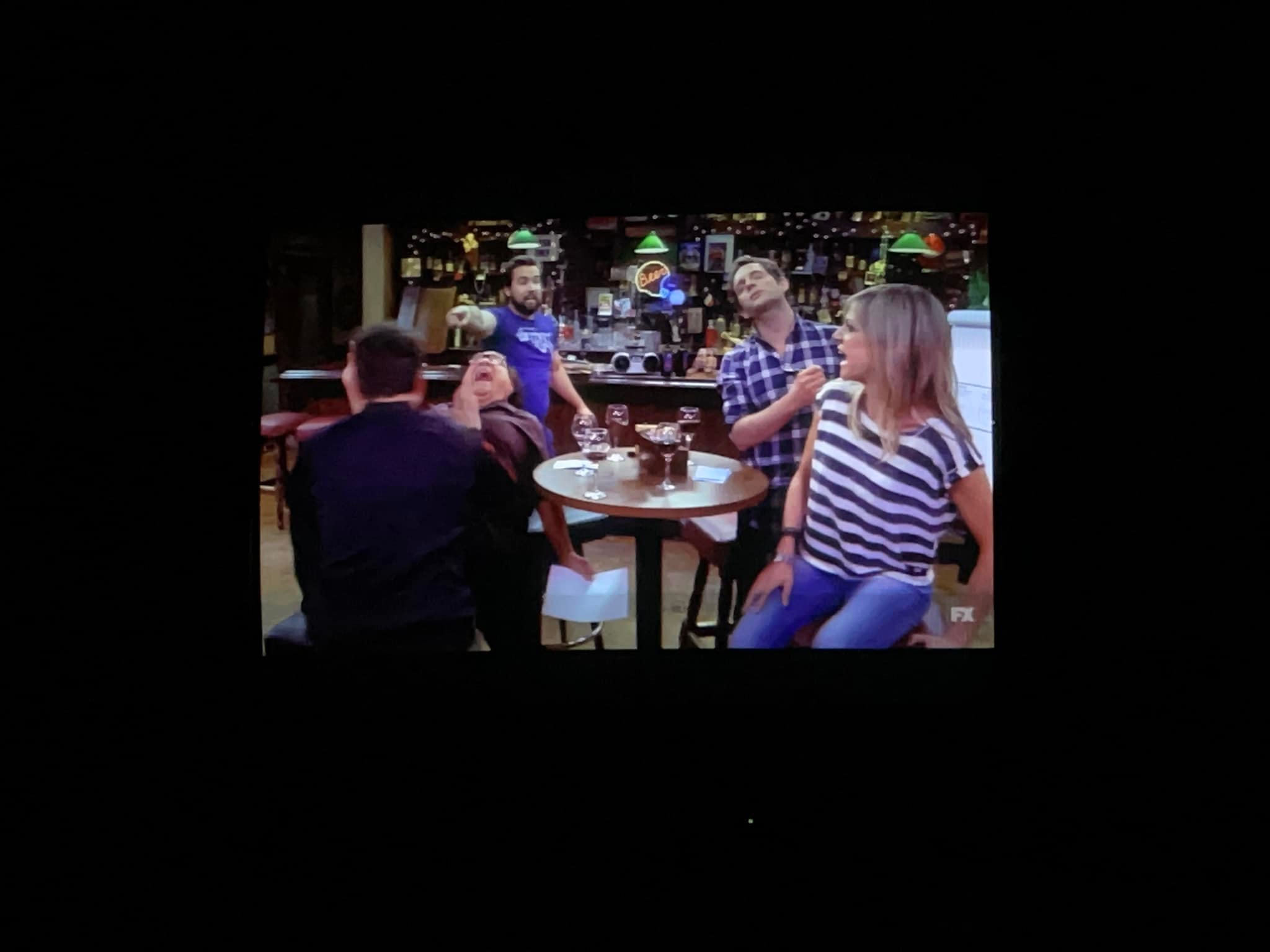

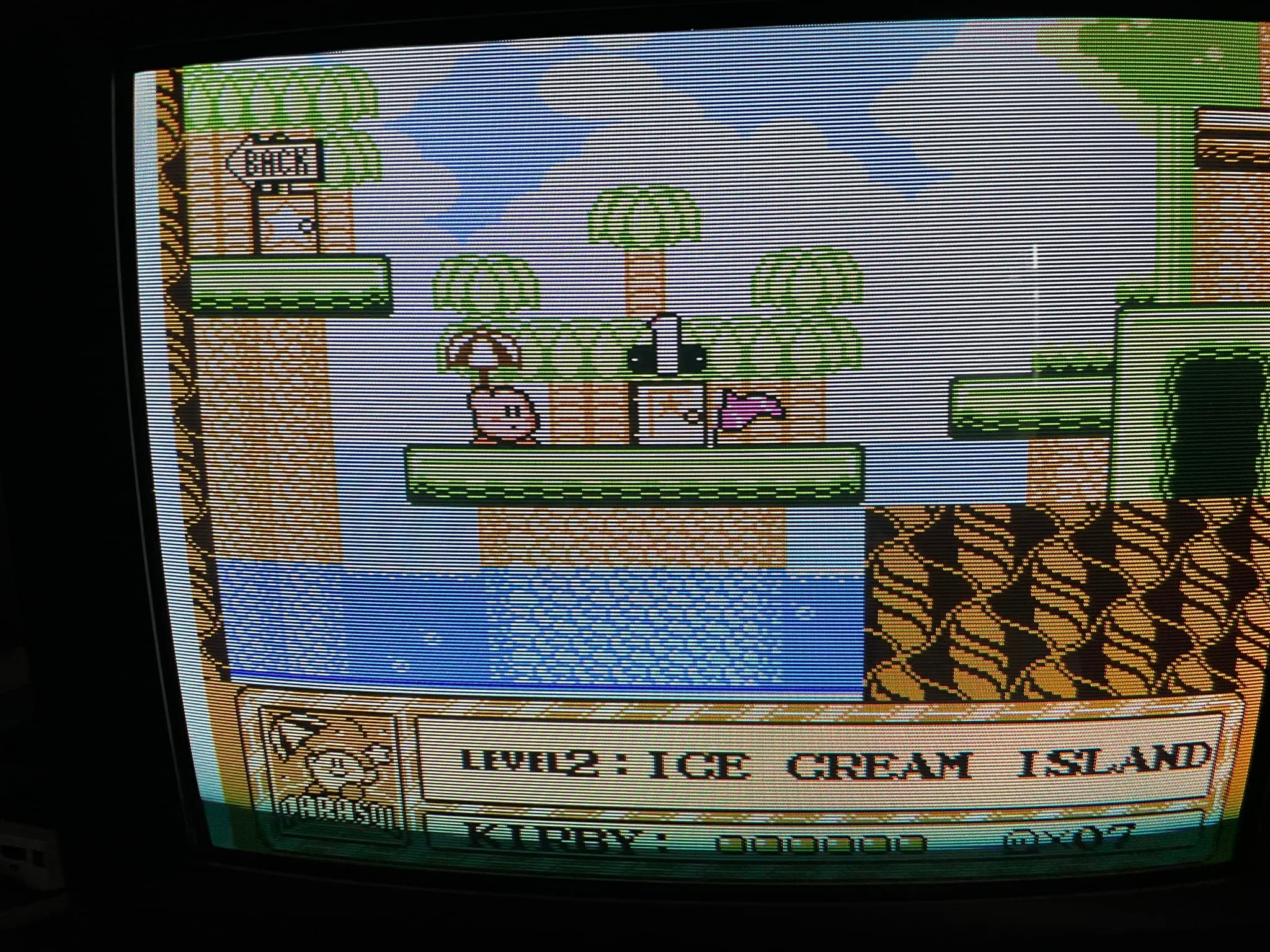

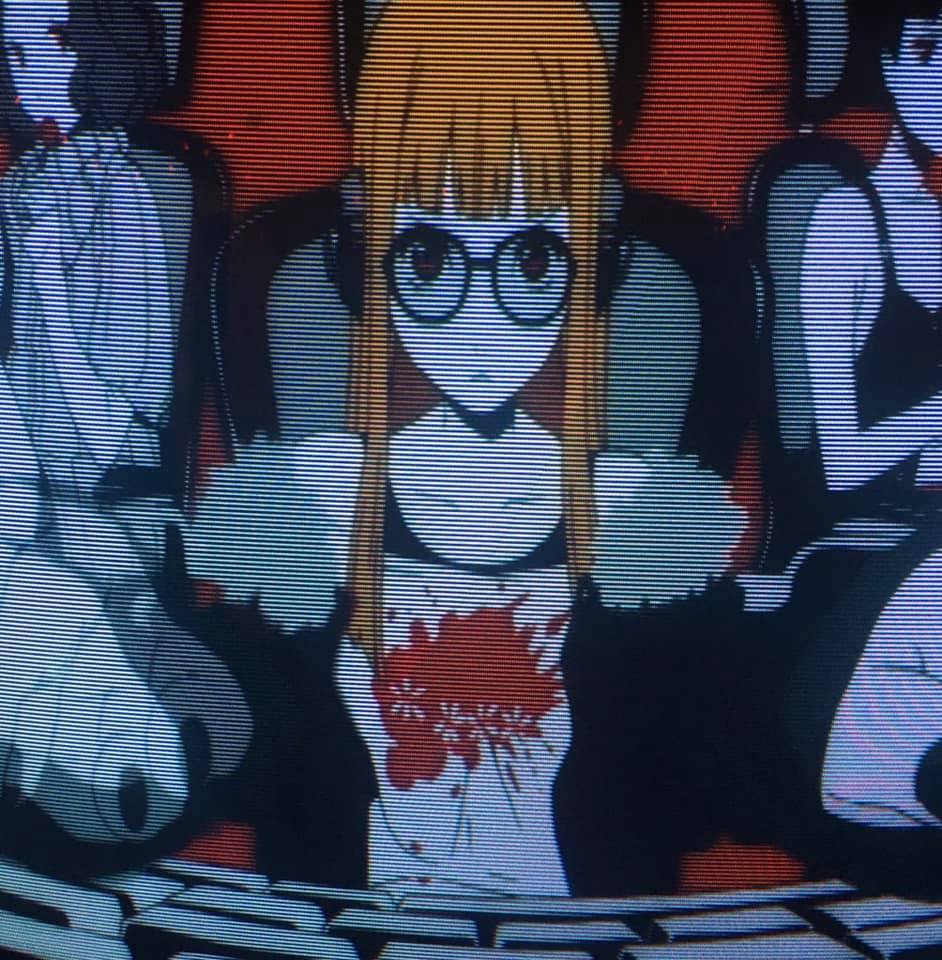

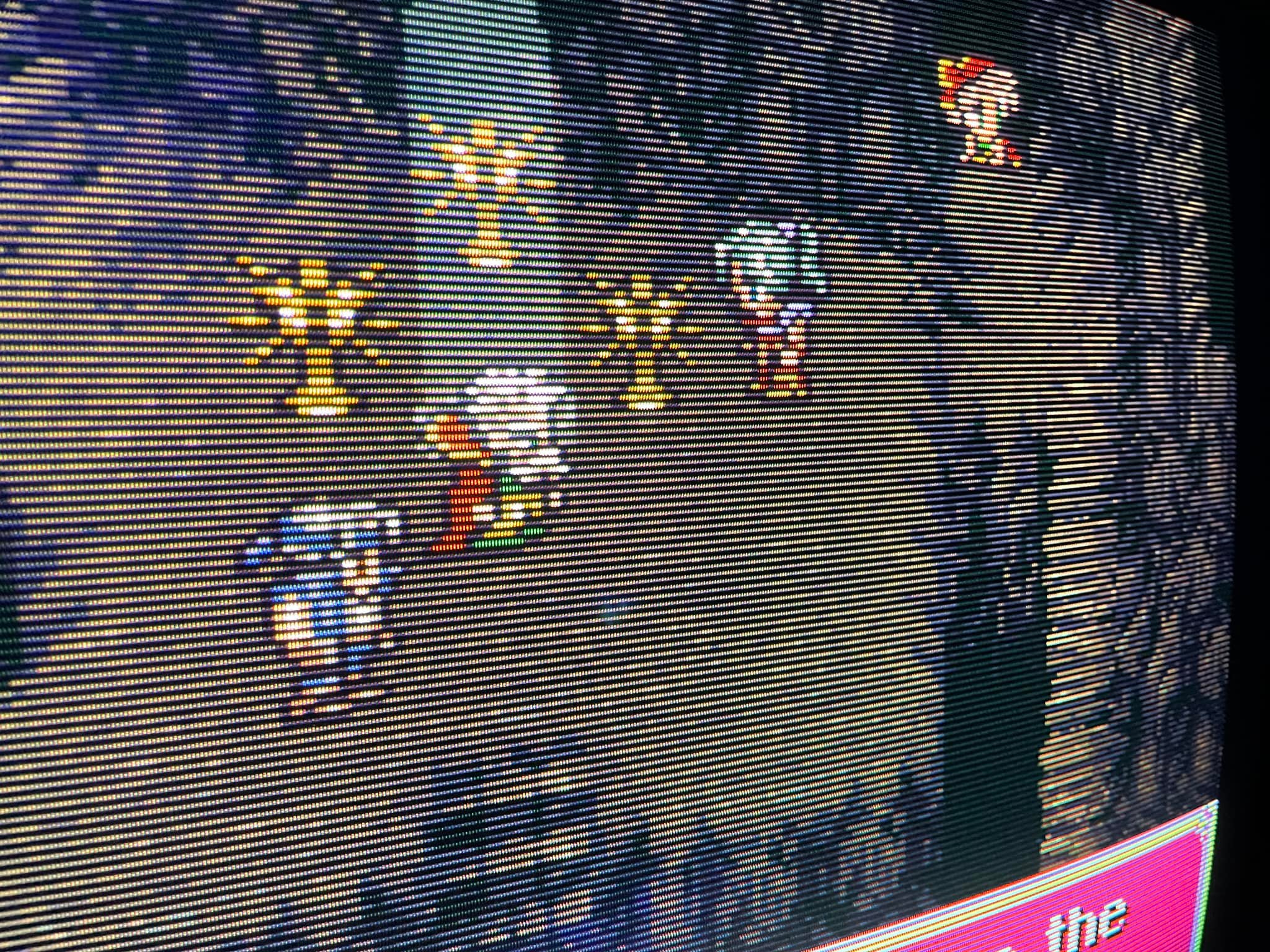

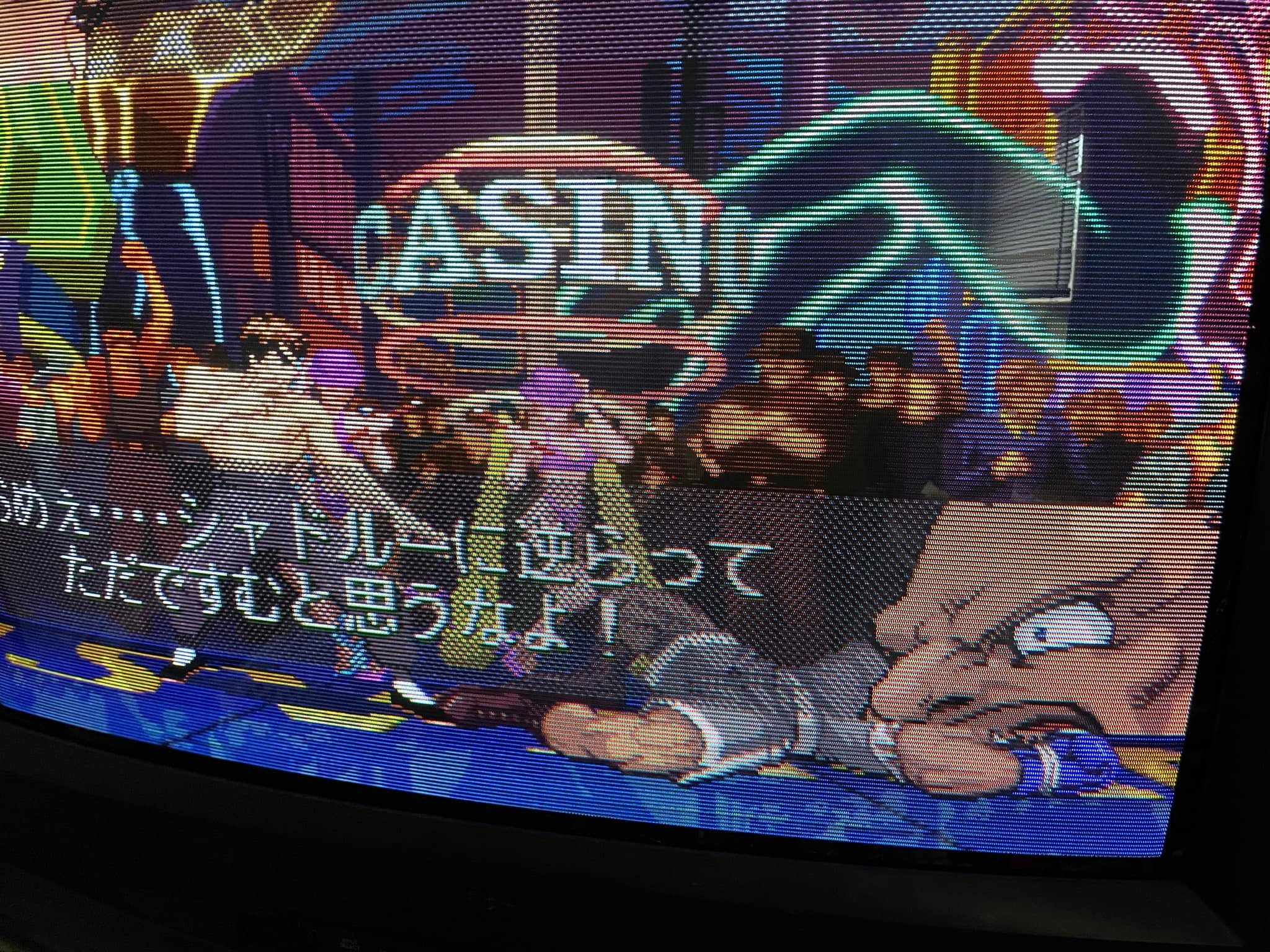

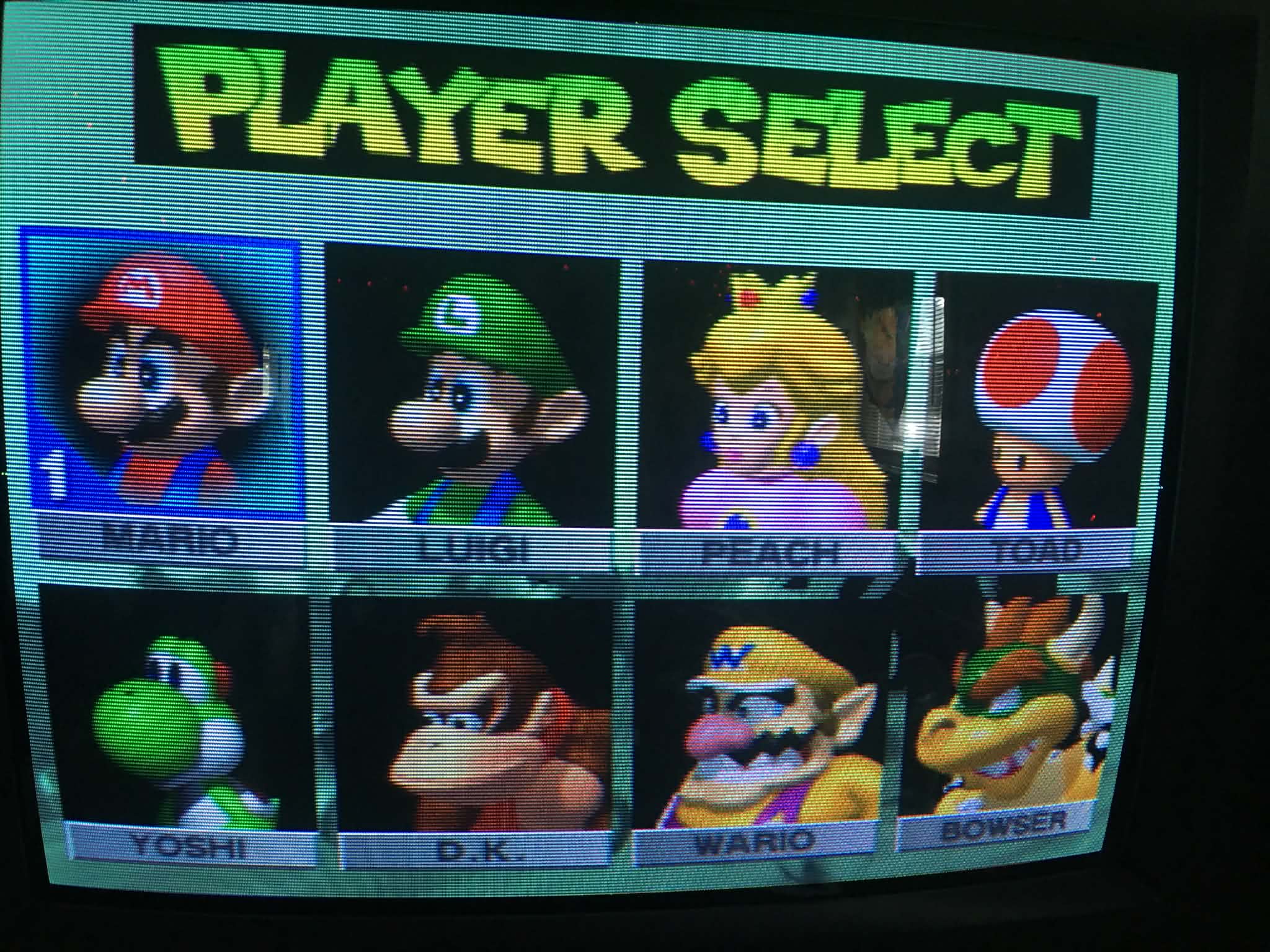

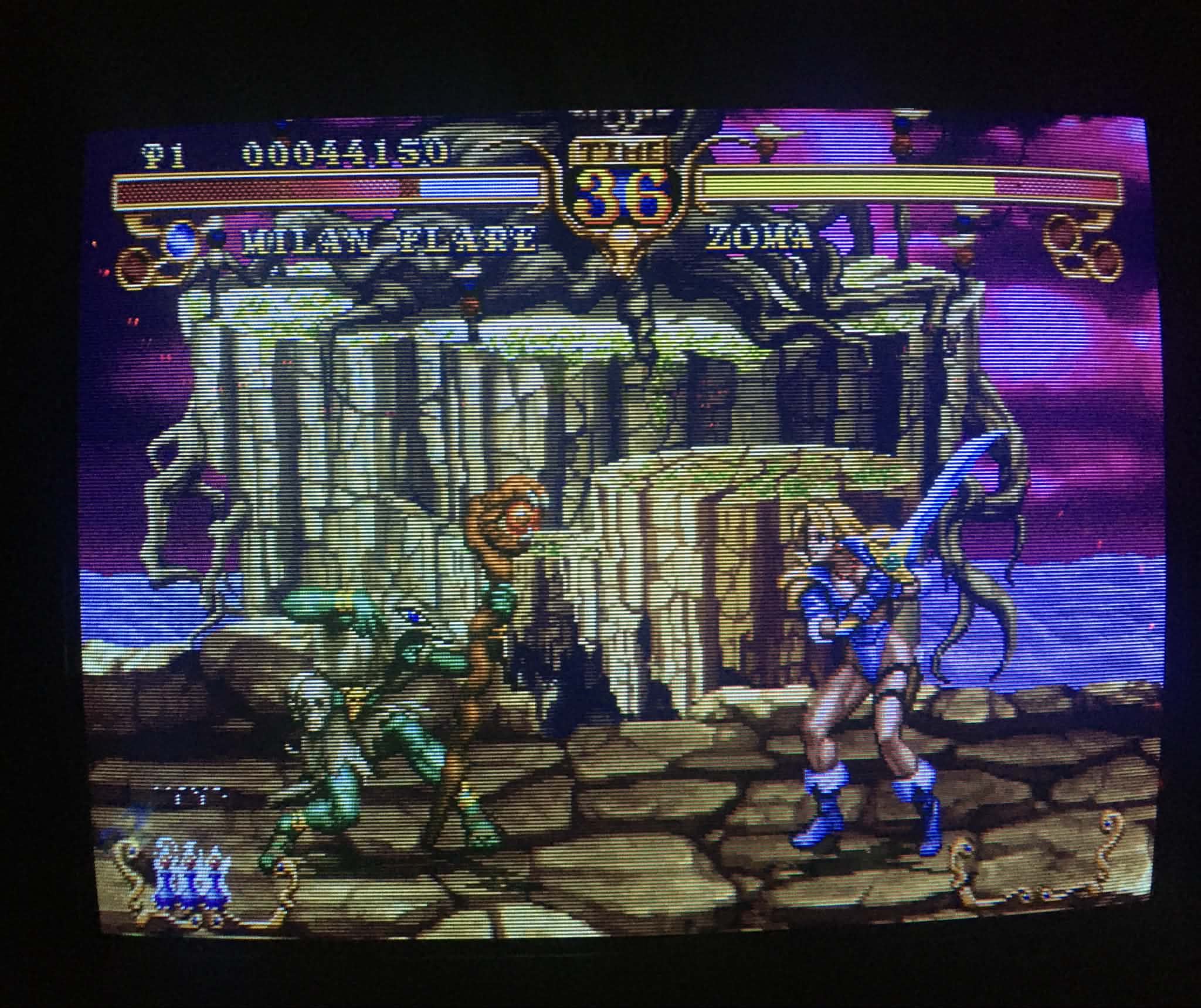

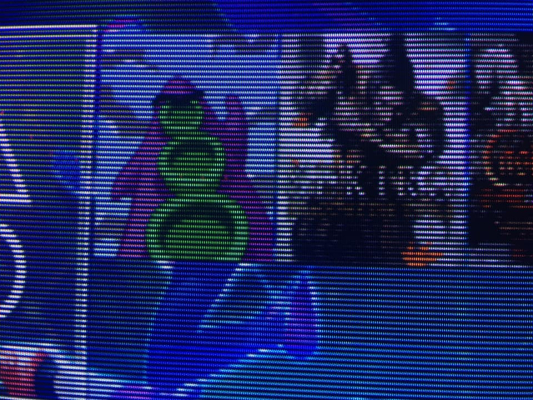

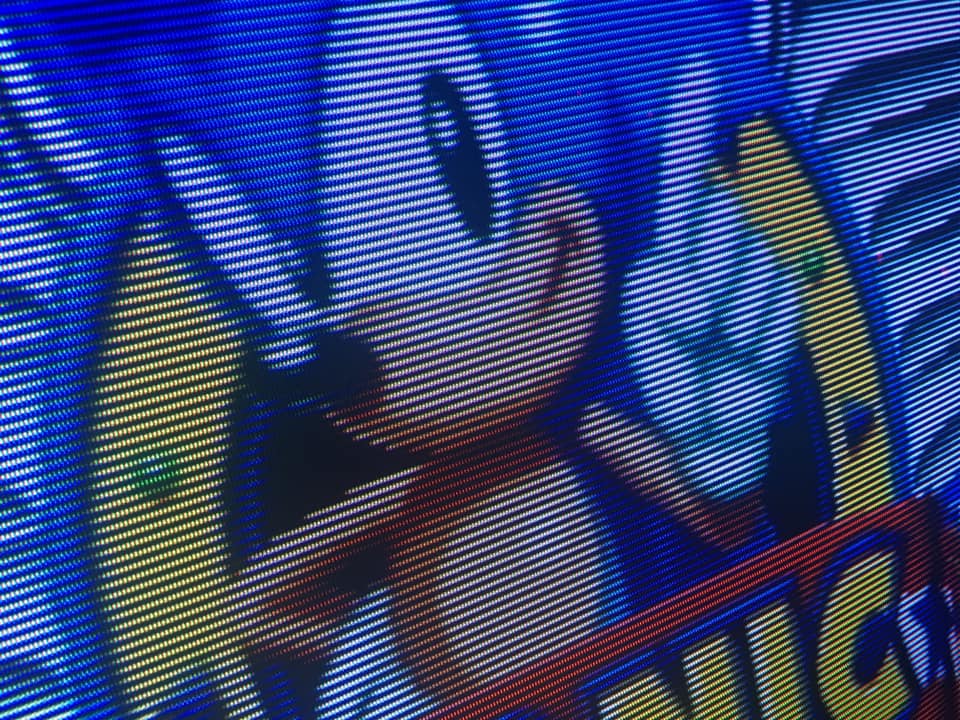

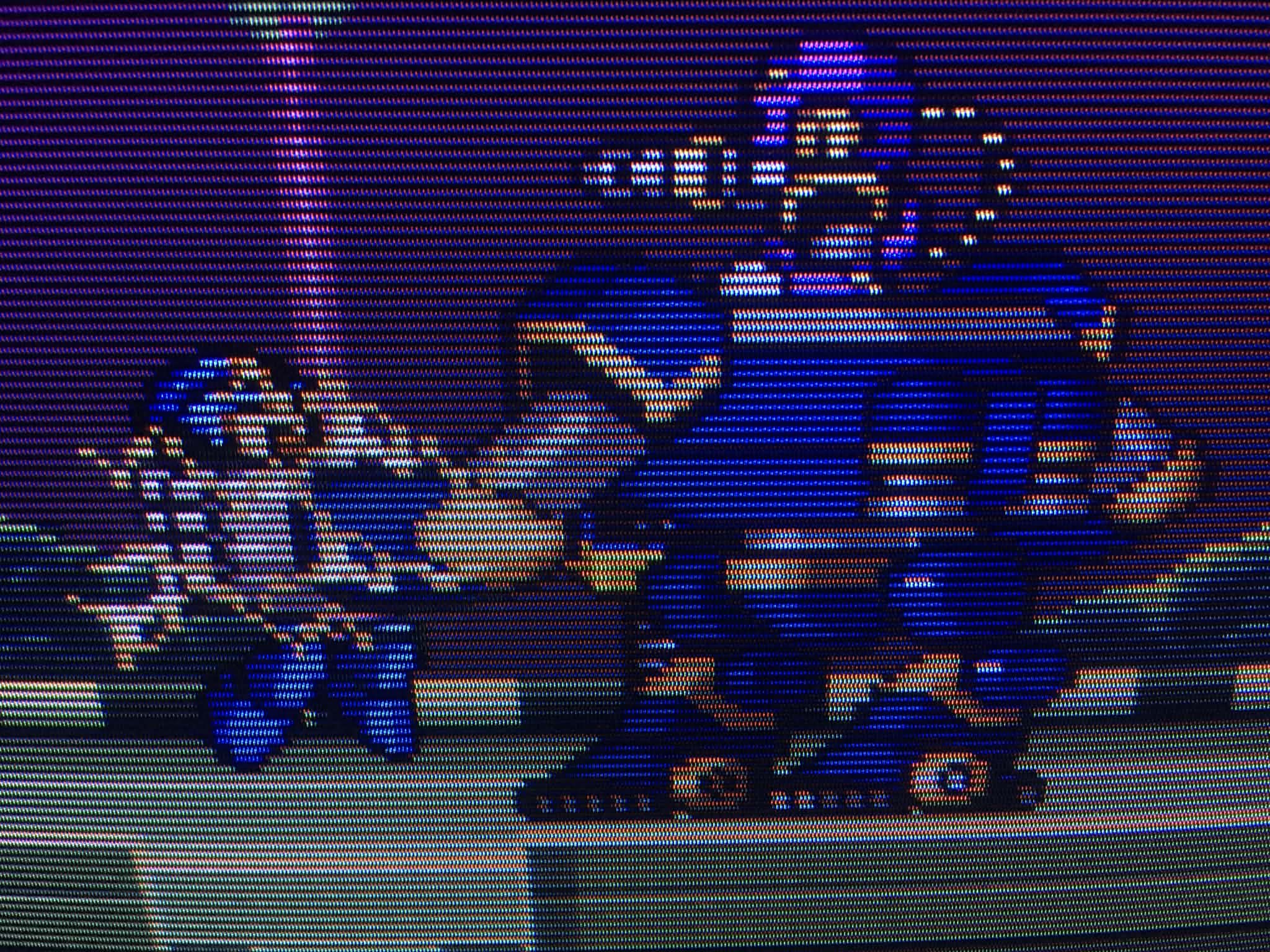

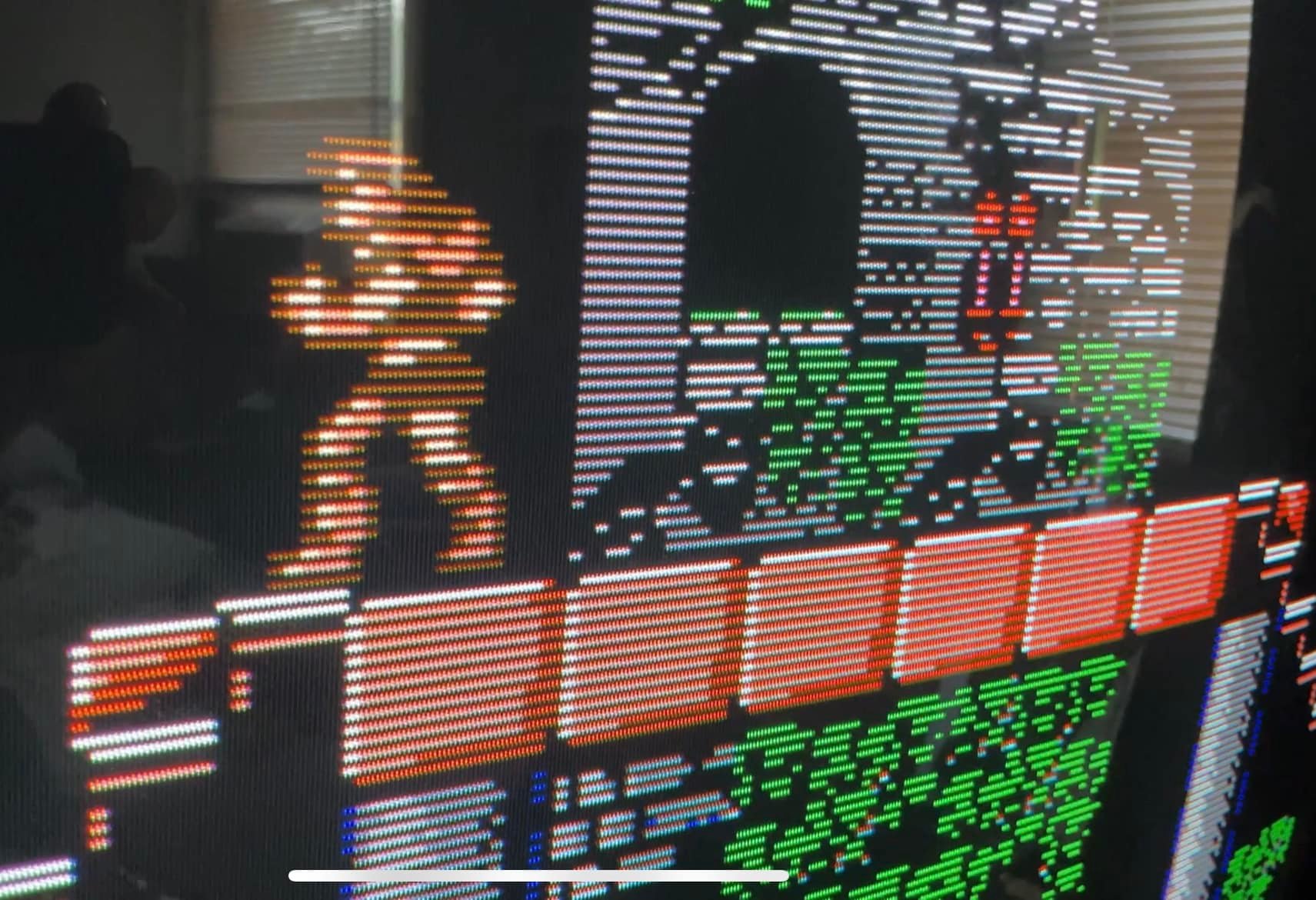

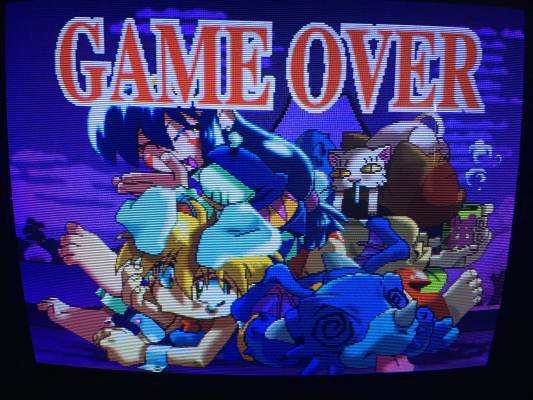

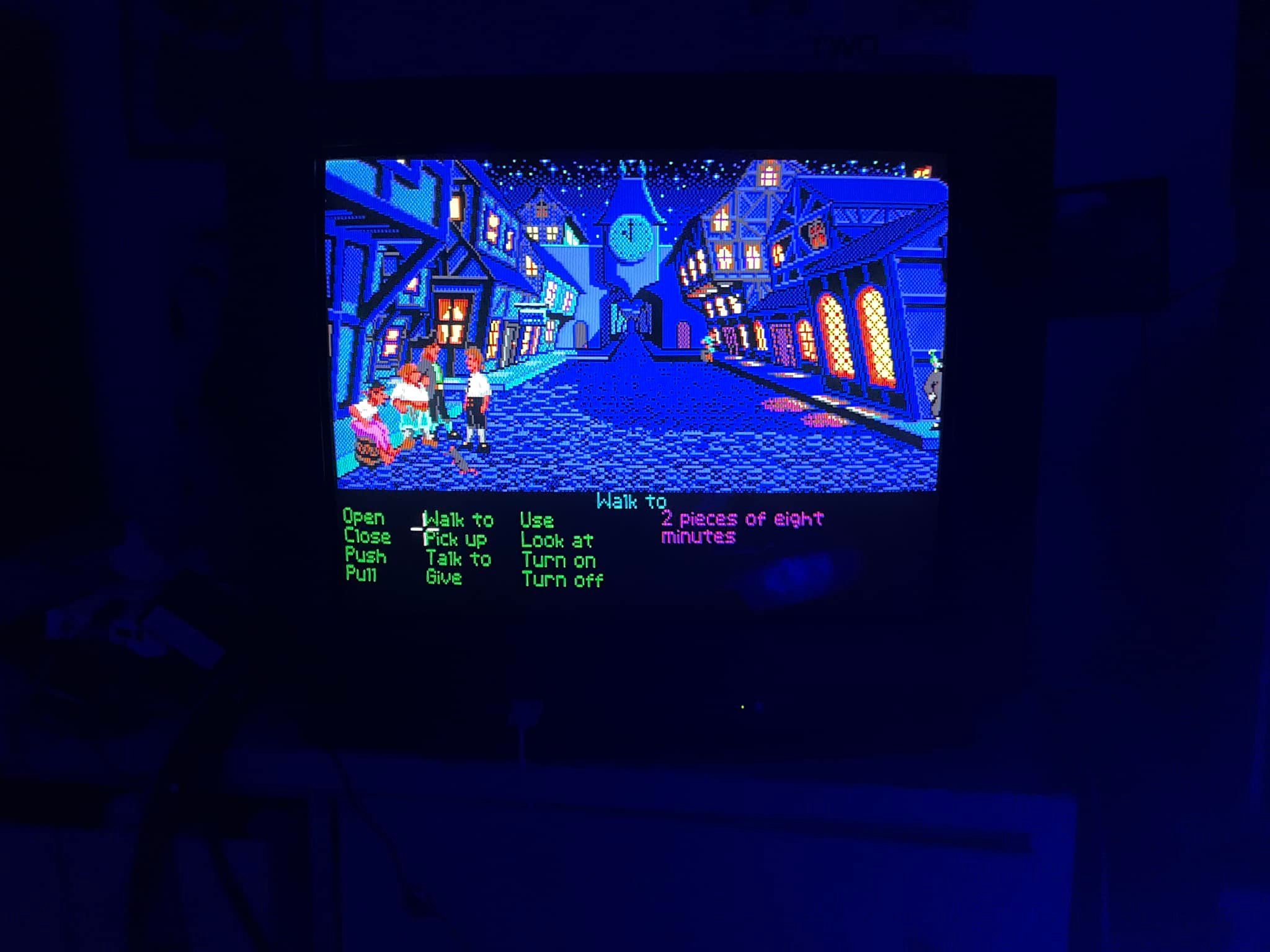

Gallery
| Specifications | |
|---|---|
| Brand: | Sampo |
| Manufacturer: | Sampo |
| Model: | SME-23DL3 |
| Series: | SME |
| Viewable Size: | 32" |

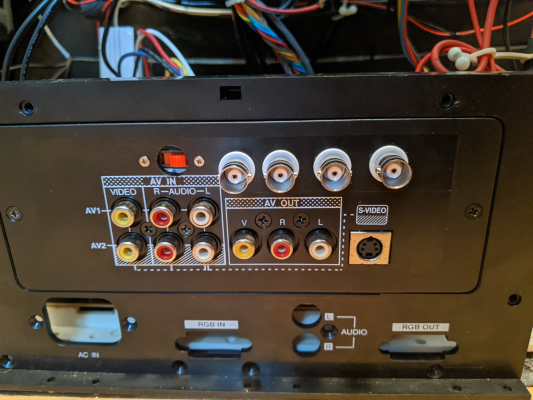

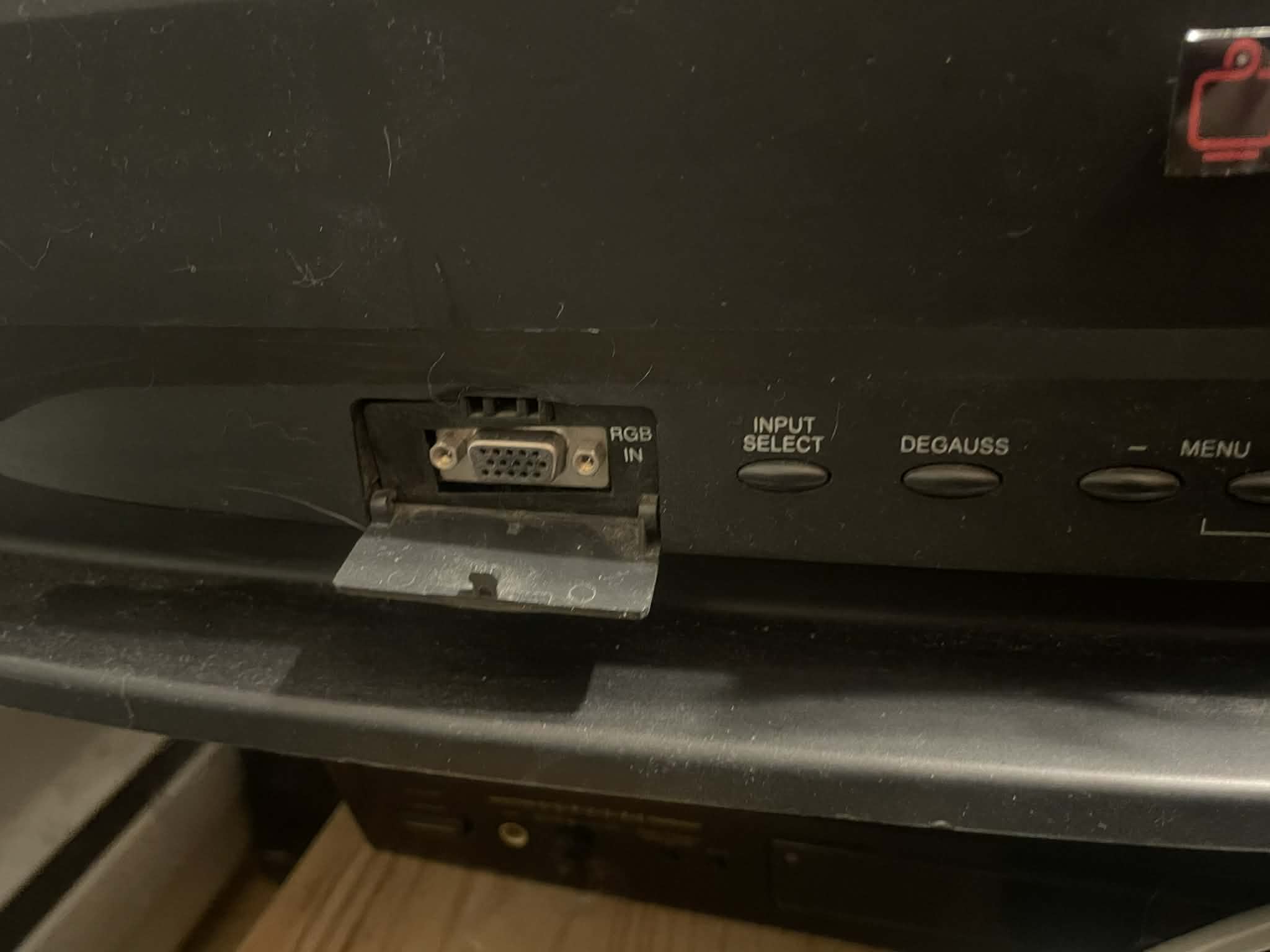

| Inputs: | VGA, Composite, S-Video, SDI |
| Native Resolutions: | VGA, SVGA, XGA, 240p, 480i, MAC |
| Horizontal Scan Range: | 15 kHz, 31 kHz, 52 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Formats: | NTSC, PAL, SECAM |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle IC: | Toshiba, TB1227, TB1227BN |
| Focus Type: | Single |
| Tube: | Toshiba , M81AHM50X , M81AHM50X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Pitch: | .80 mm, .8 mm, 0.8 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2, Subwoofer |

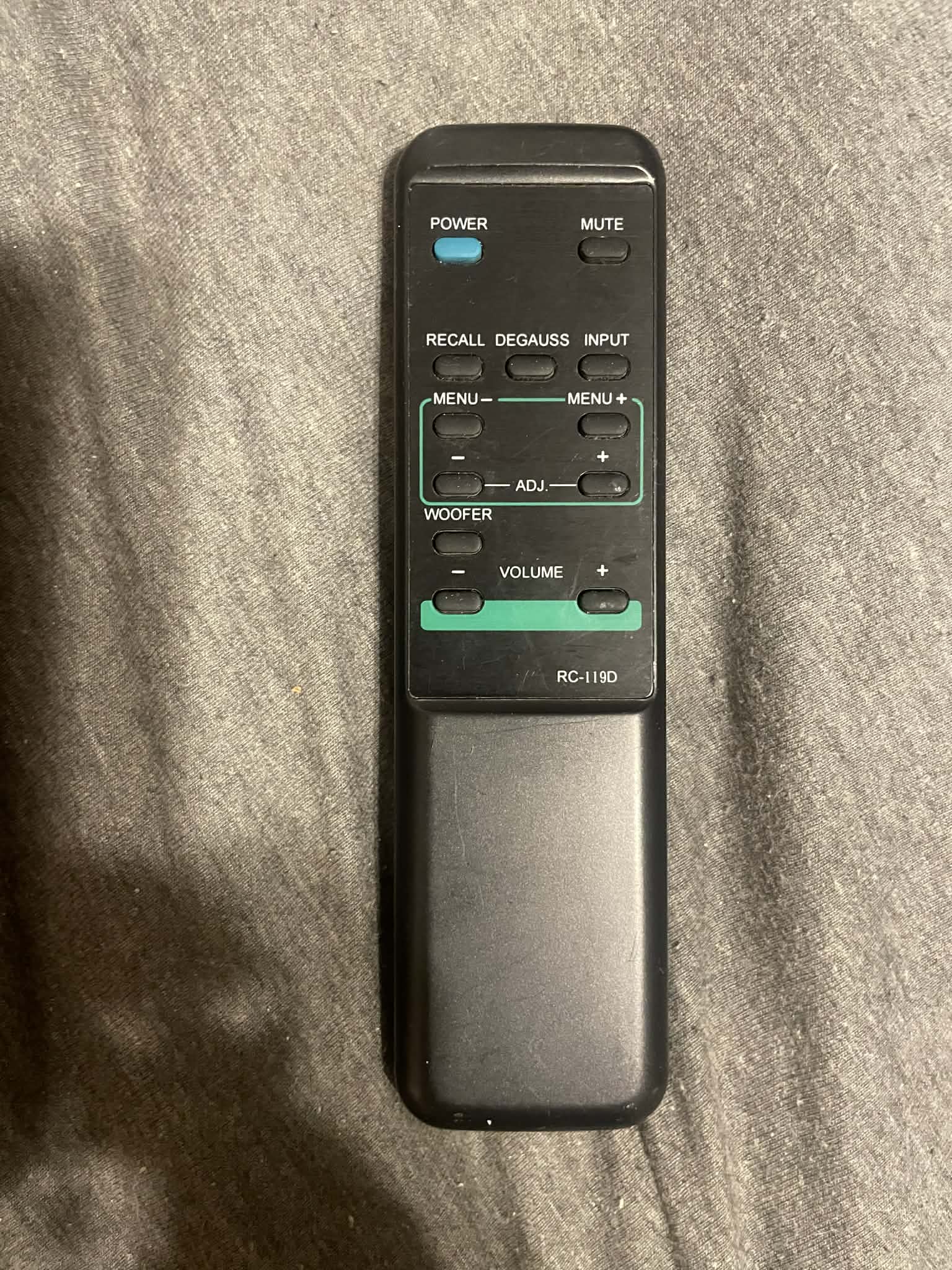

| Remote: | RC-119D |
| Chassis: | C-34D |
| Weight: | 156.5 lbs (71 kg) |
| Dimensions (W/H/D): |
866 x 718 x 583 mm
(34 x 28.2 x 22.9") |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
