Summary

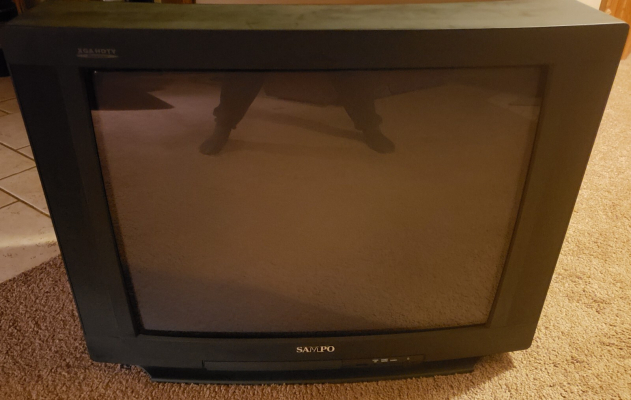

27" multisync presentation monitor by Sampo. Originally manufactured in Taiwan in 2001.
(Special thanks to Mike Conyers for the pics!)
Manuals
Notes

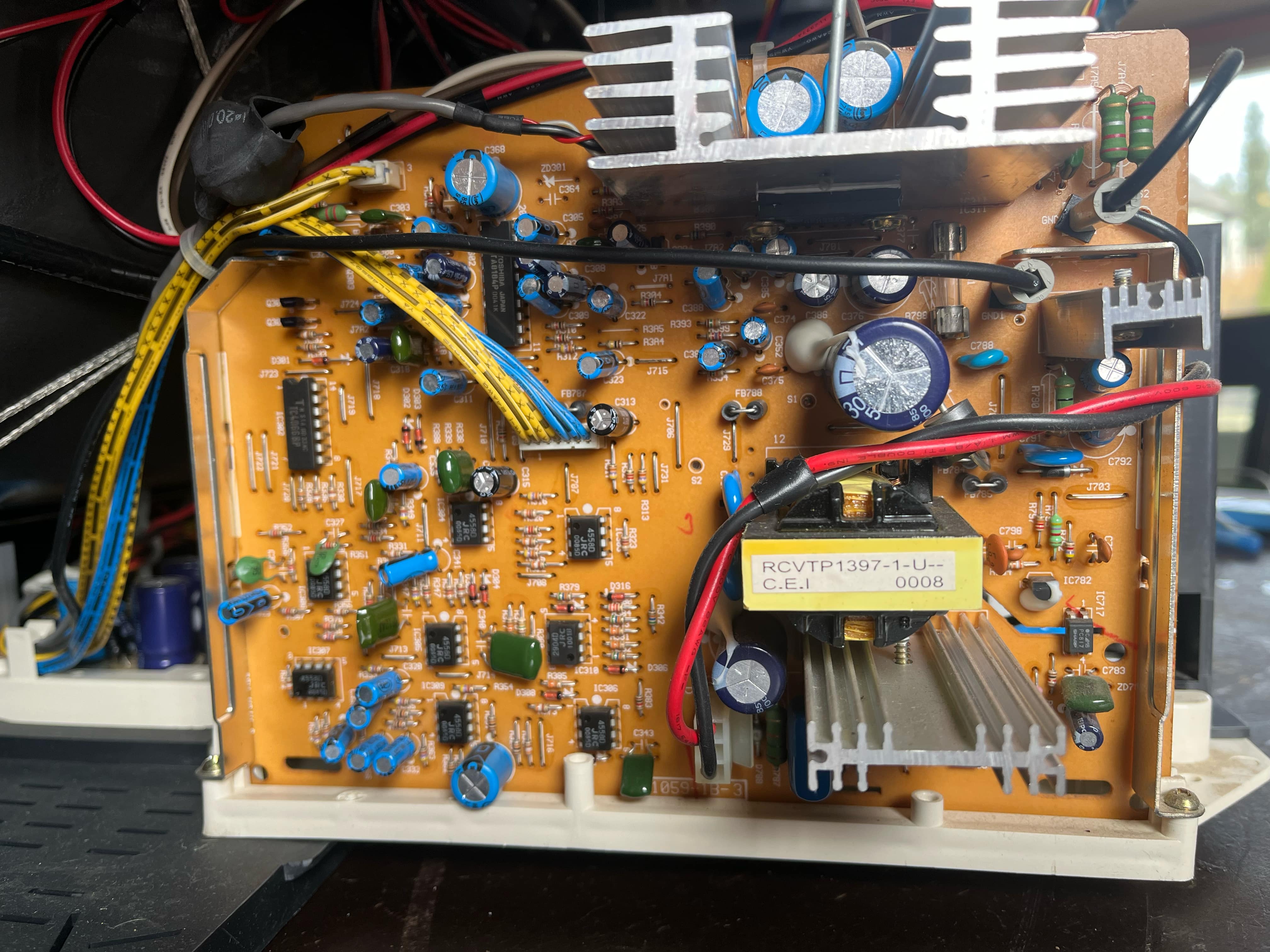

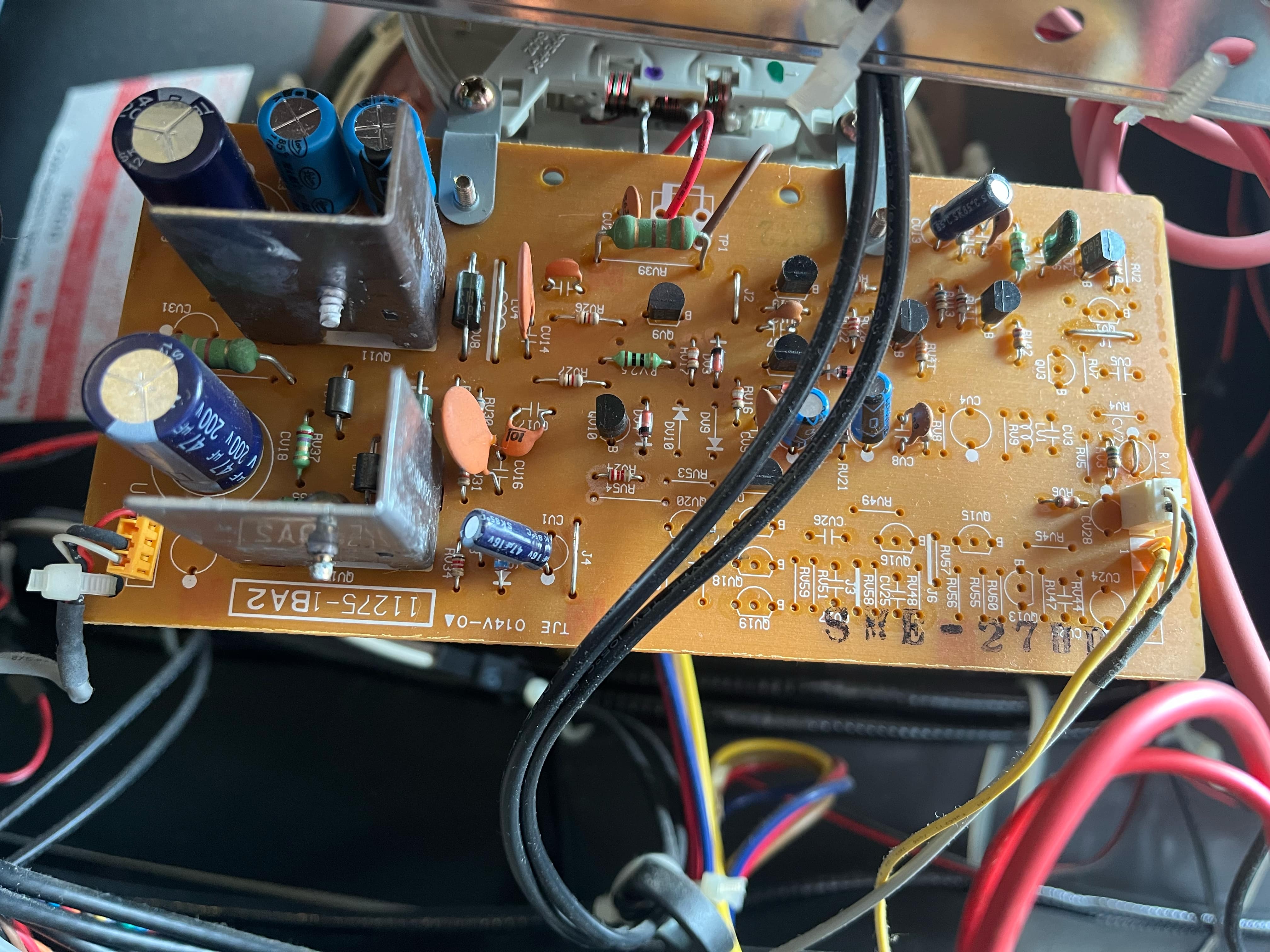

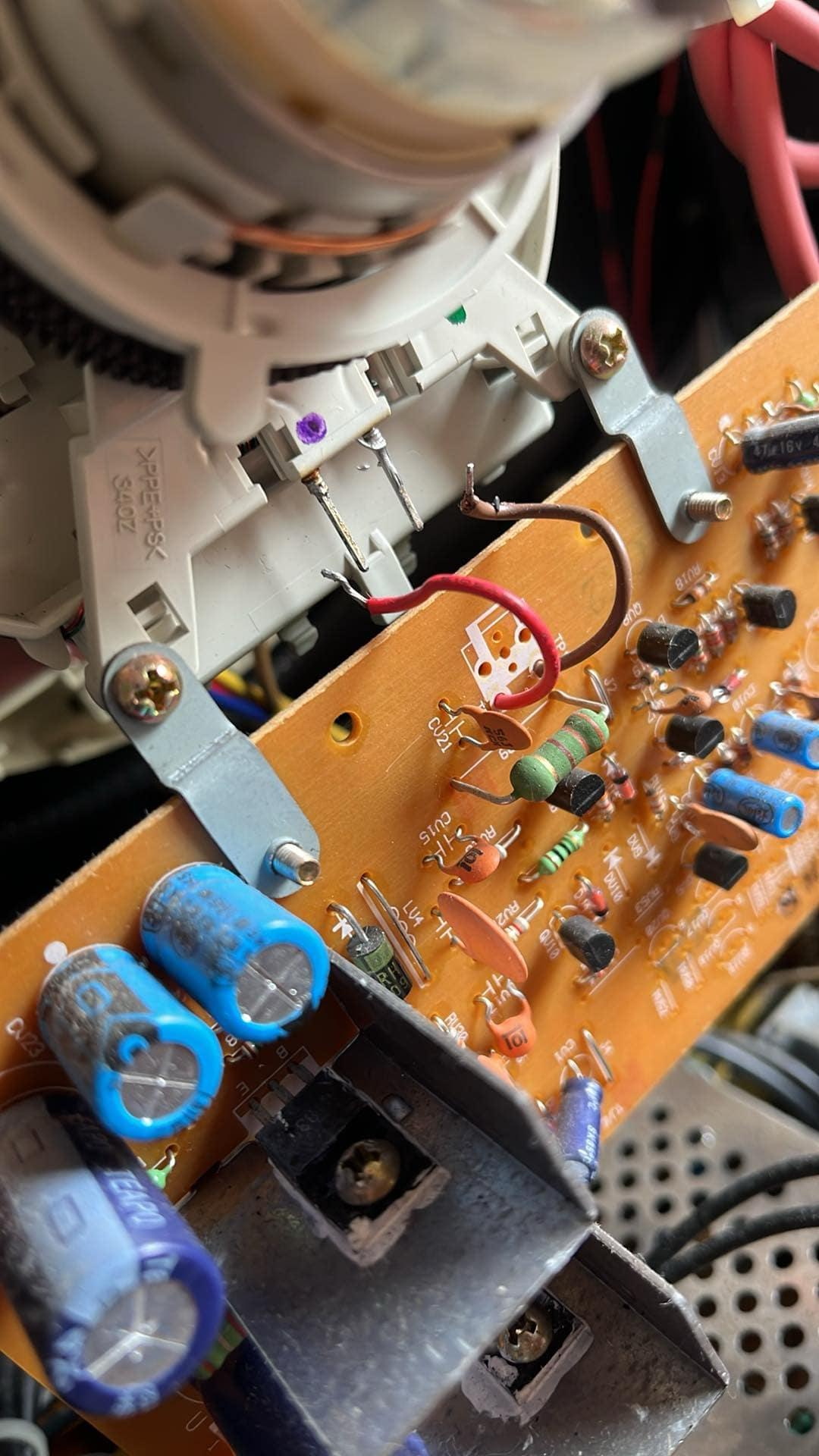

This set employs velocity modulation that you cannot turn off in the standard or service menus. The only way to disable it is to disconnect the input and/or our output wires on the VM board 11275-1BA2.
There are several monitors that use the same or similar chassis as this monitor:
- NEC XV-2930
- Gateway DL27-1
- Princeton AR2.7AV
- PictureTel SM-72DVX2M
...and more!

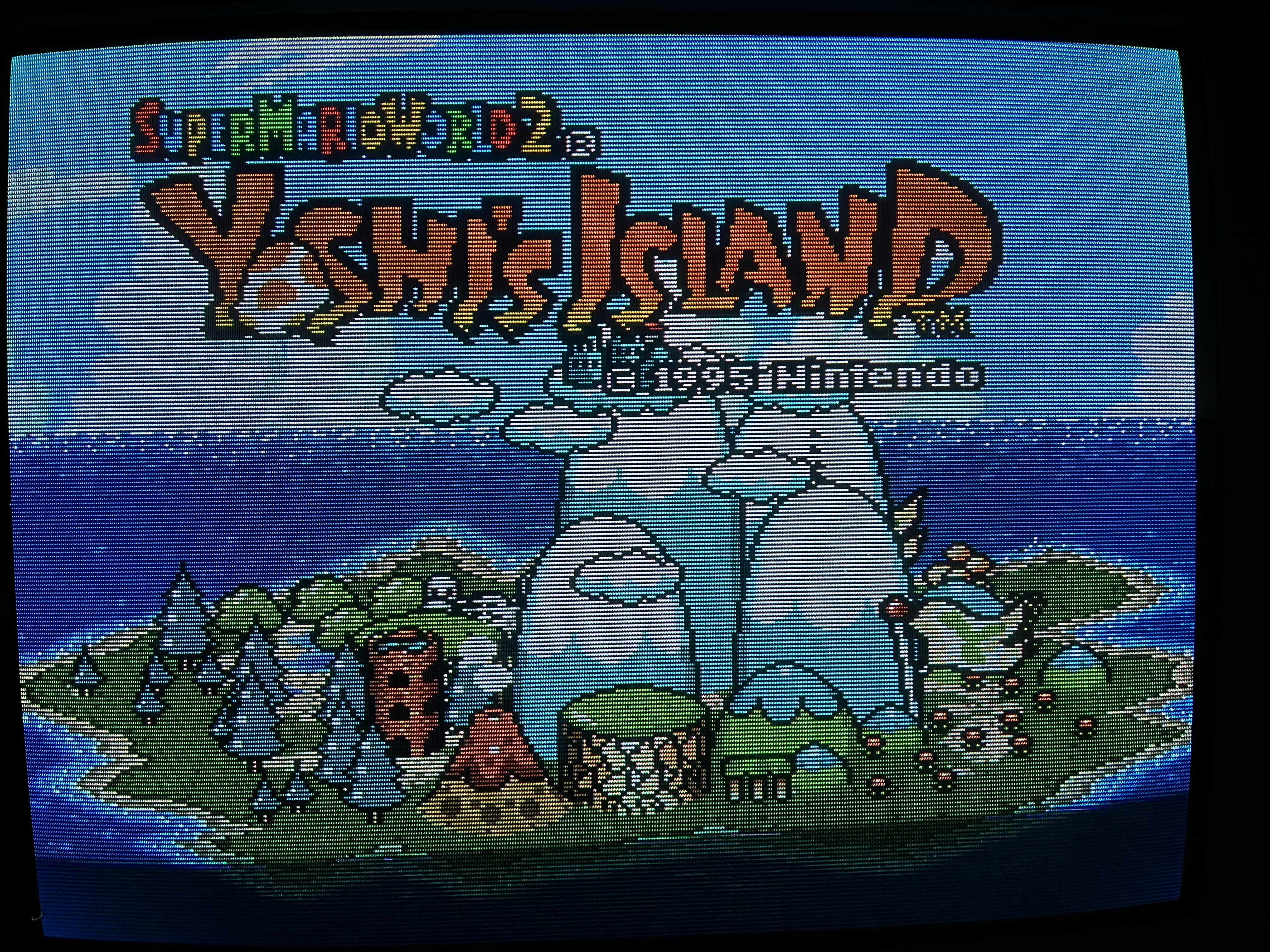

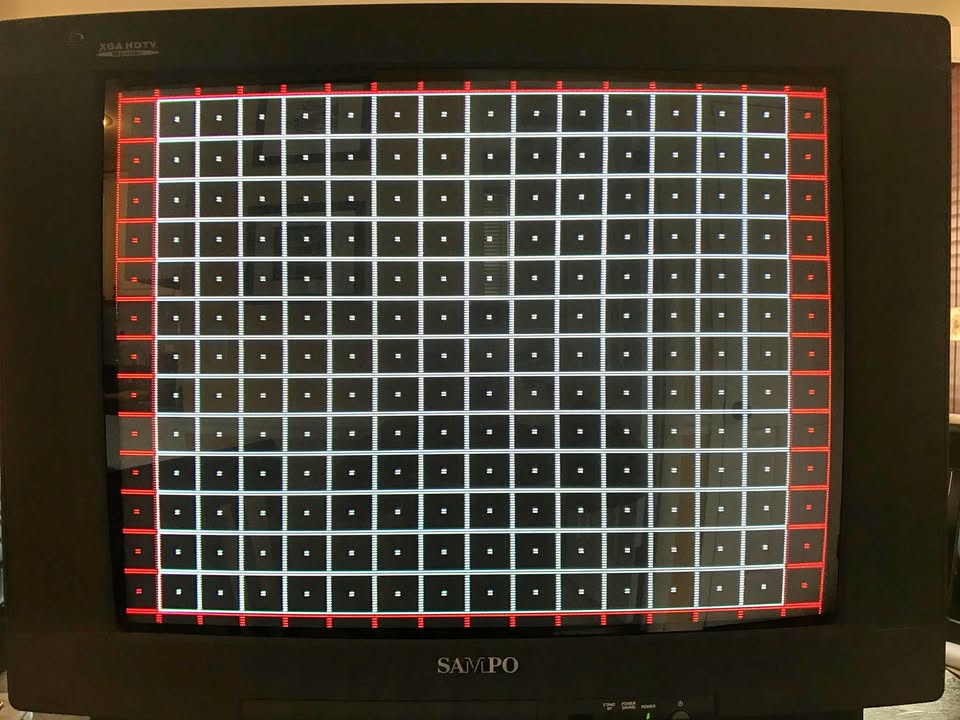

Gallery
| Specifications | |
|---|---|
| Brand: | Sampo |
| Manufacturer: | Sampo |
| Model: | SME-27HD5 |
| Series: | HD |
| Viewable Size: | 27" |

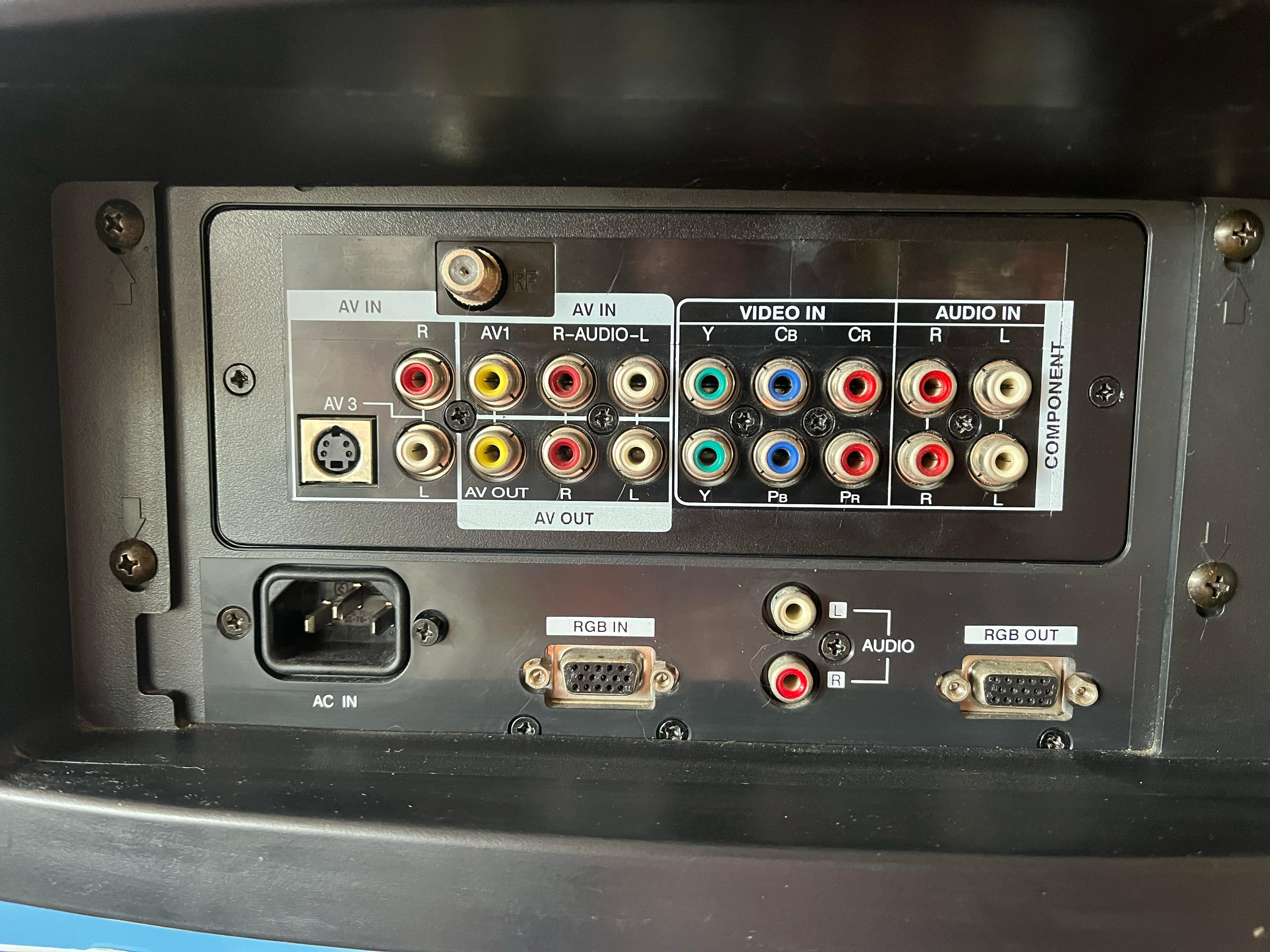

| Inputs: | VGA, Composite, S-Video, Component YPbPr |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Native Resolutions: | 240p, 480i, 1080i, 720p, 480p, 600p, 768p, 400p |
| Horizontal Scan Range: | 15 kHz, 35 kHz, 37.9 kHz, 31.5 kHz |
| Vertical Scan Range: | 60 Hz, 85 Hz, 70 Hz, 72 Hz, 56 Hz, 66.6 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Dual |

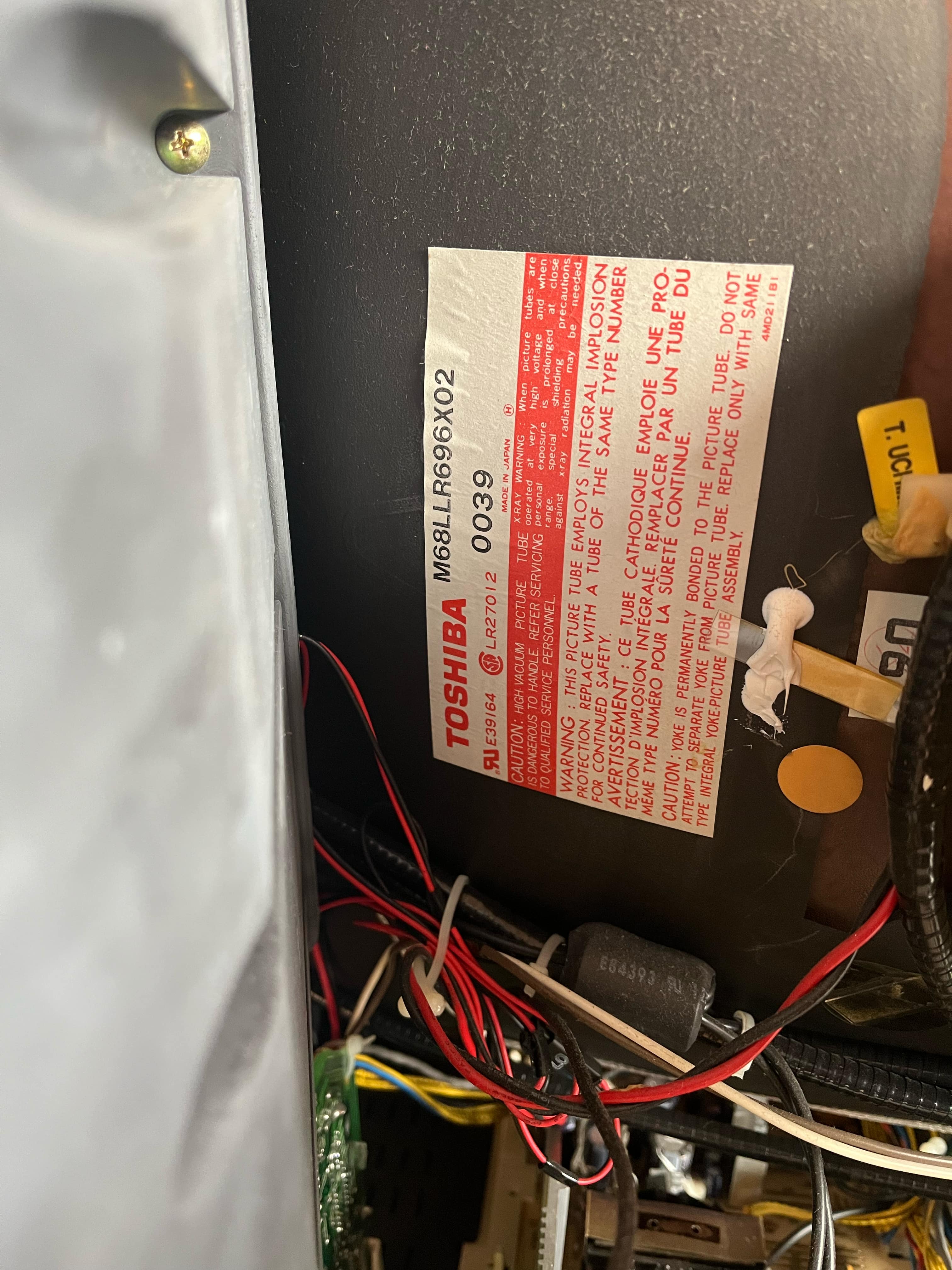

| Tube: | Toshiba , M68LLR696X , M68LLR696X02 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | 0.74 mm |
| Tint: | None |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | C-29D5 |
| Weight: | 112.4 lbs (51 kg) |
| Dimensions (W/H/D): |
742 x 575 x 512 mm
(29.2 x 22.6 x 20.1") |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Taiwan |
| Market: | Worldwide |
| Power Standard: | 100v, 240v |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
