Sansui SV-M25
SegaSaturn94
April 26, 2025, 10:17 pm
April 27, 2025, 5:05 pm
April 26, 2025, 10:17 pm
April 27, 2025, 5:05 pm
Summary

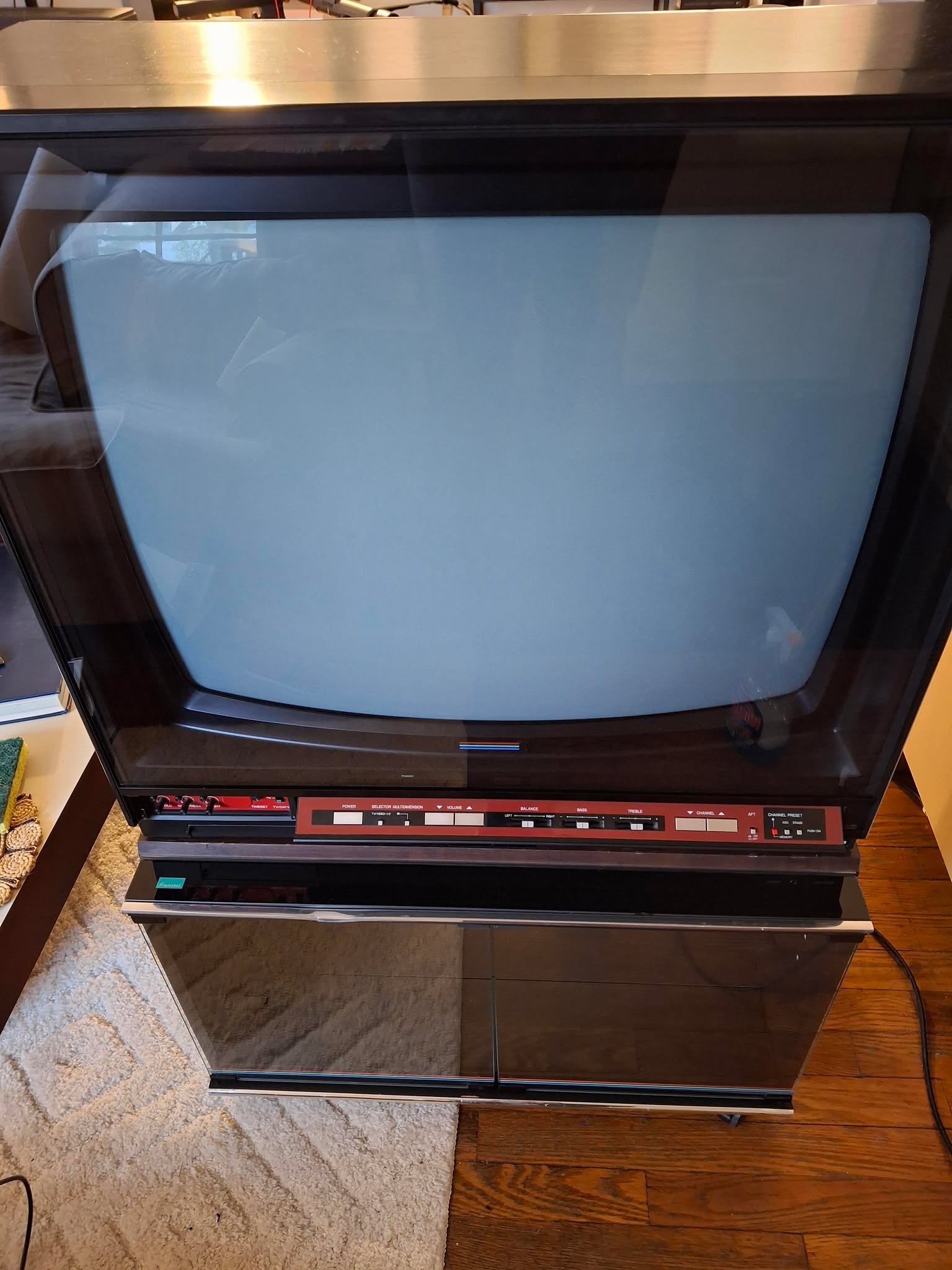

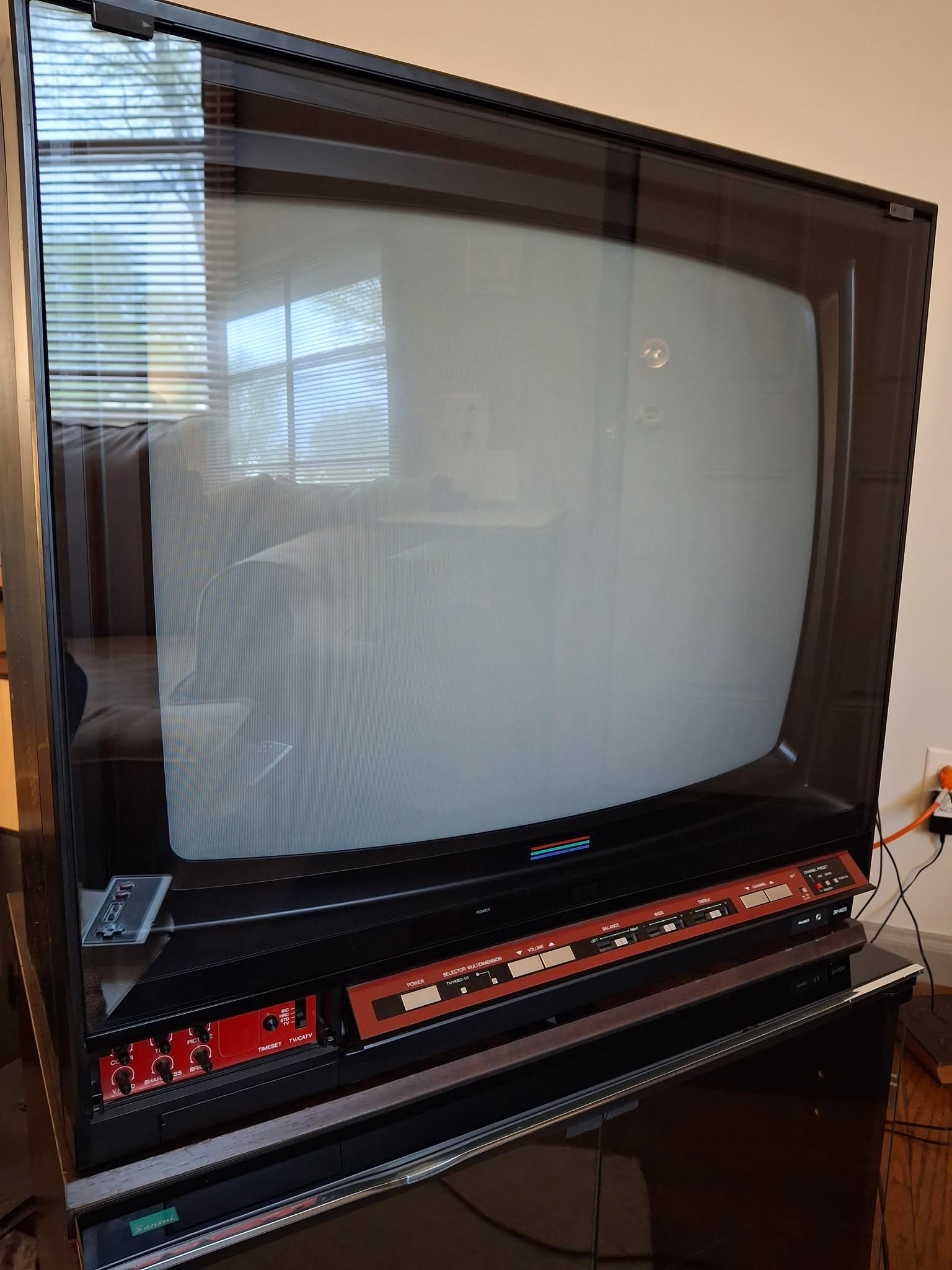

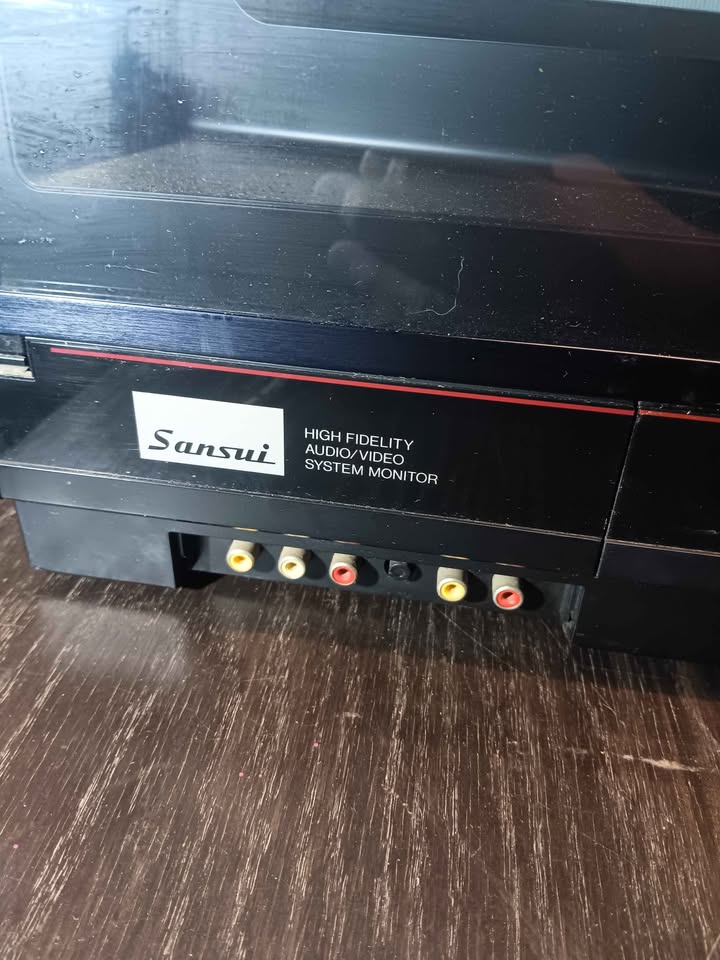

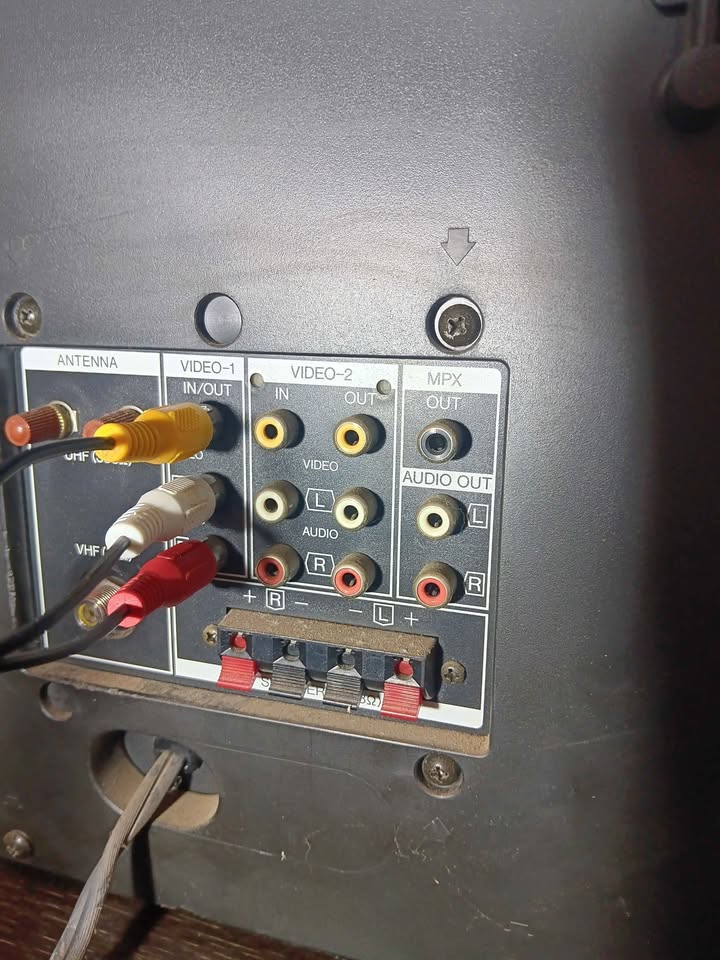

Higher-end 25" TV by Sansui. Features RF and composite inputs and outputs with stereo sound, MPX audio out, and speaker output terminals. Originally manufactured by Sharp in Japan in 1985.
(Special Thanks to Adam R. for the pics!)
Manuals
(None at this time.)
Notes
Originally came with two magnetically-shielded speakers that could be mounted on the top or sides.

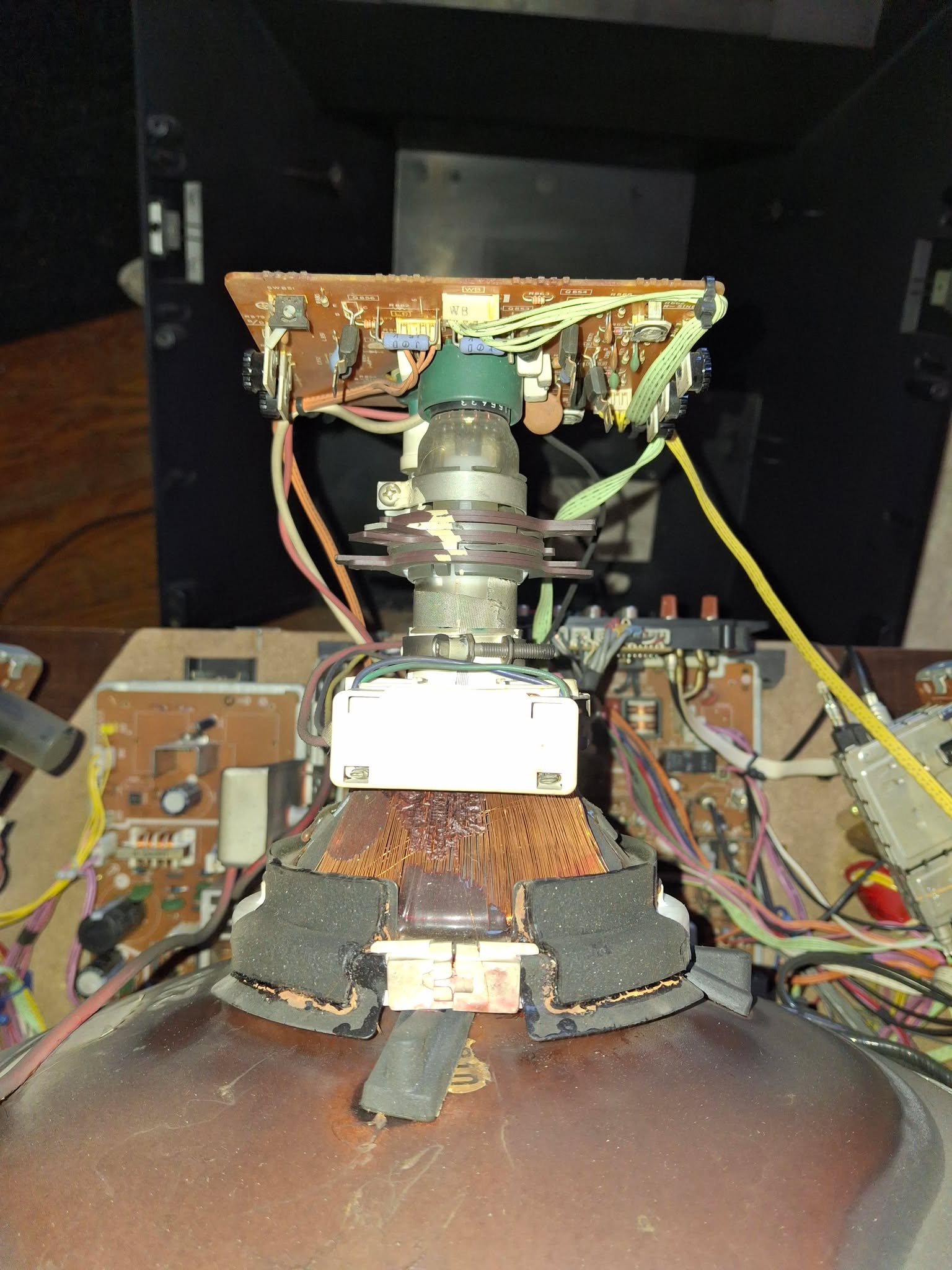

Picture tube is branded as Sharp, but that was only bought up stock from the original manufacturer, which was Toshiba.
Gallery

















Specifications | |
---|---|
Brand: | Sansui |
Manufacturer: | Sharp |
Model: | SV-M25 |
Series: | SVM |
Viewable Size: | 25" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Linecount: | 400 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

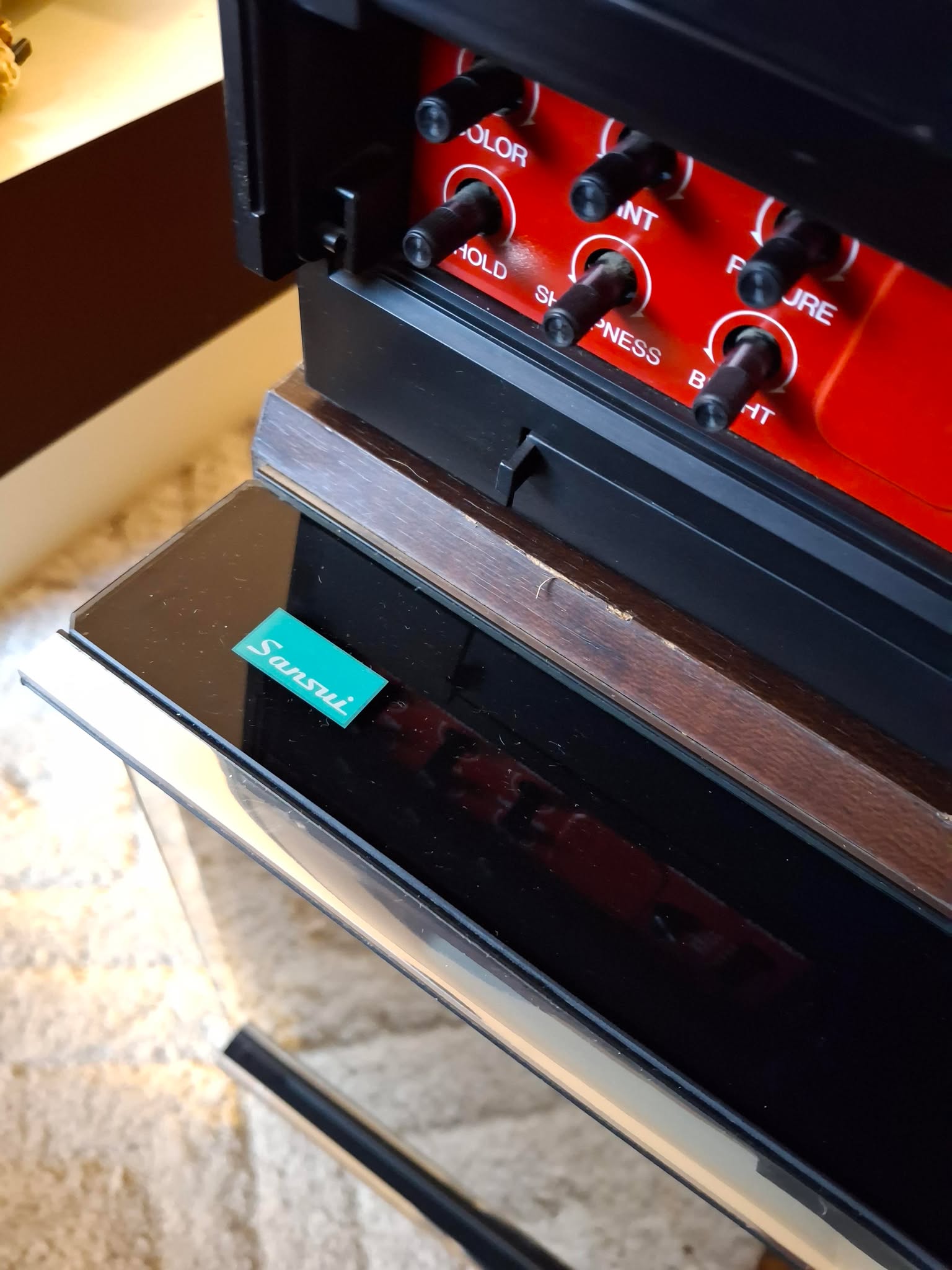

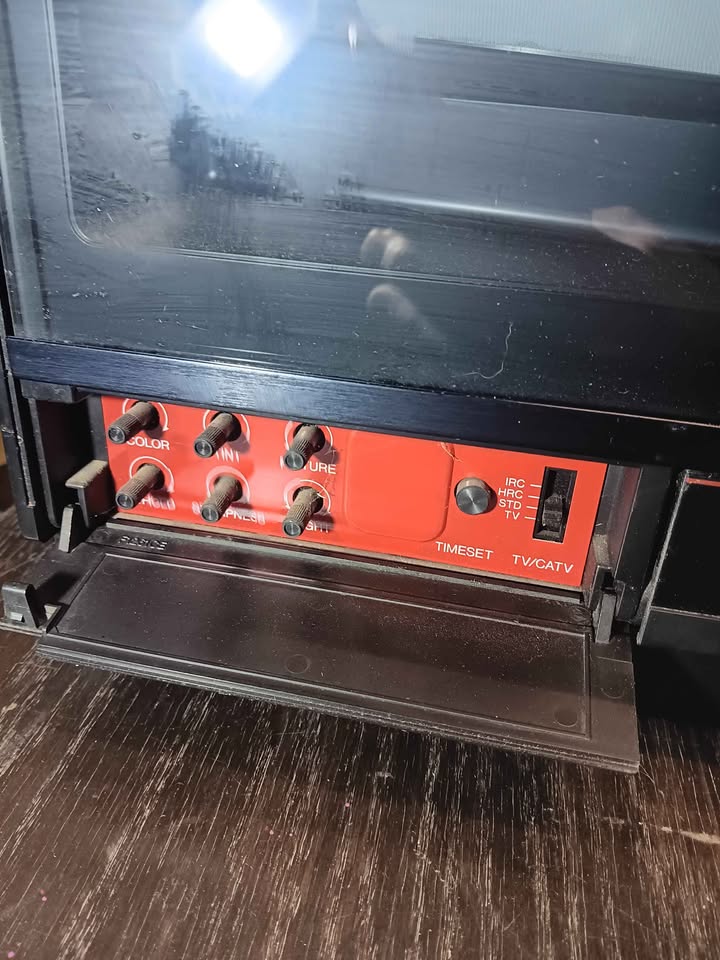

Adjustments: | Internal Potentiometers, External Potentiometers |

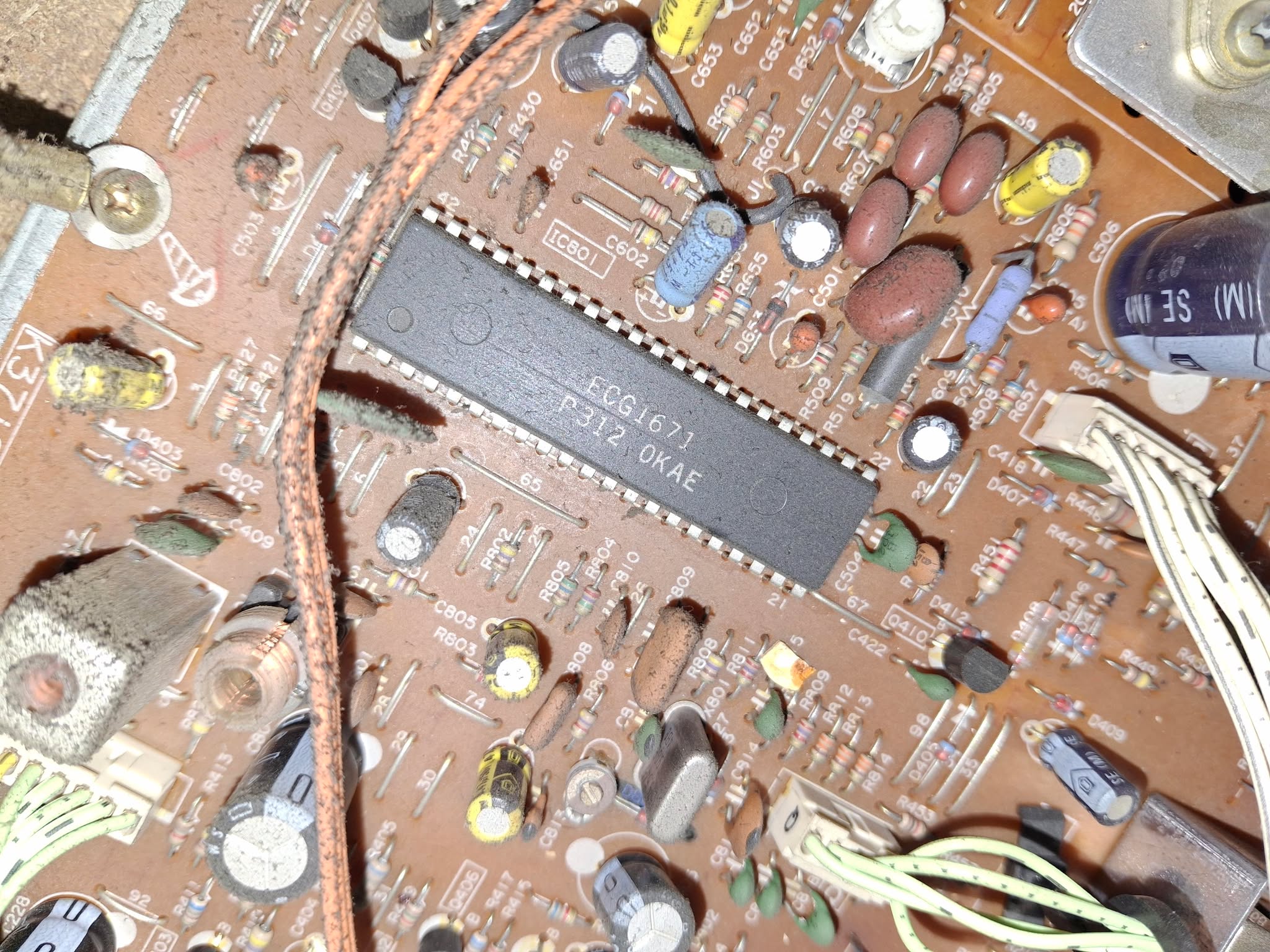

Jungle: | ECG1671 |
Focus Type: | Single |
Tube: | Toshiba , A63JBG50X |
Heater Voltage: | 6.3v |
Deflection: | 100° |
Mask: |
Slot
![]() |
Tint: | Light, Detachable Sunshade |
Removable Glare Film: | No |
Speakers: | Stereo, 5W x 2 |
Weight: | 100 lbs (45.4 kg) |
Dimensions (W/H/D): |
651 x 610 x 524 mm
(25.6 x 24 x 20.6") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1985 |
MSRP: | 1000 USD |
Country of Manufacture: | Japan |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), OEM Stand |
Tag: | Needs Owners Manual, Needs Service Manual |
