Summary

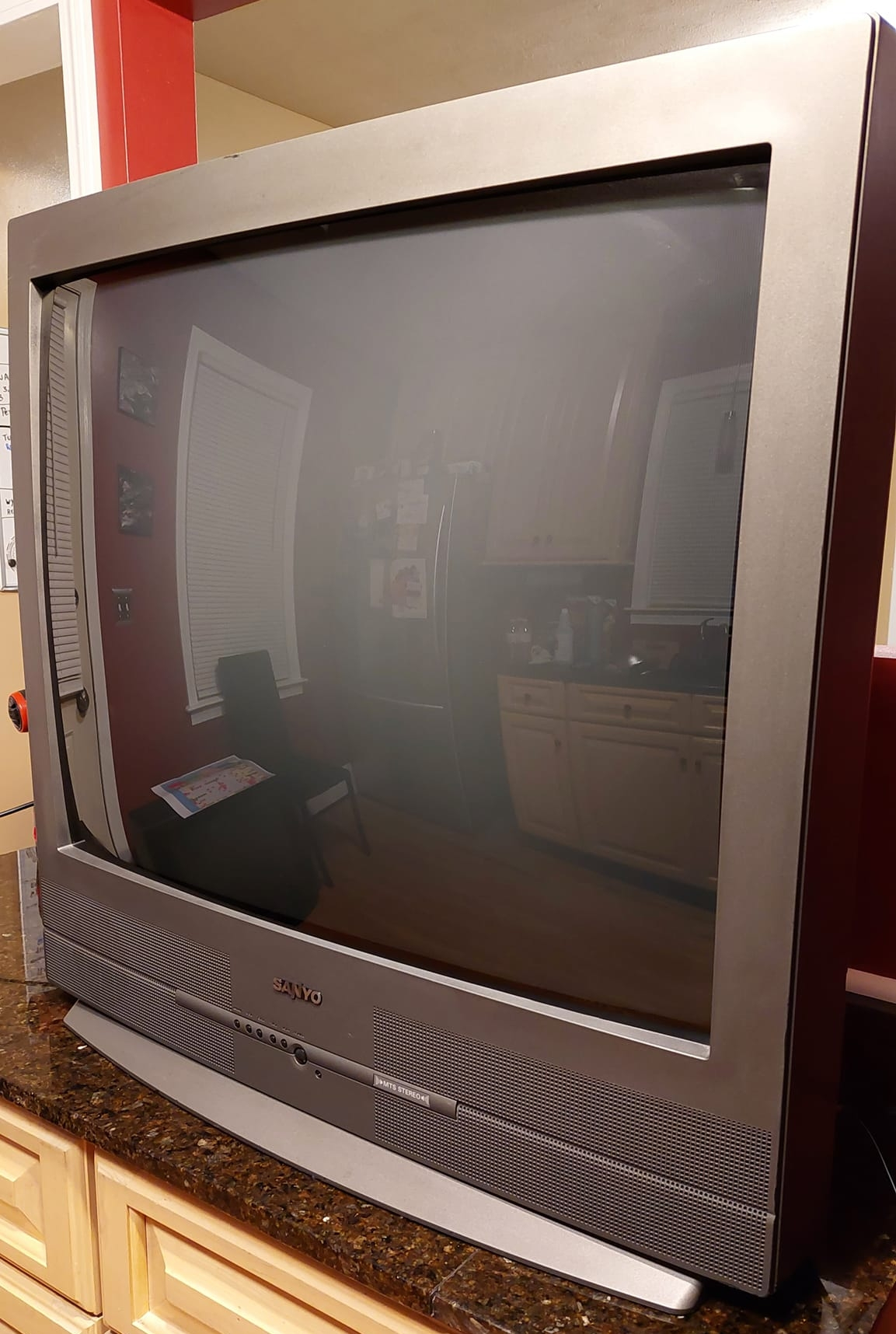

Average 31" CRT by Sanyo, made in Mexico in 2002. Has RF, composite, and s-video.
Manuals
Notes

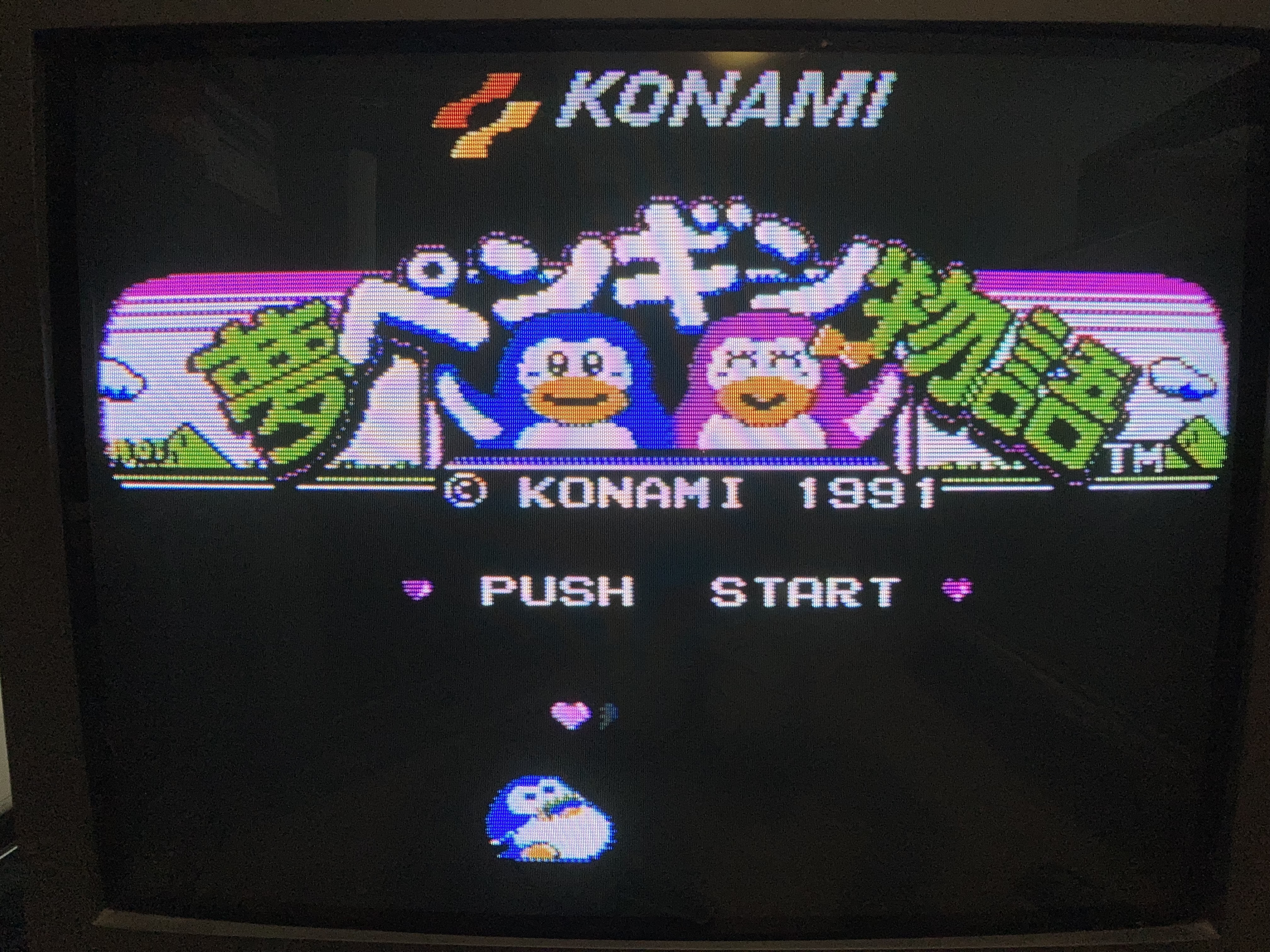

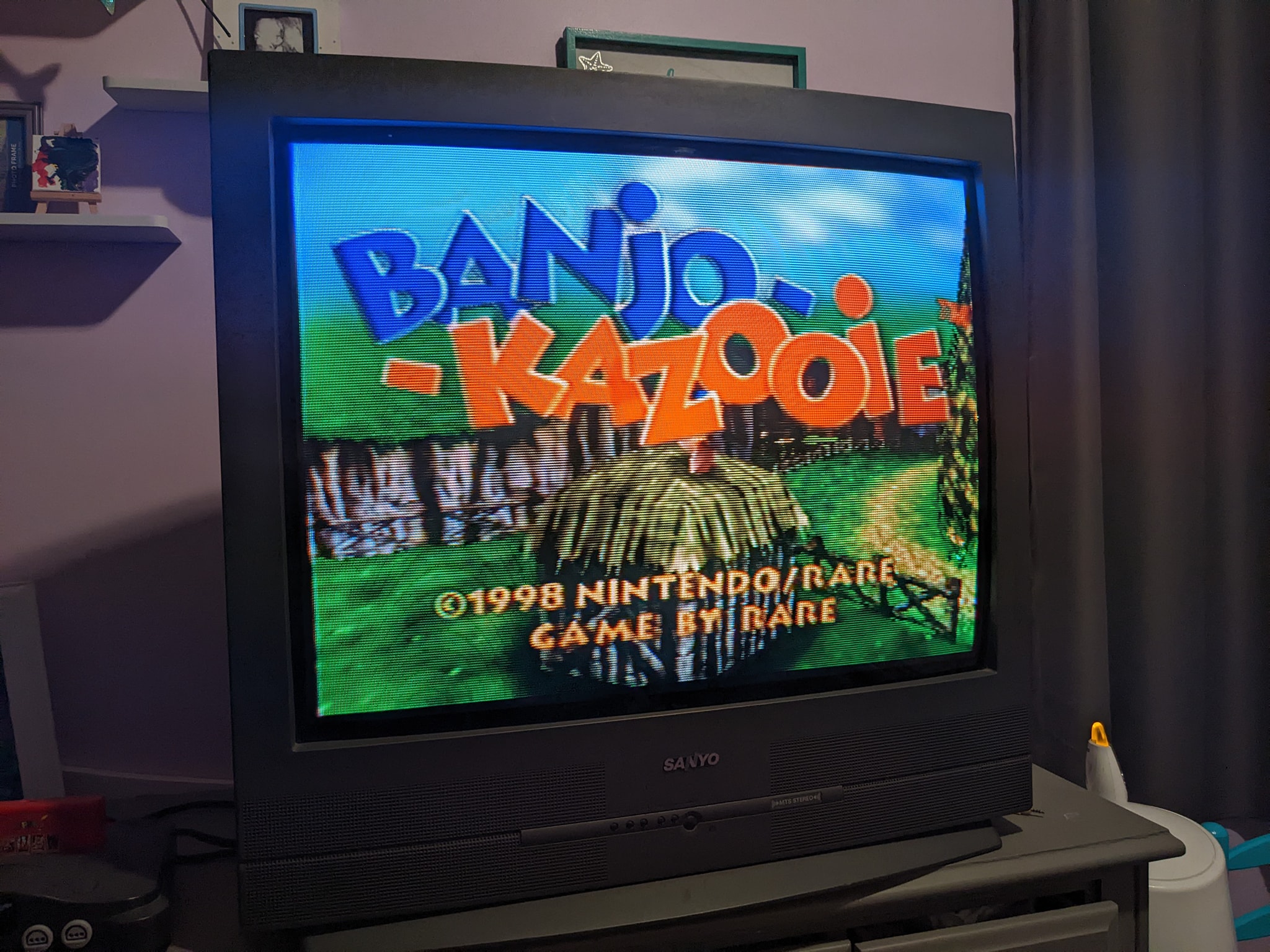

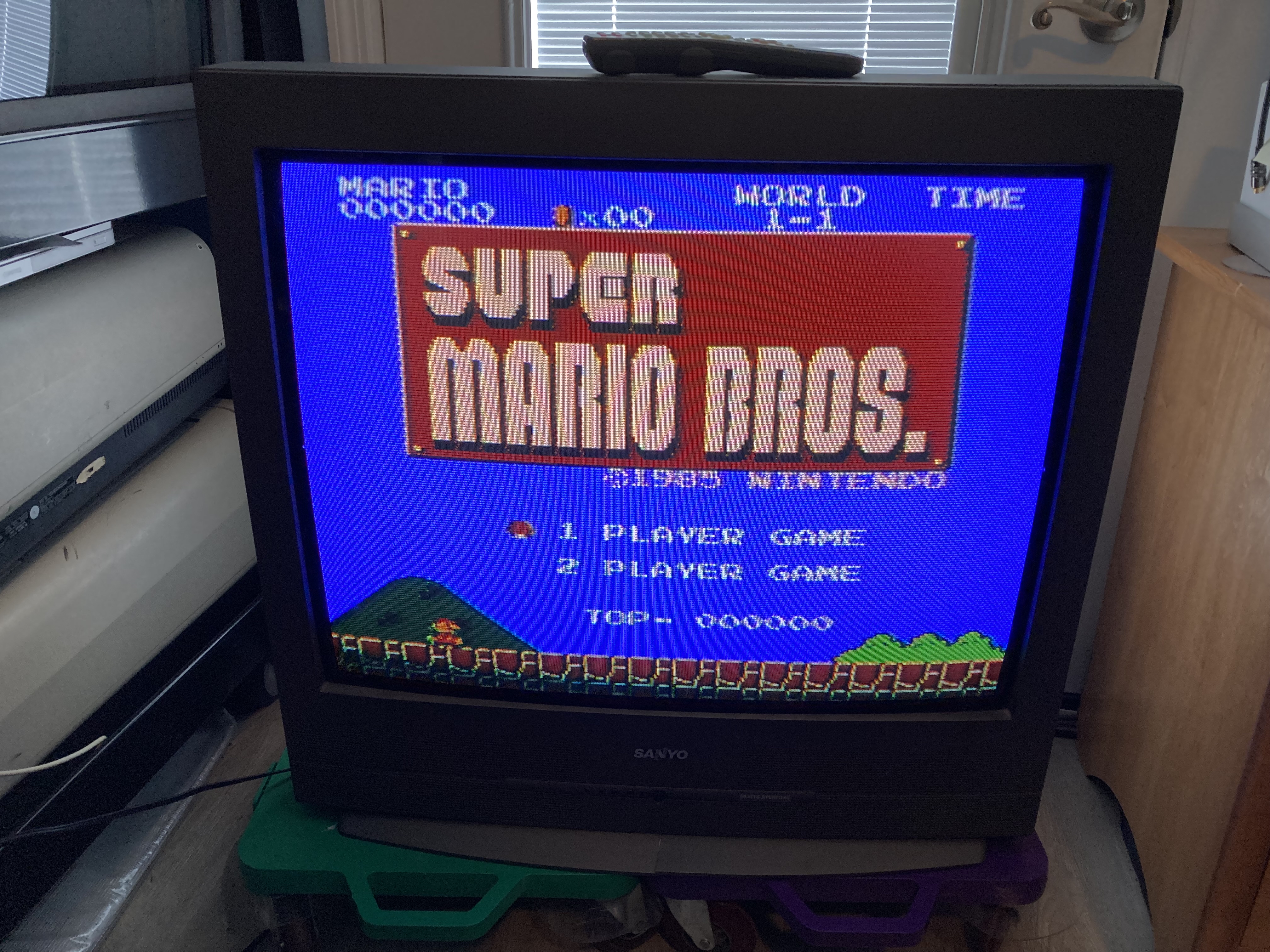

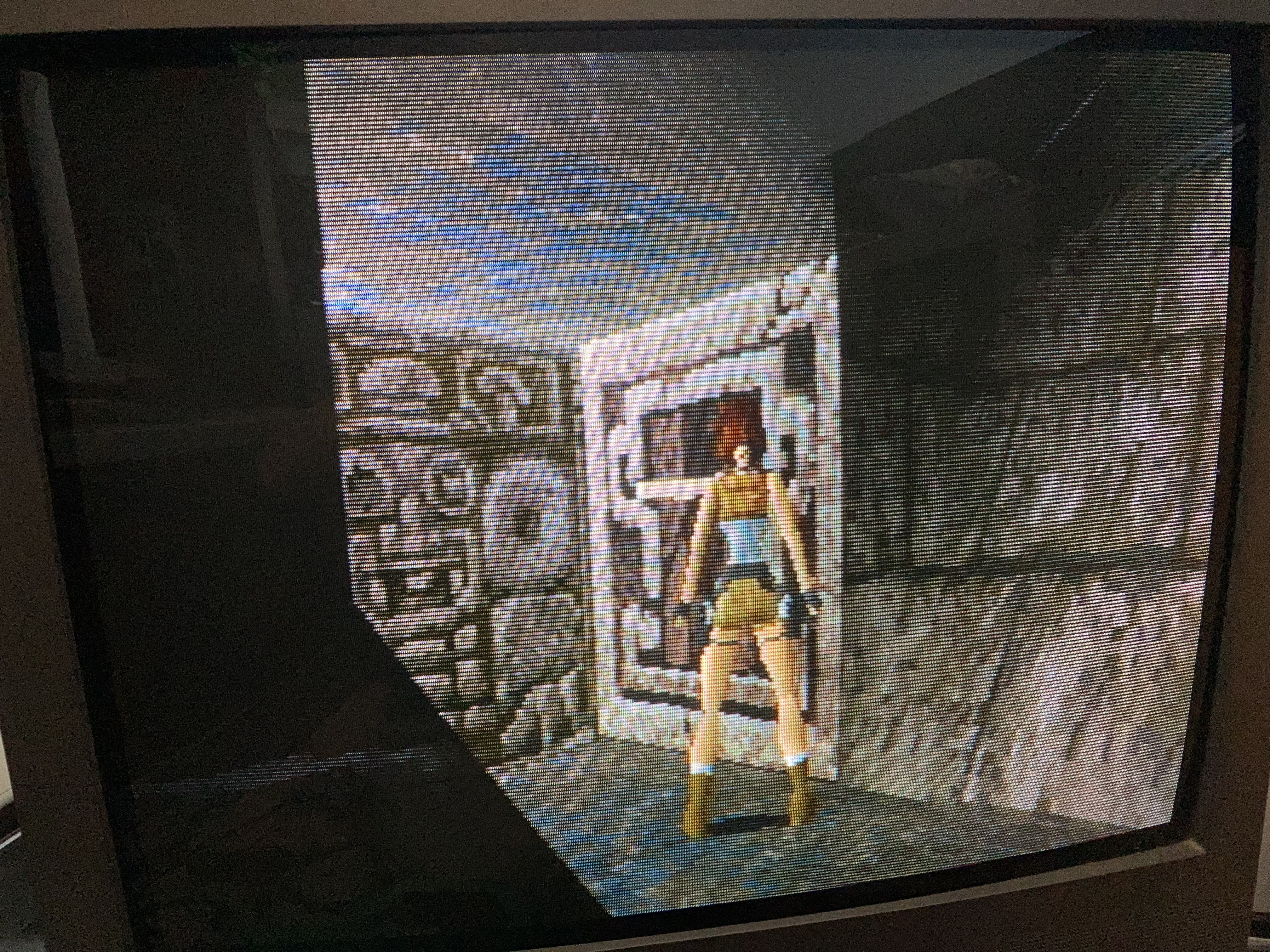

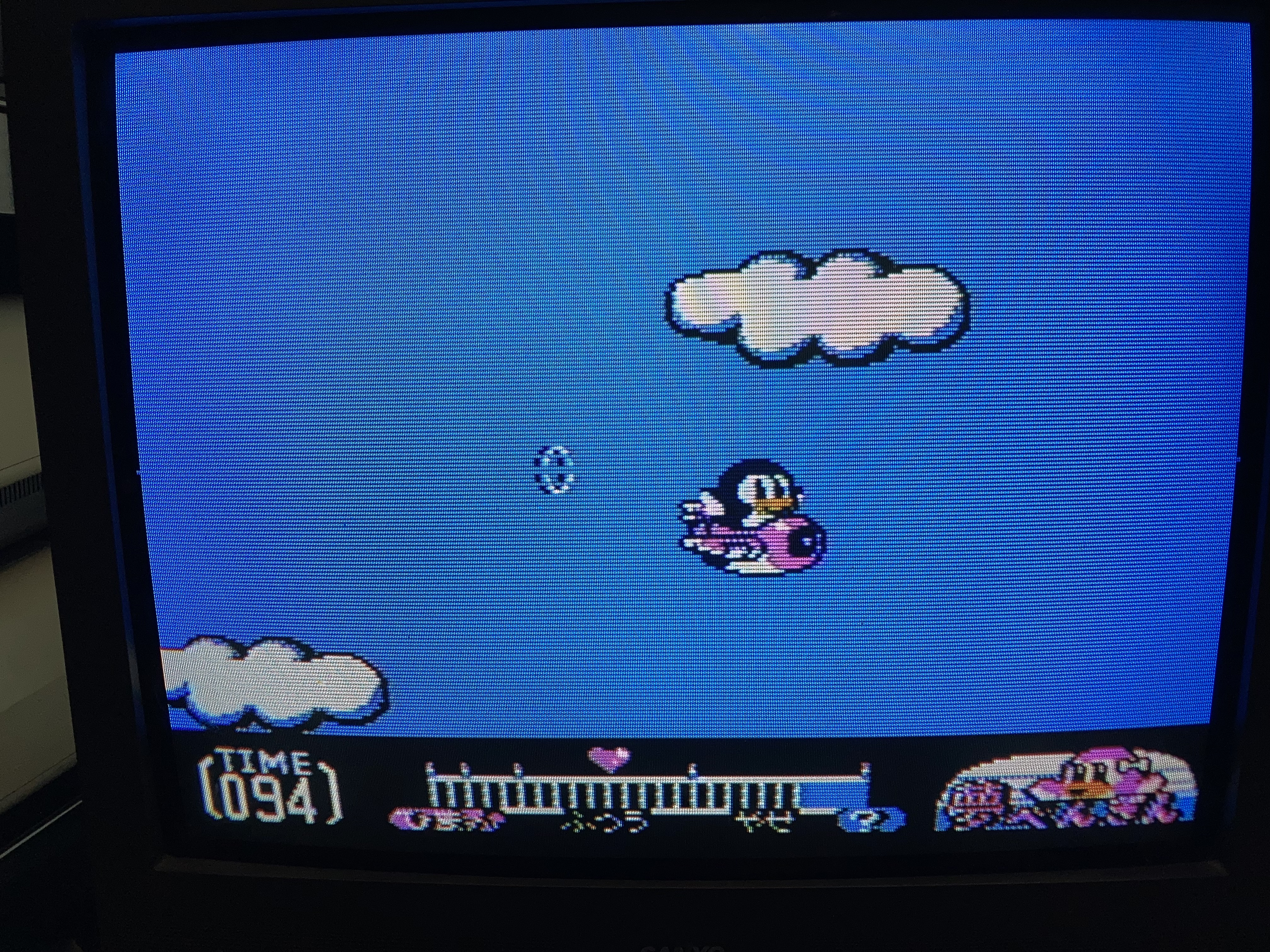

Picture quality is pretty good over composite and s-video.

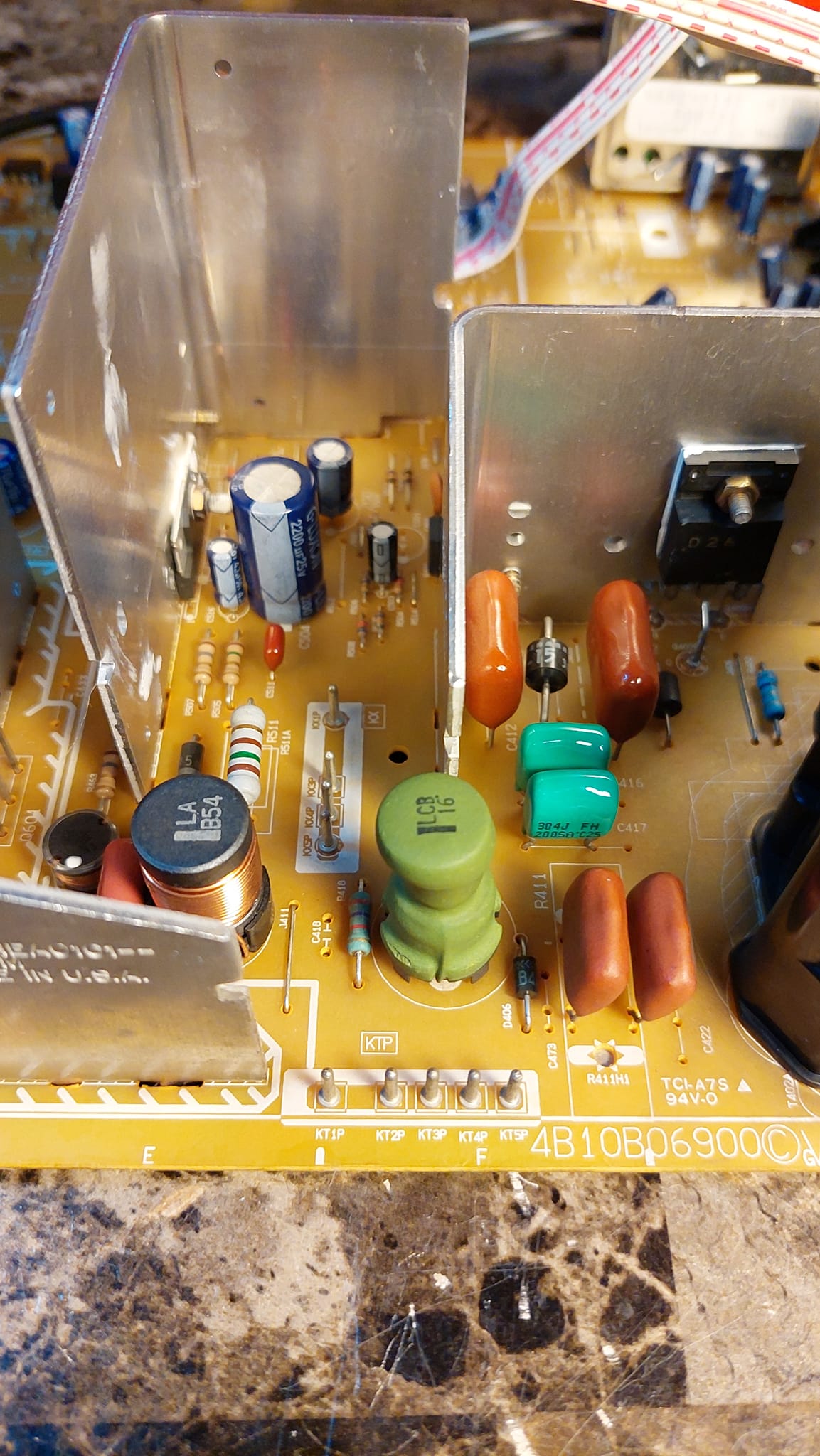

The power supply has a relay click.
The set seems to be compatible with a 32" picture tube that is not listed in the service manual. Very odd!
RGB Mod
Johnny Baez has successfully modded this set for RGB. Link to mod HERE
Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |

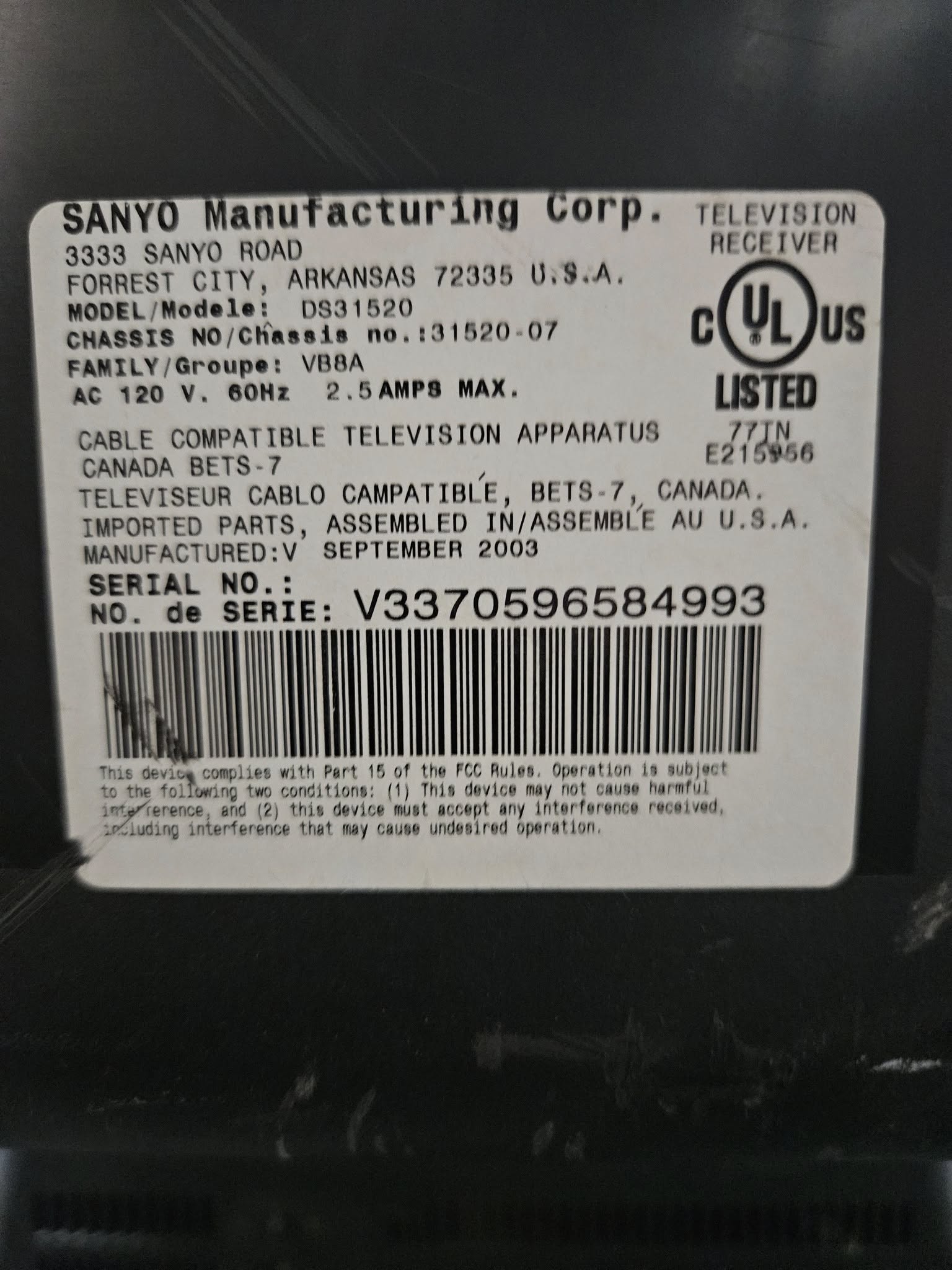

| Model: | DS31520 |
| Series: | DS |
| Viewable Size: | 31" |

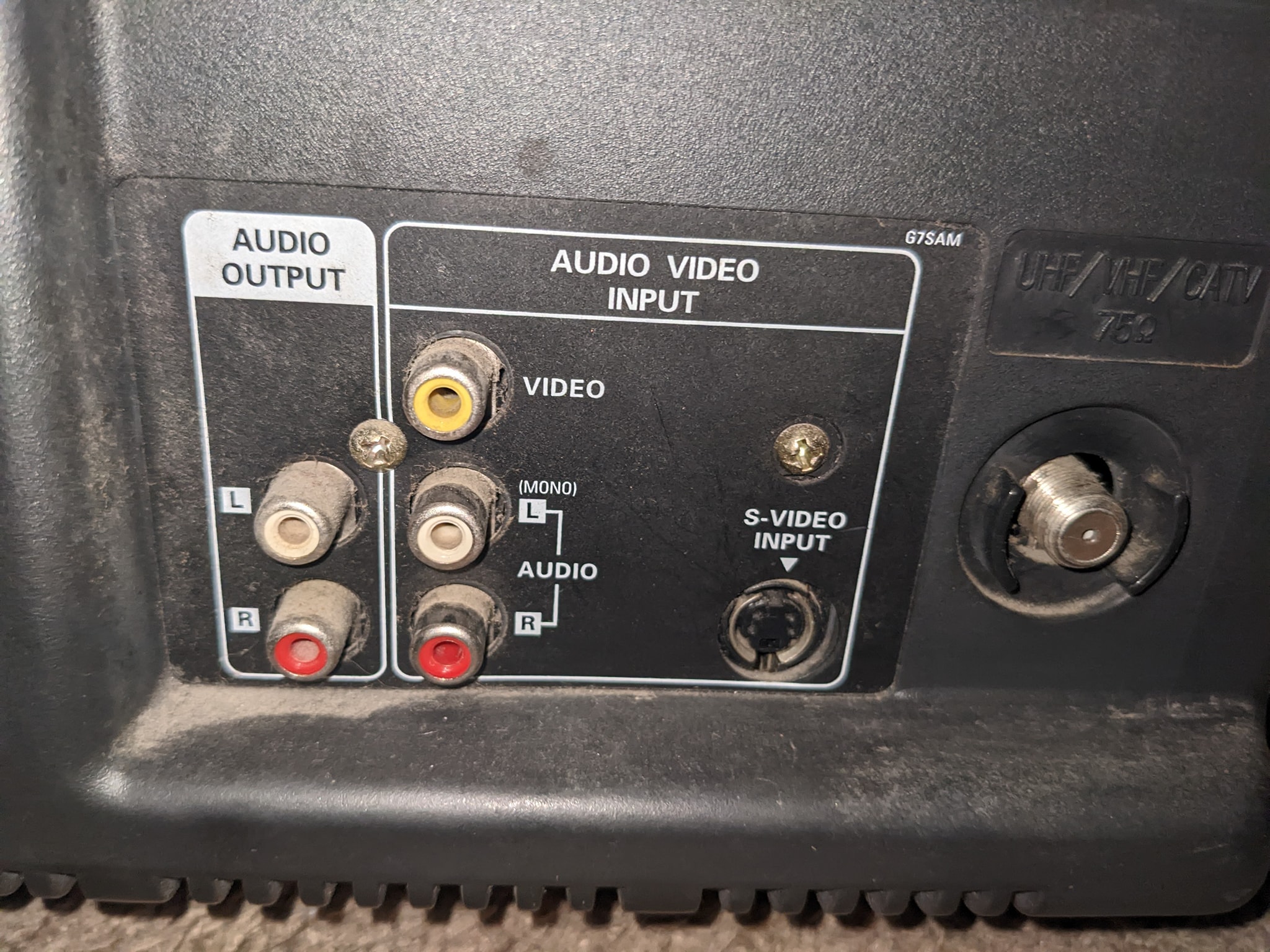

| Inputs: | Composite, S-Video |
| Native Resolutions: | 240p, 480i |
| Linecount: | 330 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sanyo, LA76834, LA76834NM-TBM |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Philips, TDA9183 |

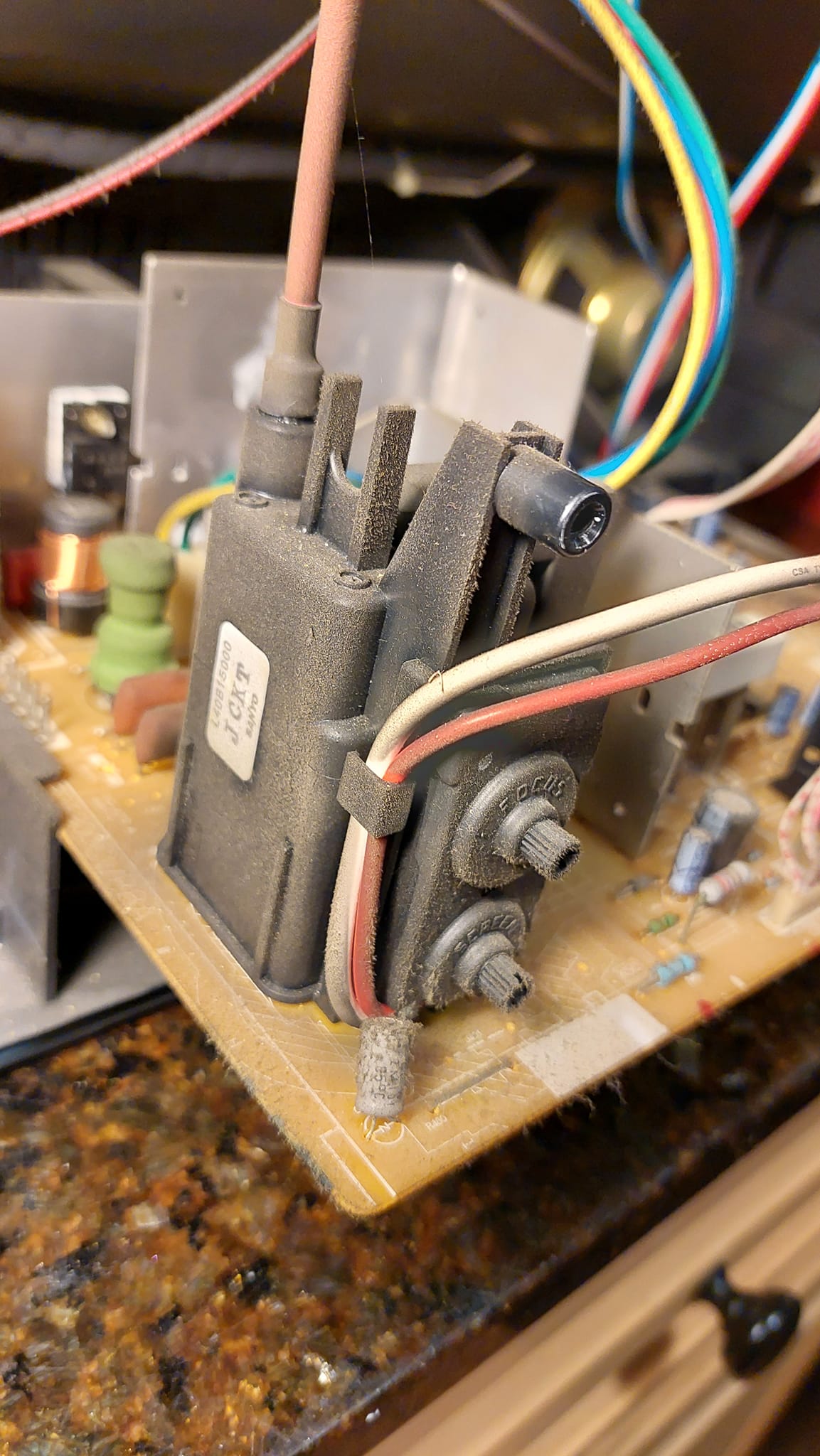

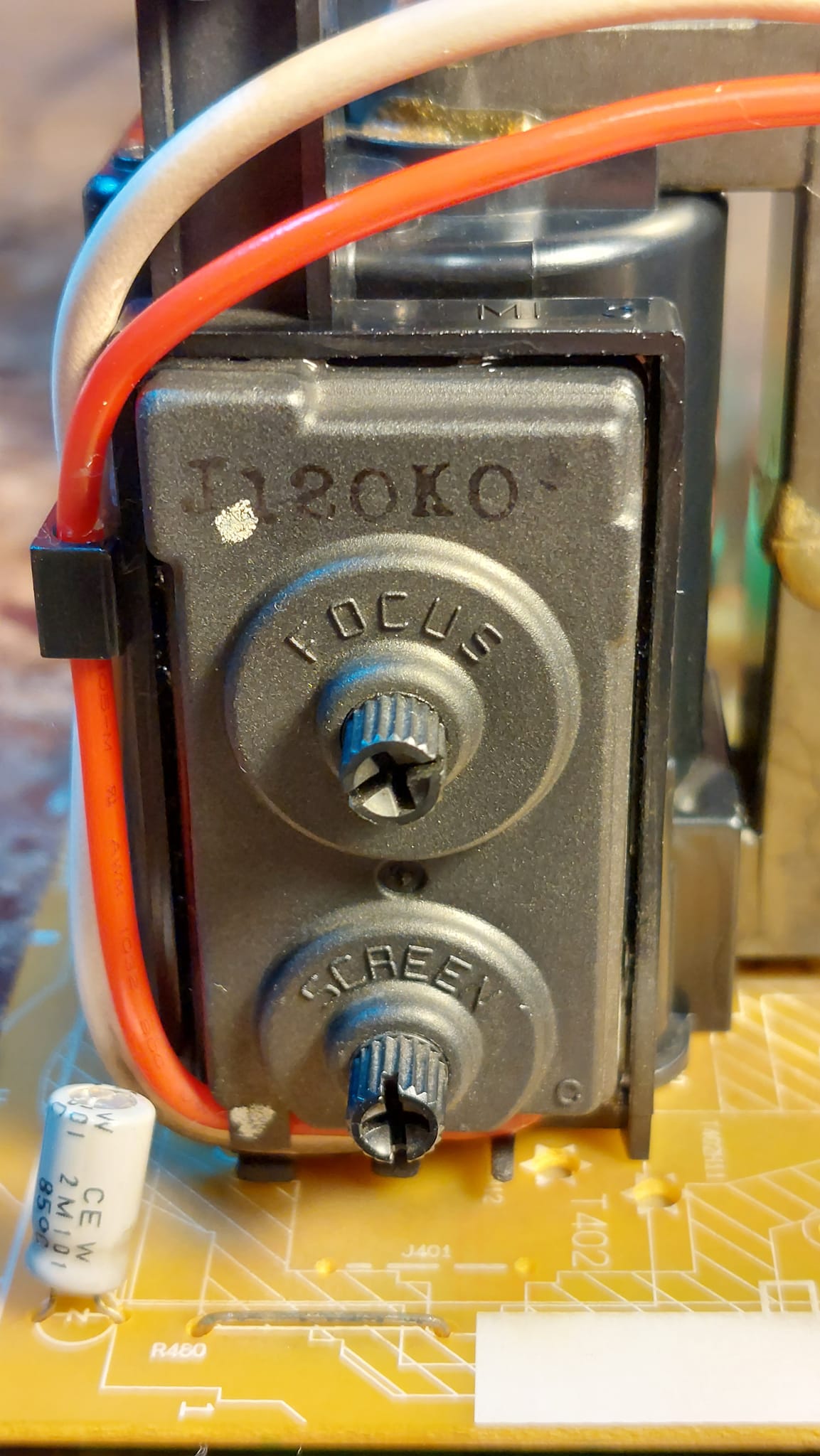

| Flyback: | 645 032 8978, 645 018 9579, L40B15000 |
| Focus Type: | Single |

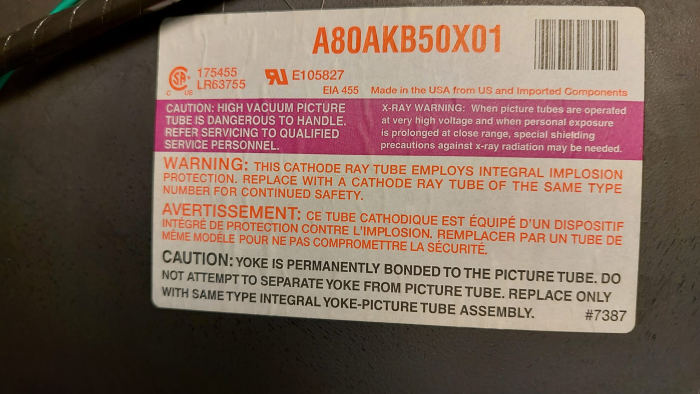

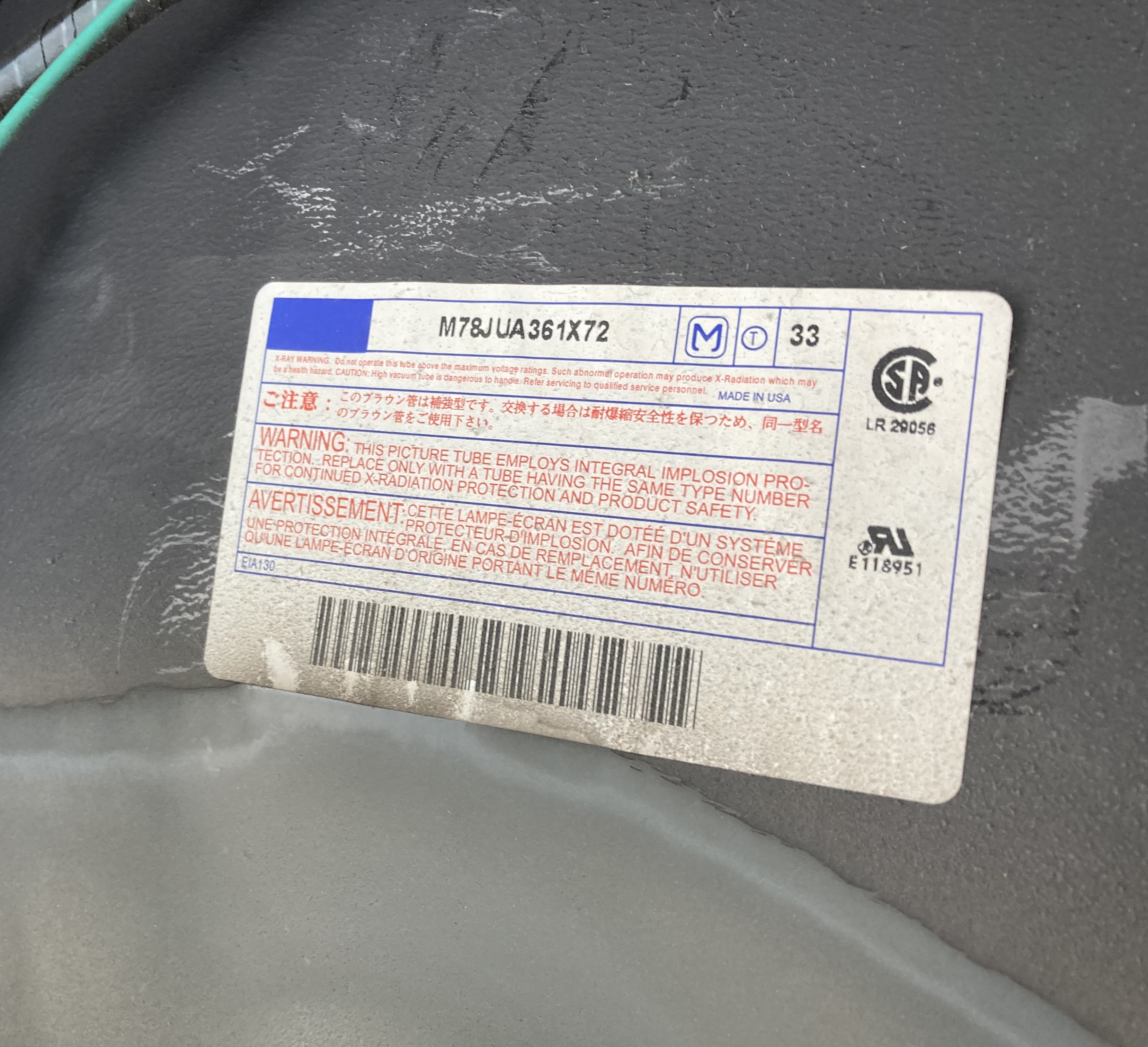

| Tube: | Panasonic , A80AKB50X , Matsushita-Toshiba , M78JUA361X72 , M78JUA361X , A80AKB50X01 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

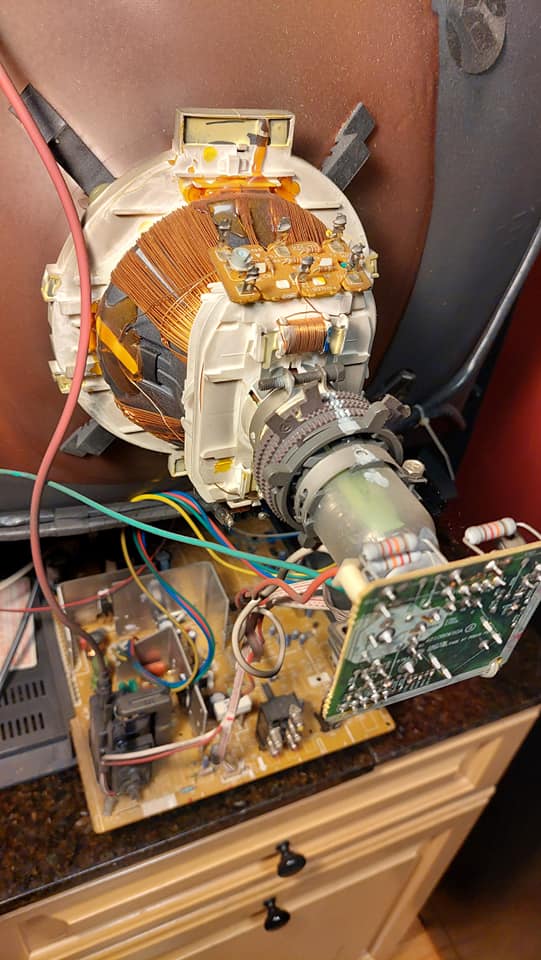

| Yoke: | (ITC) |

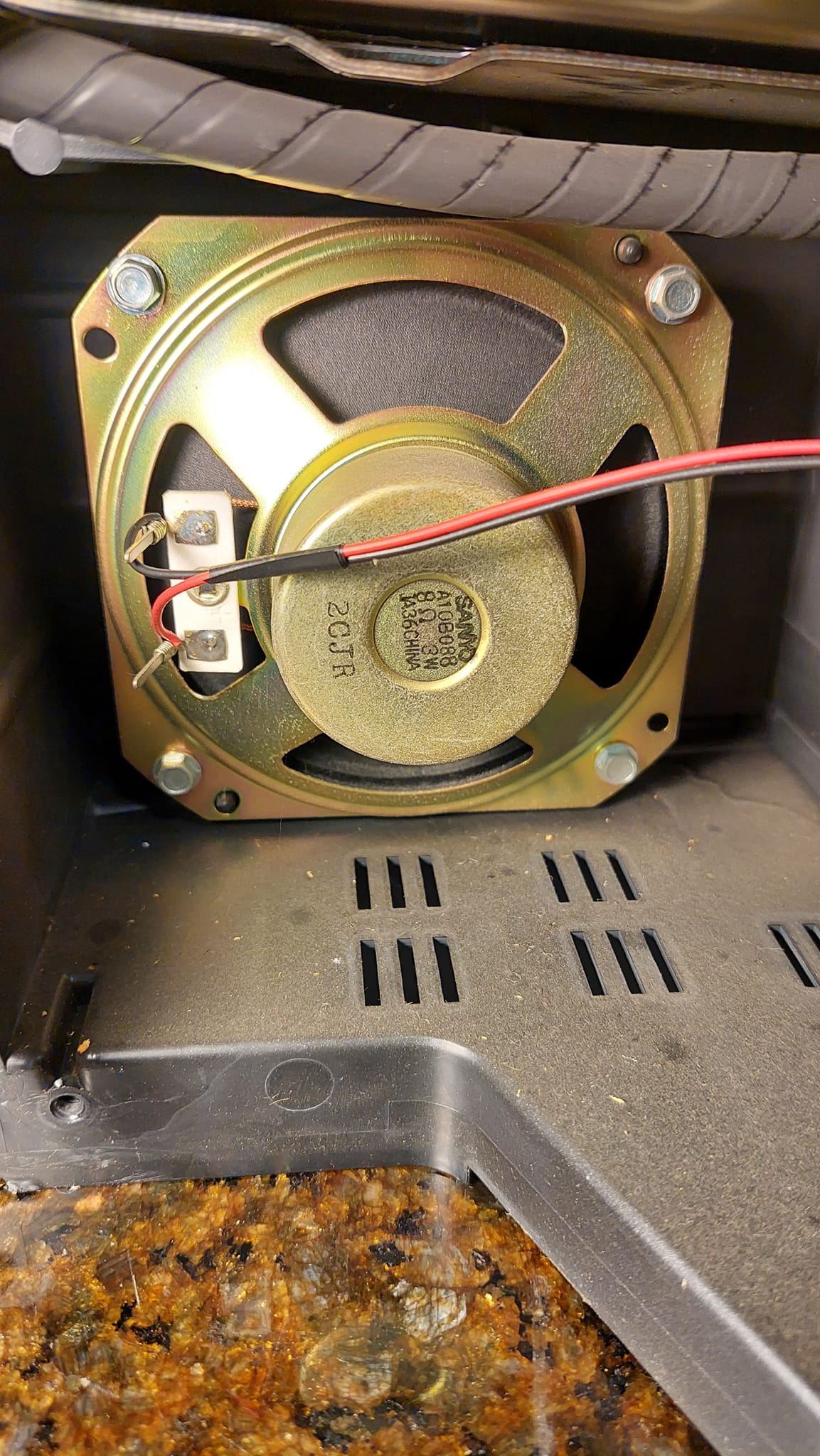

| Speakers: | Stereo, 1W x 2 |
| Remote: | FXWD |
| Chassis: | 31520-00 |
| Weight: | 106.4 lbs (48.3 kg) |
| Dimensions (W/H/D): |
754 x 732 x 538 mm
(29.6 x 28.8 x 21.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 399 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
