Summary
Basic 13" TV from Sanyo. Includes one front mono A/V input.
Manuals
Notes
Switching between the AV and RF inputs can't be done via the front panel and requires a remote. Most universal remotes should work well.
The jungle chip on this model appears to be configured for digital RGB, and is unlikely to be compatible with an RGB mod.

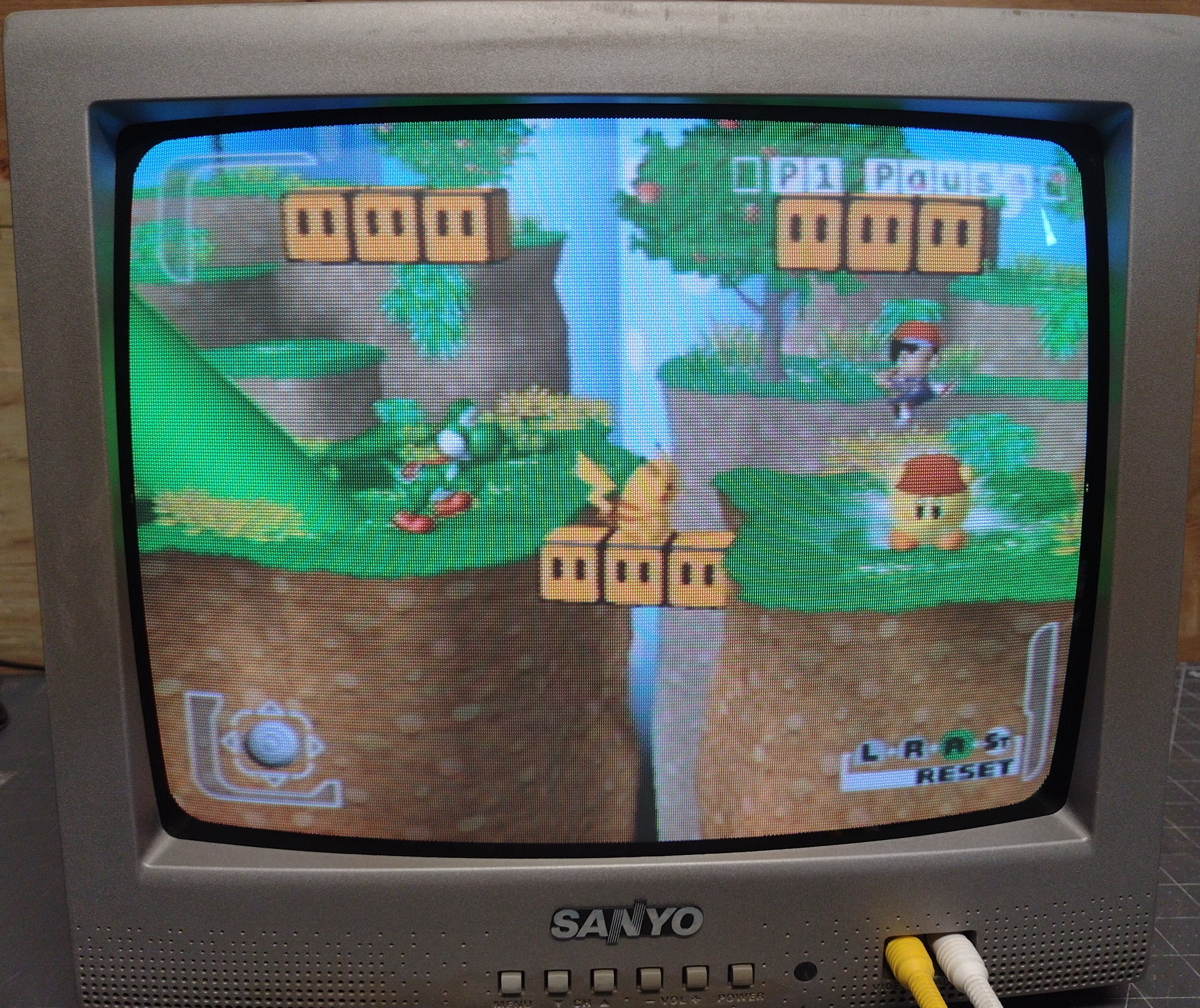

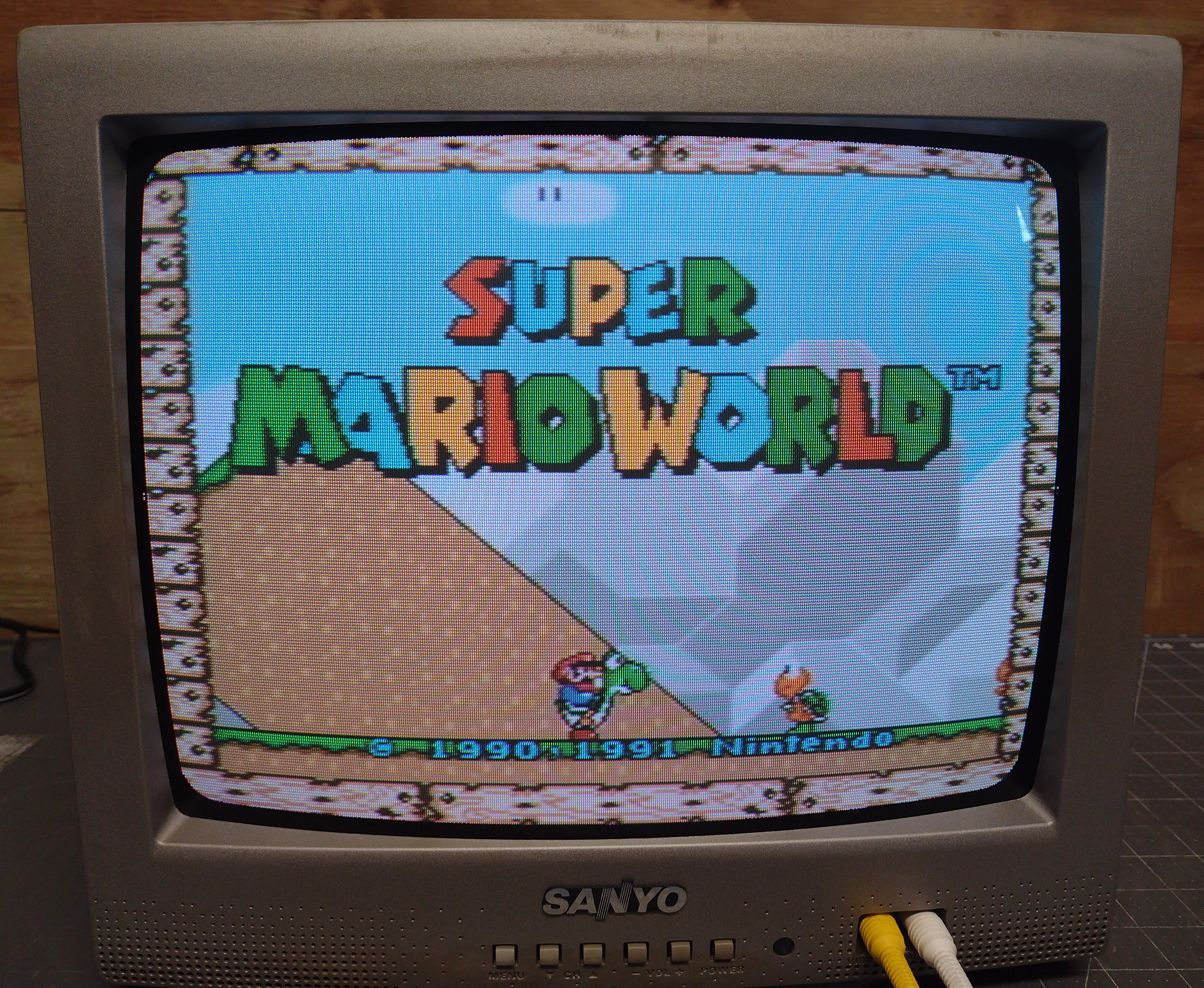

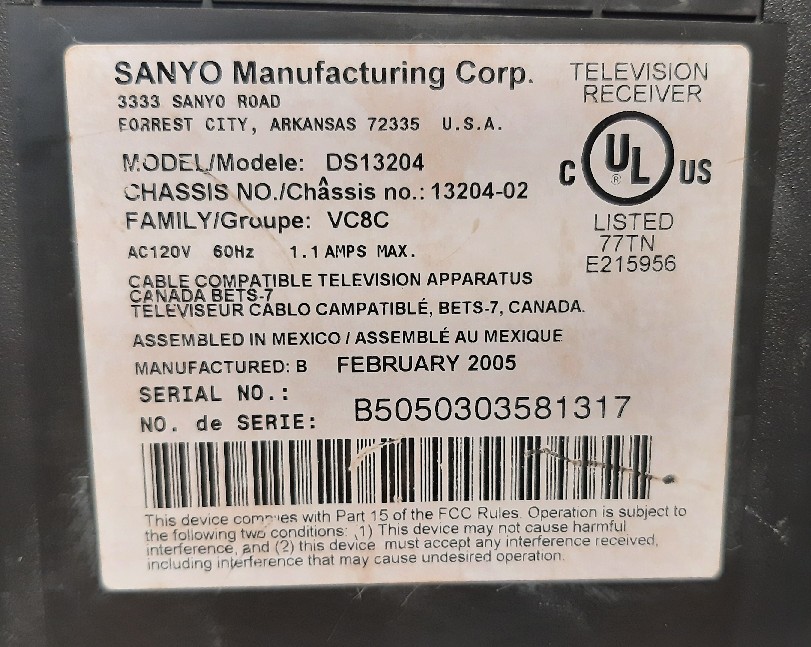

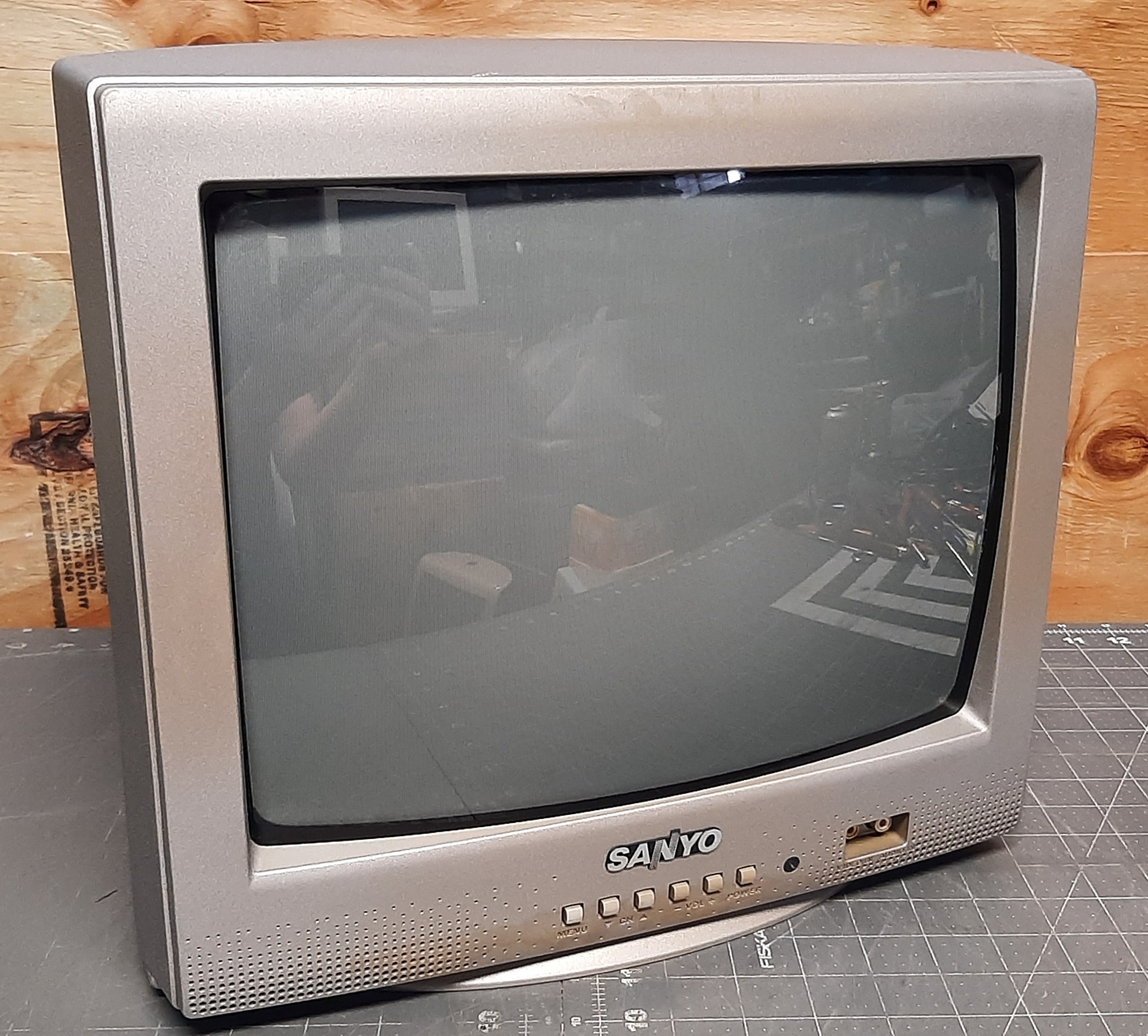

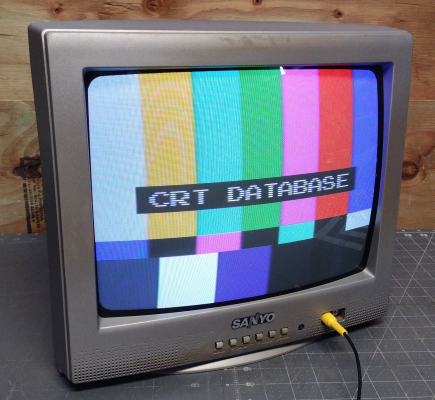

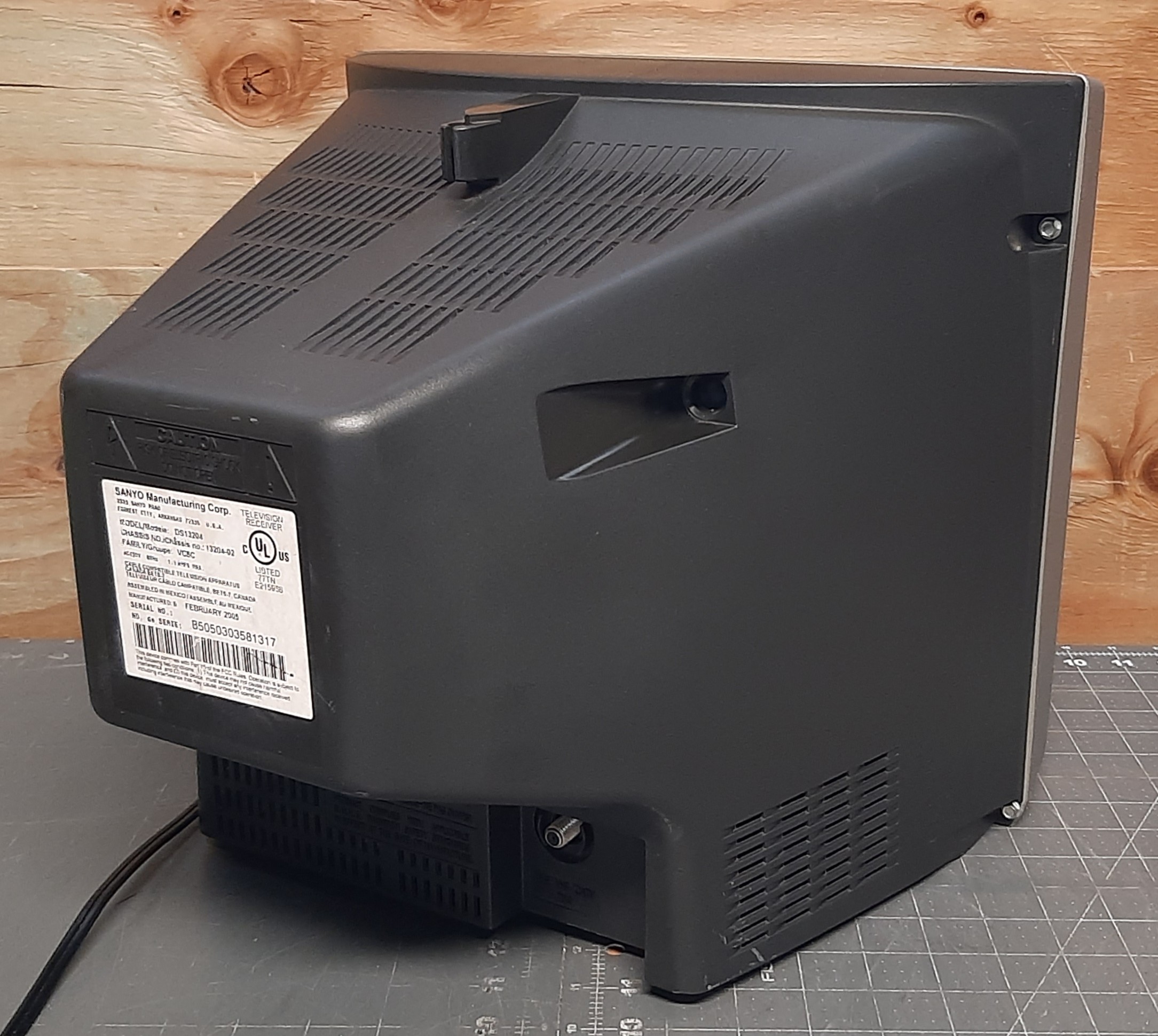

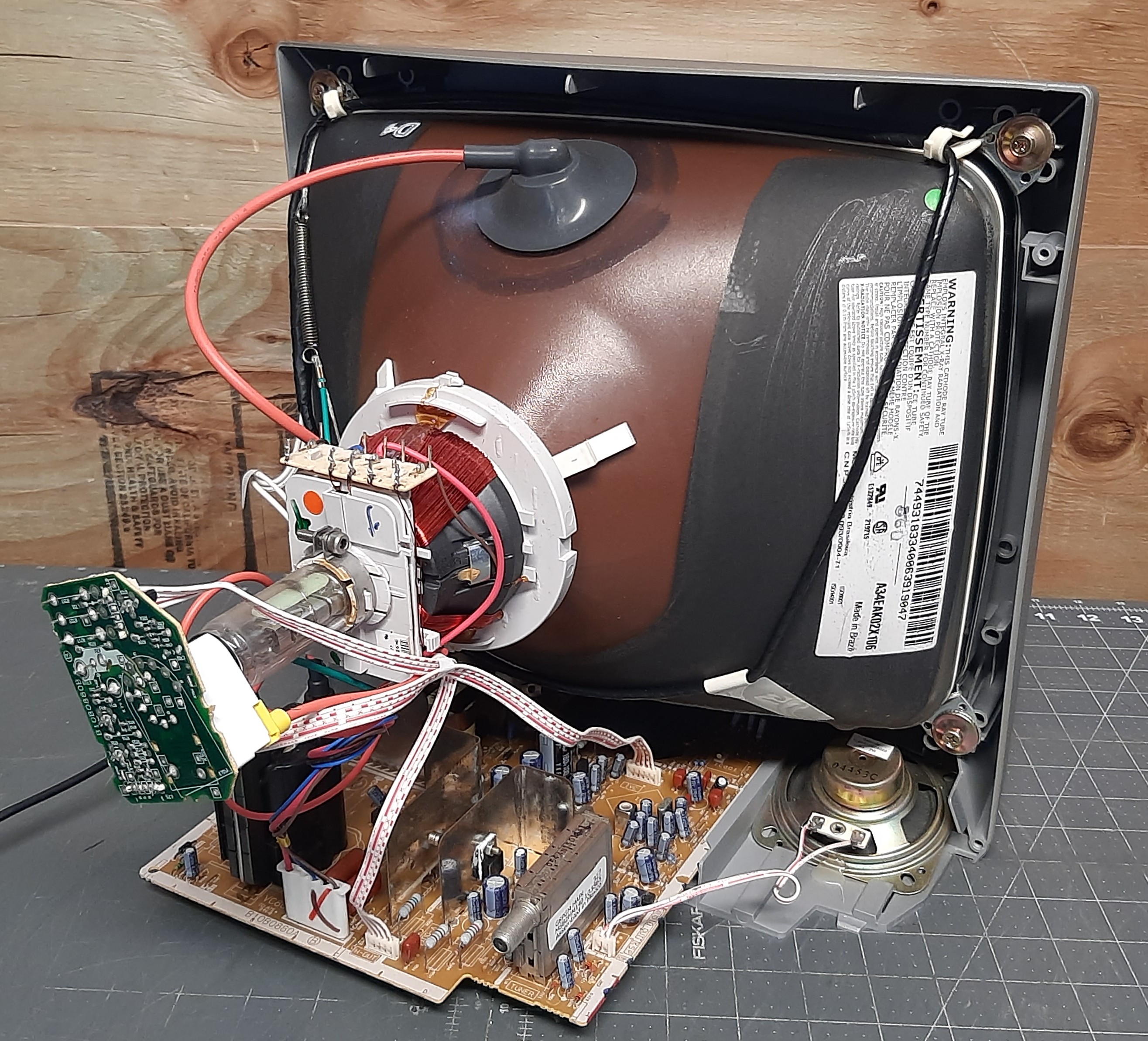

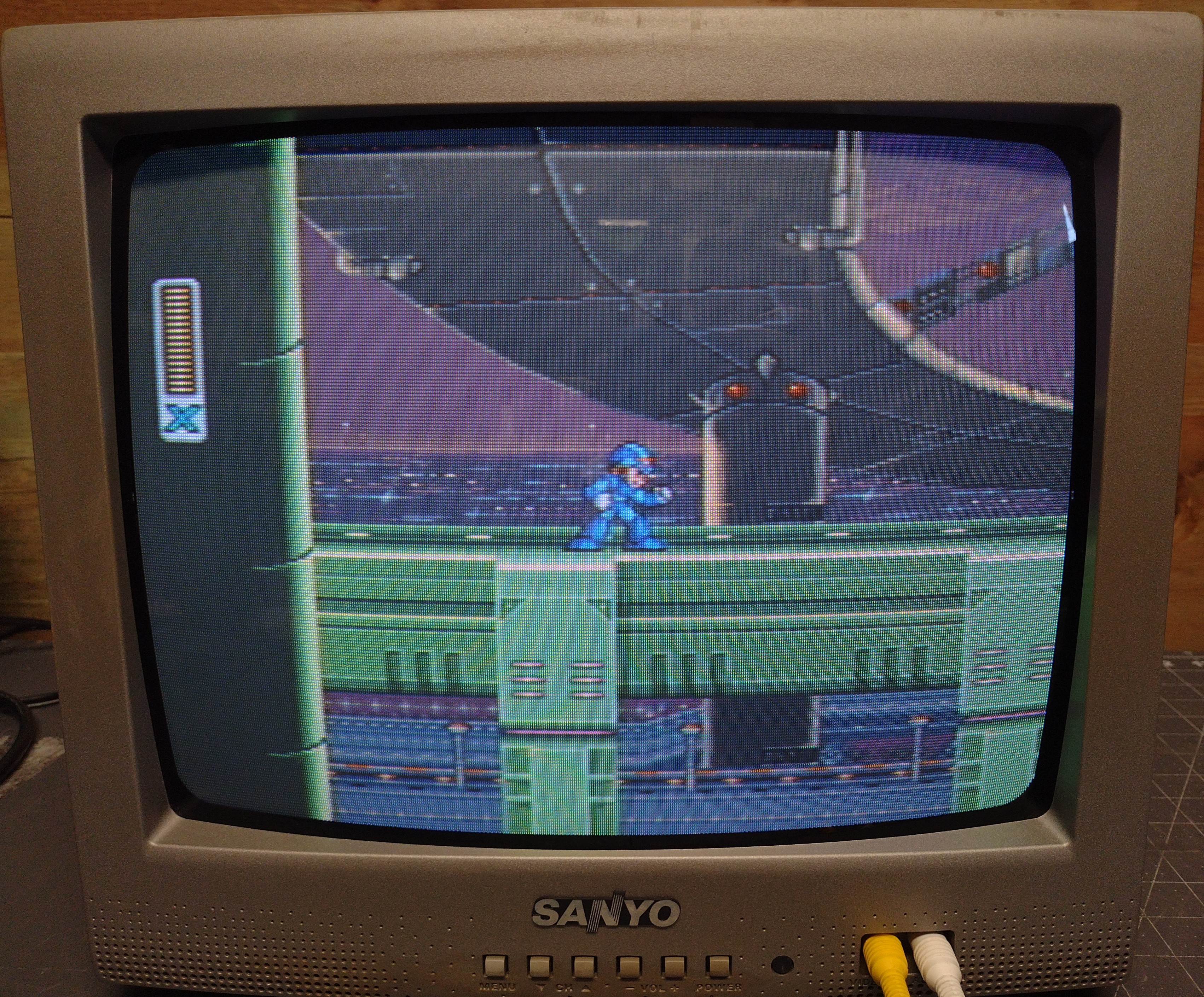

Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS13204 |
| Series: | DS |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2138 |
| Vertical Output IC: | LA78040 |
| Jungle IC: | LA76843NMP |
| Comb Filtering: | None |
| Flyback: | BSC22-2654S |
| Focus Type: | Single |
| Tube: | A34EAK02X , A34EAK02X106 , LG.Philips |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | AT1626K6 |
| Yoke Horz. Inductance: | 4.679 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.78 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 6.24 ohm |
| Yoke Vert. Resistance: | 13.71 ohm |
| Speakers: | Mono |
| Remote: | FXTG |
| Chassis: | 13204-00 |
| Weight: | 18.6 lbs (8.4 kg) |
| Dimensions (W/H/D): |
356 x 327 x 372 mm
(14 x 12.9 x 14.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
