Summary

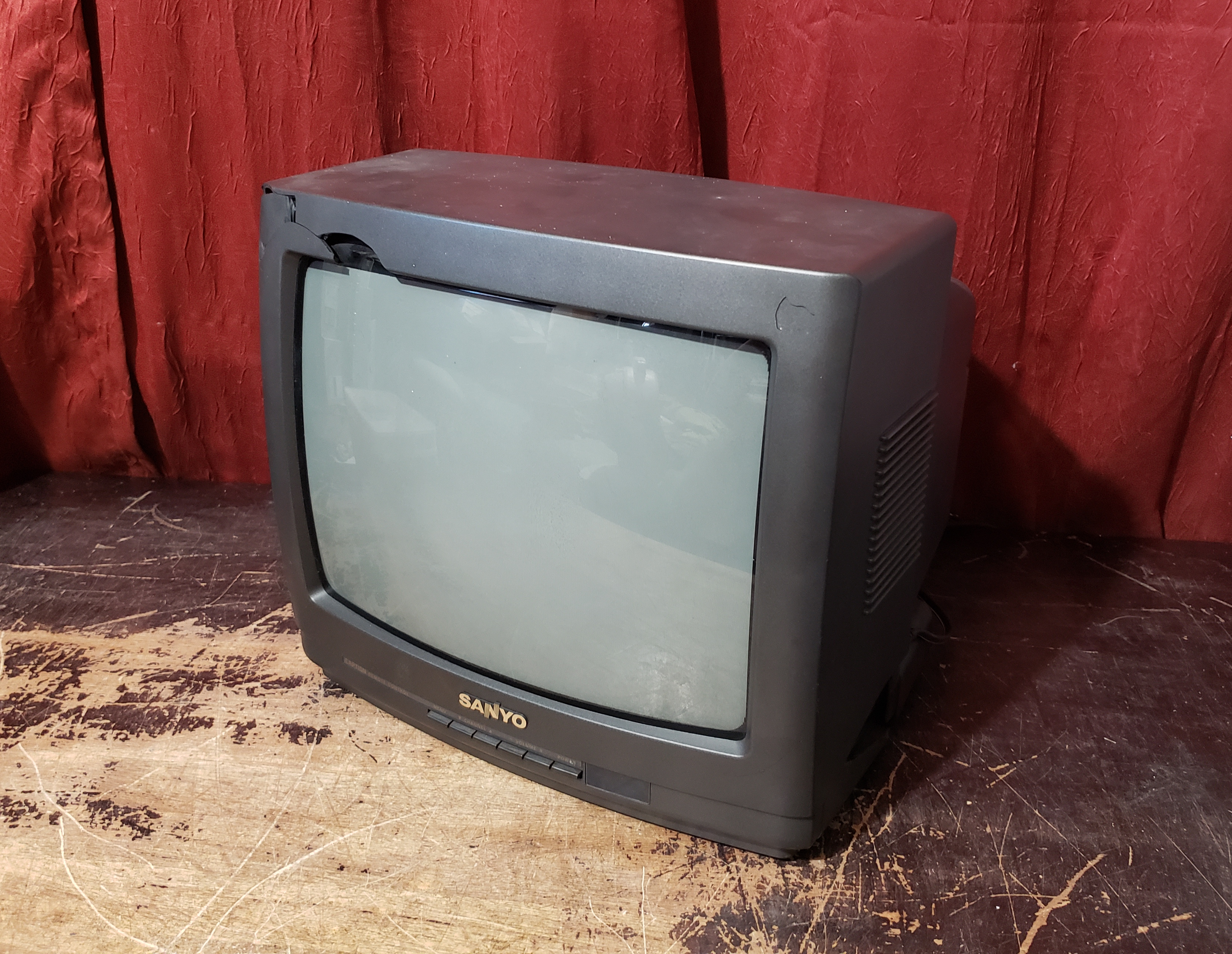

13" color TV from Sanyo. Has RF input only
Manuals
Notes
This TV uses a hot chassis design, and should not be modified for additional inputs.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.

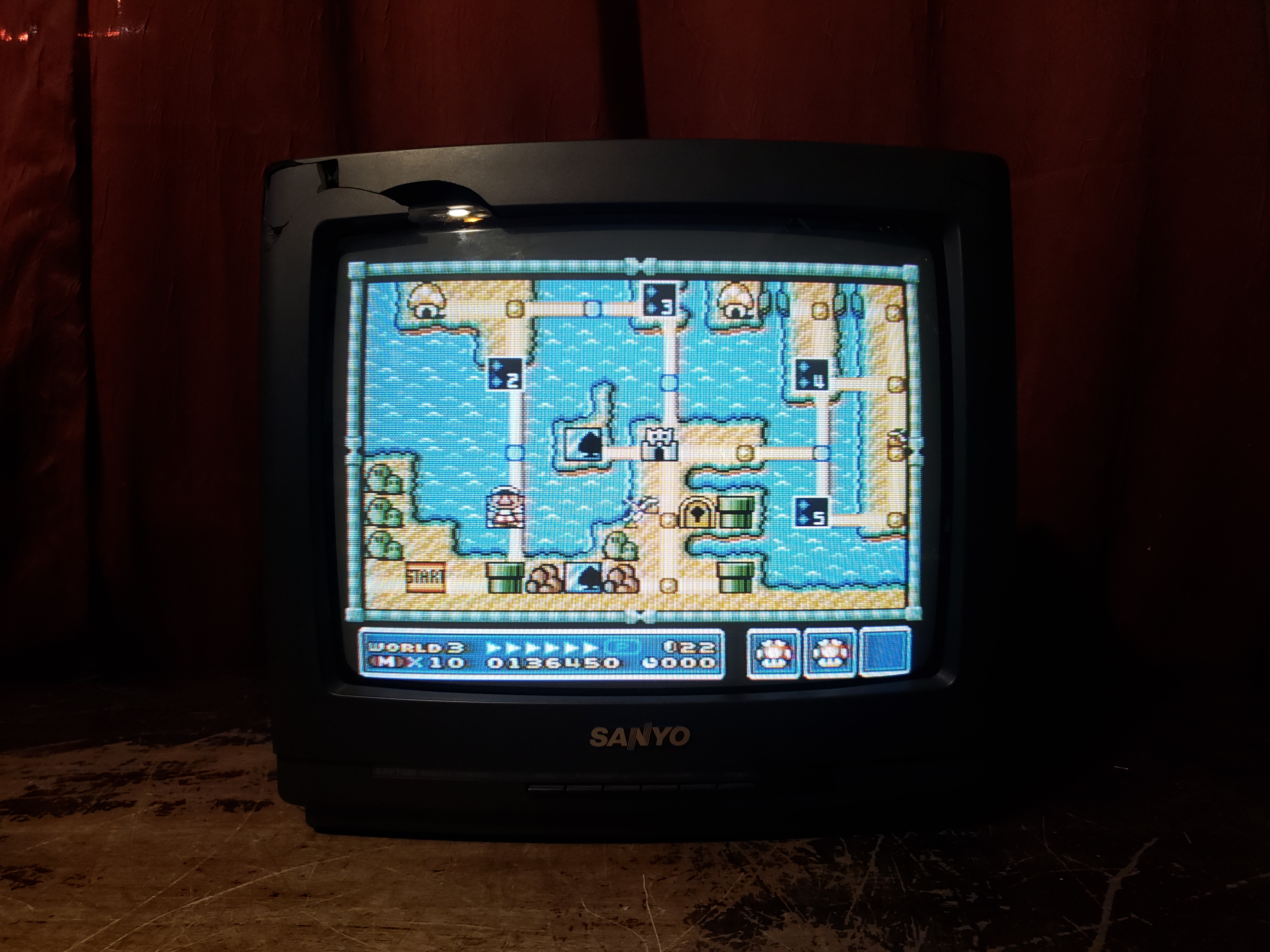

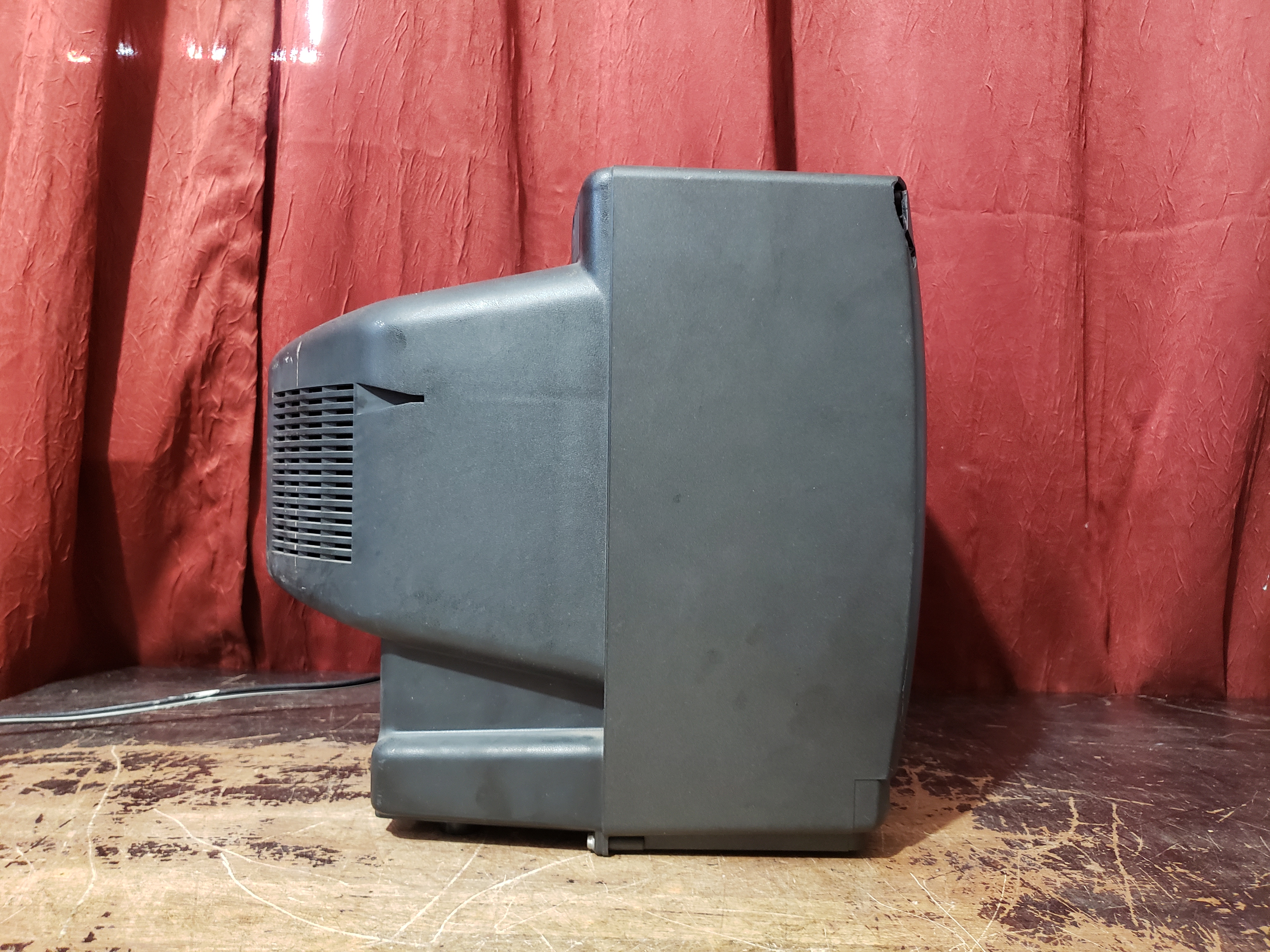

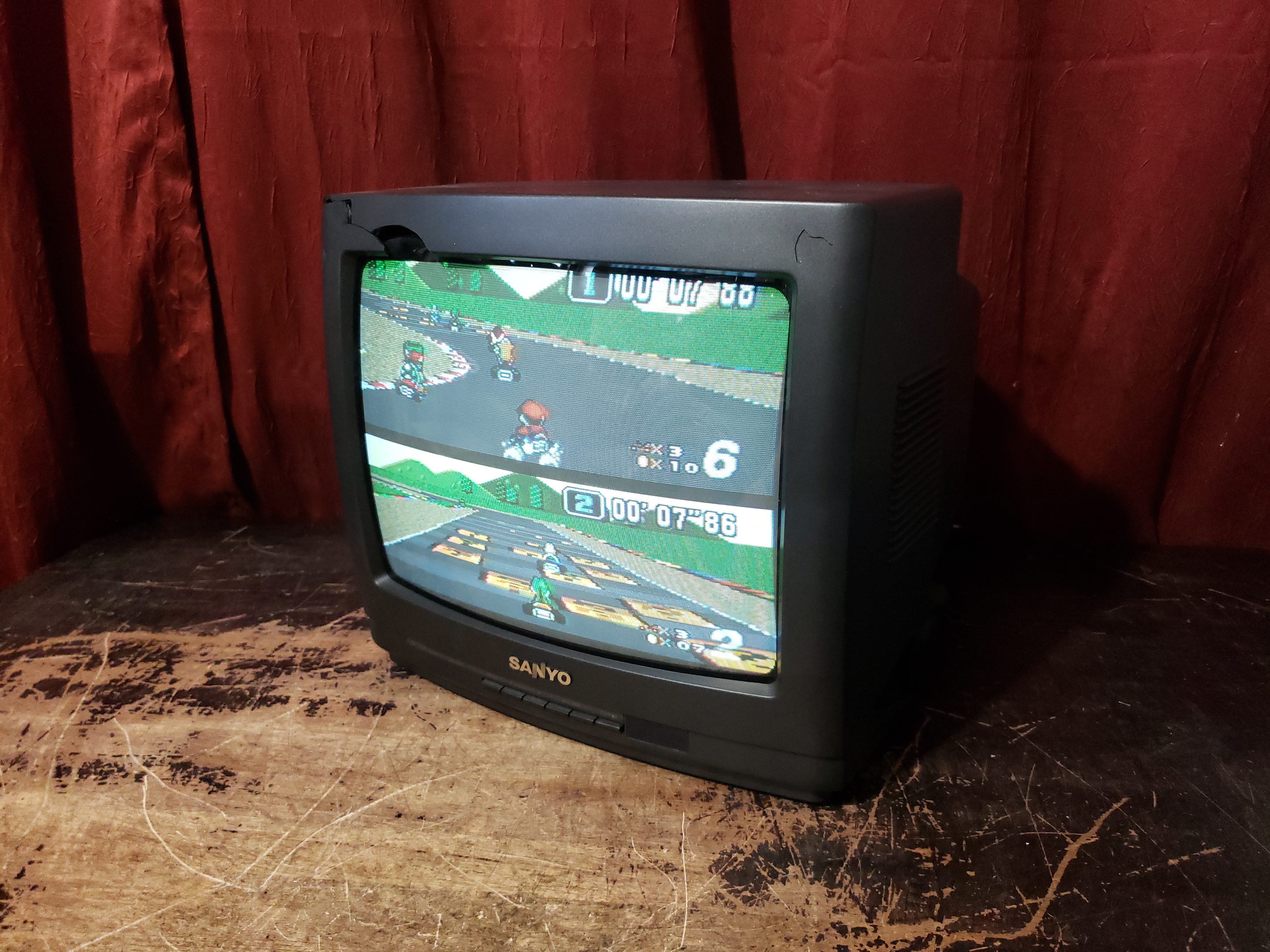

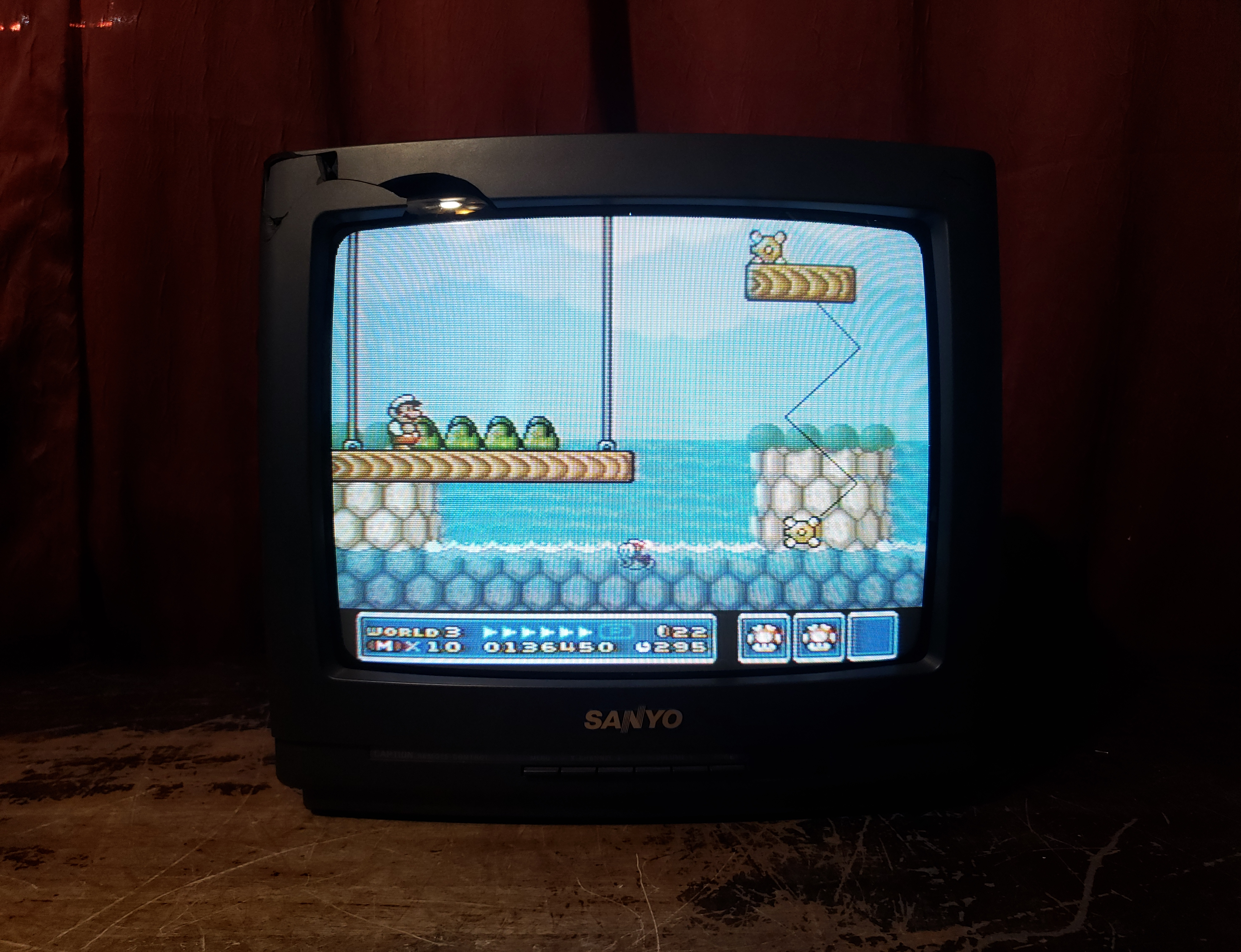

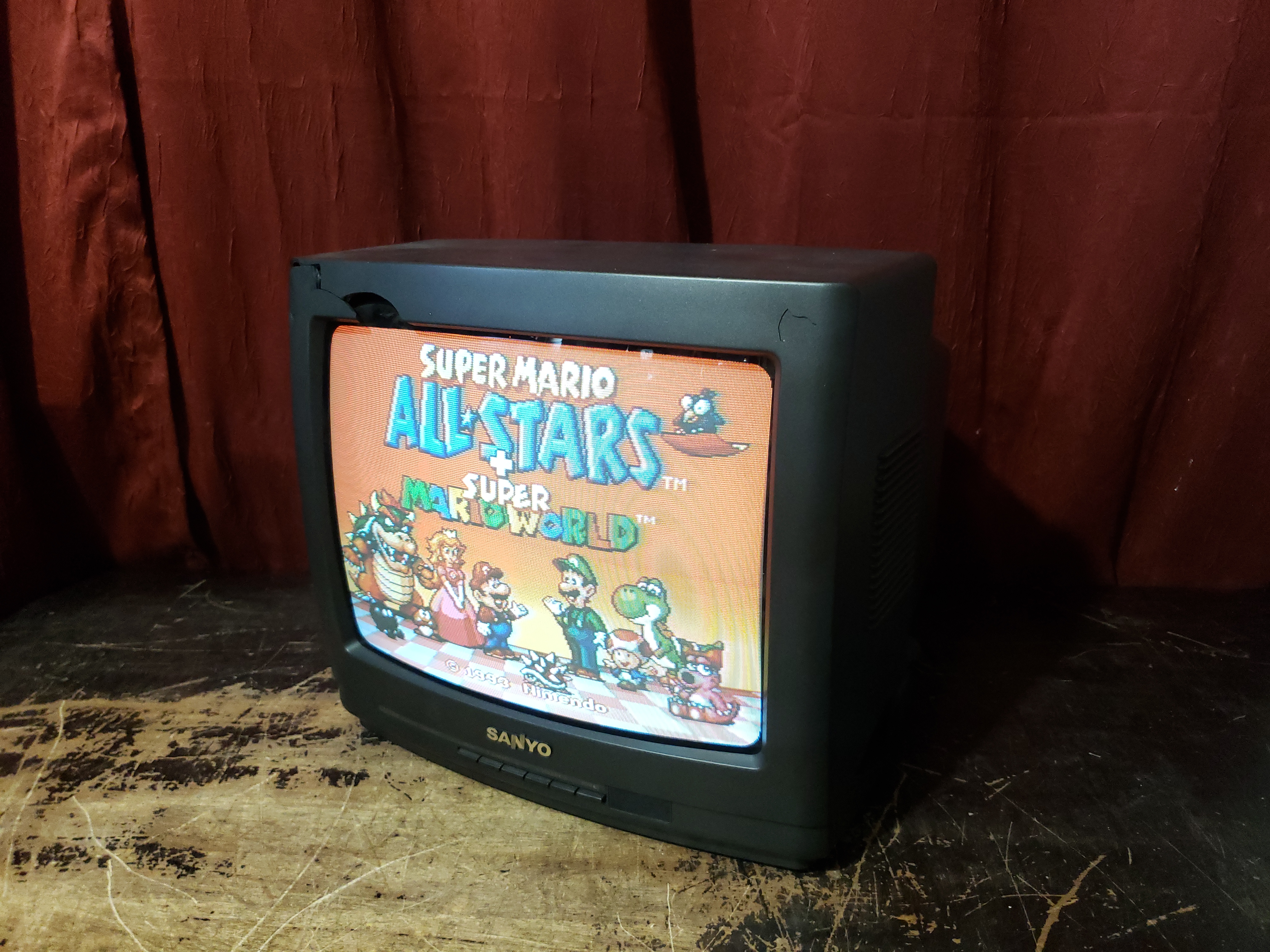

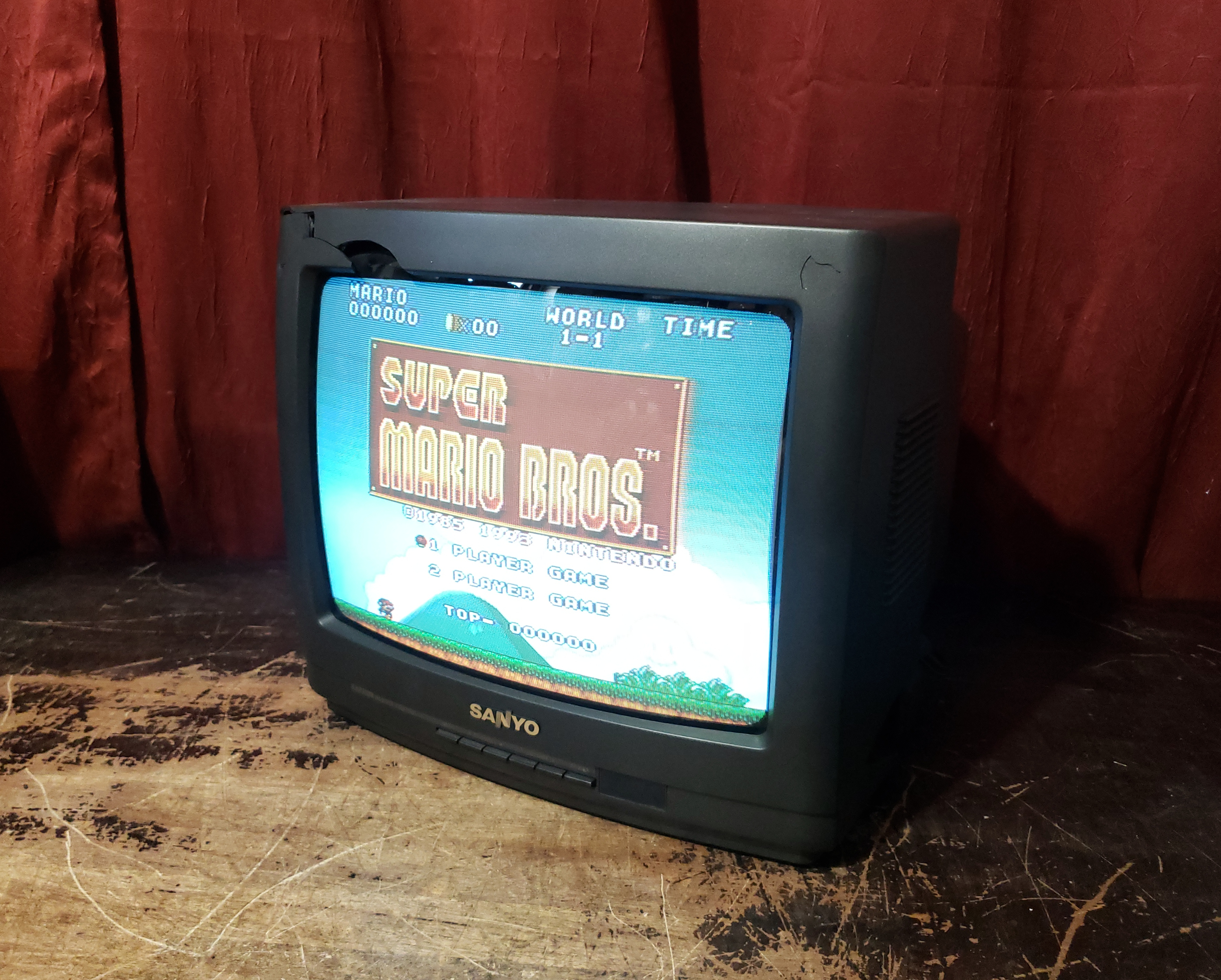

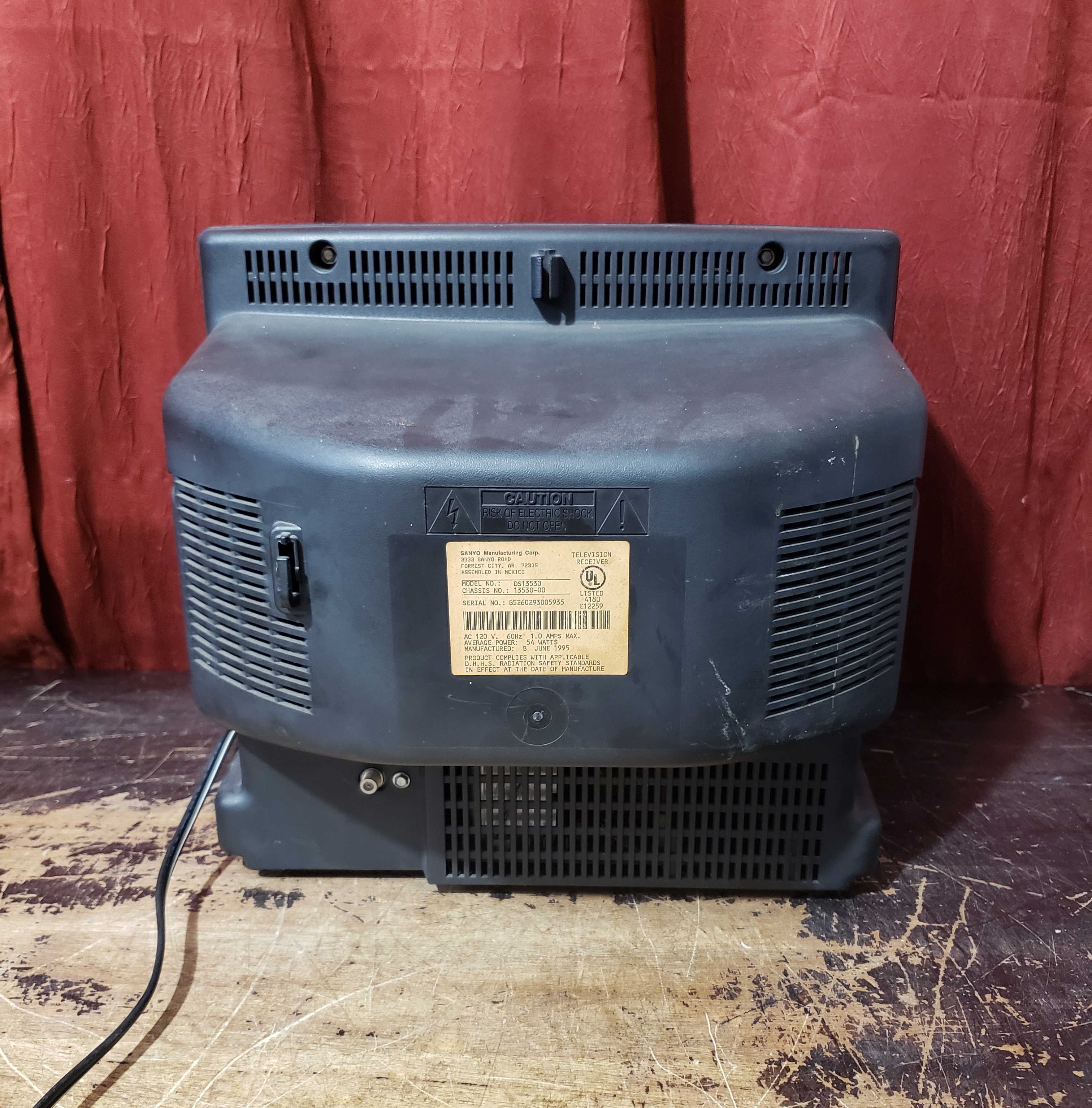

Gallery
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS13530 |
| Series: | DS |
| Viewable Size: | 13" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

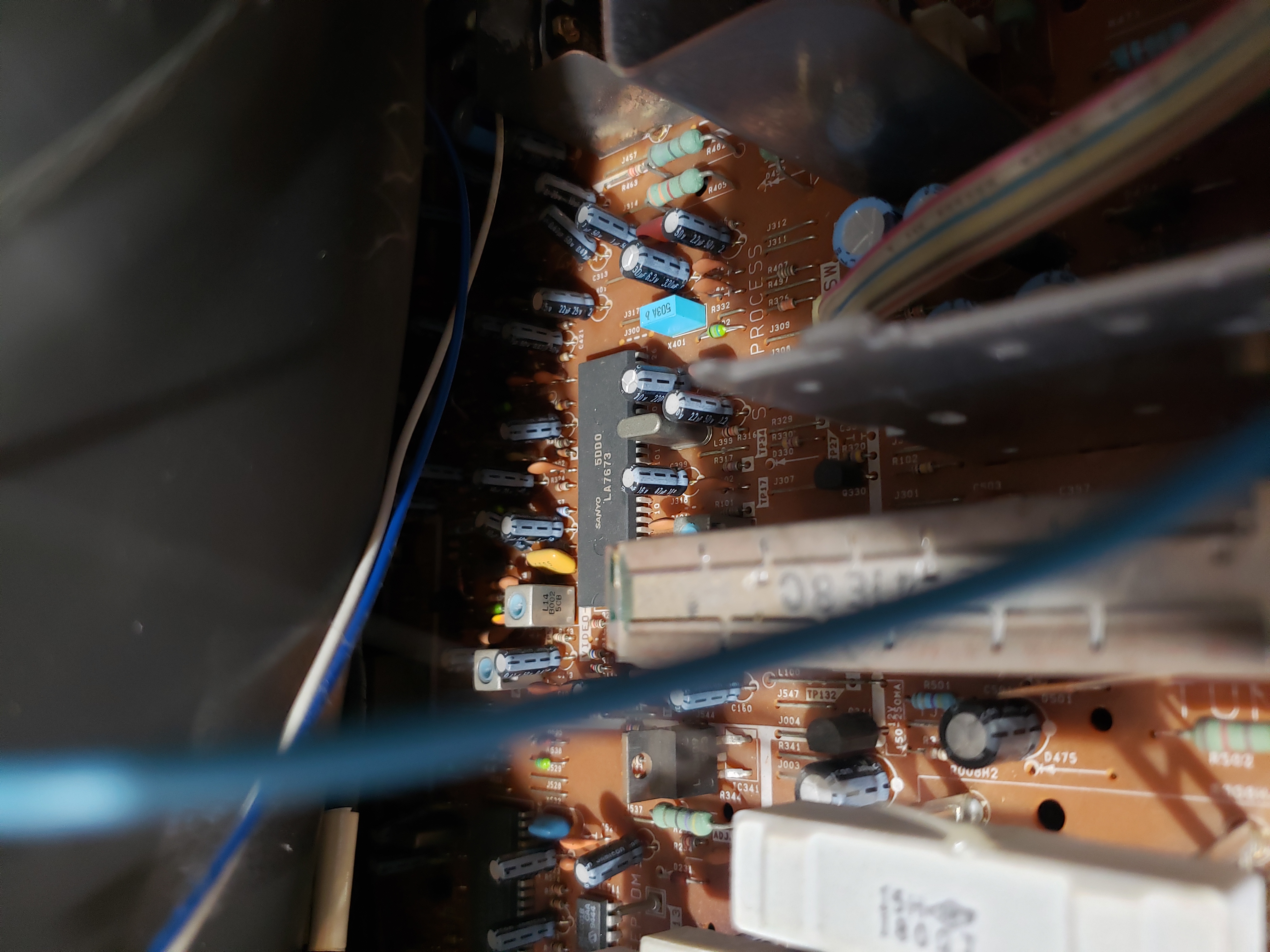

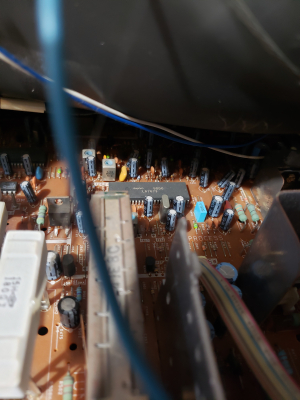

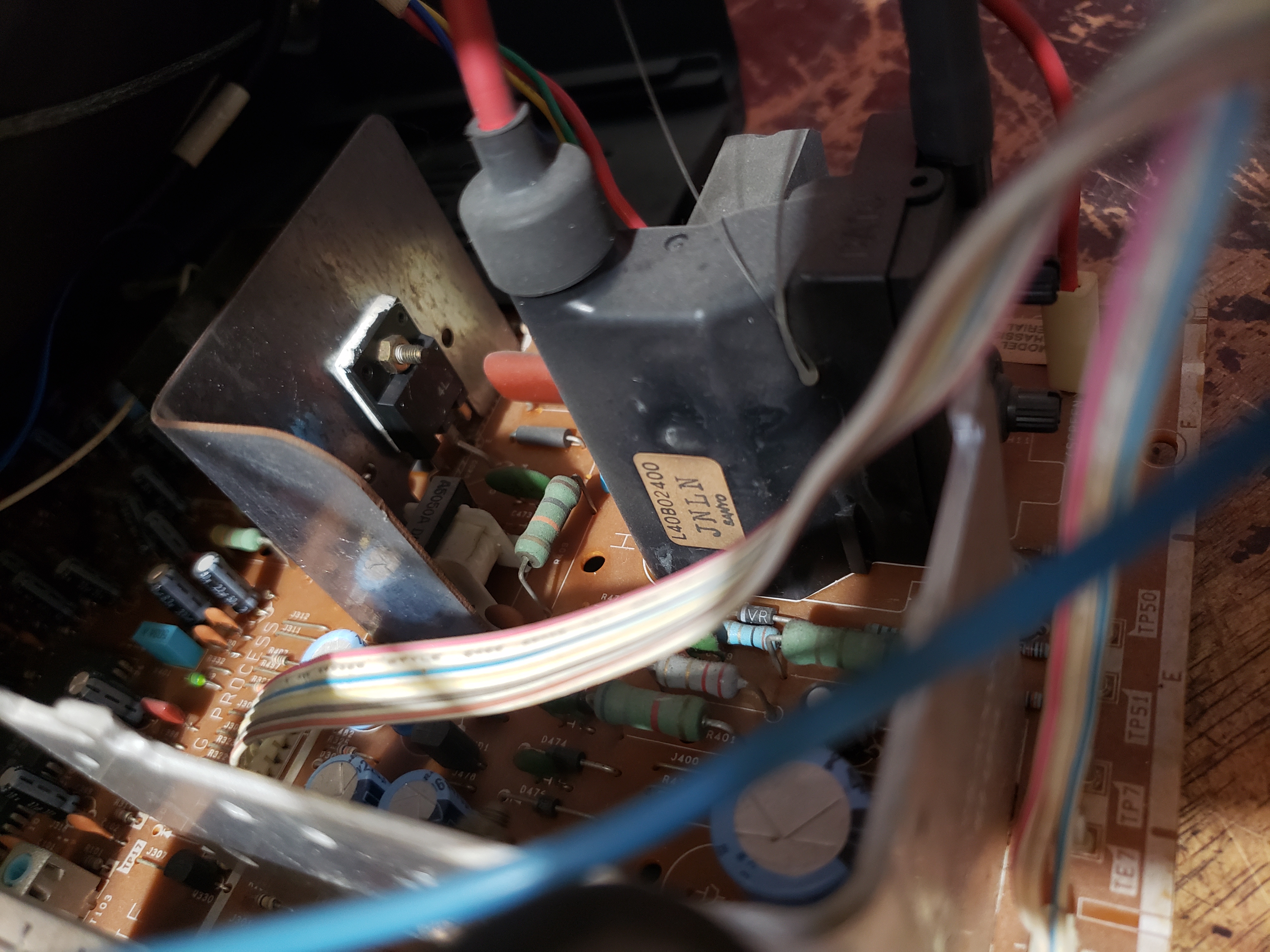

| Jungle IC: | LA7673 |
| Comb Filtering: | Notch |
| Flyback: | L40B02400 |

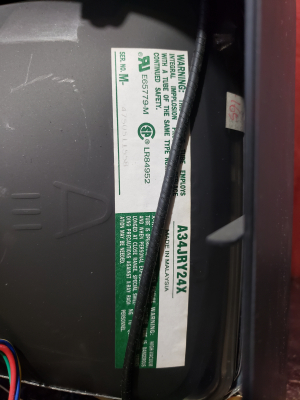

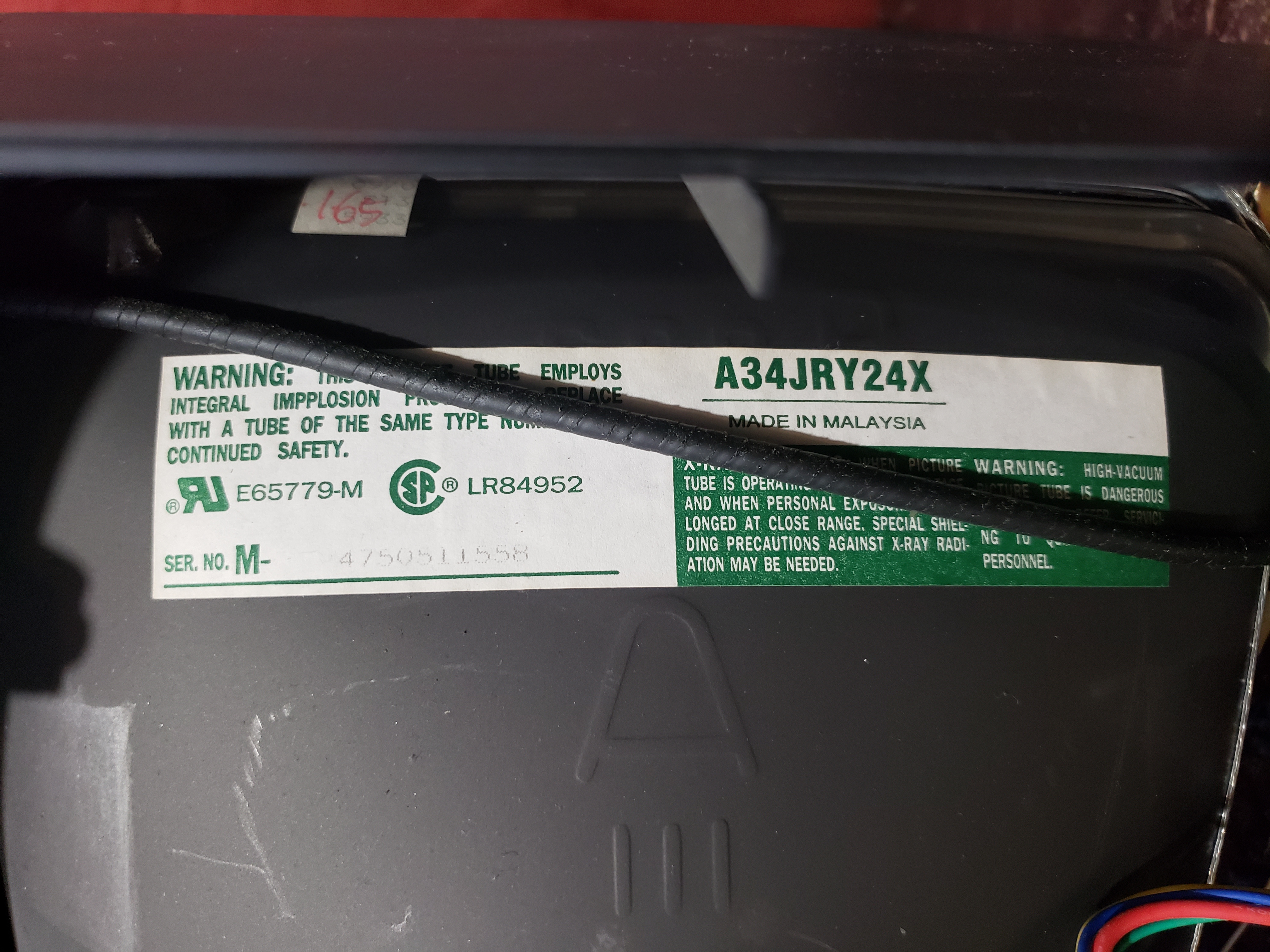

| Tube: | A34JRY24X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

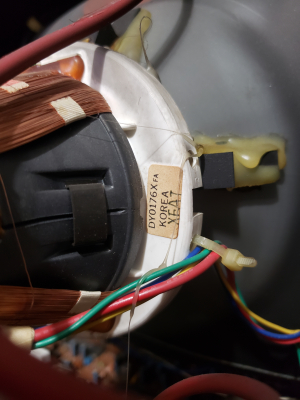

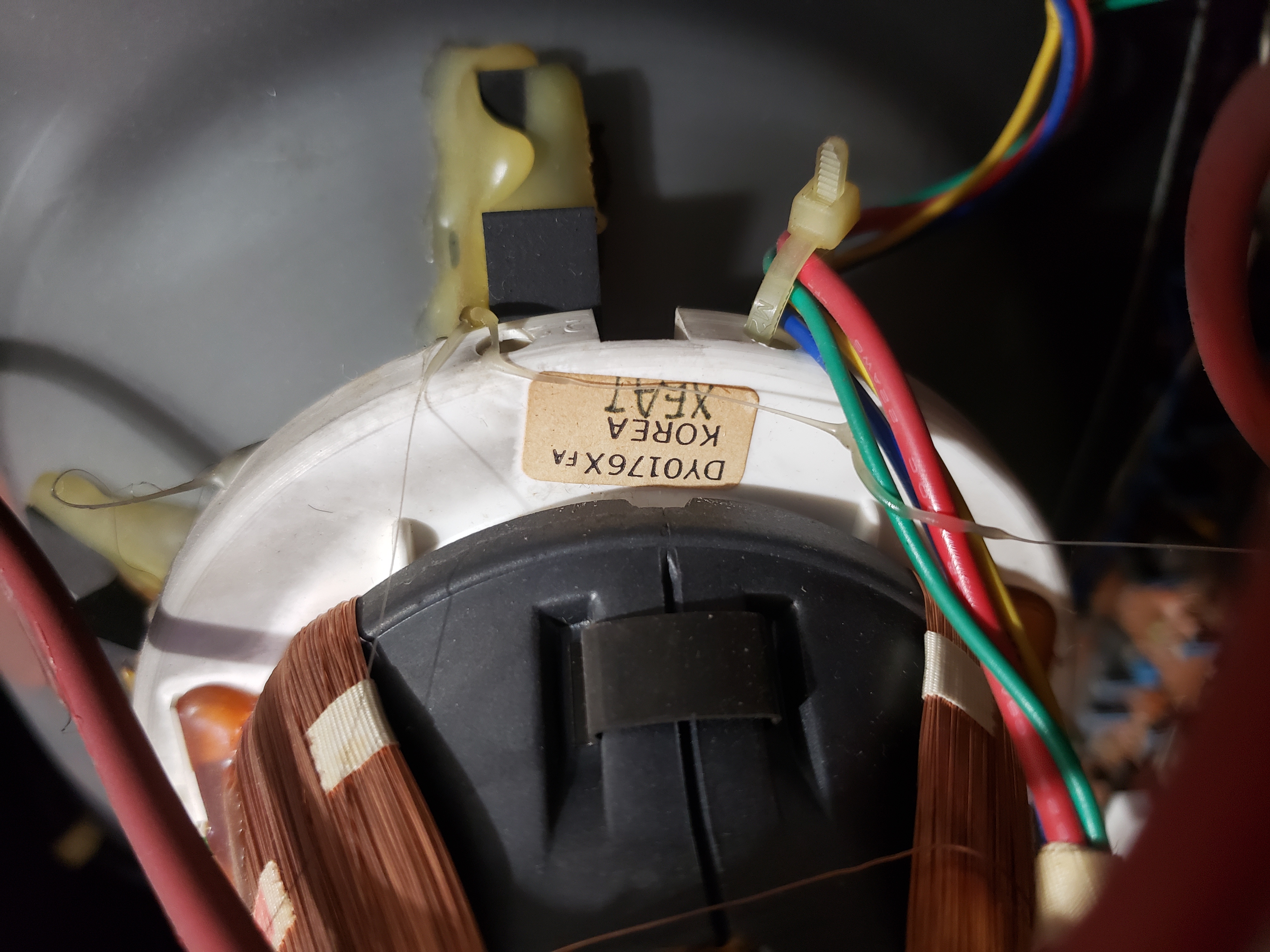

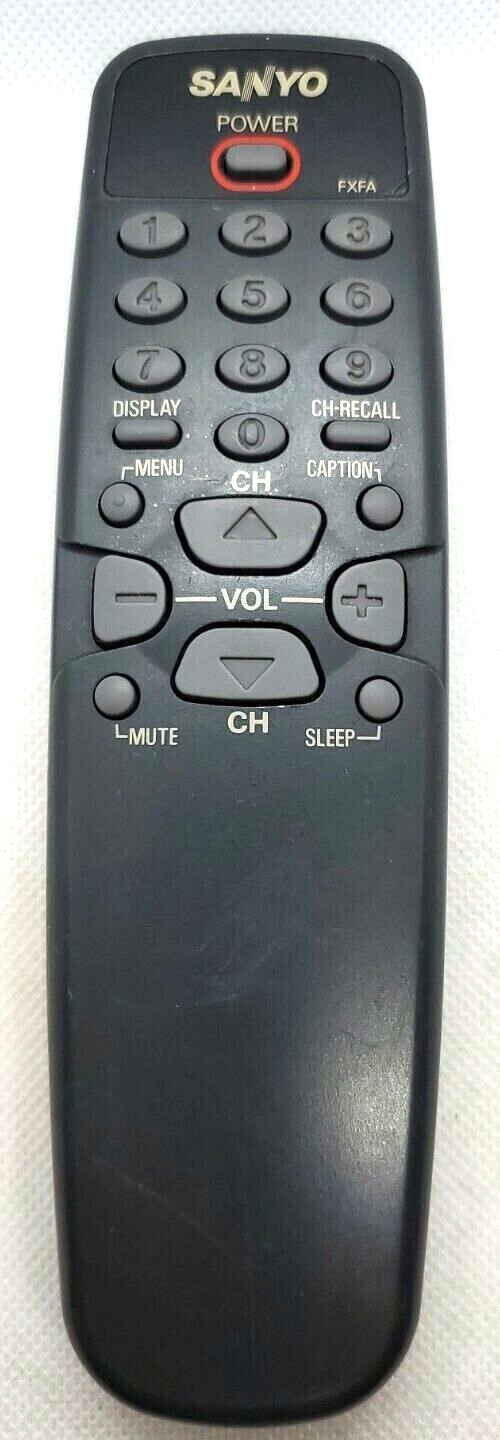

| Yoke: | DY0176XFA |
| Yoke Horz. Inductance: | 4.521 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 30.61 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 7.28 ohm |
| Yoke Vert. Resistance: | 18.01 ohm |
| Speakers: | Mono |
| Remote: | FXFA |

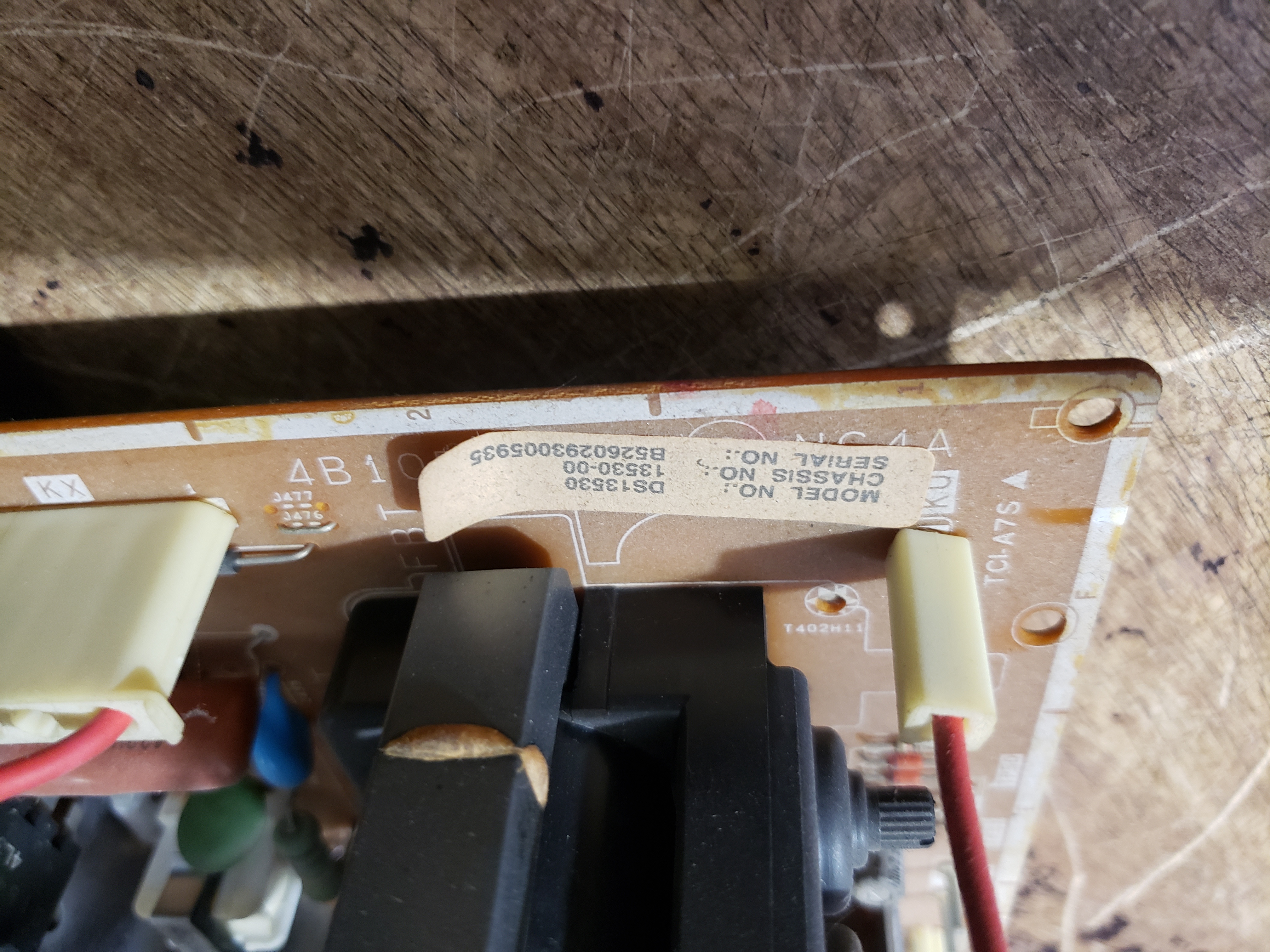

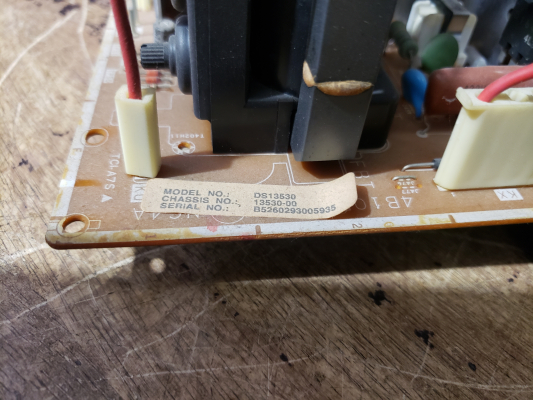

| Chassis: | 13530-00 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Measurements |
