Summary

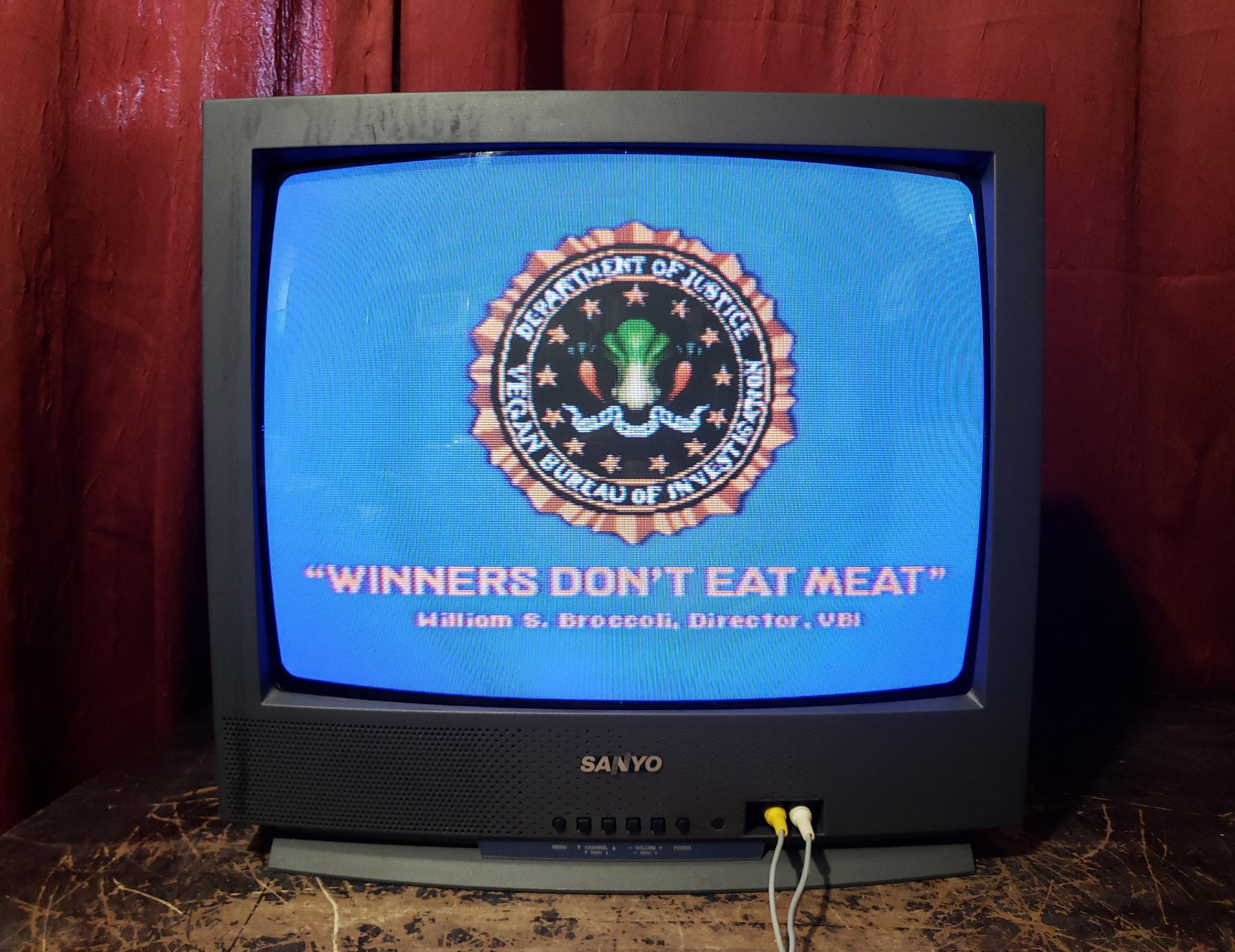

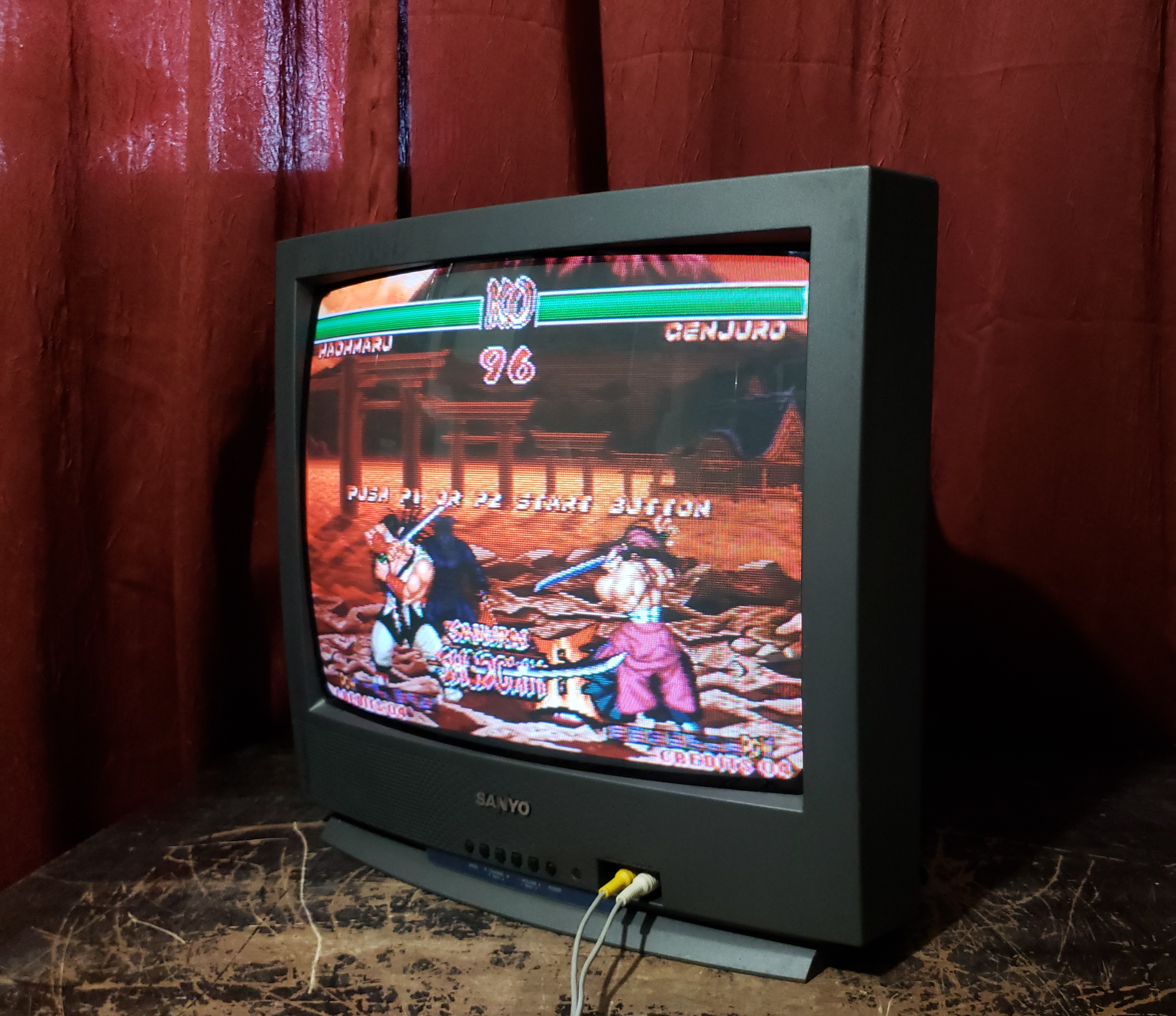

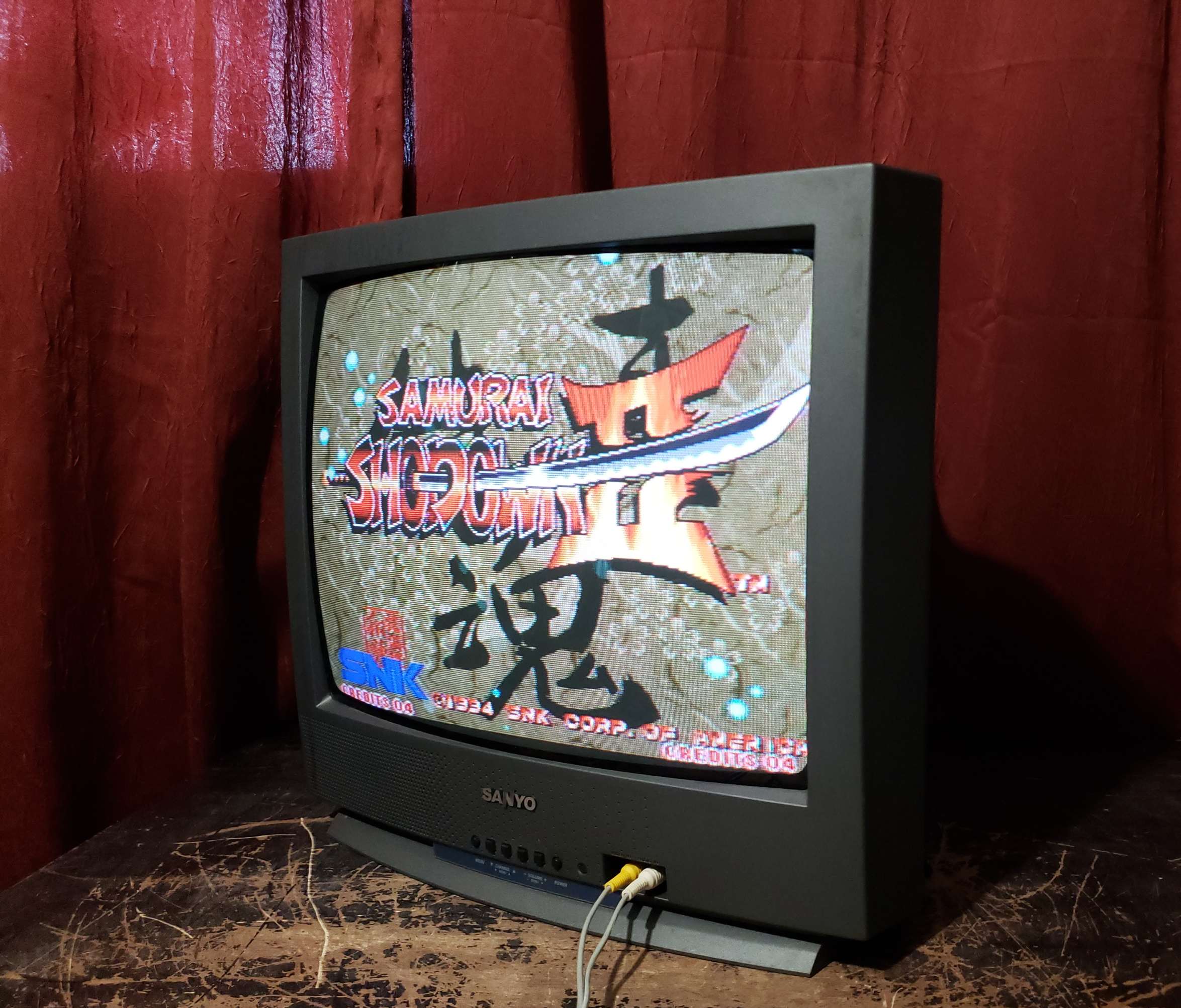

19'' Front A/V Remote Control Television Sit back and enjoy watching shows or playing your favorite Video Game. Adjust your TV from across the room using the handy Remote Control with glow-in-the-dark keys. Experience SANYOâ„¢ style and quality.
Manuals
Media & Promo Materials
Notes
A remote is required to change video inputs.
An RGB mux mod is possible, though every component connecting the OSD RGB & blanking to the jungle chip is surface mount (except one), so more soldering skill is required than the average RGB mux mod which has more through-hole resistors.
Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS19310 |
| Series: | DS |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2634YB |
| Vertical Output IC: | LA78040 |
| Jungle IC: | LA76834NMP |
| Comb Filtering: | Notch |

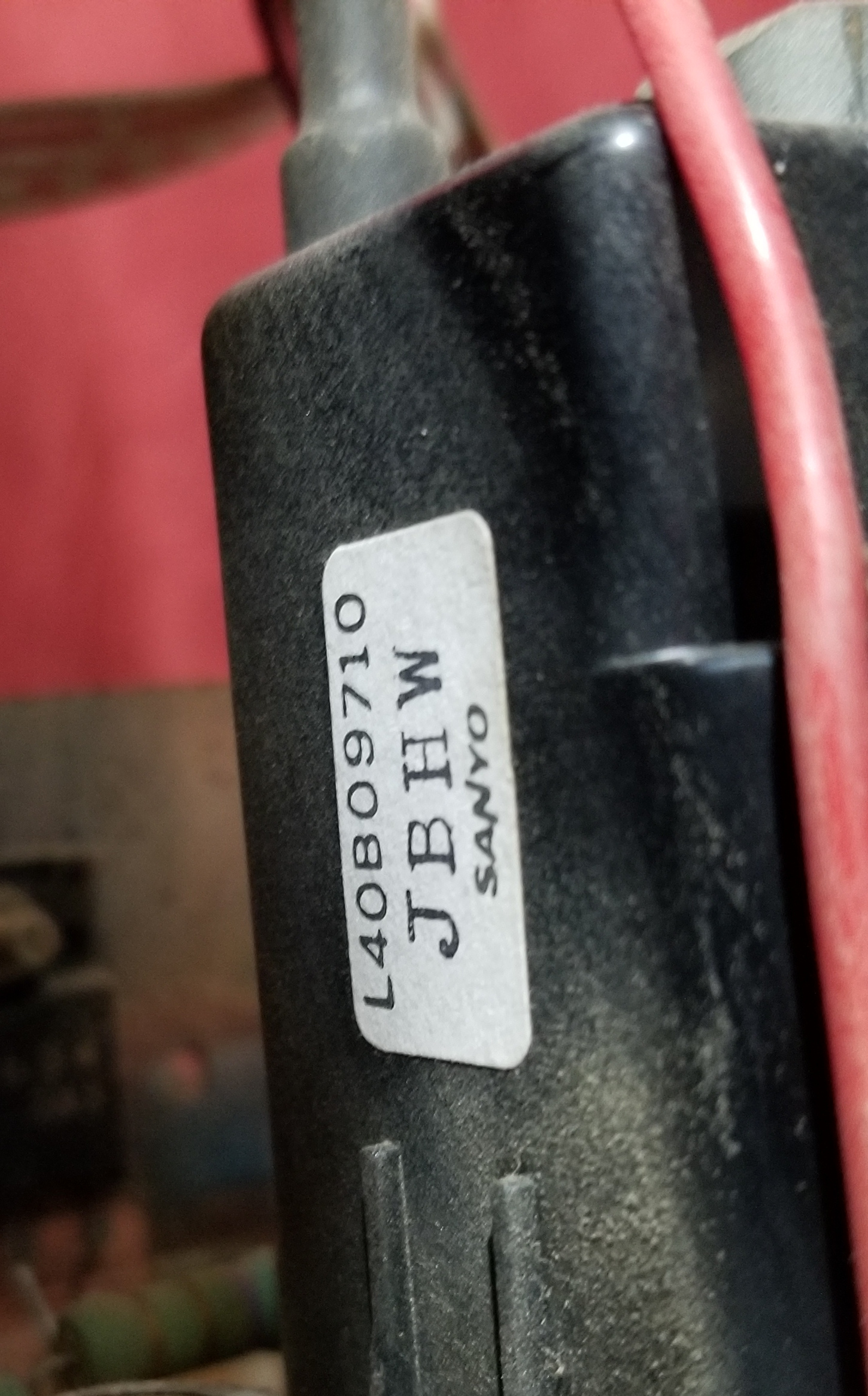

| Flyback: | 6520010383, L40B09710 |
| Focus Type: | Single |

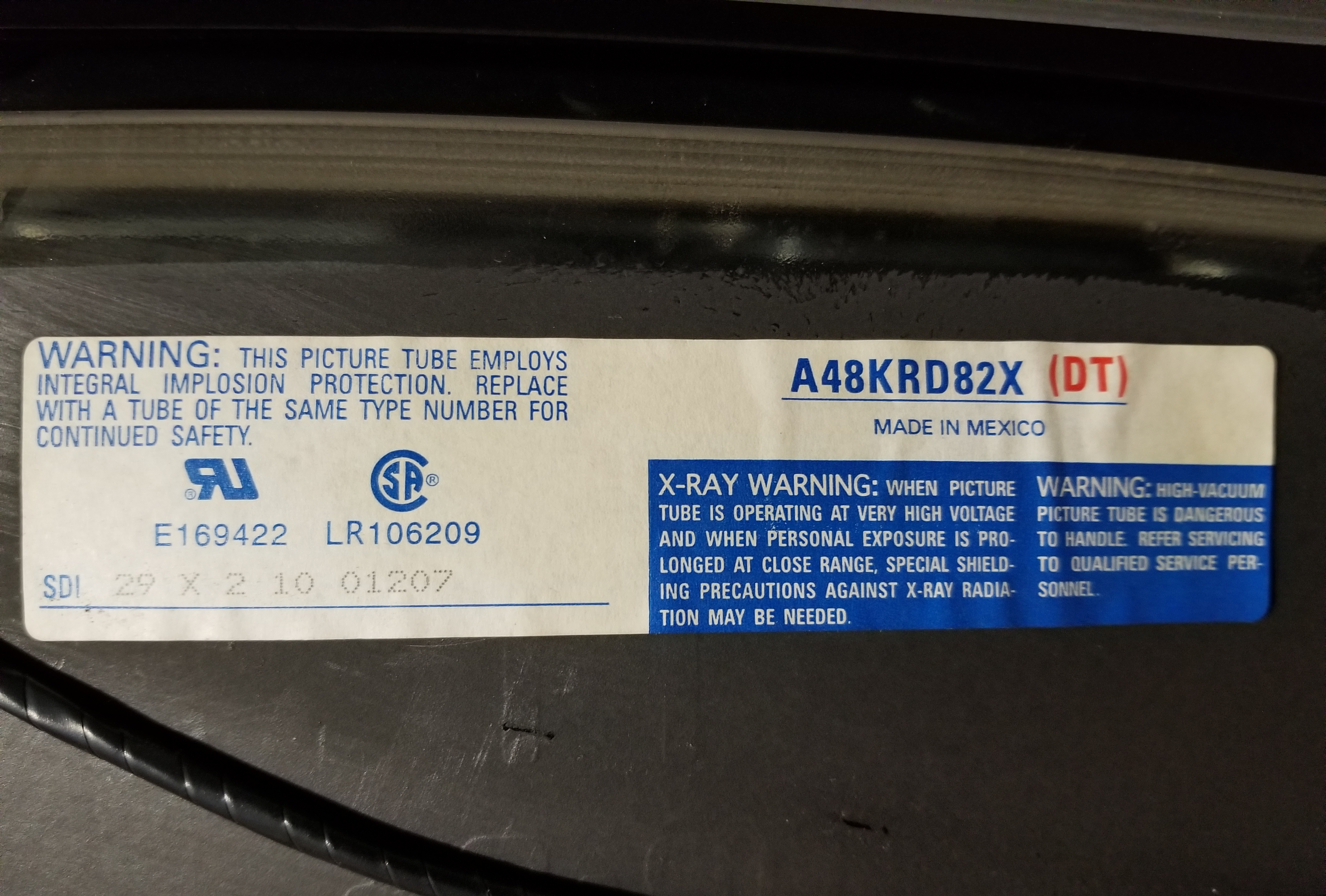

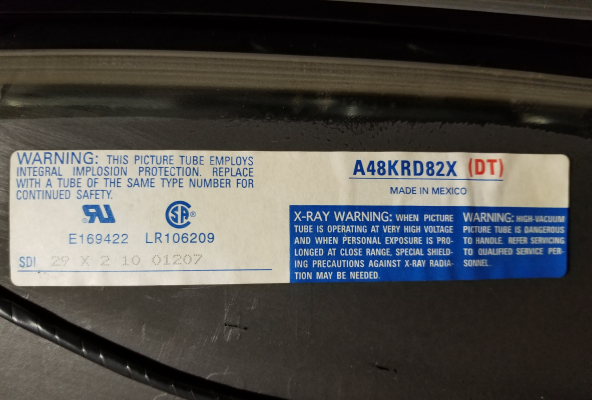

| Tube: | Samsung , A48KRD82X , A48AAB37X , A48AGD12X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

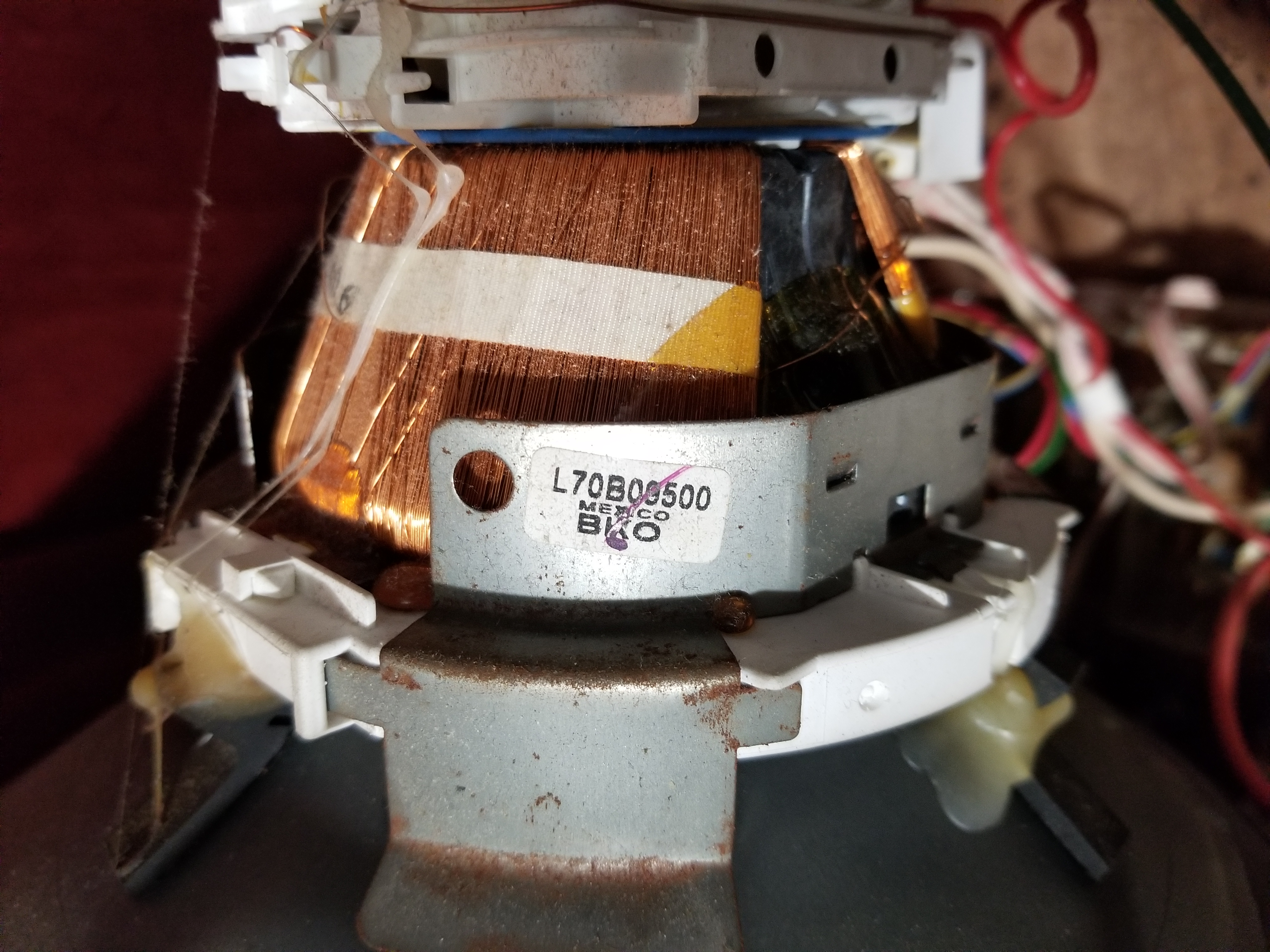

| Yoke: | 6450263927, L70B09500 |
| Yoke Horz. Resistance: | 3.2 ohm |
| Yoke Vert. Resistance: | 13.4 ohm |
| Speakers: | Mono |

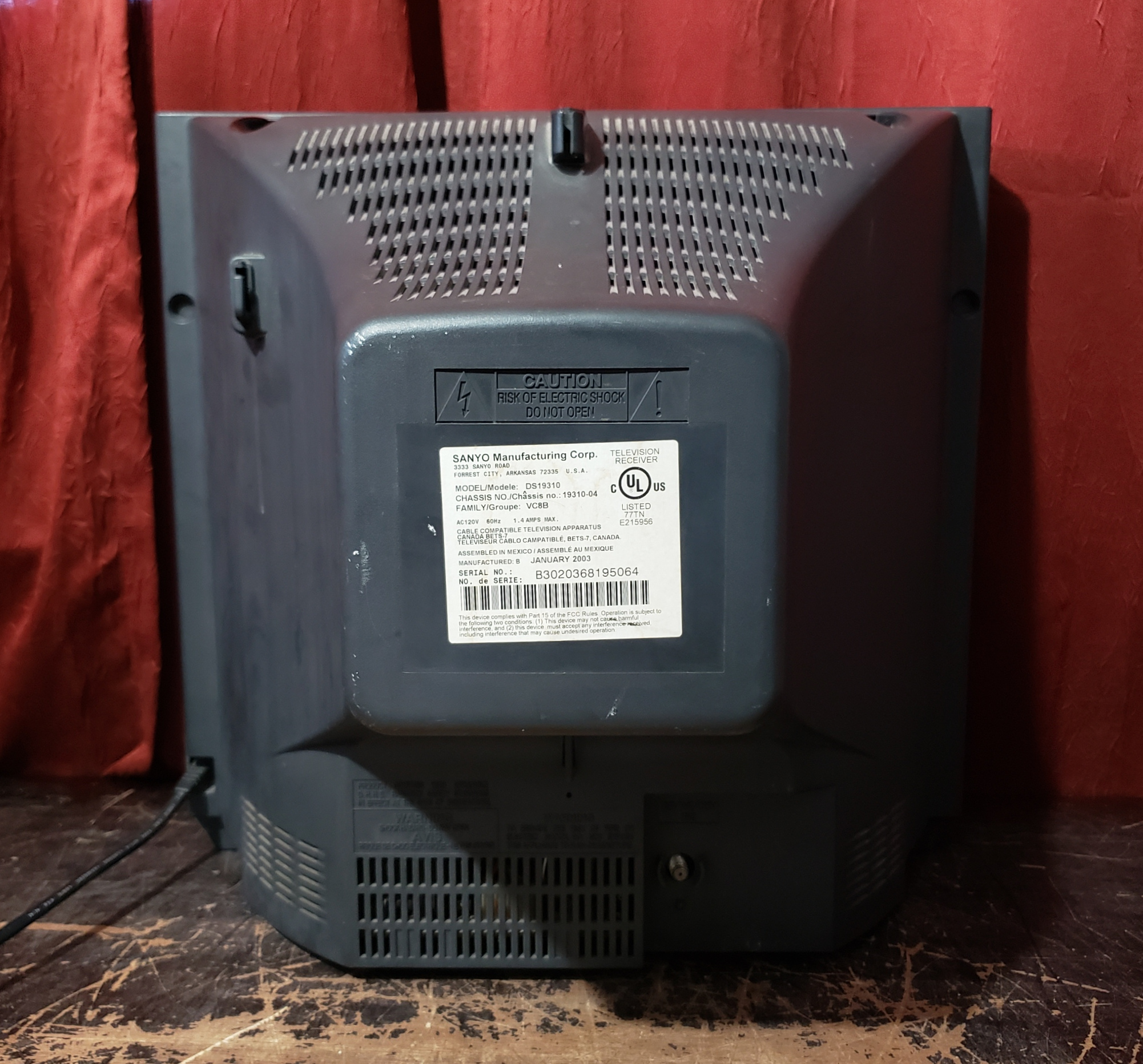

| Chassis: | 19310-04, VC8B |
| Weight: | 36.3 lbs (16.5 kg) |
| Dimensions (W/H/D): |
488 x 452 x 467 mm
(19.2 x 17.8 x 18.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
