Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS19730 |
| Series: | DS |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | 2SD1650 |
| Vertical Output IC: | LA7837 |
| Comb Filtering: | Notch |
| Jungle IC: | LA7673 |

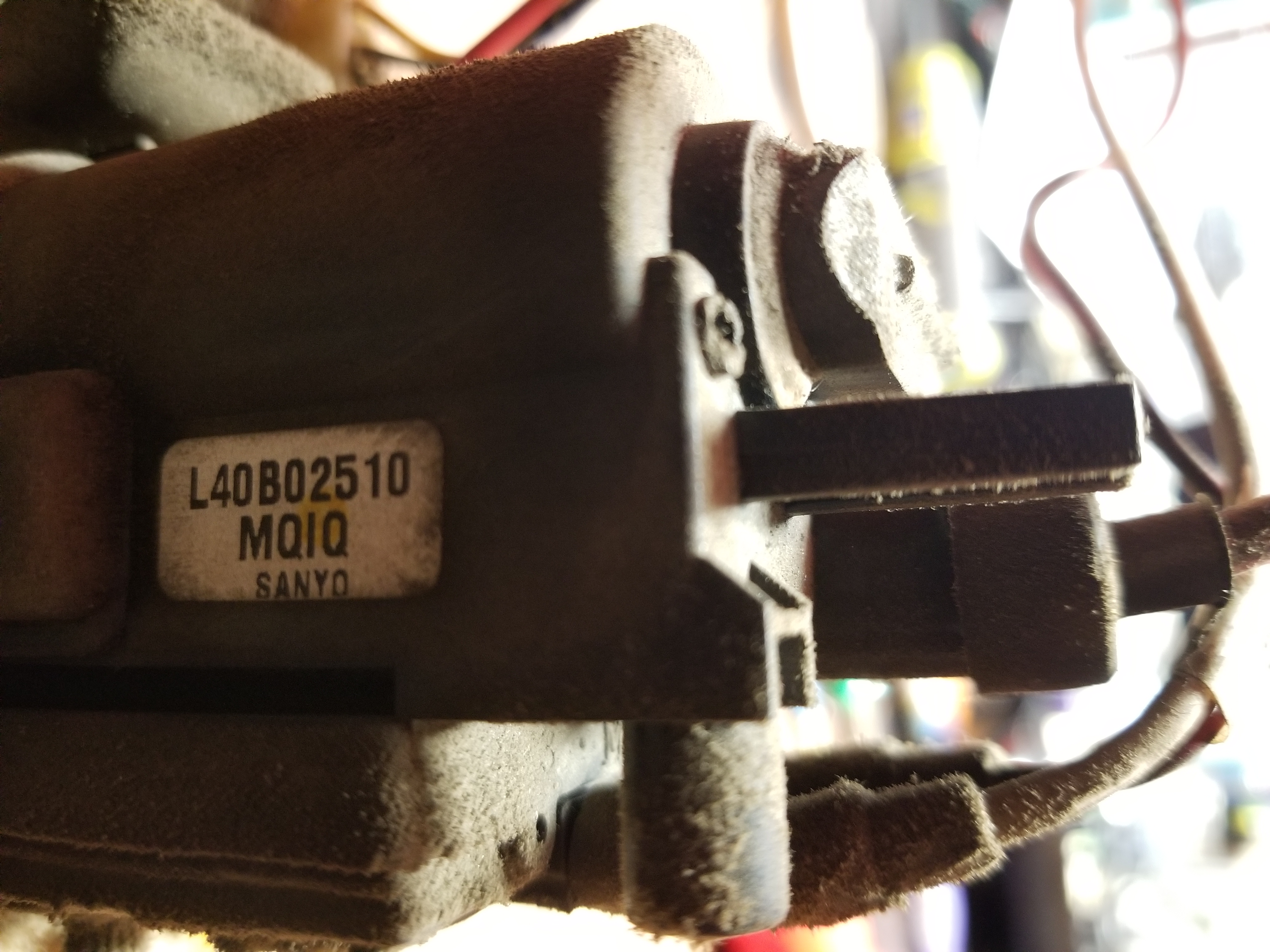

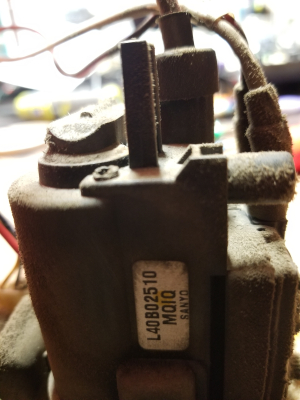

| Flyback: | L40B02510 |

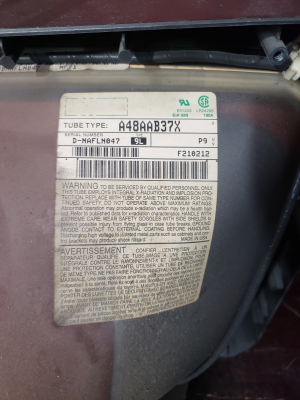

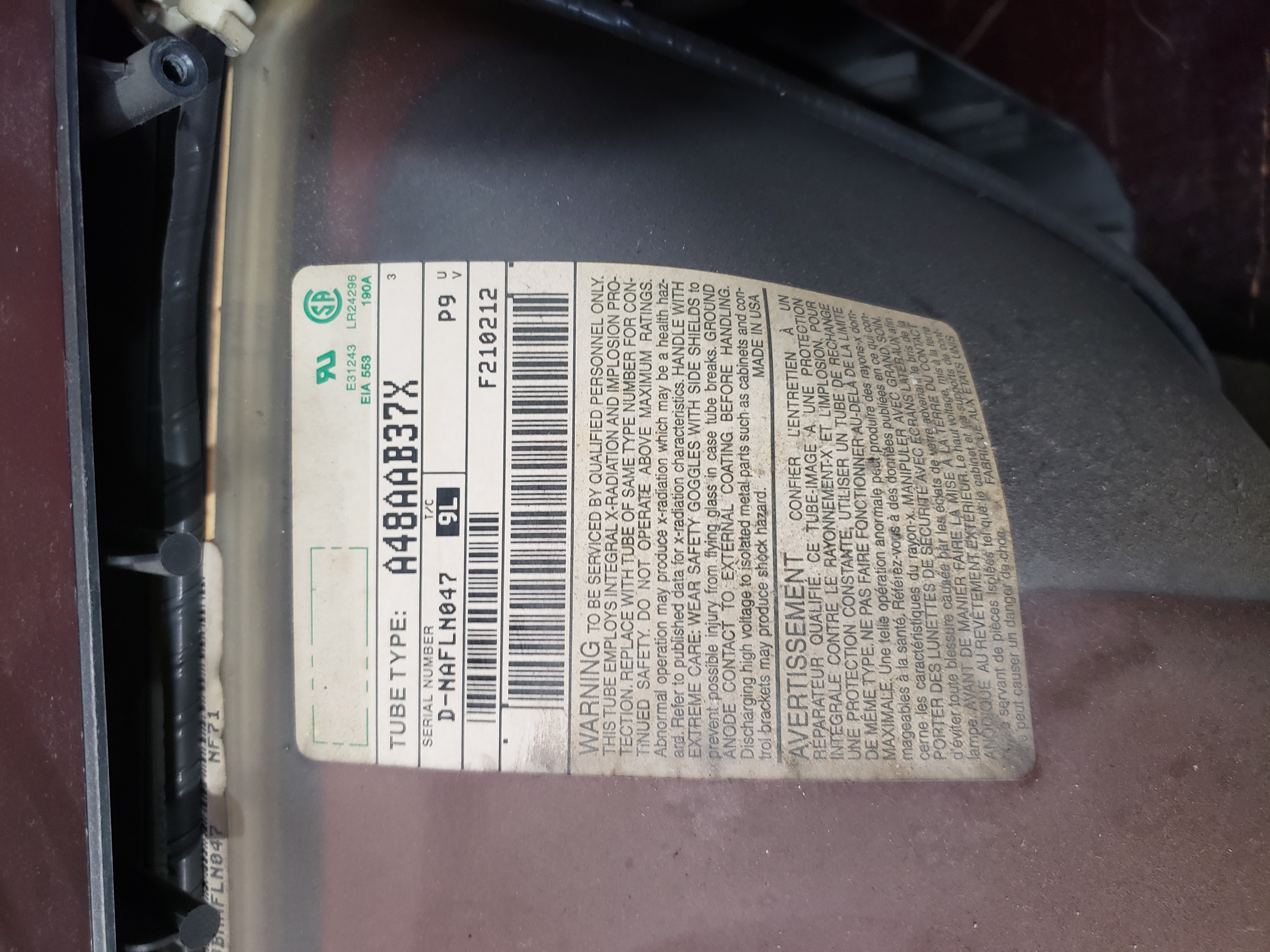

| Tube: | A48AFN36X , Zenith , A48AAB37X , A48AGD12X , Thomson |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

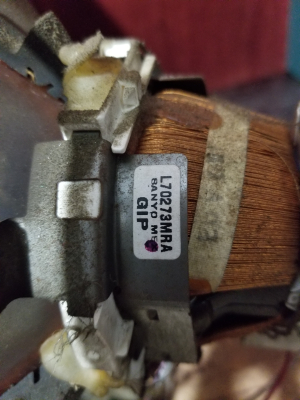

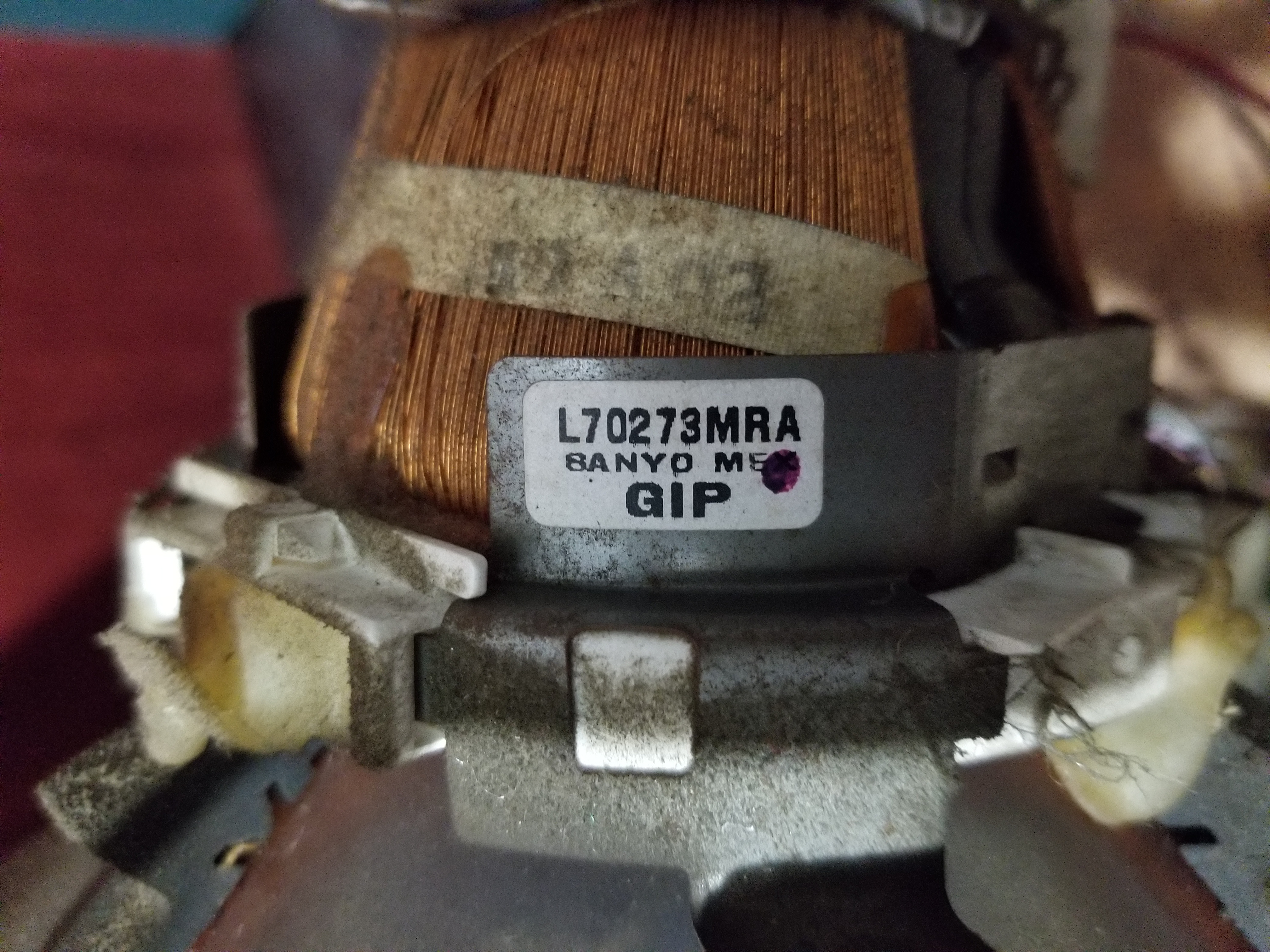

| Yoke: | L70273MRA |
| Yoke Horz. Inductance: | 3.15 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.6 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.4 ohm |
| Yoke Vert. Resistance: | 14.6 ohm, 14.60 ohm |
| Speakers: | Mono |

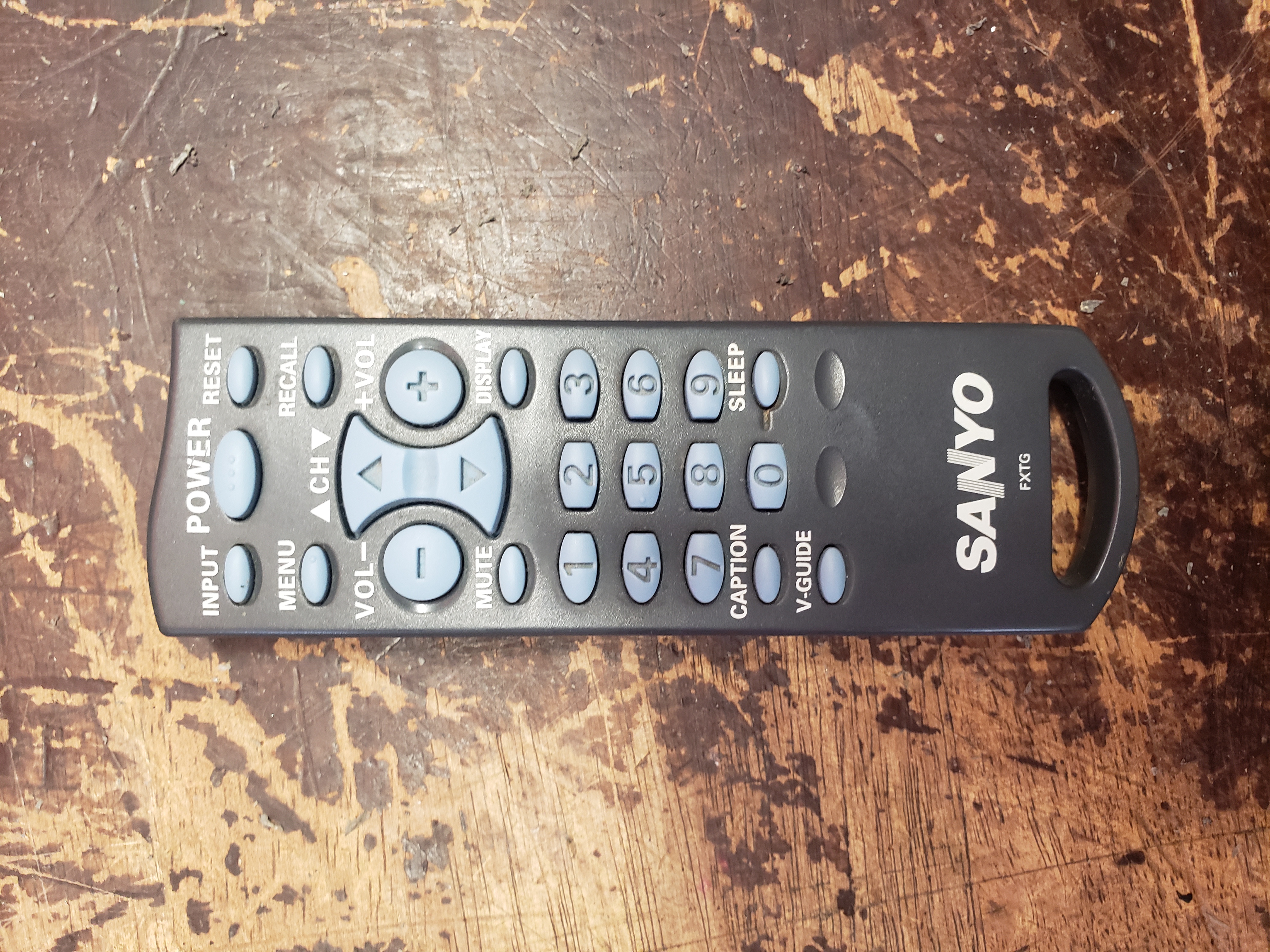

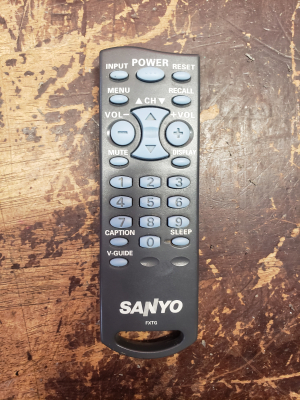

| Remote: | FXTG |
| Chassis: | 19730-02, 19730-00, 19730-01 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1997 |
| MSRP: | 169 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Repair Log |
