Summary

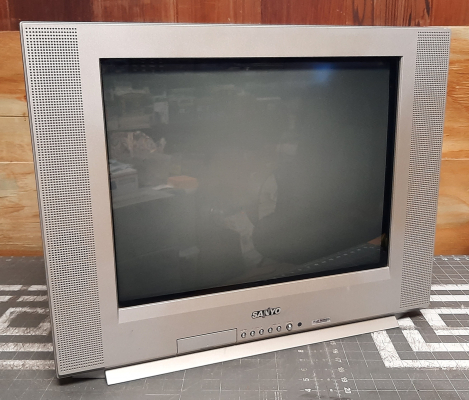

20" flat CRT TV with composite & S-Video inputs. Similar in style to the Sony KV-20FS100. Video quality with S-Video is very good.
Literature
Notes
Some of these TVs do not allow the user to select the A/V inputs using the front panel. If you are not able to select the AV inputs using the channel up/down buttons, you'll need a remote. Most universal remotes should work well.
The LA76834NMP jungle chip used in this TV uses analog RGB for the OSD, so it should be compatible with an RGB mux mod.
Gallery
Specifications | |
---|---|
Brand: | Sanyo |
Manufacturer: | Sanyo |
Model: | DS20930 |
Series: | DS |
Viewable Size: | 20" |
Inputs: | Composite, S-Video, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2578YB, T2168 |
Vertical Output IC: | LA78040, LA78041 |
Jungle: | LA76834NMP |
Flyback: | L40B15401 |
Tube: | A51QDX992X , A51QDK190X , A51QDK190X022 , A51LVG896X , A51QDX992X003 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Yoke Horz. Inductance: | 2.688 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 18.197 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 6.236 ohm |
Yoke Vert. Resistance: | 11.84 ohm |
Speakers: | Stereo |
Chassis: | 20930-04 |
Weight: | 47 lbs (21 kg) |
Application: | Consumer |
Launched: | 2003 |
Country of Manufacture: | Mexico |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
