Summary
24" flat screen with a full set of inputs including RF, composite, s-video, and component.
Manuals
Media & Promo Materials
Notes
Video inputs can be cycled through using the channel up/down buttons.
A remote is not needed to enter and make adjustments in the service menu. Hold the Menu button while plugging in the set to access; channel buttons navigate, and volume buttons adjust. See service manual for descriptions.

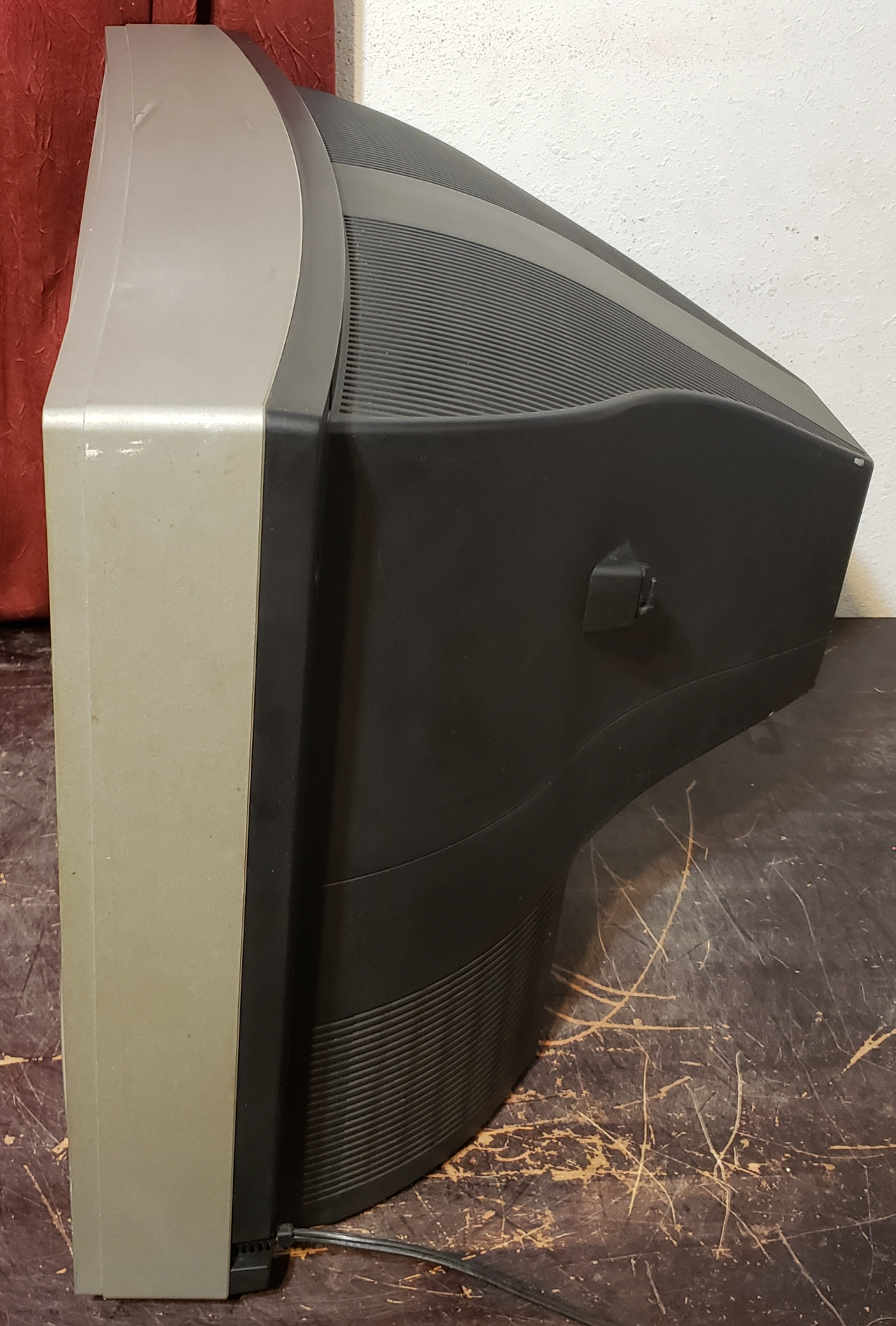

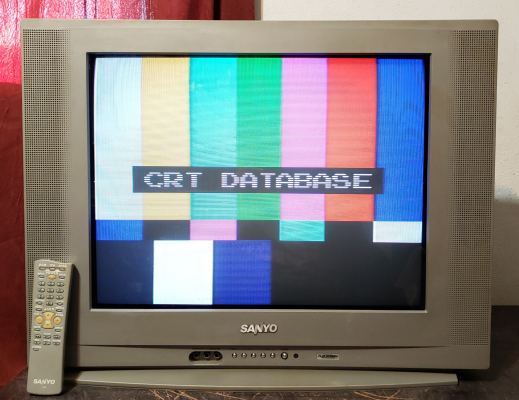

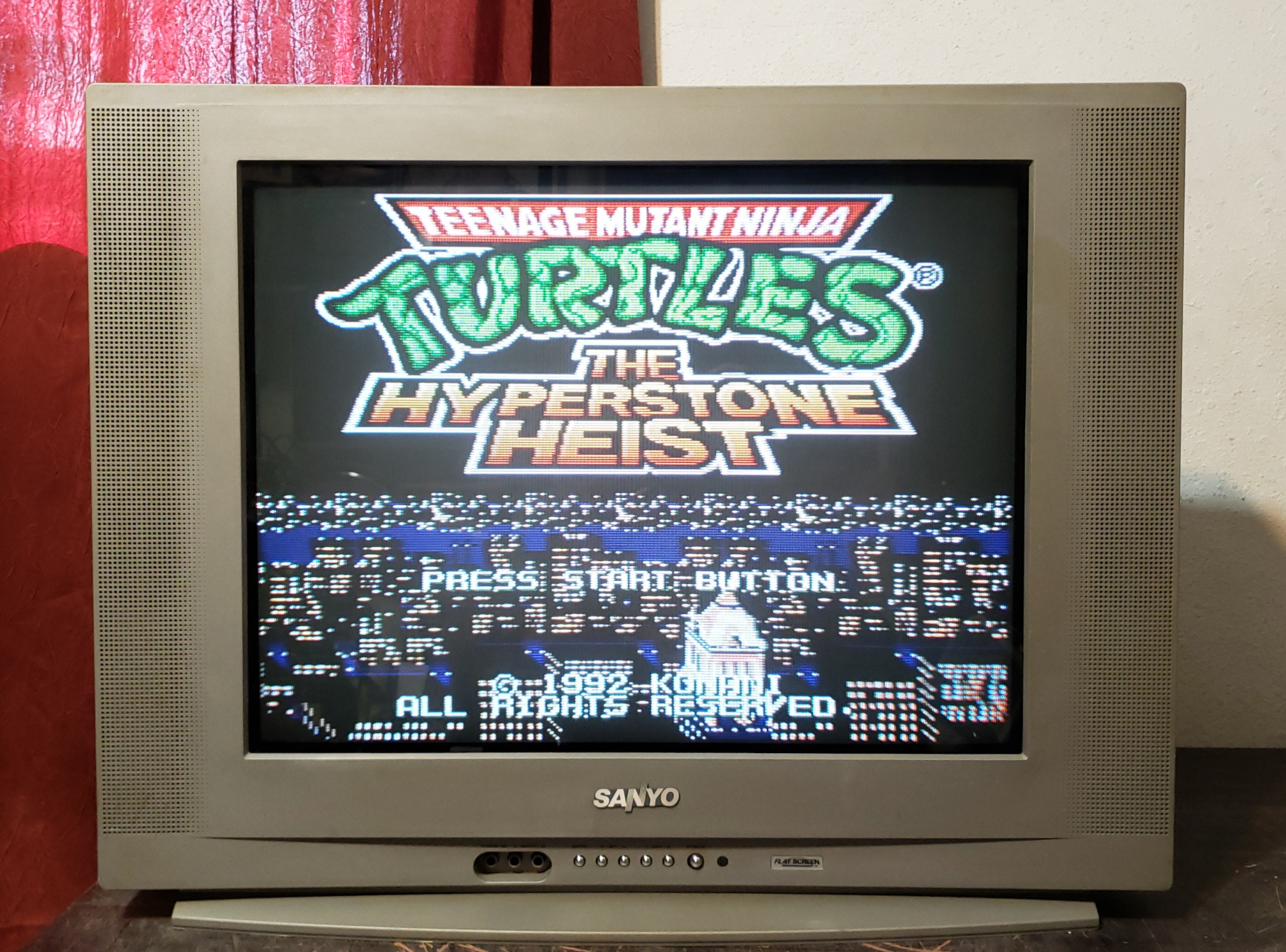

Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS20424 |
| Series: | DS |
| Viewable Size: | 20" |

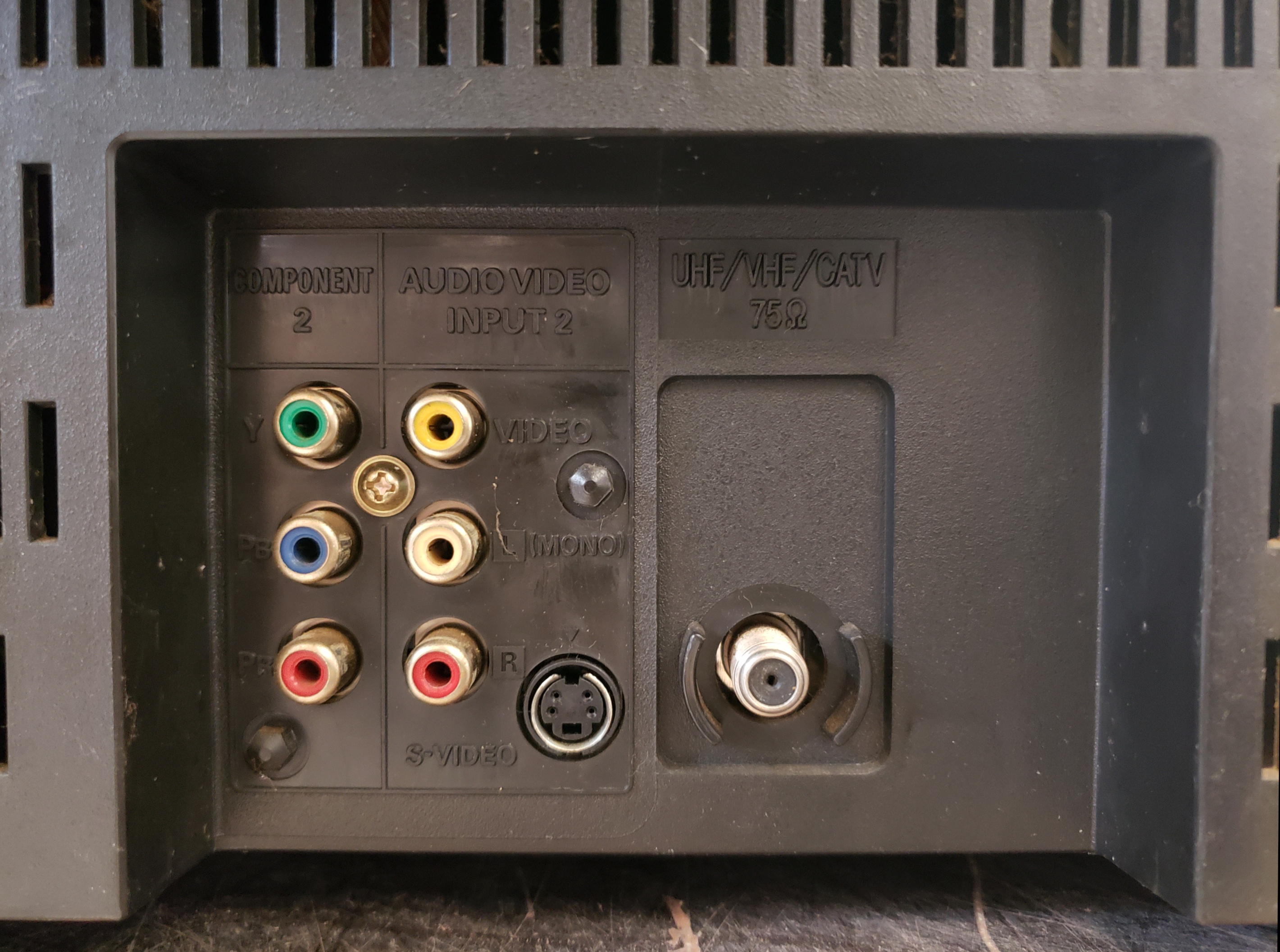

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Linecount: | 260 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | TT2168LS-YB11 |
| Vertical Output IC: | LA7848 |
| Jungle IC: | Sanyo, LA76952 |
| Flyback: | L40B17201 |
| Focus Type: | Single |

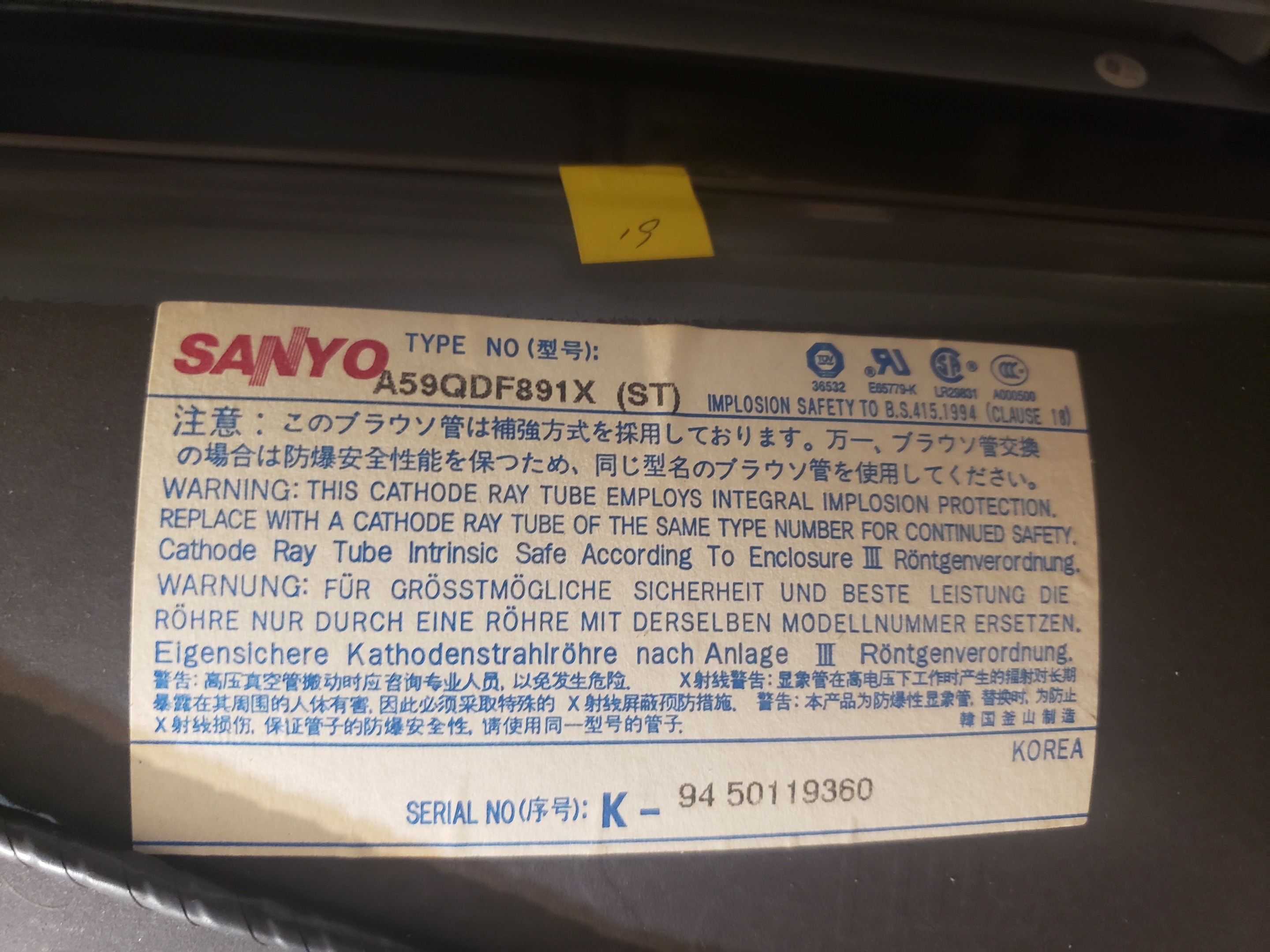

| Tube: | A59QDF891X |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke: | L70B18600 |
| Yoke Horz. Resistance: | 1.5 ohm |
| Yoke Vert. Resistance: | 9.5 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | FXVR |
| Chassis: | 24424-00 |
| Weight: | 60.1 lbs (27.3 kg) |
| Dimensions (W/H/D): |
677 x 524 x 480 mm
(26.6 x 20.6 x 18.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
