Sanyo DS24425
Matt Ross
March 1, 2024, 4:20 pm
June 22, 2025, 8:21 pm
March 1, 2024, 4:20 pm
June 22, 2025, 8:21 pm
Summary

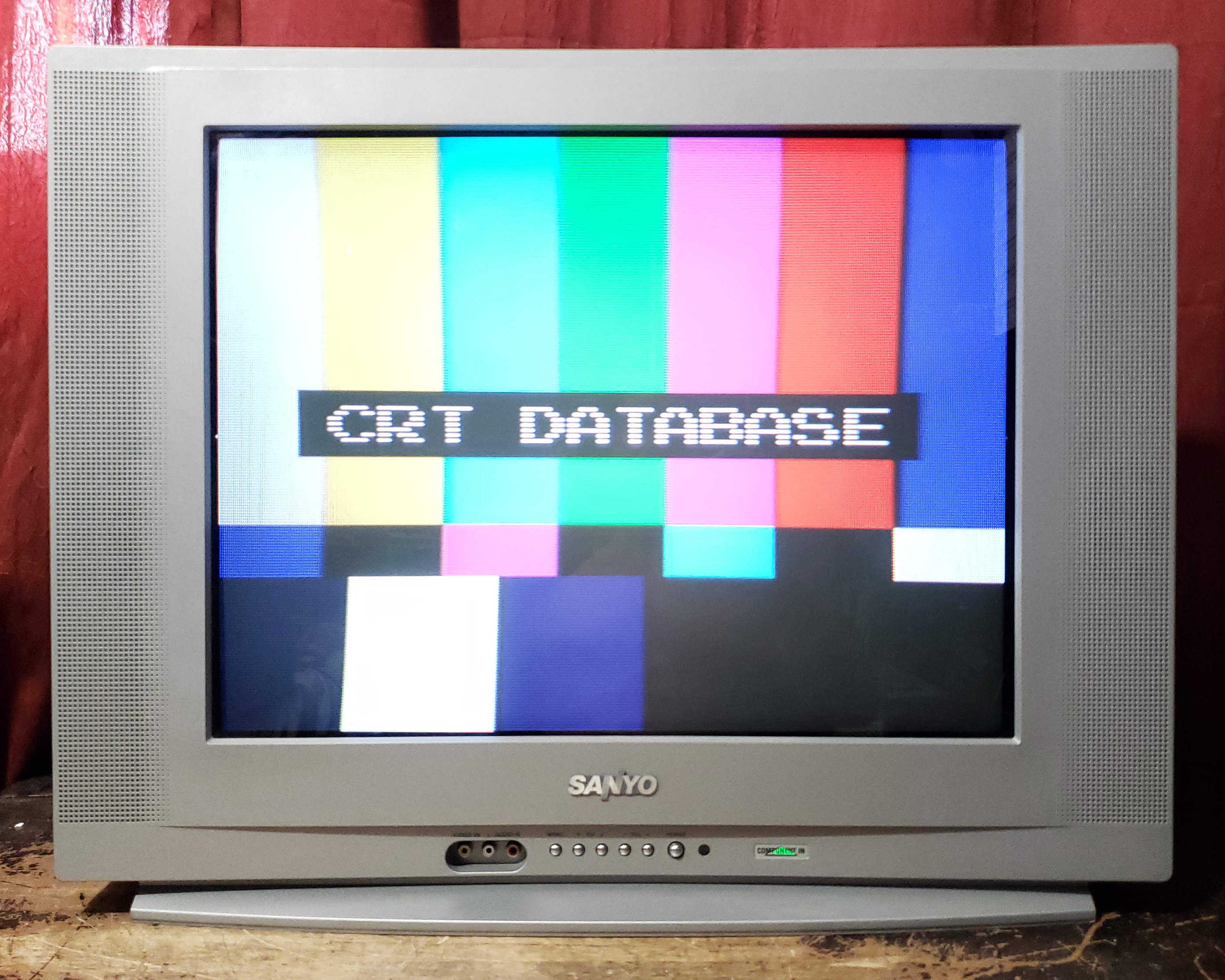

24" flat TV from 2005, with component & S-Video inputs.
Literature
Notes
This TV uses a 1-chip jungle design, and cannot be modded for RGB.
Component video has a significant amount of red push and some edge enhancement effects, some of which can be minimized by adjusting the picture settings in the user menu. These effects are less pronounced with S-Video and composite, however, and in some cases S-Video can give a cleaner picture than component.

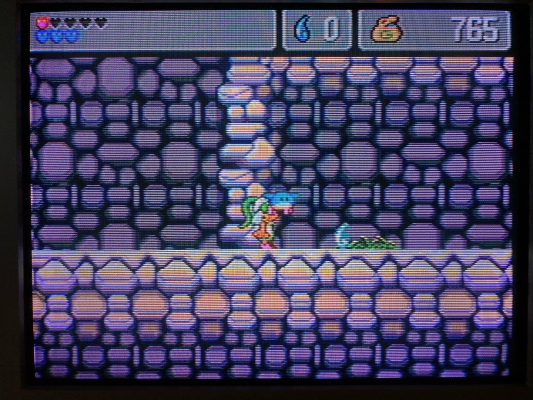

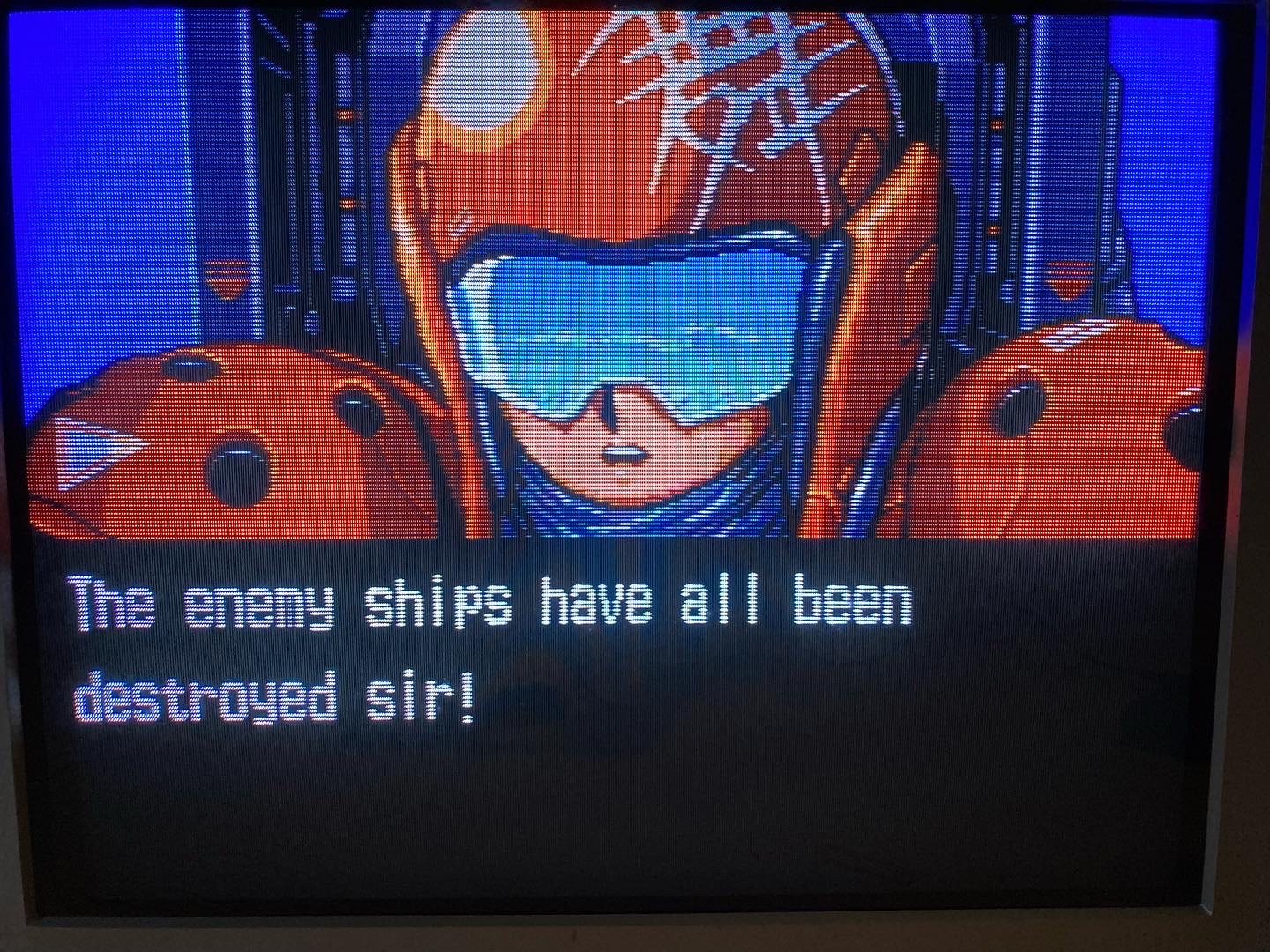

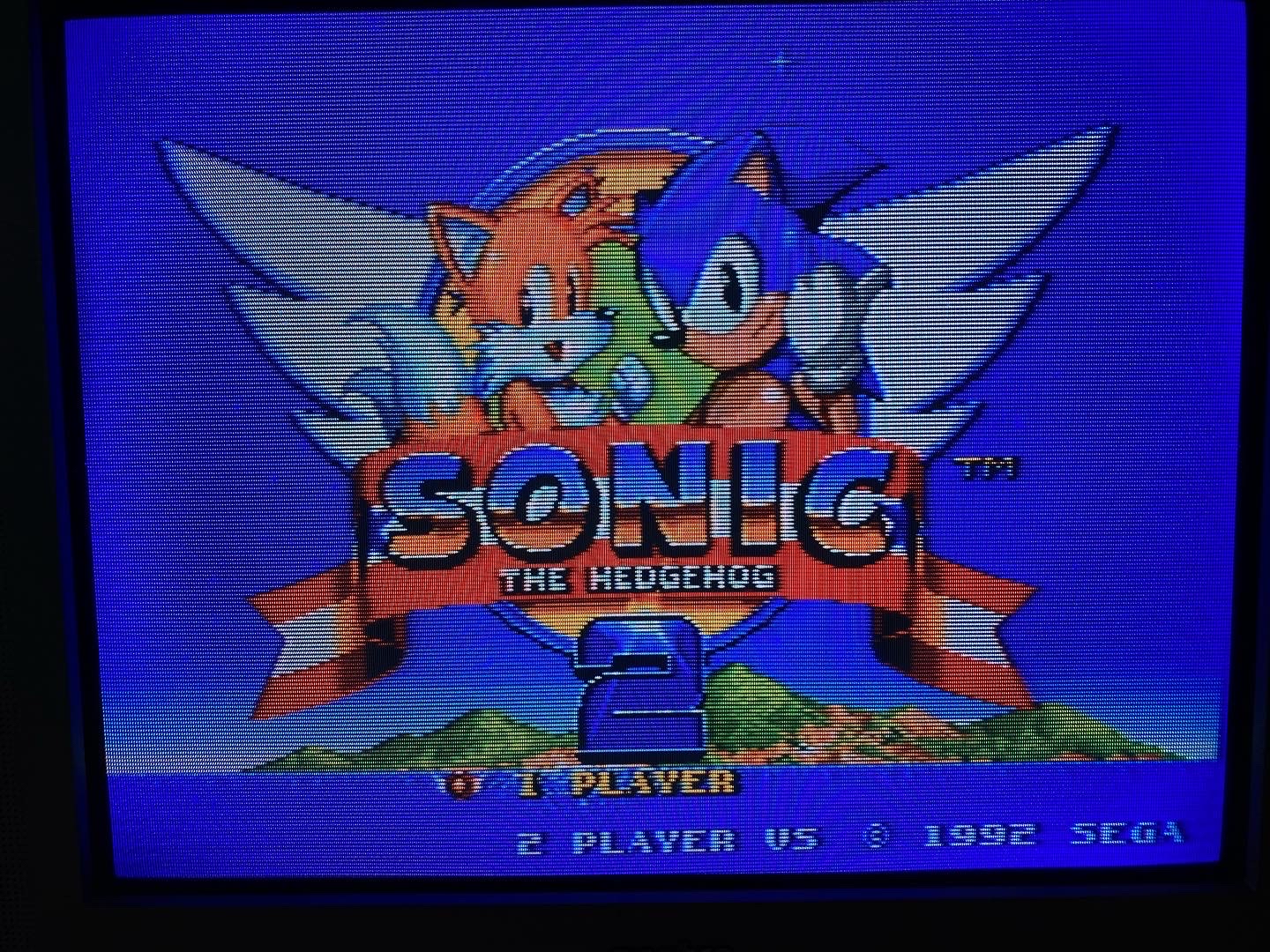

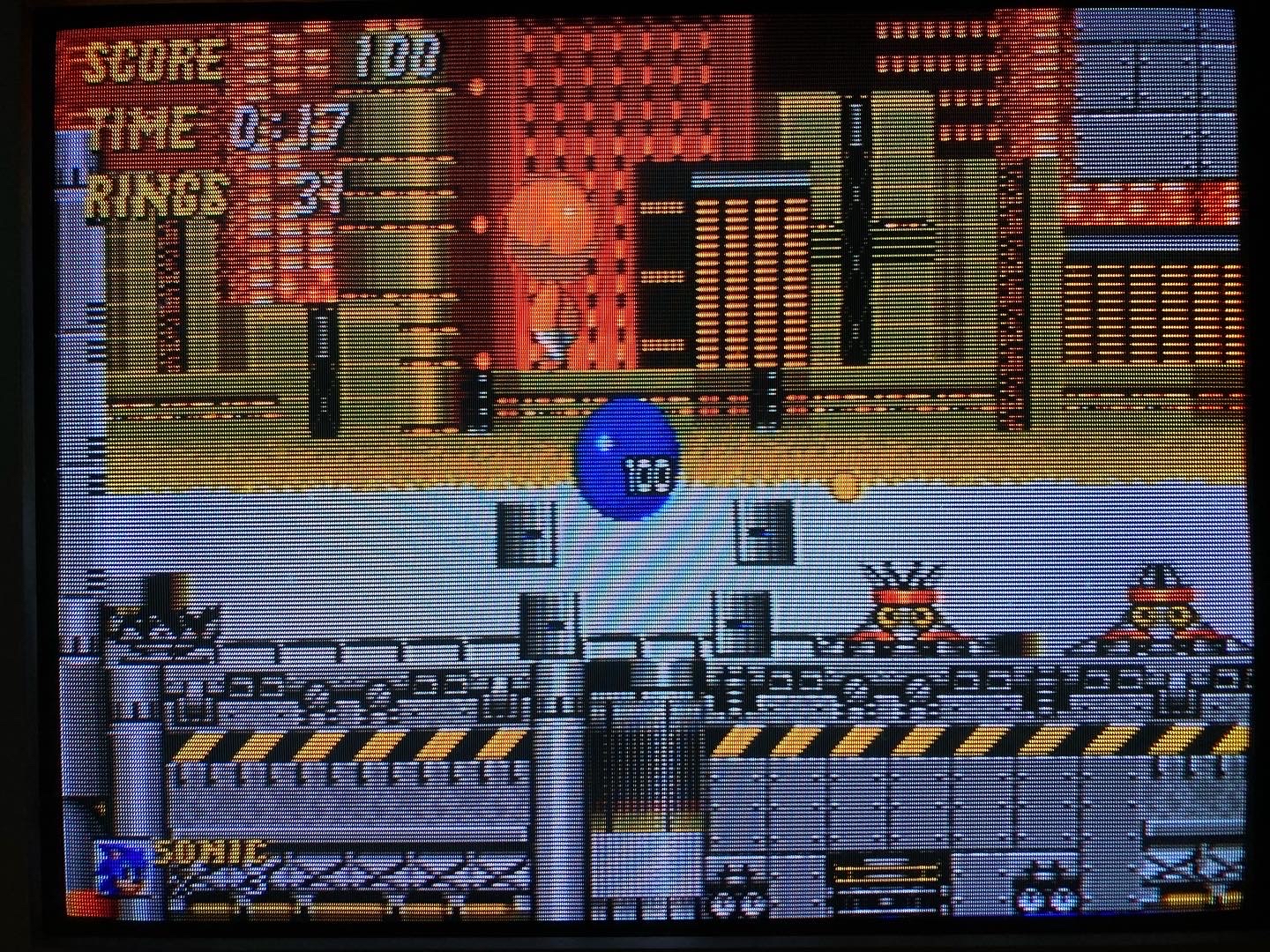

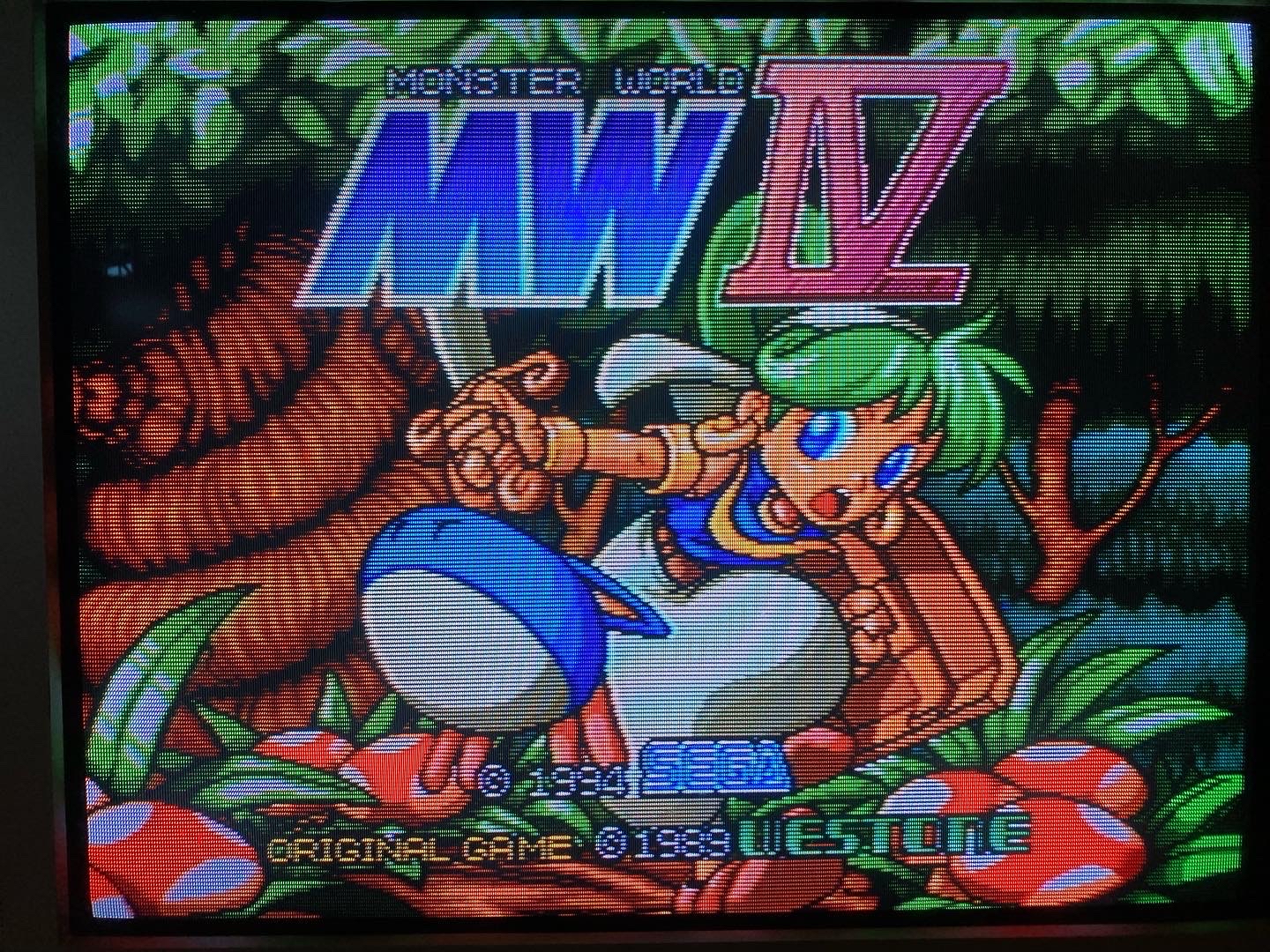

Gallery













Specifications | |
---|---|
Brand: | Sanyo |
Manufacturer: | Sanyo |
Model: | 24425 |
Series: | DS |
Viewable Size: | 24" |
Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | LA76852DC |
Flyback: | L40B17201 |
Tube: | A59QDF891X |
Deflection: | 110° |
Mask: |
Slot
![]() |
Tint: | Dark |
Speakers: | Stereo |
Chassis: | 24425-00 |
Weight: | 60 lbs (27.2 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2005 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
