Summary
Sit back and enjoy watching and listening to your favorite shows. Select an A/V input source from either the front or rear A/V input jacks including rear Component and S-Video! Camcorder and video game console hookup is quick and easy with the front A/V input. Experience SANYO style and quality.

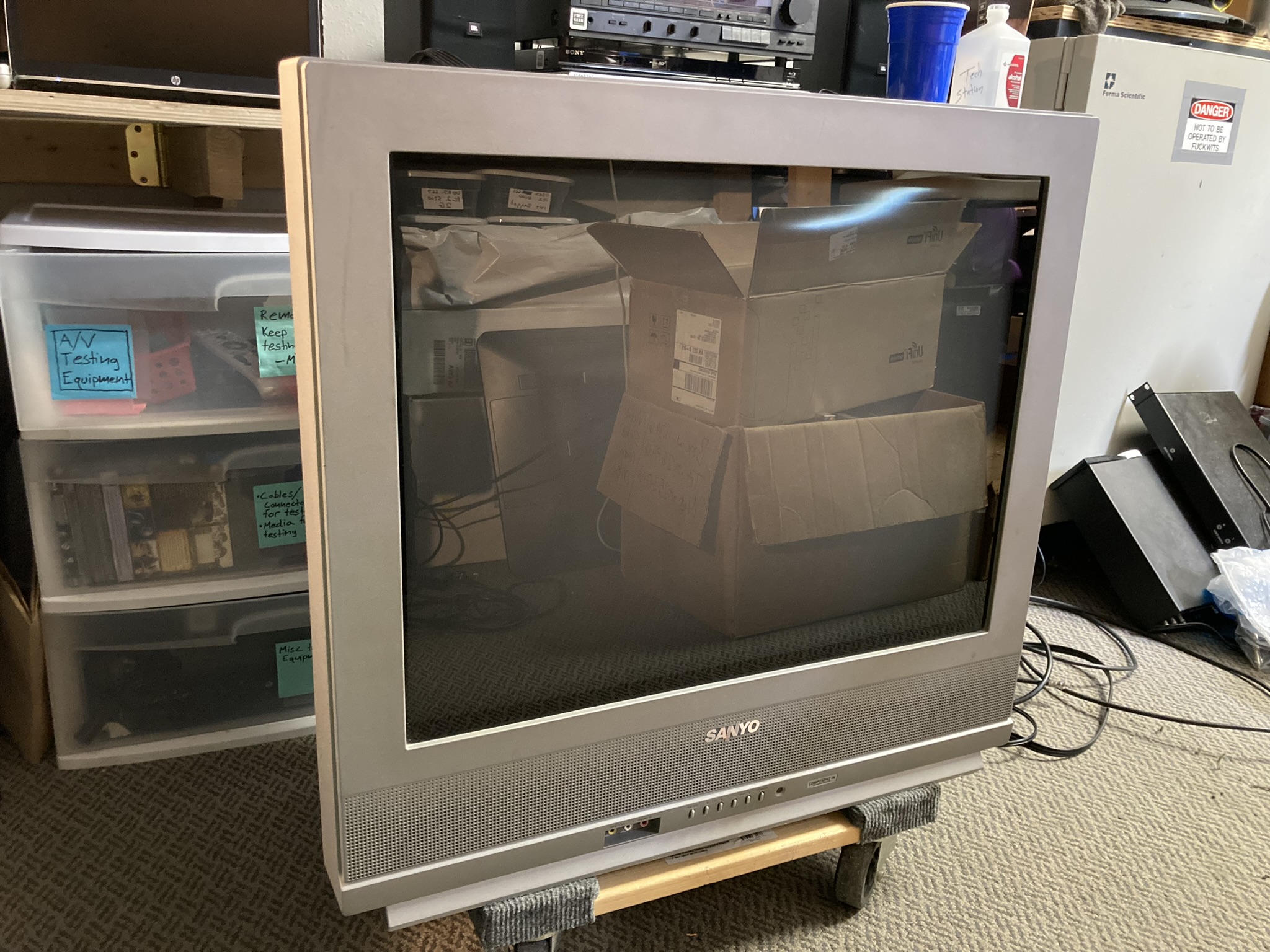

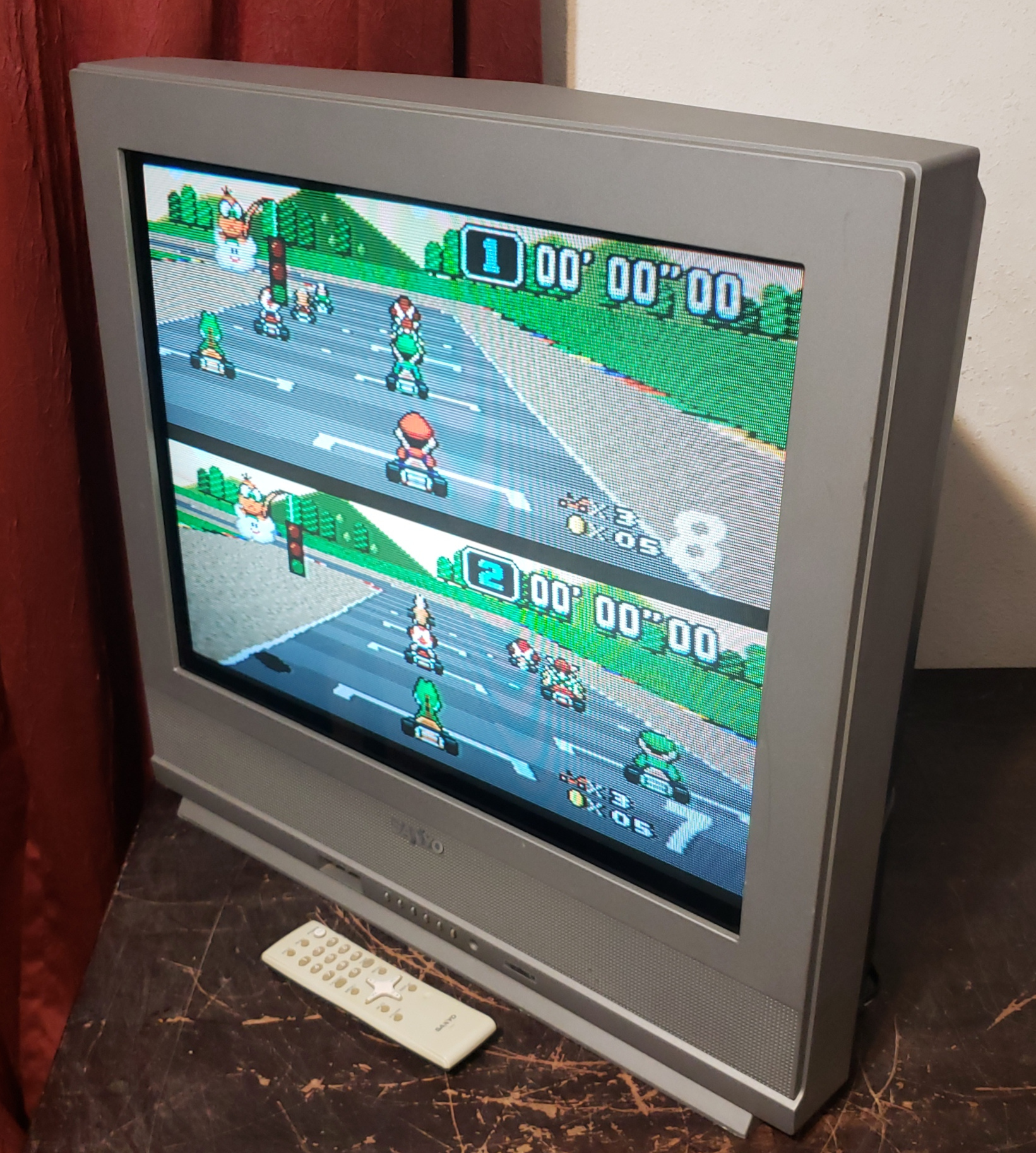

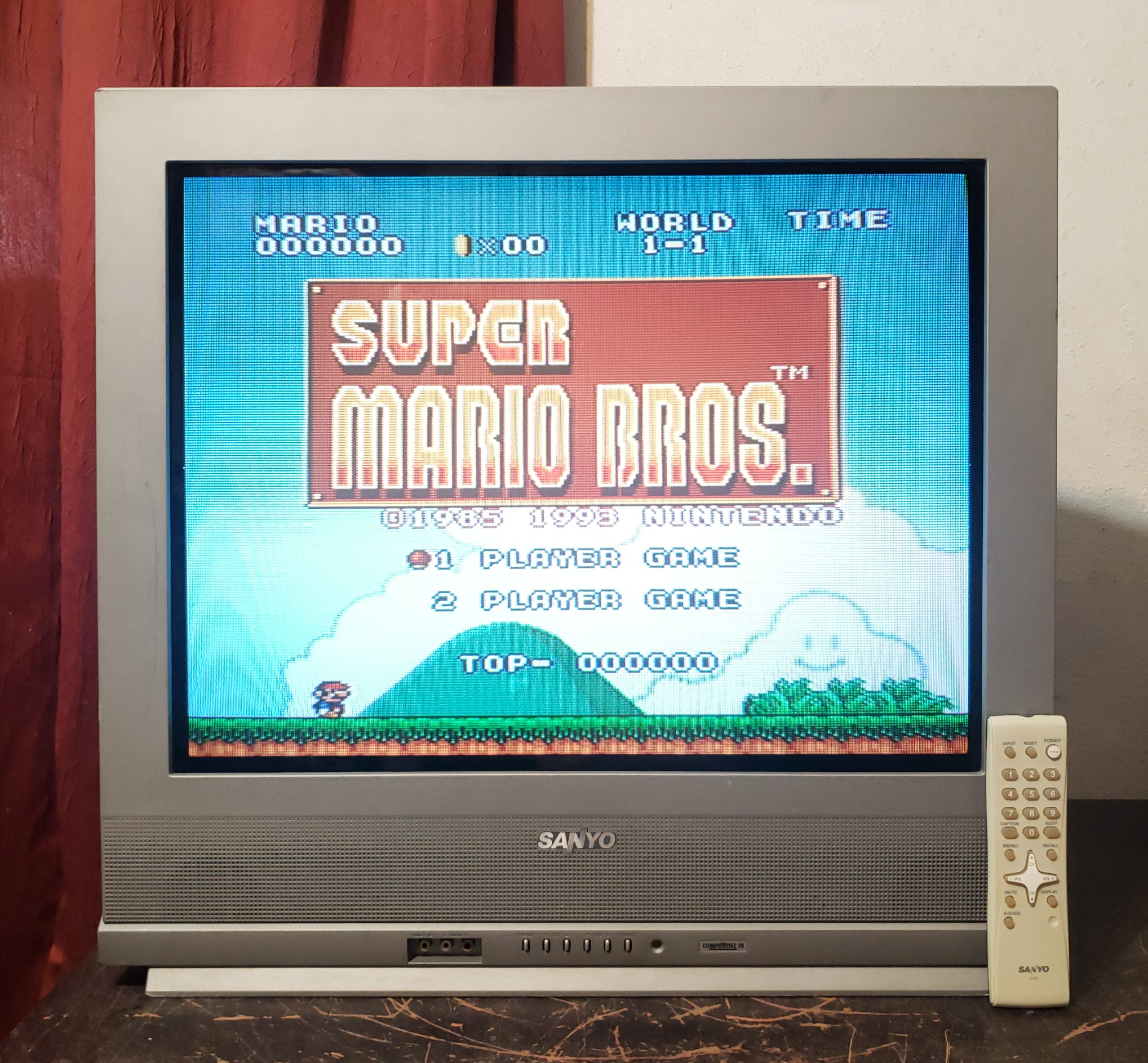

27" flat TV from 2005 sold exclusively at Wal-Mart. Features a full set of inputs including RF, composite, s-video, and component
Literature
Media & Promo Materials
Notes
This TV does not have a discrete input select button on the chassis. However, the video inputs can be cycled through using the channel up/down buttons.
Gallery
| Specifications | |
|---|---|
| Brand: | Sanyo |
| Manufacturer: | Sanyo |
| Model: | DS27425 |
| Series: | DS |
| Viewable Size: | 27" |

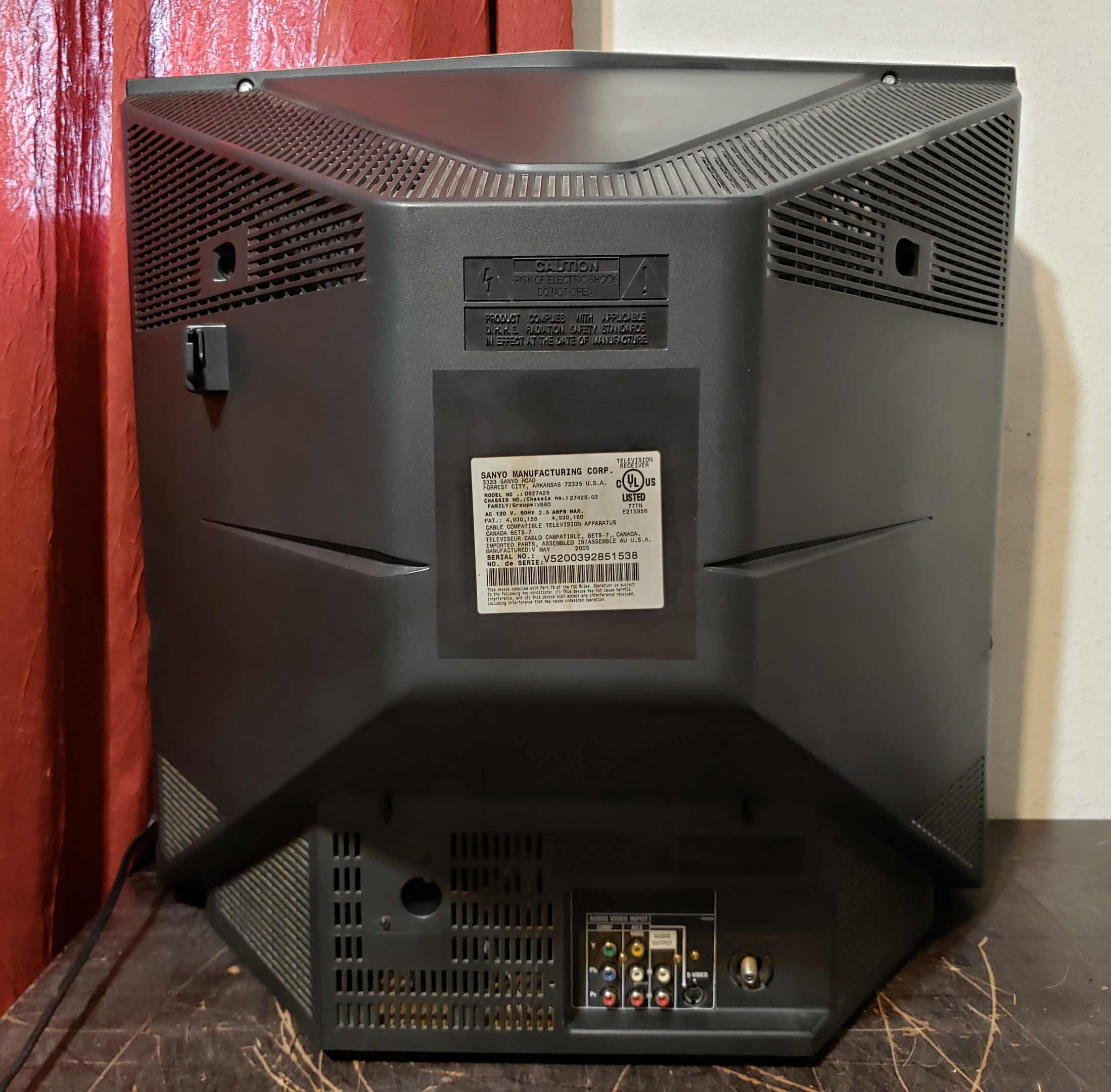

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2634YB |
| Vertical Output IC: | LA7849 |

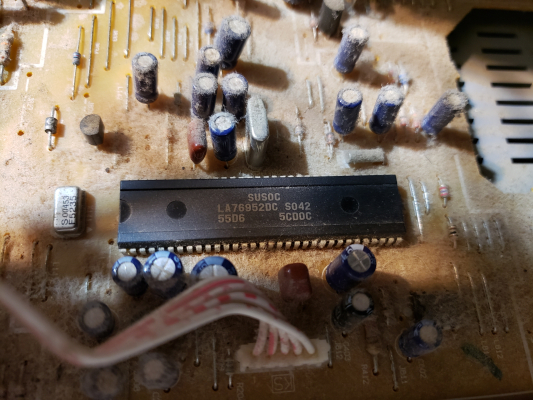

| Jungle IC: | LA76952, LA76952DC |

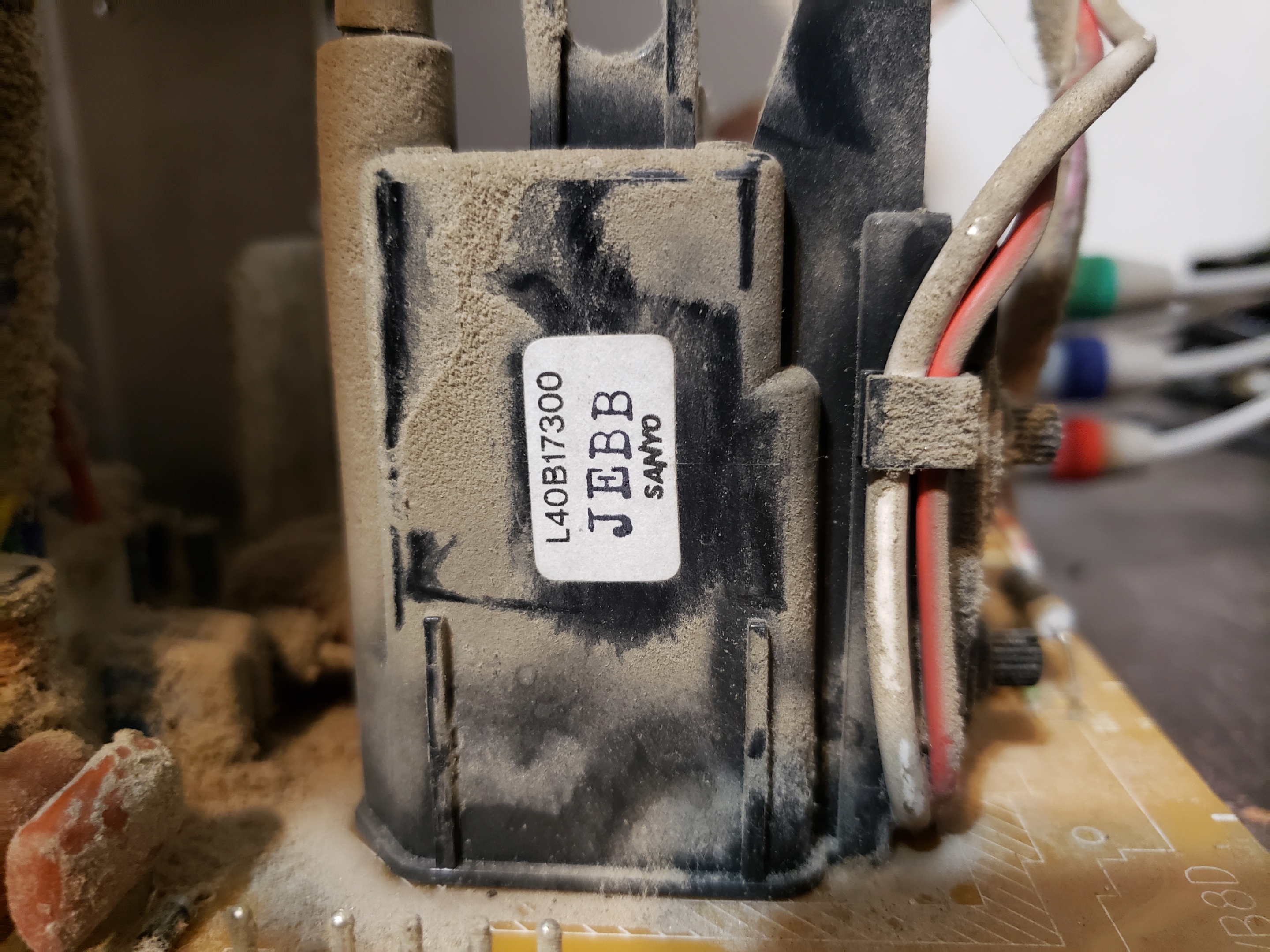

| Flyback: | L40B17300 |

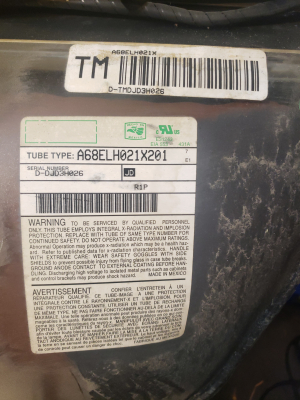

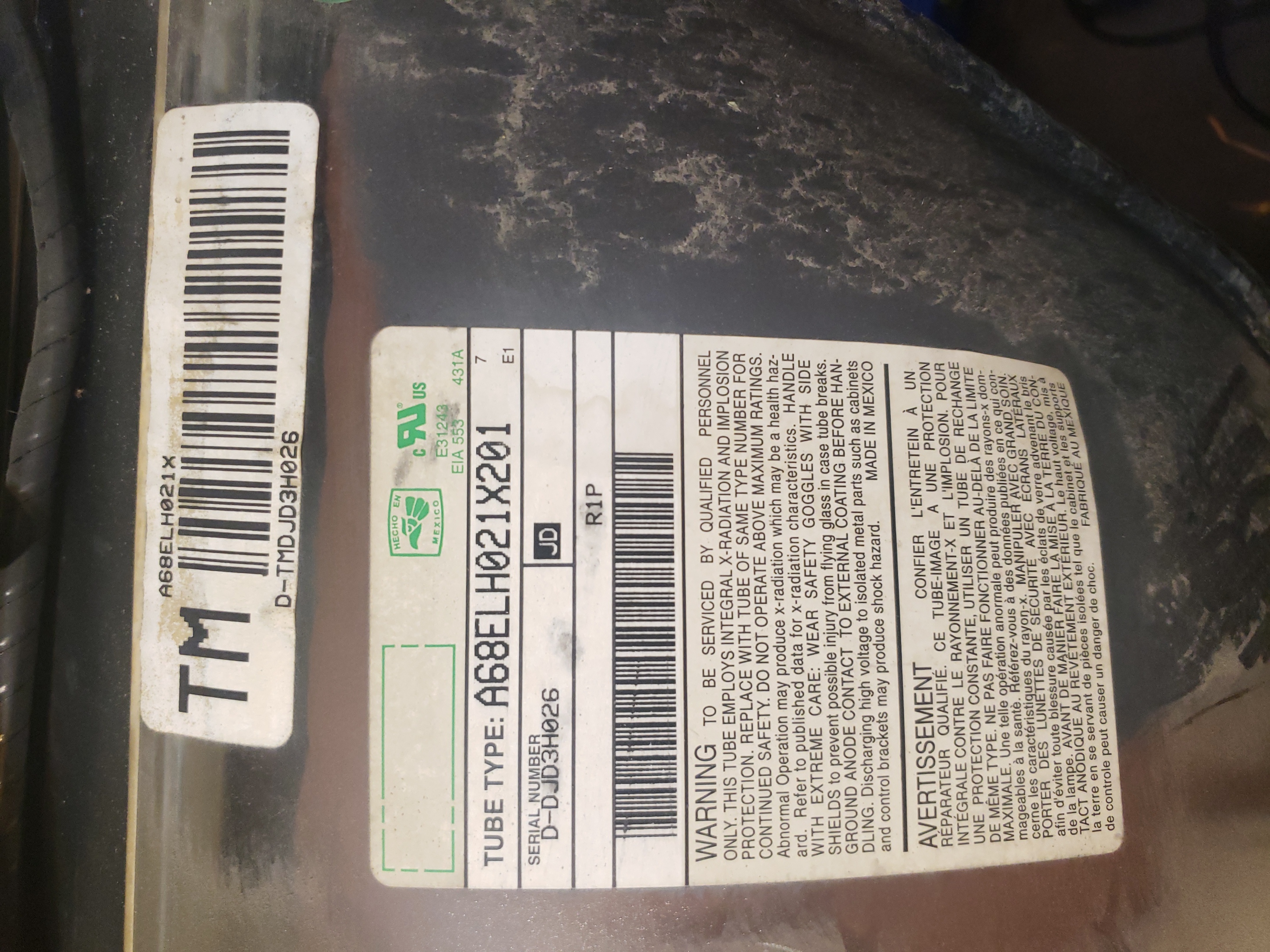

| Tube: | A68ELH021X , A68QCU770X , A68ELH021X201 , A68QCU770X79L |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |

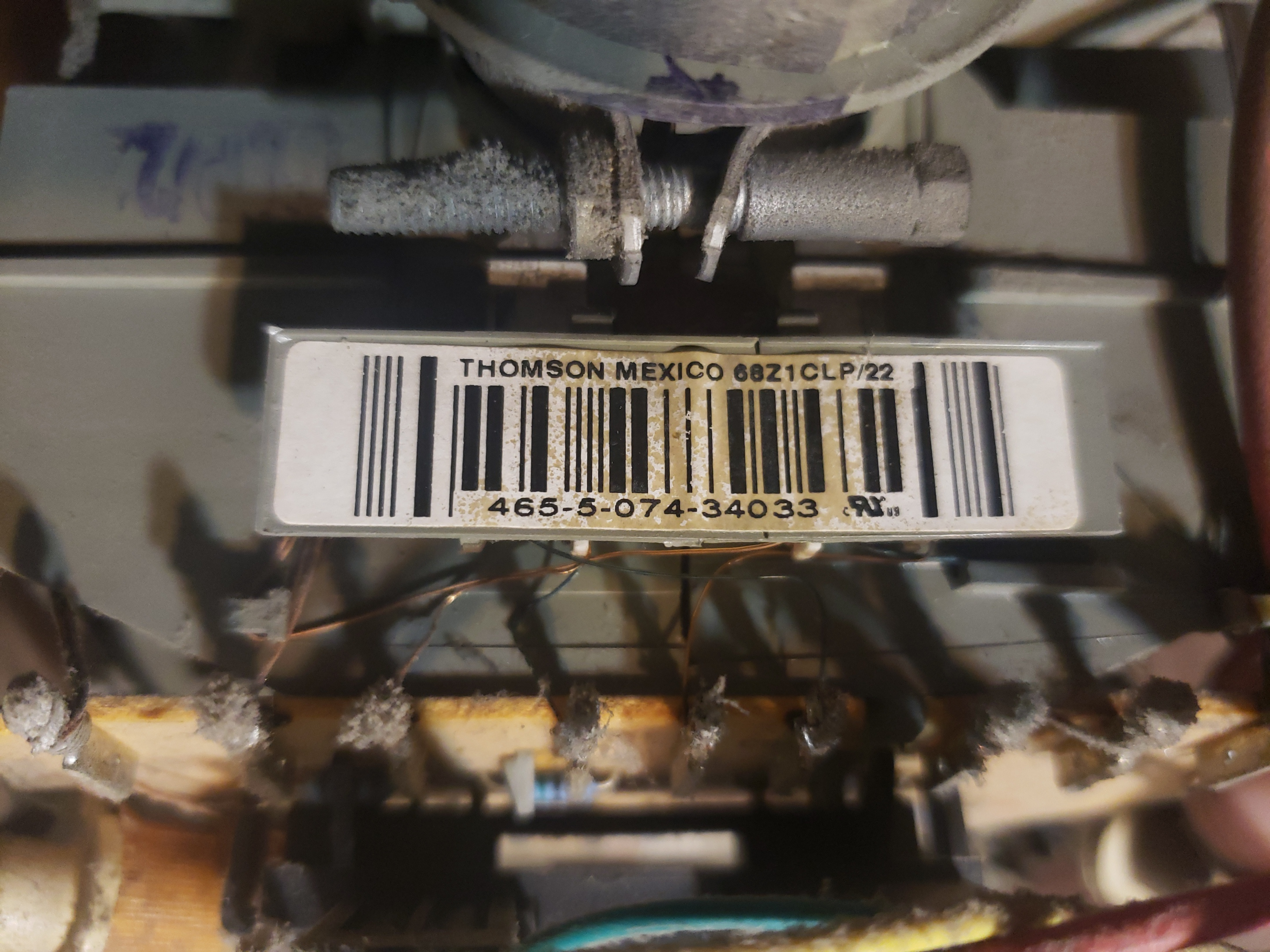

| Yoke: | 68Z1CLP/22 |
| Yoke Horz. Resistance: | 1.6 ohm |
| Yoke Vert. Resistance: | 7.5 ohm |
| Speakers: | Stereo, 1W x 2 |
| Remote: | GXBA |

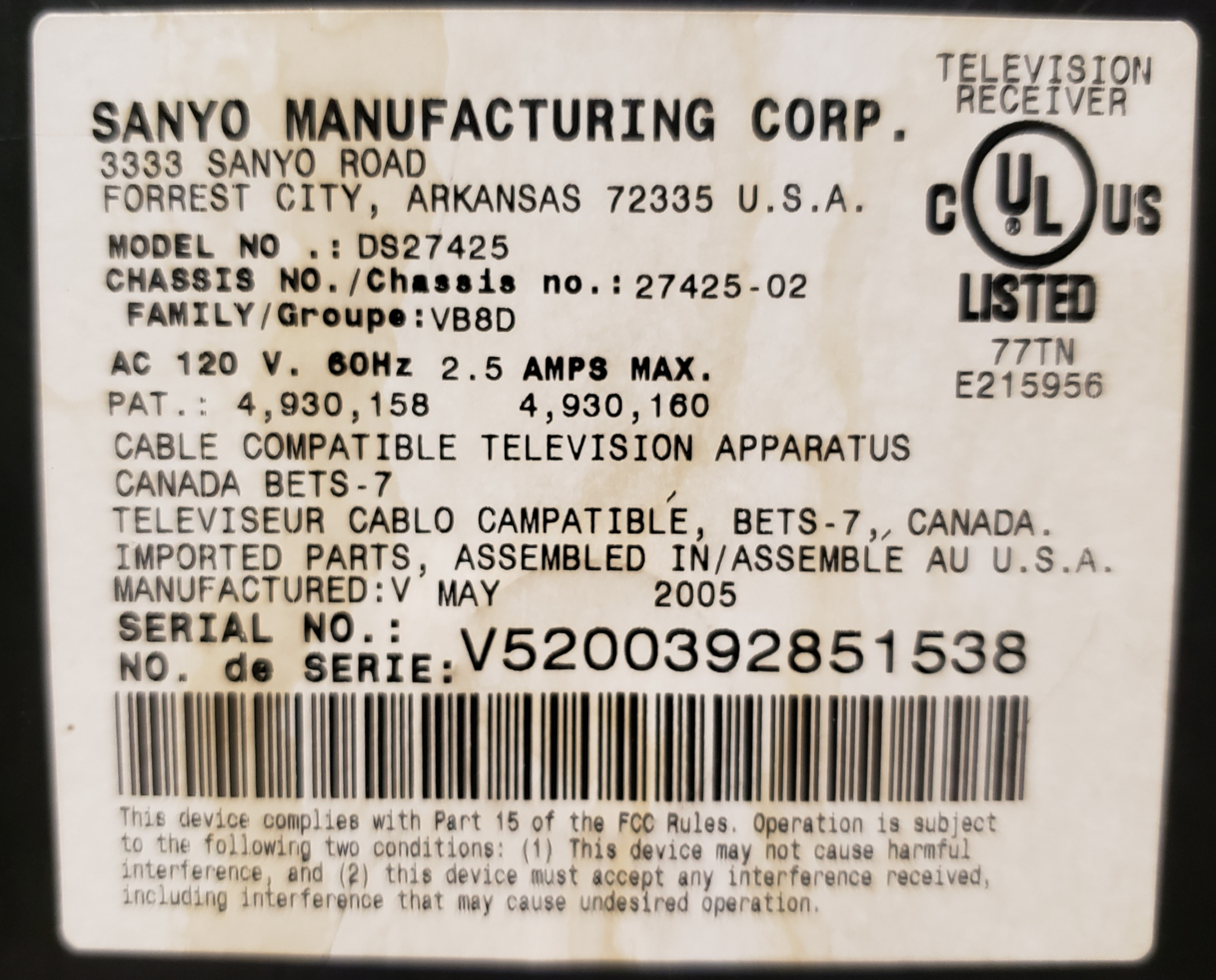

| Chassis: | 27425-08, 27425-02 |
| Weight: | 91 lbs (41.3 kg) |
| Dimensions (W/H/D): |
664 x 629 x 489 mm
(26.1 x 24.7 x 19.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| MSRP: | 219 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
