Sanyo DS31590
May 15, 2024, 12:01 am
October 17, 2024, 12:08 am
Summary
A surprisingly great 31" TV by Sanyo. While it says on the model sticker that it was assembled in the USA from imported parts, I believe it was manufactured in Mexico. This set is an underappreciated gem.
Literature
Notes
The set has very nice handling of s-video, just a very warm and inviting image. There is a bit of blooming, but overall, it looks good.
The picture tube inside is either a Panasonic, Hitachi or Philips model. And its a rather atypical 34cm one. (The included images of the picture quality are of the Panasonic tube.)
Despite having 1W speaker per channel, I had a pretty loud and nice-sounding experience with this set. Consumer reviews of this model have also corroborated that it has great speakers.
Jungle chip is a Sanyo LA76170N, and it has pins for analog RGB, so a mod is possible. However, the datasheet for the chip is not available online. Fortunately, someone cross-referenced it to an almost identical chip, a Sanyo LA76075. Datasheet HERE
Gallery
Specifications | |
---|---|
Brand: | Sanyo |
Manufacturer: | Sanyo |
Model: | DS31590 |
Series: | DS |
Viewable Size: | 31" |

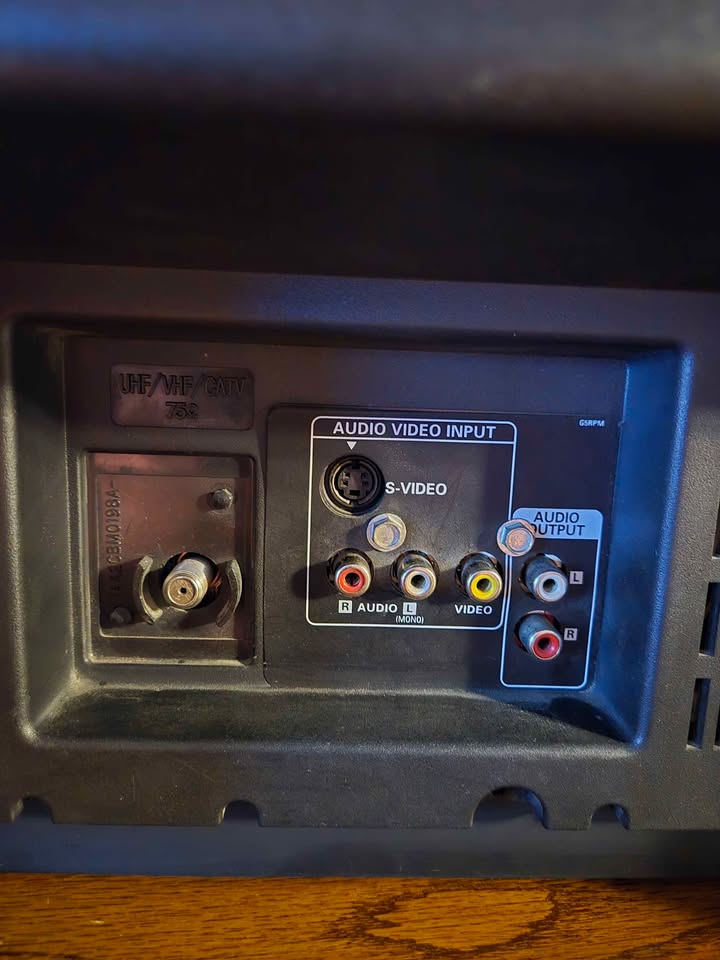

Inputs: | Composite, S-Video, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls |

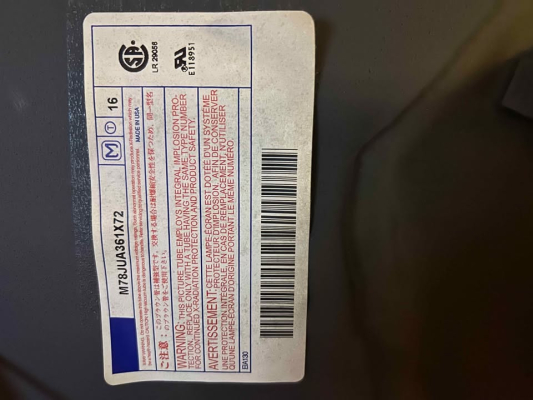

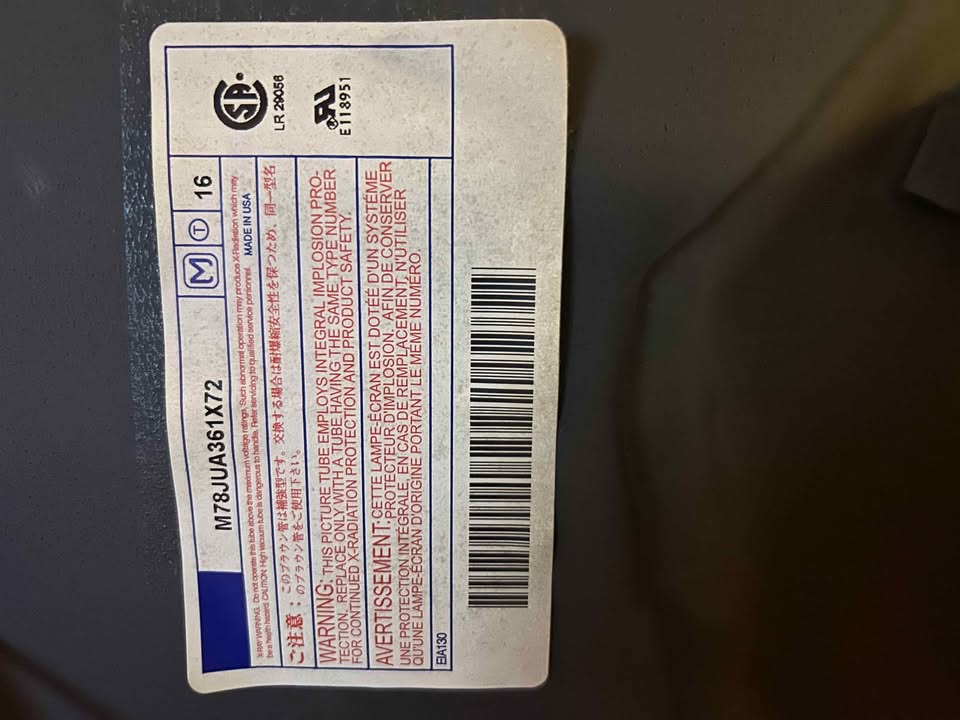

Tube: | Panasonic , Philips , Hitachi , M78JUA068X , A78LKU30X , A79ECK262X |
Heater Voltage: | 6.3v |
Mask: | Slot |
Tint: | Dark |
Speakers: | Stereo |
Chassis: | 31590-02 |
Weight: | 108.6 lbs (49 kg) |
Application: | Consumer |
Launched: | 1999 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
