Summary

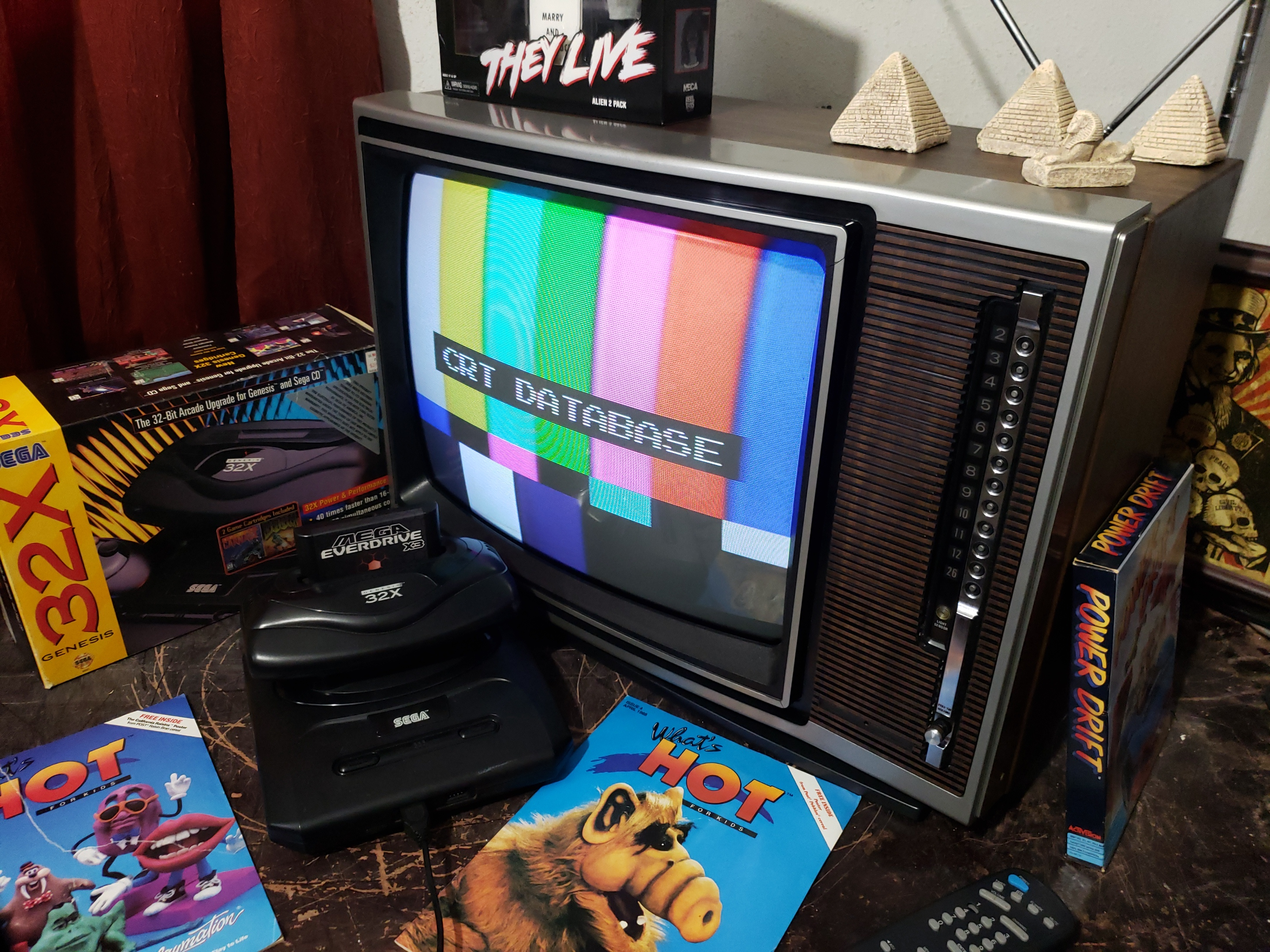

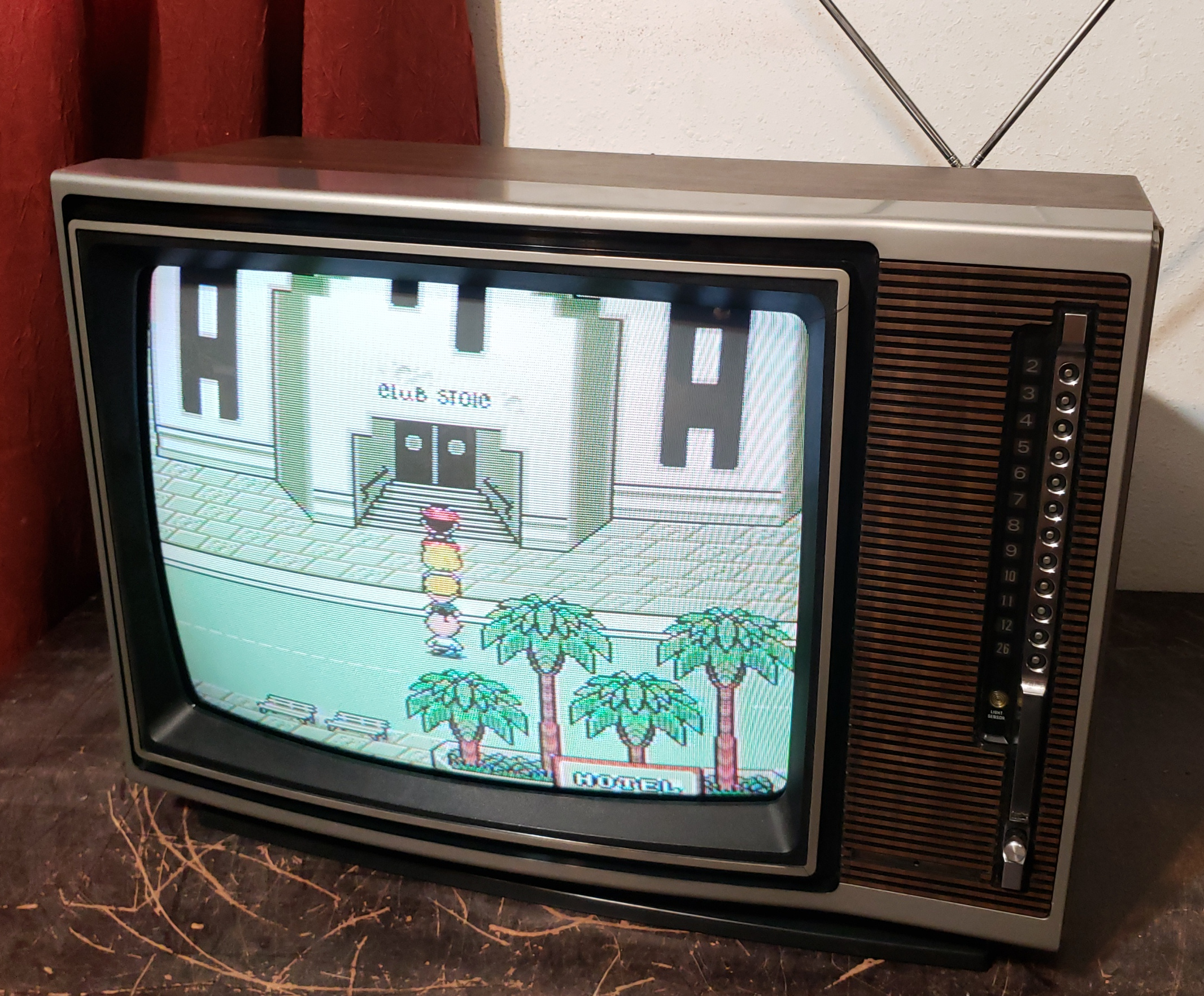

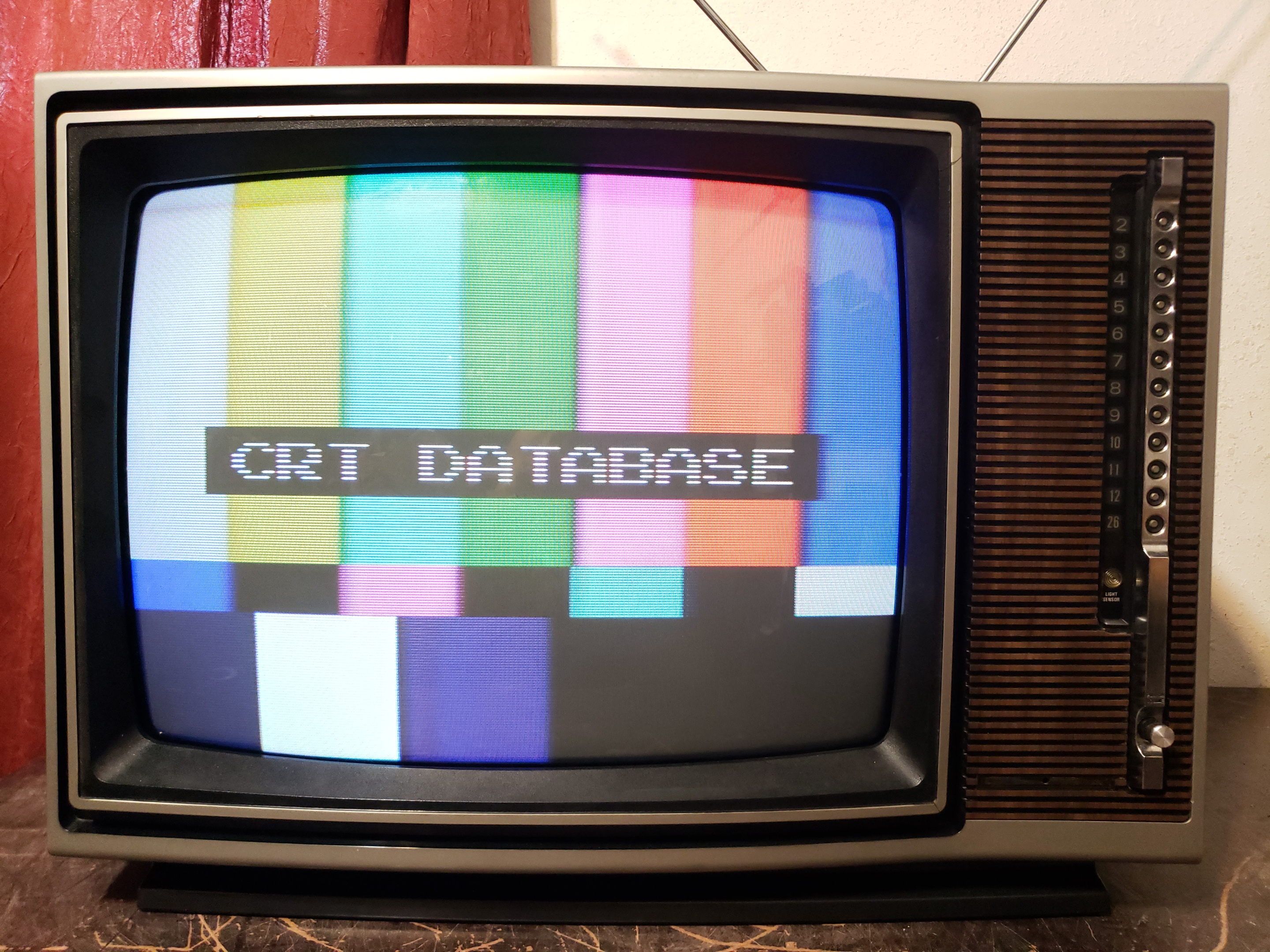

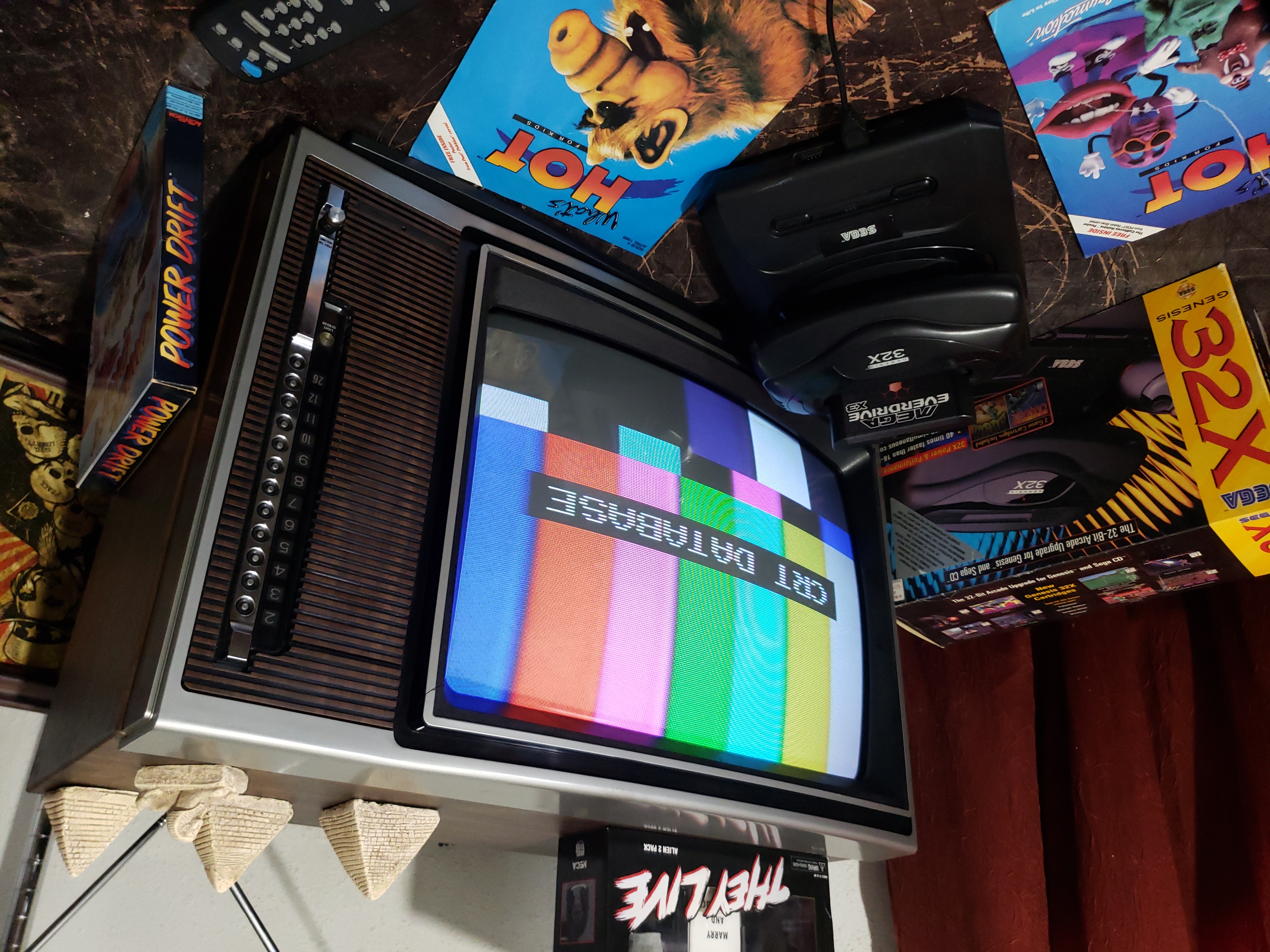

1978 solid-state set made by Sanyo with a metal cabinet, including touch-sensitive per channel selection as a step-up feature, in lieu of a knob or channel Up/Down buttons.
Manual
No documentation is available online at this time.
Notes

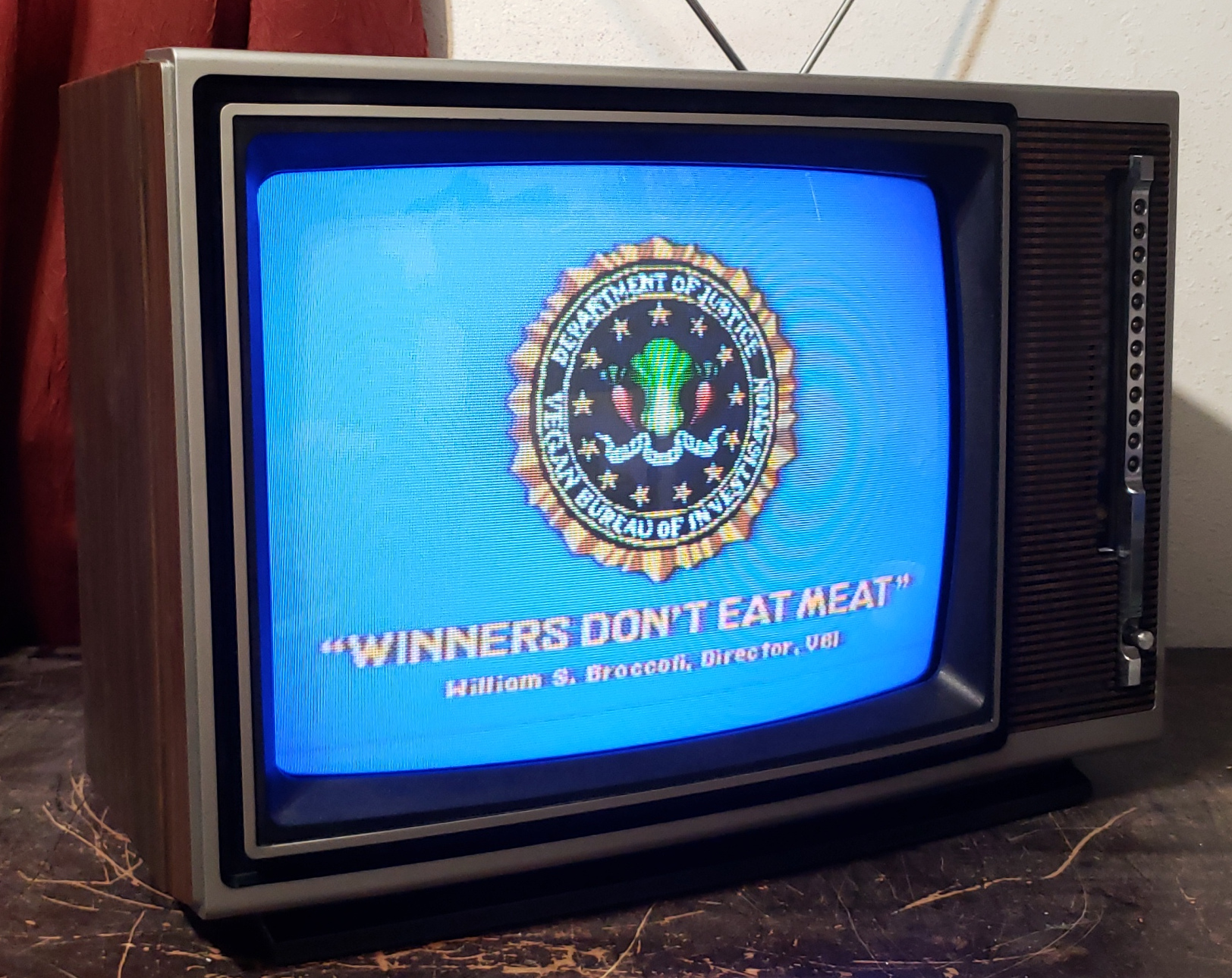

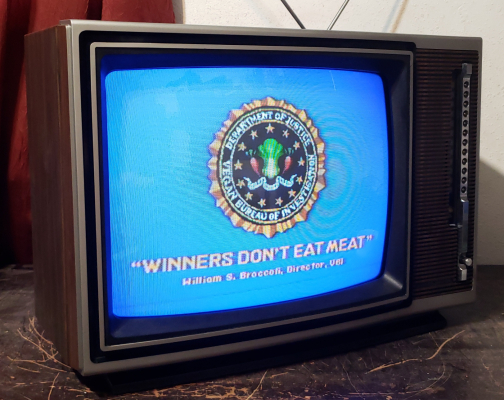

Unit pictured has been retrofitted with a 1998 Zenith tube and chassis. The original tube had significant burn-in due to being left on with the raster in a state of vertical collapse.
Sears sourced their store brand products from a number of manufacturers, indicated by the first three digits.
- 562 - Toshiba
- 564 - Sanyo
- 580 - Goldstar
- 721 - Samsung
- 934 - Hitachi
This CRT is confirmed to be a hot chassis, possibly with very slow high voltage bleeding.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Very slow high voltage bleeding means the picture tube itself retains a considerable amount of energy until manually discharged with an appropriate tool. Once discharged, remove the anode cap to prevent any static electricity recharging capacitors on the main board. There also may be stored energy on any capacitors near the flyback - look for 200v+ rated capacitors which are directly on the screen/G2 circuit and short them safely with a cheap set of discharge probes off Amazon. Repeat the same process for any large-diameter power supply filter capacitors to ensure the board is completely drained of energy.

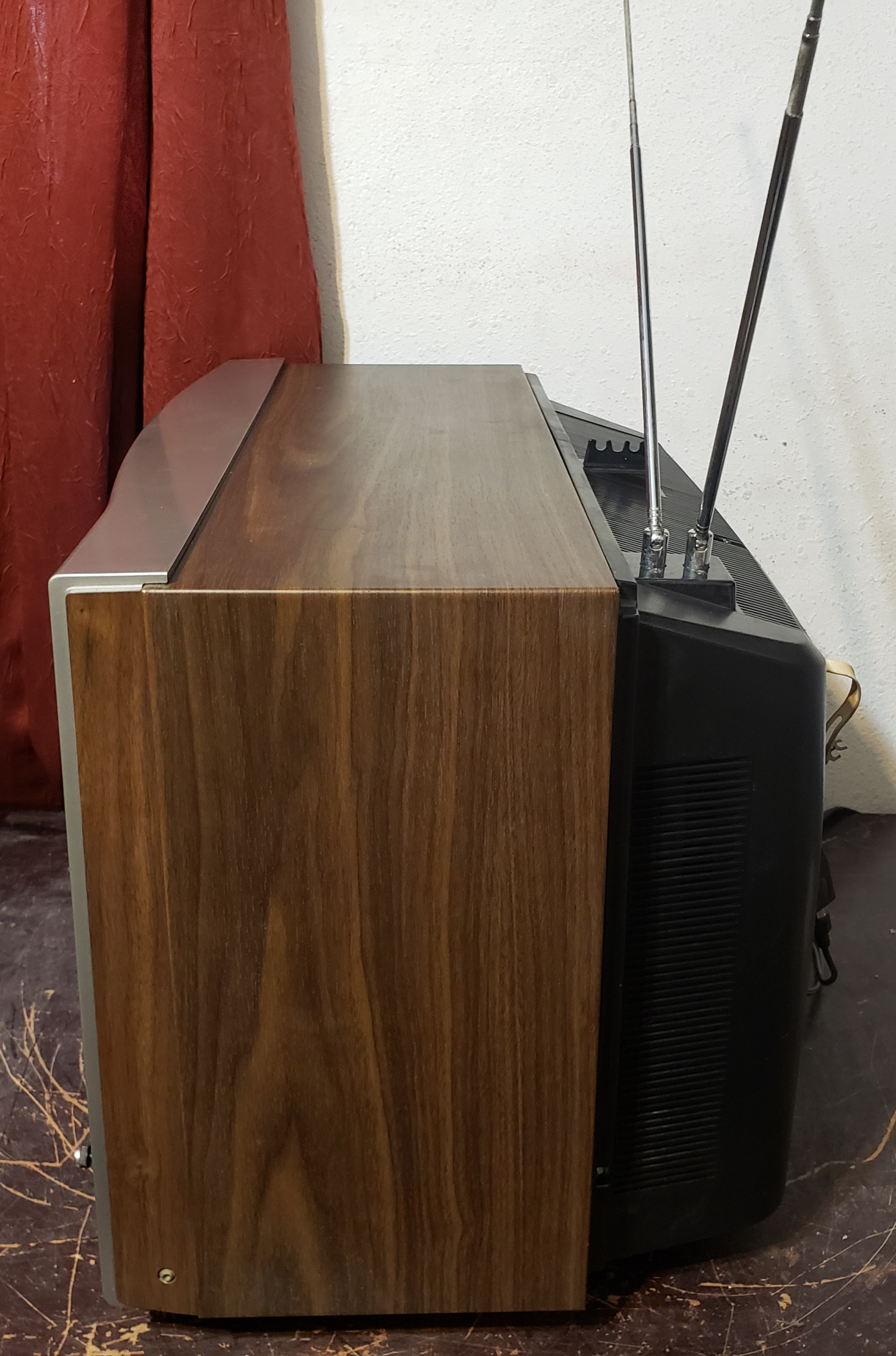

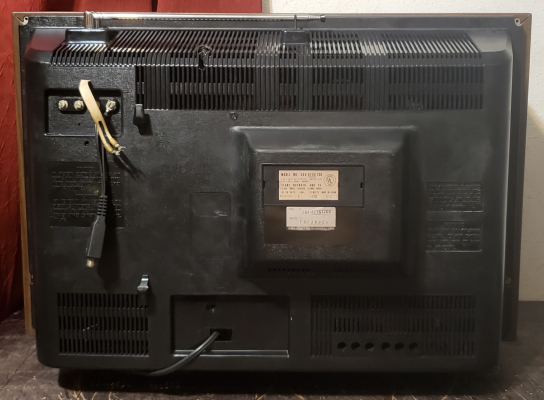

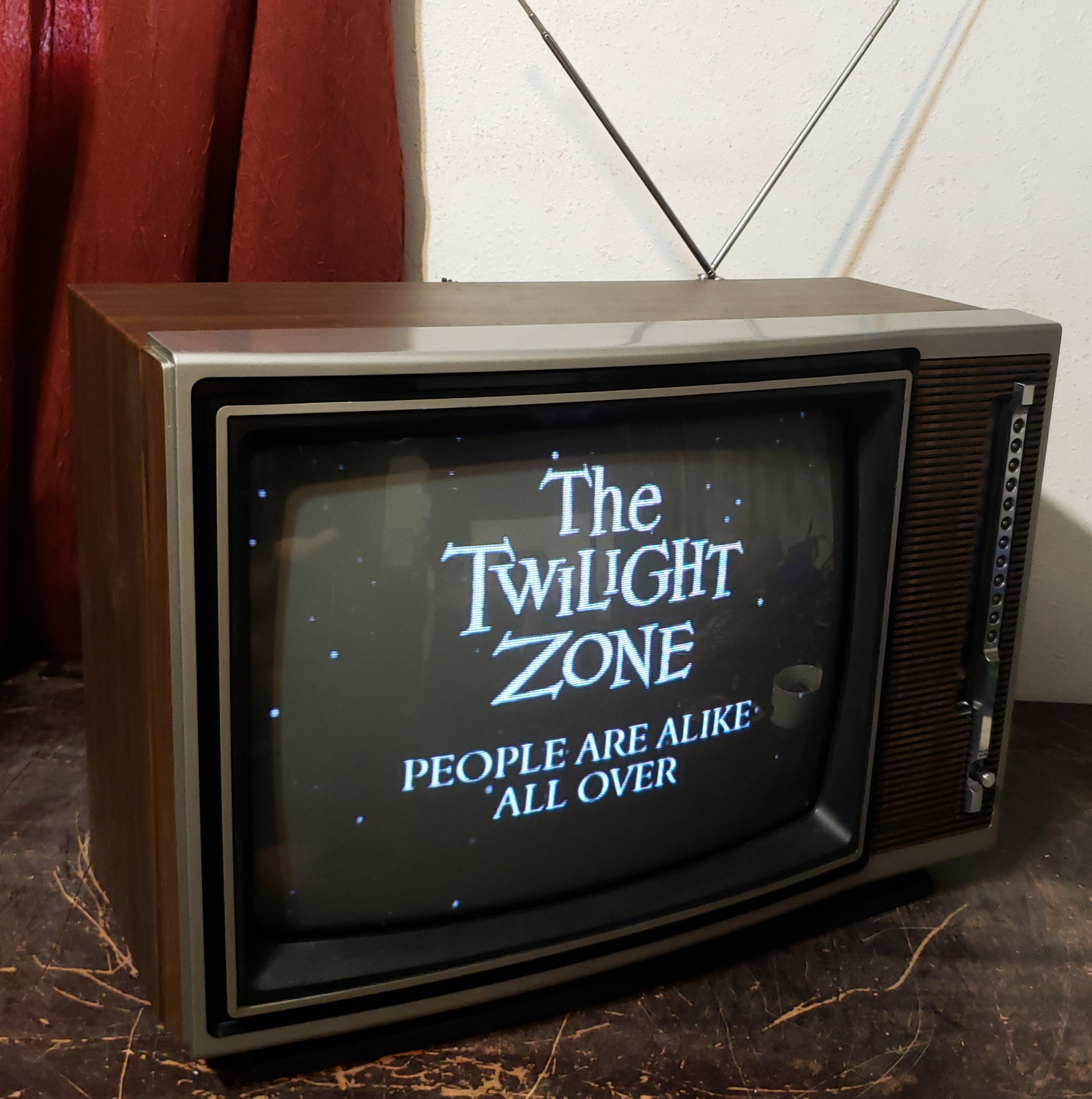

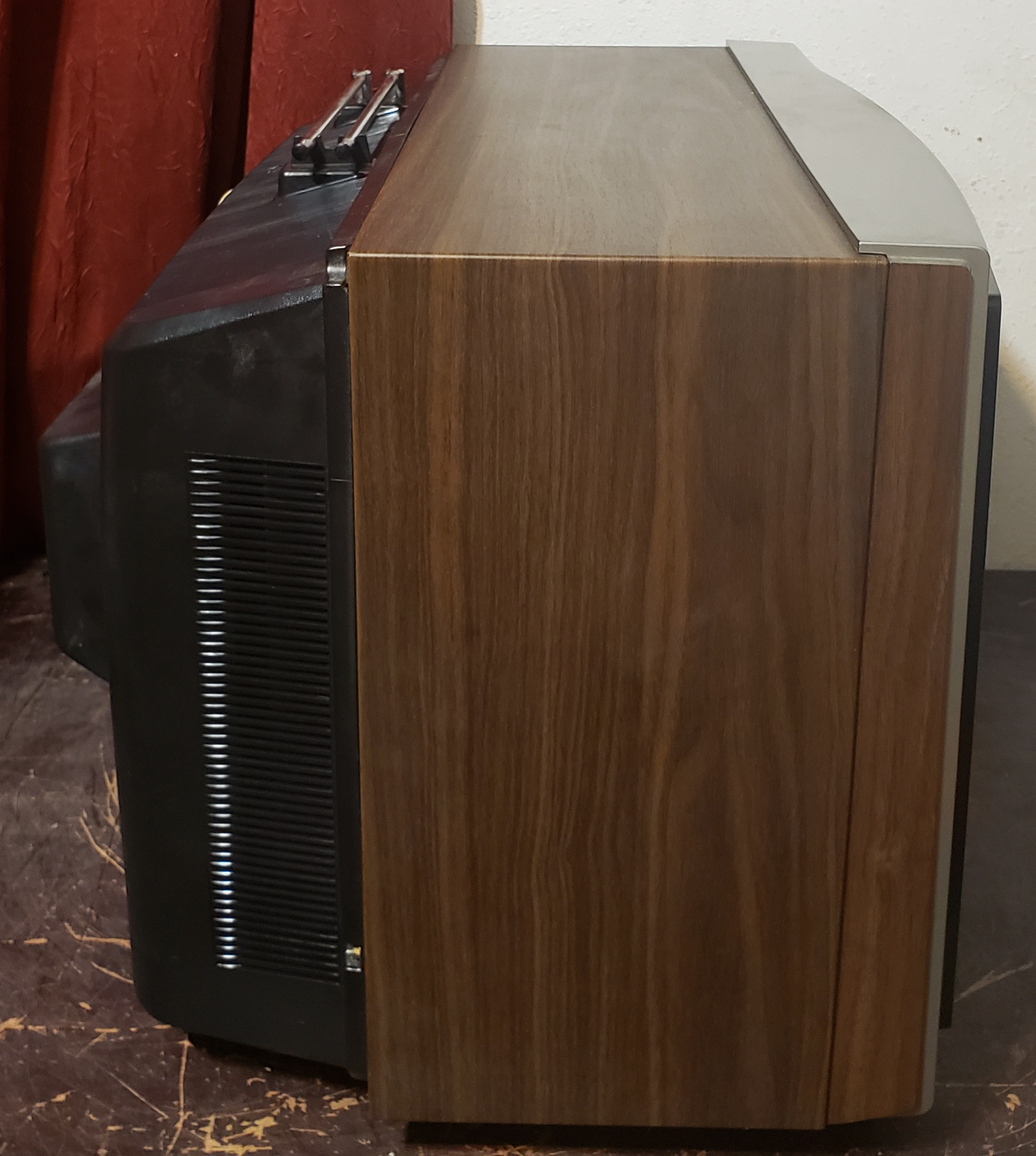

Gallery










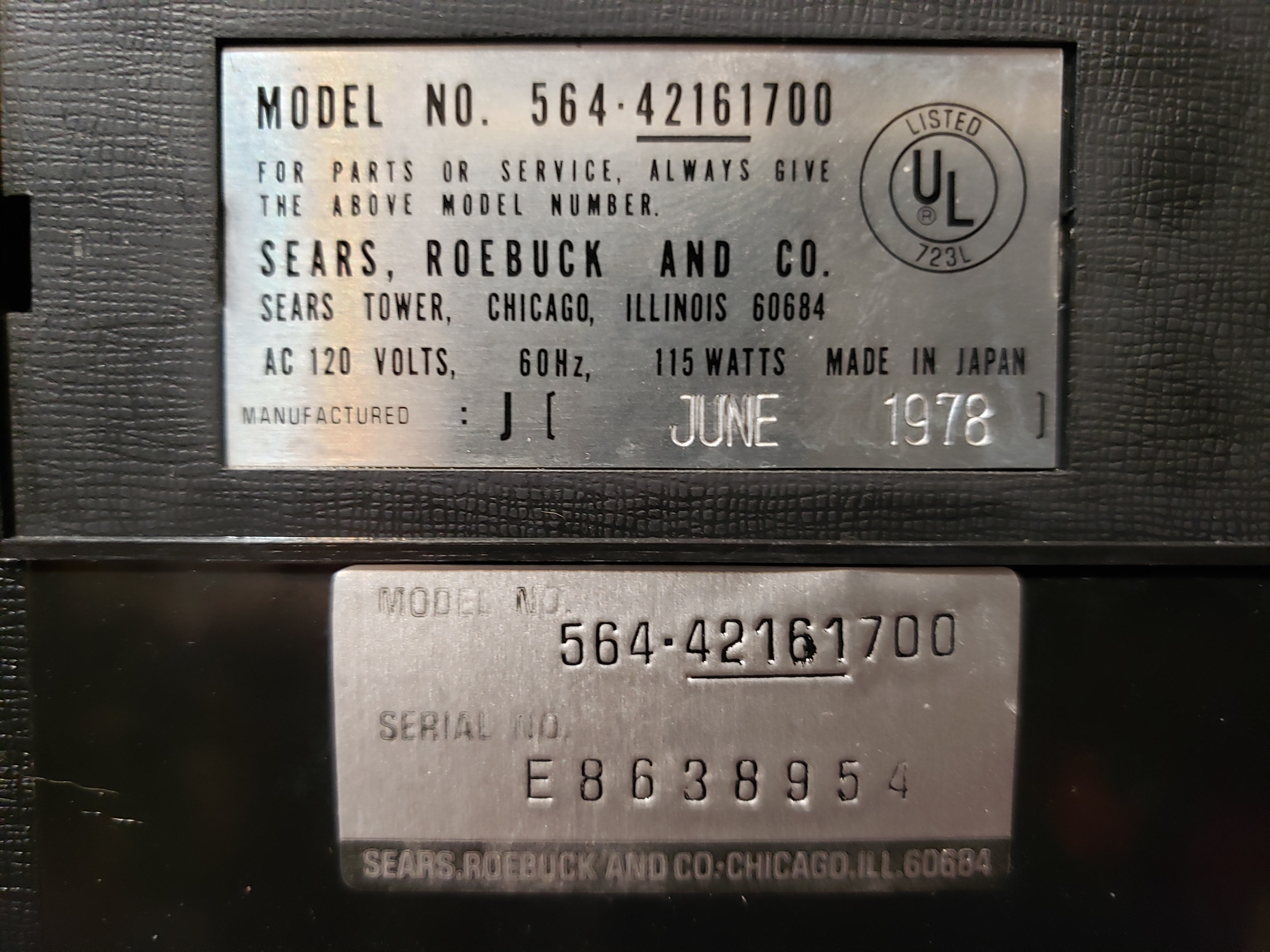

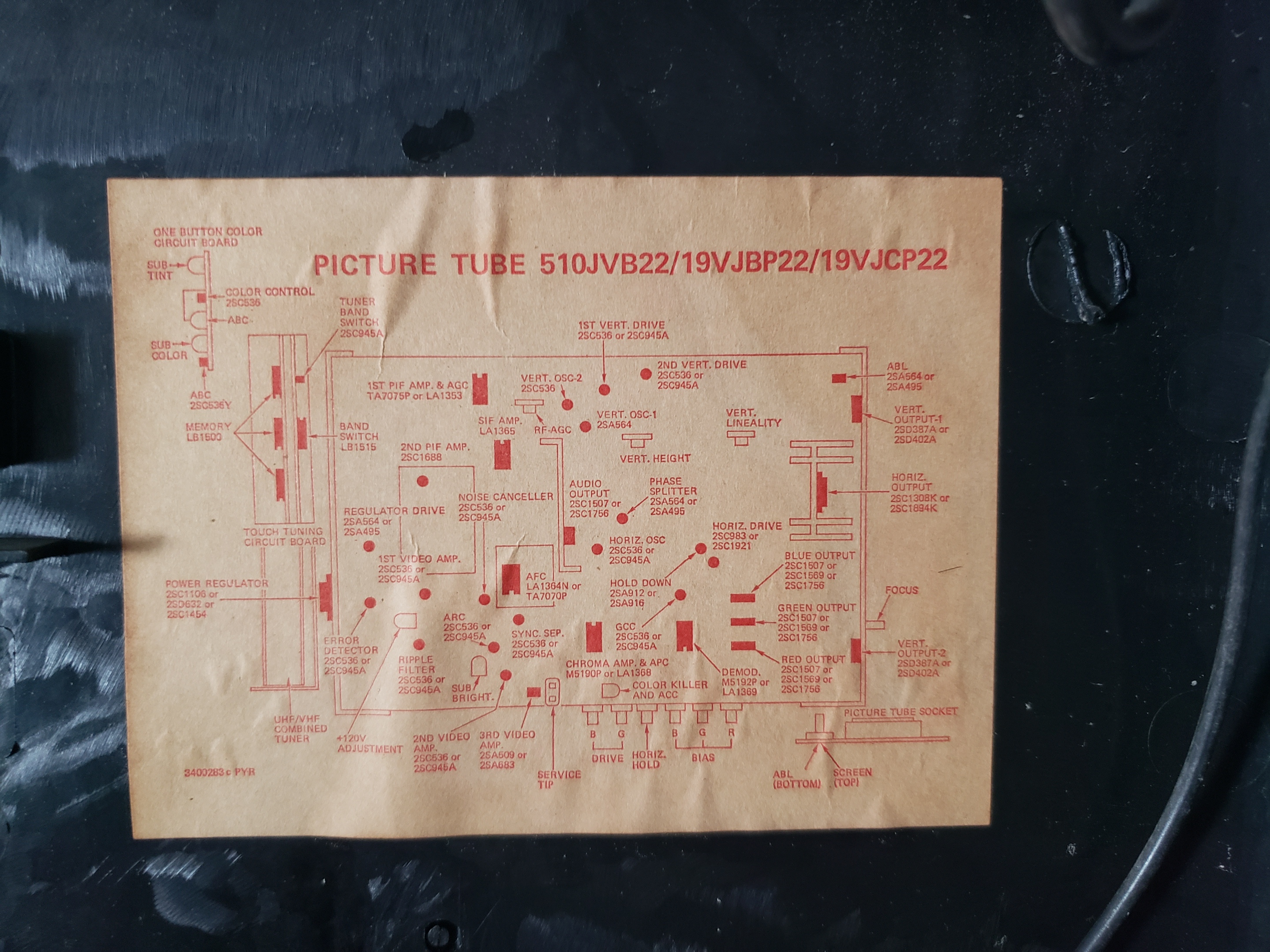

Specifications | |
---|---|
Brand: | Sears |
Manufacturer: | Sanyo |
Model: | 564-42161700 |
Series: | 564 |
Viewable Size: | 19" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Horz. Output Transistor: | 2SC1308K, 2SC1894K |
Vertical Output IC: | 2SD387A, 2SD402A |
Jungle: | LA1368 |
Comb Filtering: | None |
Focus Type: | Single |
Tube: | 510JVB22 , 19VJBP22 , 19VJCP22 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |

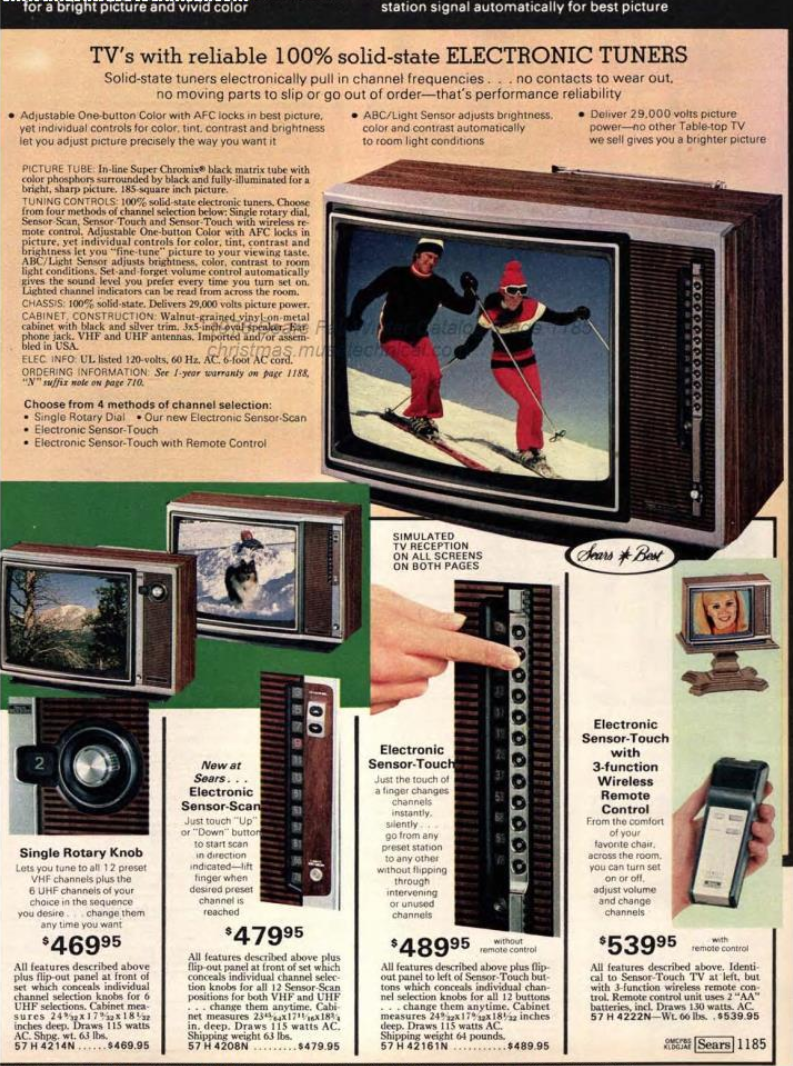

Pitch: | .76 mm |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Mono |
Weight: | 68 lbs (30.8 kg) |
Application: | Consumer |
Cabinet Material: | Metal, Simulated Woodgrain |
Launched: | 1978 |
MSRP: | 489 USD |
Country of Manufacture: | Japan |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Yoke Info |
