Sears 580.50290450
Matt Ross
April 20, 2024, 11:33 am
February 14, 2026, 11:24 pm
April 20, 2024, 11:33 am
February 14, 2026, 11:24 pm
Summary

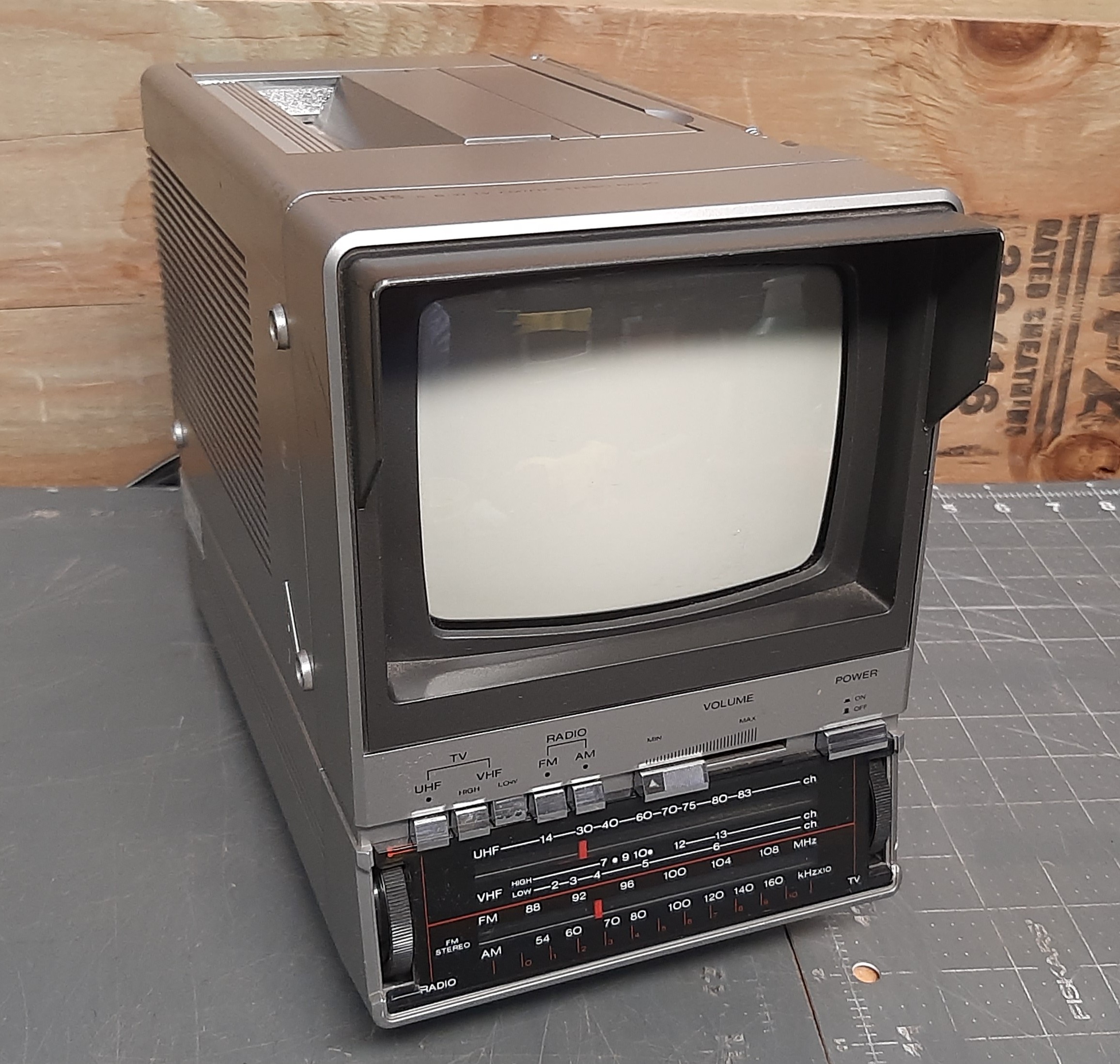

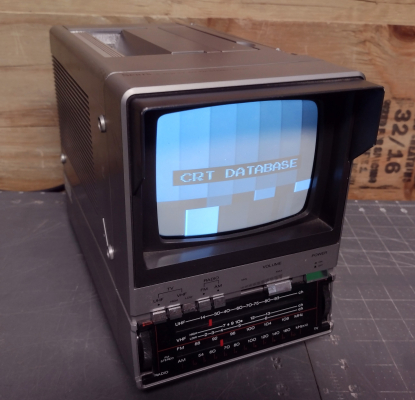

5" black & white portable television, with a built in AM/FM radio. Can be powered with AC power, 12 volts, or nine D batteries. Manufactured by Goldstar (LG).
Literature
Notes
Sears used an obtuse system of model numbers for their store brand products, TVs included. This consists of a 3-digit code, followed by a decimal point and 7 numbers. Sears sourced their store brand products from a number of manufacturers, indicated by the first three digits. In this case all Sears products from Goldstar begin with 580.
Other OEM codes include:
- 562 - Toshiba
- 564 - Sanyo
- 721 - Samsung
- 934 - Hitachi
Gallery
| Specifications | |
|---|---|
| Brand: | Sears |
| Manufacturer: | LG |
| Model: | 580.50290450 |
| Series: | 580 |
| Viewable Size: | 5" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | None |
| Flyback: | 641-649C |
| Focus Type: | Single |
| Tube: | 140ANB4 |
| Mask: | Monochrome Tube (no mask) |
| Tint: | Light |
| Removable Glare Film: | No |
| Speakers: | Mono, Headphone Jack |
| Weight: | 7.8 lbs (3.5 kg) |
| Dimensions (W/H/D): |
155 x 210 x 298 mm
(6.1 x 8.3 x 11.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1984 |
| Country of Manufacture: | Korea |
| Market: | North America |
| Power Standard: | 120v, 12VDC, Battery |
| Mounting: | Kickstand |
| Degaussing: | Not Applicable |
| Tag: | Needs Owners Manual |
