Summary

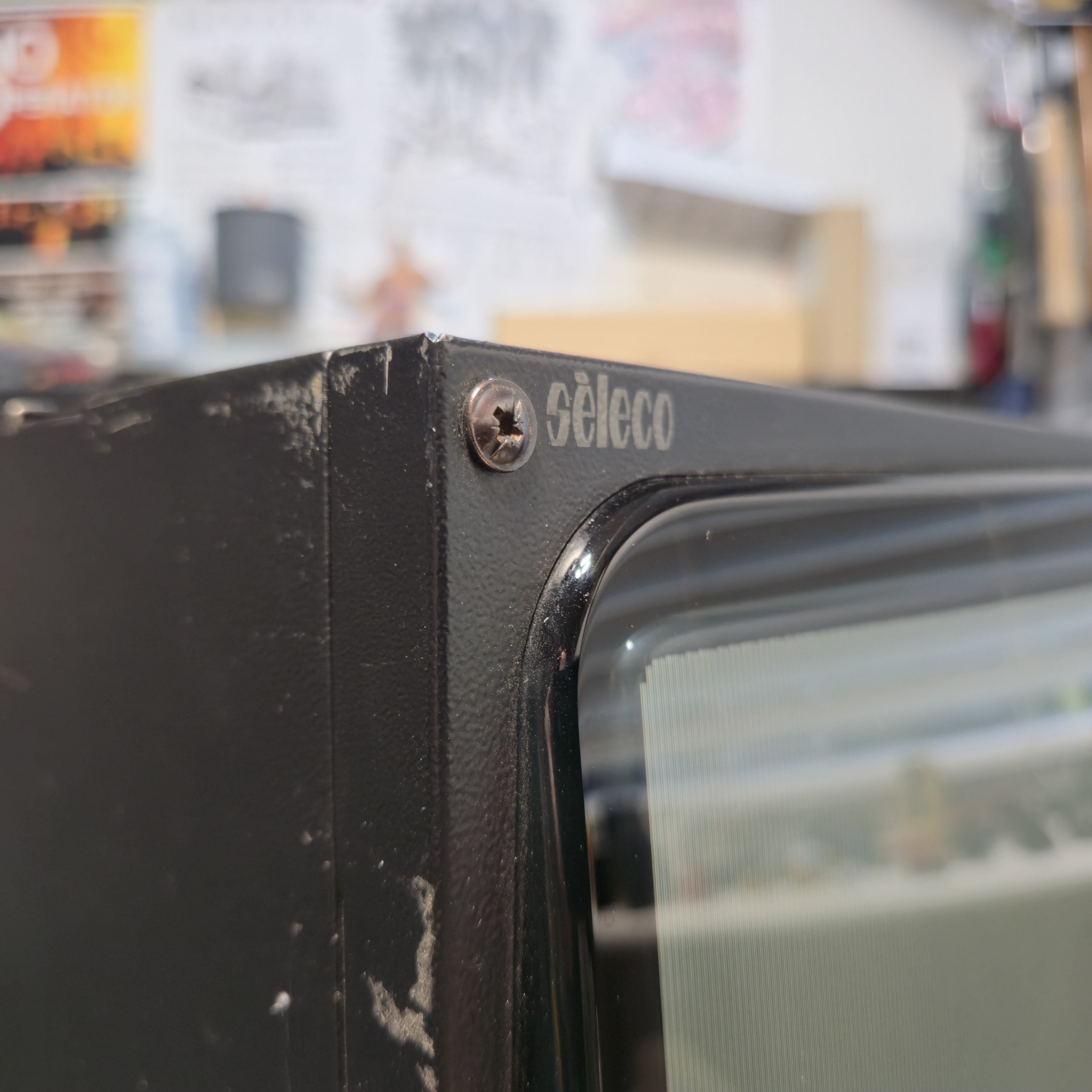

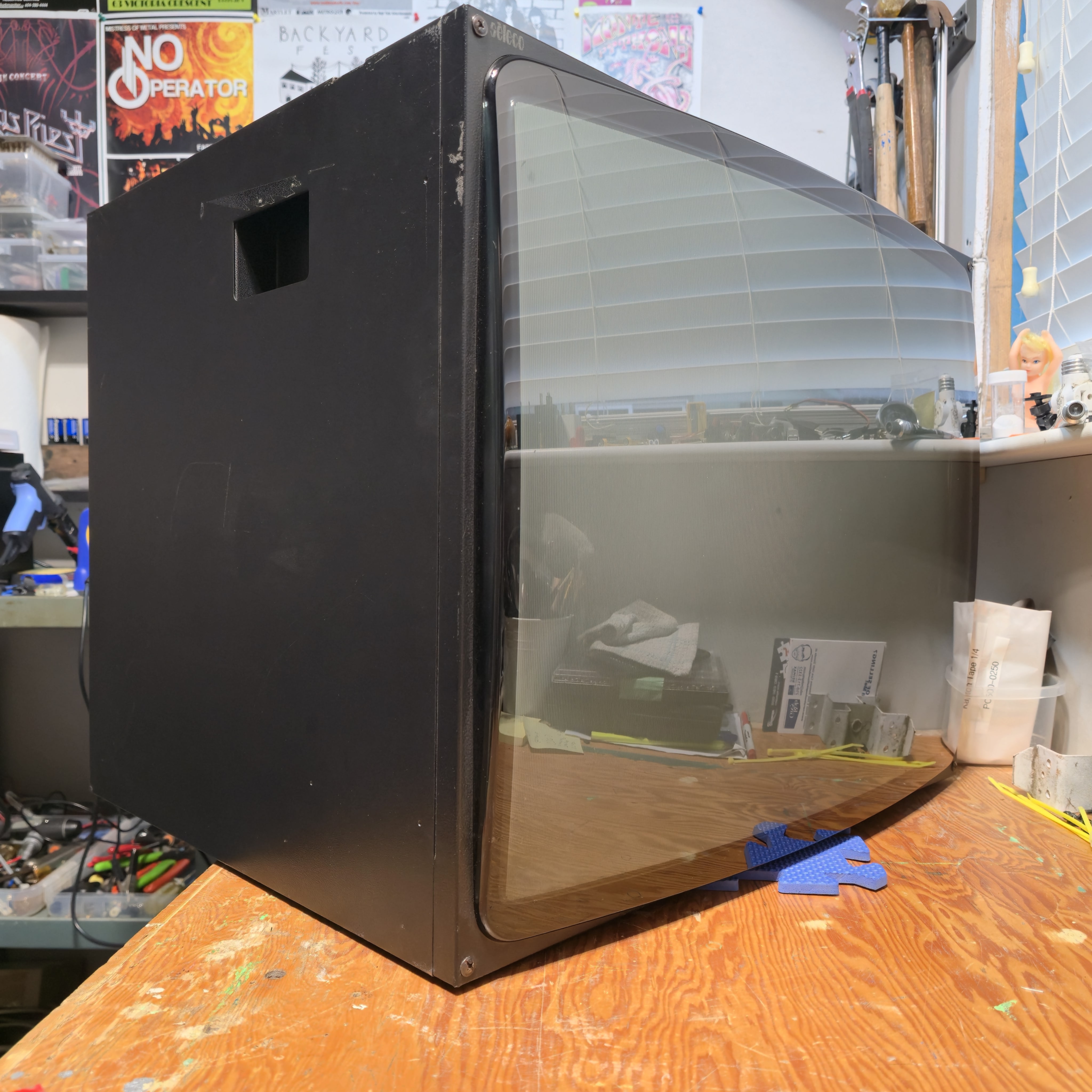

Seleco monitors mostly look the same at first glance because they are all built similarly - black box with a tube sticking out the front. They are intended for professional video wall installations - they are easily stackable and the omission of any physical bezel on the monitor minimizes the gap between each tube when arranged in a video wall.

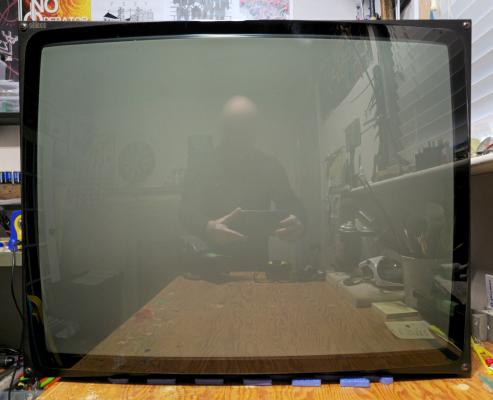

The tube is labeled Videocolor but likely manufactured by Thomson/RCA. It has a classic arcade slot mask look.
Literature
Notes

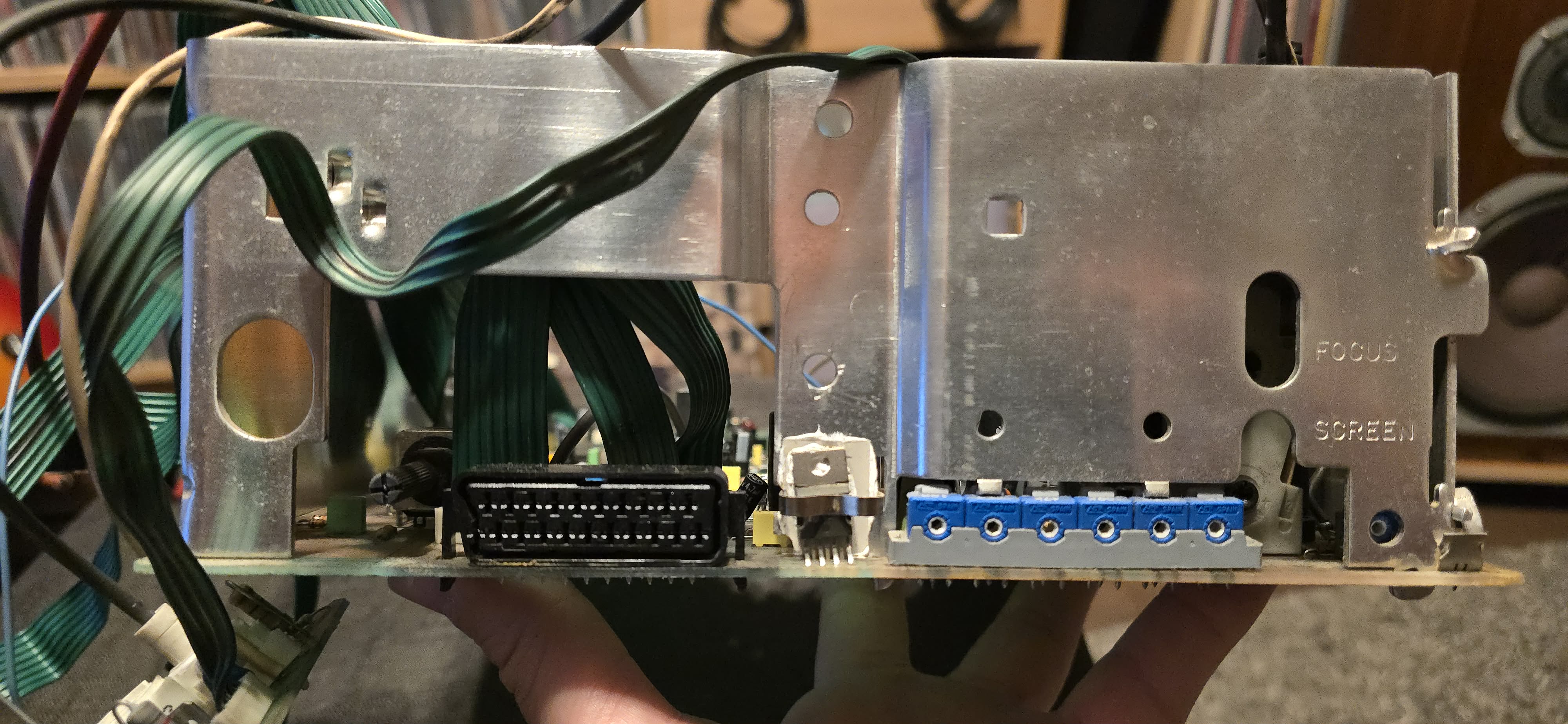

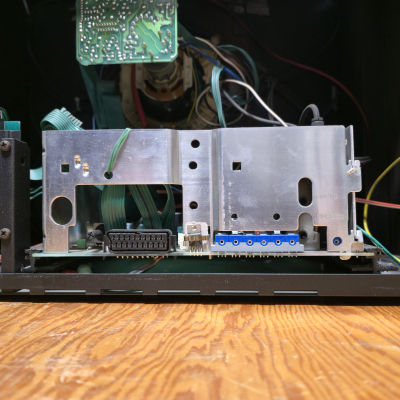

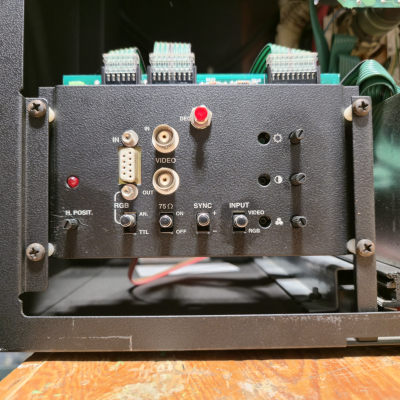

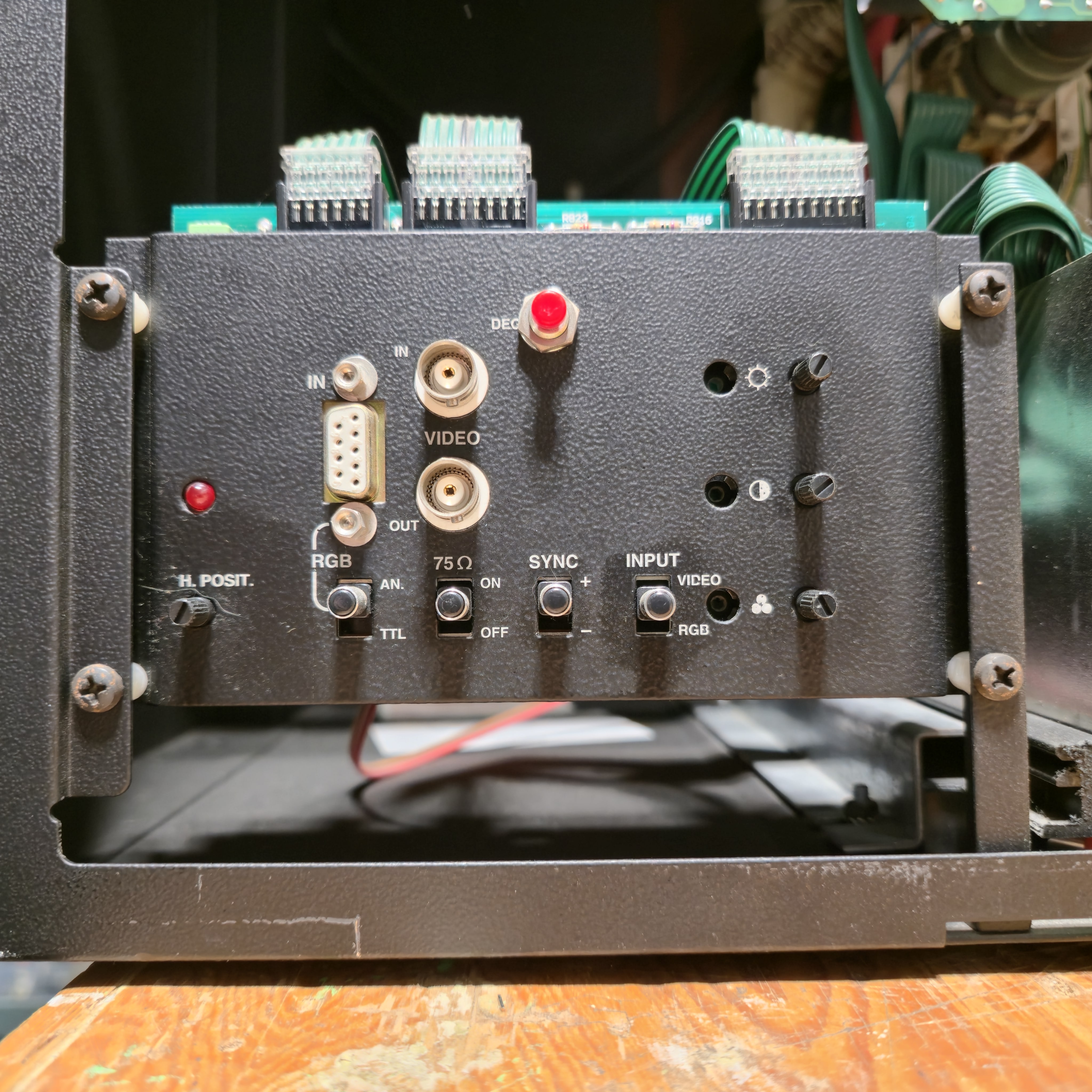

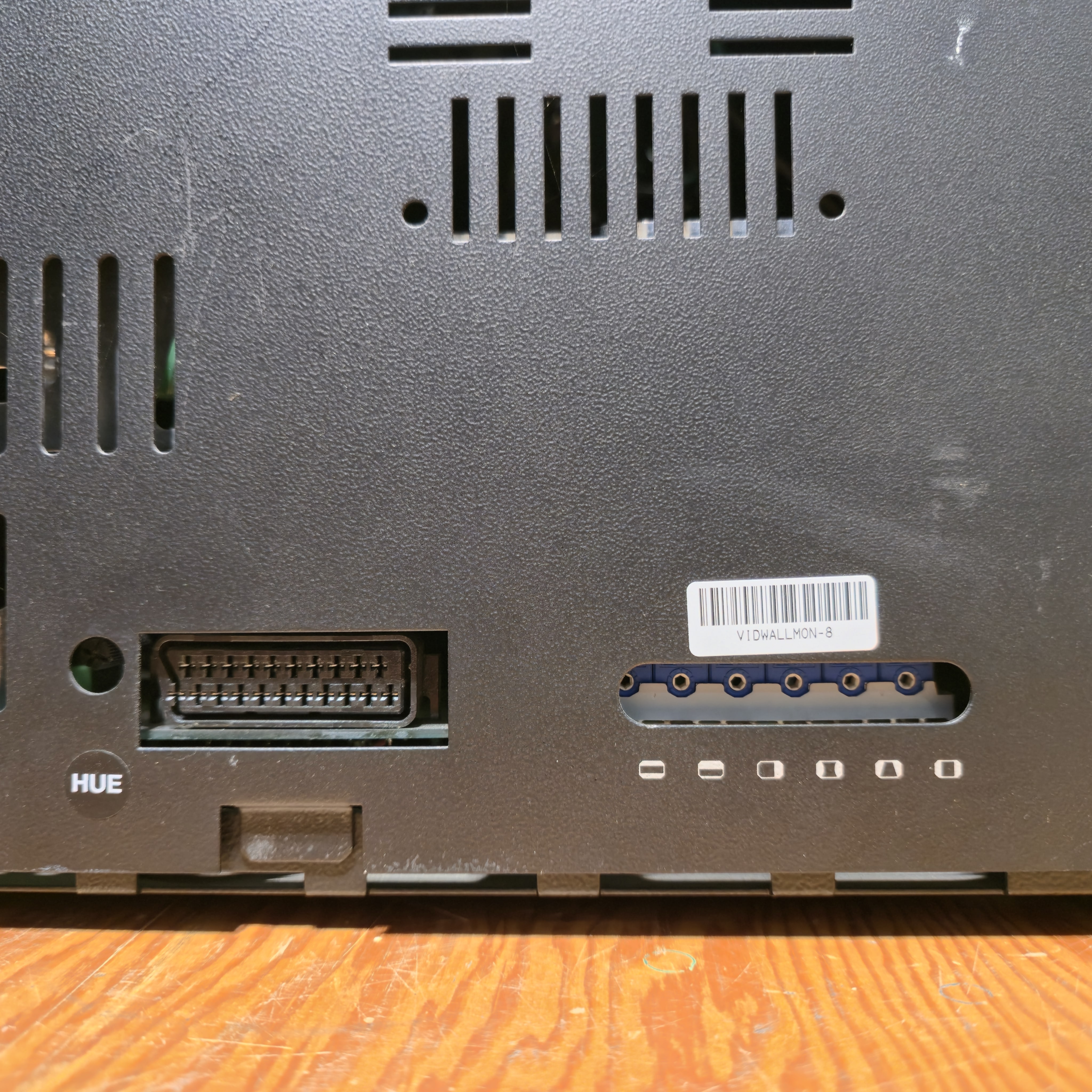

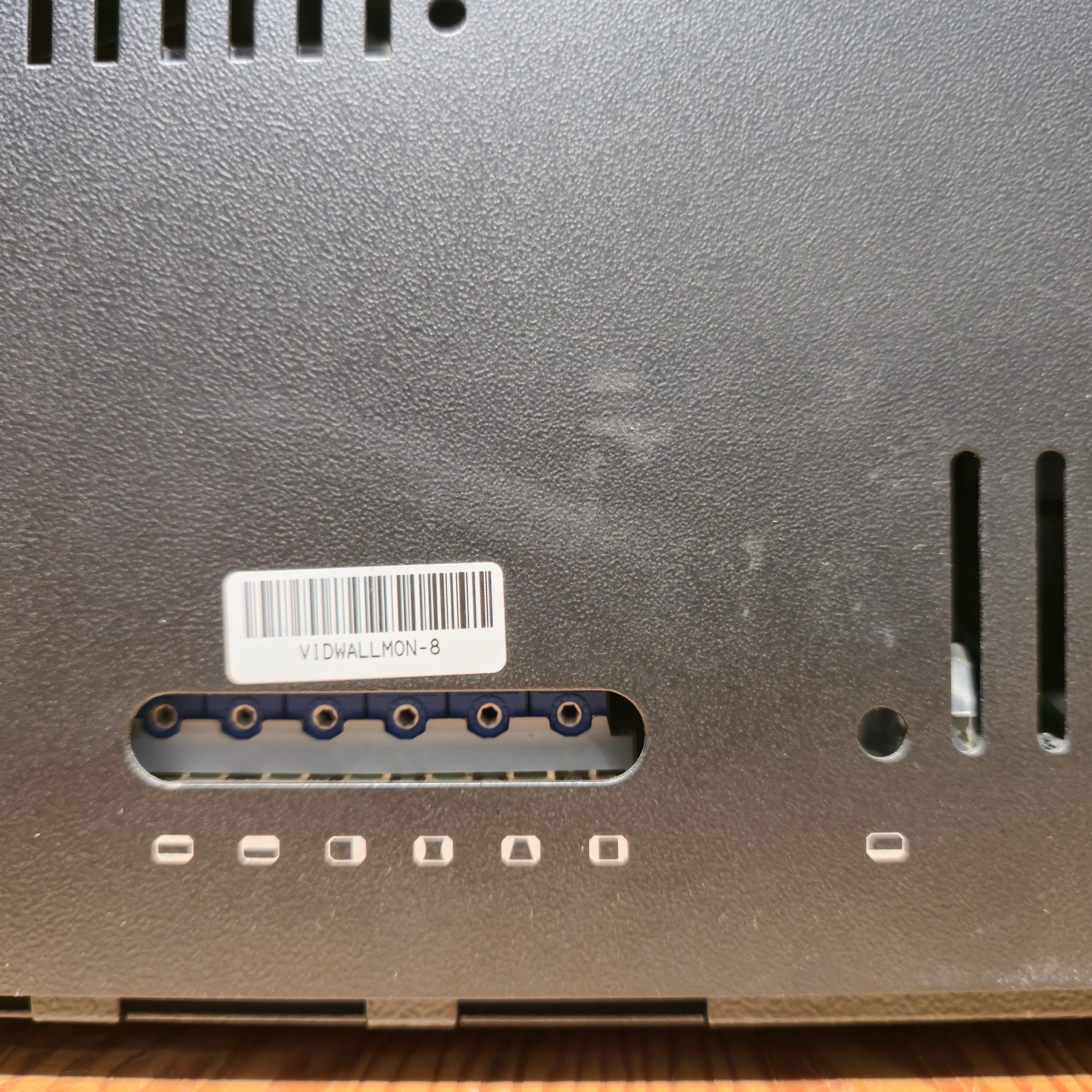

The recessed pots on the back (next to the protruding ones) are sub controls of the same adjustments shown on the respective icons.
Gallery
Specifications | |
---|---|
Brand: | Seleco |
Manufacturer: | Seleco |
Model: | 290 |
Series: | SMV |
Viewable Size: | 27" |
Inputs: | Composite, RGB, Digital RGB |
Sync: | CSYNC |
Resolutions: | 240p, 480i |
Vertical Scan Range: | 50 Hz, 60 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |

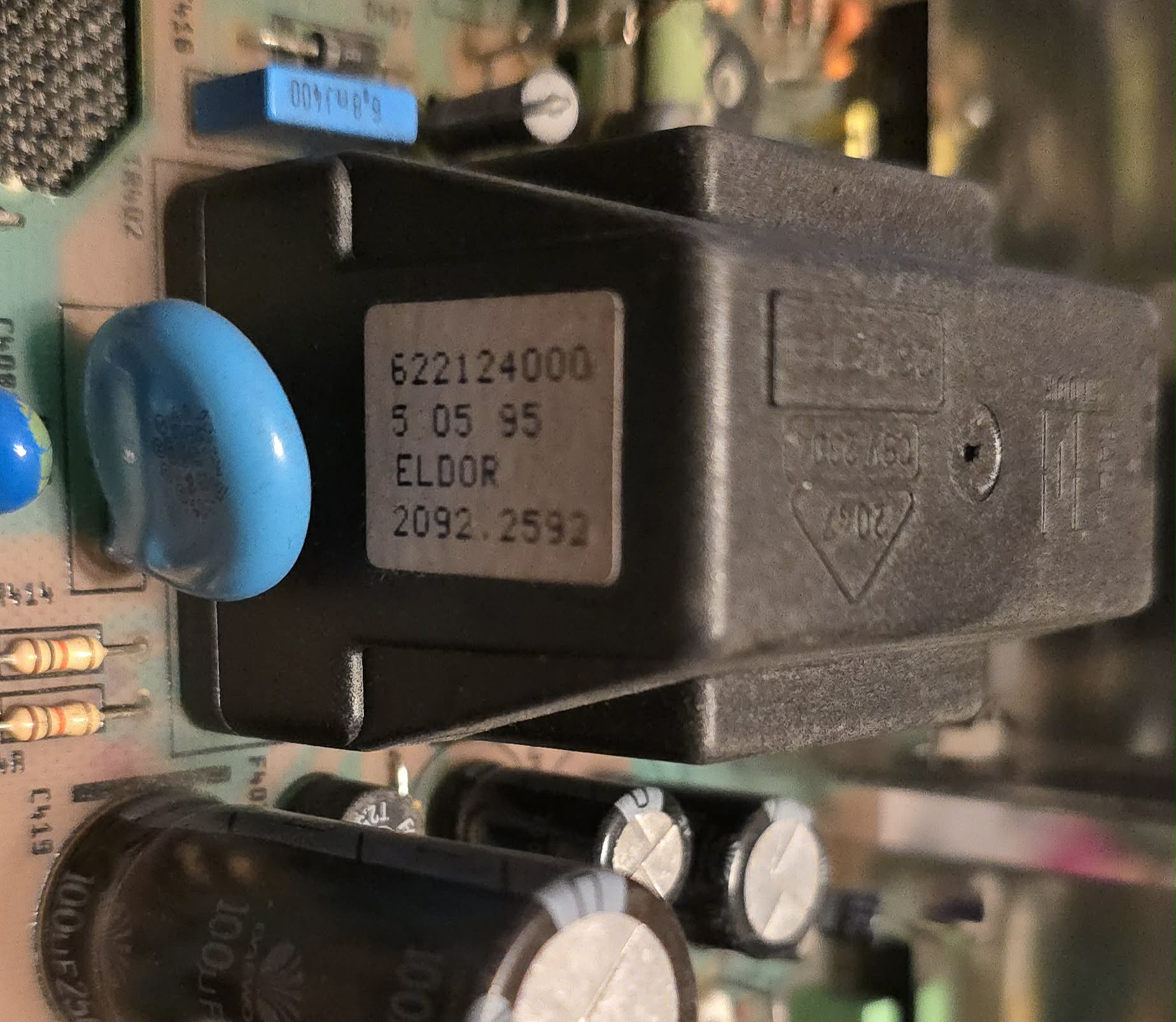

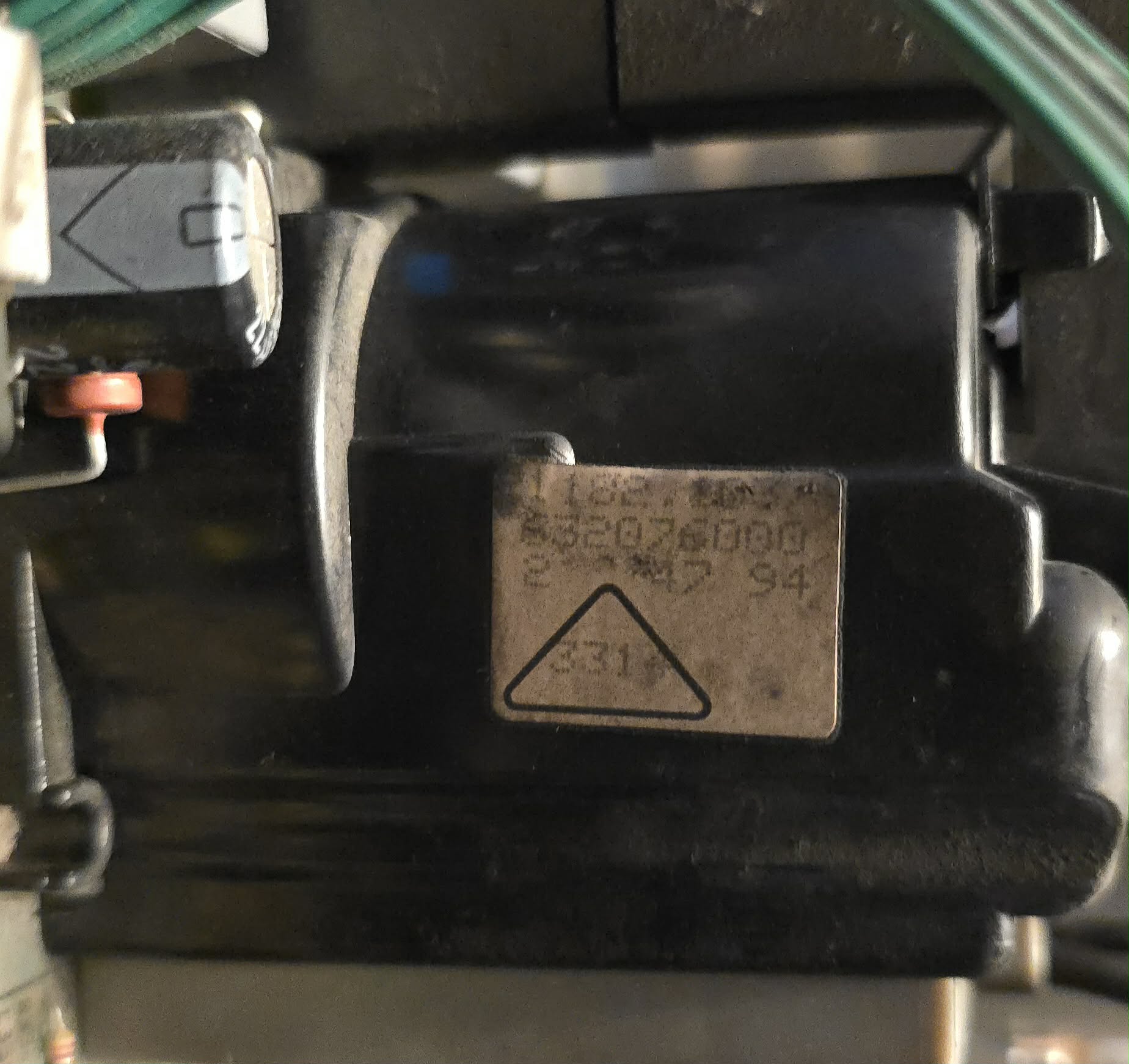

Flyback: | 632076000, HR 6556 |
Tube: | Videocolor , A66ECY13X01 , A66ECY13X |
Heater Voltage: | 6.3v |
Mask: | Slot |
Pitch: | 0.8 mm |
Removable Glare Film: | No |
Speakers: | None |

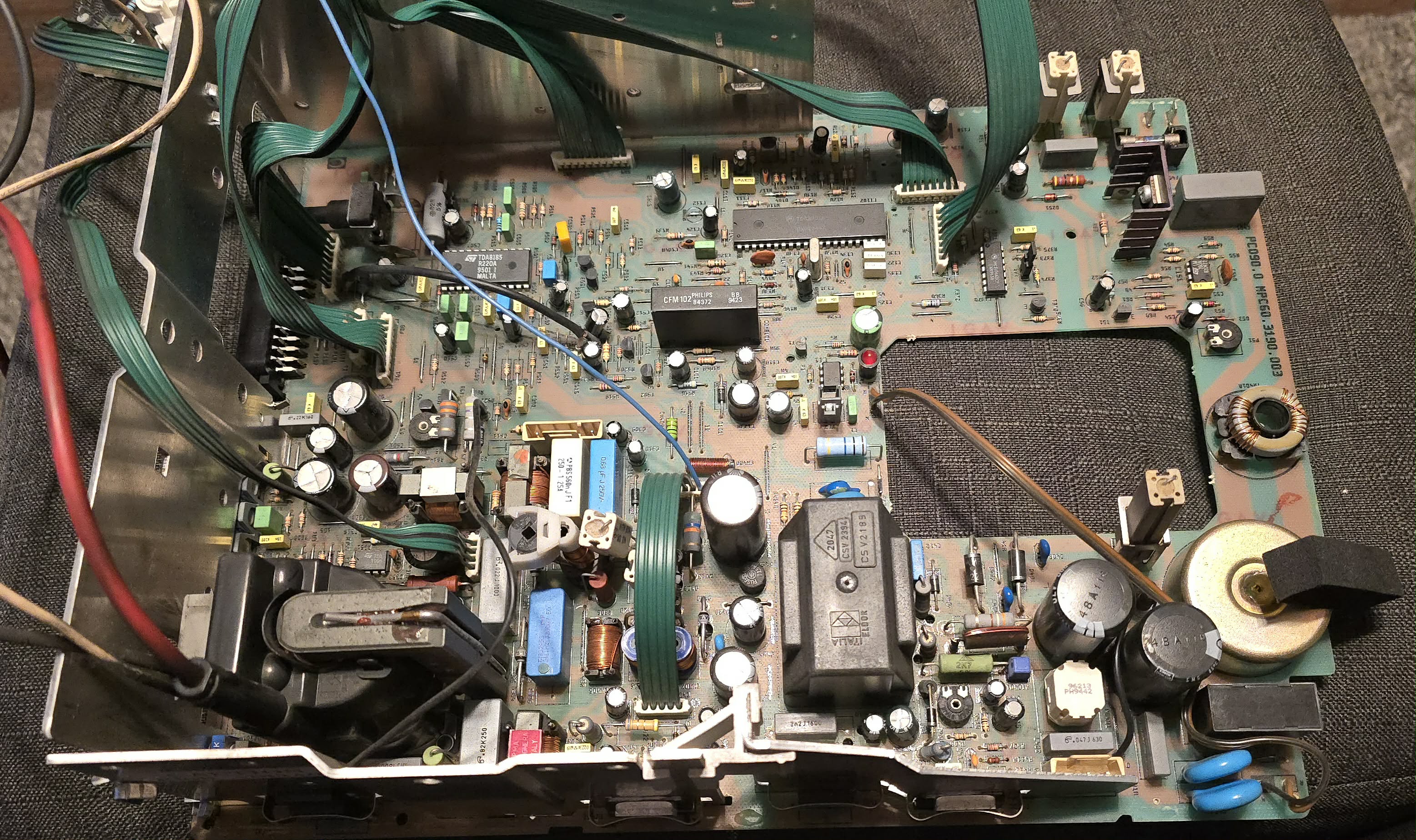

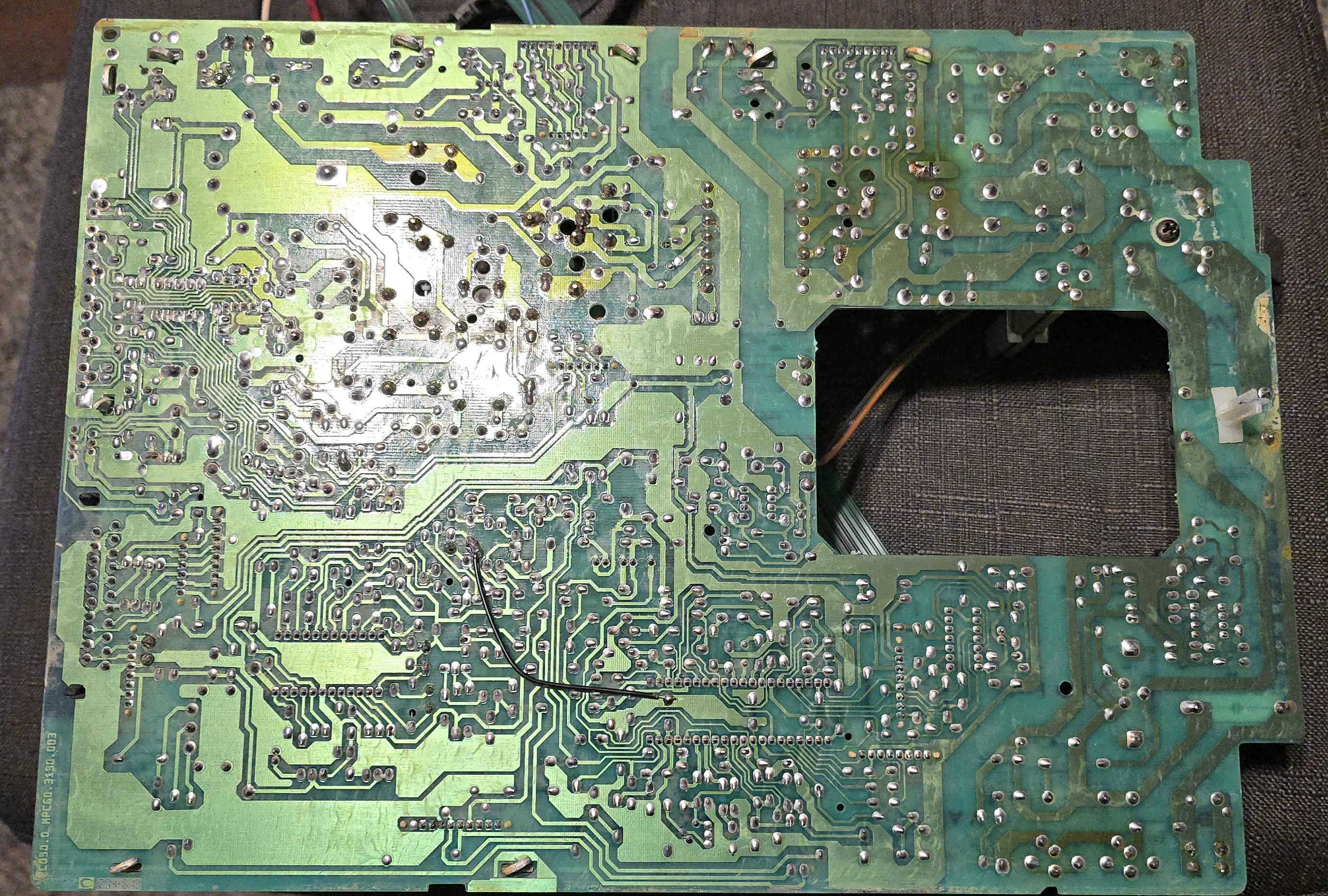

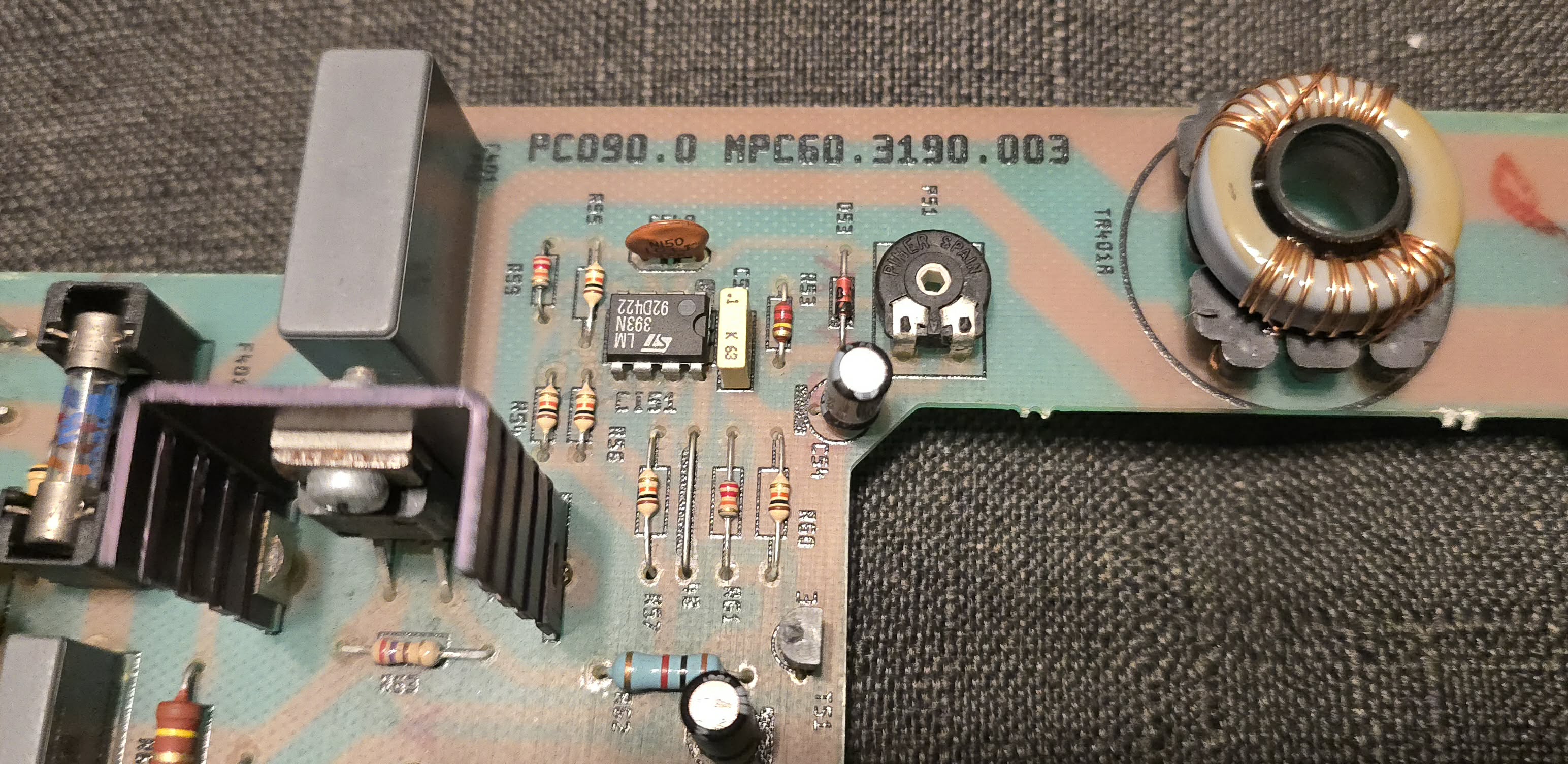

Chassis: | PC090 |
Weight: | 92 lbs (42 kg) |
Application: | Commercial, Video Wall |
Launched: | 1994 |
Country of Manufacture: | Italy |
Mounting: | Stackable |
Degaussing: | Automatic on Power-on, Manual |
