Summary

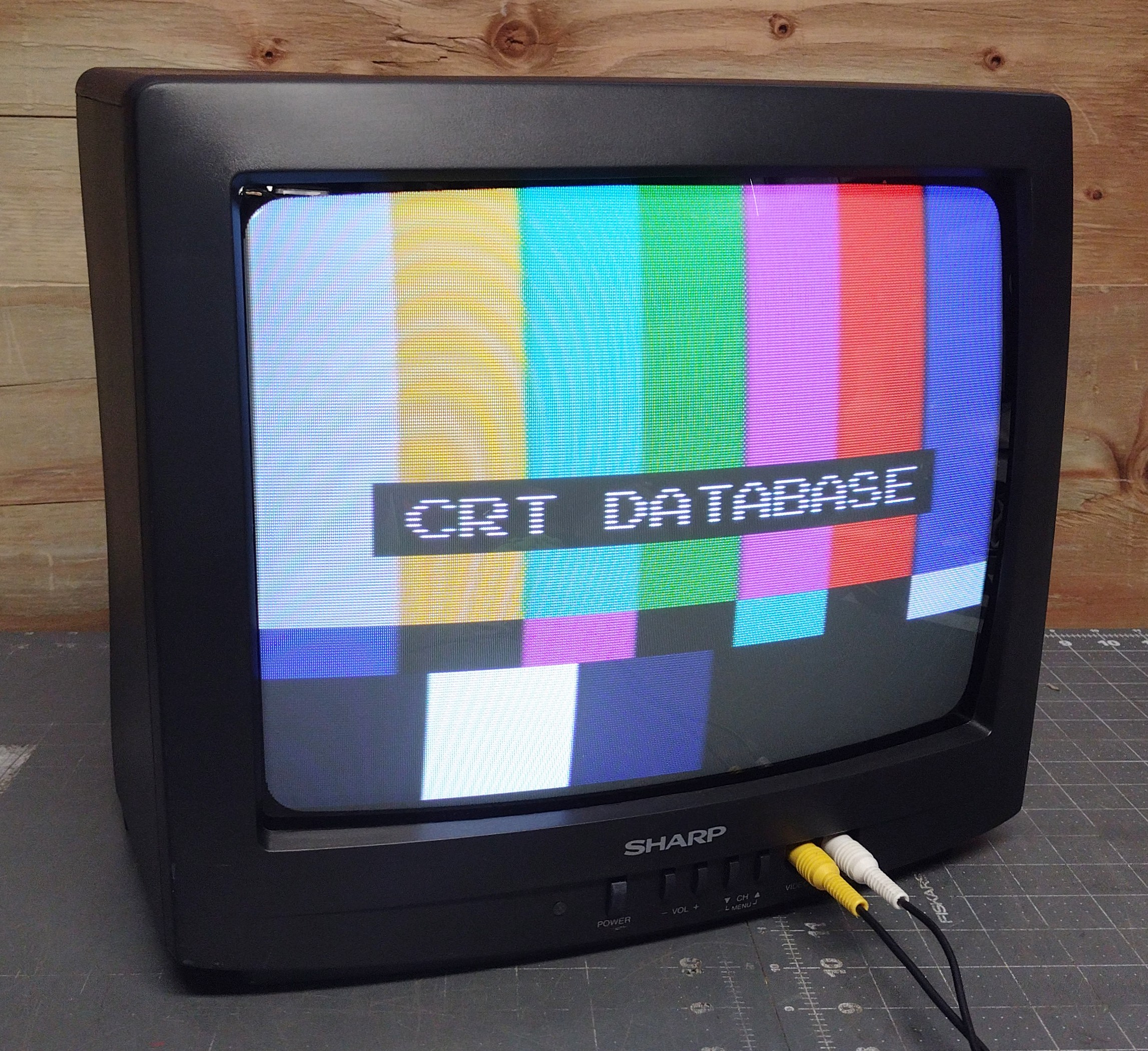

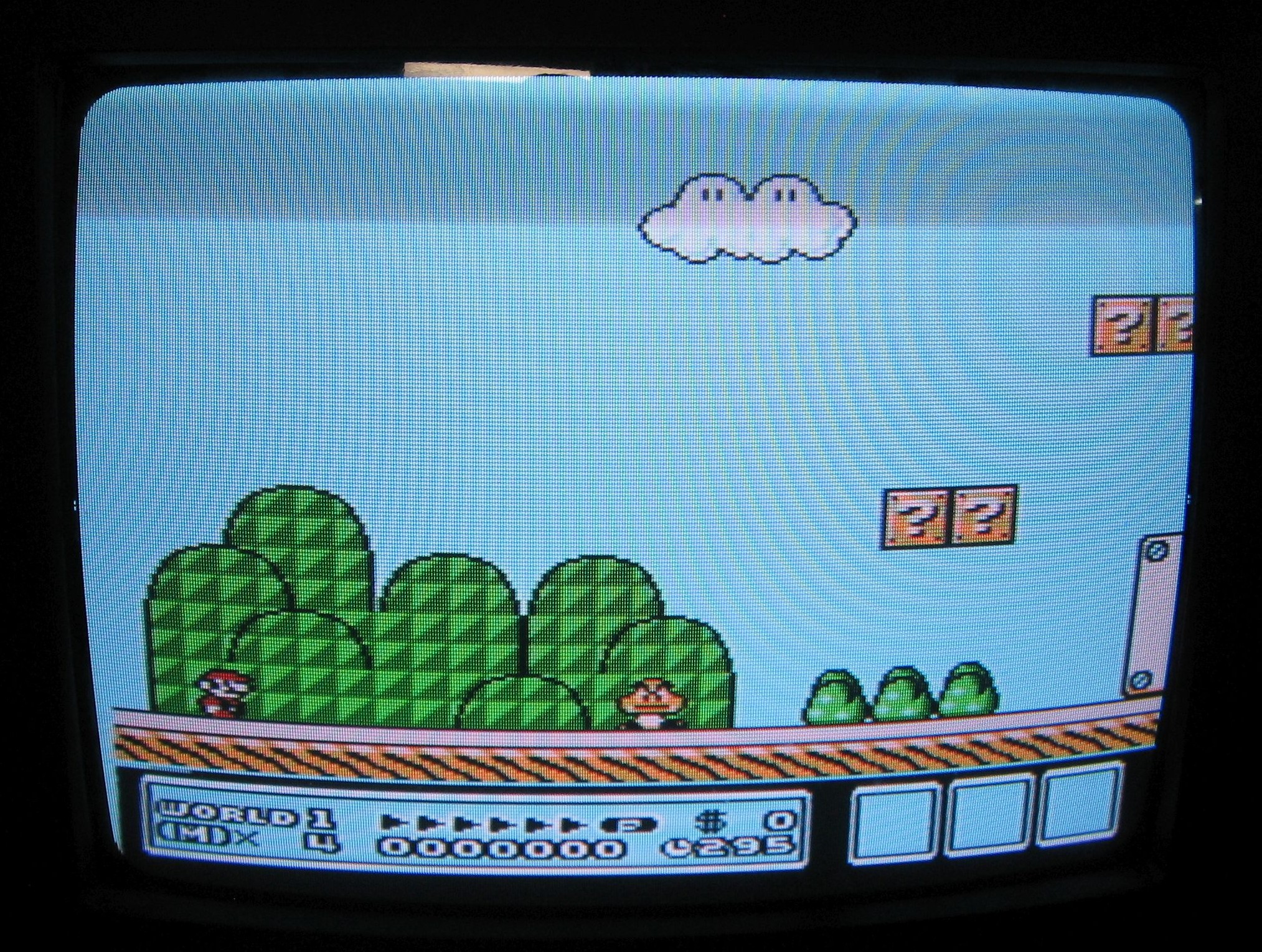

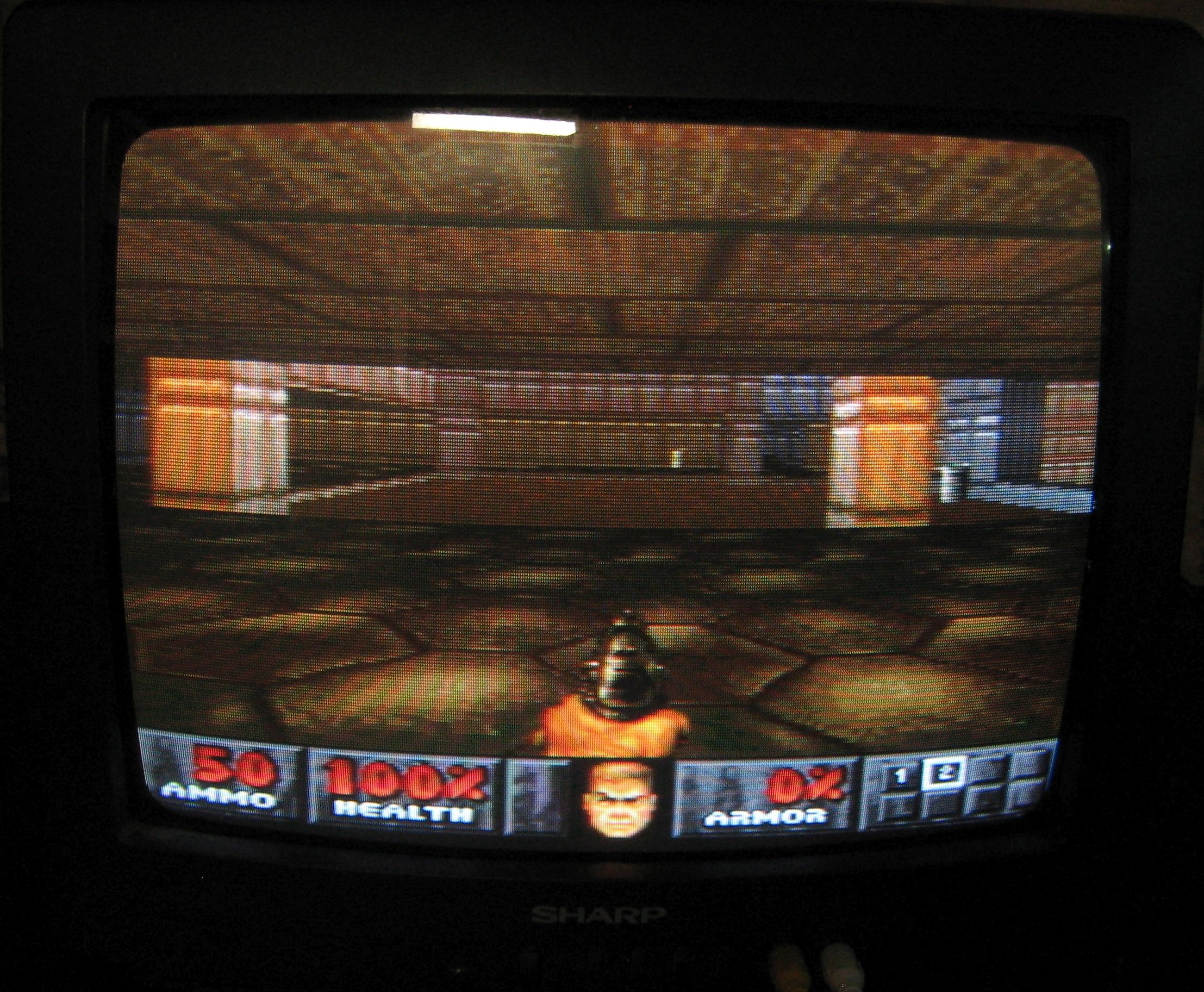

Small, no-frills budget TV with RF and mono A/V inputs. Gives a very clean picture with composite video.
Literature
Notes
While earlier versions of this TV can be modified for RGB, the jungle chip used in the N series uses digital RGB only and cannot be modified.
These TVs were sold with the contrast level set to maximum. Picture quality will improve significantly if the contrast is reduced to normal levels.
This TV also came in a white variant, the 13N-M150B.
Gallery
Specifications | |
---|---|
Brand: | Sharp |
Manufacturer: | Sharp |
Model: | 13N-M100B |
Series: | N |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | X3354CEN1 |
Comb Filtering: | None |
Flyback: | BSC21-2603S |
Tube: | A34EJM34X076 , A34EJM34X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | H0143PE-M |
Yoke Horz. Inductance: | 3.925 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 30.23 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 5.14 ohm |
Yoke Vert. Resistance: | 16.82 ohm |
Speakers: | Mono |
Remote: | RRMCG1324CESA |
Chassis: | SN-010 |
Weight: | 18.6 lbs (8 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2000 |
Country of Manufacture: | Malaysia |
Degaussing: | Automatic on Power-on |
